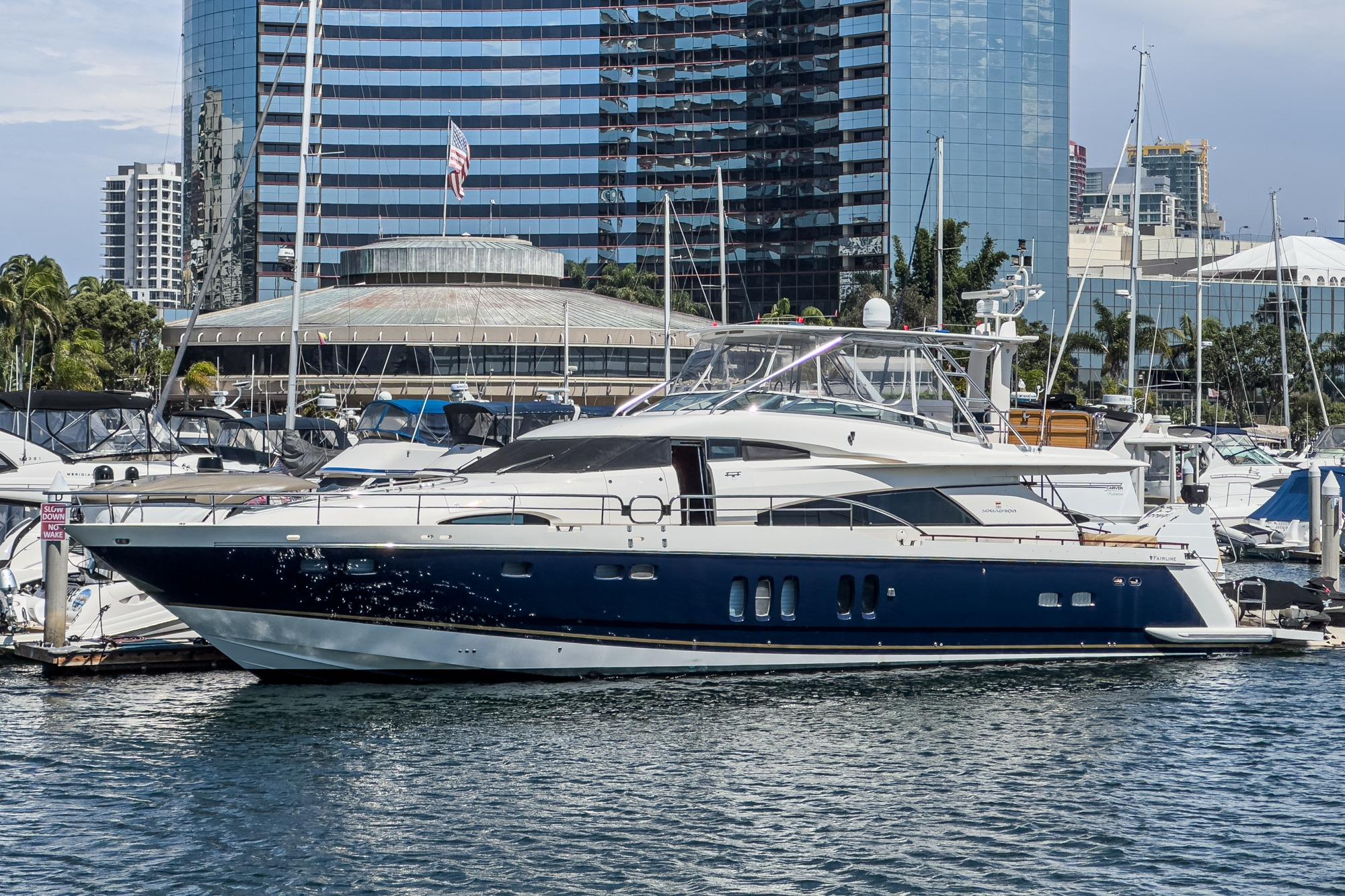

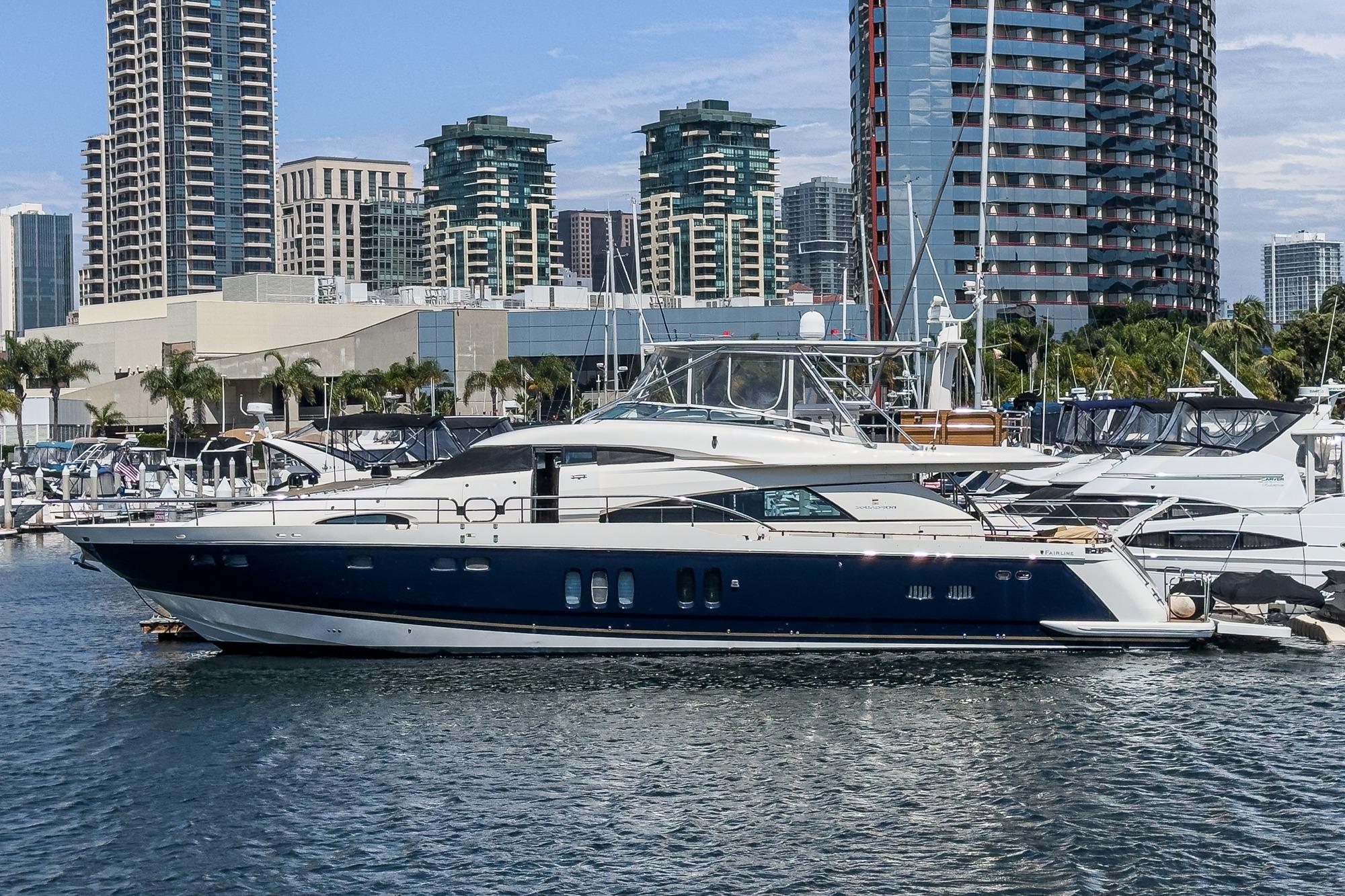

Everything we've learned in building fine motors yachts is embodied in the award-winning Squadron 74. From the thoroughly proven sea-going hull form to the smallest detail of the cabinetry, we have drawn on the lessons learned across 10,000 Fairline boats to create a grand luxe motor yacht quite without peer. From design concept to computer model to full-size walk-through mock-up, absolutely nothing has been left to chance; every inch of this boat fits a precise design purpose. Quite simply, the Squadron 74 is the embodiment of what a luxury performance motor yacht should be; and without equal.

• All 240 volt and 24-volt circuits are protected by circuit breakers on main electrical load control panel beside helm position
• Remotely and manually operated isolating switches for all batteries
• Heavy duty electrical panel located in service corridor
• All 12v equipment supplied from separate battery
• All stern gear, engines, fuel tanks, etc. are electrically bonded
• Emergency boat system shutdown switch.
• 12 Volt: 1 x 200 Ah gel battery
• 1 x 60 amp battery charger.
• 24 Volt: 2 x 200 Ah gel batteries exclusively for starting each engine
• 4 x 200 Ah gel battery capacity for domestic services
• 24v - 12v 20 amp converter
• Battery coupling system permits either bank of batteries to start either engine
• Battery isolating switches located in service corridor.
• 240 Volt: 2 x 17.5 kW Onan generators with through-hull exhausts
• 1 x 100amp regulated charger with 2 x 3 amp slave to port and starboard batteries
• 1 x 75 amp battery charger
• Twin 63 amp x 100' shoreline sockets stowed in drums via Glendinning cable master
• Polarity check and earth leakage trip protection system
• 2 x 18 kva isolation transformers each with soft starts.

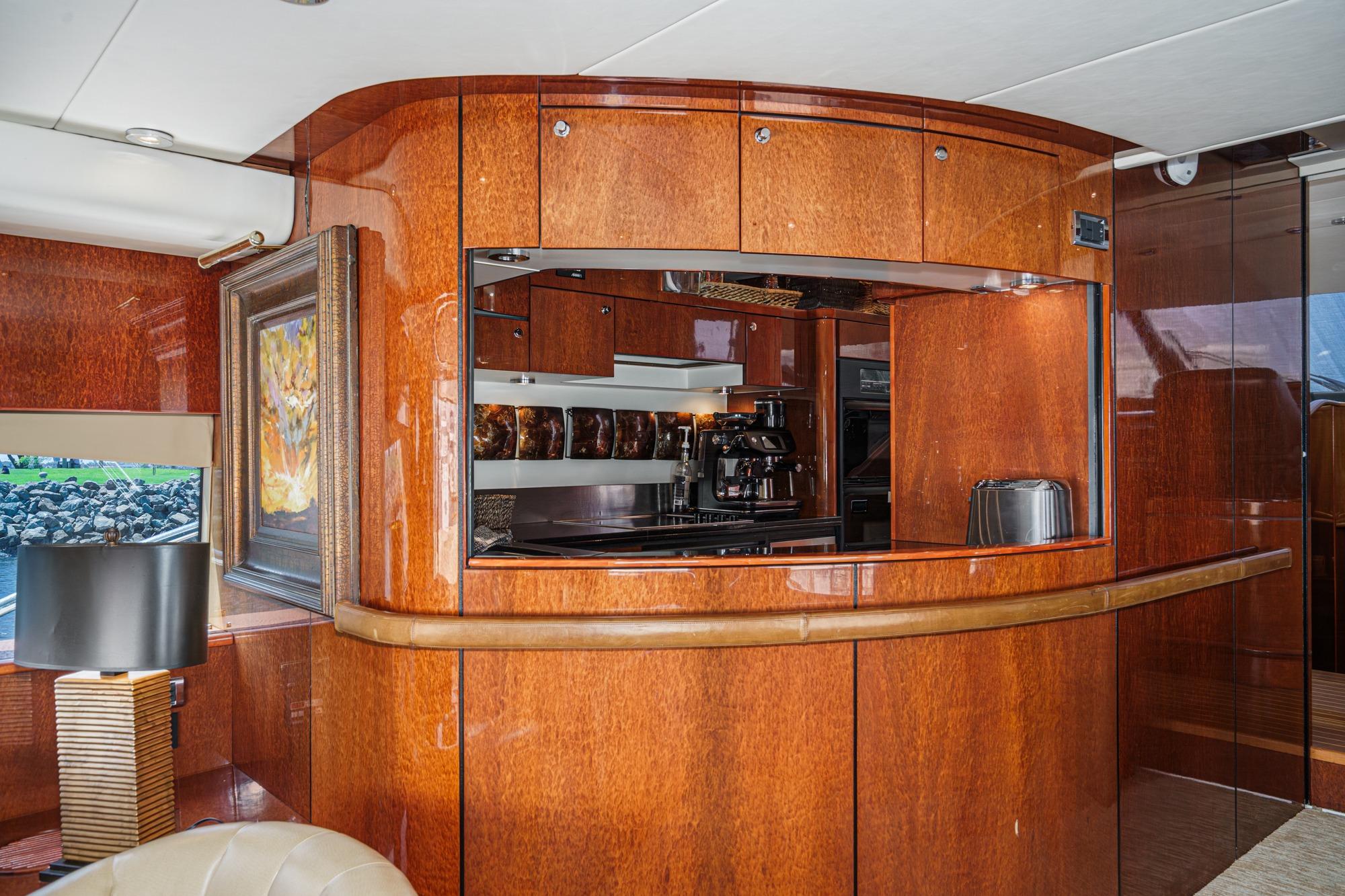

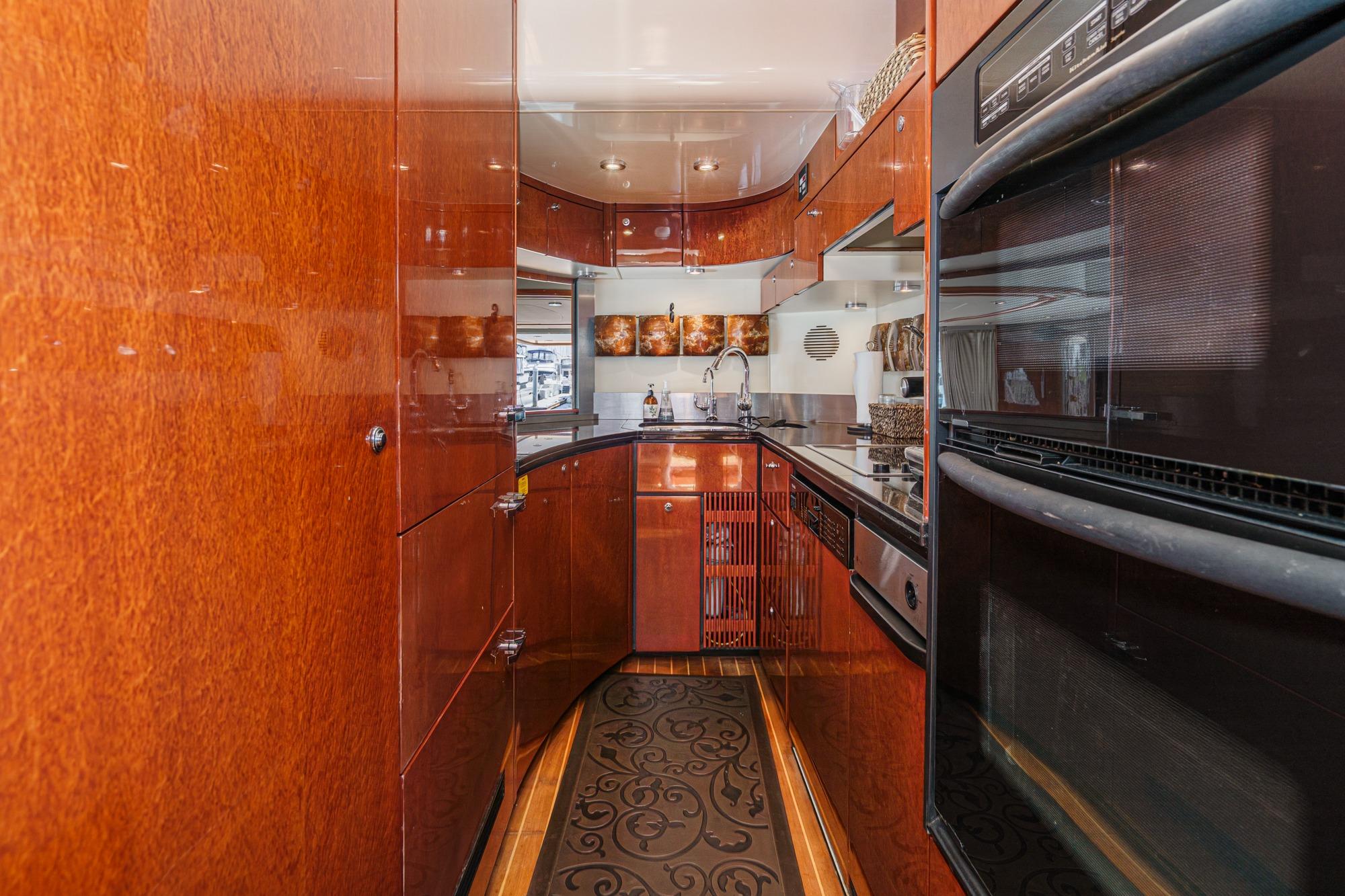

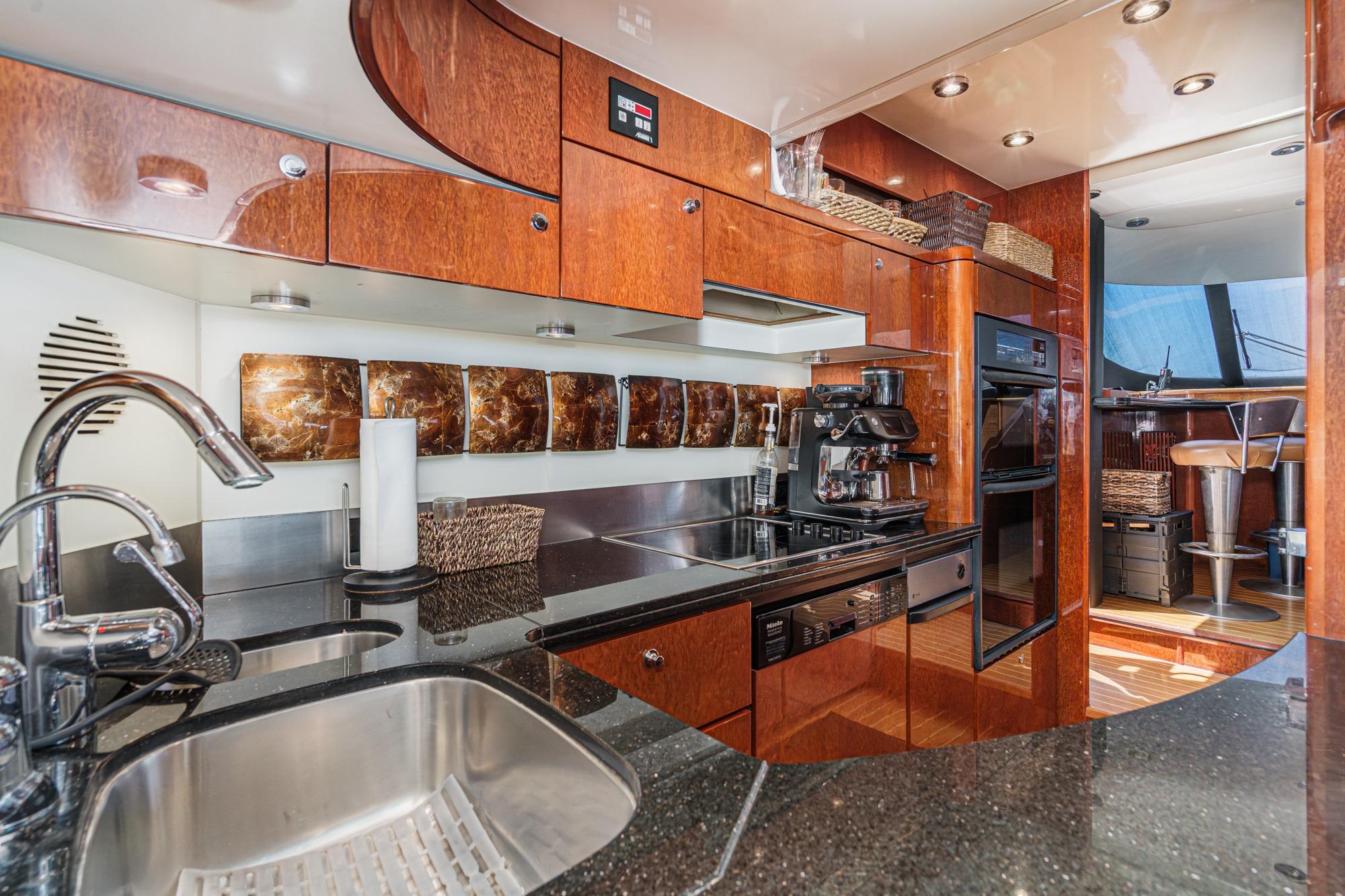

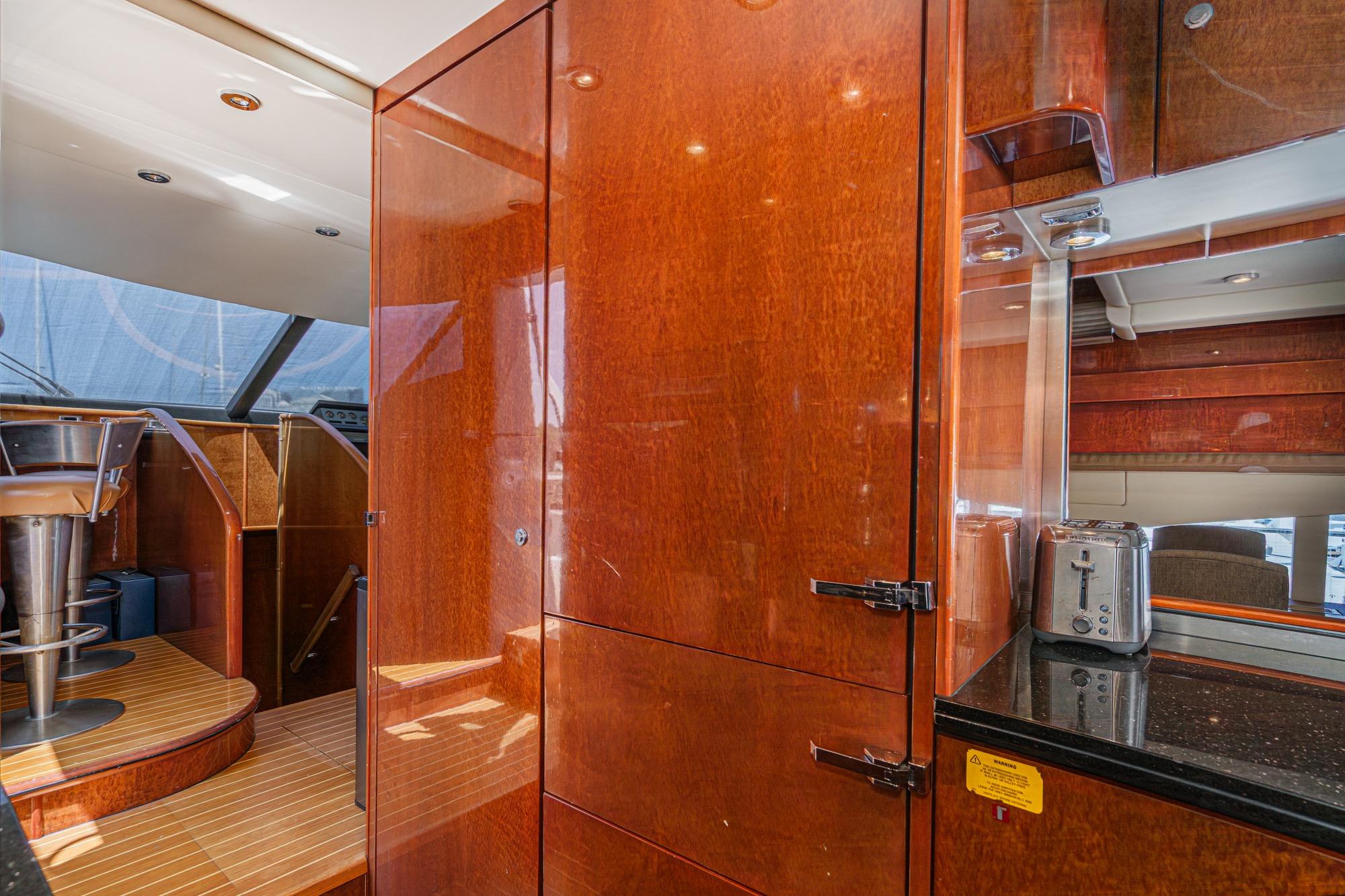

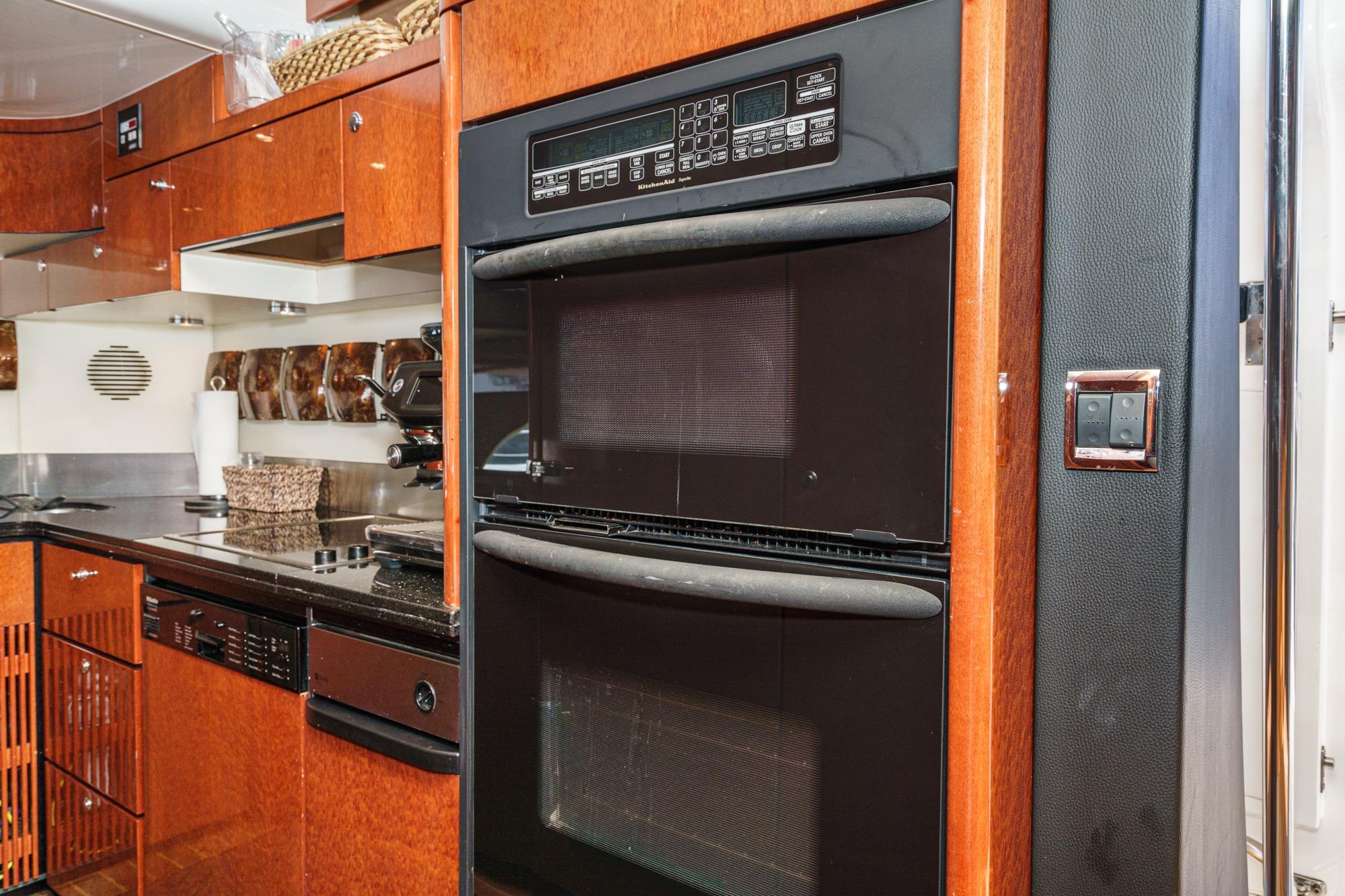

• Open plan galley with powered window screen for saloon privacy
• Optional 'walk-through' galley arrangement
• Twin sinks
• 4 x halogen electric cooking elements
• Combination microwave oven
• Extractor hood
• Full height fridge/freezer
• Dishwasher
• High and low-level storage cupboards
• Trash compactor
• 240v power points

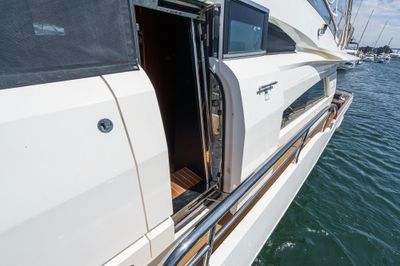

• Direct access to deck via side door.

• Teak Laid complete main deck forward and aft.
• Service corridor accessed via cockpit and transom door.
• Warp and fender storage lockers.
• Various cockpit lockers.
• Dockside TV and phone inlets.

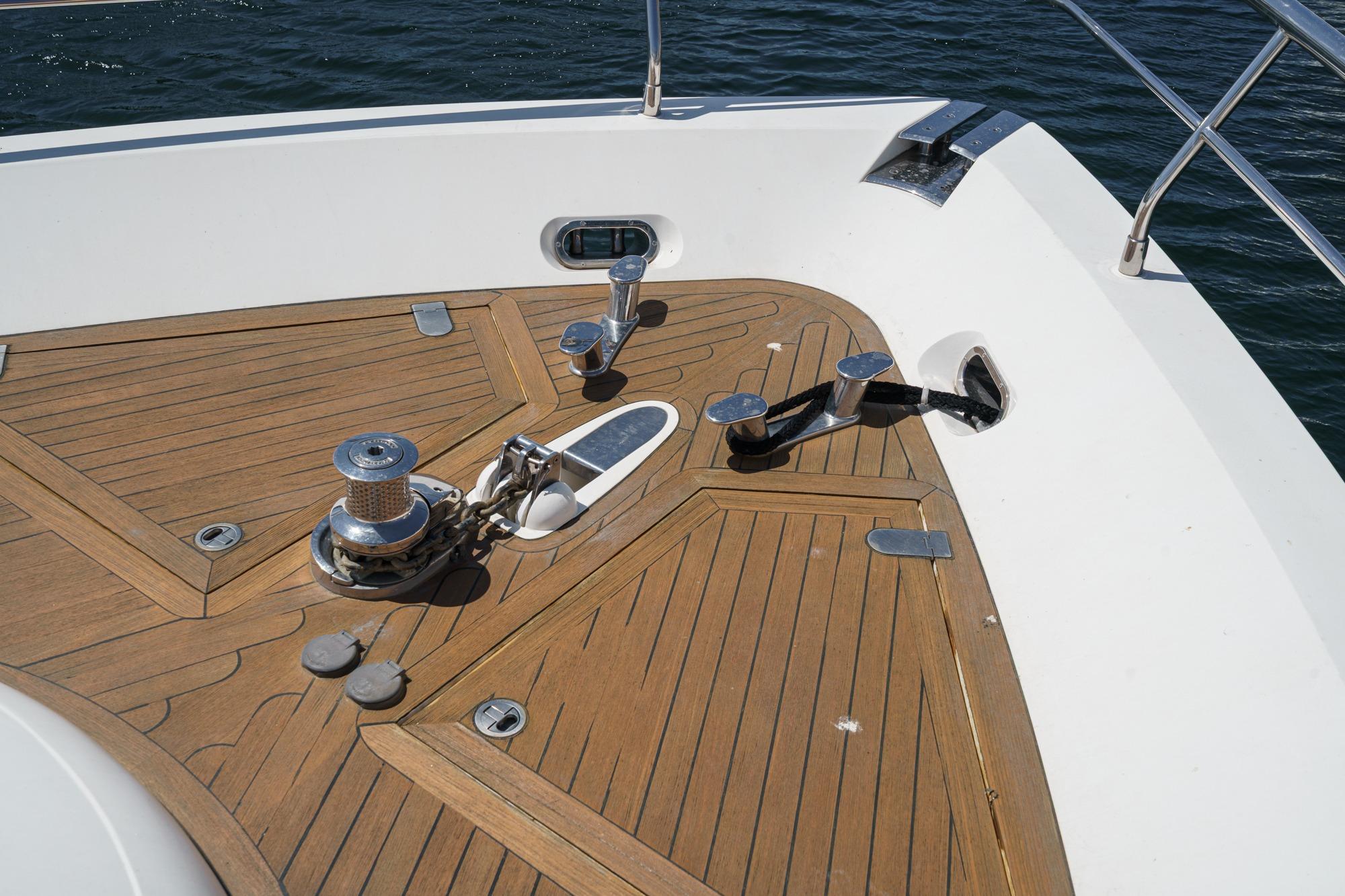

• Stainless steel through-hull anchor roller
• Anchor chain locker access hatches
• Hydraulic anchor winch with controls on deck and remote mounted at both helm positions
• 40kg anchor
• 50 fathoms calibrated chain
• Stainless steel hull protection plate under bow

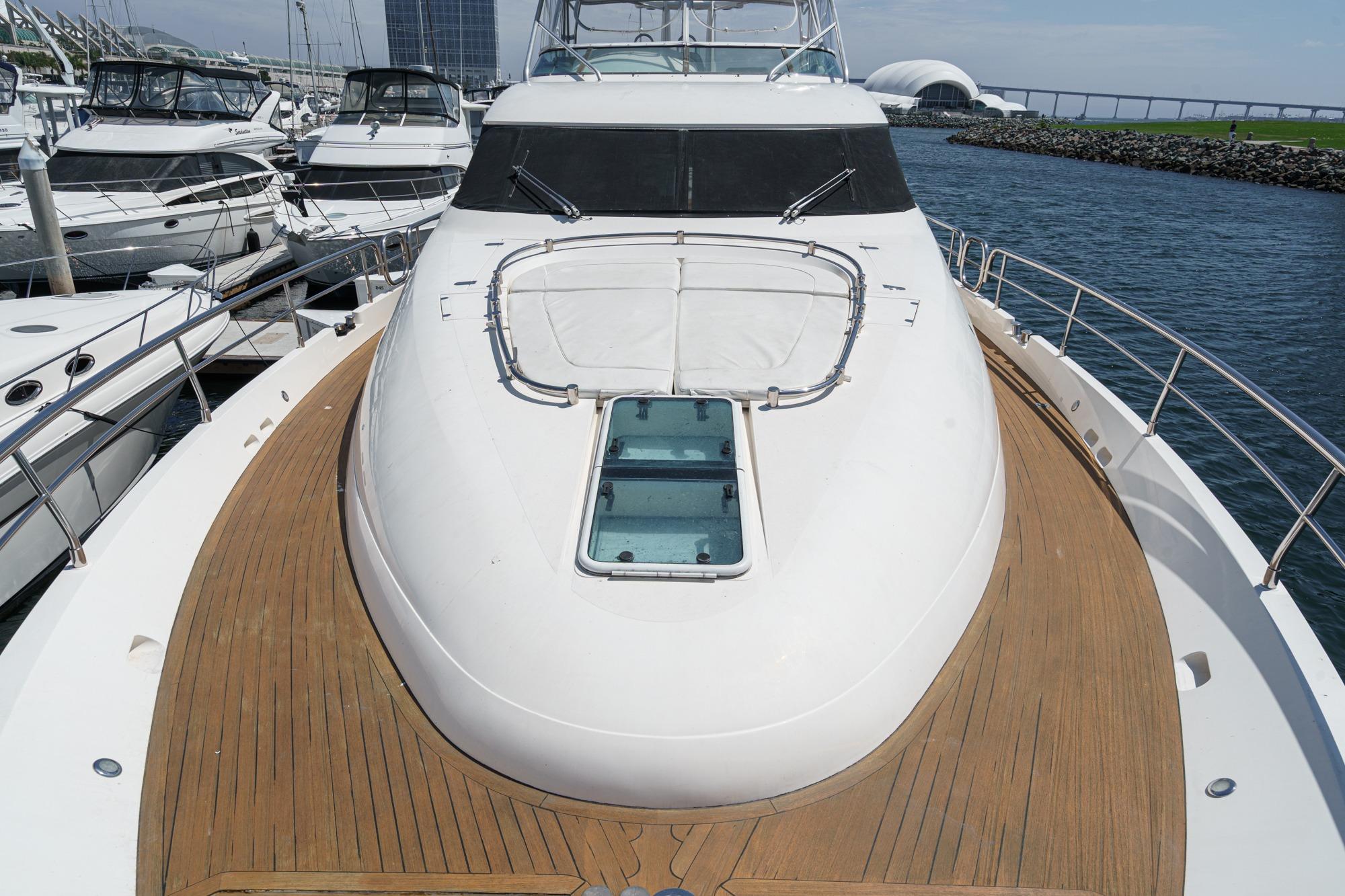

• Teak-laid side decks
• Twin bow stern and transom cleats in stainless steel
• Two pairs of spring cleats in stainless steel
• Pair of stainless-steel fairleads forward and mooring drums aft
• Stainless steel pulpit and coach roof grab rails
• Warp/fender stowage in lockers on port and starboard sides of coach roof
• 8 x large fenders
• 6 x 50' warps
• Transom ladder
• Hot and cold transom shower
• Remote control concealed telescopic electro-hydraulic passerelle
• Deck wash points fore and aft
• Concealed fuel fillers port and starboard
• Water fillers to port and starboard

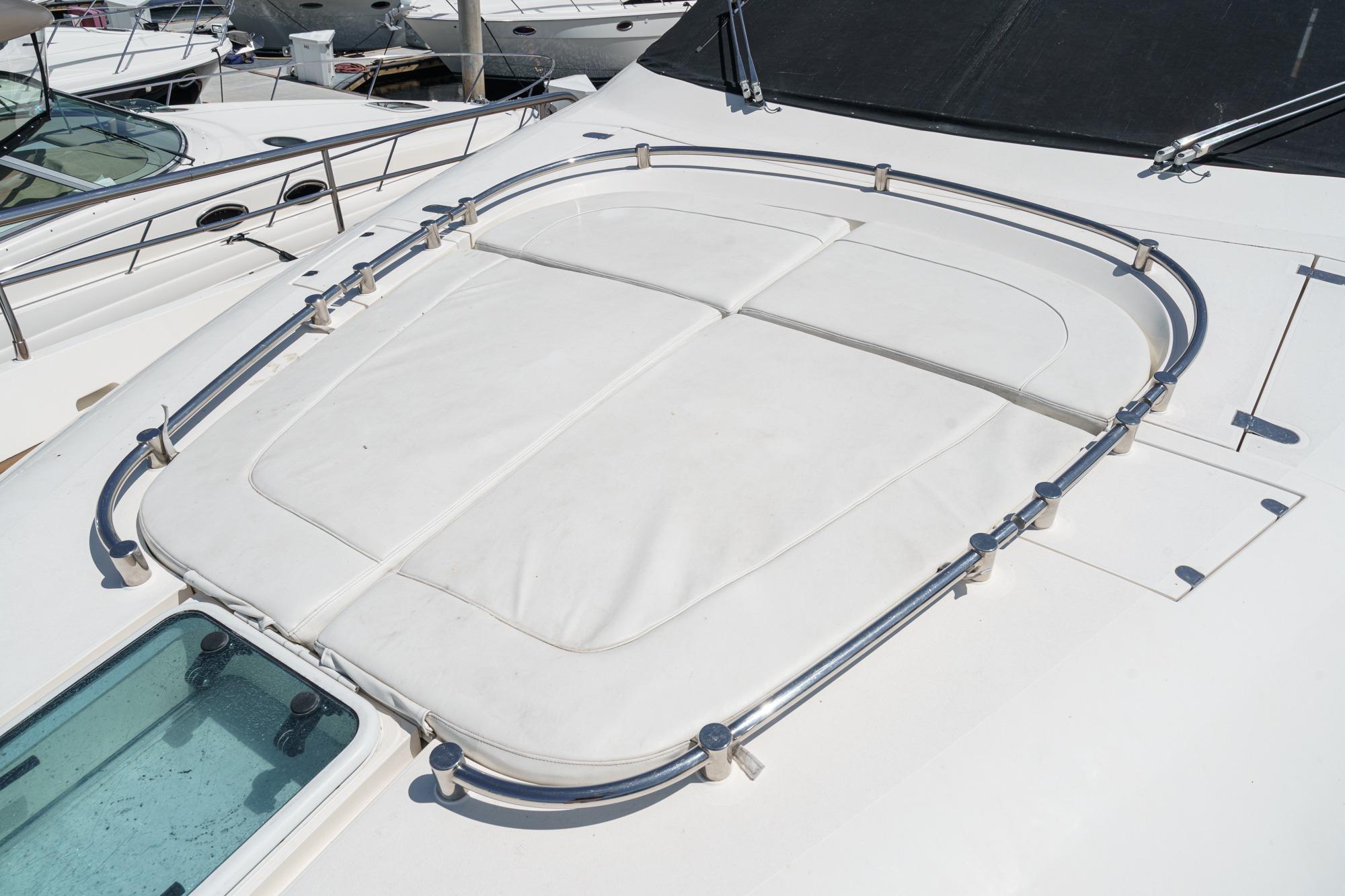

• Sunbathing cushions for coach roof filled with non-absorbent foam
• Various deck head ventilators
• Full set of IMCO navigation lights
• Pantograph stainless steel windscreen wipers
• Stainless steel-framed windscreen

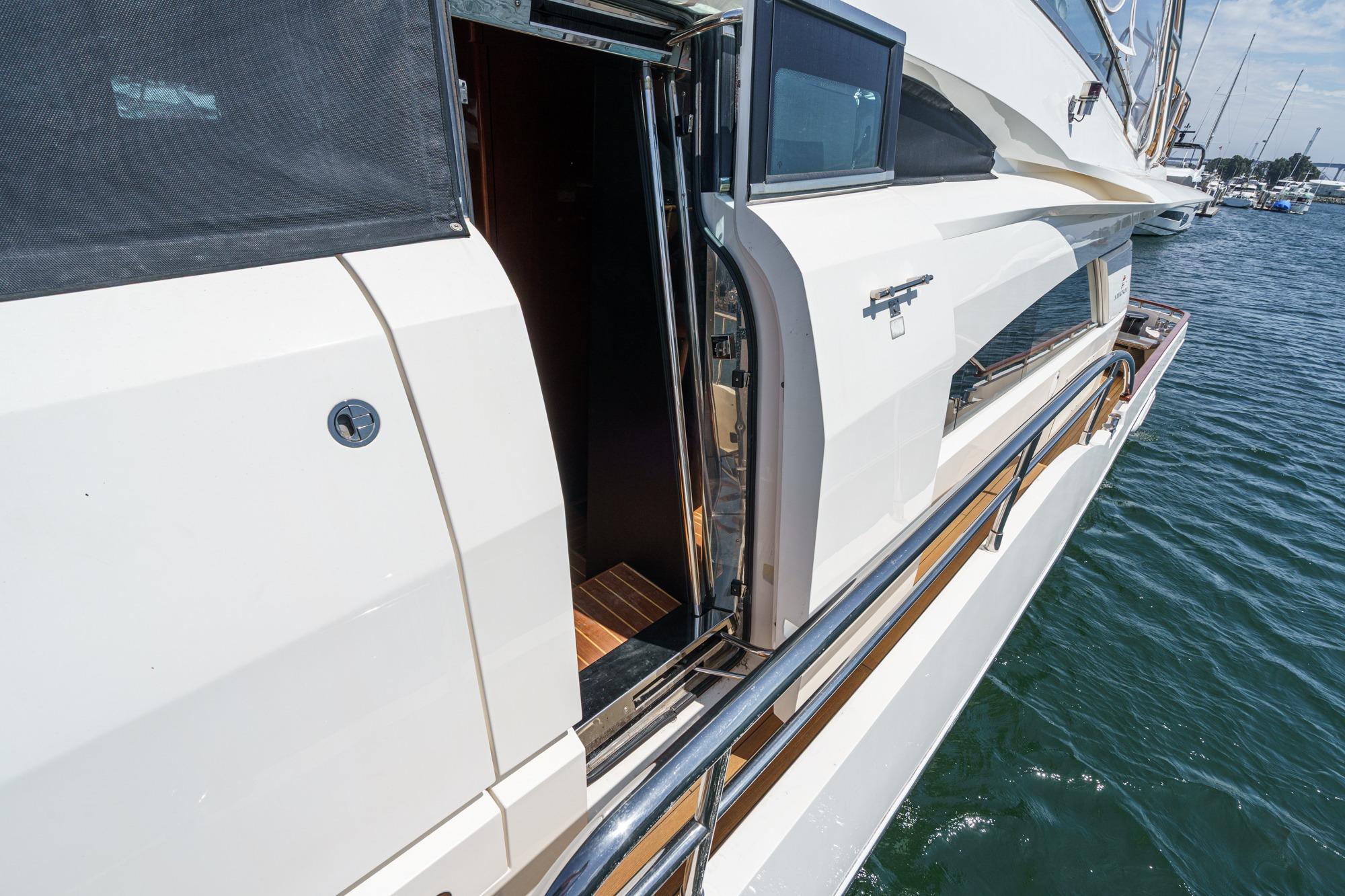

• Separate side boarding ladder with port and starboard side access gate

• Access through cockpit floor hatches to engine bay and service corridor
• Engine bay soundproofing
• Water-cooled through-hull engine silencers
• Engine bay fire extinguisher system
• High corrosion-resistant TEMET shafts
• Large diameter contra-rotating Manganese Bronze propellers
• Manganese Bronze 'P' brackets and rudders
• Cathodic protection to all underwater gear
• Dripless shaft seals
• 'Reverso' Oil change system
• Automatic high-capacity bilge pumps for rudder, engine bay and forward accommodation
• High-capacity emergency manual bilge pump system with changeover valve
• Engine air intakes with high-capacity ventilation fans
• Engine bay lights
• 240v power points
• Lever sea cocks on all inlets and outlets located less than 15cm above the waterline
• Exhaust overheats warning system for both engines.

• Designed by Bernard Olesinski and the Fairline design team.
• Deep 'V' forward: 18° deadrise aft.
• Isophthalic gel coat backed by an isophthalic resin-rich powder-bound glass mat.
• All gel coat is laid up by hand, incorporating chopped strand glass mat, unidirectional, biaxial and woven rovings.
• Transverse and longitudinal strengthening stringers throughout hull.
• Full length molded spray deflectors.
• The integral bathing platform gives the boat a longer waterline length for improved performance, particularly at reduced power settings.
• Antifouling.
• Engine bearers are molded into the hull.
• The propellers are set in semi-tunnels enabling the engines to be located further aft whilst also reducing draught and improving efficiency by reducing the shaft angle.
• Hull/deck join is both bonded and through-bolted.
• The deck incorporates polyurethane foam cores for high strength and excellent thermal insulation.
• 25hp bow thruster with controls at both helm positions.

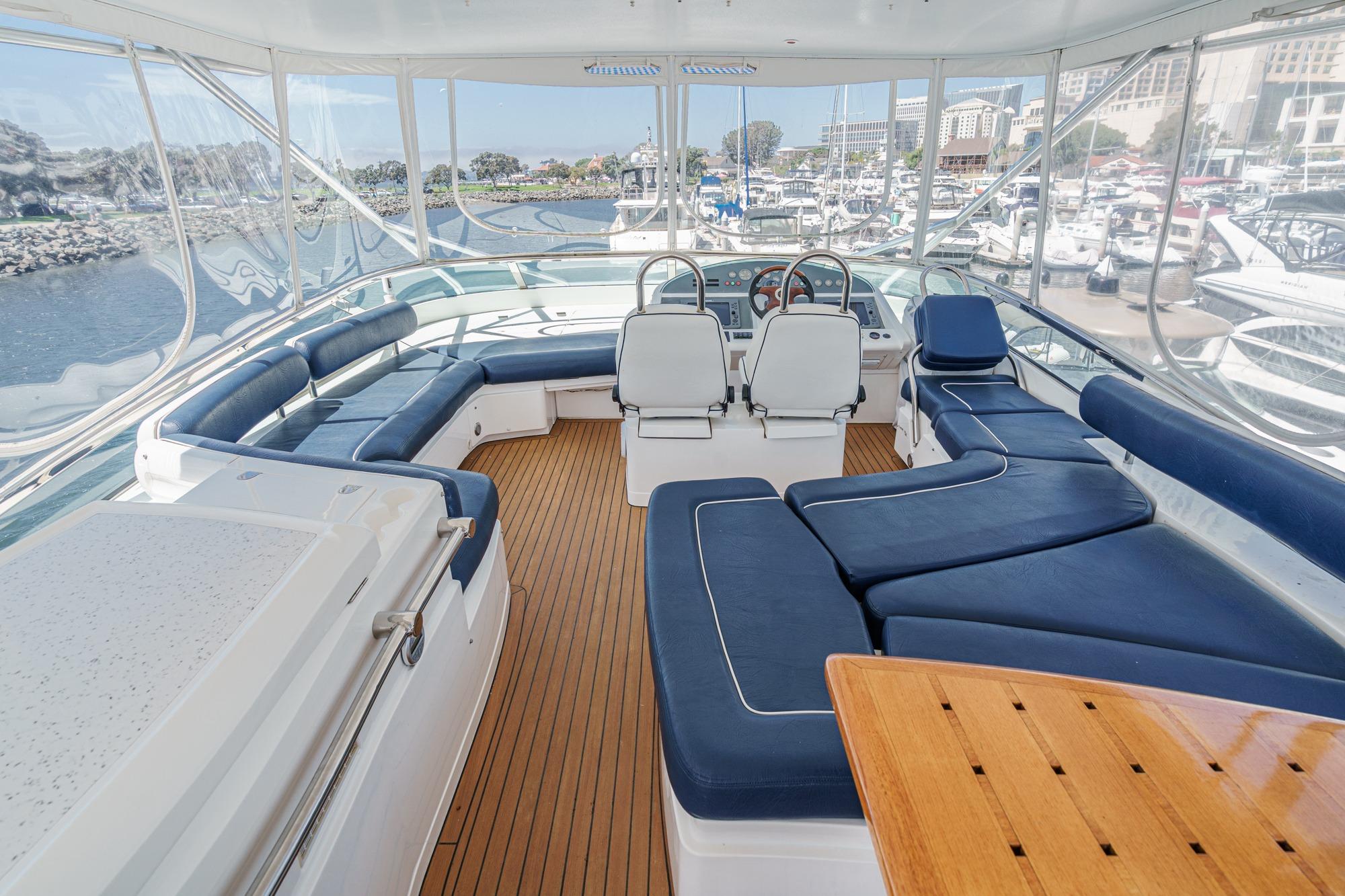

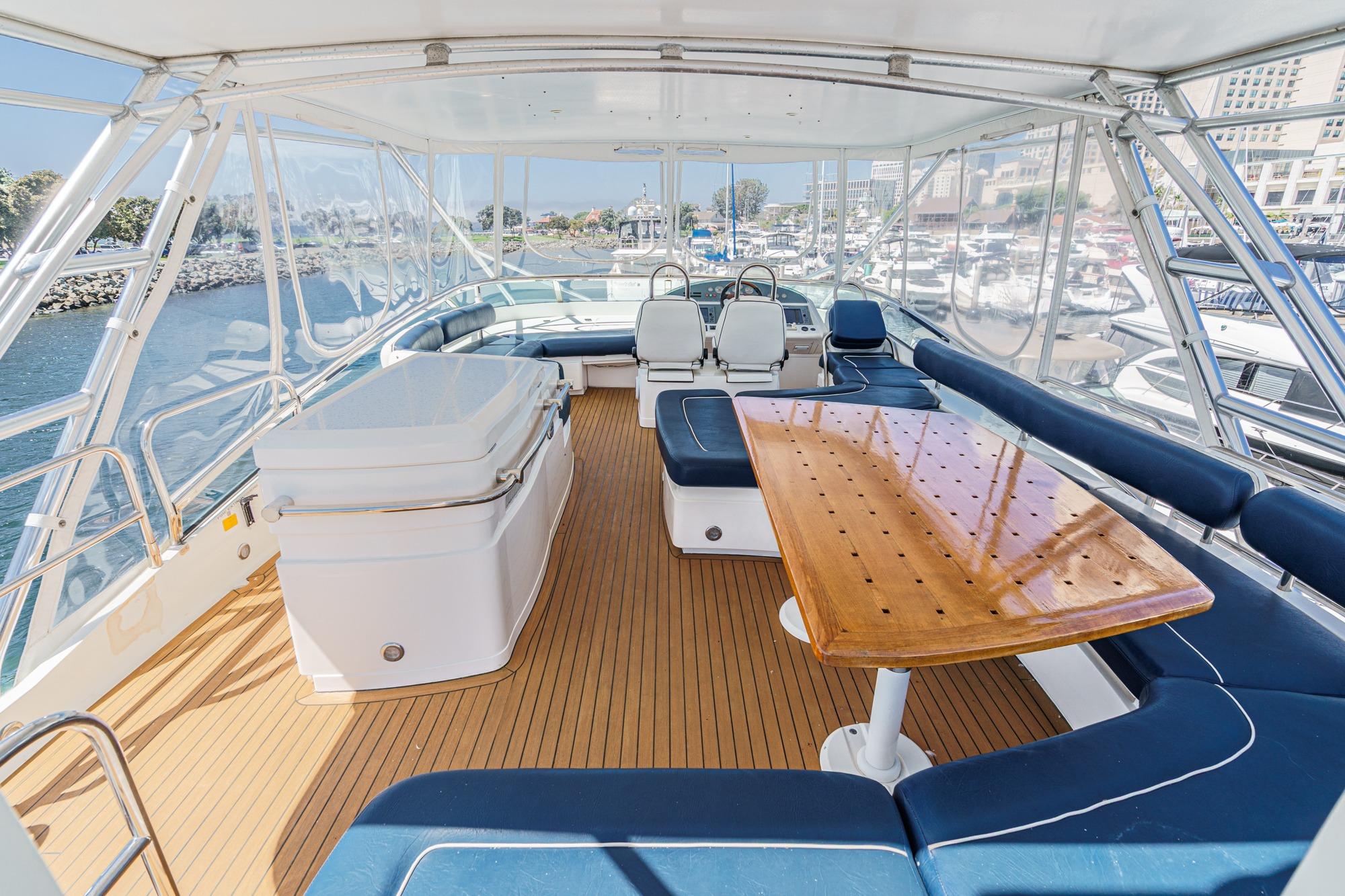

• Teak-laid flybridge floor

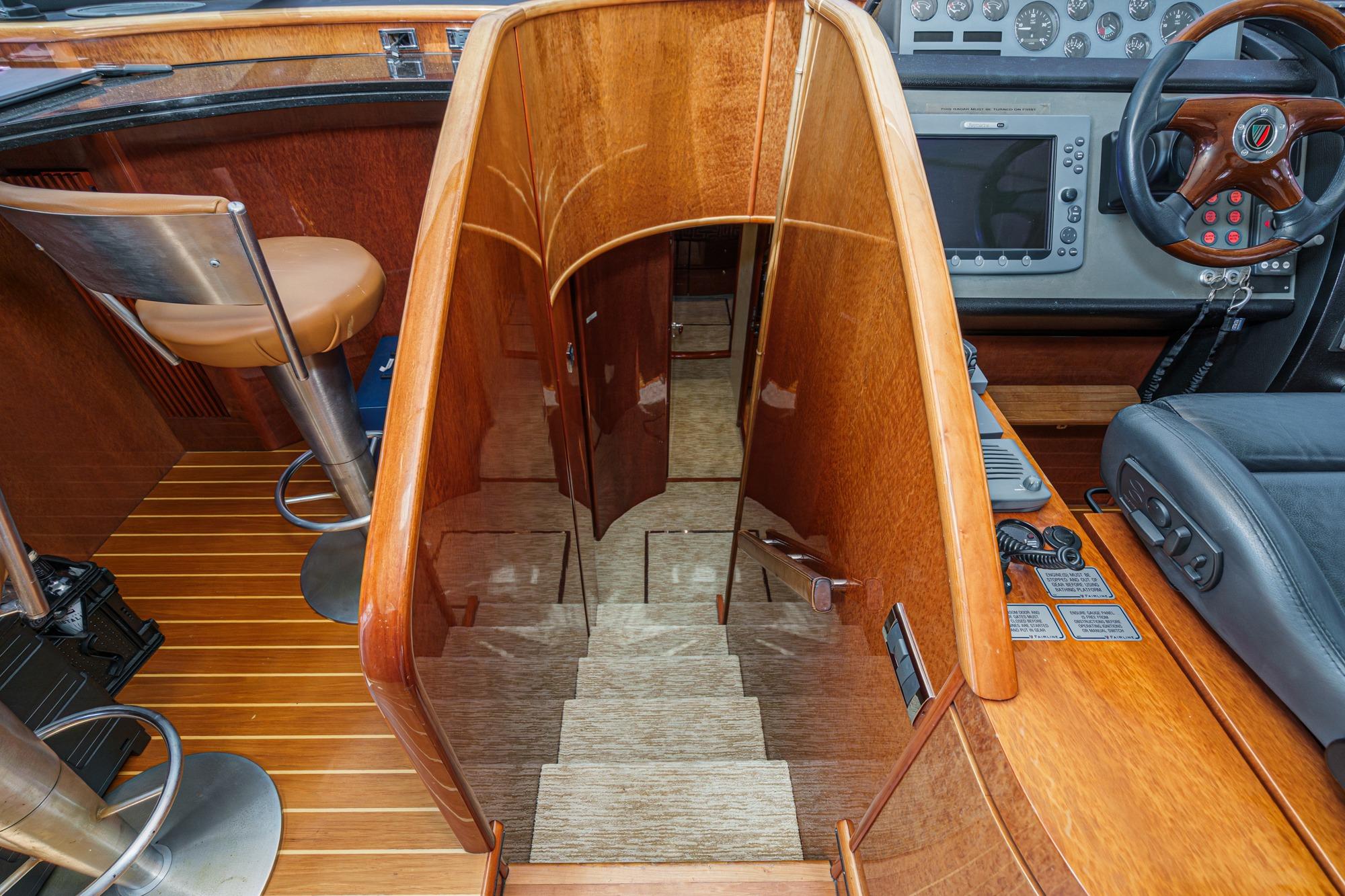

• Access by staircase from wheelhouse and by teak stairway from cockpit

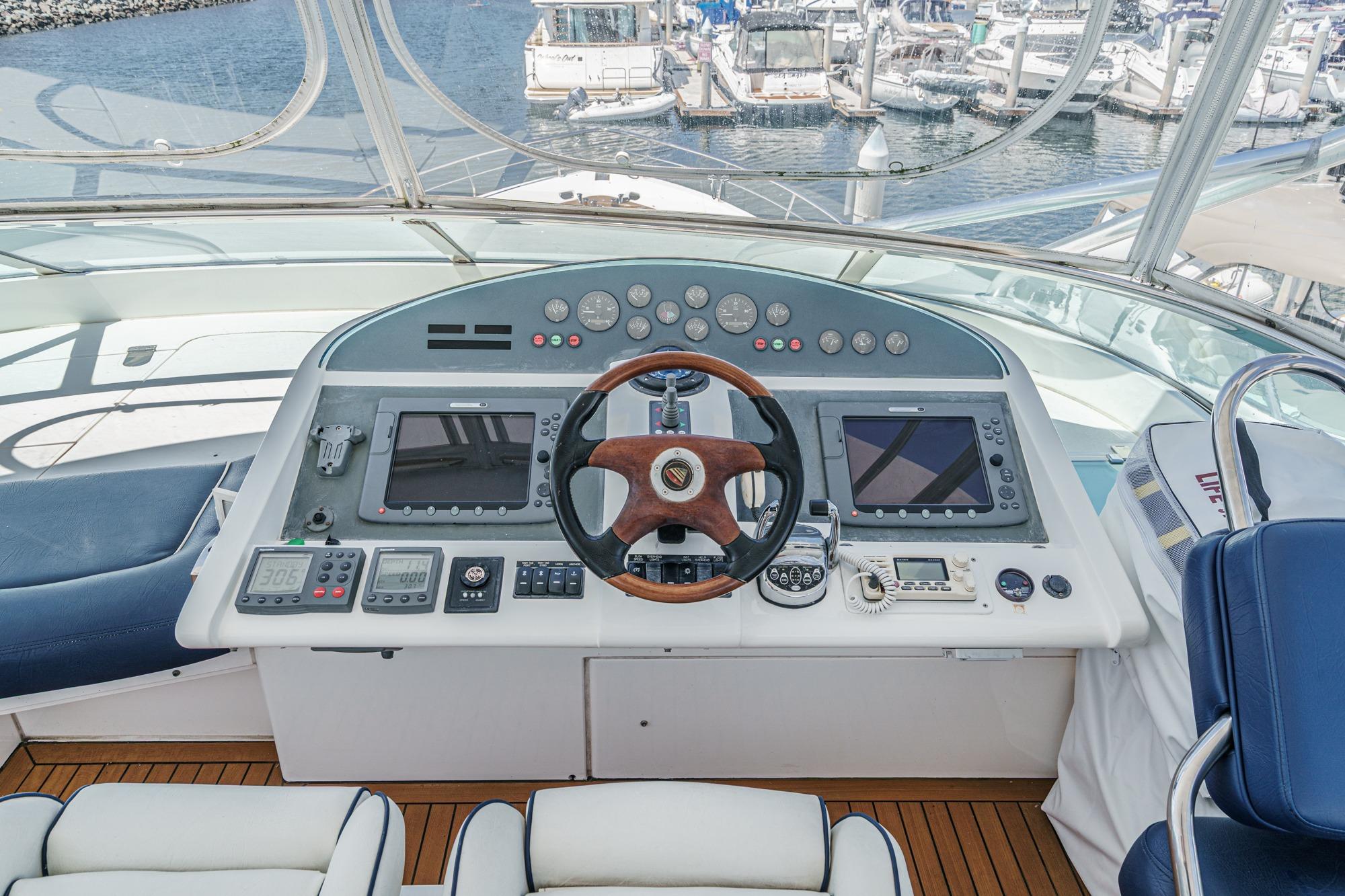

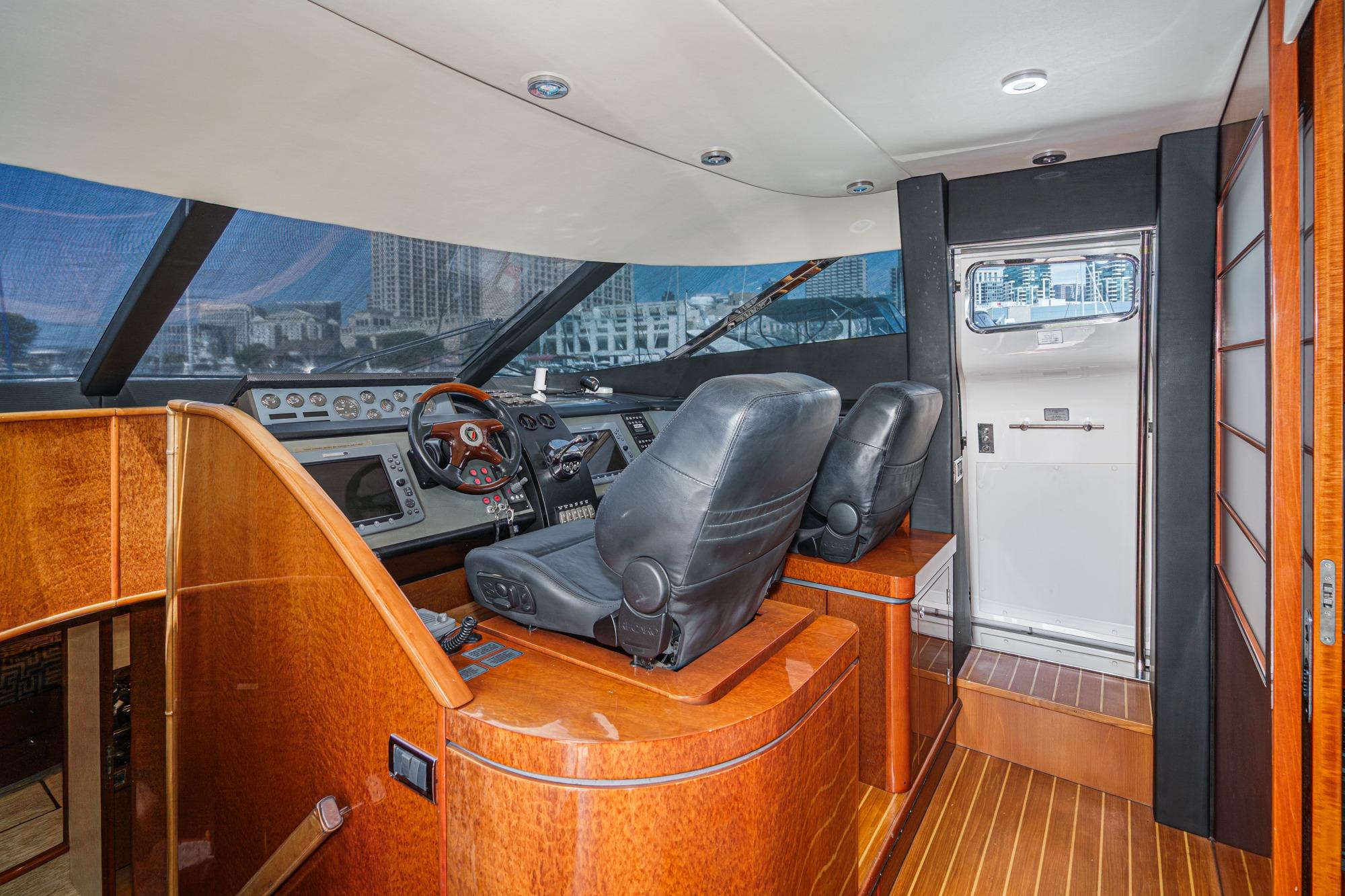

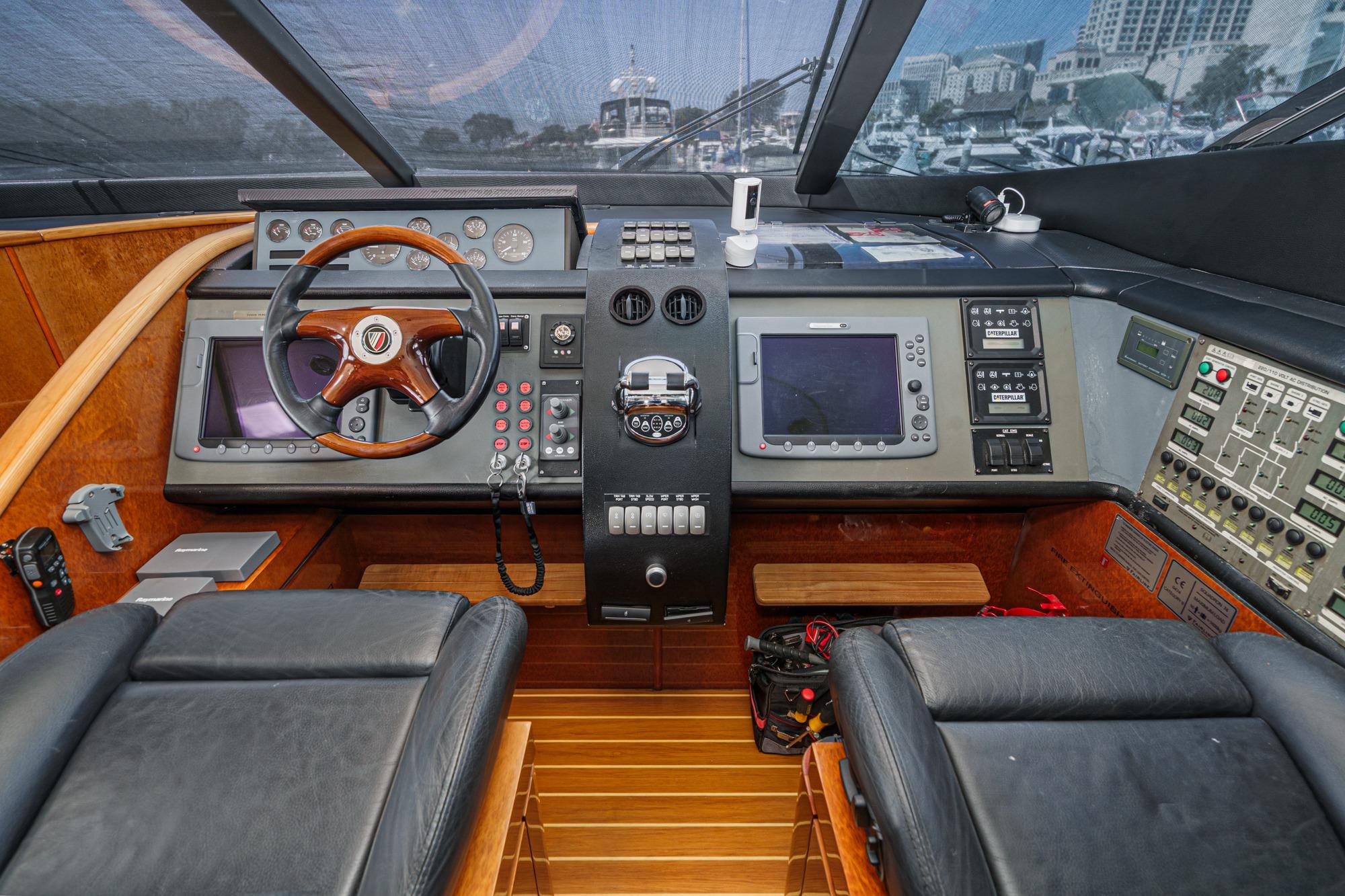

• Two forward facing helm seats
• Co-pilot seat
• Wind screen with grab rail
• Electronic throttles
• Repeat engine instruments
• Repeat autopilot and fire extinguisher controls
• Remote controls for forward anchor winch and searchlight
• Repeat echosounder and log
• VHF R/T
• Horns
• Sound signaling device
• Remote controlled searchlight on mast
• Repeat radar and plotter displays
• Open scanner radar to mast
• Bow thruster control
• Trim tab controls
• Intercom to lower helm

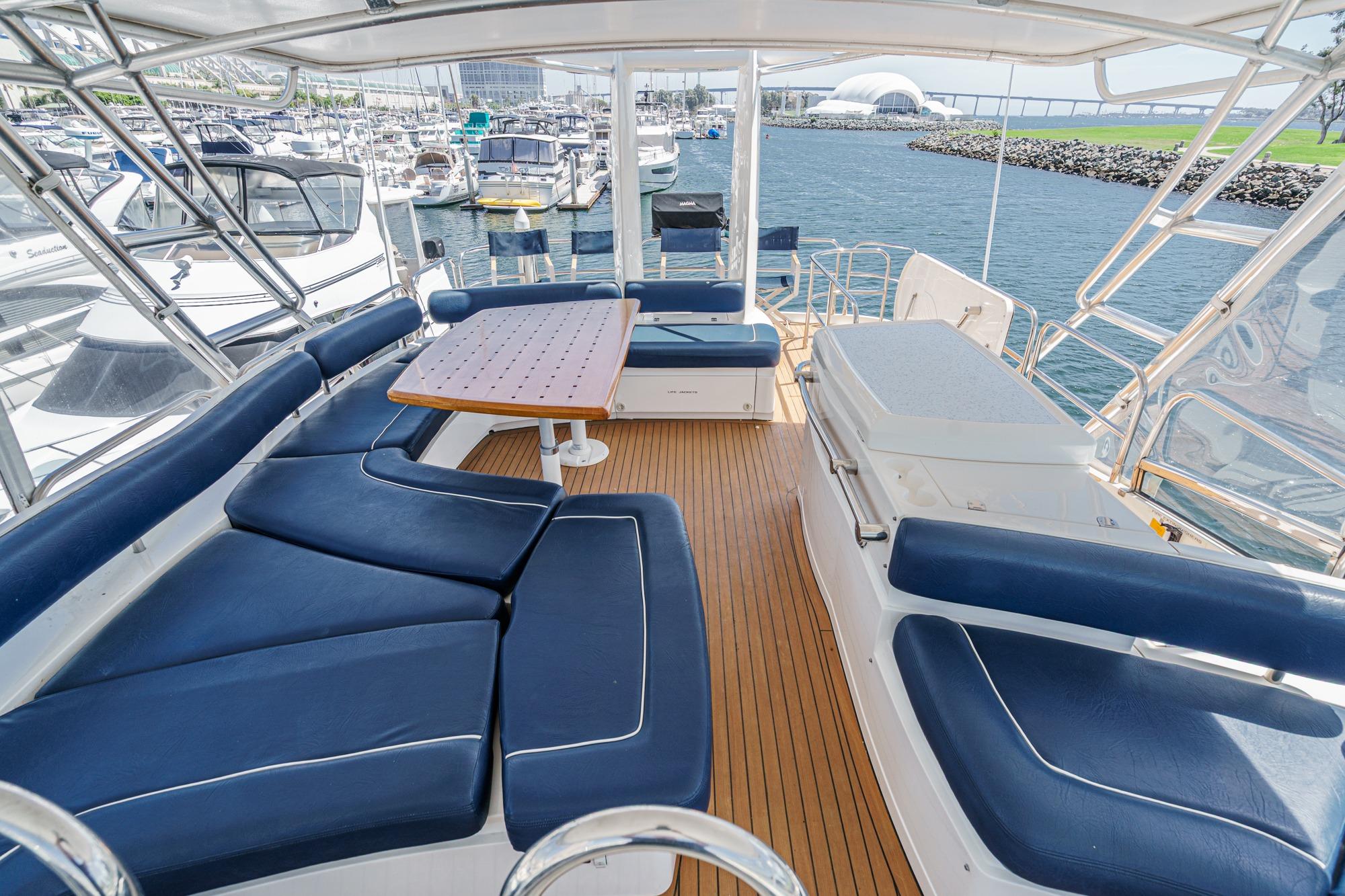

• Large J-shaped dining seating separate from helm
• Electrically adjustable backrest creating extended sunbathing deck

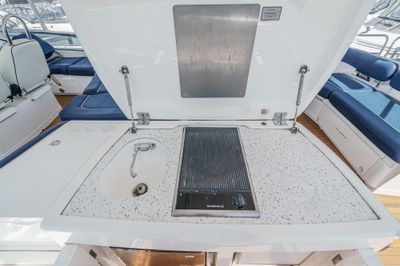

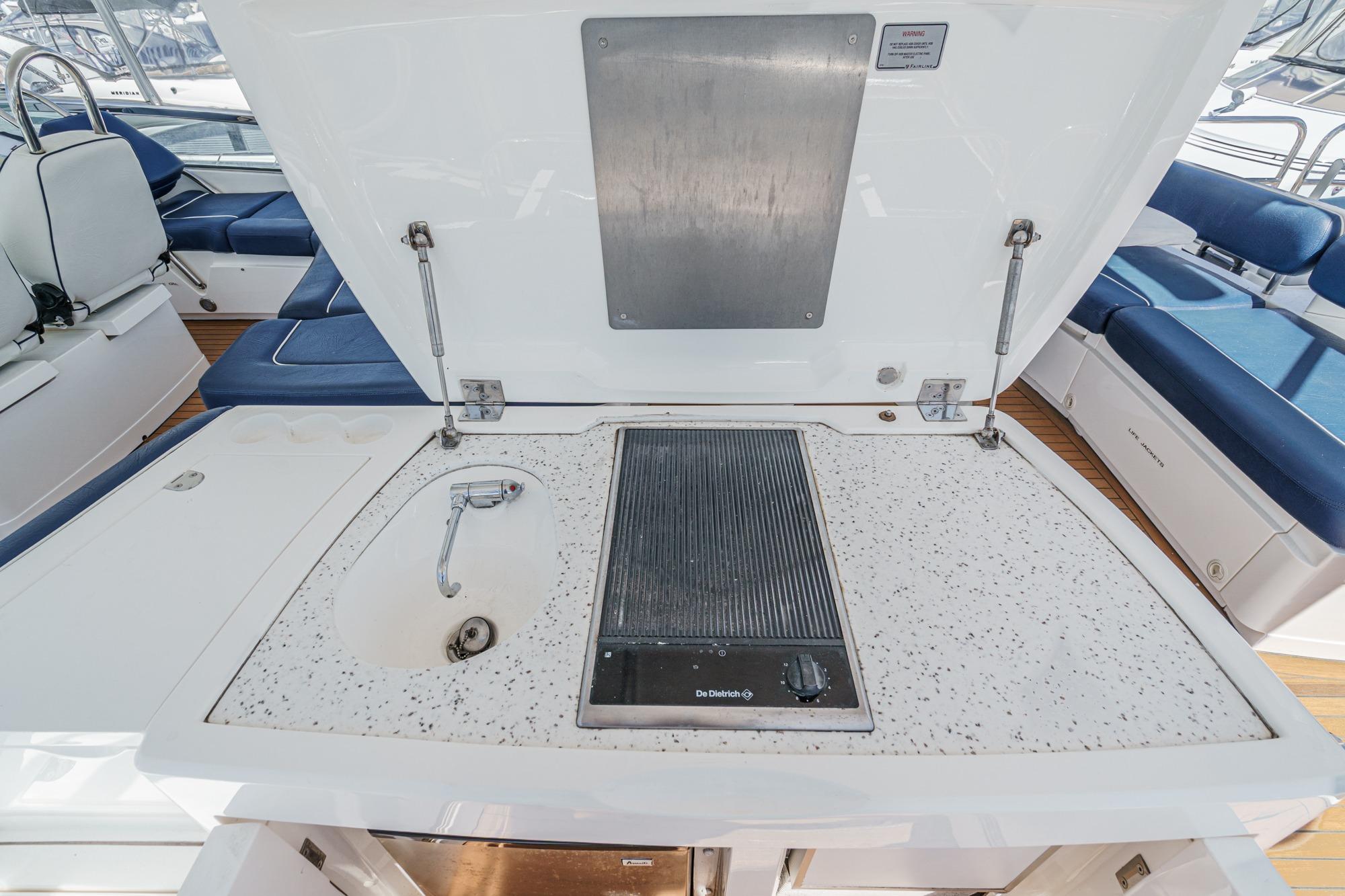

• Flybridge bar complete with refrigerator, sink, electric griddle and icemaker
• Large sunbathing area aft with non-absorbent foam filled cushions
• Stainless steel guardrails
• Twin radar masts.

• 2 x 21.5kvA Onan generators
• Chilled Air conditioning /reverse cycle heating system
• 220v/110v/60Hz electrical system
• Solid stainless steel rubbing strake
• Garbage disposal in galley sink
• Dockside water system with washdown
