YACHT NAME:

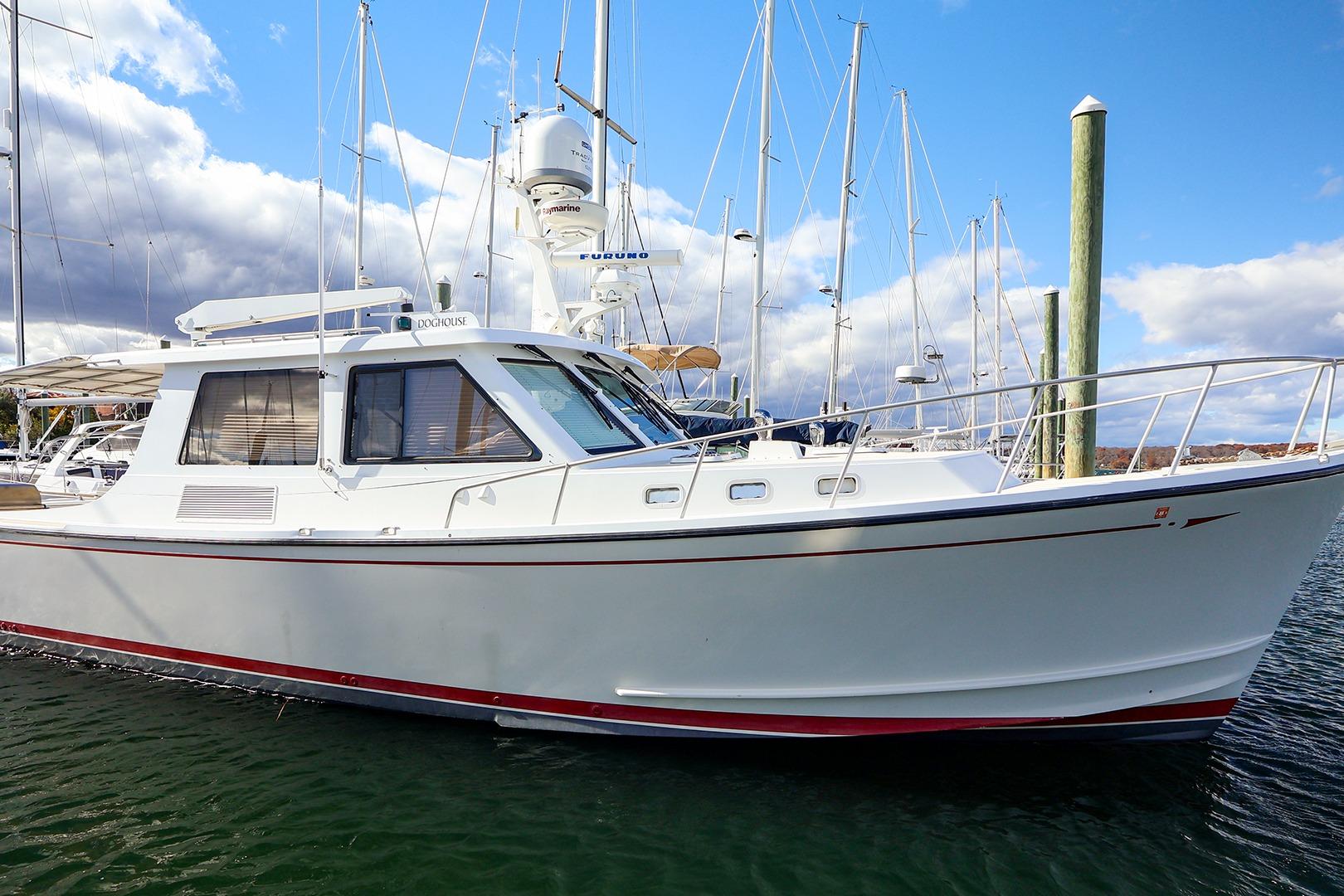

2005 New England Boatworks Downeast Sedan
MODEL:
Downeast Sedan
BUILDER:
New England Boatworks
YEAR BUILT:
2005
LOCATION:
Newport RI
ASKING PRICE:
$365,000
DESIGNER:
Sparkman and Stephens
HULL:
Fiberglass
CATEGORY:
Downeast
DESCRIPTION:

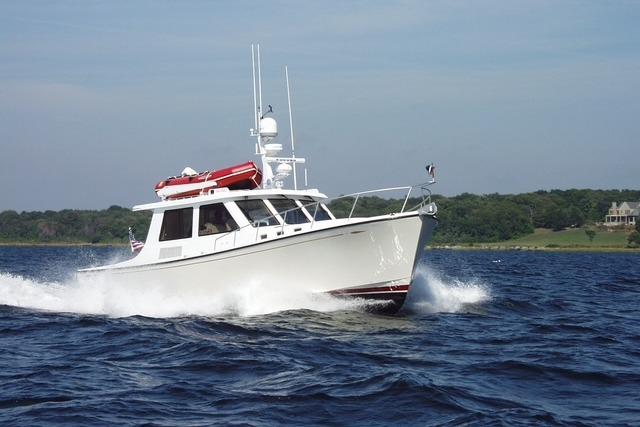

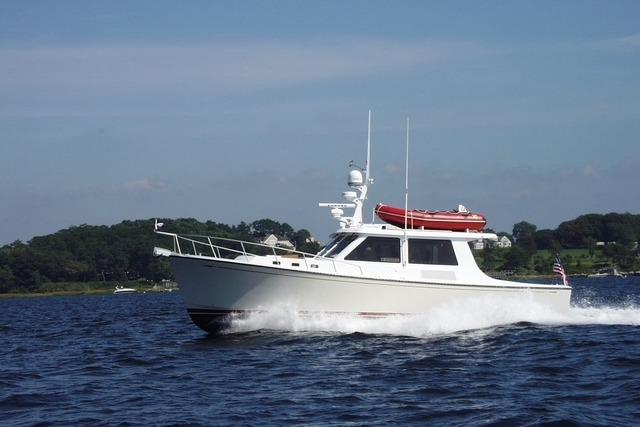

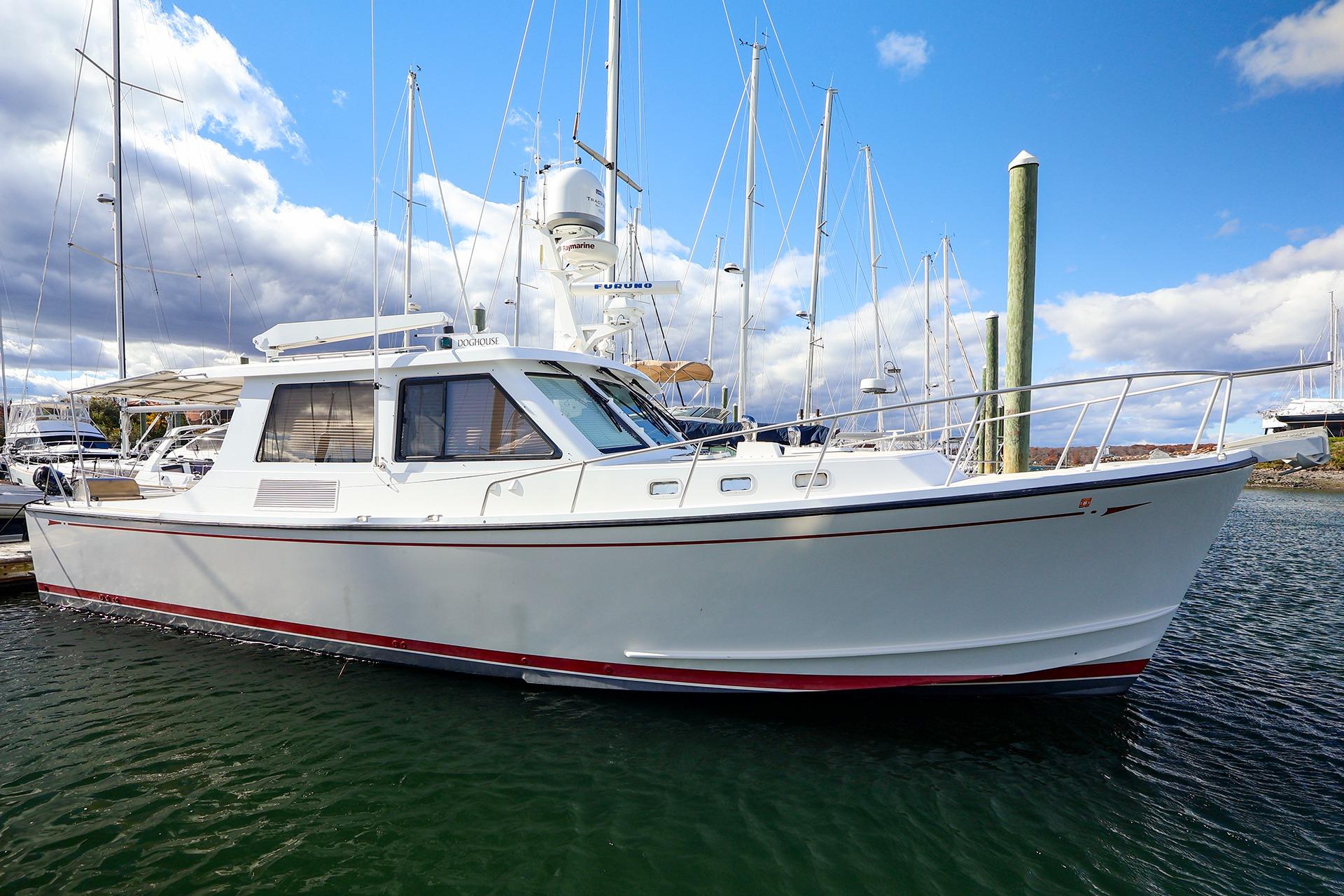

Doghouse was conceived and built by an experienced yachtsman in partnership with the design team at Sparksman and Stephens and the construction team at New England Boatworks. Her many features include a shallow draft, long range, seakindly hull, planing speeds, extensive sound insulation, redundant equipment and low-maintenance exterior - all desirable traits for extended remote cruising in the Bahamas, lower Caribbean and New England waters. Sparksman and Stephens designed a Downeast-style yacht above the waterline, with a modern chined planing hull, moderately-deep propeller tunnels and centerline skeg to fully protect the props. She was custom built by New England Boatworks, experienced builders with a variety of high-tech racing and cruising yachts to their credit.
Additional Information
FROM THE DESIGNER
The hull form and appendages draw on the experience of Sparkman & Stephens in the design of fast, seaworthy motor yachts. Starting at the graceful sheerline, the hull shape draws on the Northeast tradition of working vessels intended to face the challenges of the sea. The forward topsides have an appropriate flare to keep the deck dry while running, while the aft topsides are drafted slightly outboard akin to a working vessel. Below the water, the hull form is a completely modern, chined planing hull, featuring a modified warp and aggressive buttock angles. The vessel is fitted with two moderately deep propeller tunnels whose shapes have been optimized to meet the owner's draft requirements while maximizing propulsive efficiency. The propellers are further protected by a centerline skeg that extends 6" below the propeller tips, yet still the boat has a draft of only 3 feet, 3 inches.

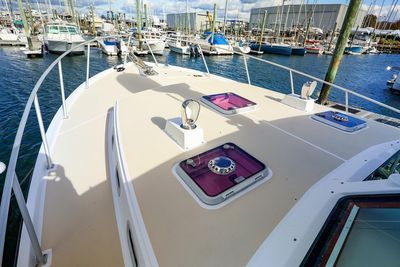

HULL and DECK
Hull and deck are both built of E-glass with epoxy resin, CORE-CELL foam core for added strength, low interior moisture and sound reduction.
- Structural grid stringer system for strength and light weight
- Hull is Light Grey AWLGRIP with red boot stripe and cove stripe and black bottom
- Deck is White AWLGRIP with tan non-skid
- Rub rail at shear level
- Stainless fender clips
- Anchor locker

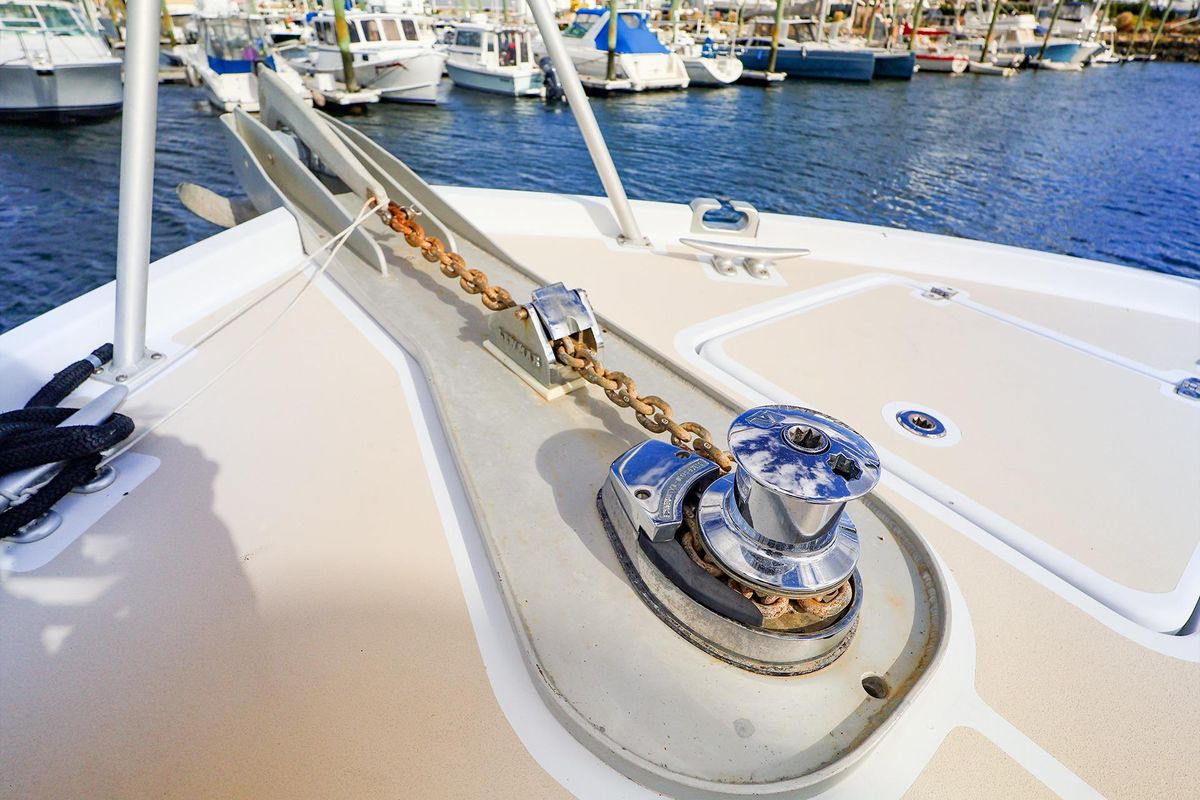

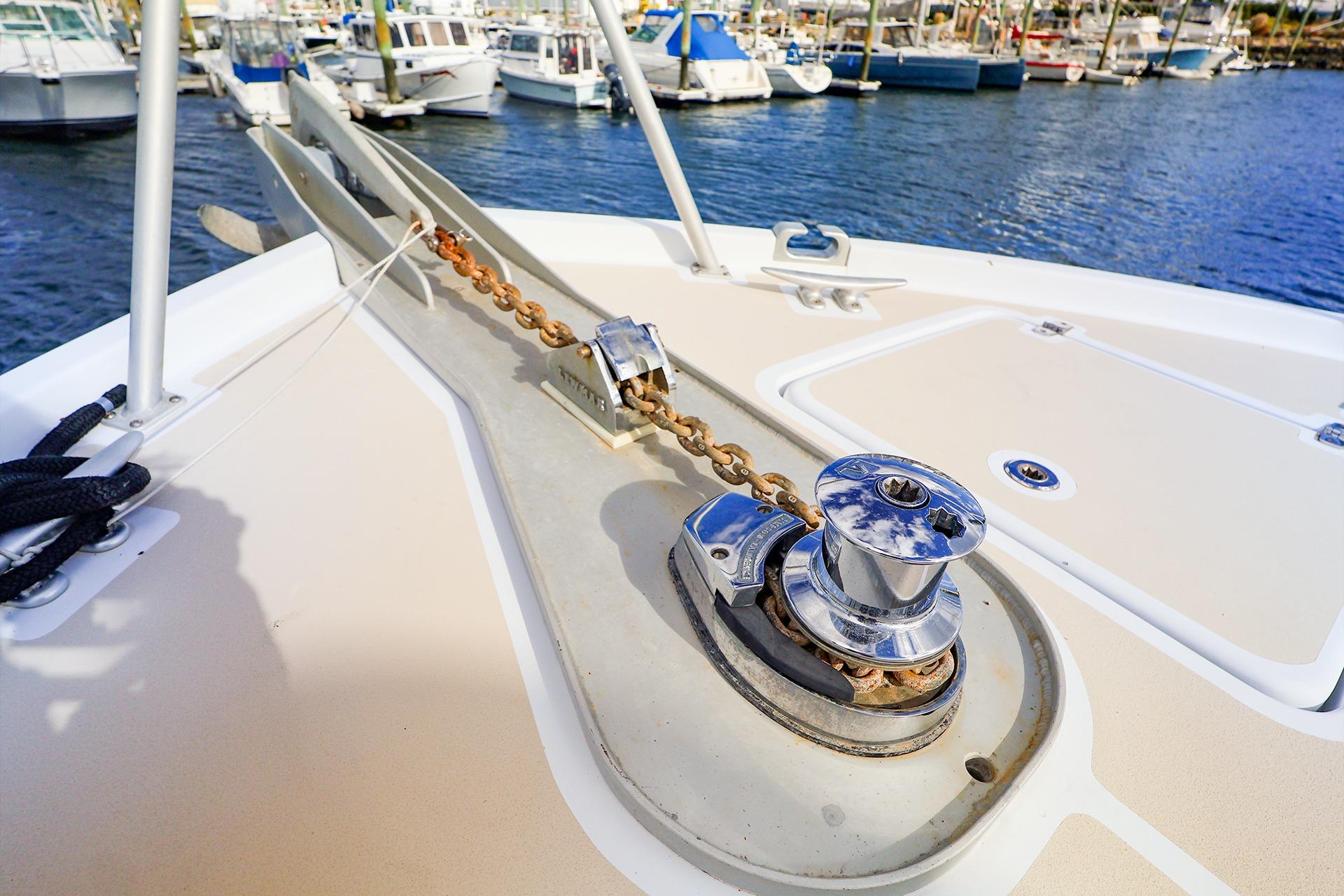

- SIMPSON LAWERENCE windlass controlled at helm and on deck
- BRUCE 44 lb anchor with all chain rode
- FORTRESS secondary anchor with rode and chain
- Fresh water wash down in anchor locker
- Aluminum bow rail, mooring cleats and chocks

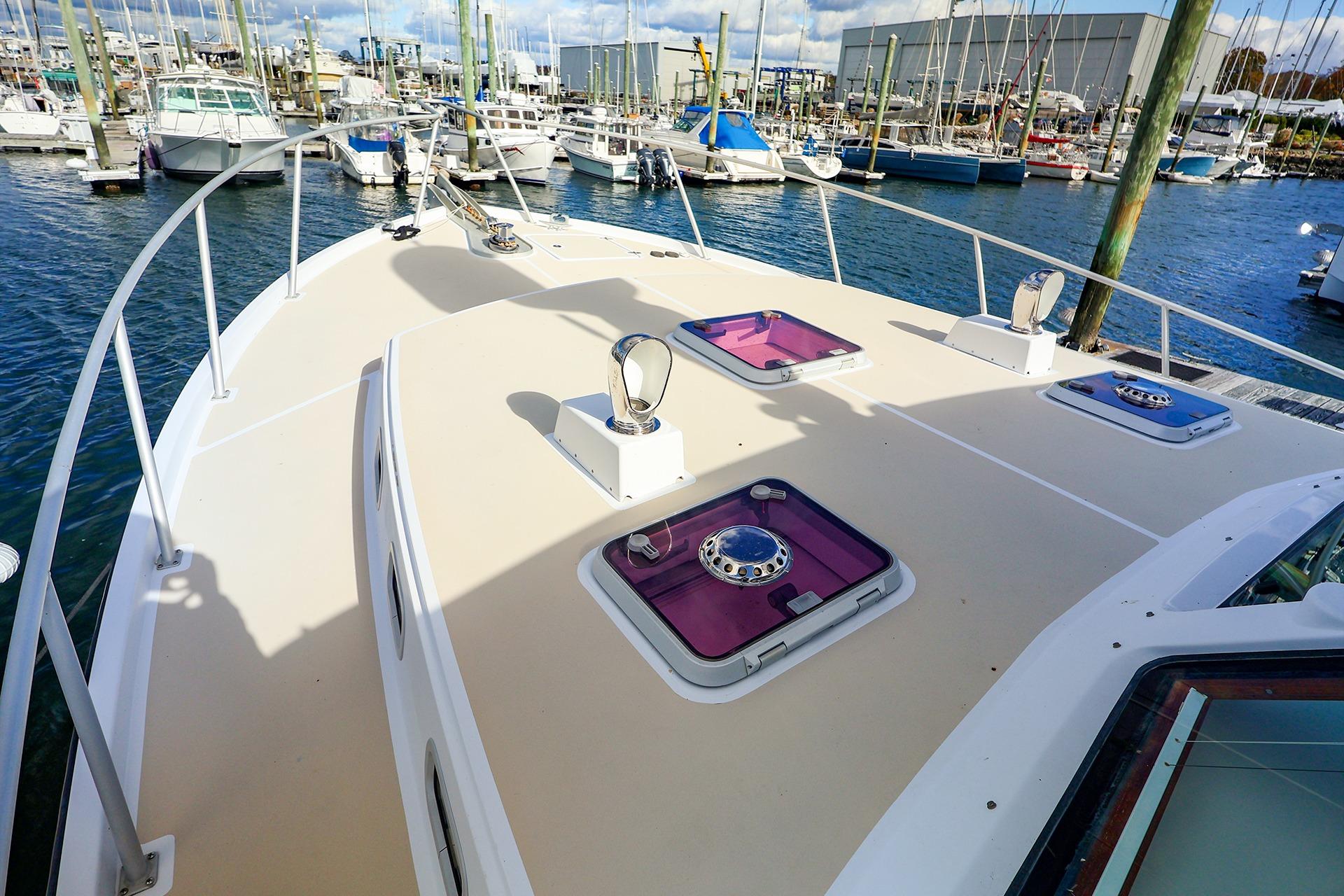

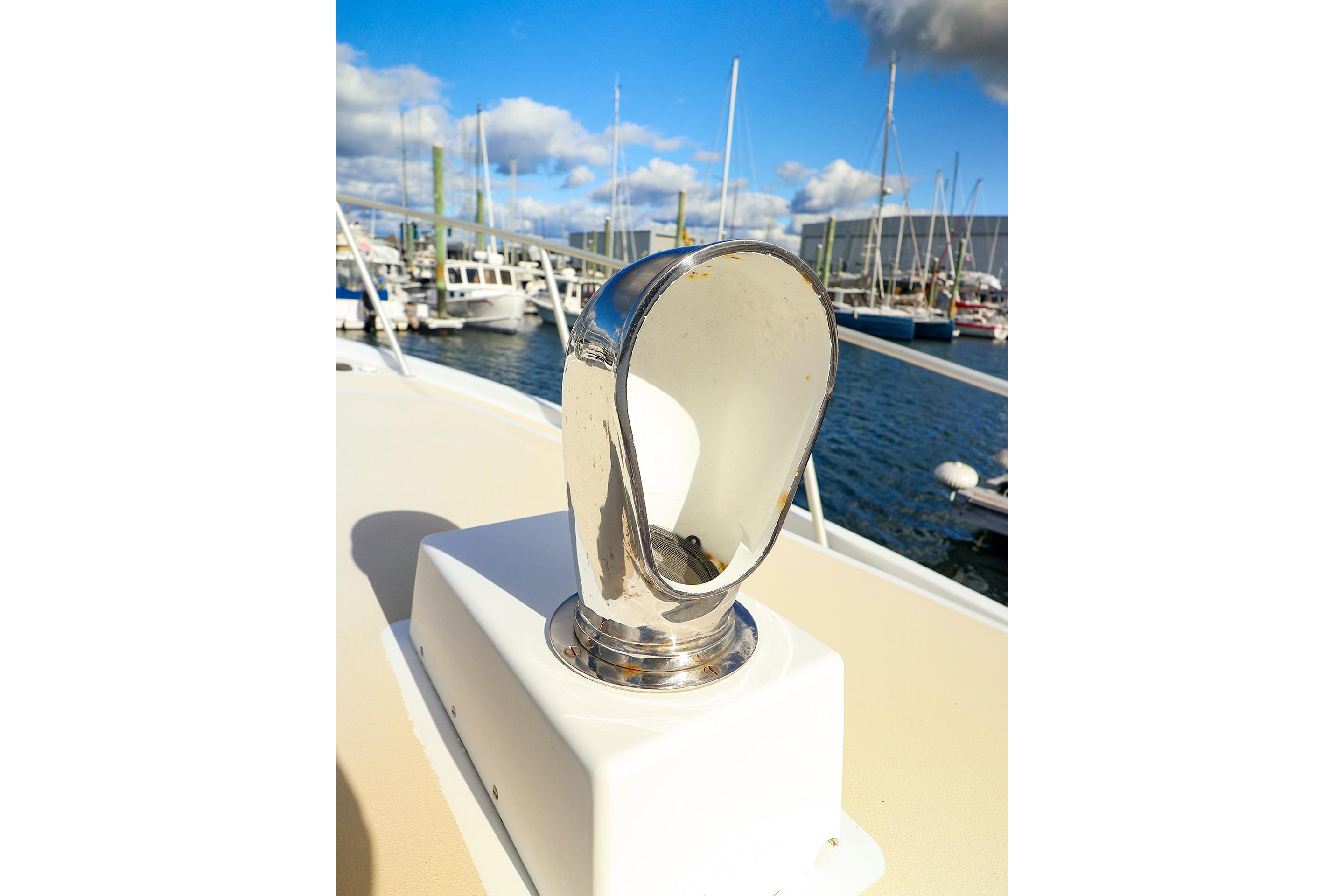

- (2) Stainless steel dorade vents
- Stainless steel handrails on deckhouse
- Large transom 29"inch door

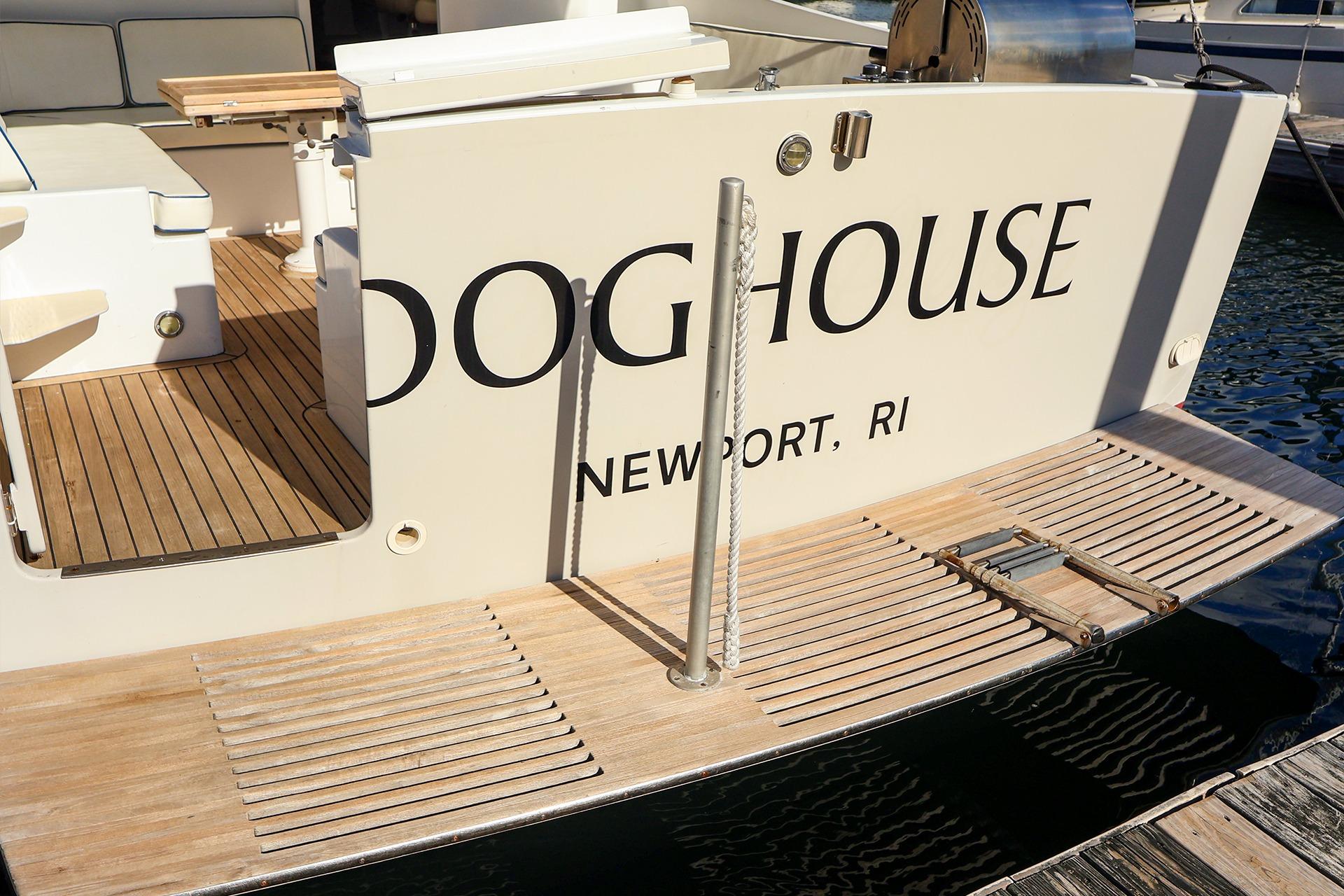

- "29" inch wide teak swim platform with removable hand rail and swim ladder
- Hot/cold shower at transom
- NAUTICAL STRUCTURE hydraulic dinghy crane on deck house with remote controls
- ZODIAC FUTURA lShp YAMAHA dinghy with inflatable bottom
- Dual tender/Kayak chocks for securing on deck house
AFT COCKPIT

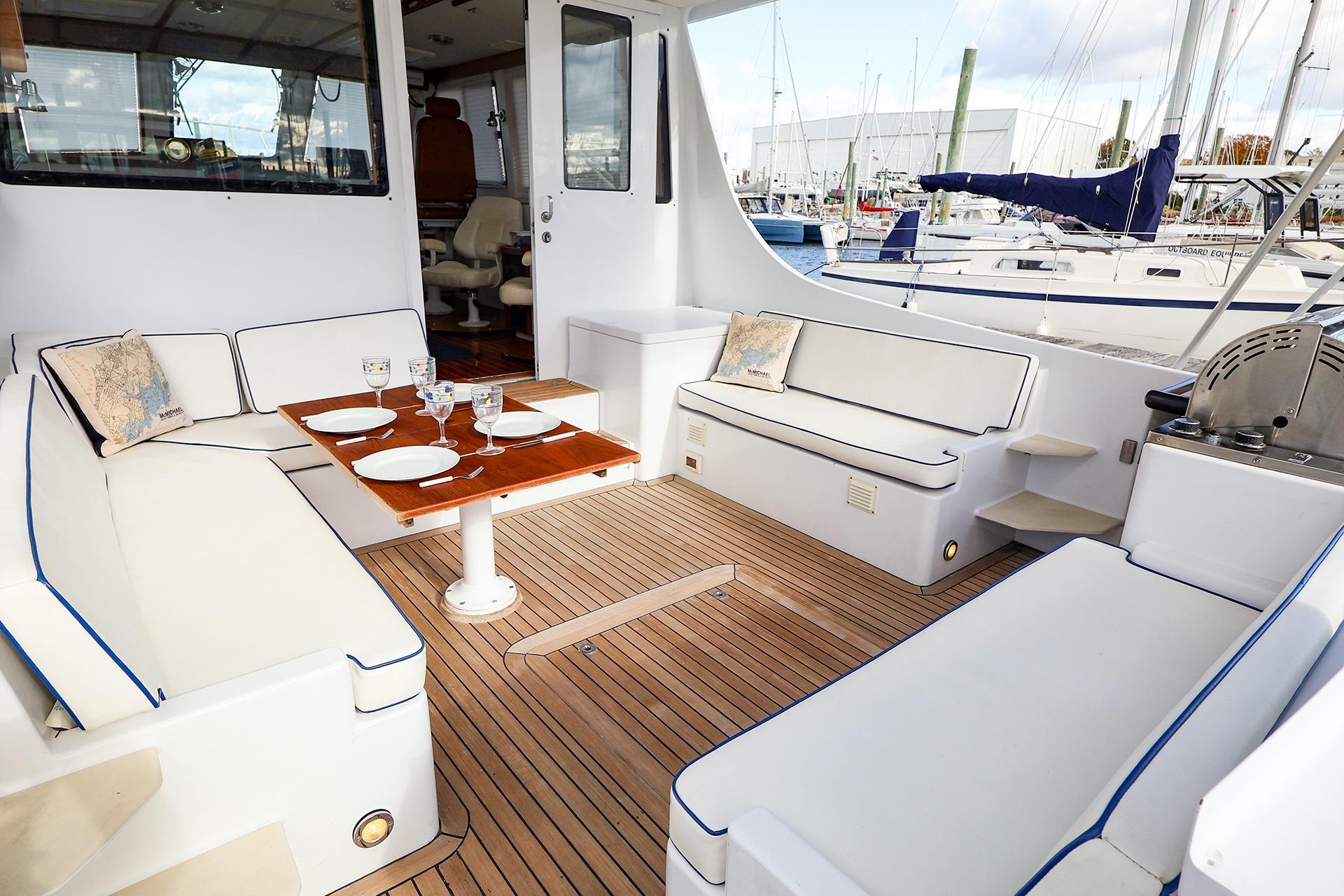

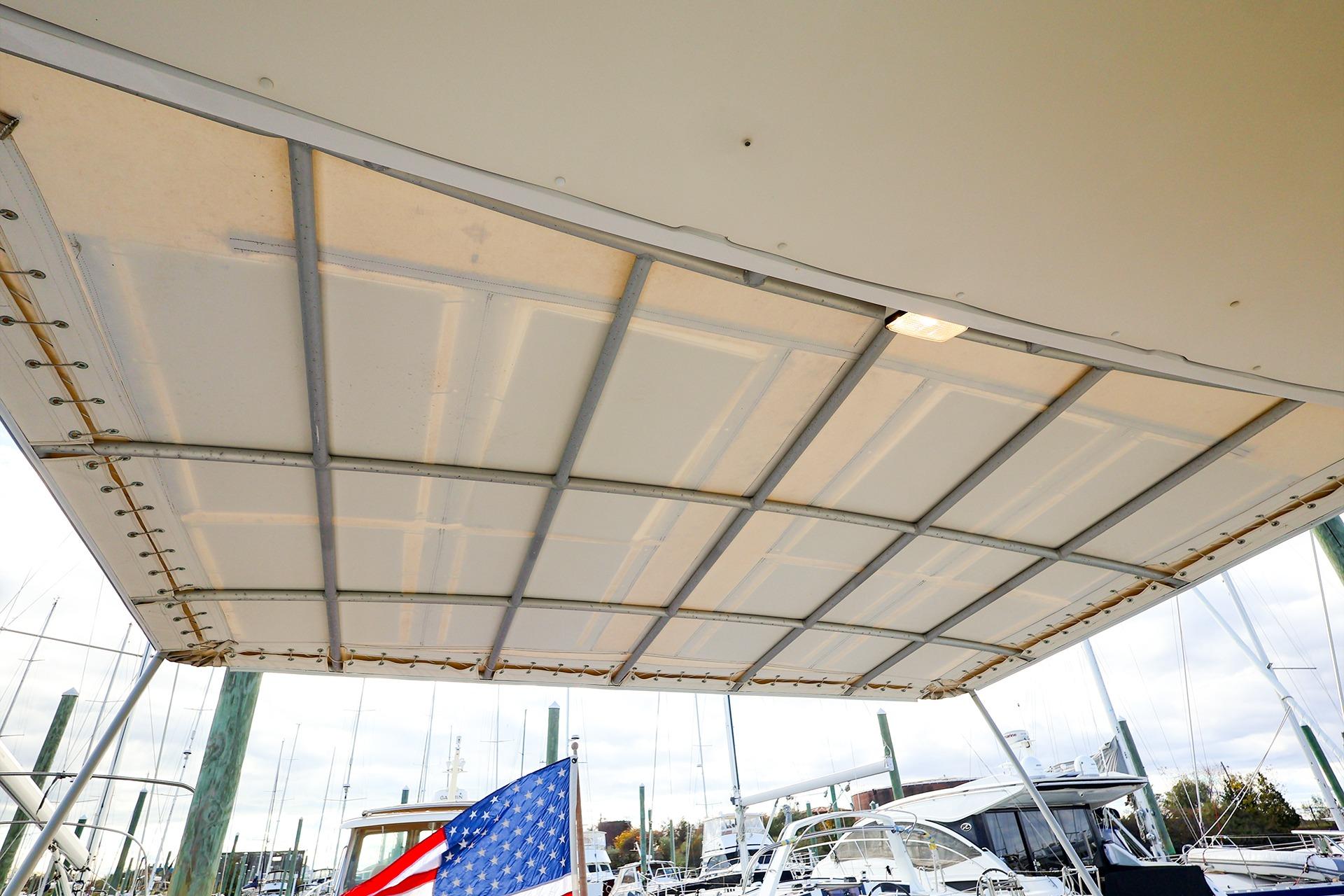

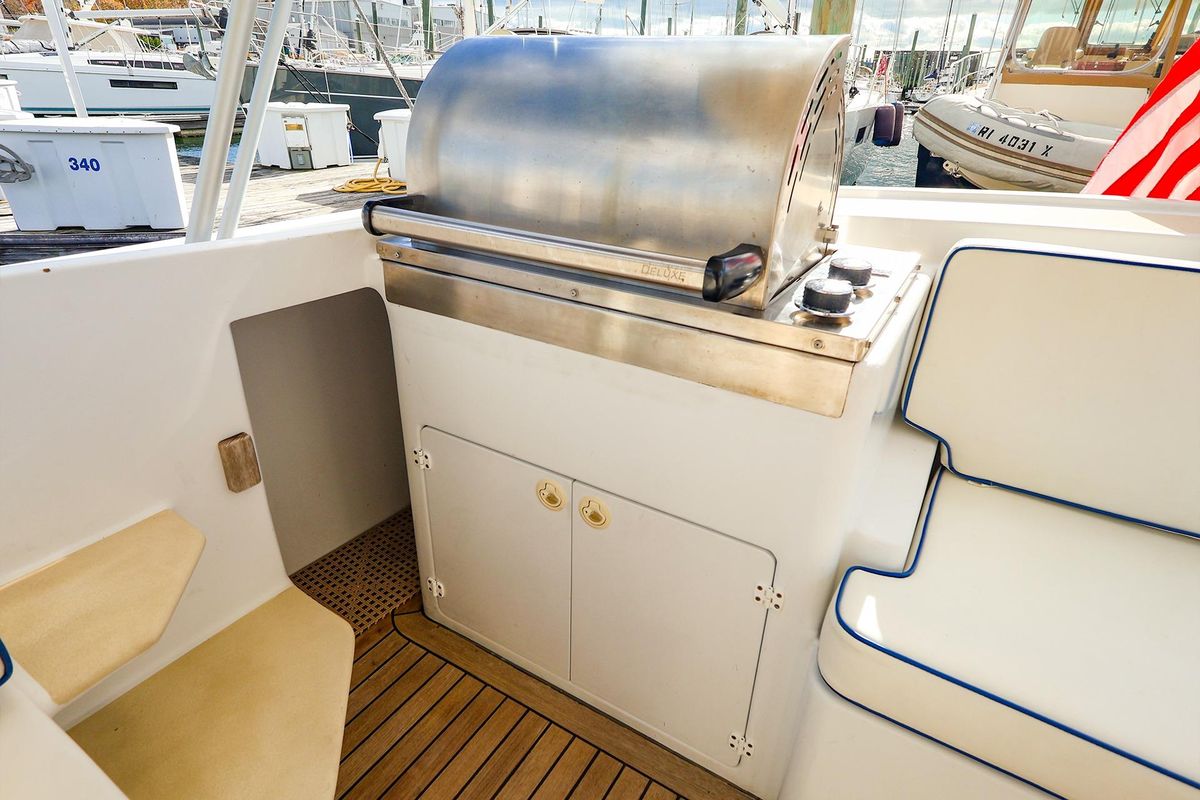

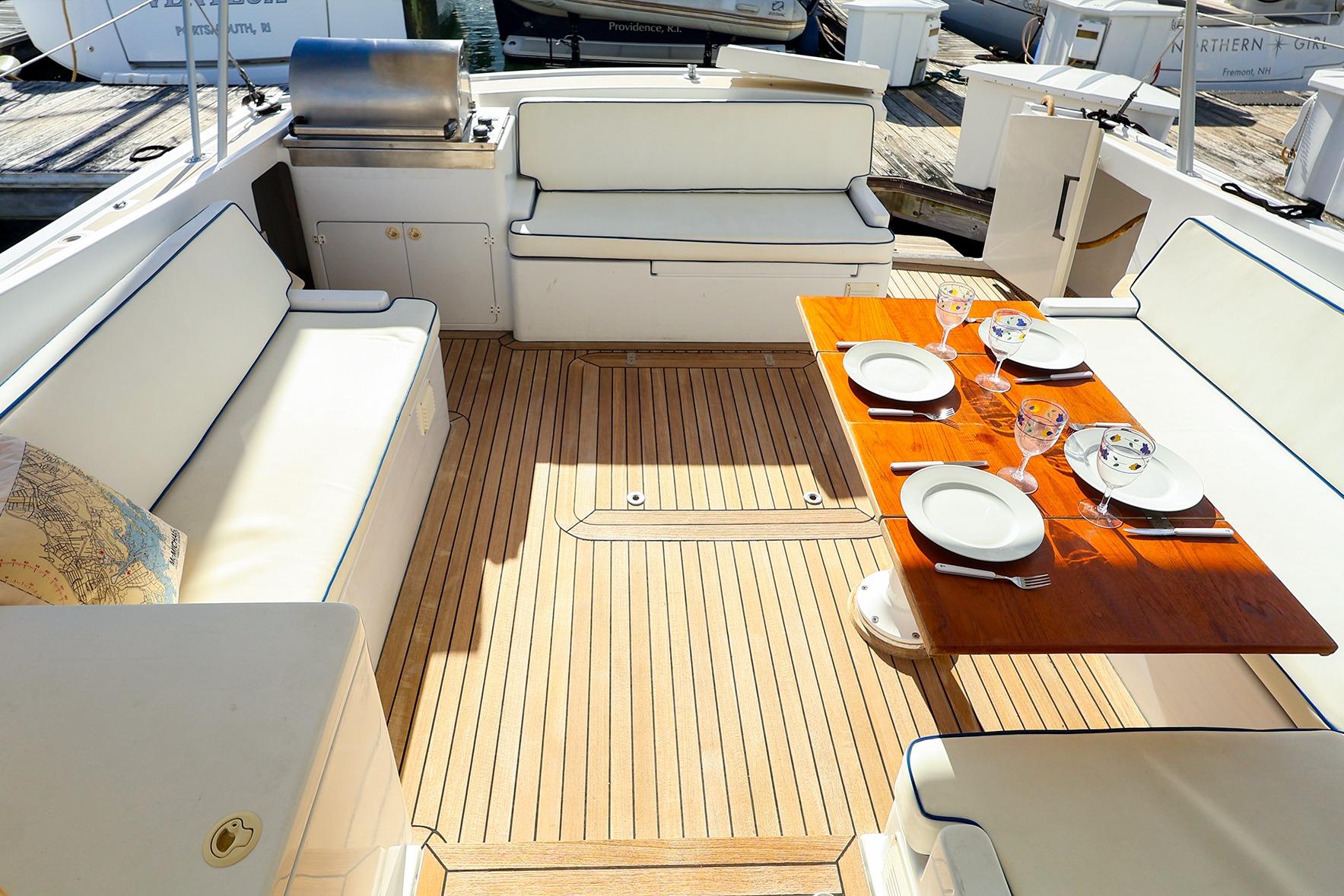

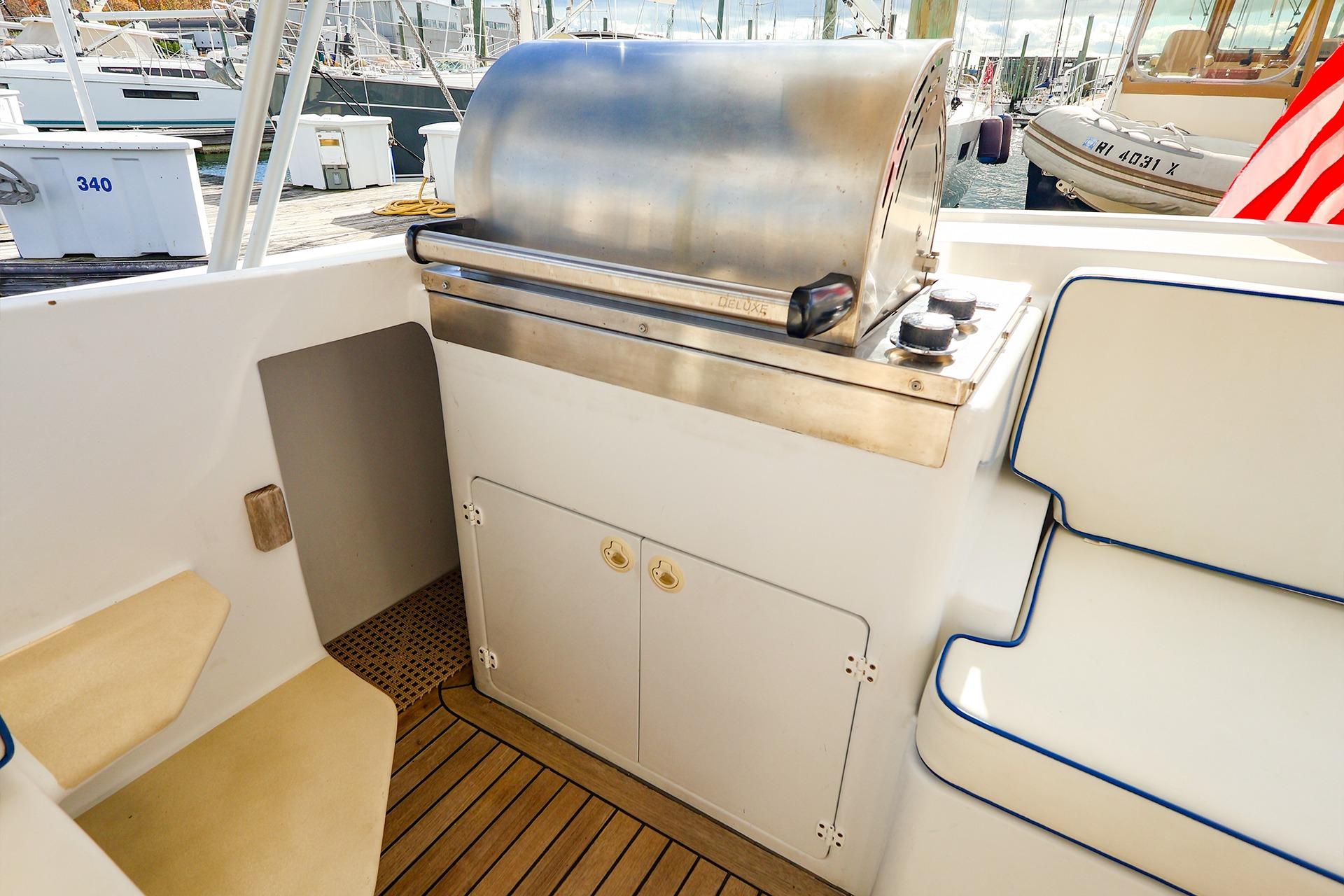

A desirable feature for entertaining on DOGHOUSE is the oversized teak decked aft cockpit with three separate cushioned settees including an L-shaped to port with seating for (7) seven. An expandable telescopic table provides dining convenience. There is a built-in Propane Grille aft and lots of storage space below all the seating areas and in a large dedicated locker forward to starboard. There is an aluminum framed Bimini attached to a 4' salon roof Overhang that houses 8 solar panels and protects the entire area from inclement weather.
- Propane locker and storage

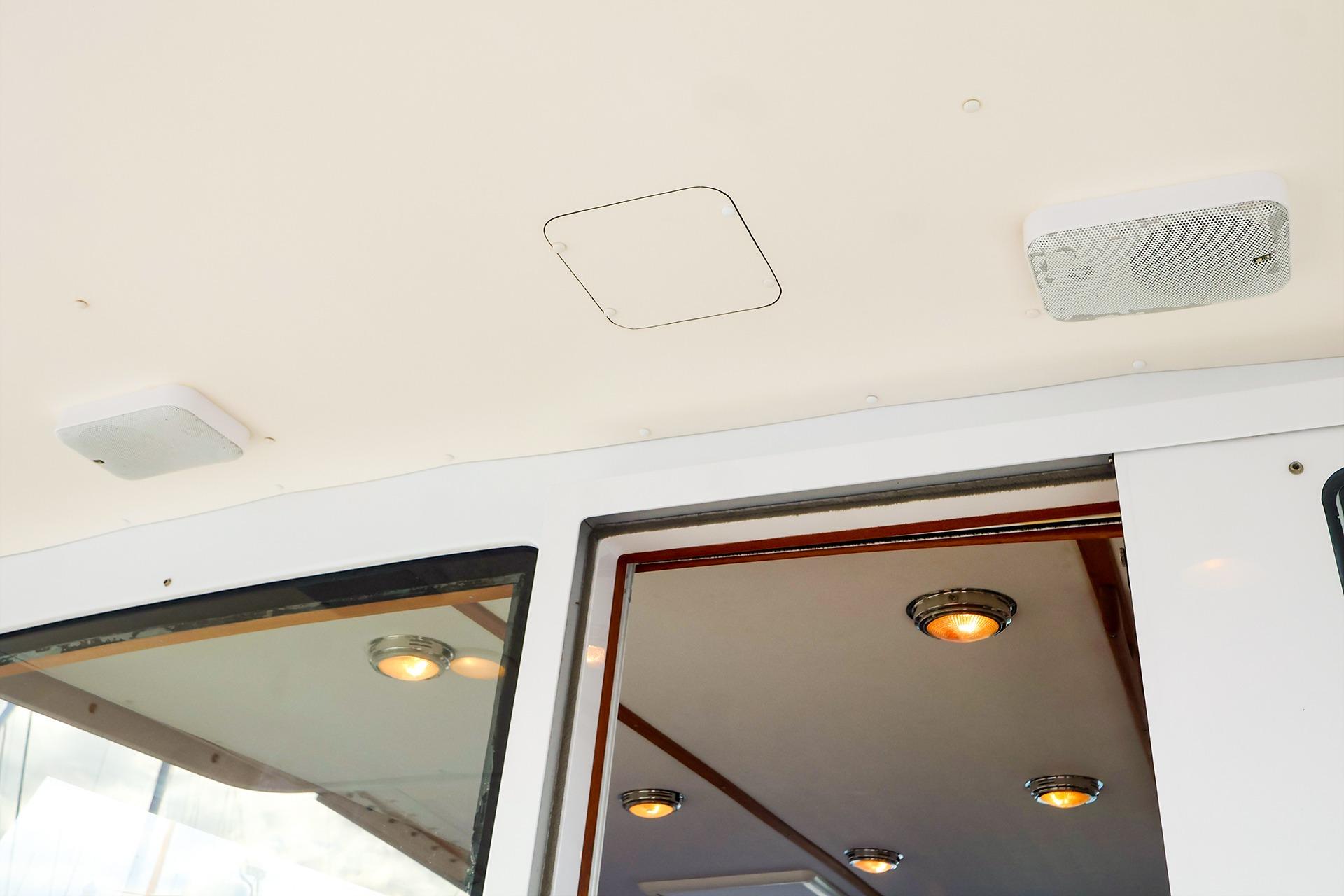

- Roof mounted stereo speakers and deck lights
- Courtesy deck lights
- Large hatch access to steering gear
- Large deep drawer storage below deck
- White simulated leather cushions with blue piping
- Campionway step aft entry to below deck engine room

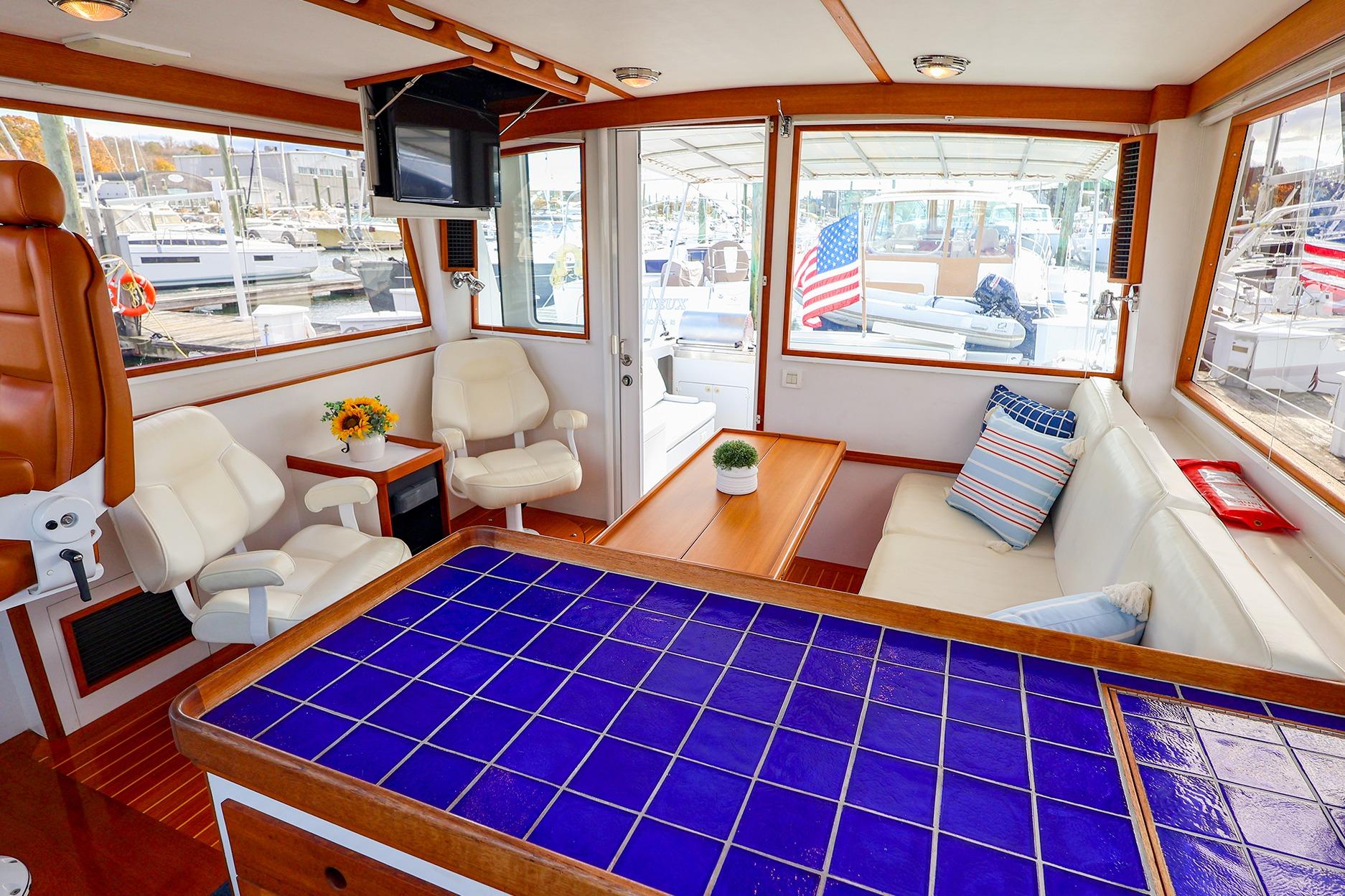

MAIN SALON and BRIDGE DECK

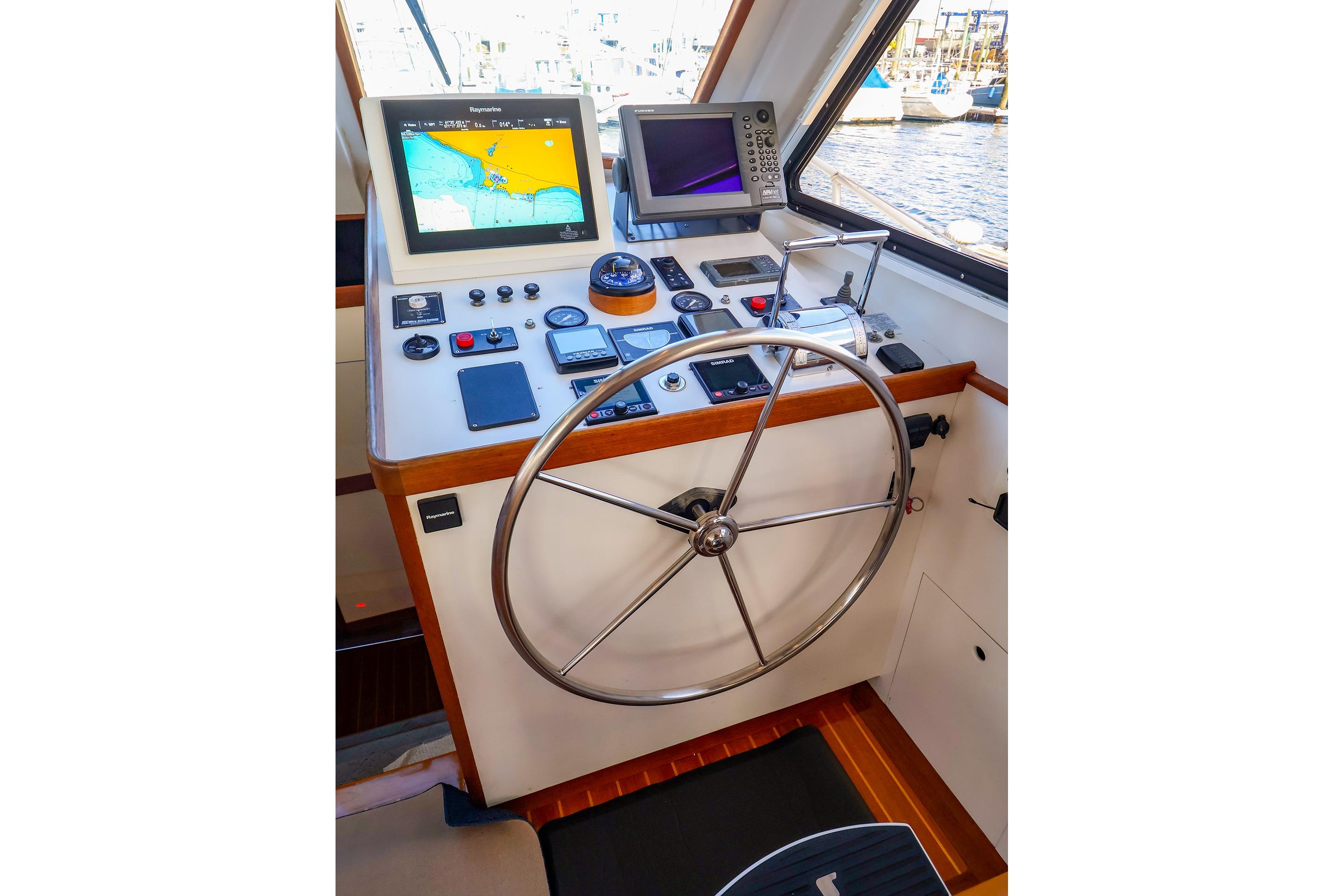

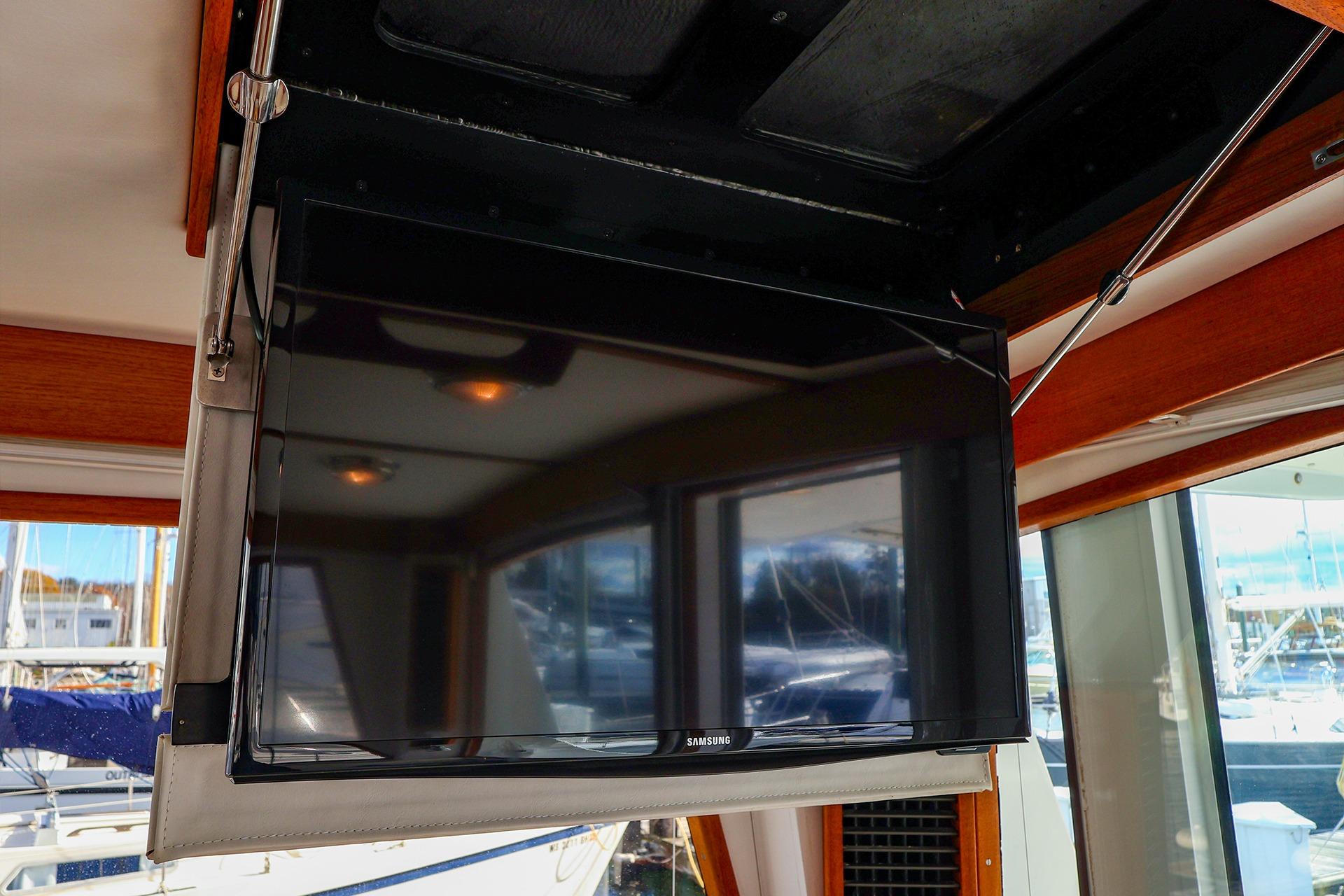

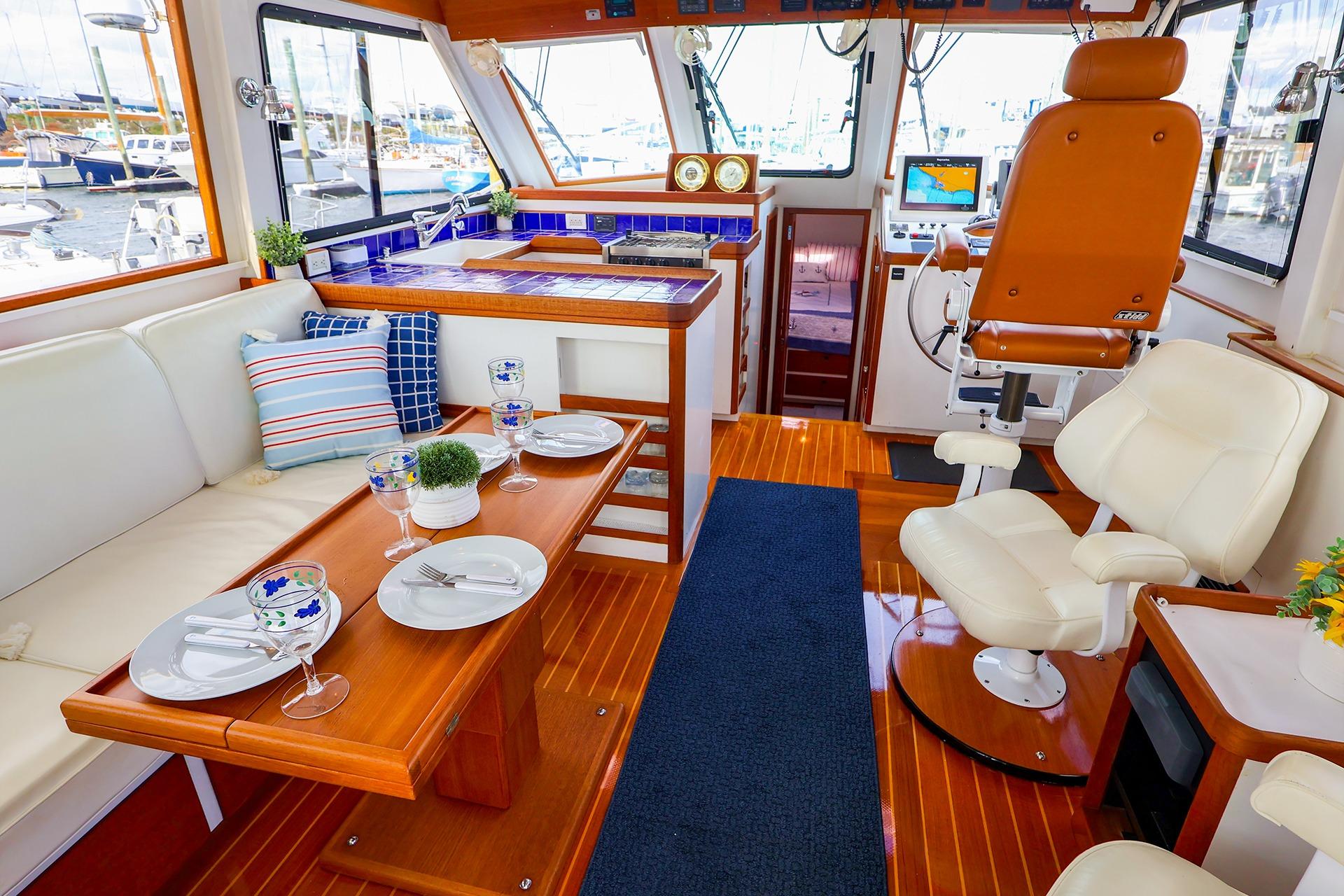

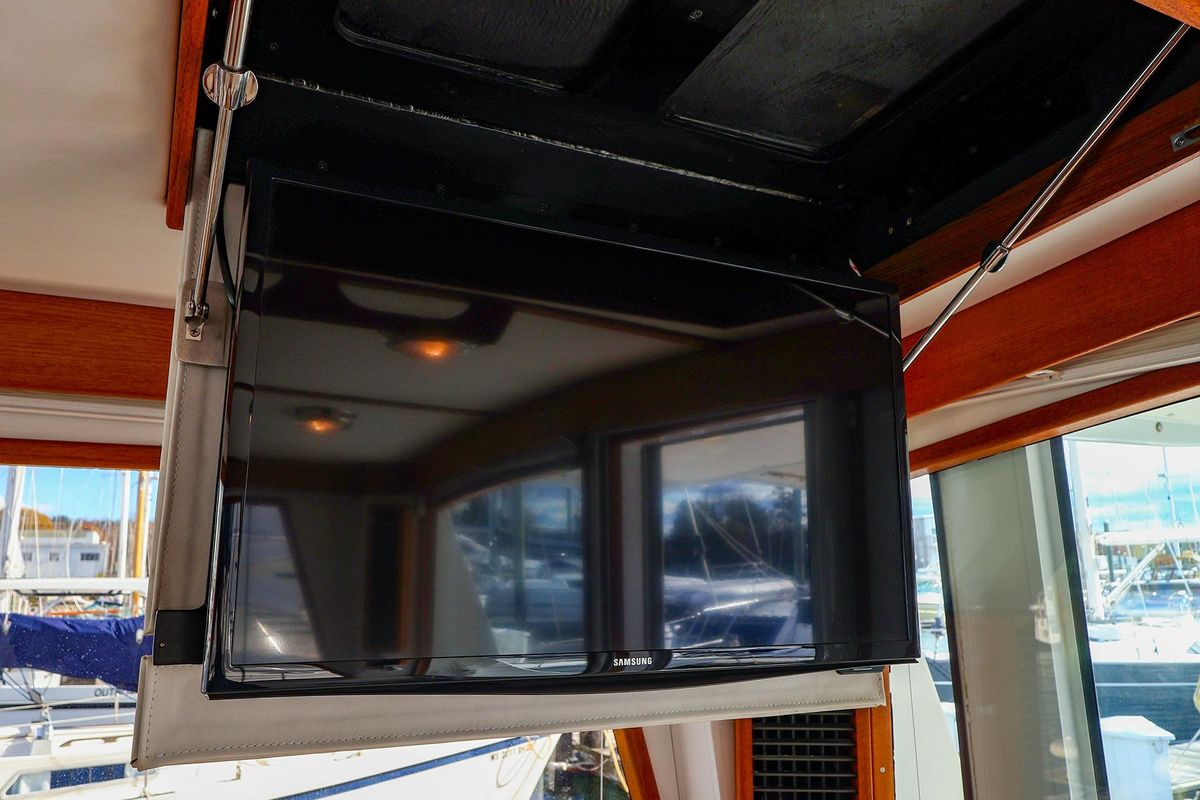

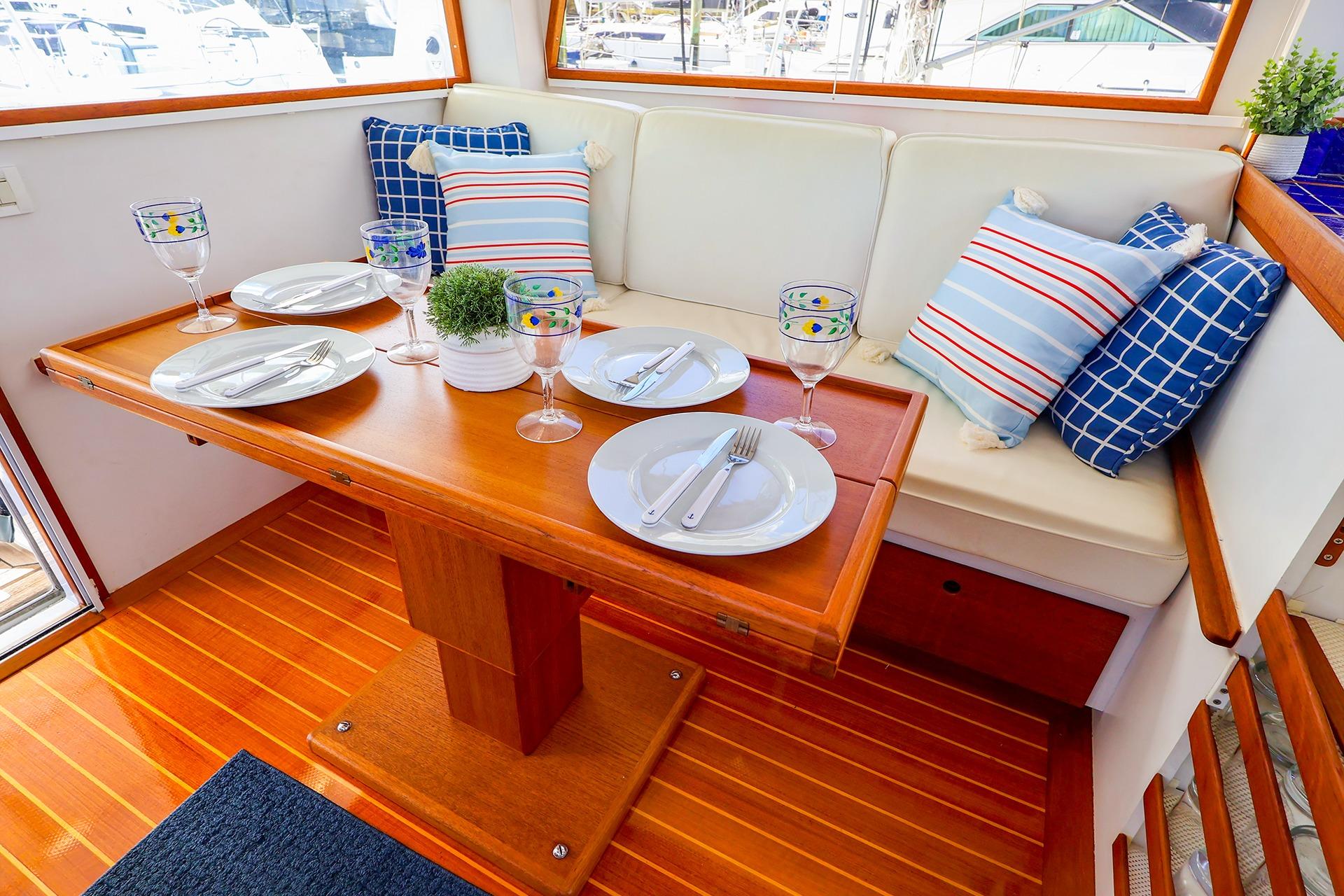

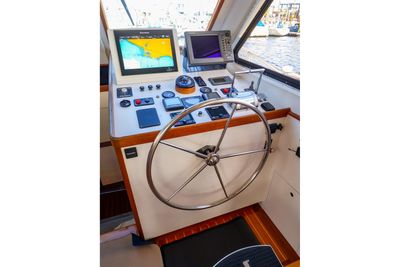

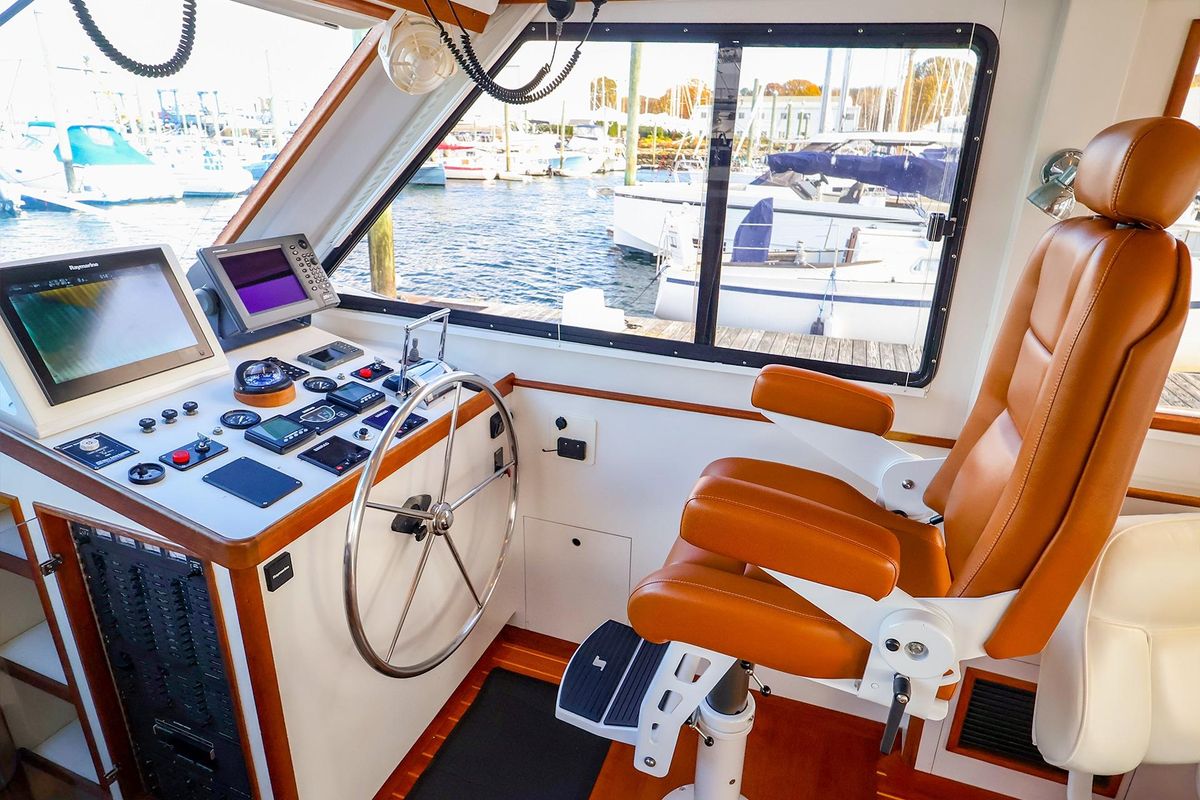

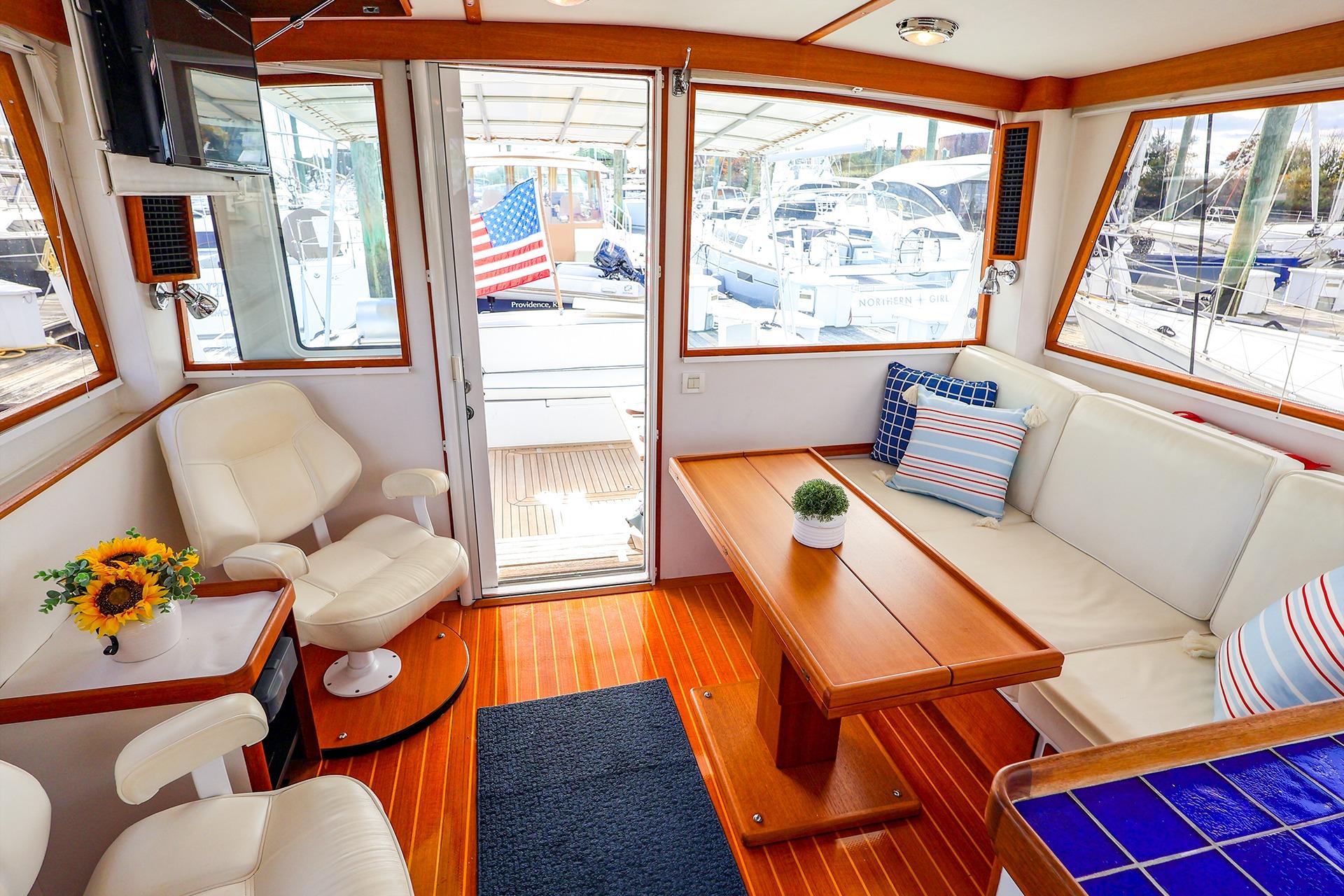

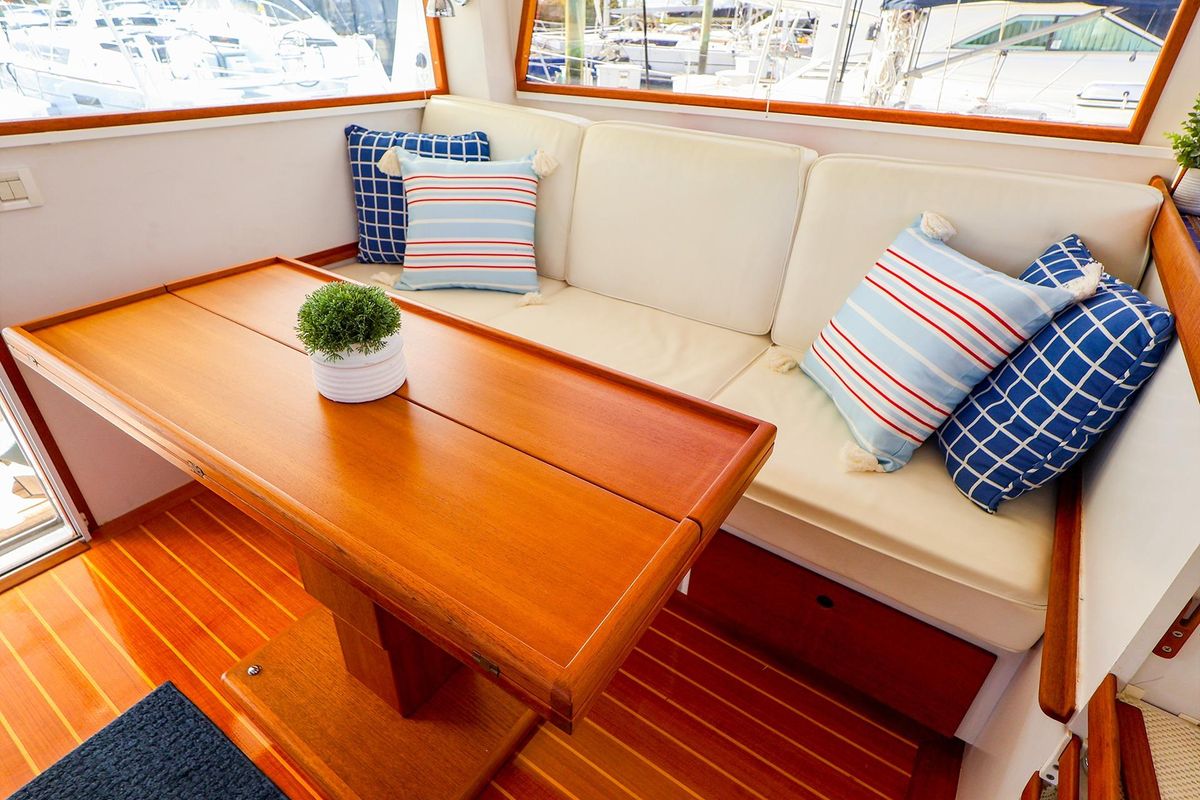

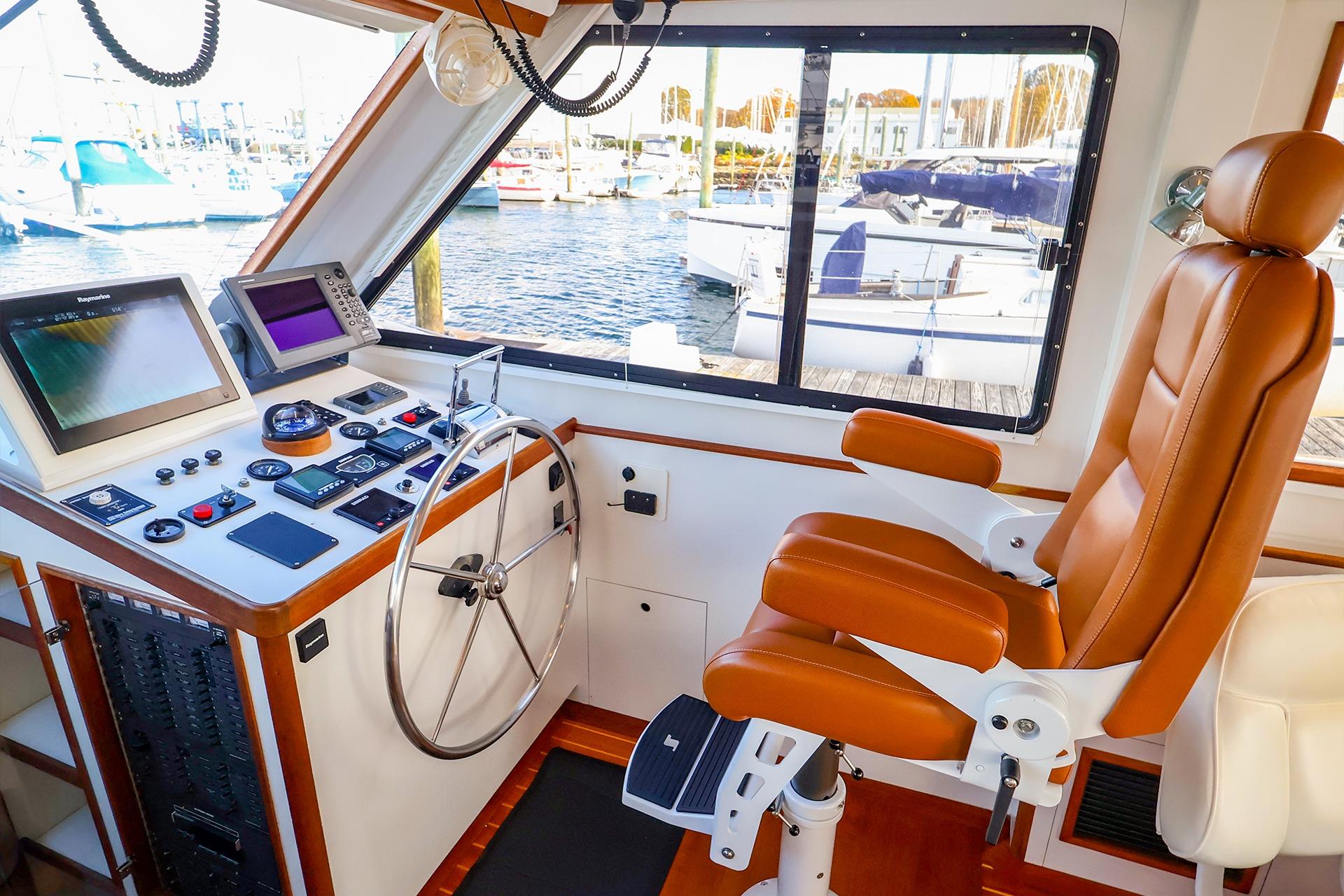

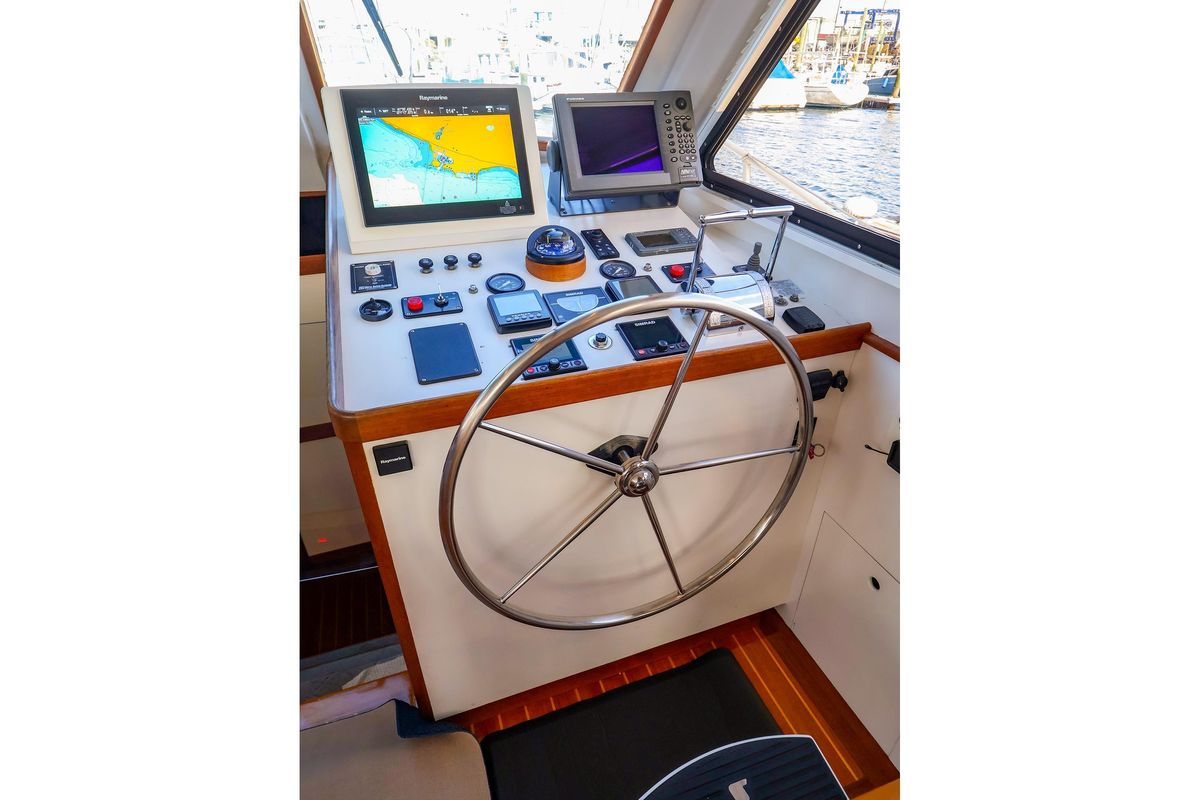

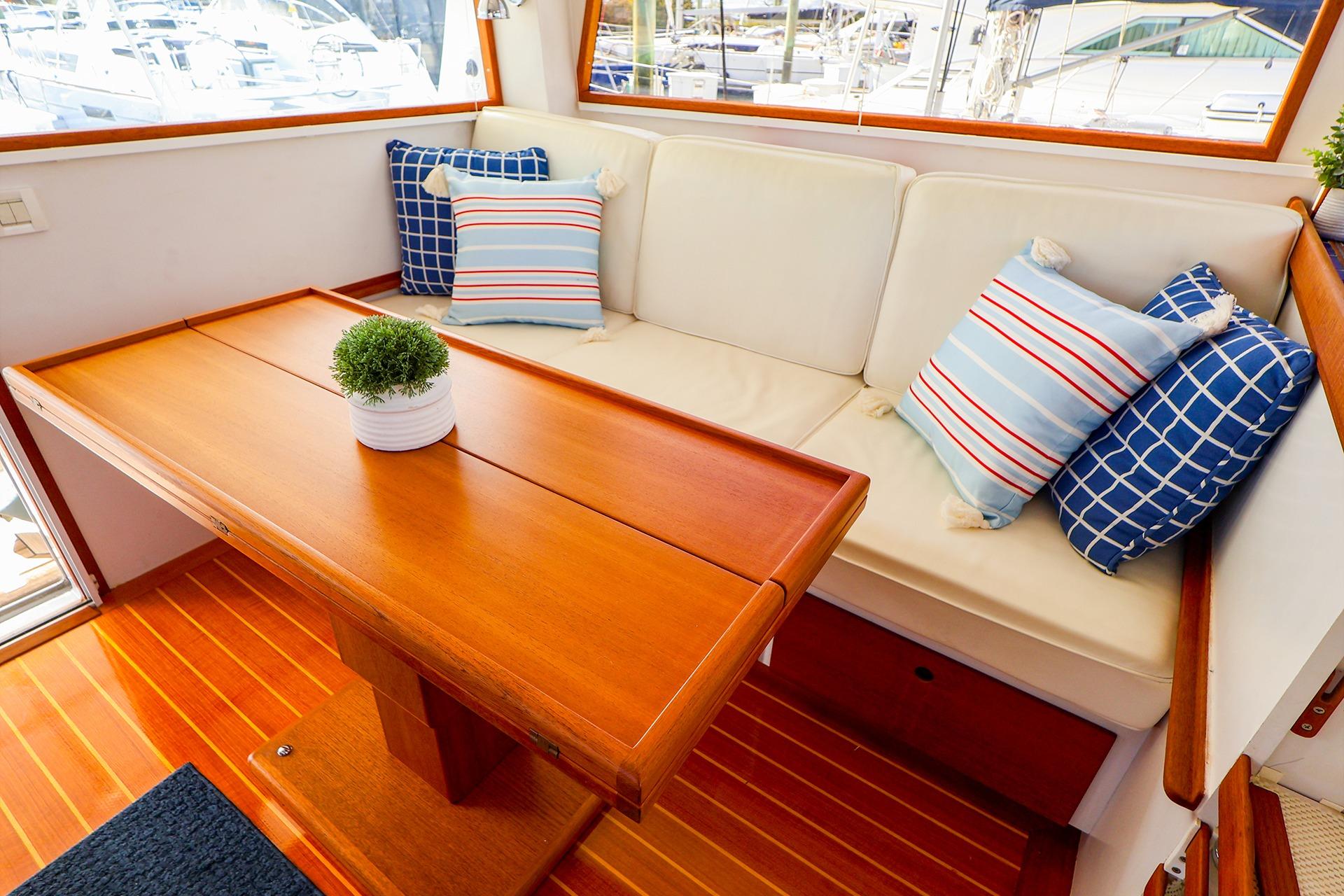

Two steps up through the large aluminum sliding door you enter the fully enclosed 6'8" height bridge deck. You will enjoy a fully equipped helm station to starboard with a NEW fixed brown leather fully adjustable Stidd helm chair. Further aft are twin fixed captains chairs with entertainment console in-between, while across to port is a full length settee that coverts into a double-berth 51"x78" with coffee table that raises and folds out to convert to a dining table for (6) six. A large flat screen TV drops down from the starboard overhead. The exterior views through the large windows are unencumbered.
- Comfortable STIDD foot rests
- Design spec for 70db at cruise speedCu

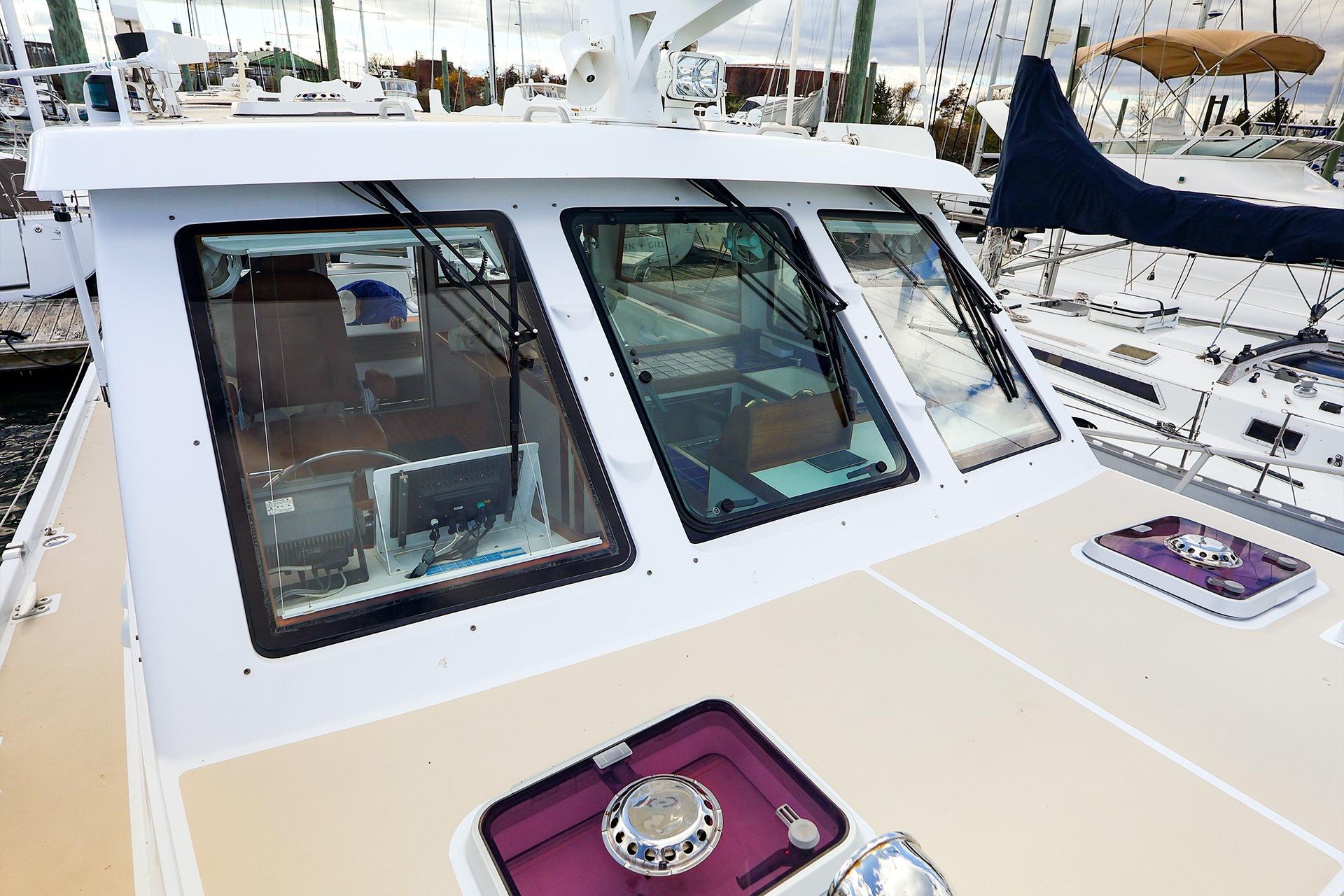

- Recently added centerline forward opening window
- Recently added forward port and starboard sliding adjustable windows
- (3) Windshield wipers
- 10 Above dome lights with red lighted option for night opps

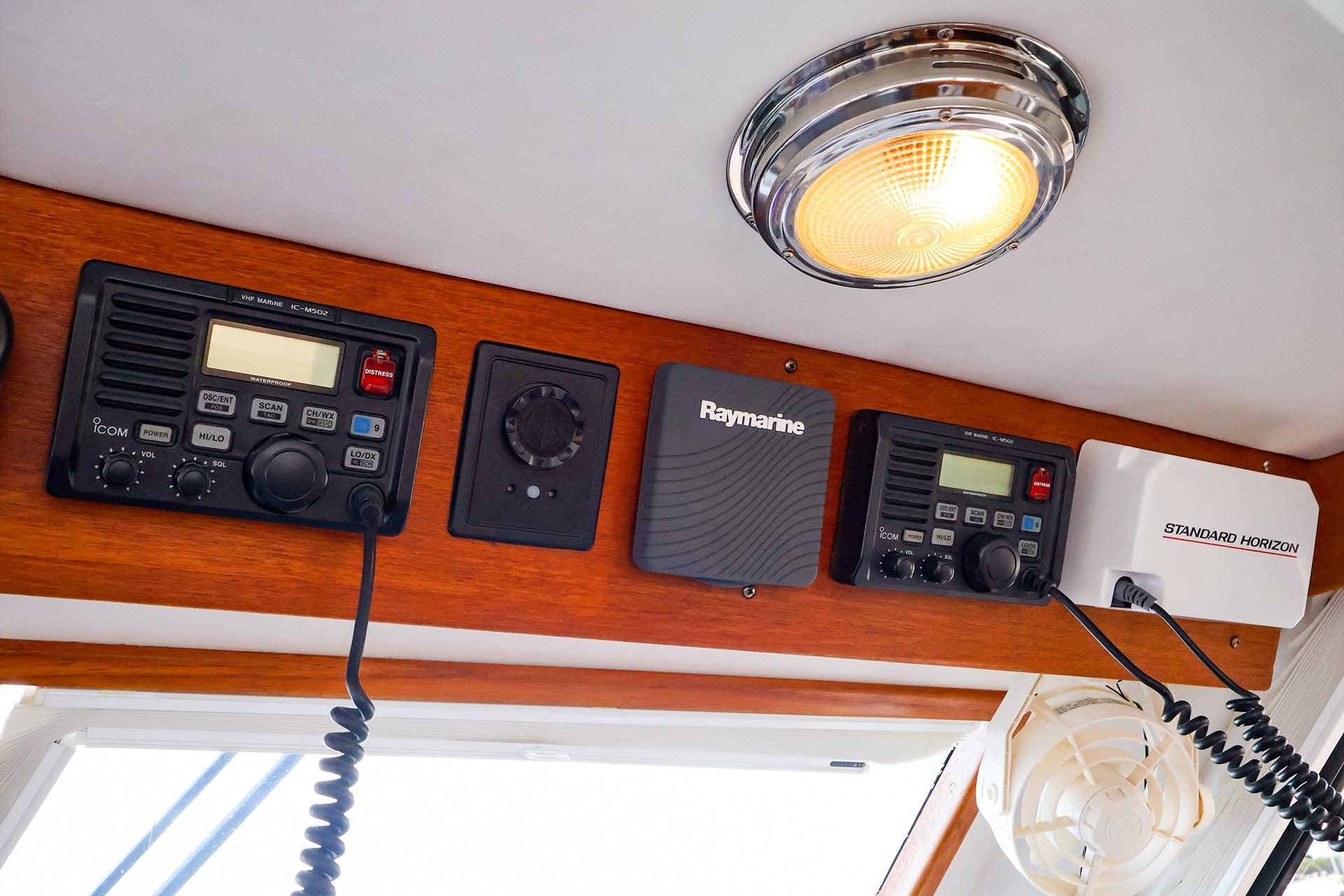

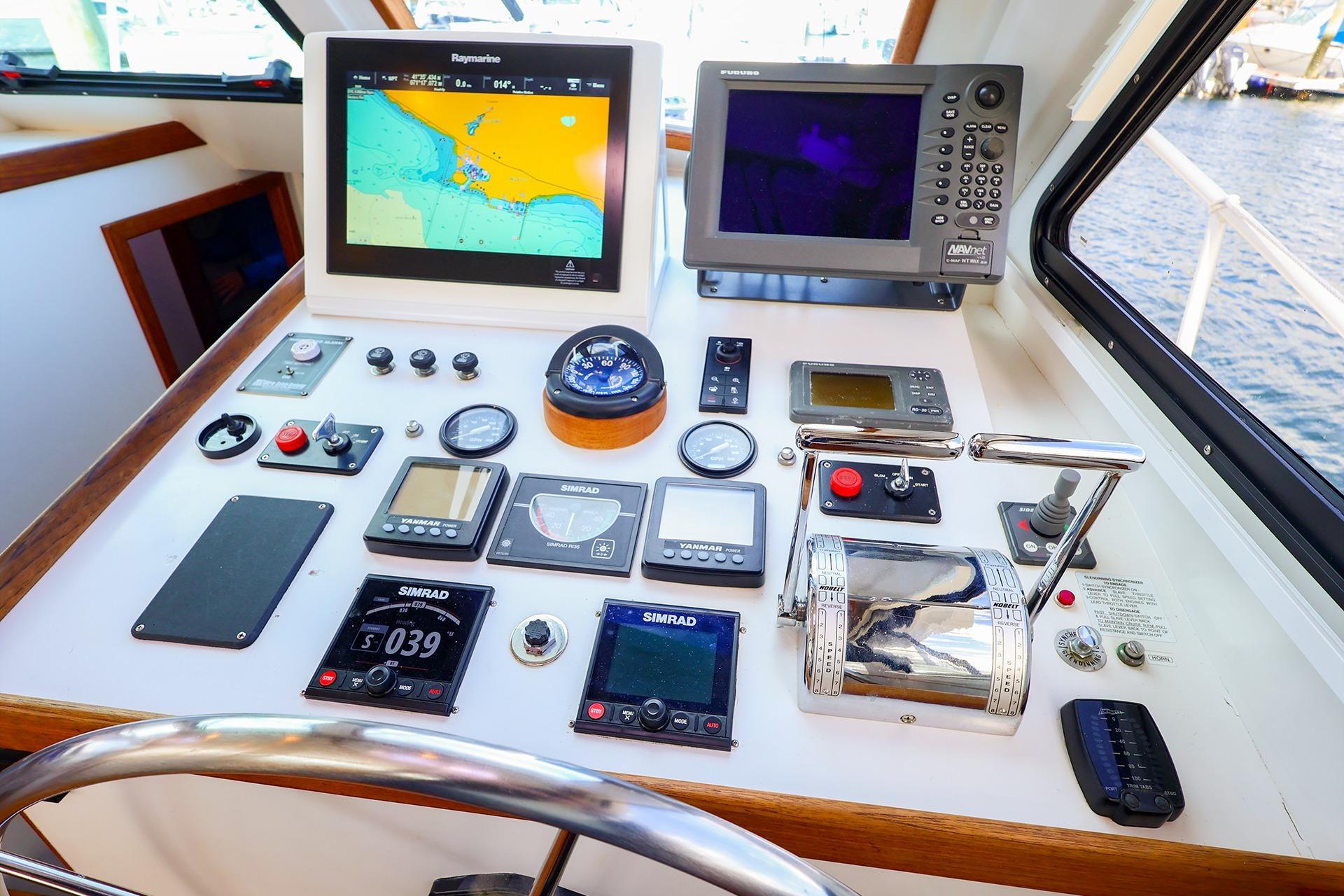

NAVIGATIONAL ELECTRONICS
- RAYMARINE 15.4"screen plotter/ closed array radar
- RAYMARINE Raystar 130 GPS sensor
- FURUNO RD30 GPS
- FURUNO NAVNET 2 4KW open array radar
- RAYMARINE AIS 650 class
- IRIDIUM Go hotspot
- FURUNO FD-30 G PS/depth/speed
- SIMRAO AP 26 autopilot
- SIMRAO wind instruments

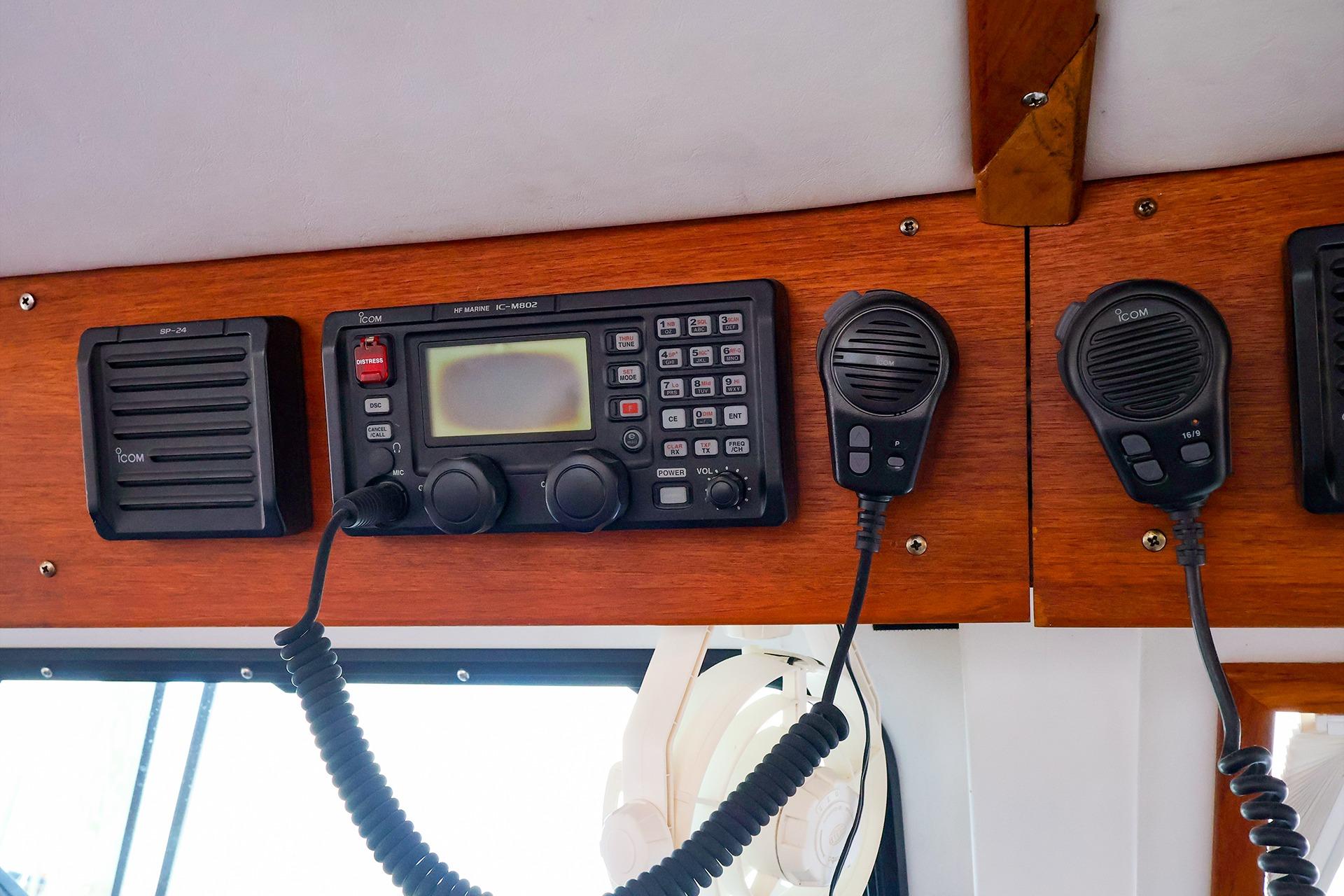

- (2) ICOM M 502 VHF
- ICOM M 802 VHF radio
- STANDARD HORIZON VHF loud hailer
- RITCHIE compass
- Horn
- KVH Direct T.V Sat recerver
- FUSION AV750 stereo. CD and DVD players
- ACR remote spotlight

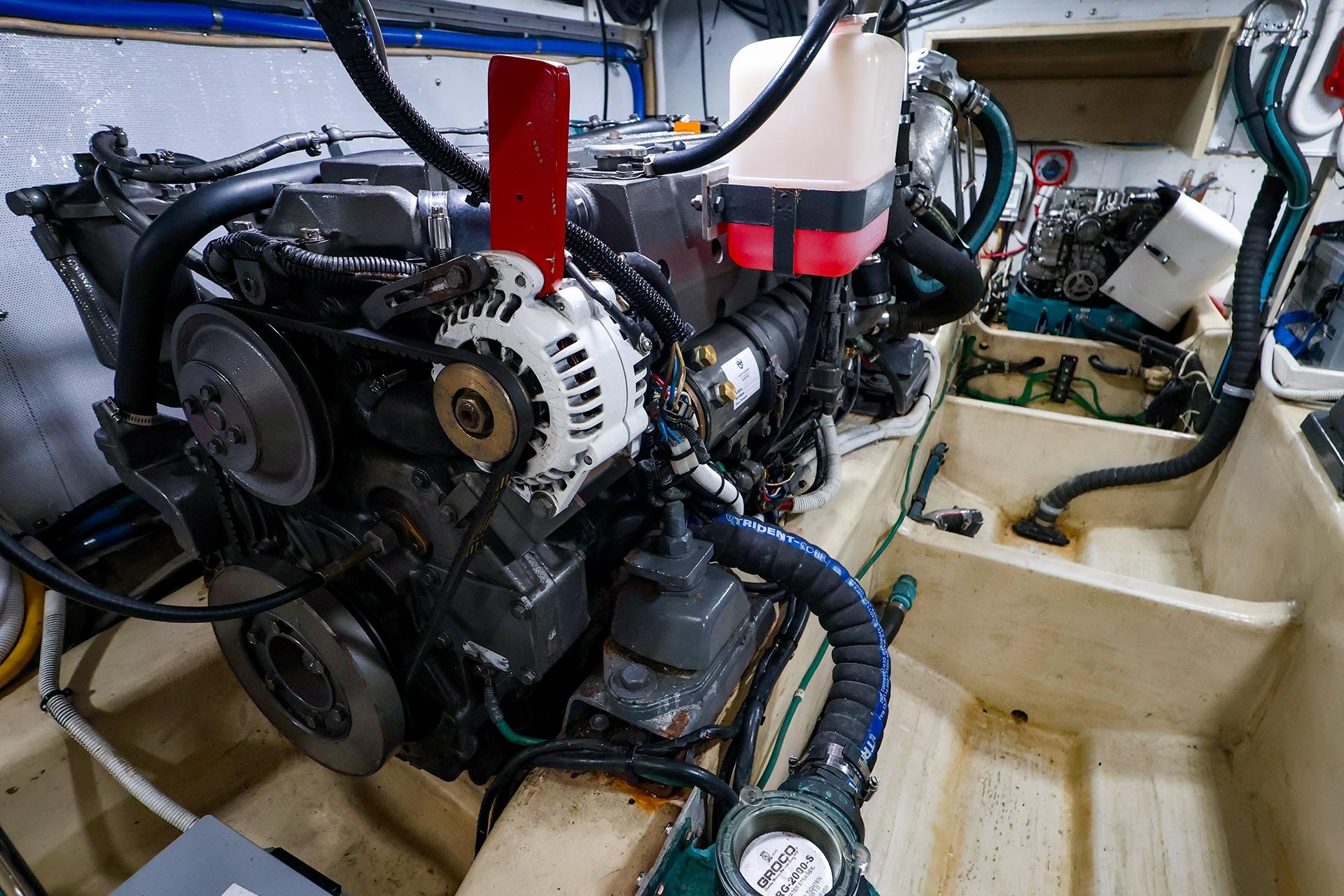

MECHANICALS and ENGINES
This compartment has had two years of expert re-fitting including 1000hr Yanmar service just completed by NEB.

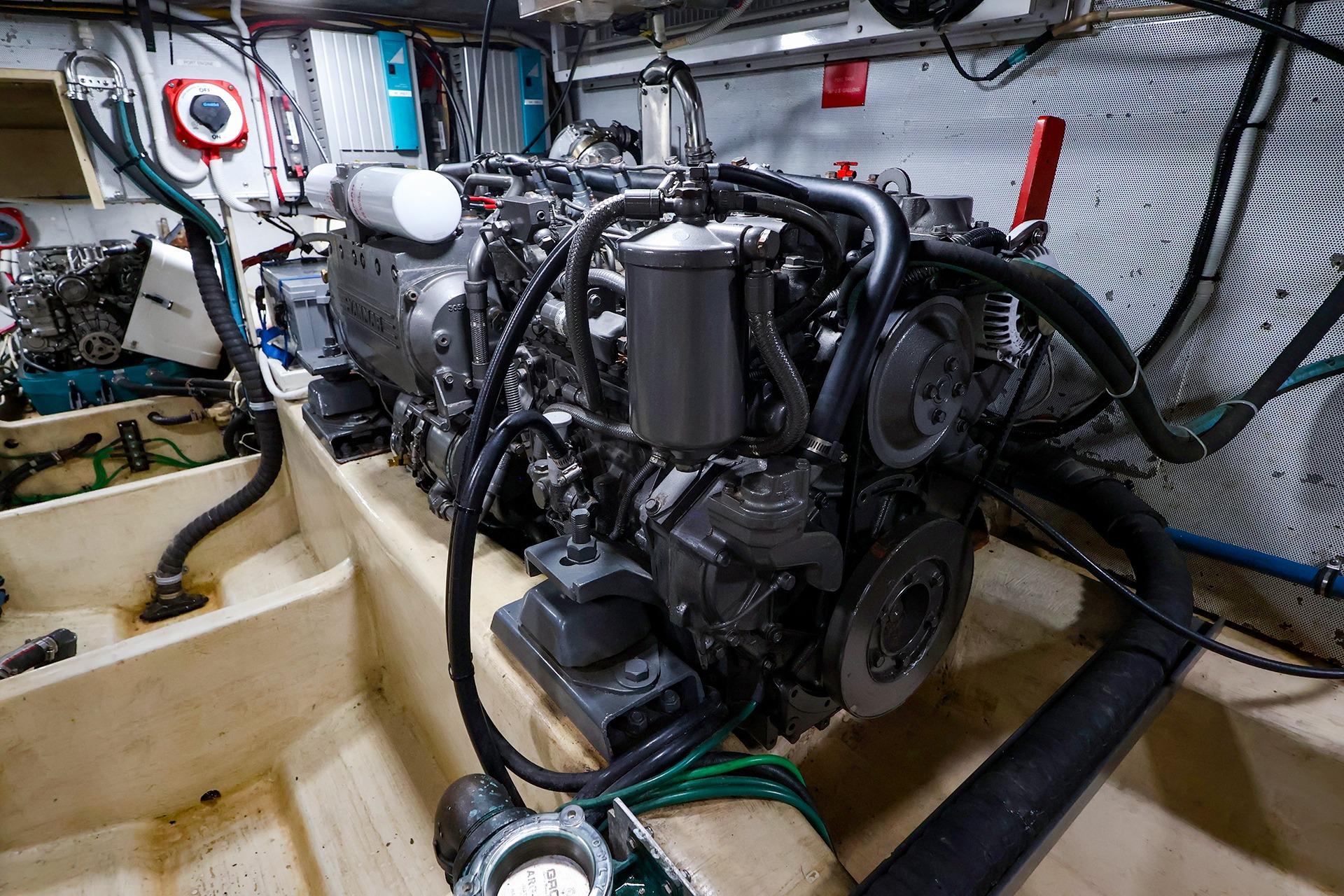

- Twin YANMAR 6LY2A-STP 440 hp diesel engines 3300 Rated Max RPM 23knts/3000RPM 19 knts
- ZF 280-1a Transmissions
- AQUADRIVE CV joints/coupler with thrust bearings to isolate engine on soft mounts
- 27" 5 ·S-blade NIBRAL props
- Dual YANMAR updated multi displays with alarms
- KOBELT Clutches
- SIDEPOWER bow thruster w/ controls at helm and foot controls at bow
- (2) FLOSCAN fuel flow meters
- ALGAE-X FPS-500 fuel polishing system
- Engine room intake and exhaust bowers
- Hydraulic steering
- BENNETT trim tabs with indicators
- (3) Automatic electric bilge pumps
- FIREBOY automatic fire extinguisher in engine compartment
- ALLCRAFT 12-gallon hot water heater
- HEADHUNTER Royalflush head with 46 gallon holding tank, discharge pump and gauge
- MARINEAIR air conditioning - twin zones for owner's cabin and bridge deck
- TANKTENDER level monitoring gauges
- Fuel manifold with transfer pumps
- (2) Large GROCO RG2000 raw water strainers
- (2) Large air separators with dual fans
ACCOMIDATIONS

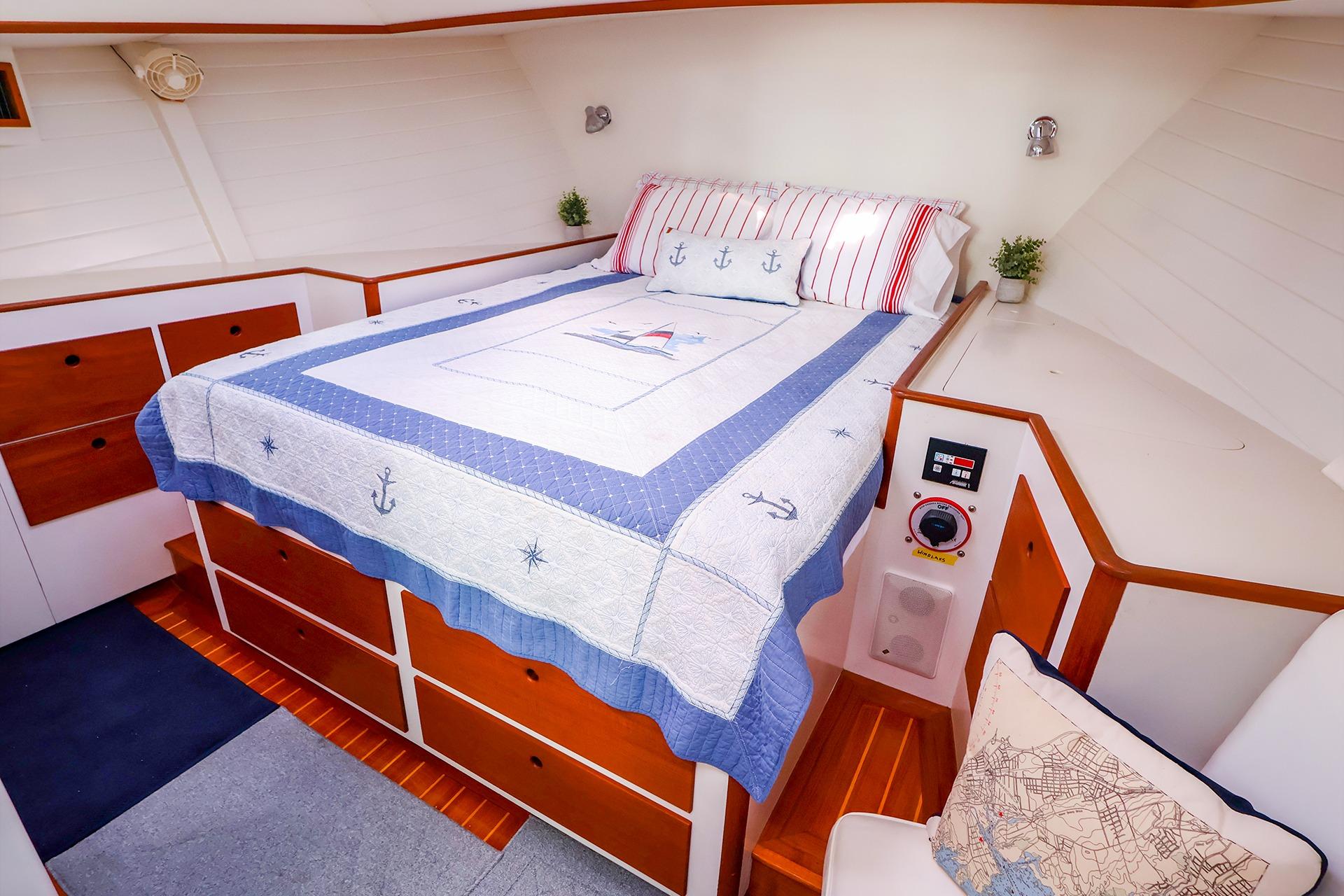

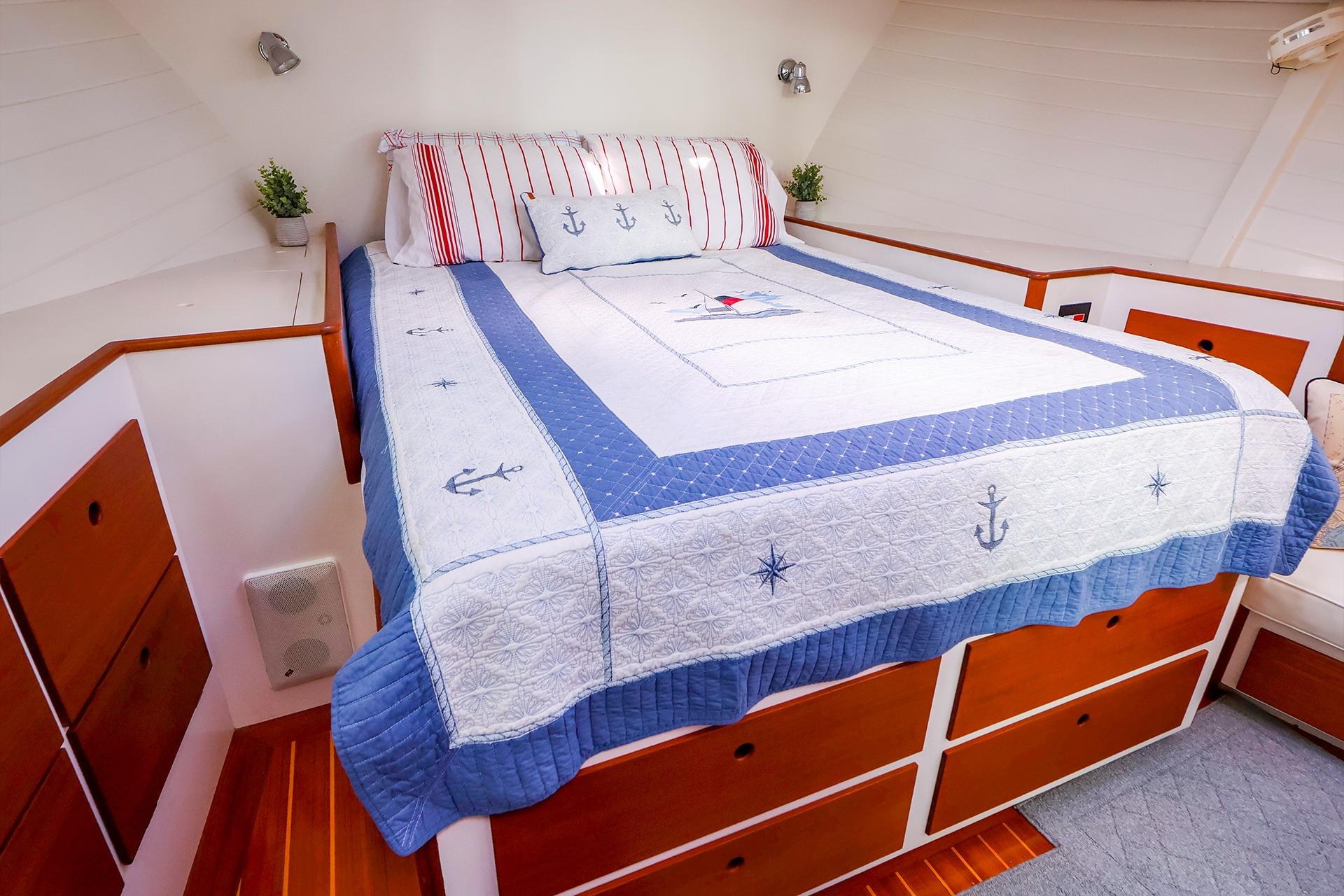

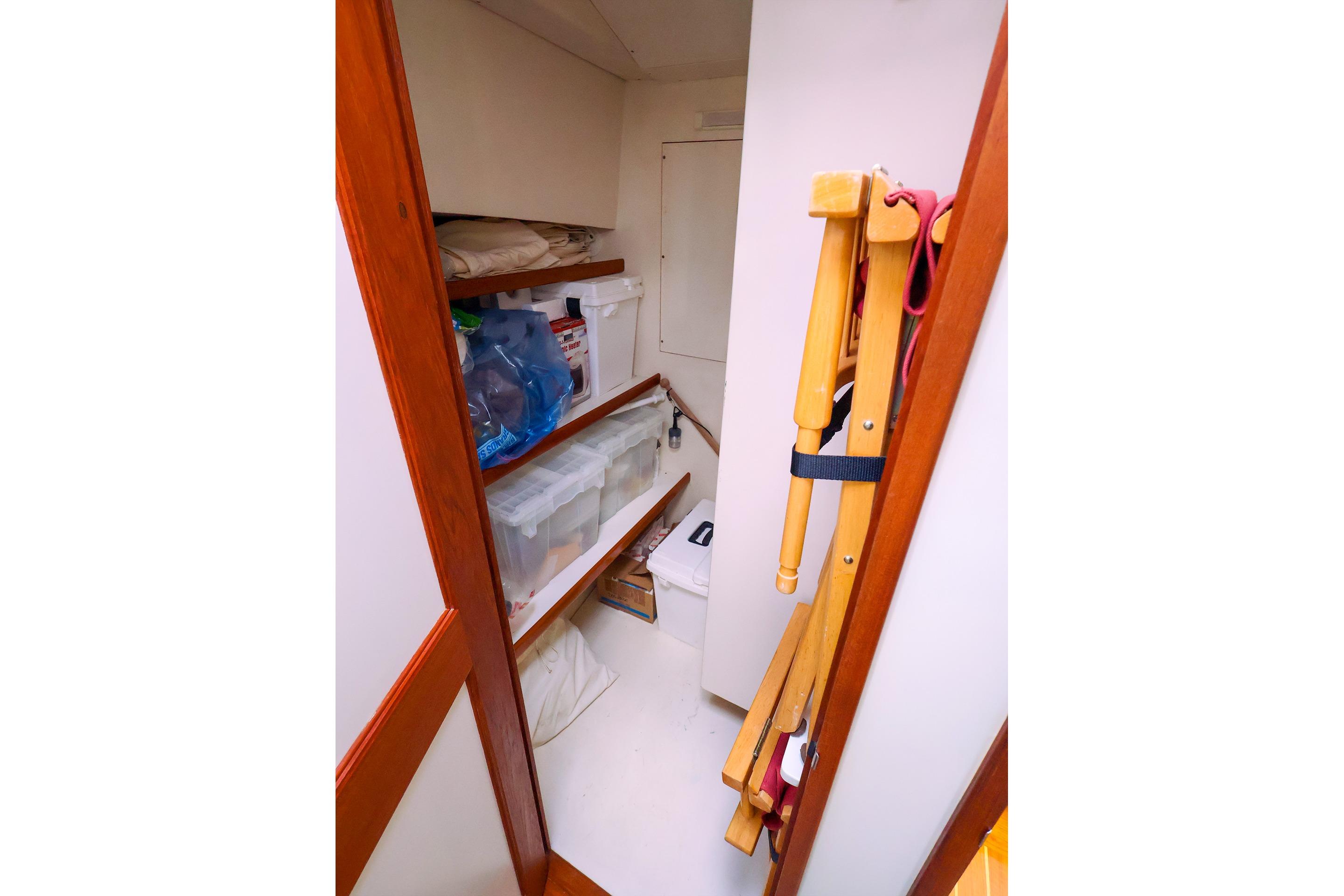

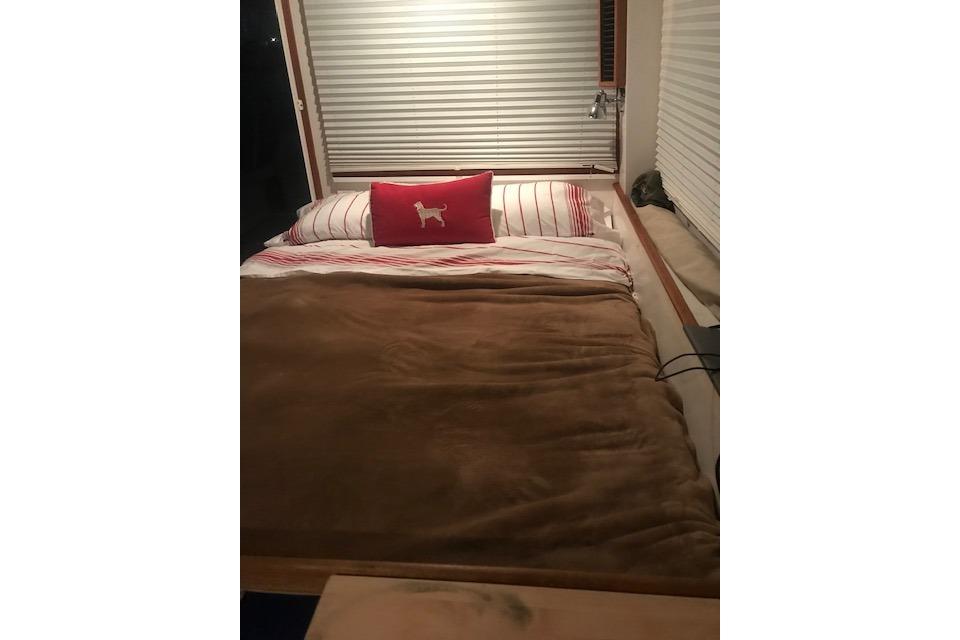

A spacious owner's cabin is forward with a 72"x 62"centerline queen berth. The ambient light and ample air flow is provided by 2- dorades, 5 port lights 2 large overhead hatches with shade and screens along with multiple fans. There is a starboard side walk-in closet / storage I mechanical room. The 2"-thick mahogany door to port allows access to the head. There is a cabinet to port that houses a SHARP flatscreen T.V. and with-in reach of the berth is the stereo and MARINE AIR controls. A two seat settee to starboard makes dressing in a seaway safer and easier. All below decks have a 6'4" standing height.
- Engine on-off battery switch
- (2) Reading lights

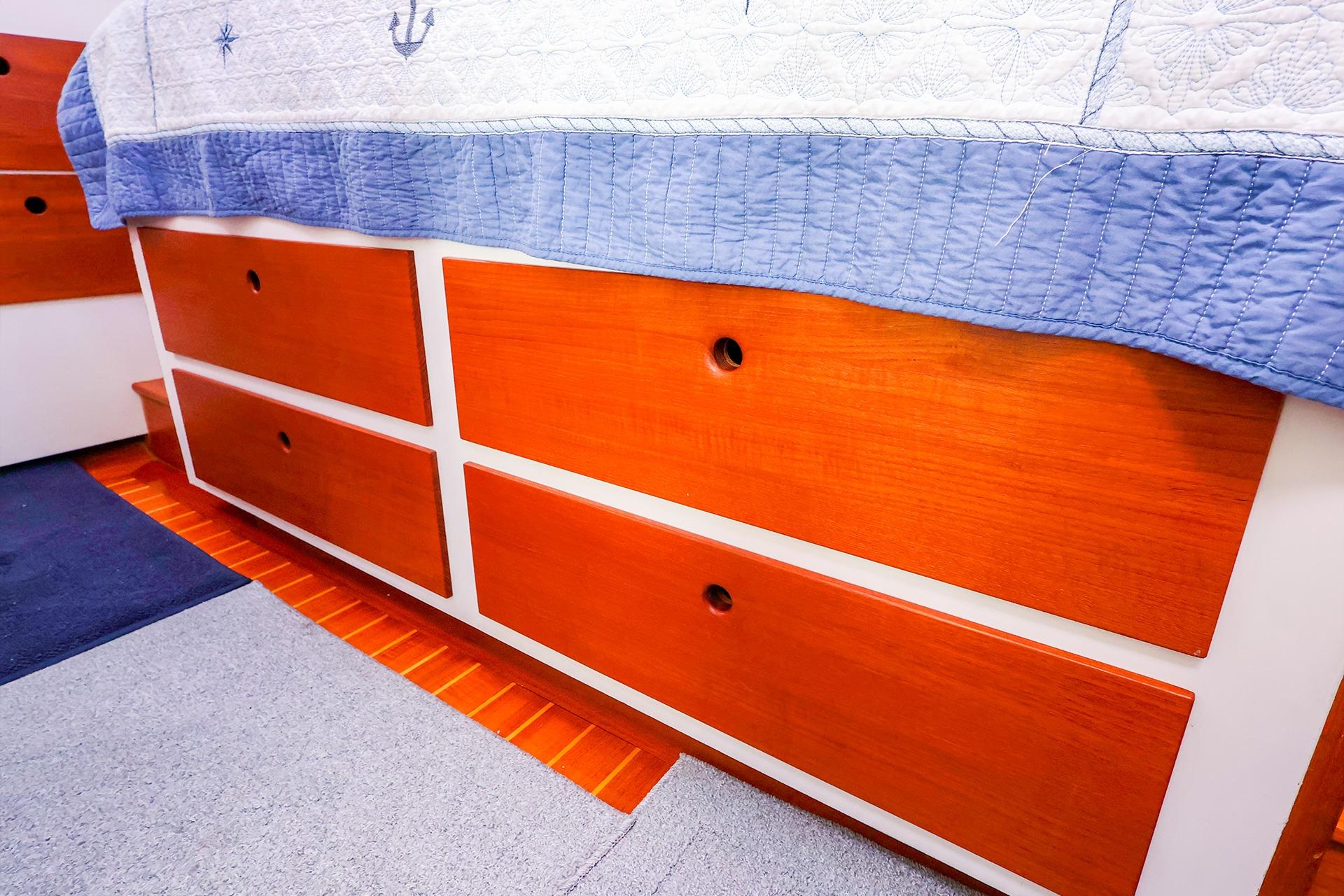

- Full length mirror 12 Drawer storage

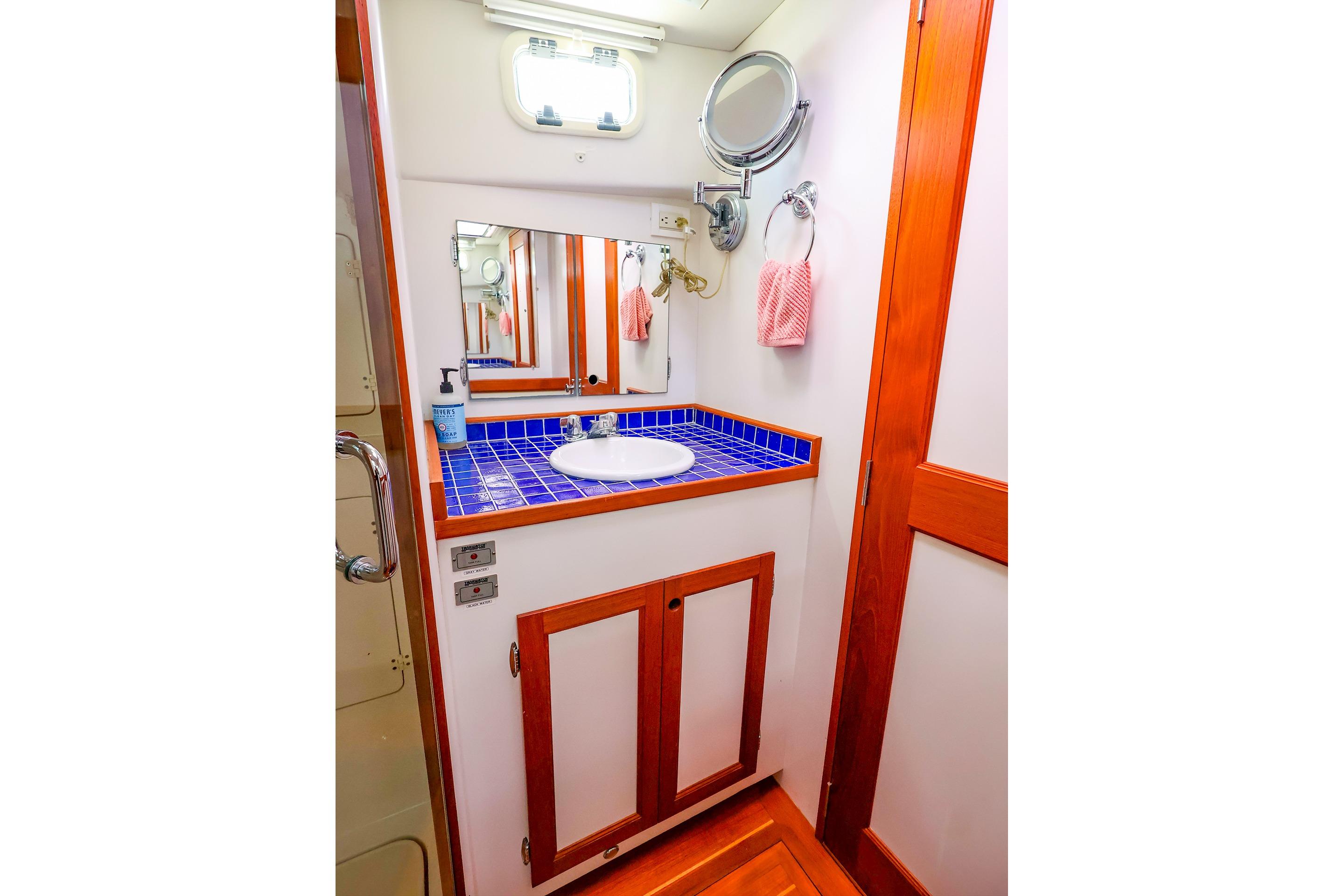

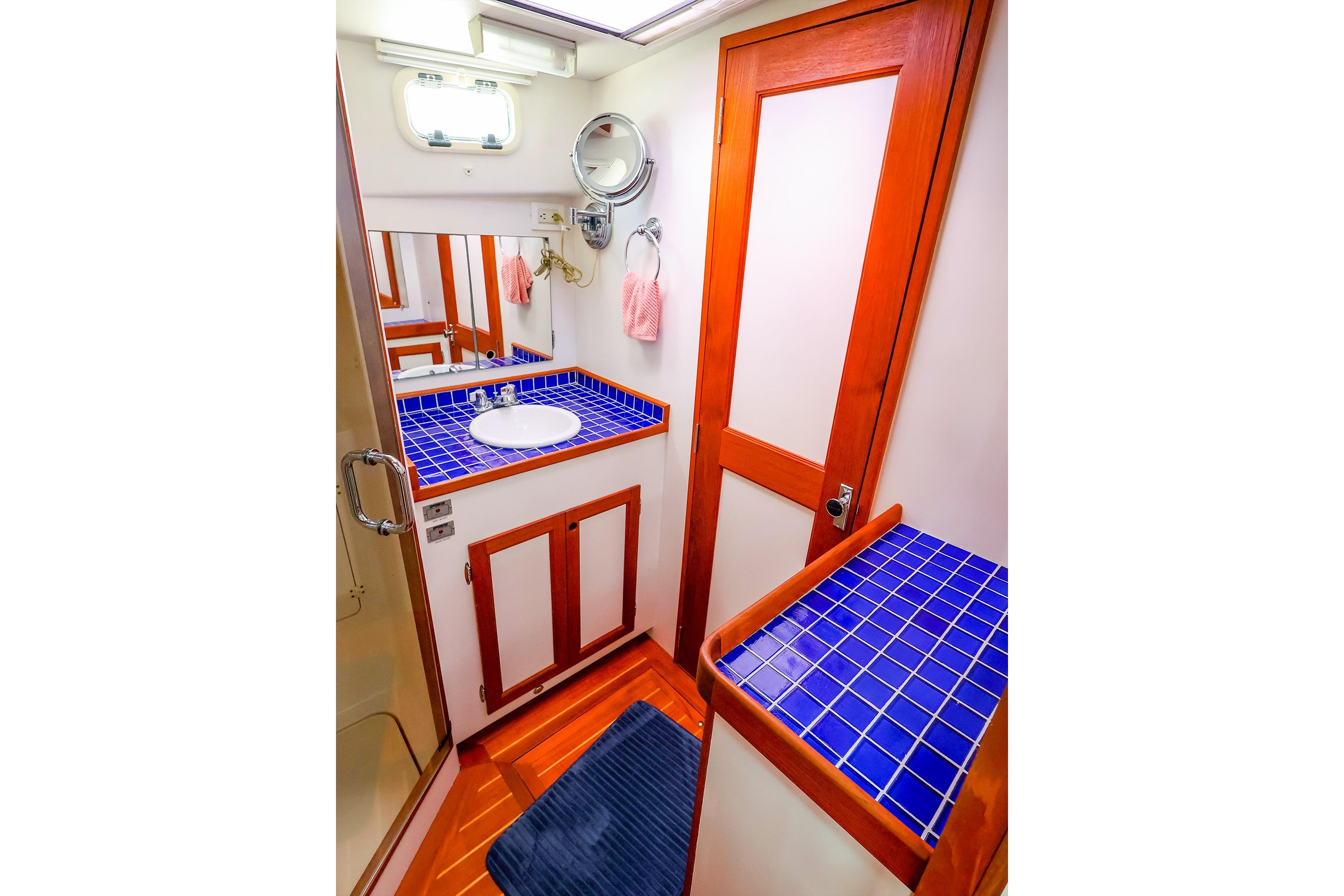

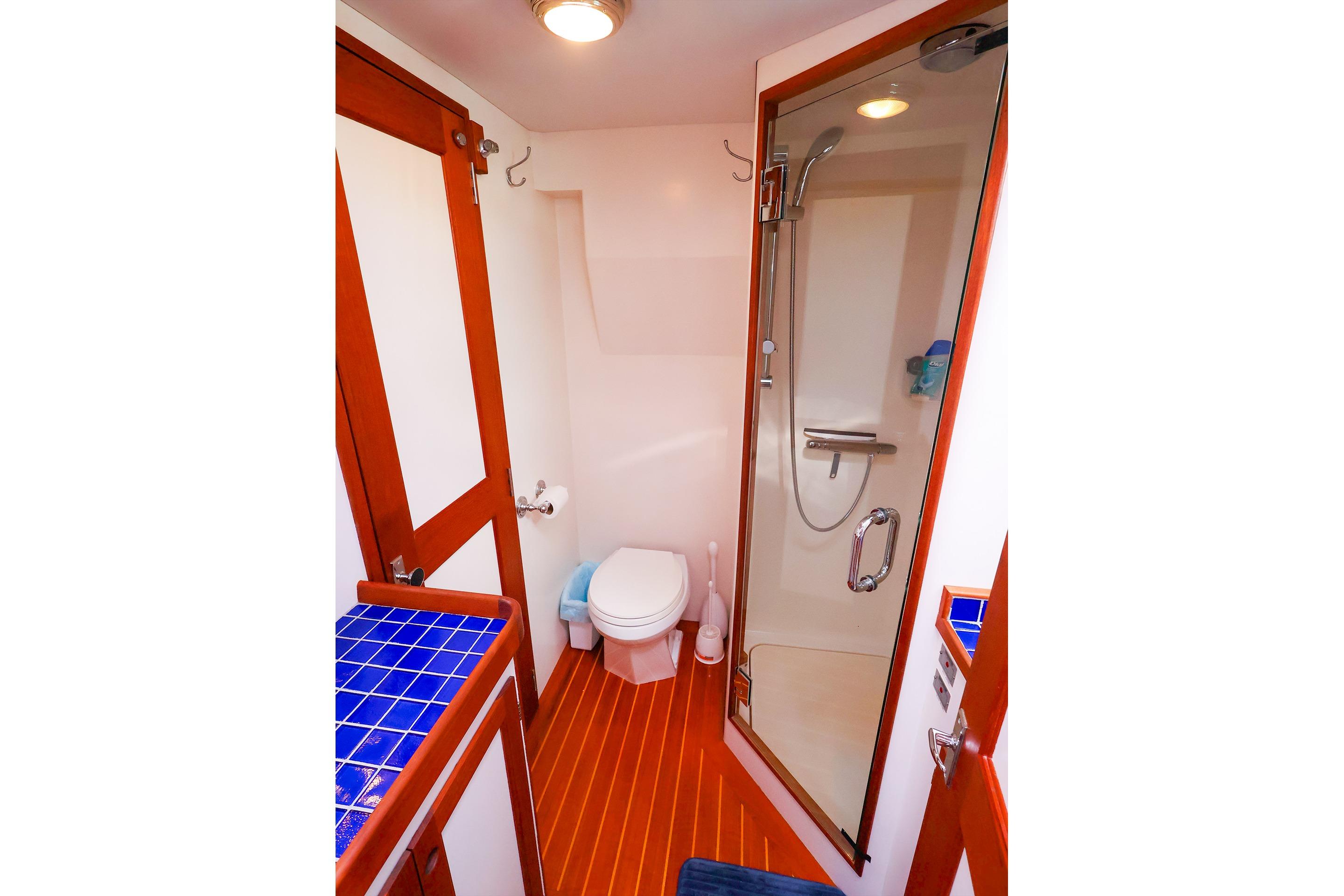

HEAD
This compartment has a hallway entry for day head use and a master stateroom entry. Featured is a oversized half-round separate shower with glass door. Matching blue tile counter-top on the large vanity. Storage can be found under the vanity as well as at the pedestal bureau.
ELECTRICAL
- Electrical system engineered in accordance with ABYC standards.
- 12 volt DC, 110 volt AC systems
- Control and distribution breaker panel with volt and amp meters
- Tinned copper wire throughout
- 110 volt, 30 and 50 amp shore inlets with 50' cords and reverse polarity indicators
- MASTERVOLT Whisper 8 kw generator
- MASTERVOLT AGM batteries (3)
- Twin MASTERVOL T 110/220 - 12/80 volt chargers
- MASTERVOLT 12volt 2000 watt sine wave inverter
- SUNWARE solar panels
- MARINE AIR A/C units (2)
- Separate AGM house and engine start batteries
- Heavy duty engine allernators for house and start batteries
- 12 volt cabin lighting with stainless steel dome lights, Danish reading lights
- Fluorescent lights throughout
- Courtesy lights and overhead lights in aft cockpit
- Engine room light
- High water bilge alarm
ADDITIONAL EXTRAS
- ACR EPORB
- Flare kit
- (6) life jackets
- (2) Fire extinguisher's
- Miscellaneous spare parts
- Basic tool kit
- (6 fenders and dock lines Burgee and ensign flag staffs
- Boat hook
- Electric horn
- (2) 10lb propane tanks

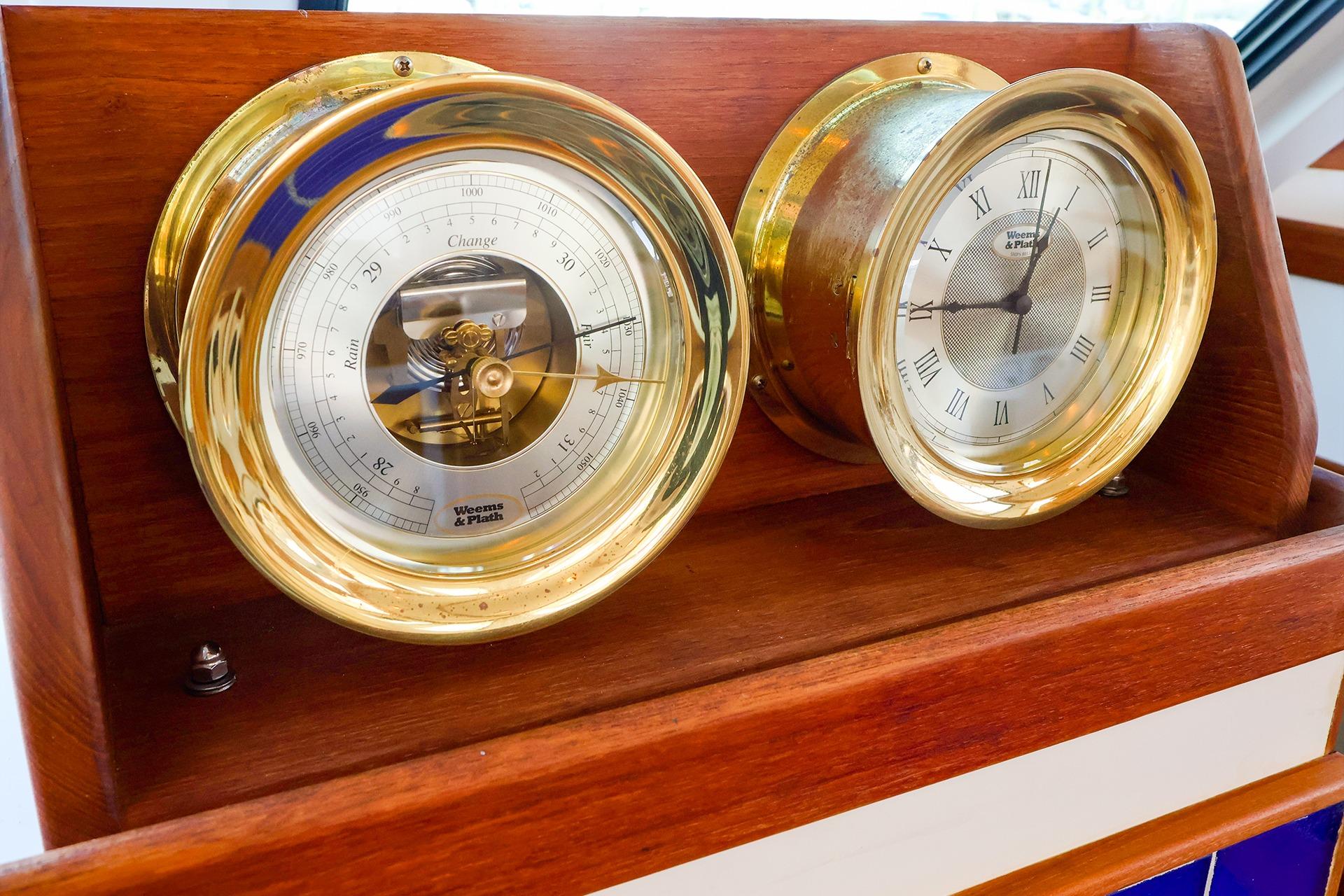

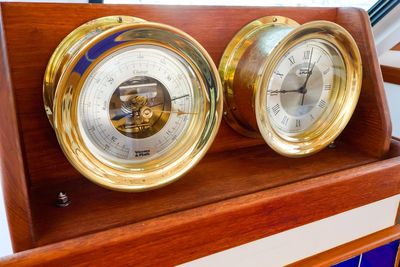

- Clock and barometer
- OCEANAIR blinds for all windows
- Window covers
- Side shades for aft cockpit
RECENT IMROVEMENTS
- Full 2000 hr Interval 5 manufacture service recommendations and maintenance. All coolers cleaned (2025)
- Generator full service including gaskets and exhaust elbow replacement (2025)
- New propeller shaft seals (2025)
- Replaced starboard aluminum fuel tank with new ATL tank (2025)
- New Mastervolt Batteries (bow thruster, starter and house (4) (2025)
- New Mastervolt 12 volt/2000 watt inverter (2025)

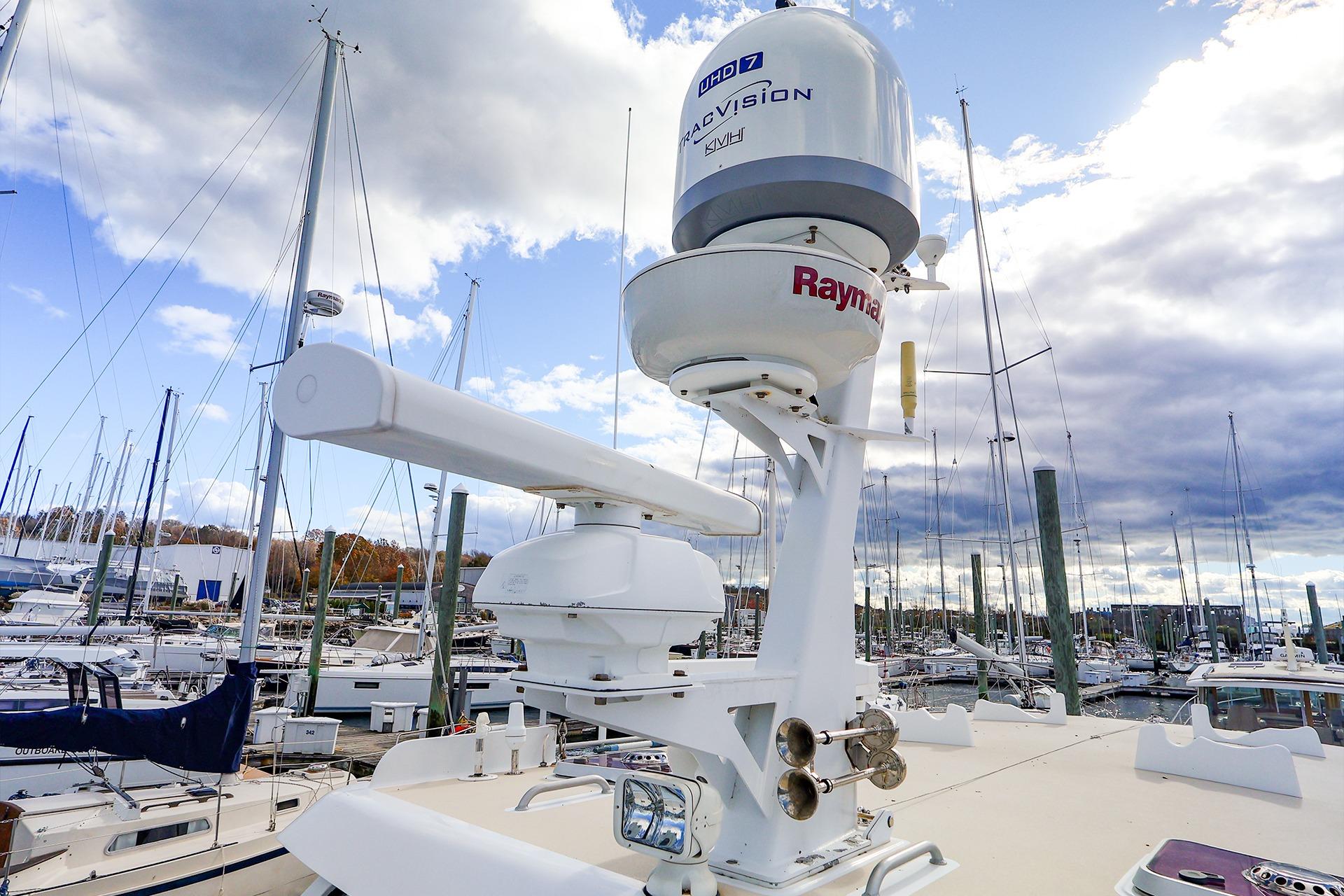

- KVH Trac Vision UHD7 (2023) for Direct TV
- ACR 2830 Globalfix GPS Epirb (2023)
- Furuno 220WX Ultrasonic Weather station (2023)
- Raymarine AP44 Autopilot Controllers (2) (2023)
- VHF Marine Antenna (2023)
- Coastal Life Raft (2023)
