YACHT NAME:

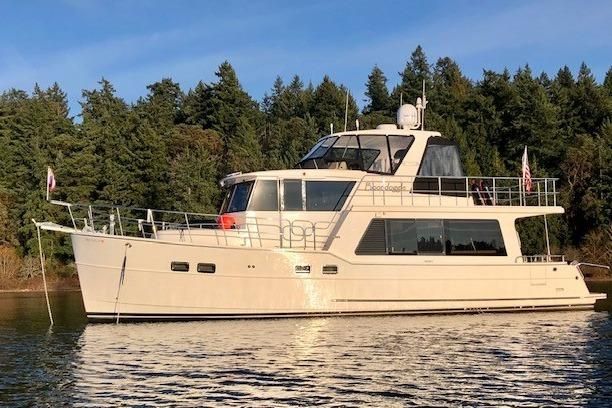

2021 North Pacific 49 Pilothouse Boondoggle
MODEL:
49 Pilothouse
BUILDER:
North Pacific
YEAR BUILT:
2021
LOCATION:
Seattle WA
ASKING PRICE:
$1,349,000
DESIGNER:
N/A
HULL:
Fiberglass
CATEGORY:
Trawlers
DESCRIPTION:

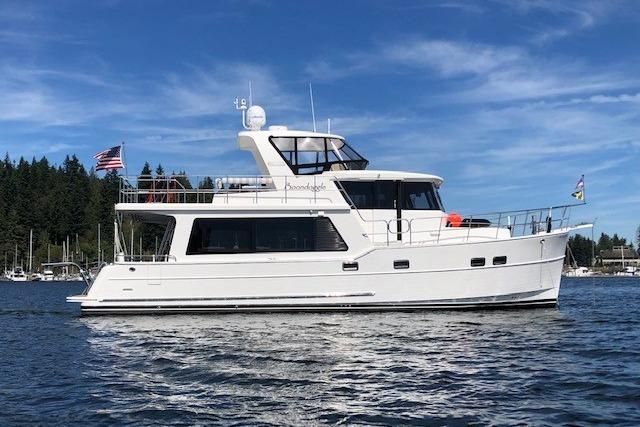

Rare opportunity to own a fully customized one of a kind North Pacific 49 Pilothouse! Boondoggle is in like new condition in every way.

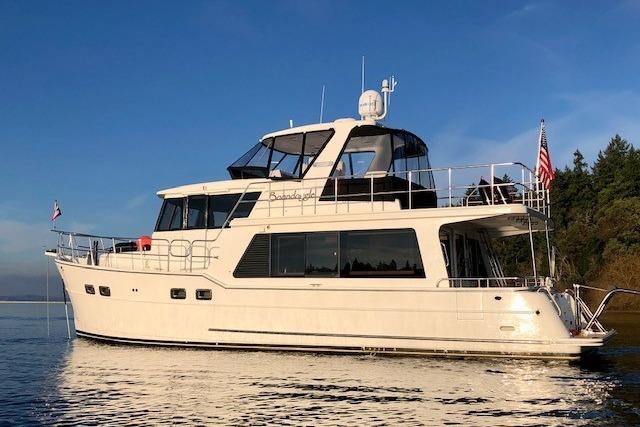

Boondoggle is a heavily customized one-owner 2021 North Pacific 49 pilothouse. The NP49 is a semi-displacement long range coastal cruiser, built for maximum comfort, safety, easy of ownership, and reliability for extensive cruising and living aboard. The hull features a full keel with a skeg which protects the prop and connects to the bottom of the rudder. This vessel features a custom layout with two staterooms, two heads, an oversized galley, and functional and easy flow throughout the boat.
Major highlights:
Midship master stateroom with king size bed
Diesel hydronic heating throughout
Reverse cycle air conditioning in salon and pilothouse
FCI 1850 gpd automated watermaker with APC
Dockmate wireless controller
Heavily upgraded electronics package
Custom Maretron monitoring system
FLIR thermal imaging camera

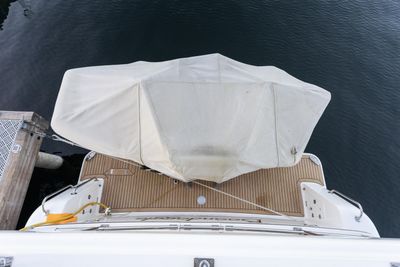

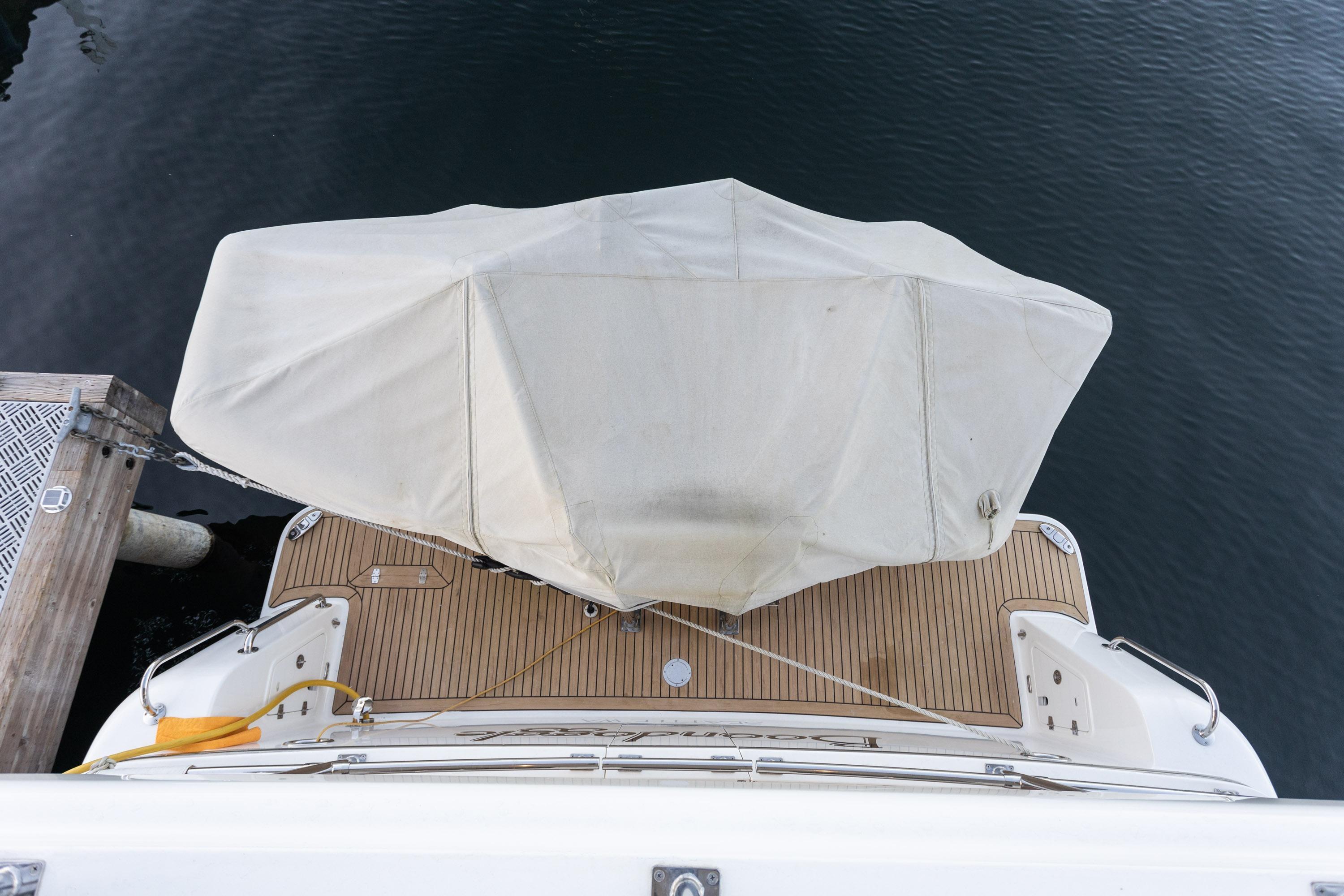

Ollson stern mounted davit with Highfield tender and 30hp outboard
Complete equipment list:
Solid, hand-laid fiberglass hull. Outer two layers are vinyl ester resin
Superstructure cored primarily with synthetic honey comb core - Marine plywood squares where required
Fully integrated swim platform
International paints micron Extra anti-fouling
International paints epoxy barrier coating below water line - Vinyl Ester resin 2 outer layers of hull
Exterior Fittings and Equipment:
Pure white gelcoat

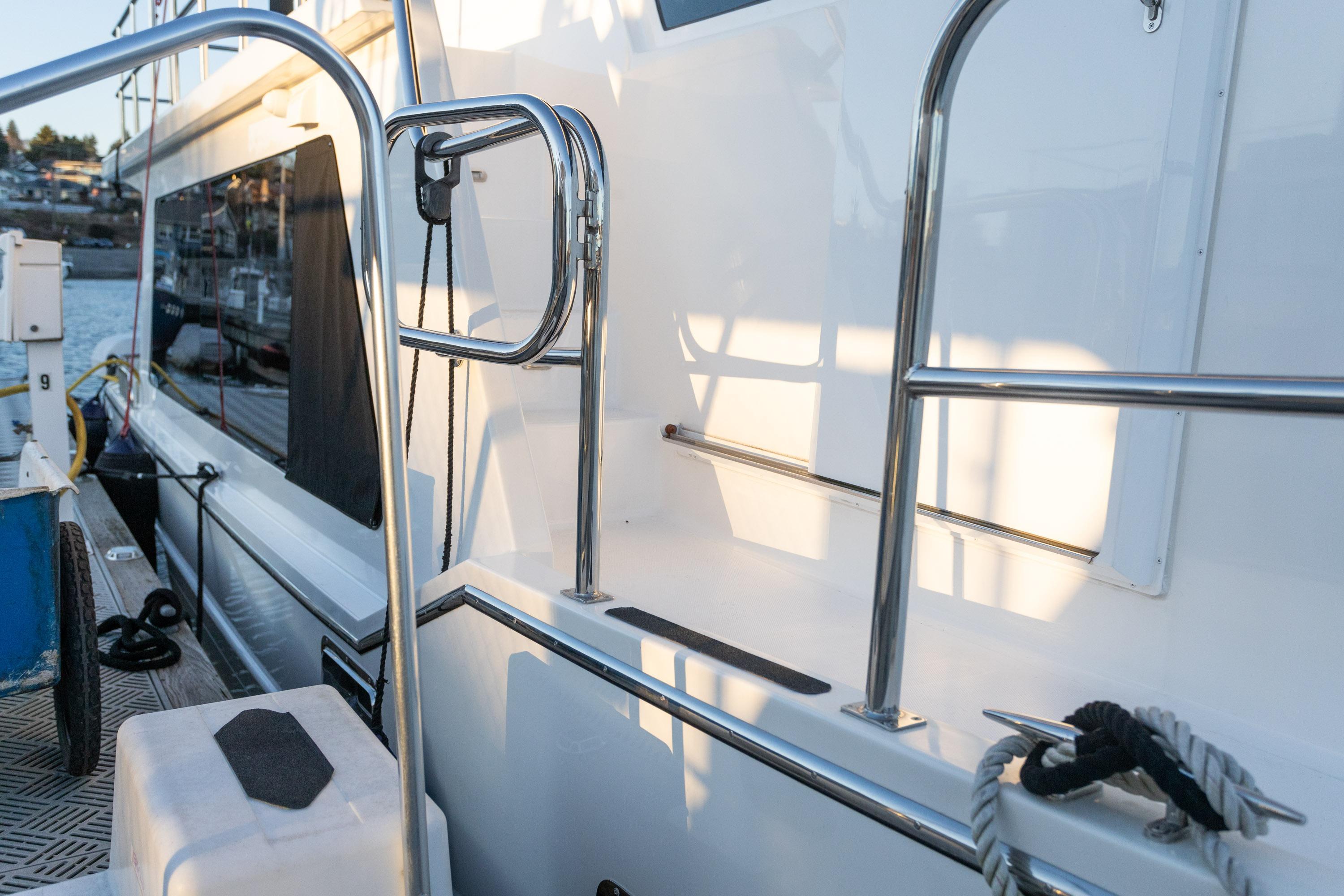

#316L, polished stainless steel railings (1.5" top rail) & stanchions bolted into aluminum backing plates
Side boarding gates on each side of pilothouse
FRP no-skid deck on all deck surfaces
SS mooring cleats (8) - 4 in cockpit, 2 midship, 2 at the bow +1 on each side of salon
SS fuel, water and waste tank deck fittings
SS portholes
Safety glass windows
Bonded frameless windows

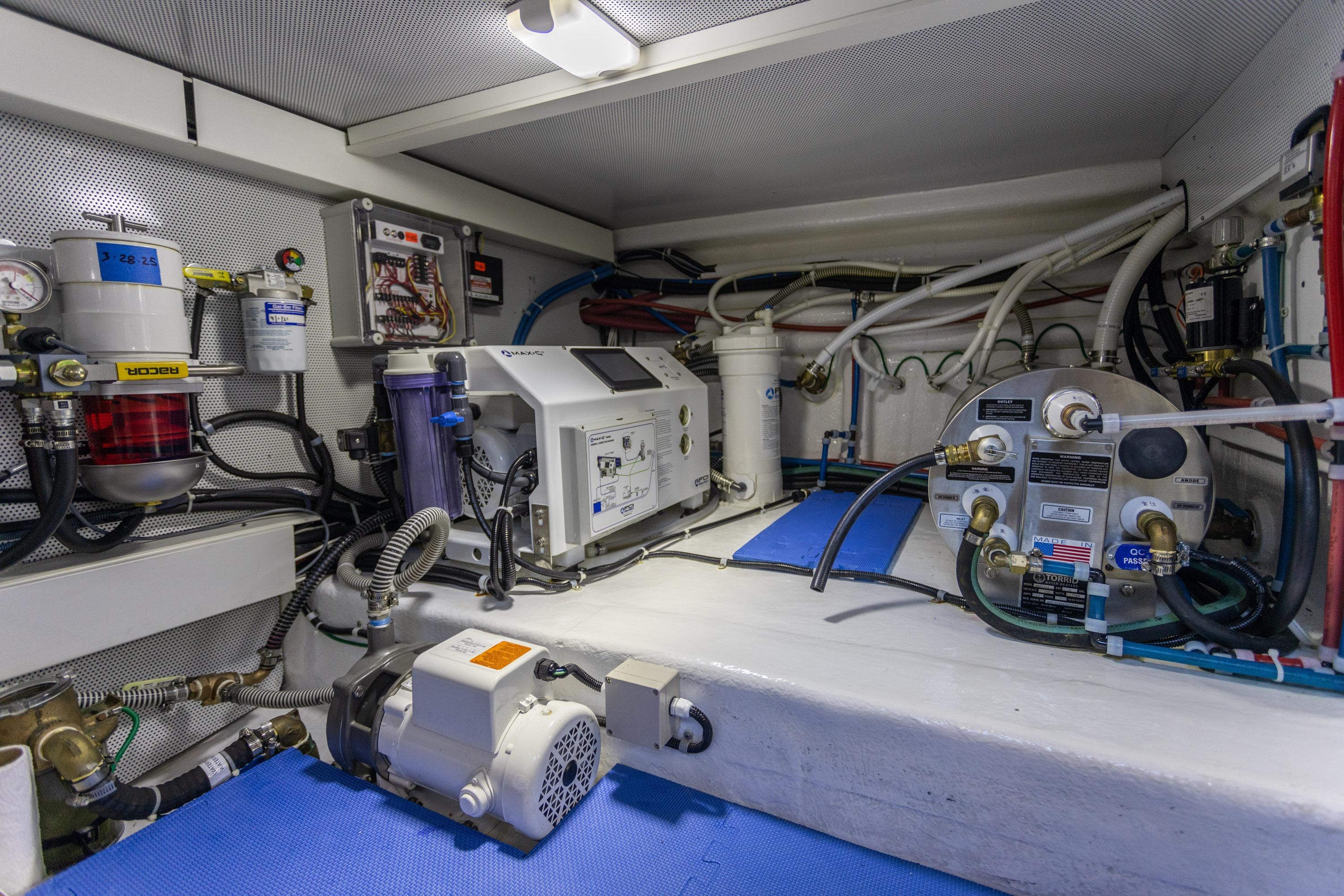

Engine Room, Propulsion and Fresh Water System:

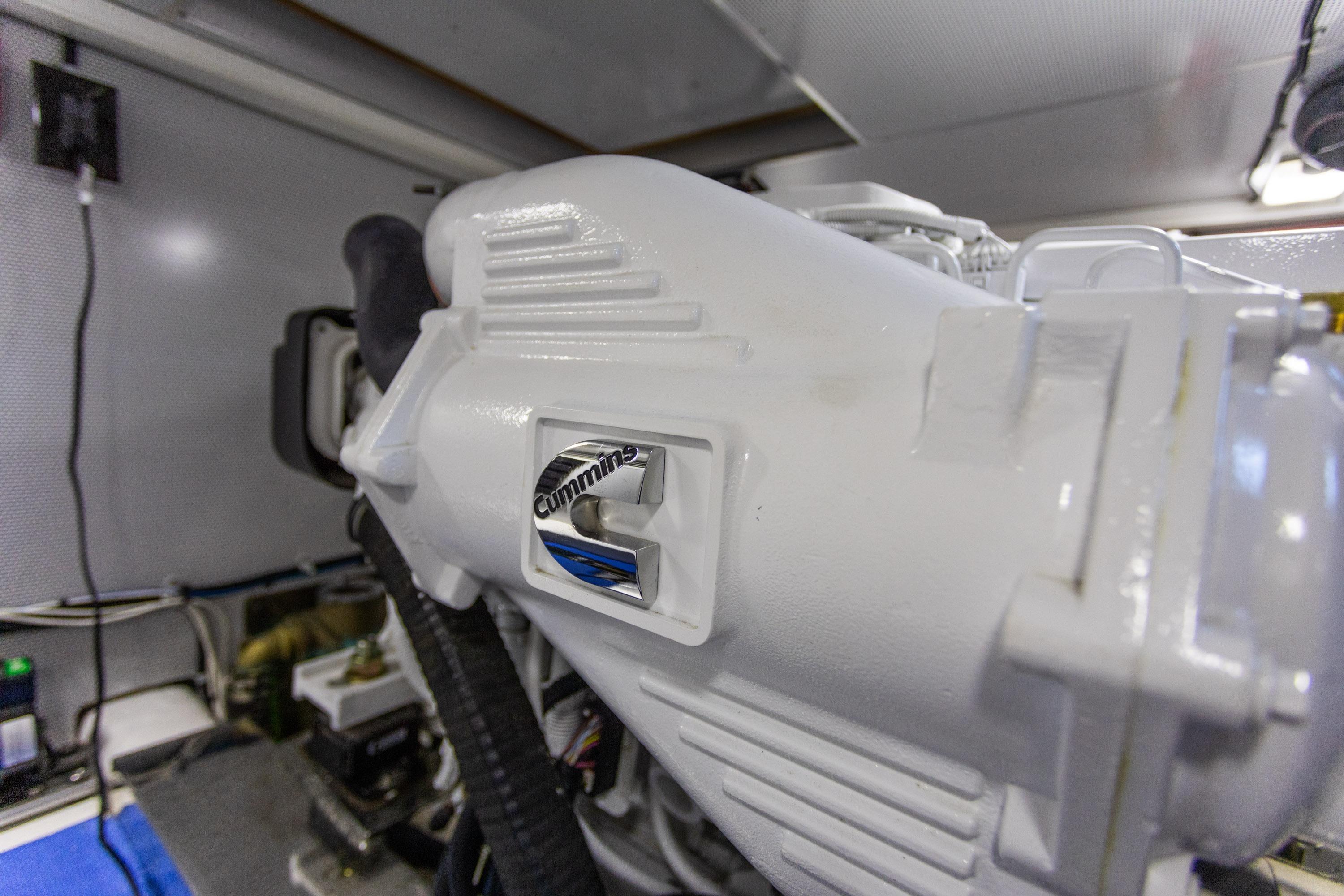

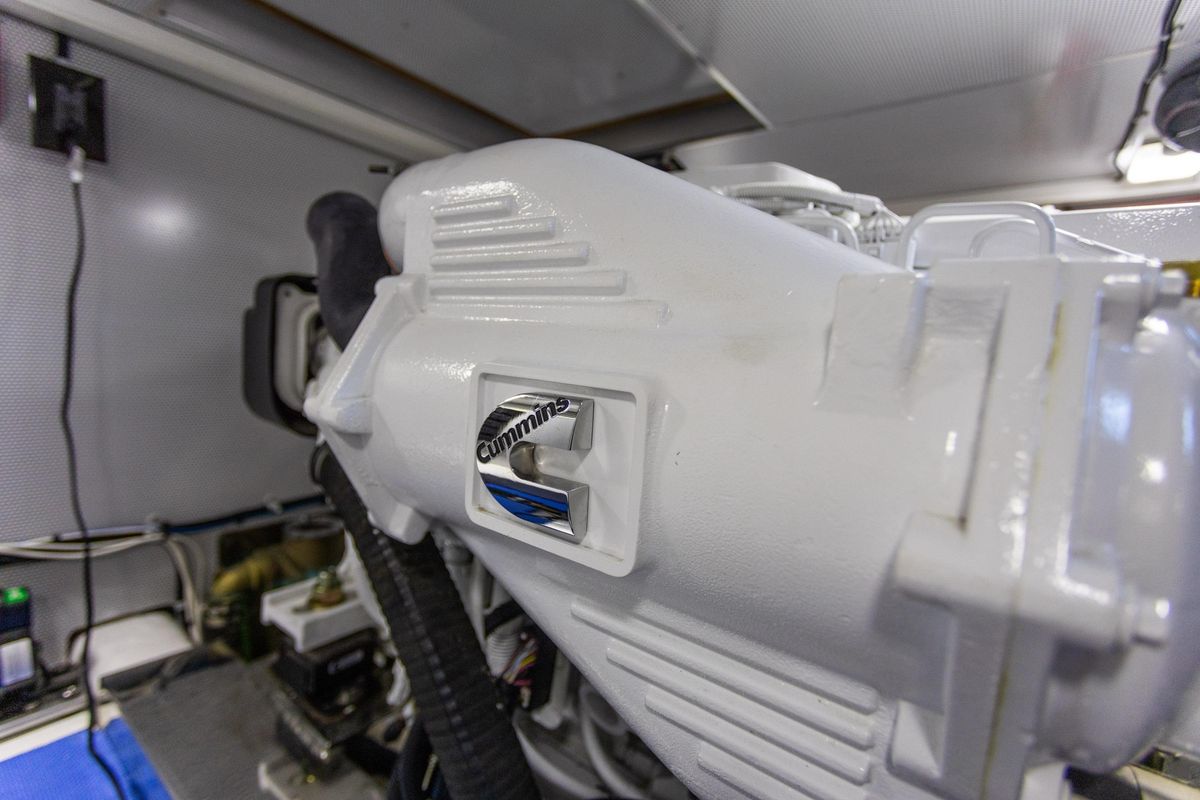

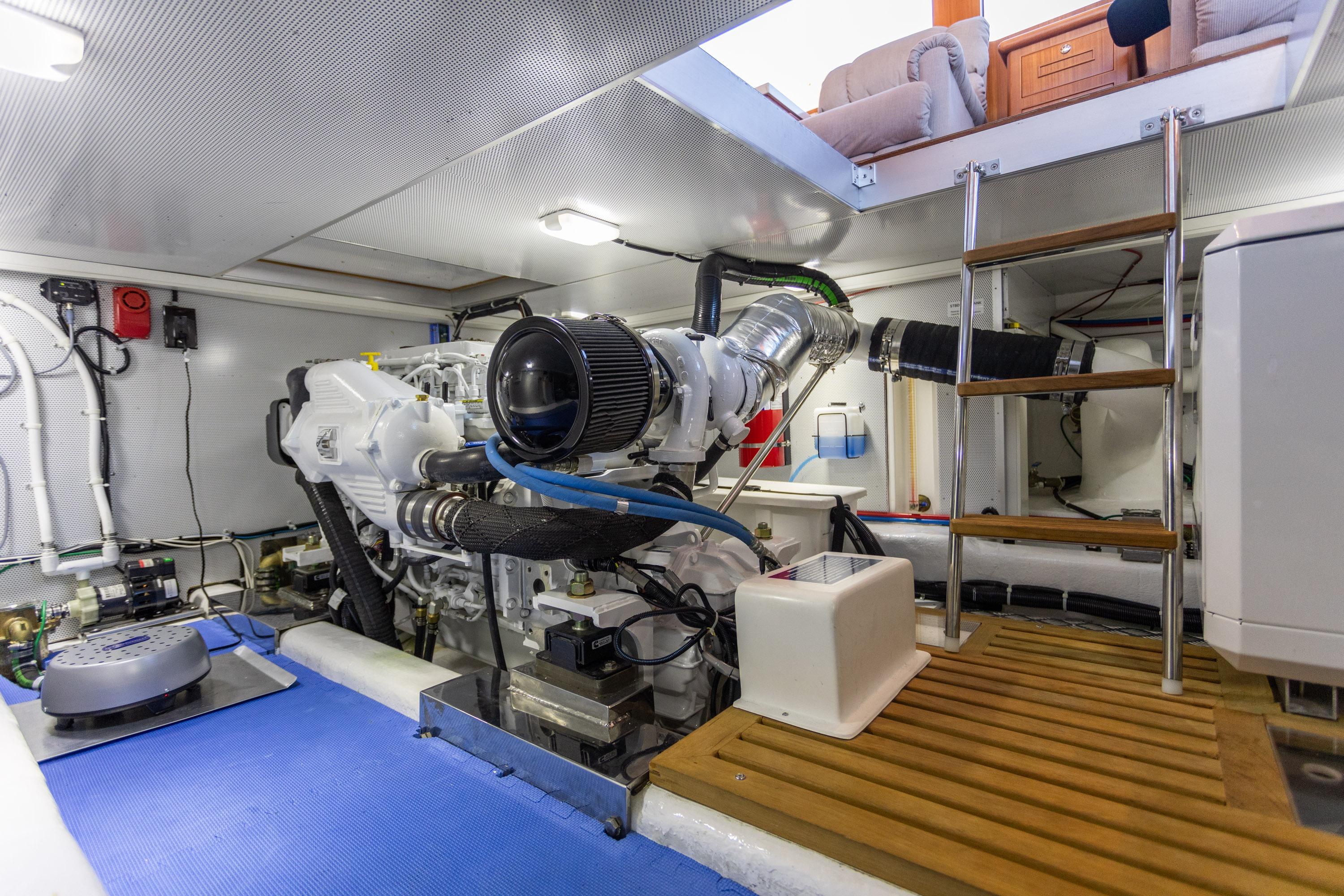

355hp Cummins QSB diesel engine with 160 amp alternator, ZF85A transmission (480hrs)
Engine room 2" sound insulation - 2 salon floor hatches for access

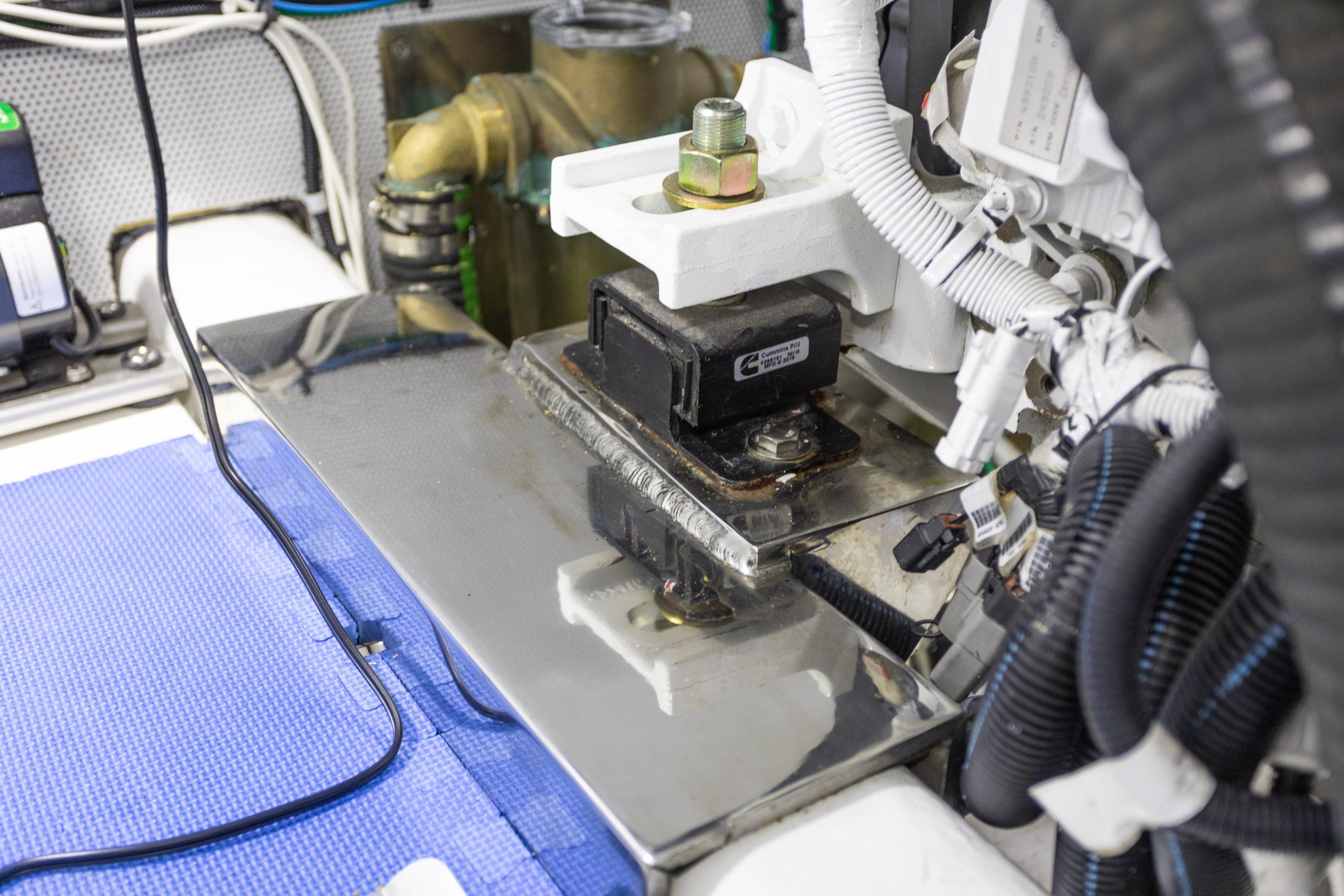

Aluminum non-skid plate floors - Polished stainless steel engine mounts
Engine room light (4)
Engine room blower
Fiberglass fuel tanks (2 X 350 gallons) - fuel lines for engine 1/2 ID
Stainless steel shaft - Aqua 17
Dripless shaft seal – Tides Marine
Line cutter on shaft
Precision 4 blade propeller
Hynautic 2 station hydraulic steering
Cummins DTS (digital throttle shift) control module
Underwater exhaust system
Sea cock and strainer on engine raw water intake

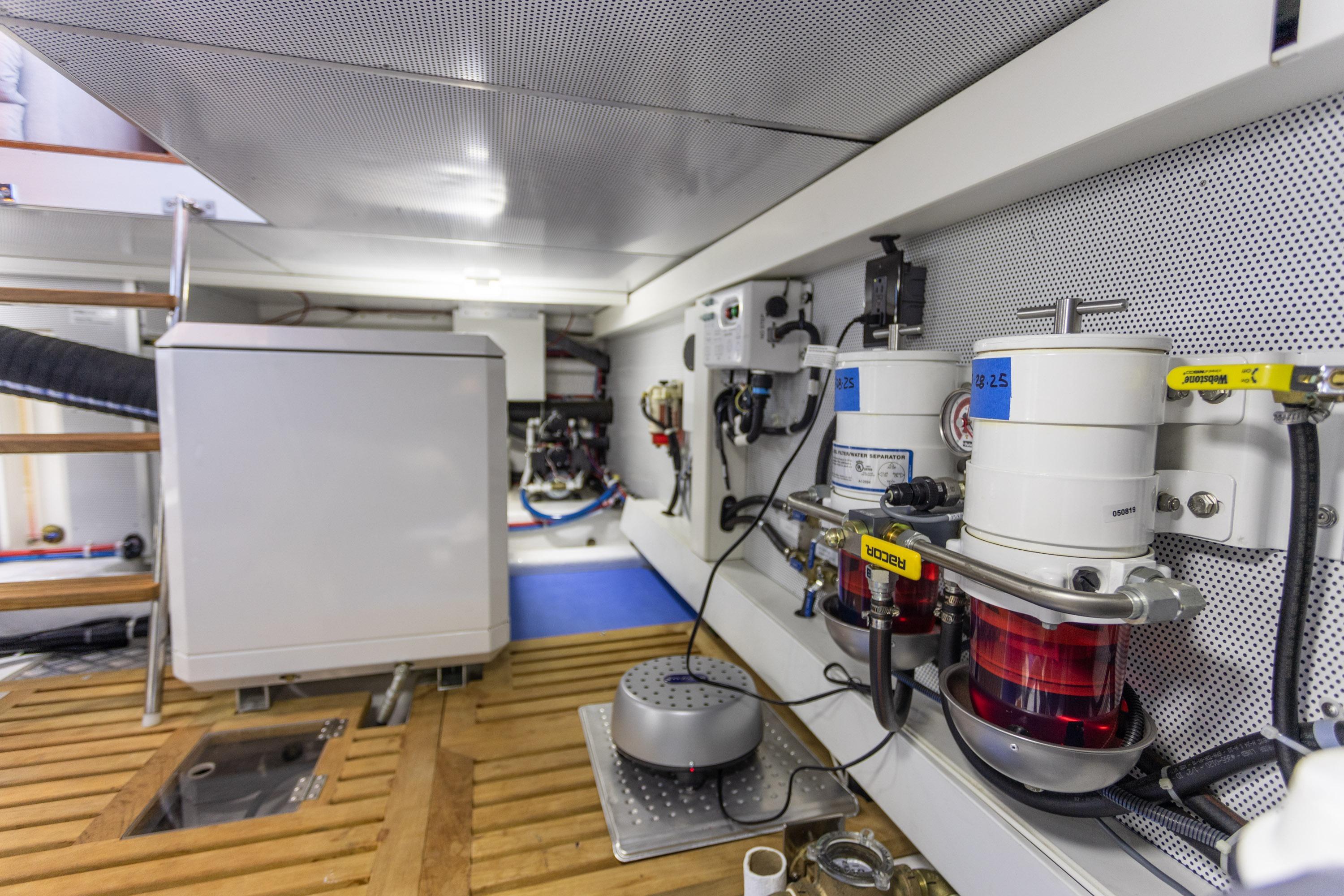

Dual Racor fuel filter
Automatic bilge pump (3) - Rule or comparable brand
Manual bilge pump (1)
Fresh water deck washdown system with Marco DP12 high output pump
Holding tank (65 GAL) w/ Whale Black Water diaphragm pump and Trident Premium sanitation hose
Fiberglass water tanks (1 X 200 gallons)
Fresh water system with dual variable speed pumps and accumulator tank for quiet operation
Fresh water intake- SS hardware
10 gallon Torrid water heater in engine room
Everhot tankless water heater in lazarette connected to diesel furnace.
Diesel hydronic heating system including instant hot water heat, defrost and several zones- Axeman Anderson/ Beckett
Oil change system for engine and generator
Seafire automatic engine shutdown and automatic fire extinguisher
FCI 1850 gpd automated watermaker with APC
Electrical:

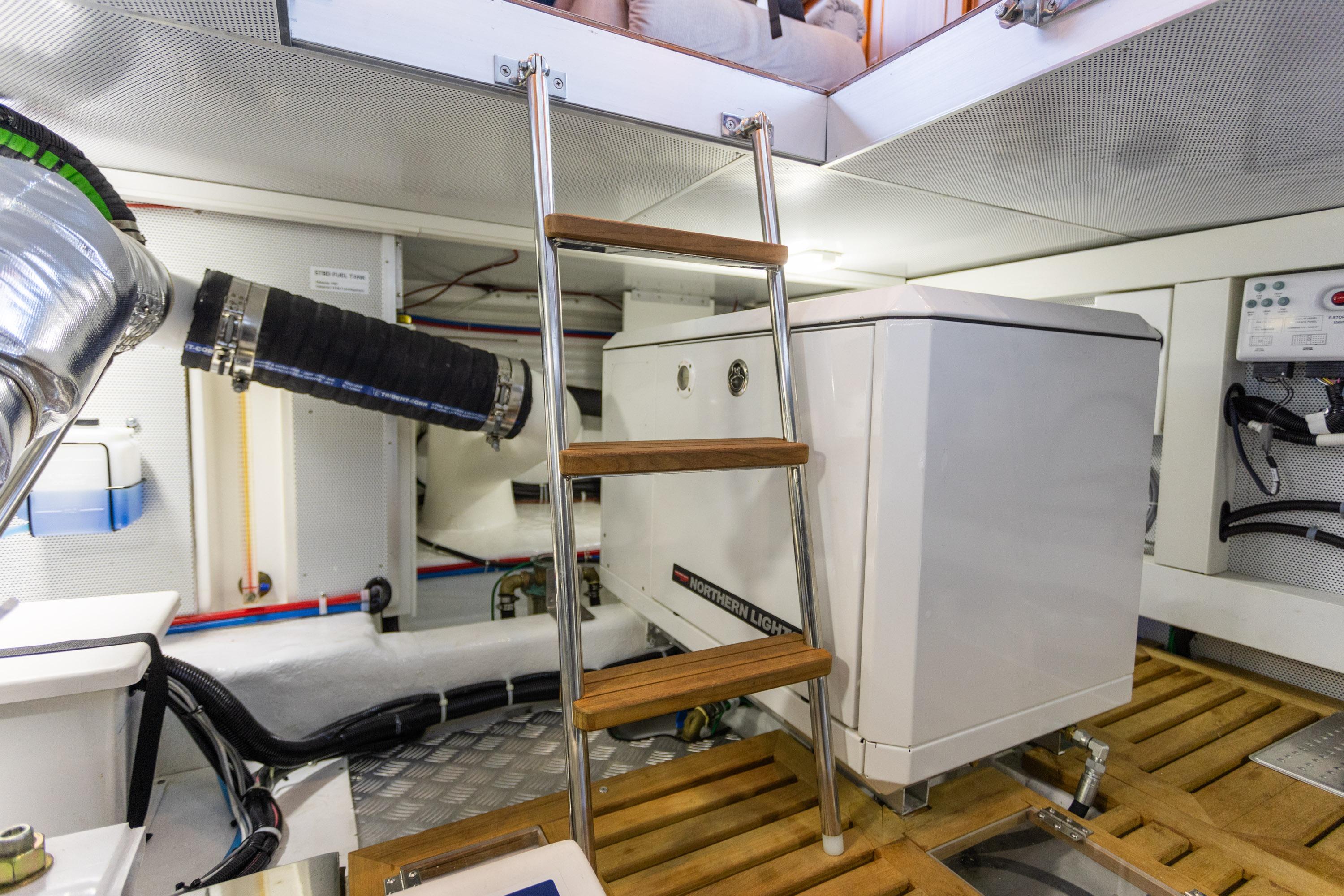

Northern Lights 12Kw genset w/ sound shield and water/gas separator 120/240V (224hrs)
Magnum MS2812 2800W inverter/charger (pure sine wave)
12v/200AMP AGM battery in box (5 house, 2 thruster/windlass, 1 engine starter, 1 generator starter)
Generator start battery (1)
Master control panel (AC/DC circuit breakers)
Bonded electrical system
120V AC outlets throughout
IMTRA LED lighting 12V throughout interior
LED courtesy lights throughout interior and exterior
50 amp 125/250V shore power connection at the stern and at the bow. Extra 50’ Smartplug cord for bow.
30 – 50a combiner adaptor

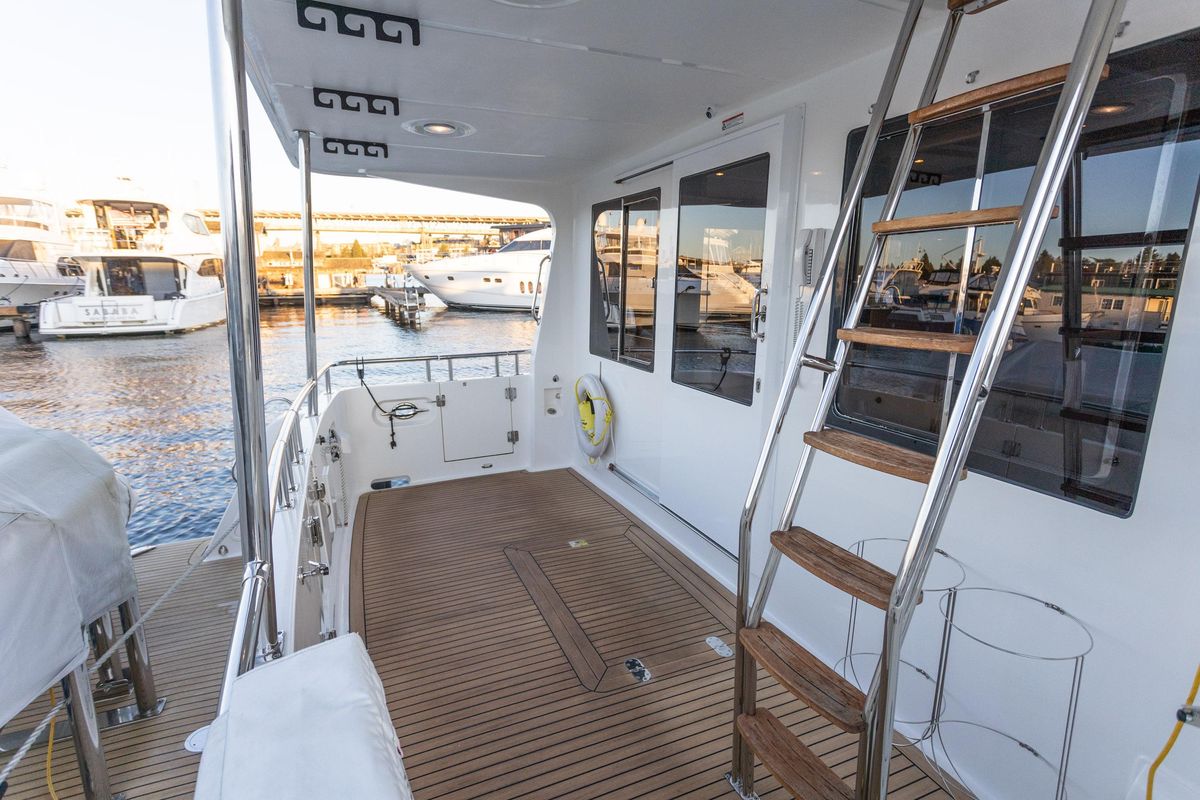

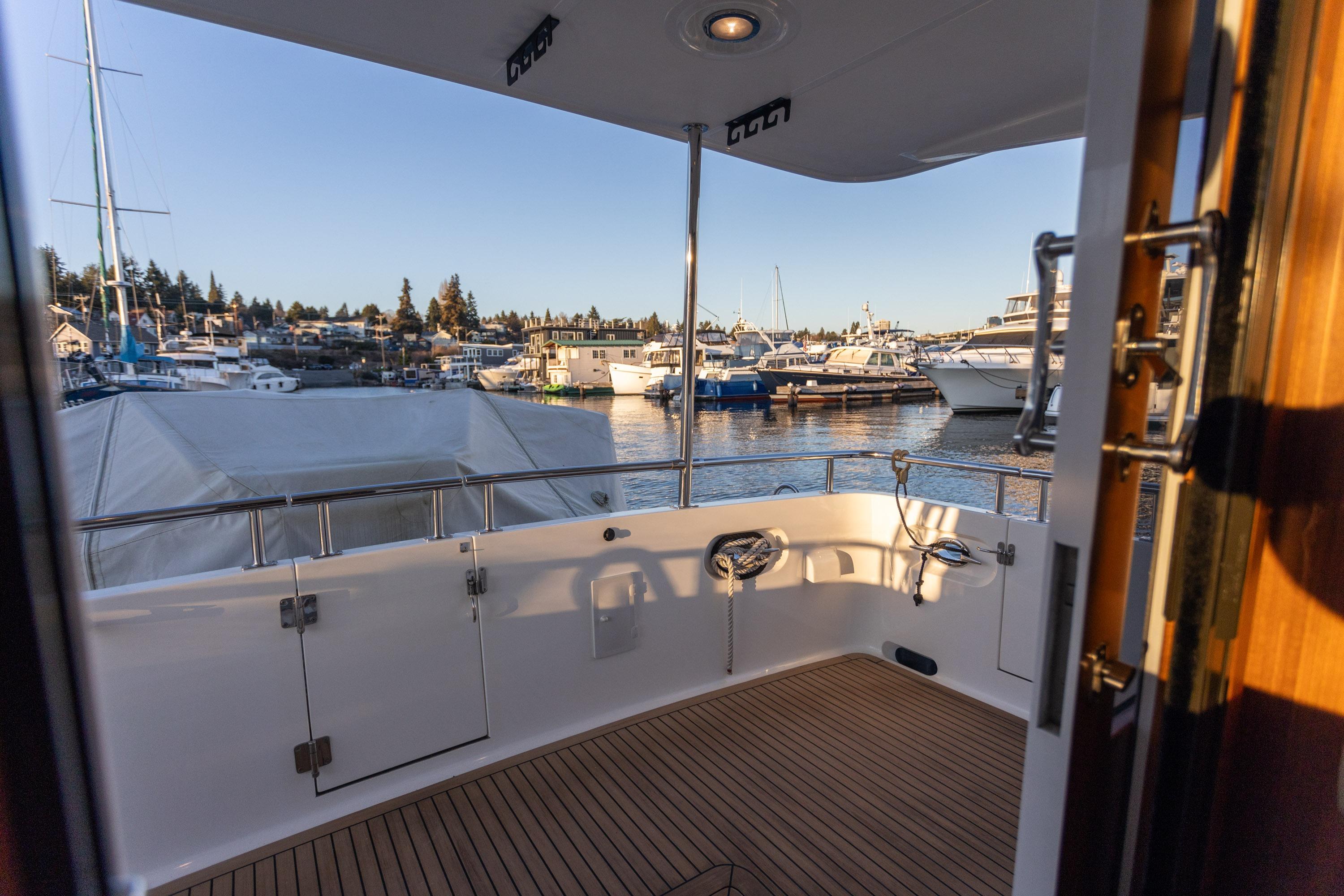

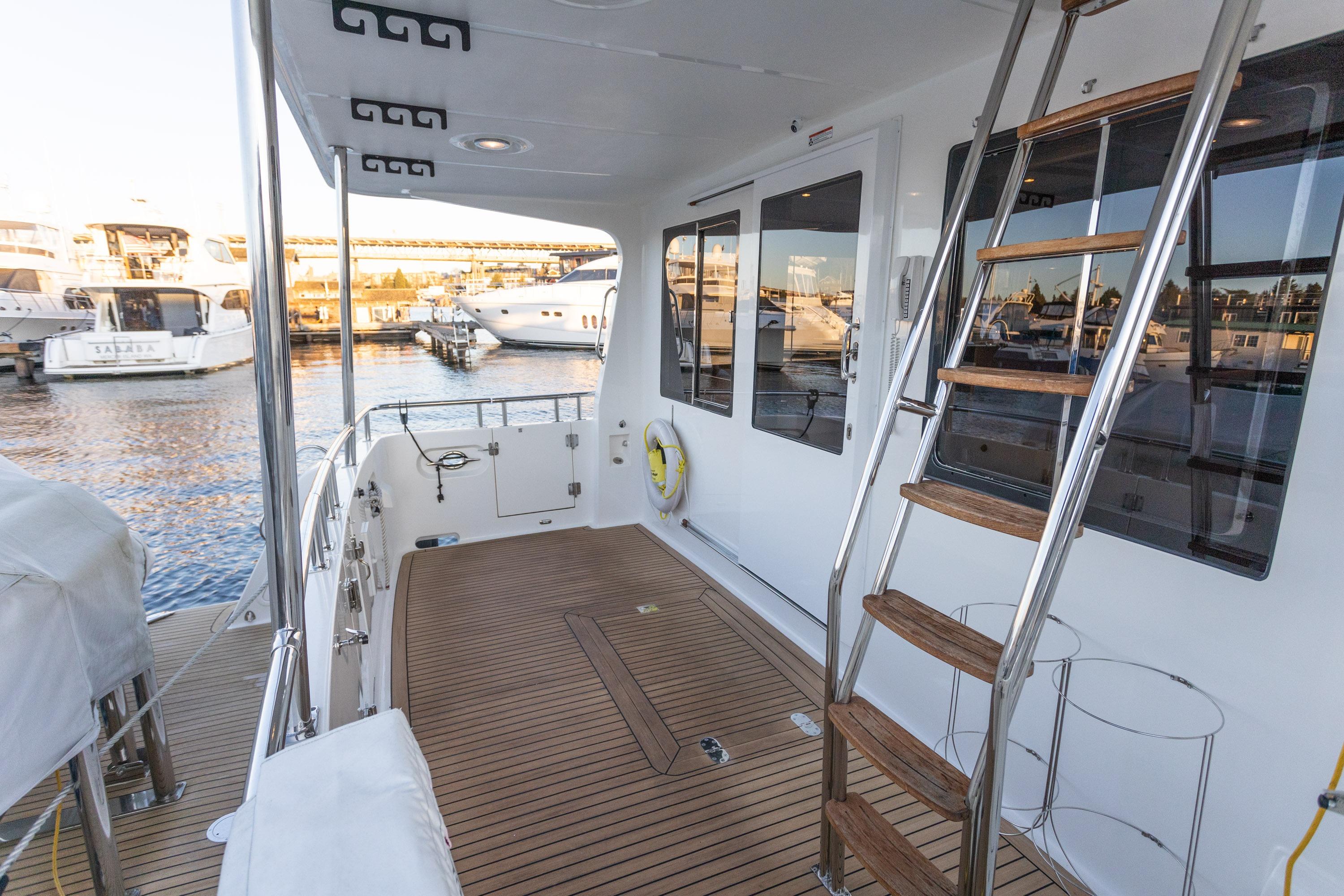

Cockpit:
Light (2)
Courtesy light (2)

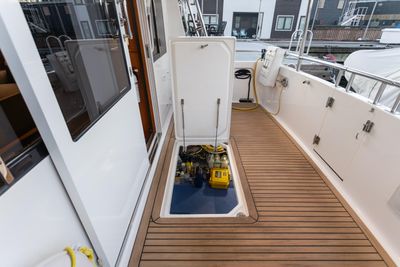

Hatch to access lazarette - gas assisted
Stainless steel ladder leading to fly bridge, starboard side
Transom door leading to the swim grid
Bulwark door on port and starboard side
Painted aluminum sliding door with teak inside - access to salon
Locker on transom with fresh water wash-down outlet
Locker on transom with Glendinning power cable retractor and 50' cable
Fresh water shower
Swim ladder
Extra SS aft upper deck supports (2)

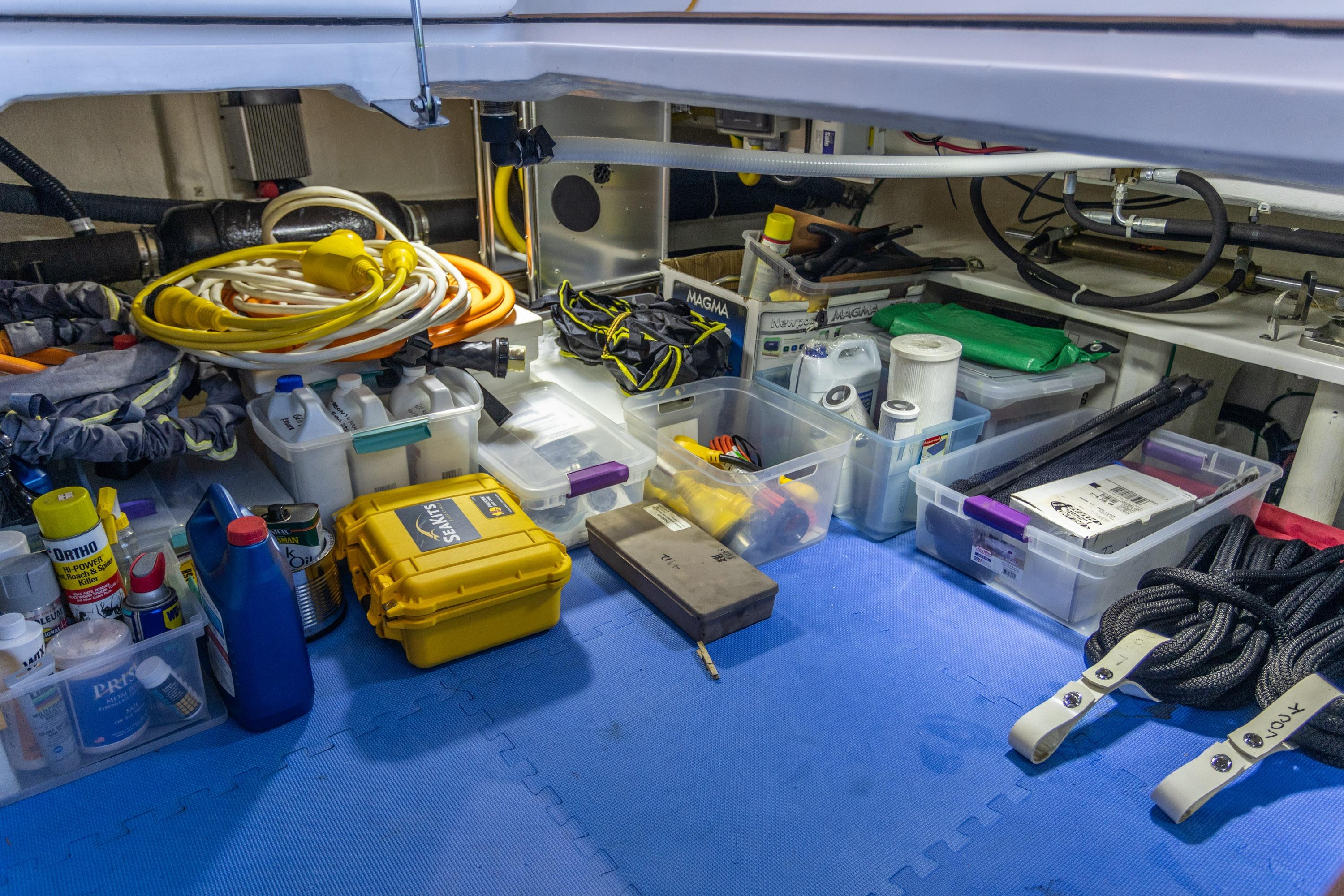

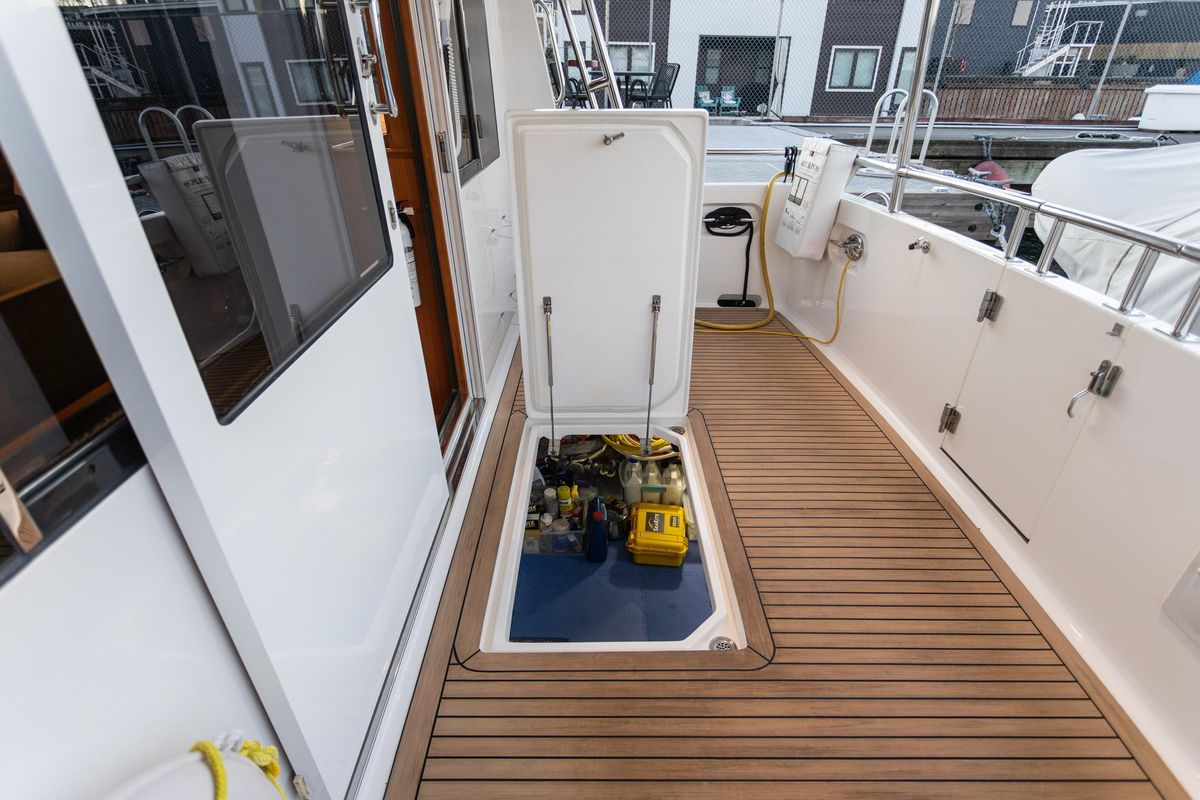

Access hatch to large lazarette
Fiberglass platform to mount steering mechanism
Dripless rudder bearing
Flexiteek deck on cockpit floor and swim platform
Flexiteek deck on swim platform

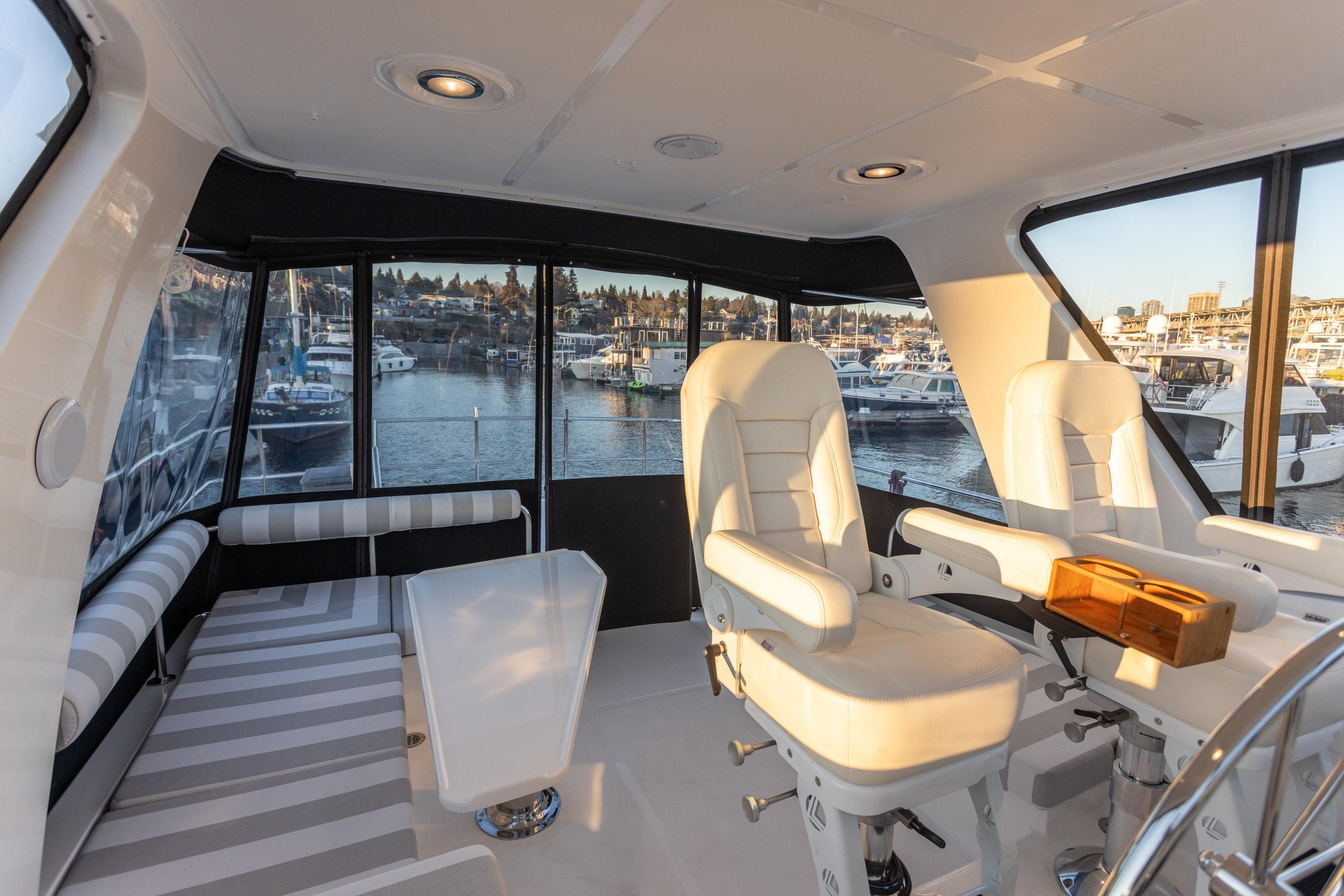

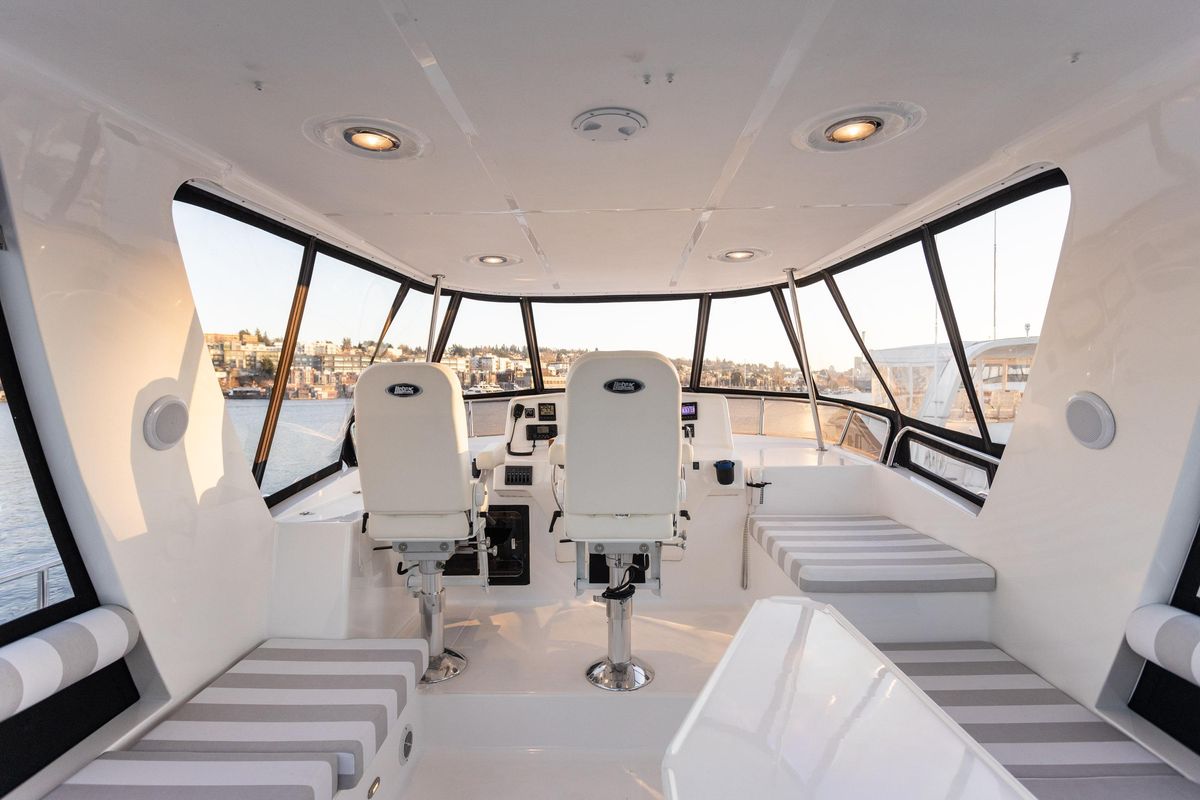

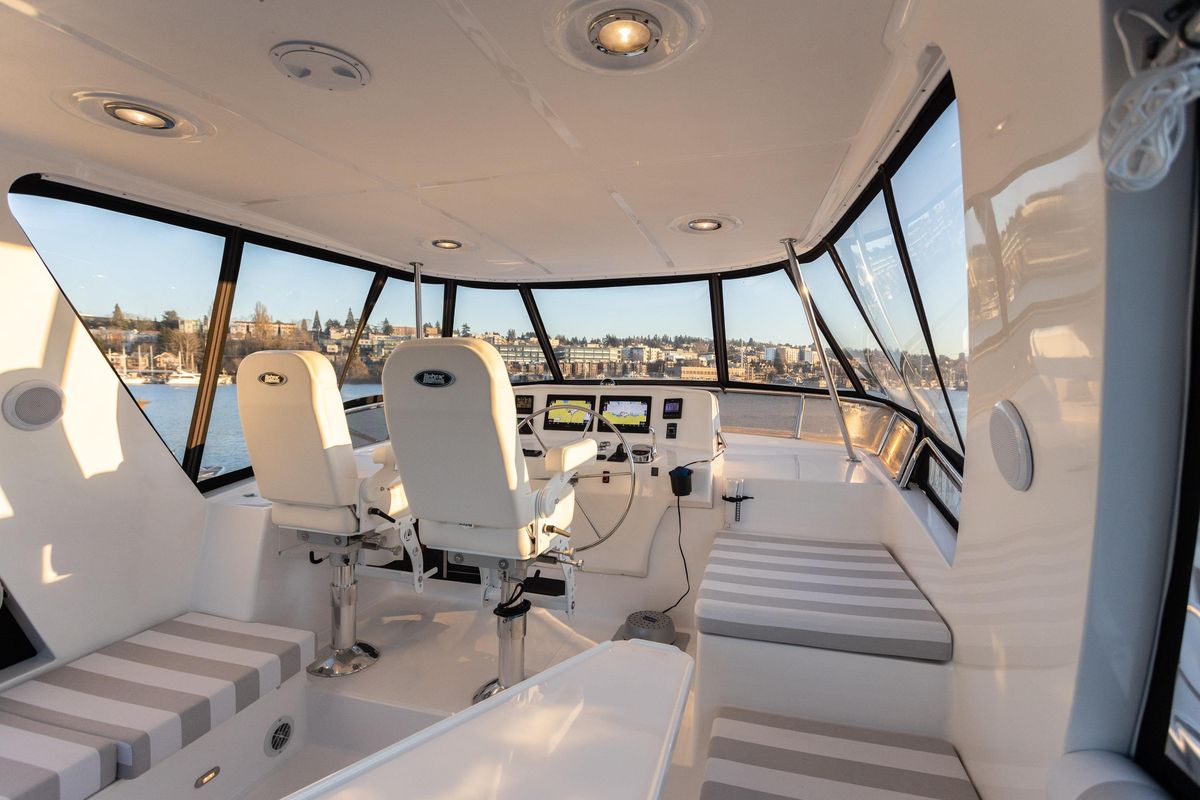

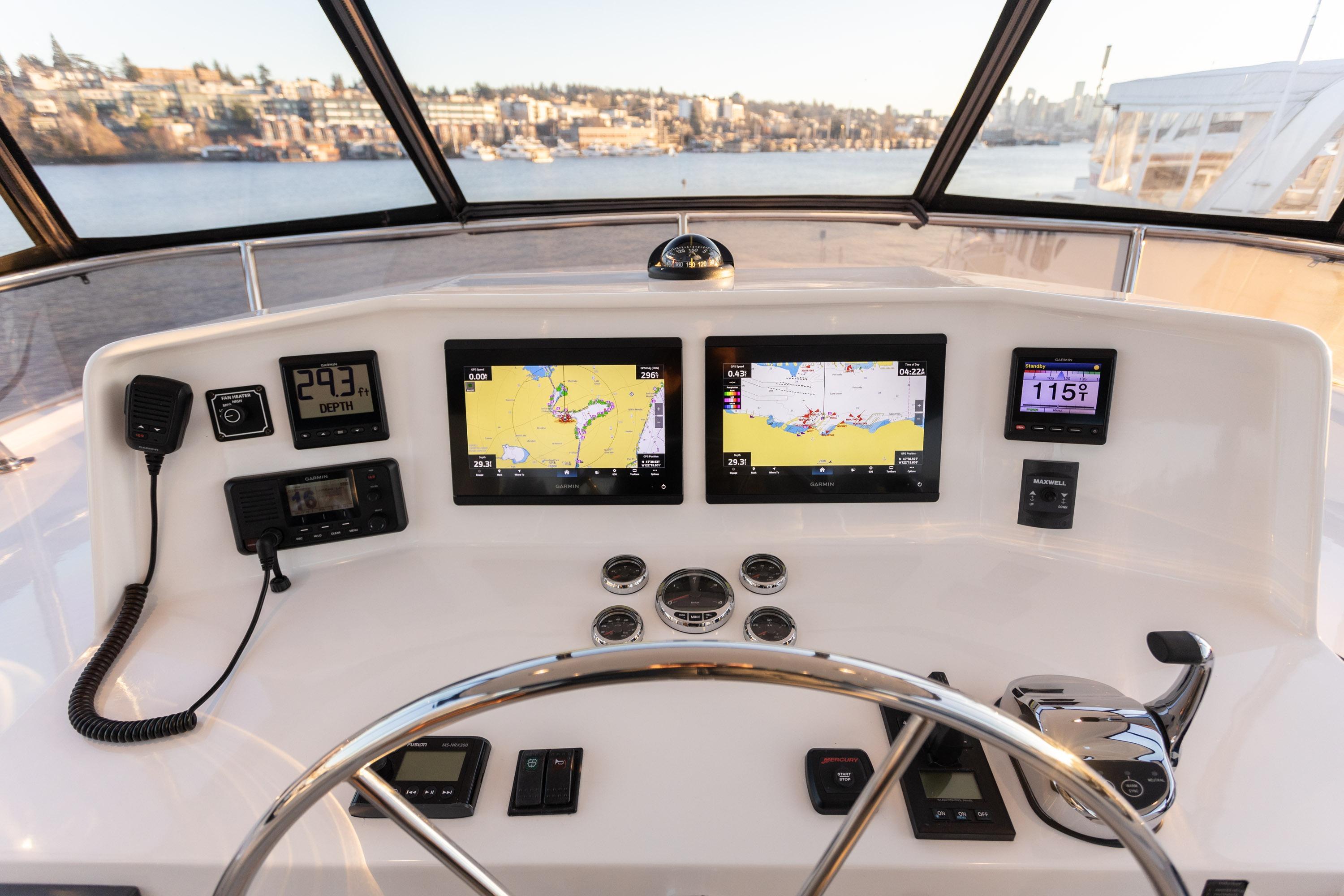

Flybridge:
Llebroc helm seat (2)
L shaped seat with table and bench seat - storage underneath
Stainless steel steering wheel
Engine gauges
Cummins single lever digital throttle and shift engine control
Windlass control
Bow thruster control
Hardtop with 4 overhead lights

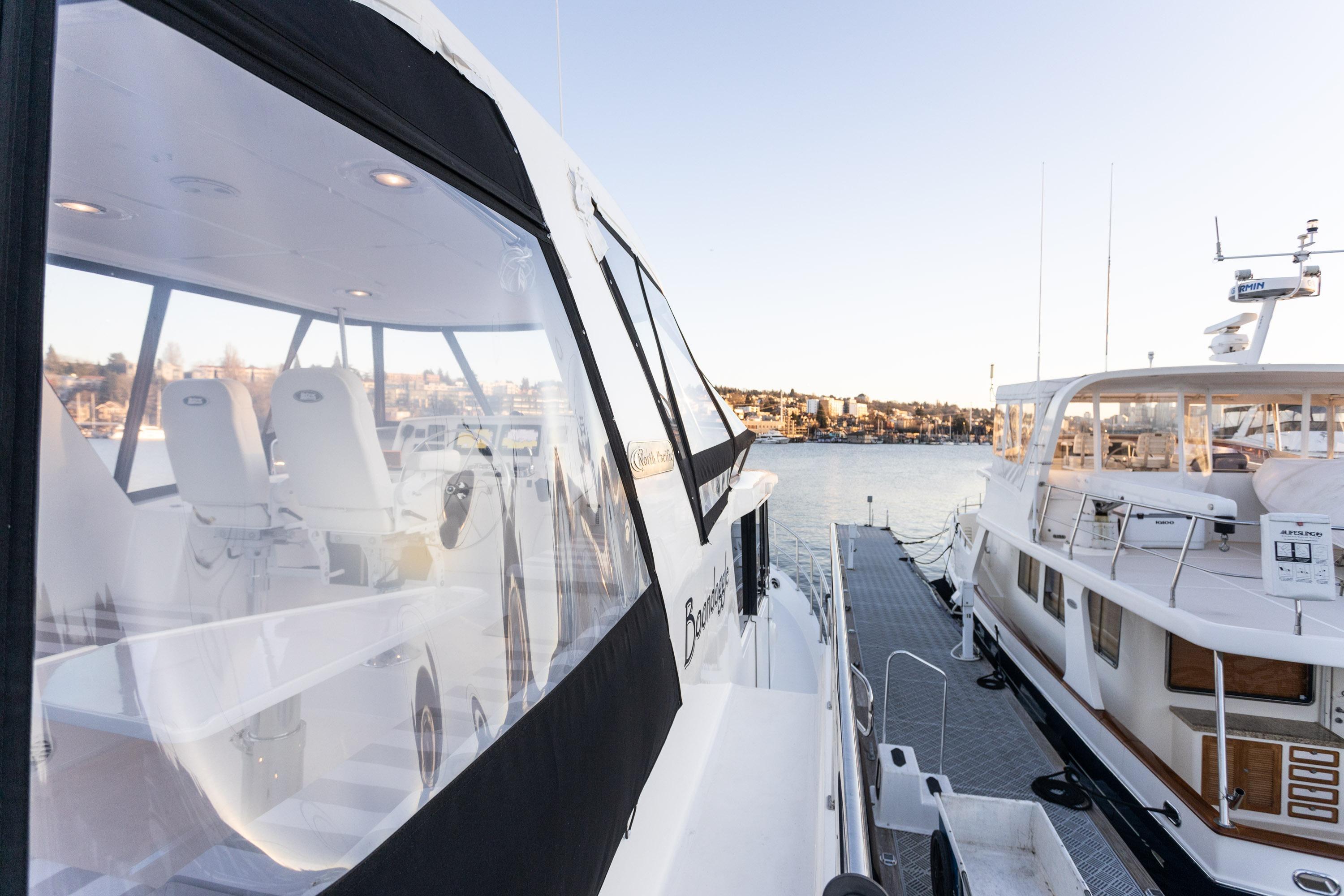

Full polycarbonate custom enclosure
Courtesy light (2)
D/C outlet (1)
AC outlet on starboard side (1)
Anchor light - LED
Hella NaviLED LED navigation lights
Stainless steel flag base
Dual trumpet air horn
Storage cabinet/propane locker on port side of helm seat
Fresh water wash-down hose connector
4 fused 12V switches to control systems and lights on the flybridge
Sunbrella canvas cover for dual helm seat and instrument console

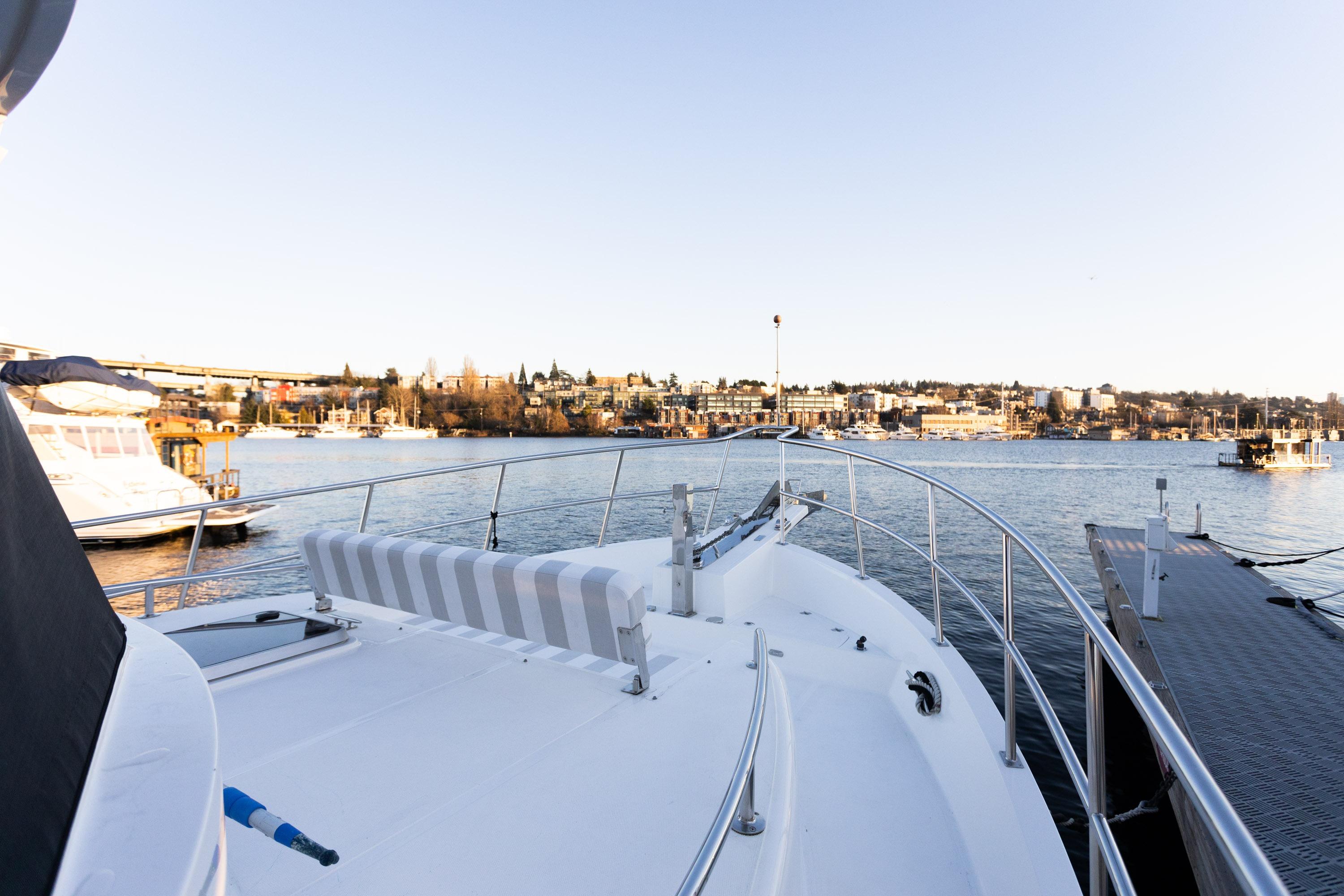

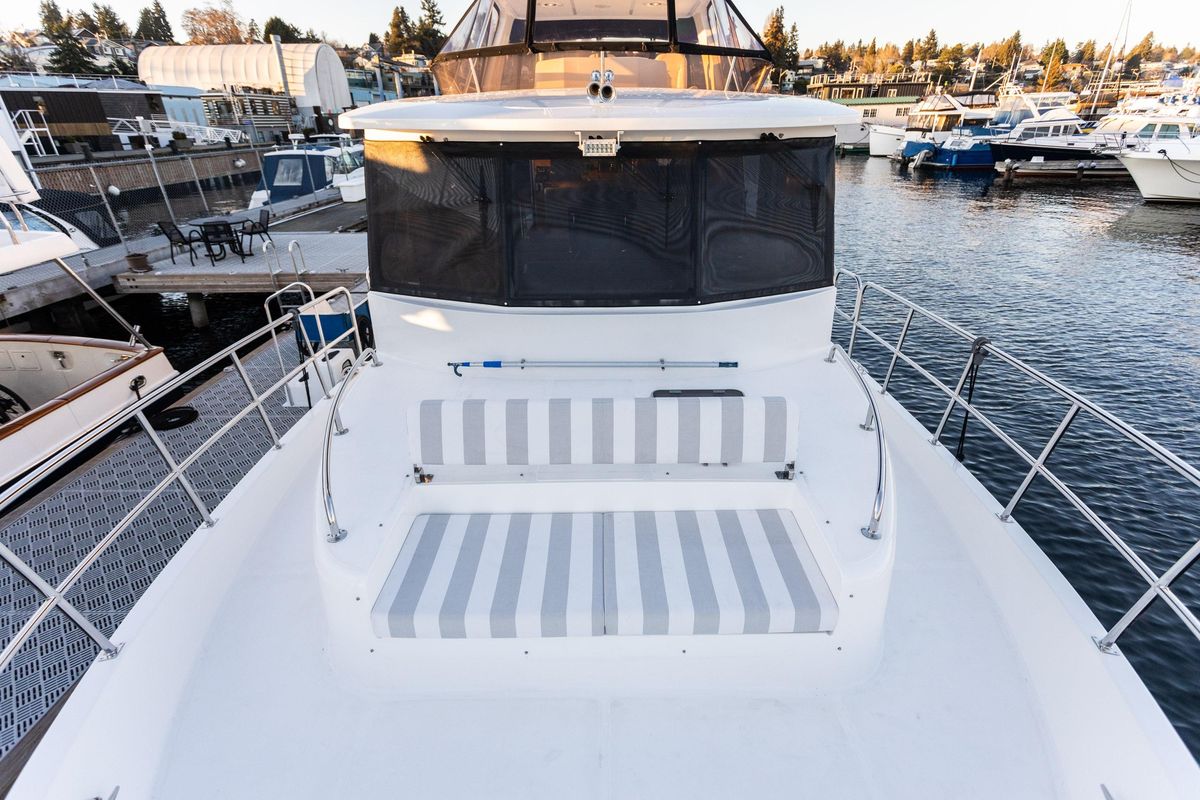

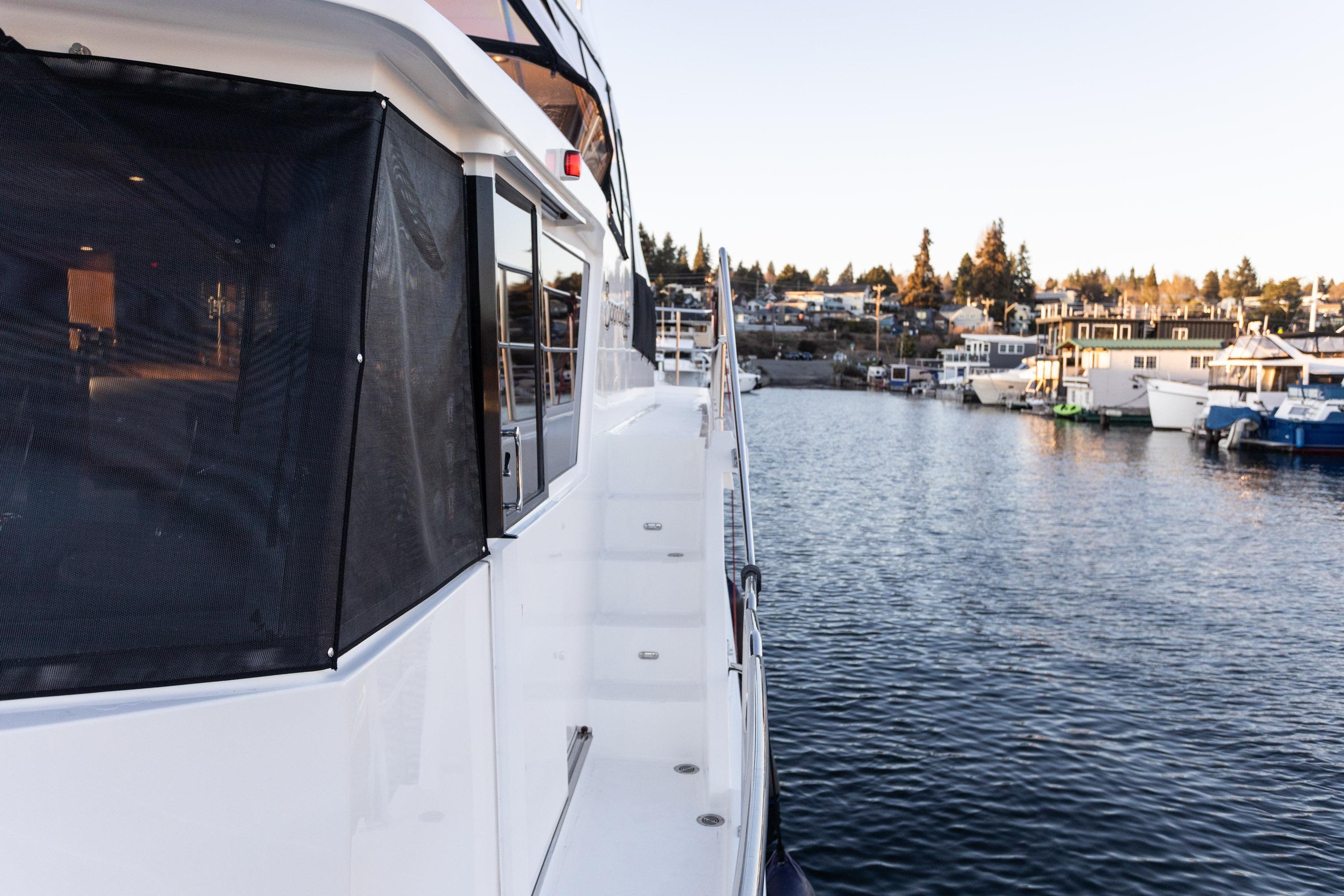

Forward Walk-Around:
Courtesy lights (3)
Fresh water wash-down hose connector

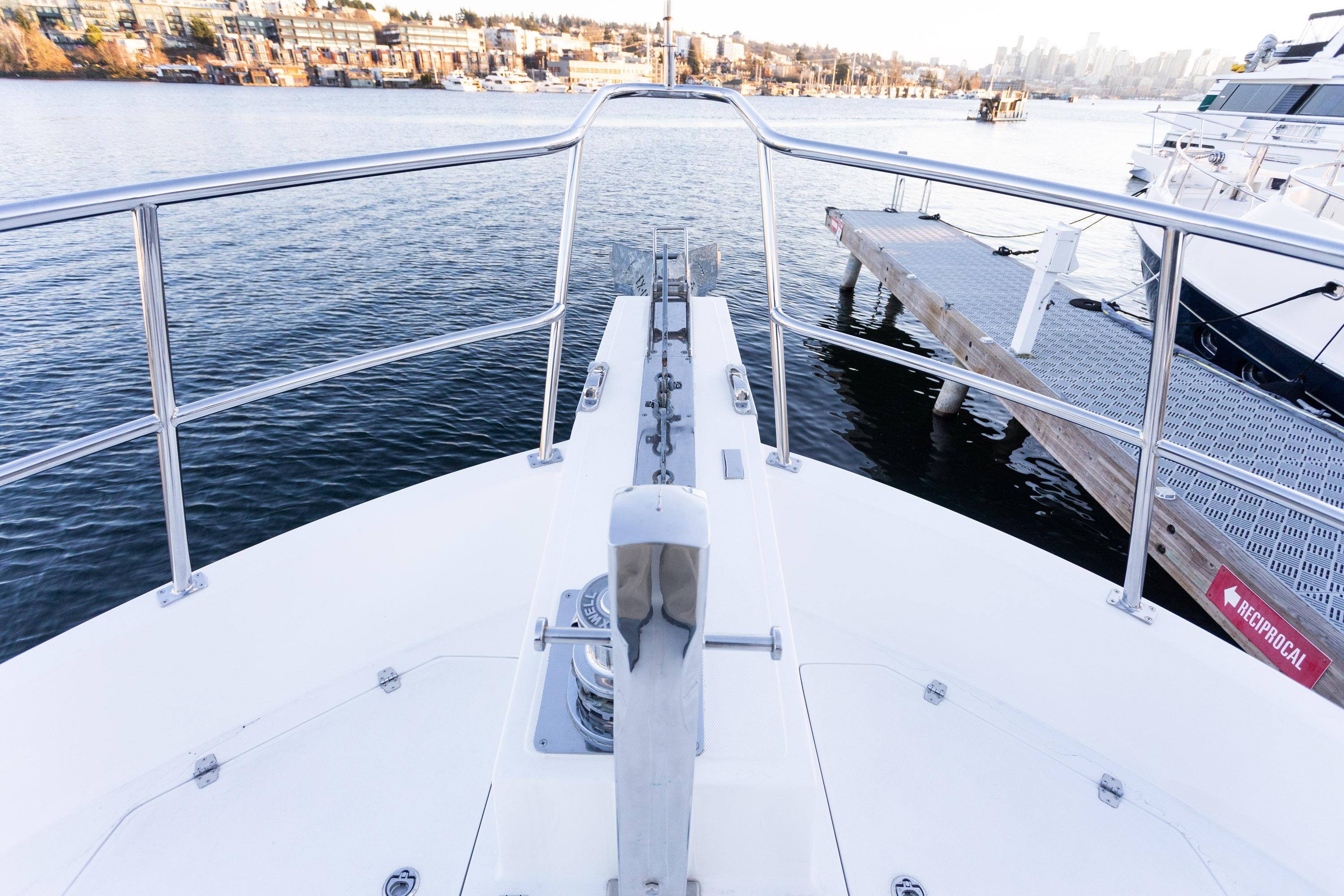

Maxwell windlass
280 ft. of 3/8" galvanized chain - Chain locker divided in half
Sarca Ex-cel 40 kg anchor
Large diameter stainless steel sampson post
Seat with folding backrest
Interior:
Chrome light fixtures, push buttons and cabinet pulls
Teak color Amtico synthetic flooring throughout
Teak paneling and cabinetry throughout with 7 coats of polyurethane for a smooth finish
Louvered doors on select cabinets - push buttons on all cabinet doors
Routed cabinet tops, fiddles and other trim
Bent lamination on select trim instead of miter joints
Dovetailed drawers
Wood venetian blinds on all windows
Screens on all sliding windows
Soft vinyl headliners - all attached with Velcro
Upgraded Ultraleather material for all interior settee cushions
Laminated safety glass on sliding windows
Full extension slides - soft close in the galley - push button locks on all drawers
Extra handrails throughout

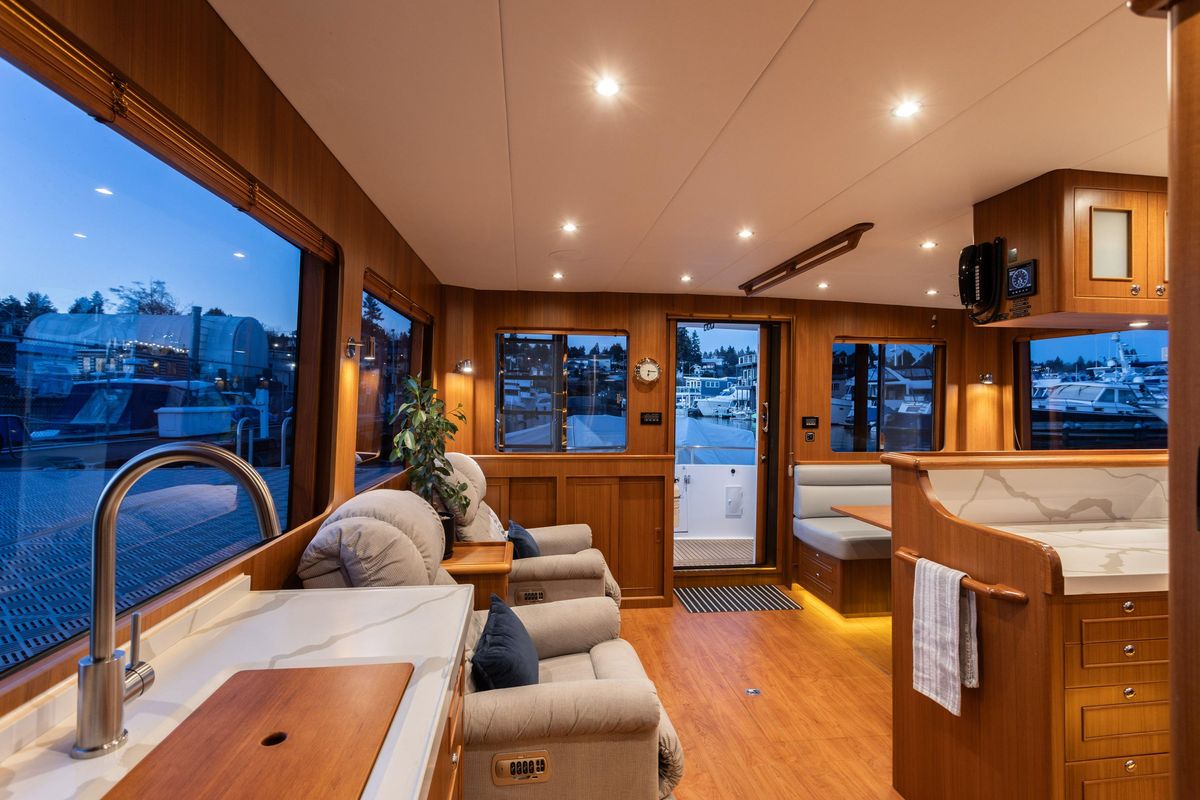

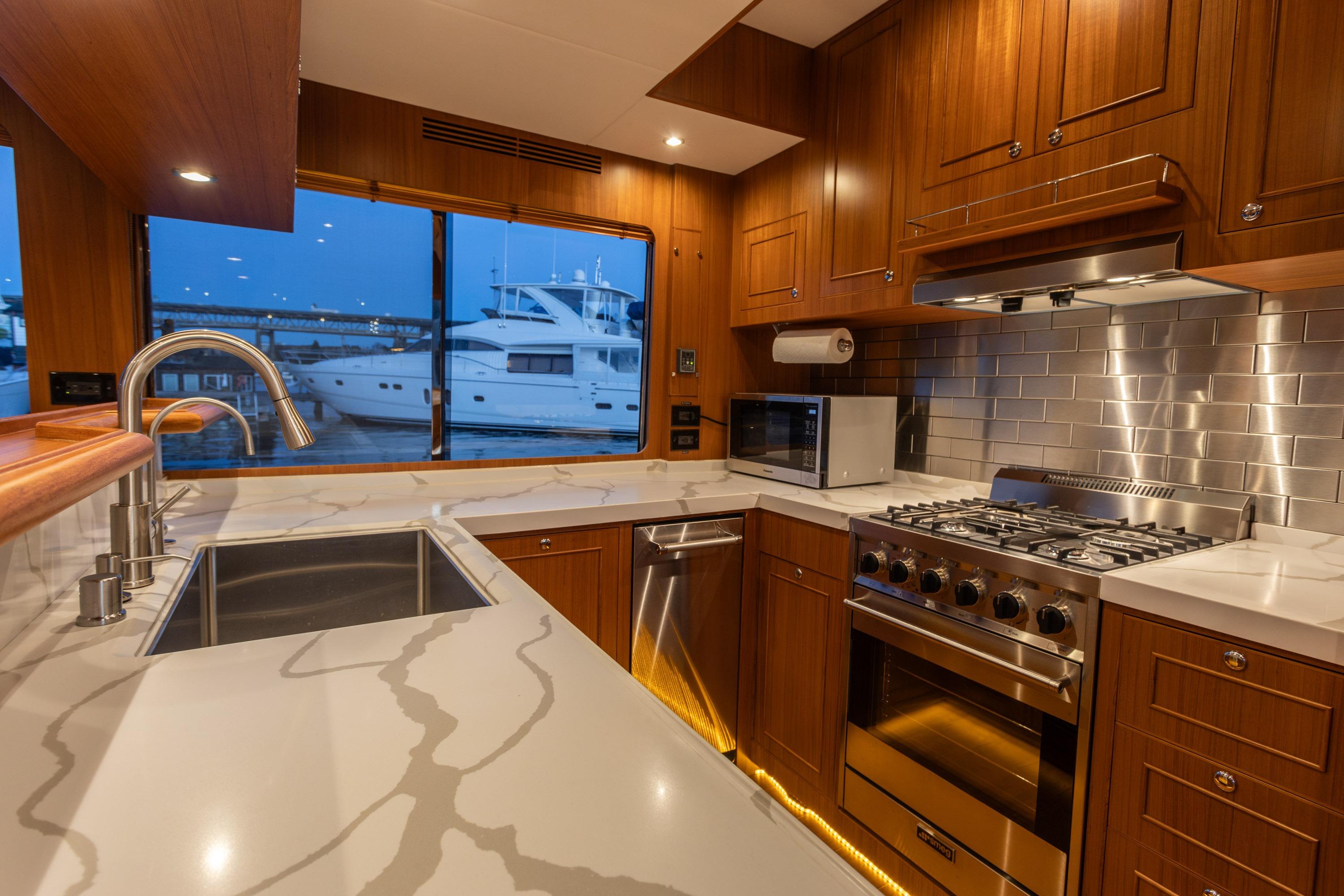

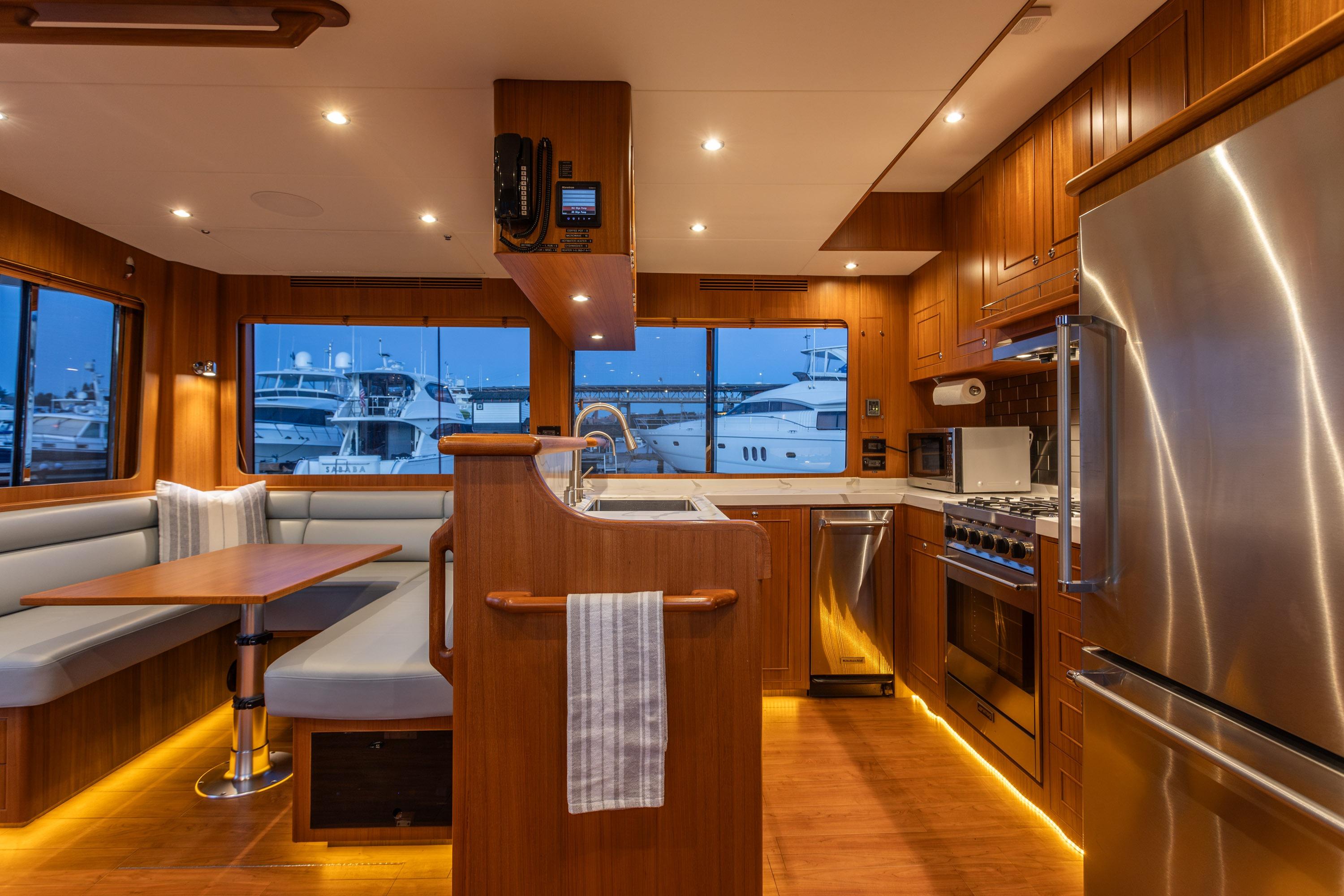

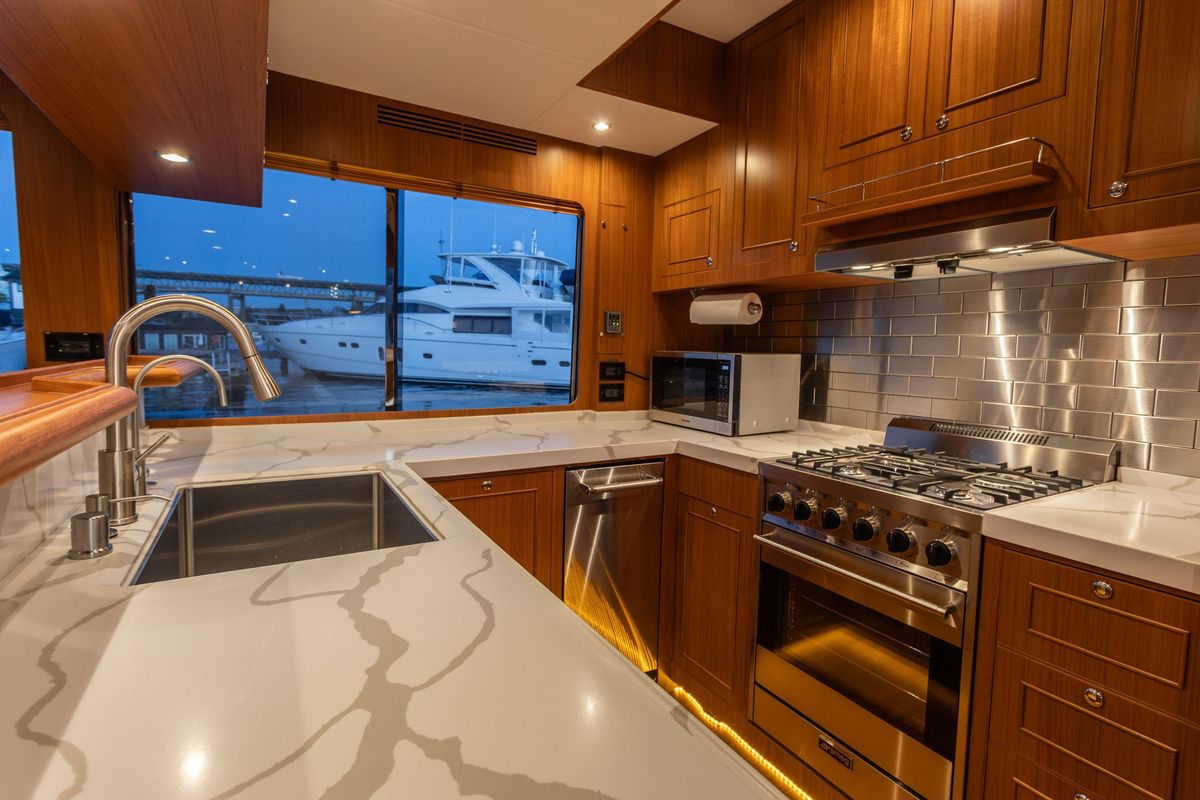

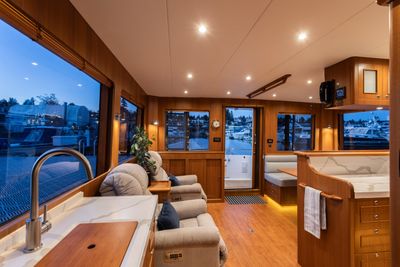

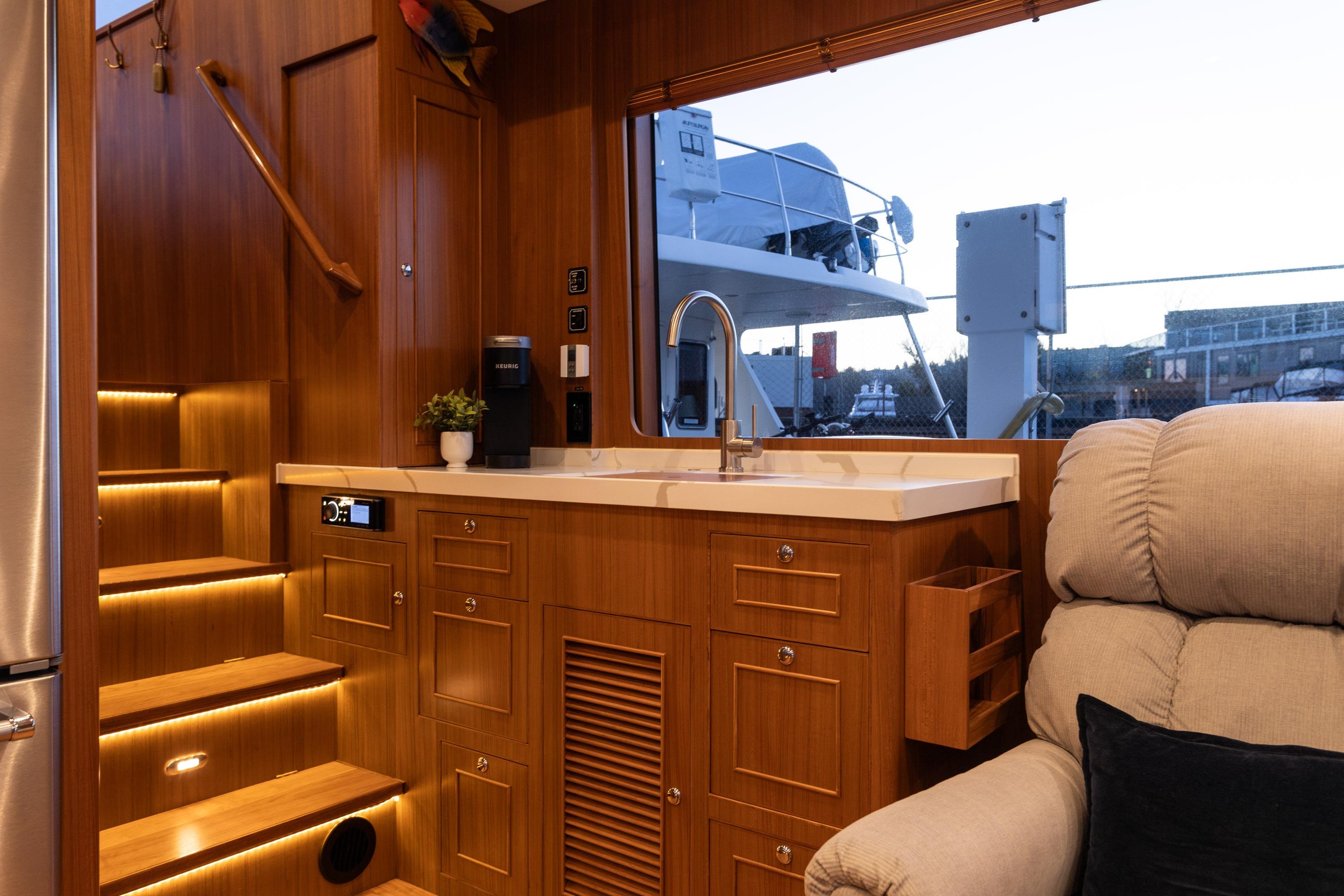

Salon, Dinette and Galley:
LED lights (18) plus accent rope lighting
A/C outlet (9)
Reading lights (3)
Small cabinet in the middle of the stbd side for a lamp, book, drink etc. with room for a chair on each side
Power recliners (2)
Dinette with high-low table that converts into a queen size bed. Configurable as booth or U-shape
Quartz countertop with raised edge along aft section
Single SS sink with insinkerator disposal
Faucet with pullout spout

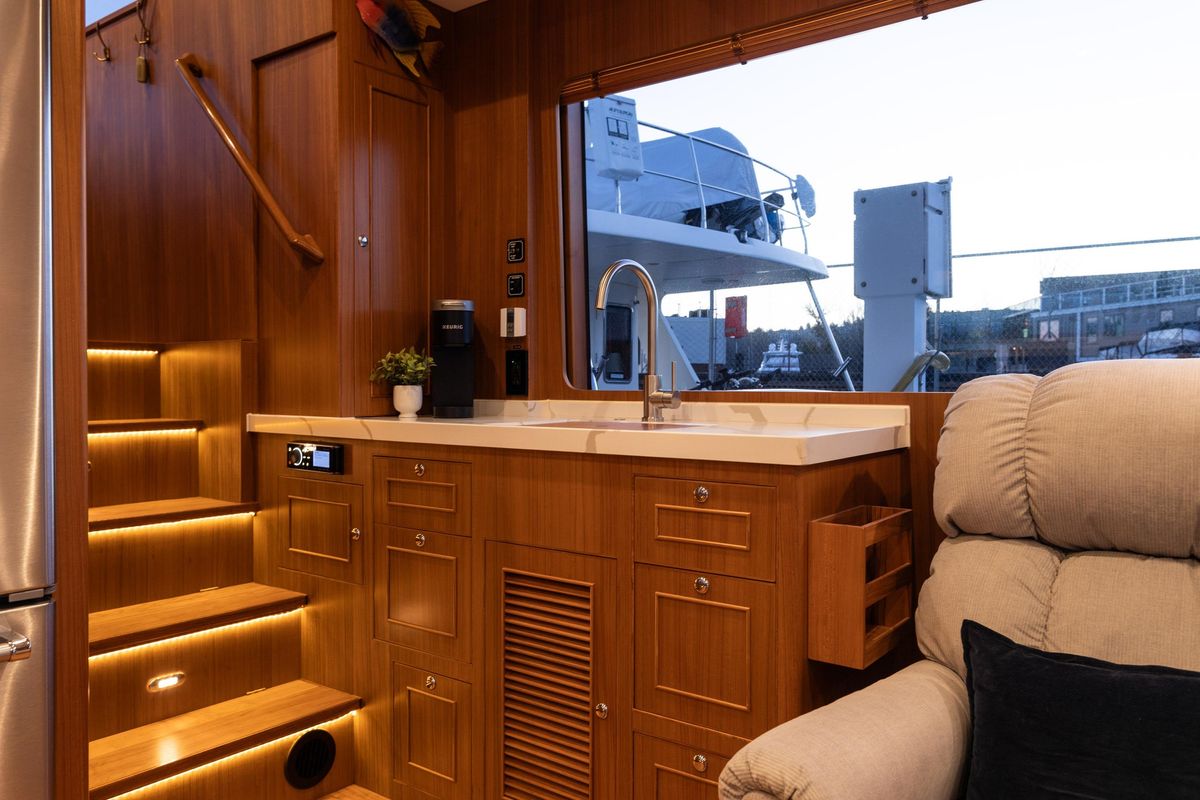

Extra SS sink/ faucet on starboard side
Stainless steel tile backsplash
Smeg gas range
Smeg hood vent
Kitchenaid refrigerator/ freezer
Kitchenaid trash compactor
Monogram 18” dishwasher
Panasonic countertop microwave
Drawers in galley (15)
Cabinets in galley (7) - Magic corner cabinet in both corners
Teak ceiling handrail in salon
Cabinet above galley countertop w/ frosted back lit cabinet doors
43" fold down TV port side of salon

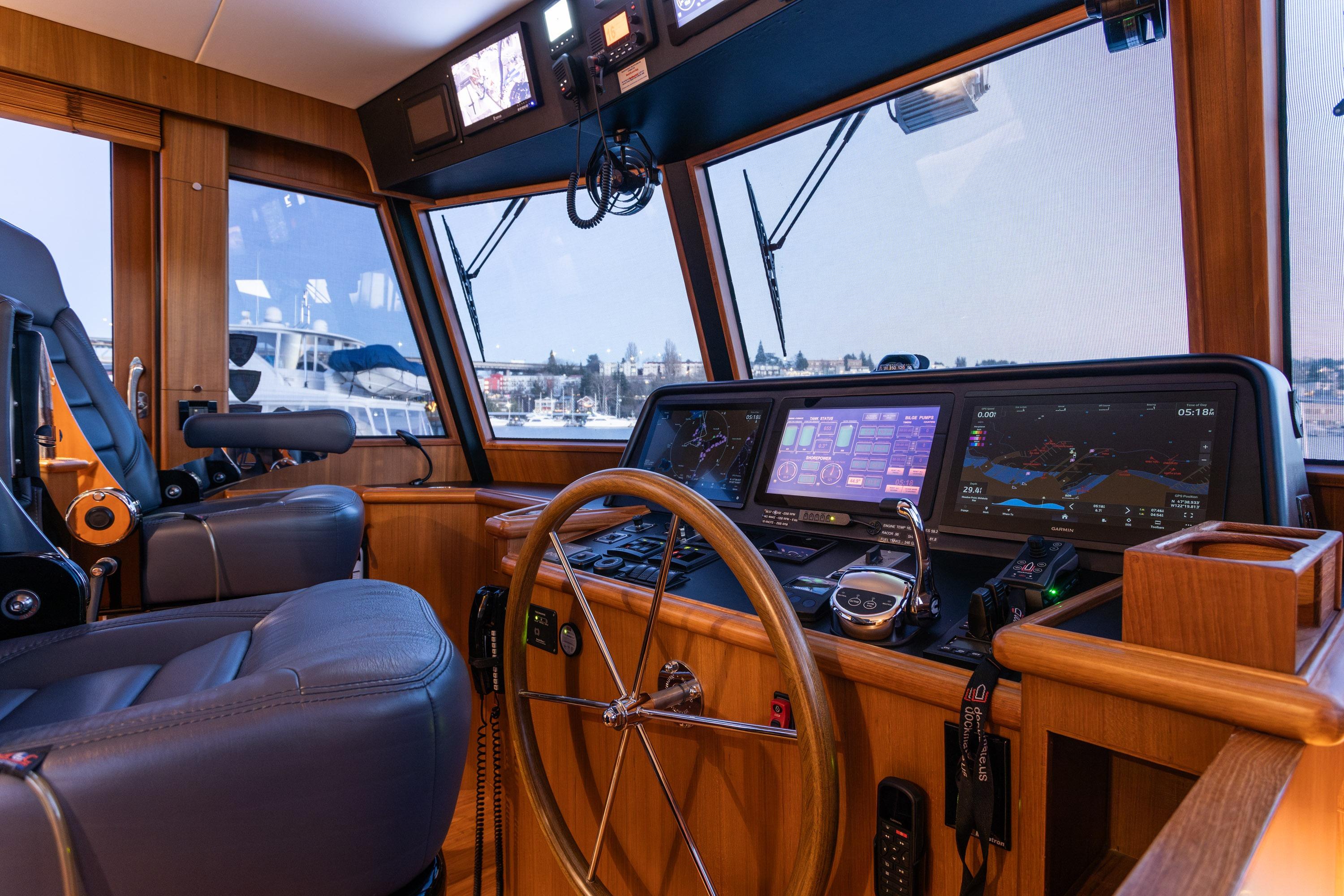

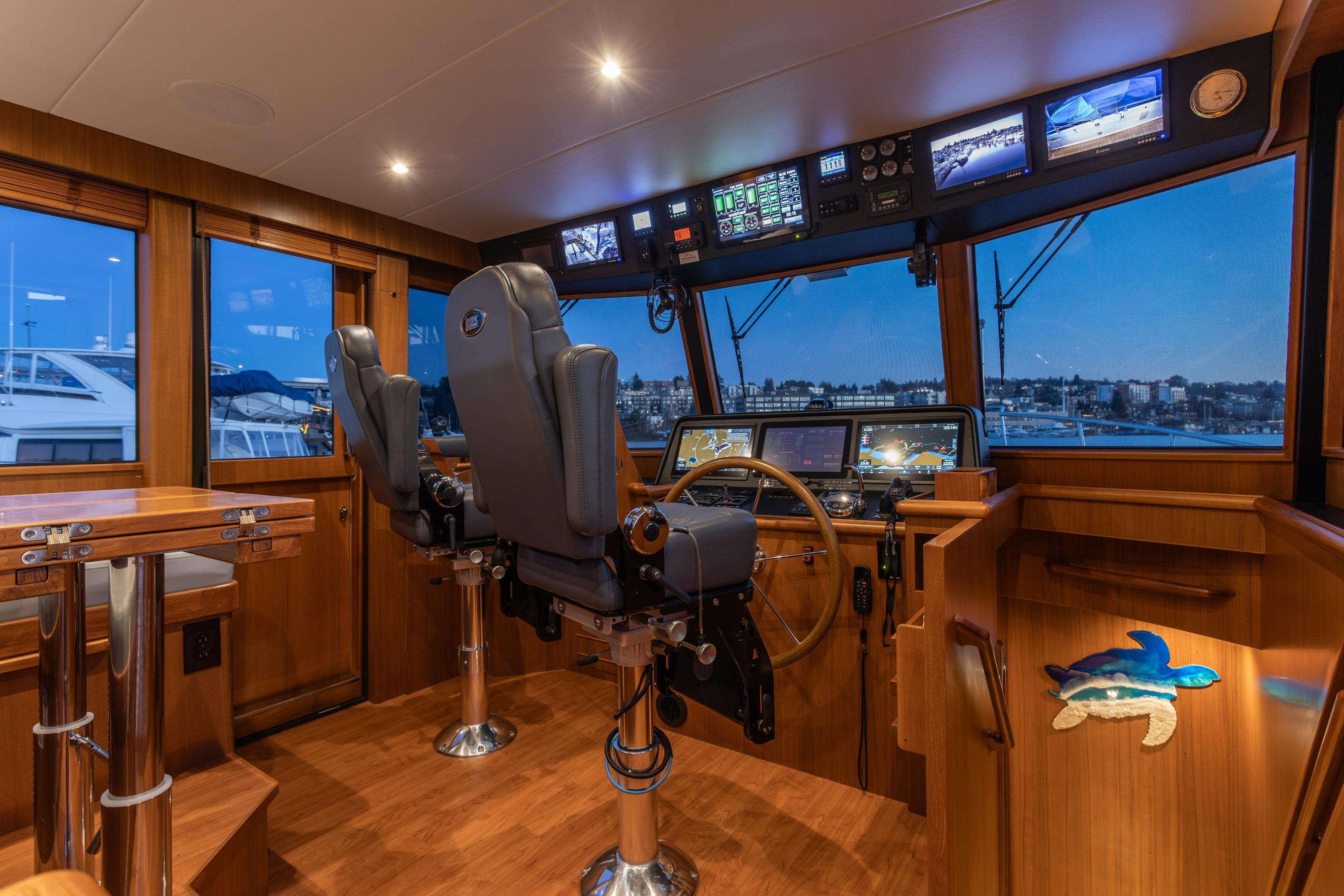

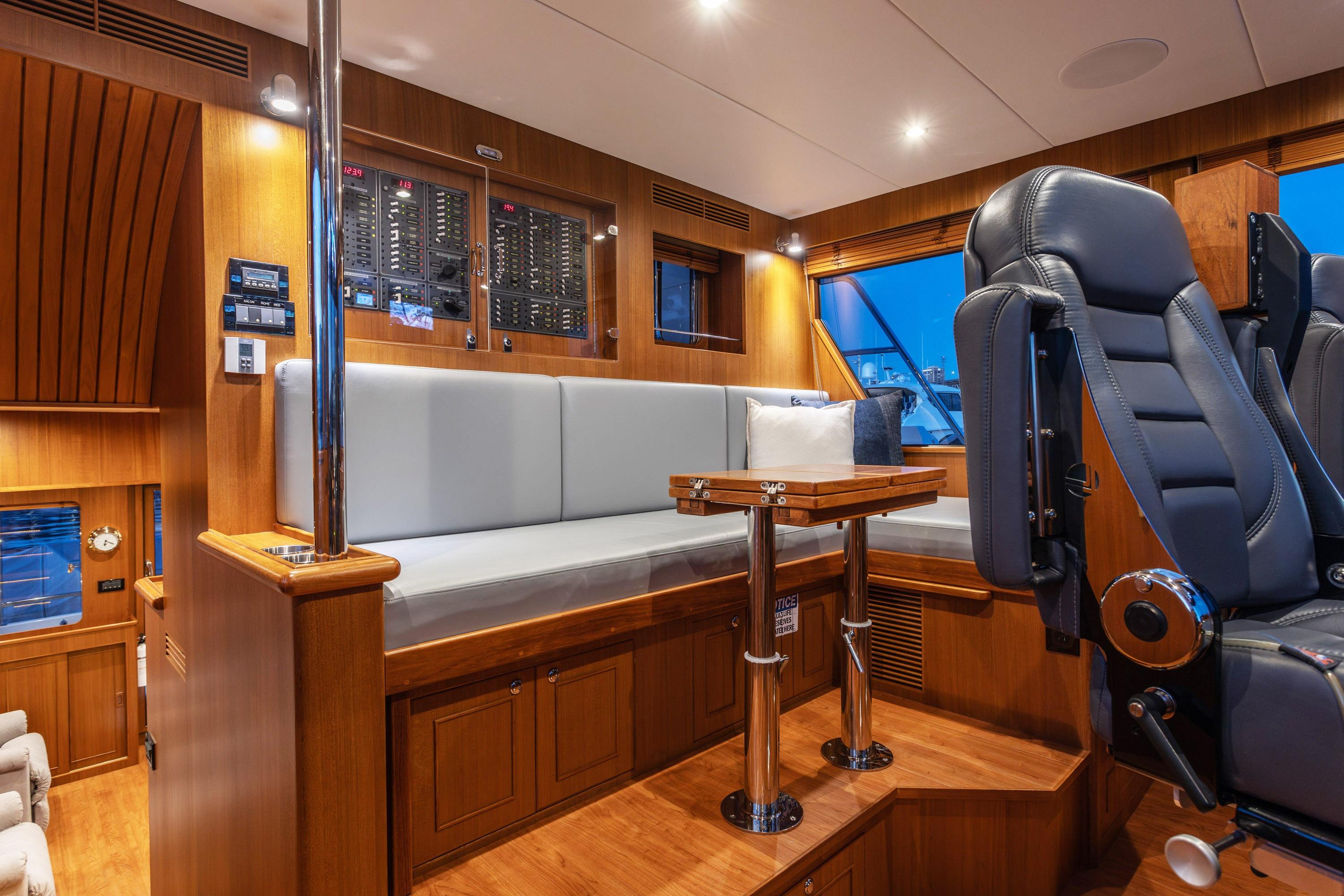

Pilothouse:
LED lights (6) plus accent rope lighting
A/C outlet (2) DC outlet (1)
Map light, red/white LED (1)
Aluminum locking, sliding door with teak interior (2)
AC & DC electrical panels - Blue Sea
Llebroc Series II helm seat (2) with armrest Garmin controller.
Dash area covered with Ultraleather as well as area between windows and above helm
Cummins single lever digital throttle and shift control
Windlass control
Bow and stern thruster control
Electric fuel and water gauges
Horn control
Chain counter AA560
Teak steering wheel
Defrost fan (2)
Windshield wiper (3)
Windshield washer (3)
L shaped bench seat that converts into a bed
Folding table at bench seat
Storage cabinets and drawers
Reading light above bench seat (2)
Maretron vessel monitoring system (details below)
Aft window opening and screened

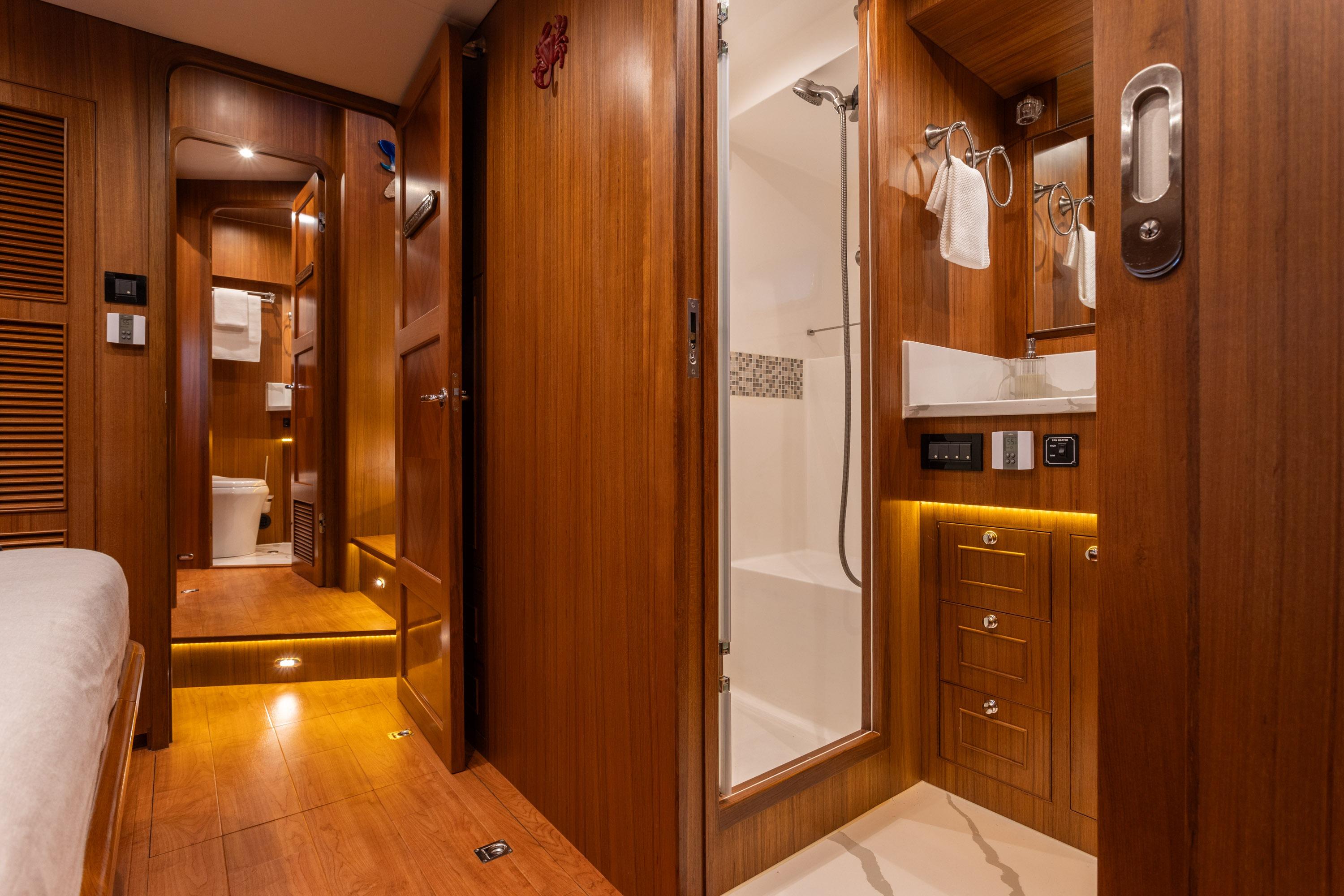

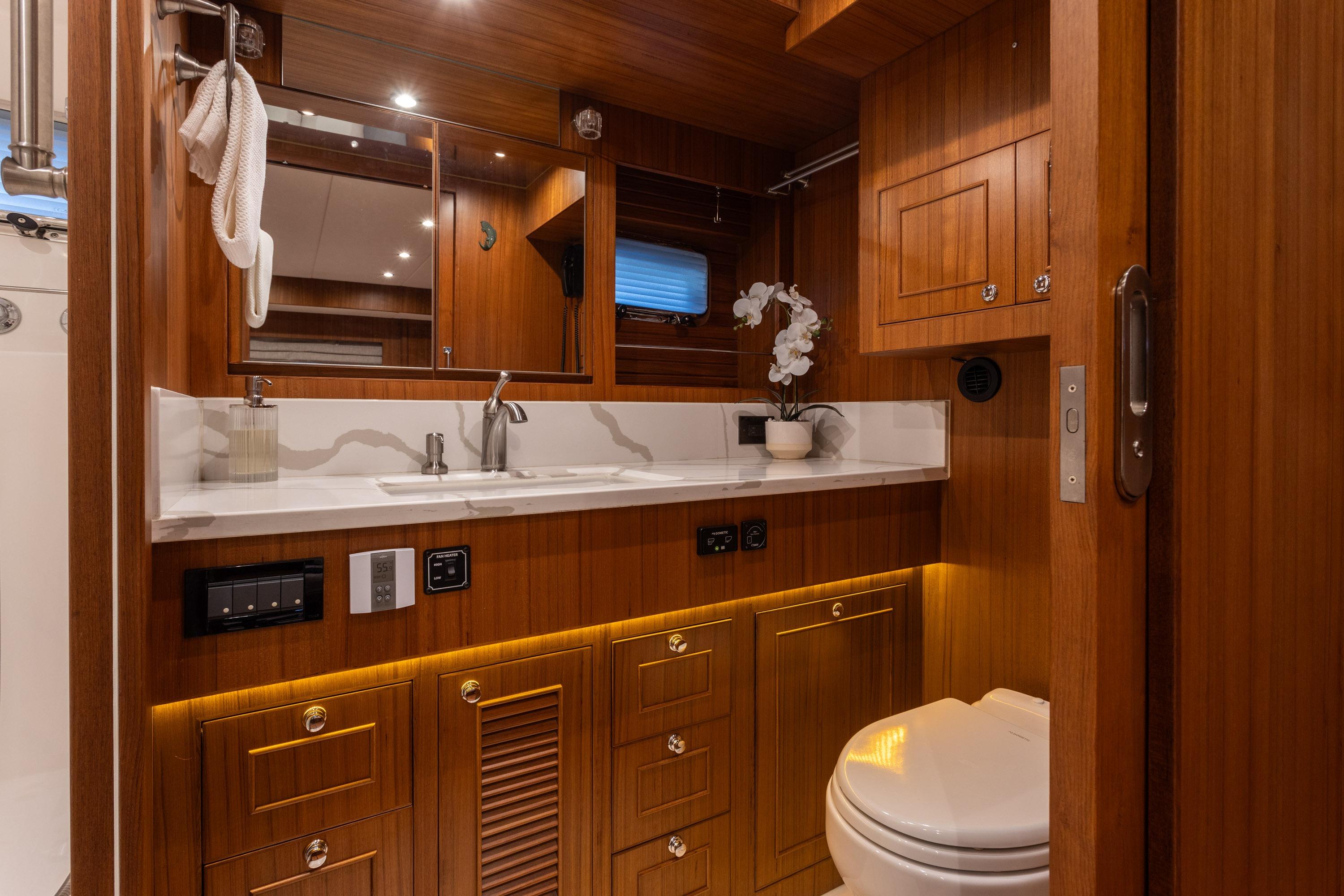

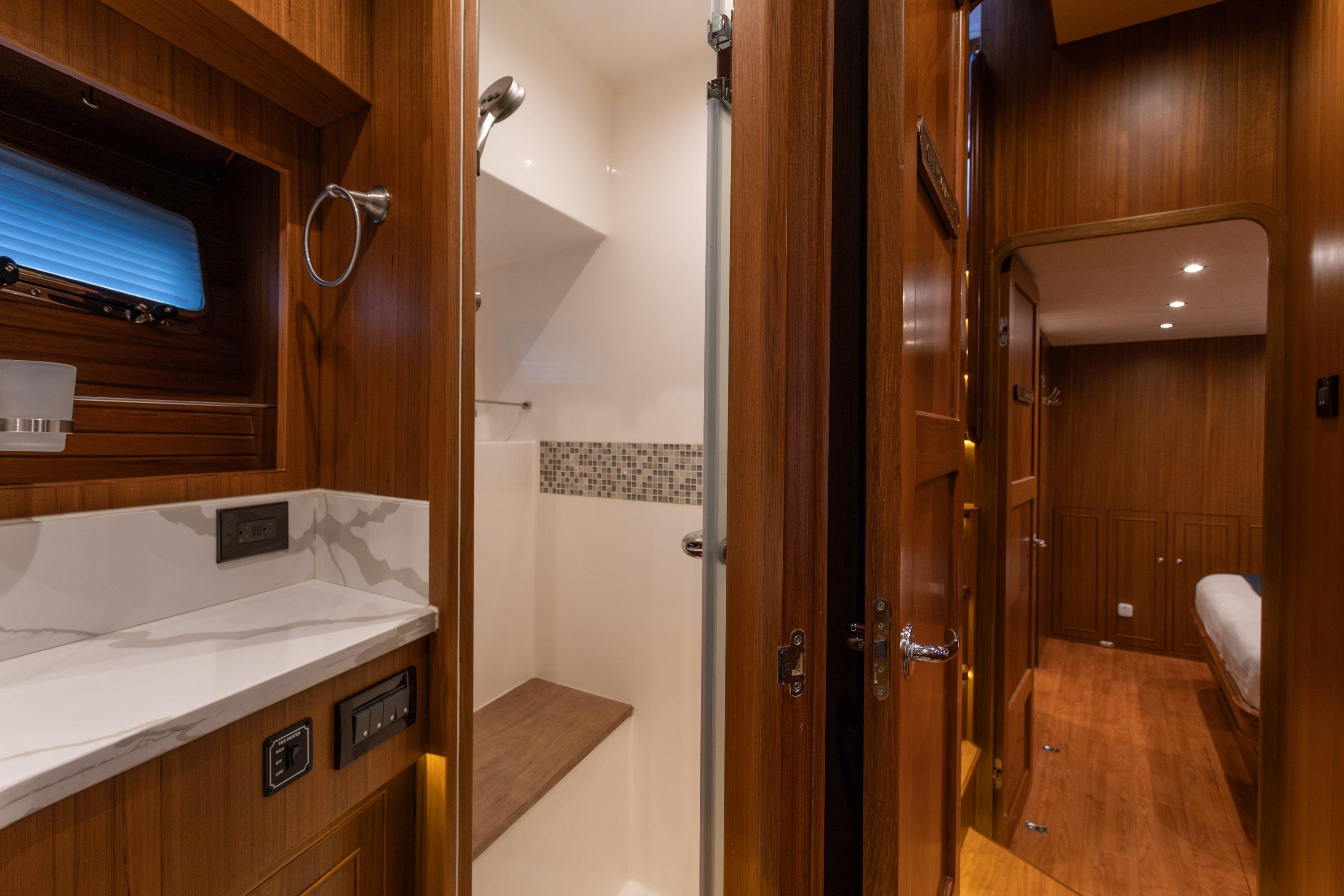

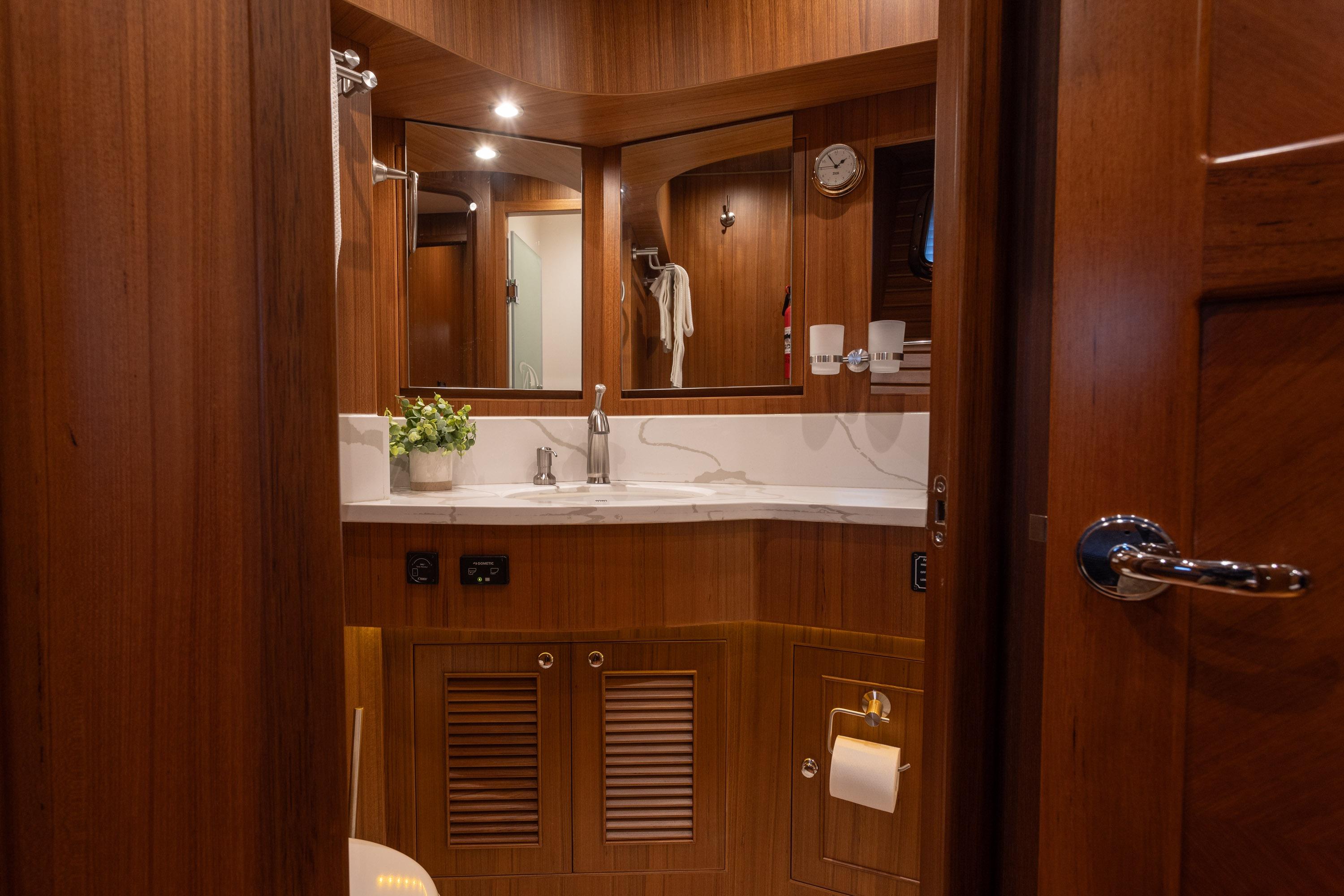

Heads (2):
LED light (2) plus accent rope lighting
A/C outlet (1)
Tecma toilet with fresh water flush
Mirror
Ceramic sink and chrome faucet
Shower stall - with exhaust fan
Shower control and nozzle - Tile mosaic accent wall
Opening frosted shower glass door with NP logo
Quartz countertops and floors
Opening, screened porthole window (2)
Holding tank level gauge - Scad Tec with exterior tank sensors - Trident Premium sewage hose
Towel racks and other hardware
Teak finishing in head, fiberglass in the shower
Shower drains to automatic sump pump - Whale Gulper diaphragm pump

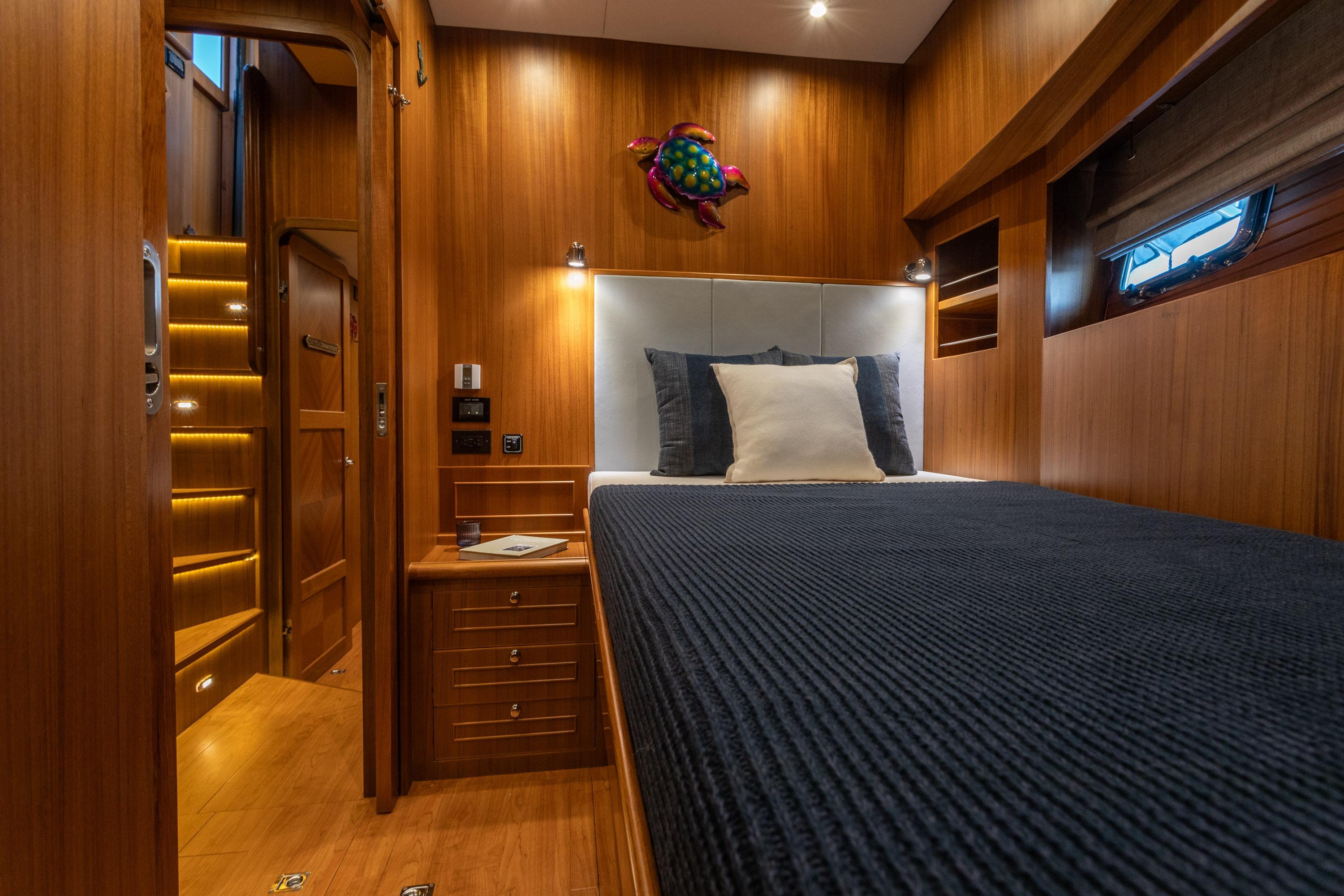

Guest Stateroom:
Expandable modified queen bed with filler cushions
LED light (3) plus accent rope lighting
A/C outlet (1)
Opening, screened porthole window (2)
Opening, screened overhead hatch
Hanging lockers, cabinets and drawers (tons of storage)

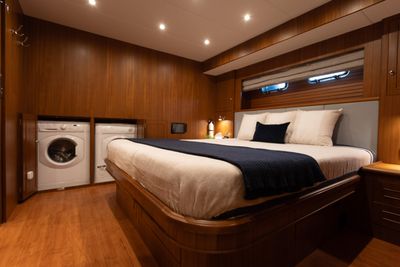

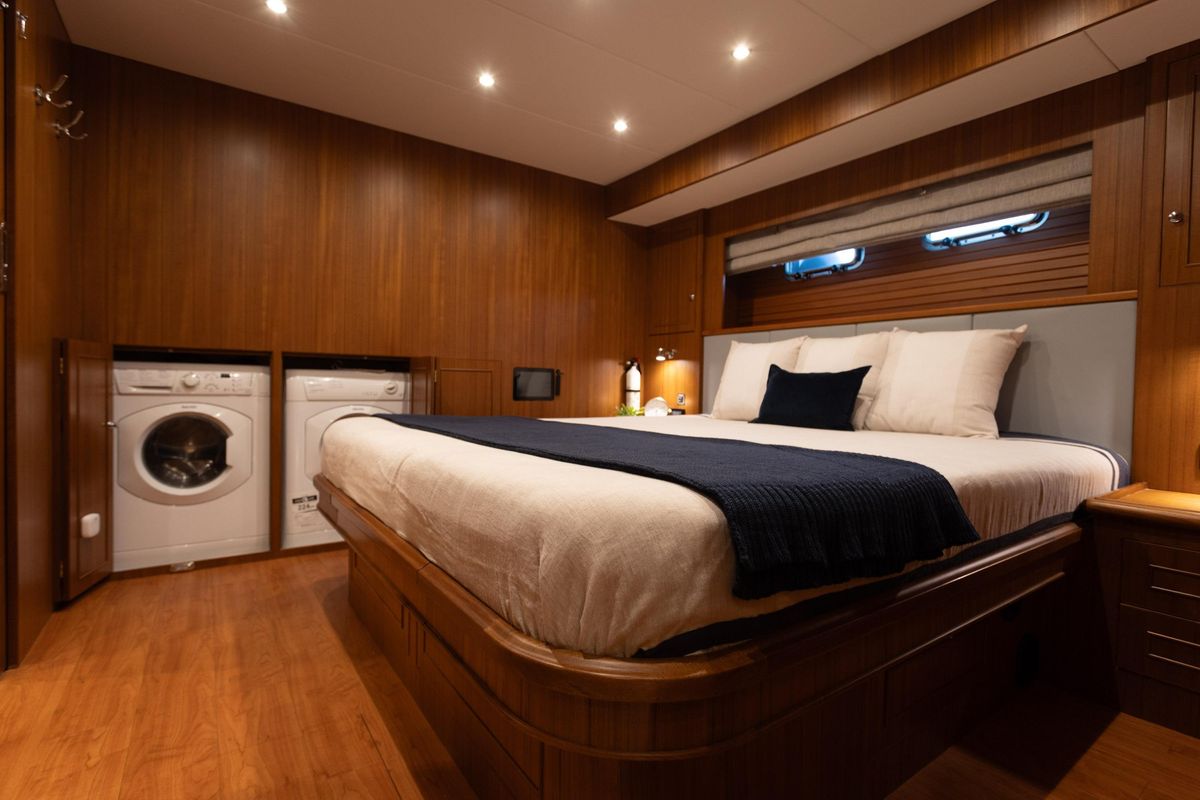

Master Stateroom:
LED light (4) plus accent rope lighting
A/C outlet (2)
King island bed
5" thick fabric covered foam mattress
Reading light (2)
Large hanging locker (2) other locker (3)
Drawers (8)
Opening, screened porthole window (2)
TV prep
Washer and dryer
Double wall between staterooms
Other Equipment:
Side-Power SEP170 24V bow thruster
Side-Power SEP170 24V stern thruster
Emergency tiller
Zincs (5)
Extra gel coat (about 1qt)
Fusion stereo system - 3 stereo controls (salon, pilothouse, flybridge), amplifier, 2, 260W
2 speakers in the pilothouse, salon, cockpit, flybridge.
Intercom system throughout
Garmin Package:
Pilothouse:
(1) GPSMap 8616XSV multifunction display w/ fishfinder module
(1) GPSMap 8416 multifunction display
(1) GHC20 autopilot control
(1) VHF 200 radio
Flybridge:
(1) GPSMap 8412 multifunction display
(1) GHC20 autopilot control
(1) VHF 200
Other:

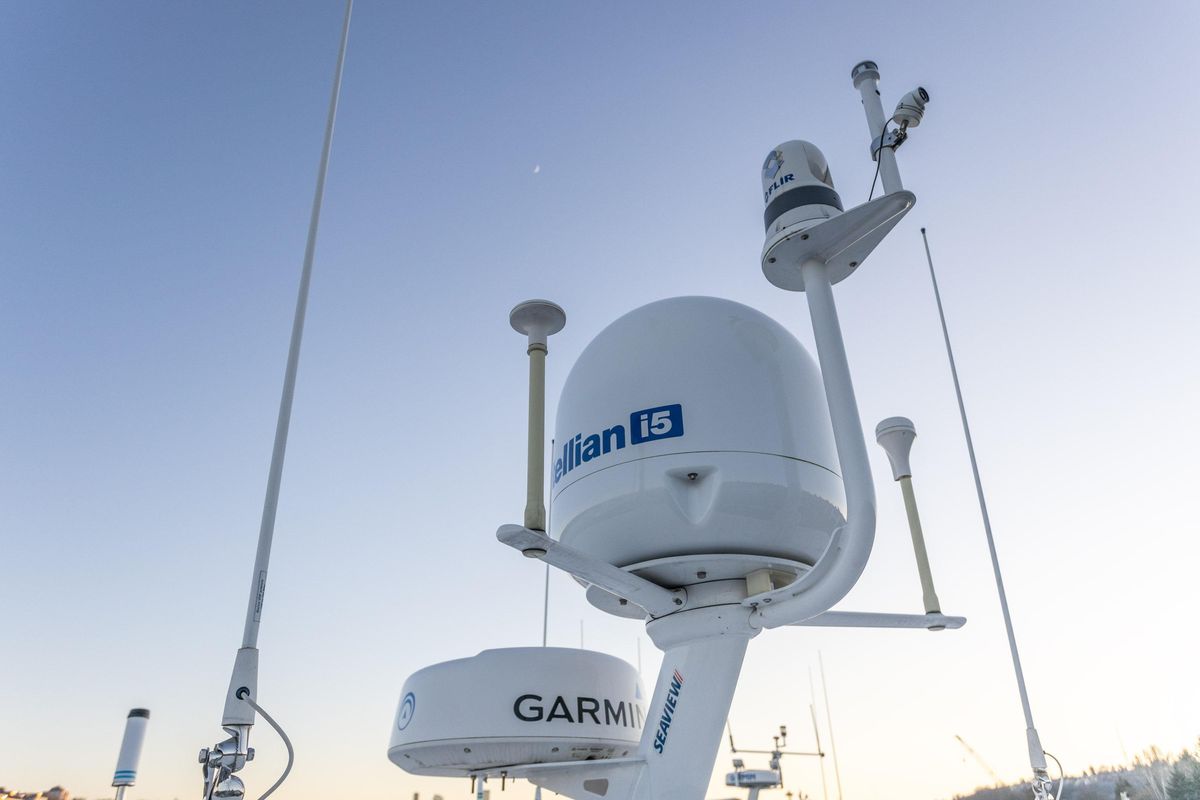

GMR24 Fantom – Radar antenna
B260 transducer
Reactor corepack with Smart Pump (autopilot)

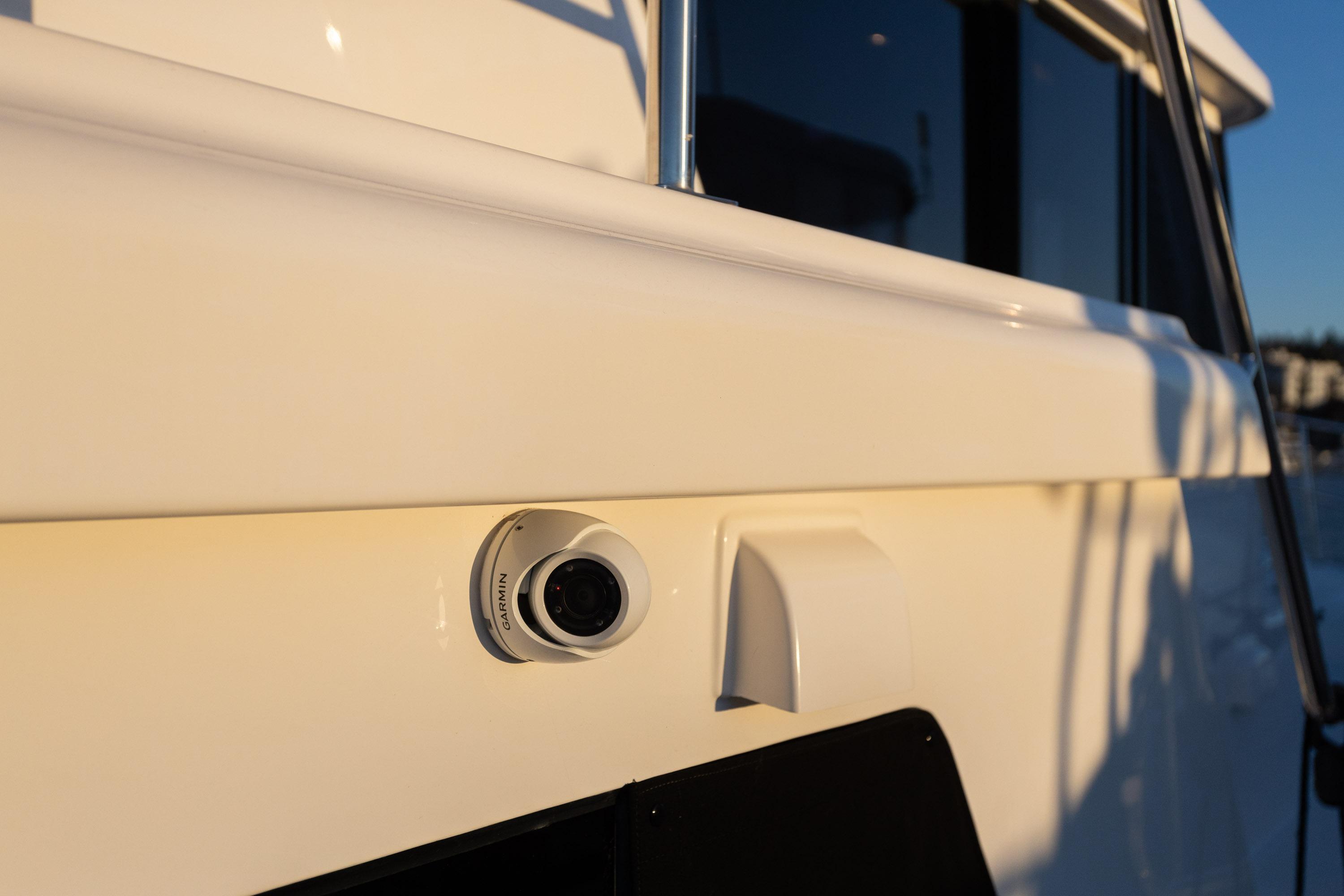

GC10 reverse image camera (1)
GC10 regular image camera (2)
3 monitors for cameras
(2) VHF antenna
Intellian i5 TV antenna
AIS 800
FLIR thermal camera M232
Seaview mount on Hardtop
Complete Maretron monitoring suite with 3 screens:
2 15” displays (main helm)
1 10” display (master stateroom)
1 12” display (flybridge)
IPG connected to Maretron cloud system (subscription) so that all 10 screens are visible anywhere in the world and systems can be monitored.
