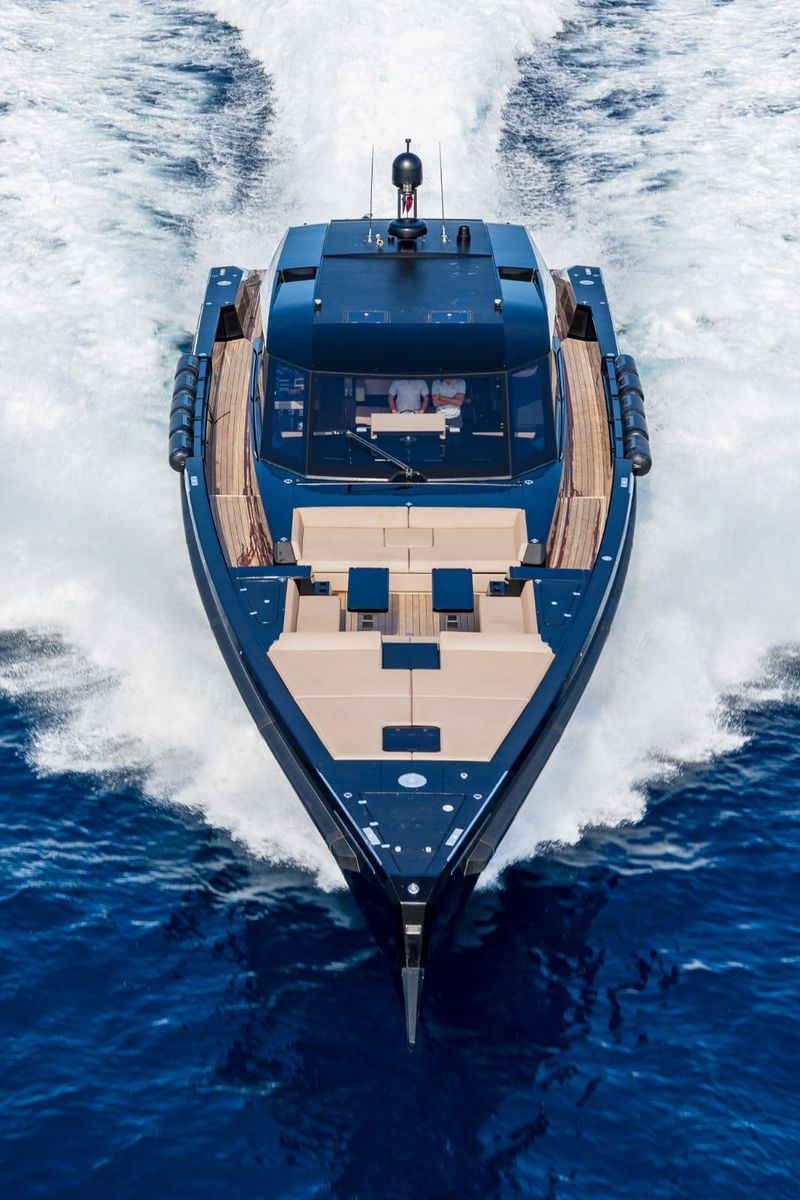

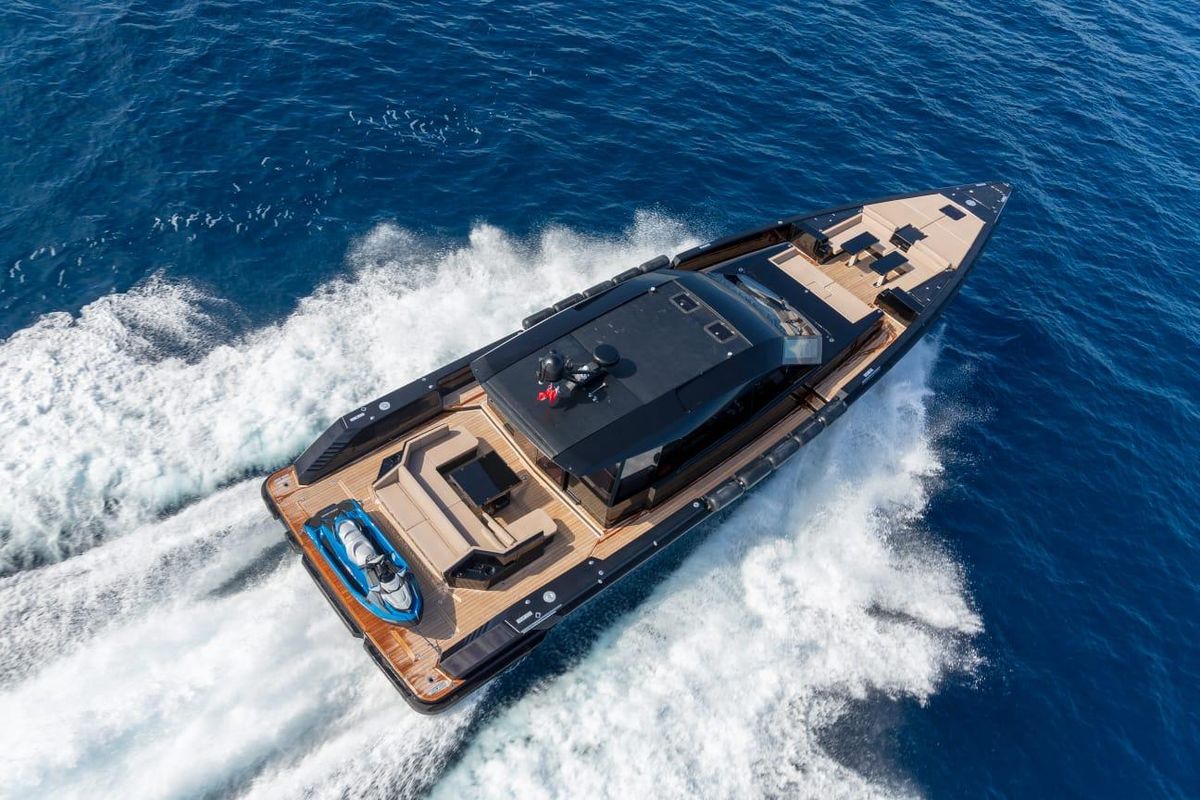

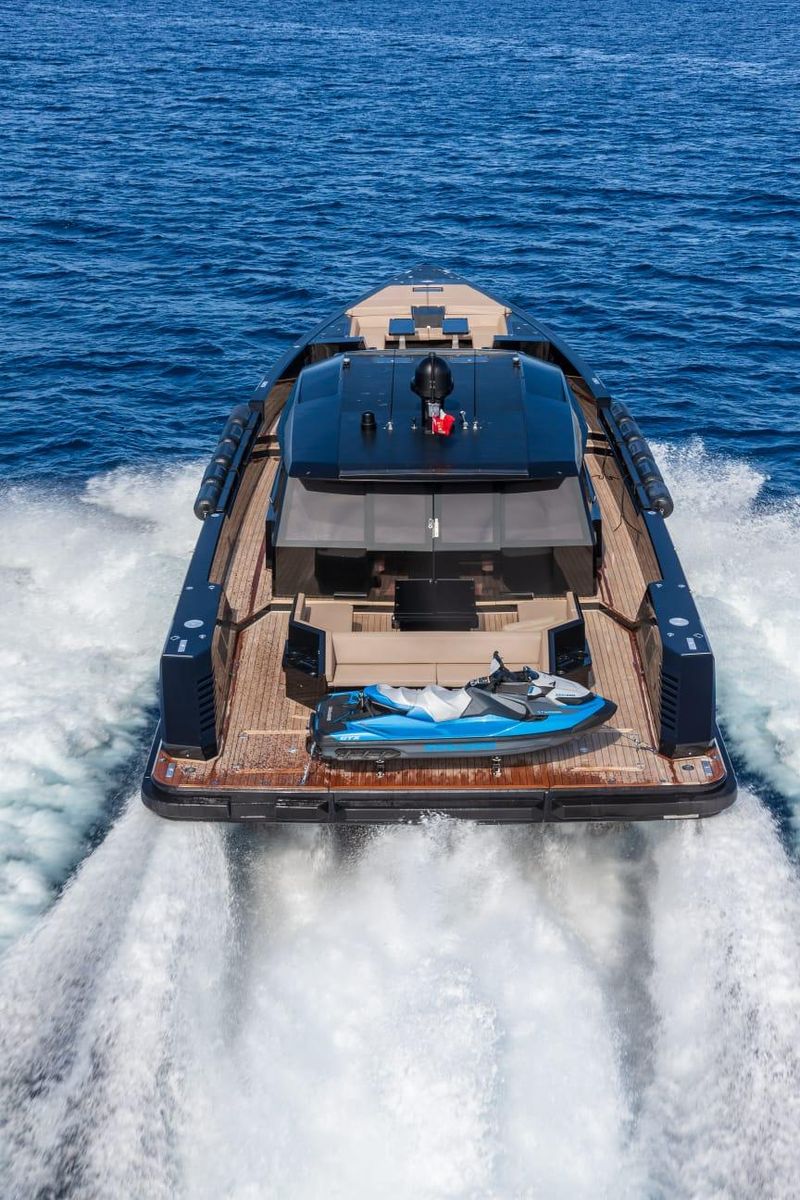

As austere and sharp in lines as cheerful and versatile to use, this ship offers wide open
spaces, luxury, comfort and excellent performances; all these details make it an elite tender
or, to be more specific, a super- comfort Fast commuter.
Being the evolution of the previous models, Maori 78ft is today a boat on which the function of each shape is thought in order to serve mainly a daily use, or even for a weekend.
It is perfect to bath in the sea and to sunbath, or to cruise with friends. Its high technical and
project level grants two comfortable, wide cabins below, one for the owner, the other for
guests, that allow to stay onboard for more than a day without too many problems. The crew
cabin is at bow. It is understood that its performances are remarkable, above all if we consider
that its length overall is over 24 meters.
Thanks to the propulsion of two 1800 hp Man engines joined with a Jolly Drive surface propellers
system, Maori 78 reaches a cruising speed of over 40kn!

Length overall

 23.6 m

Length waterline

 19.3 m

Beam max (including fenders)

 7 m

Draft (lightship)

 1.3 m

Displacement (lightship)

44 Tons

Fuel Tank

6500 lt

Fresh Water tank

800 lt

Navigation category CE 94/25

A

Certification CE

 mod. B by RINa

N° passengers + crew

16 + 2

Maximum speed

45 kn

Cruising speed

36 kn

The performance is estimated at following conditions: standard version of the yacht at 1/3 of load, clean hull, 25° air temperature, good weather conditions, special props set for those conditions .

Building process

Vacuum infusion of sandwich and single-skin composite

Building Materials

GRP (fiberglass) + PVC core + Vynilester resin

ENGINE ROOM AND PROPULSION
!
MAN 2 x 1800 HP ,transmission: JOLLYDRIVE SURFACE PROPELLER

Engine Room Thermo-Acoustic insulation with Saint Gobain, Pyrotec Wabar DBX and
TeKspan Dibond Ral 9010 finishing

2 x reversible ventilator CEM 30/2-230M VE (R) for engine room ventilation (In-let- Out- let)

2 x reversible ventilator CEM 30/2-24V VE (R) for engine room ventilation (In-let- Out- let)

Abus Optical smoke detector with acustic alarm on the PLC

Optical level for fuel tank

Remote controlled fuel tank cut- off (outside)

Automatic engines fire shut-off

Fire extinguisher system. FM-200 approved by R.I.N.A, certification DIP EC automatic with

ecological extinguishing gas

Hydraulic system based on Gen-set configuration with PTO (system works with
contemporaneity of custom anchor arm, hydraulic bow trust, hydraulic windlass and
hydraulic garage opening with 2 x hydraulic pump CFR6.3CC or similar)

Raw water engine filters  - Fuel filters

Maindeck
Gelcoat Antibacterical Paint.
Antifouling painting, Veneziani.
Fender Hippomarine.
Custom handrail amidships.
Maori custom mast for navigation, mooring lights and flags.
Custom Seasmart hinges, in anodised aluminium with Maori Yacht logo.
Custom Seasmart handles, in anodised aluminium with Maori Yacht logo .
Deck drainages.
Windscreen in tempered layered crystal, transparent, Sovit.
Side glasses in tempered layered crystal, europe grey, Sovit.
Hard top in composite fibers.
Windscreen wiper, Gallinea.
Shore Power Marinco 63A.
Water intake, Versari & Del Monte 0703-AN.
Fuel intakes (2) at amidships, Versari & Del Monte 0703-AN.

Mooring
Trefoil Stainless steel AISI 316 50 kg anchor, roll for chain cable, safety snap shackle and cam jam.
Stainless steel chain Ø 12mm, 100mt DIN766/ISO.
Anchor launching system with hydraulic folding arm, customized by Maori Yacht, with waterproof control.
Anchor windlass/barbotin, hydraulic, LEWMAR V6, with waterproof control.
Anodised aluminium pop-out mooring cleats: fore (2), mizzen (2), aft (2), Versari & Del Monte 0263-AN.
Fender quick release system in anodized aluminium (8), Seasmart Smartlock SL20.
Fore pop-out capstan in anodized aluminium, 2000w, Sanguineti Chiavari.
Aft (2) pop-out capstans in anodized aluminium, 1000w, Sanguineti Chiavari.
Mooring lines (4), 12mt, Ø20mm, black.
Poliform F11 fenders (8).
Propulsion and Engine room
Engines MAN 1900hp (2).
Gearbox ZF (2).
External surface Transmissions with coupling bar and dedicated hydraulic steering unit, and internal universal joint shafts (2).
Hull underwater exhausts (2).
Hydraulic bow thruster with Joystick, LEWMAR 300 TTH.
Three-layer Insulation/soundproofing for Engine Room: Saint Gobain, Pyrotec Wavebar DBX,
TeKspan Dibond Ral 9010 finishing.
Ventilators CEM for engine room ventilation.

FUEL SYSTEM
Structural GRP fuel tank 6500 lt, with optical level, with digital level reported on PLC.
Level sensor SangiorgioSein.
Emergency shut-off valves for fuel lines, with remote control on pilot console.
Primary fuel filters for engines, RACOR 75/1000 MA (2).
Primary fuel filters for gen-set, RACOR 500 MA (1).
Stainless steel outboard vent-overfill (2) for fuel tank.

Electric Systems
Generator Cummins Onan MDKBT 17,5 kW, 230v, max 1500 rpm, with 100% PTO, with exhaust separator “Acqualift”, with ON/OFF control by PLC.
Batteries (4x 230Ah 12v) for Engines start 24v.
Batteries (4x 200Ah 12v) for services 24v.
Battery cut-off switches in Pilot Console.
Battery charger 24v, Mastervolt
Battery parallel switch.
Galvanic protection by sacrificial anode.
Air Conditioning system with hot and cold function, 110.000 BTU, with fancoils in every area, Condaria.
Socket 230v in every area.
Main electrical panels 24v and 230v in engine room.
Remote PLC control with:
• Navigation lights command
• Bilge pumps command and alarm
• Courtesy lighting command
• Engine room blower switch
• Fresh water and fuel level
• Consent to main supply 24V
• Consent to main supply 230V
Buttons in deck and Pilot Console, marine-grade IP67, with light ring.
Fresh Water System
Structural GRP fresh water tank, 800 lt, with food-grade interior coating, with level indications on PLC, with inspection.
Level sensor SangiorgioSein.
Electronic fresh water pump, 24v+230v, CEM GDE-MG/3.

Distribution manifolds.
Cold fresh water pipings.
Insulated hot fresh water pipings.
Zazzeri taps and showers with hot/cold system
Boiler in stainless steel for owner bathroom, 230v, 75 lt. ISOTHERM basic series.
Boiler in stainless steel for guest bathroom, 230v, 75 lt. ISOTHERM basic series.
Boiler in stainless steel for crew bathroom, 230v, 75 lt. ISOTHERM basic series.
Stainless steel outboard vent-overfill for water tank.

Gray-Black Water System
Structural GRP black water tank, 250 lt, with level indications on PLC, with inspection.
Structural GRP gray water tank, 800 lt, with level indications on PLC, with inspection.
Tecma WC-Bidet (3) Vacuum Flush independent.
Tecma Sanisplit NK (4) grey water system 24V.
Black water tank, with macerator pump 24V.
Stainless steel outboard vent-overfill for black tank, with anti-odor filters.
Underwater waste discharge and dock waste discharge with valves.

Oleodynamic System
Oleodynamic complete system, with manifolds, with PTO on gen-set, balanced to power
simultaneously main consumers (bow thrusters, anchor windlass, garage opening).
Electric pumps (2) 24V, CFR 6.3cc or similar.

Seawater System
Engines Seawater intakes, with brass ball valves, filters and certified pipings.
Services (Genset, AC, or other optionals) system Seawater intakes, with brass ball valves, filters and certified pipings.
Salt water pump for fire extinguishing/chain wash.

Bilge System
Self-priming 24v bronze pump, for bilge service, CEM type 040.
Self-priming 230v bronze pump, for fire/washing service, CEM type 050.
Switching system for backup between bilge and fire fighting pumps.
Motorized valves in each compartment, with, feedback on PLC, with manual emergency activation, Georg Fischer (4).
Bilge double level sensors, with alarm in PLC.

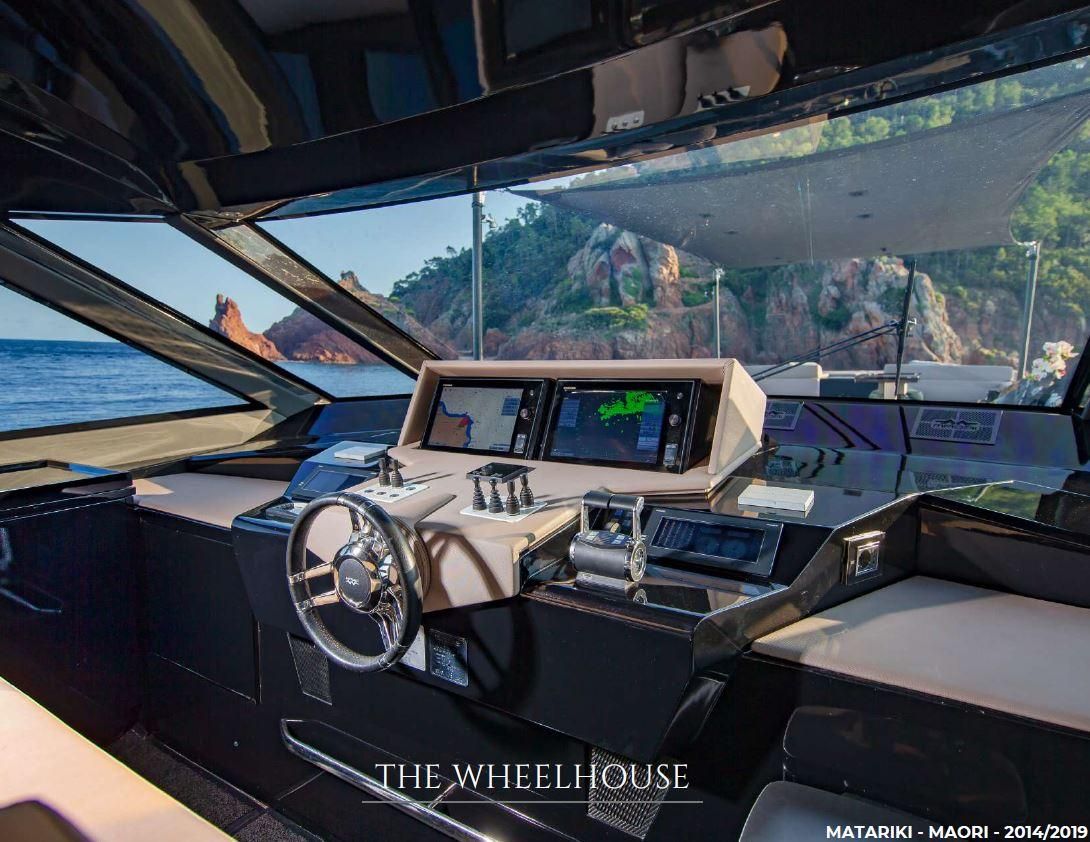

Navigation System
Pilot Console covered FMG fabric with:
• Man Engine instruments
• Engine on/off switches
• Engine electronic Throttles
• Isotta helm wheel with oleodynamic power steering
• Multifunction display GARMIN GPSMAO 8417
• VHF Garmin 300
• Control panel for surface transmissions, JDM
• Gallinea windshield wiper control
Digital Fish Finder Garmin GSD24 with transducer and speed sensor.
Navigation lights to comply COLREG.
Horn.

Safety System
Fire extinguishing system for Engine Room, with automatic control and manual control from Pilot Console. Agent: FM-200 non-toxic gas, approved by RINa.
Abus Optical smoke detector in engine room, with acoustic alarm on PLC.
Hand-held extinguishers, 1kg, in each area, approved by RINa.
Life-jackets 150N (12), approved by RINa.
Safety equipment kit for navigation within 50nm from shore, including flares, smoke buoy, light buoy, life ring with rope.
First-aid kit.
Anti-skid knurled flooring in engine room.

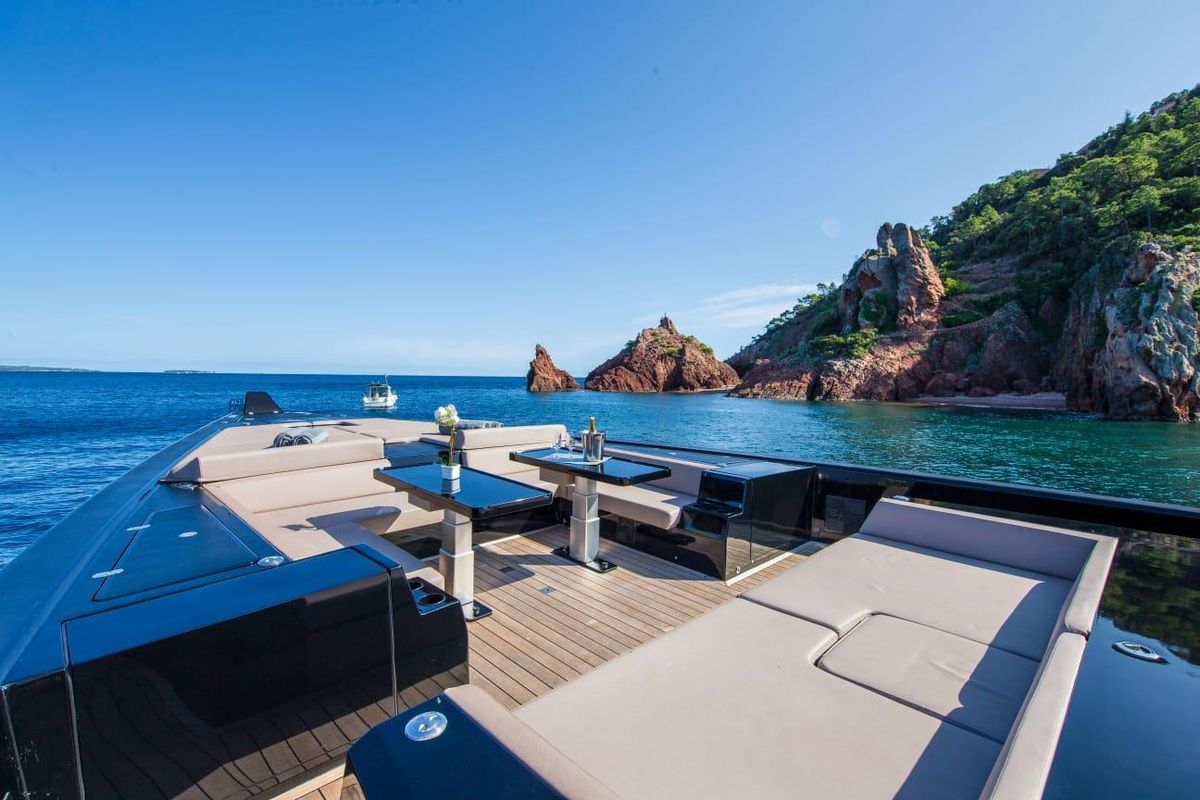

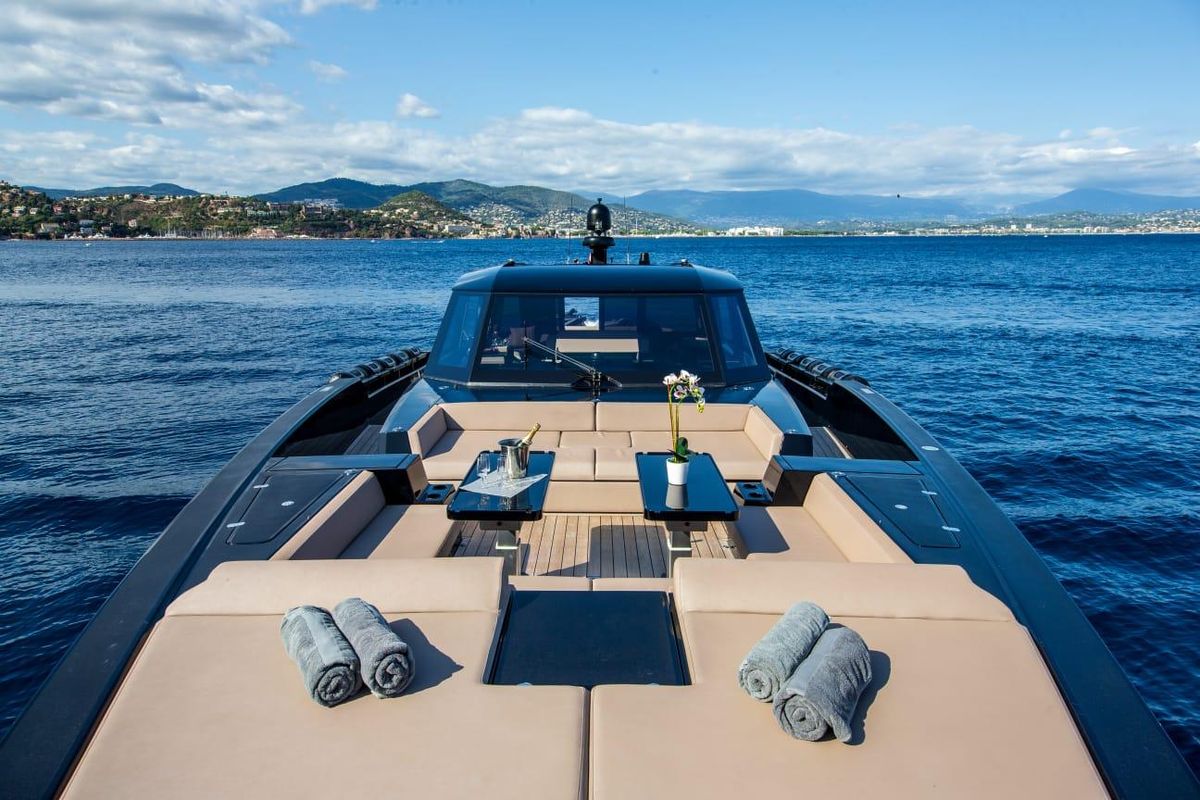

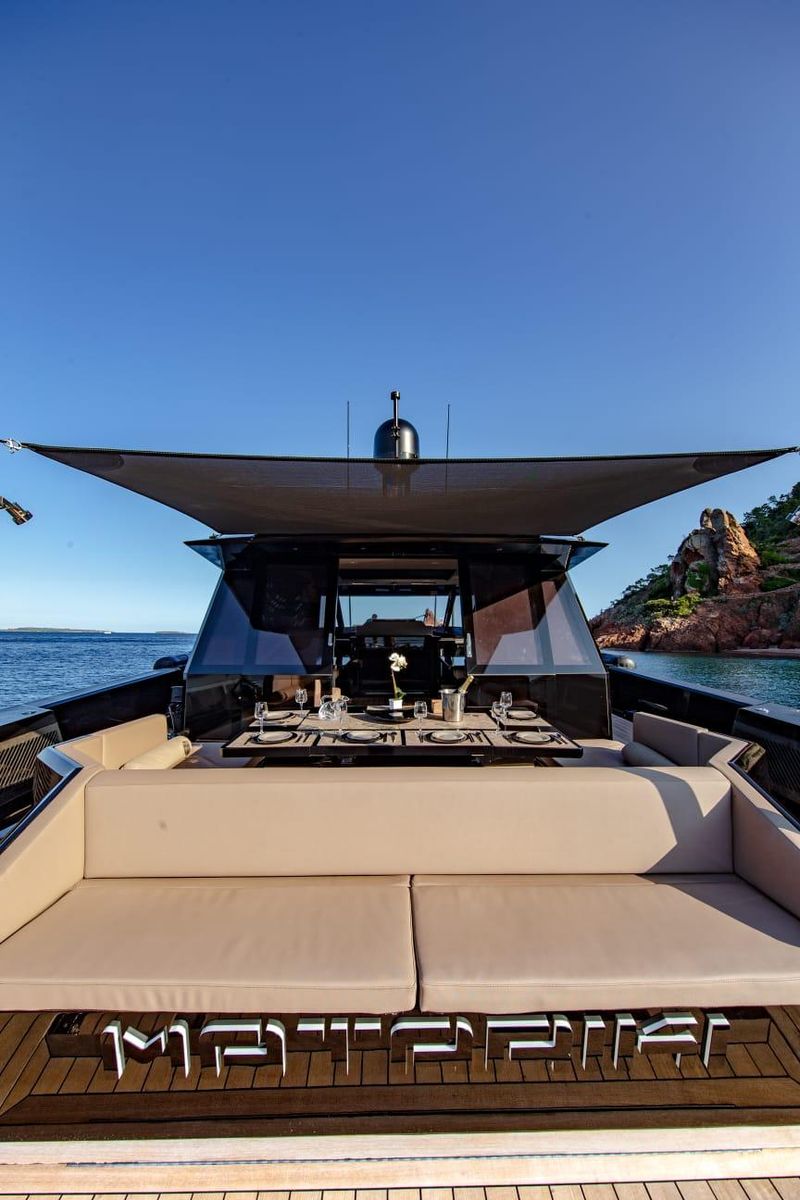

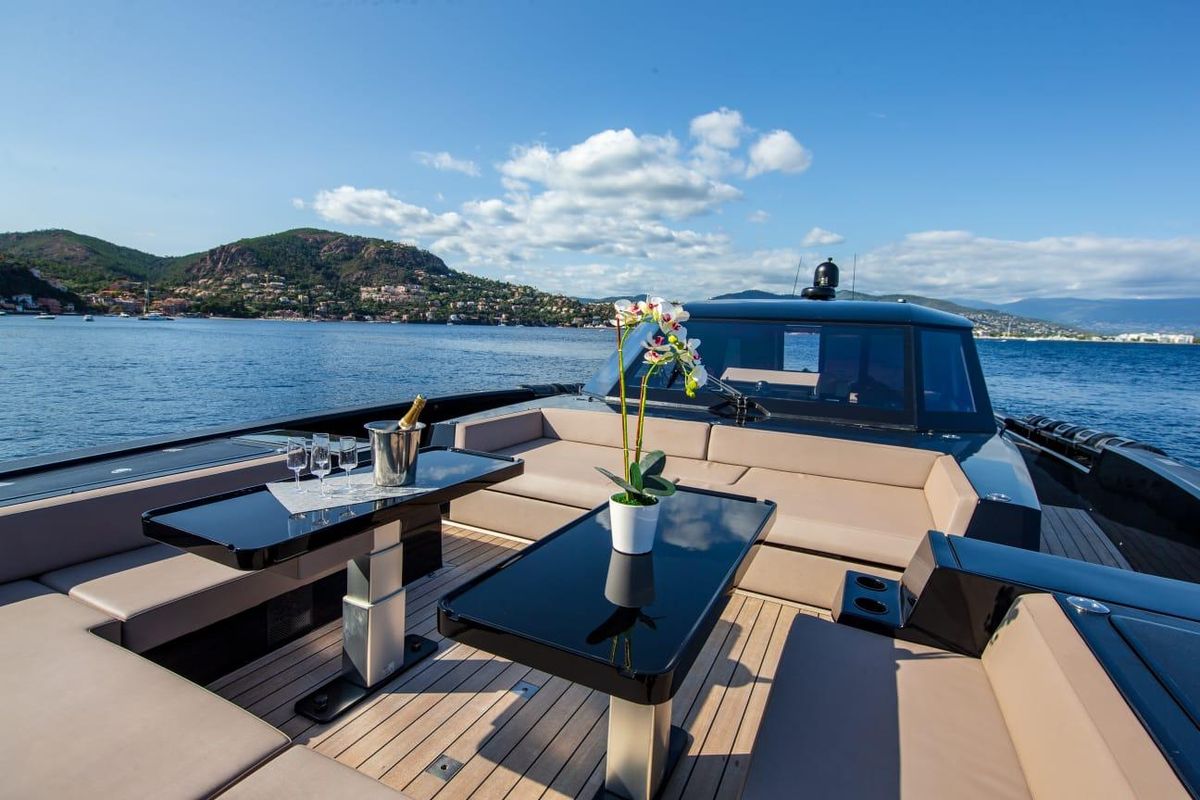

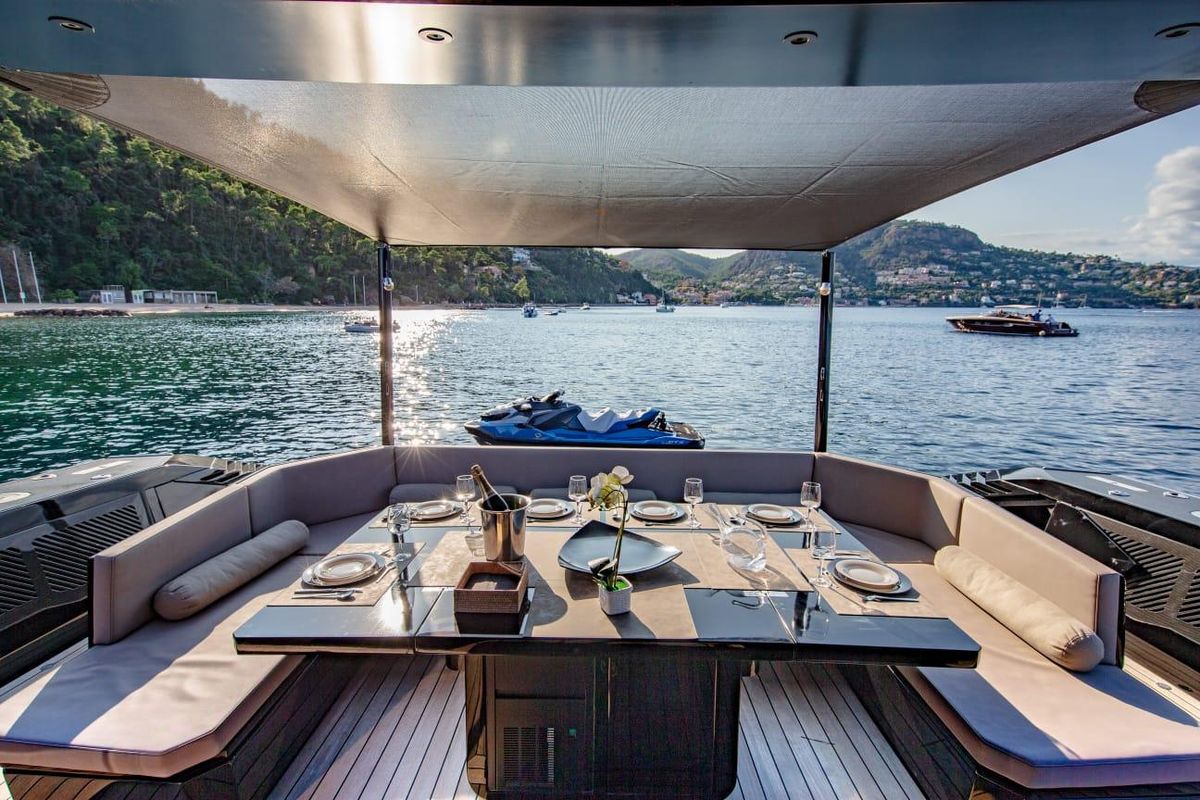

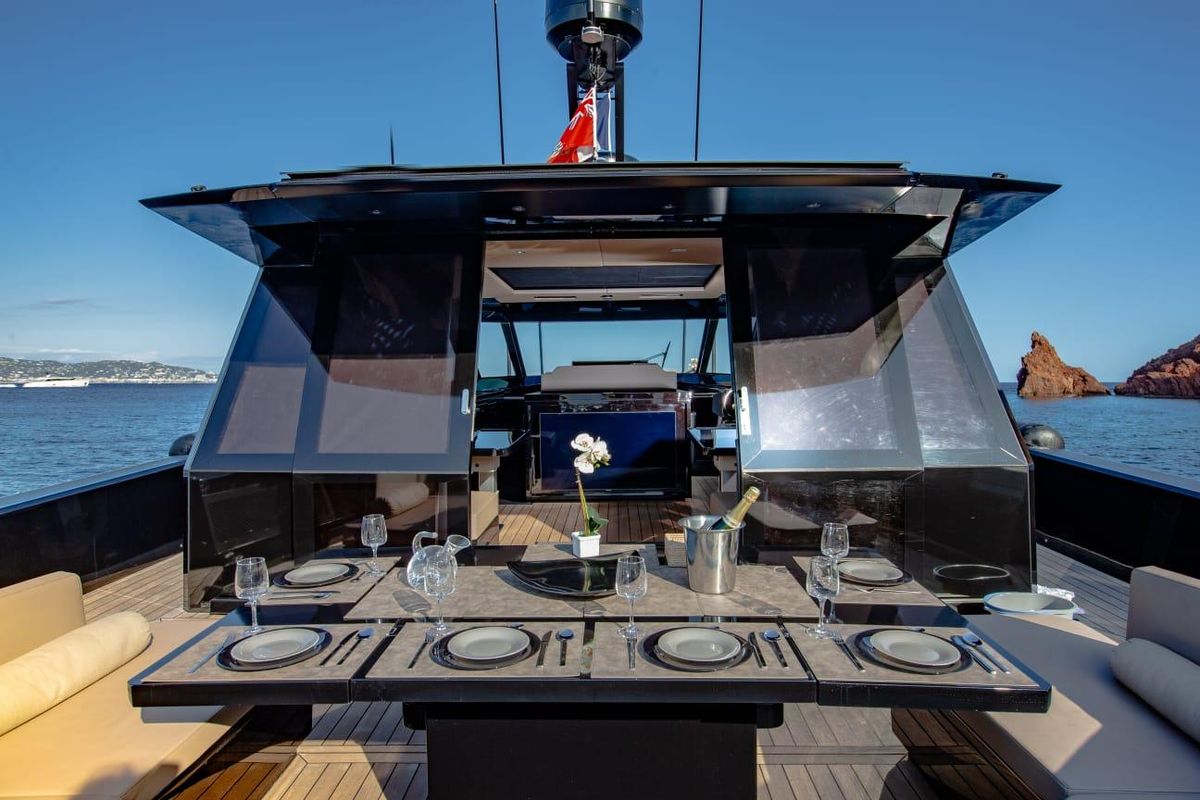

MAINDECK
Sunbed and cushions, covered in FMG fabric.
Extractable stern shower, Zazzeri.
Manual stern swimladder.
JL Stereo Speakers (8) SPS M600.

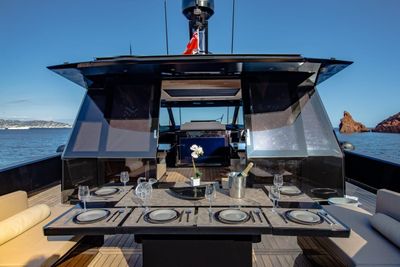

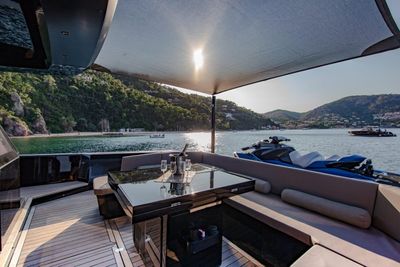

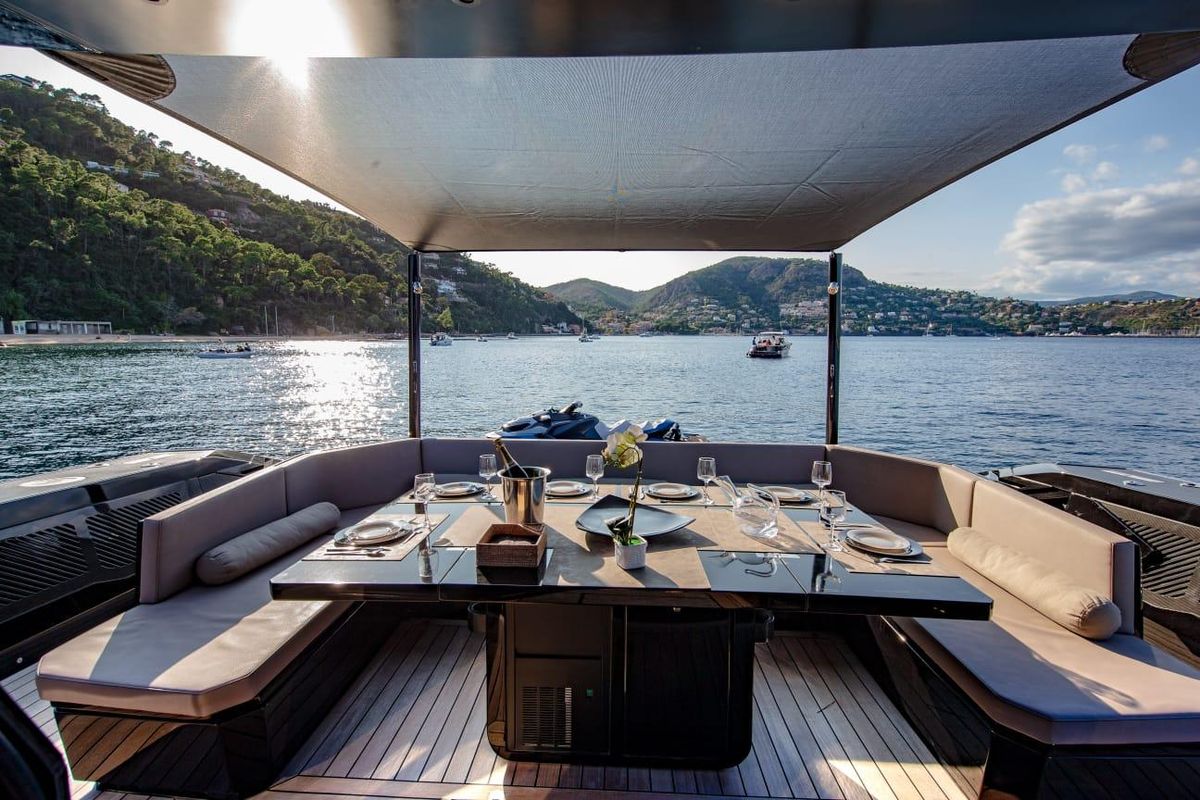

Maindeck area
Sunbed and cushions, covered in FMG fabric.
Extractable stern shower, Zazzeri.
Manual stern swimladder.
JL Stereo Speakers (8) SPS M600.
Deck courtesy lights (48) on sidewalks, QUICK LIGHTING Tina Led or similar.

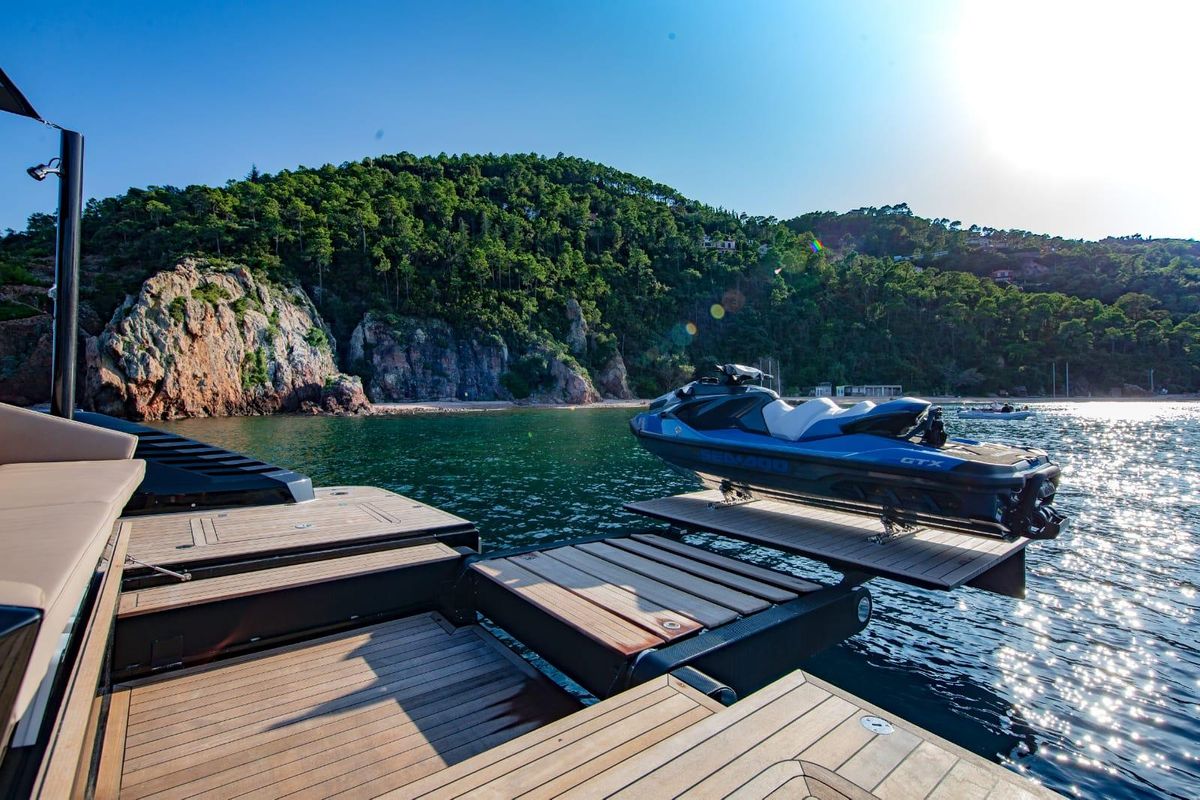

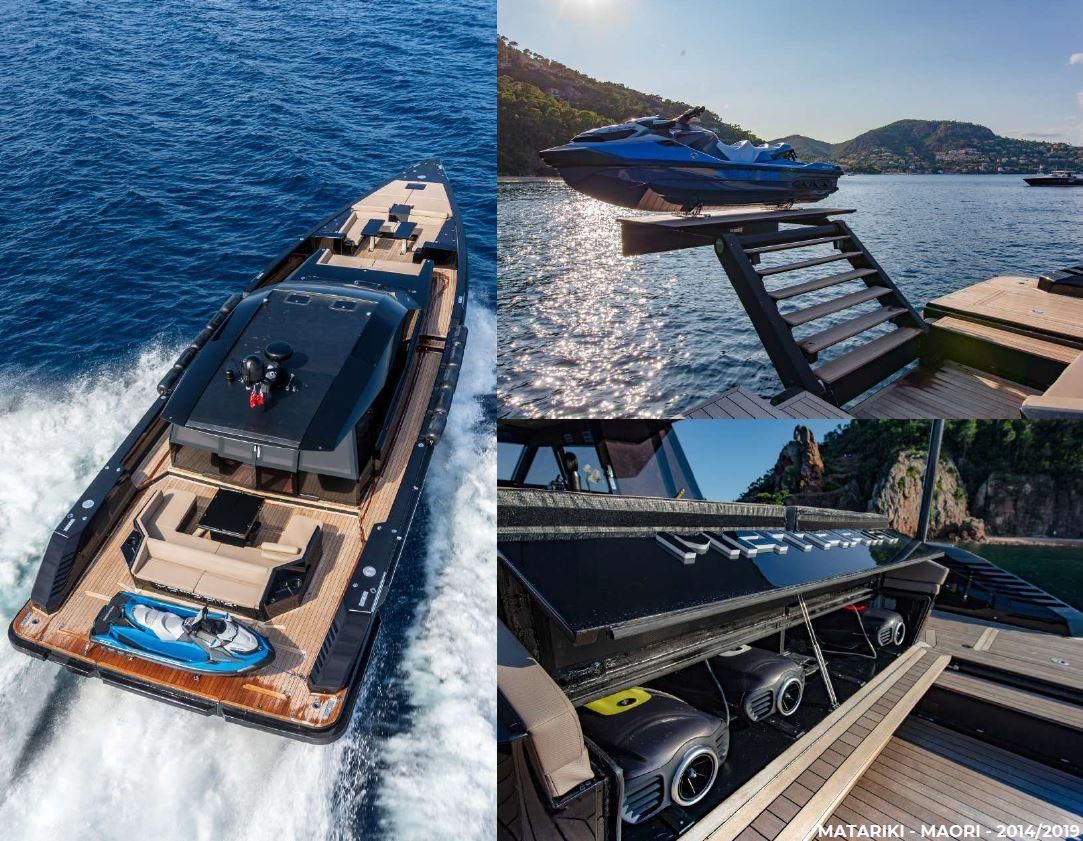

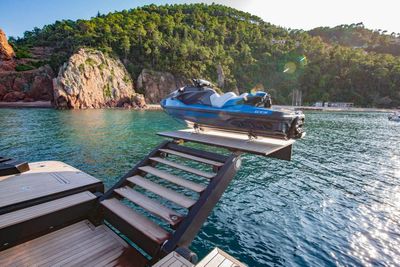

Garage with oleodynamic rams, JDM.
Access to engine room with manual opening hatch.

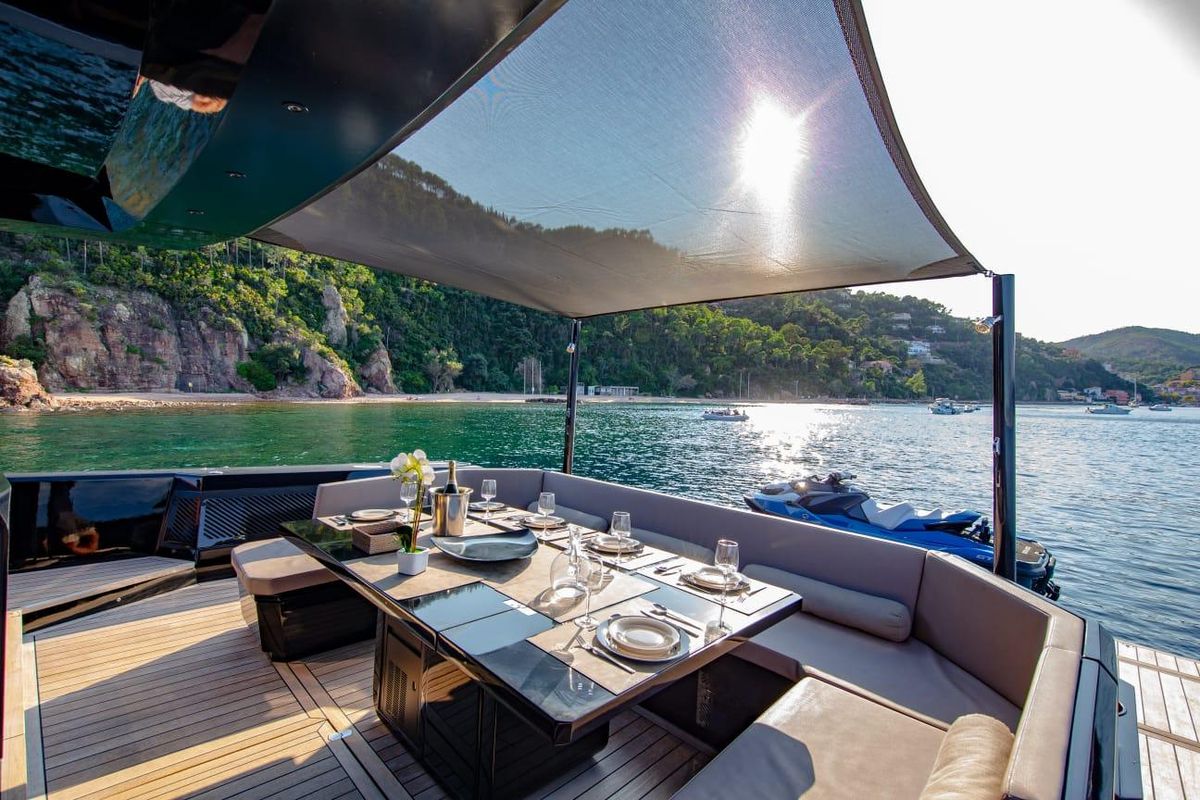

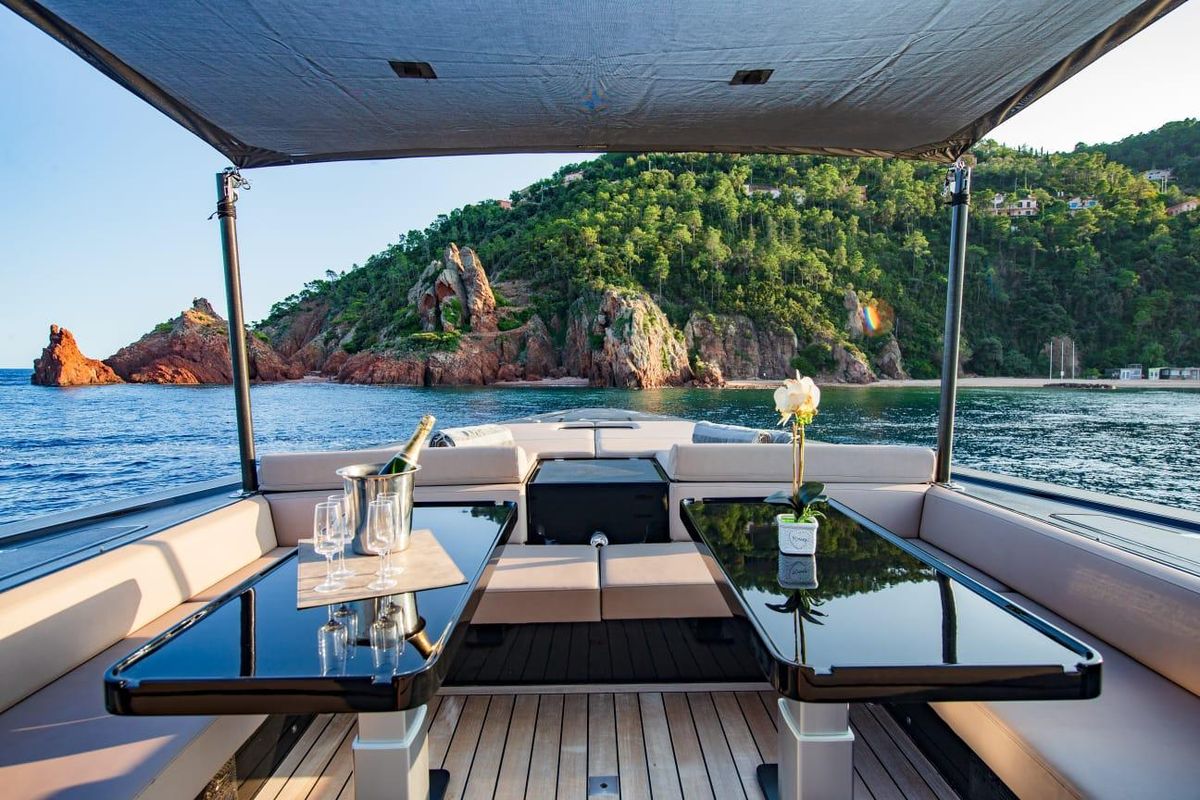

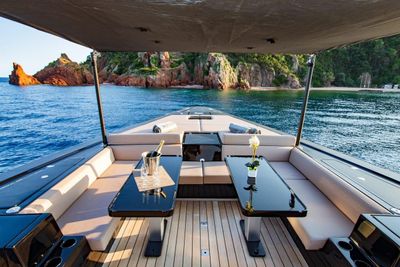

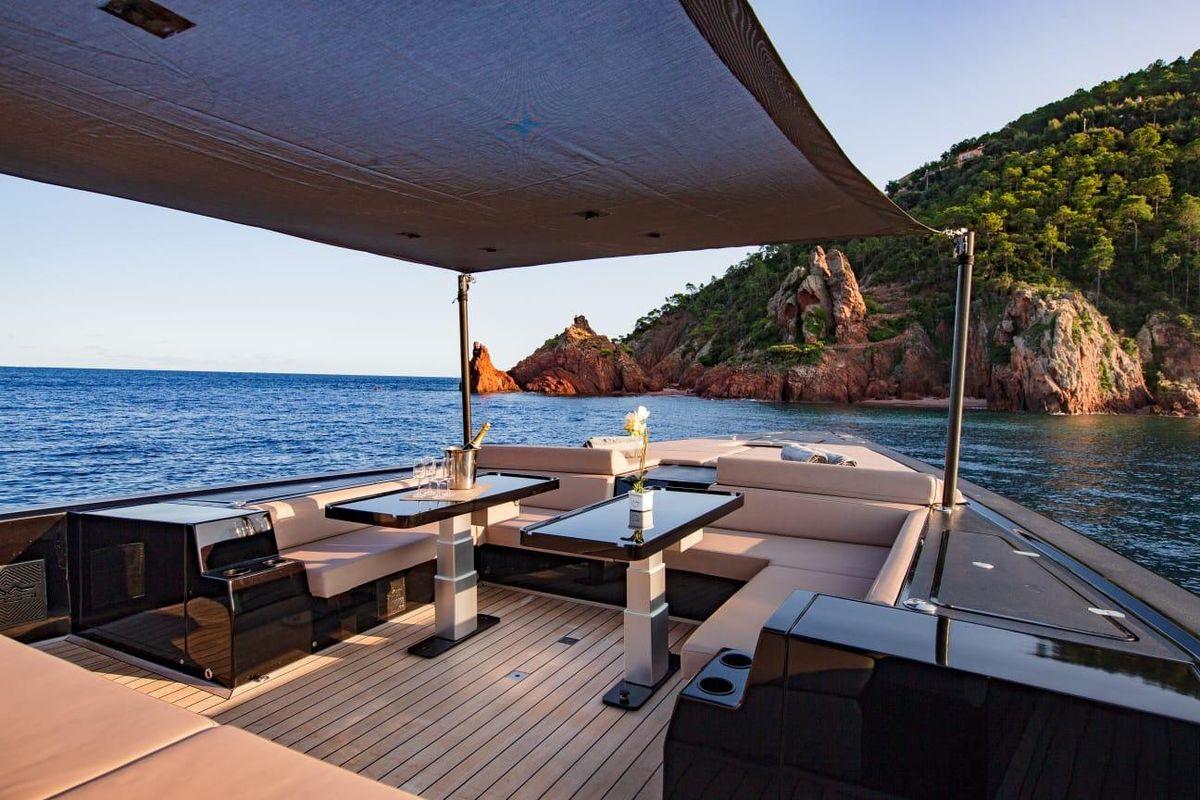

Manual fore awning with fabric cover and Seasmart carbon fiber poles (4).
Floor in teak, Comilegno first grade, 10mm thick, with Sika sealings.

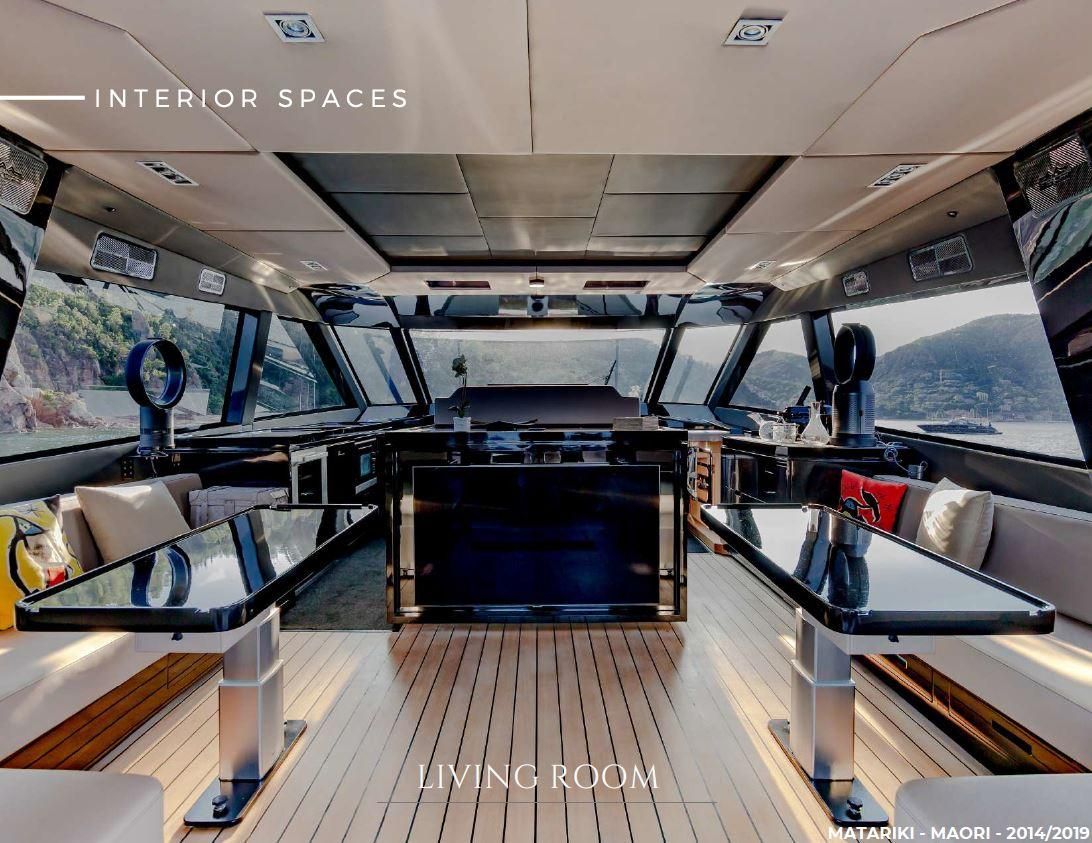

Saloon / Galley
Pilot seat for 3 people.
Vitrifrigo DW100RFX Fridge lt. 100.
Vitrifrigo DW100BTX Freezer lt. 100.
Vitrifrigo Ice maker.
Whirlpool ACM 712-X induction hob or similar.
Samsung smart Owen Combo microwave/grill or similar.
Stainless steel sink.
Samsung Tv 55’
Sofà with cushions in FMG fabric or similar.
Ceiling covered with FMG fabric or lacquered wood.
Interior custom furniture in BELLOTTI marine lightweight wood (16mm) paint-finishing.
Storage and drawer in BELLOTTI marine lightweight wood (16mm) paint-finishing.
QUICK MARINE LIGHTING stripled or similar under furniture.
QUICK MARINE LIGHTING spot LED light .
Flush deck Hatchway Solimar (2).
Air Conditioning system with fancoils (5) Condaria.
Switch and socket Simon Urmet.
Floor in teak, Comilegno first grade, 10mm thick, with Sika sealings.

Owner’s Cabin
Interior custom furniture in BELLOTTI marine lightweight wood (16mm) paint-finishing.
Storage and drawer in BELLOTTI marine lightweight wood (16mm) paint-finishing.
Ceiling covered with FMG fabric or lacquered wood.
Bulkheads and wall with lacquered finishing or FMG Fabric.
Manual custom blinds.
King-size bed with mattress and storage with access from above.
Flush deck Hatchway Seasmart.
QUICK MARINE LIGHTING stripled or similar under furniture.
QUICK MARINE LIGHTING spot LED light.
QUICK MARINE LIGHTING orientable reading lights (2).
Bose 2.1 audio system.
Air Conditioning system with fancoils (2) Condaria.
Switch and socket Simon Urmet.
Floor in teak, Comilegno first grade, 10mm thick, with Sika sealings.

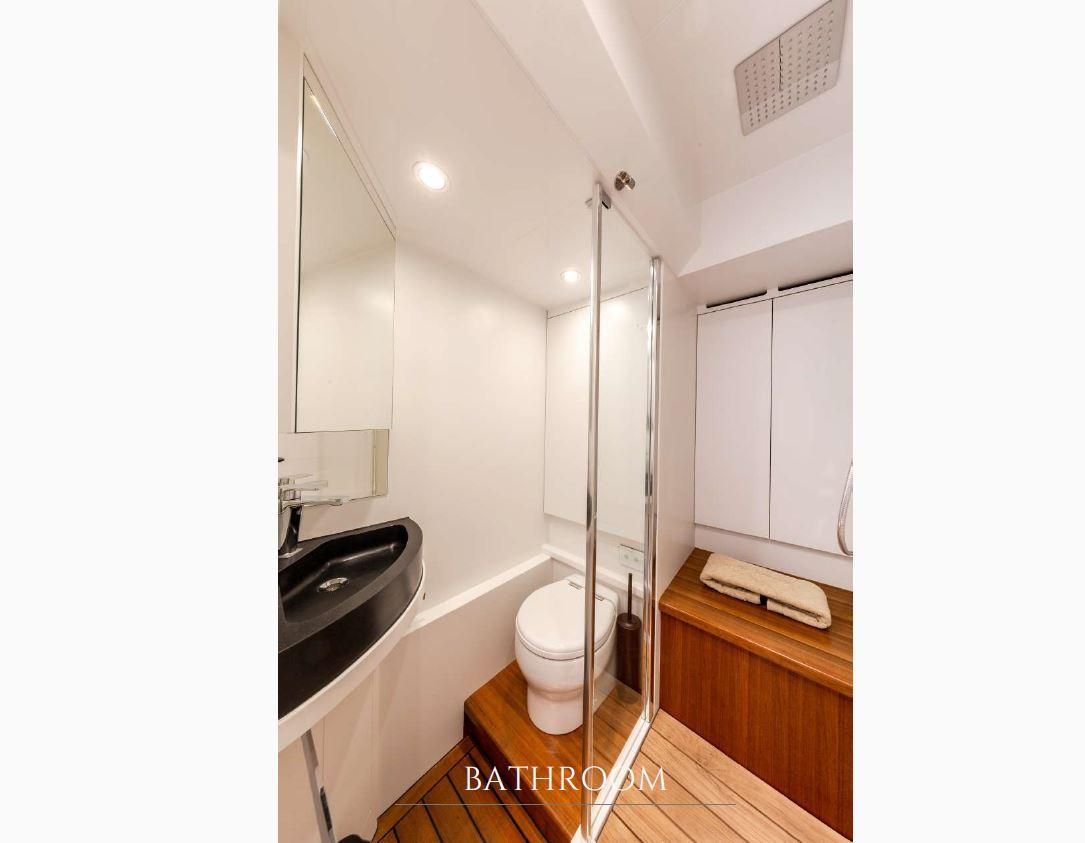

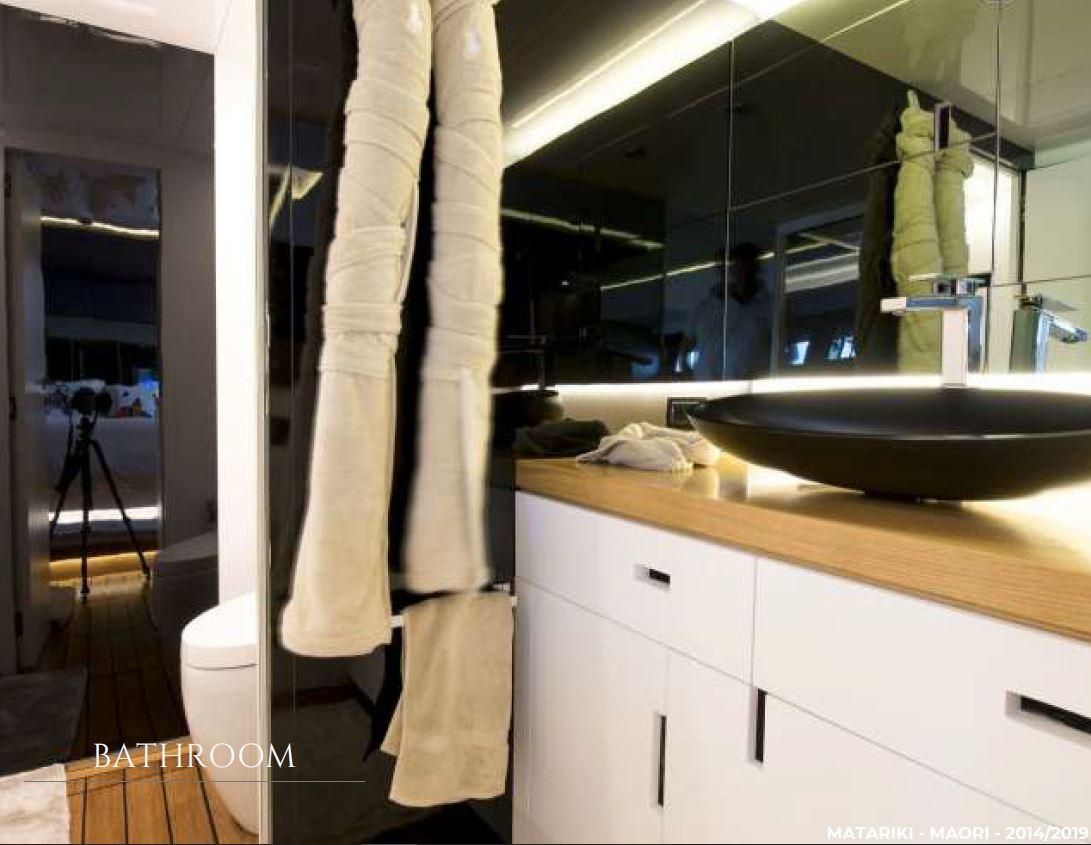

Owner’s Bathroom
Interior custom furniture in BELLOTTI marine lightweight wood (16mm) paint-finishing.
Storage and drawer in BELLOTTI marine lightweight wood (16mm) paint-finishing.
Ceiling covered with FMG fabric or lacquered wood.
QUICK MARINE LIGHTING stripled or similar under furniture.
QUICK MARINE LIGHTING spot LED light.
Switch and socket Simon Urmet.
Planus privilege WC with bidet function.
Shower box with glass door and stainless steel finishing.
Shower plate in Comilegno natural Teak.
Shower seat in Comilegno natural Teak.
Shower wall in Waterproof paint.
Glass design washbasin.
Zazzeri faucet and shower or similar.
Mirror in front of washbasin.
Bathroom accessories Foresti e Suardi.
Floor in teak, Comilegno first grade, 10mm thick, with Sika sealings.

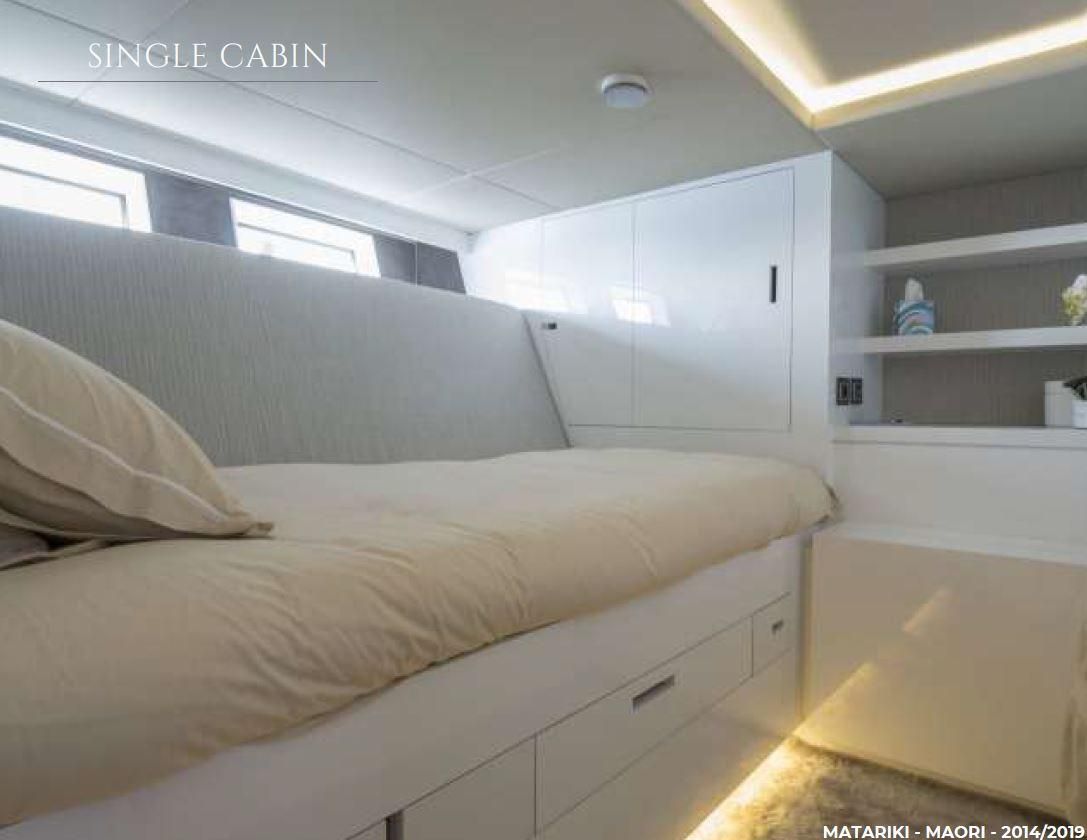

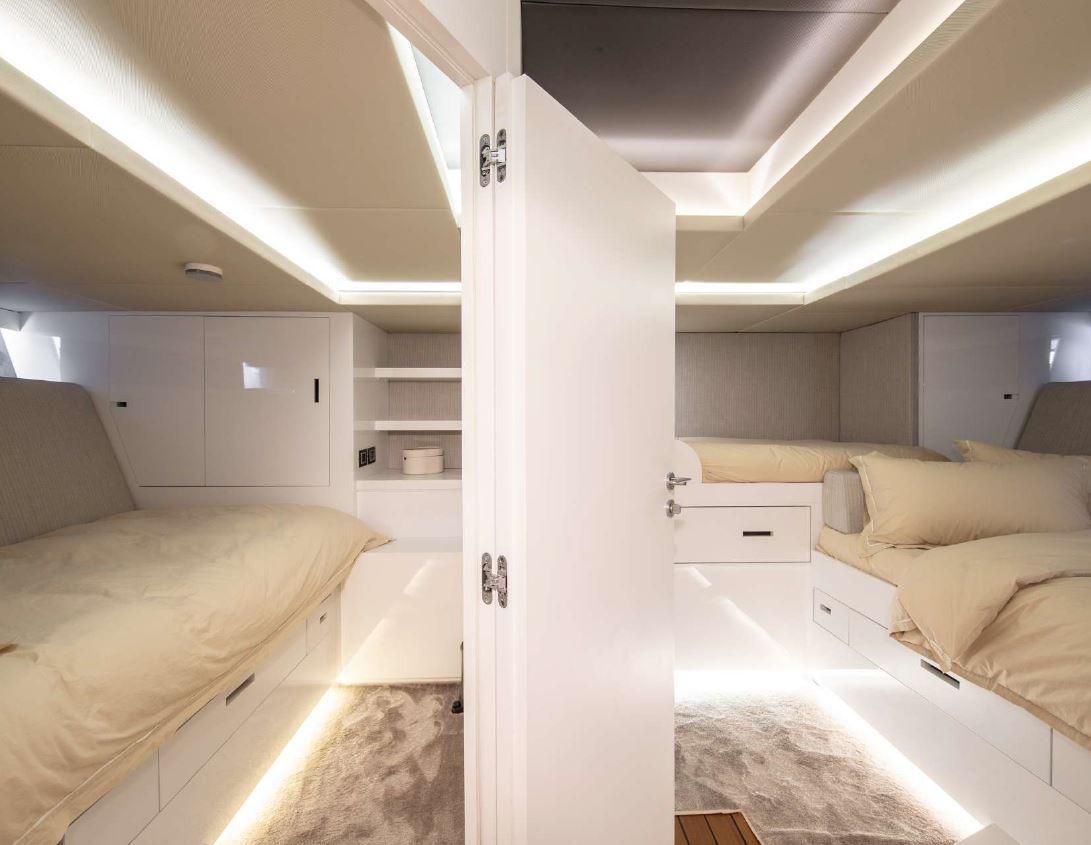

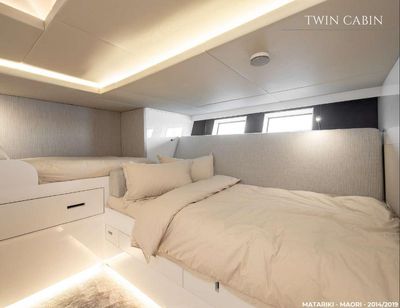

Guest Cabin
Interior custom furniture in BELLOTTI marine lightweight wood (16mm) paint-finishing.
Storage and drawer in BELLOTTI marine lightweight wood (16mm) paint-finishing.
Ceiling covered with FMG fabric or lacquered wood.
Bulkheads and wall with lacquered finishing or FMG Fabric.
Manual custom blinds.
Custom-size beds/sofas (2) with mattress.
QUICK MARINE LIGHTING stripled or similar under furniture.
QUICK MARINE LIGHTING spot LED light.
QUICK MARINE LIGHTING orientable reading lights (2).
Samsung tv 47”.
Bose 2.1 audio system.
Air Conditioning system with fancoils (2) Condaria.
Switch and socket Simon Urmet.
Floor in teak, Comilegno first grade, 10mm thick, with Sika sealings.
TV LED HP 42’

Guest Bathroom
Interior custom furniture in BELLOTTI marine lightweight wood (16mm) paint-finishing.
Storage and drawer in BELLOTTI marine lightweight wood (16mm) paint-finishing.
Ceiling covered with FMG fabric or lacquered wood.
QUICK MARINE LIGHTING stripled or similar under furniture.
QUICK MARINE LIGHTING spot LED light.
Switch and socket Simon Urmet.
Planus privilege WC with bidet function.
Shower plate in Comilegno natural Teak.
Shower wall in Waterproof paint.
Glass design washbasin.
Zazzeri faucet and shower or similar.
Mirror in front of washbasin.
Bathroom accessories Foresti e Suardi.
Floor in teak, Comilegno first grade, 10mm thick, with Sika sealings.

Crew Cabin
Interior custom furniture in BELLOTTI marine lightweight wood (16mm) paint-finishing.
Storage and drawer in BELLOTTI marine lightweight wood (16mm) paint-finishing.
Ceiling covered with FMG fabric or lacquered wood.
Bulkheads and wall with lacquered finishing or FMG Fabric.
Custom-size beds/sofas (2) with mattress.
QUICK MARINE LIGHTING stripled or similar under furniture.
QUICK MARINE LIGHTING spot LED light.
QUICK MARINE LIGHTING orientable reading lights (2).
Air Conditioning system with fancoils (1) Condaria.
Switch and socket Simon Urmet.
Floor in teak, Comilegno first grade, 10mm thick, with Sika sealings.

Crew Bathroom
Interior custom furniture in GRP paint-finishing.
Ceiling covered with FMG fabric or lacquered wood.
QUICK MARINE LIGHTING spot LED light.
Flush deck Hatchway Seasmart
Switch and socket Simon Urmet.
Planus elite WC with bidet function.
Shower plate in Comilegno natural Teak and wall in Waterproof paint.
Glass design washbasin.
Foresti & Suardi faucet and shower or similar.
Bathroom accessories Foresti e Suardi.
Floor in teak, Comilegno first grade, 10mm thick, with Sika sealings.
