Hull and Decks

• Built to CE Standards

• Bronze alloy thru hull fittings

• Awlgrip white painted engine room, lazarette, and bilges and anchor locker for easier maintenance

• Blister resistant modified Vinylester resin in entire hull

• Awlgrip painted (white) bilge areas with access hatches.

• Bonding system with sacrificial anode on transom

• Vinylester resins used for hull laminates, and epoxy resins used on decks and flybridge laminates

• White isophthalic, white gelcoat for superior gloss finish, flexibility and outstanding weathering

  characteristics

• Hull and Super structures are infused using divinycell foam core. Hull uses hybrid Kevlar-fiberglass

  laminates, with carbon fiber encapsulated foam stringers. Deck and superstructure uses carbon fiber

  laminates.

• One-piece SS polished safety handrails on forward side decks combings and bow

• Teak on main deck with inlay on top of all combings, and on top of the swimplatform

• Molded fiberglass salon floor/engine room ceiling with acoustical and thermal insulation

• Molded Nonskid Decks for traction and durability

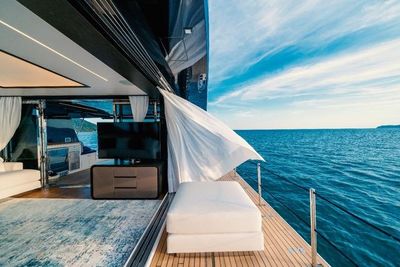

• Hydraulic Hinged aft side combings, that transform into Side Balconies w/safety rails

• Vacuum bagged carbon fiber - epoxy composite bulkheads

• 8 stainless steel bow, spring and stern cleats

• All cleats thru-bolted to stainless steel backing plates

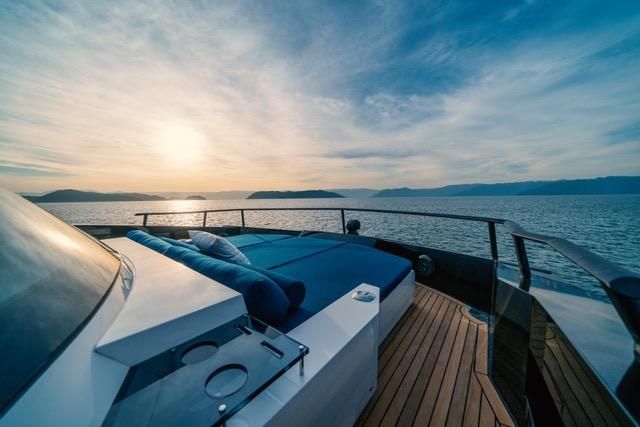

• Bow Sun-lounge with sofas, retractable table that turn into a sun pad, and drink holders. Vinyl covered

Closed Cell Foam Cushions.

• Stereo speakers around Bow Sun-lounge controlled by Salon Stereo

• Anchorlift – polished stainless steel

• SS polished bow anchor fashion plate

• Automatic hydraulic anchor windlass with band break and with 230’ chain

• Anchor locker w/dual hatches and fresh water

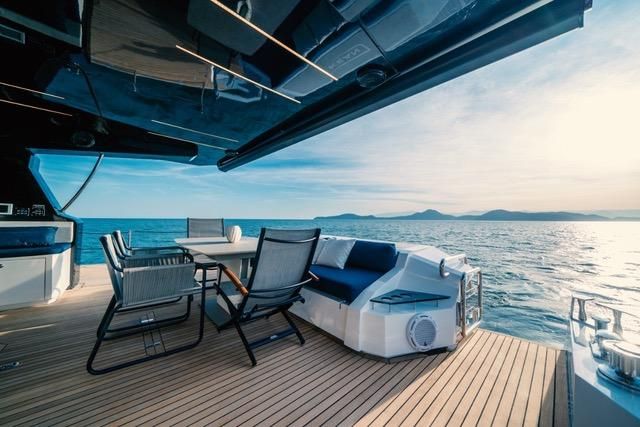

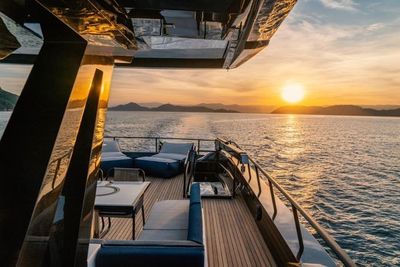

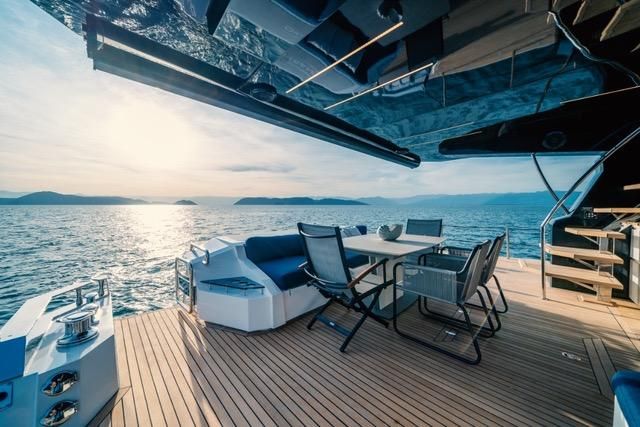

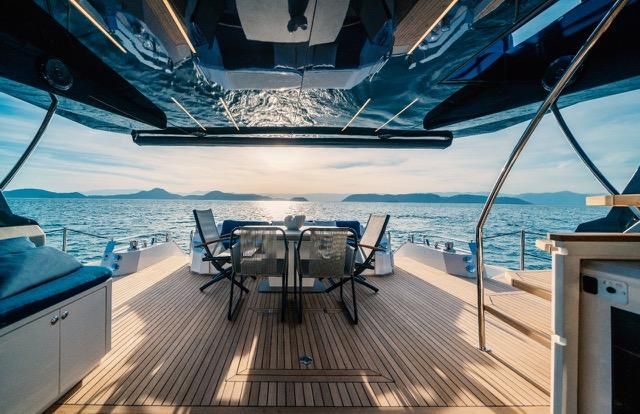

  Aft Deck and Transom

• Fresh water shower hot/cold at transom

• Aft deck seating with large hinged access to large lazarette

• Dockside water

• Engine Room access thru large aft deck door with ladder

• Gaskets for all storage lids and access doors

• Stereo speakers controlled by Salon Stereo.

• Indirect lighting lighting under coaming

• Stainless steel floating stairs to fly bridge, one-piece, with teak treads.

• Recessed lighting under fly bridge overhang

• Salon with Stainless Steel sliding and folding doors with Reflective tinted tampered glass.

• Stainless Steel gas assist lifts on all hatches and lids.

• Dual molded access steps from integrated swim platform to aft deck with SS hinged Safety gates

• Beachclub on swimplatform with sofa with vinyl cover cushions.

• Recessed SS swim and safety ladder at stern.

• Ice maker on aft deck. Isotherm 40lb/24 hr.

• OPACMARE Ganway

• OPACMARE Carbon fiber Transformer multifunctional tenderlift

• (2) hydraulic Aft deck capstains

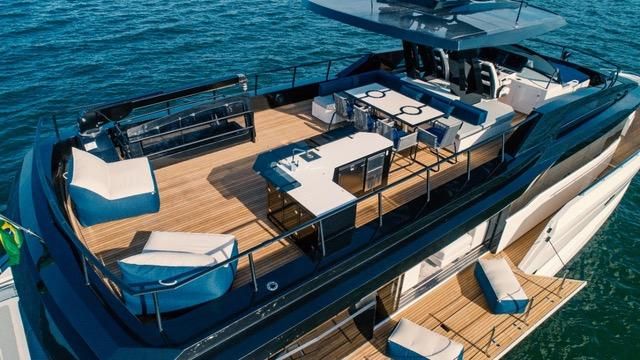

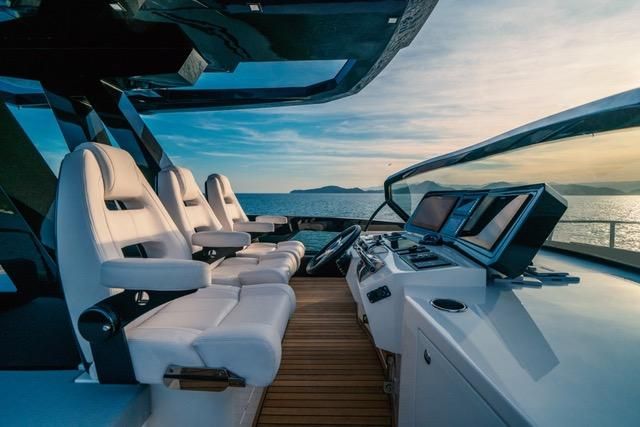

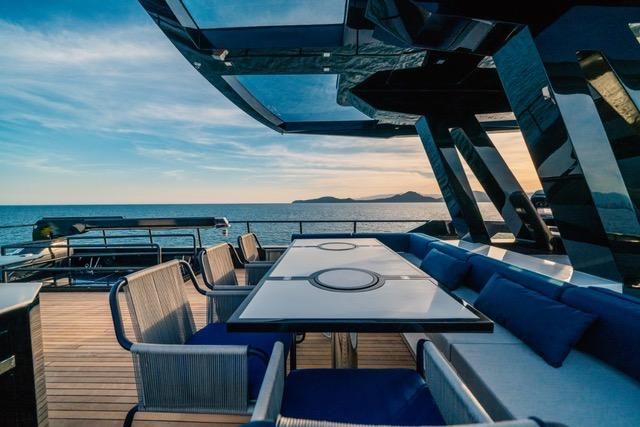

  Fly Bridge

• SIMRAD horn and Speaker.

• Stainless Steel Safety Handrails.

• (3) Helm seats.

• Lighted compass, flush mounted on centerline at helm.

• Helm console with full engine instrumentation.

• Aft facing sofa with storage with vinyl covered closed cell foam cushions.

• 8 seat wood table with SS base.

• Lounge Seating on fly bridge with storage and drink holders.

• Sun-lounge forward of the helm console with vinyl covered closed cell foam cushions.

• Stainless Steel drink holders at helm and lounge seating.

• Large Hinged Hatch to cover stairs to lower deck with handrails.

• Framed plexiglass, Venturi wind screen.

• Stereo speakers controlled by salon Stereo.

• 12V & USB outlet at the helm stations with drink holders.

• Complete Bar with electric grill, sink and raised chairs.

• OPACMARE 350 kgf lift capacity Davit.



• Salon Galley

  Galley; Ceramic Laminin Oxide countertops with stainless steel sink and faucet

• Lights, overhead LED lighting

• Microwave/Convection oven located under counter

• 4 burners Electric Cooktop

• FRIGOMAR AC refrigerators:(2) 25 gallons + (1)10 gallons

• Storage cabinets and drawers in lower galley

• Garbage container flush mounted under counter with SS lid.

• Ample galley storage including Two large deep drawers for cookware

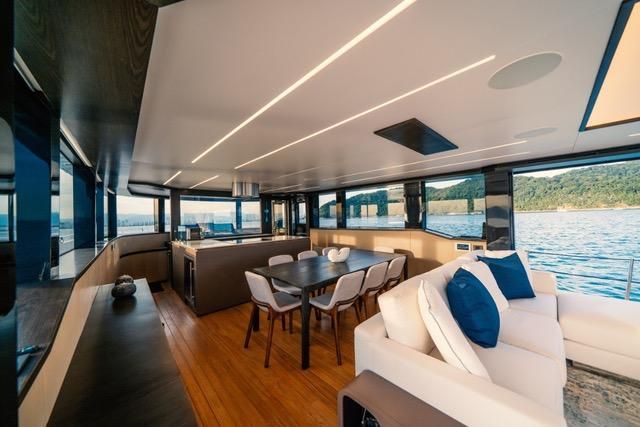

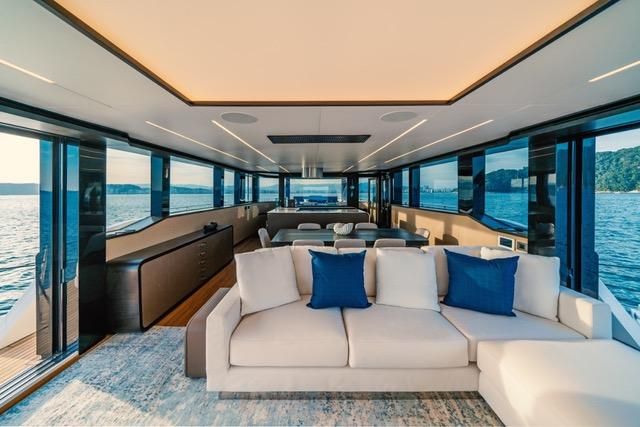

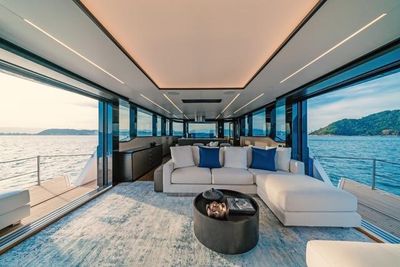

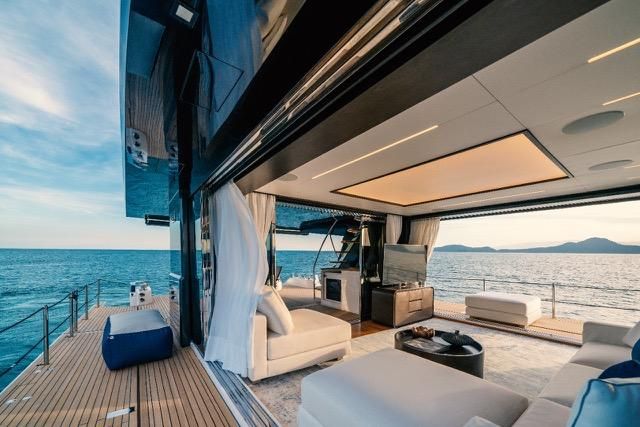

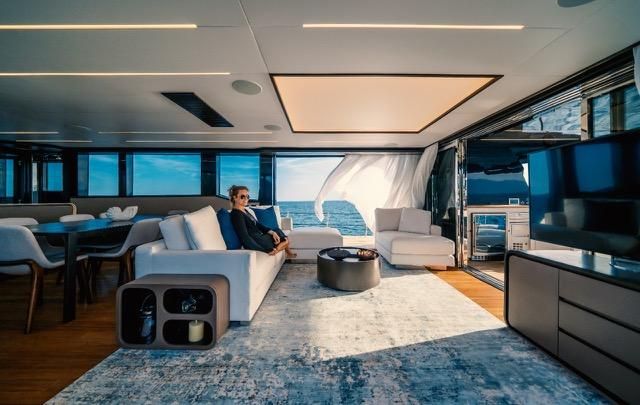

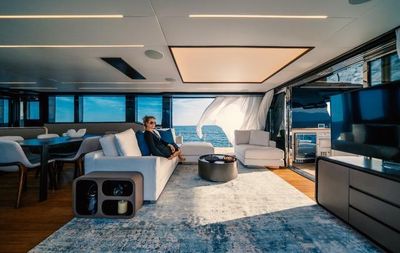

Salon

• 65 "LED TV HD mounted on hi-lo lift in cabinet with additional storage

• Salon to aft deck access thru folding SS framed doors with tinted tampered glass

• 8 seat wood table with leather finish and Aluminum base secured to salon floor.

• Headliner, Resinflex, white color, 1/8” foam

• Cabinets with leather inlays -

• Lighting, overhead LED lights recessed in headliner and indirect decorative rope lighting behind

  valances, 12V DC

• Stereo System with (20) speakers , Sub-Woofer, power amplifier, and ELAN multiroom system with

  (3) 7” touchscreen controllers

• L-shaped lounge seating with storage underneath

• Salon SB and PS stainless steel sliding door with tinted and tempered glass with access to fold out

  balcony and side decks

• Solon Flooring: Teak

• 360° view, Salon frameless windows, tinted w/tempered glass.

• Two fixed skylights with tampered forward in salon for natural lighting.

• Two large sliding windows with tinted with tempered glass forward in salon on both sides

• Lower helm station with AC/DC switch panel, full instrumentation and electronics.

• Helm Chair (Adjustable)

• Opacmare semi-automatic weather tight pop-out door on SB of the helm

• Mechanical and Engine Room

• Twin MAN V12 1550 hp engines with cardan shaft and TWIN-DISC MGX 5146 RV V-drives

• Propulsion system with MARINOX alloy 17 shaft and Nibral ITALIAN PROP propellers.

• TWIN-DISC hydraulic Bow and Stern Thrusters with Joystick maneuvering and Keep Position mode.

• BCS Power steering.

• Air-Conditioning: DOMETIC Chilled-Water HVAC System for climate control throughout the interior,

  and with individual temperature controls for all staterooms, salon and helm station- Total 168.000

  BTU.

• Automatic/manual bilge pumps with monitoring system and hi-water bilge alarm at helm.

• Gray and Black Water holding tanks with 154 gallons each and with Y-VALVE

• Engine room air intake and exhaust ventilation system with automatic shut-off.

• Freshwater supply in engine room for general maintenance and cleaning.

• DC freshwater system with (2) pressure tank.

• PARKER SEAFARI Water maker (900 GPD).

• USCG approved Fuel and oil supply lines.

• Hydraulics for lowering and raising the side balconies with safety switch control and manual override.

• Side gauges for fuel tanks.

• Racor fuel/water separators for main engines and generators with vacuum gauges with clear bowl.

• Seacocks: Bronze ball-type sea valves with trainers for all thru-hulls below the water line.

• BCS Trim tabs with controls at both helm stations.

• (2) Water heaters 230V AC electric (11.9 US gallons 1200W).

• Raw water engines and generator intake strainers.

• Electrical

• 12V DC 120V DC ship’s service throughout

• 12V and 120V power supply with breakers at lower helm station

• USCG approved international navigation lights

• (20) Batteries; dry cell with independent 12V and 24V banks mounted in fiberglass vented boxes.

• Battery chargers: (2) MASTERVOLT 12V being (1) with 70 amp and (1) with 25 amp and with thermal

  cutoff and switching, (1) MASTERVOLT 24 V 75 amp and (2) Pronautic 24 V battery charger being (1)

  with 30 amps and (1) with 20 amps.

• Battery switches for battery banks.

• Engine room lights, AC/DC (LED)

• (2) Onan 29 KW generator with remote start at the lower helm.

• (3) 50 AMP 220V shore power with 50’ shore cord with cable master + (1) shorepower outlet plug.

• LED interior lighting with dimmers throughout

• Lighting; Overhead LED lights, recessed in ceiling w/rope type décor lights concealed by upholstered

  valences

• Electric bonding system and galvanic isolator

• Receptacles; 12V USB and 120V duplex

• GFI circuit protectors in designated areas.

• OKEAN Digital System Control by NAVIOP/SIMRAD – for full control of the boat systems, as lighting,

  HVAC, salon and master bedroom window blinds, sound system, navigation electronics, engine

information, tanks monitoring, navigation lights and pumps control and monitoring. • SIMRAD AIS Transponder.

Electronics

FLY BRIDGE

Displays: (2) 16” SIMRAD EVO and (1) 9” SIMRAD EVO Helmsman Gyro Compass
SIMRAD VHF Radio with AIS
(2) MAN/BOENING 6,5” displays

TWIN DISC Joystick Control MAN Engine Controls
BCS Trim Tabs controls SIMRAD HALO-4 radar Satellite TV antenna Seachlight

LOWER HELM

Displays: (2) 16” SIMRAD EVO and (1) 12” SIMRAD EVO Helmsman Gyro Compass
SIMRAD VHF Radio with AIS
(2) MAN/BOENING 6,5” displays

TWIN DISC Joystick Control with individual controls for bow or stern thrusters MAN Engine Controls

Master Stateroom (Full Beam)

Guest Stateroom (Port)

• 32” TV HD, flat screen

• Air conditioning with reverse cycle heat with temperature control

• Double bed handcrafted mattress.

• Ensuite head.

• Removable bound carpet with padding over finished flooring

• Overhead LED lights

• (2) 110v / USB receptacle

• Opening Porthole with screen for ventilation

• Decorative ceiling and floor lighting.

• Storage cabinet below the outer bunk

• Inner bunk slides to form a queen size bed.

• Storage drawer located in the cabinet

• Tempered glass windows with opening porthole

• Reading lights on night stand

• Apple TV

  TV Stateroom (Starboard)

• 49” TV HD, flat screen

• Air conditioning with reverse cycle heat with temperature control

• L shape couch that may be used as a single bed.

• Ensuite head.

• Removable bound carpet with padding over finished flooring

• Overhead LED lights

• (2) 110v / USB receptacle

• Opening Porthole with screen for ventilation

• Decorative ceiling and floor lighting.

• Storage cabinet below the outer bunk

• Tempered glass windows with opening porthole

• Bose sound bar

• Apple TV

  Master and Guest Heads

• Air-conditioning vents

• Overboard Vents in showers

• Full frame doors

• Medicine cabinets with mirror

• Ceramic Countertops.

• Heads: Electric TECMA ELEGANCE (24V) with 154 gallons black water holding tank and overboard

  discharge.

• Lights, overhead LED lights recessed in soffit and in ceiling

• Private access to Master State Room

• Air-conditioning with reverse cycle heat with temperature control

• Queen size bed

• Night stands with AC duplex outlets on either side of bed with drawer storage and reading lights

• Vanity/Desk with drawers and shelf storage

• Flooring: Removable bound carpet with padding over Vinyl floor

• Hanging locker, teak with finished maple

• Overhead LED lights and decorative indirect rope lighting under bed platform and on door frames.

• Reading lights overhead with separate switches

• Tempered and tinted glass hull windows with opening portholes for cross ventilation

• TV, 55” HD

• (2) 110V / USB receptacles

• Opening Portholes with screens for ventilation.

• Dressing table at PS and chaise-long at SB

• Walk-in closet.

• FRIGOMAR AC refrigerator:10 gallons

• BOSE sound bar

• Apple TV

  VIP Stateroom (Forward)

• 32” TV HD, flat screen

• Removable bound carpet with padding

• Air-conditioning with reverse cycle heat with temperature control

• Bed, queen size walk-around with mattress

• Flooring; Removable Carpet with padding over painted plywood.

• Foredeck hatch with Ocean Air screen shade system

• Lighting, overhead LED lights and decorative rope lighting underneath bed platform and behind

  valences

• Ensuite head.

• Opening Portholes with screens for ventilation

• Reading lights with separate switches

• (2) 110V / USB receptacles

• Storage cabinets, port and starboard sides of bed, with lights

• Storage drawers under bed, (2) large drawers

• Tempered glass hull windows with opening portholes

• Apple TV

Crew Cabin

• Two separate single cabins

• GORENJE AC refrigerator (87 gallons) with bottom freezer

• Privat head with stall shower

• Fully equipped galley with microwave owen, 4 burners cooktop and sink.

• Clothes Wash and Dryer machine, (12 kg capacity)

• Dish washer machine

• Gas tight access door to engine room.

  Miscellaneous

• Carbon monoxide/smoke detectors in designated areas

• Removable padded Carpet in all State Rooms and Hallway.

• Silhouette Blinds Throughout for desired natural lighting and additional privacy

• Canvas Fitted Covers for all exterior Seating and Closed Cell Cushions.

• FIREBOY automatic fire extinguisher system.

• Fire extinguishers, in designated areas

• Complete USCG Safety Package

• (13) Lumishore Underwater lights
