Full SpecificationsHull & Dimensions
Type: Fast Semi-Displacement Motor Cruiser
Hull: GRP
Superstructure: GRP
Builder: SUNSEEKER

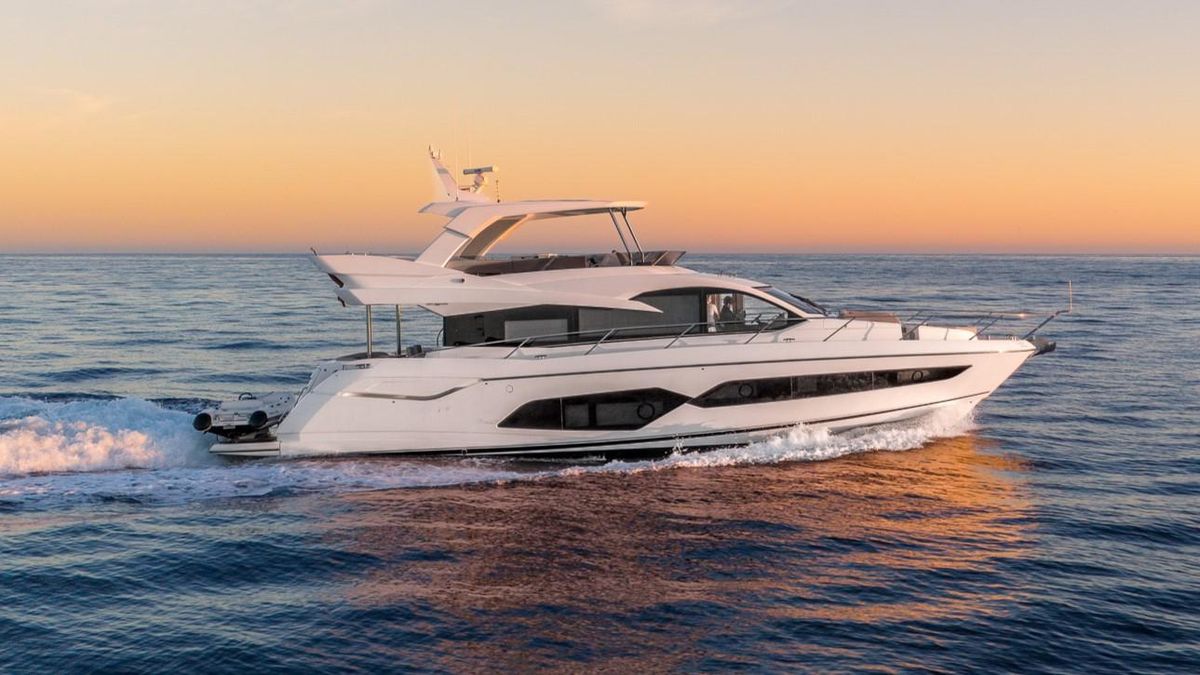

Model: Manhattan 66
Year built: 2018
L.O.A: 68’3”
Hull length:
Beam: 17’3’’
Draft: 5’ 1’’
Displacement: 37,400KG
Cruising Speed: 22 Knots
Max speed: 28 Knots
Design: Sunseeker International
Flag: BRITISH
Mechanical Equipment

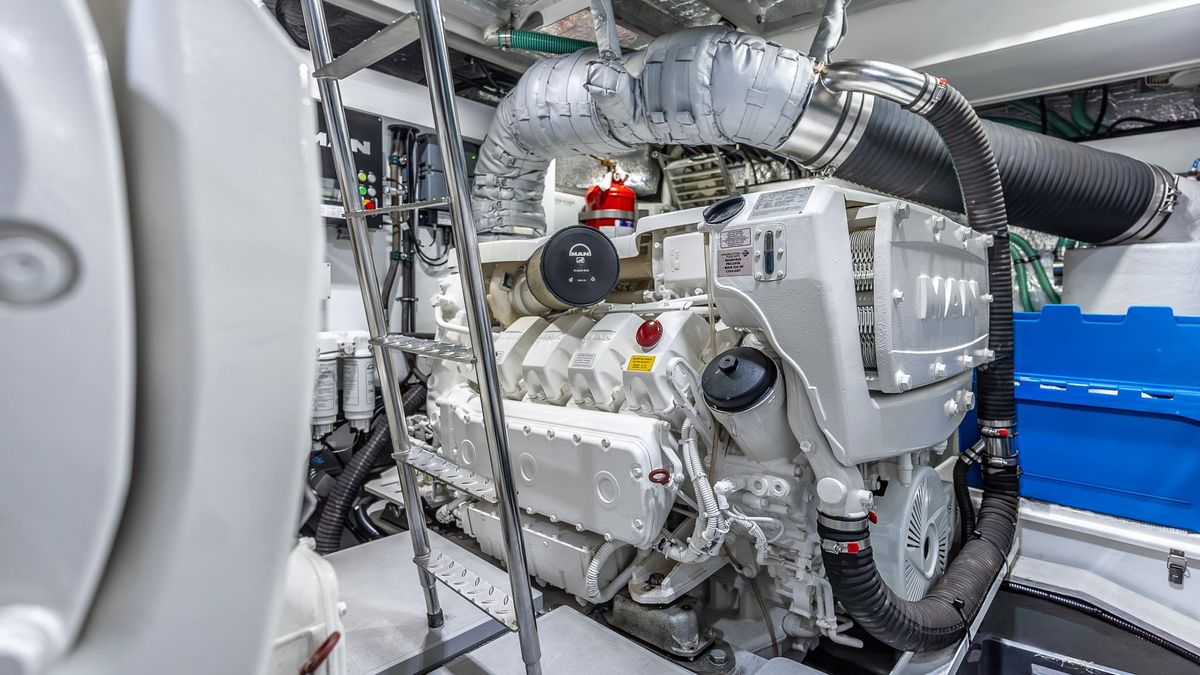

Engines: MAN V8 1000
Engine hours: 320H
Generator: Onan 27kW
Generator hours: 420H
Propulsion: Diesel
Propellers: Twin
Fuel Capacity: 1,057 G/4,000 L
Fresh Water capacity: 238G/900L
Black water tank: 435L
Grey water tank: 430L
Electricity
230 - 240V 50Hz
All 240V, 24V &12V circuits (where applicable) protected by circuit breakers with main electrical load control panel
Heavy duty circuit breakers
Isolating switches to all batteries
Onan® 27kW generator (420 Hours)
Camera monitoring and docking system - Platform view infrared dome camera and two engine view infrared room cameras. Linked with multi switch to Navigation displays. CCTV panel on console.
Sunseeker Cm8 integrated power management boat monitoring and control system.
7" Touchscreen display at lower console and a further 7" display aft saloon allowing the control of the following systems. 3.5" alarm display on the flyconsole.
AC Power.
Generator status, detailed graphic generator information via a MODBUS link to the generator controllers Voltage measurement. Current Measurement and Frequency Measurement.
DC Power.
Graphic status of Port, Starboard, Domestic and Generator battery Voltage and Current.
Battery Switch Status and Control.
Tank Level.
Graphic level of the fuel tank, Water tank, and Black water tank.
Navigation lights.
Controlled and monitored.
Systems Operation.
Facility to operate all of the main equipment loads.
Water Heaters, Water Pumps, AC system, DC Systems, Navigation Lights,
Bilge and flood pump systems.
Alarm Handling.
Crew to Bathing Platform door, Bathing Platform lowered, Shore Power MCB tripped and System Alarms. Synchronised wiper control system
Emergency battery coupling system permits each engine to start from opposite battery bank
Inverter
Isolation summation transformer
Polarity check & earth leakage protection system
Power points throughout fed from shore power or generator
Shore power supply line

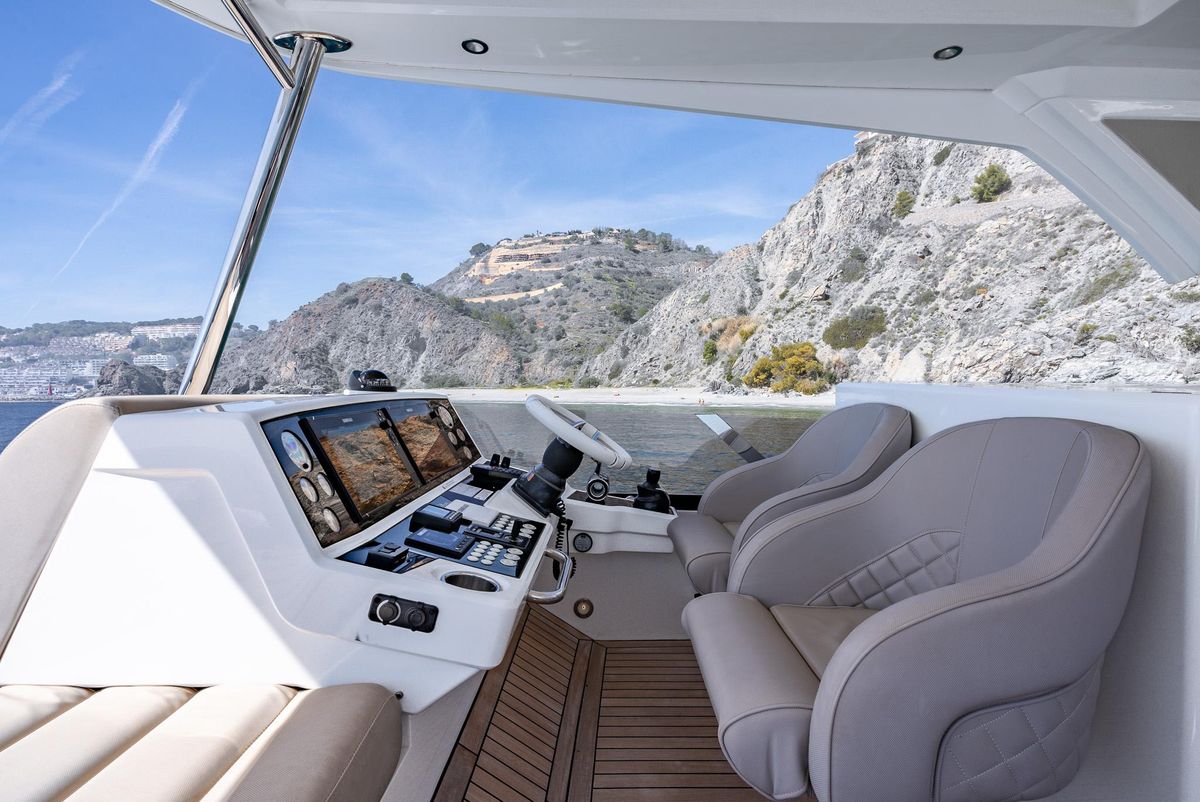

Navigation
Simrad 2 x NSS12 evo3 - 12" Multifunctional Colour Radar Chartplotter.
Simrad AP 44 Autopilot system or Volvo Penta integrated pilot system on IPS.
Simrad IS42 Speed/Depth multifunctional displays with DST800 depth/speed/temperature transducer and the Xsonic Bronze Hdi performance depth fishfinder transducer.
Simrad RS90 VHF with DSC.
Simrad AIS NAIS400 Class B Transponder with GPS and 2.4 meter AIS antenna.
Xenta Smart-stick docking system - dual station
Proportional Bow and stern thruster Joystick control with hold function PJC212
USB socket
Adjustable/tilt steering wheel
Bilge pump switches with integral operating warning lights & audible alarms
Controls for engine bay fire extinguisher system
Drinks holders
Opening window (electric)
Powered steering
red night-light illumination to helm
Remote anchor winch controls
Searchlight controls
Switchgear
Trim tab controls
Audio & Video
Sonos Zoning Audio Performance Package:
1. Aft Cockpit zone with Two Sonance amplified Speakers with Sonos Connect.
2. Flybridge zone with Four Sonance amplified Speakers with Sonos Connect.
3. Fore deck zone with Two Sonance amplified Speakers and Sonos Connect.
The zoning audio to be linked to the Deck Saloon system via Sonos Connect through a router with one tablet supplied for control of the zones through a Sonos App.
Interior AV Package upgrade:

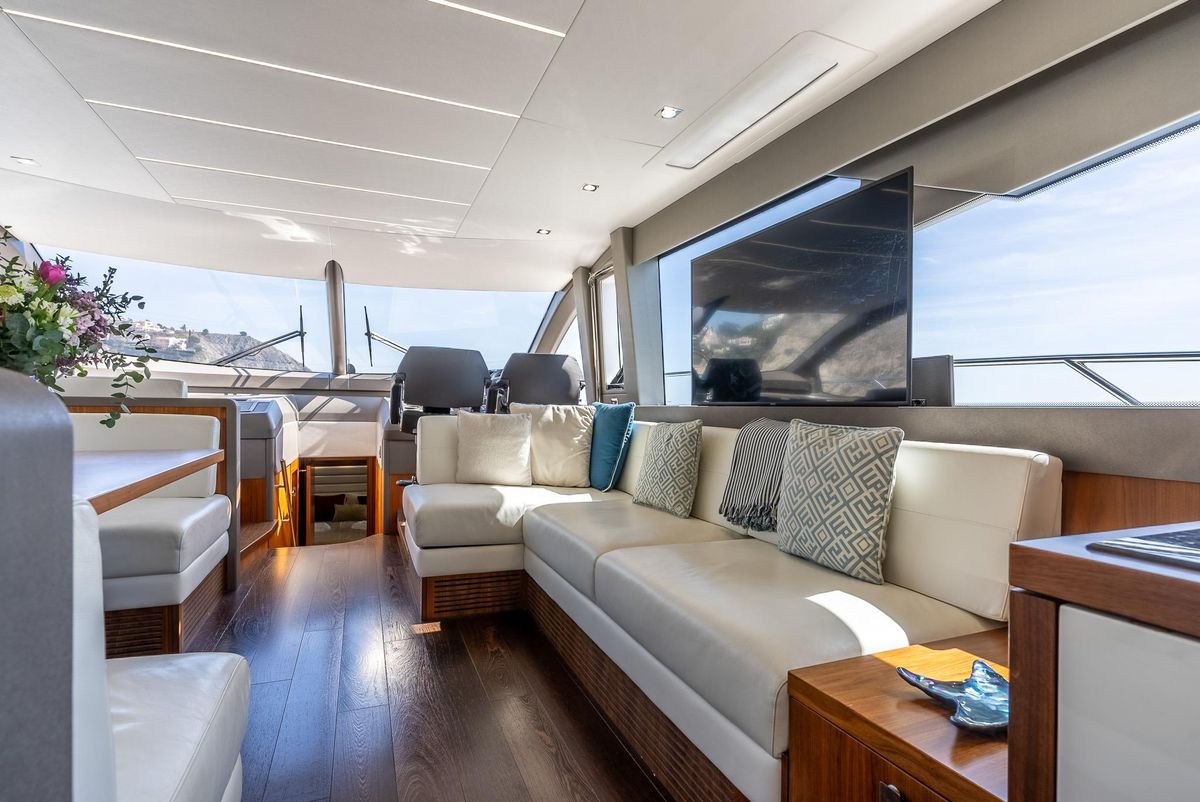

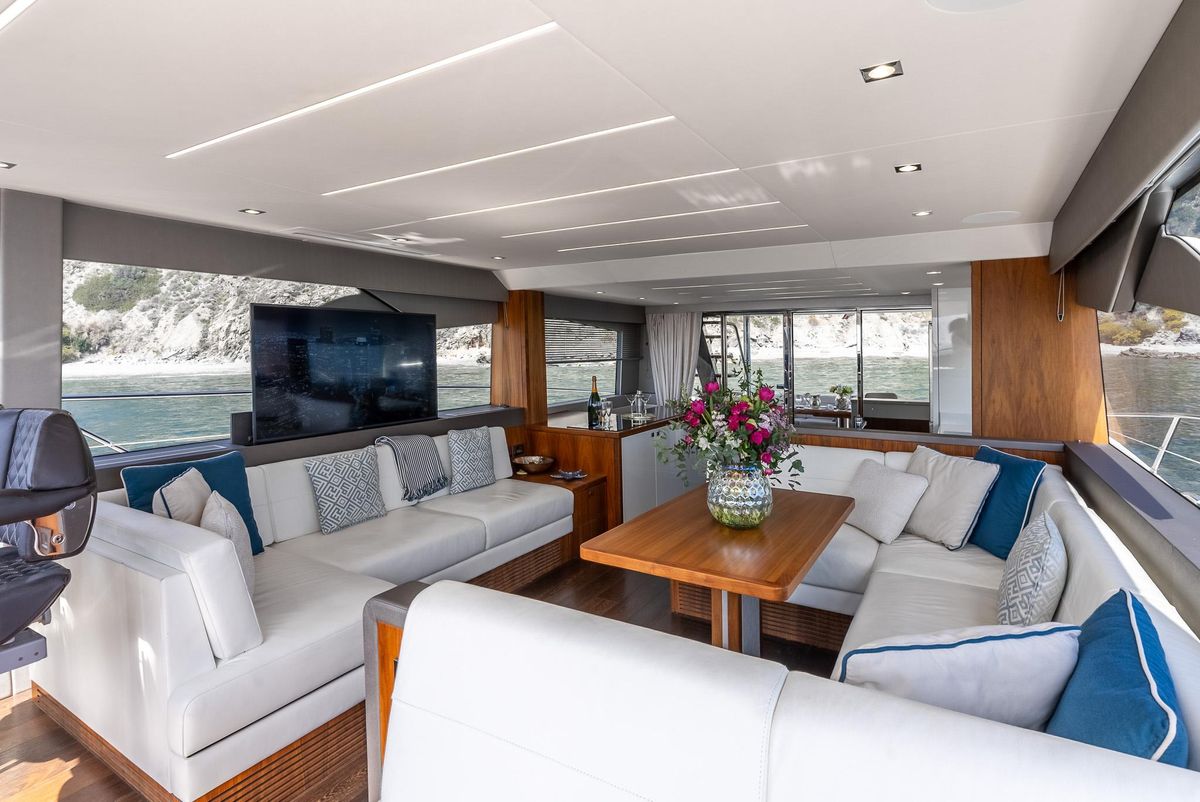

1. Saloon Samsung 55" television fitted on a fall and rise System with a Samsung Blu-ray player and Sonos sound bar and Sonos Subwoofer. Apple TV.
2. Master cabin Samsung 55" television with a Samsung Blu-ray player and Sonos sound bar. Apple TV.
3. Forward cabin Samsung 32" television with Sonos sound bar and Apple TV.
4. Starboard Guest Samsung 22" television with Sonos Connect amp, ceiling speakers and Apple TV.
5. Port Guest cabin Samsung 22" television with Sonos Connect amp, ceiling speakers and Apple TV.
Entertainment Inverter and seamless transfer system.
To run the boats entertainment system from the boats DC batteries.
USB sockets to be added to all guest cabins
Exposed HDMI socket to be fitted in the Port Mid Cabin
Aft Cockpit zone with Two Sonance VP65R XT Extreme Speakers with Sonos Connect and amplifier.
Deck Equipment
90 Metres of Galvanised 9.5mm anchor chain. Lewmar 40Kg Galvanised Delta Anchor.
Fore deck hatch to access anchor chain well and fender storage with stainless steel fender tie bar under lid
Ensign staff
Fender set
Foredeck drinks holders Foredeck glazing

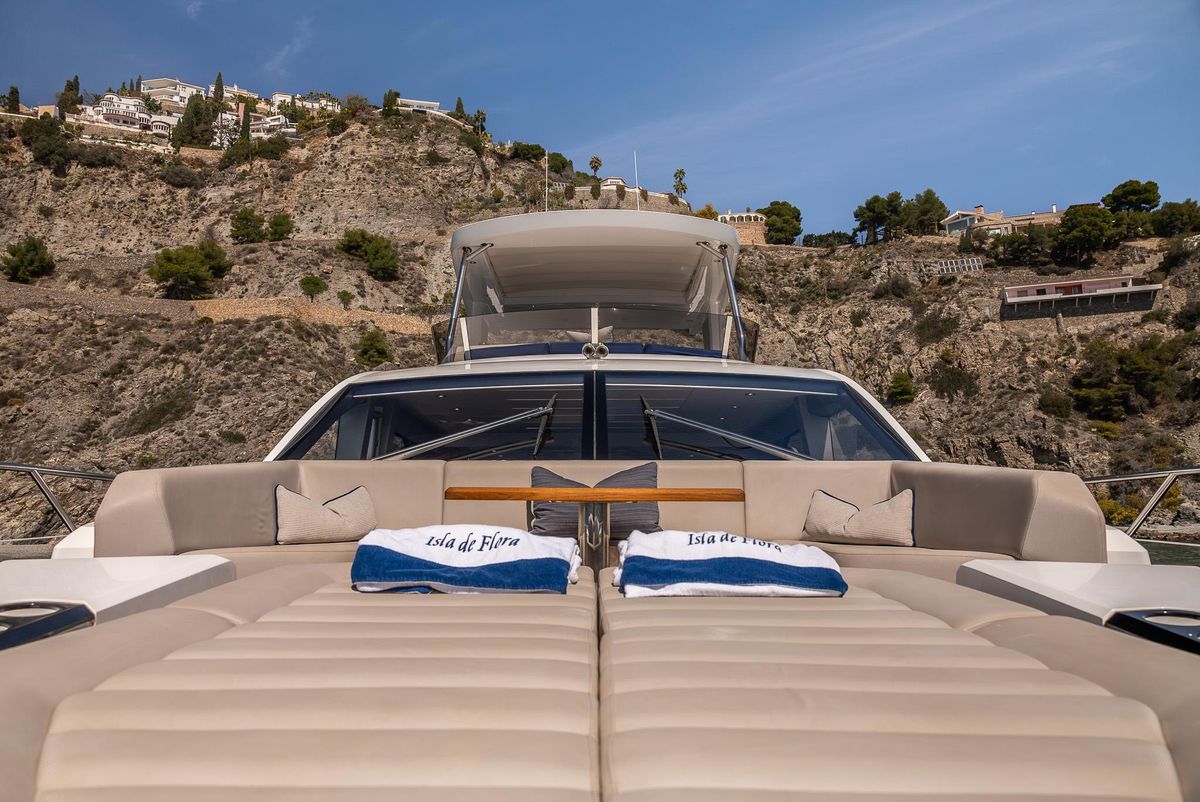

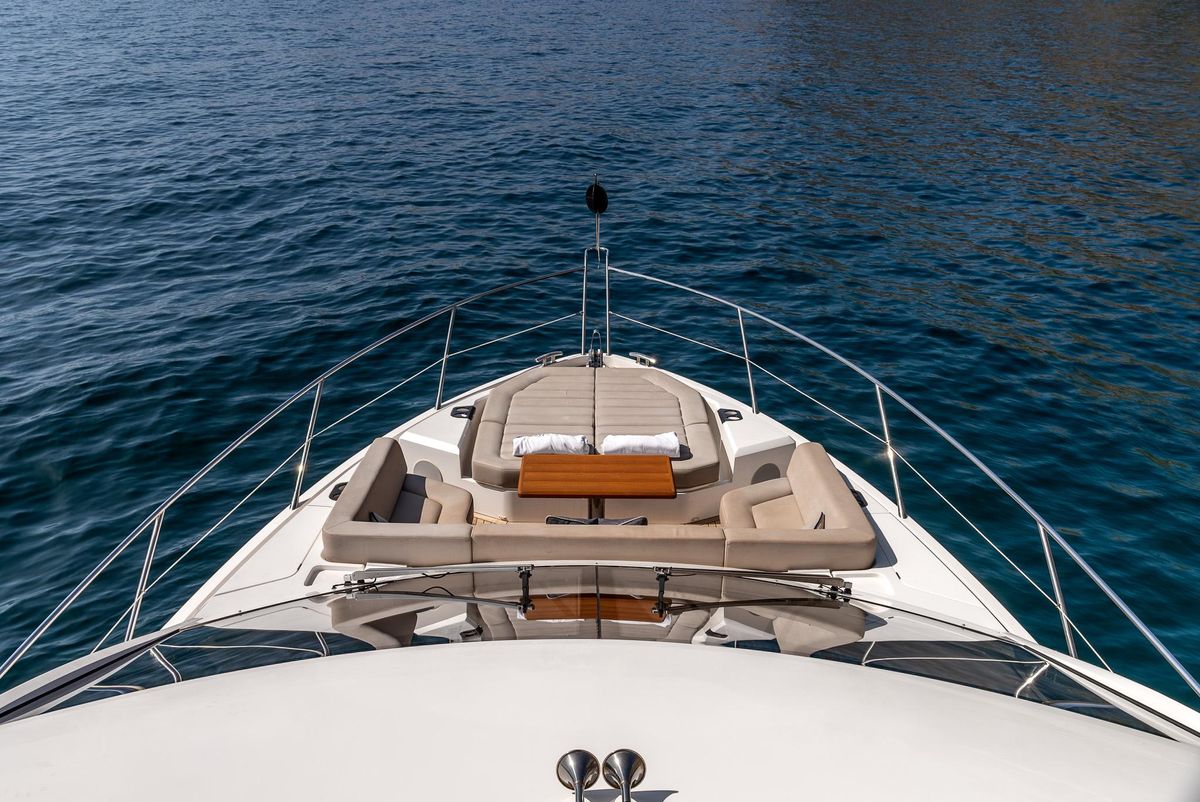

Foredeck seating & sunbeds Foredeck stowage lockers
Fuel fillers
Full set of IMCO navigation lights
Handrail
Hot & cold water transom shower
Manual bilge pump forward
Moulded non-slip deck surface
Remote control searchlight
Self-stowing Delta® anchor (40kg)
Stainless steel aft fairleads
Stainless steel bow fairleads
Stainless steel bow, cockpit, stern & twin spring cleats Stainless steel gunwale
Stainless steel pulpit

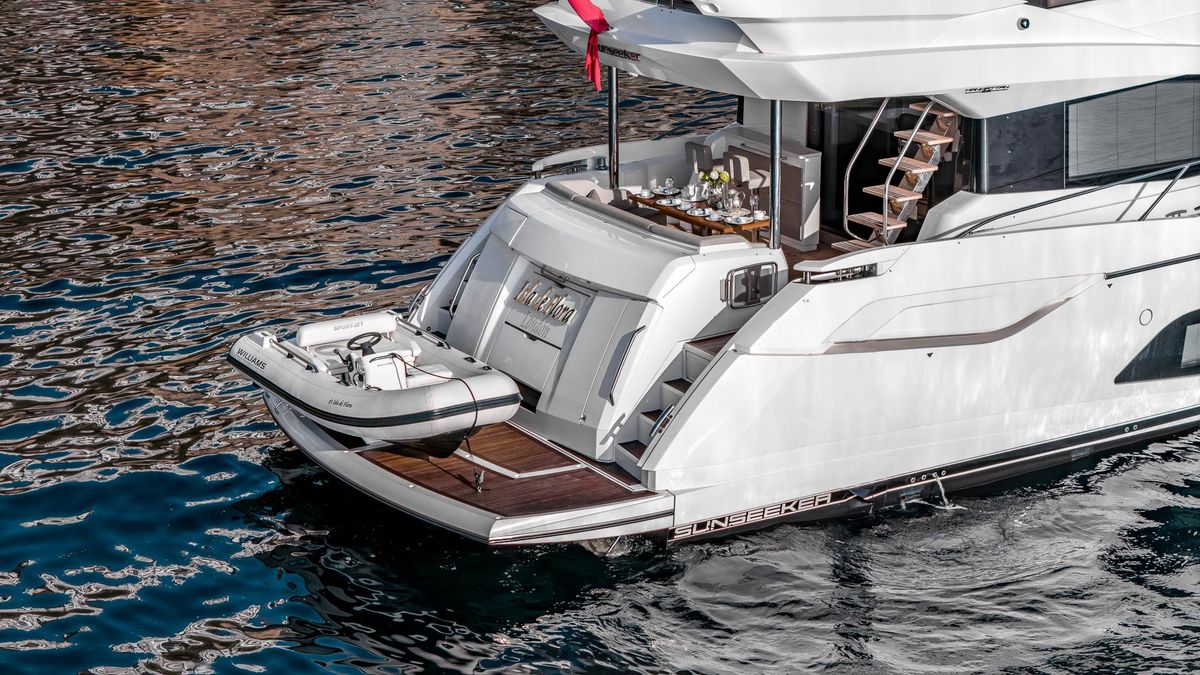

Hydraulically lifting platform with maximum lift capacity of 450kg and tender size of 3.85 x 1.76m
Besenzoni Hydraulic Telescopic Gangway 3.9 meters Stainless Steel with teak walkway ART 380.39SS
Fresh water deck wash system outlet
Additional pair of Spring Mooring cleats 12" in polished stainless steel fitted port and starboard on the aft edge of the hull band.
Folding Stainless steel bathing ladder stowed under a GRP lid
Fold down platform seat
Platform overhead shower fitted to gull wing door

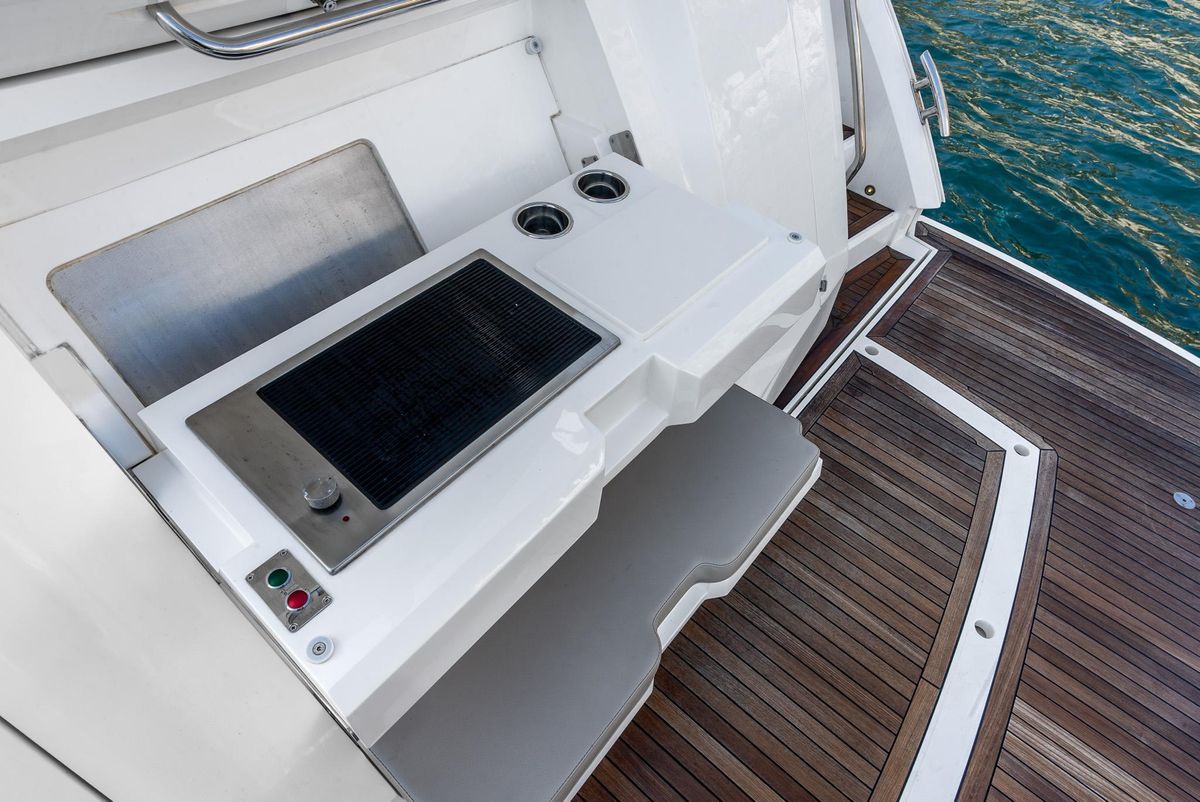

Marine Can PB1328 Electric Grill fitted in a drop down work station
Third helm station - Xenta Smart-stick docking control and ignition panel

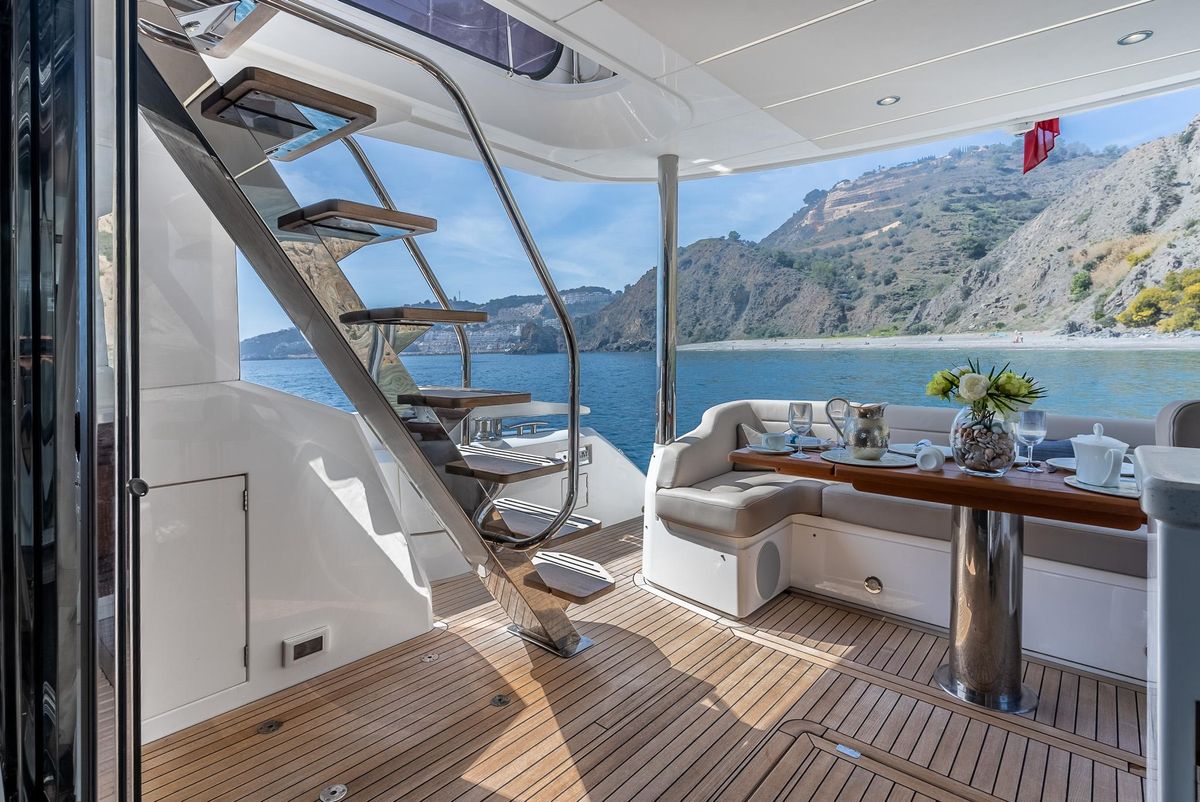

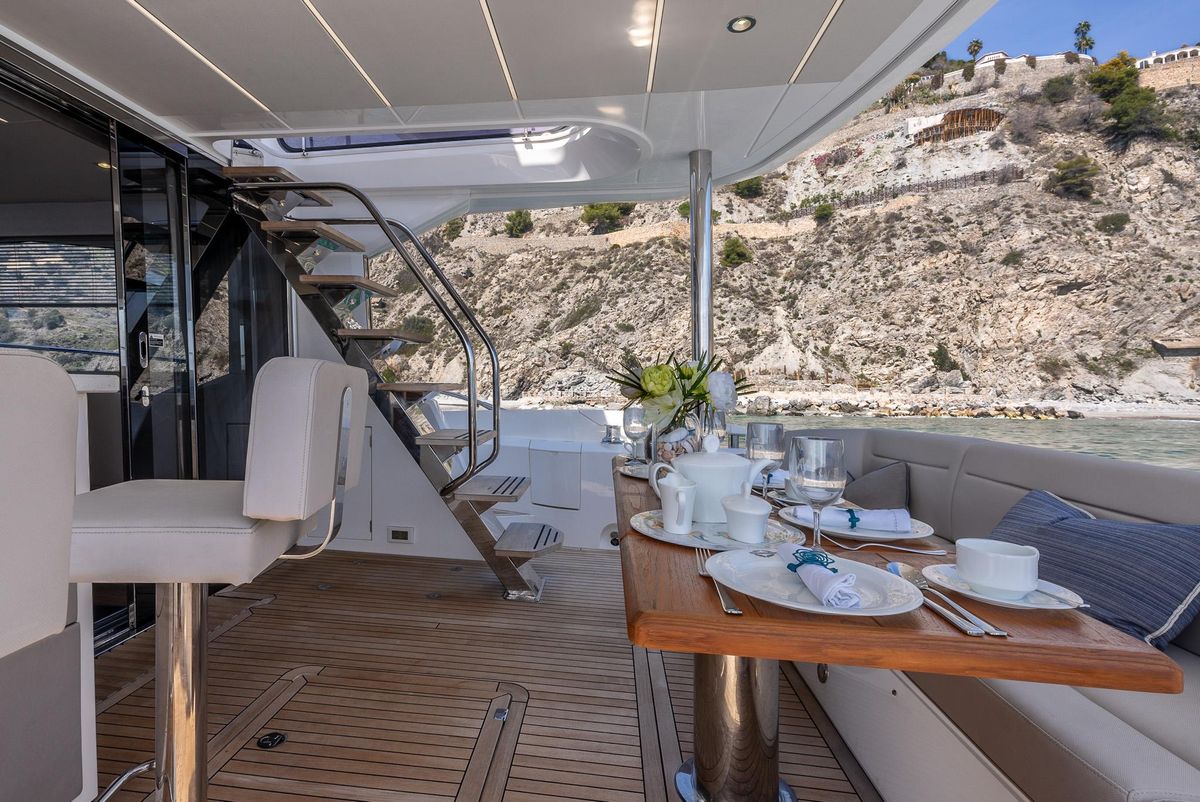

Teak aft cockpit table with folding top fitted on a polished stainless steel leg
Air conditioning upgrade to include a second shore power connection.
Cockpit bar arrangement with Vitrifrigo IM Classic Hydro ice maker housed in an enclosed cabinet and a bar peninsular fitted with two removable bar stools.
Stern docking Capstans - Lewmar C3 -24V fitted port and starboard
Dinghy Inflator and socket 12 volt
Dimmer switches on overhead lighting

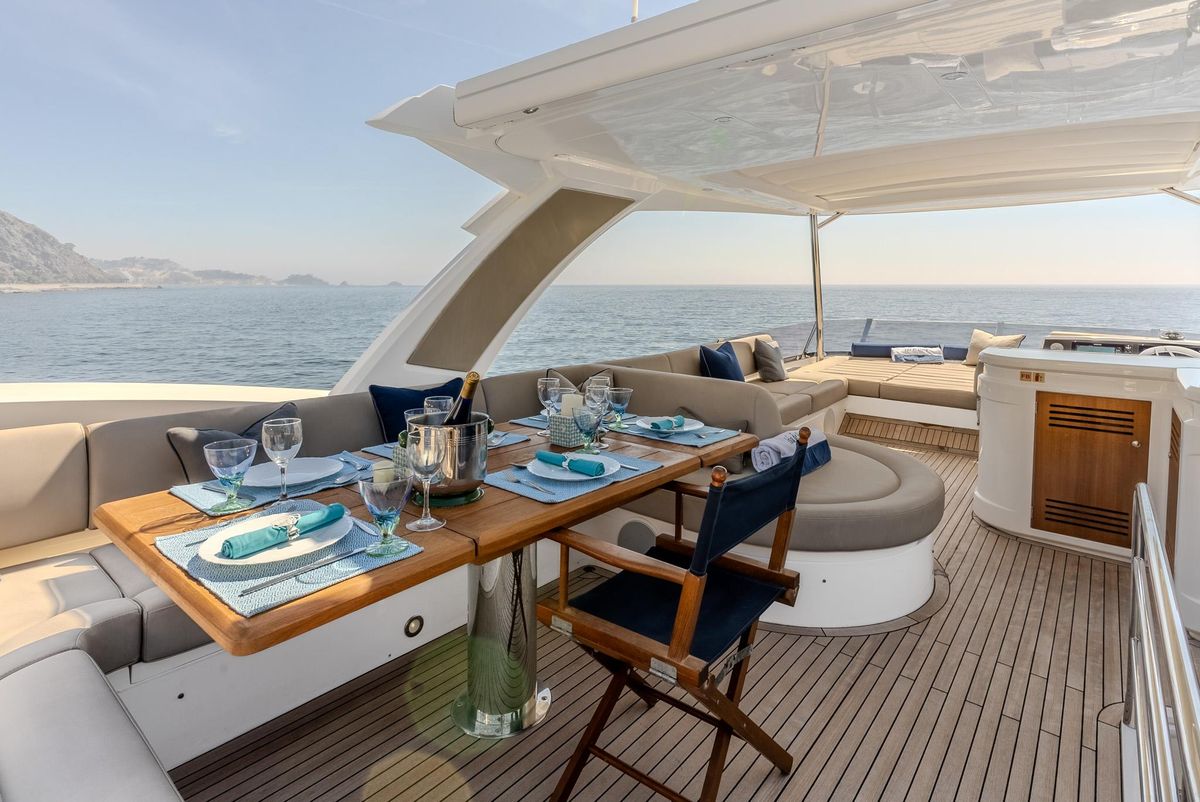

Flybridge Teak Decking
Icemaker - Vitrifrigo IM Classic Hydro
Electric cooling unit for top loading cool box. Waeco Coldmachine CS-NC
Marine Electric BBQ kenyon Grill fitted in the wet bar

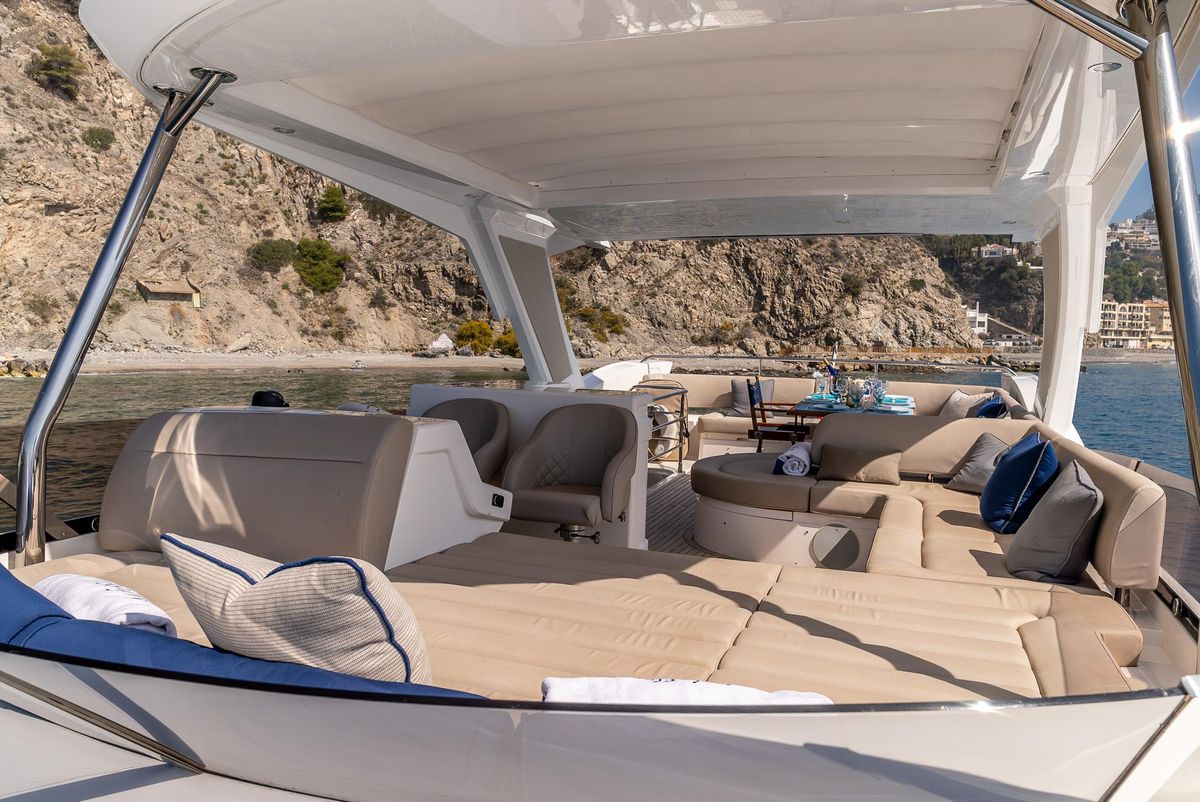

Flybridge Hard top with stainless steel supports and electric central opening
Hard top stern electric canopy in Sunbrella Plus - Beige Chine 5089

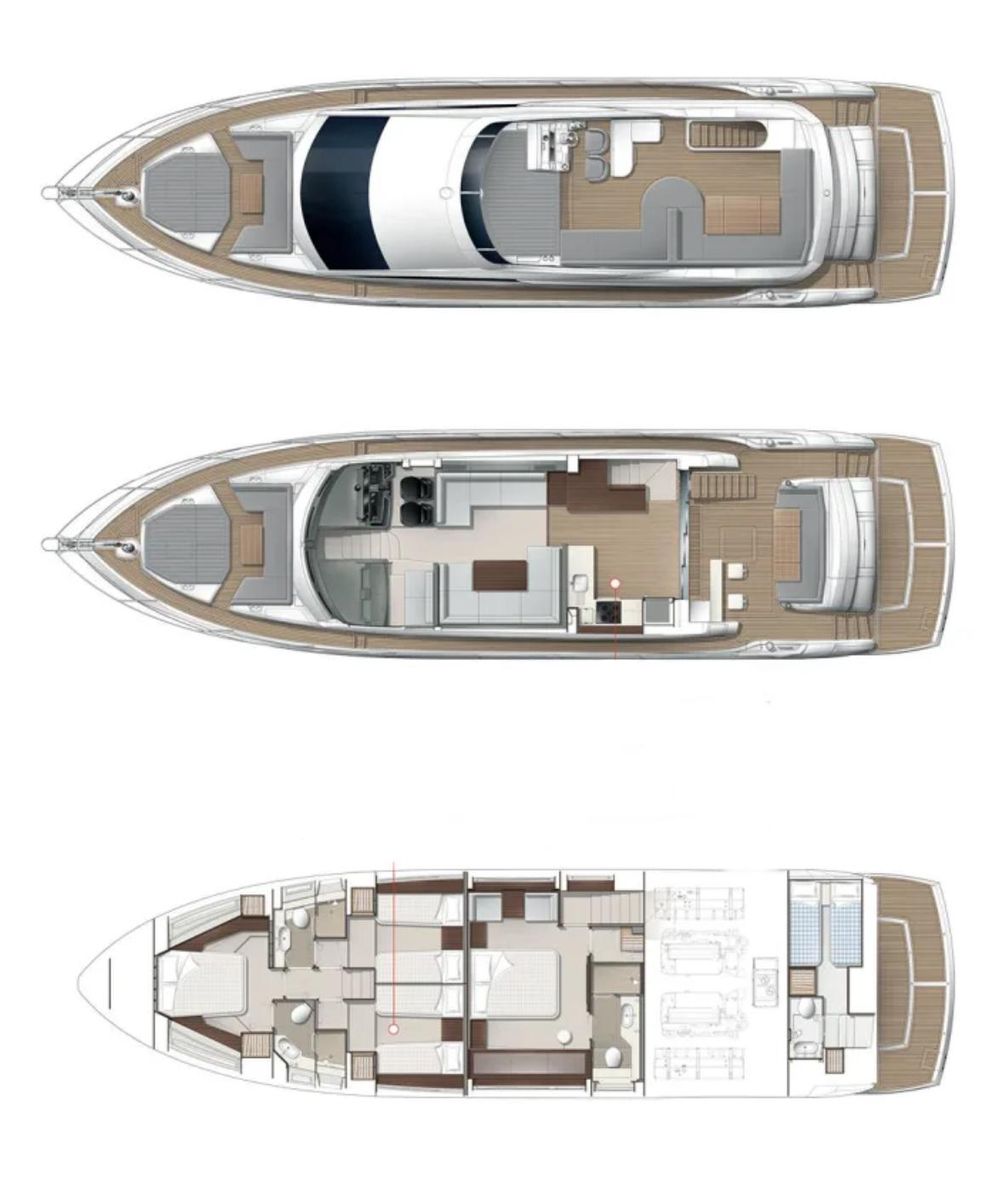

Accommodation
8 guests: in 4 cabins

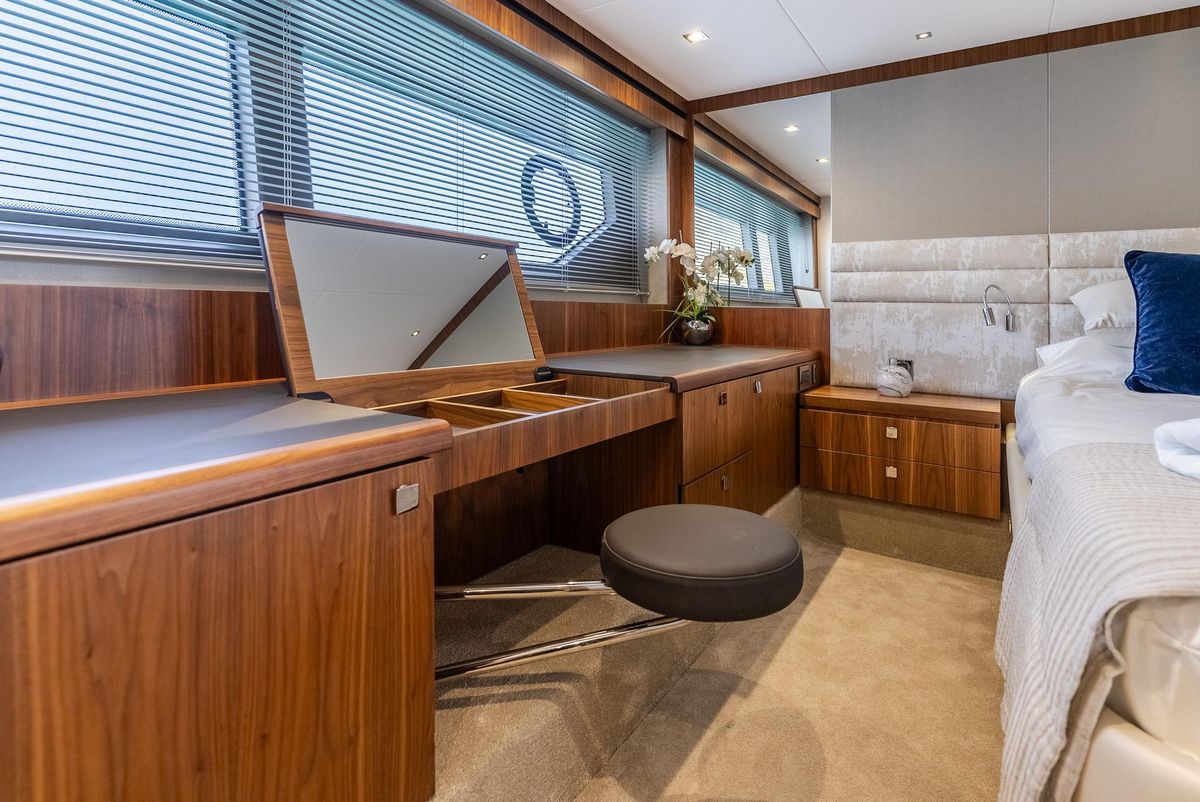

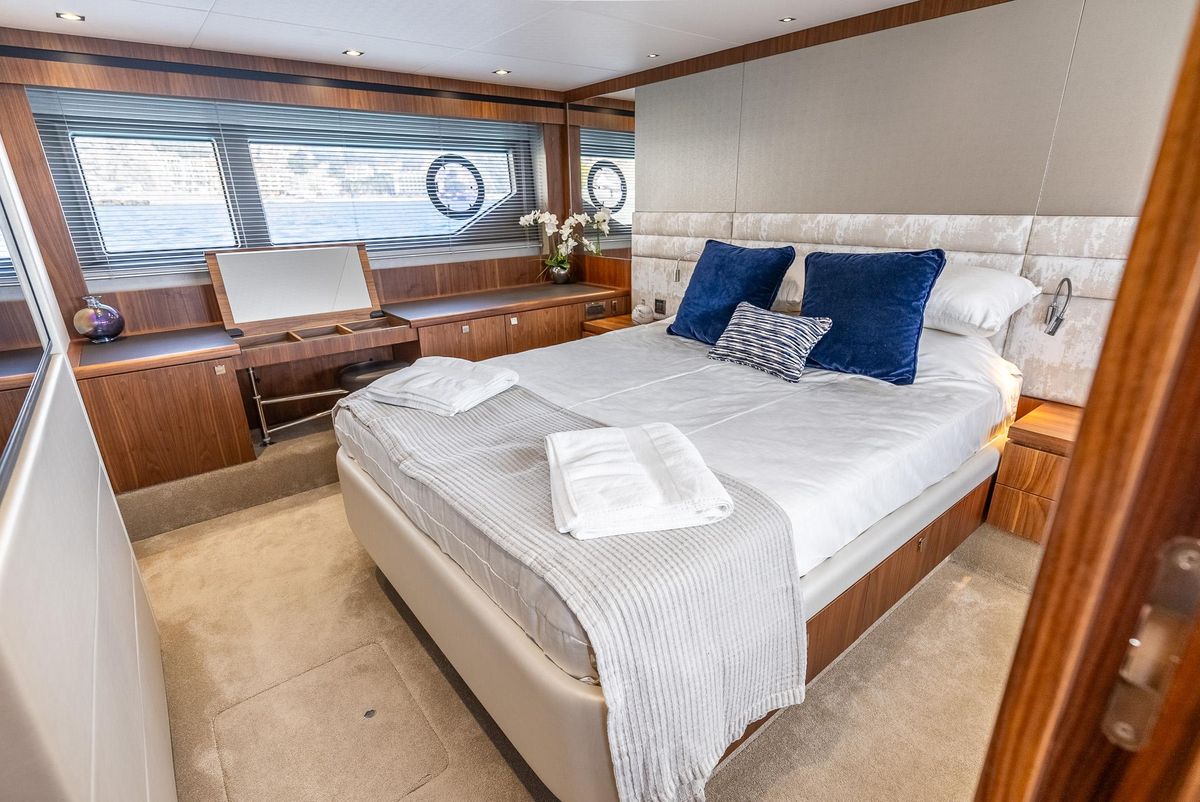

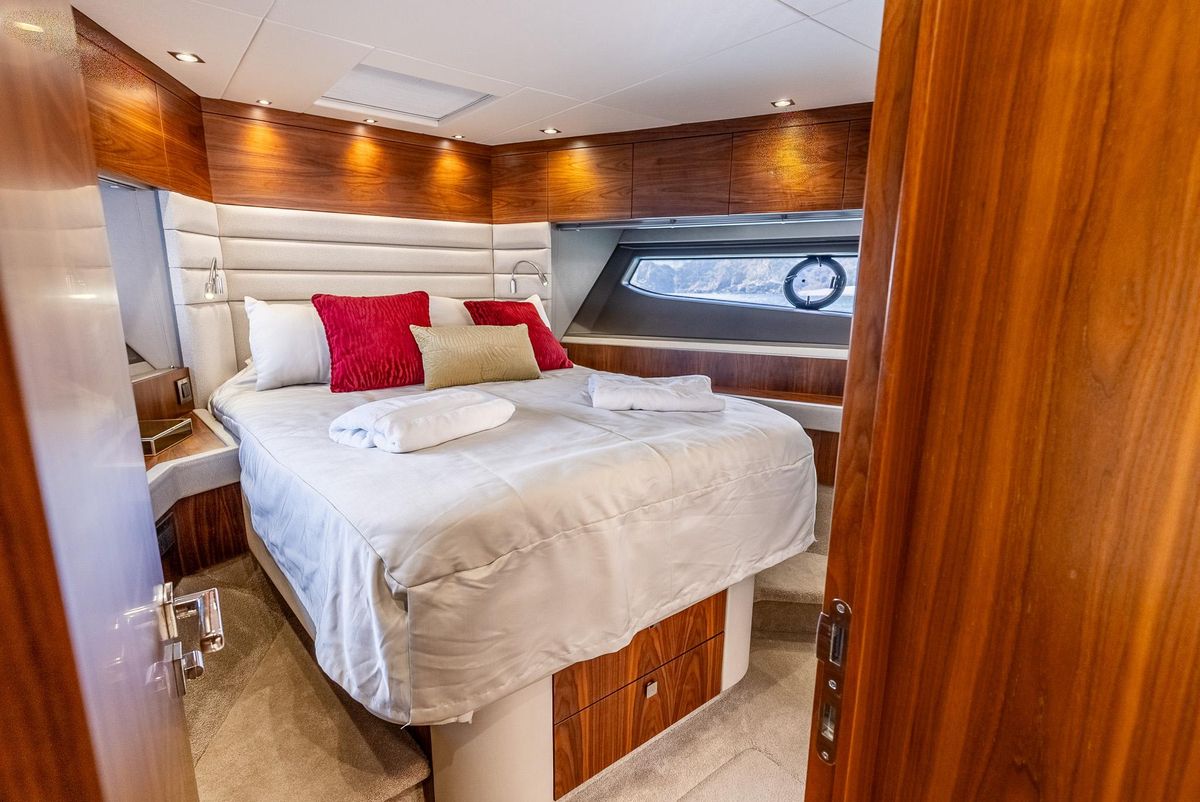

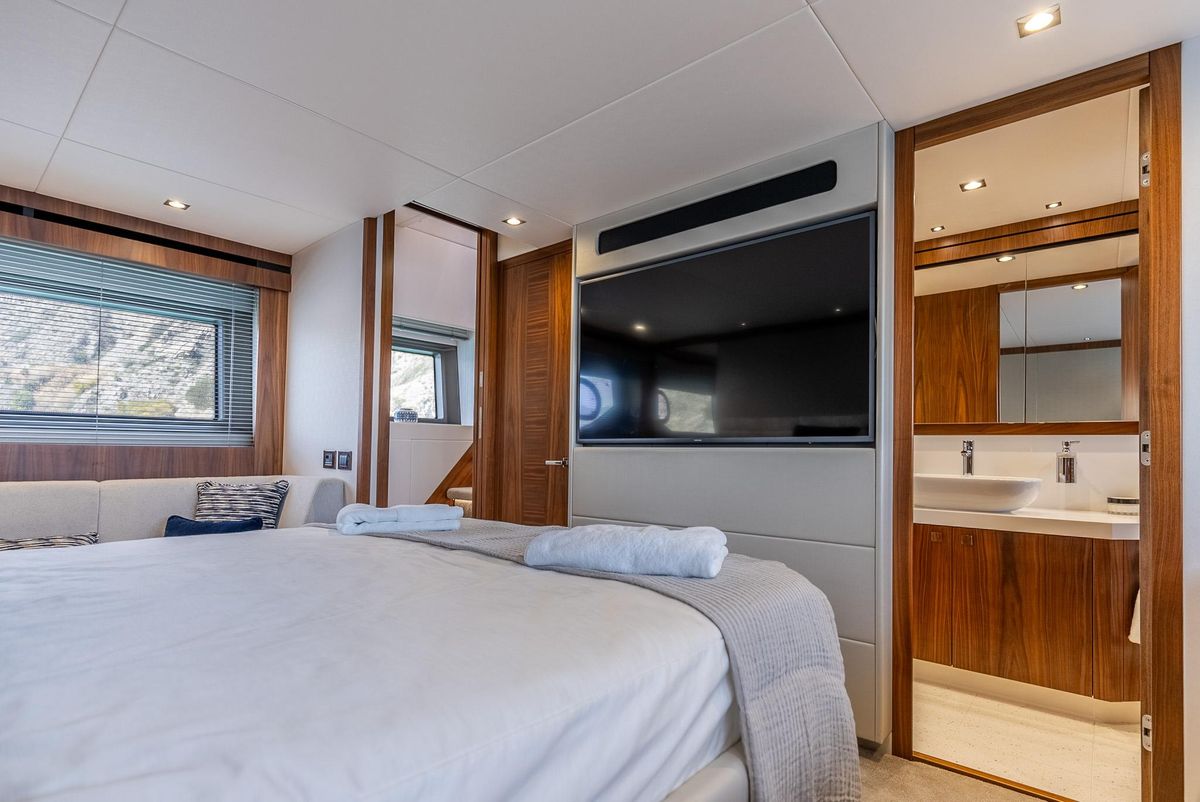

Master – Full Beam, mid-ship stateroom with its own private companionway

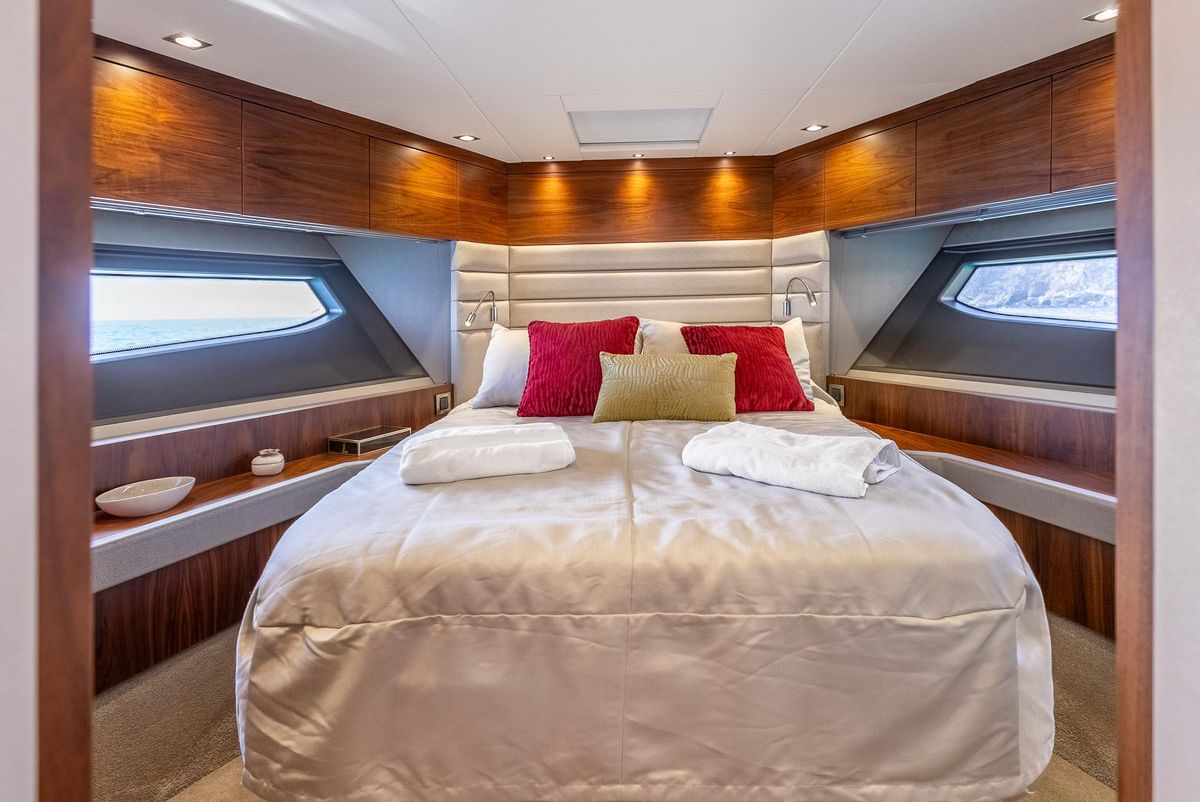

VIP – Forward Stateroom

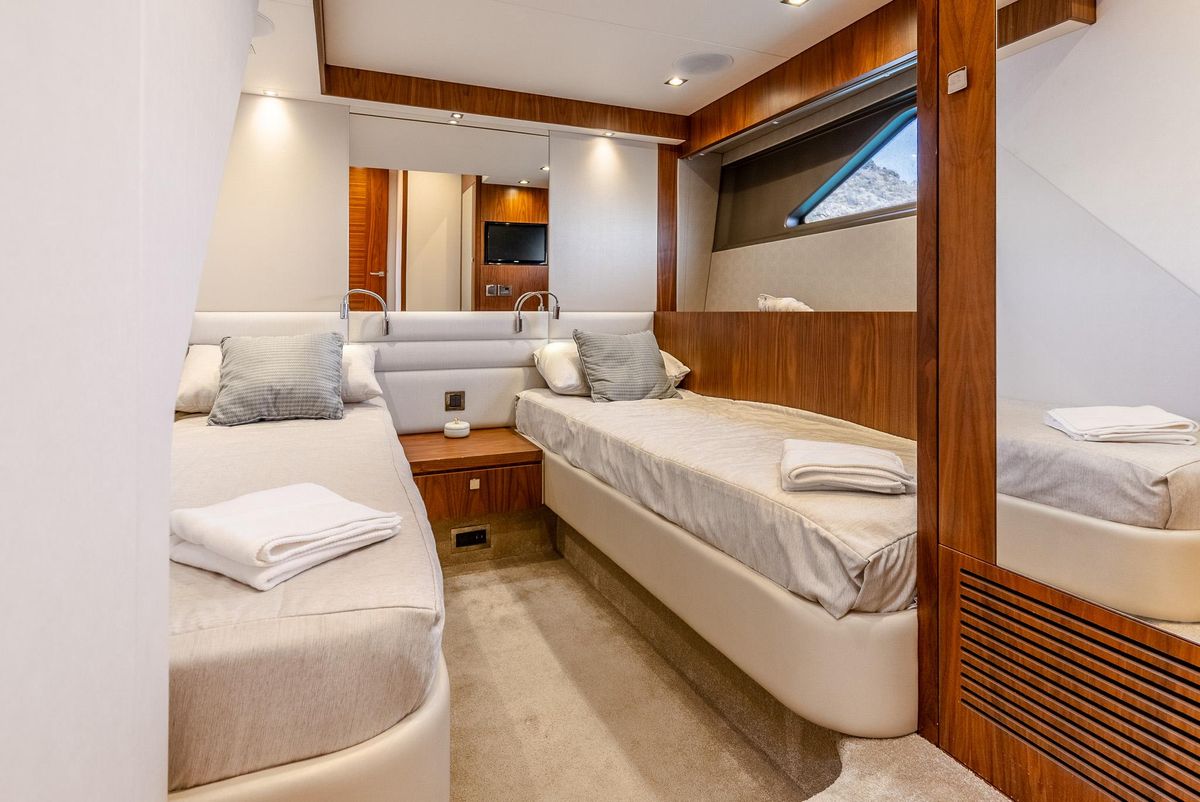

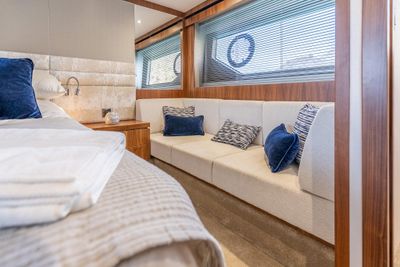

Port Guest - Twin

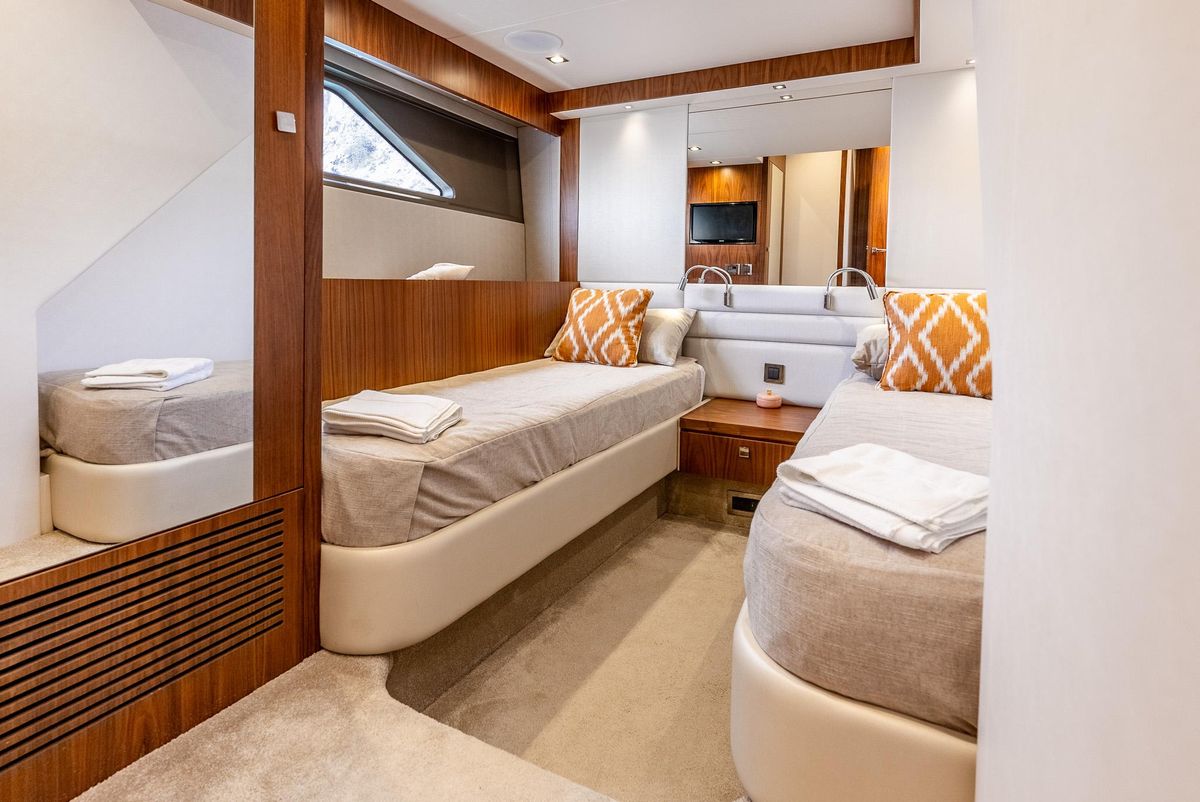

Stbd Guest - Twin

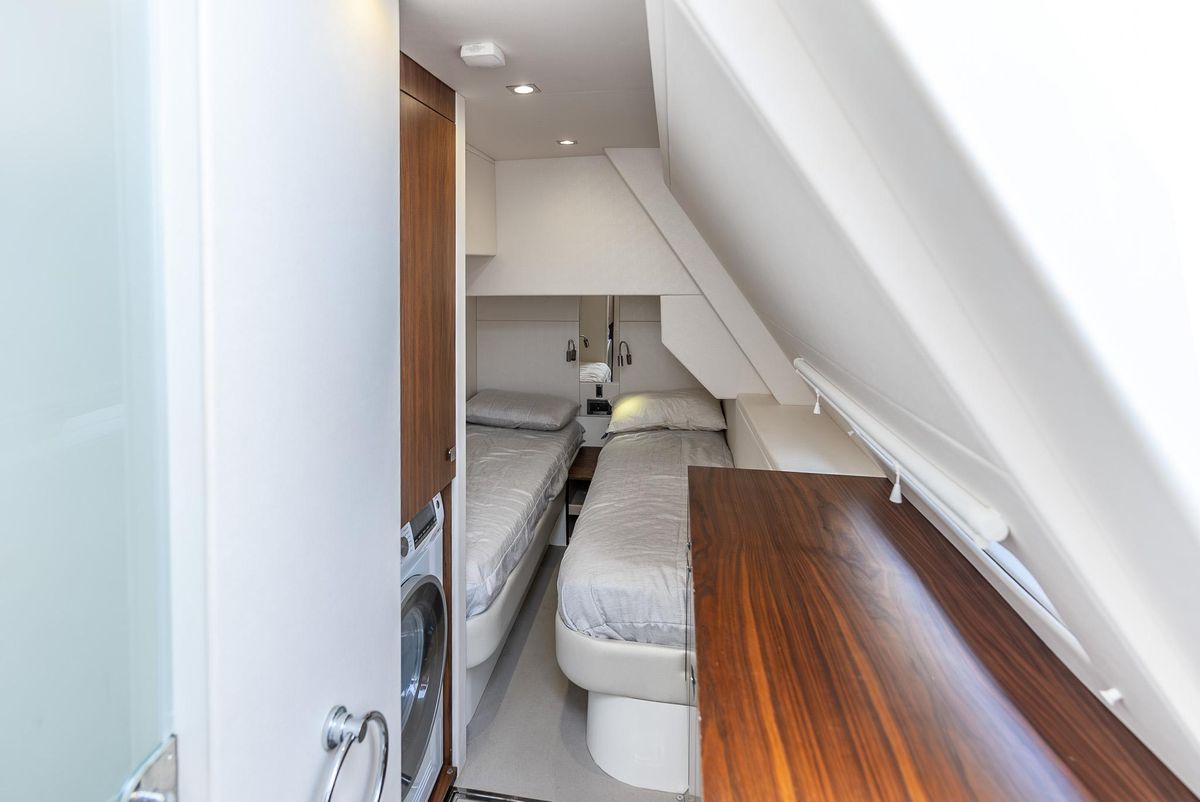

Crew Cabin - Twin
Additional Extras
Black American Walnut – Satin Finish

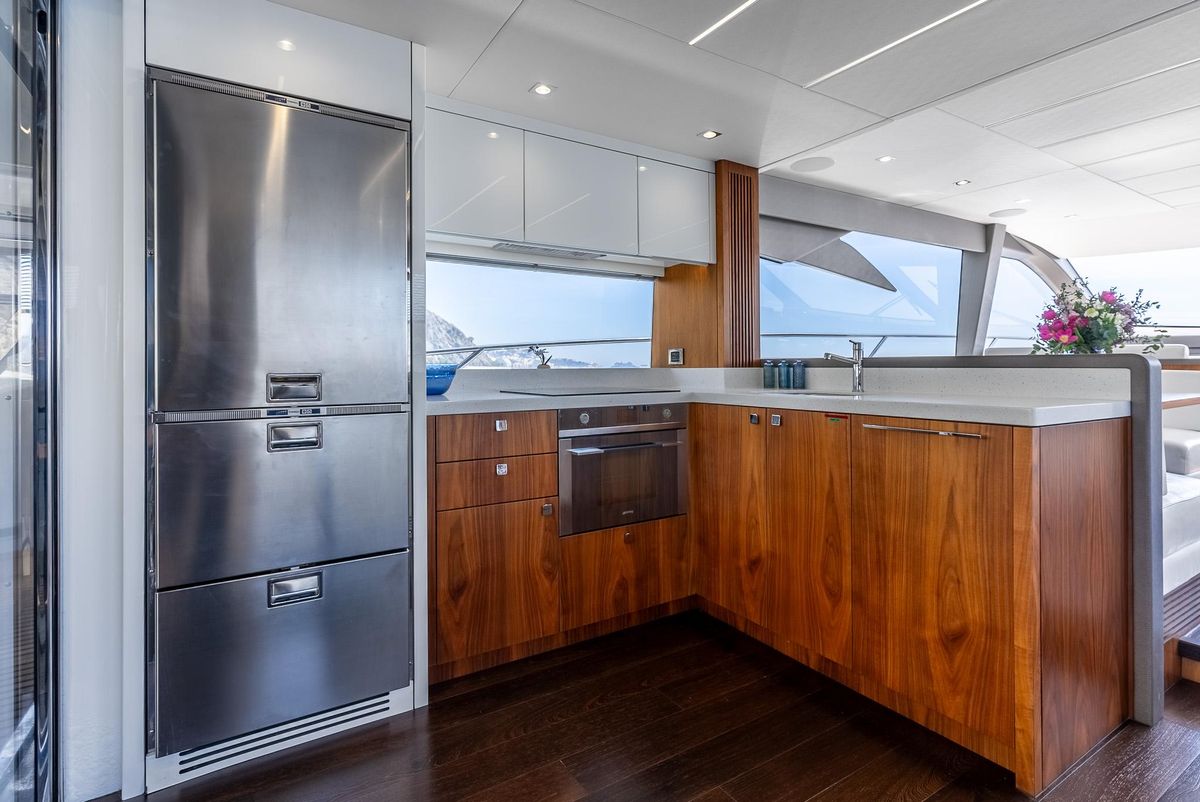

Galley Fridge freezer carcass and tpoplocker doors in white lacquer
Williams 345 Jet Tender (not part of sale, to be negotiated seperately)
Sleipner SPS 55 hull stabiliser unit with Vector Fin 0.8 metre
Xenta Smart-stick docking system - dual station
Third helm station - Xenta Smart-stick docking control and ignition panel
Crew Cabin fit out installation for Shaft drive option
Sound shields to be fitted to all air-conditioning compressor units.
Sprung mattresses for beds
USB sockets to be added to all guest cabins
Bow Thruster - Sleipner Side-Power SEP210/250T-24V - 13.5hp 1 CV Stern Thruster - Sleipner Side-Power SEP170/250T-24V IP - 10.7hp
Both with Proportional Joystick control and upgraded batteries.
Stern docking Capstans - Lewmar C3 -24V fitted port and starboard
Dinghy Inflator and socket 12 volt
Additional AC 220v double socket fitted in the flybridge wet bar
2kW Victron Inverter system to run the boats refrigeration goods including ice maker and optional wine cooler from the boats DC batteries. Two additional dedicated Trojan 100Ah AMG batteries are added.
Low level LED side deck lights 13 per side and 2 in the foredeck seating group in White
Underwater lights - Lumishore TIX202 LED x 4 in White
Dimmer switches on interior and exterior overhead lighting
Preparation for future installation of a Water Maker. Seacock and outlets blanked off. Fresh water feed to tank. Power supply

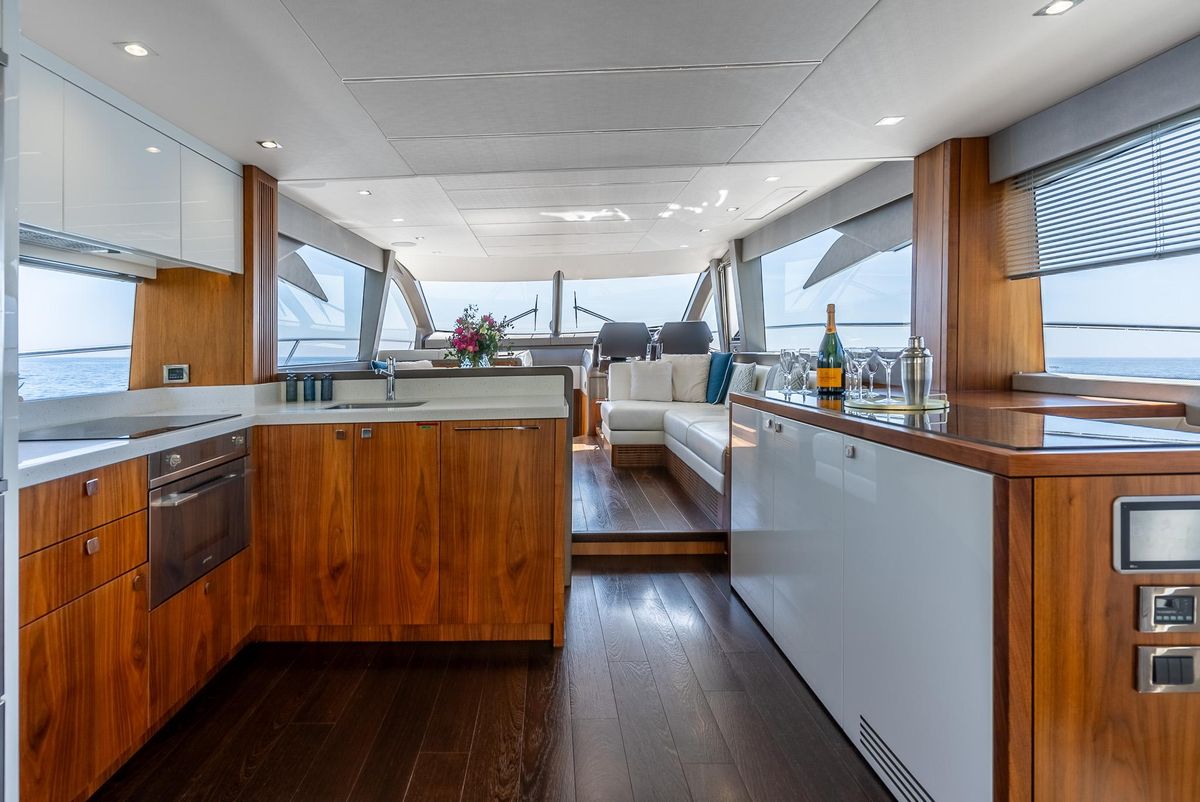

Galley and Saloon wood flooring (WENSPOP10) to be completed in the fwd to aft direction in lieu of the standard horizontal (port to stbd) direction
Miele 220V Slimline Dishwasher G4680SCV
Wine cooler Victrifrigo DCW95 multi voltage (20 bottles) in the bar opposite the Galley

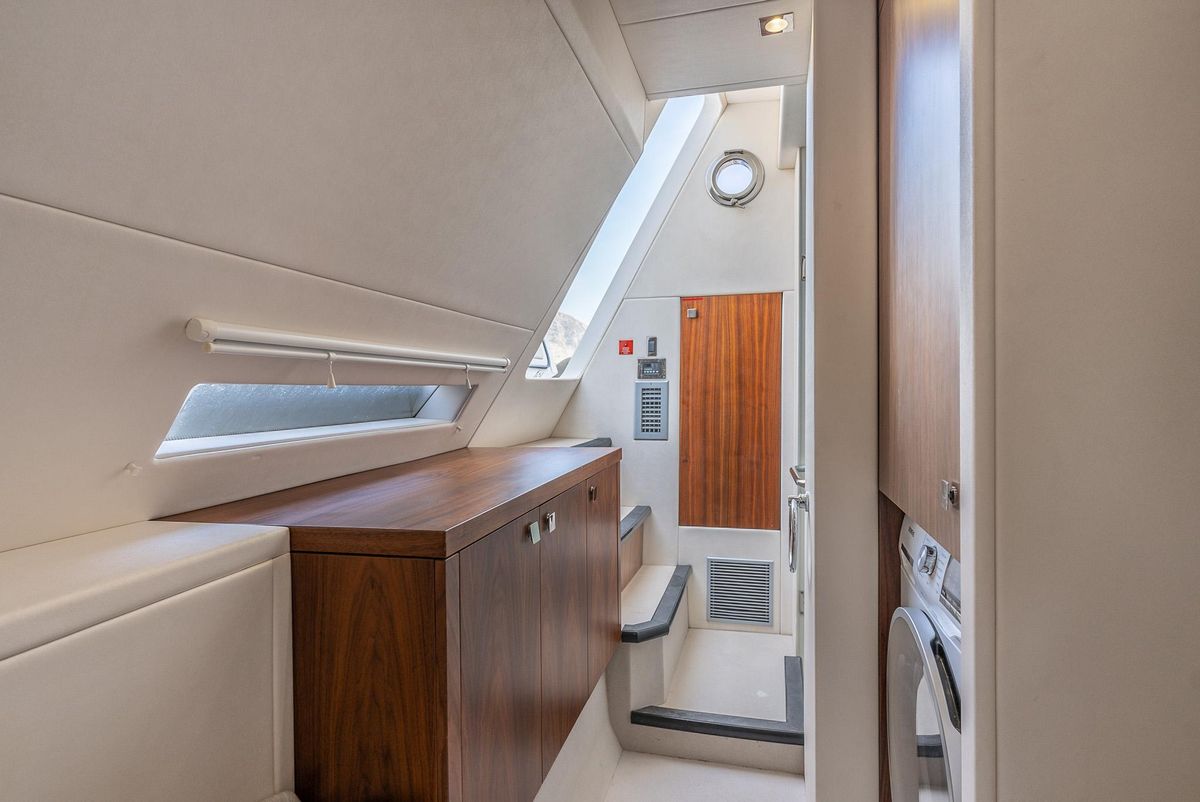

Siemens IQ500 WD14H421-GB Washer-Dryer. With upgraded domestic water pump. in the stern Crew area
Marine Can PB1328 Electric Grill fitted in a drop down work station on the Platform
Electric cooling unit for top loading cool box. Waeco Coldmachine CS-NC on the Flybridge
Marine Electric BBQ kenyon Grill fitted in the wet bar on the Flybridge
Cockpit bar arrangement with Vitrifrigo IM Classic Hydro ice maker housed in an enclosed cabinet and a bar peninsular fitted with two removable bar stools.
Camera monitoring and docking system - Platform view infrared dome camera and two engine view infrared room cameras. Linked with multi switch to Navigation displays. CCTV panel on console.
Upgraded Black Water tank 435 litres. Discharge via a either deck mounted fitting or to sea.
Large Grey water storage tank option. 430lts capacity
Air conditioning Tropical specification 104,000 BTU. Including a second shore power intet.
Air Conditioning 1 x 6000btu DTU in the Crew Quarters
90 Metres of Galvanised 9.5mm anchor chain. Lewmar 40Kg Galvanised Delta Anchor.
Additional pair of Spring Mooring cleats 12" in polished stainless steel fitted port and starboard on the aft edge of the hull band.
Fold down platform seat
Folding back rests to the bow sunbathing cushions in Diamante Tapioca DIA 6620
Diamante premium exterior upholstery upgrade
Platform overhead shower fitted to gull wing door
Besenzoni Hydraulic Telescopic Gangway 3.9 meters Stainless Steel with teak walkway ART 380.39SS
Fresh water deck wash system with outlets fwd and aft including hose kit. including upgraded domestic water pump
Lower cockpit and platform Teak Decking
Flybridge Teak Decking
Teak Side Decks to include the anchor deck and Seating group deck

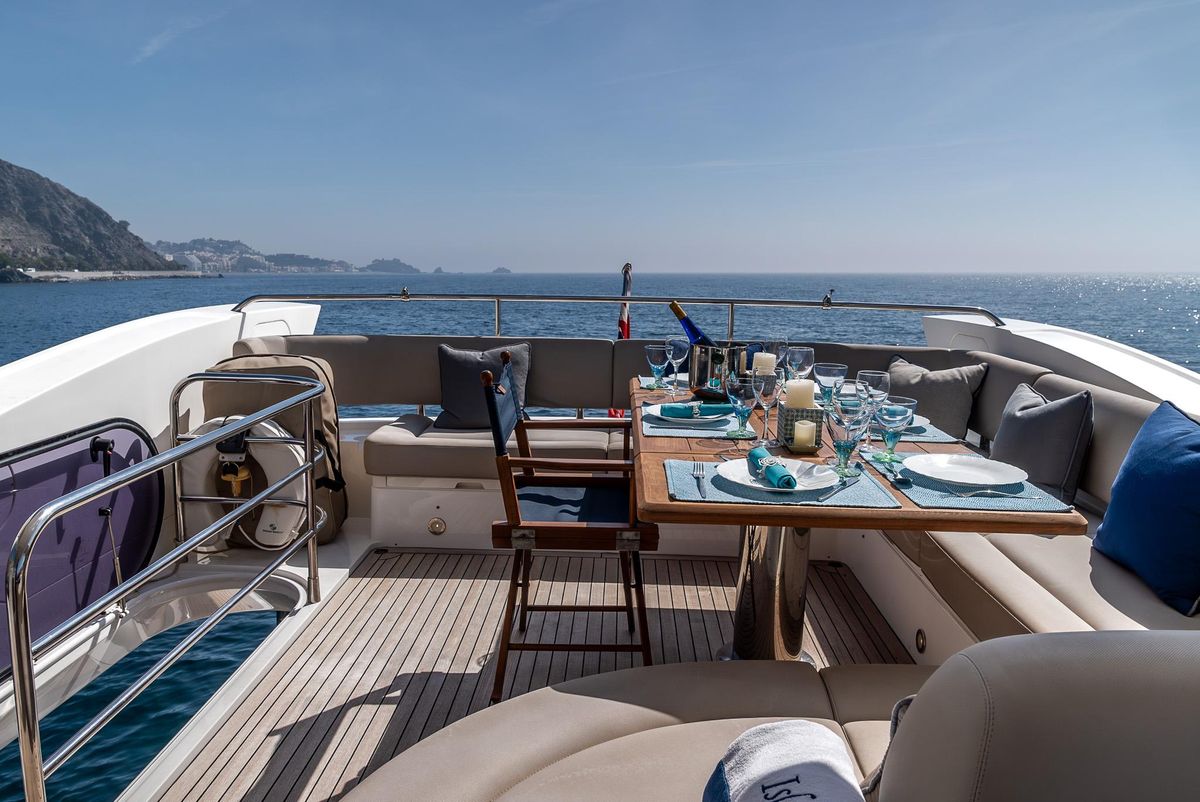

Teak dining table with folding top fitted on a polished stainless steel leg on the Flybridge
Teak aft cockpit table with folding top fitted on a polished stainless steel leg

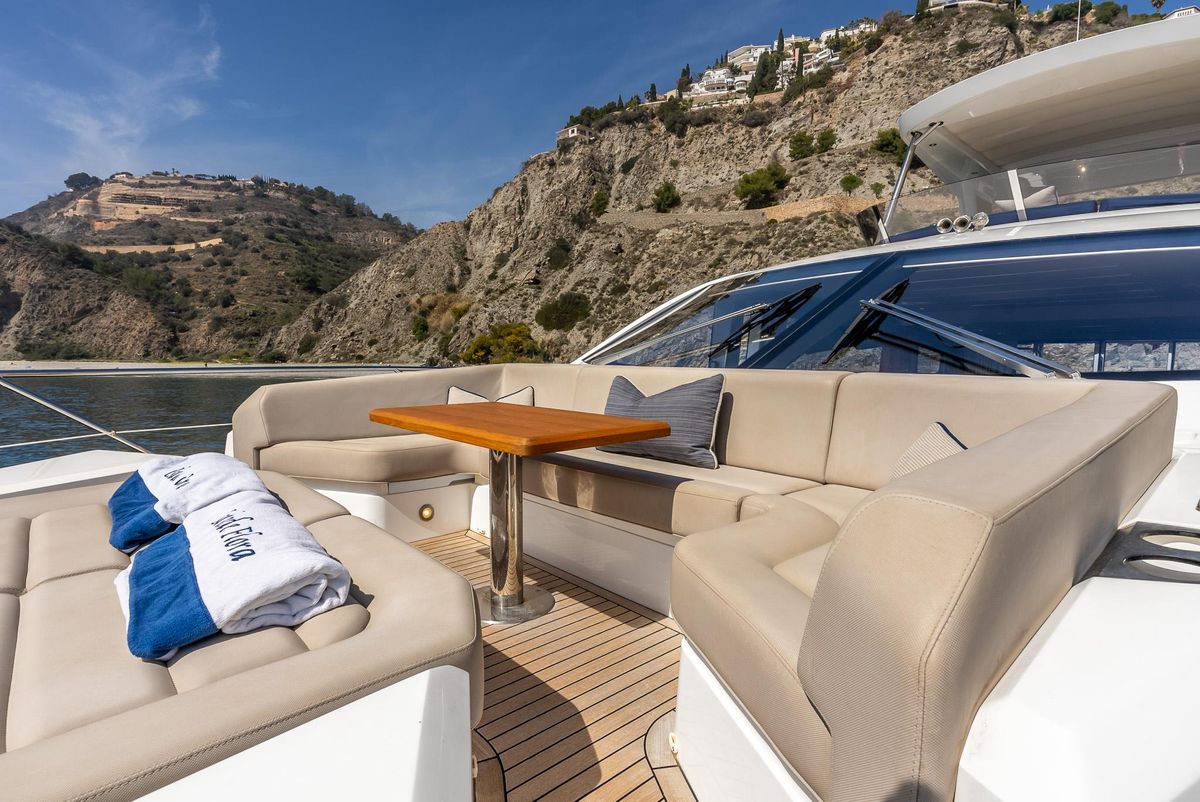

Teak fore deck table with fixed top fitted on a polished stainless steel leg
Flybridge Protective Covers Package for general Seating, sunbed, table, helm seats and Wet bar cover in Stamoid Light - Pearl Grey
Main Deck Protective Covers Package - Aft cockpit seating and table cover. Foredeck seating, table and sunbed cover. Material in Stamoid Light - Pearl Grey
