NOT AVAILABLE FOR SALE TO U.S RESIDENTS WHILE IN U.S. WATERS.
KEY FEATURES:

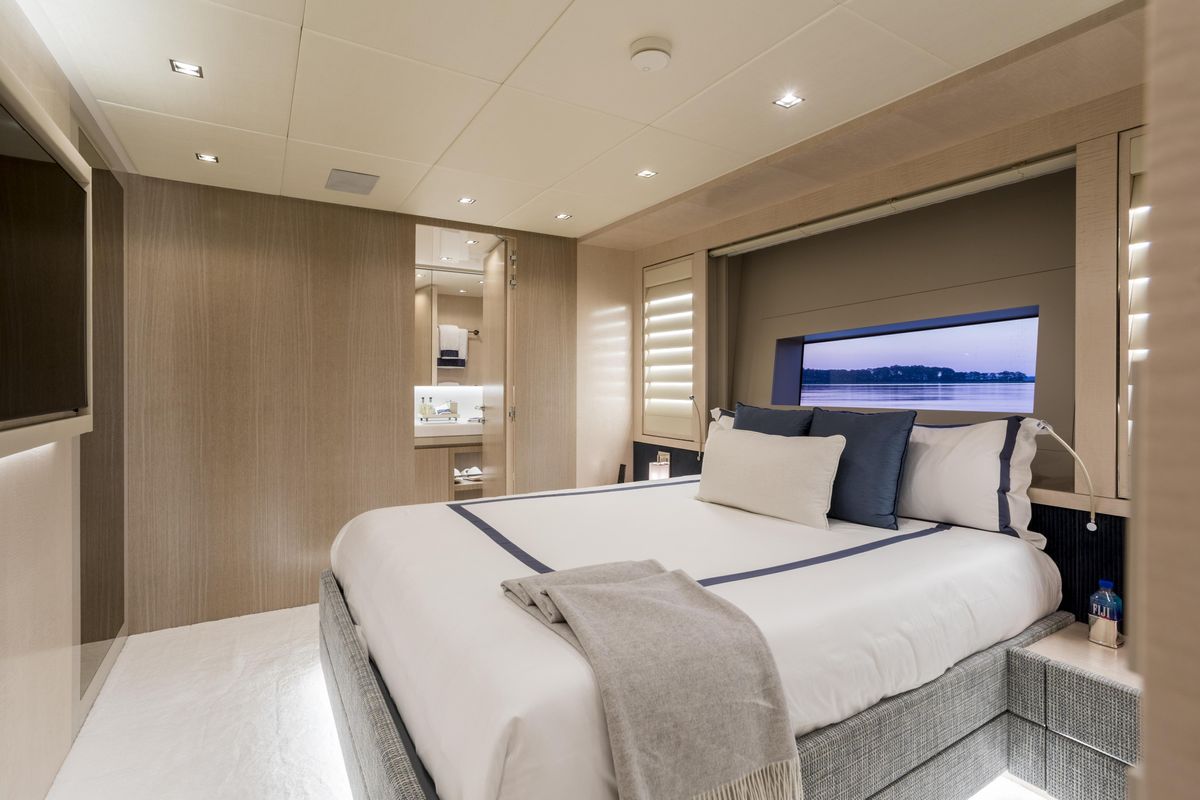

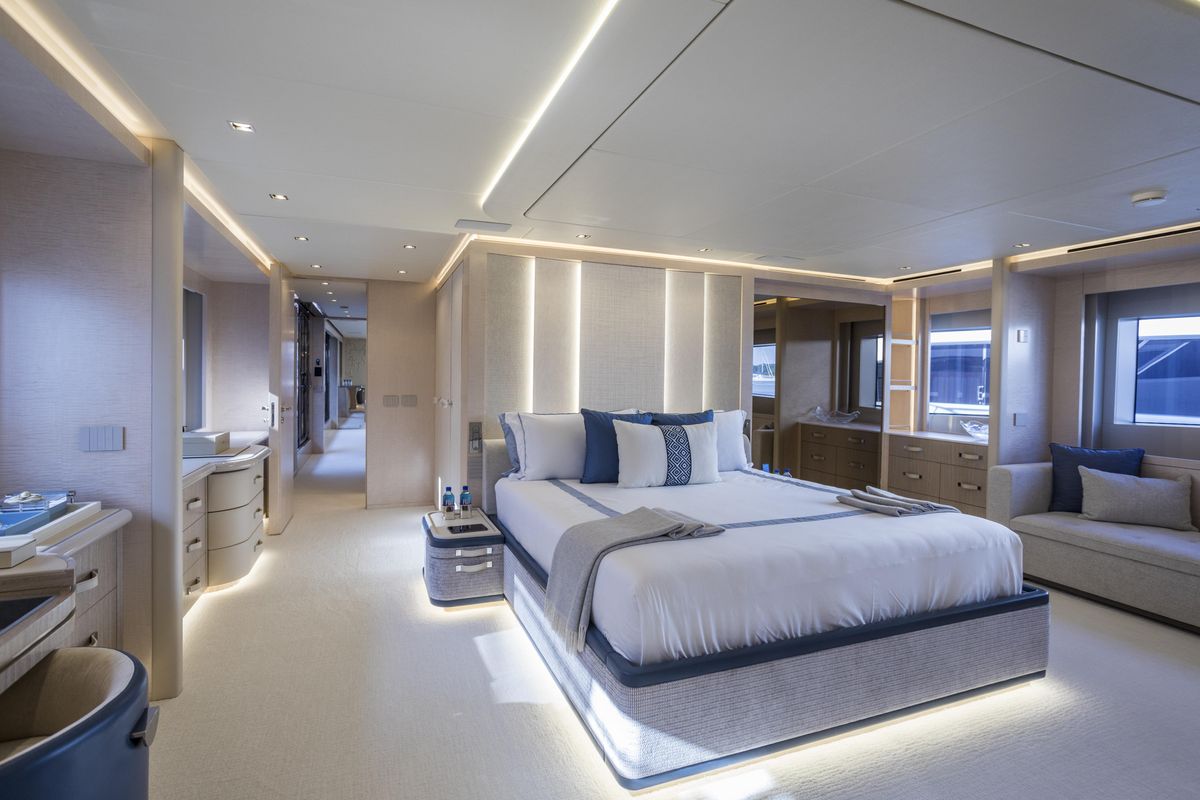

5 stateroom layout with an On-Deck Master and the ability to sleep 12 guests
Engine Warranty transferable through 8/31/2028

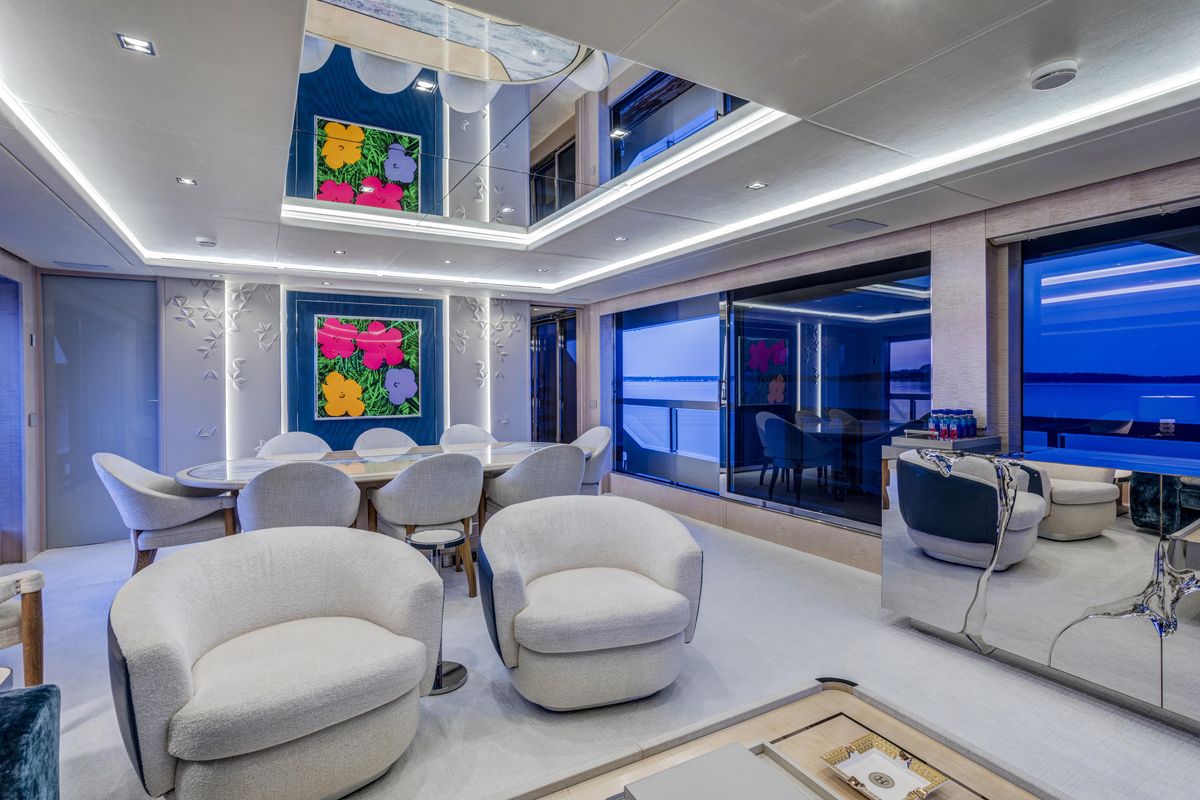

Over $1,000,000 in upgrades & customization of the interior \

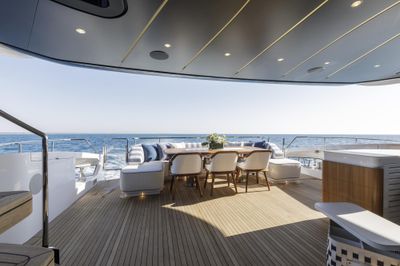

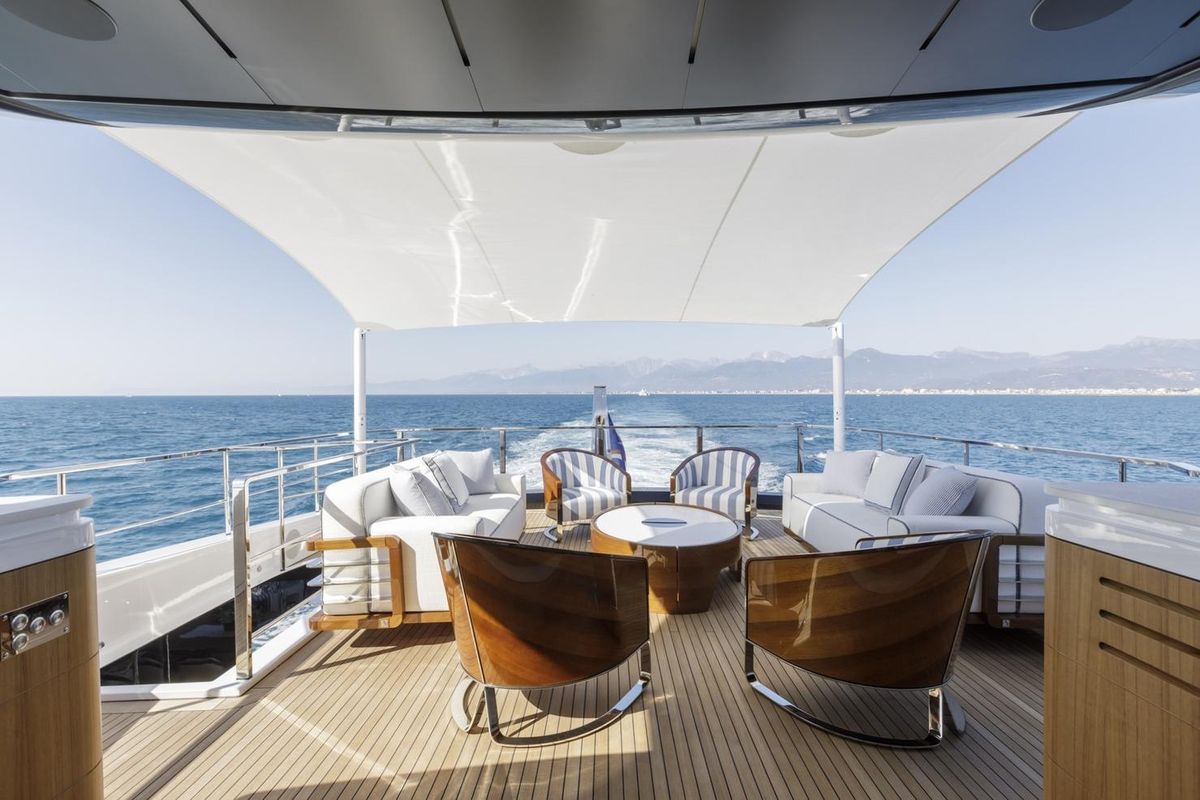

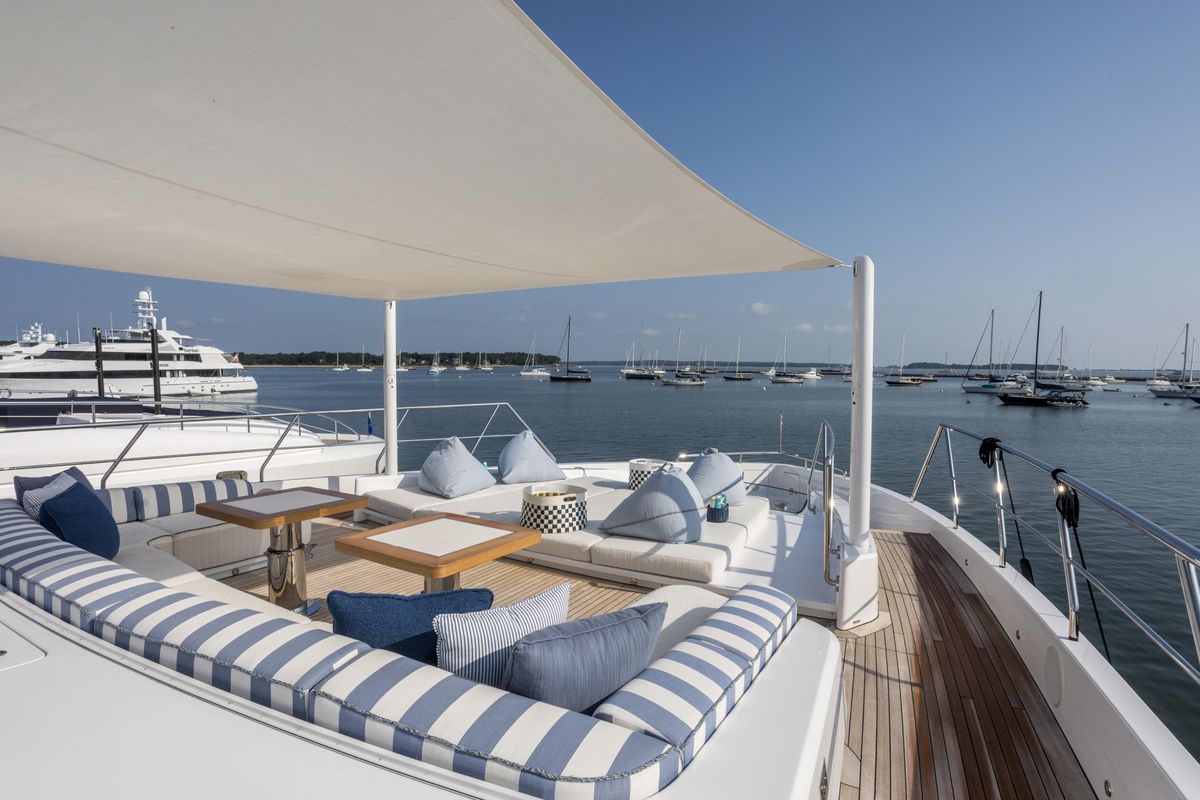

Expansive Flybridge with serene views and the ability to stay in the sun or lounge under cover with air conditioning

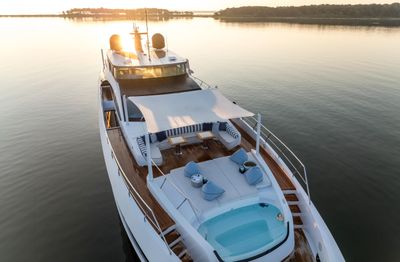

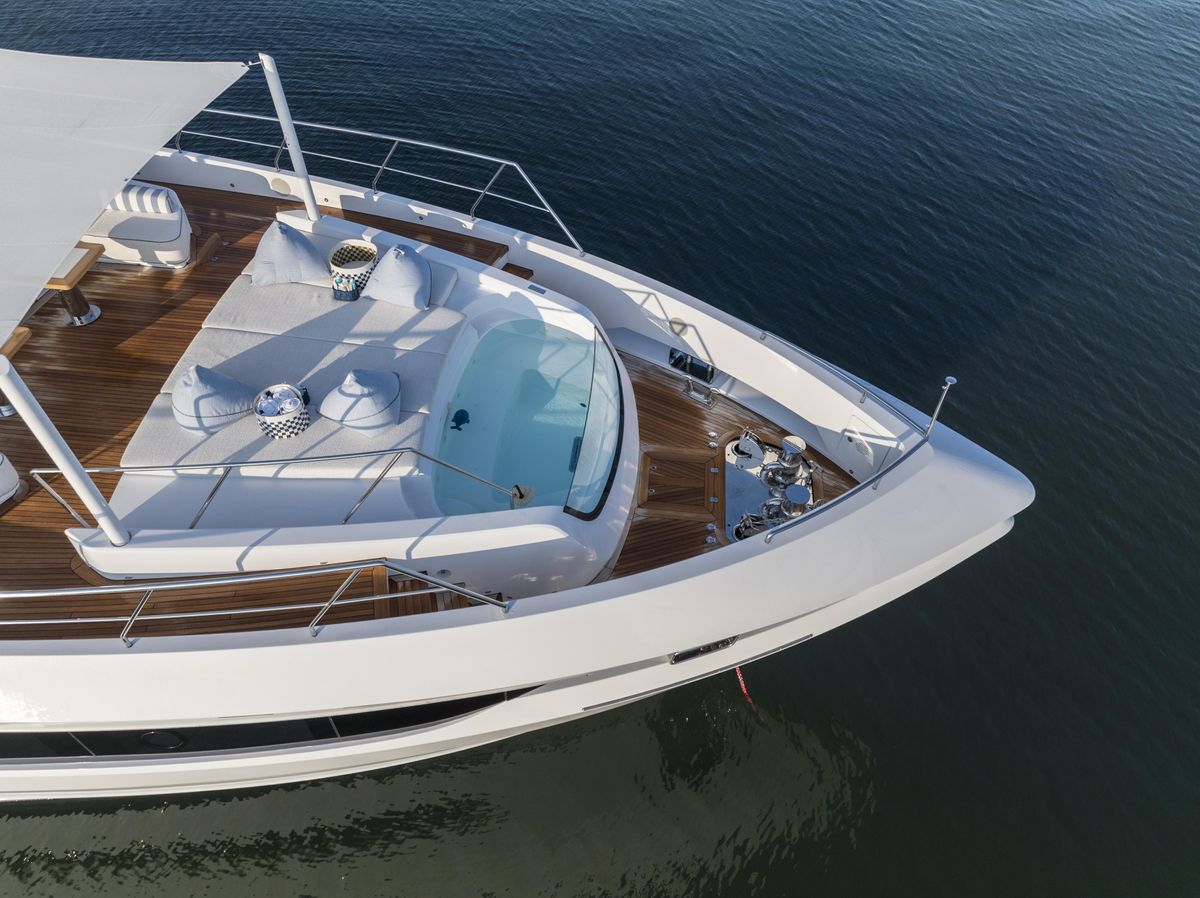

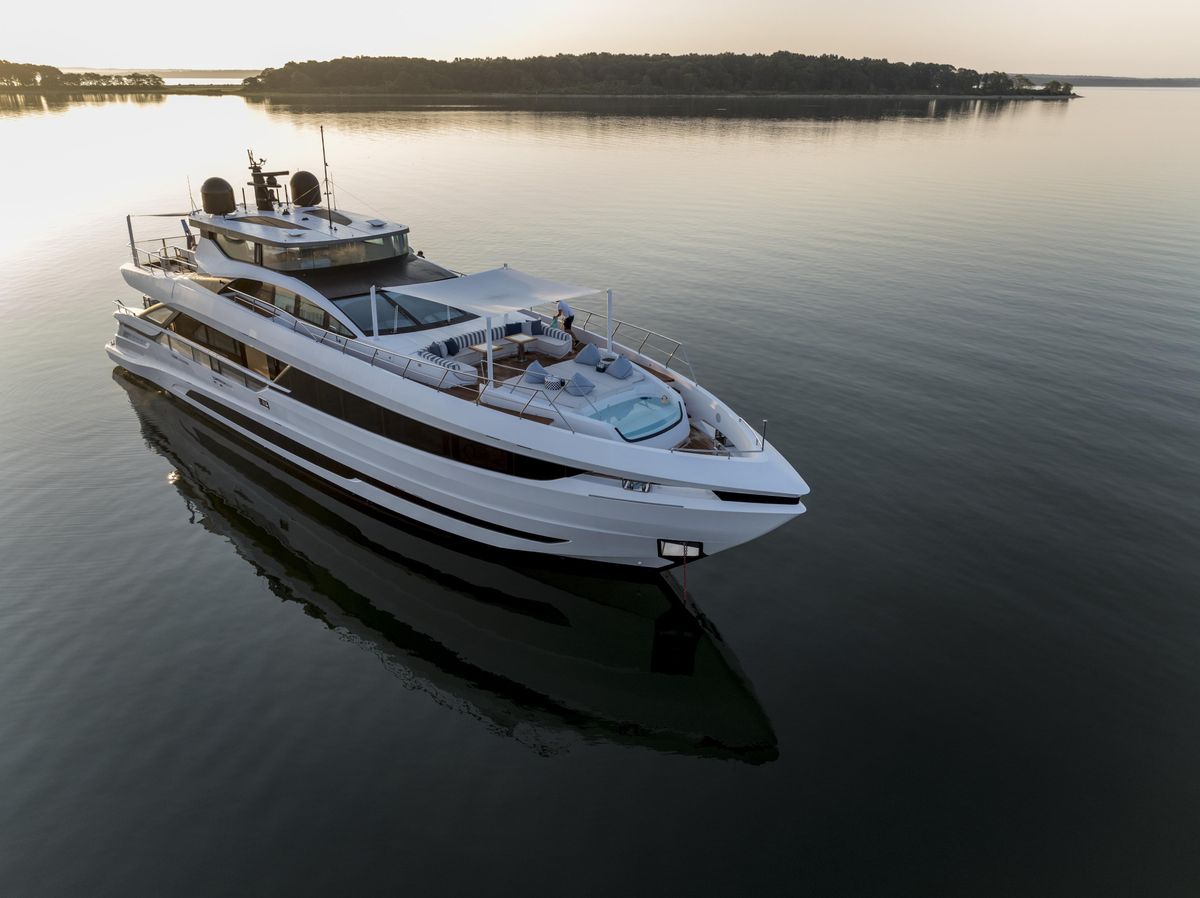

Jacuzzi pool on the bow with sun beds and optional shade

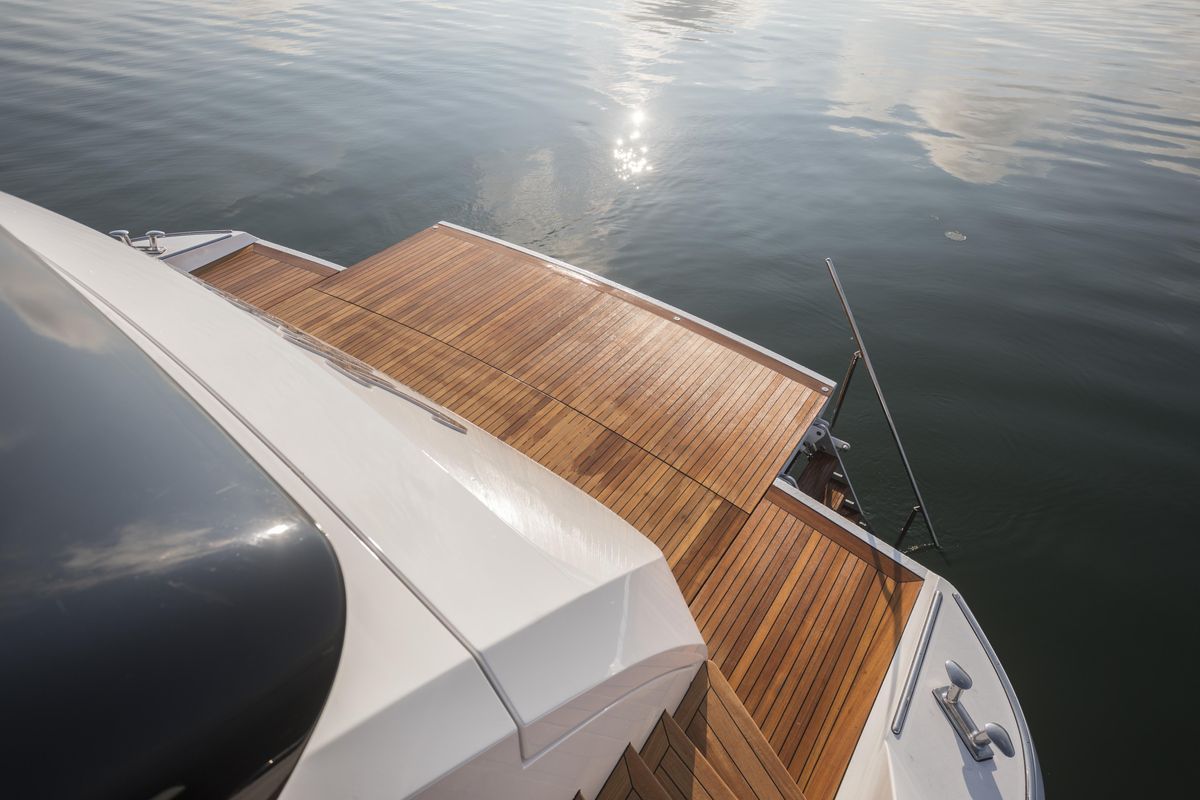

Extended swim platform with swim ladder and garage for all water sport activities
DIMENSIONS Length O.A.: 109' 3" (33.3m) Length W.L.: 88' 7" (27m) Beam: 24' 3" (7,4m) Draft: 6' 3" (1,9m) Gross: 247 Net: 74 Year Built/Builder: 2023/ Mangusta Naval Architect: Alberto Mancini/Overmarine Interior Designer: FM /Overmarine Construction: Single skin technique using vinylester resin reinforced with E Glass and polyurethane Class: RINA Stateroom/Guests: 5/2 Crew 5-Apr Cruising/Max Speed: 21kts/ 25kts Type: Motor Yacht Flag: Marshall Islands

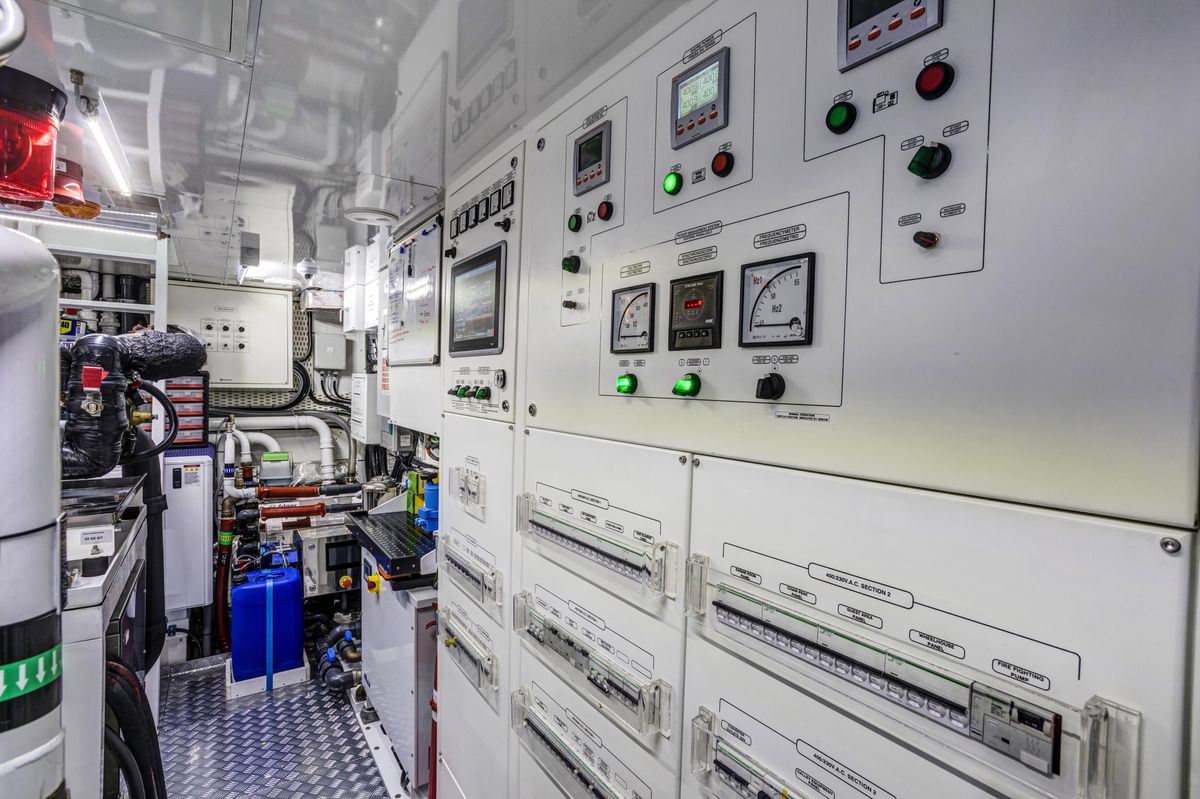

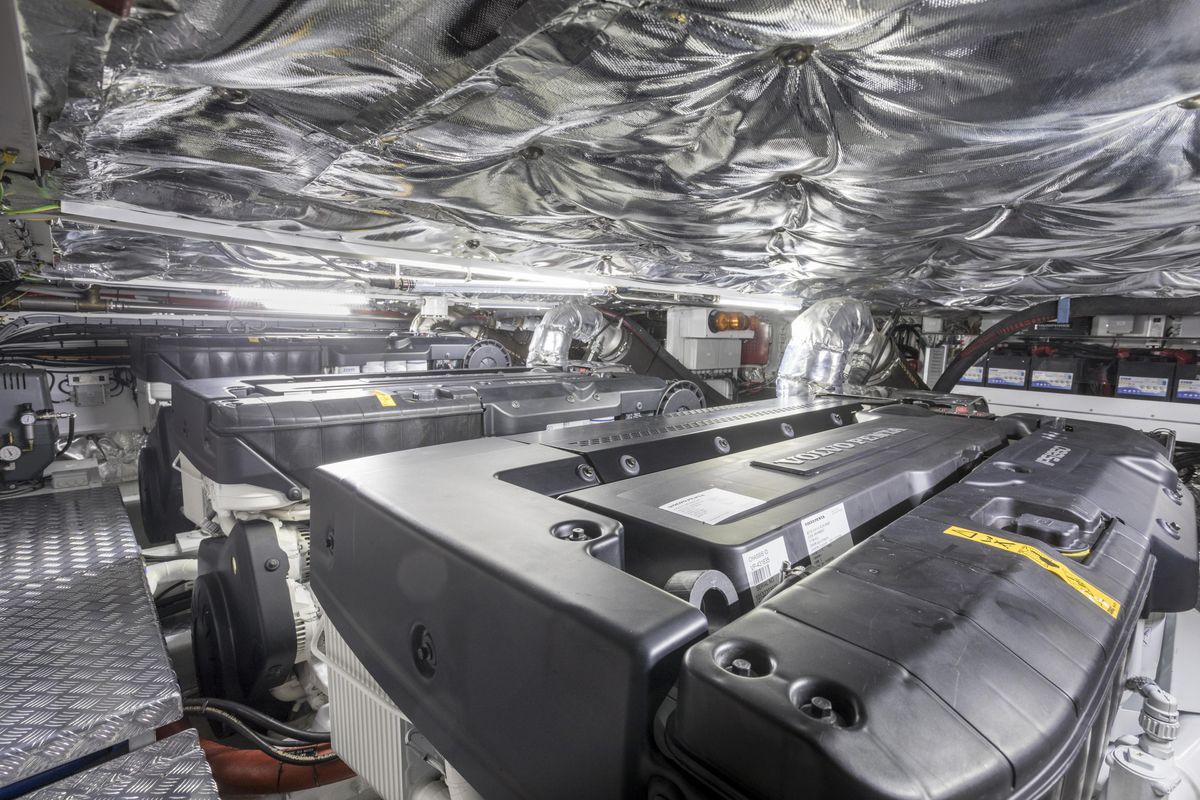

MACHINERY Main Engine: Four Volvo Penta Diesel Engines mod. D13-1000 IB – 735kW (~1000HP) at 2400 rpm. The engine/package has a standard full warranty until 8/31/2025 and major components until 8/31/2028. There is an ability to extend the warranty. Main Engine Hours: Port 237 Port Inboard 236 Starboard inboard 234 Starboard 236 Gear Boxes: Four gearboxes integrated Volvo Penta IPS drive units mod IPS 1350 Shafts: integrated Propellers: Two Volvo Penta duoprop type contra-rotating propellers on each engine Speeds: 21 kts. Cruising/ 25 kts. Max Range: 330nm @ 21 kts Generators: Two Kohler generators,, one 35 kW, 400 VAC, 50 Hz, three-phase and one 50kw Generator Hours: 35KW (380 hours) 50KW (750hrs) Electricity: Main power supply 400 Volt AC, 50 Hertz three phase four wire system with neutral ground Secondary supply 230 VAC 1ph or 24 Volt DC Shore Power: 400Vac, 50Hz, 3 phase Batteries: house bank 3 8d isolated generator starting 12v isolated mains starting 24v
TANK CAPACITIES Fuel: 2,774 gallons (10,500 litres) Water: 528 gallons (2,000 litres) Water Maker: Idromar 110 gal/hour Black Water: 660 gallons (2,500 litres)
Mechanical Steering System: Integrated IPS Rudder Angle Indicator: Integrated IPS Thruster: 28 [kW] power and a predicted Thrust of 450 [kg] with dual counter rotating 4 blades Kaplan propellers Stabilizers: Waveless Fuel Filters Bilge Pump: Control Panel with 6x DC with Automatic and Manual Switches and High Water Alarms 1Gianneschi pump 400VAC/3ph/50Hz 1 Gianneschi pump – 400VAC/3ph/50-60Hz 1x Emergency Pump outside Engine Room Gianneschi P&B MBMA 50-160B Diesel Electric remote operated valves Bilge Level Alarms Vacuum and pressure gauges Air Conditioning
Safety and Security Equipment: AXIS camera system FLIR camera
Deck Anchor Windlass: Two Vertical Anchor Windlass 4kW - 400VAC/3ph/50Hz Ground Tackle: Two Galvanised High Tensile Steel anchors 40Kg, Two length of 123,75 meter galvanised chain D. 14mm studless Boat Crane and Davits: Sanguineti beam crane through a 400VAC hydraulic power pack, Boarding: stern passarelle
Audio/Visual Entertainment Systems Main Salon: built in Sonance Owner's Cabin: built in Sonance Guest Cabins: built in Sonance Bridge Deck: built in sonance Captain's Cabin: TV Crew Cabins: none

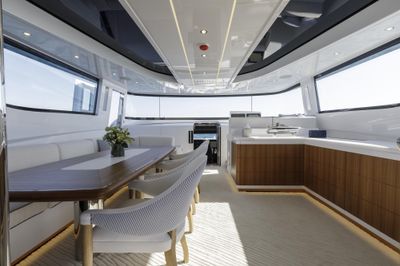

Domestic Equipment Main Galley: Miele appliances
Laundry: Miele professional
Disclaimer
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.

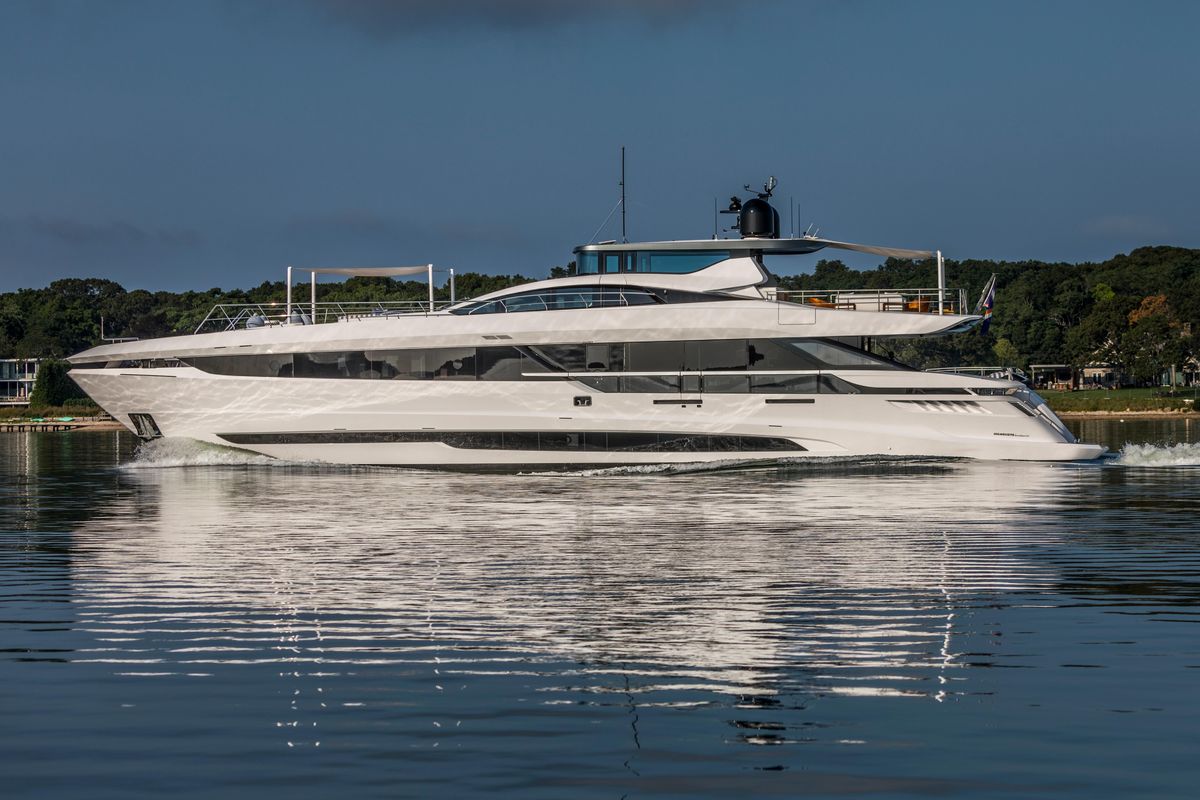

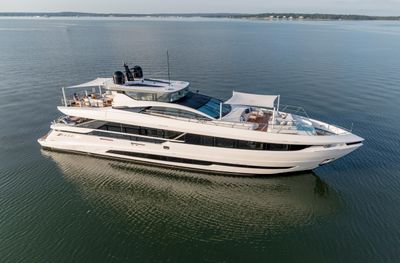

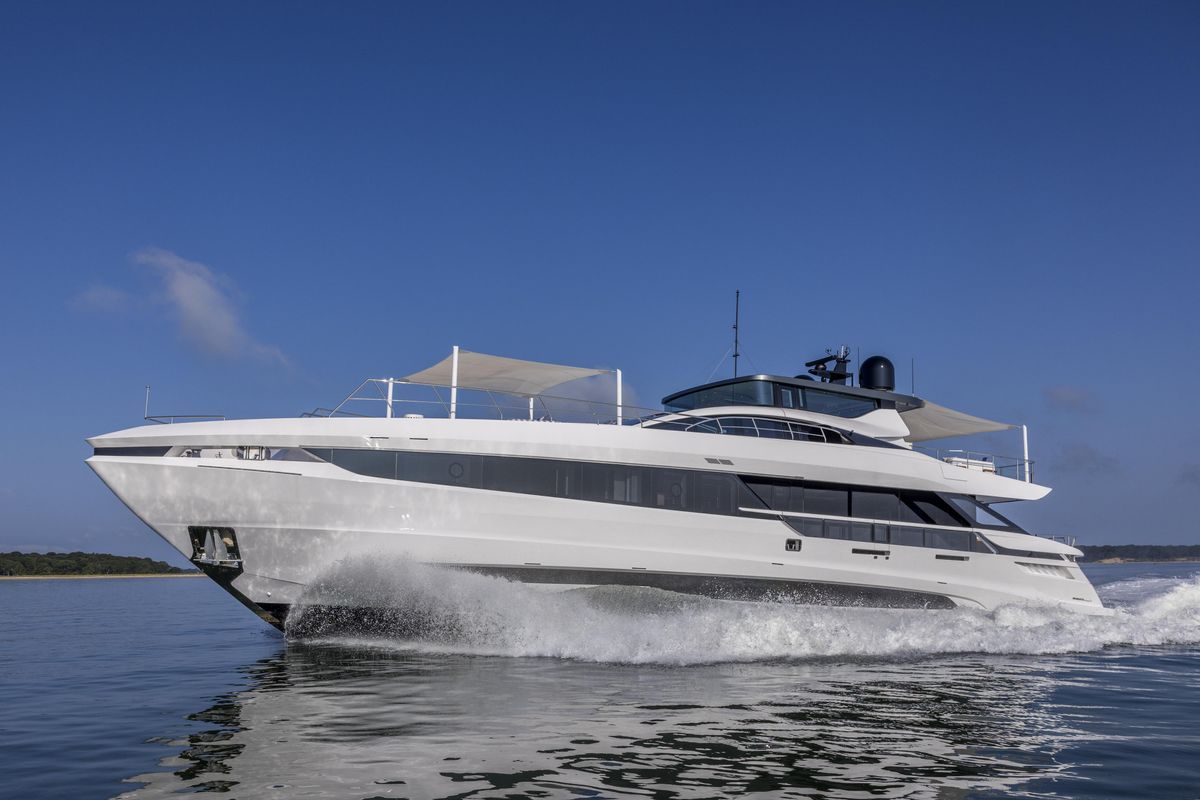

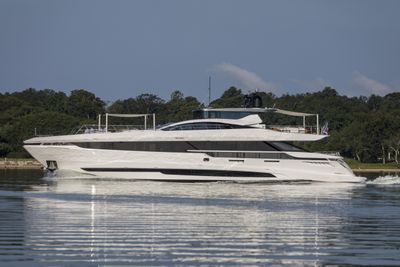

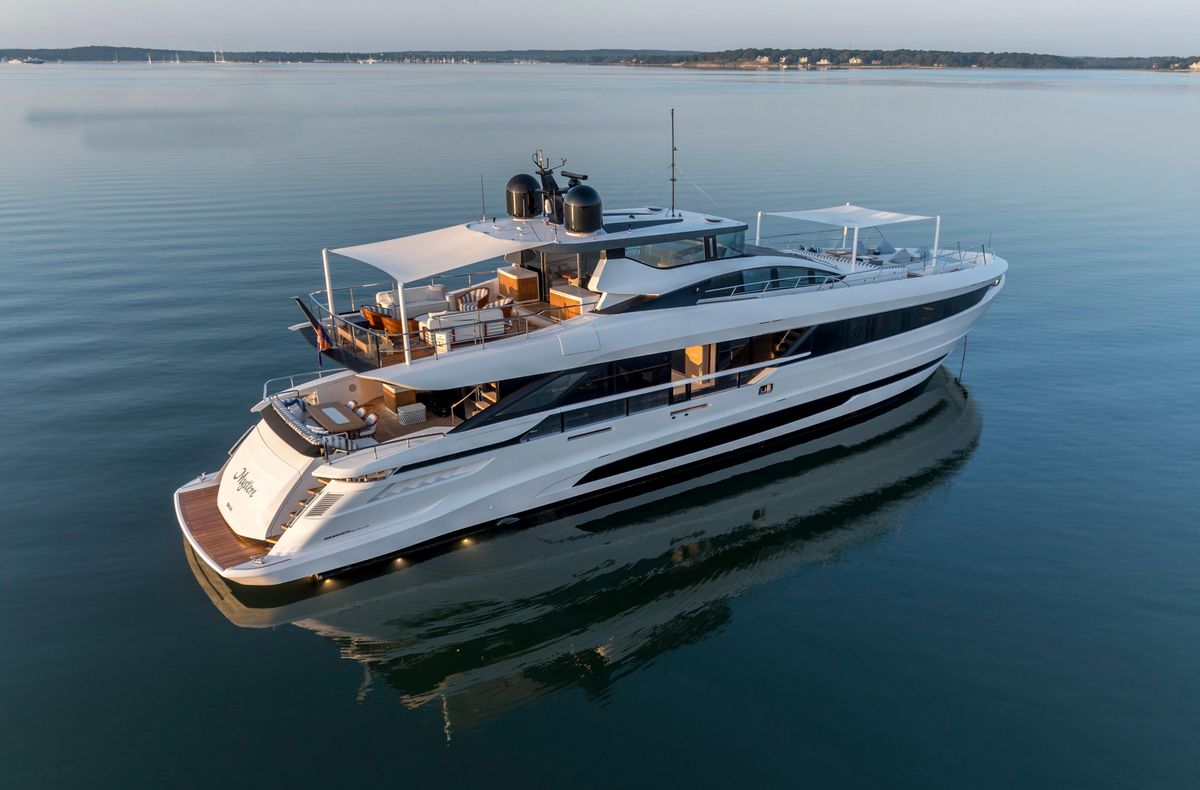

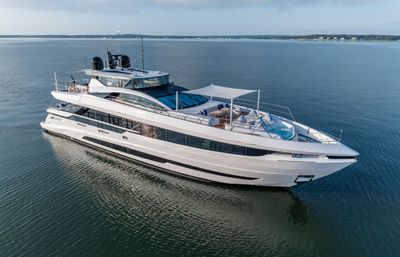

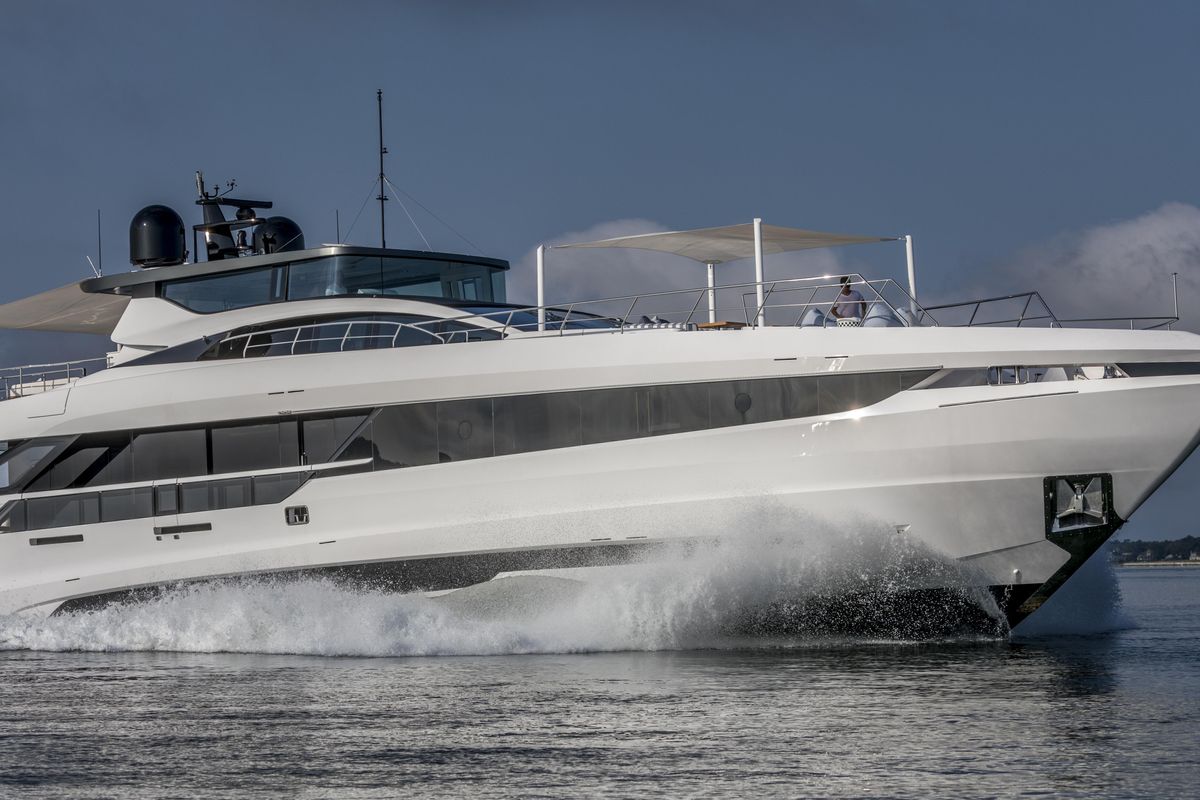

2023 Mangusta Gransport 33m
Length:
109.25 ft
Beam:
24.25 ft
Draft:
N/A
Displacement:
N/A
Hull:
Fiberglass
Condition:
Used
Year Refit:
N/A
Number of Engines:
4
Engine Manufacturer:
VOLVOPENTA
Engine Model:
D13-1000IB
Power:
1000 HP
Engine Hours:
320
Fuel Type:
diesel
Holding Tank Capacity:
660 gallon
Fuel tank Capacity:
2774 gallon
Water Tank Capacity:
528 gallon
Disclaimer:
This listing is courtesy of the BoatWizard MLS and may be centrally listed with another broker. It is offered as a convenience by David Walters Yachts to its clients and is not intended to convey representation of a particular vessel.
