YACHT NAME:
2010 Windseeker Raised Pilot Saloon Touché
MODEL:
Raised Pilot Saloon
BUILDER:
Windseeker
YEAR BUILT:
2010
LOCATION:
Bodrum
ASKING PRICE:
$913,926
DESIGNER:
Stimson
HULL:
Fiberglass
CATEGORY:
Cruisers
DESCRIPTION:

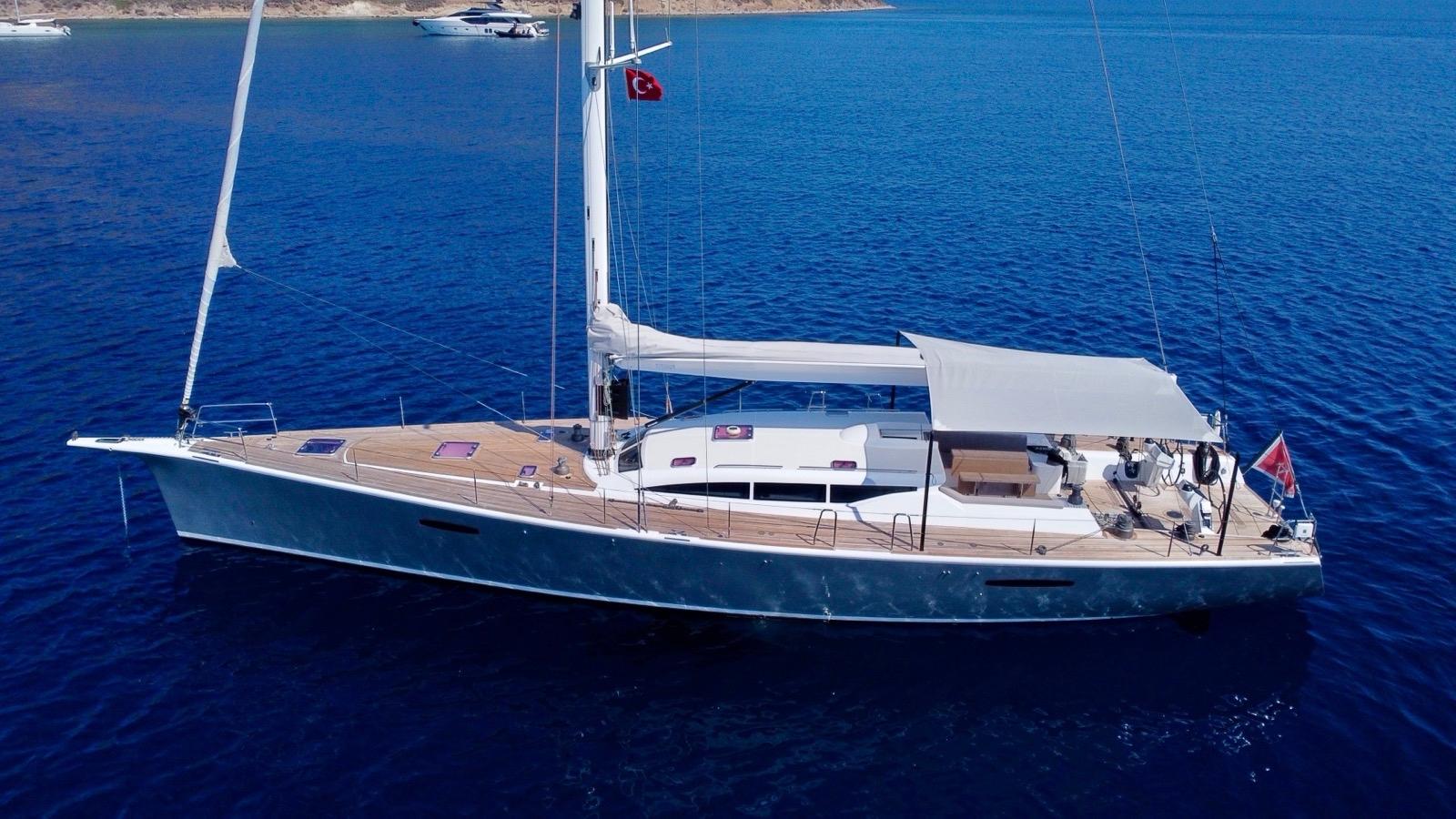

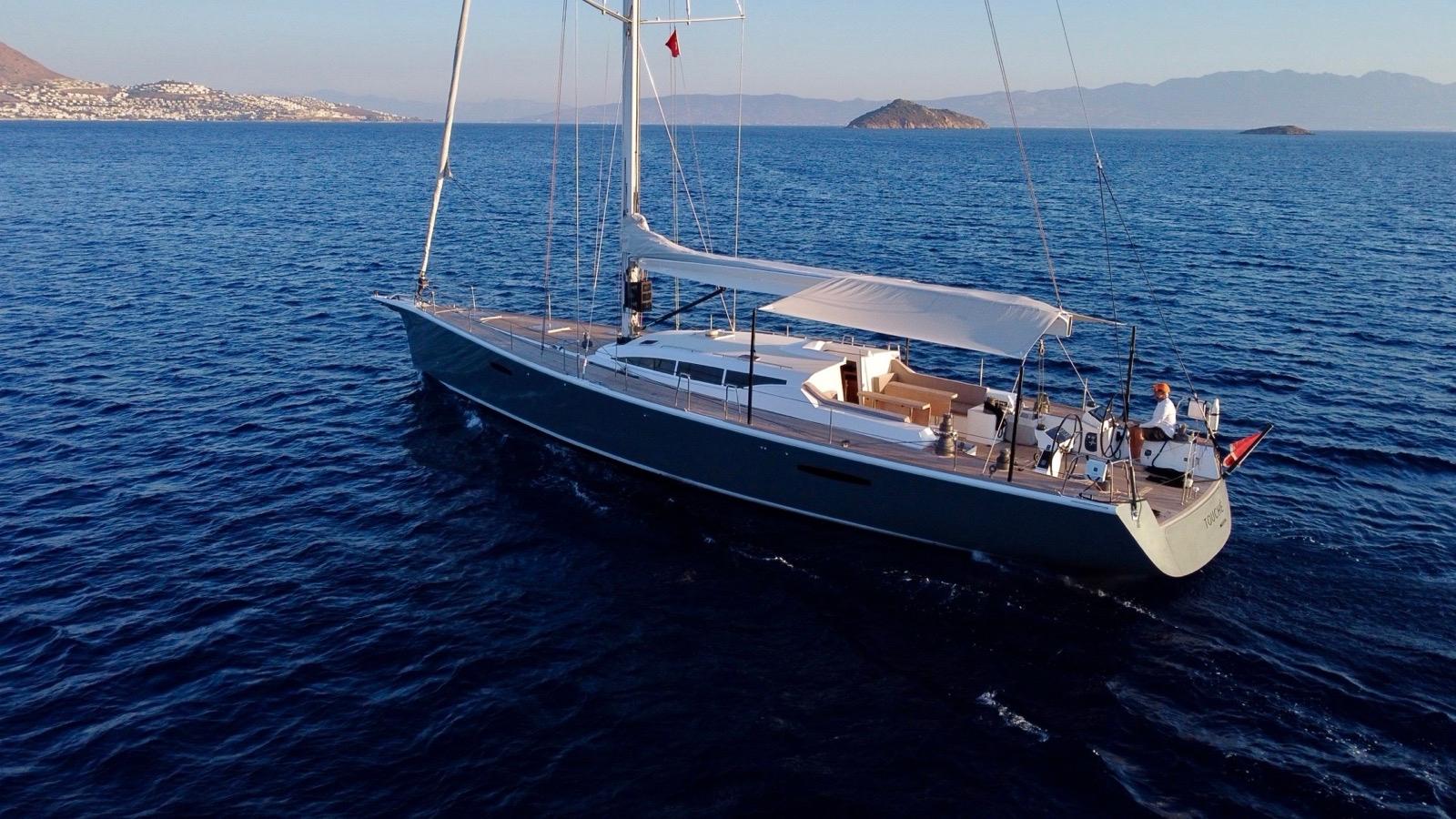

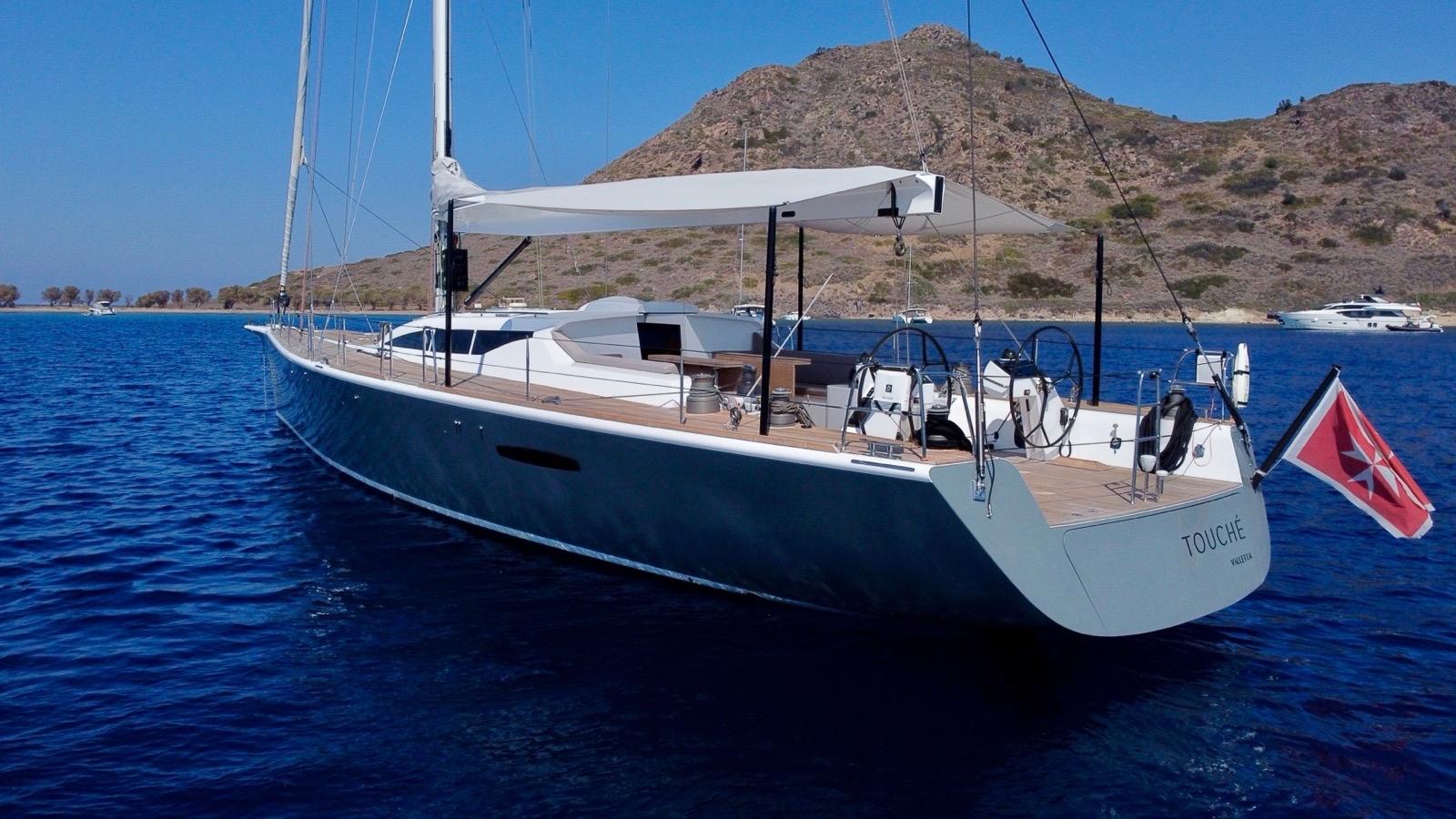

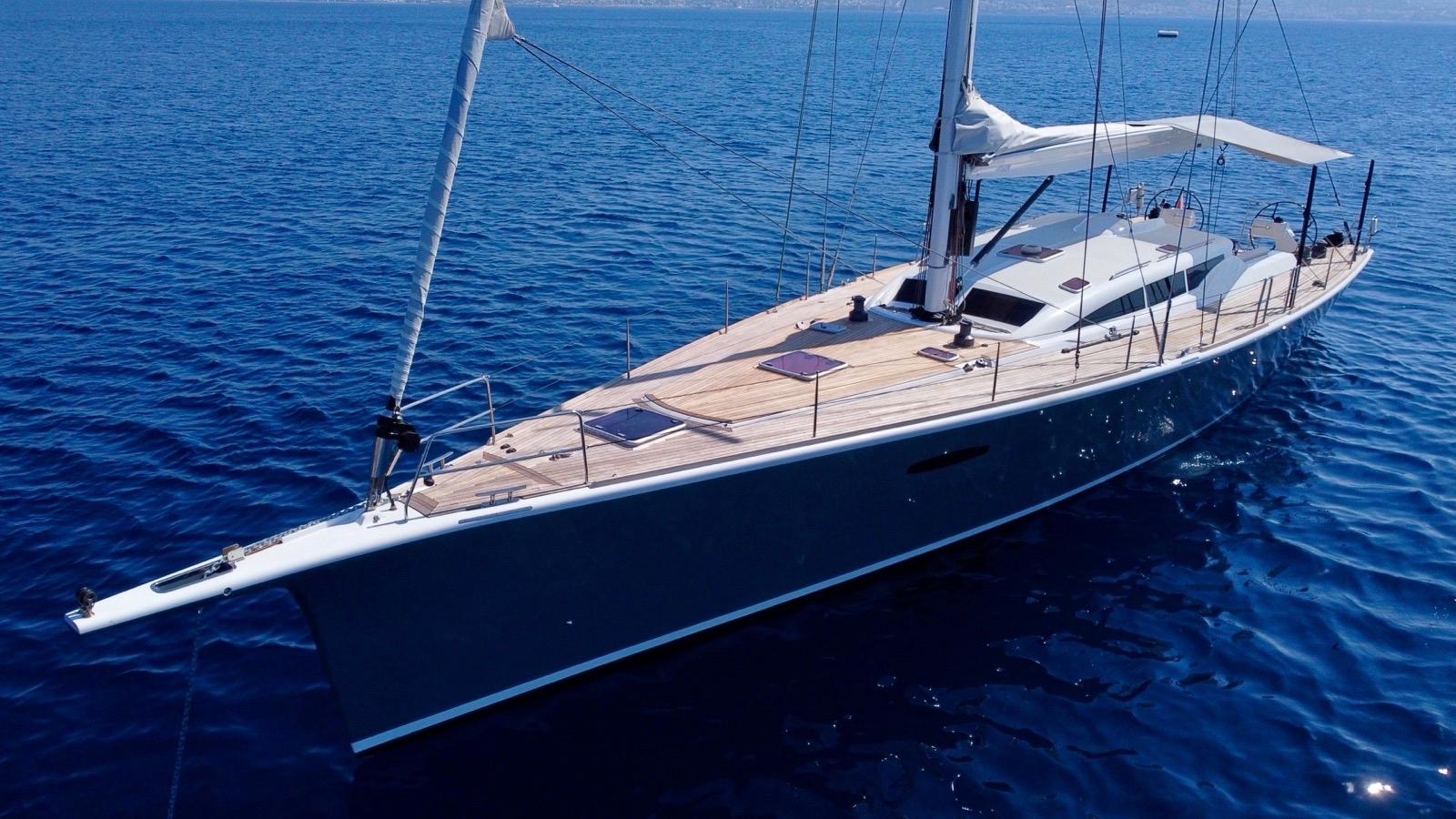

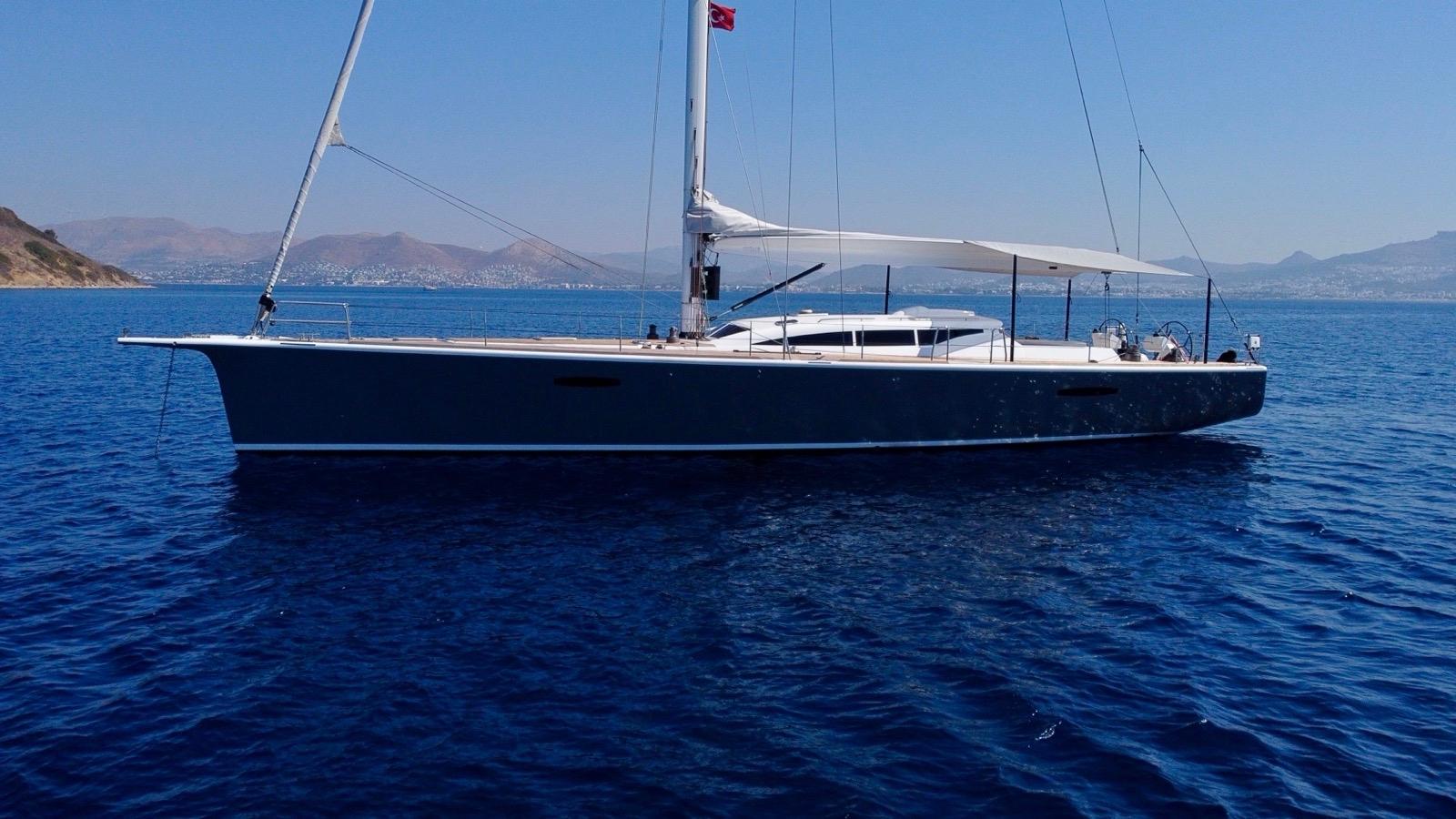

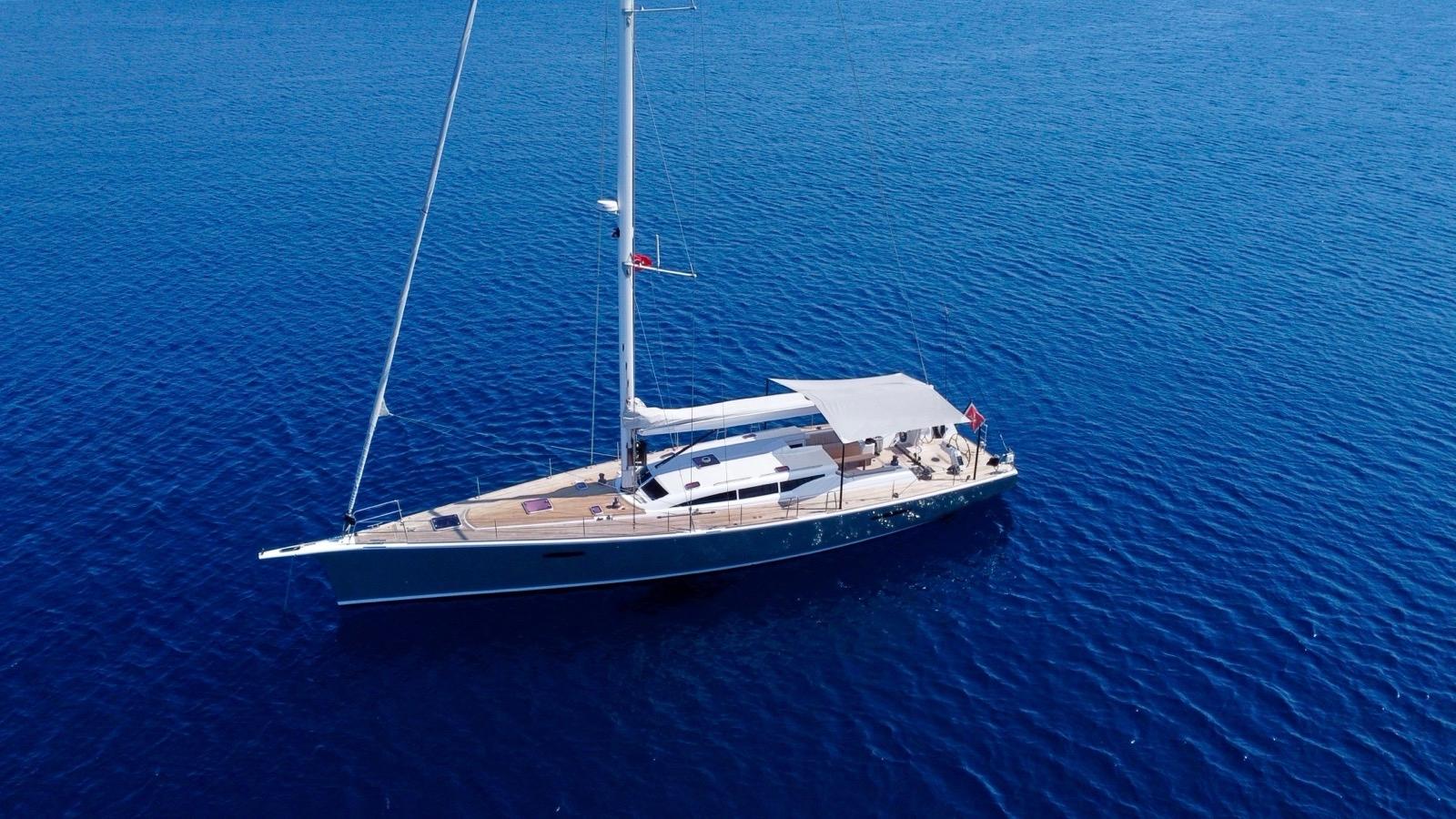

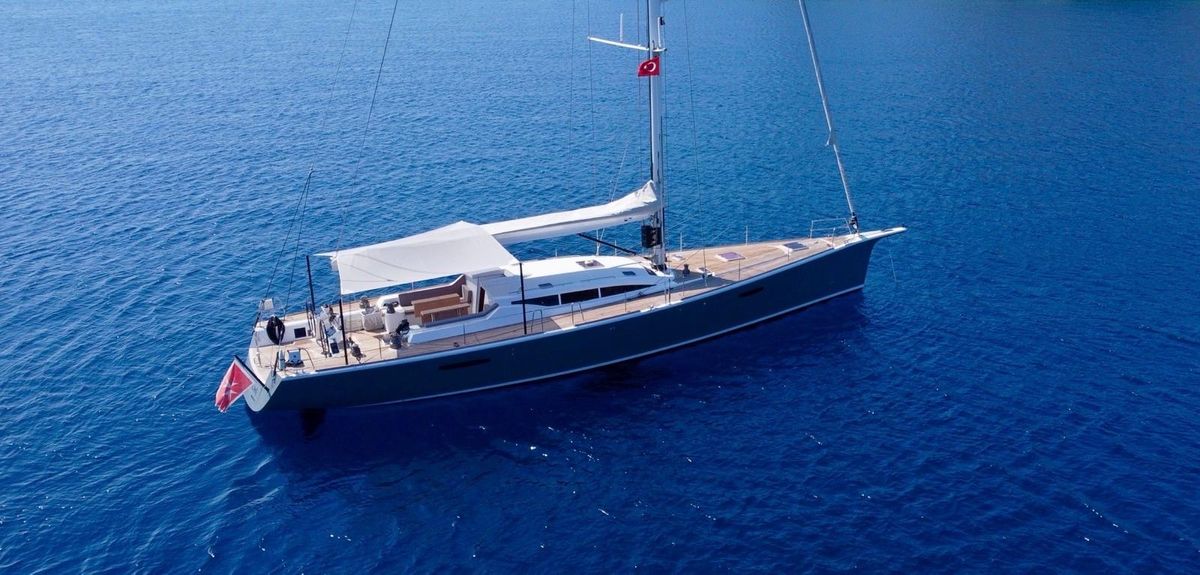

TOUCHÉ For Sale
Designed by Christian Stimson built by Mag Marine in Turkey.

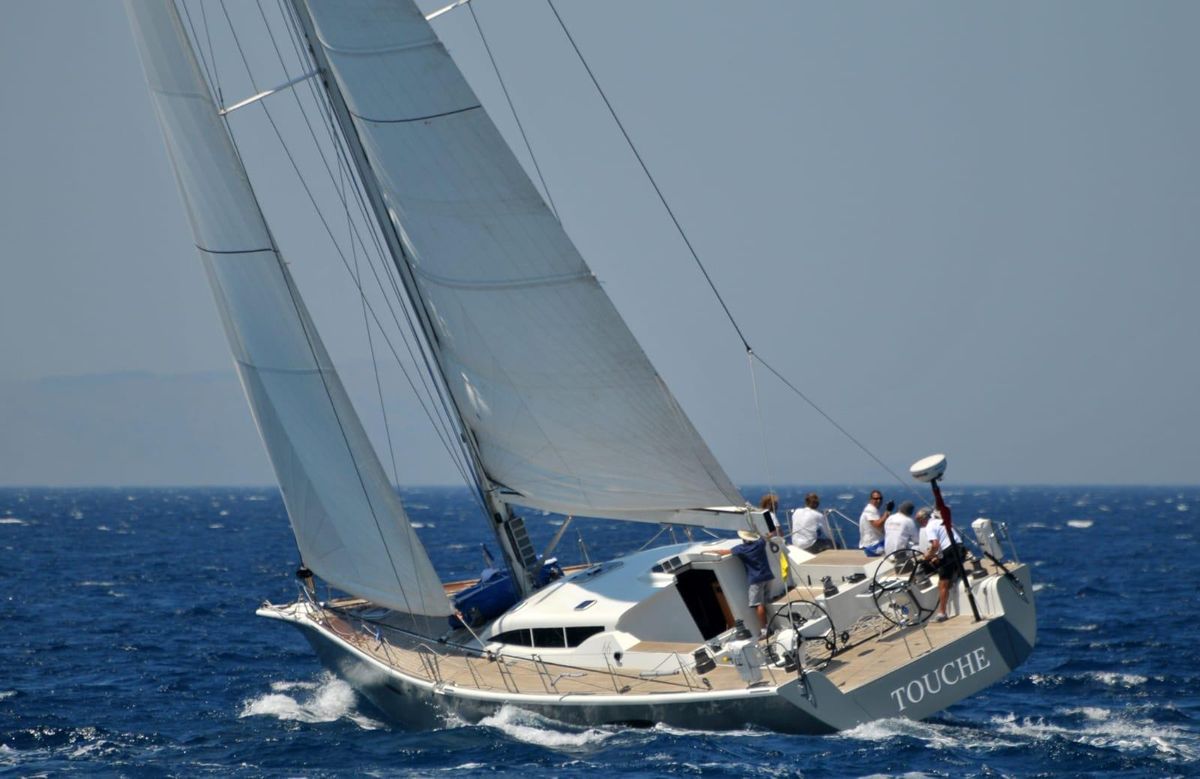

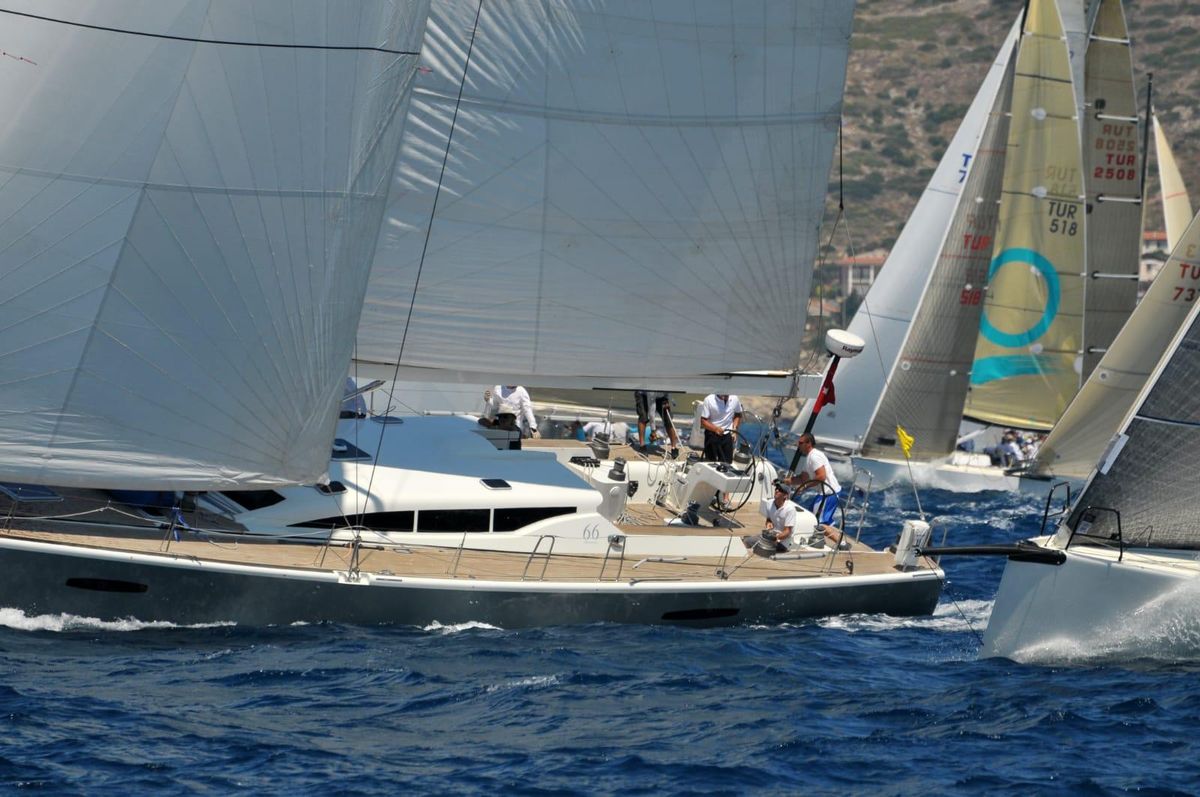

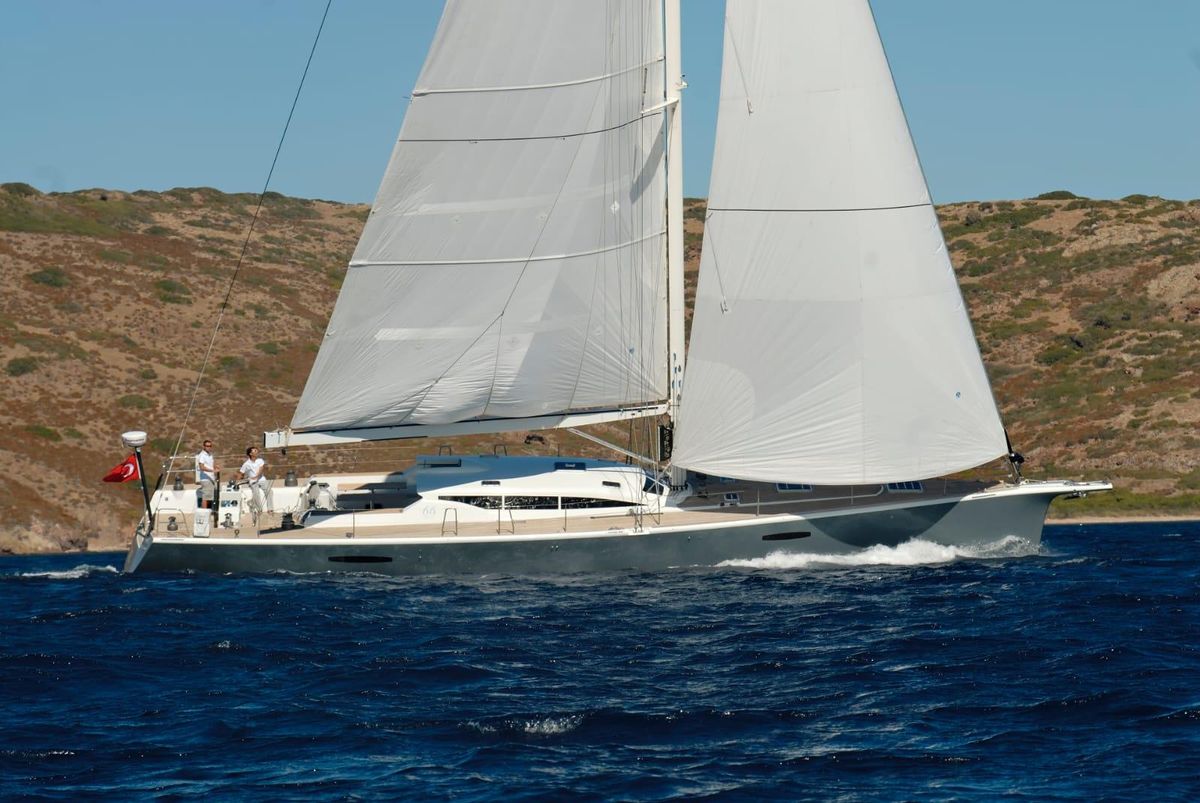

The Stimson 66ft yacht embodies an intelligent blend of elegance and performance, designed to be easily handled and uncomplicated to sail. Key attributes of this design include the ability to be sailed shorthanded by two or three people for coastal cruising, while still being competitive with a full racing crew in IRC offshore classics such as the Fastnet, Middle Sea Race, and the Giraglia.
Stimson Yachts has meticulously balanced cost, complexity, and performance throughout the design process. The result is a fast, well-appointed yacht that is straightforward to sail. Central to this is the use of composite construction, which minimizes structural weight and maximizes the ballast ratio.
For hull no.1 Touché, strip-plank cedar construction has been chosen. This method reduces the cost and time required for building the hull compared to composite sandwich laminate, with only a small, acceptable increase in weight. The wooden hull is sheathed with E-glass and epoxy, while the deck is a male-moulded, vacuum-consolidated E-glass/epoxy/ PVC foam laminate. High Modulus has handled all structural engineering.
The primary interior structures are made from lightweight E-glass/foam core/epoxy sandwich panels, with non-structural joinery fabricated from custom E- glass/foam core panels with a 4mm wood veneer. This 66-footer offers the speed, stability, and control needed for shorthanded sailing without resorting to the excessive systems often found on modern yachts.
Standard features include electric winches and a powered headsail furler. The non-overlapping headsails are easy to tack, eliminating the complexity and crew requirements of a spinnaker pole by using a fixed bowsprit and asymmetrical spinnakers. This weight-saving approach allows the yacht to benefit from A-sails while achieving sensible VMG numbers offwind.
The yacht boasts a ballast ratio of over 40%, with an efficient, high-aspect keel fin beneath a slender, easily driven hull and a powerful rig.
DimensionsDimensions
- LOA: 20.03 meters
- LWL : 18.30 meters
- Draft: 3,60 meters /
- Max Beam: 5,33 meters
- Displacement: 27,5 T
- Gross Tonnage : 36,99
- Flag: Maltease
Tankage
- Fresh Water Capacity: 1,000 lt
- Black Water capacity: 2 x 375 lt
- Fuel Capacity: 1000 lt

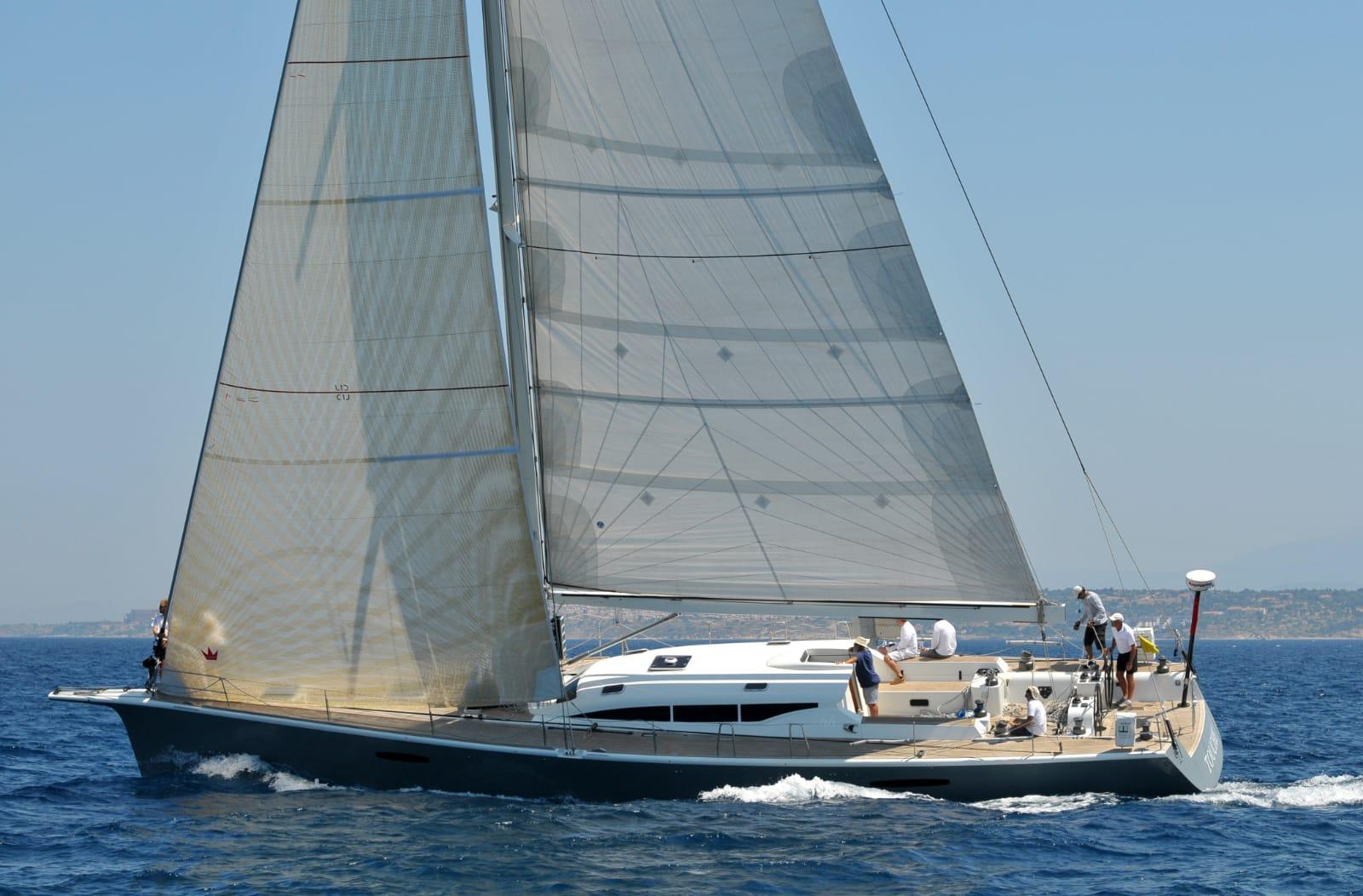

Sails One Sails
- Main Sail: 130 M2
- Furling Genoa (%106): 95 M2
- Asymetrical Sail: 385 M
Construction
- The strip plank cedar core hull is sheathed with E-glass and epoxy
- The deck is a male-moulded, vacuum-consolidated E-glass/epoxy/ PVC foam laminate
- Engineering : High Modulus
- Watertight bulkheads in Forepeak
- Mast support is solid epoxy e-glass laminate
- Hydrodynamically optimised low drag lead bulb with cast iron keel fin. A high surface
upper flange allows distrubution of grounfing forces to the structure of the boat. - Composite rudder built over carbon stock

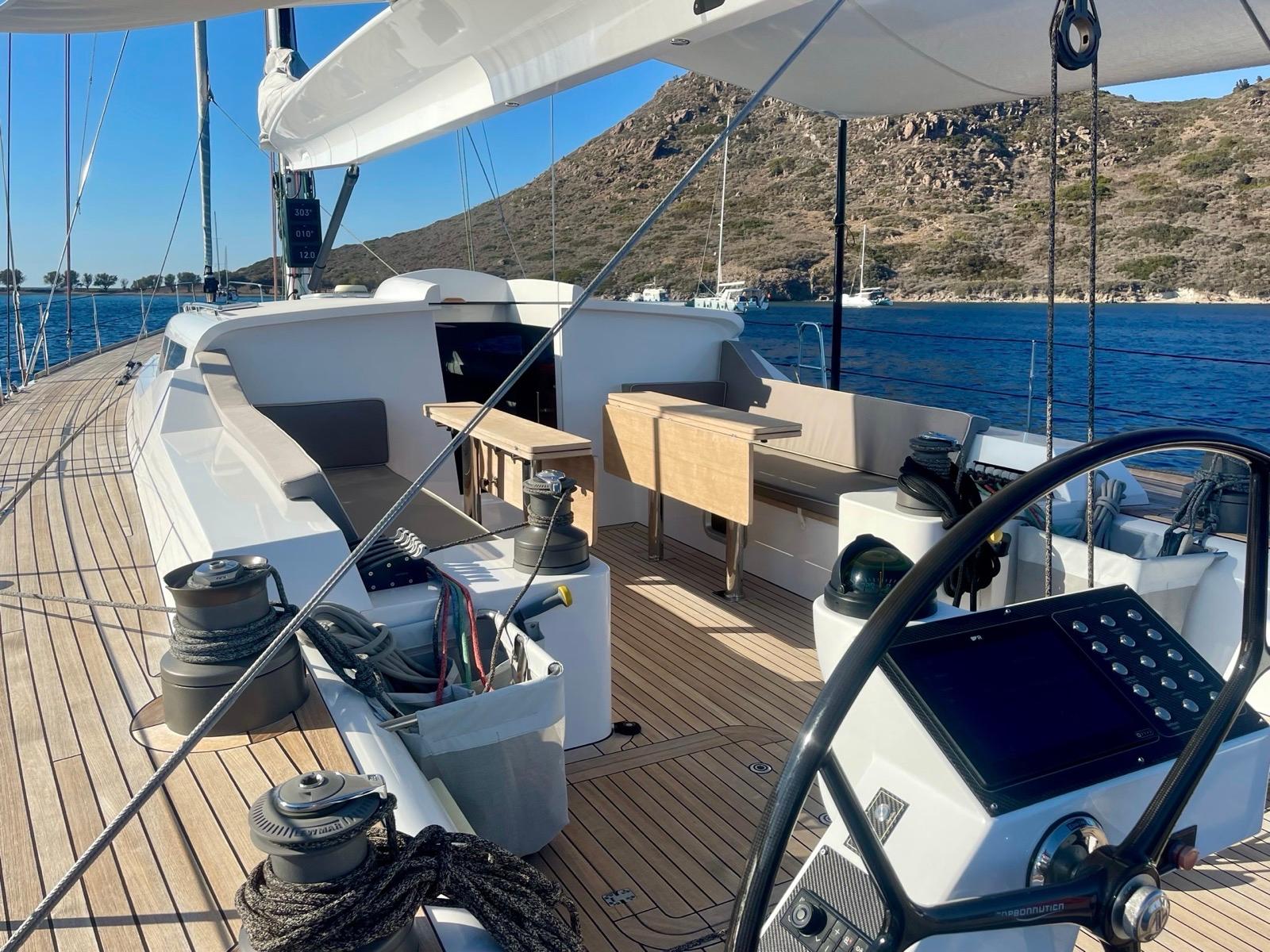

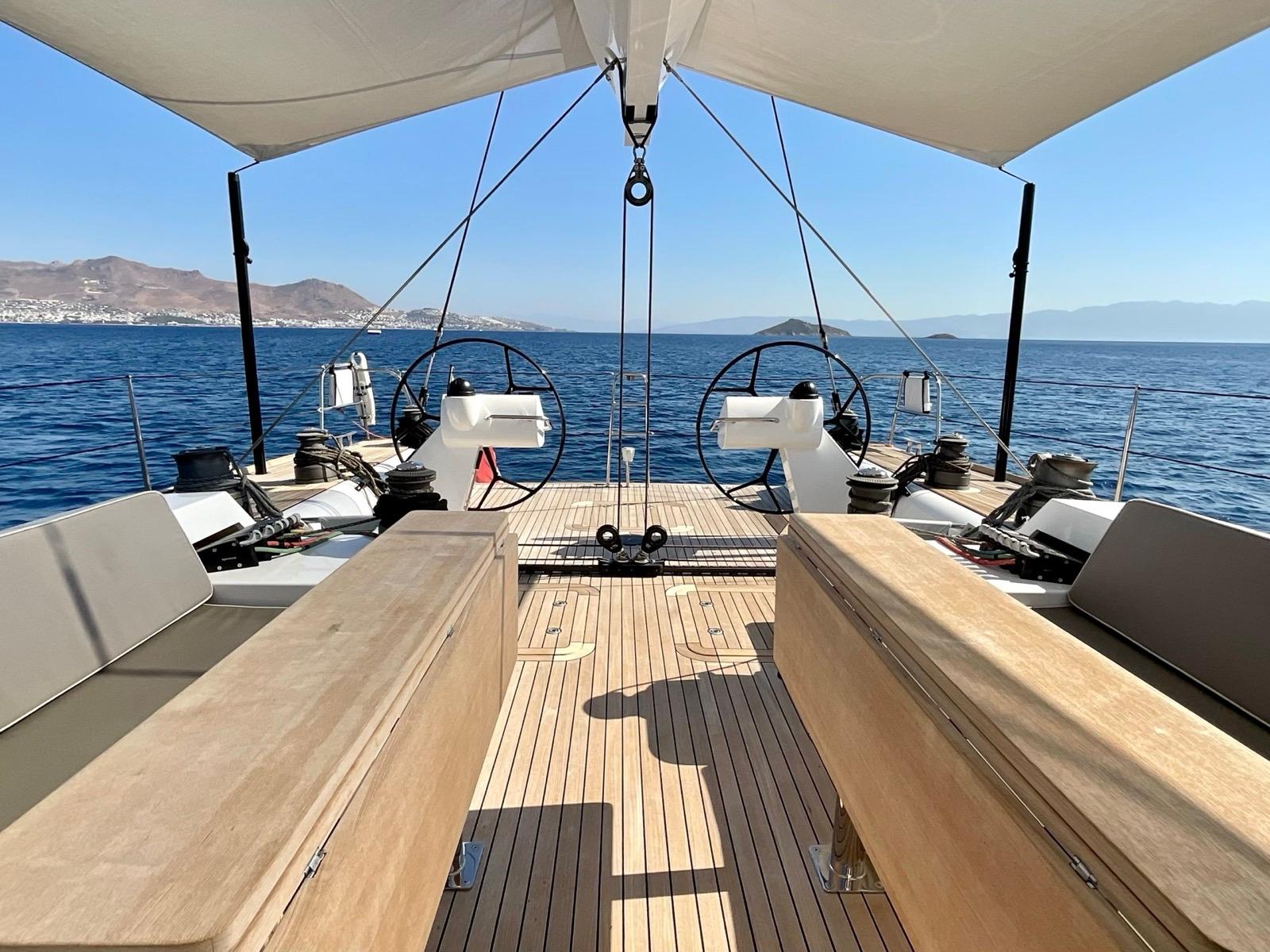

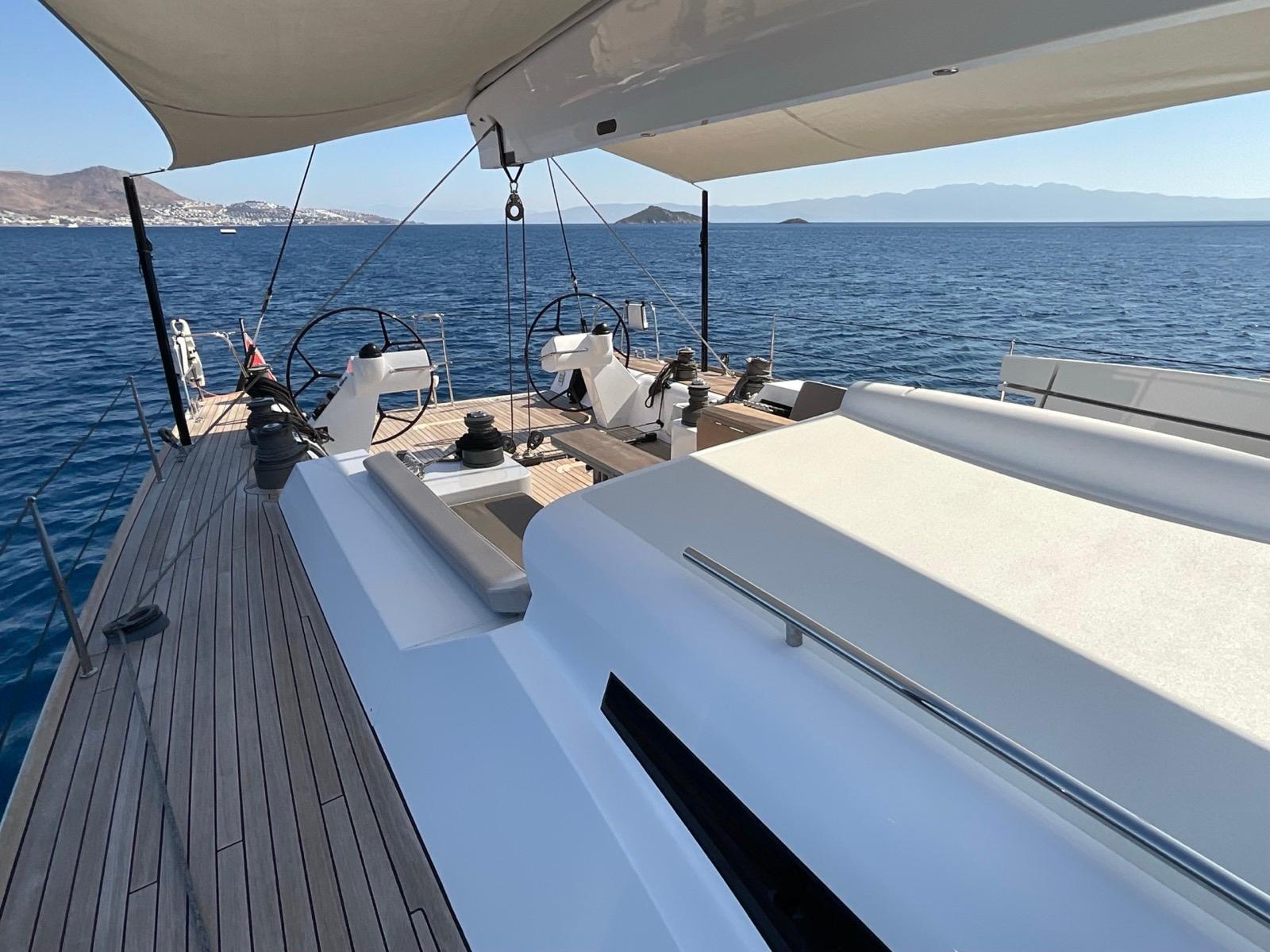

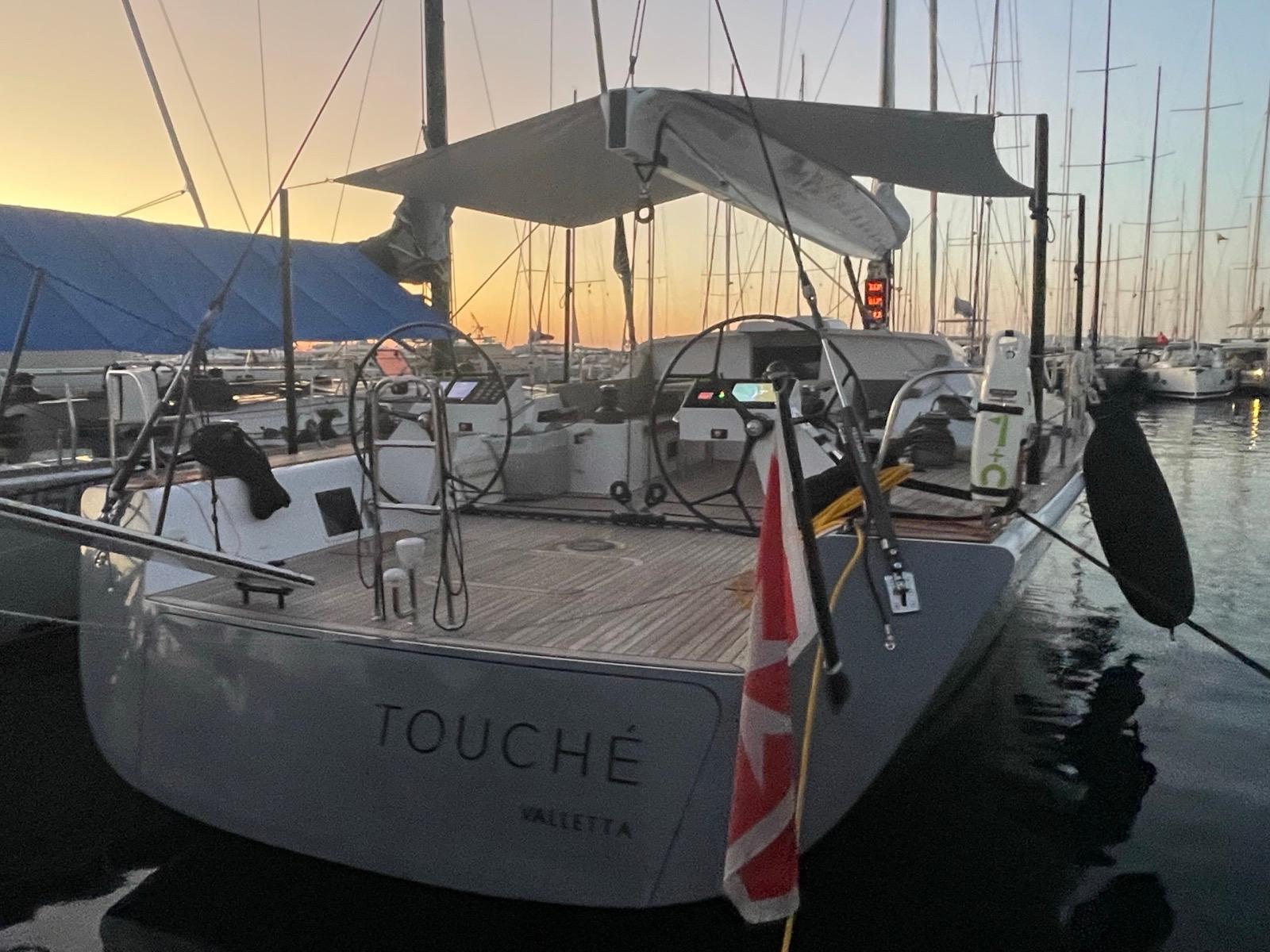

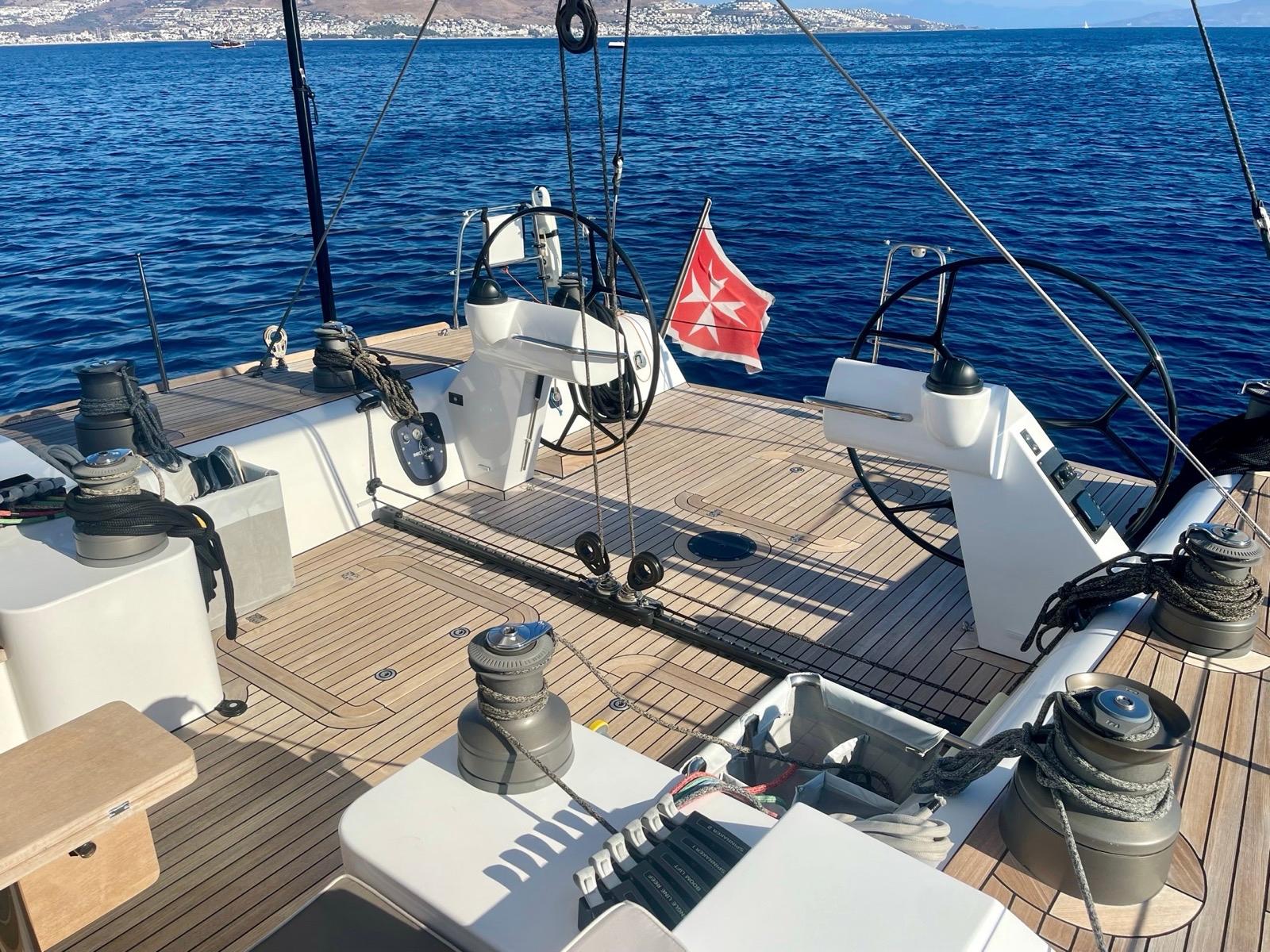

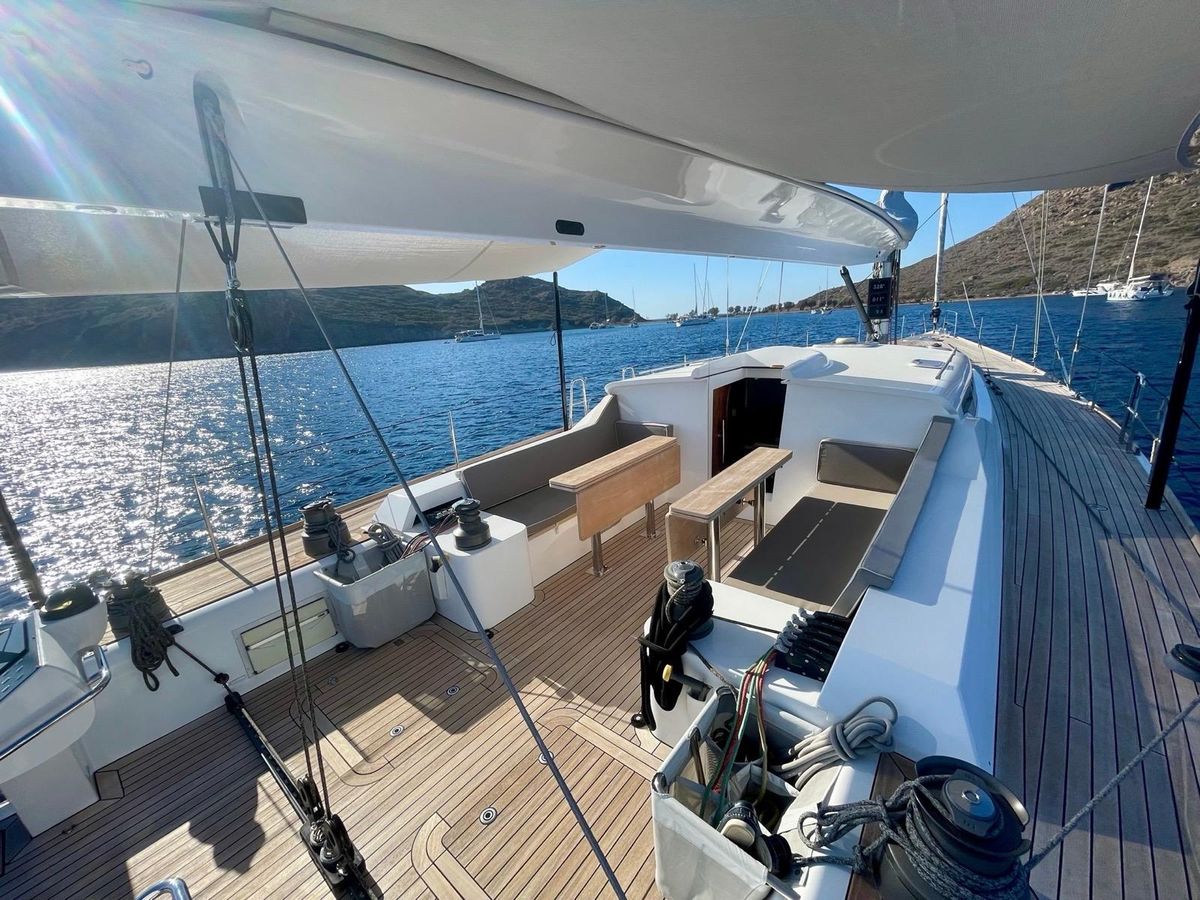

Additional InformationCockpit

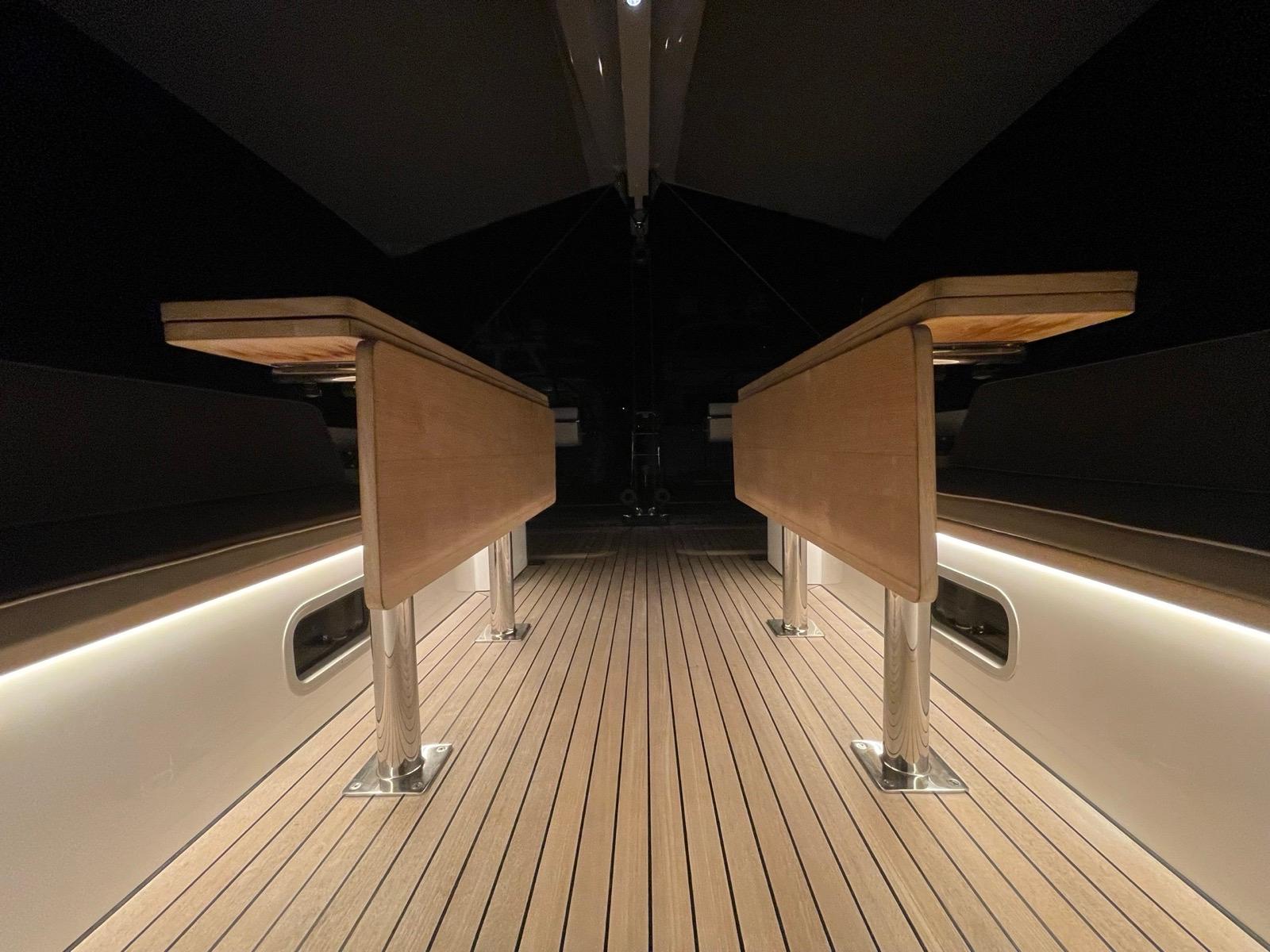

- Tow foldable full opening large cockpit tables with SS legs
- Cushions renewed
- Carbon steering wheels
- Carbon foldable passerella Carbon Nautica 3,2m
- Lewmar Winches

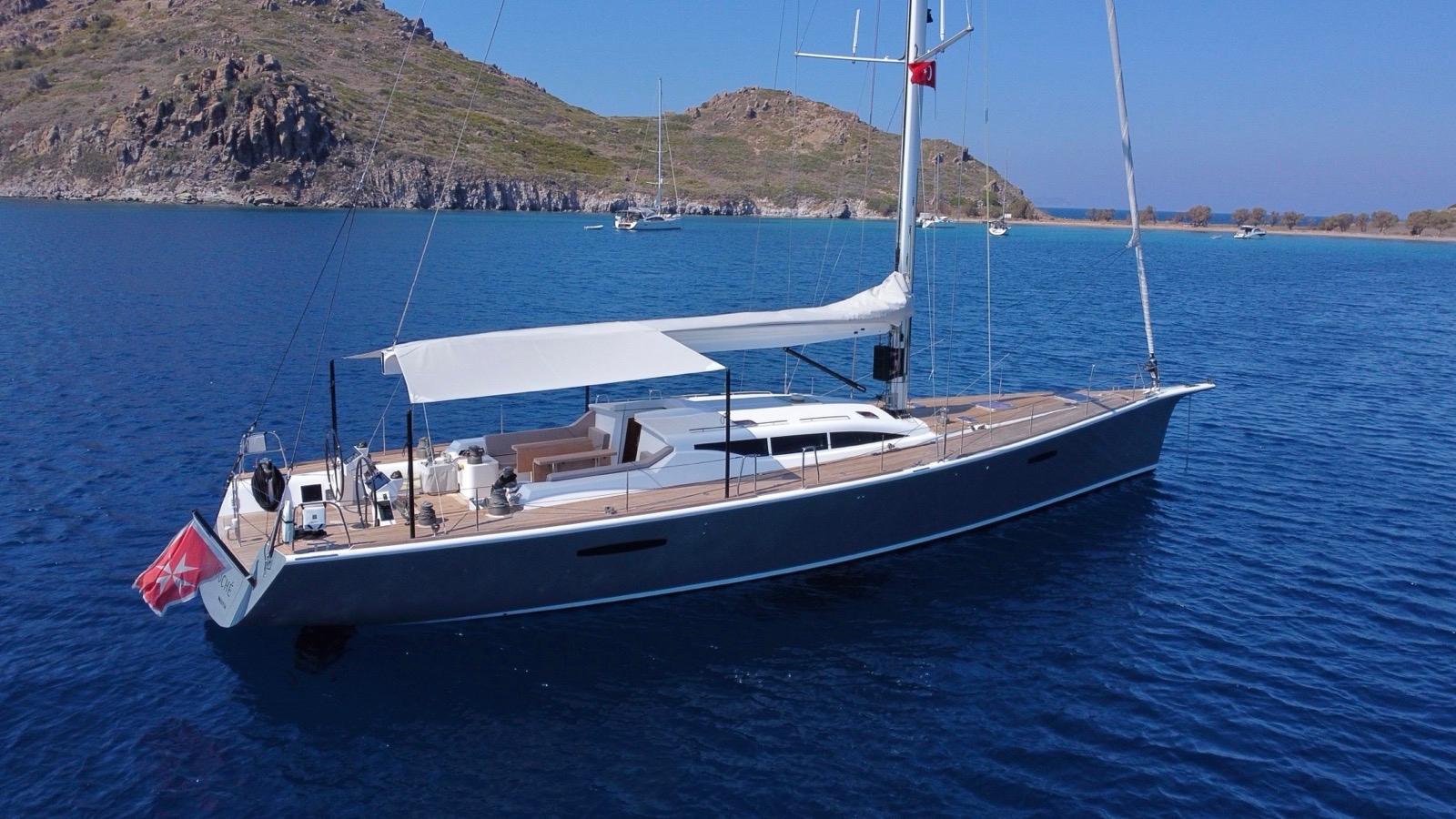

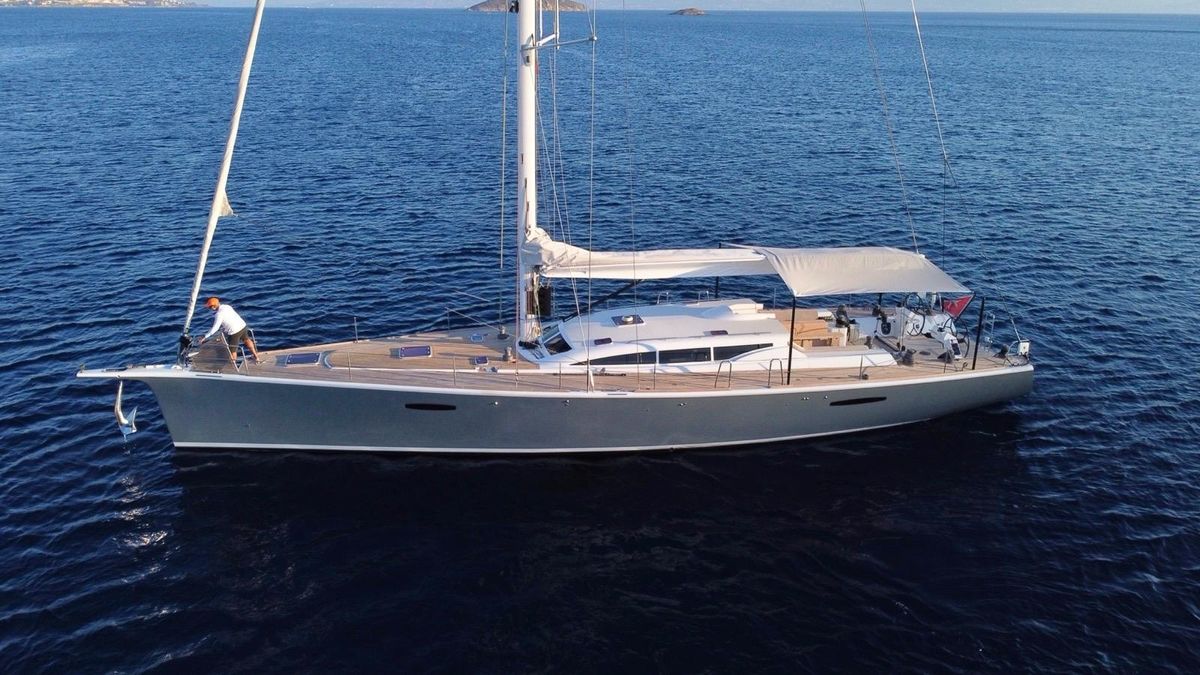

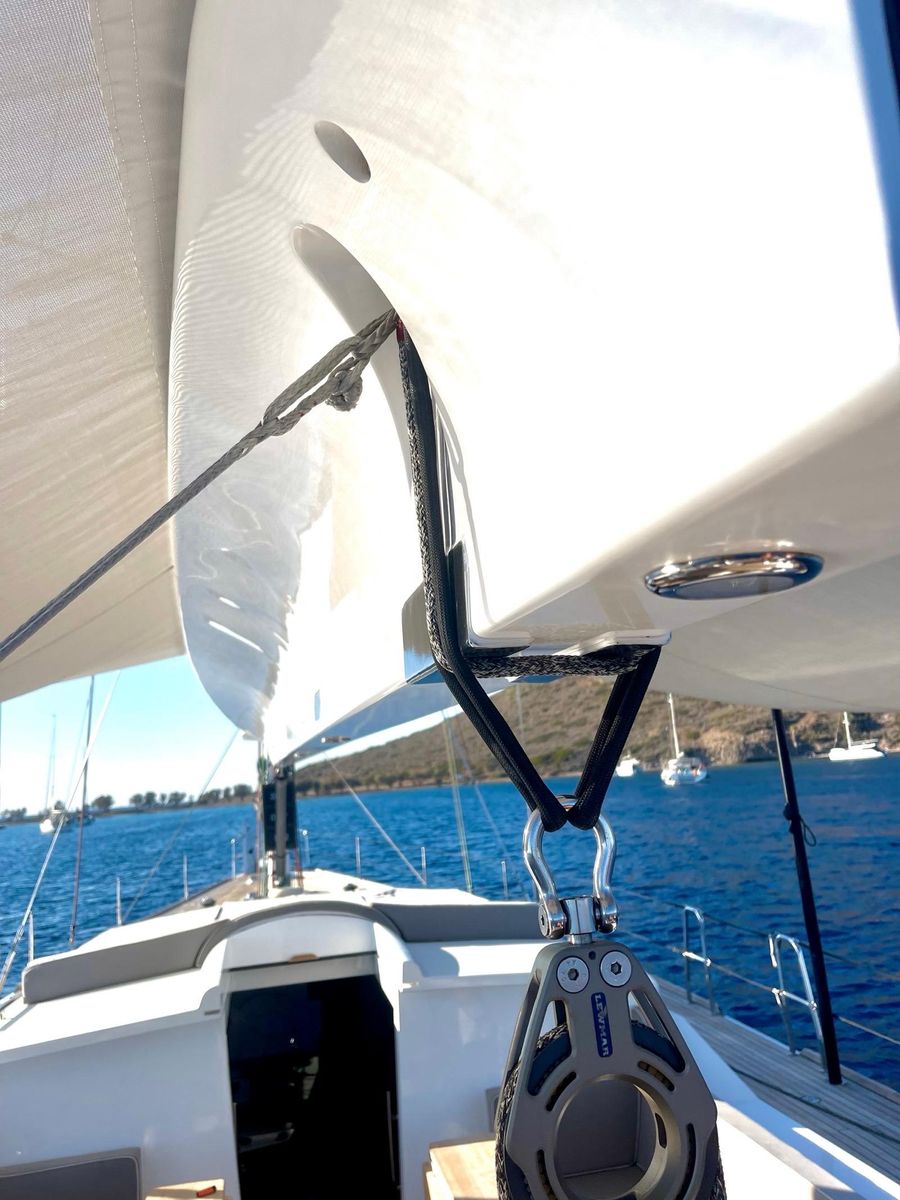

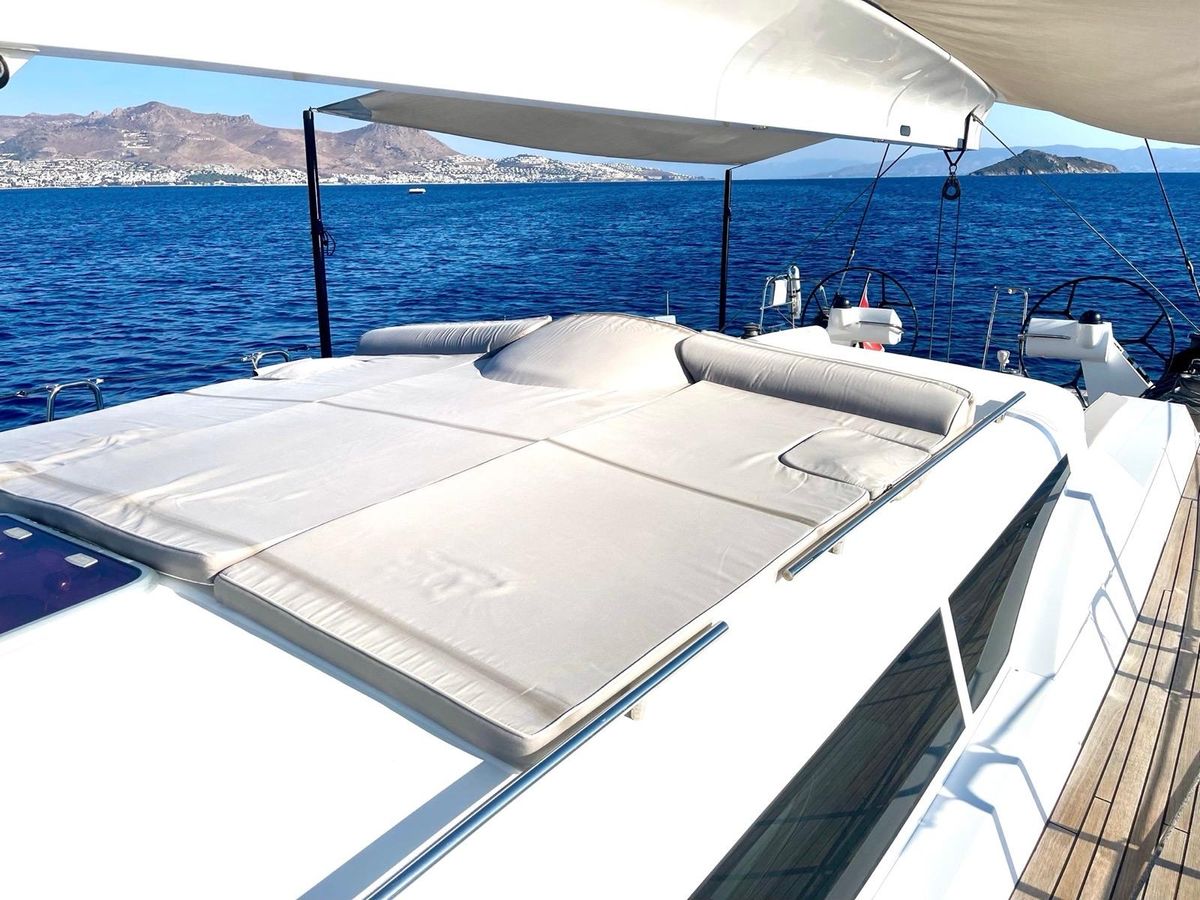

- Sun awening with six carbon poles on cockpit and deck (60 sqm)
- Isotherm small fridge
- Custom Carbon flag mast

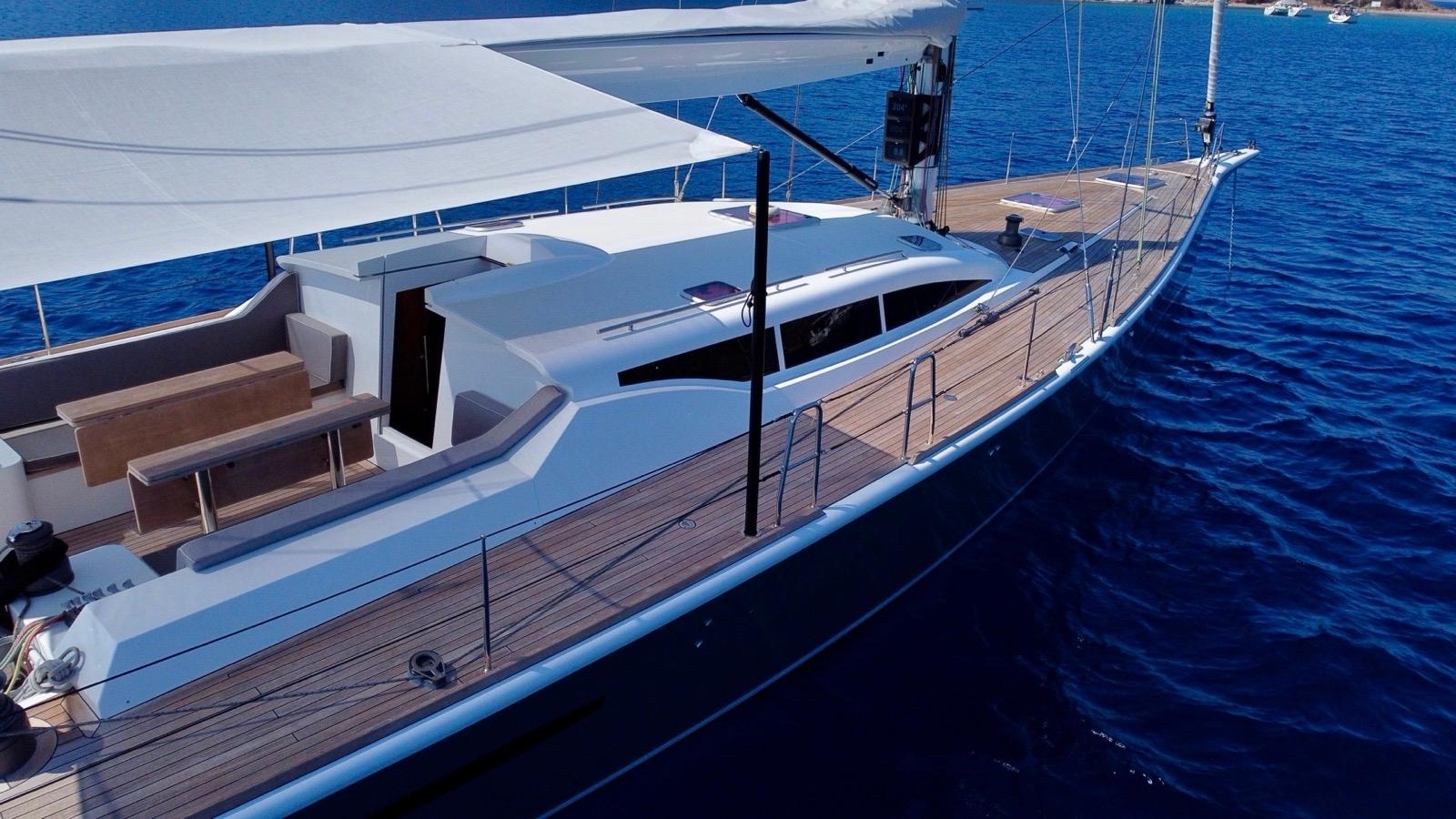

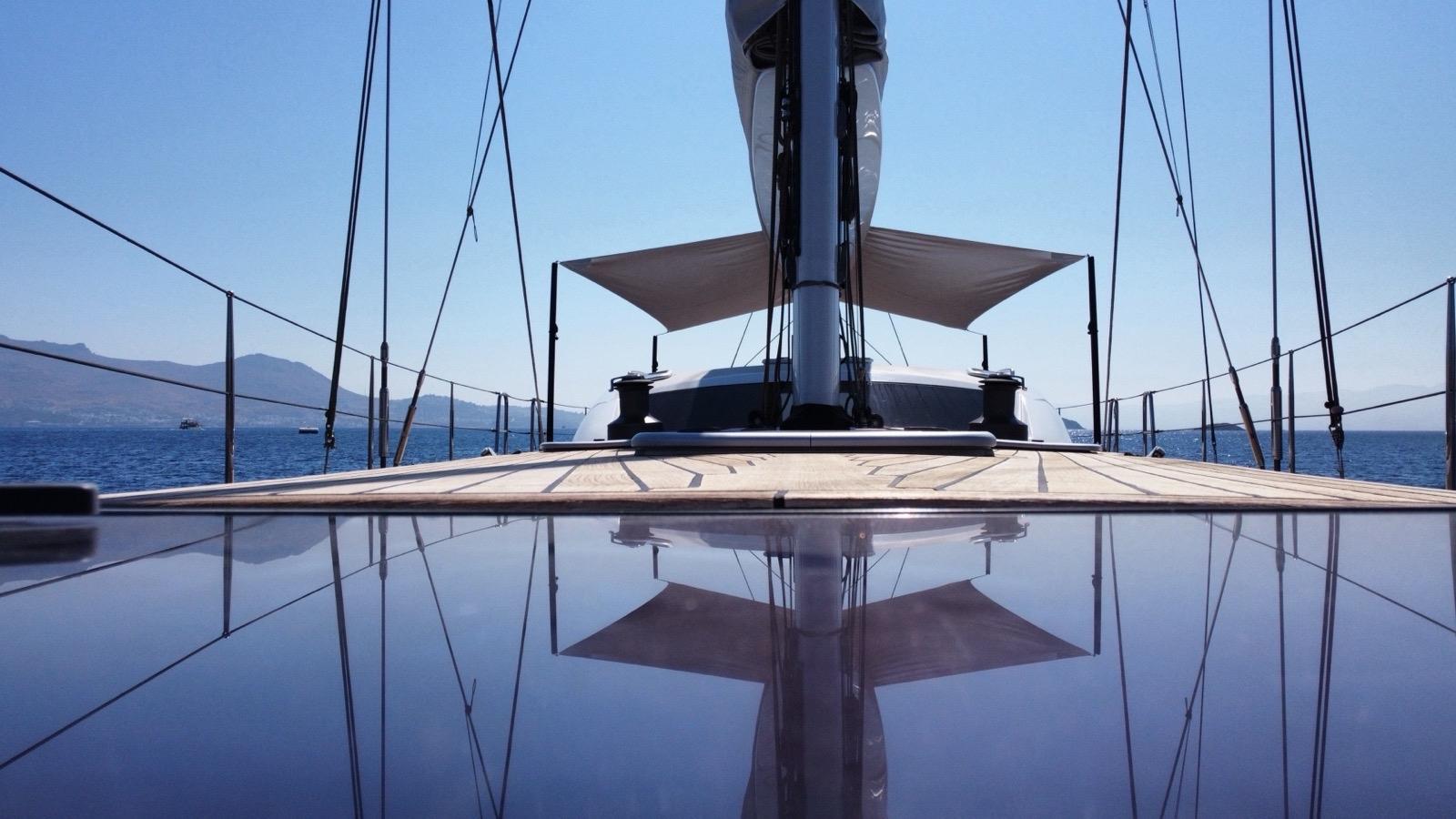

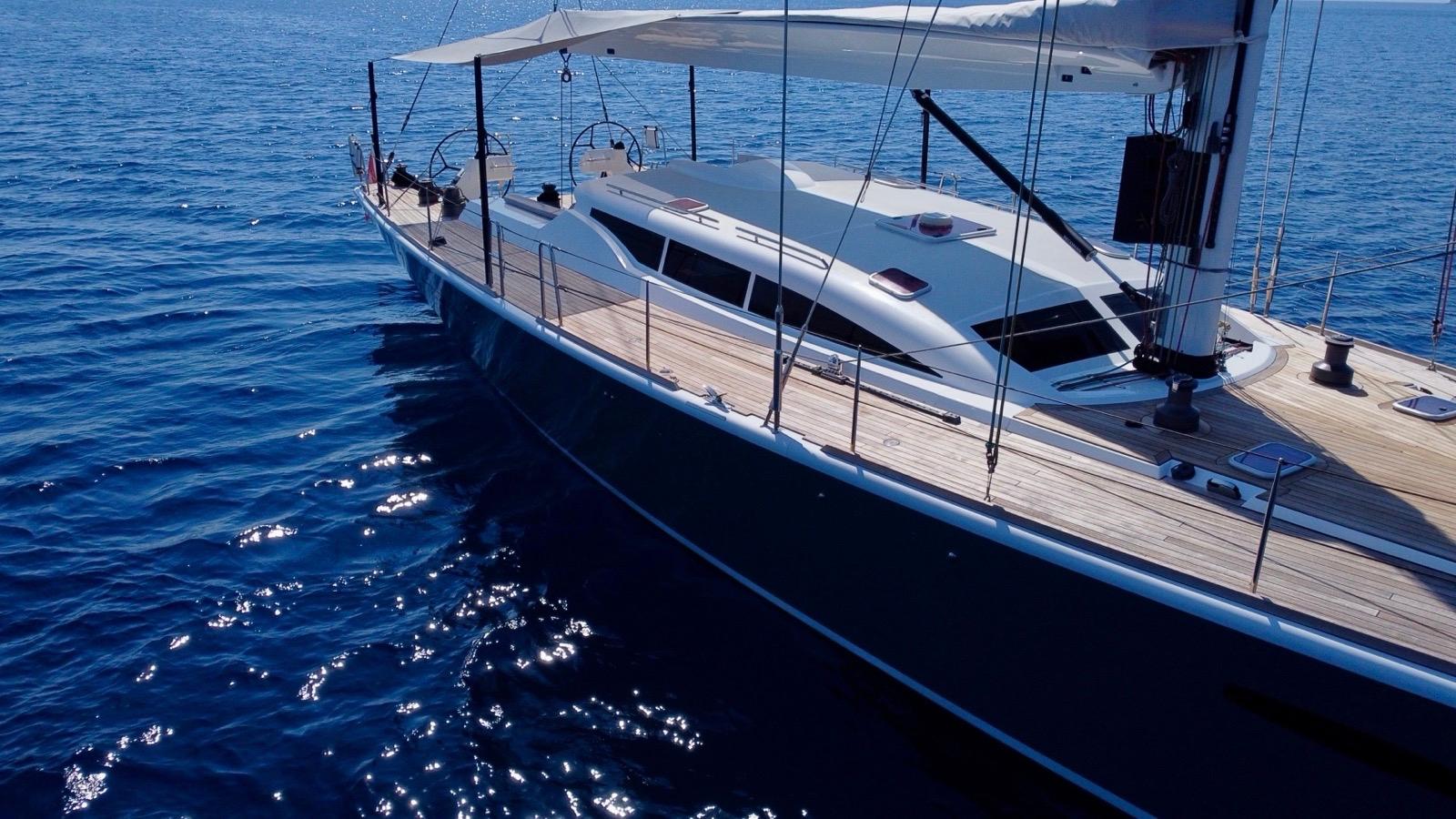

Deck Fittings & Deck equipements

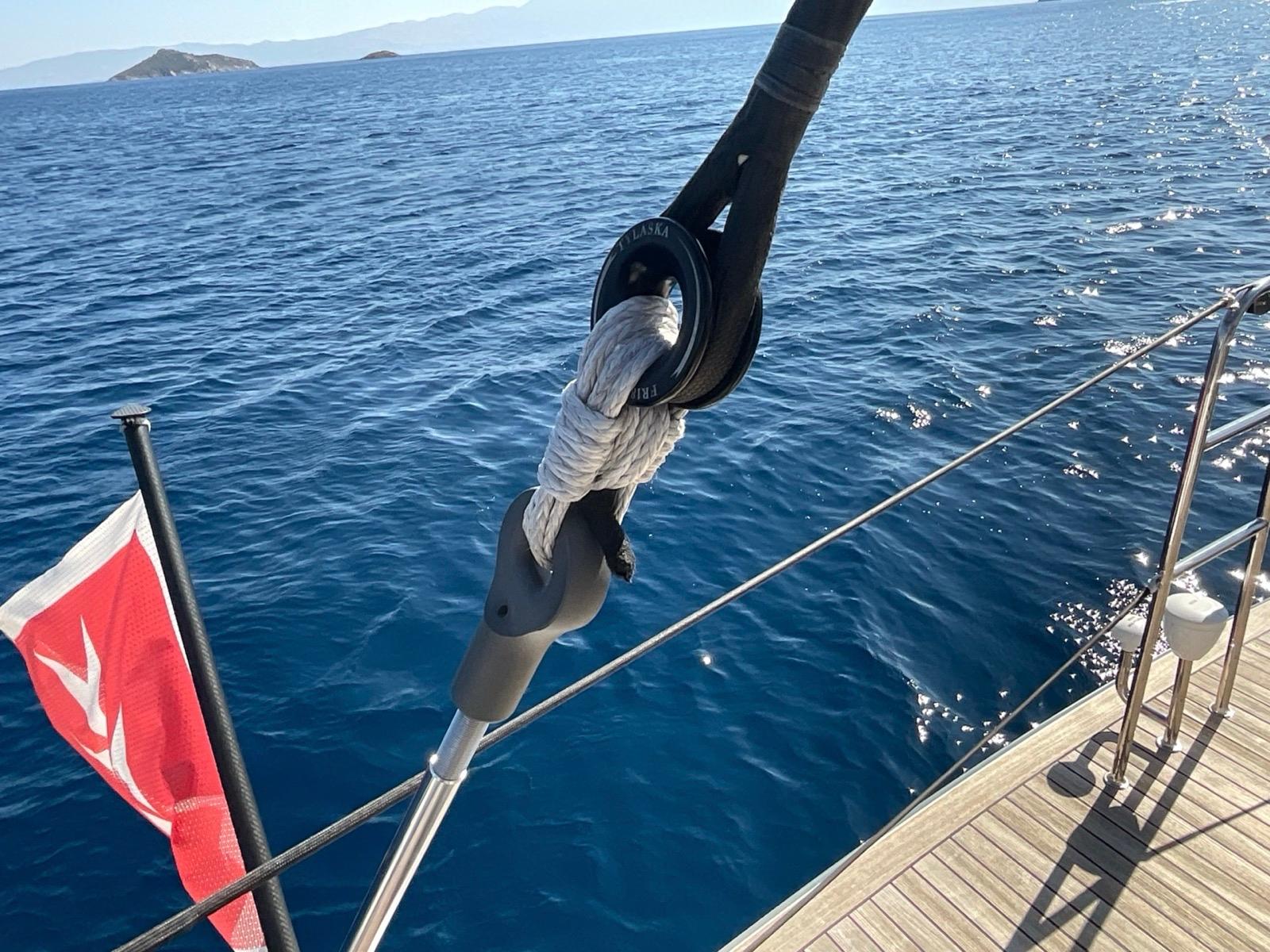

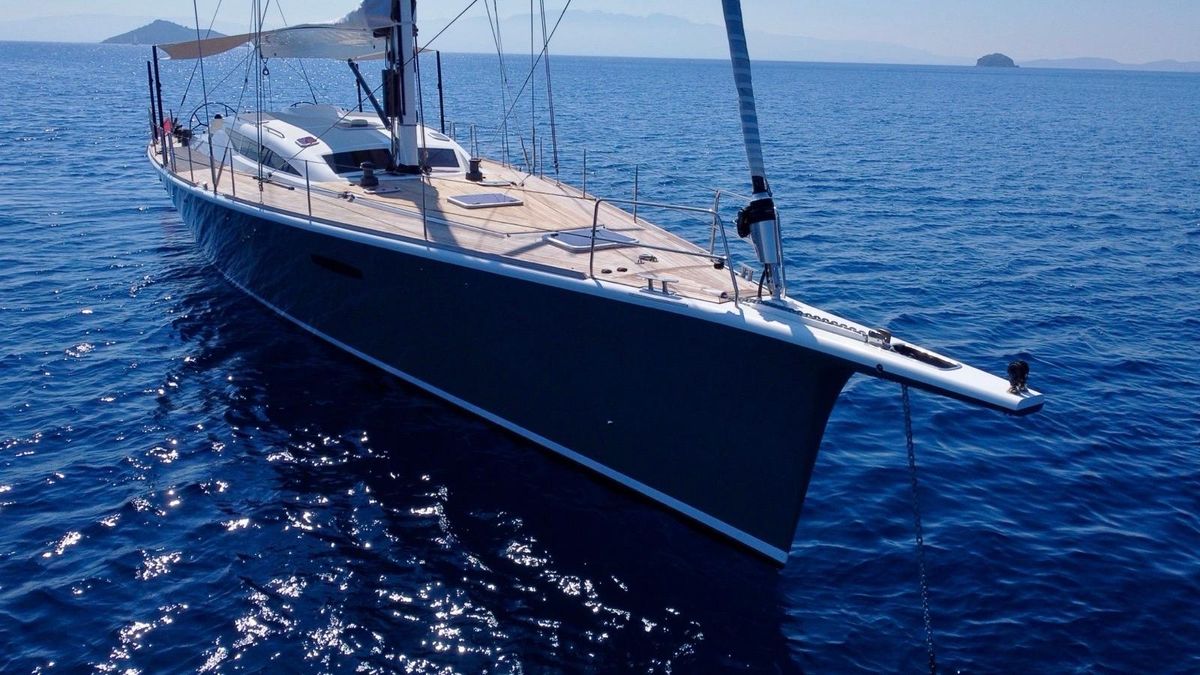

- Carbon bowsprit without bobstay for practicality in anchoring.

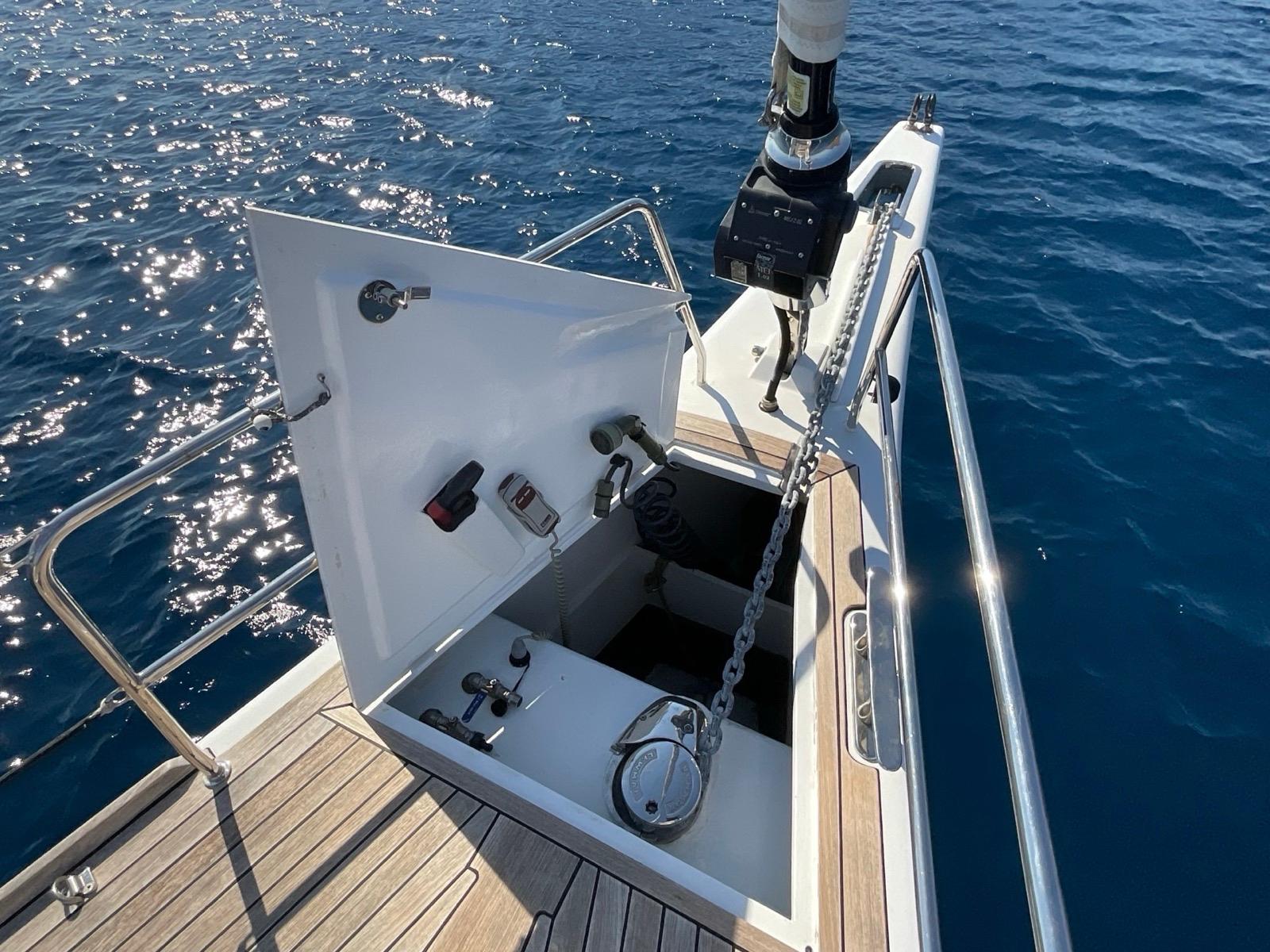

- A Lewmar V5 electric anchor windlass is recessed in achor well. Ultra 45 Kg anchor, 150 meter
- Lewmar and spinlock deck hardware
- SS mooring cleats, 2 in front, 2 in middle, 2 in aft
- Aquasignal navigation lights
- Solimar Low flush composite hatches and Lewmar low profile hatches
- Chainplates in carbon composite
- Sliding companionway hatch with water drainage

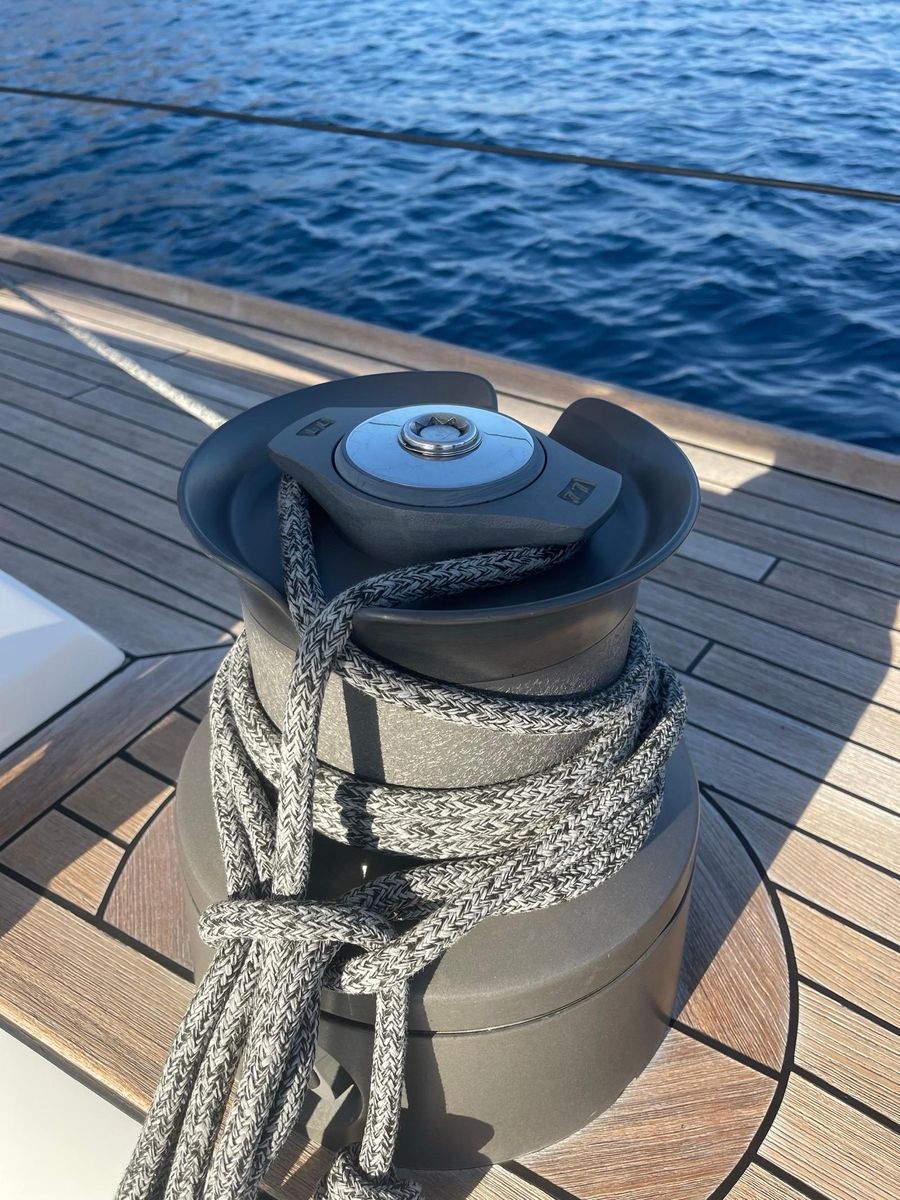

- Self Tailing electrical Lewmar winches
- Dynema Guardrails (Custom made)
- Spinlock Clutches

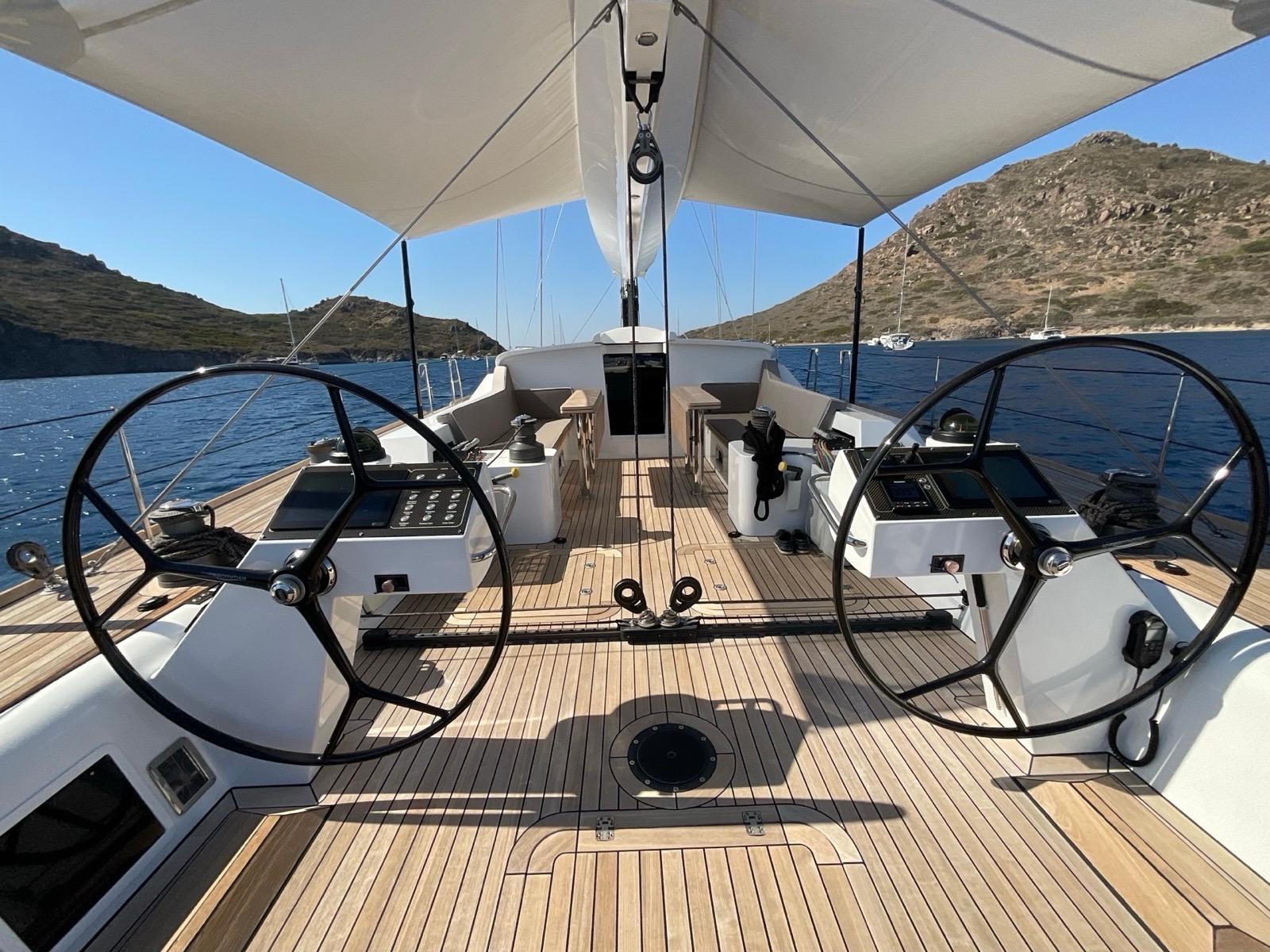

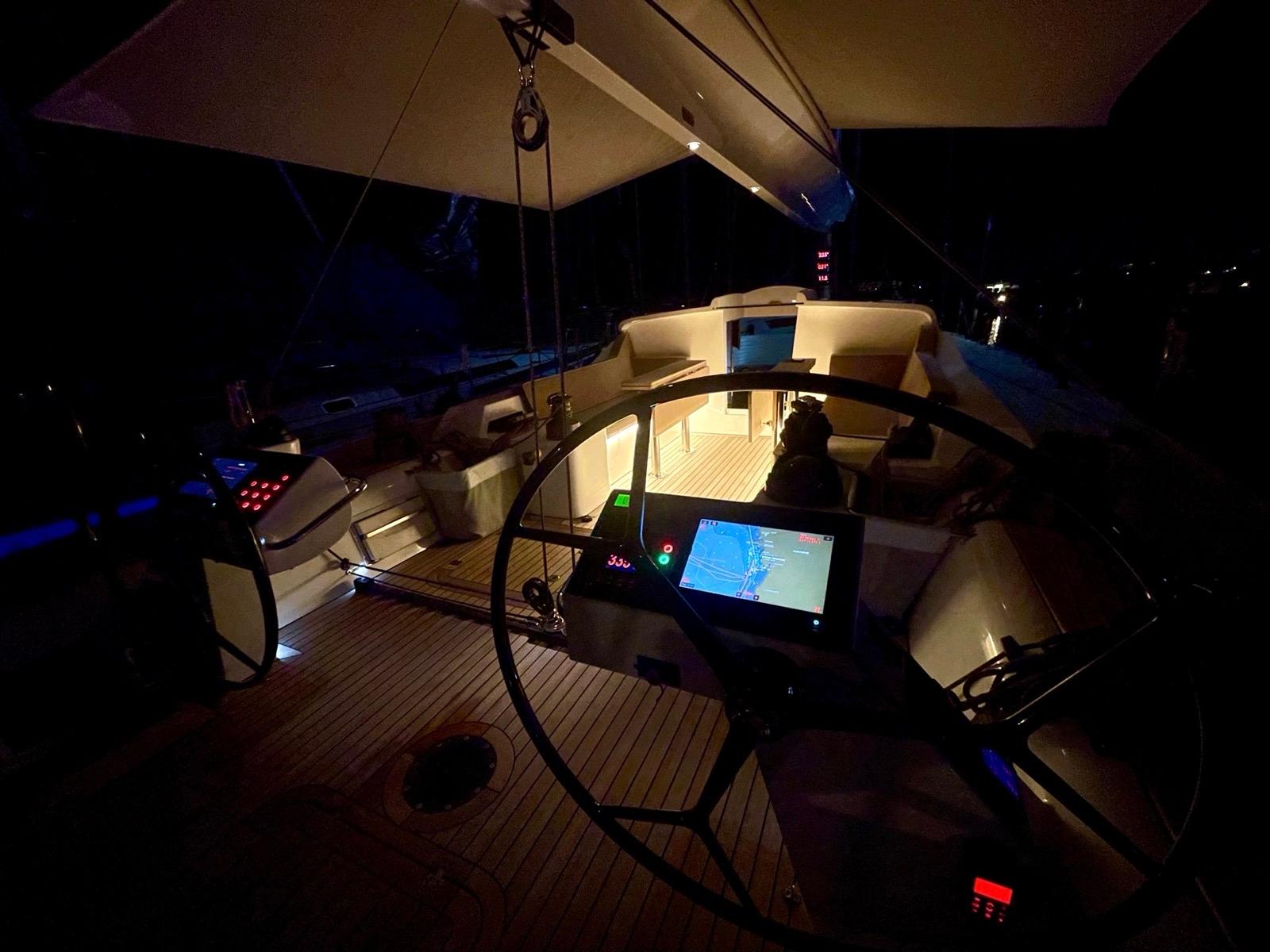

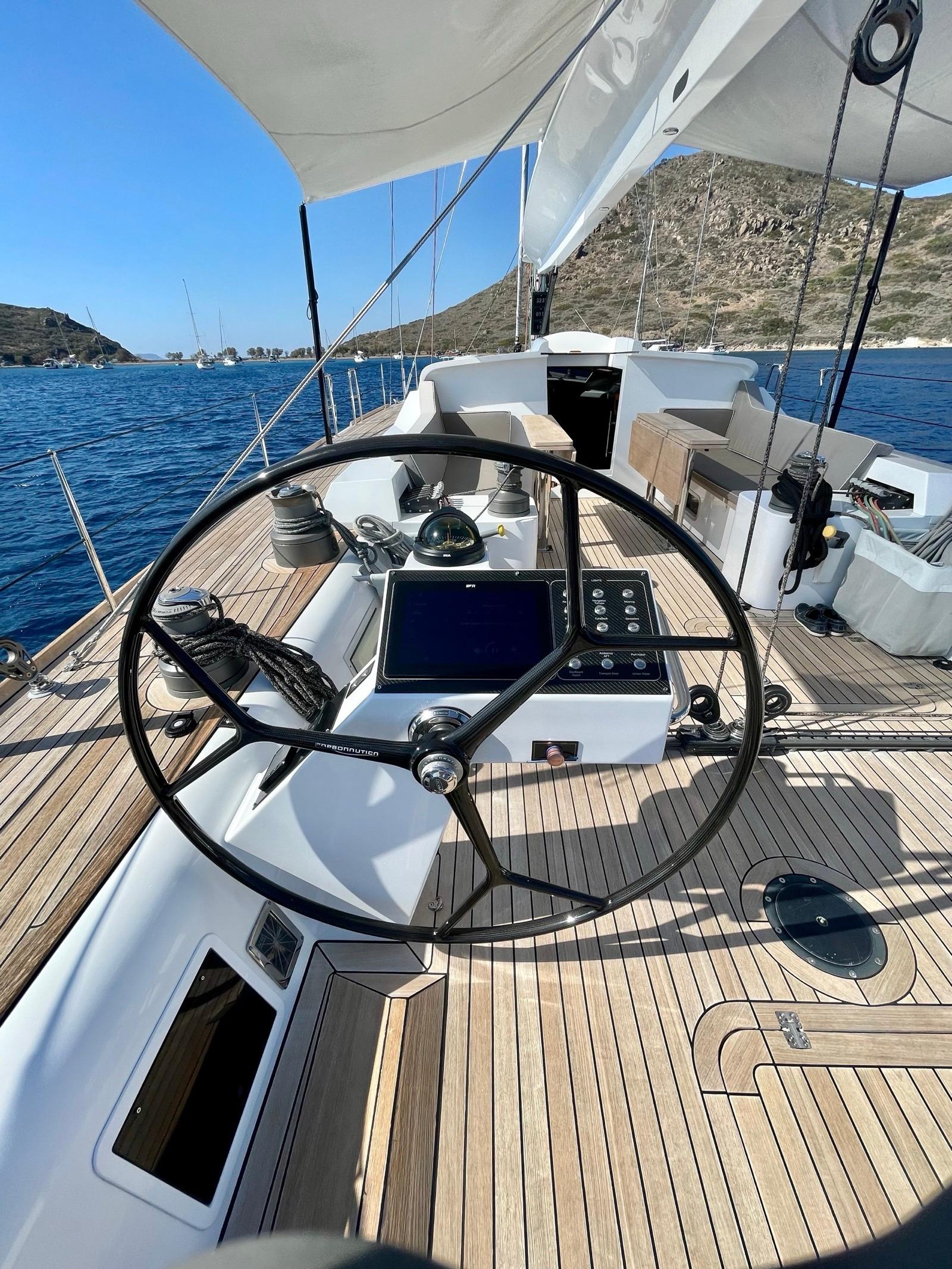

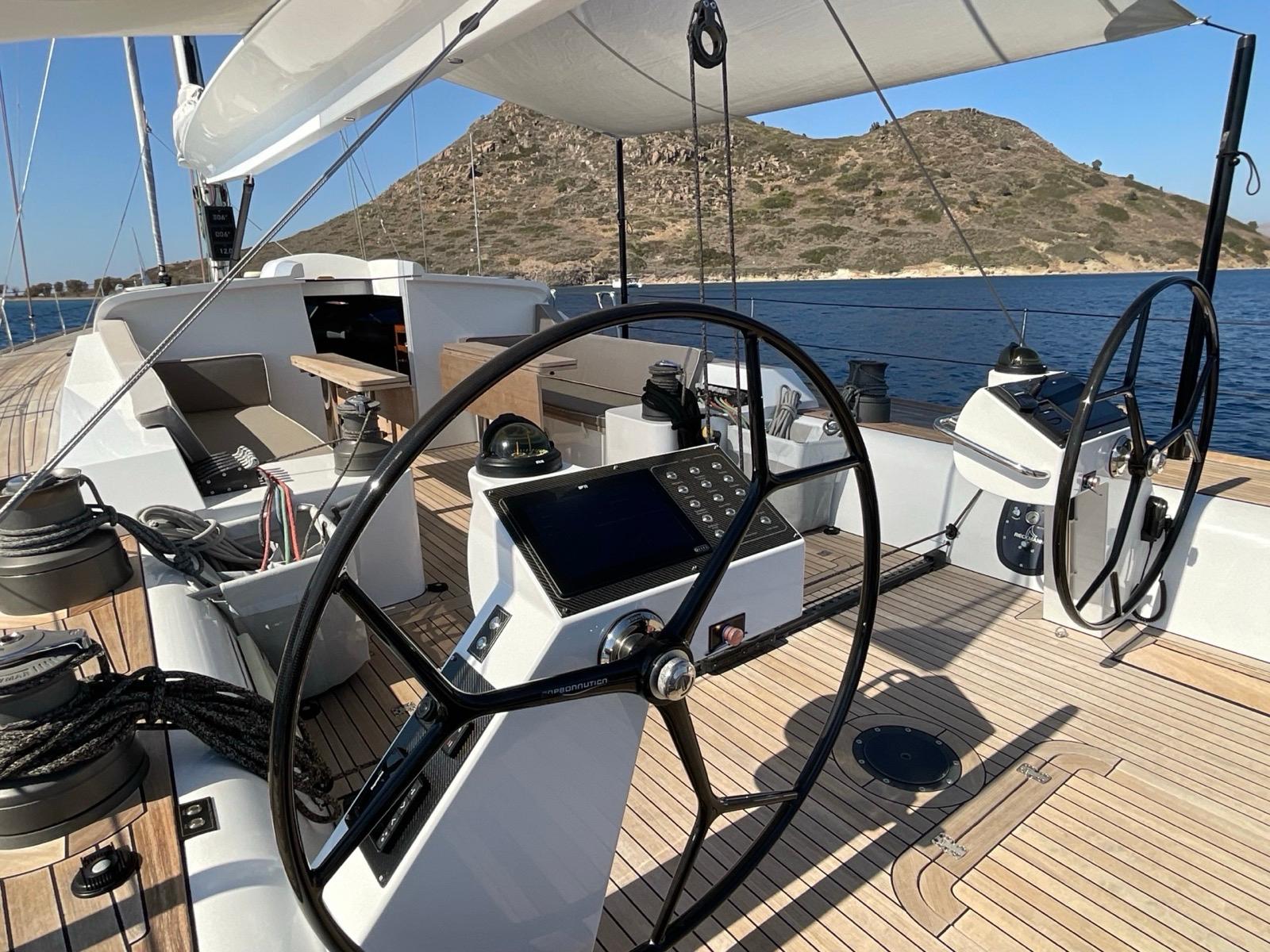

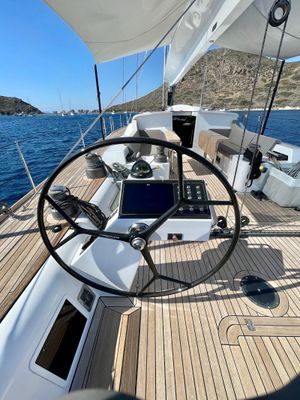

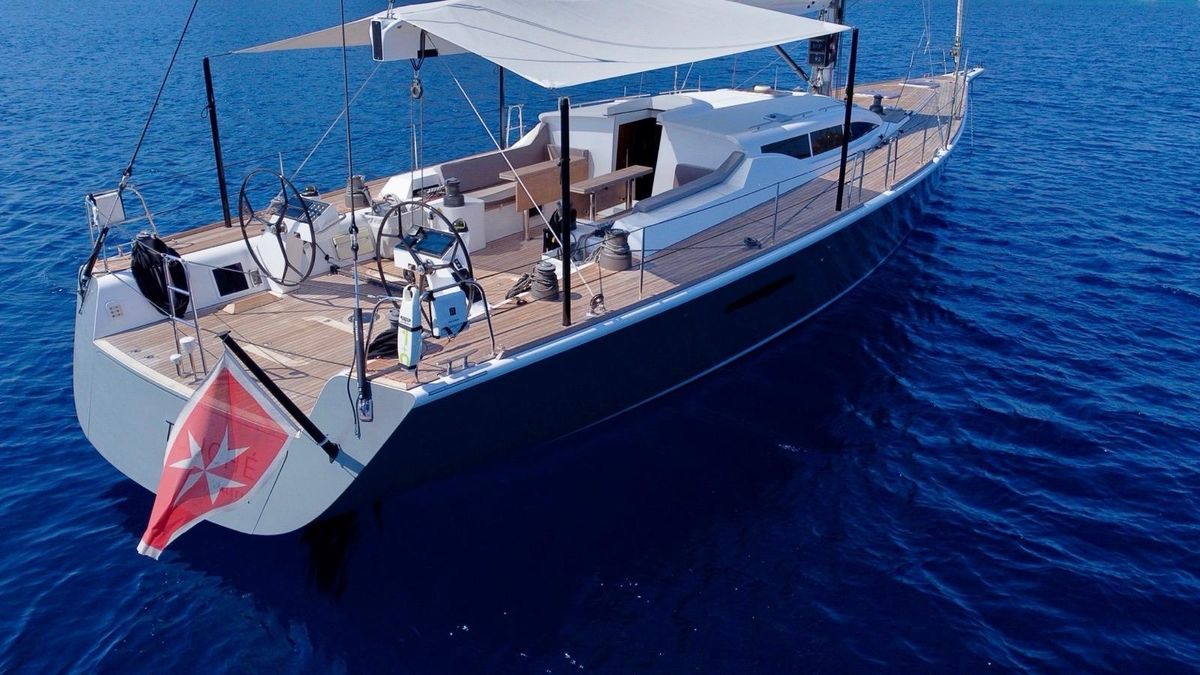

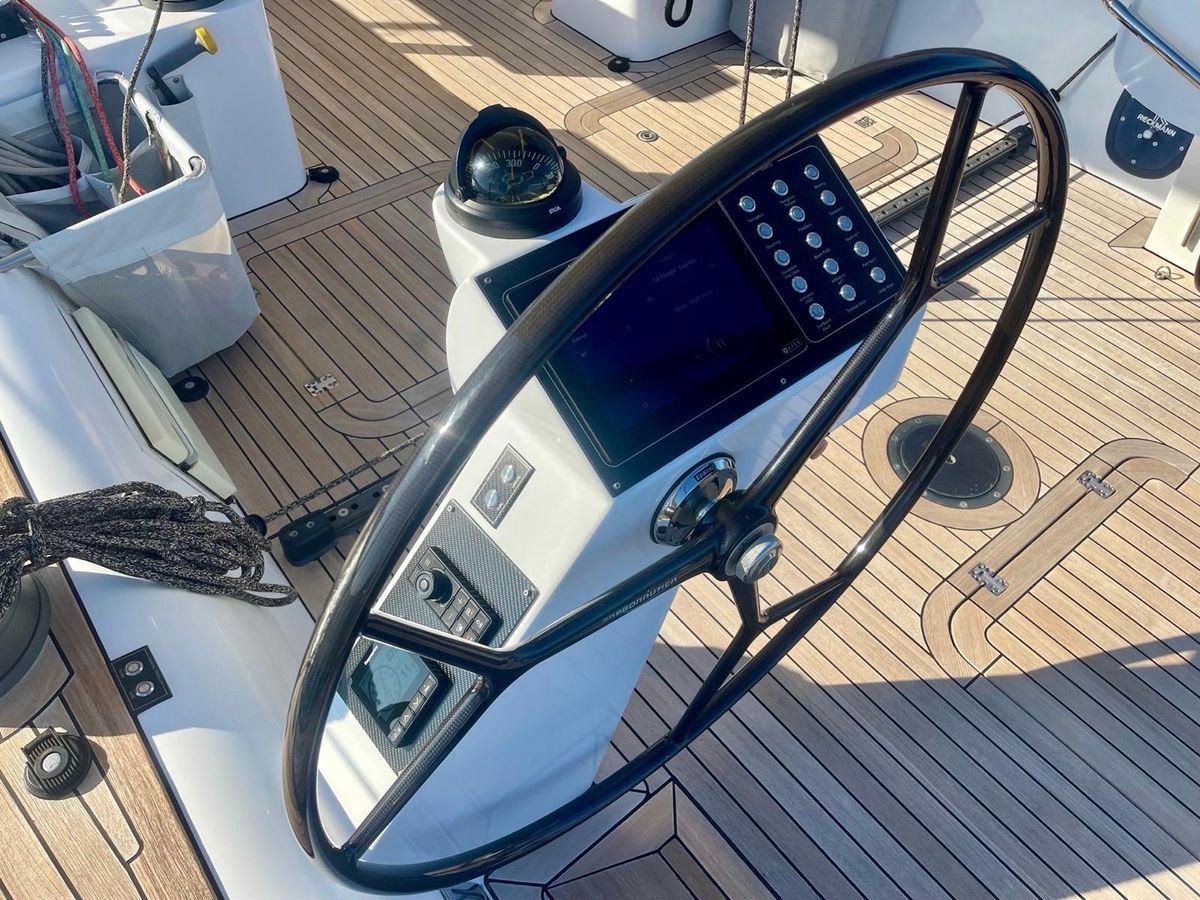

- 2 steering console pedestals with Raymarine instruments and carbon steering wheels (Carbon nautica)
- Emergency steering
- Hydraulically operated folding stern platform, stowage for dingy

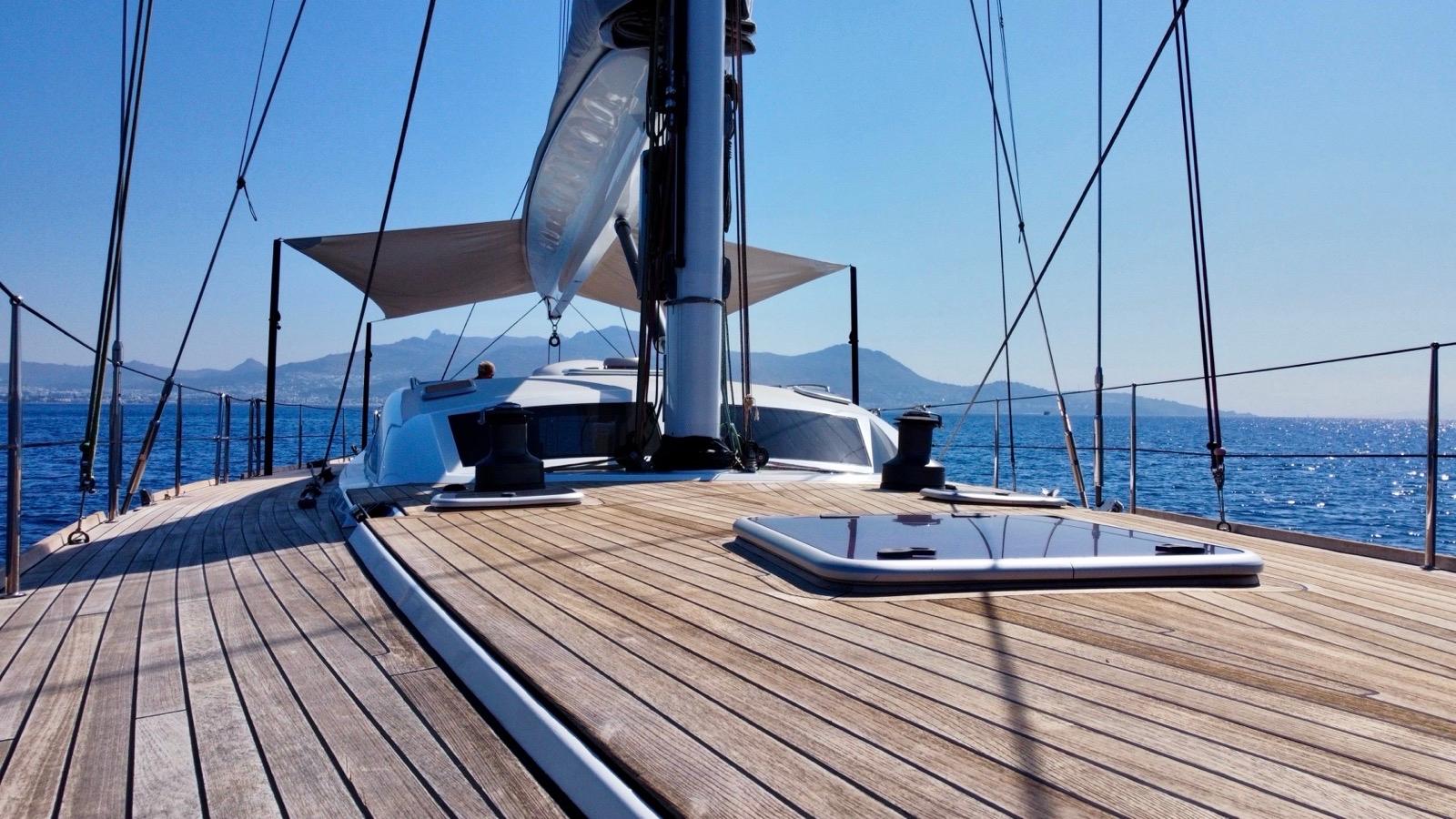

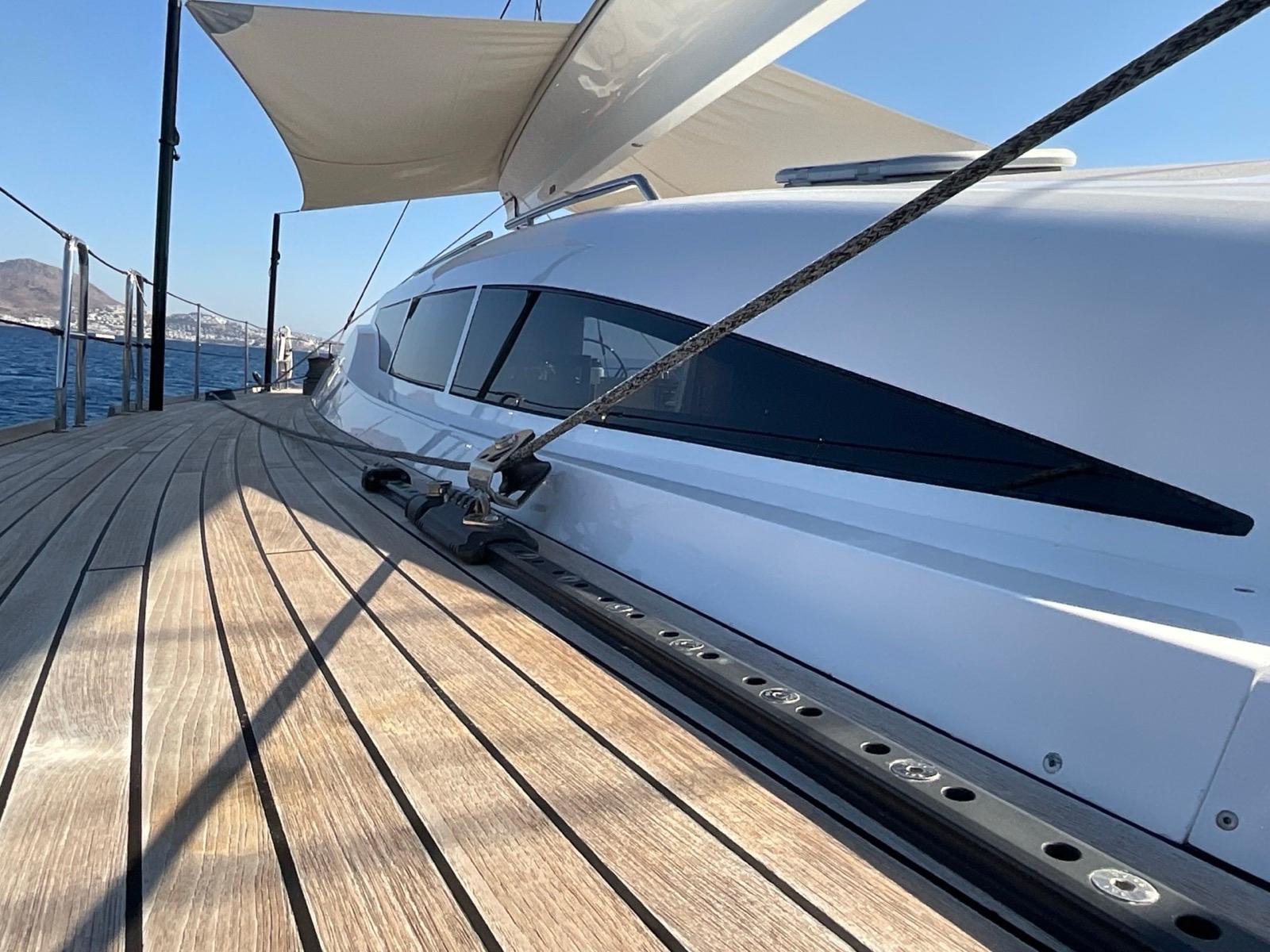

- Teak decking overall
- Teak cockpit table
- SS swim ladder with teak steps
- Hot and cold cockpit shower
- Fenders inflatable (Fendertex)
Mast and Rigging

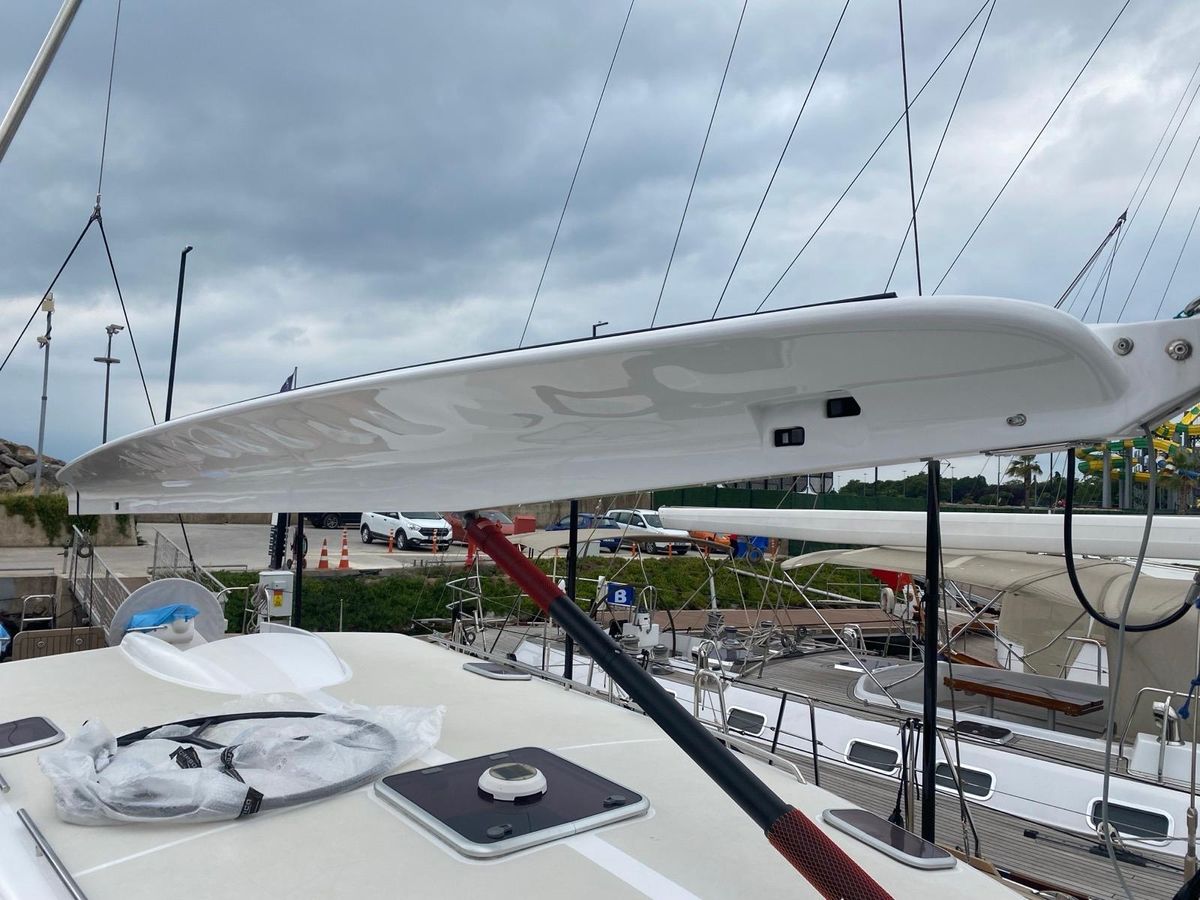

- Keel stepped Sparcraft Performance Aluminum mast with swept back spreaders
- Oracle coated mast
- Hydraulic mast step and mast jack

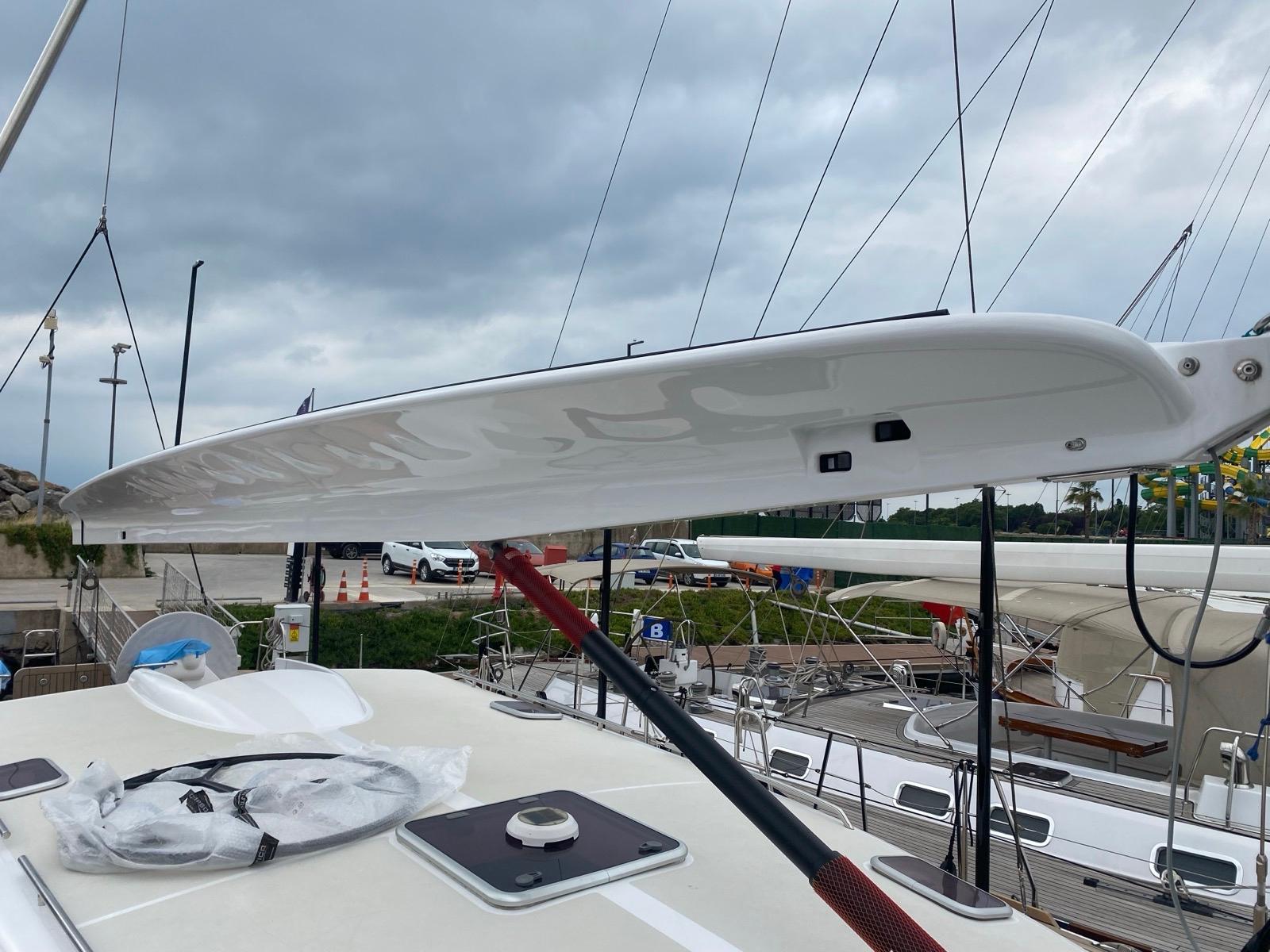

- Park Avenue Carbon Boom
- Reckmann Hydraulic Vang, Rod and Dynema Backstay, Outhaul
- Rod Standing Rigging
- Antal Electrical Furling Jib
- Deck lights and mooring light
- Main sail hydraulic traveller
AccommodationsAccomodations
- All joinery in veneered marine plywood
- Joinery and panles varnished with satin gloss varnish
- Laminated doors
- Shades or curtains for all hatches, windows and portholes
Led lightning through-out - Completely renewed in 2021

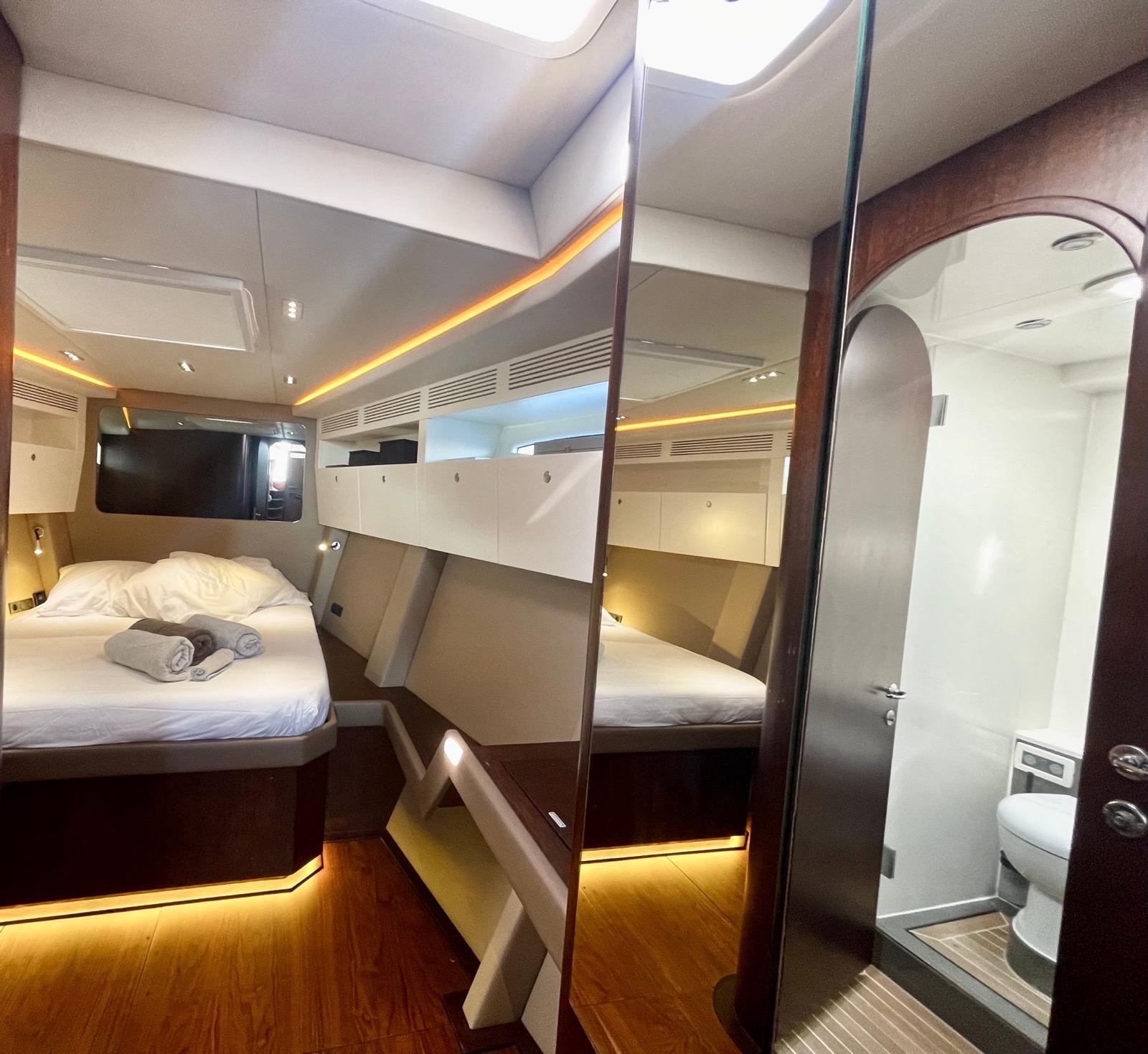

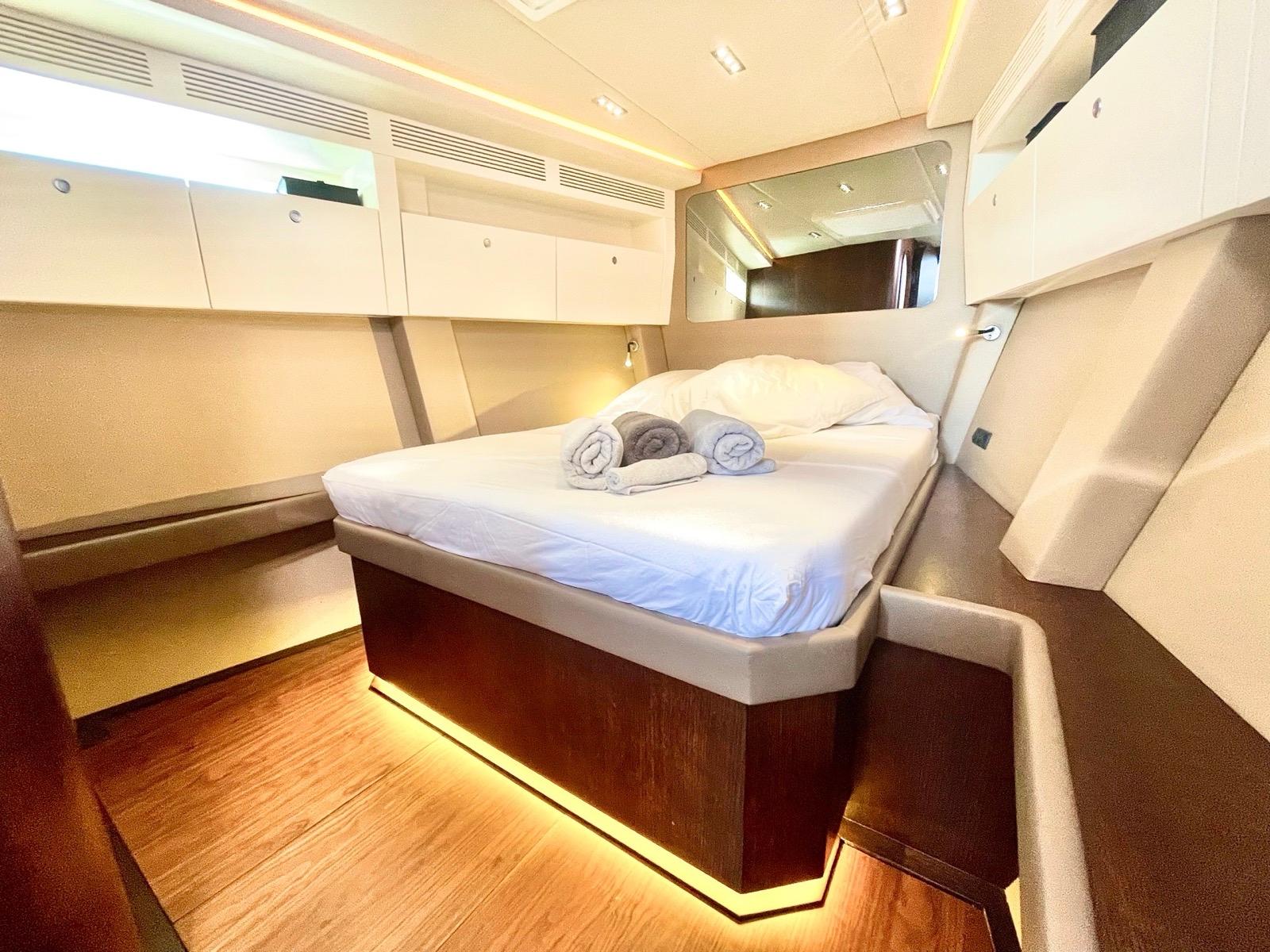

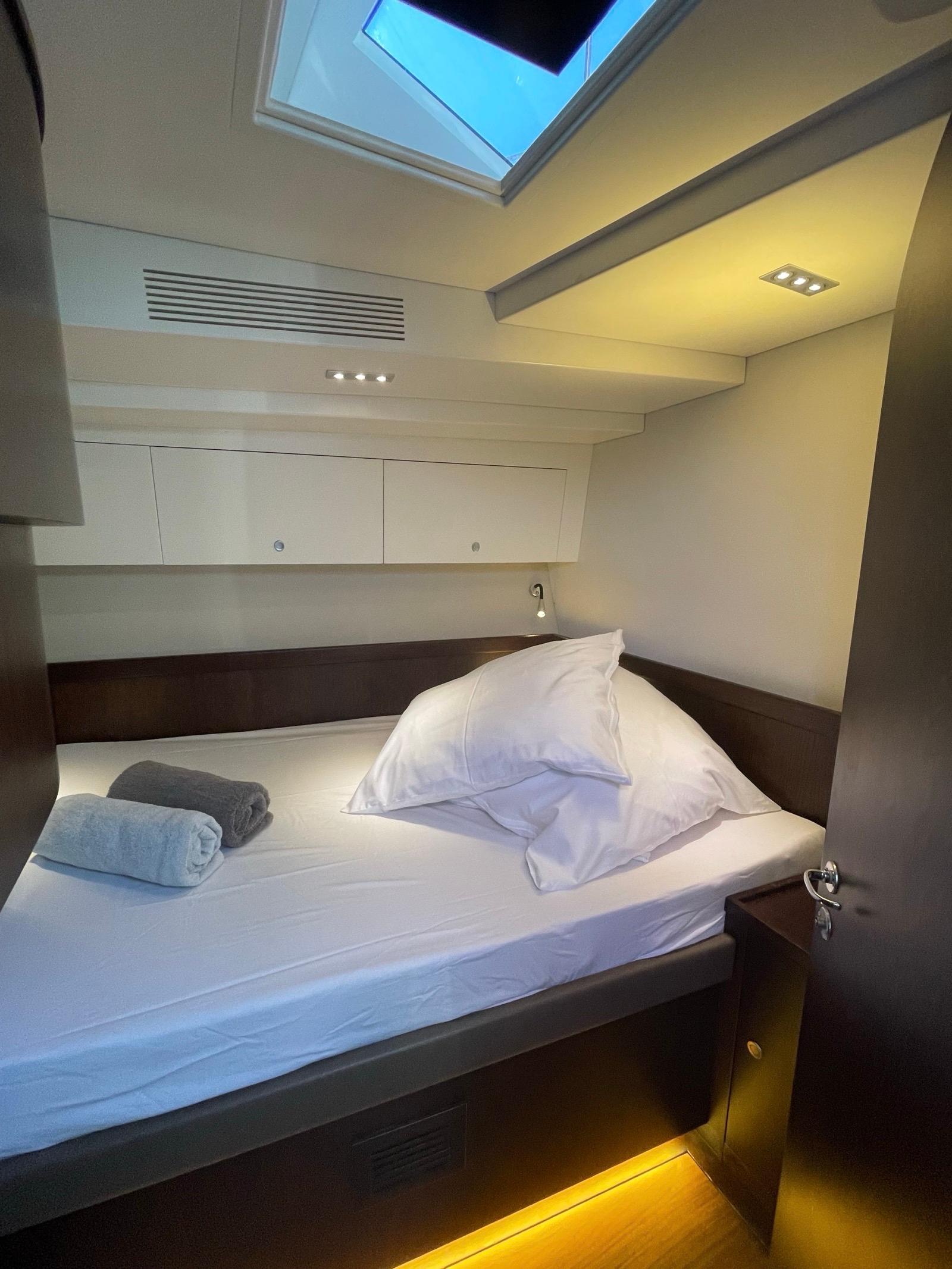

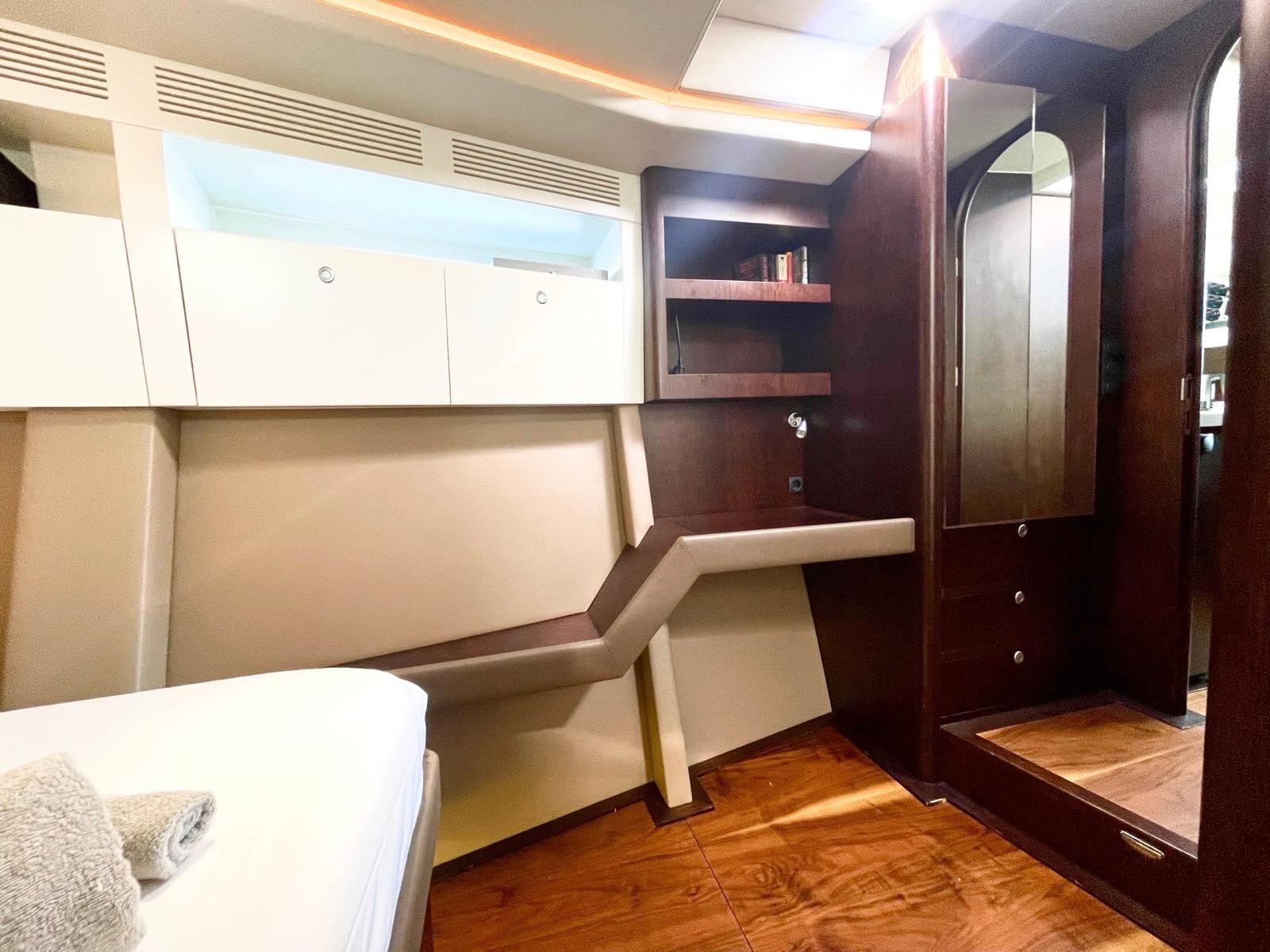

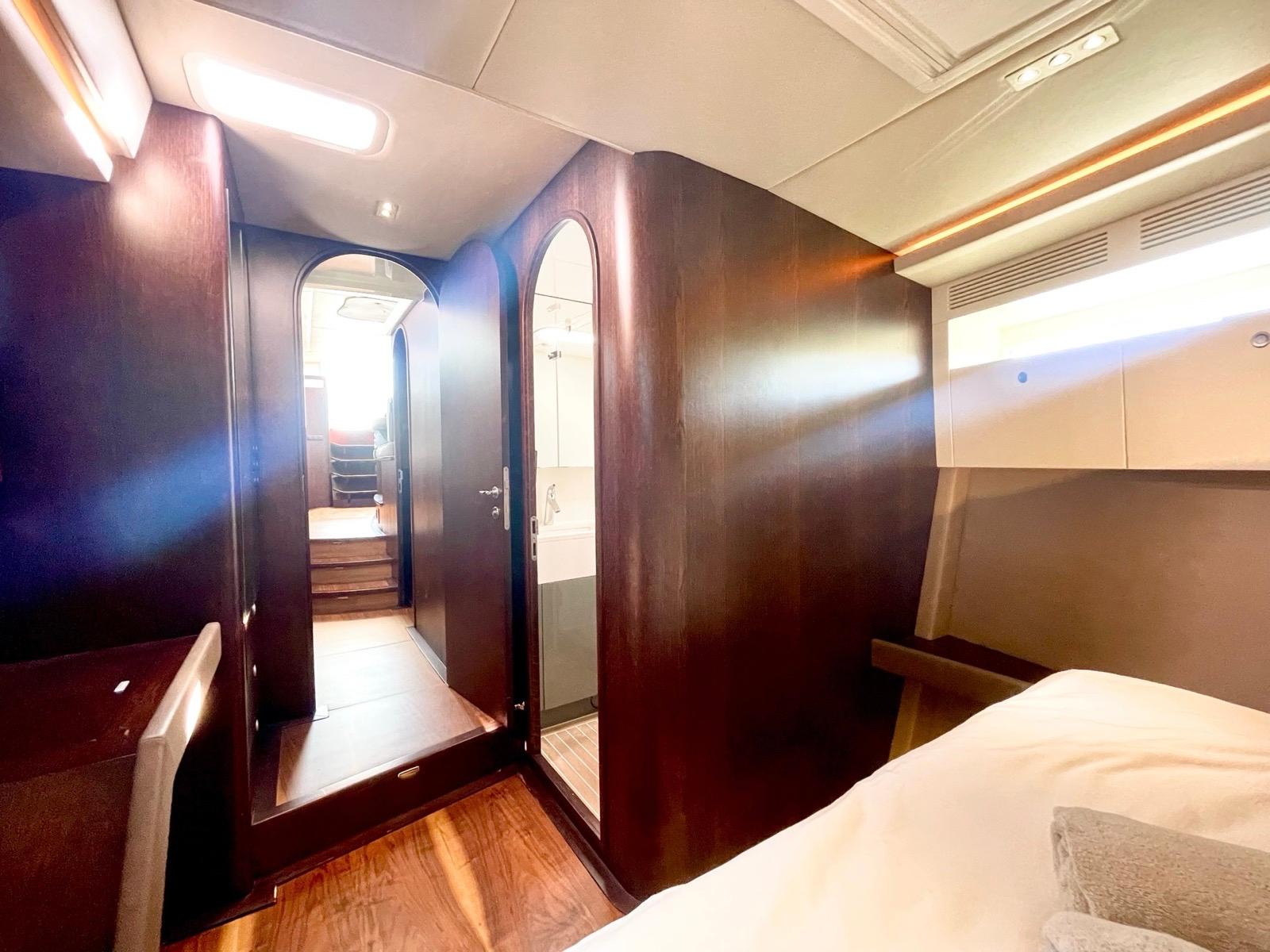

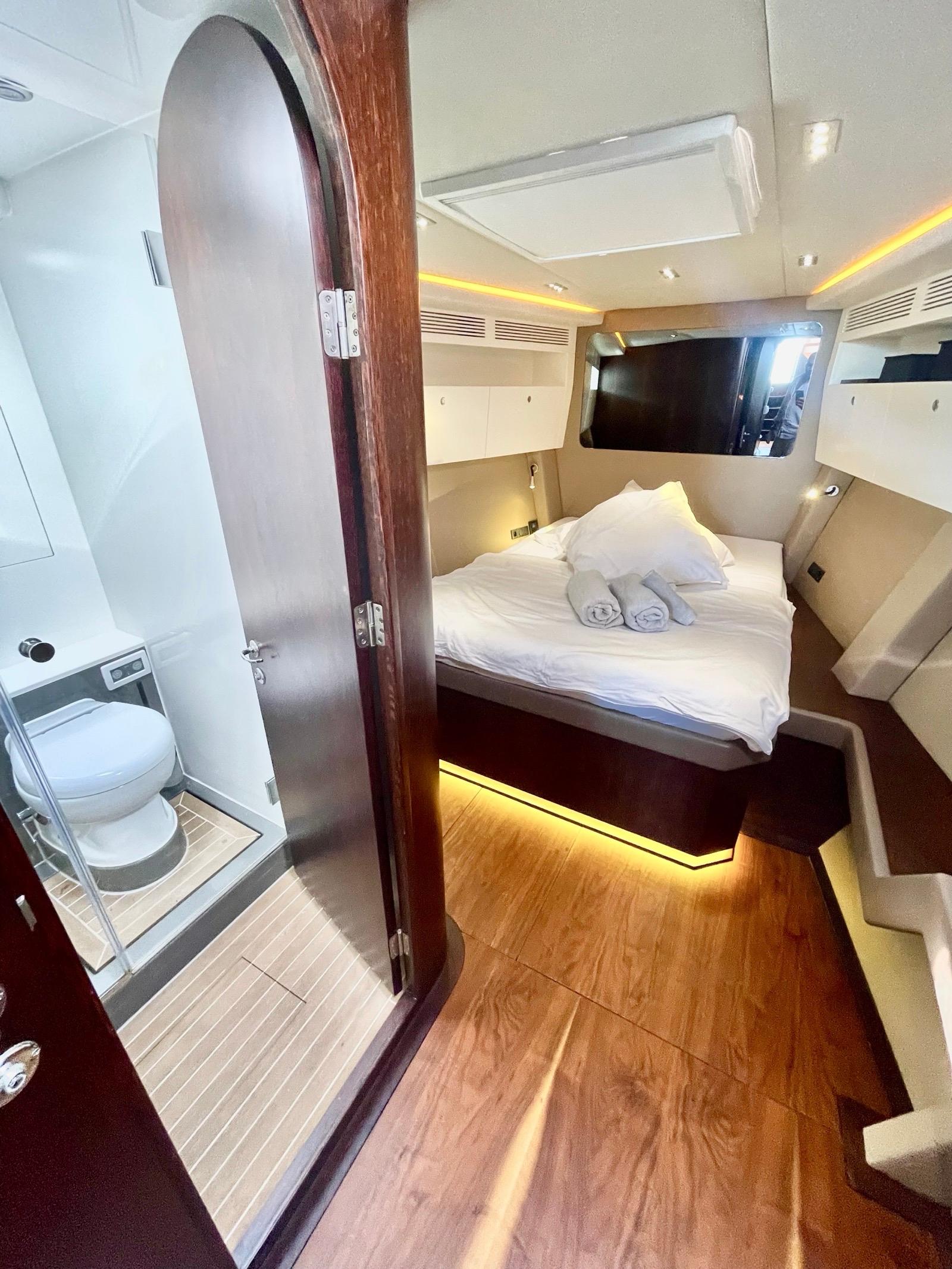

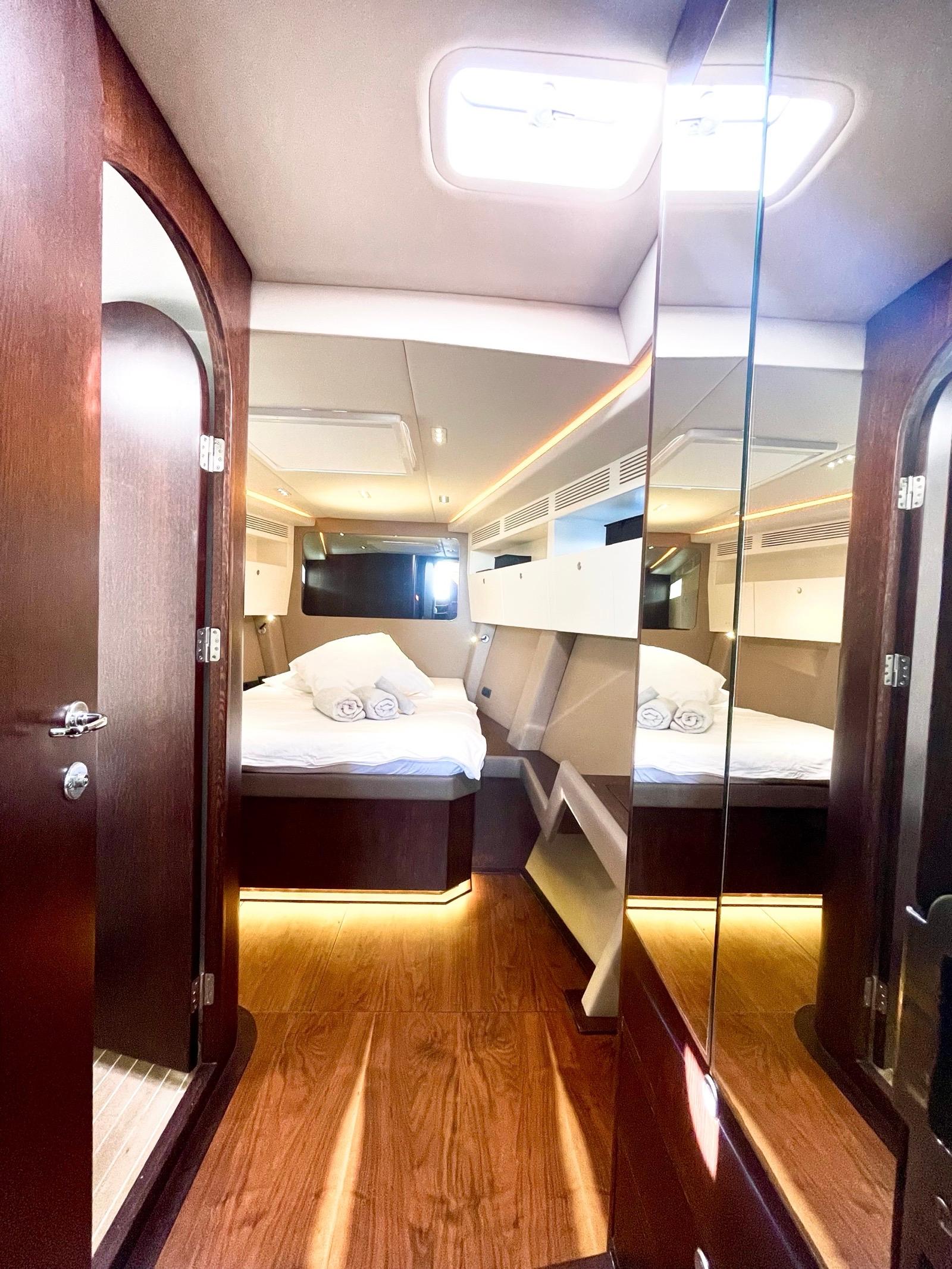

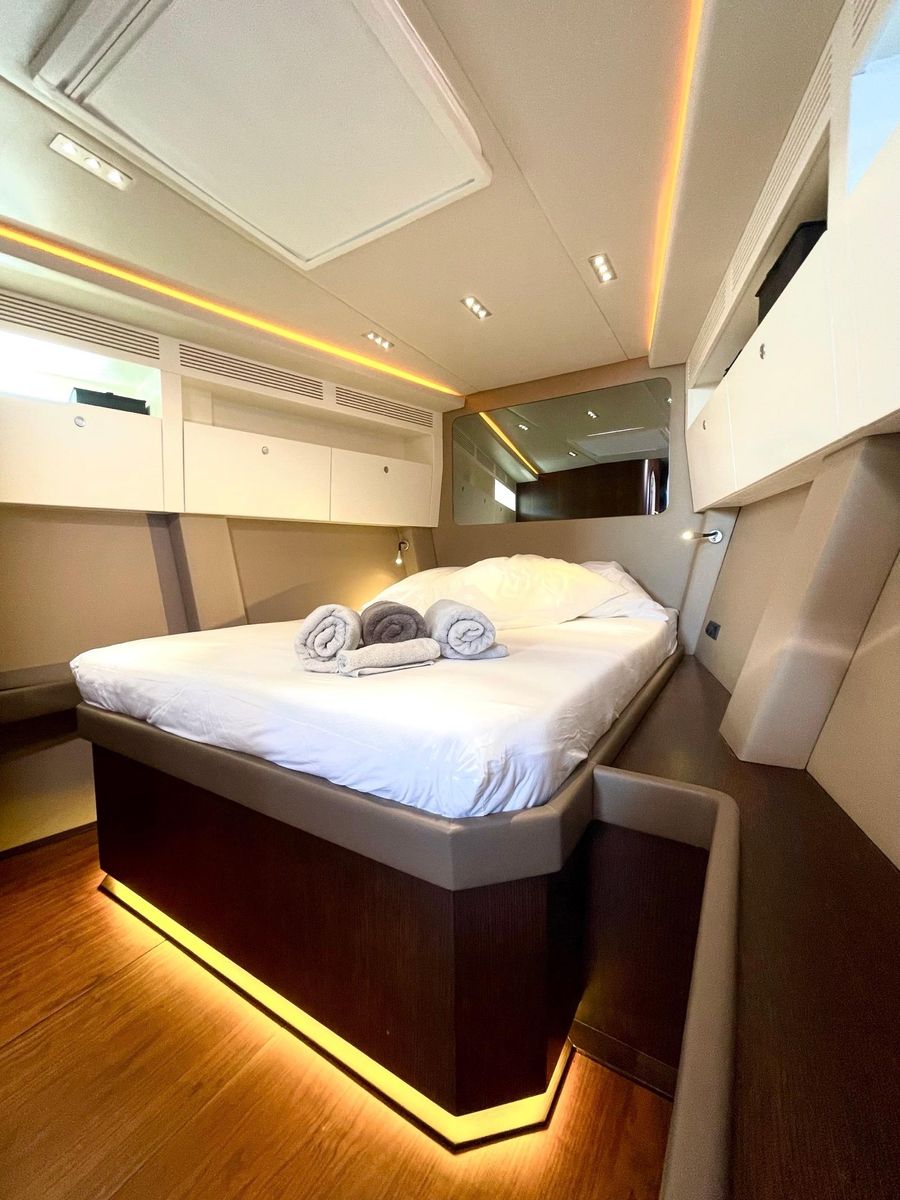

Owner’s Cabin Forward
- Full-size double bed
- Shelf and lockers.
- Mattress 12 to 15cm foam, fabric covered
- Stowage under the bed
- A large hanging locker to starboard against the main bulkhead,
- A comfortable settee to the starboard
- Opening hatches with roller blinds on the cabin ceiling.
- 220 V outlet, AC controllers

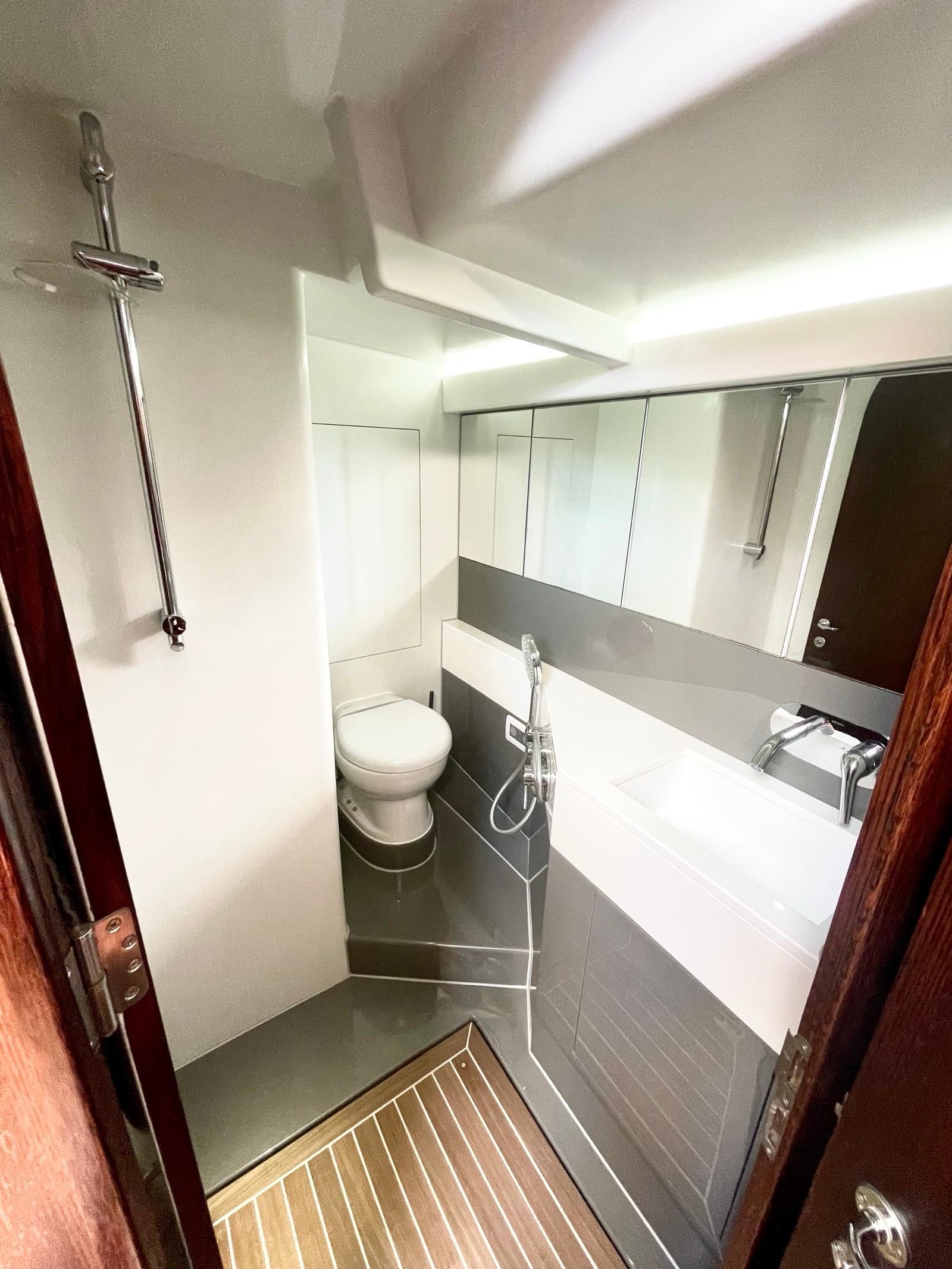

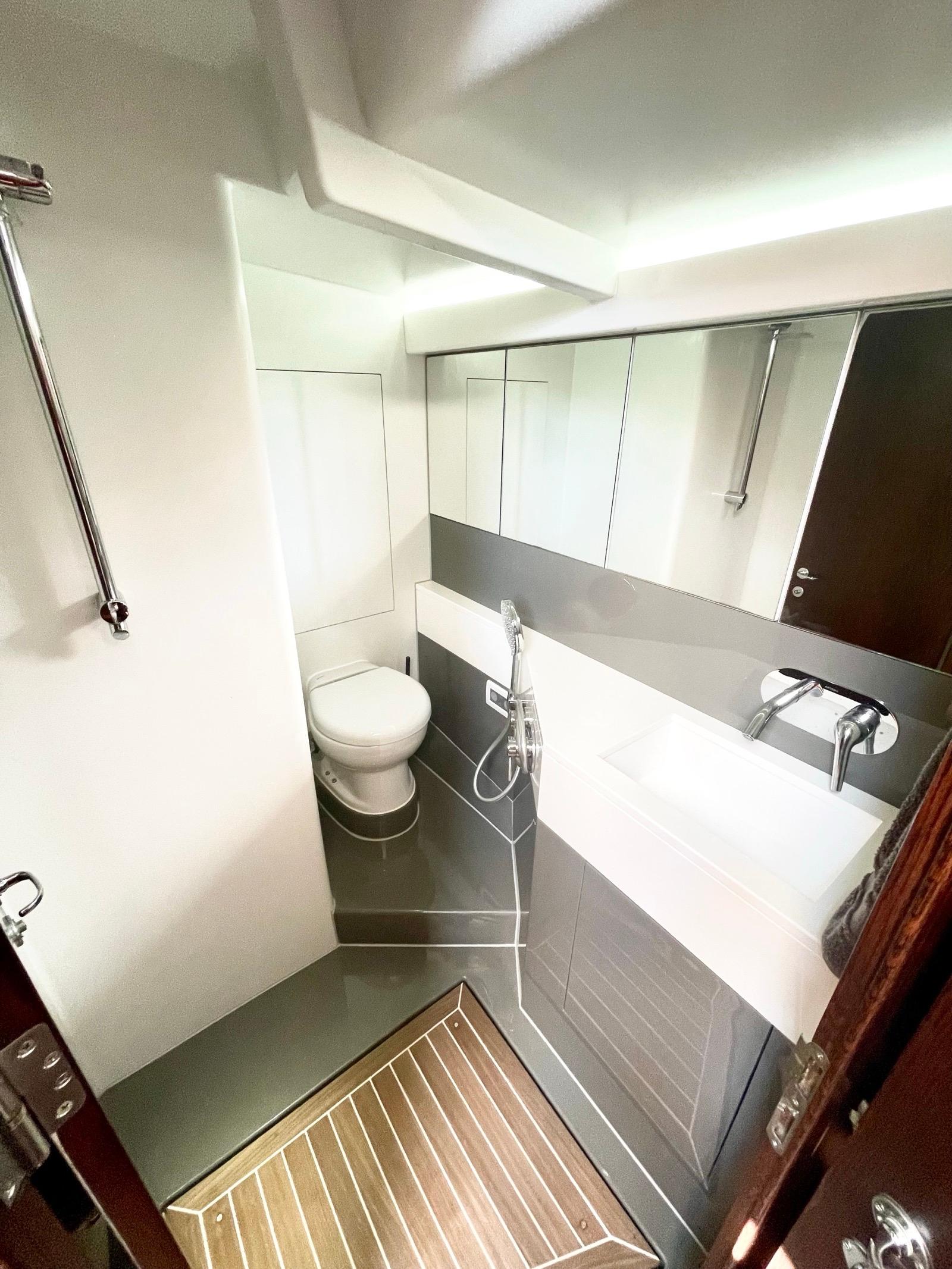

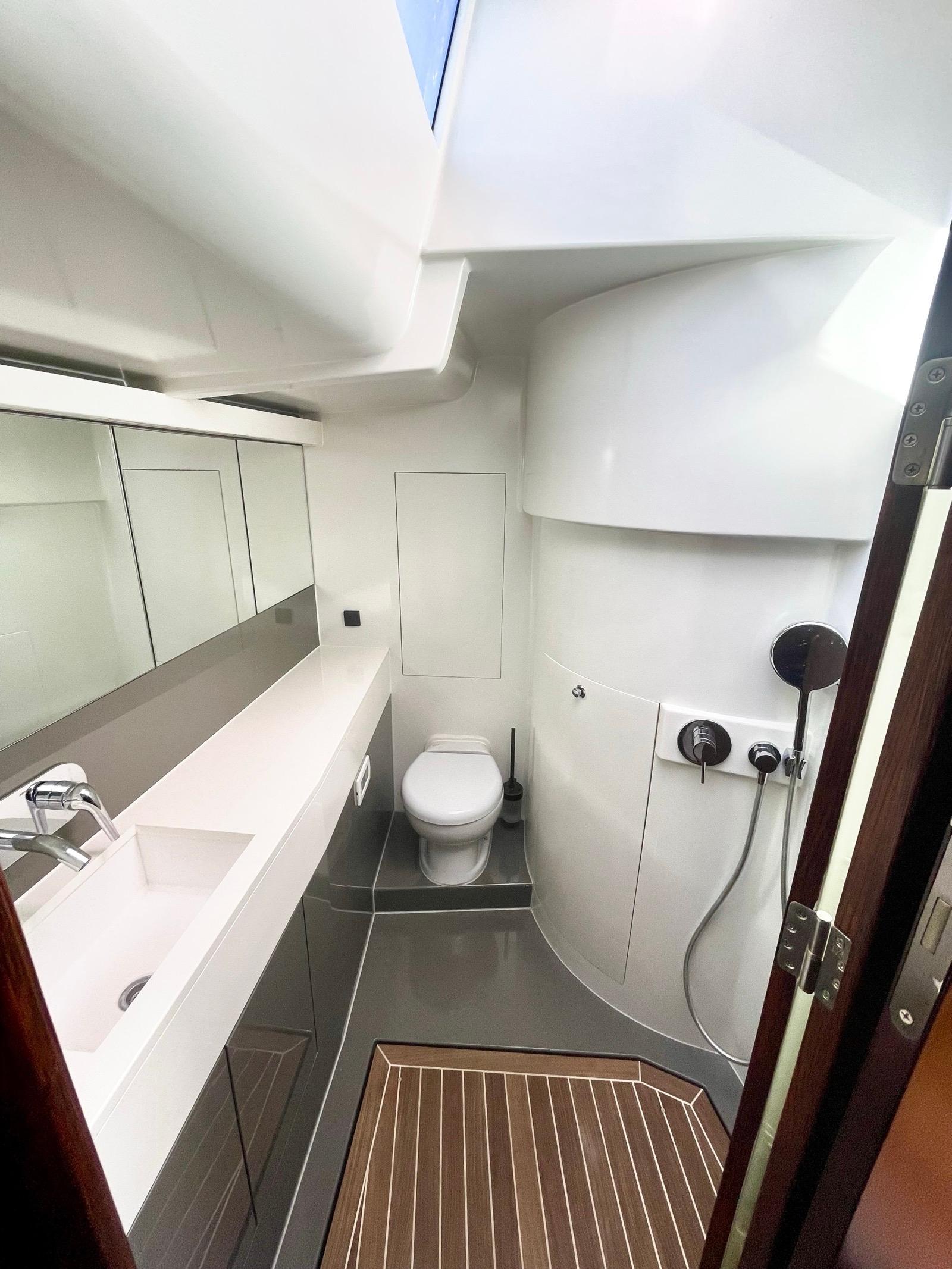

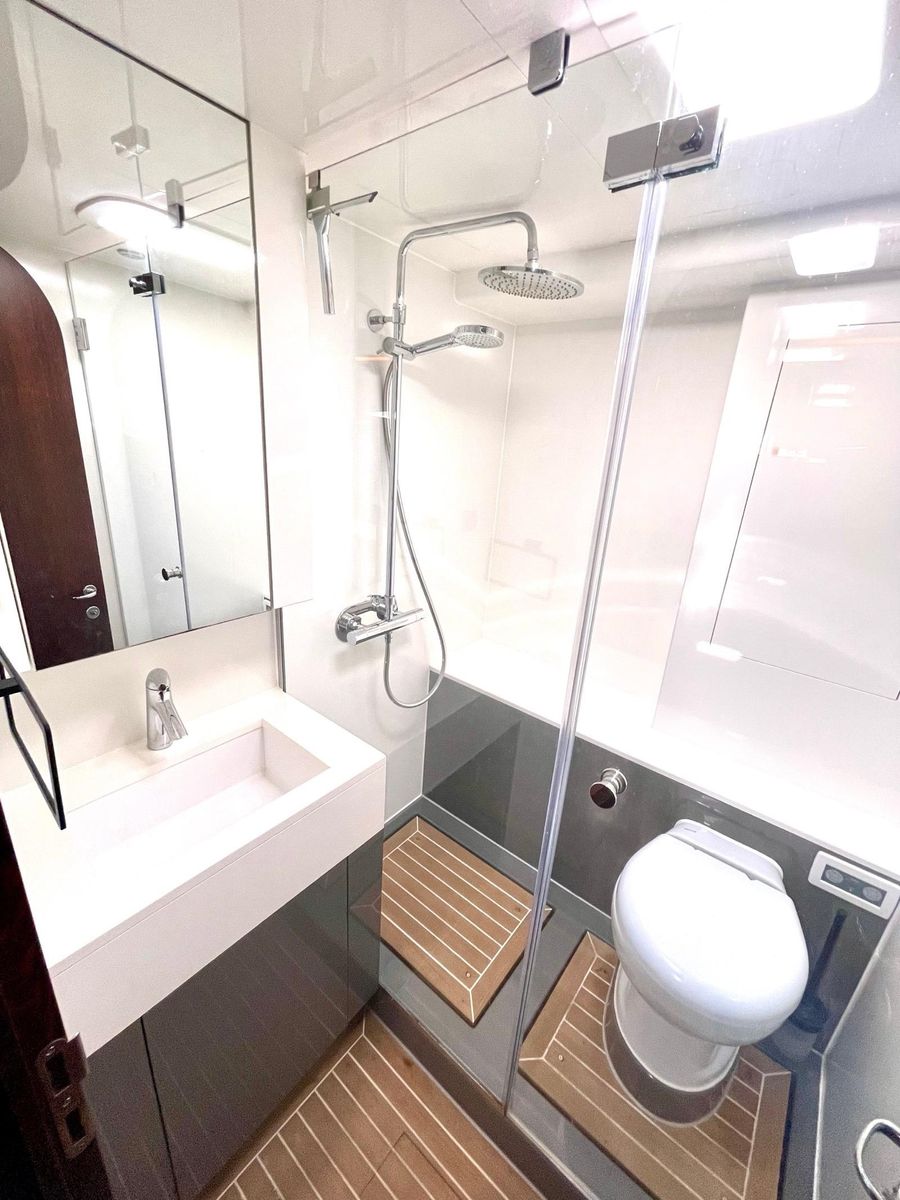

Owner’s Cabin Toilet Compartment
- Separate enclosed shower
- Pressurised hot/cold water.
- Electrical marine head (Tecma) with a black water tank
- Teak floors
- Lockers below the washbasin
- Cabinets above and below the wash basin
- 220 V outlet

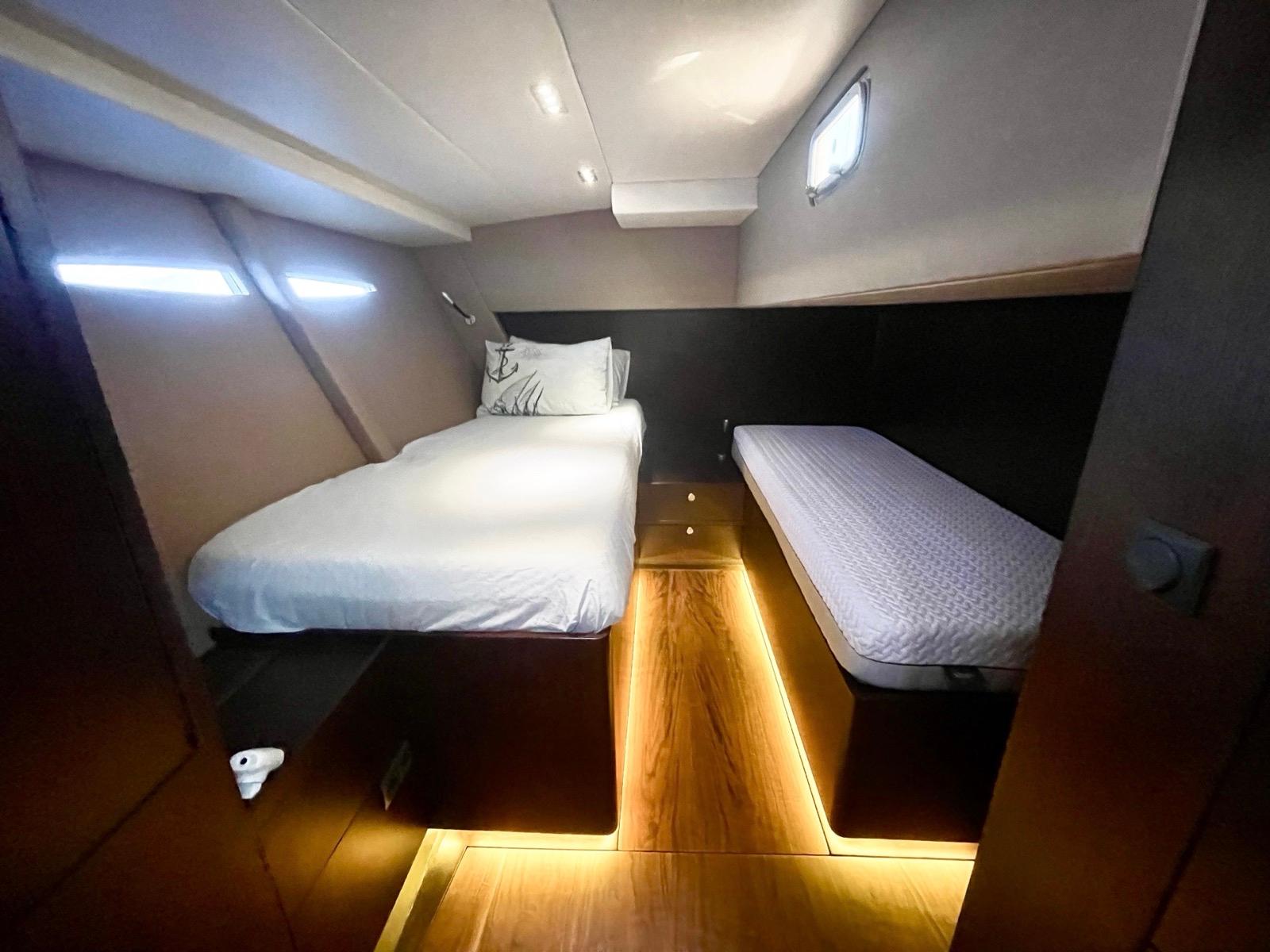

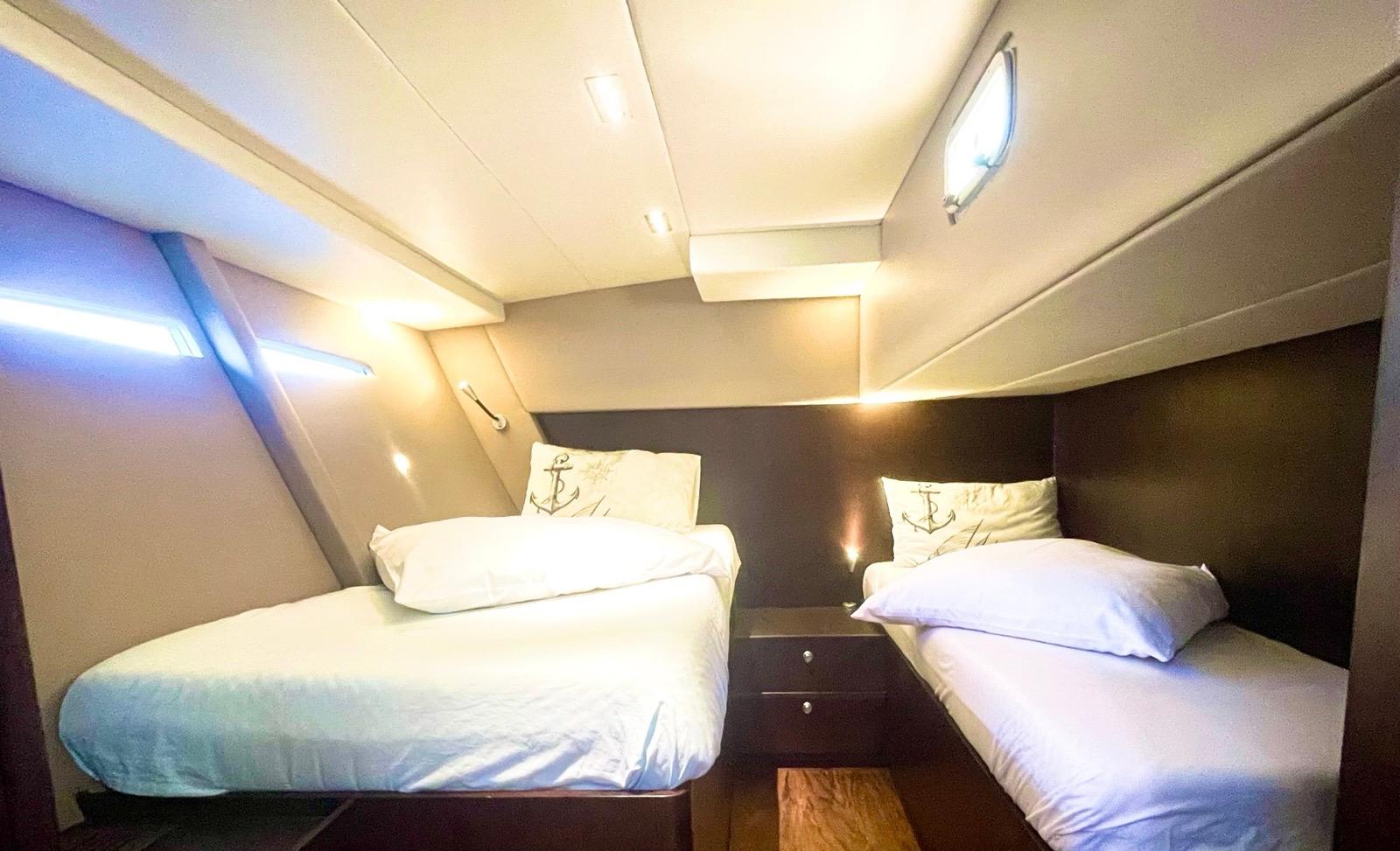

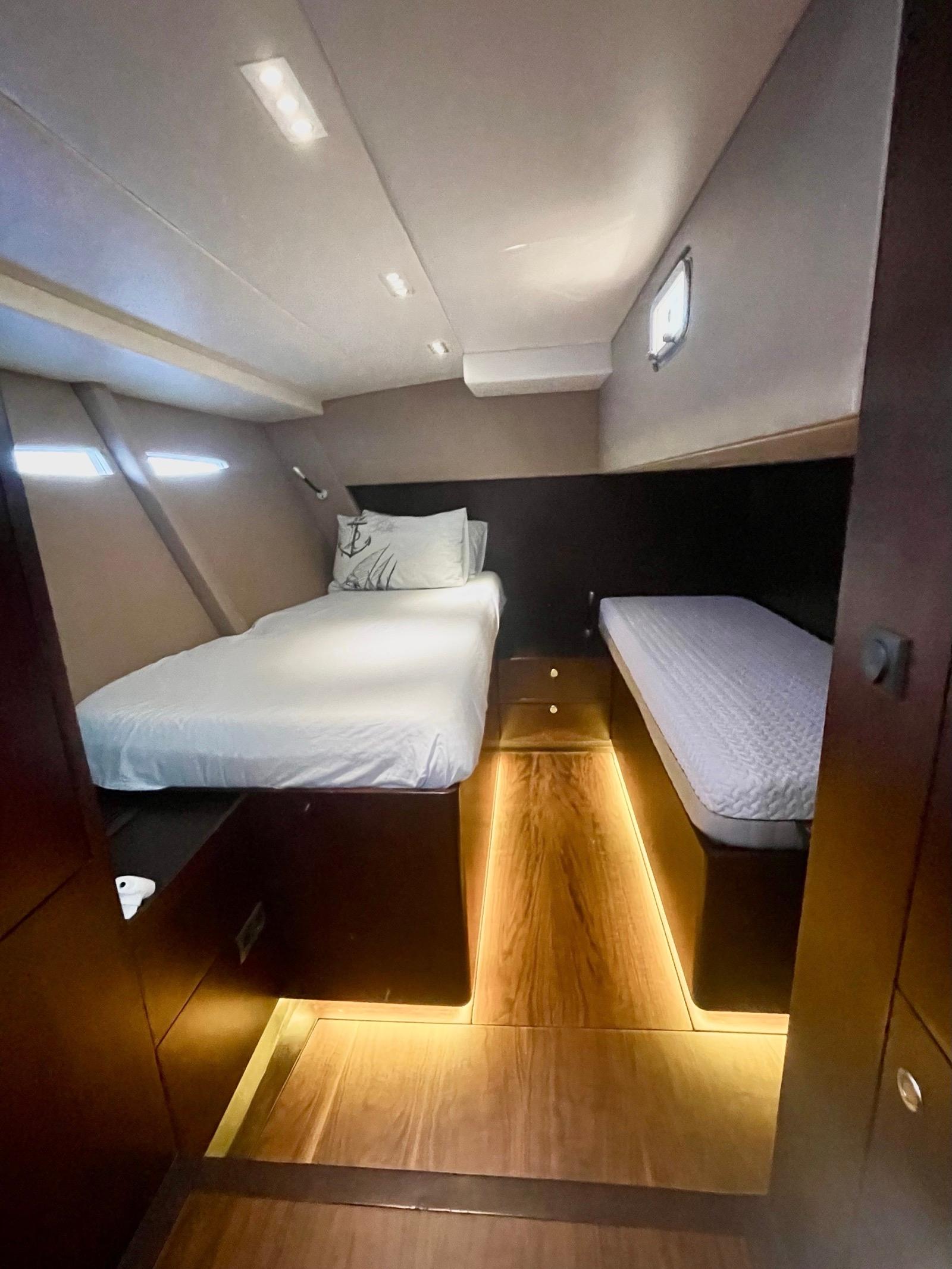

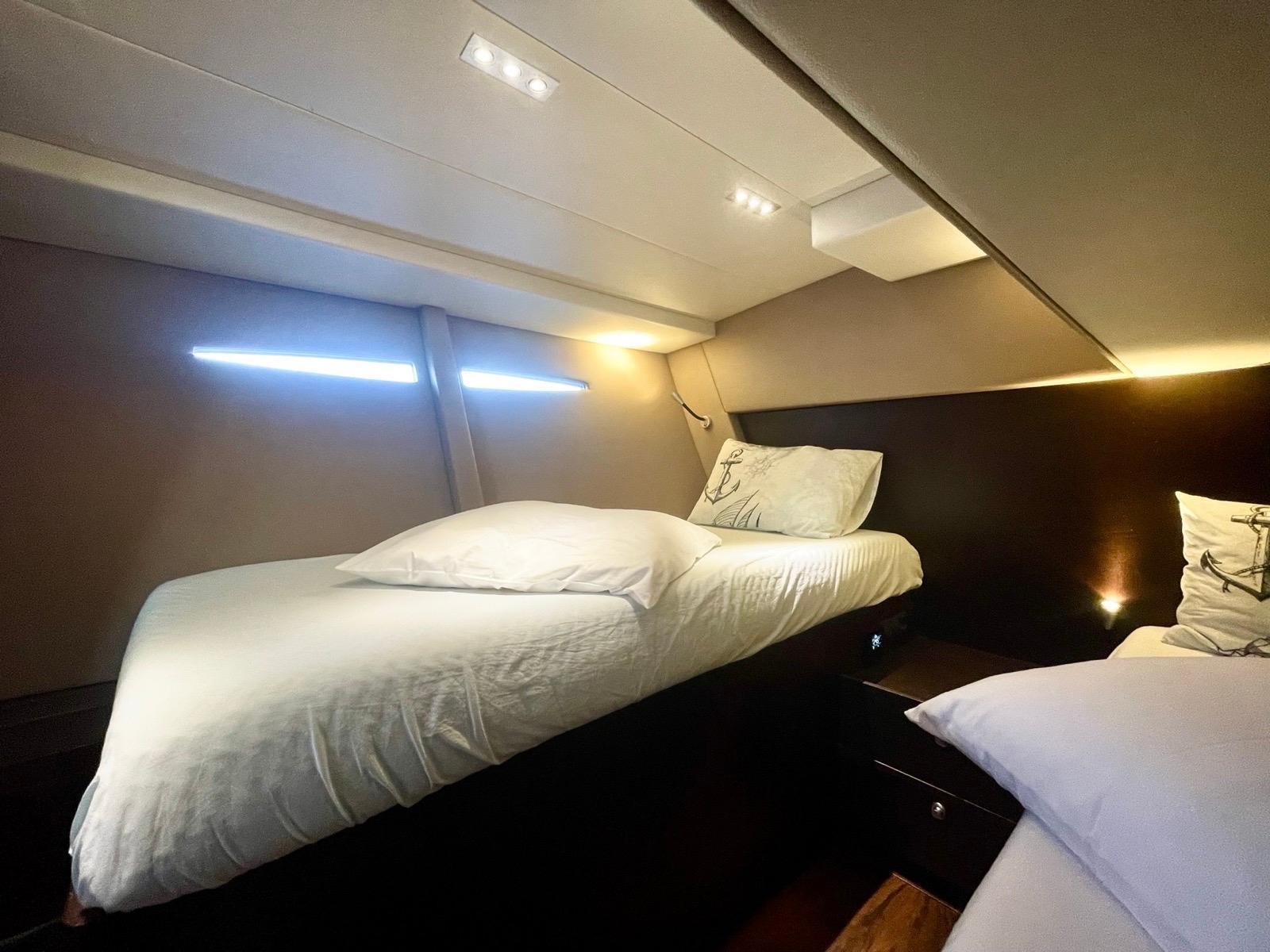

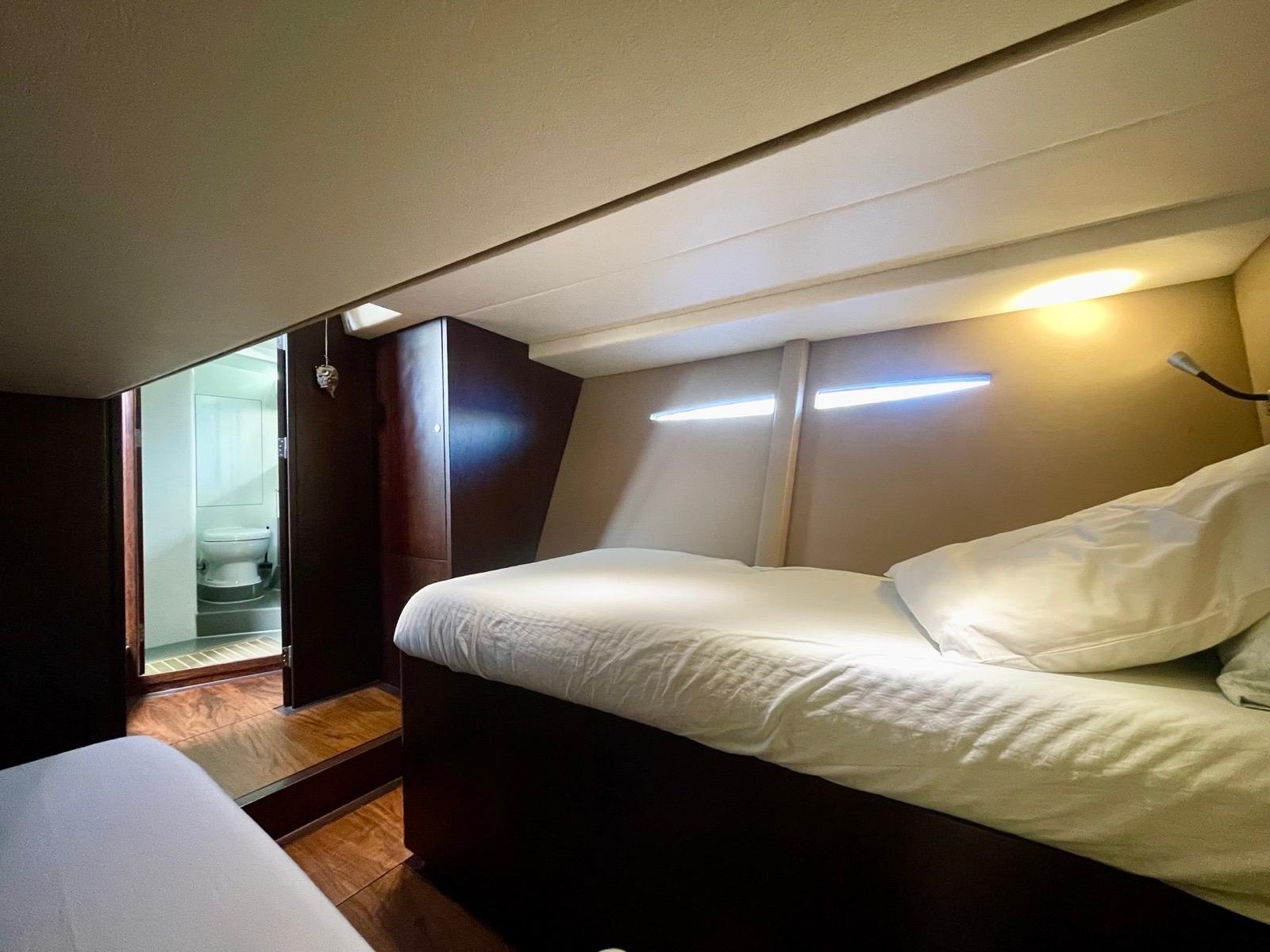

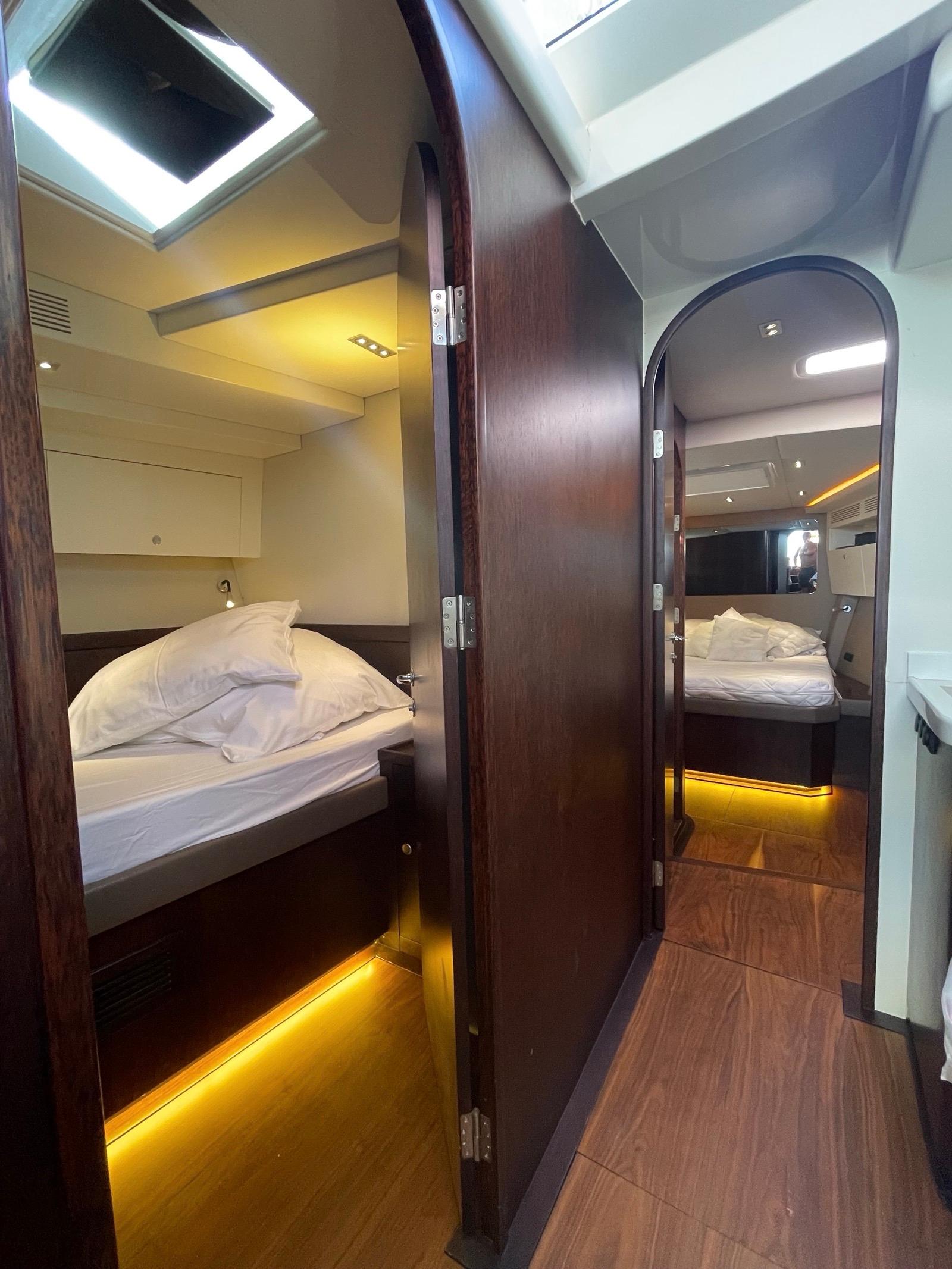

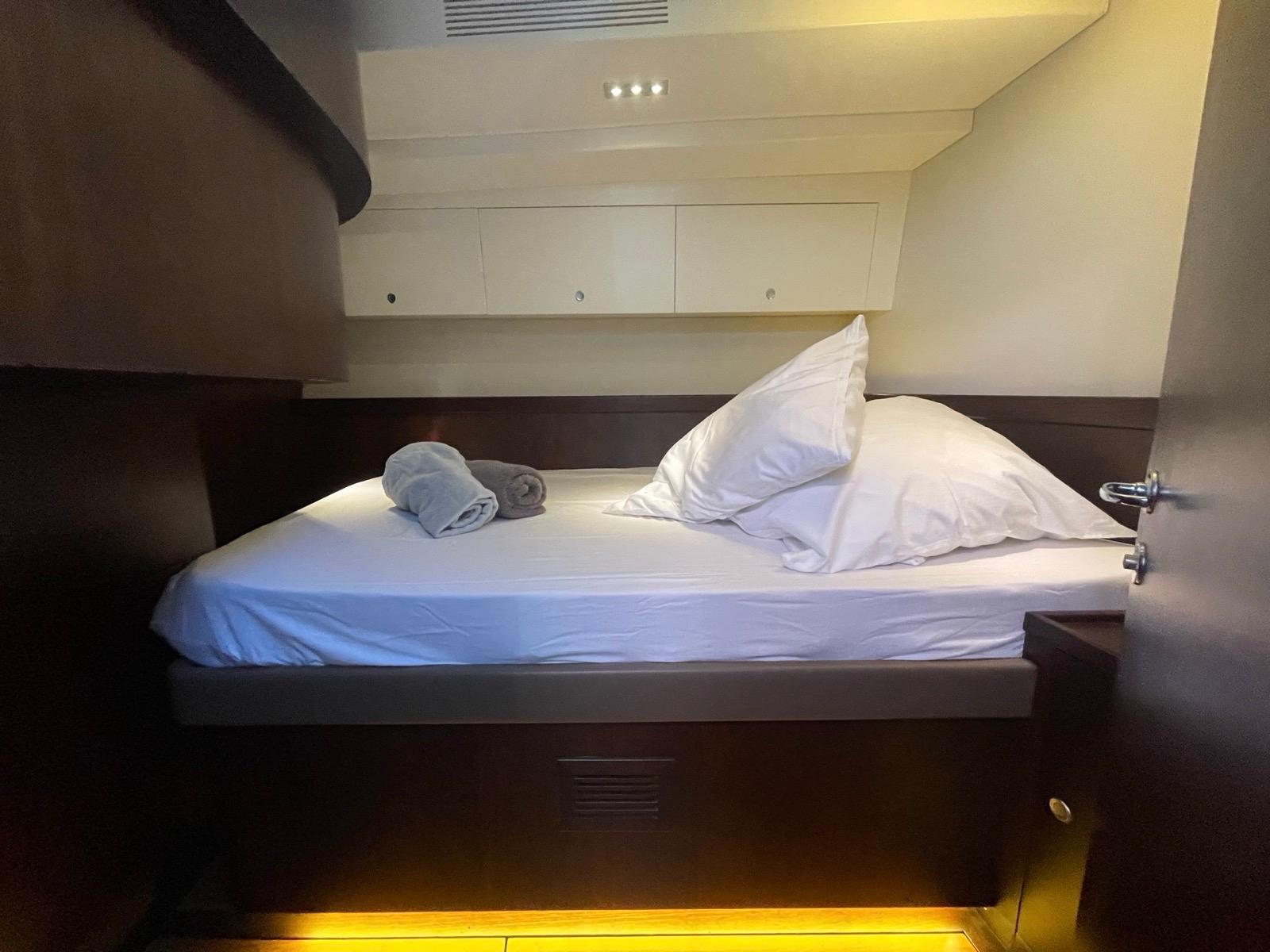

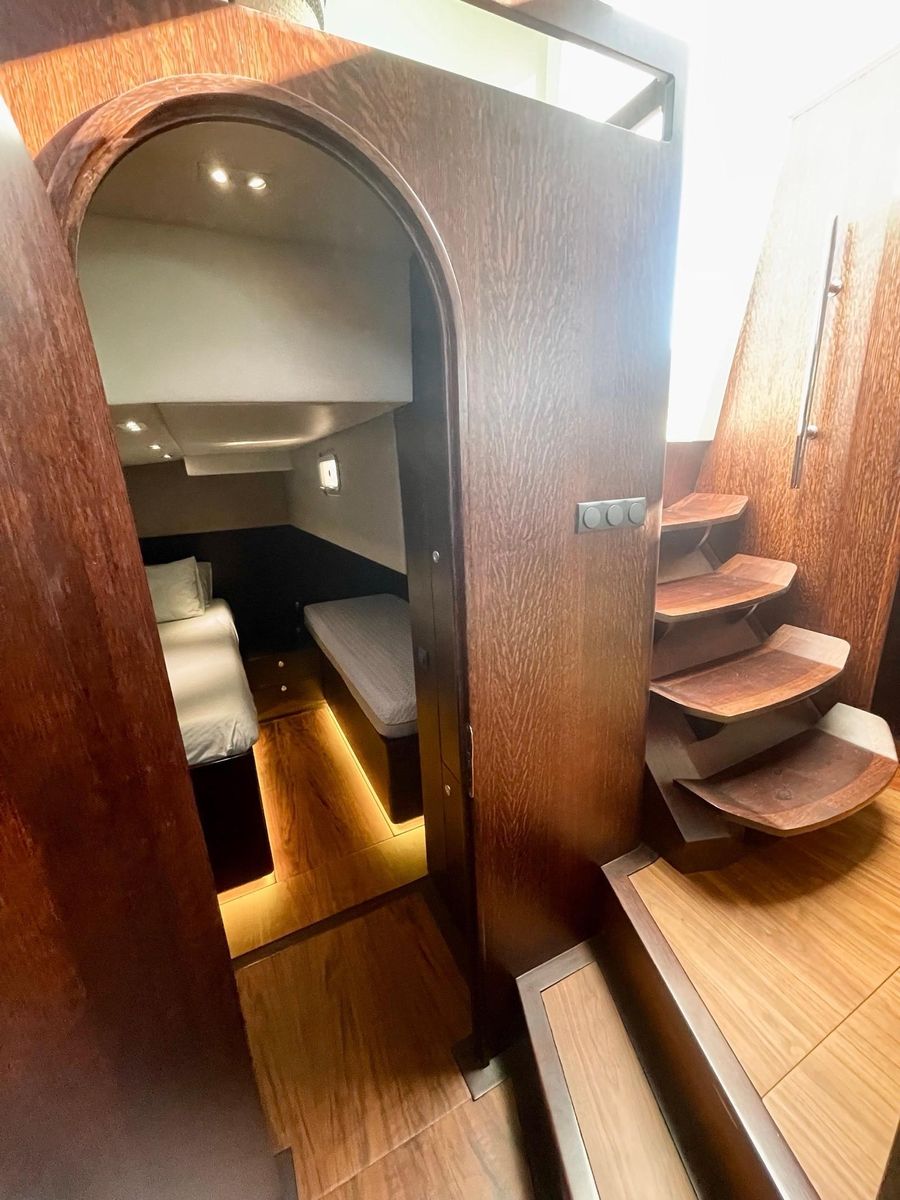

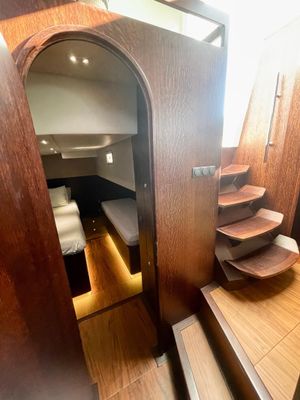

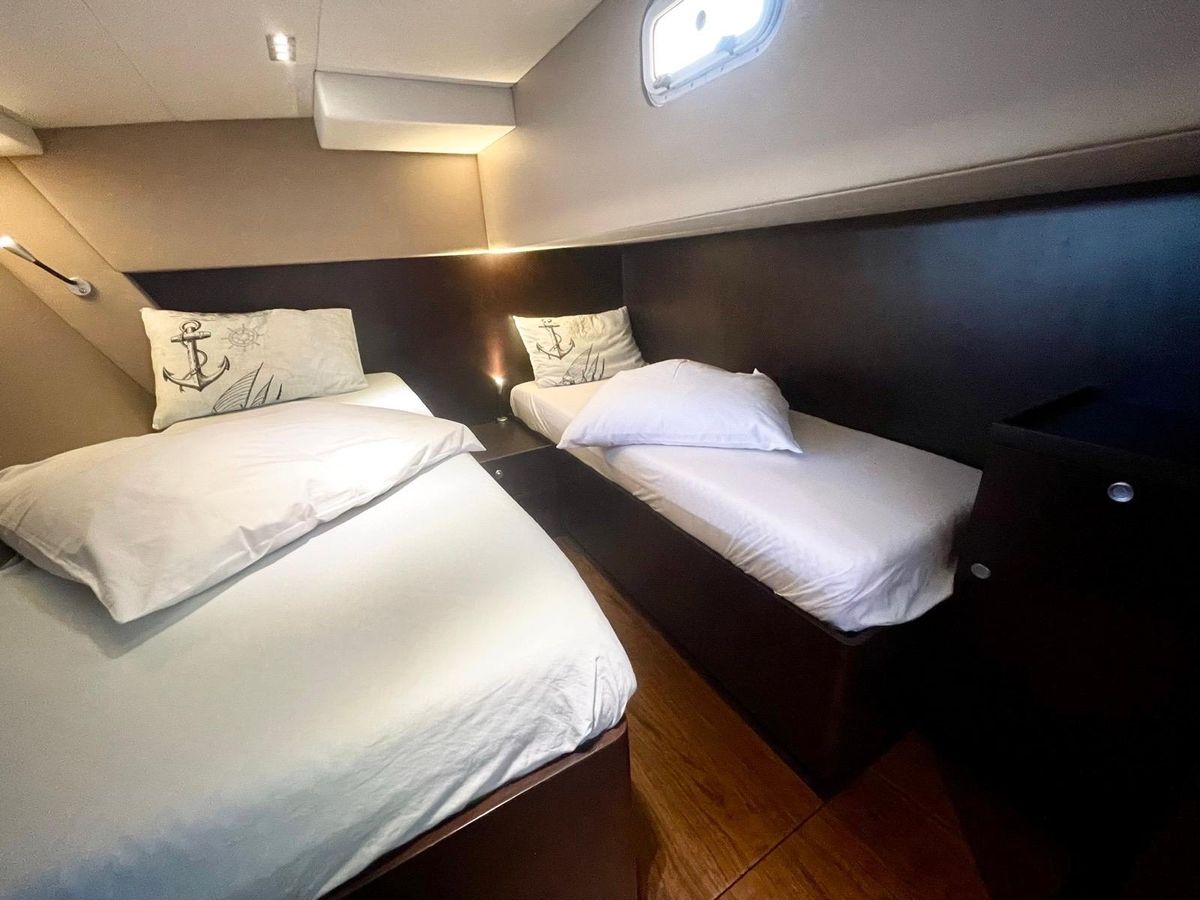

Aft Cabins (PORT AND STARBOARD)

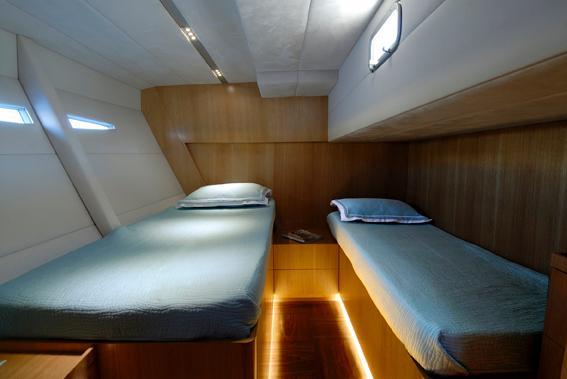

- Access from the saloon, starboard cabin 2 single beds / port cabin 1 double bed
- Ensuite heads with shower
- Hanging locker to the boat side
- A full-size double beds
- Mattresses 12-15 cm foam, fabric covered
- Stowage under berths.
- Hull side liners in foam-backed fabric
- A hanging locker with a shelf above.

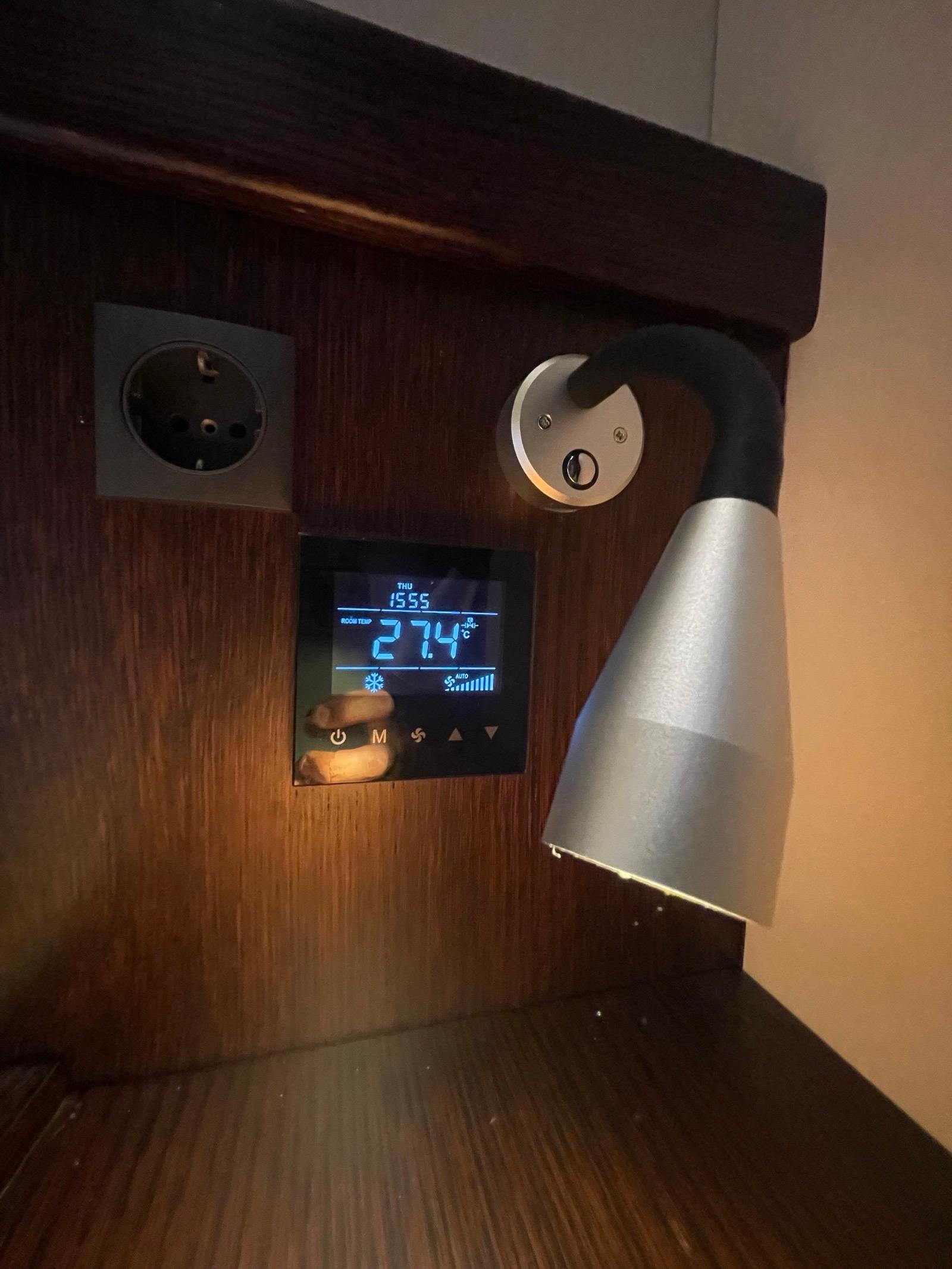

- 2 reading spot lights.
- 220 V outlet
- An opening portlight to the cockpit side with a shade

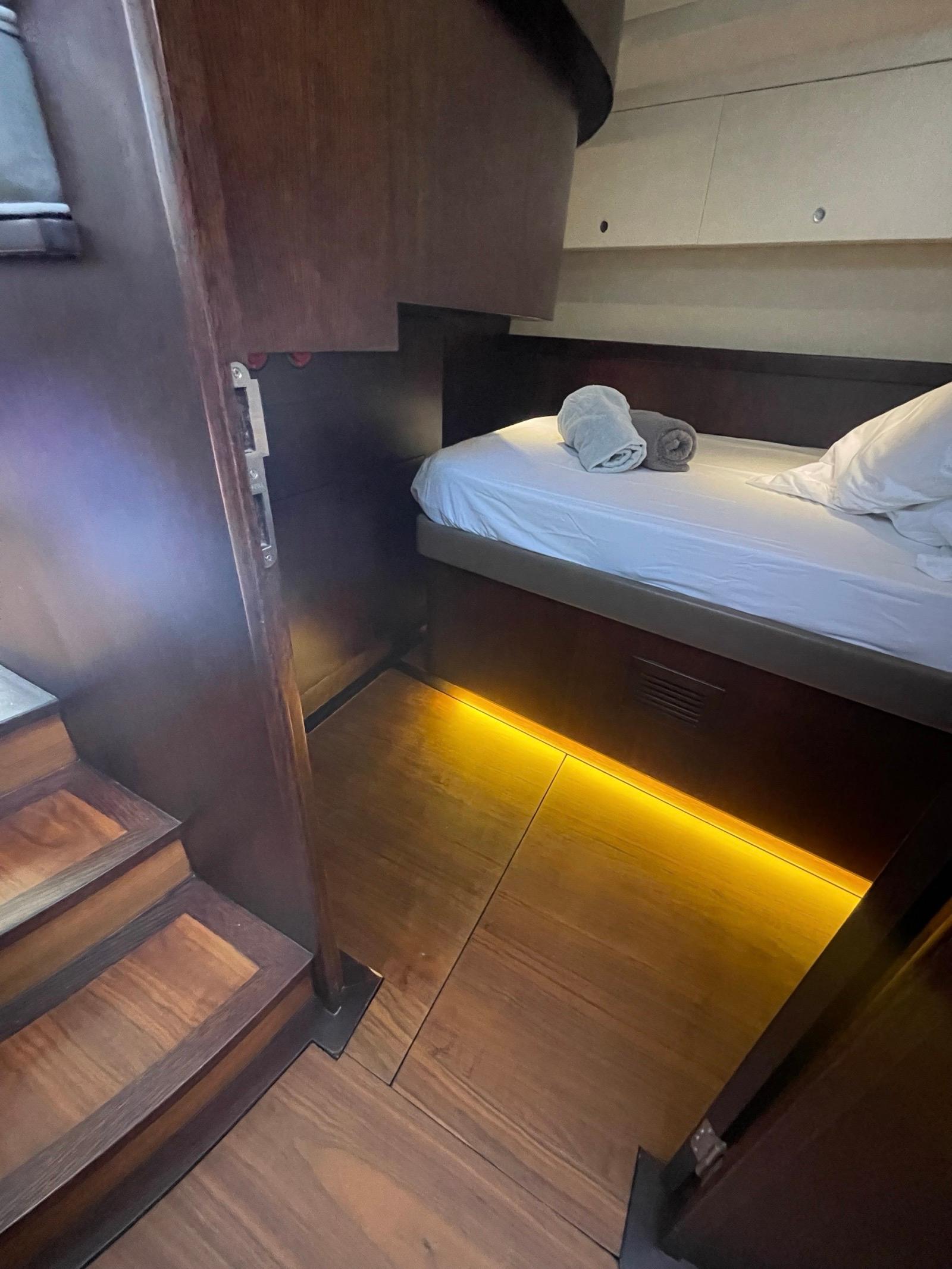

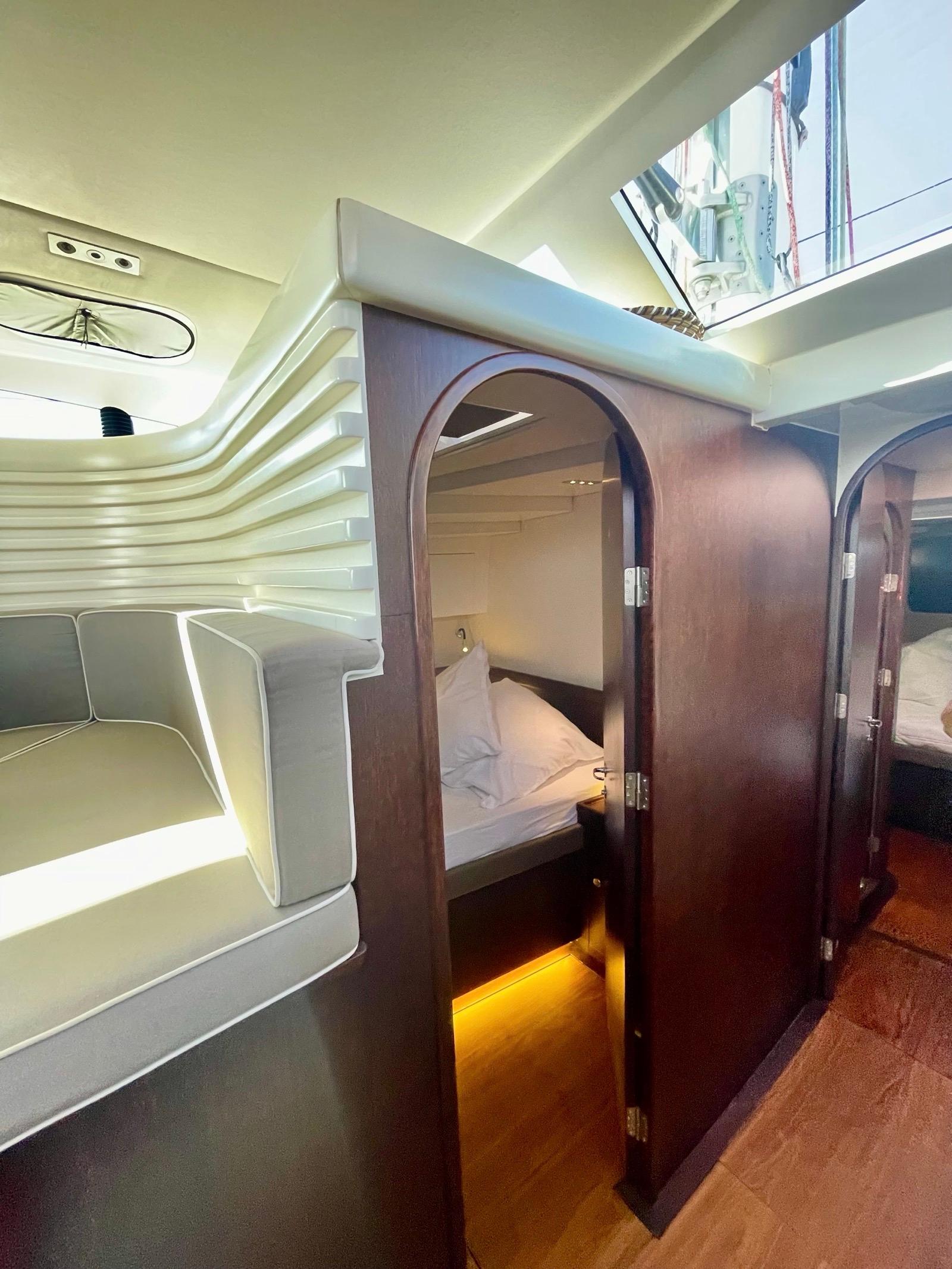

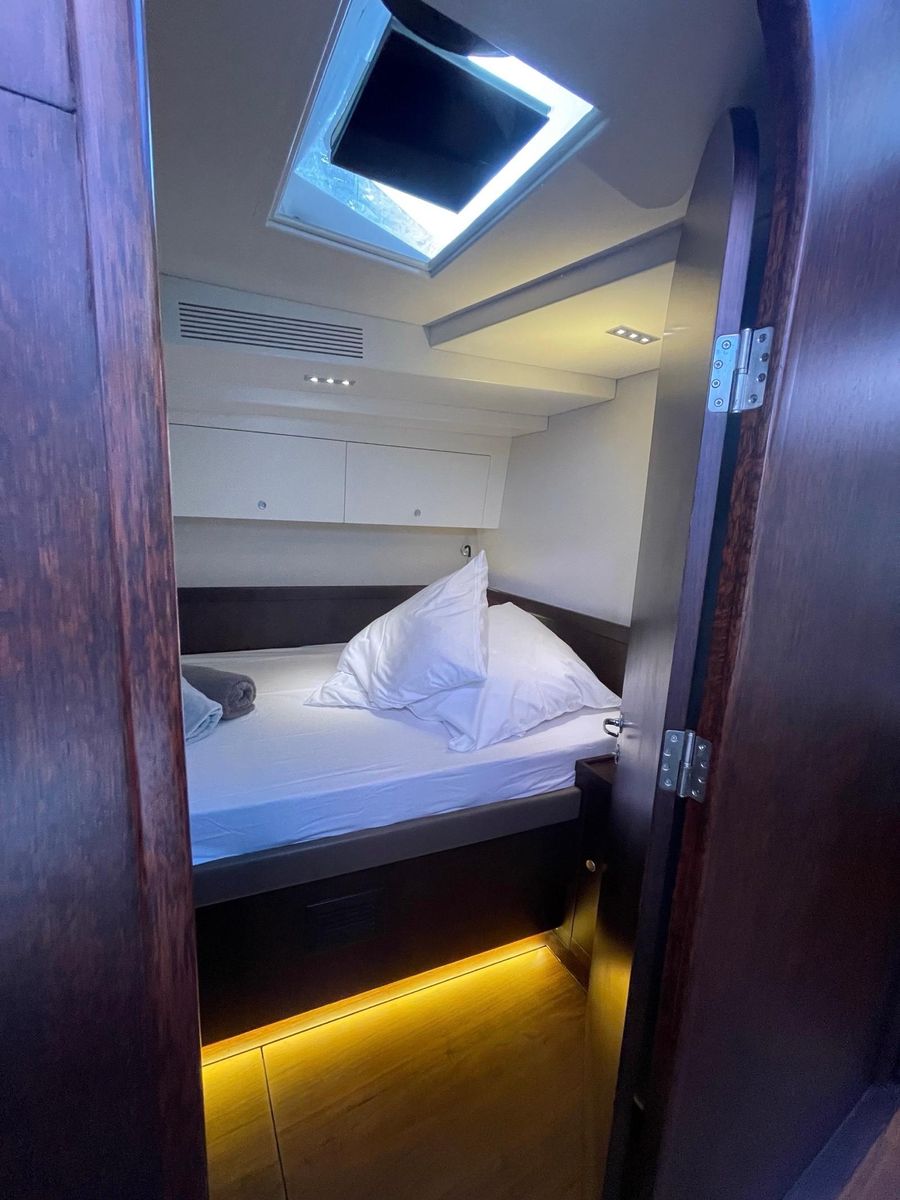

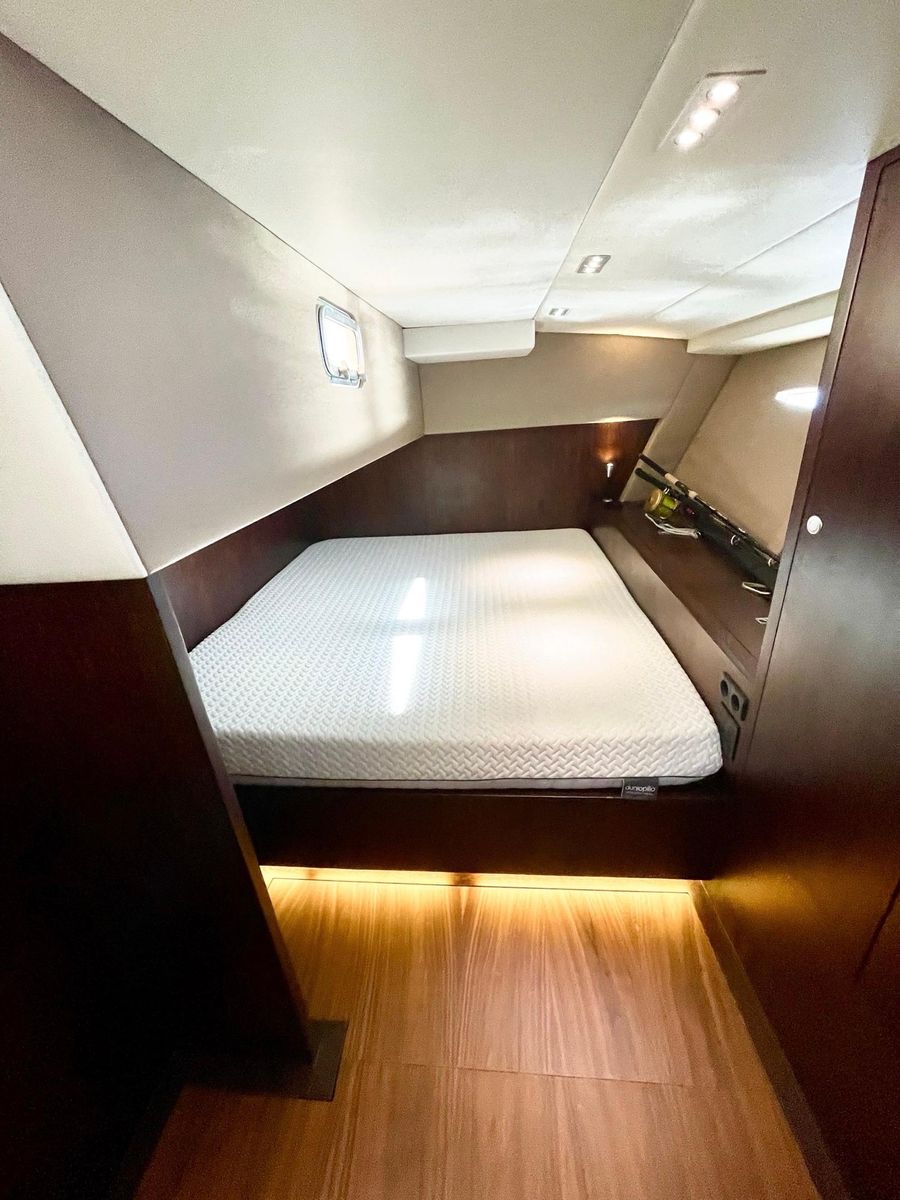

Center (4th) Cabin
- Access from the saloon
- A full-size double bed
- Mattresses 12-15 cm foam, fabric covered
- Stowage under berths.
- Hull side liners in foam-backed fabric
- A hanging locker with a shelf above.
- 220 V outlet
Sail Locker
- The front section of the yacht forms a sail locker and is separated from the rest of the
yacht by a watertight bulkhead to enable storage of sailing gear, - An automatic bilge pump is installed in the bottom of the locker aft
- A large opening hatch on the locker ceiling

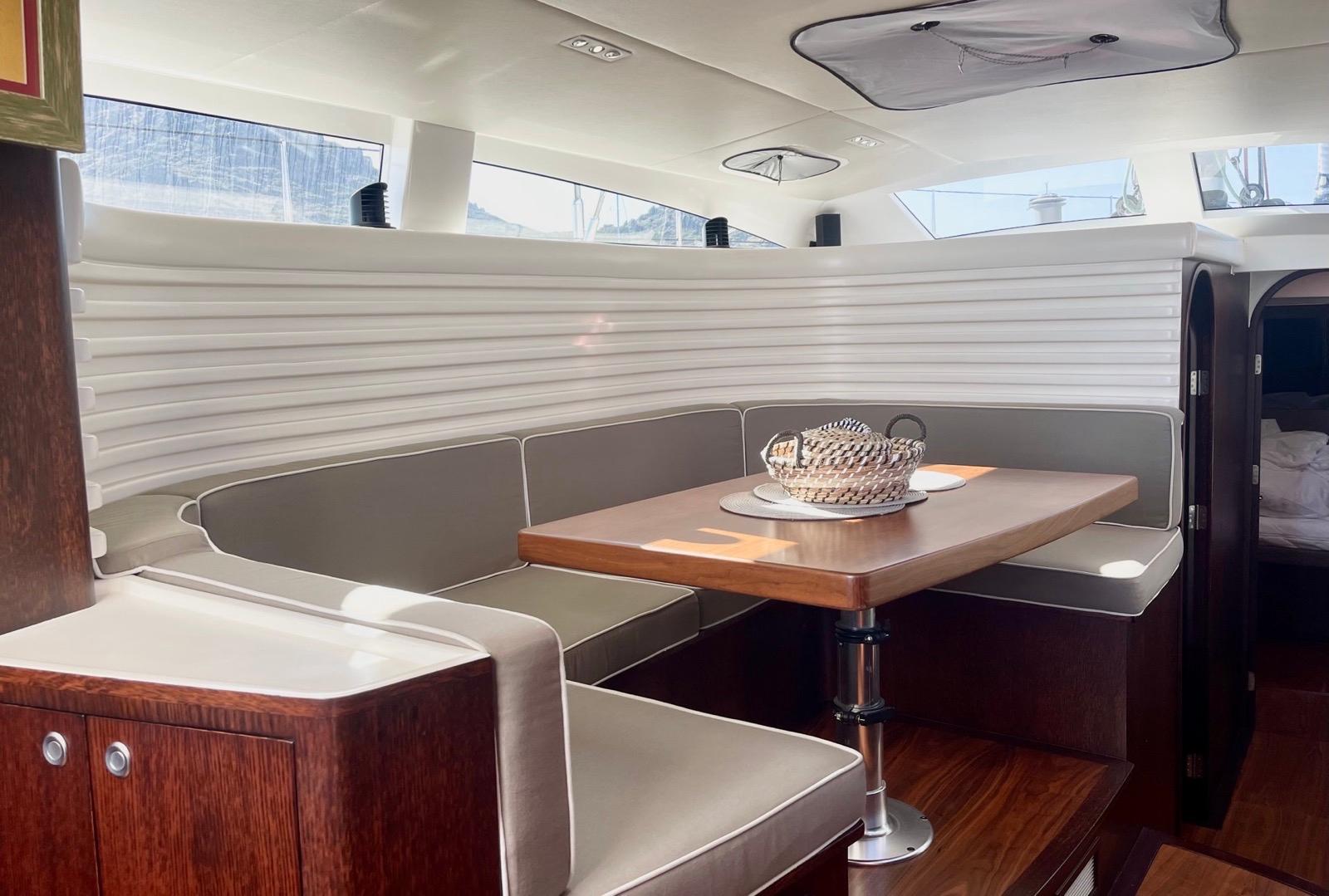

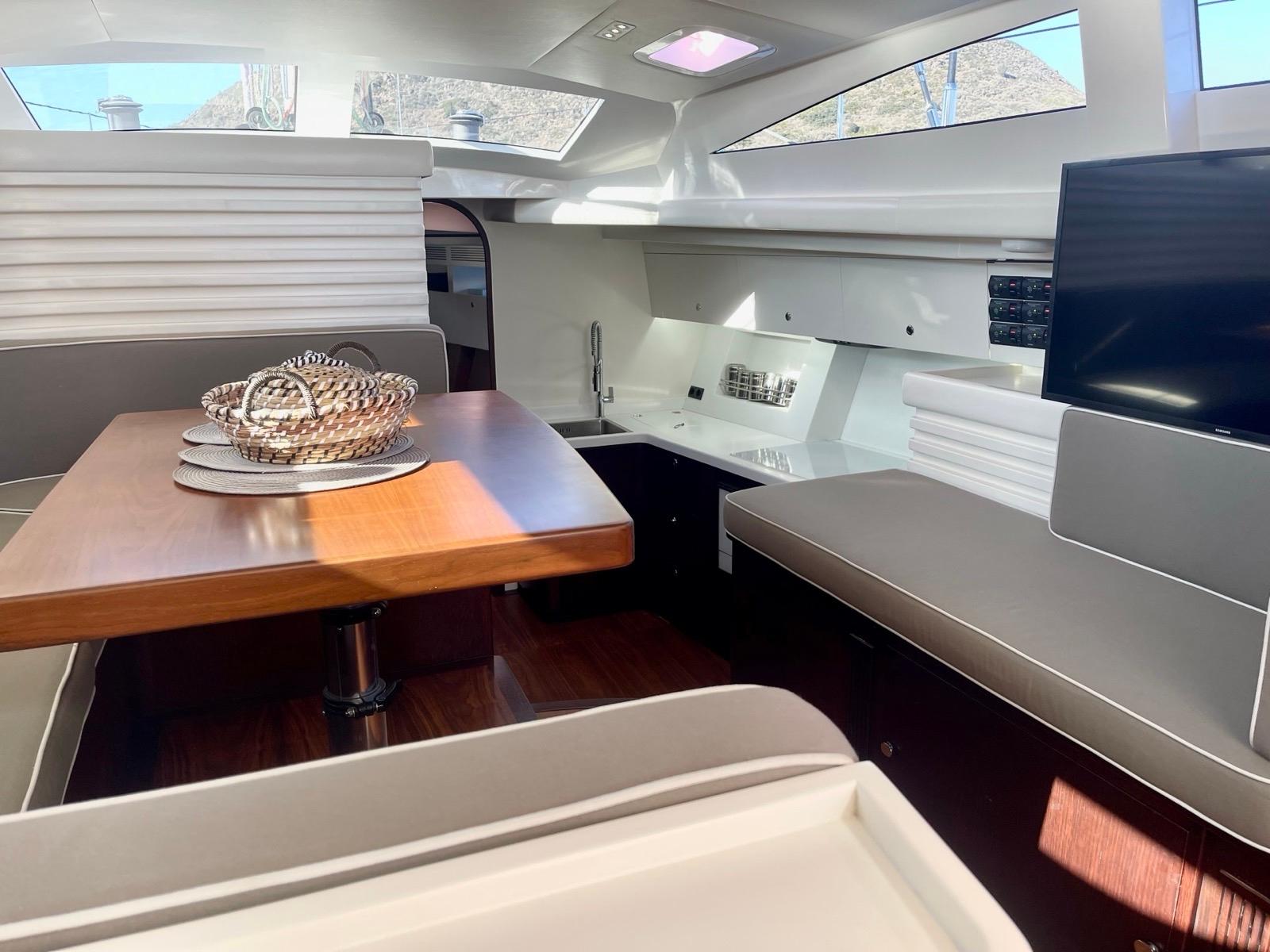

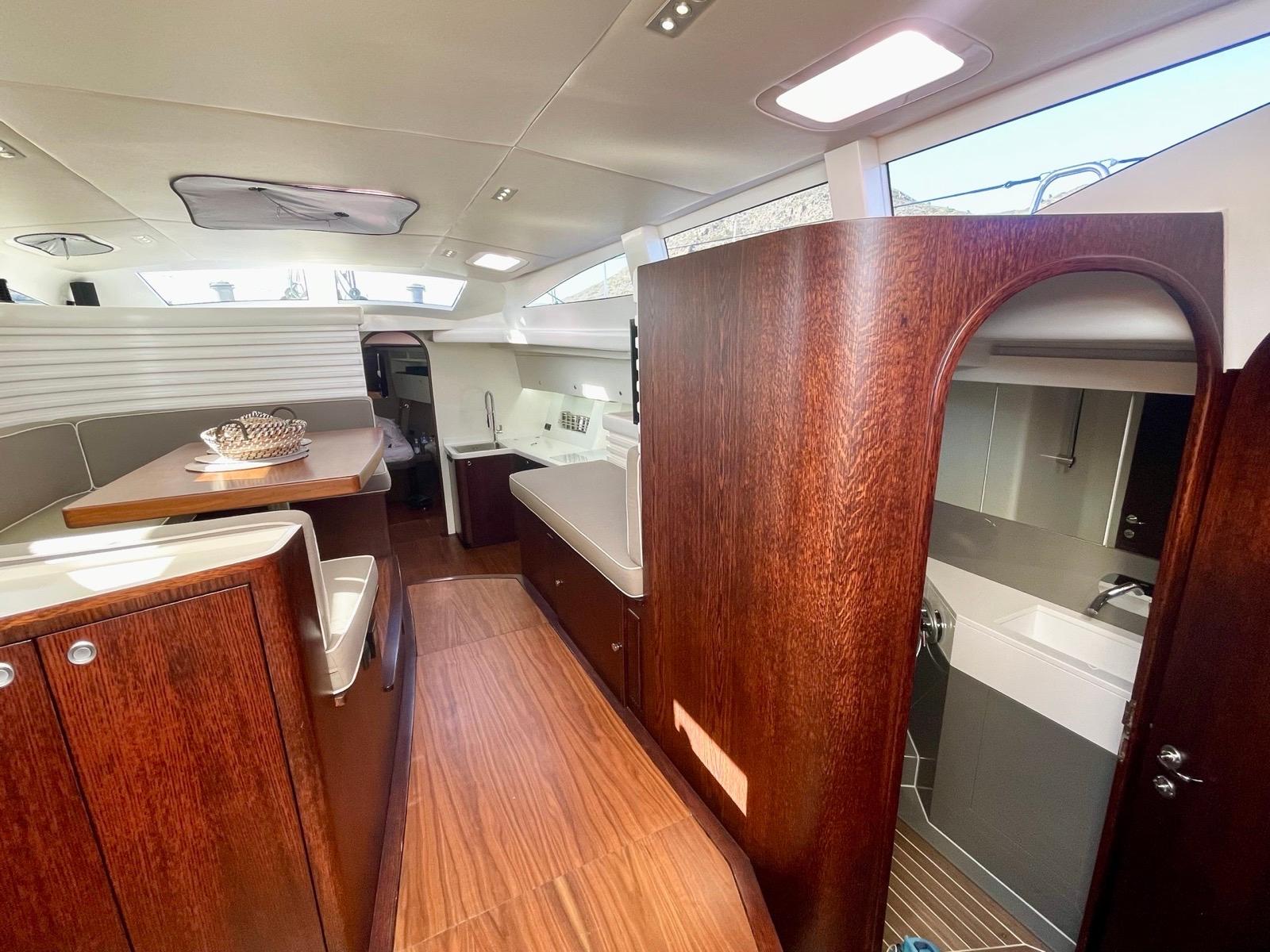

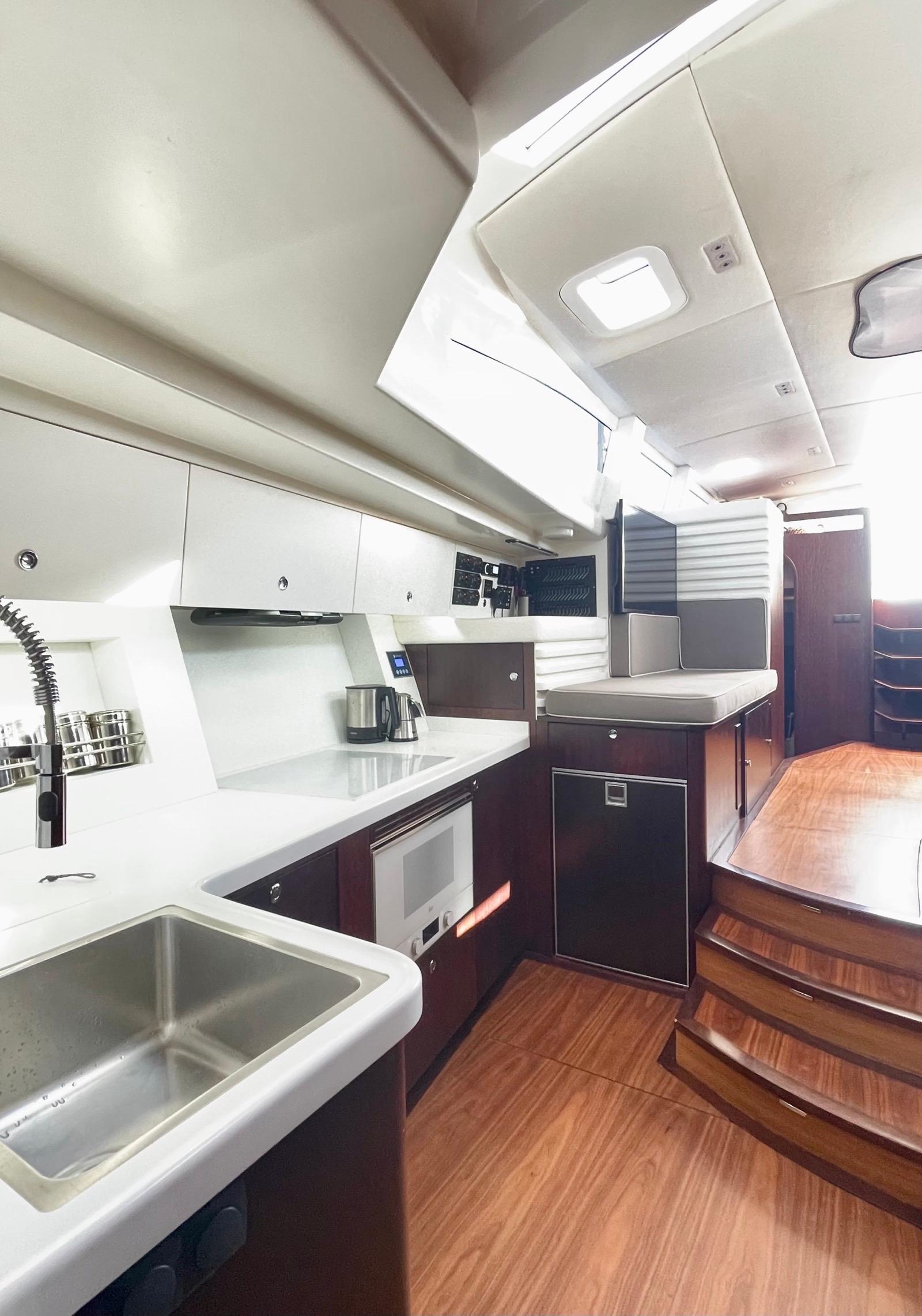

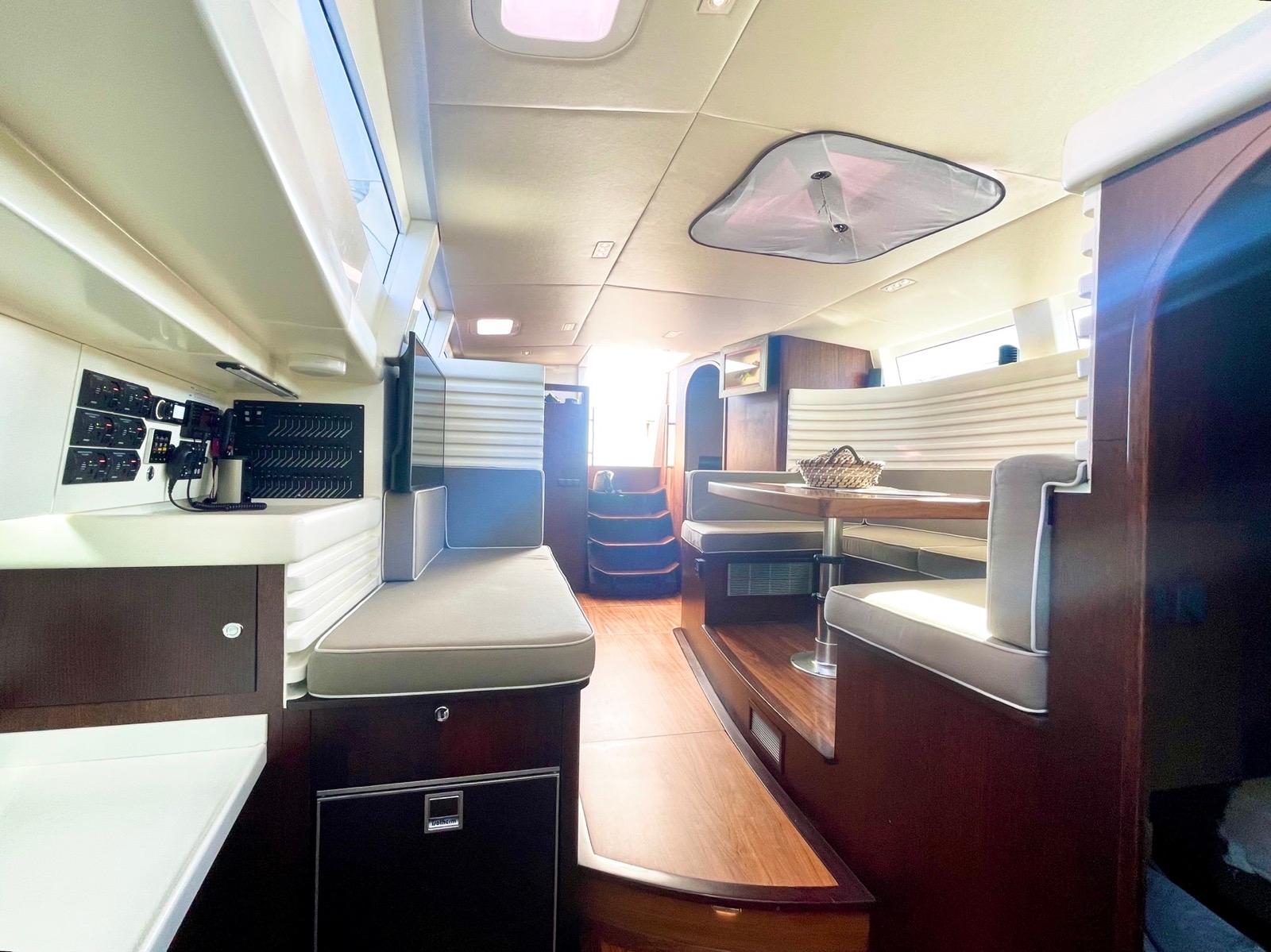

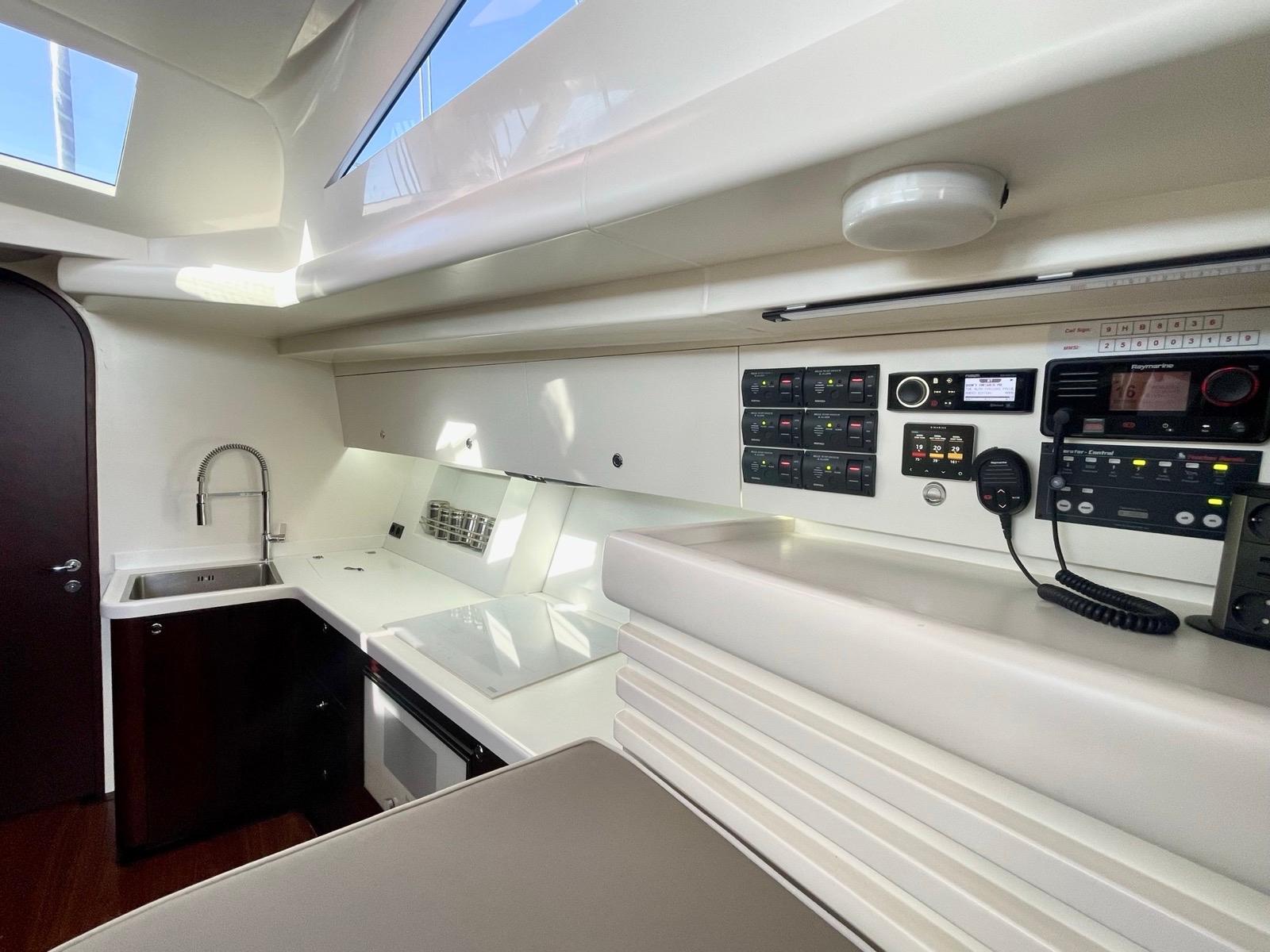

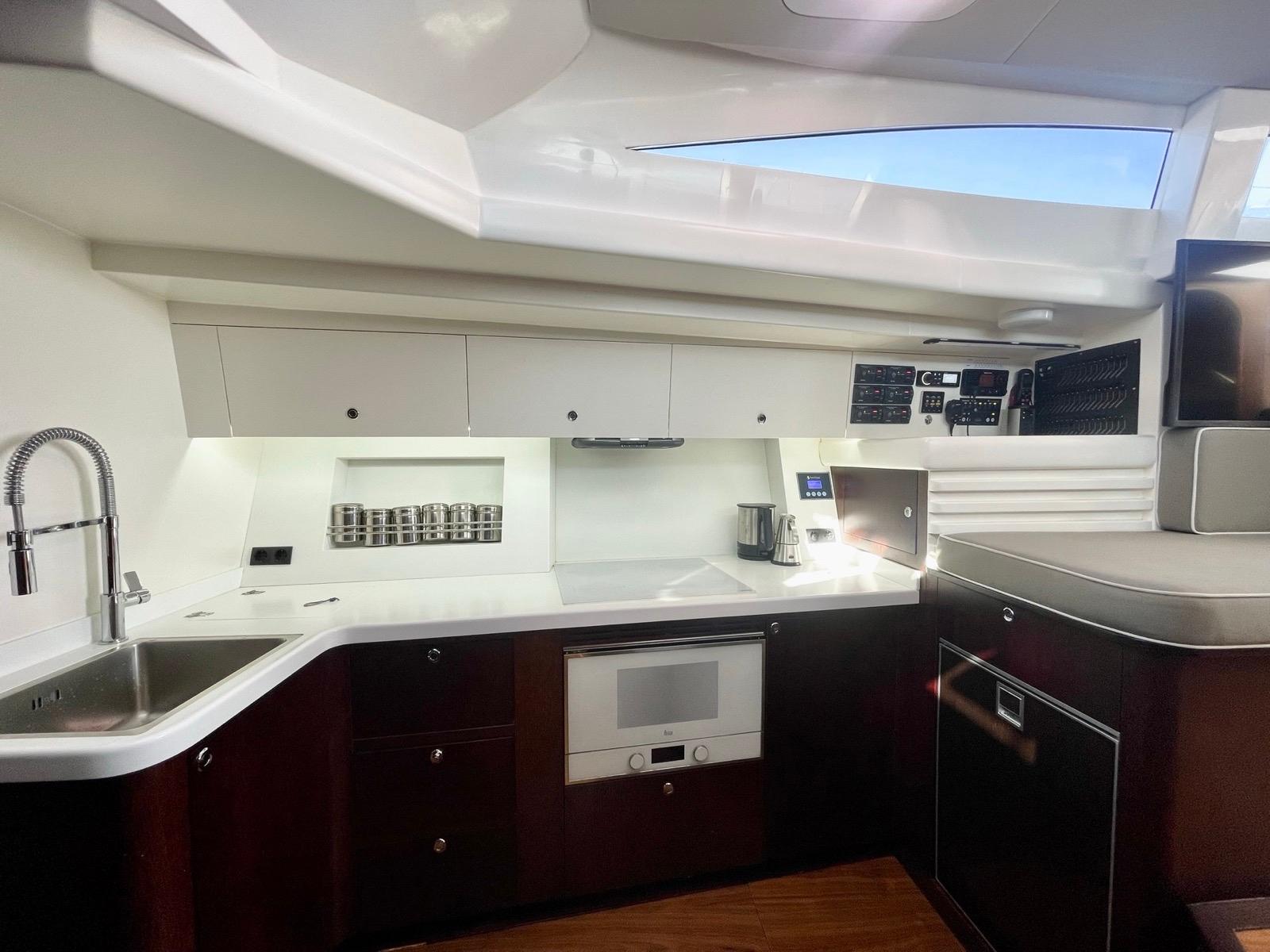

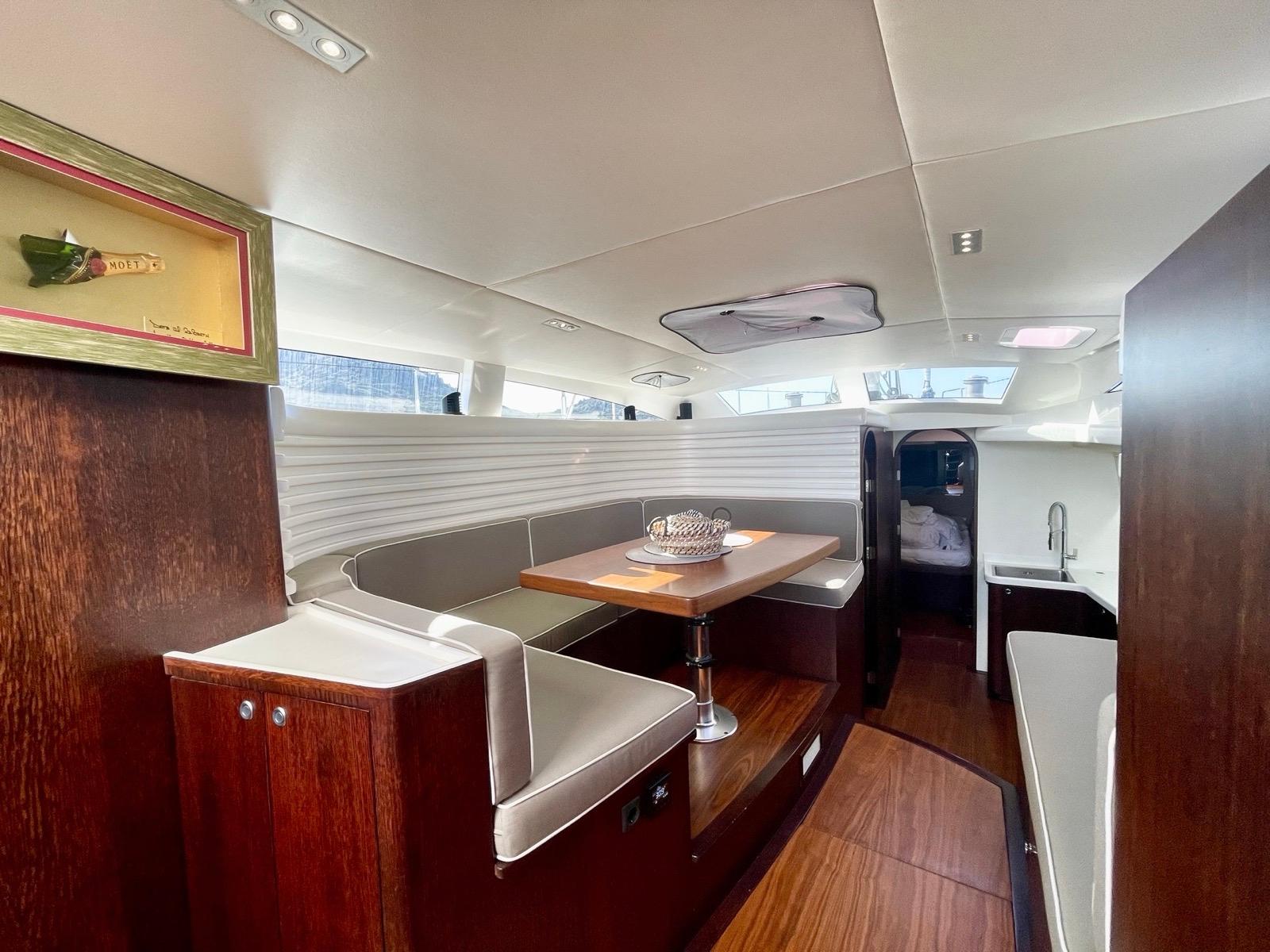

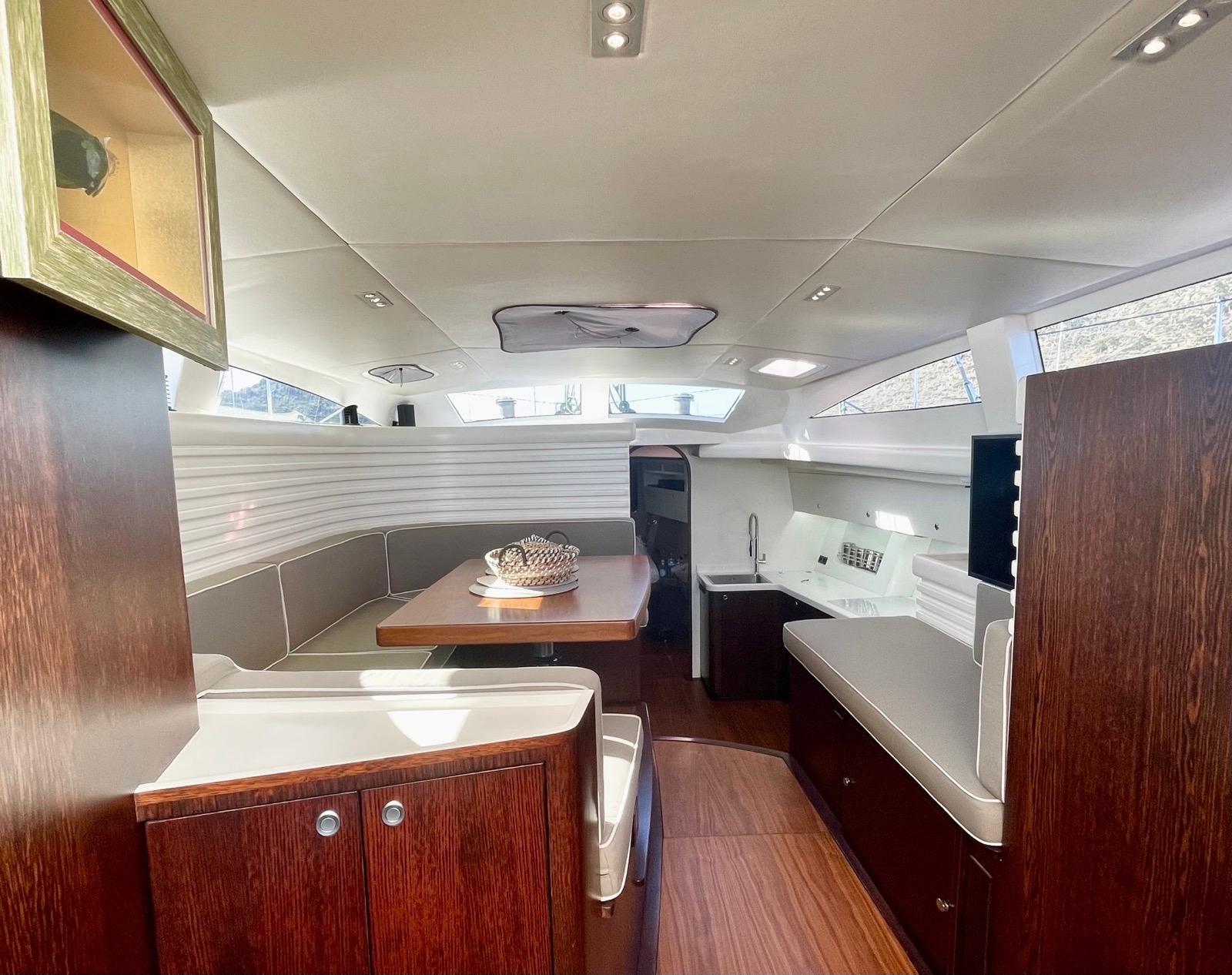

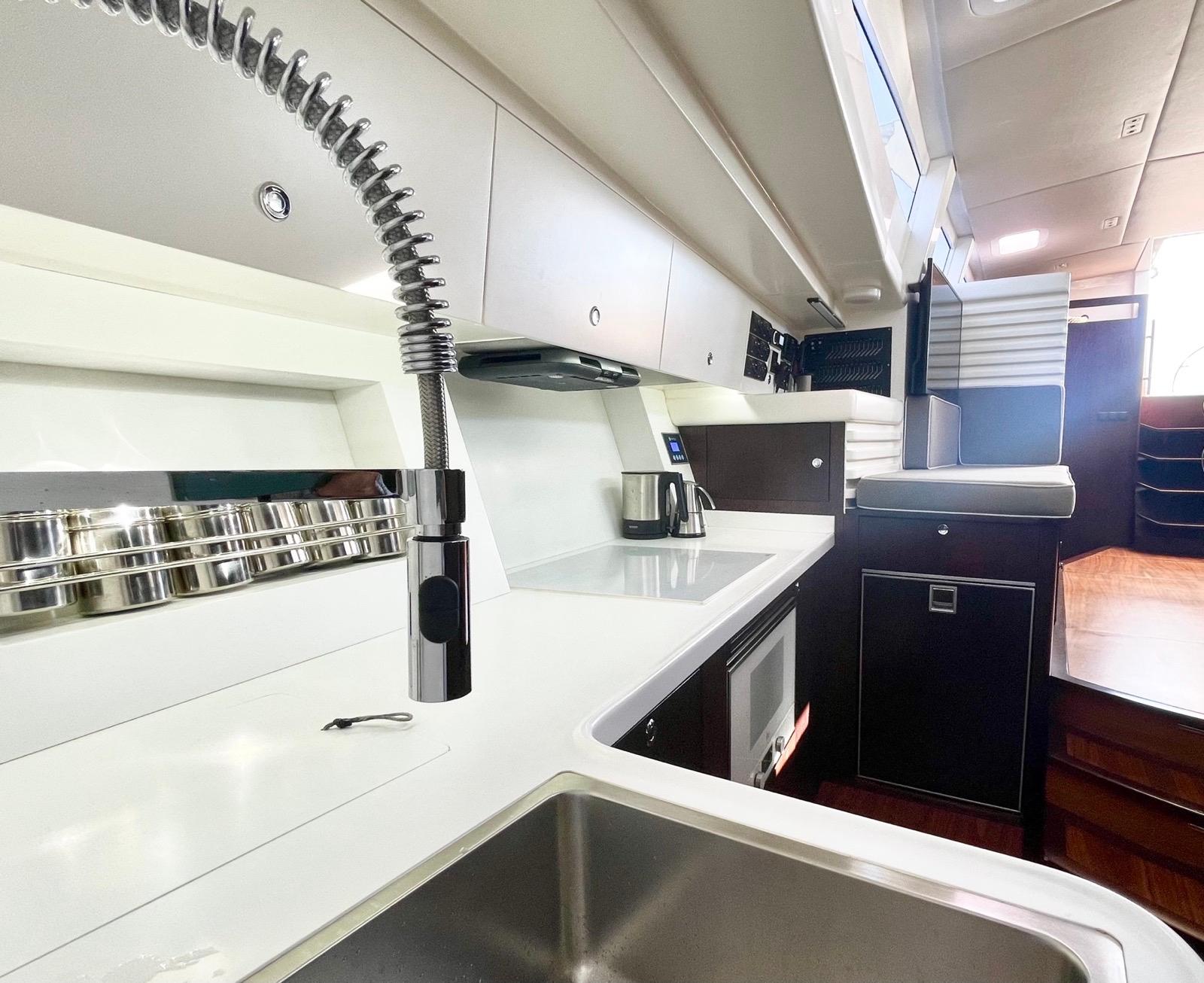

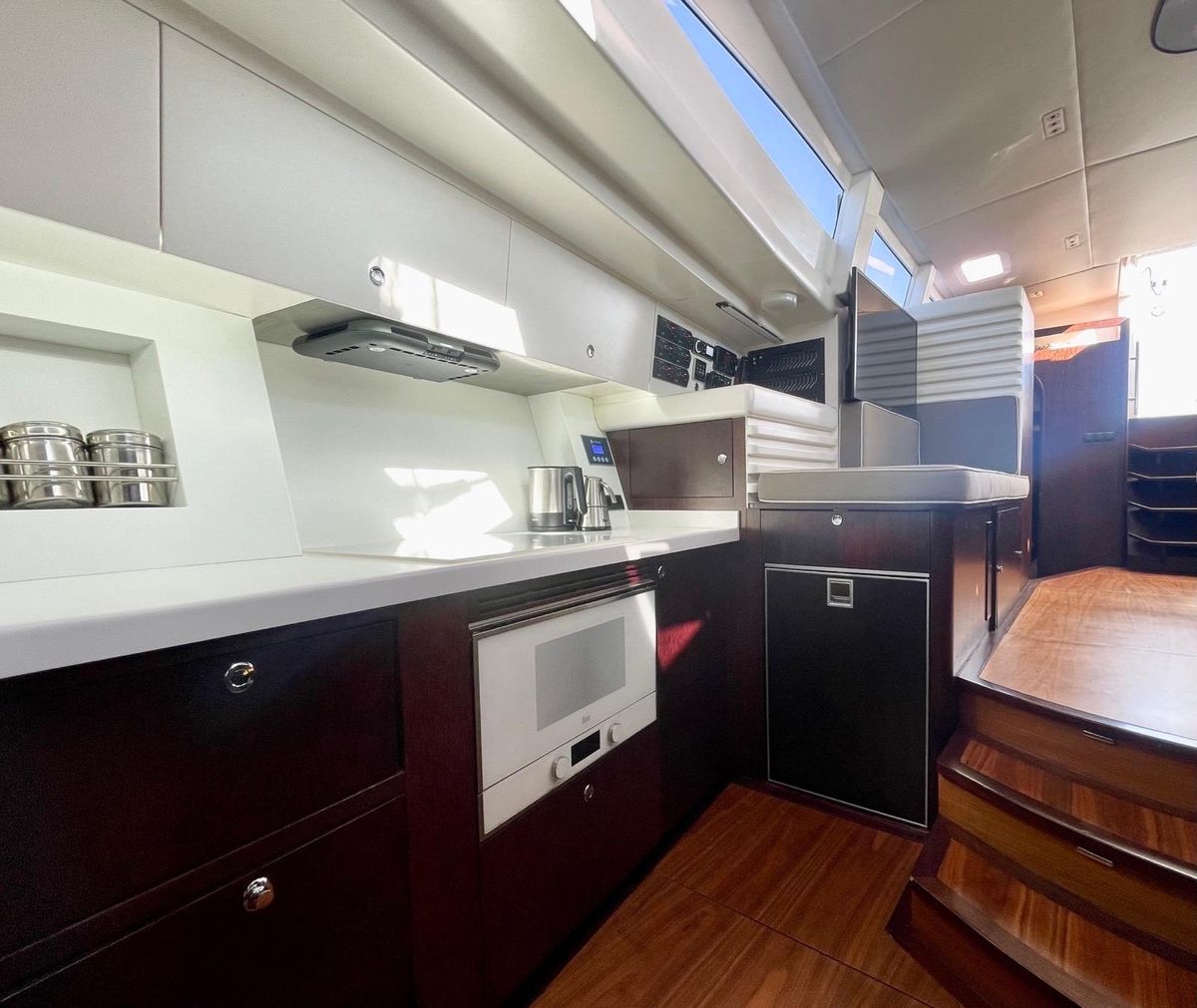

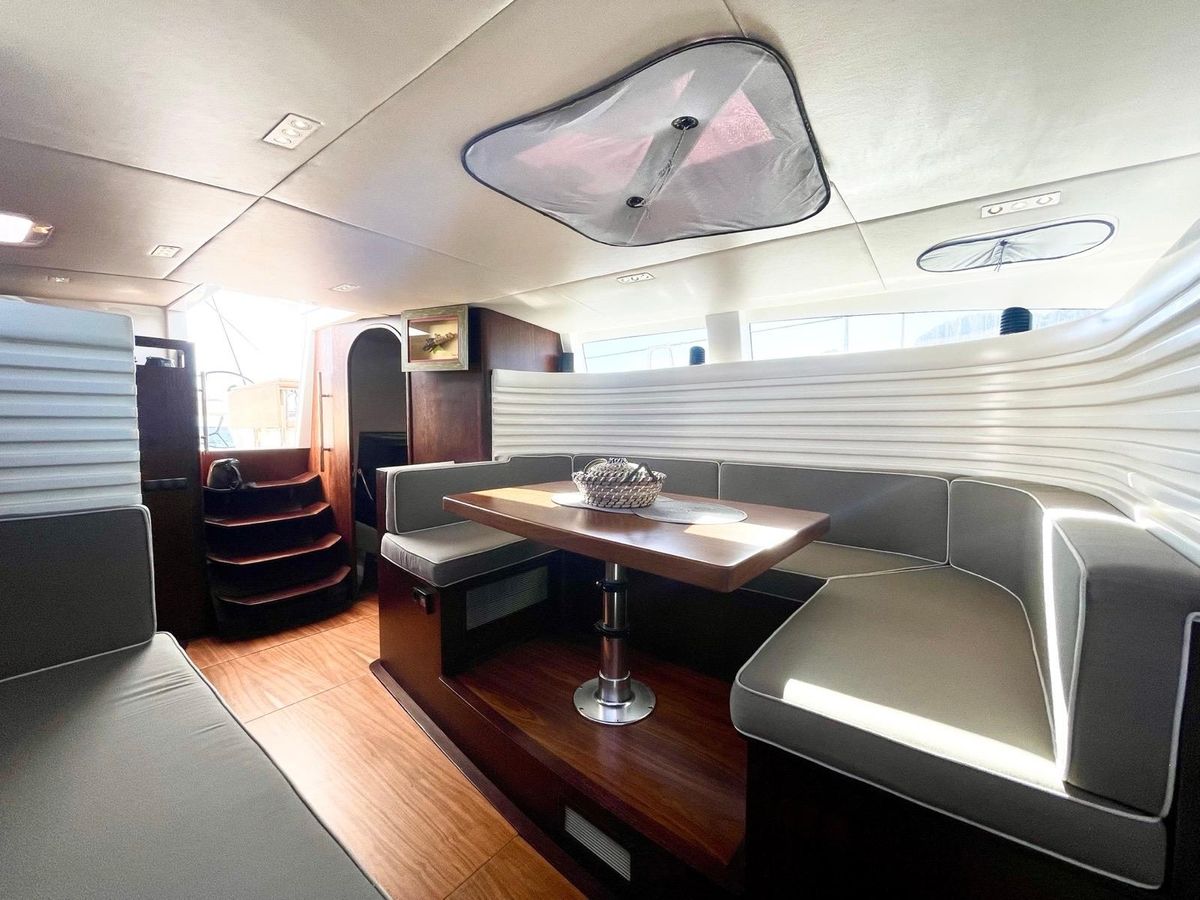

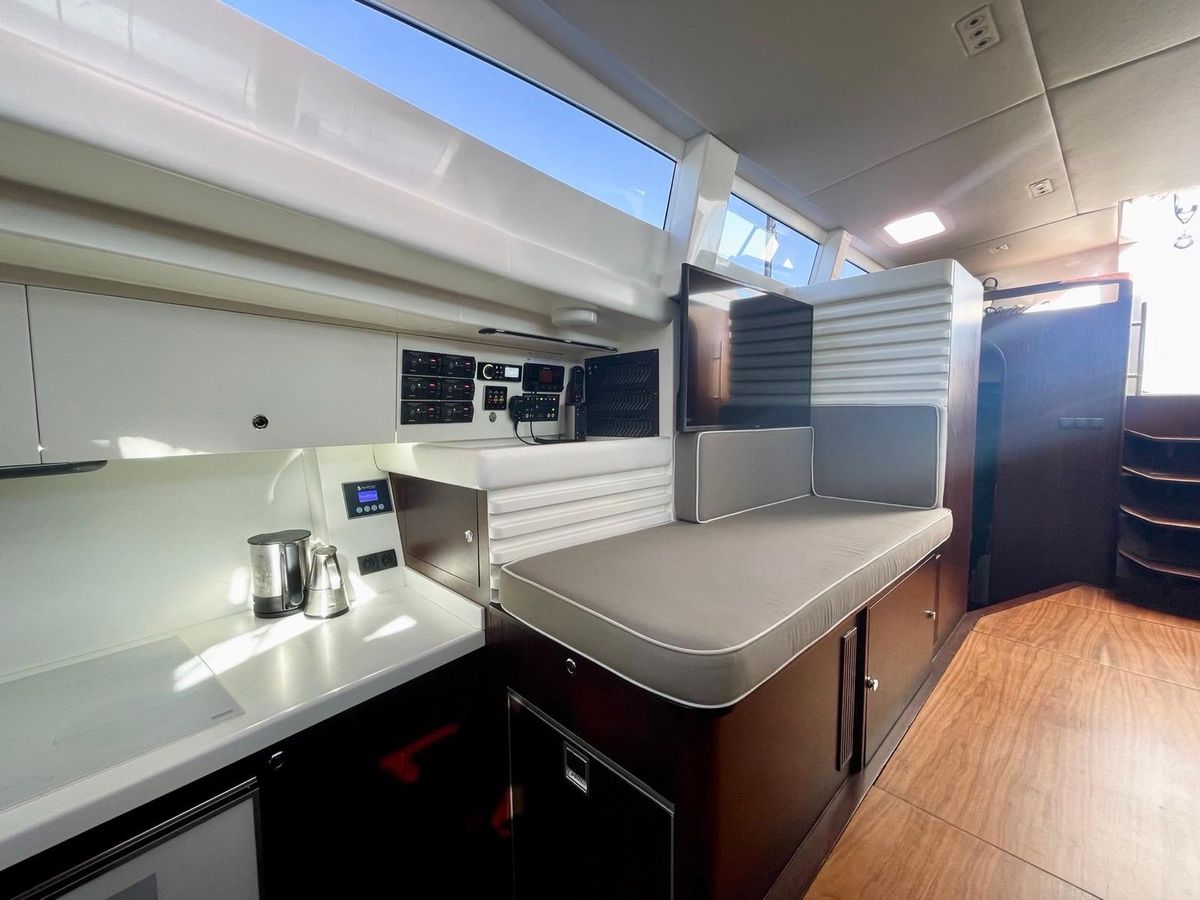

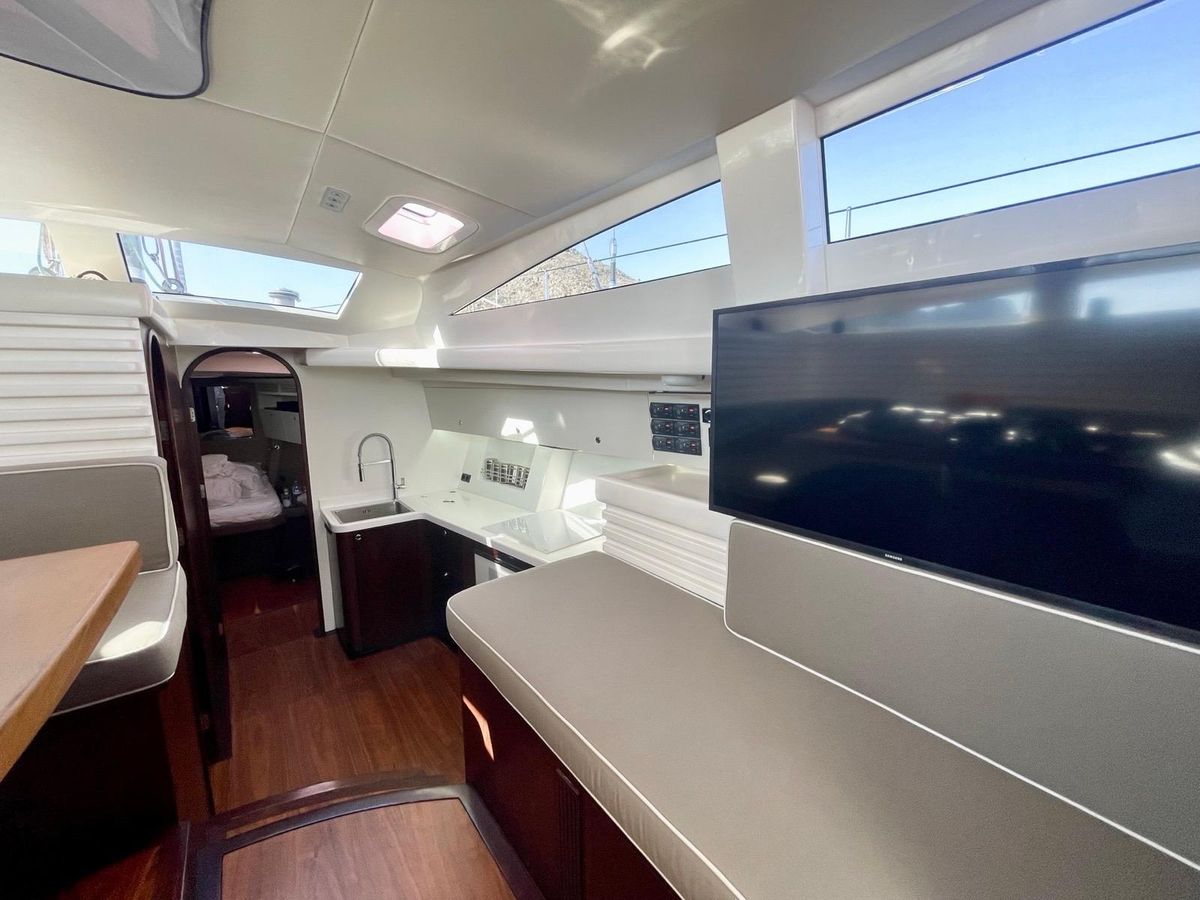

Saloon and Kitchen
- Isotherm Fridge
- Deepfreeezer
- Dometic Aspirator
- Induction Franke Stove
- Teka Owen
- SS sink
- Sitting area
- Storage area
- Samsung OLED TV

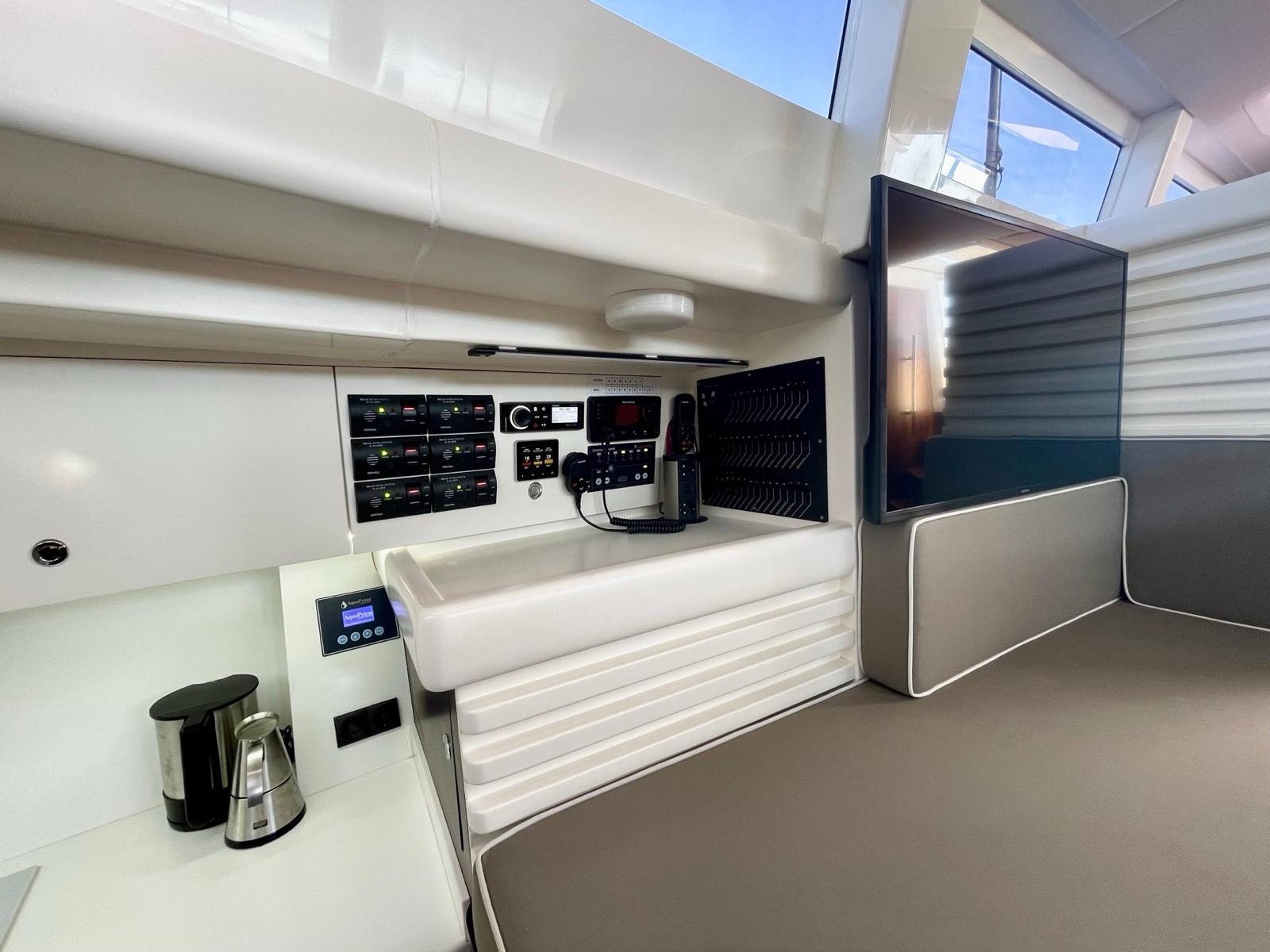

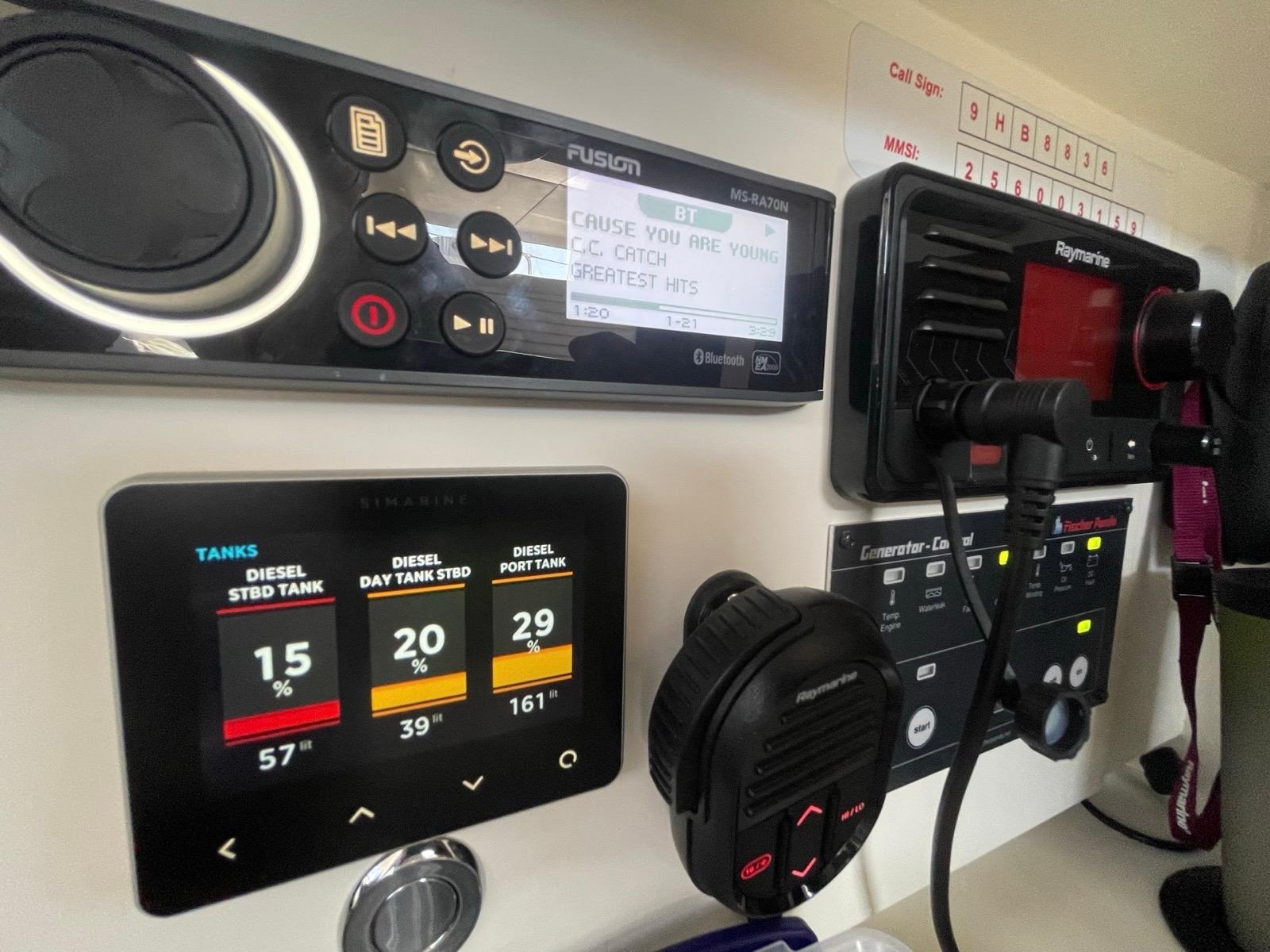

- Fusion control units, and Bose speaker sound system with subwoofer (interior),
- JL audio cockpit sound system
- Water maker control unit
- Generator control Unit
- Raymarine VHF
- All switches renewed
- Saloon table convertible to a large bed
Additional InformationElectrical / Mechanical
- Cummins 180 hp engine 1490 hours (25 Sept 2024), is mounted on resilient mounts with special hard rubber to prevent
excessive vibration. - Folding 4-blade propeller Bruntons
- Sound and heat insulated engine compartment
- Access to engine from the saloon floor/ access from aft port head side wall
- A fuel filter with water separator is built in the fuel supply system.
- A single lever engine control, is mounted on the starboard side of the steering position.
- Three aluminium fuel tanks
- Manuel and automatic bilge pumps (Johnson)
- 24 V DC/ 220 V AC
- 18 KVA generator Ficher Panda 1889 hrs (25 Sept 2024)
- Inverter and Charger (Victron)
- Lewmar 24/48V bowthruster
- Watermaker Aquaprime 250 lt/h

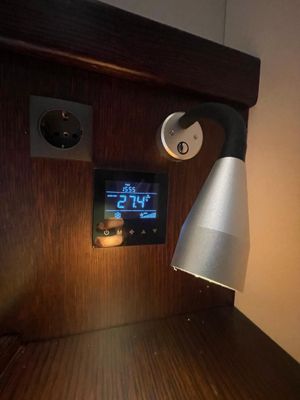

- Air conditioning 5 units (12000 Btu Saloon and 9000 Btu cabins) SeaMach
- Batteries 12x Main service dedicated, 6x Forward Service dedicated, 2x Engine Starter and 1x Generator Starter
- Battery Chargers Victron x4 dedicated
Lights

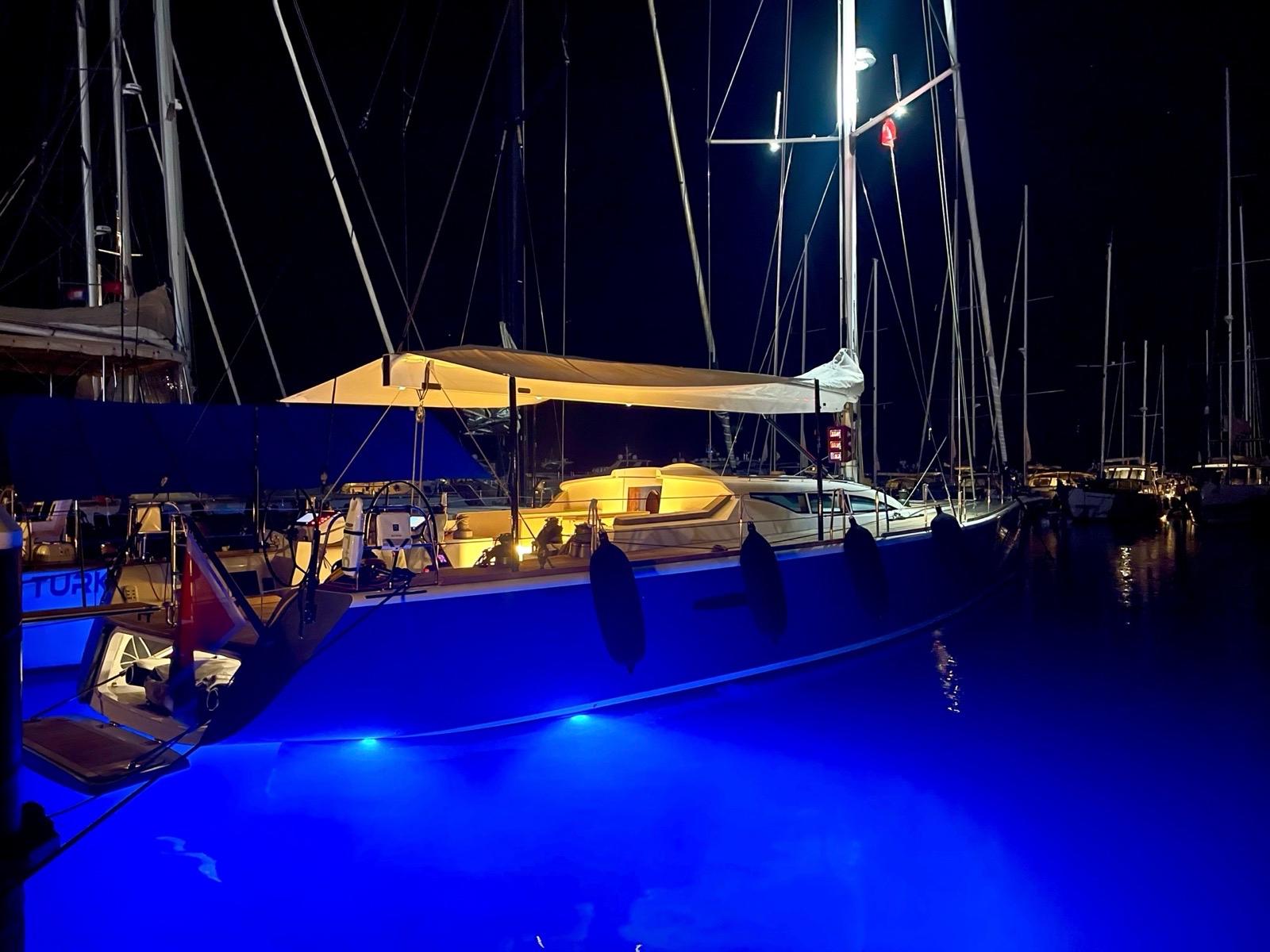

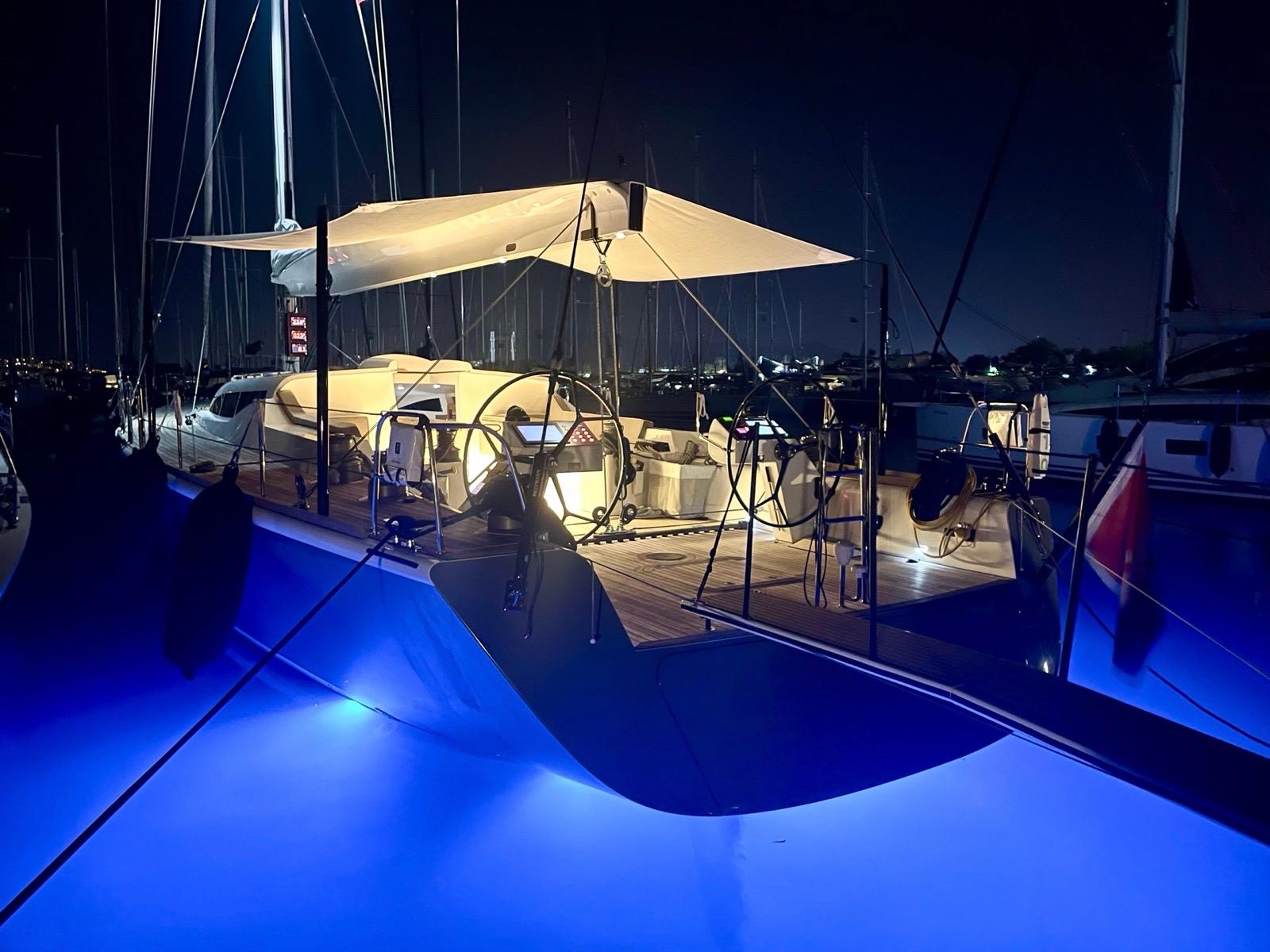

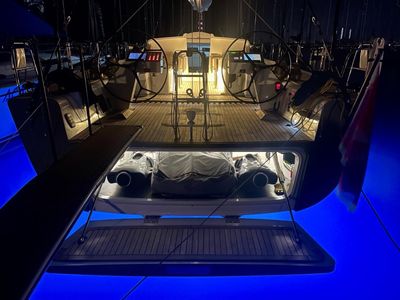

- Underwater lights Lumitec Seablaze (Bi-color white and blue)
- Dimmable spreader lights x 6
- Dimmable spreader deck lights
- Led navigation lights Aquasignal
- Led ambiance lights on cockpit
- Led boom cockpit lights
- Interior led lights
Navigation Instruments

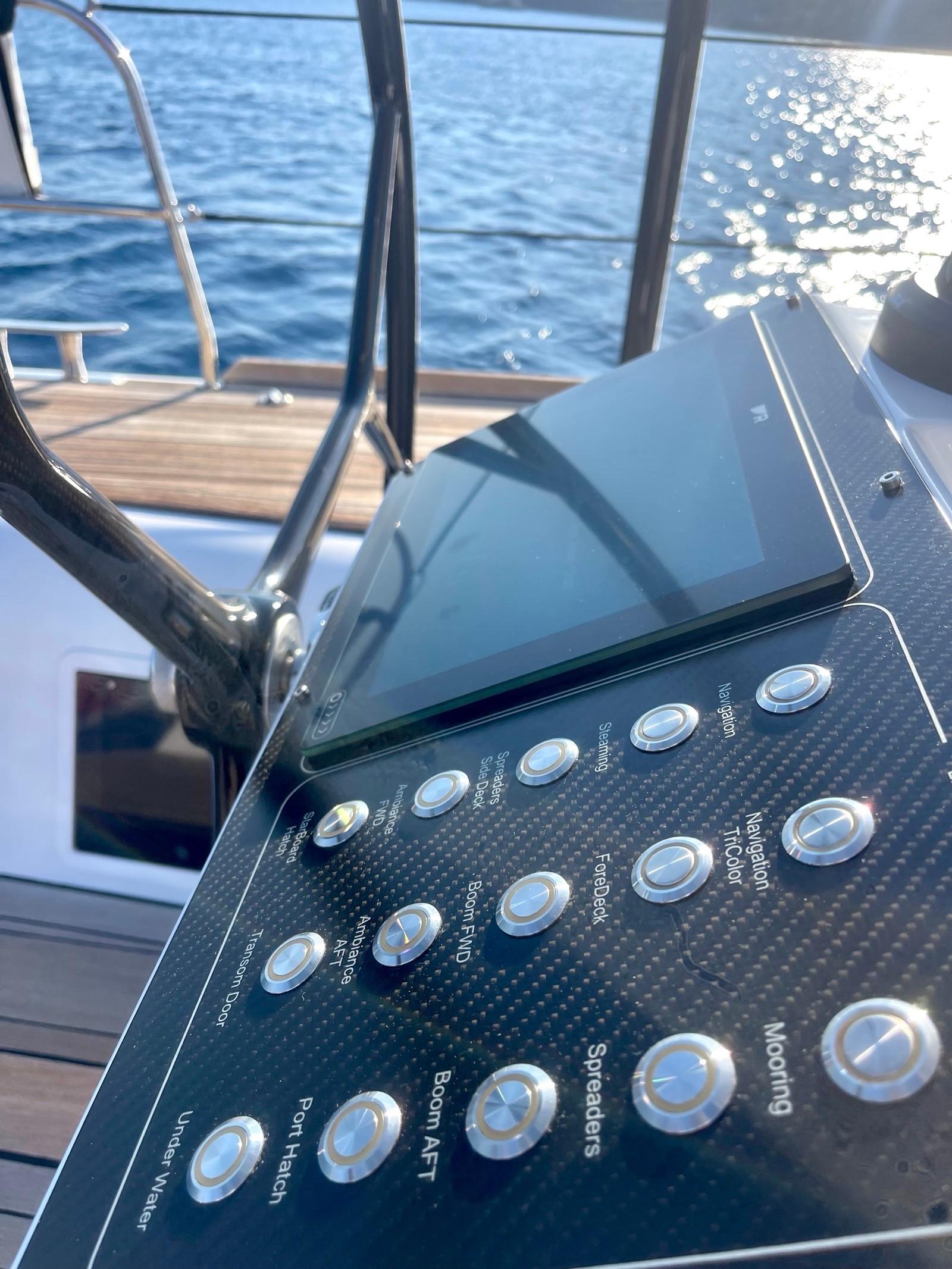

- Raymarine Chart Plotters Touch Screen 12’ Axiom Plus 12
- Otopilot Raymarine 1070S

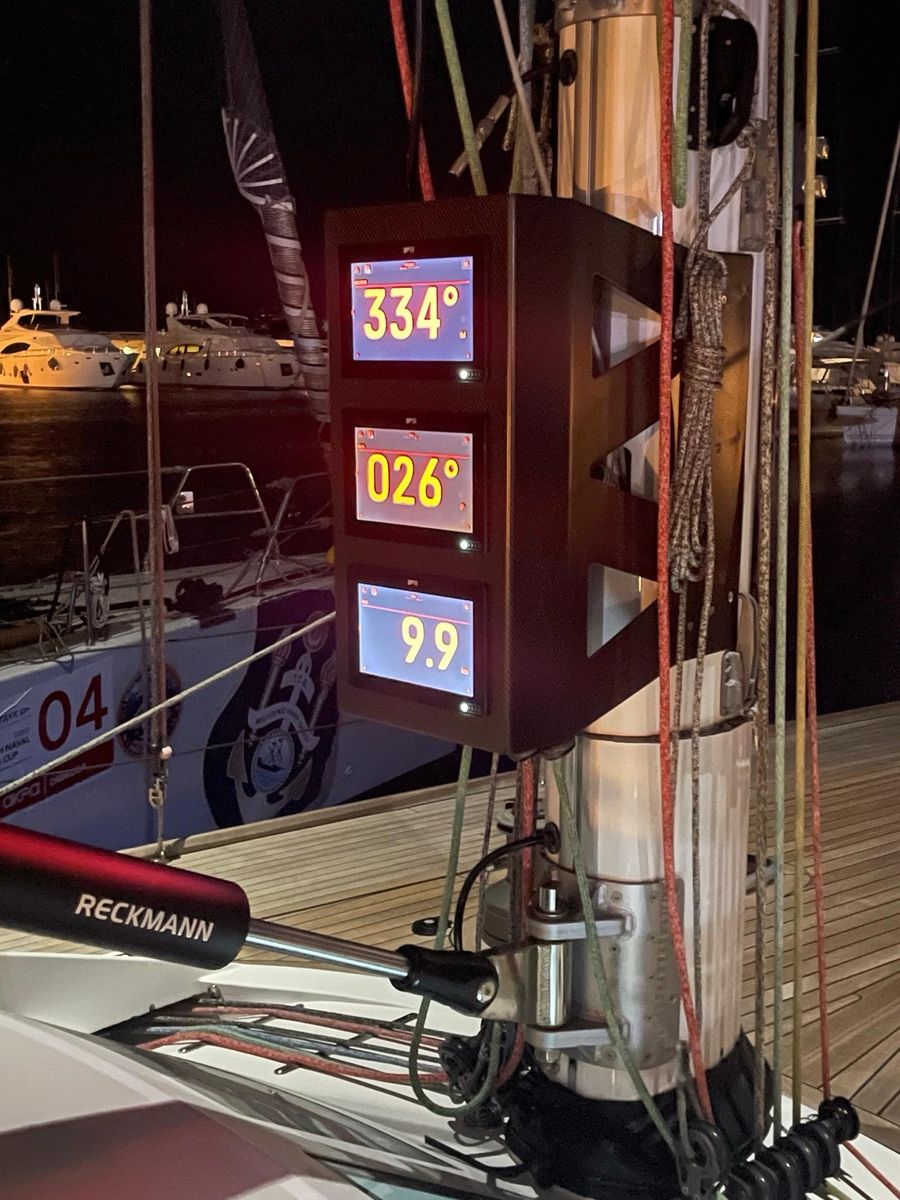

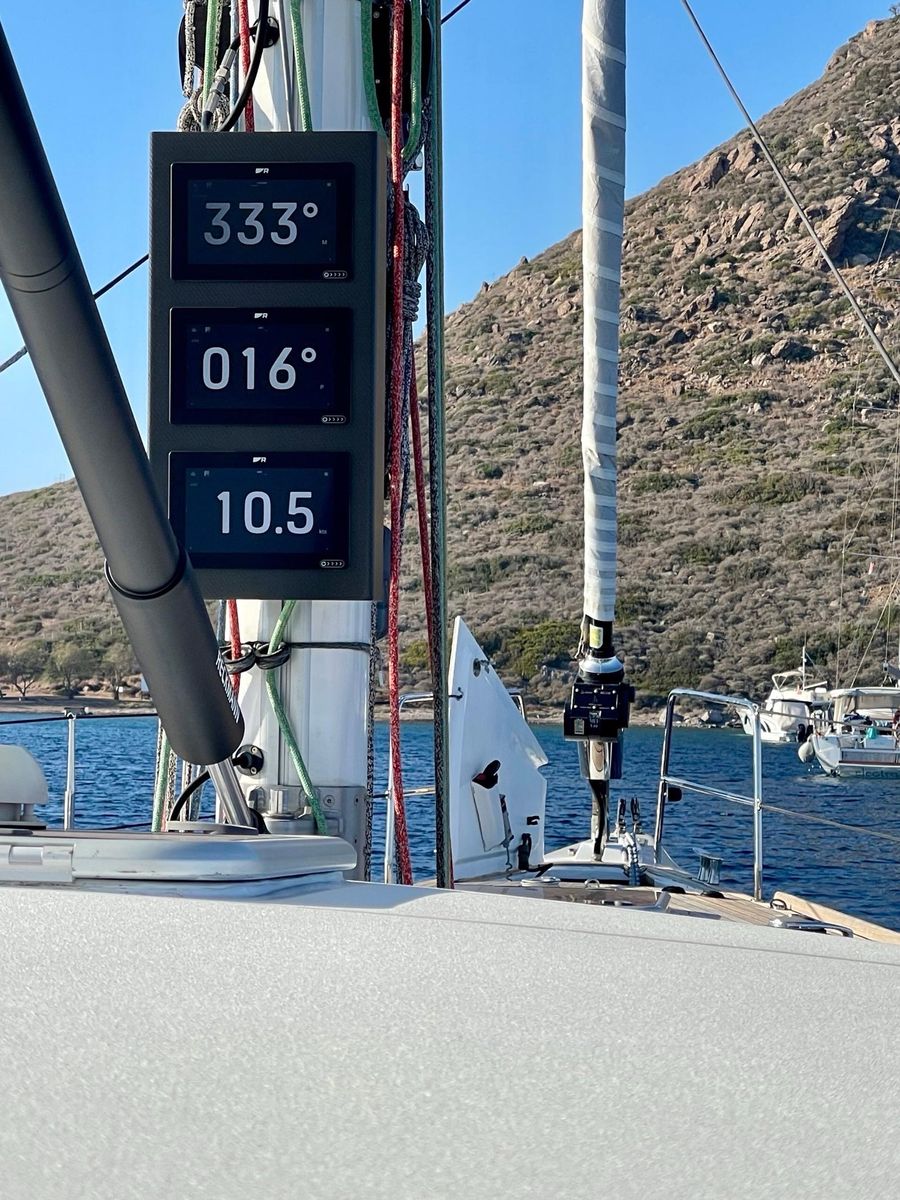

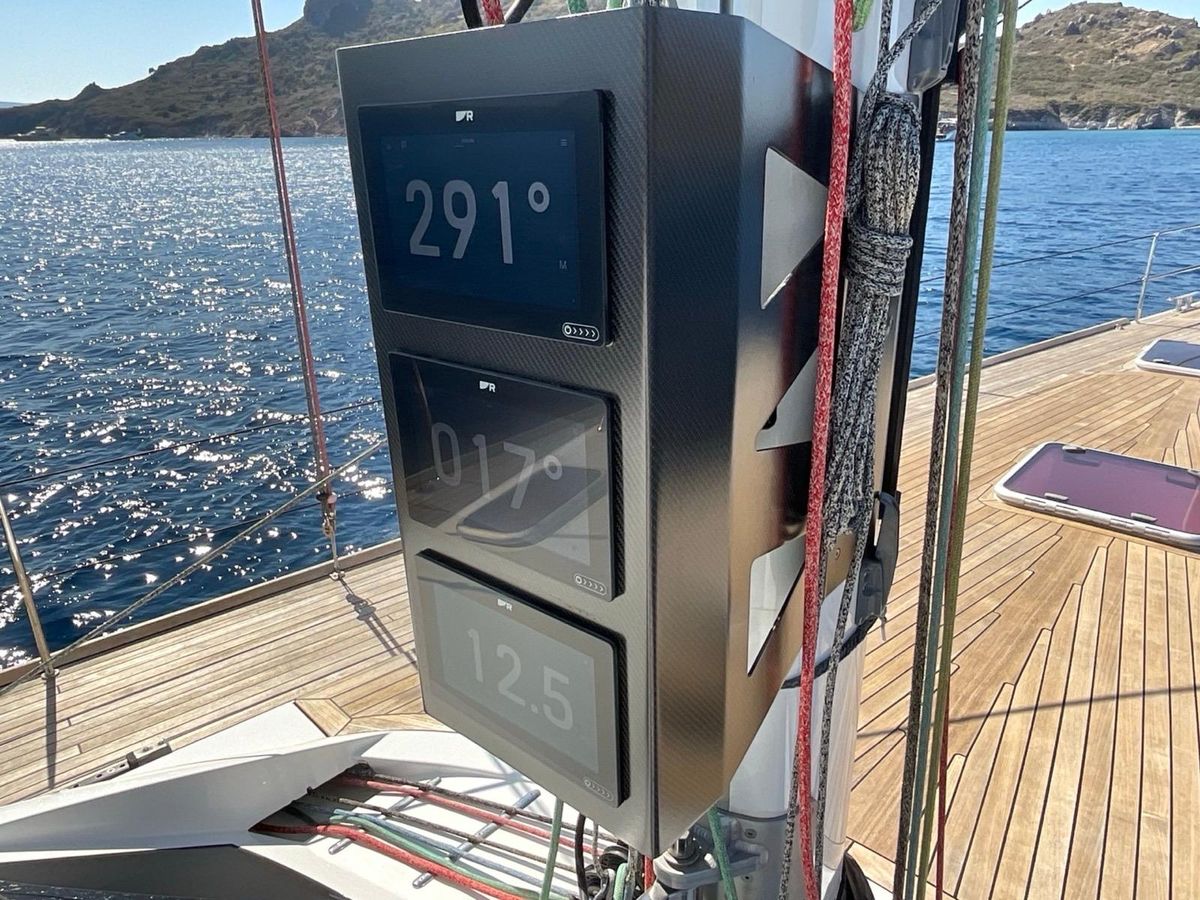

- Axiom 9’ mast screens x3
- I70S Navigation instruments
- Lewmar Chain Counter
- RMK 10 control units x 2
- Silva Compass
- AIS Raymarine (receiver and transmitter)
- VHF Raymarine
- Remote otopilot unit
- Simarine control unit
- Raymarine GPS
- Raymarine Radar Quantum 2Doppler

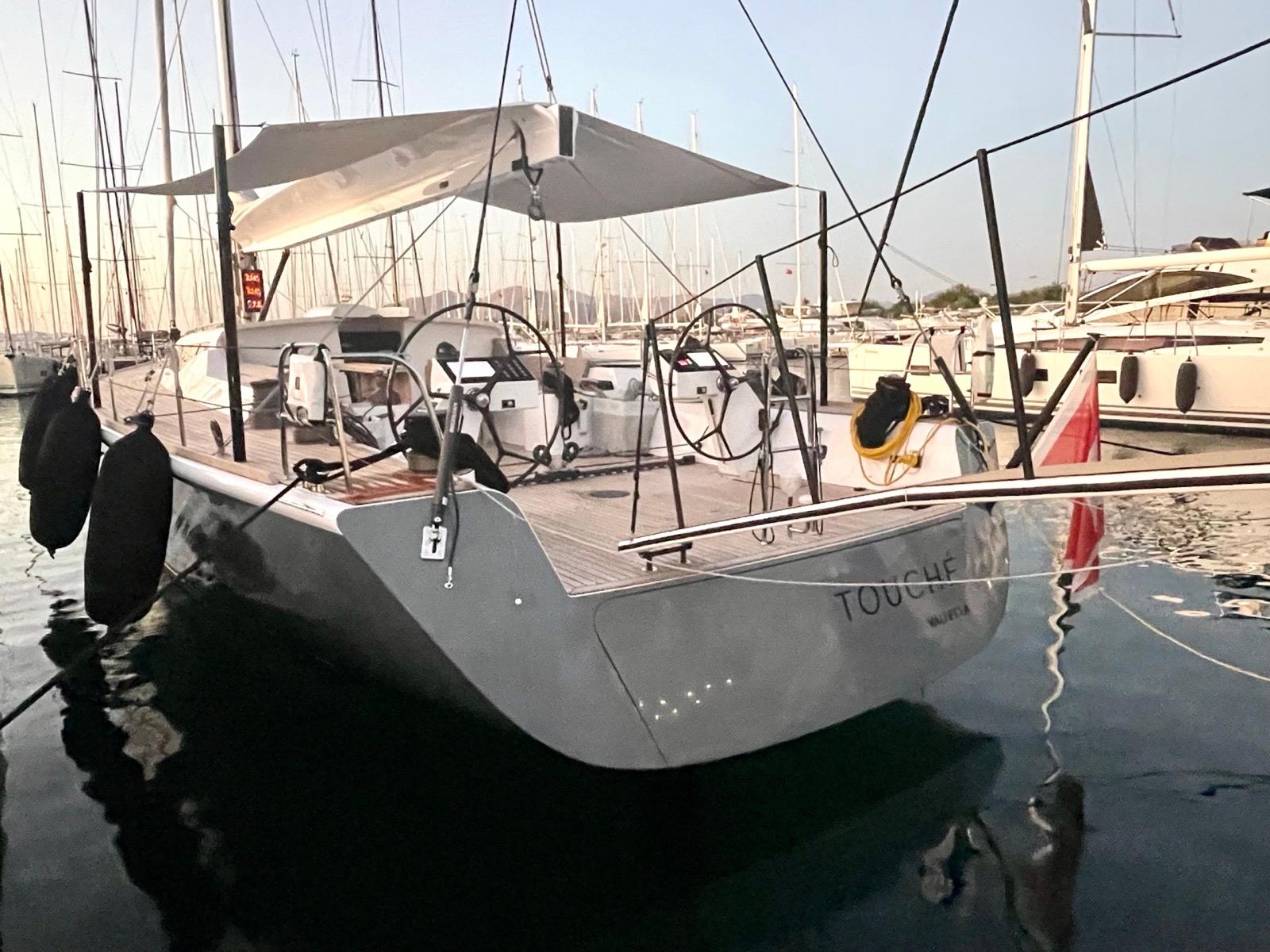

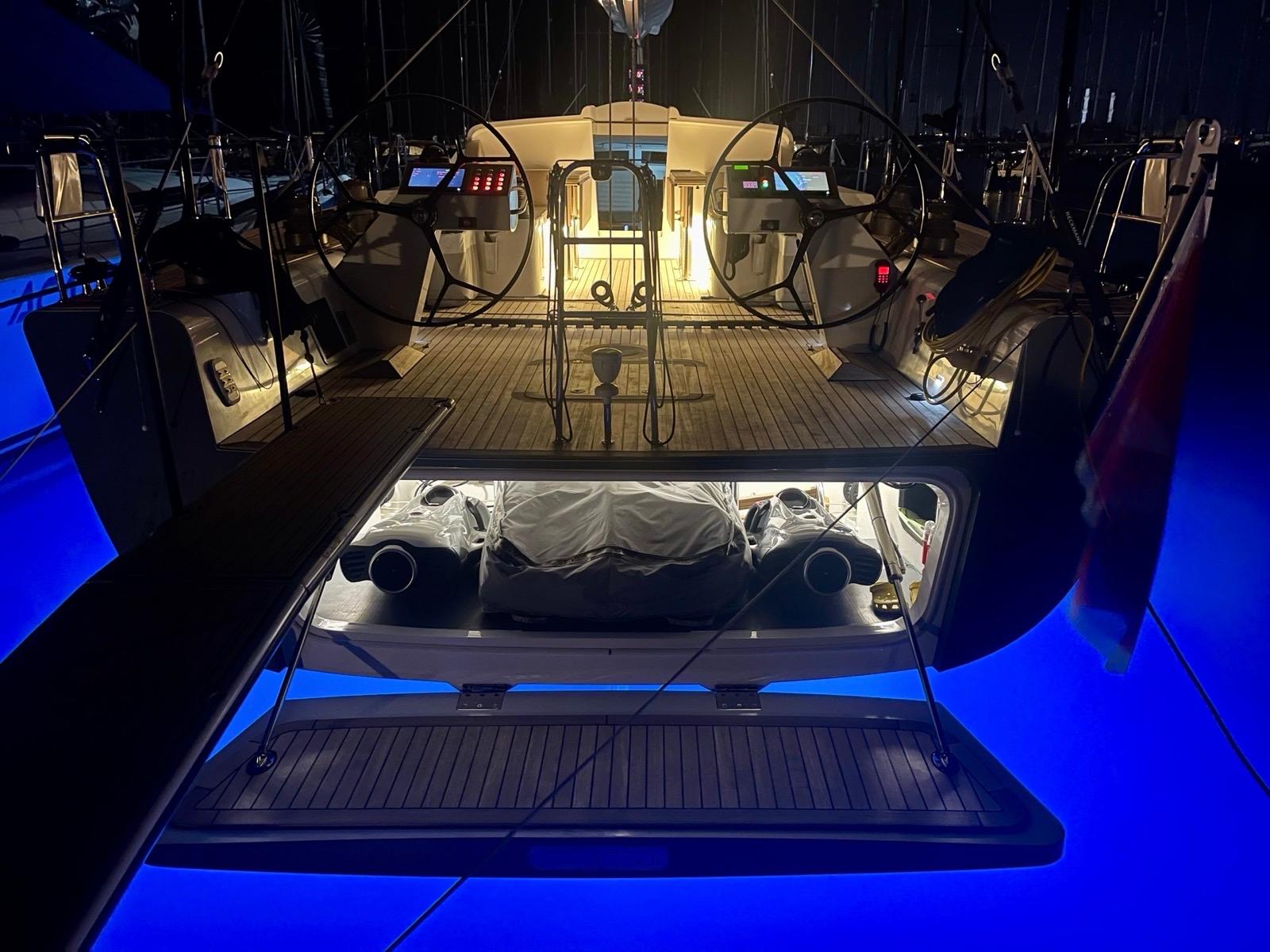

Transom door aft storage area
- Hydraulic opening aft transom door
- Storage area for dinghy
- GRP battom dinghy (3.1 m) and Torpeedo outboard electrical engine (Travel 603)
- Seabob FS5 x 2 (2022) charger units
Security Equipement
- 8 life west
- Soft pack life raft 8 pers
- 2 x emergency ledder
- Dromboy MOB System
Touche was Refitted almost entirely in 2021 on owner demand at Magmarin Shipyard
Main works done 2021:
- Interior Furnitures renewed (Dark veneer)
- Floors renewed
- Kitchen and navigation area completely renewed
- Kitchen Equipements renewed
- All teak deck reviewed
- Carbon boom modified to Park Avenue
- Navigation Instruments renewed (2021)
- Sails One Sails renewed (2021) Forte 220C Fullbatten main vertical batten jib
- All ropes are renewed (2021)
- Deck equipments
- All pumps and electrical system renewed (2021)
