YACHT NAME:
2010 Hanse 545
MODEL:
545
BUILDER:
Hanse
YEAR BUILT:
2010
LOCATION:
Greece
ASKING PRICE:
$348,540
DESIGNER:
Judel/Vrolijk & Co
HULL:
Fiberglass
CATEGORY:
Cruisers
DESCRIPTION:
Hanse 545, now available, is a rare find—delivered new to its current owner and used lightly each year for family cruising. It boasts a modern, sleek design with excellent sailing performance, spacious living areas, and an abundance of natural light, thanks to large hull windows, skylights, and port lights.
With a well-thought-out layout, this yacht accommodates up to six guests in three comfortable double cabins, including a large captain’s cabin with an en-suite. The roomy saloon, well-equipped galley, and navigation area complete the interior.
Highlights:

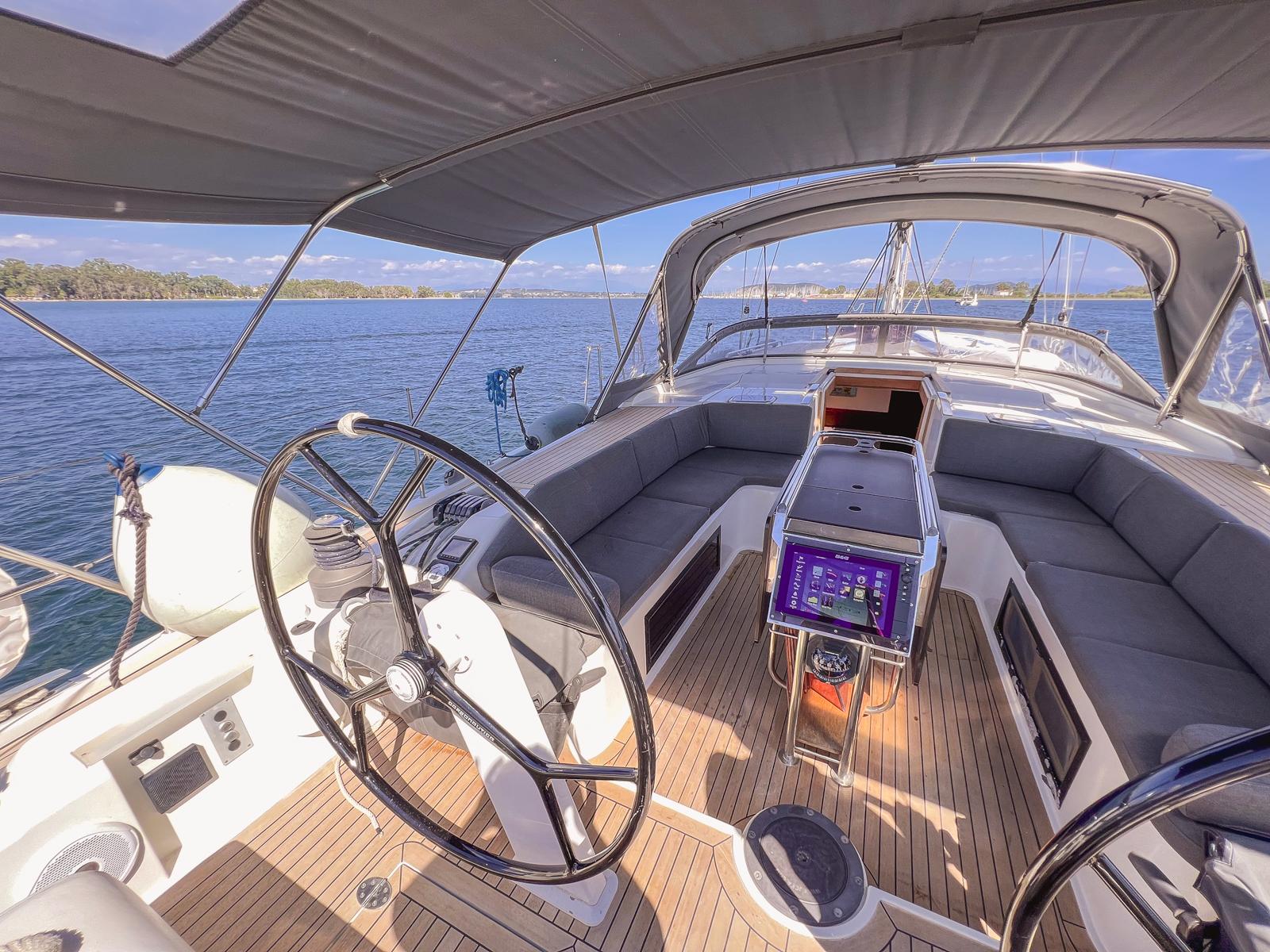

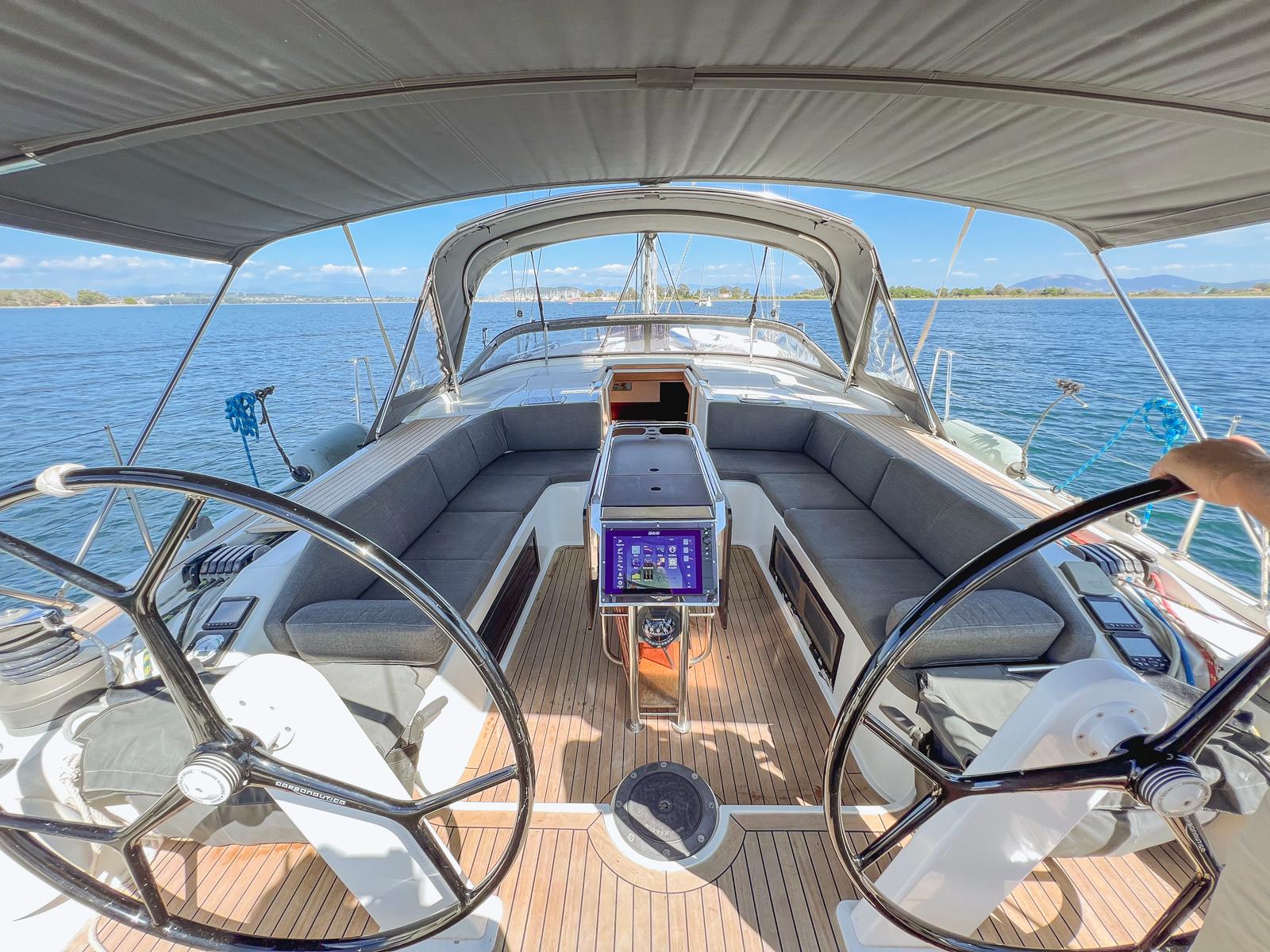

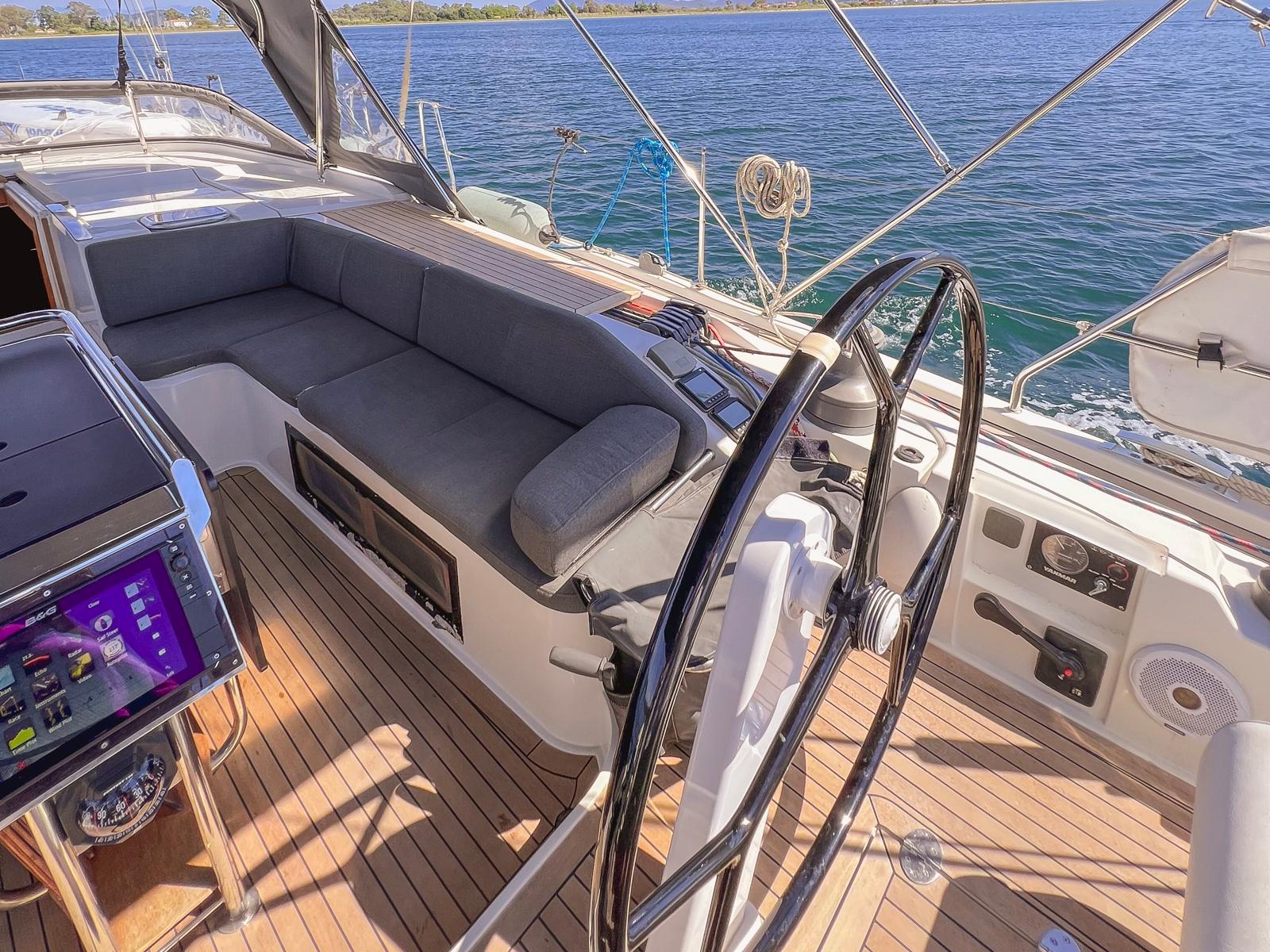

- Spacious cockpit with double steering wheels
- Folding bathing platform for easy water access
- New North sails fitted in 2016
- Full B&G navigation suite, including Sat Phone
- Excellent condition, with minimal family use
Stay tuned for more information!
Interior - High quality marine plywood, mahogany veneer, satin varnish
- White bulkheads
- Wooden door frames
- Wood / Sandwich doors

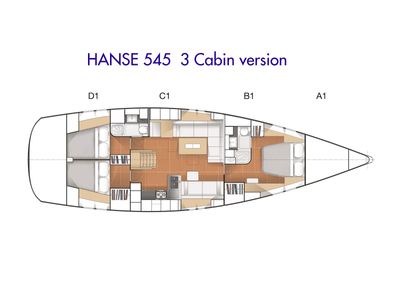

Sail Storage
- Version A 1 Foredeck sail storage with ladder and big hatch

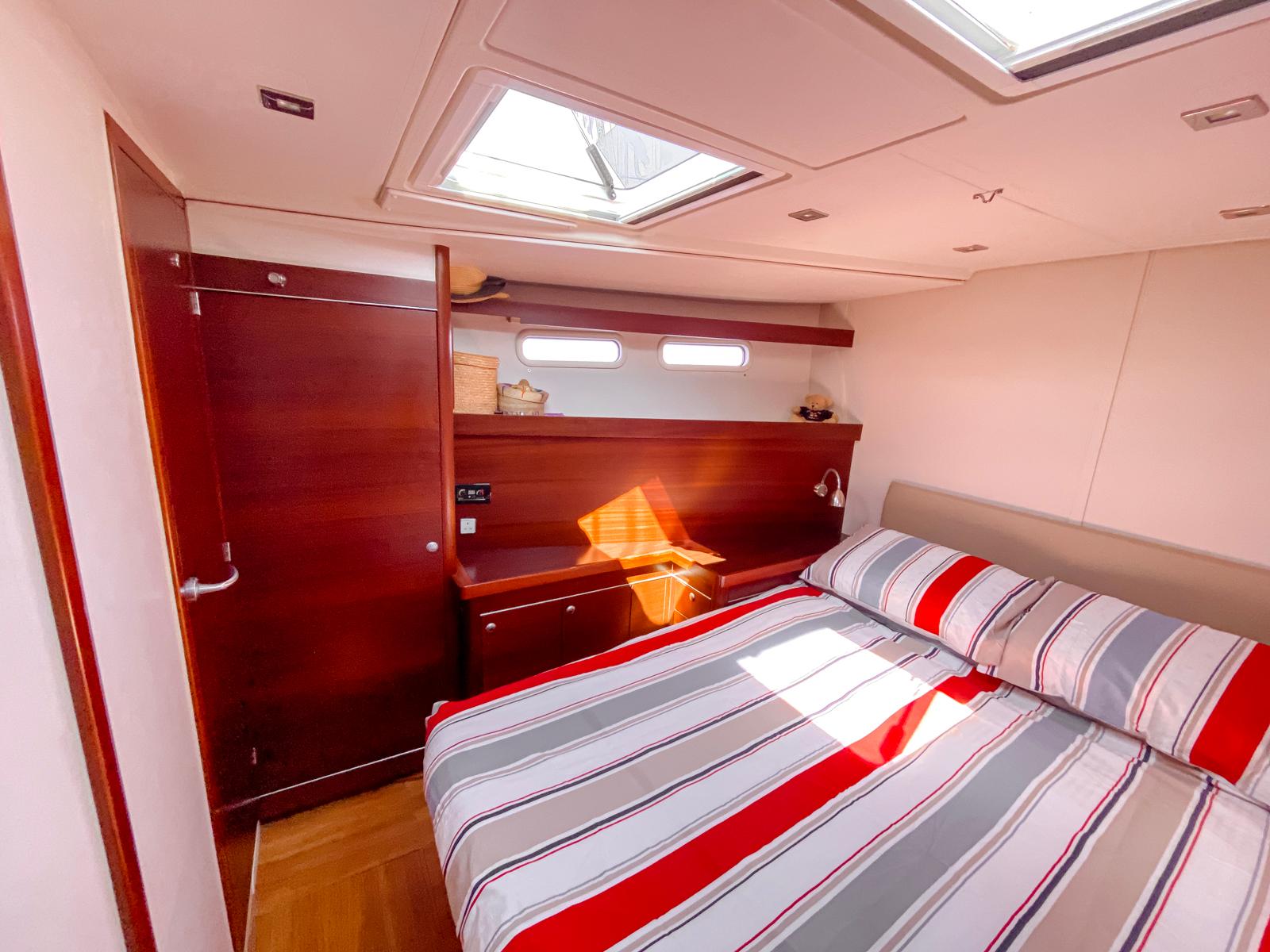

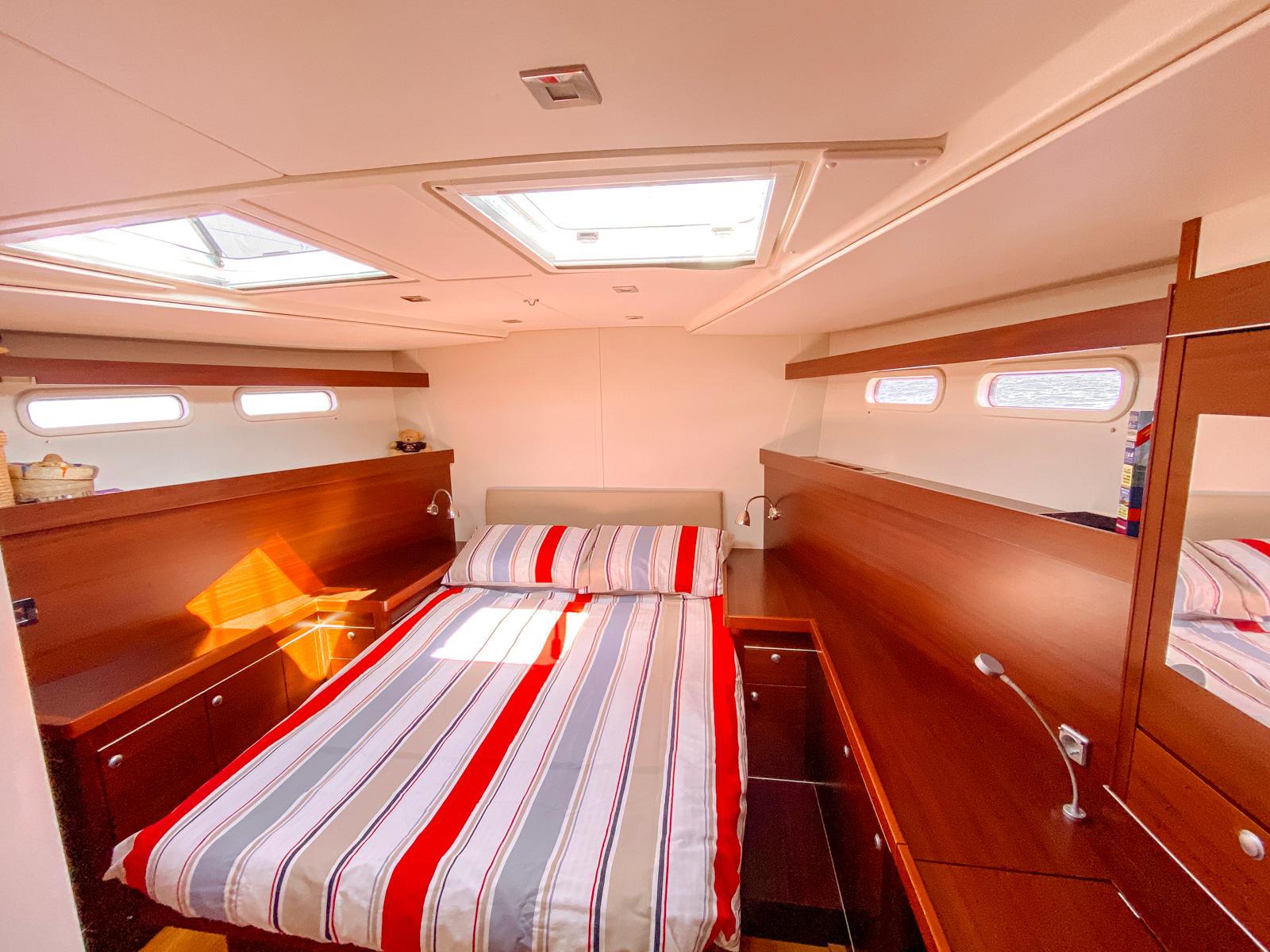

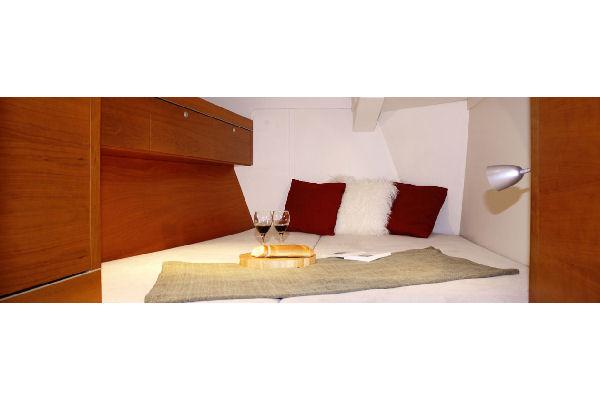

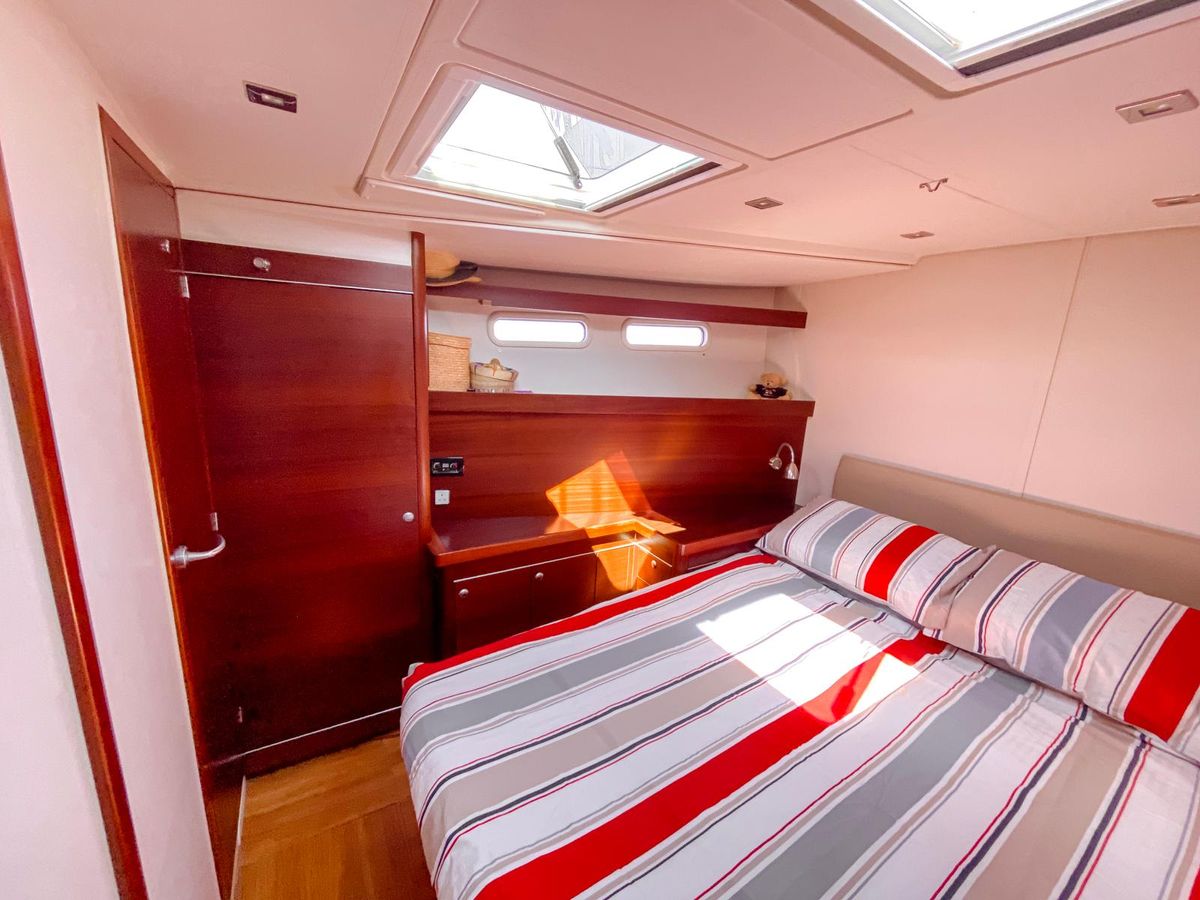

Forward cabin
- Version B1 Owner cabin with island berth, extensive hanging lockers and drawers including a head and separate shower unit in owners state room
- Options according to Hanse Individual Cabin Concept

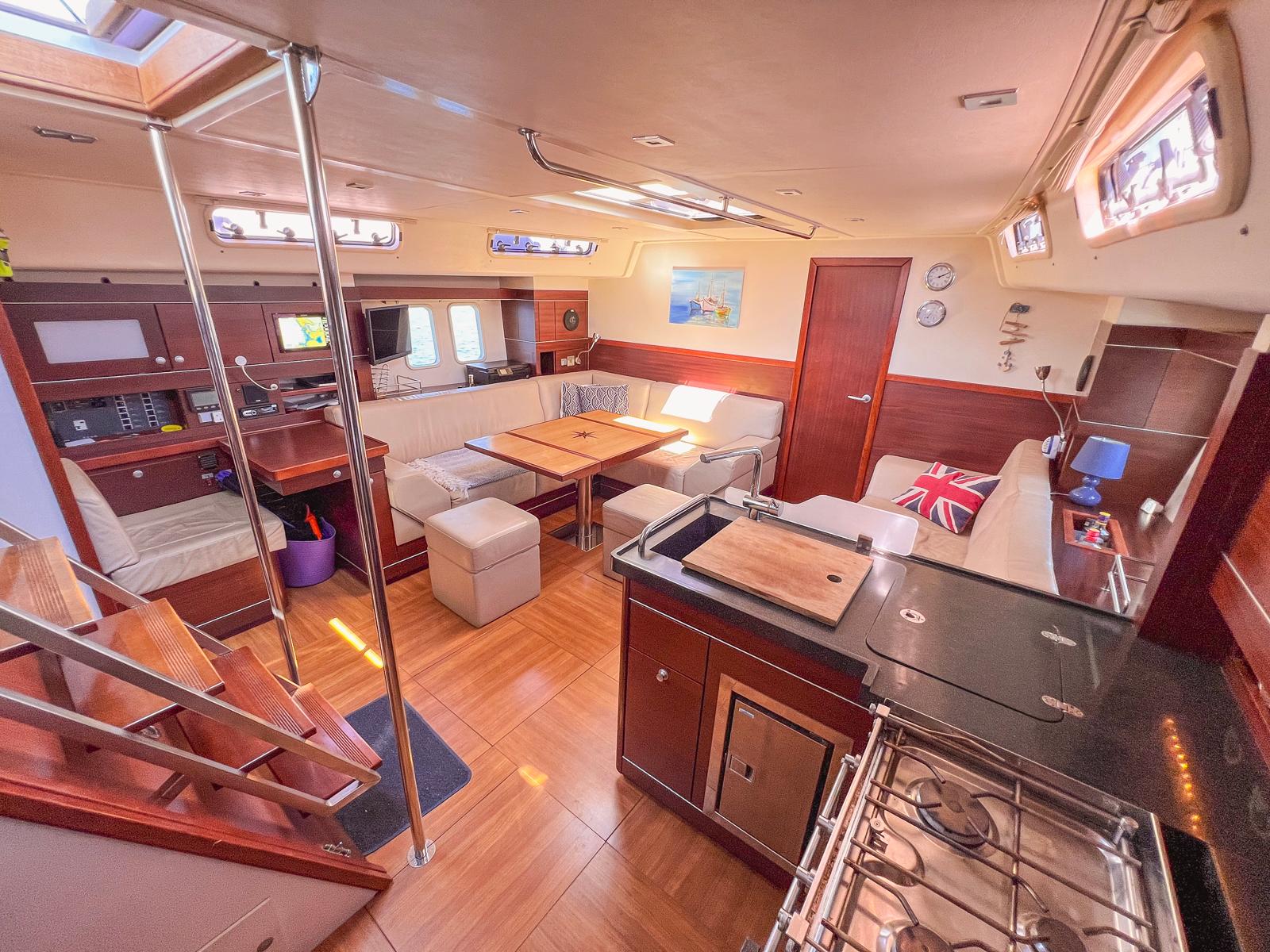

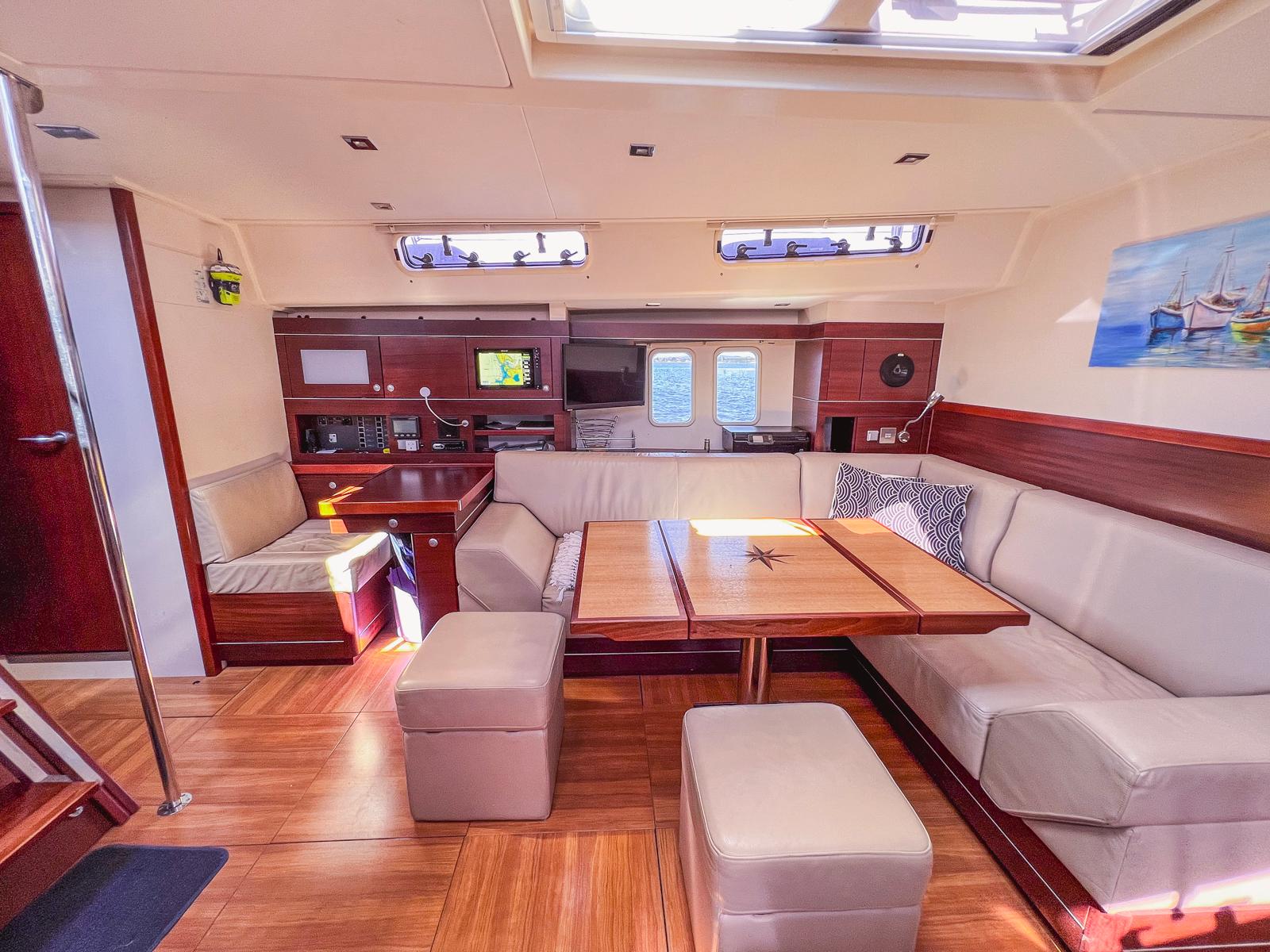

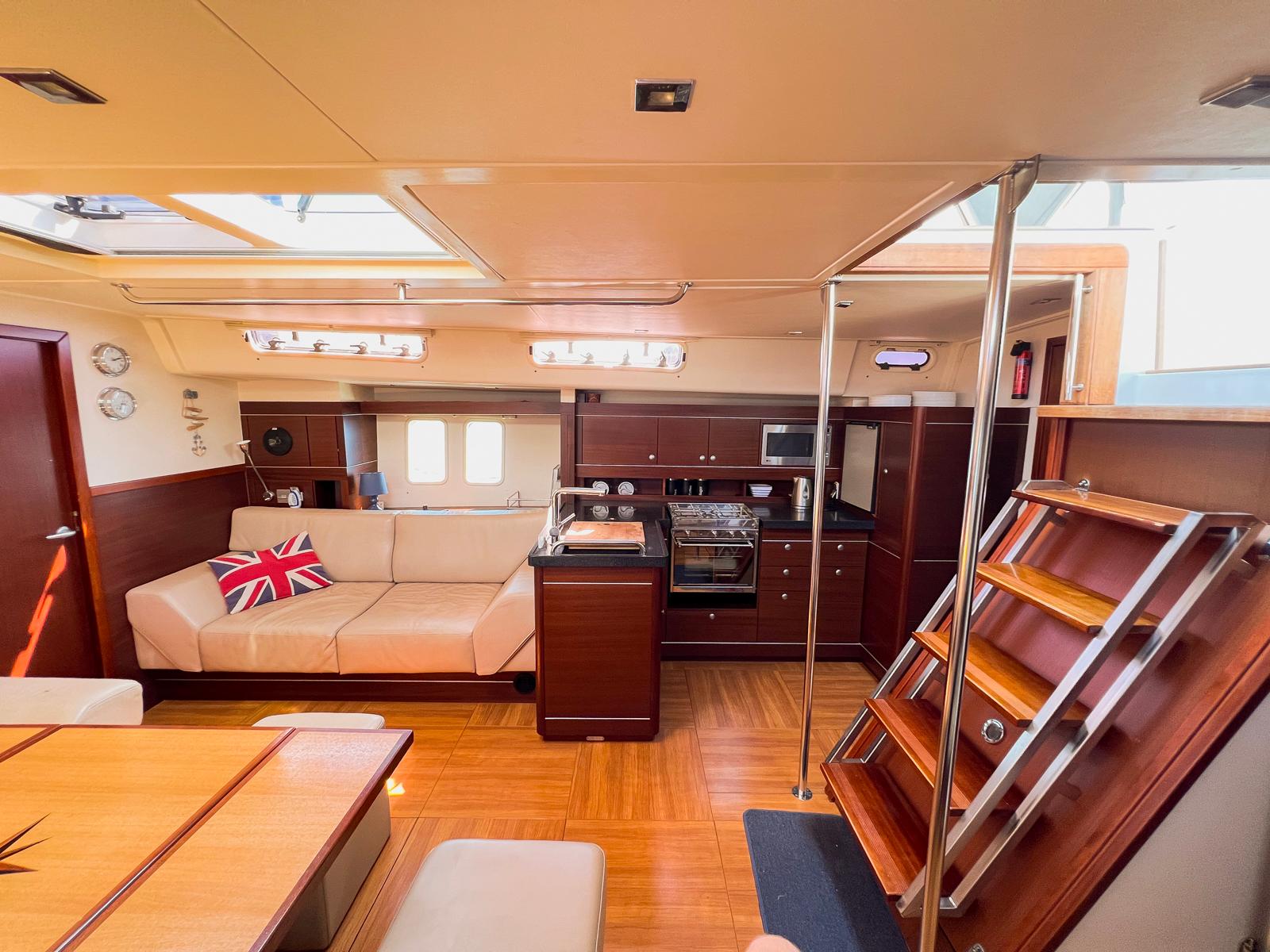

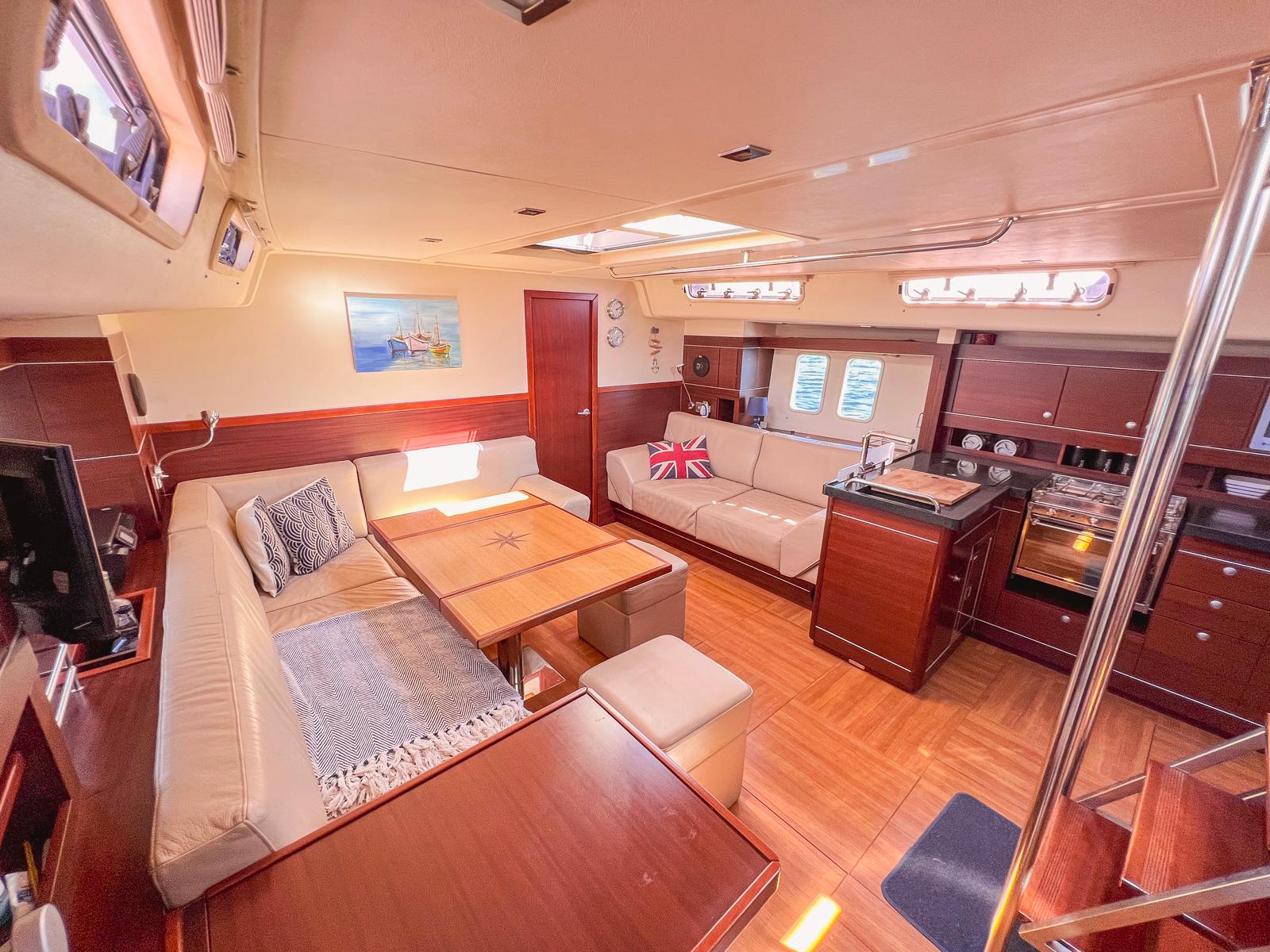

Main Saloon
- Version C 1
- Large saloon table
- Lockers
- L-shaped sofa on portside
- 2 seat lounge sofa on stb-side
- Options according to Hanse Individual Cabin Concept

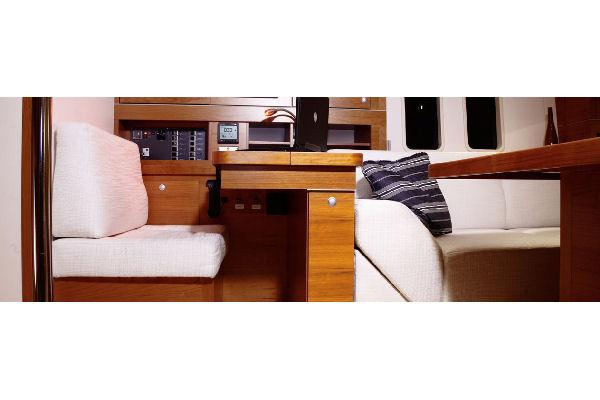

Navigation area
- Seat with storage
- Locker above chart table for instruments and books
- Space to mount electronics
- 230 V / 12 V outlet
- Storage in the chart table
- Chart light

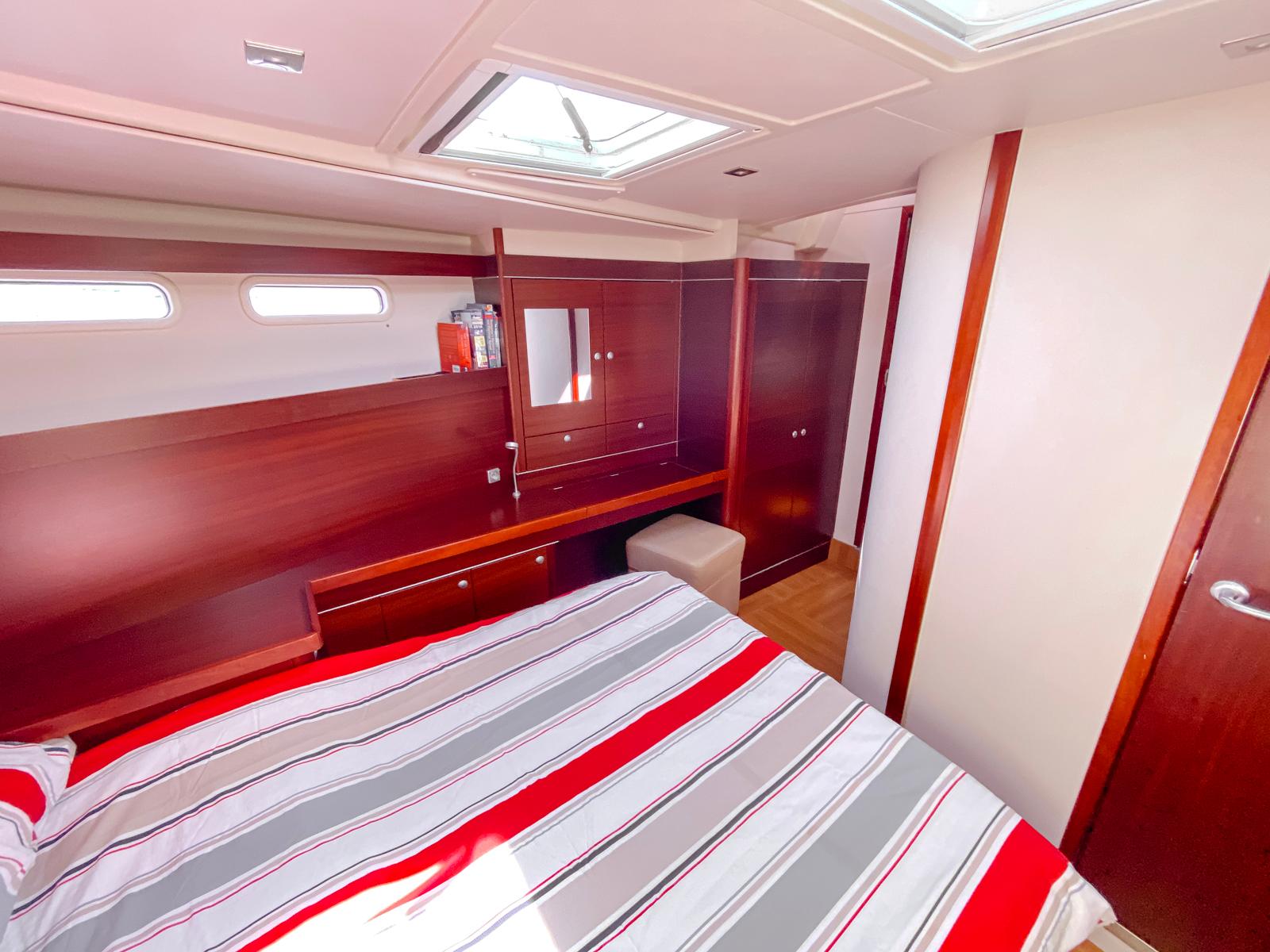

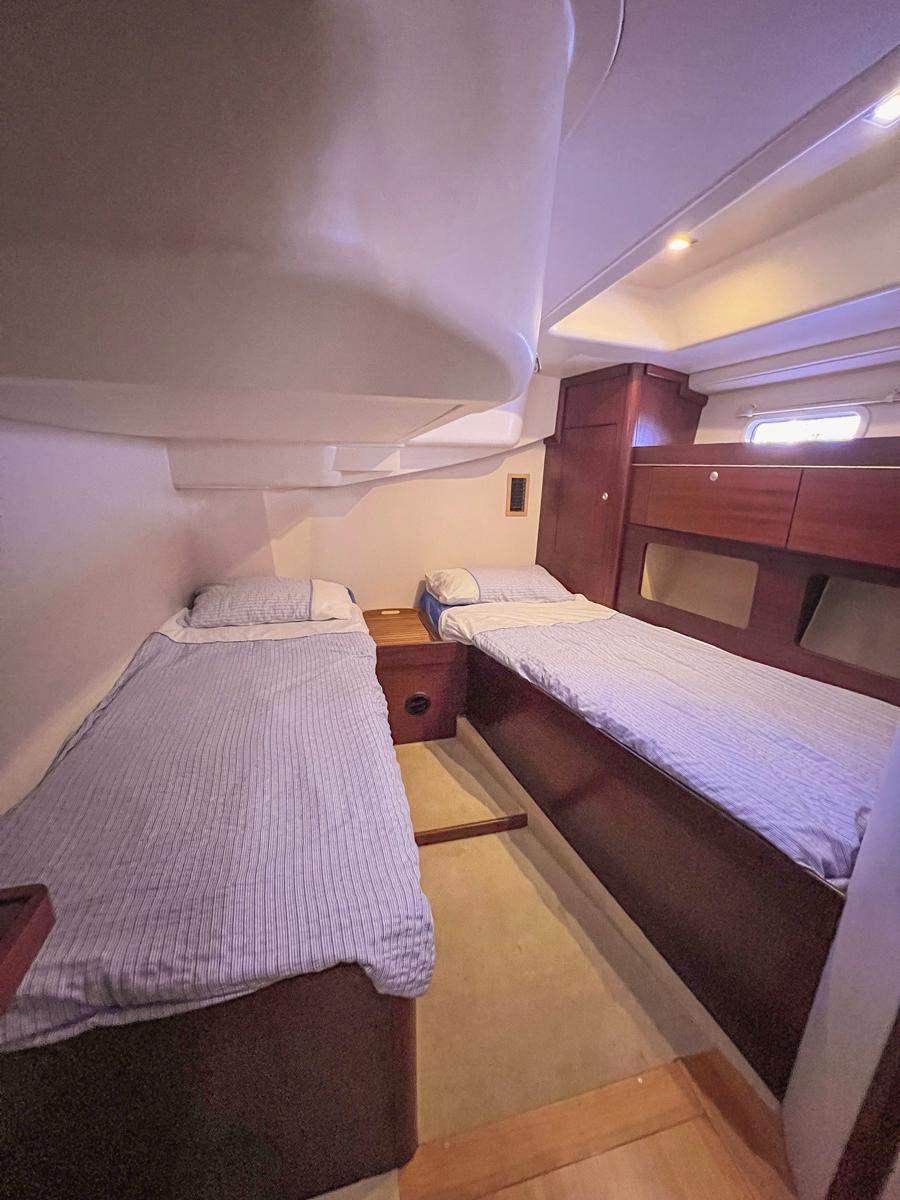

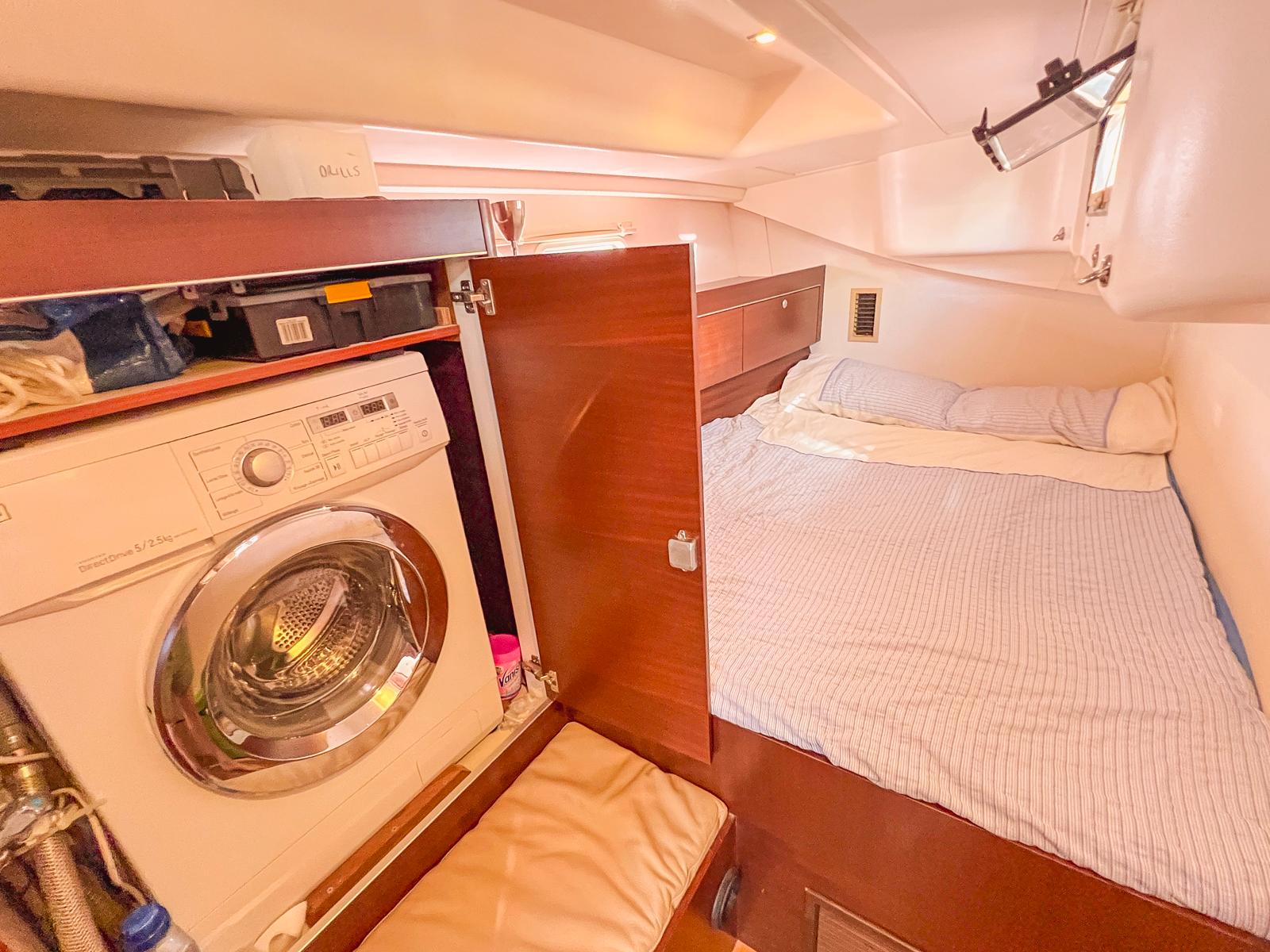

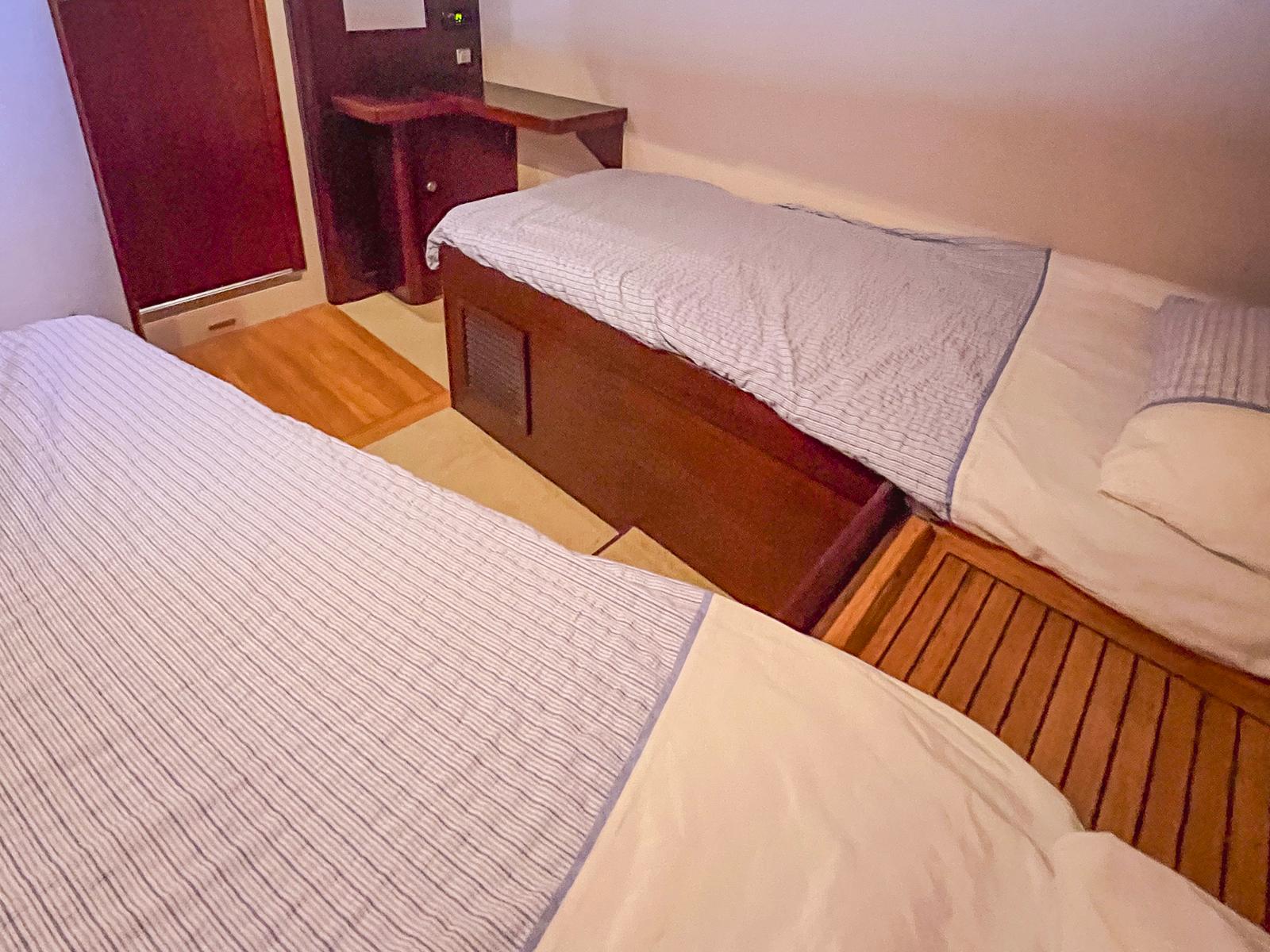

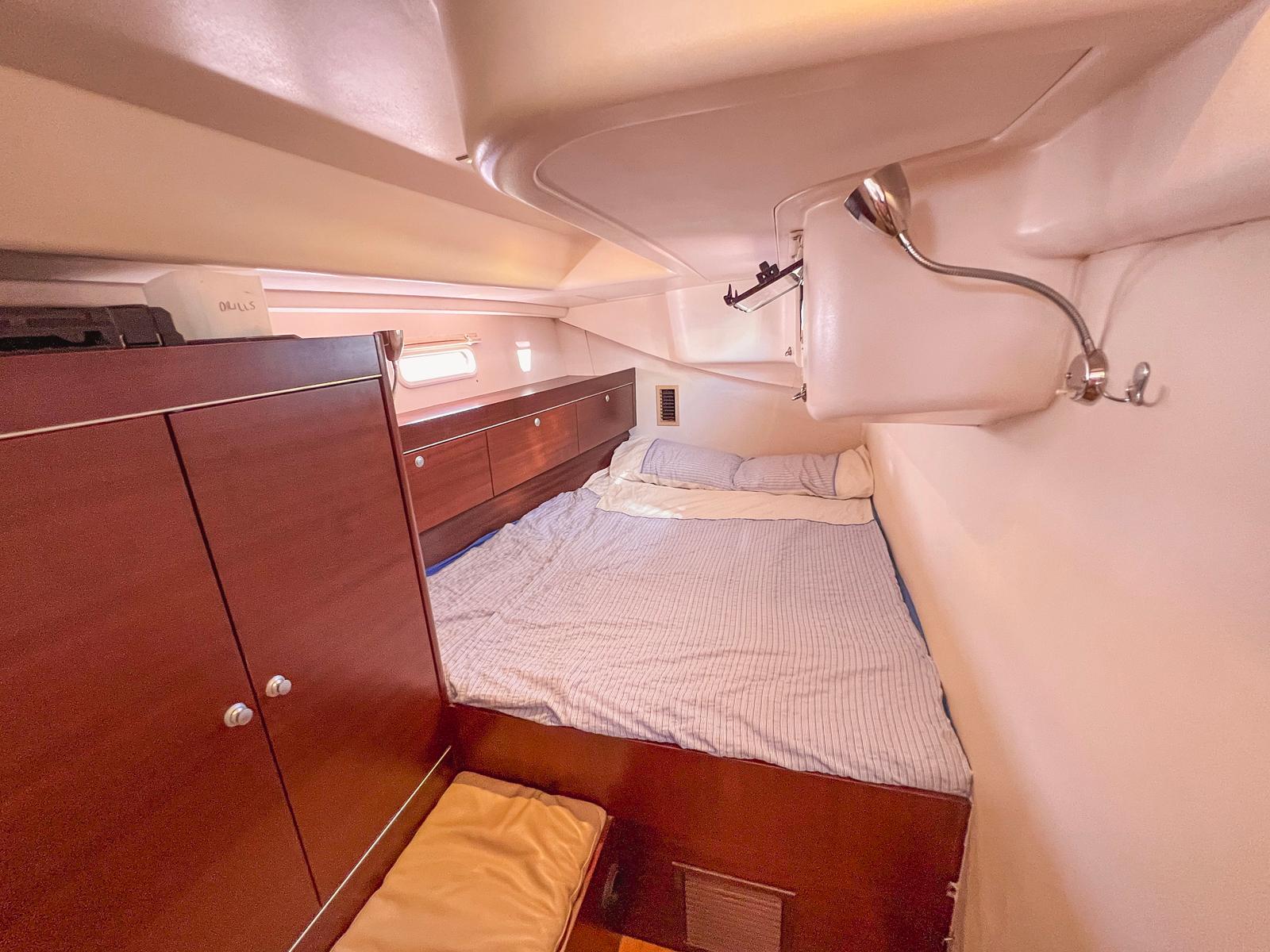

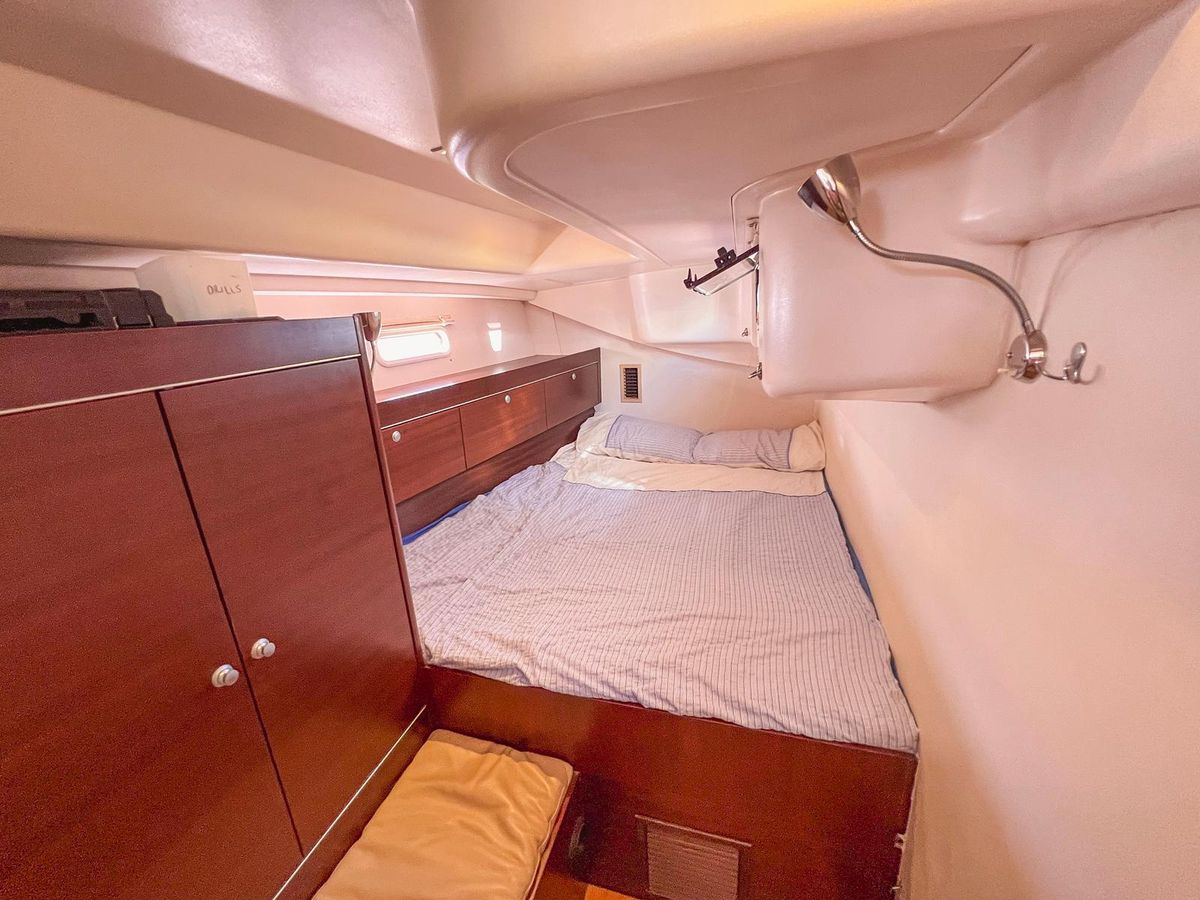

Aft cabin
- Version D1
- 2 double aft cabins with locker space
- Port side head and shower unit with big separate shower
-

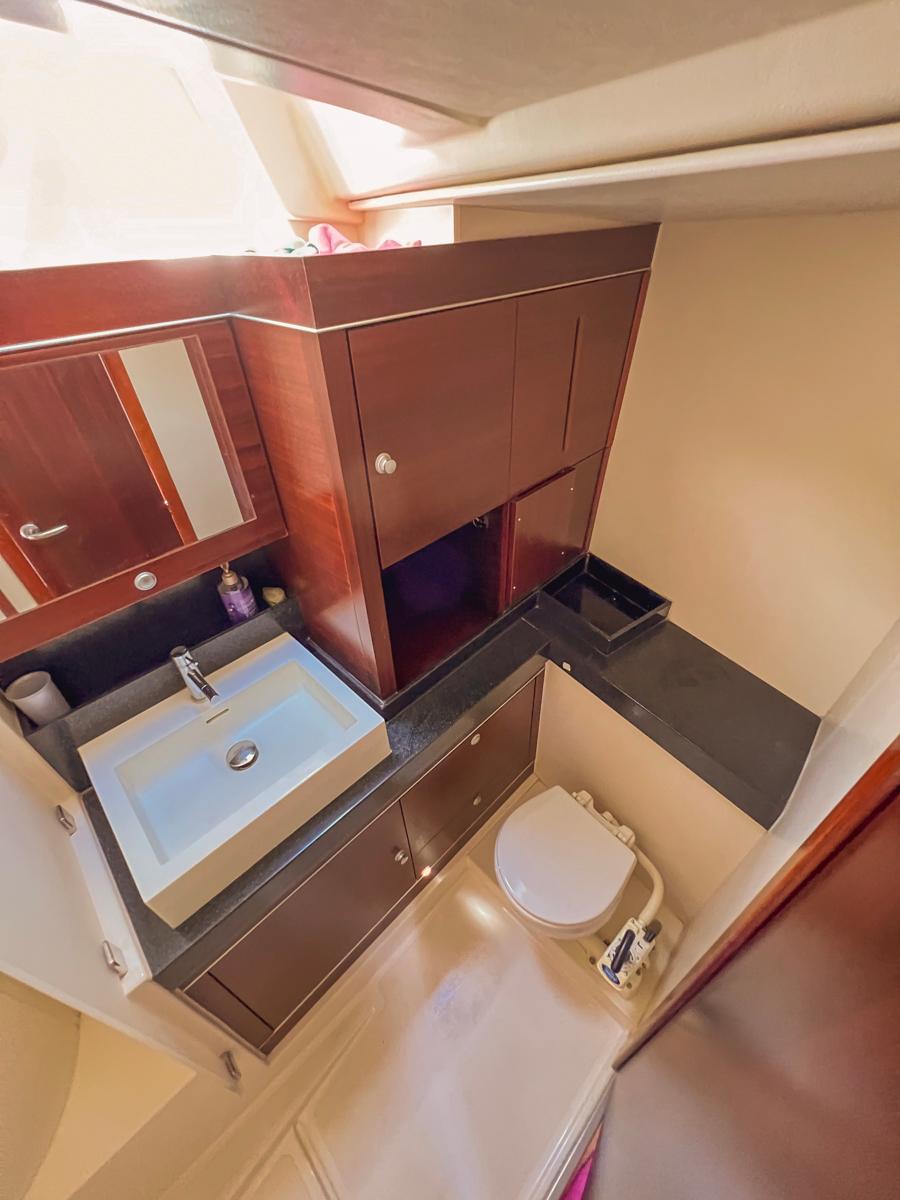

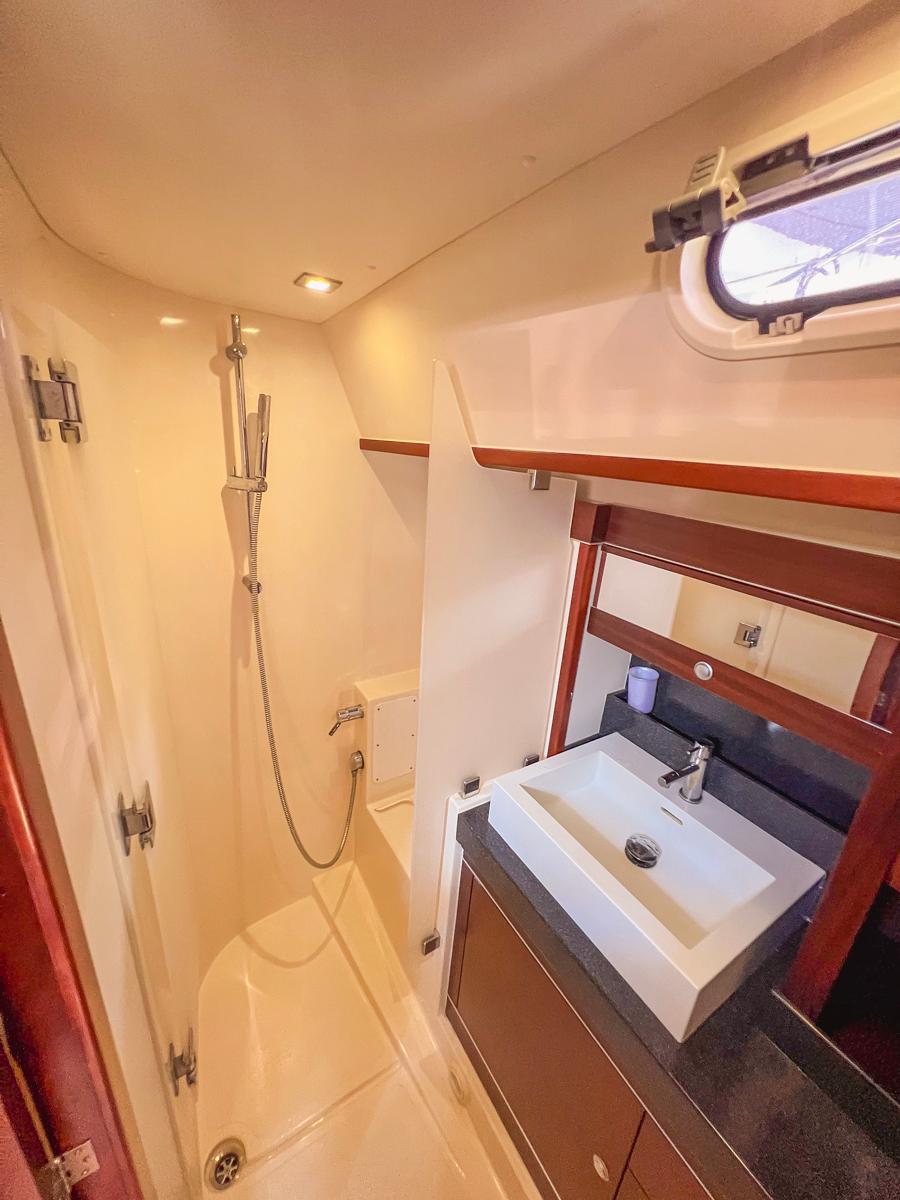

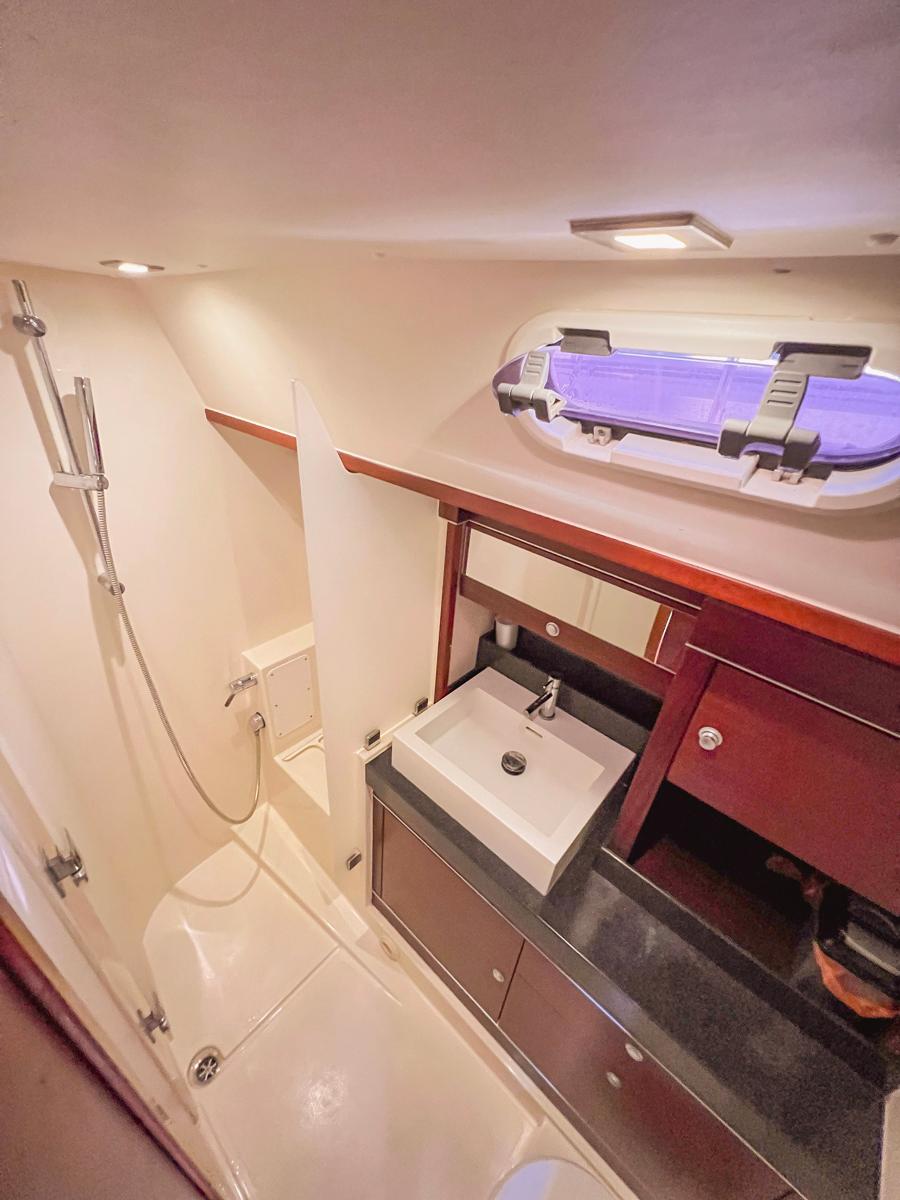

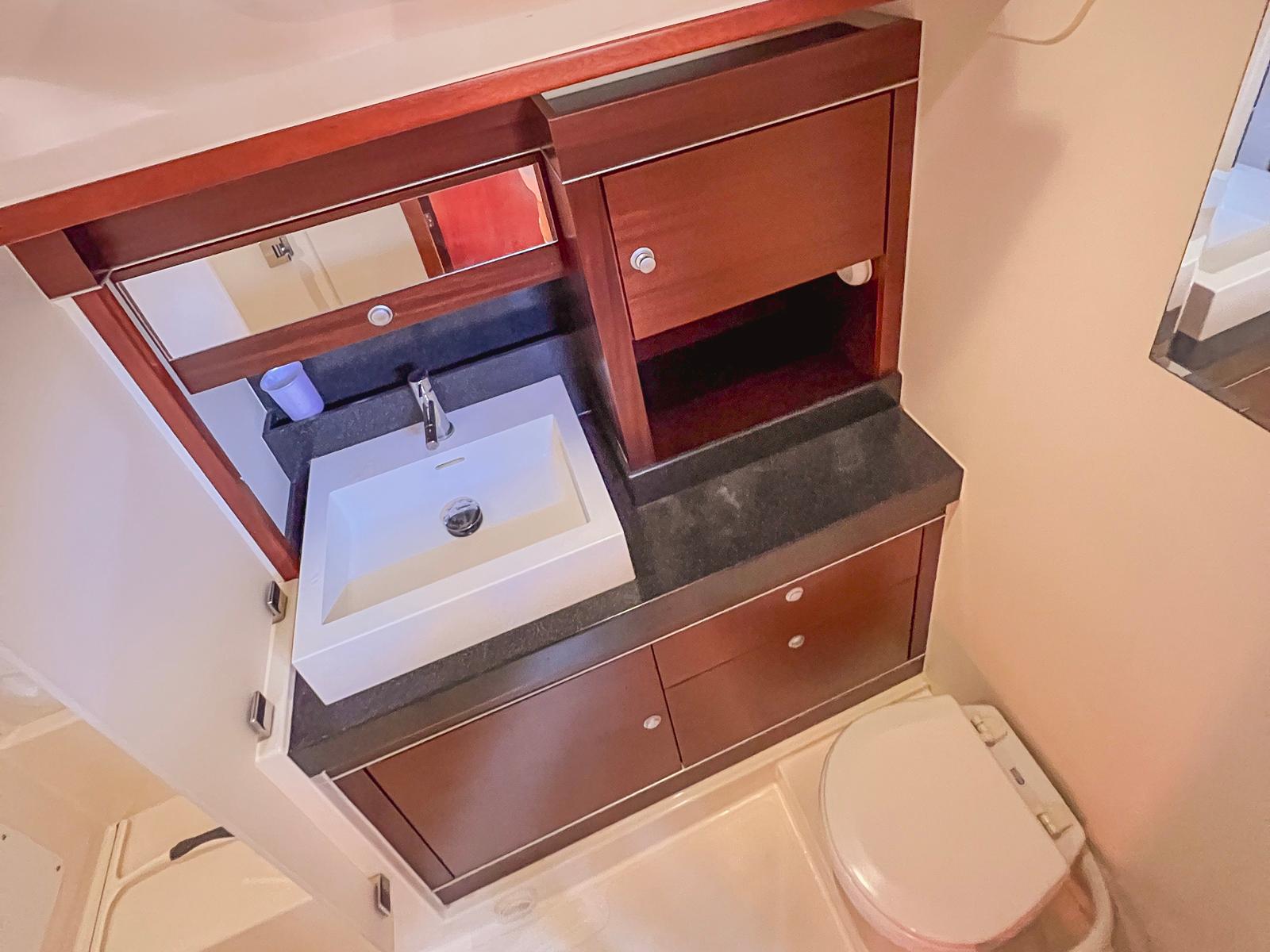

Head / Shower
- Toilet and shower in forward cabin with toilet
- Toilet and shower in the aft cabin with manual toilet
- CoreanTM solid surface black quarz with sink
- Electrical drain pump
- Mirror
- Locker & shelves
- Opening hatch
ElectricsBatteries
- Main battery switches
- Engine battery: 12 V / 95 Ah AGM
- Service battery bank: 12 V / 300 Ah AGM
Battery charger / Shore power
- Inverter Charger 12V/70A, provides 1600 Watts of AC for sockets
- Isolator switch
- 230 V shore supply protected with differential breaker and distribution system
Electric switch panel 110 V / 230 V
- differential breakers
- Control gauges
- Voltmeter
Electric switch panel 12 V
- Switches for all onboard electrics
- Voltmeter and battery control(digital)
- Water / Fuel gauges
12 V Electric equipment
- Electrical anchor windlass
- Pumps
- Navigation lights LED
- Interior lights
- Refrigerator
Outlets 230 V
- at chart table twin outlet
- in fwd. cabin one each
- in aft. cabin one each
- in galley twin outlet
- in saloon twin outlet
- in heads one each
Outlets 12 V
- at chart table
- at helm station
Interior lighting
- Overhead lighting in cabins, saloon, galley and heads
- Lighting in engine compartment
- Reading lights in saloon and cabins
- Night light on companion way
- Storage room aft
Navigation lights
- Navigation lights LED on pulpit and pushpit
- Steaming light LED
- Anchor light LED
Navigation instruments
- Compass illuminated
- Speedometer and depth sounder

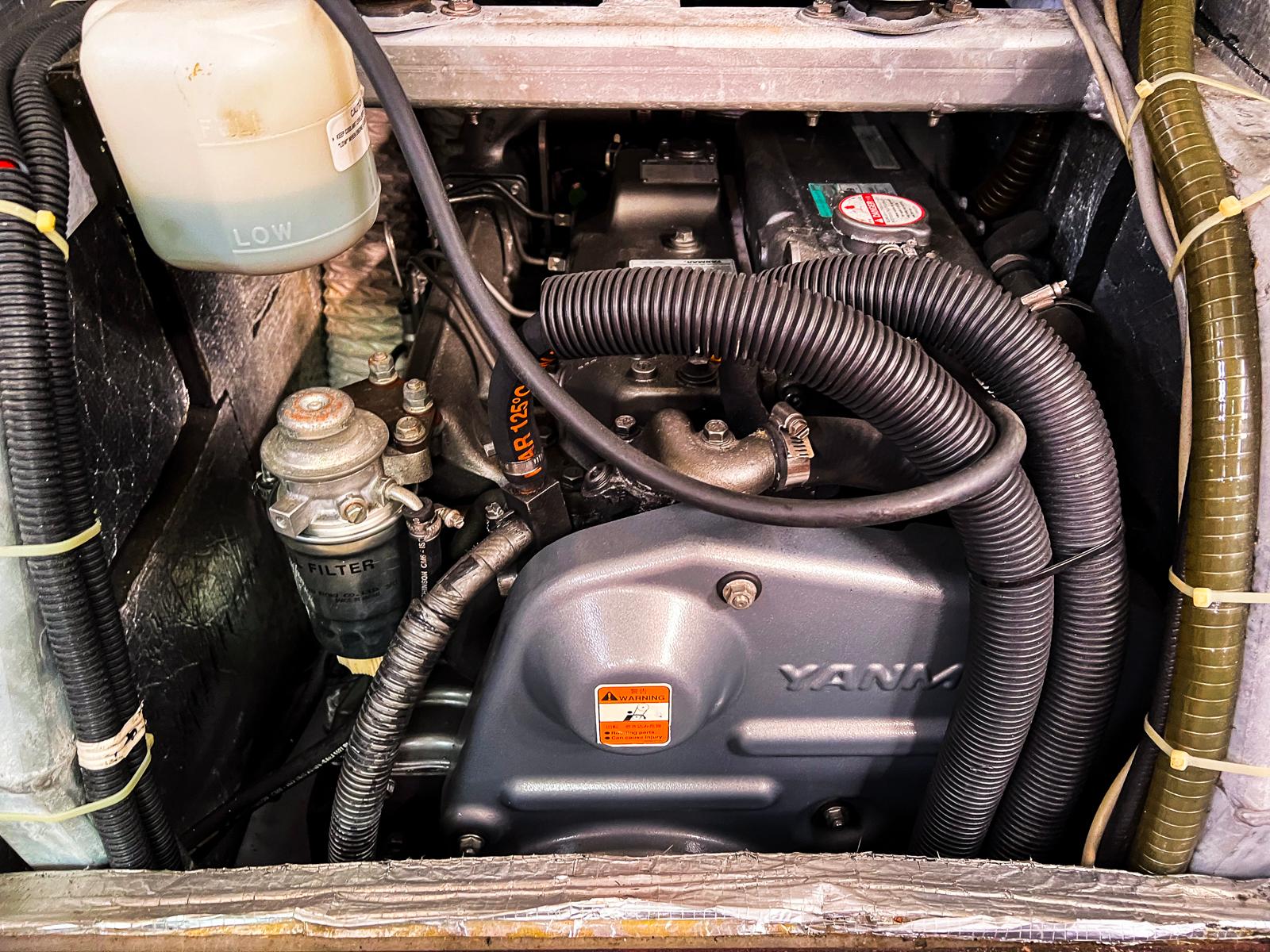

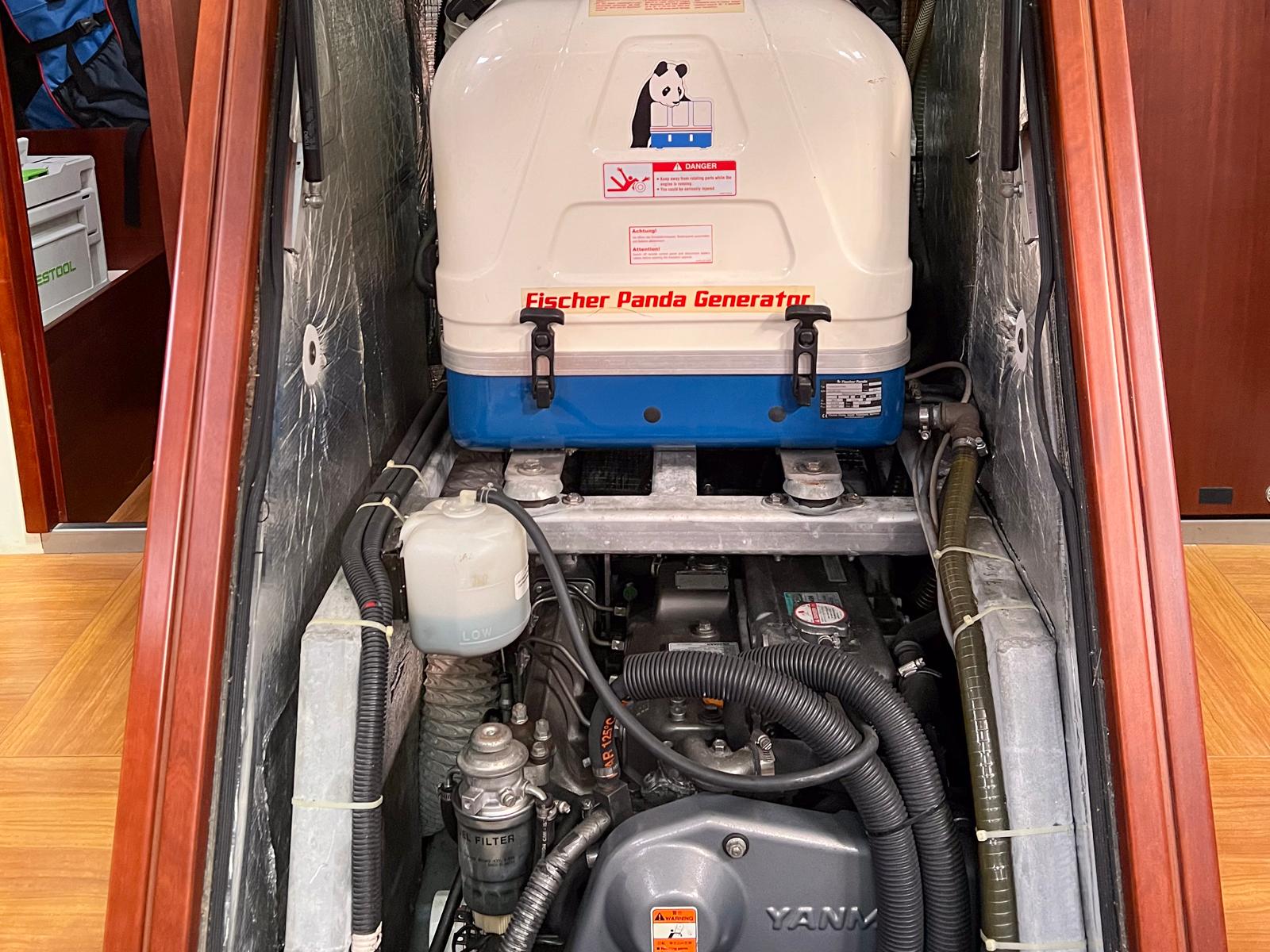

Engine - Yanmar 4JH4-HTE, 80.9 kW / 110 HP, diesel engine
- Stainless steel shaft
- 3 bladed propeller
- Fuel tank, capacity approx. 400 l

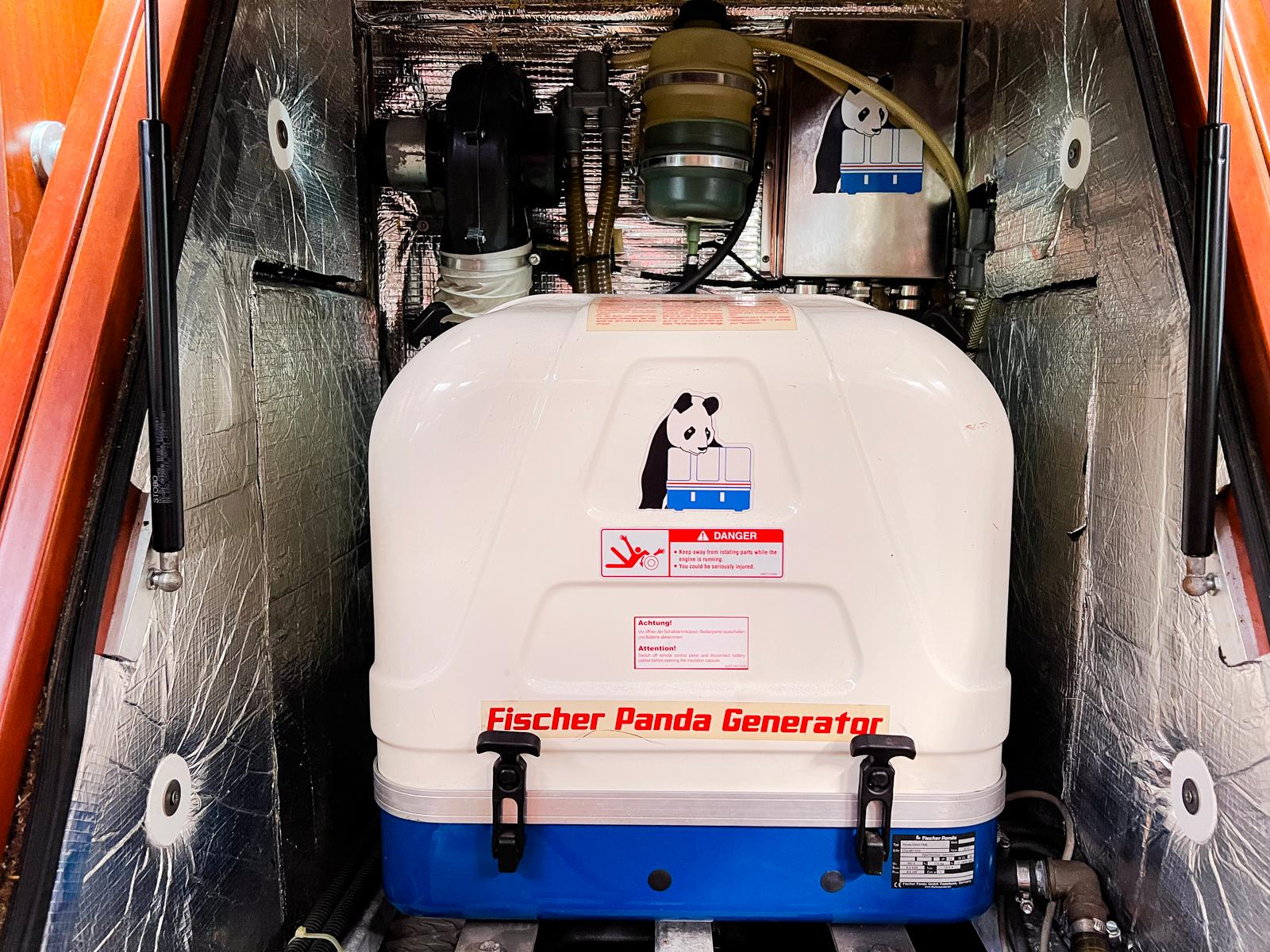

- Engine room sound insulated and illuminated with room for generator above engine
Sail Area
I : 70.92 ft
J : 21.00 ft
P : 70.42 ft
E : 21.33 ft
Working Sail Area : 1668.00 sq ft
Keel DetailsKeel #1
Max Draft: 8.00 ft
Keel #2
Max Draft: 6.42 ft
Additional Description - Solid surface, CoreanTM black quartz with integrated double sink
- 3-burner LPG stove with oven, gimbled
- Gas system and self draining LPG bottle storage in cockpit
- Extra large fridge of approx. 130 l, top and front loader with light
- Lockers and drawers
- Waste bin
- Option for microwave
- Option for fridge or freezer
- Option for coffeemaker
- Option for dishwasher
Additional Description - White hull
- dark grey double waterlines
- Isophtalic Gelcoat
- Vinylester for all outer laminates until the sandwich
- Polyester inner laminate (Orthophtalic or DCPD)
- Bulkheads laminated to hull and deck
- GRP strongbacks
- Hull windows

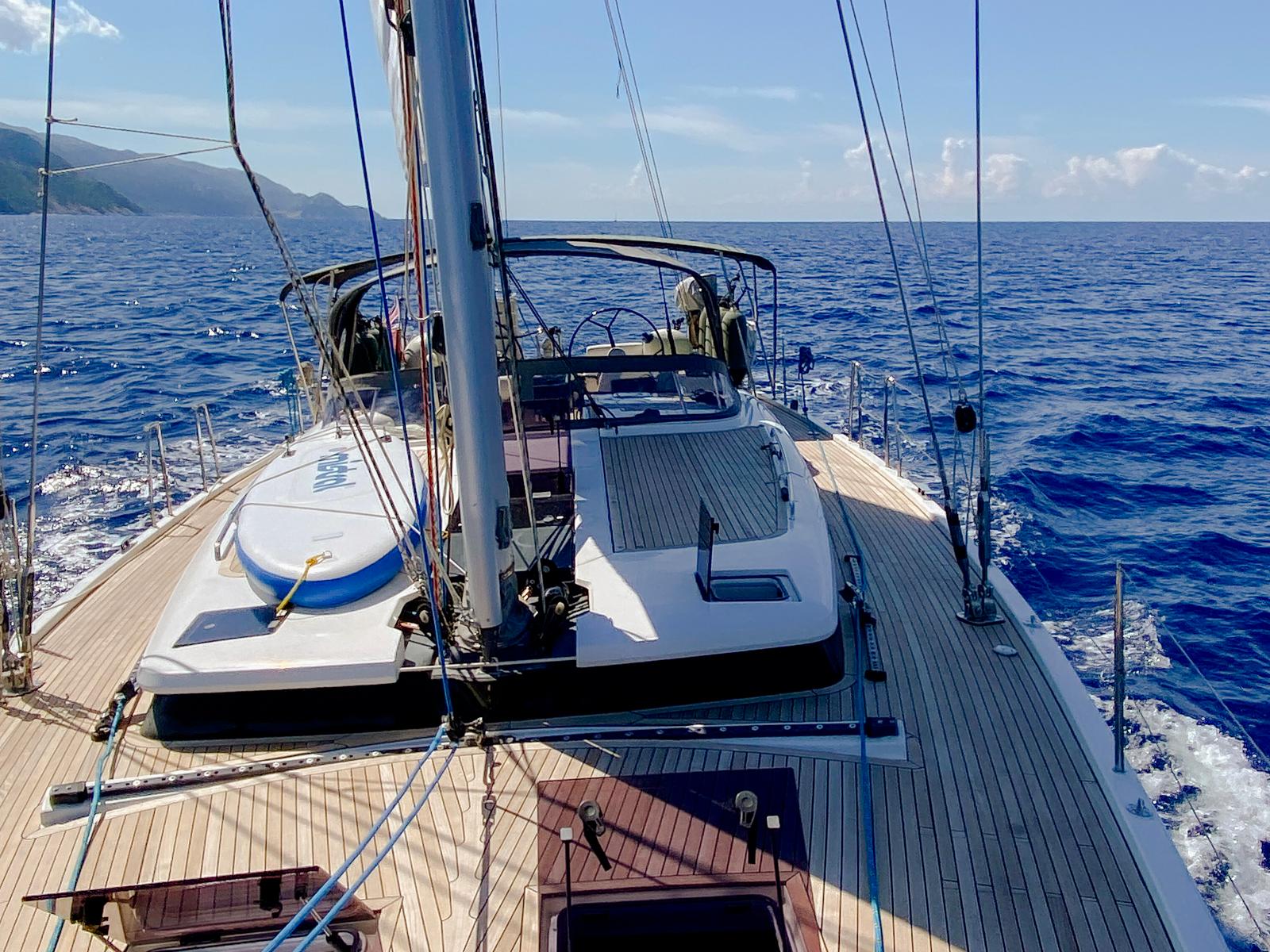

Additional Description - White Deck with non slip structure
- Teak in Cockpit
- Isophtalic Gelcoat
- Vinylester 1st layer
- Bulk laminate Polyester (Orthophtalic or DCPD)
- Balsa sandwich
- Teak on seats and cockpit floor
- Partial moulded non-skid surface on the coach roof and side decks
- Engine control at helm station stb
- 6 retractable mooring cleats

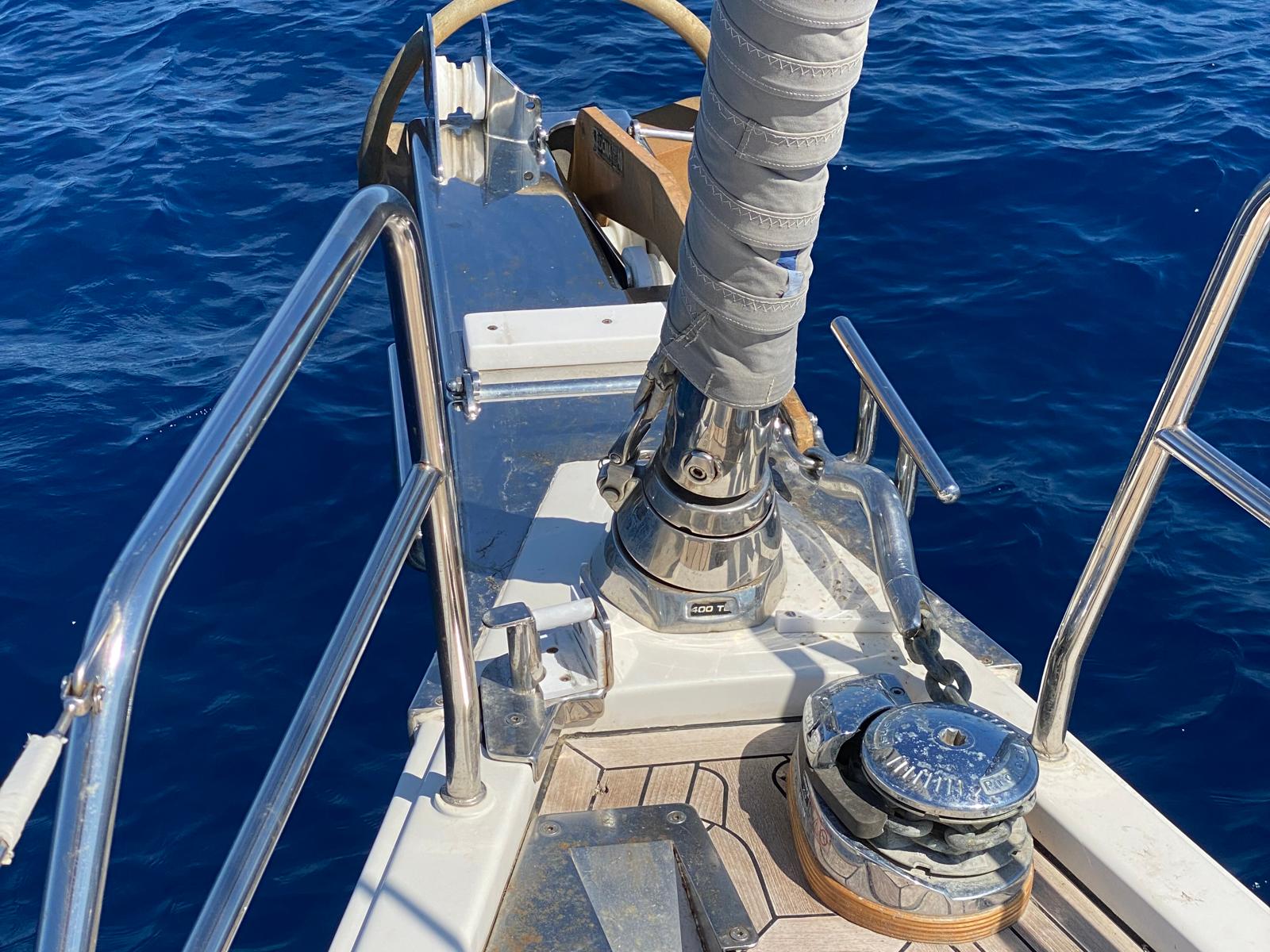

- Self-draining anchor locker with electrical windlass under deck
- Fix anchor arm with anchor roller
- Stainless steel cockpit table with acrylic glass and chart plotter bracket
- Foredeck sail storage with ladder and big hatch
- Hot & cold shower on aft deck
- Self-draining cockpit
- Halyard storage boxes in the cockpit
- Storage for gas bottle, selfdraining
- Stainless steel swim ladder

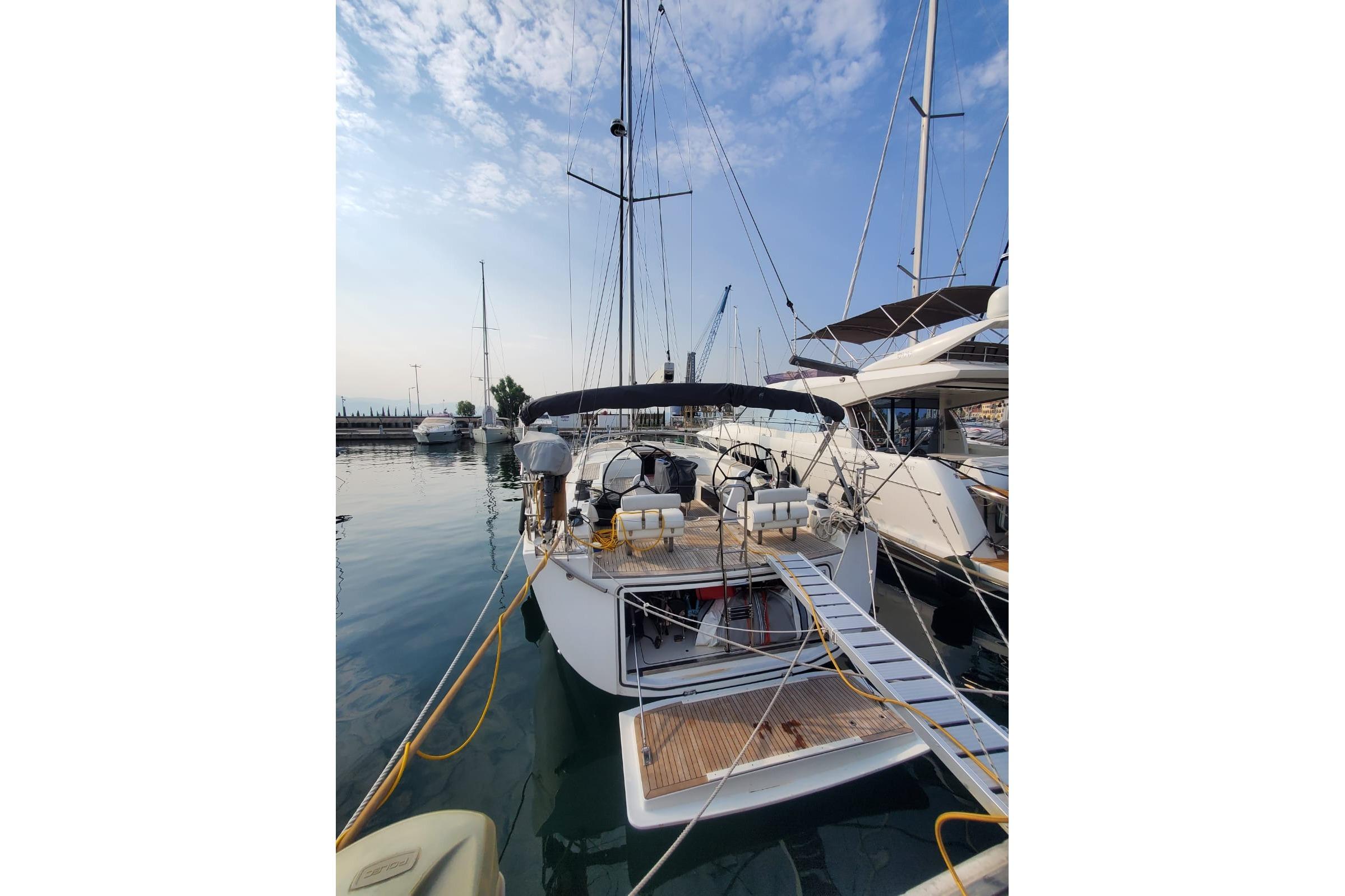

- Hinged swimming platform
- Selftacking jib track, fully integrated in the foredeck
- Midboom sheeting with 2 stand-up blocks
- 2 x 6 sheave deck organizers
- 12 deck jammers
- 6x Padeyes for Gennaker, Jib
- 7 Flush hatches
- 2 hatches
- Special ?Big Size? Opening portholes for aft Cabin in cockpit
- 4 opening side windows at coach roof
- Stainless steel pushpit with LED navigation light and ensign shaft socket
- Stainless steel split pulpit with LED navigation lights
- Stainless steel stanchions tapered
- Rail gates on both sides
- 4 winches in cockpit:
- 2 primary winches 54 AST
- 2 secondary winches 46 AST
Rig and Sails - 3 spreader silver anodised mast, tapered
- Boom with 2 reefi ng lines
- Cockpit light integrated in boom
- Furling system for jib under Deck
- Main halyard
- Jib halyard
- Midboom sheeting with 2 stand-up blocks
- Jib sheet
- Rod kicker
- Backstay adjuster
