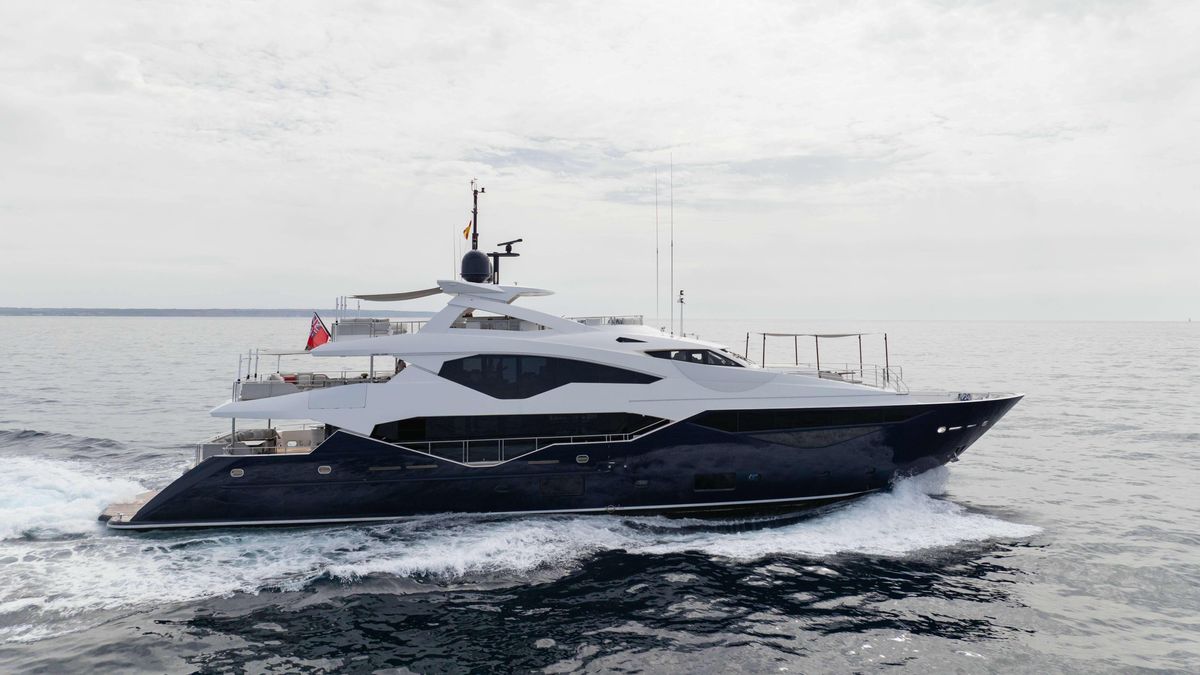

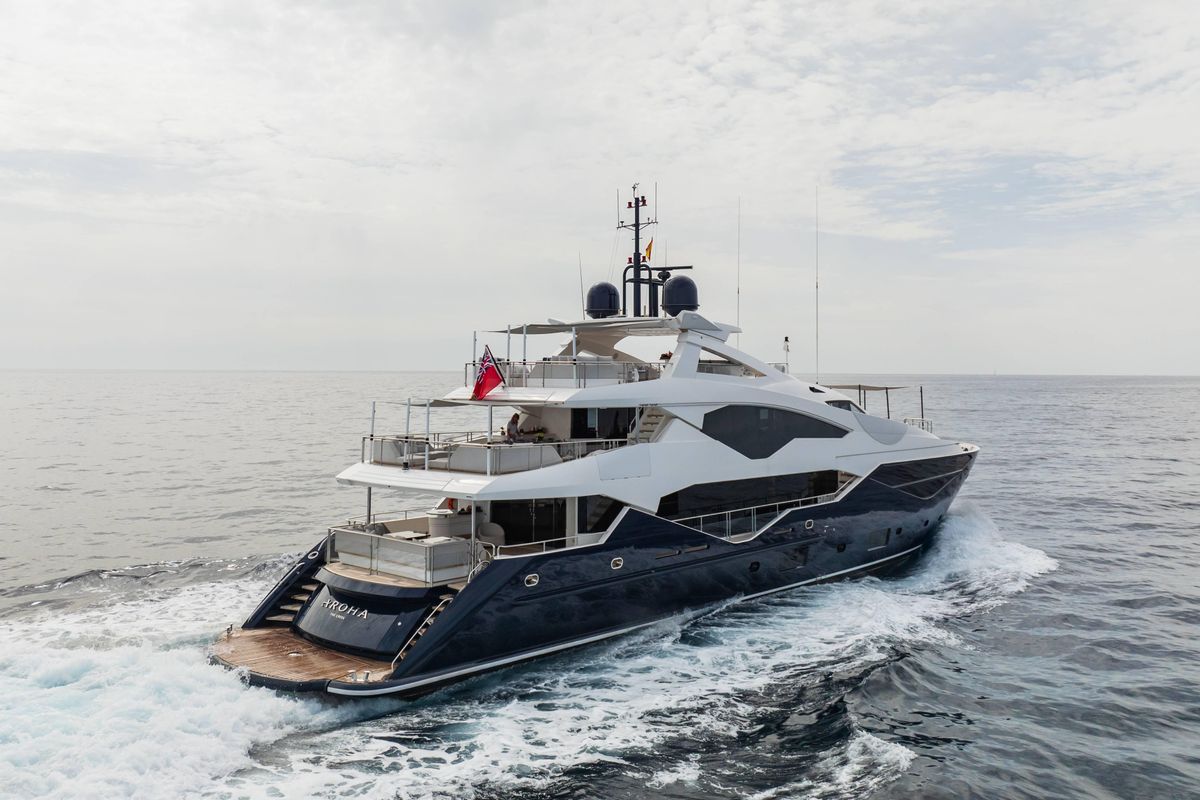

SpecificationsLOA: 131’5” (40.05m)
Beam: 26’7” (8.09m)
Draft: 8’10” (2.7m)
Year: 2016
Builder: Sunseeker
Model: 131 / 60416131
Crew: 8 in 5 Cabins
Guests: 12 in 5 Cabins
Classification: RINA, LY3 Commercial (Run Privately)
Flag: Cayman Islands
Location: Palma de Mallorca - Spain
Hull Material: GRP
Hull Designer: Sunseeker
Tonnage: 342 GT
Range at Cruising: 1,500nm
Max Speed: 23 knots
EU VAT Paid: No
Key Features:
- Hull 4 of the highly successful 131 series

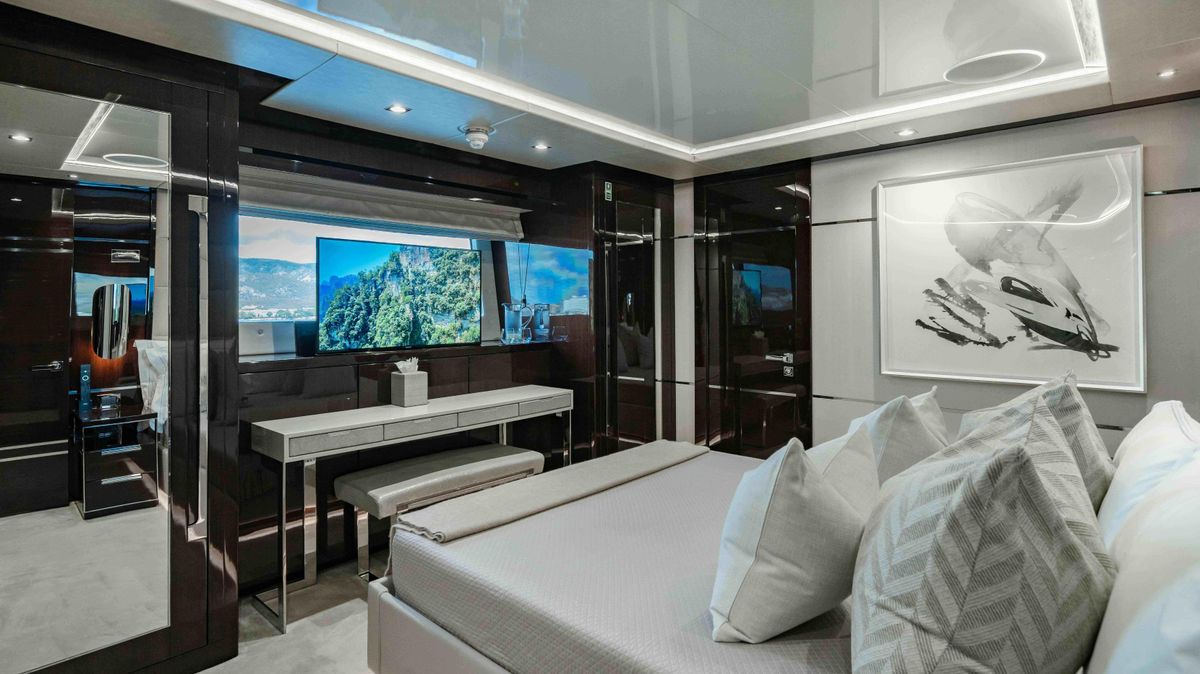

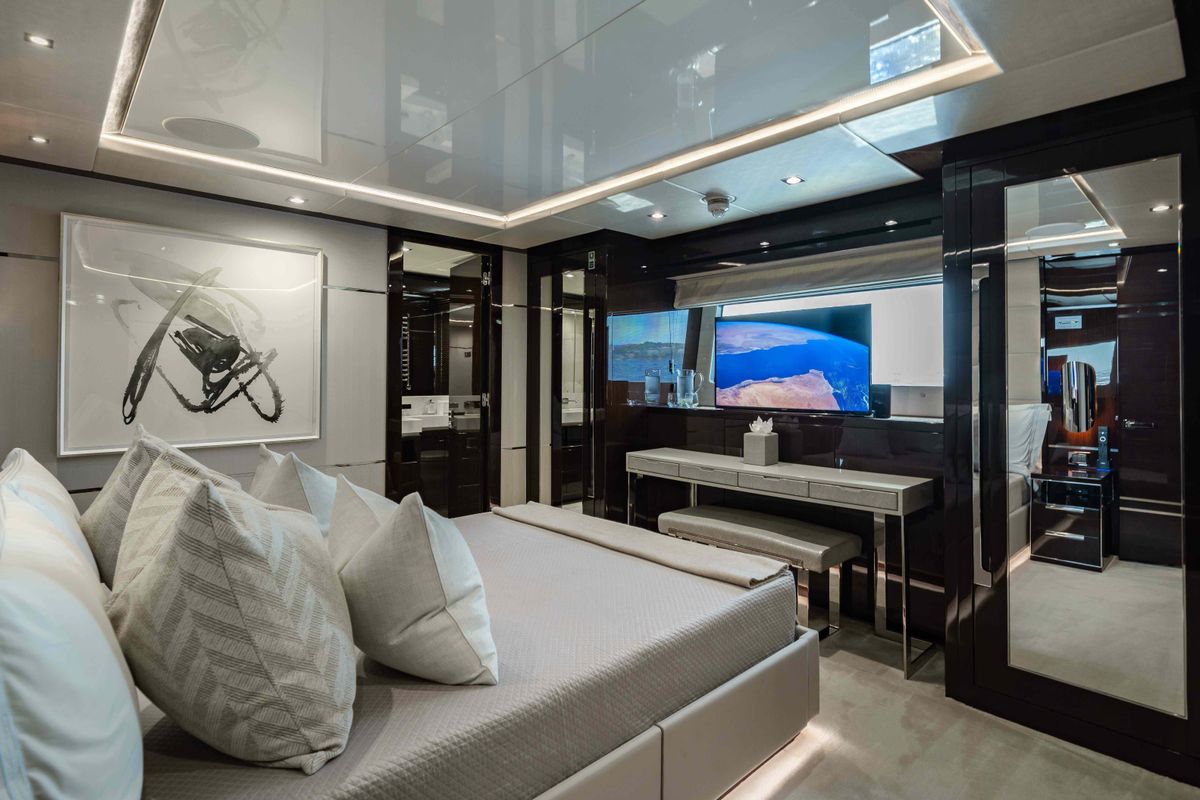

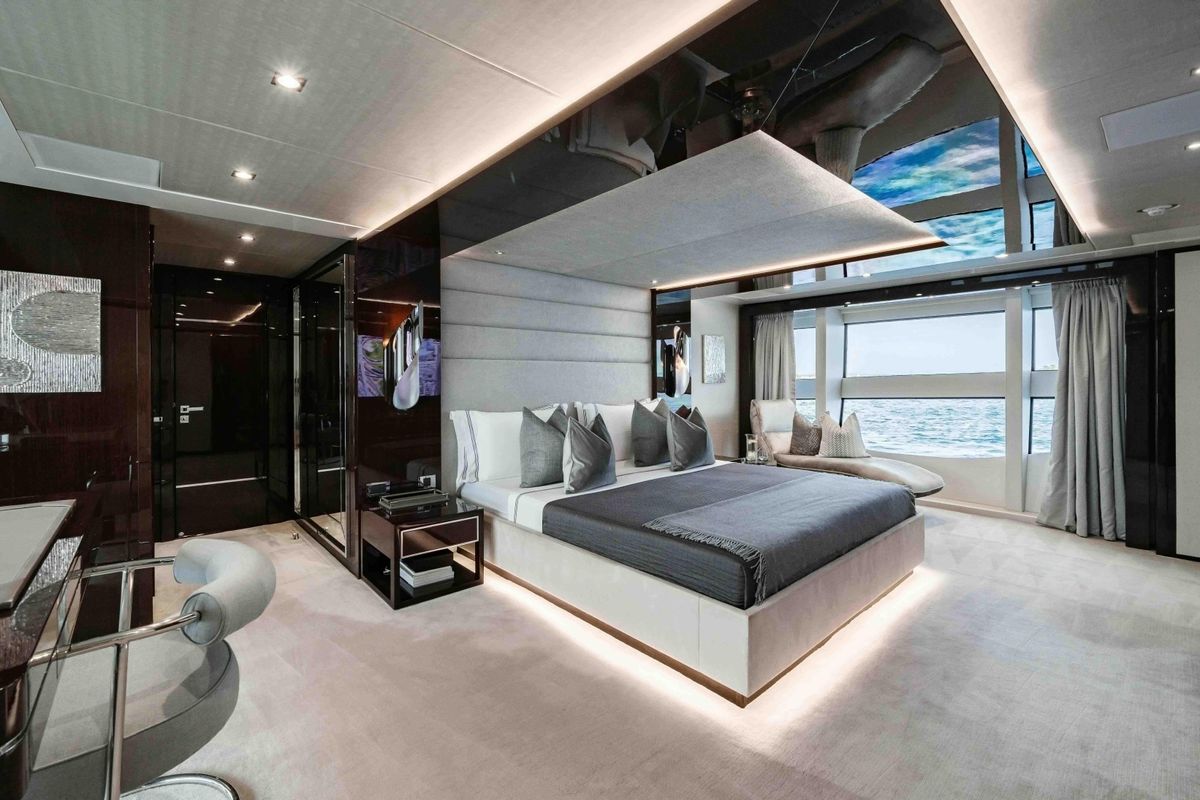

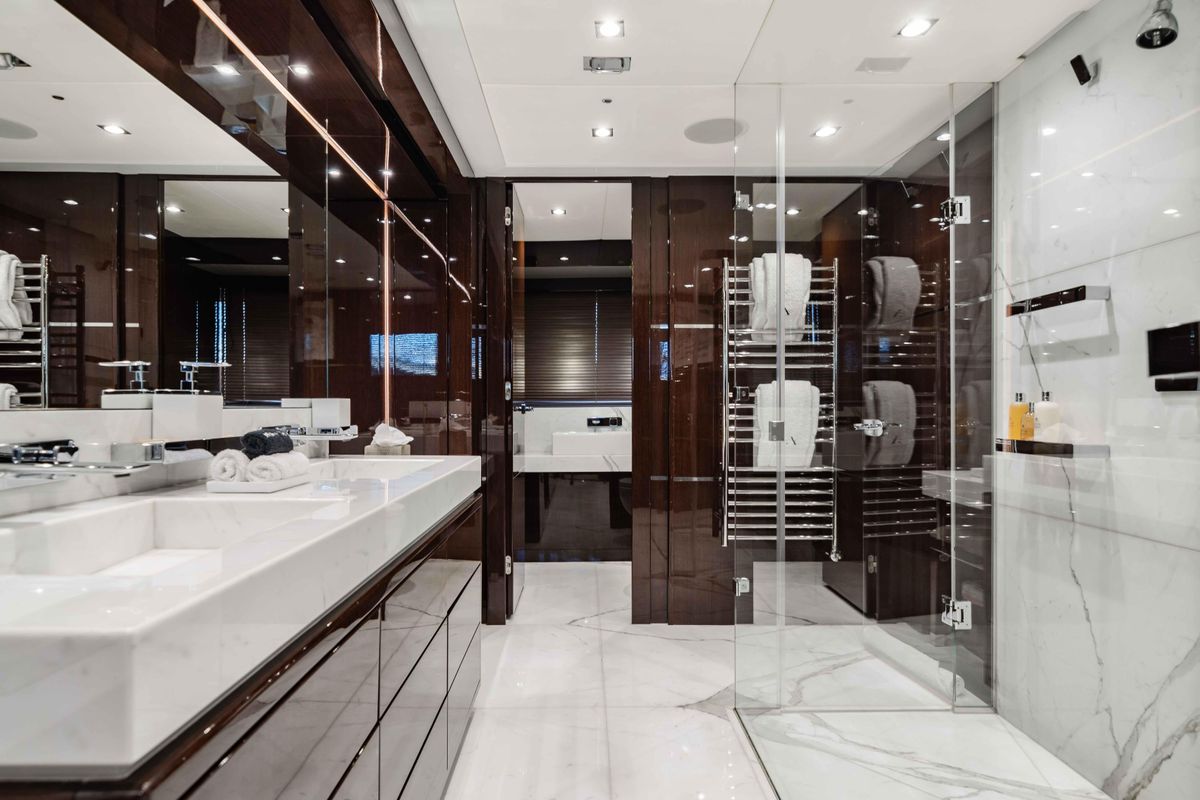

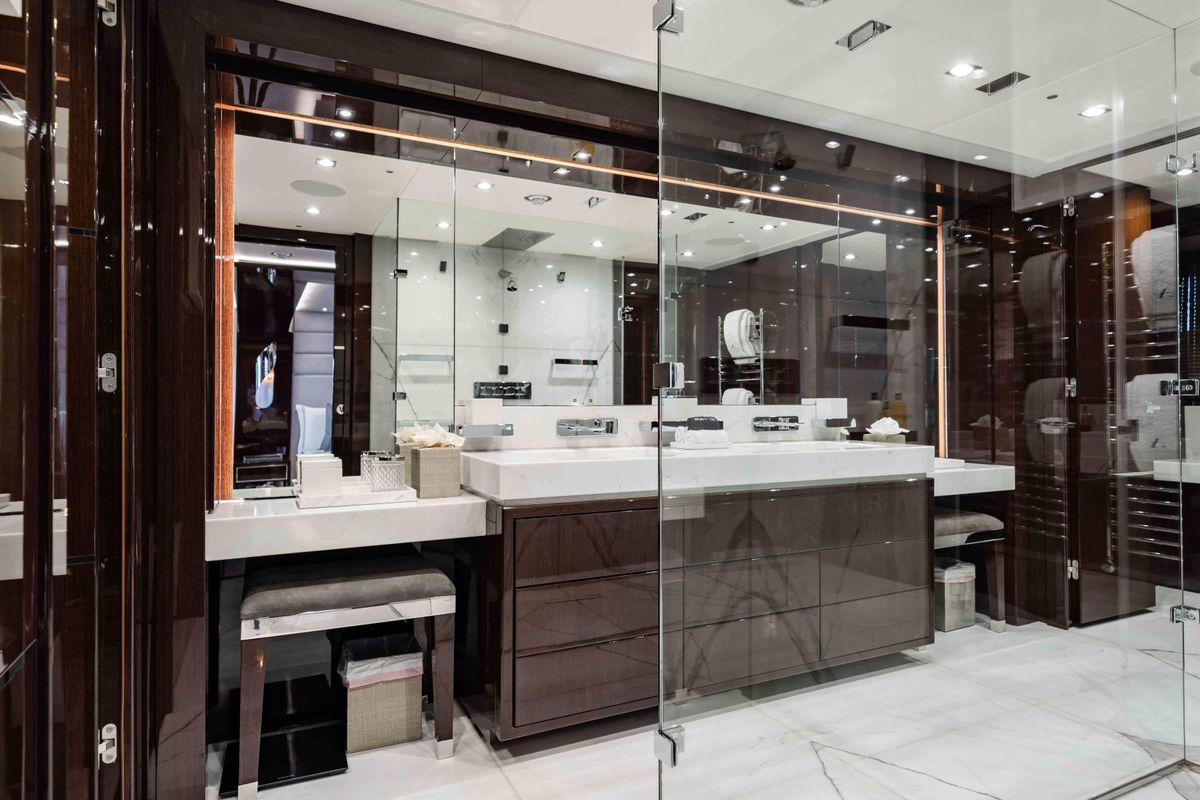

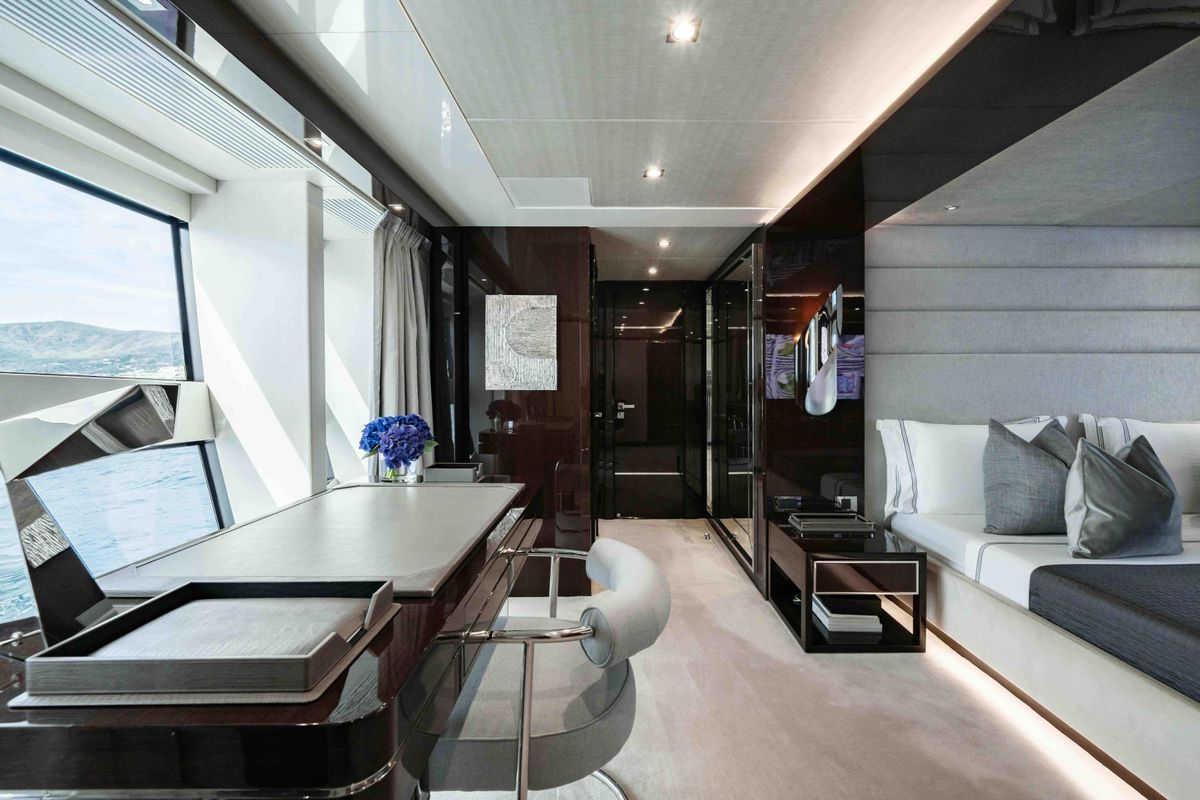

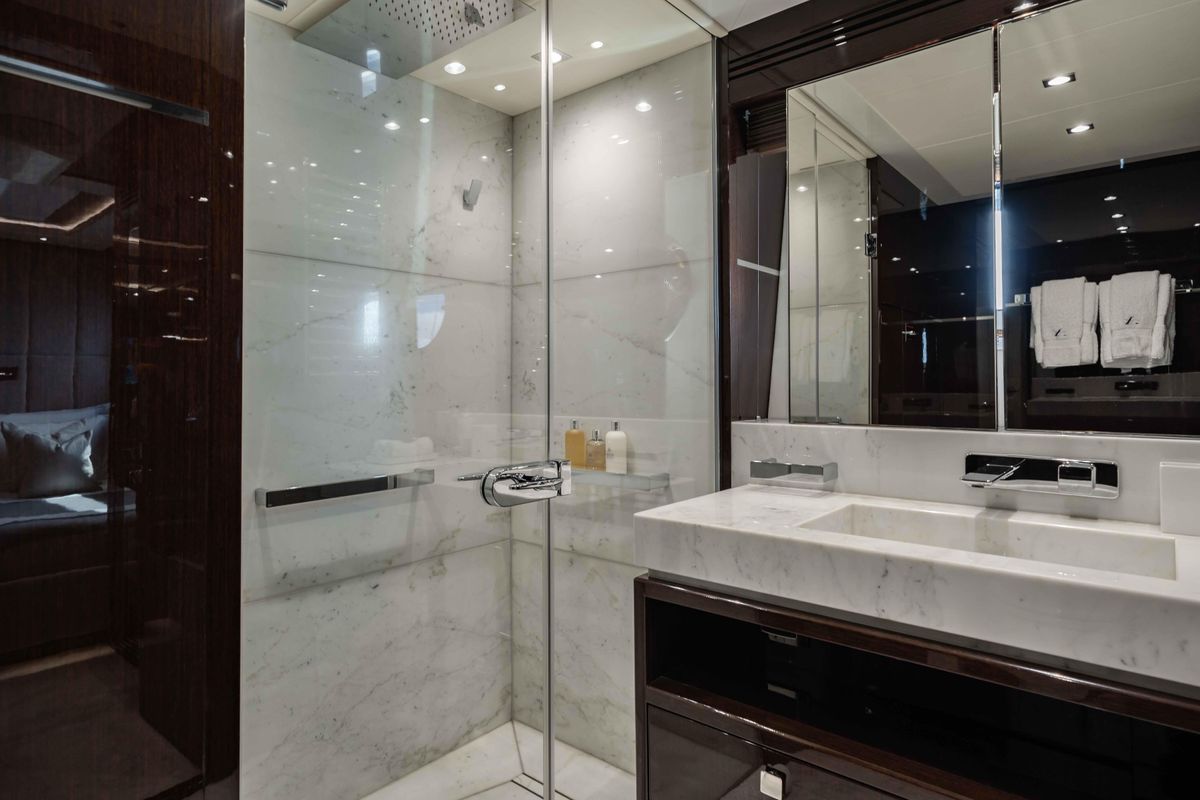

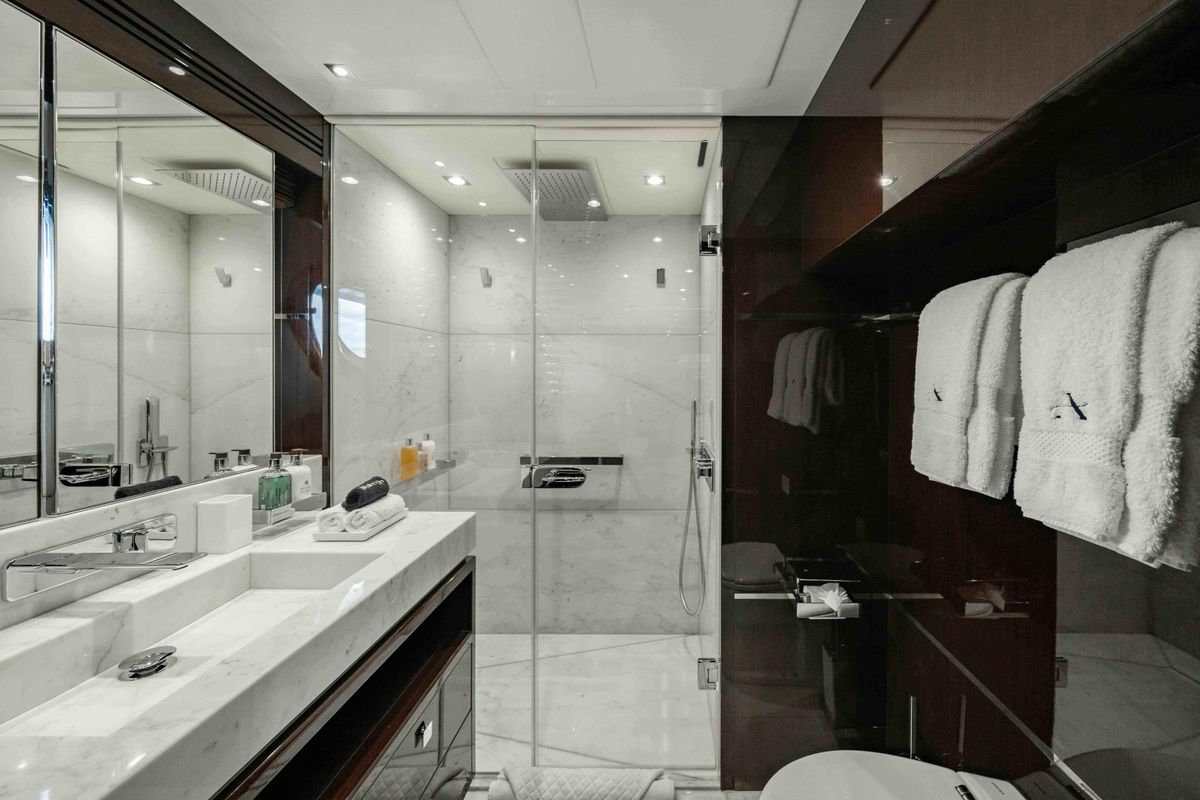

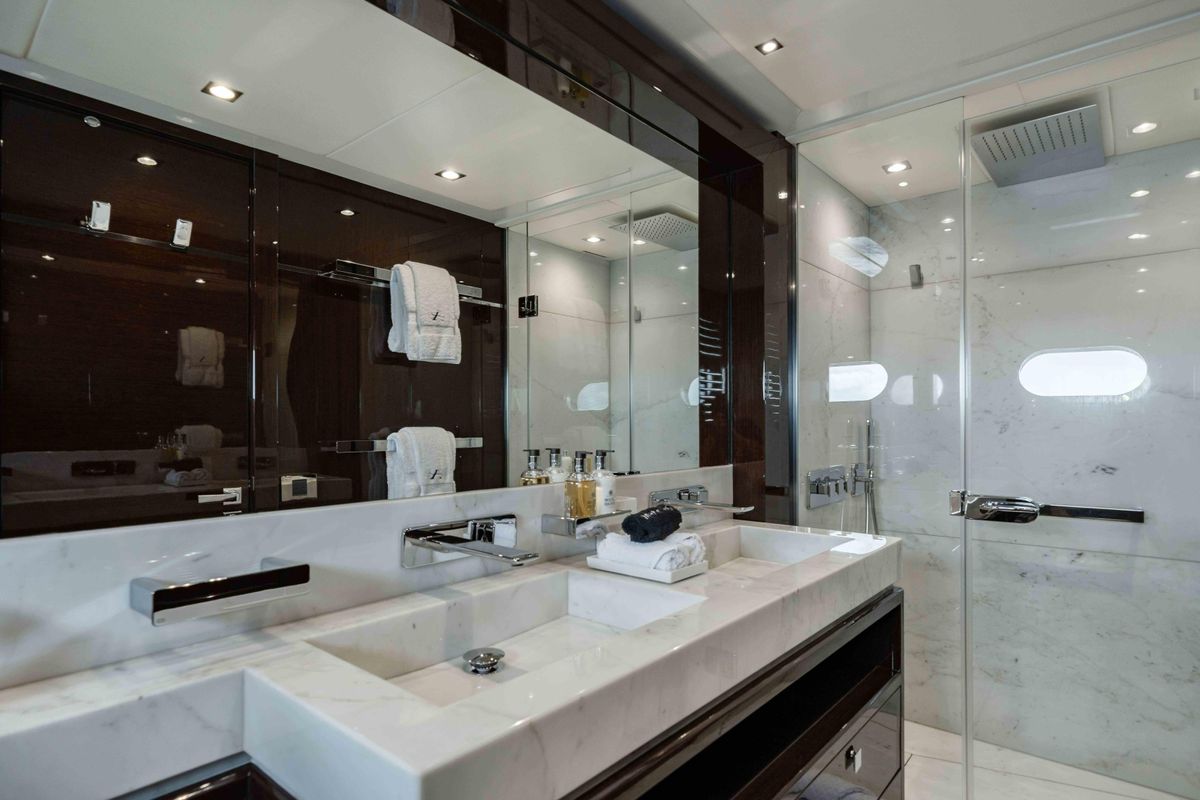

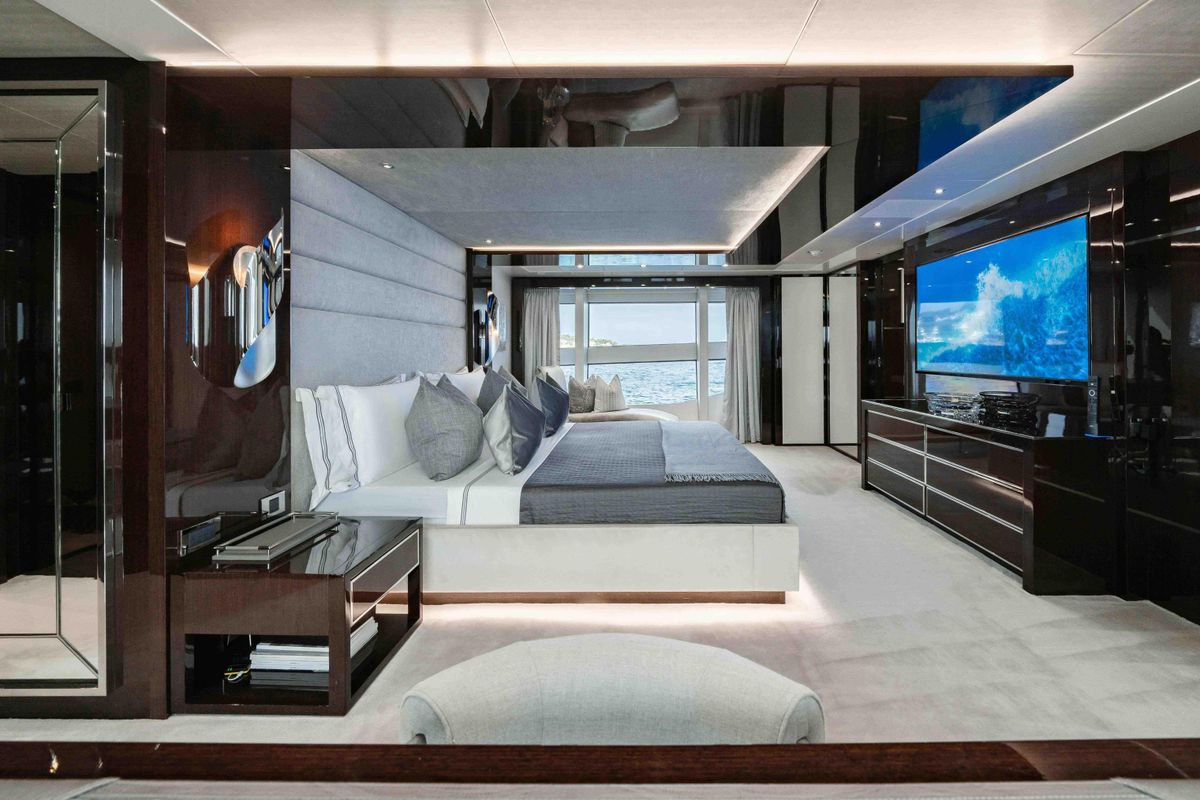

- Full beam master cabin on maindeck with large walk-in wardrobe and ensuite

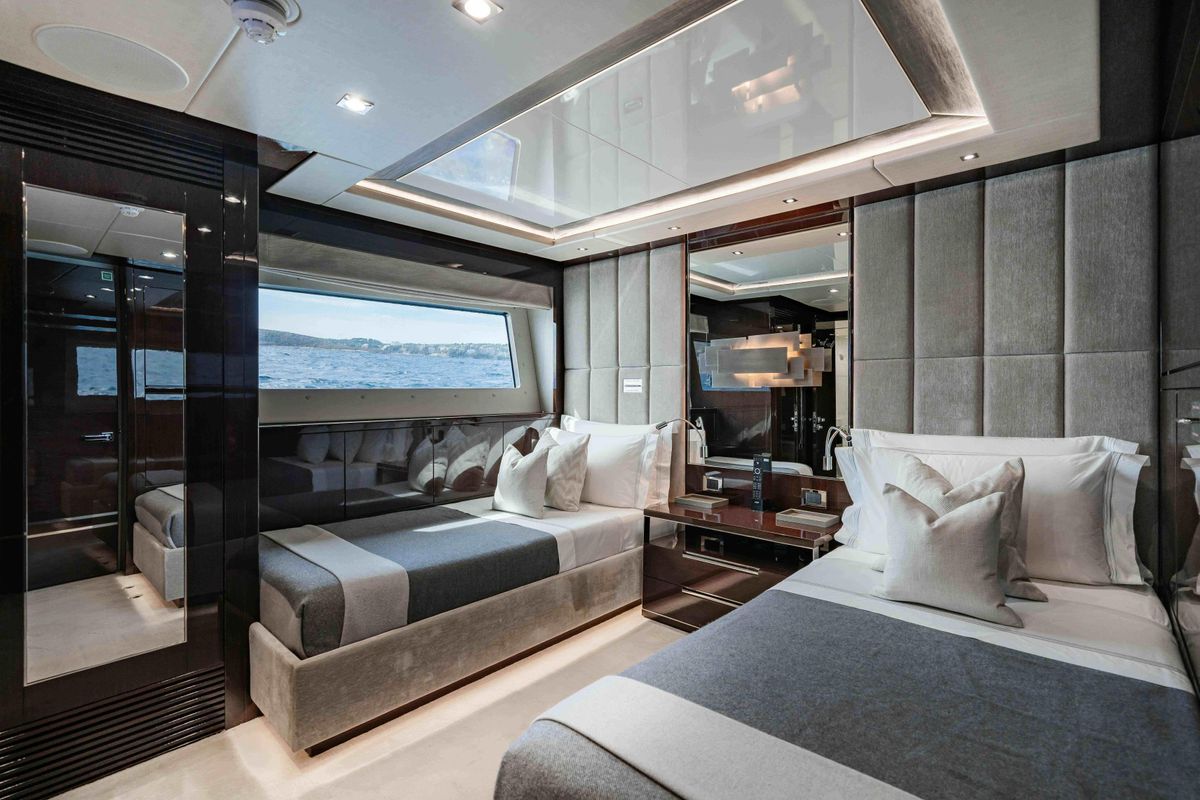

- Five cabins, capable of accommodating up to 10 guests
- Contemporary interior design with floor-to-ceiling windows.
- Built to RINA Class and MCA LY3 Compliance

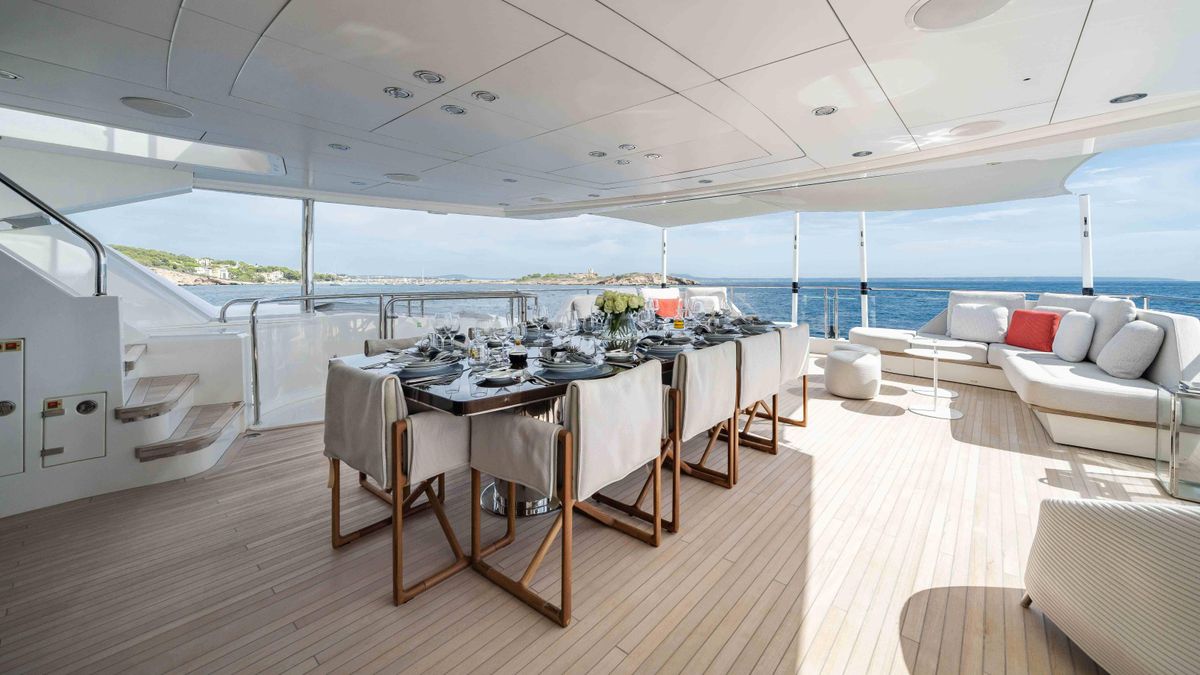

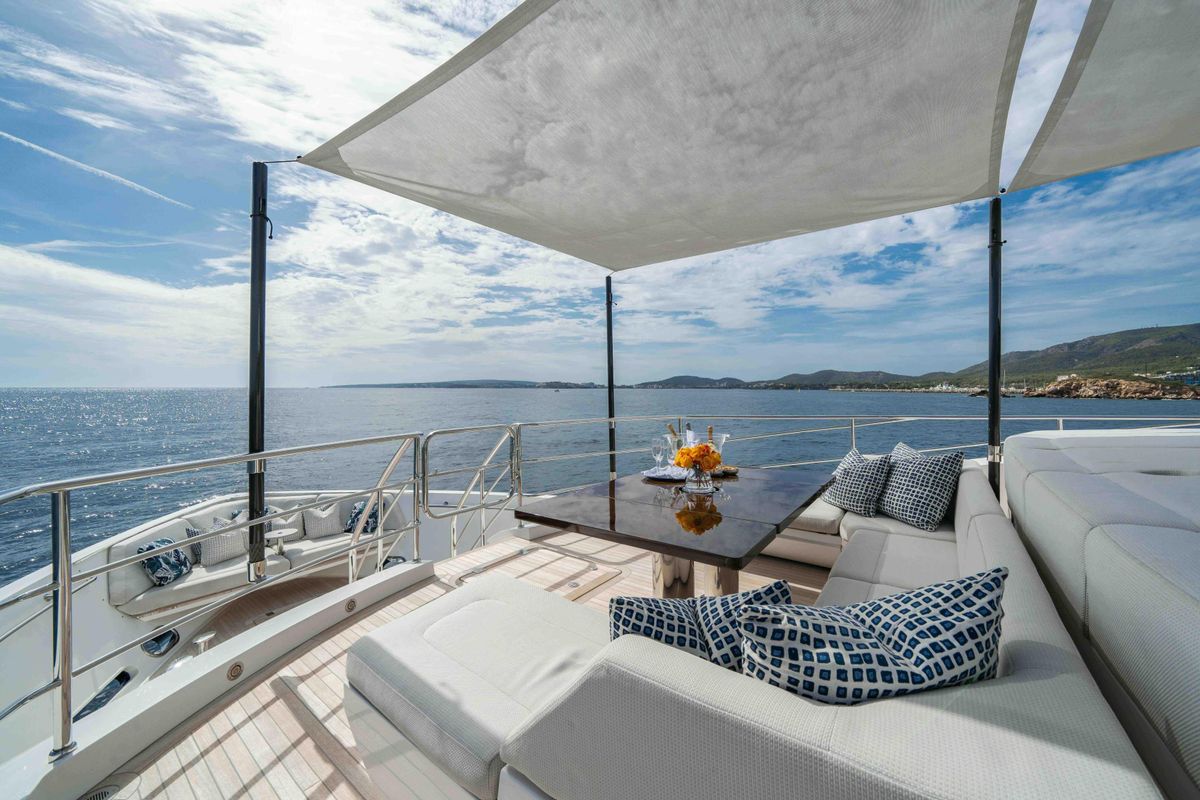

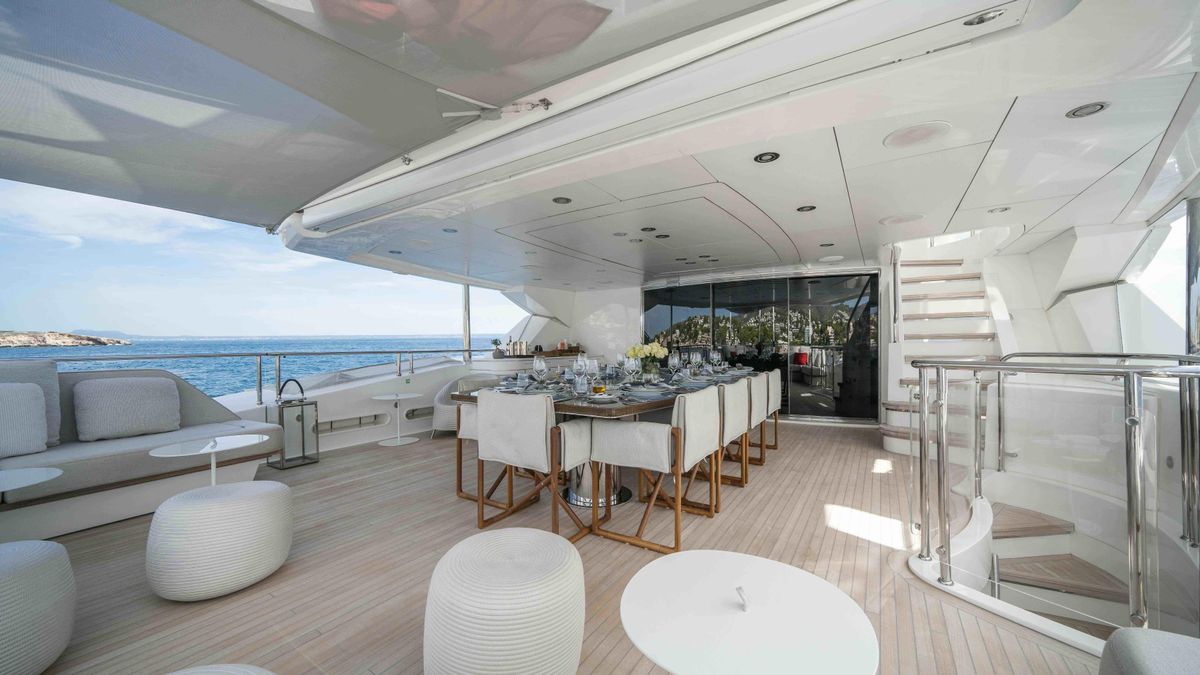

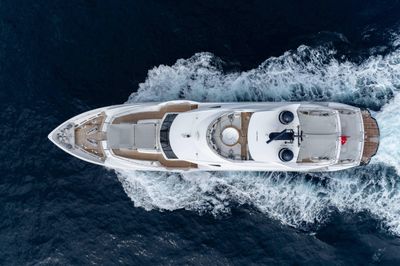

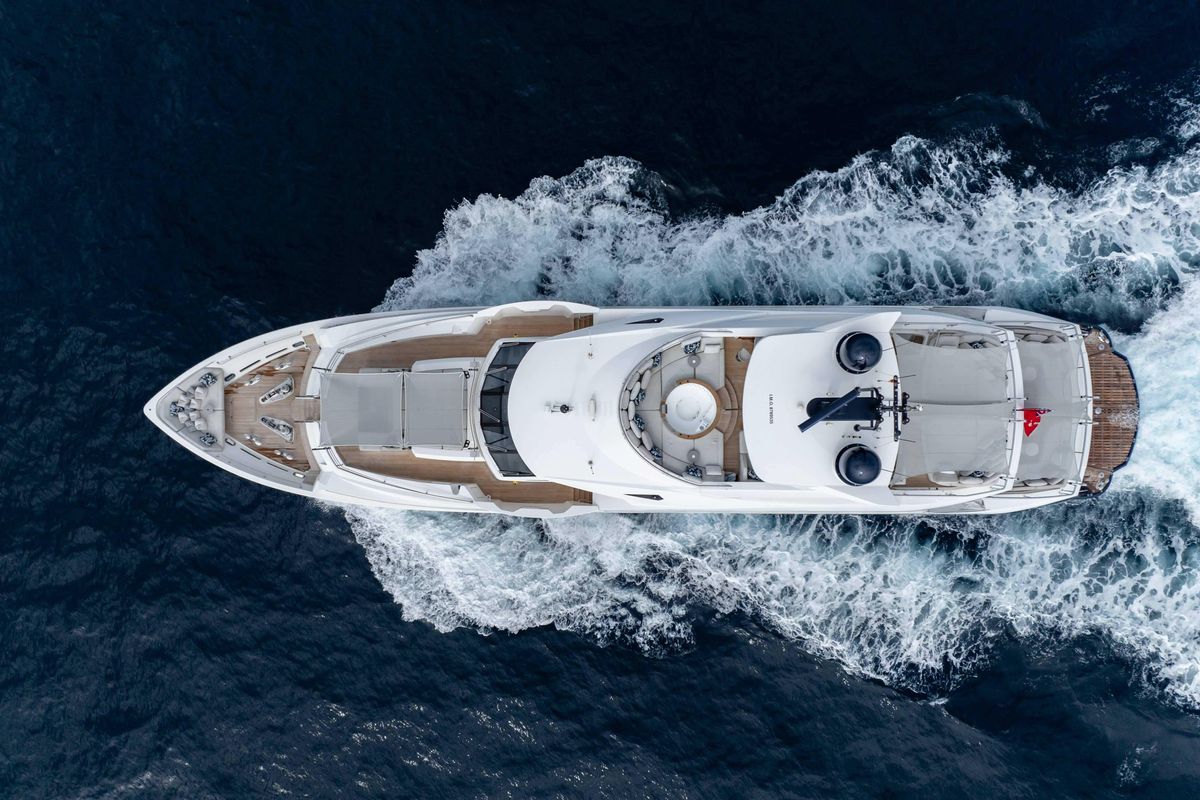

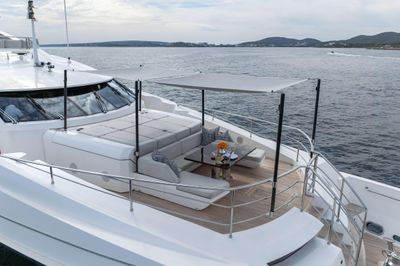

- Three exterior decks with a large volume for entertaining, including a jacuzzi, wet bar, and spacious al fresco dining areas
- Capable of top speed of 23 knots

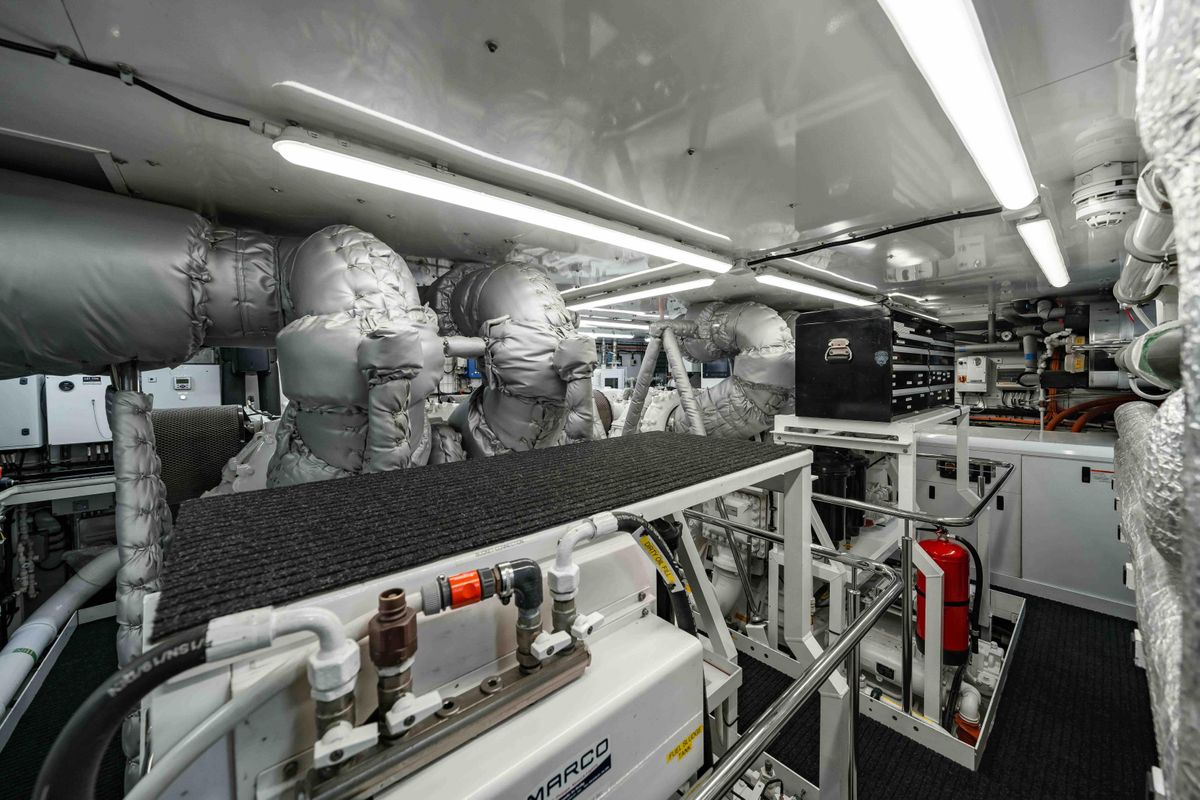

Mechanical Equipment

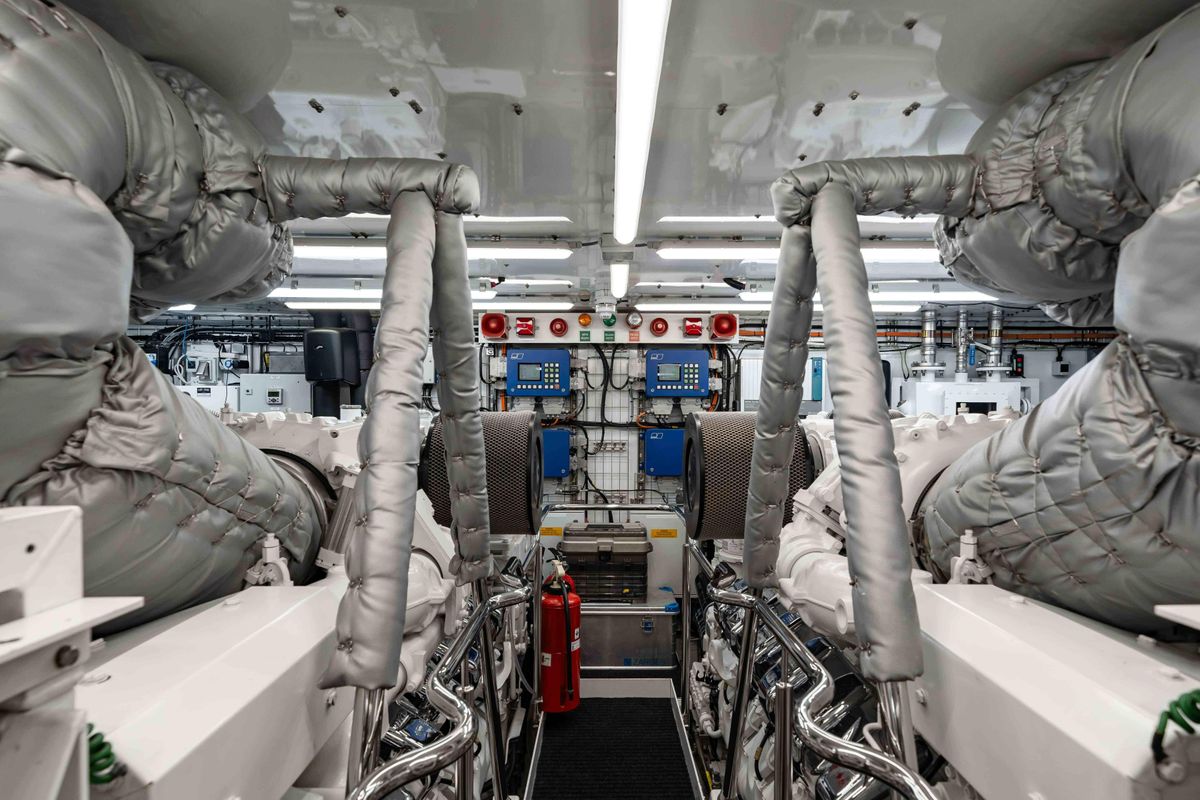

Engines: 2 x MTU 12V 4000 M93 3,140hp
Port engine hours: 4328 hours
Starboard engine hours: 4327 hours
Gearbox: ZF - ZF7600A, Gear ratio: 3.286:1
Propellors: 2 x Rolla 5 blades NiBrA
Steering: Wills Ridley with dual pumps 220V three phase and 24V DC
Stabilisers: Stabilizers: ABT-TRAC 440 digital fin stabilization system at Rest Stabilisation
Bow thruster: Hydraulic bow thruster system 100HP ABT TRAC 20
Stern thruster: Hydraulic stern thruster system 65HP ABT TRAC 16
Tank Capacities
Total Fuel Capacity: 28,600 Ltr – 7,555 USG
Lube Oil: 287 Ltr – 76 USG
Waste Oil: 287 Ltr – 76 USG
Water Capacity: 5,200 Ltr – 1,375 USG
Grey Water: 1,340 Ltr – 330 USG
Black Water: 1,340 Ltr – 330 USG
Electricity
Generators: Generators: 2 x Kohler 80kw 400/230V 3 Phase 50Hz - 80EFOZDJ
Port generator hours: 9950 hours
Starboard generator hours: 10018 hours
(Both Generators were top end rebuilt at 8050 hours before the start of summer season 2024)
Shore Power: Shore power: 2 x 125A plugged flexible 20M cable
Shore power converter: Atlas 90 kVA-SPA-II Series 50Hz
Batteries: 24v Service Batteries
Emergency and Radio Batteries: 24v
Auxiliary Equipment
Fuel Filters: Racor Dual Cross over setup
Fuel Oil Seperators: Alfa Laval MMIB 303
Bilge Pump: Gianeschi 3phase Main
Fire Pump: Gianeschi 3phase Main
Aux Fire/Bilge: Gianeschi – Diesel Pump
Boilers: a pair of Quick Boilers with 3 x 2kw heating elements
Sewage Treatment: Hamman Super Mini
Toilet System: Techma
Airconditioning system: Full Dometic Chilled Loop water system (Sunseeker optional Tropical upgrade)

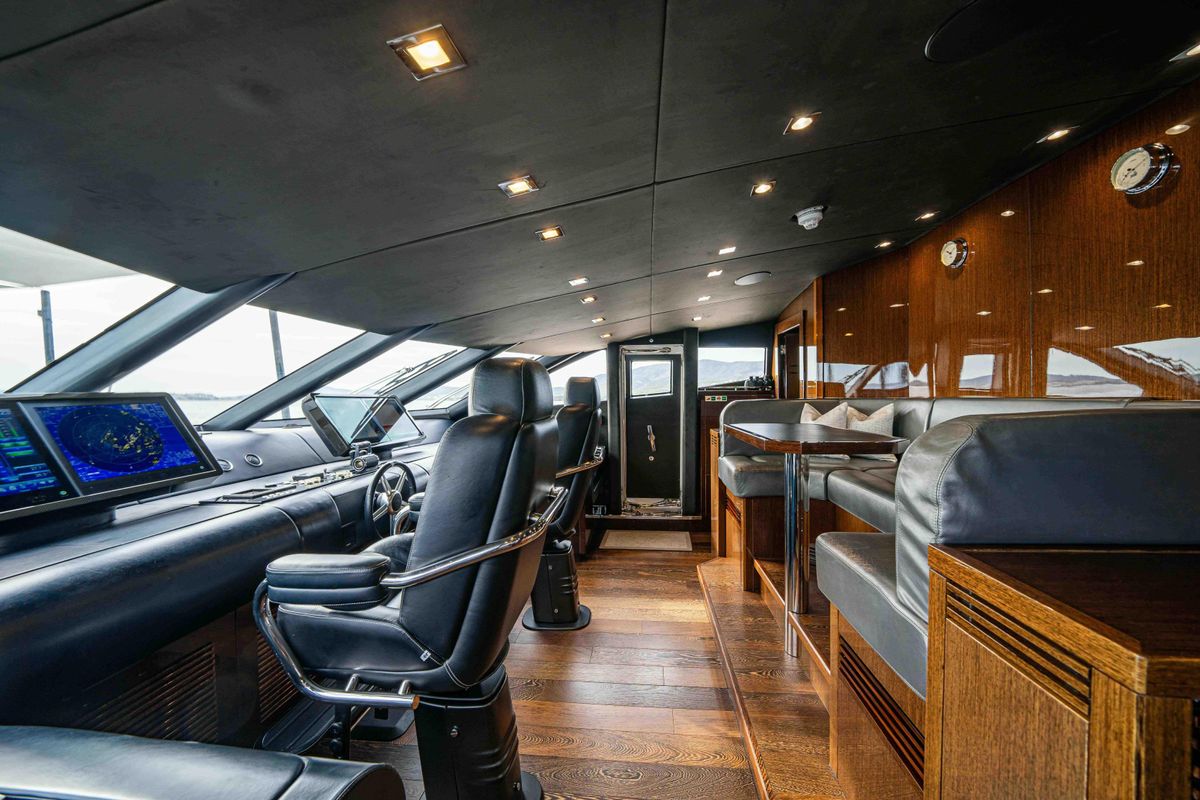

Navigation Equipment
Radar: Furuno FAR1518-BB X-Band 9GHz 12Kw
Electronic chart system: Transas Navi-Sailor 4000 ECDIS & Time Zero Professional
Magnetic compass: Ritchie compass Helmsman HF-743
Gyro compass: Hemisphere GNSS V103
Auto pilot: Simrad AP70
Log: Sperry Naviknot 350E
Echosounder: Furuno FE800 Echo Sounder 200KHz with 200B-8B Transducer
GPS: Furuno GP170 GPS Navigator with GPS antenna
Display: 4 x Hatteland Series X 19" Maritime
AIS: Furuno FA170 Class A AIS Transponder with GPS and VHF antenna
Bridge navigational watch alarm: Furuno BR510
Rudder angle indicator: Simrad RF45X
Communication Equipment
SAT C: Sailor with 6066 Terminal & Printer
VHF system: Sailor 6222 Class A DSC
Handheld Portable VHFs. 2 x Icom GM1600E GMDSS VHF
MF Radio: Sailor 6301 MF/HF 150W Radio Telephone
Navtex Receiver: Furuno NX700B
Satcom system: Sailor 9110 VSAT 103cm
Satellite TV: Intellian replaced in 2022
Terrestrial communications: Pepwave 5G Max BR1 & Starlink Data system
Wi-Fi router: Ubquity Dream Machine Pro with remote management, including switching gear and AP’s throughout the vessel
Deck Equipment
Anchors: 1 x Pool style Manson Kedge 210Kg Stainless and 1 x Admiralty galvanized bow anchors
Anchor chains: Upgraded anchor chain to 2 x 165-meter 19mm Galvanised Chains
Windlasses: 2 x Hydraulic Vertical Lewmar
Capstans: 2 x Hydraulic Lewmar
Passerelle: Electro-hydraulic Besenzoni 150 Kg
Swim platform: Electro-hydraulic Phoenix Marine
Garage door: Electro-hydraulic on Phoenix System
Spotlight: ACR UP102
Awnings and Deck Covers:
Complete Set of deck covers
2 x Electric retractable awnings, bridge deck aft and sundeck
Removable awning on main deck, bridge deck aft and forward, sundeck

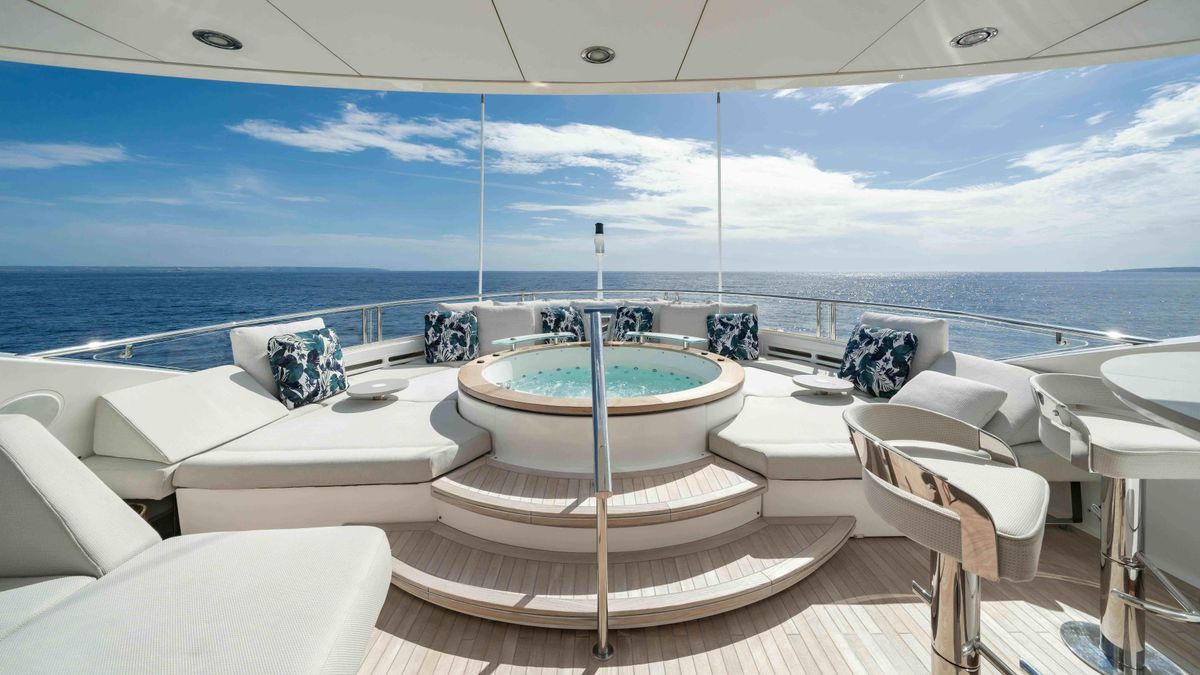

Jacuzzi pool with water feature and bubble system
Gym Equipment
Complete gym set up with treadmill, rowing machine, free weights and Boxing Bag
Entertainment Equipment

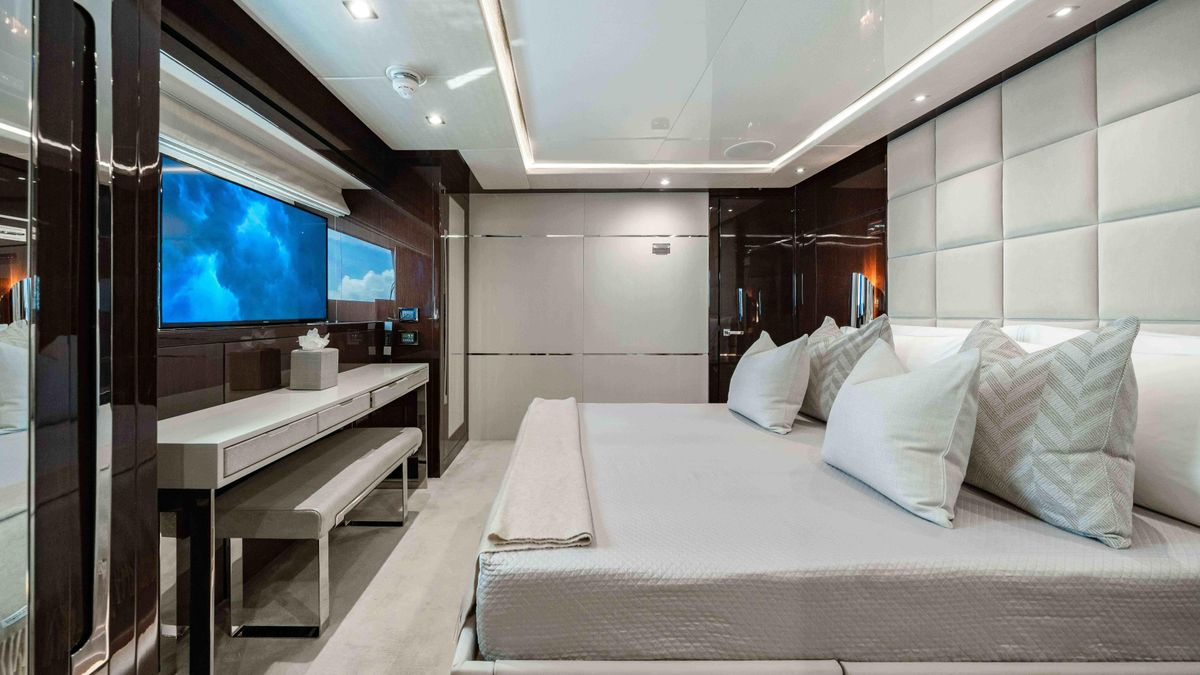

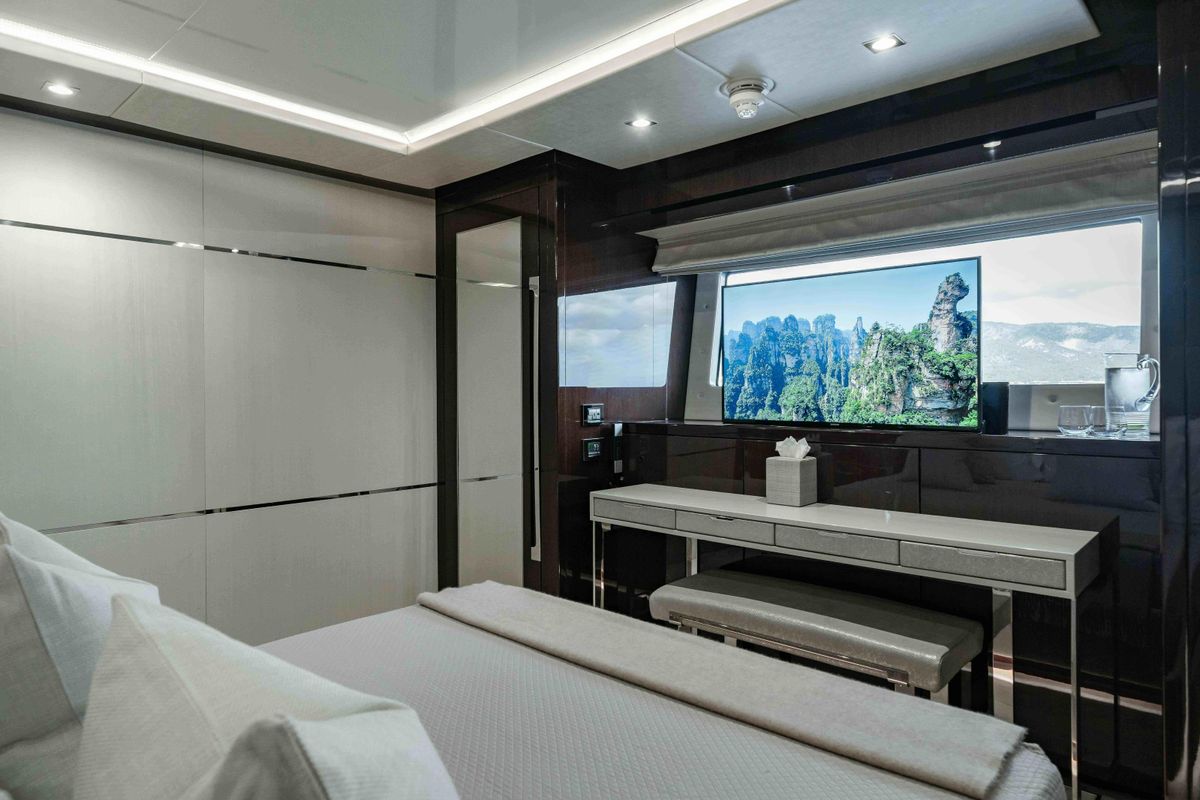

Each Cabin has Samsung TV complete with entertainment system, Airplay, Apple TV and SAT TV. High powered speakers and universal remote

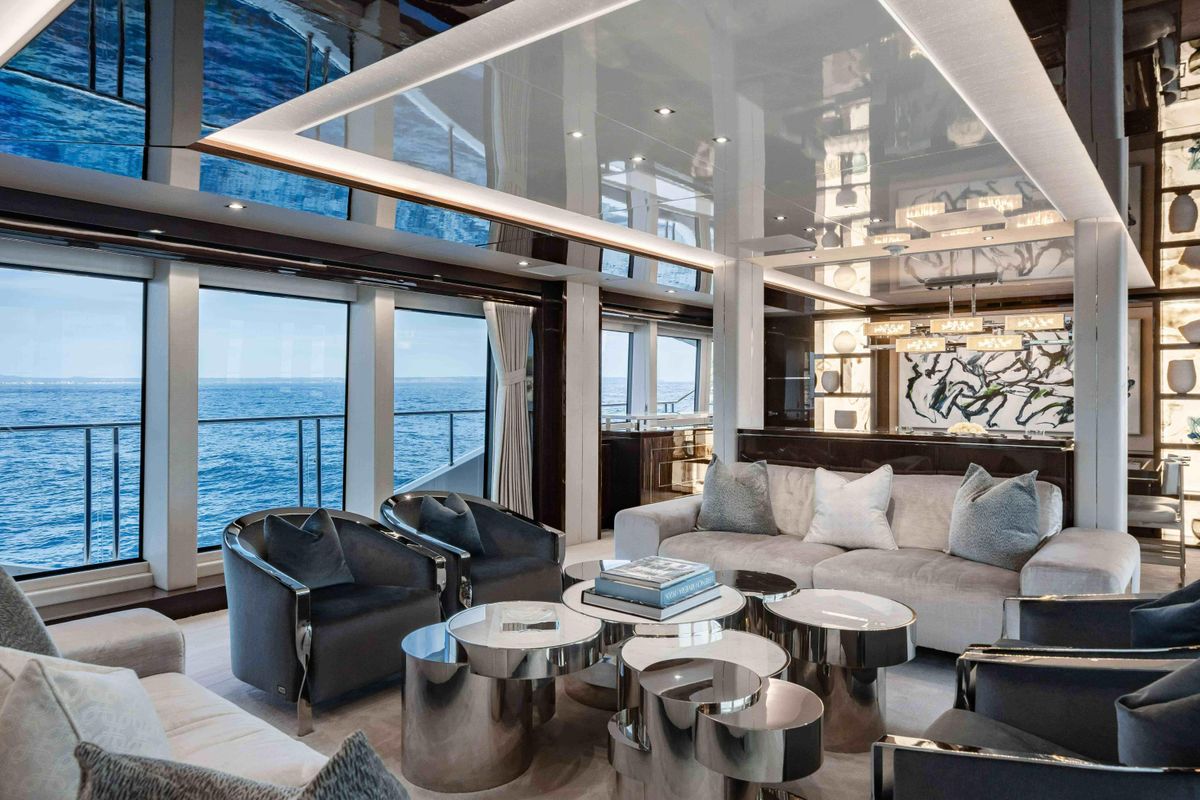

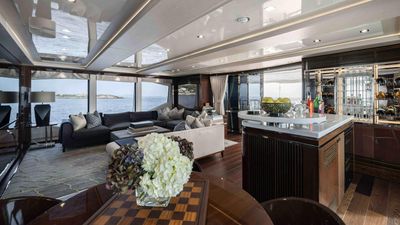

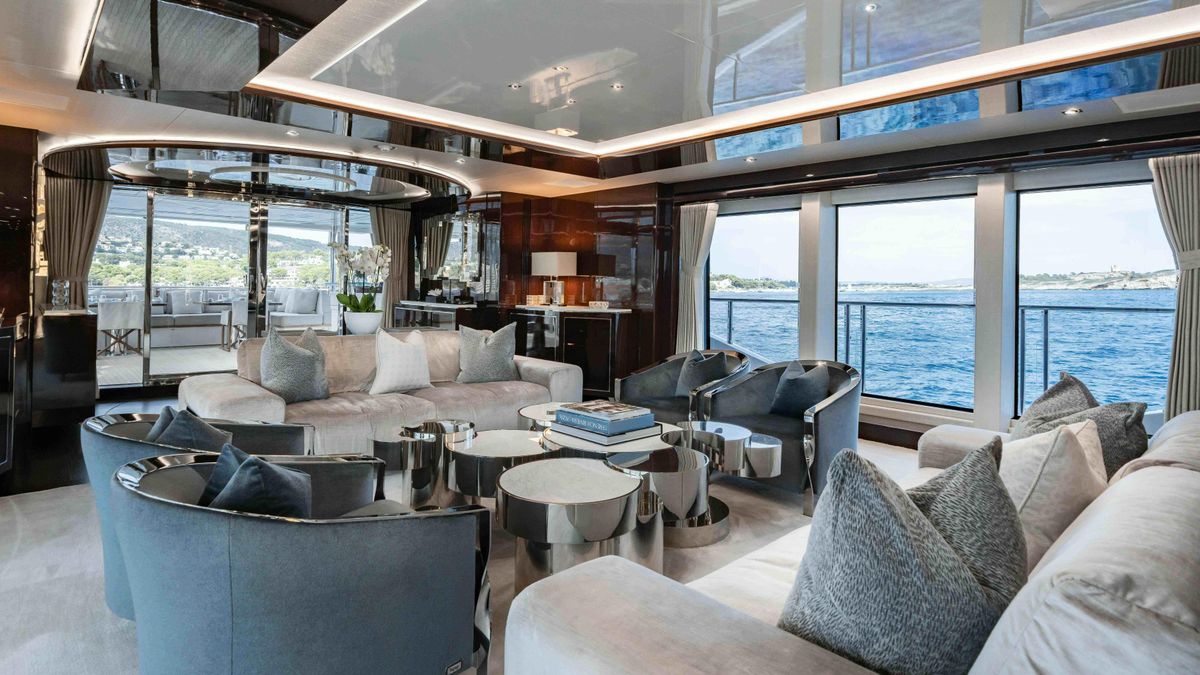

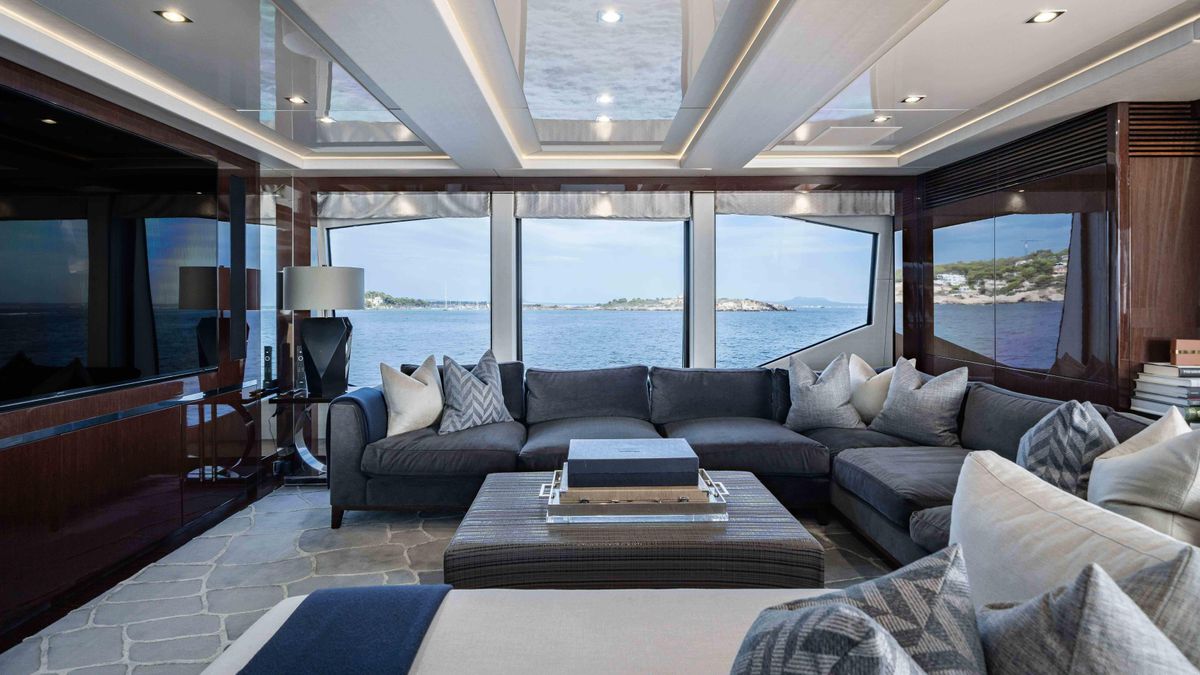

Upper Saloon: 85” Samsung TV connected to the onboard entertainment system

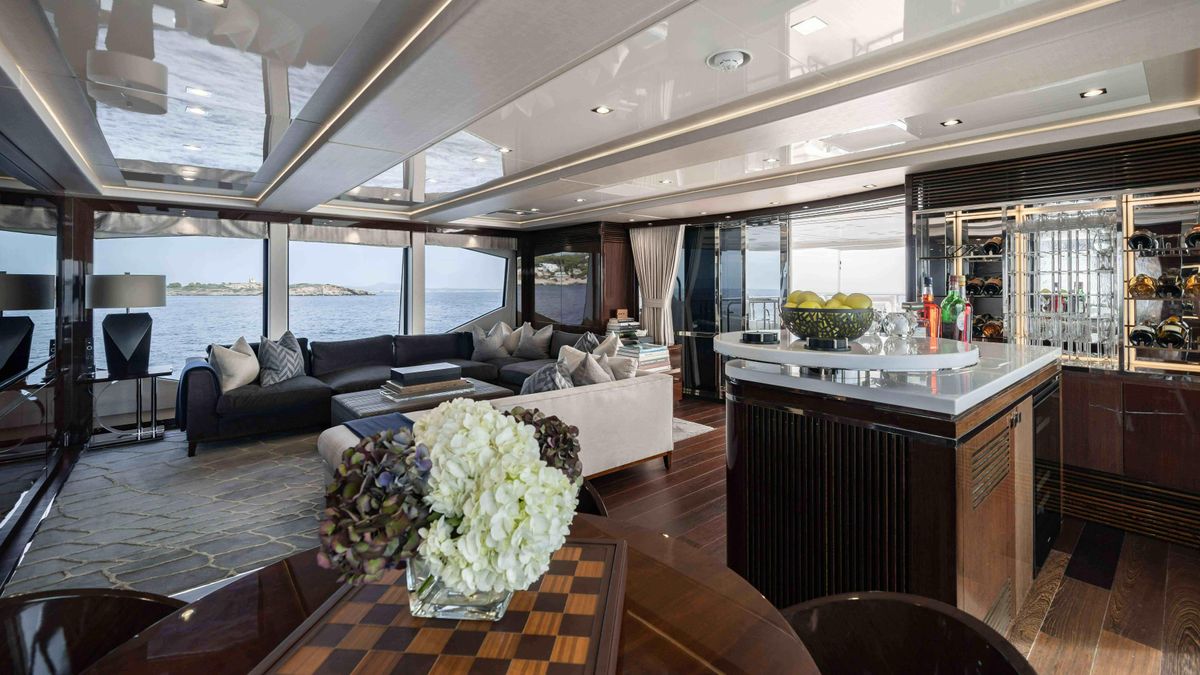

Lower Saloon: 60” retractable TV connected to the onboard entertainment system
Aft Deck: Antiglare external TV
Full Sonos sound system on the external with 4 zones all linked to the onboard entertainment system complete with airplay.

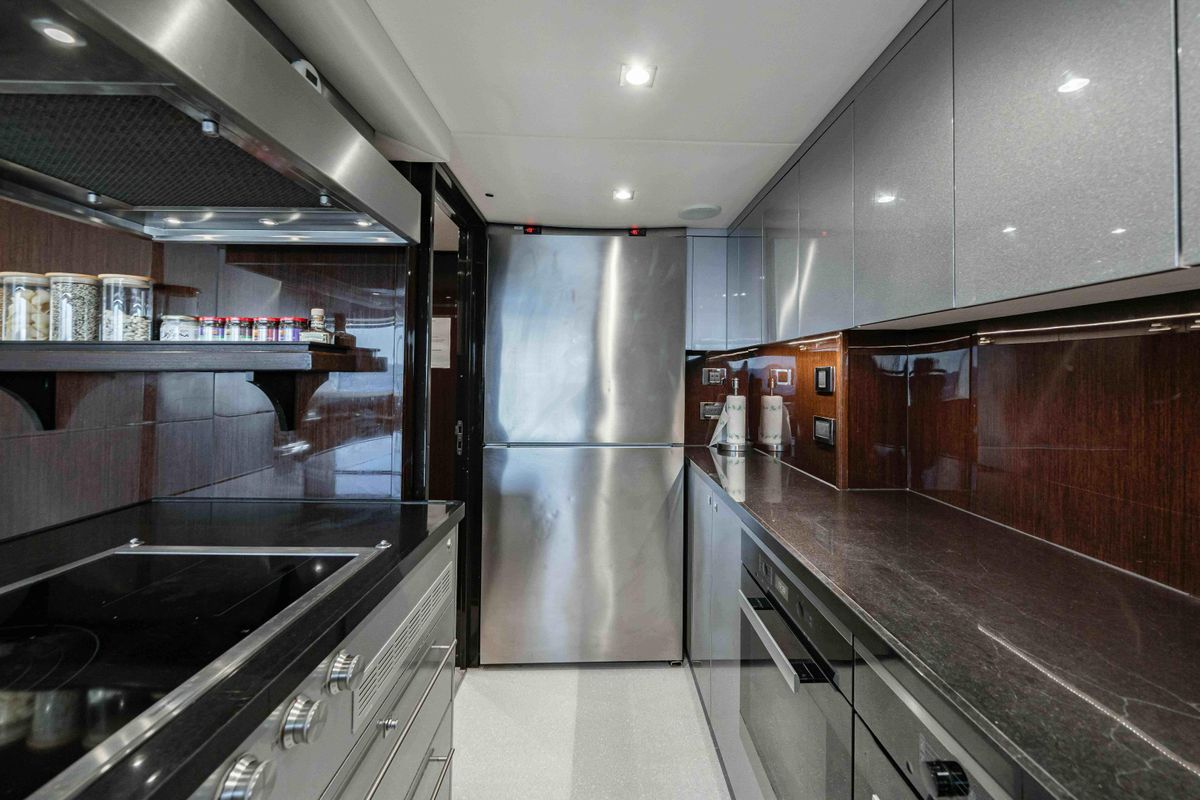

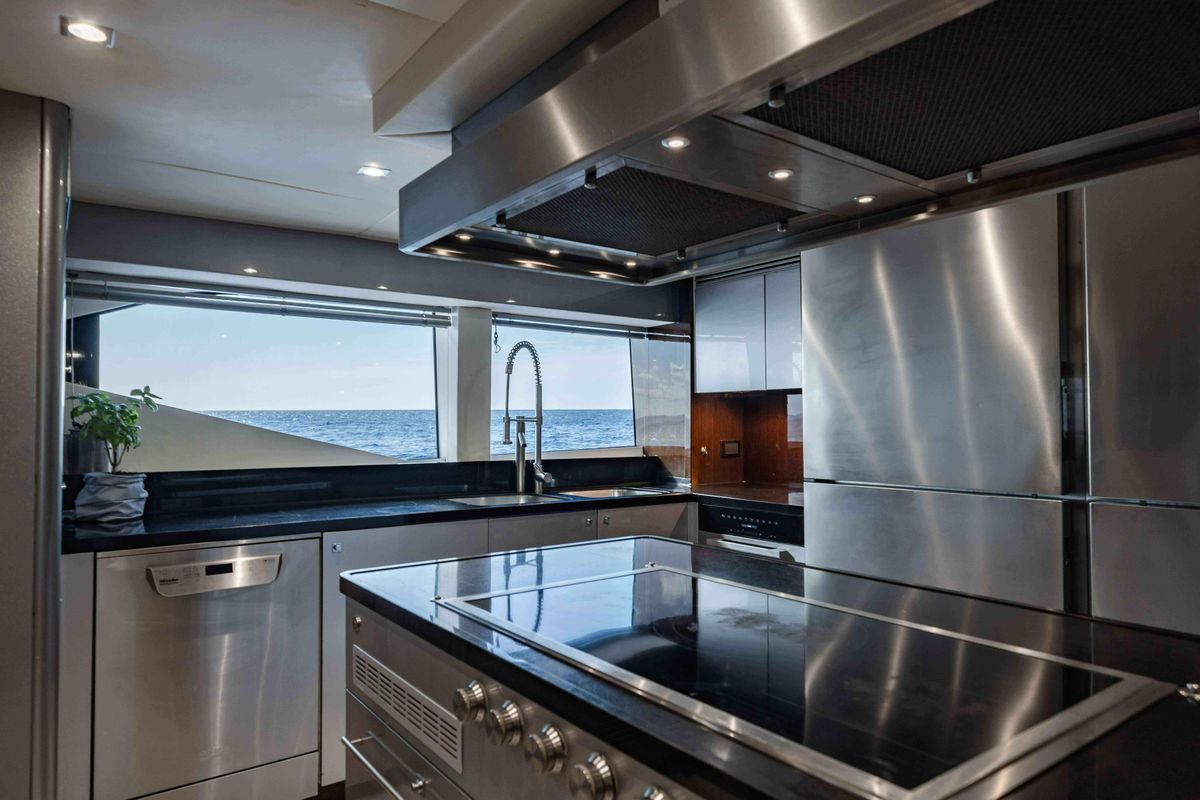

Galley, Laundry and Domestic Equipment Galley
Miele Ovens: 2 independent ovens
Miele Combi/Microwave oven
Gaggenau 5-point induction Cook top
Sous vide
Kenwood appliances
Deep Fryer
BBQ – Hibachi portable
Miele Dishwasher Professional Line
Dumb waiter connecting to upper stew pantry
Fridges: 4 Fridges, operating on independent compressors sea water cooled
Freezers: 2 Freezers, operating on independent compressors sea water cooled
Laundry
Miele Washing Machine: 2 Professional Series
Miele Dryer: 2 Professional Series

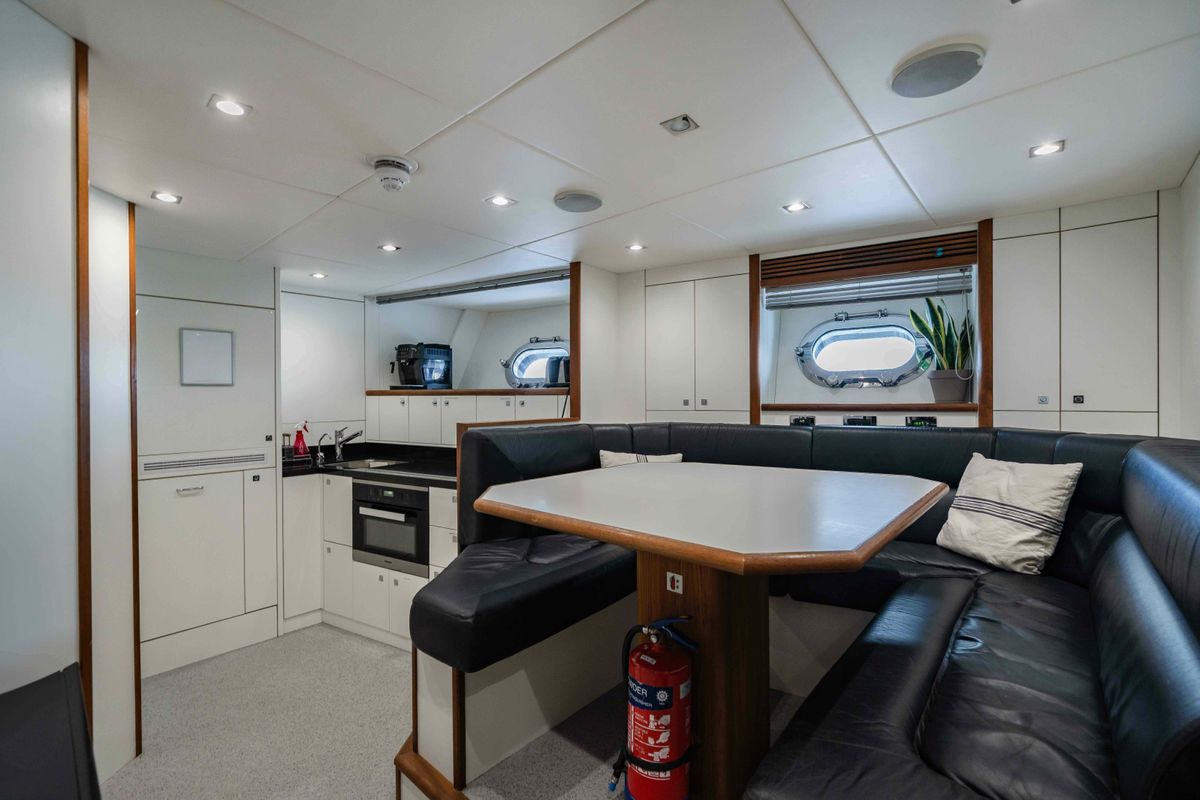

Crew Mess
Miele Microwave
Miele fridge
Miele dishwasher
Lower Stew Pantry
Miele wine fridge
Ice Machine
Upper stew Pantry
Miele dishwasher
Miele full size fridge

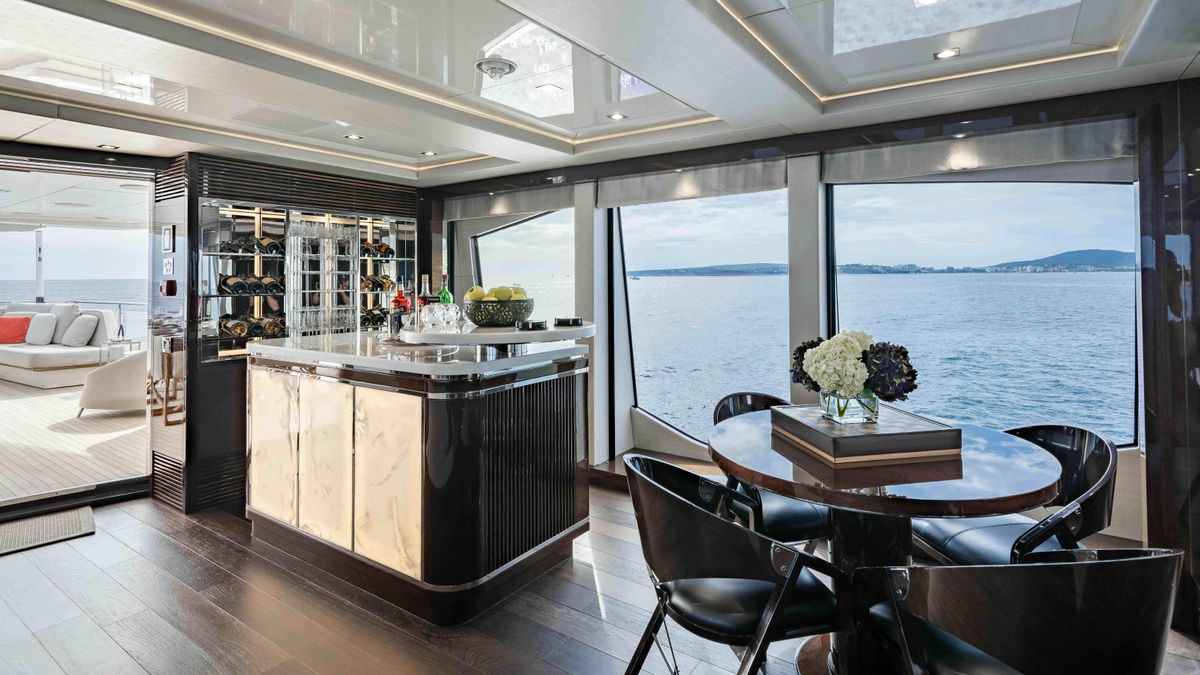

Upper Saloon Bar
Miele wine fridge
Ice Machine
Main Deck Bar
Ice machine
Dometic fridge

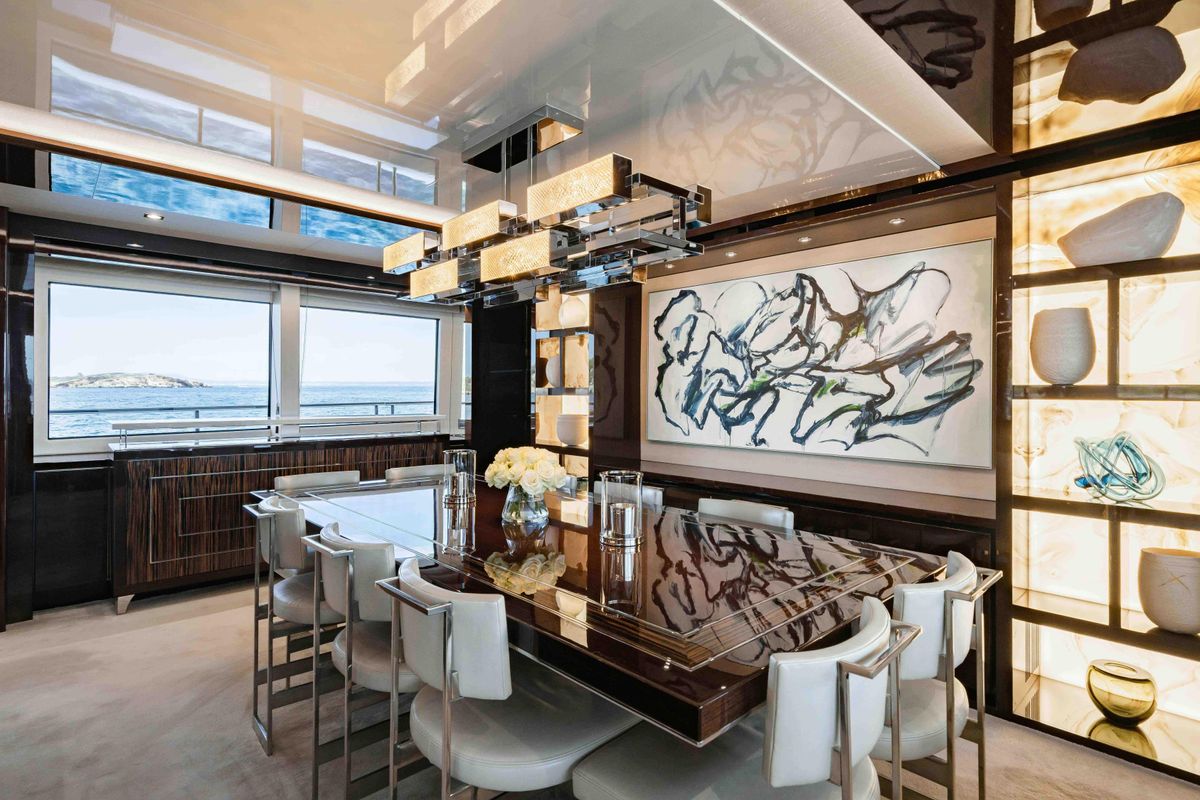

Bridge Deck Dining
Dometic fridge

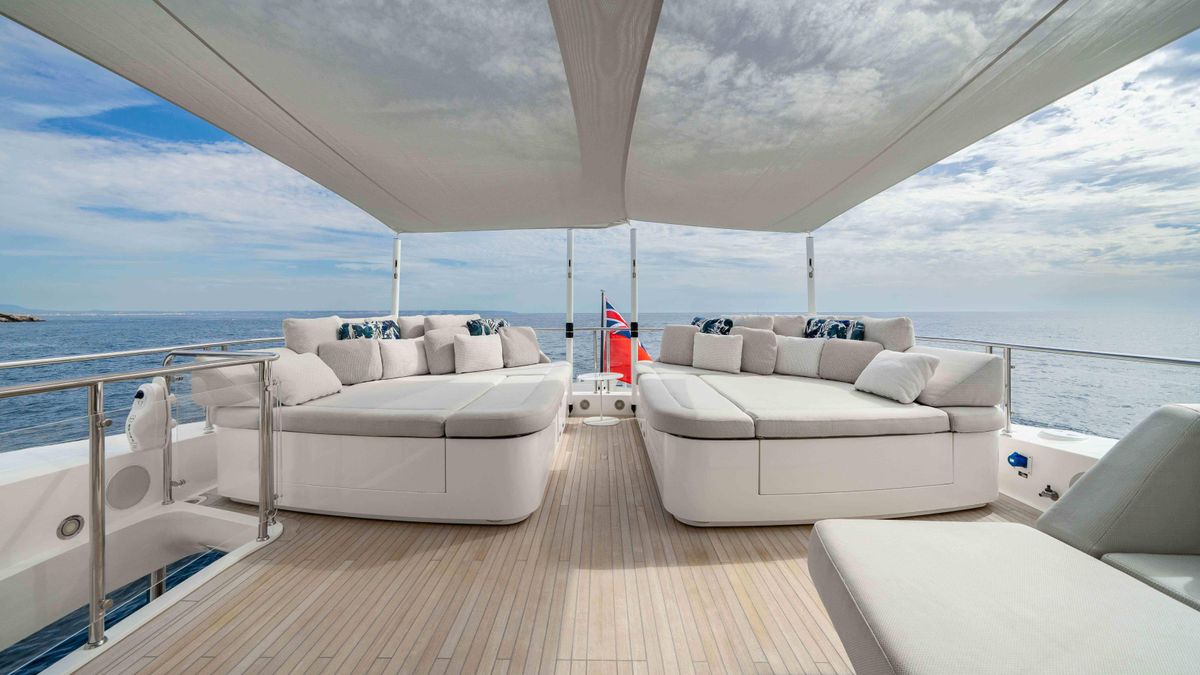

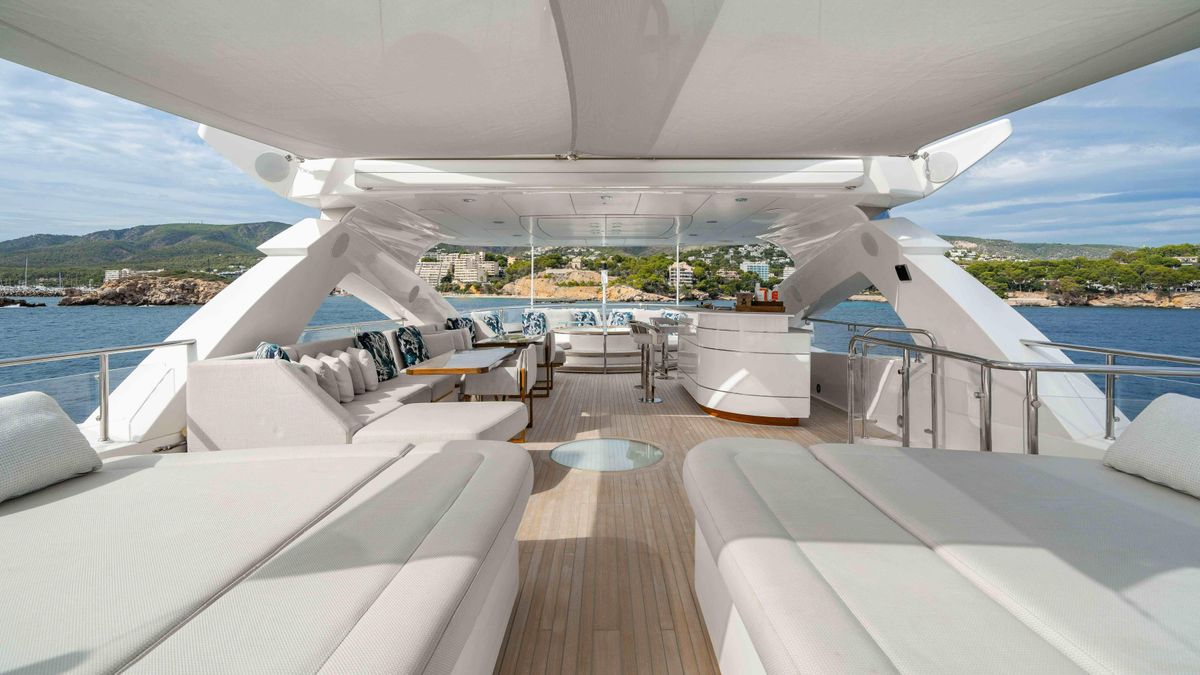

Sky Deck
Drinks Fridge 2 drawer
Dometic Fridge
Ice Machine
All housed in the new bar installed in 2022
Security and Safety Equipment
Safety
Life Rafts: 4 x Zodiac 10 pax life rafts, in survey and inspection date
Life Rings: 4 total, 2 x Smoke and light and 2 x lifeline
EPIRB: ARC Global Fix
SART: McMurdo
Medical Kits: MSOS Near Costal with O2 Kit
Smoke Hoods, Life Jackets, Immersion suits: all in date and Qty according to Class
Security
CCTV 5 total, Aft camera is linked to external monitoring
Tijssen Monitors in Bridge, ER, Crew Mess, and PMS with remote alarming system via SMS
Fire Fighting
All RINA & MCA Compliant portable and fixed firefighting systems for vessel of size and class
Alarms
Tijesson Ship monitoring system, with touch screen capable of remote and local start stop of equipment
Fire Bouy Xintex monitoring system throughout
FM200 Fixed ER suppression system
FM200 Fixed suppression system for Laundry and PMS
Intruder detection system
Bilge/Fire Pumps
3 phase Gianeschi Bilge and Fire Pumps located in the engine room
Diesel crash pump located in the Pump room
Tenders & Water sports Equipment Tenders
Williams 535 Jet RIB
Water Sports
Yamaha Jetskis VXHO series new in 2020 with 50 hours on each
Kayaks inflatable x 4
Inflatable Jetski dock
Inflatable Pool
Refit History
2020:
- Underwent full 5-year RINA survey
- Transom re painting, shaft removal, inspection and re-installation, rudders removed and re-installed after testing bearings and running gear, new lip seals fitted
- New fixed installation of aft deck furniture and tables
- New jet skis
2021/2022:
- Full installation of Ubquity networking gear AV/IT, including re-cabling, switches, camera and access points.
- Installed new generator coil in the starboard generator, major generator services to both units.

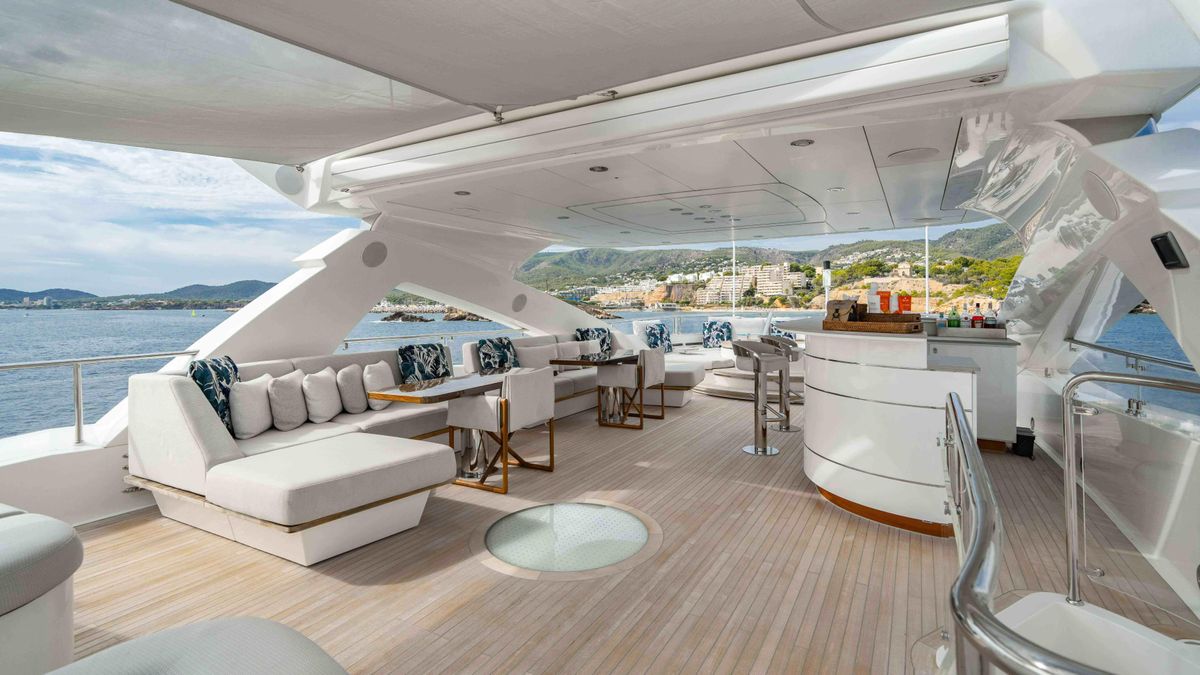

- Constructed and installed a new bar, bar stools and seating on the sundeck
- Completely re-upholstered all exterior squabs and new deck cushions
- Full top end service of the stabilisers, new bearings and bushings installed
2022/2023
- RINA Intermediate Survey
- Removed, services and replaced and necessary, all through valves, main engine exhaust valves and generator valves.
- Installed new fire insulation to the main engine exhausts.
- Installation of new TV control system throughout the yacht, upgraded the exterior entertainment system and airplay capability
2023/2024
- RINA Survey and renewal of class certificates
- Full revision of the swim platform, completely removed, tested and re installed.
- New teak installed on the swim platform
- Complete 10,000 hour rebuild both generators, including the generator top, heads, gaskets, injectors water pumps etc.
- Generator PTO’s full service and installation of new bearings
