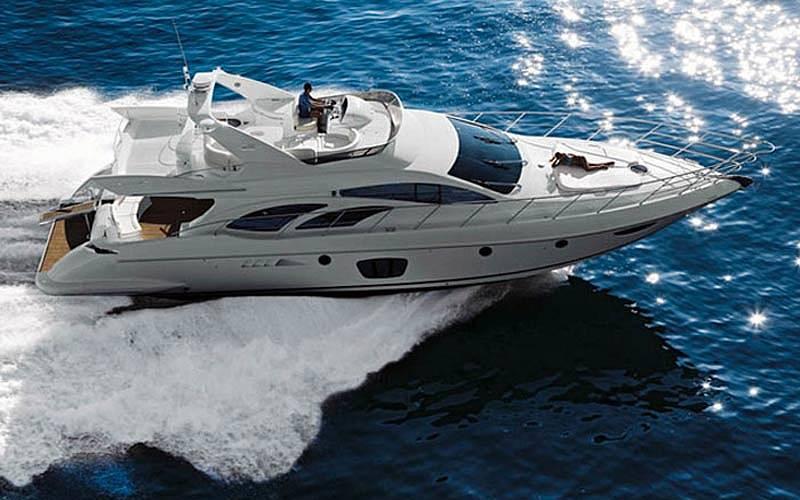

Azimut 62 Evo kept in good condition, services performed every year. In 2024 replaced service batteries; performed the division of batteries between engines and services.

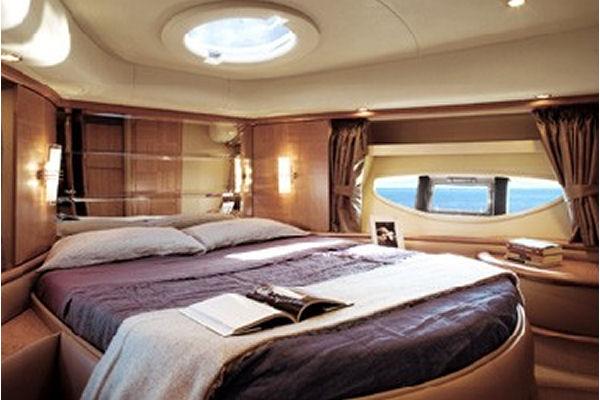

OWNER CABIN (MIDSHIP)

• Double bed with drawer unit
• Double-door mirrored wardrobe on foreside
• Column unit with drawers
• Built-in vanity unit with drawers
• Large-sized oval portholes (300 x 600 mm)
• Emergency exit via ceiling above vanity unit
• Cherry wood doors and frames
• Direct access to owner?s bathroom
• Walk-in wardrobe with drawers and hanging rail
• Curtains, upholstery and carpet
• Azimut reading lights
• Diffused lighting under bed and behind pelmets
• Provision to fit TV

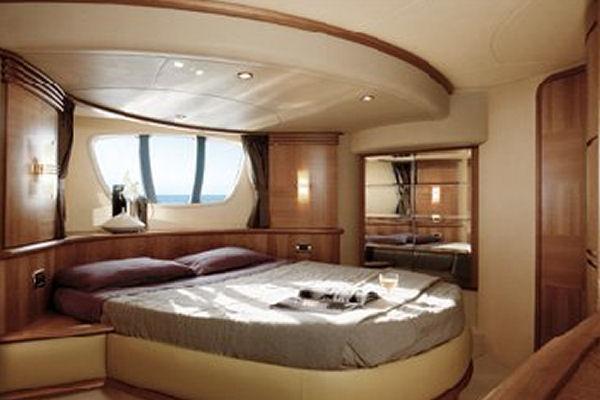

VIP CABIN

• Double bed
• Mirrored headboard
• Shelves above portholes
• Walk-in wardrobe with hanging rail and shelves
• Two round portholes
• Deck hatch with shade and mosquito screen
• Curtains, upholstery and carpet
• Azimut reading lights

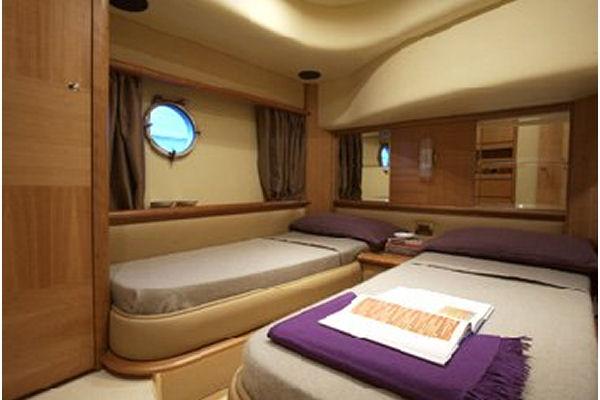

GUEST CABIN

• Twin beds
• Bedside table and switches
• Azimut reading lights
• Wardrobe with drawers and shelves
• Curtains, carpet and upholstery
• Round porthole

• The system described respects current I.E.C and C.E.I standards. On board voltage values: 220 V AC. with 50 Hz frequency
• 24 V DC from battery sets
• 12 V DC for VHF Generator: 6.5 kW, 220 V, 50 Hz generator installed in engine room
• Shore power sockets: Std version: 1 220 V, 50 A shore power socket
• Version with air conditioning: 2 220 V, 50 A shore power sockets Batteries: sealed, maintenance-free batteries using AGM (Absorbed Glass Matt technology) technology 4 200 Ah batteries for auxiliary services (two 24 V 400Ah sets)
• 2 200 Ah batteries to start engines
• 1 100 Ah battery for generator
• All sets are activated by battery disconnector relays Battery charger: 1 24 V 80 A Dolphin electronic battery charger for starter and auxiliary units
• 1 12 V 10 A Dolphin electronic battery charger for generator Electric panels: Two main control panels, one in the engine room and the other in the wheelhouse
• Emergency panel in cockpit
• Electrically operated devices protected by high reliability thermomagnetic switches or fuses
• There is a dedicated switch panel in each cabin Lighting system: 24 V, 20 W halogen spot
• 24 V (24W/m) diffused lighting system

• 220 V 4 burner ceramic hob with fiddle-rail
• Microwave oven + grill
• Granulon galley worktop with two sinks and hot and cold water mixer
• Extractor hood
• 230 l (60 gal) refrigerator with freezer
• Storage cabinets under worktop with pullout stainless steel baskets
• Hanging cherry wood units
• Storage for pots and pans under microwave oven
• Wooden floor
• Storeroom, service compartments, tableware, cutlery, and glassware storage cabinet
• Ice maker

BILGE SYSTEM

• Four 24 V automatic electric pumps, maximum flow-rate: 224 l/min (60 gal/min)
• Two manual pumps, maximum flow-rate: 49 l/min (13 gal/min)
• Emergency bilge exhaust discharge through engines (maximum flow rate: 334 l/min ? 88 gal/min)

FIRE FIGHTING SYSTEM

• Controlled via emergency panel in cockpit, which includes the following direct controls:
• Engine battery disconnector
• Fuel delivery solenoid valve shutoff
• Fans and extractors shutoff
• Fan grid closure
• Fire extinguisher discharge
• Two 12 kg powder cylinders with spray nozzles on engines and gearboxes (type approved for the Italian market according to Directive 94/25/CE,ISO9094)

• Non-slip walkways
• 2 bites halfway (one each side)
• Handrails and accessories in ovalized stainless steel
• 2 fuel fillers with protective cover (one each side)
• One fresh water fillers (starboard side)
• Navigation lights
• Impact resistant stainless steel and PVC fender bar
• Tempered plate glass windows set in GRP frame, mirror finish

• 1 VHF Shipmate RS 8400 (wheelhouse, repeater on fly bridge)
• 1 Raymarine RL70RC PLUS radar (wheelhouse)
• 1 Raymarine Raychart 520 PLUS plotter repeater (flybridge)
• 1 Raymarine Raypilot ST6001 PLUS automatic pilot(wheelhouse)
• 1 Watertight Raymarine ST6001 PLUS automatic pilot repeater (fly bridge)
• 1 Raymarine ST 60 Tridata depth and speed indicator (wheelhouse)
• 1 Raymarine ST 60 Multi depth and speed indicator(fly bridge)
• 1 Raystar 112 LP-ST GPS antenna
• 1 Radar antenna 24 nm
• Due to continuous developments in the field of electronics, the electronic system installed on your boat may be modified without notice.

La Società pubblica i dettagli di questa imbarcazione in buona fede e non può pertanto avvallare o garantire l'esattezza di tali informazioni.
