YACHT NAME:
2019 Riva ARGO BEYOND BEYOND
MODEL:
ARGO
BUILDER:
Riva
YEAR BUILT:
2019
LOCATION:
Newport RI
ASKING PRICE:
$7,295,000
DESIGNER:
Officina Italiana Design (Italy)
HULL:
Fiberglass
CATEGORY:
Motor Yachts
DESCRIPTION:

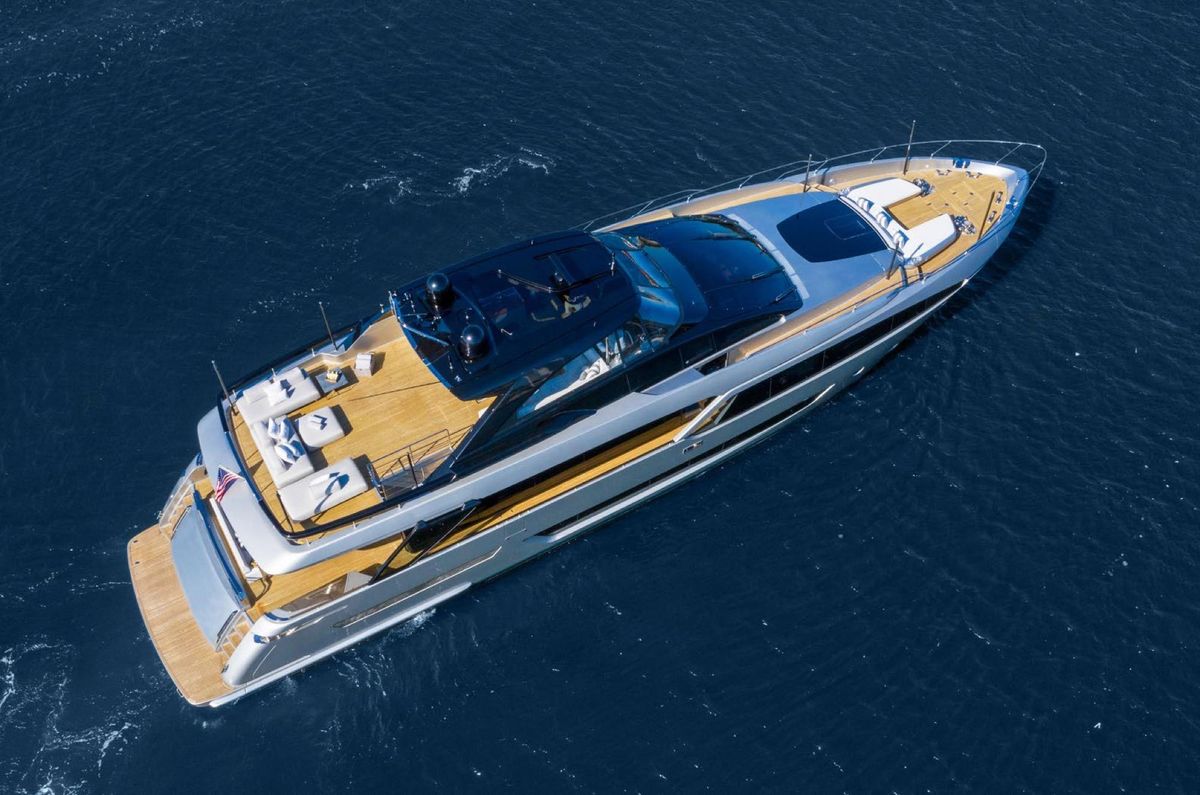

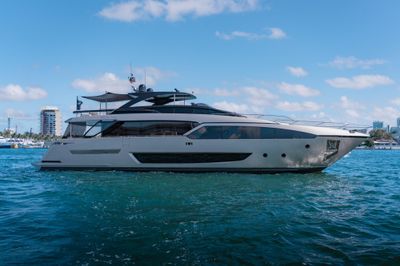

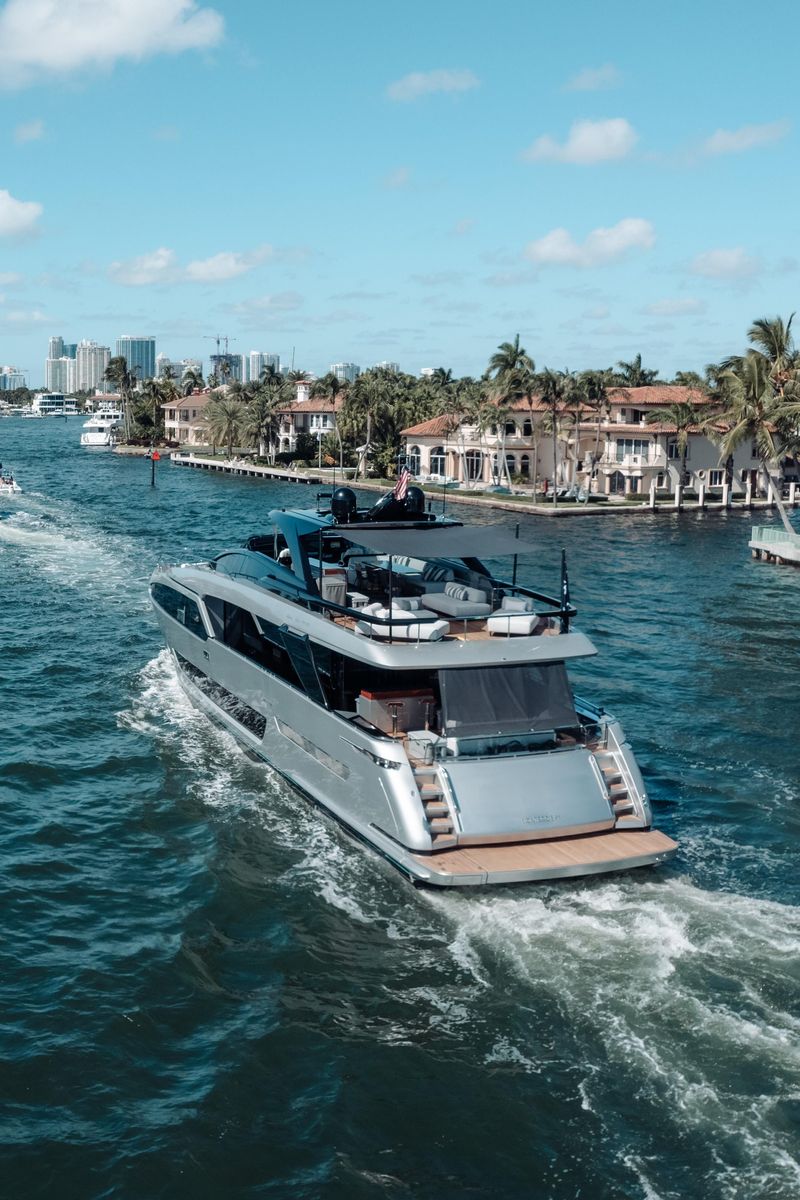

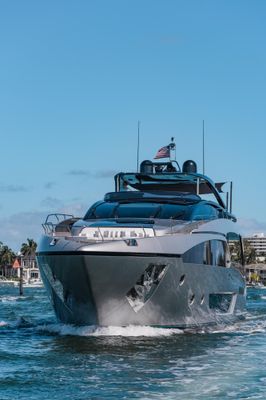

BEYOND BEYOND, the Riva 90 Argo is a large volume yacht with features such as an on-deckowner’s suite, full-beam VIP, a large tender storage garage, and three distinct outdoor entertainment areas. Built on Riva’s proven hull design, she is an excellent performer and ready to take off on her next voyage.
Meticulously maintained and fresh from a recent yard period, she is turnkey and ready for her next owner
KEY FEATURES
• Accommodates 8 guests in 4 expansive staterooms
• Vast main deck master stateroom with lounge and ensuite

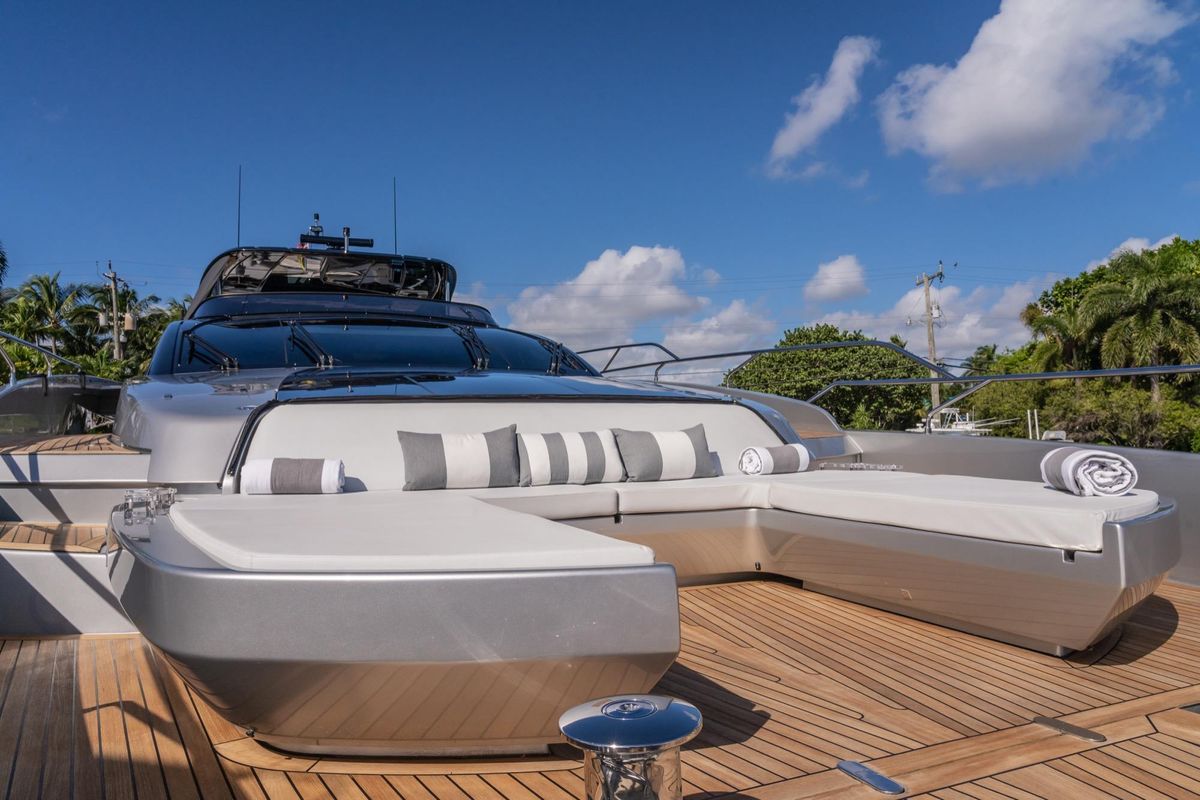

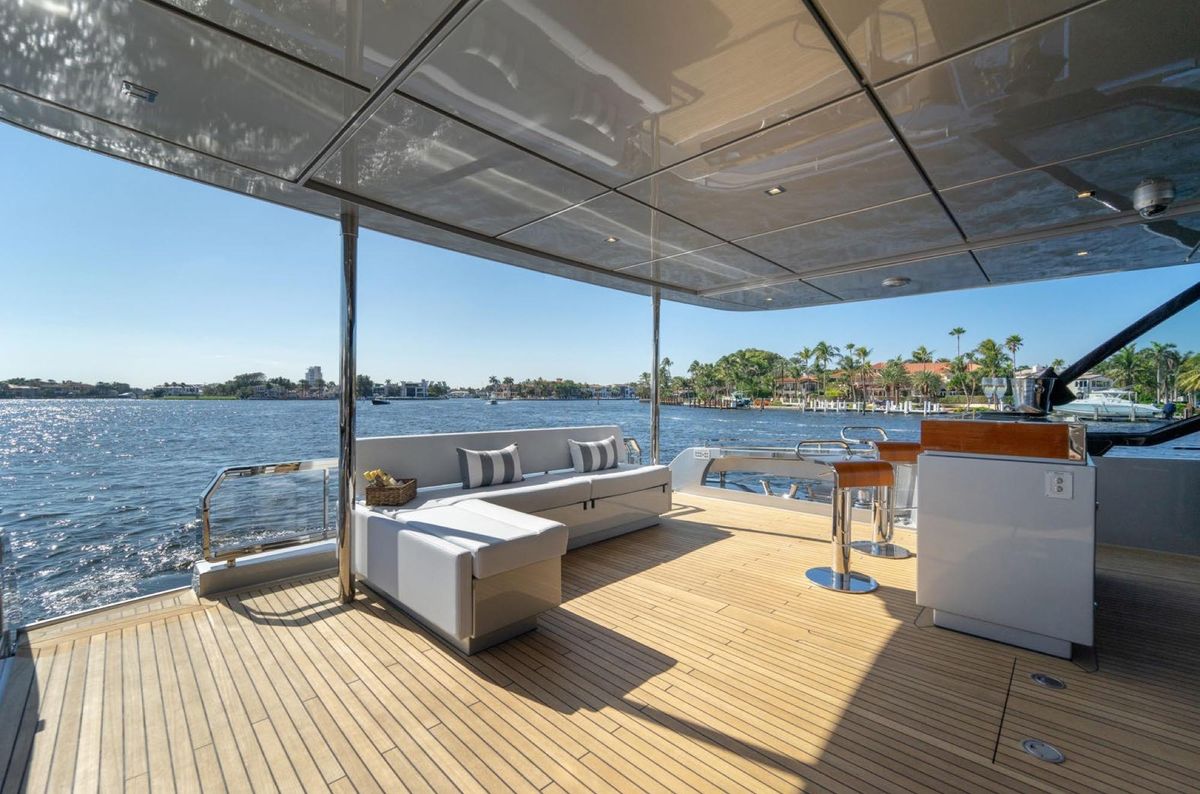

• Three spacious outdoor entertainment areas
• MTU extended propulsion warranty until 2026
• Zero speed stabilization with fins and Seakeeper Gyro stabilization
• New Dometic Titanium chiller plant with 5 year warranty (2025)
• New hydraulics for swim platform (2025)
• Recently completed yard period with new bottom paint and new Cutlass bearings (2025)
• U.S. duty paid
CONSTRUCTIONFiberglass hull and superstructure, teak decks
DIMENSIONSGeneral
Length Overall (L.O.A.):
- 94.00 feet
- (28.50 meters)
Length at Waterline (L.W.L.):
- 75.78 feet
- (23.10 meters)
Beam (molded):
- 21.00 feet
- ( 6.40 meters)
Draft (loaded):
Tonnage: 156 gross
Displacement: 100.8 tons
Capacities
Fuel Capacity:
- 2,298 US Gallons
- (8,698 liters)
Water Capacity:
- 349 US Gallons
- (1,320 liters)
Watermakers:
- 1,400 US Gallons
- (6,354 liters)
Holding Tank:
- 141 US Gallons
- ( 535 liters)
Grey Water:
- 141 US Gallons
- ( 535 liters)
Speed
Maximum: 27.0 knots
Cruising: 22.0 knots
MACHINERYMain Engines
Engine Type:
- (2) MTU 16V 2000 M86 @ 2,186 Hp each
- MTU extended propulsion warranty until 2026
Drive: V-drive transmission & new cutlass bearings
Engines Exhaust System: Underwater silenced exhausts
Engine Ventilation: (2) Electric ventilation fans
Generators & Electricity
Generators: Main electric generator (27kW) Auxiliary generator (19kw)
Shore Power:
- 400V with cable
- 3 isolation transformer 400V-230V
Batteries:
- (12) 2-volt in engine room
- Port and starboard in the engine room 12-volt
- 8D for the generators
- (4) 12-vold 8D – Starboard in engine room
- Main generator battery 12V
Battery Chargers:
- Mastervolt 24-volt
- Mastervolt 24-volt 20-amp
- Mastervolt Mass Combo 24-volt 5000 watt 60-amp
- Mastervolt 24-volt 75-amp Mastervolt
- Mass Combo Inverter/charger 4000 watt 24-volt 100-amp
Air Conditioning
Type:
- New Dometic Titanium Chiller plant with 5 year warranty
Other Machinery
Watermakers:
- Seafari Watermakers 1400 gpd ($17,000 option)
Trim Tabs/Stabilizers:
- (2) Seakeeper Gyro Stabilizers (Series 16 & 9)
- Humphree Trim stabilizers (interceptors)
Bow Thruster: Side power hydraulic with joystick
Stern Thruster: Side power hydraulic with joystick
Steering System: E-Steer Electro-hydraulic
Fuel Separator & Filtration: Double Racor fuel filters (2) for engines
Fresh Water System: Seafari Watermakers 1400 gpd ($17,000 option)
Bilge Water Filtration: Yes
COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMSCommunication Systems
SATcom: KVH Mini-Vsat
VHF: (2) Simrad
Navigation Systems
Radar: Simrad
Magnetic Compass: Urania
Auto Pilot: Simrad
Depth Sounder: Simrad
GPS: Simrad
Entertainment System:
Video Equipment: KVH SAT KVH Tracvision HD7
TVRO: US SAT Receivers in guest cabins
Audio Equipment: A/V Package premium sound external
Light Management: Dimmers throughout
Main Salon: 40” LED TV 49” LED TV Mini Hi-fi CD/DVD & Bluetooth
Master Stateroom: 49” LED TV Mini Hi-fi CD/DVD & Bluetooth
VIP Stateroom: 49” LED TV Mini Hi-fi CD/DVD & Bluetooth
Guest Staterooms: 49” LED TV Mini Hi-fi CD/DVD & Bluetooth
Flybridge:
- (2) Terrestrial TV antenna. VHF antenna (2) Radar antenna
- Running and anchor lights
- (2) Watertight loudspeakers connected to the stereo in the lounge
Pilot House:
- Acoustic alarm for water bilge
- Automatic pilot with dudder angle indicator interfaced with plotter/GPS
Crew Mess: TV 24” with CD/DVD/MP3
GALLEY & LAUNDRY EQUIPMENTGalley Equipment
Cooking Equipment:
- Miele 4-burner electric
- Miele convection oven
- Miele microwave oven
- Electric barbecue grill (flybridge)
Refrigeration/Freezer:
- GE GZS221 Side-by-side
- Isotherm wine cooler (salon)
- U-line icemaker
- Magic Chef chest freezer (flybridge)
Dishwasher: Miele G 6880 SCV1
Laundry Equipment
TENDERS & TOYSTenders: 13’ Williams Sport Jet 395 2017
Toys: Sea Doo Spark 2017

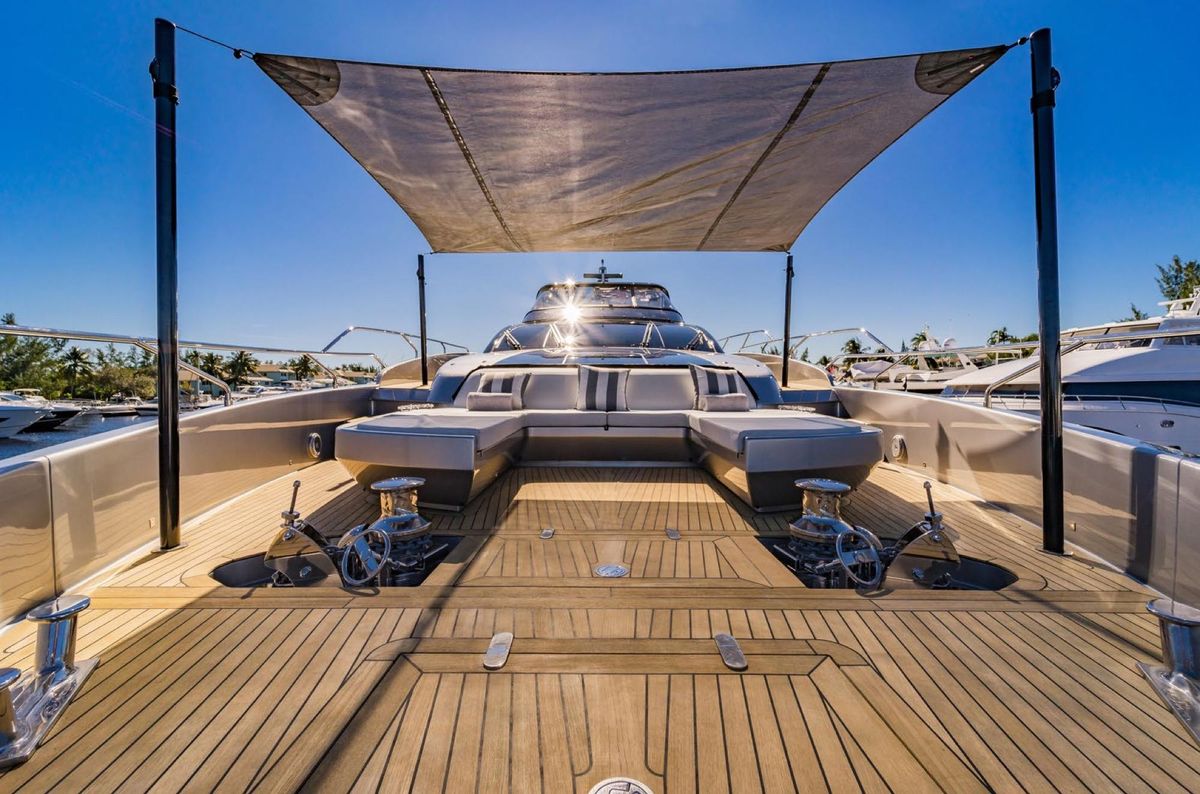

DECK EQUIPMENTAnchor Windlass System: (2) Lofrans- electric
Aft Warping Capstans: (2) Electric winches for stern warping
Anchors: (2) Stainless-steel 80kg
Anchor Chain: (2) Galvanized steel, 120m 13mm diameter
Stern Gangway: Concealed stainless steel electro-hydraulic gangway with stanchions and teak flooring
Swimming Platform: Teak floor & retractable & New hydraulics for swim platform (2025)
Garage:
- 12-roller fixture for tender and Jet Ski
- (2) hydraulic actuators for garage door
- Estec covered fiberglass deck
- (2) Quick 24-VDC winches
SECURITY, FIRE FIGHTING & SAFETY EQUIPMENTSecurity Equipment
CCTV System:
Fire Fighting Equipment
Fire Control System:
- FM200 Emergency pull handles for engines & generators for diesel break
- 32.7-kg / 101.3-kg HFC227
- 24-volt raw water with fire stations at the bow and starboard main deck
Fire Extinguishers: Extinguisher for garage with fire port from the cockpit
Flares: Orion EPIRB: ACR 406
Safety Equipment
Life Rafts: (2) 10-person Euro-Vinyl
Life Rings: 24” USCG approved
Smoke Detection: Yes
ACCOMMODATIONSThis exceptionally maintained 90 Argo is in impeccable condition and offers spacious accommodation for eight guests. The arrangement comprises an on-deck master suite, a VIP double and two guest cabins that can be configured as double or twin berths. Each stateroom features an en-suite.
LOWER DECK:

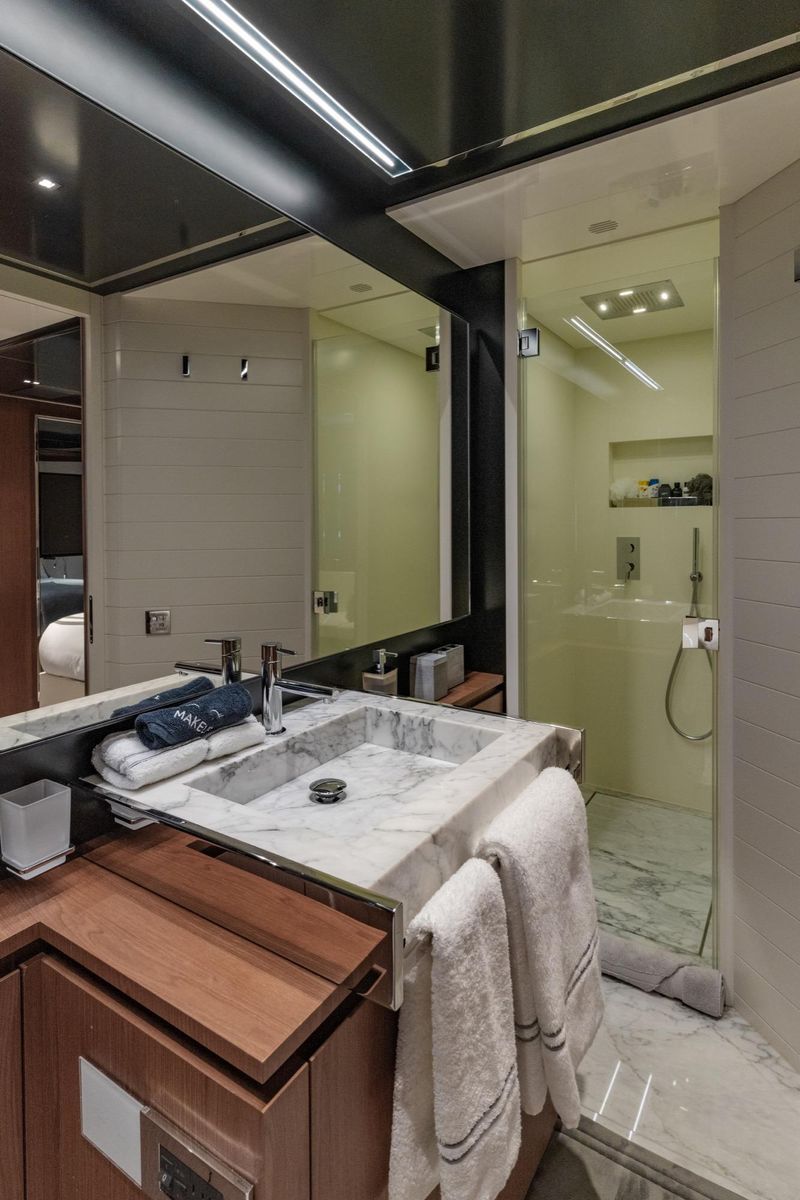

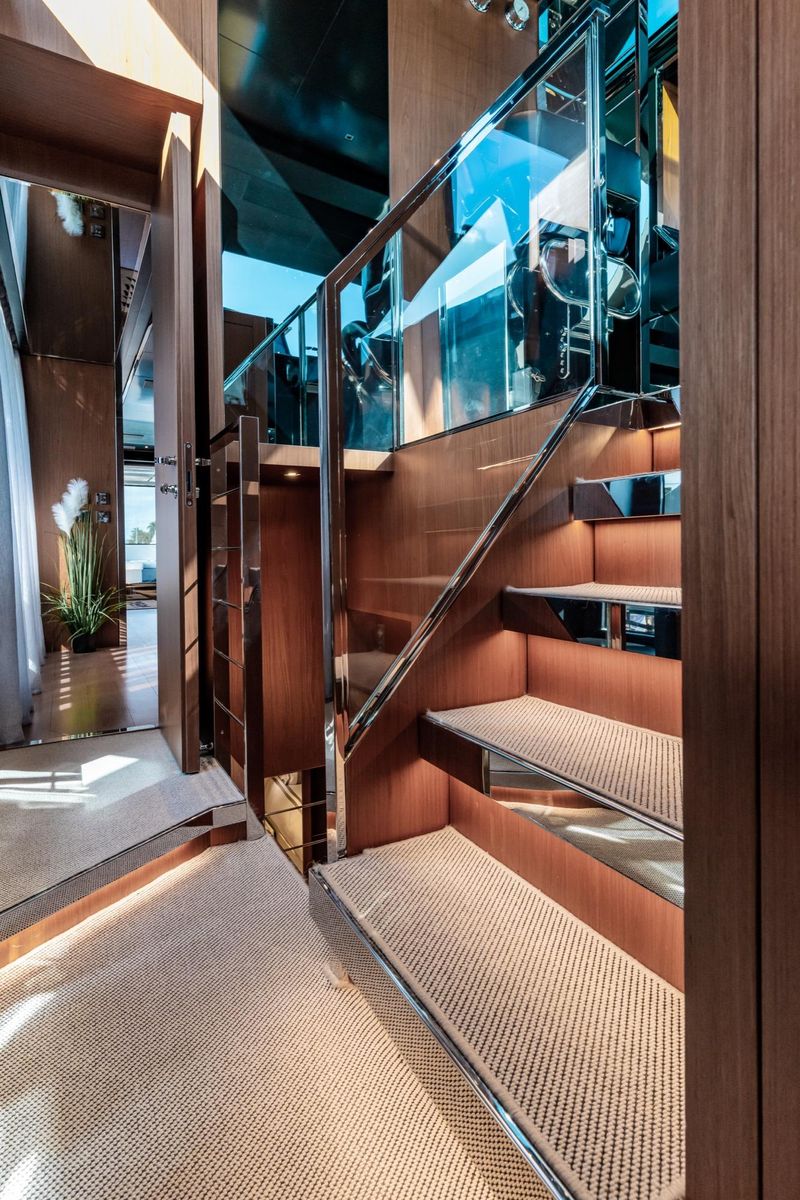

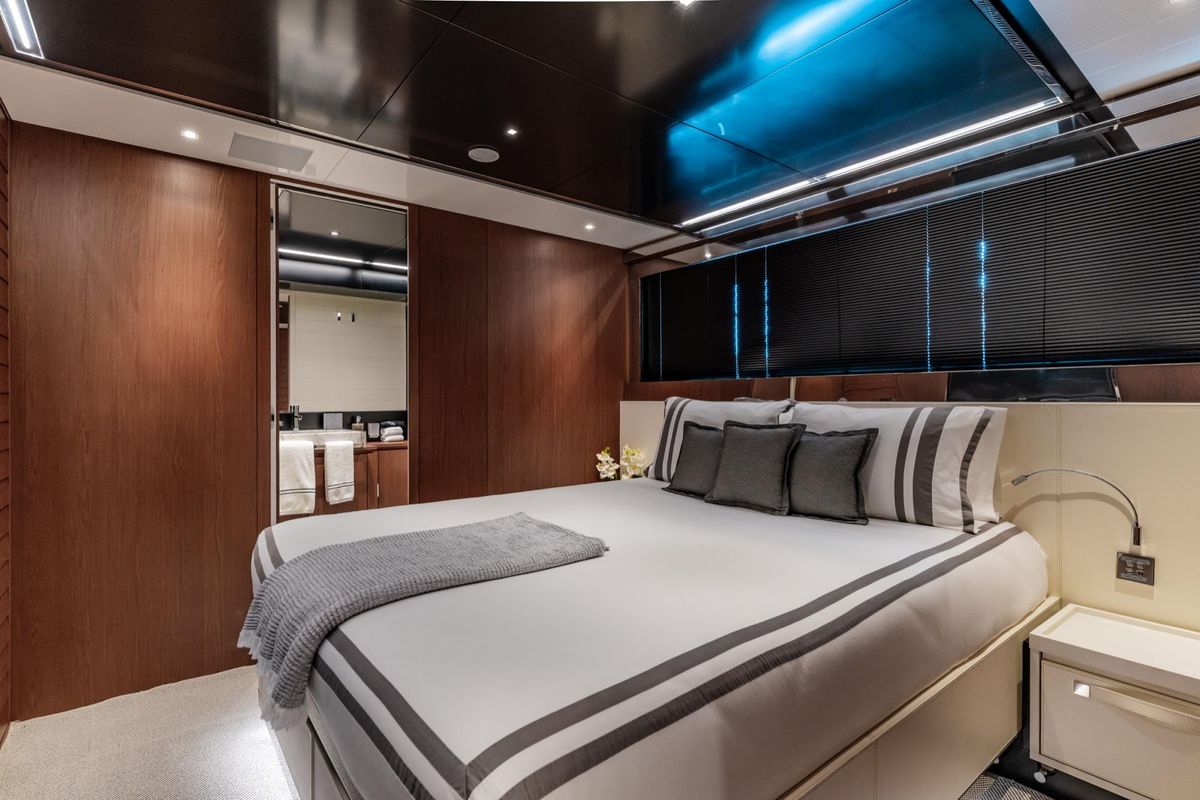

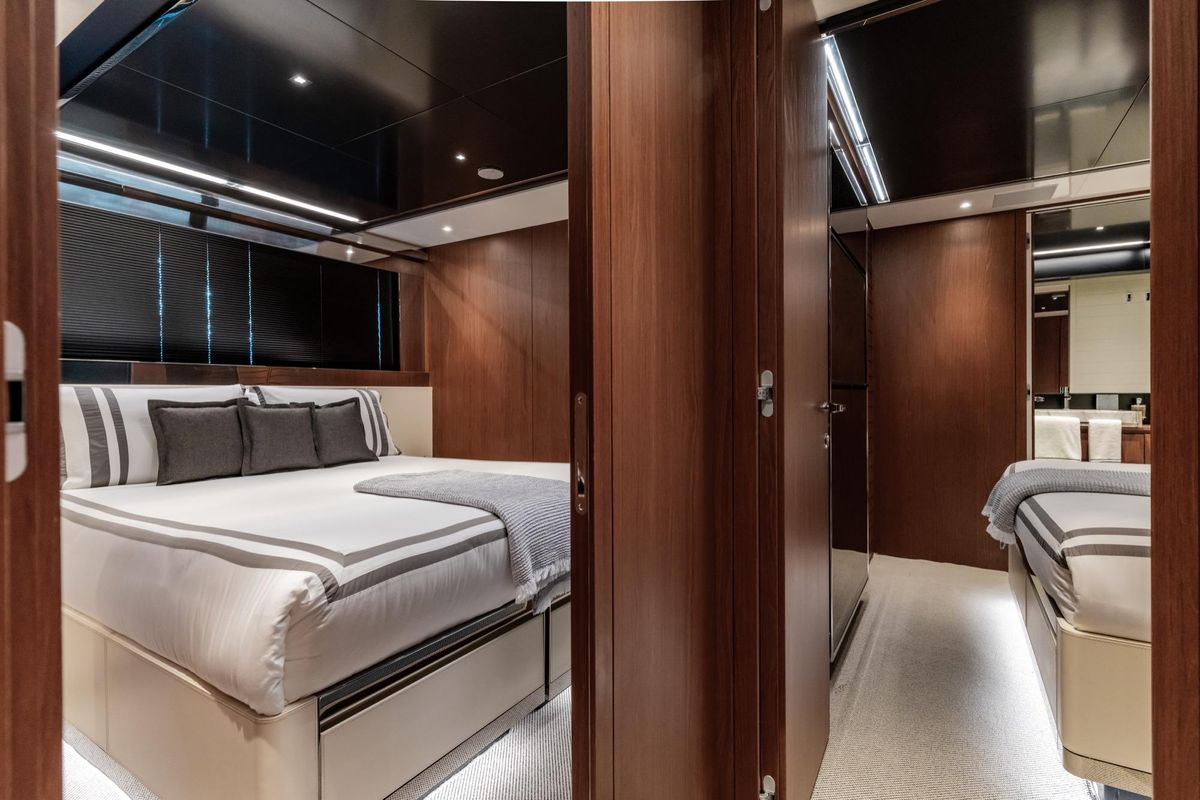

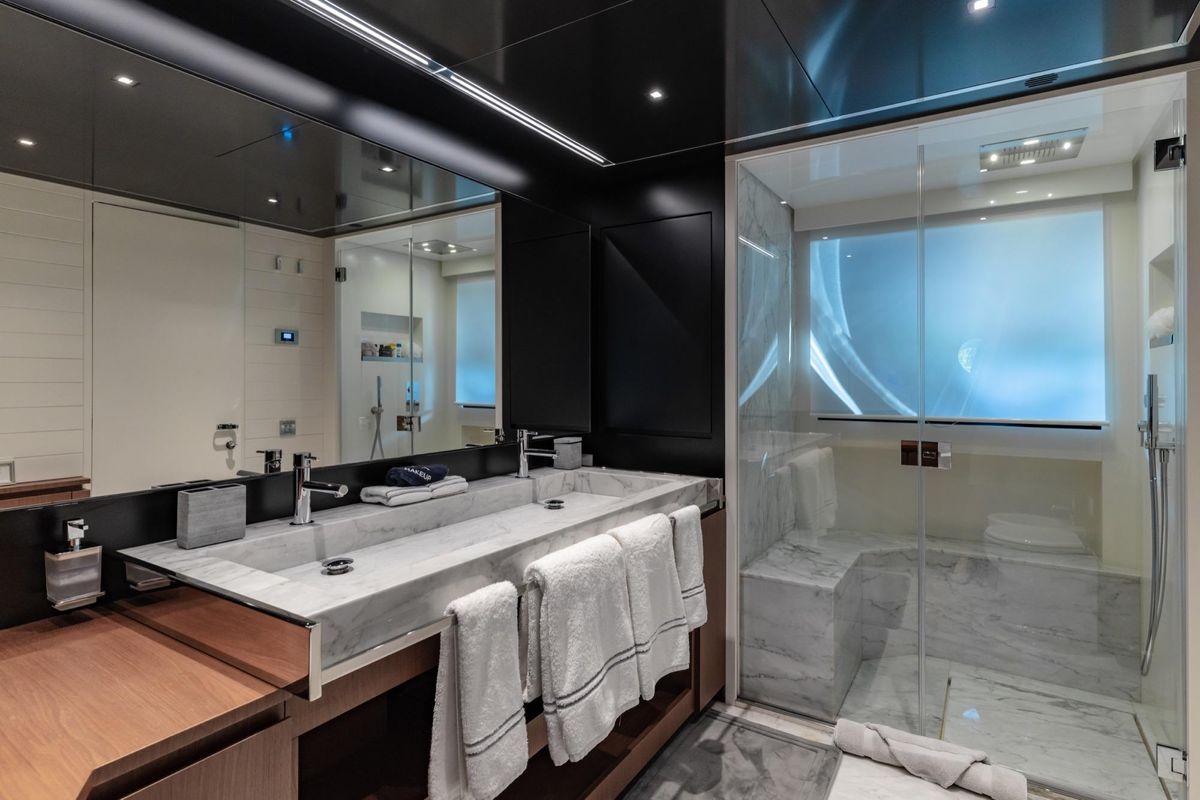

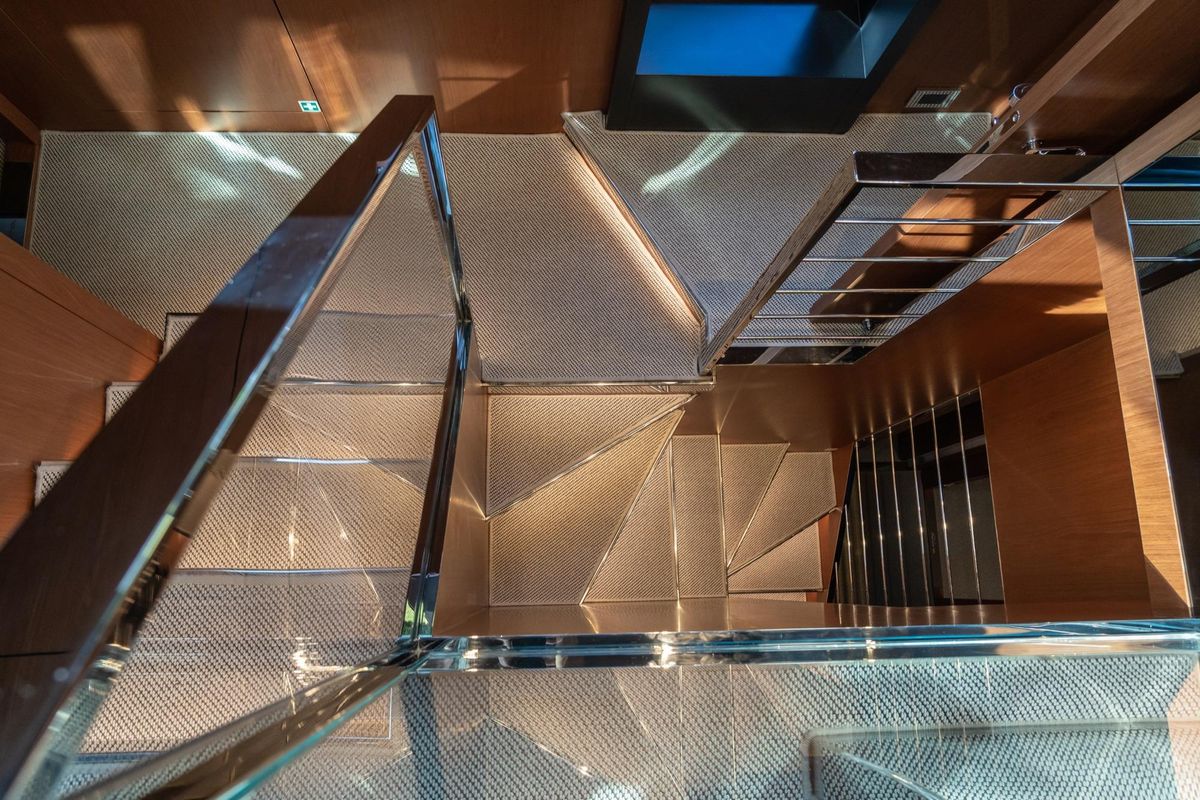

Forward of the dining area is a winding stairway with stainless handrails and glass siding that leads to the lower guest foyer and staterooms. Aft of the stairs is the full-beam VIP with a centerline, sole leather upholstered queen bed with drawers for storage. Forward of the stairs are two double cabins that can be converted to twin beds. Each guest room is faceted with modern furniture, a 32’ TV and entertainment system, ample closet space with additional storage under the beds, and an en-suite. All guest bathrooms feature Calcatta Austale marble floors and sinks.
MAIN DECK:

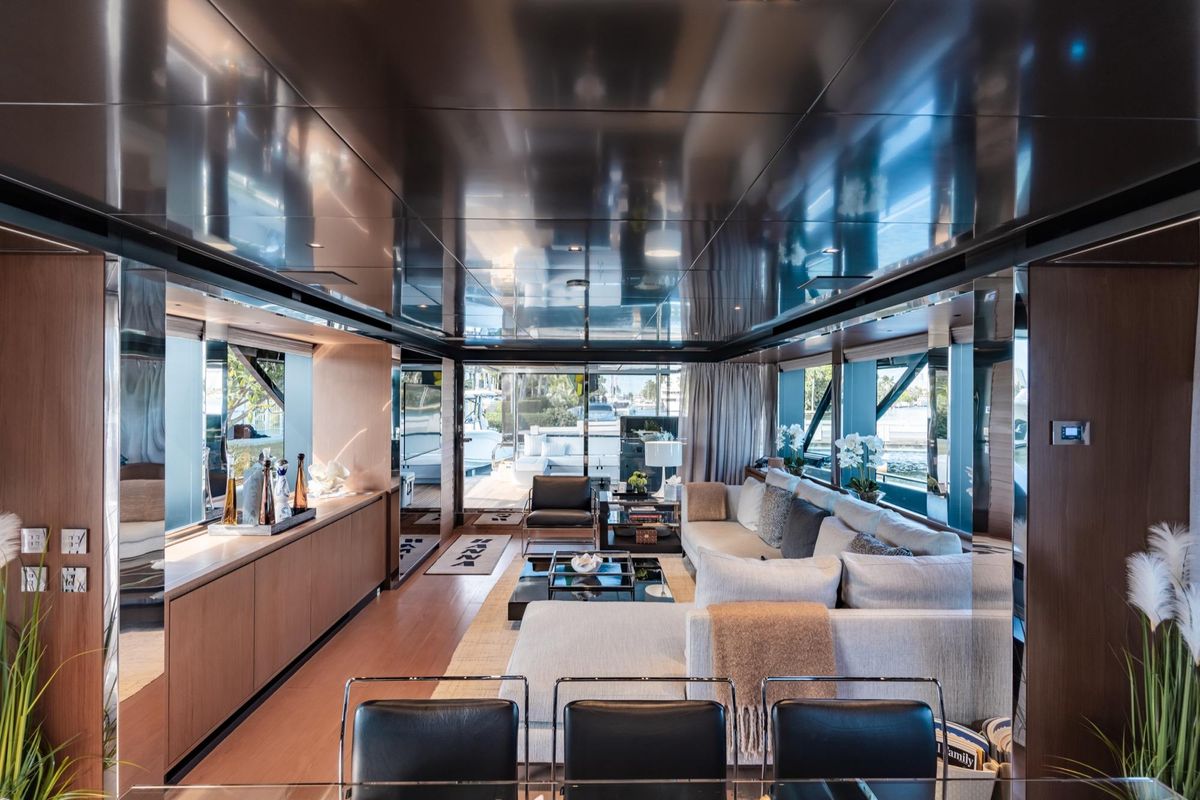

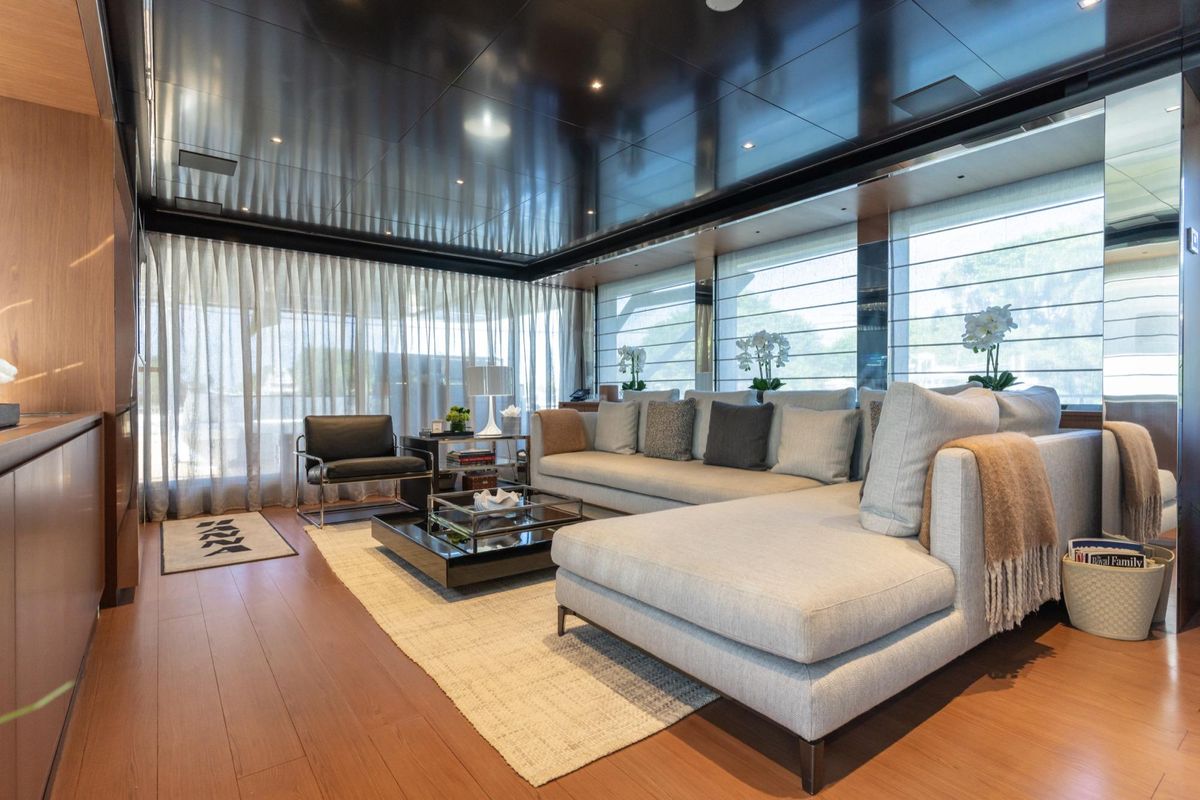

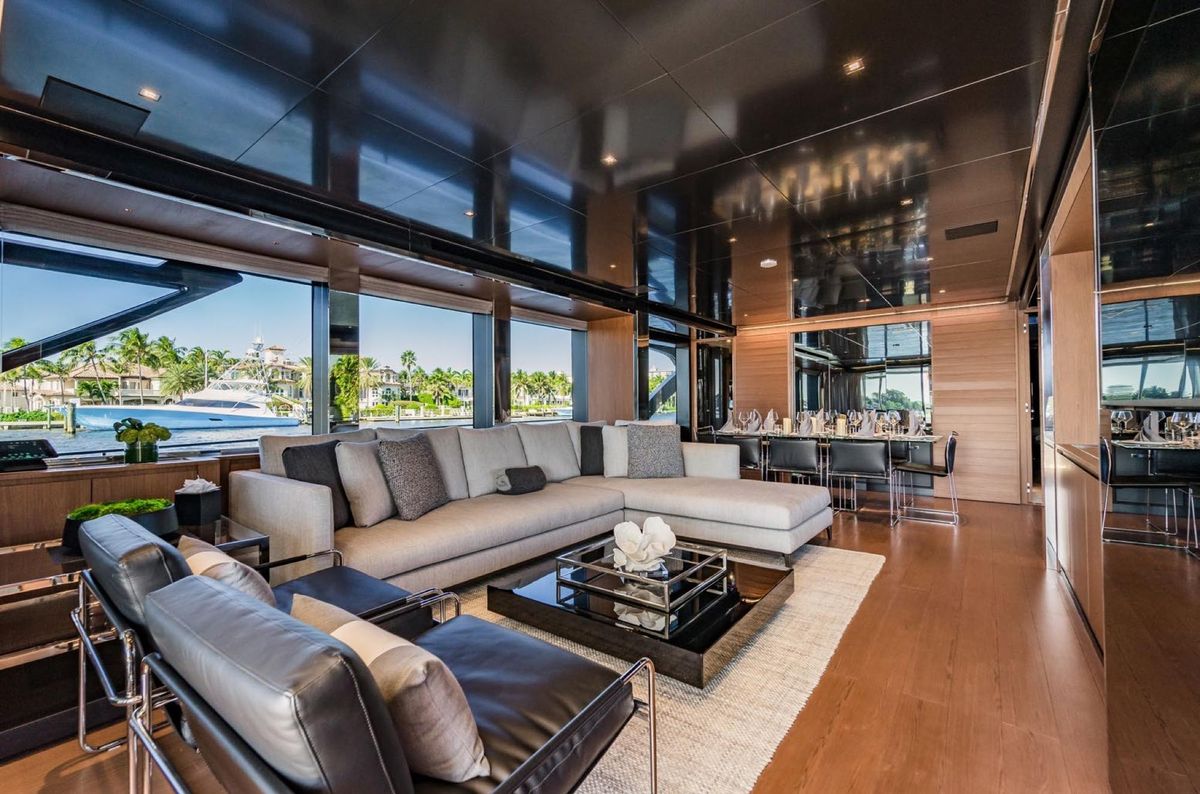

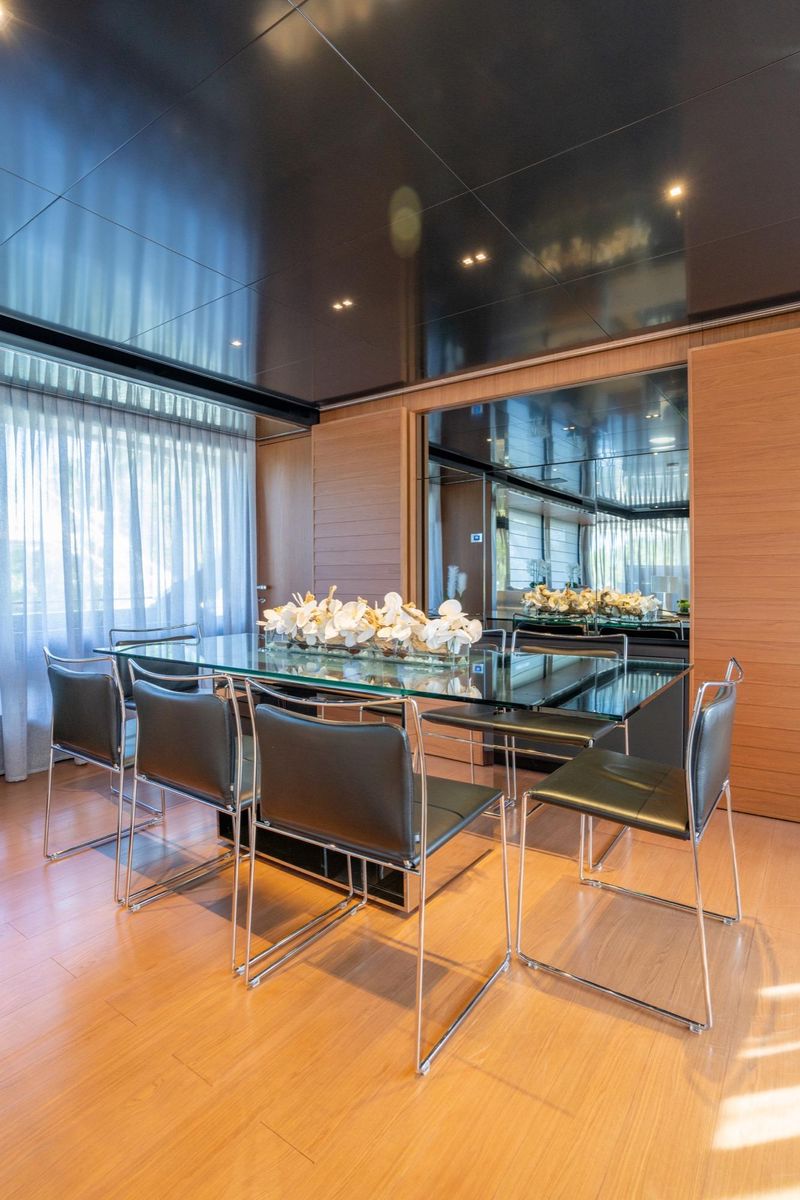

On the main deck, a large frame supports the superstructure and runs around the outside of the full-height glass windows. The spacious lounge covering almost 40m² is open to the sea and reaches heights of over 2.1 m. It is furnished with two lounge chairs, an L-shaped sofa, and a retractable TV. Beyond it is the formal dining area, with a large table and seating for eight guests. A special touch is added by incorporating a panoramic balcony on each side near the windows.
OWNER’S STATEROOM:

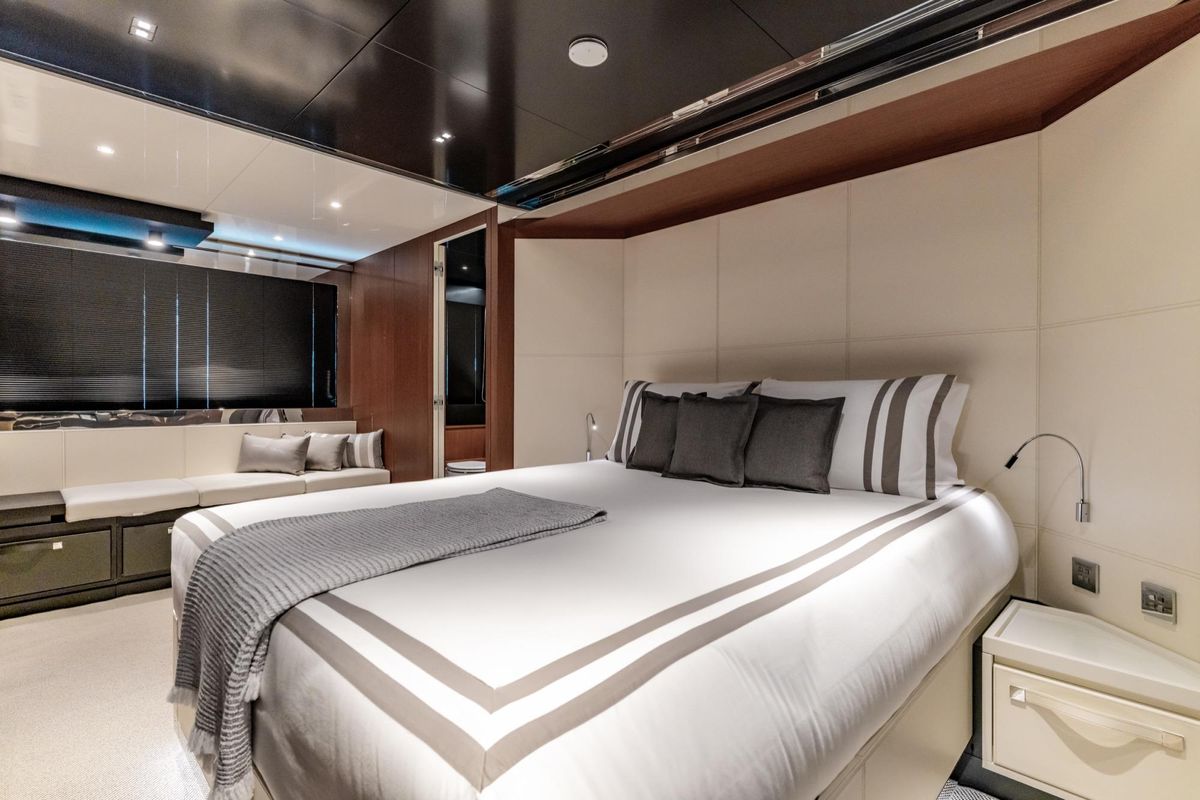

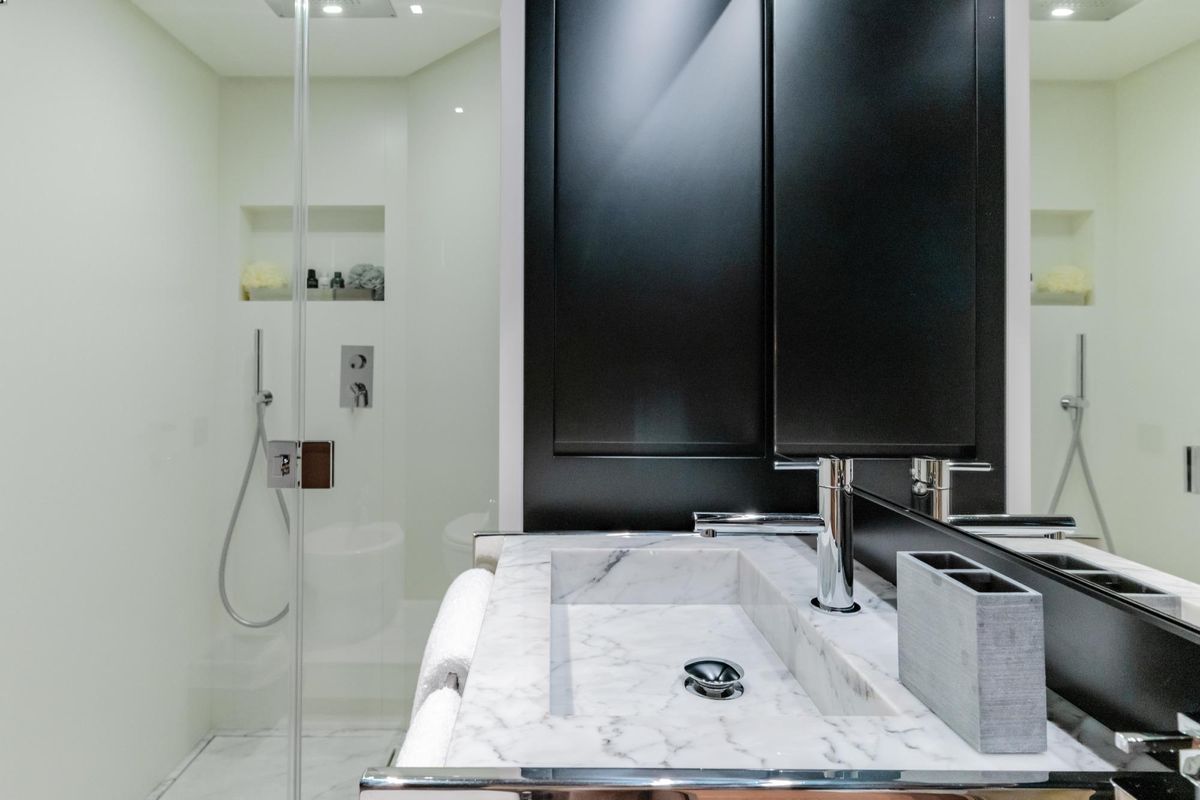

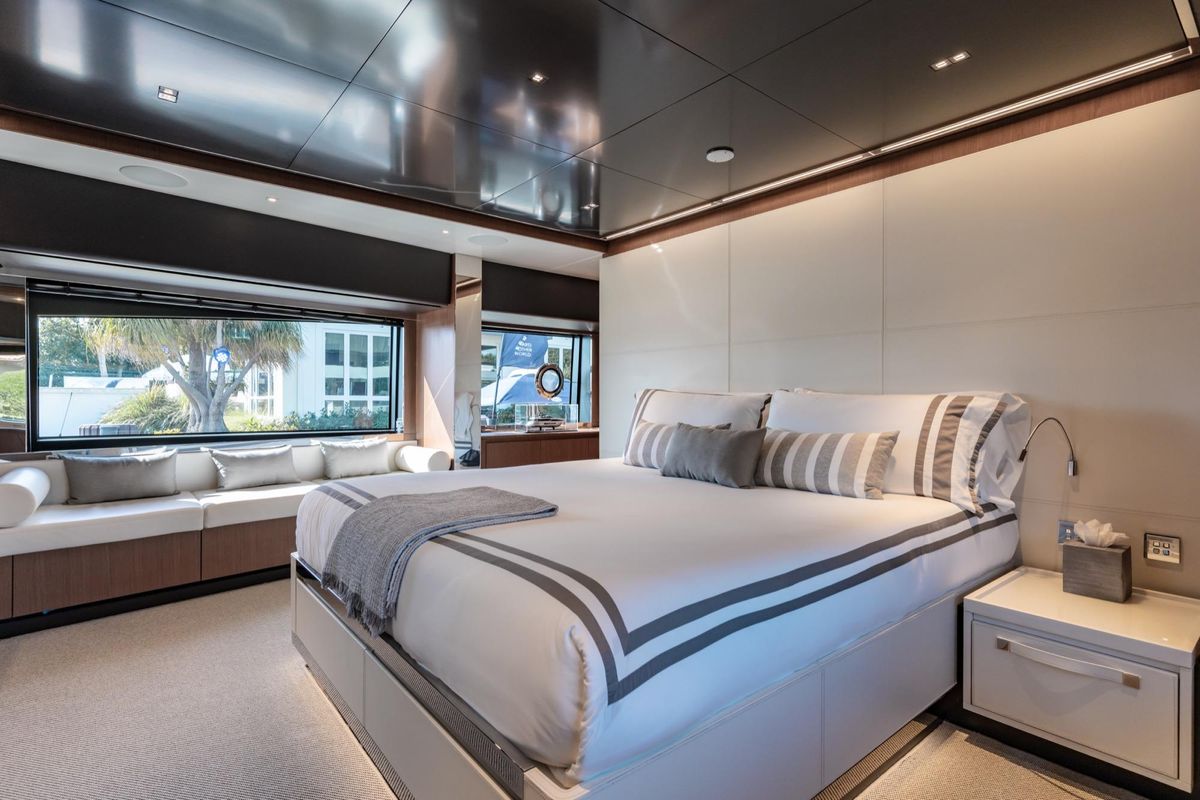

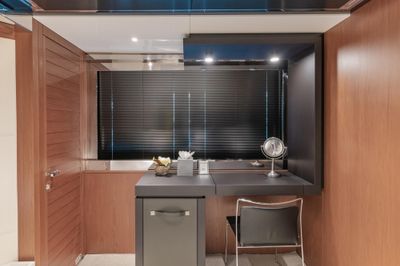

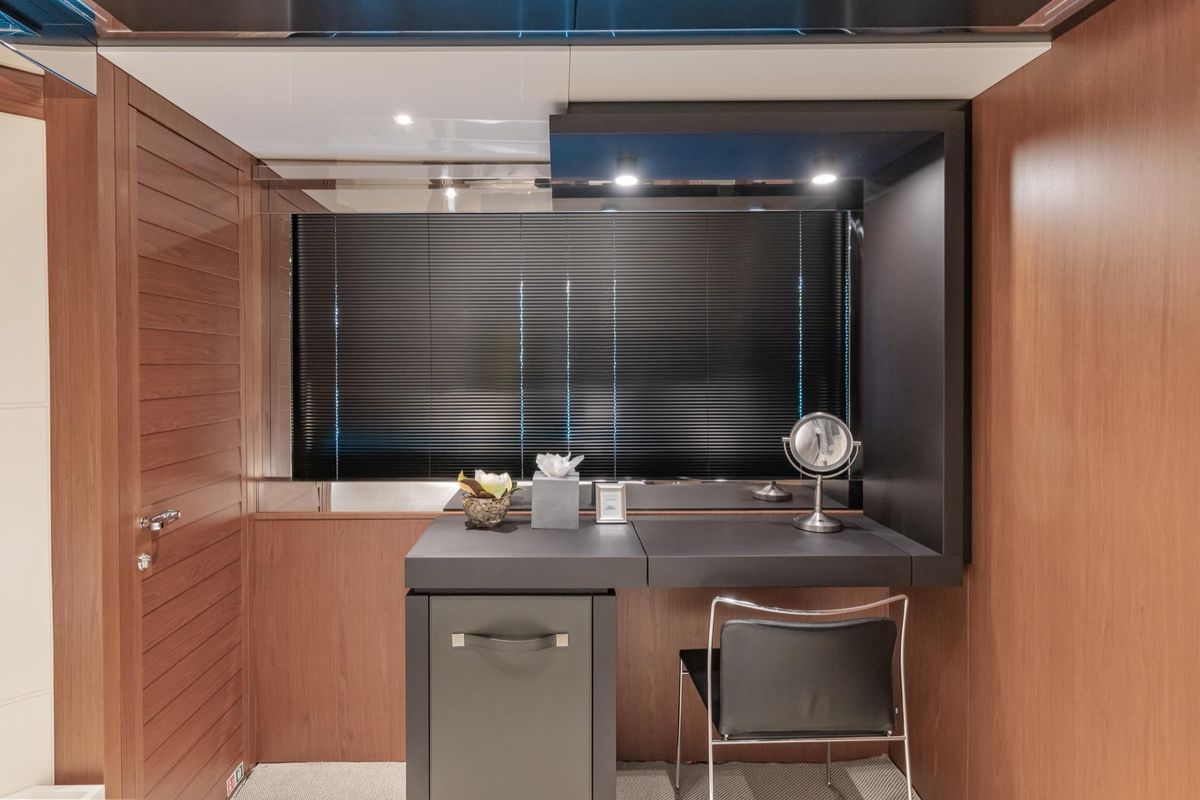

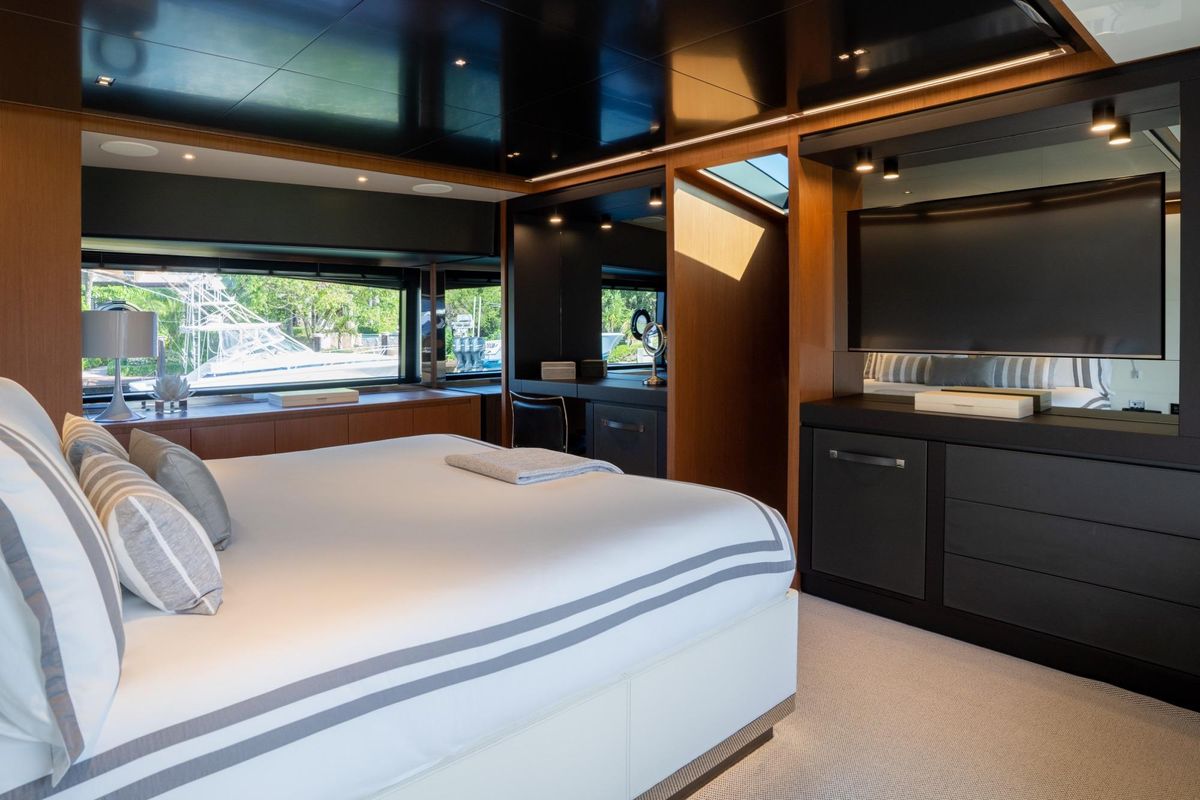

Forward of the guest stairway, owners are welcomed into their on-deck suite with large windows that allow natural light to beam through on both sides. Centerline is a queen-sized bed, framed in sole leather upholstery and stainless- steel polished details with a bed lifting system to allow for additional storage underneath. Lacquered nightstands with doors in sole leather and a glass top sit on each side of the bed. Matching storage furniture and large vanity is located on the starboard side along with a wardrobe with a mirror and ample space. The en-suite is set with Calacatta Australe Marble and his and her sinks, with lacquered walls.
FLYBRIDGE DECK:

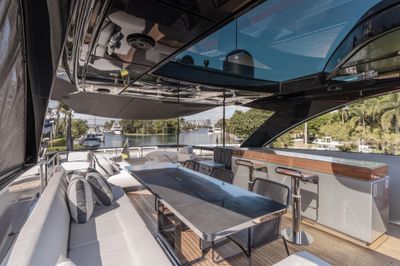

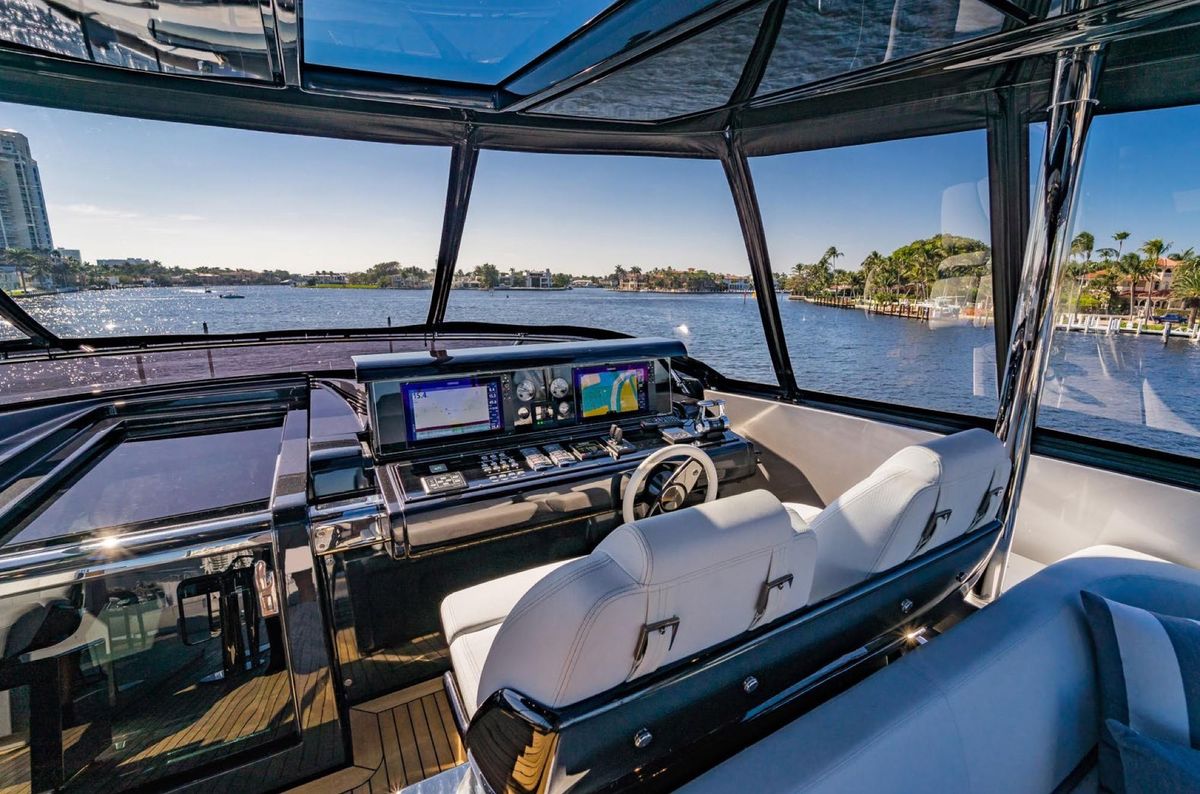

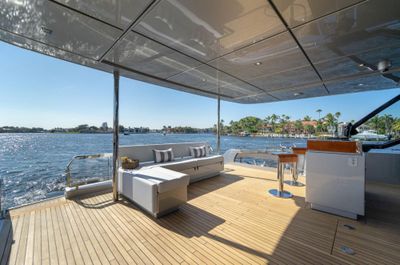

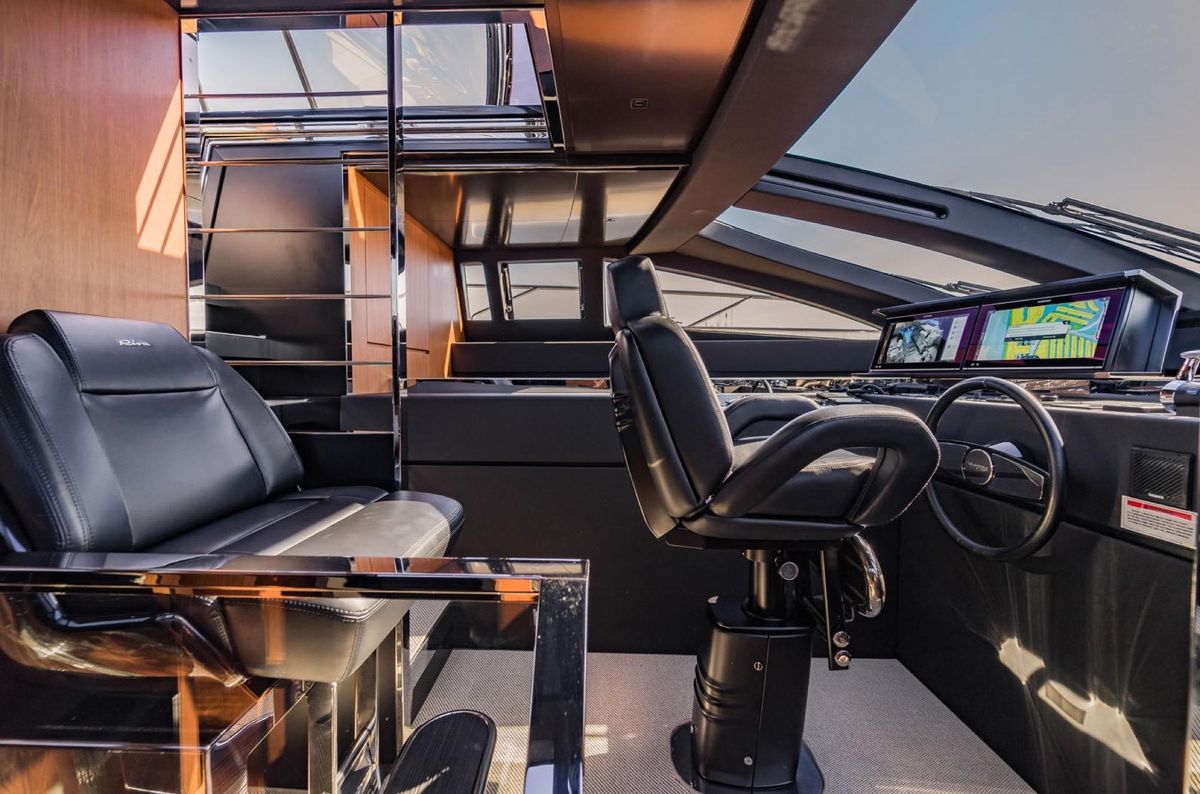

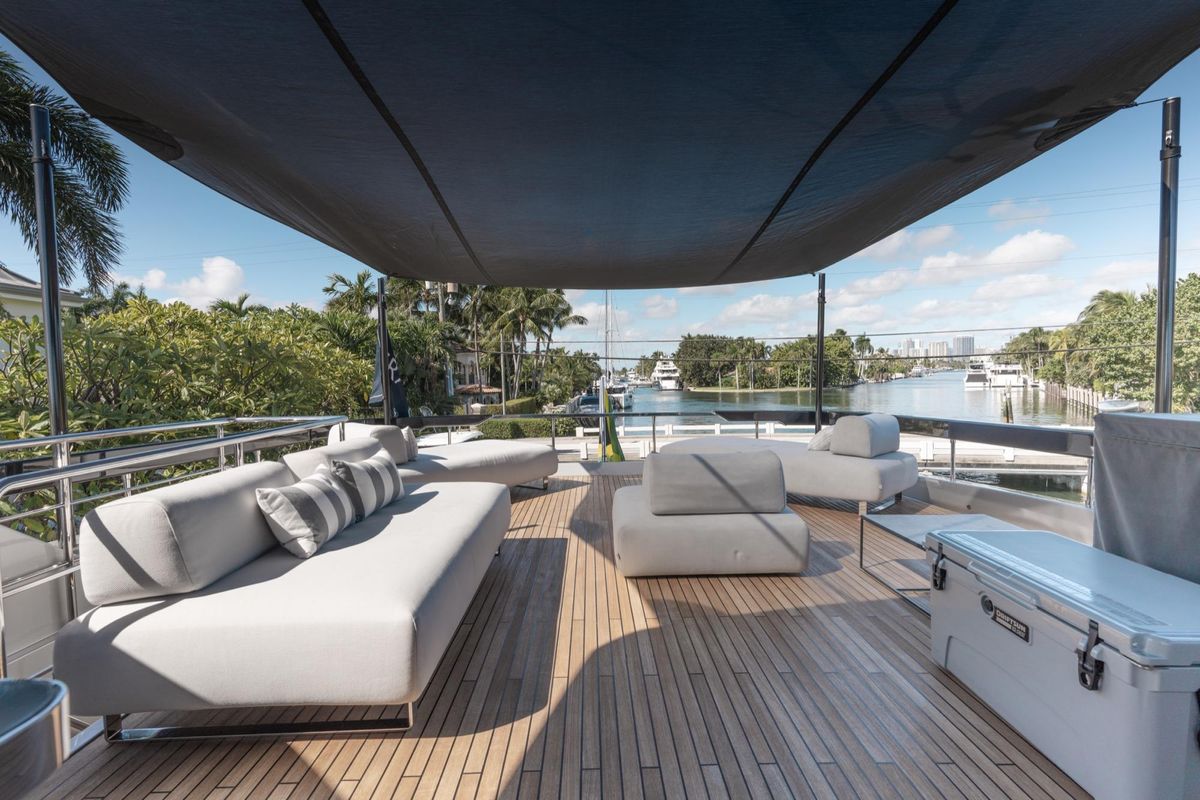

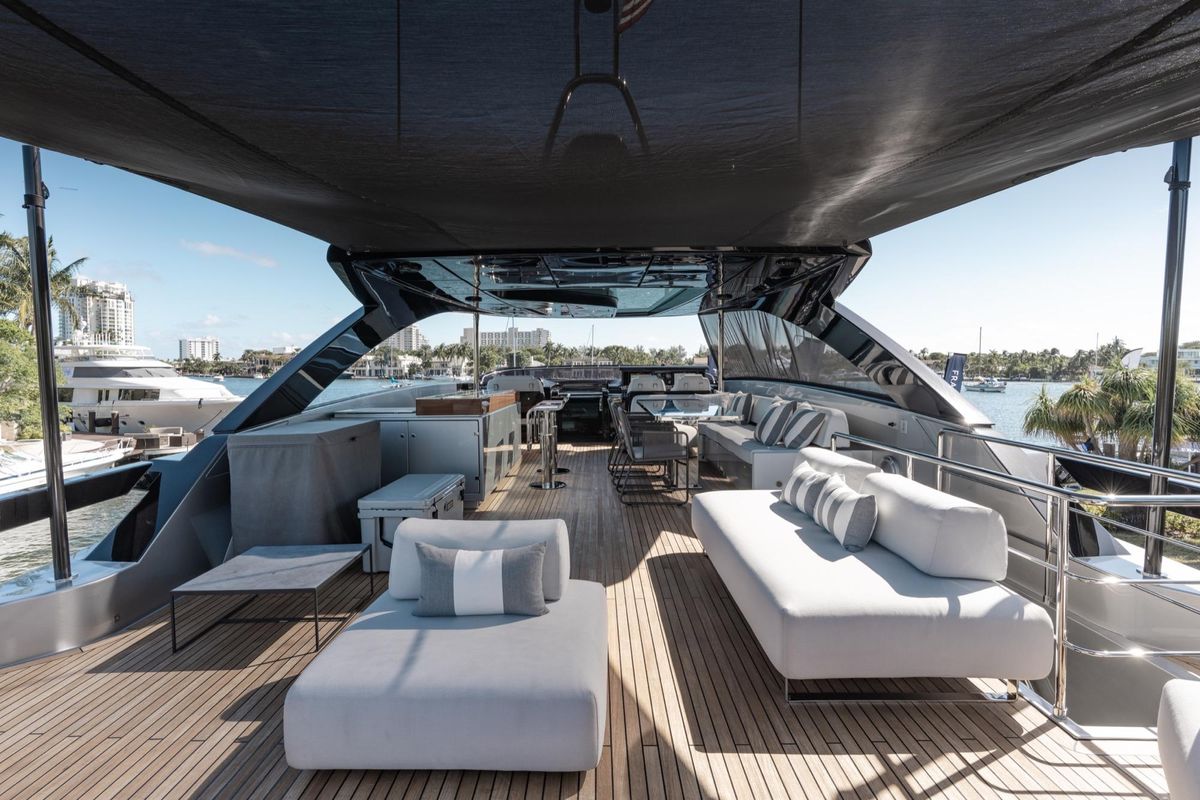

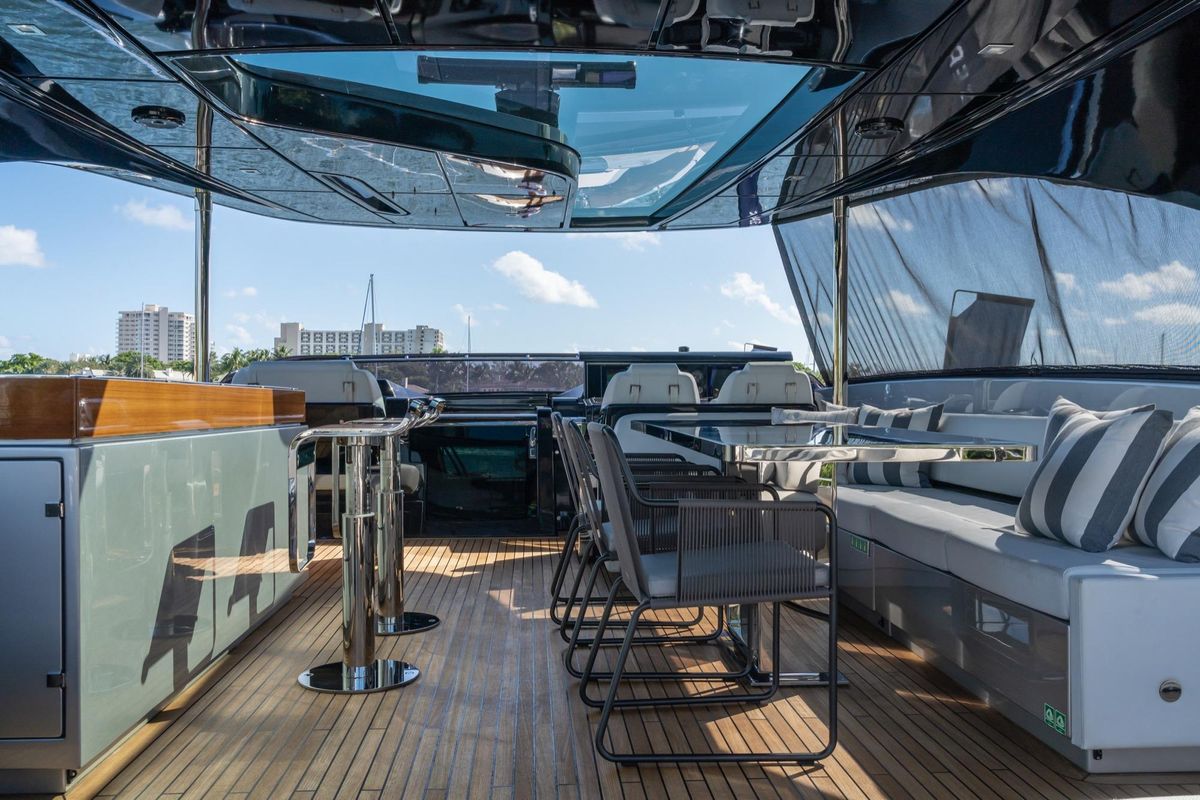

Access to the flybridge is up the stairs from either the aft deck or pilot house. A second fibreglass varnished control station with up-down system for forward display, upholstered steering wheel, instrumentation, compass, and alarm lights sits forward near the pilot house entrance. An additional dining table and L shape sofa with upholstered cushions, two helm chairs, and floating furniture aft provides substantial space for entertaining. Side cabinets with electric opening system top, equipped with sink, 24V refrigerator, storage and electric grill are located opposite the dining table.
CREW ACCOMMODATION:

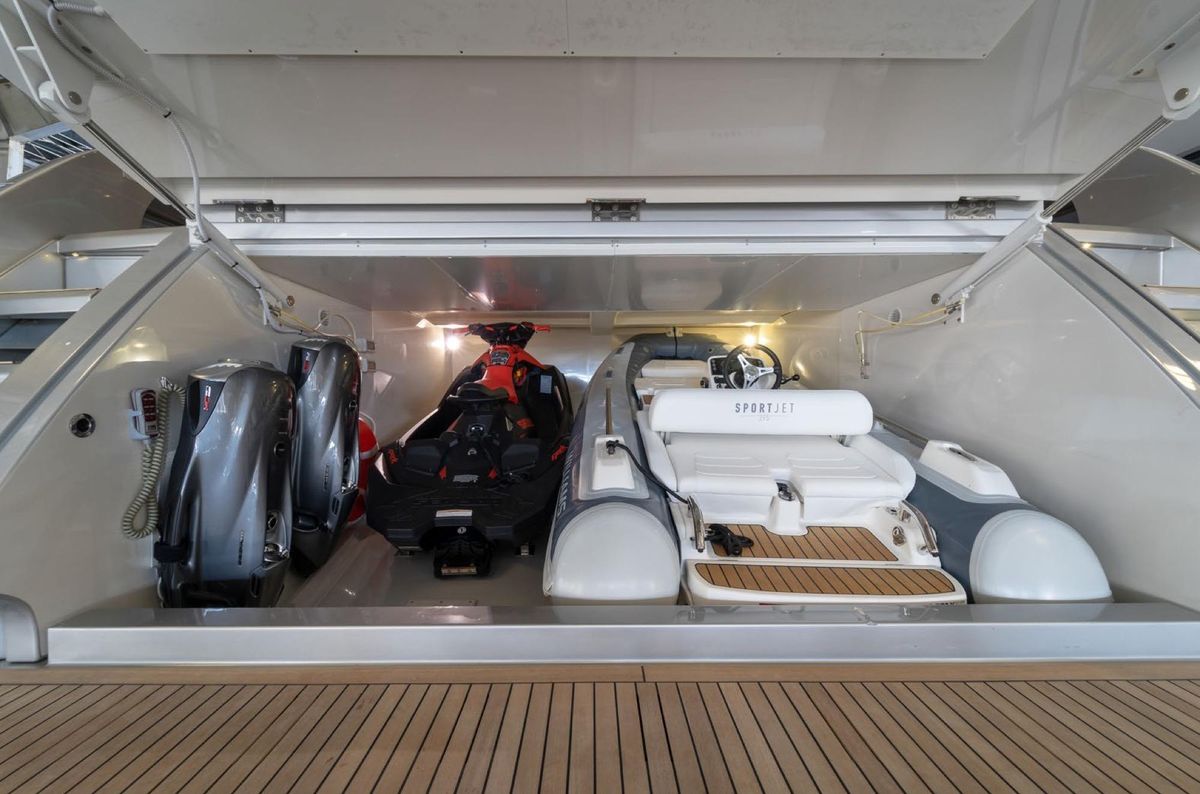

The crew area is accessed from the main deck galley. The crew mess features an L-shaped sofa, teak table and crew kitchen. There are two crew cabins with pullman bed and private head for a total of 4 crew berths. GARAGEThe aft garage features an electrohydraulic platform. She houses a Williams Sport Jet 395 as well as a SeaDoo Spark Jet Ski
COMMENTSKEY FEATURES
- 3 year MTU extended propulsion warranty until 2026
- Zero speed stabilization with fins and SeaKeeper gyro stabilization
- Three spacious outdoor entertainment areas Vast on-deck master stateroom with lounge and en-suite
- Accommodates 8 guests in 4 expansive staterooms
- U.S. Duty paid
EXCLUSIONS-NAME RESERVED & LETTERS ON THE STERN RESERVED- - Exclusions include all of Owner's personal effects including the recliner in the salon -
DisclaimerThe Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
