Flag                                                                                       Cook Island

Port of registry                                                                       CISY – Arutanga

Official Number                                                                     2158

Call sign                                                                                E5U3056

Hull Mateerials                                                                       Wood

Length Overall                                                                      40.00 m

Length On Water Line                                                          32.55 m

Length On Deck                                                                    37.70 m

Length P to P                                                                         31.33 m

Beam                                                                                     9.06 m

Displacement (dry)                                                                259 tonnes

Gross Tonnage                                                                      248

Net Tonnage                                                                          74.00

Shaft Diameter                                                                      90 mm

Shaft length                                                                                       7.80 m

Propeller Diameter                                                                Varifold propeller 45’’X36’’

Maximum Design Speed                                                        13.1 Knot

Bow thruster Tunnel                                                             1

Rudder Shaft Diameter                                                         110 mm

Engine Information

Manufacturer                                                                         CATERPILLAR

Model                                                                                    2X C18

Brake horsepower                                                                  1800 RPM @ 454 BHP

Gear Information

Manufacturer                                                                         ZF

Model                                                                                    W 325 (0 degree)

Reduction Ratios                                                                   2.933:1

Generator Set (3x) Information

Note: All three generators were replaced in 2023.

Manufacturer                                                                         Onan

Model                                                                                    2x Onan 43 KW, 1x Onan 27 kW

Capacities

Fuel Oil Capacity                                                                  11 m3 / 11000 Liters /2906 Gallons

Fresh Water Capacity                                                            4.80 m3 / 4800 Liters / 1268 Gallons

Grey/Black Water Capacity                                                  2.45 m3 /2450 Liters / 647 Gallons

SAFETY EQUIPMENTS

Life Raft Airmar SOLAS A                                                  10 persons x 2

Line Throwing device set                                                      1 pcs

Emergency escape device                                                     2 pcs

Parachute Rocket                                                                  6 pcs

Hand flare                                                                              6 pcs

Smoke signal                                                                         2 pcs

First aid kit                                                                            2 pcs

SOLAS Wheel life jacket                                                      20 pcs

CONSTRUCTION

Hull Construction                                                         COLD MOULDED WOODEN

Mechanical and Plumbing

MACHINERY

Each marine diesel engine drives a fixed pitch propeller via a shaft with flexible coupling and reverse / reduction gearbox with clutch. For the shaft arrangement both torsional and lateral (bending) vibration analyses are or have been performed to avoid resonance in the working speed range. All machinery is marine type and the installation is laid out for easy watch keeping, servicing and maintenance.Starting and stopping of the main engines is in the engine room and also from the bridge. For safety reasons a local switch(es) is fitted in the engine room, which will prevent the engines being started by remote control.

Main Engines

Engine Type:                                              (2) CAT – C18 1800 RPM @ 454 BHP each

CATERPILLAR MARINE ENGINES

C18 ACERT 454 BHP SPECIFICATIONS

I-6, 4-Stroke-Cycle-Diesel

Emissions                                                                  IMO/EPA Tier 2

Displacement                                                             18.1 L (1106 cu in)

Rated Engine Speed                                                  1800

Bore                                                                           145.0 mm (5.7 in)

Stroke                                                                        183.0 mm (7.2 in)

Aspiration                                                                  TA, TTA

Governor                                                                   Electronic

Cooling System                                                         Heat Exchanger or Keel Cooled

Weight, Net Dry (approx.)                                        1,091 kg (2,405 lb)

Refill Capacity

Cooling System                                                         45.8 L (12.1 Gal)

BKW                                                                         338,5 KW

Lube Oil System                                                        64 L (16.9 Gal)

Oil Change Interval                                                   500 hrs

Caterpillar Diesel Engine Oil                                                10W30 or 15W40

Rotation (from flywheel end)                                                Counterclockwise

Flywheel and Flywheel Housing                               SAE No. 1 or SAE No. 0

Flywheel Teeth

SAE No. 1                                                                 113

SAE No. 0                                                                 136

Maximum Exhaust Backpressure                              6.7 kPa (26.9 in. water)

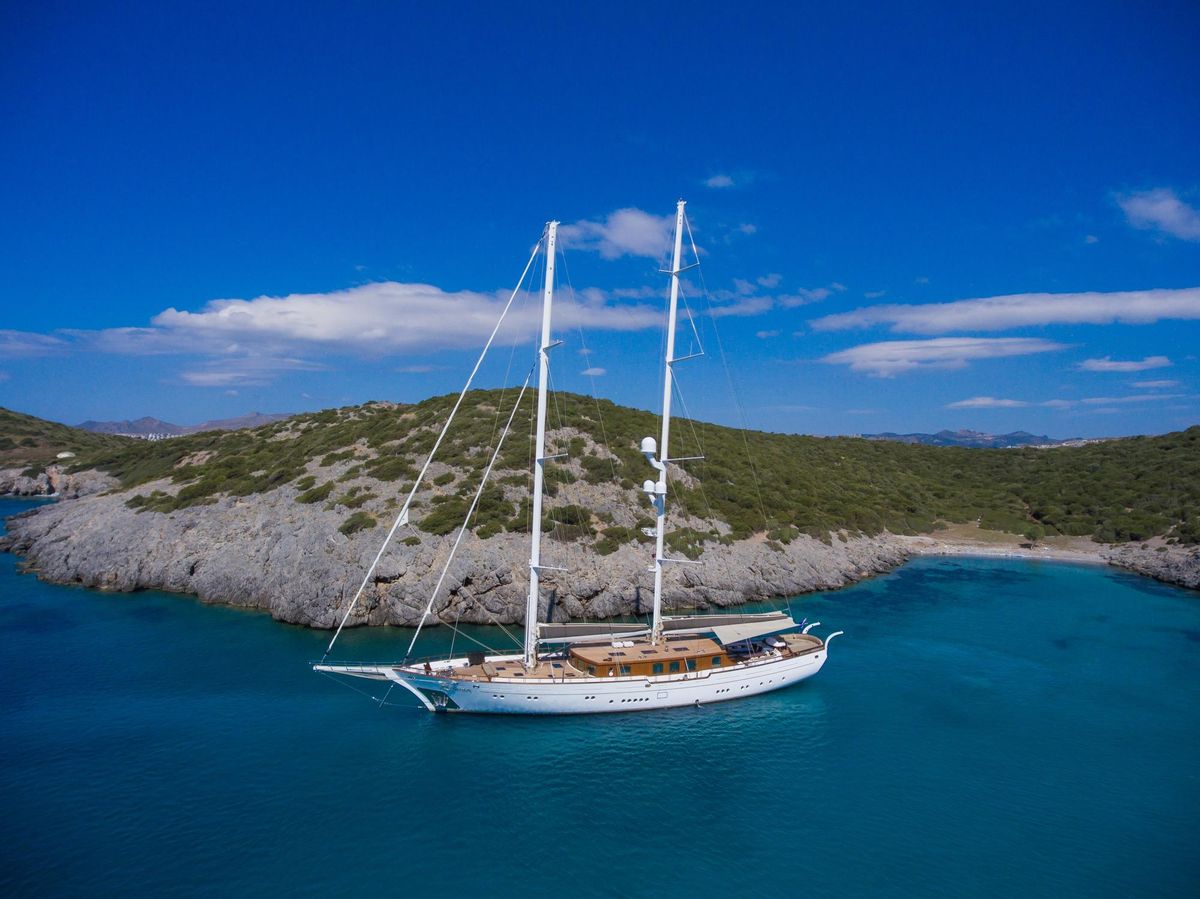

The yacht, Zanziba, carries some serious design pedigree. Her rig was designed and optimised by Gerry Dykstra, while the UK’s Fairlie Yachts contributed to the structural design. The interior, meanwhile, was put together by David Wright Design.

The 248GT yacht began life as the brainchild of a UK businessman, but he exited the Project when the boat was about one-third complete. Zanziba’s hull then languished in the boatyard until it  was picked up by a Turkish businessman who saw the yacht’s potential.

The cold-moulded mahogany boat has elegant deckhouse covers an interior designed to be warm, natural and relaxed, to reflect the way in which the yacht will be used.

The hull is being built using the cold moulding process, by which a laminate hull is built up using thin, resin infused wood planking. The result is a rigid structure with an excellent strength to weight ratio, an done that requires little maintenance being both impenetrable to marine parasites and proof from osmosis.

The palette of interior materials includes goatskins, buffalo leathers, woven rattans and soft chenille fabrics. The hardwood beams in the saloon are the actual exposed structural elements of the deckhouse.

‘’For the most part, the backdrop of the interior is open grained oak panelling, with carved oak doors with a warm chocolate stain. The main saloon features a fulll length ceiling dome whose hardwood beams are the actual exposed structural elements of the deckhouse, with bamboo tatami panels in between the beams.’’

The main event on the deck is likely to be a carved, quartzite bar in the cockpit, which serves twin dining tables to the rear.

The accomodation is spread over two decks, with a spacious deckhouse containing the saloon and covered dining area offering spectacular views, and a lower deck with the guest cabins, crew quarters and service areas.

A generous beam of nine meters comfortably accomodates 5 cabins, 3 twin and 1 double guest cabins, an one immaculate full beam owners cabin all with ensuite facilities in the forward section of the yacht, plus four twins aft of the engine room for the crew.

The modern systems referred to include everything from air conditioning, CCTV, WiFi, and a full Lantic entertainment system to NavTec rod rigging, Stratis™ sails by Doyle, hydraulic winches by Lewmar and Harken and comprehensive navigation, electrical and hotel systems

NETWORK SYSTEM

HP 1910-24G-PoE (365W) 24 Port Gigabit PoE Switch                             1 pcs

OTOMATION SYSTEM

Amx NI900 Master Controller                                                                                 2 pcs

Amx PSN 4.4 Power Supply                                                                        1 pcs

Amx CC-NIRC IR Emitter                                                                           6 pcs

Amx TPC-IPAD Ipad License                                                                                 1 pcs

Apple Ipad Air 16GB Wifi Ipad (5th Generation)                                       1 pcs

ROPES

MAIN MAST

Main Halyard

24-plait mixed polyester cover, pre-streched and 12-plait Dyneema SK78 core

Spare Main Halyard

32-plait continious high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 core

Aft Service

32-plait continuous high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 pre-streched core

Fwd Service

32-plait continuous high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 pre-streched core

Main Outhaul

Pre-streched and coated 12-plait Dyneema SK99 bra

Reef 1 Outboard

32-plait continuous high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 pre-streched core

Reef 1 Inboard

24-plait mixed polyester cover, pre-streched and 12-plait Dyneema SK78 core

Reef 2 Outboard

32-plait continuous high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 pre-streched core

Reef 2 Inboard

24-plait mixed polyester cover, pre-streched and 12-plait Dyneema SK78 core

Reef 3 Outboard

32-plait continuous high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 pre-streched core

Reef 3 Inboard

24-plait mixed polyester cover, pre-streched and 12-plait Dyneema SK78 core

Main sheet

24-plait Technora/Polyester cover, 12-plait Dyneema SK75/Vectran core

Main Runner Tackles

24-plait mixed polyester cover, pre-streched and 12-plait Dyneema SK99 core

FORE MAST

Fore Halyard

32-plait continuous high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 pre-streched core

Spare Main Halyard

32-plait continuous high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 pre-streched core

Aft Service

32-plait continuous high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 pre-streched core

Fore Outhaul

Pre-streched and coated 12-plait Dyneema

Reef 1 Outboard

32-plait continuous high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 pre-streched core

Reef 1 Inboard

24-plait mixed polyester cover, pre-streched and 12-plait Dyneema SK78 core

Reef 2 Outboard

32-plait continuous high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 pre-streched core

Reef 2 Inboard

24-plait mixed polyester cover, pre-streched and 12-plait Dyneema SK78 core

Halyard Yankee

Pre-streched and coated 12-plait Dyneema

Staysail Halyard

Pre-streched and coated 12-plait Dyneema Genoa or Staysail Halyard to winch 24-plait mixed polyester cover, pre-streched and 12-plait Dyneema SK78 core

MPS Halyards

24-plait mixed polyester cover, pre-streched and 12-plait Dyneema SK99 core

Lazyjacks Upper

24-plait polyester cover, 12  plait Dyneema

Lazyjacks Middle

24-plait polyester cover, 12  plait Dyneema

Fore Sheet

24-plait Technora/Polyester cover, 12-plait Dyneema SK75/Vectran core

Yankee Sheets

32-plait continuous high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 pre-streched core

Staysail Sheet

32-plait continuous high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 pre-streched core

MPS Sheet

32-plait continuous high tenacity polyester cover, 24-plait discontinuous polyester intermediate cover, 12-plait Dyneema SK78 pre-streched core

MPS Sheet Tail

24-plait polyester cover, 12  plait Dyneema

Fore Runner Tackles

24-plait mixed polyester cover, pre-streched and 12-plait Dyneema SK78 core

Under deck Winches

Foremast Main Sheet

Maximum sheet load 7 T

1 x 596000XX CW6000 Captive Winch 2-speed including fast speed max. pull 6 T, holding load 8,4 T. Line size 20mm stowage capacity 60m

Main Mast / Main Sheet

Maximum sheet load 11 T, 2:1 system

1 x 596000XX CW6000 Captive Winch 2-speed including fast speed max. pull 6 T, holding load 8,4 T. Line size 20mm stowage capacity 60

Steering system:

Hidromarin HDM 3000 Electro Hydraulic Steering Gear AC-DC Hydraulic Power System ( Motor: 4kw 380 V AC 1450 RPM, Motor:3000w 24 VDC 1500 RPM, Selonoid Valve: 24VDC Oil tank:130 lt,Pump:9.5 cc 14 lt)

Air Conditioning:

Marin Cold 4 Compressor 32000 BTU, were renewed in August, 2023.

Air compressor:                             MARCO Air Horn System

Fire Fighting Equipment:                 3M NOVEC 1230 in engine room fixed               fire fighting system

Fire Extinguishers:   C02, Powder and Foam

Chain:                                                 20x56 mm DIM 766 2x200 m

Anchor:                                               Custom made Stainless steel 2x400 kg

Gangway:                                            SOMER Stainless steel custom made

Side Boarding Ladder:                               SOMER Stainless steel custom made

Davit:                                                                         Custom designed, White painted chrome, lifting capacity 3000 kgs

Tender                                                Zar 53 Yamaha F115BETL

NAVIGATION/COMMUNICATION EQUIPMENT

Raymarine gS165 Glass Bridge MDF Display                                            4pcs

Raymarine RMK-9 Remote Multifunction Display Keyboard                    2 pcs

Raymarine RCR-2 Gs Remote MicroSD Card Reader                                2 pcs

Raymarine e7 7’’ Widescreen Multifunction Display                                 1 pcs

Raymarine DSM300 Digital Sounder Module 1 KW                                  1 pcs

Raymarine B258 1Kw D/T Transducer w/ HSFS                            1 pcs

Raymarine 4 Kw 18’’ Digital High Definition Radar Dome                       1 pcs

Raymarine 4 kW SuperHD Color Radar Pedestal                            1 pcs

Raymarine SuperHD Color 48’’ Open Array Antenna                                1 pcs

Raymarine ST60 Long Arm Masthead Transducer                          1 pcs

Raymarine i70 Color Multifunction Instrument                               4 pcs

Raymarine ITC-5 Analog Transducer Converter Module                2 pcs

Raymarine Evolution Autopilot ACU-300                                       1 pcs

Raymarine P70 Full Color Autopilot Control Head                         2 pcs

Raymarine Smart Controller Wireless AP Remote w/ Instrument Repeater           1 pcs

Raymarine ACR Pathfinder tm 3 SART, Survival Craft Radar Transponder f/Search and Rescue Operations                                                                           1 pcs

Raymarine ACR Satellite3 406 tm Cat II 406 MHz EPIRB RLB-38          1 pcs

Furuno NX300  Nav-Tex Receiver                                                   1 pcs

Raymarine Airmar WS-150WX Weather Station                            1 pcs

Raymarine AIS650 Class B AIS Transceiver                                              1 pcs

Raymarine AIS100 Active Class B Splitter                                      1 pcs

Raymarine T450 Thermal Camera (640 x 480, 9Hz) & Low Light with Joystick Control Kit 1 pcs

Raymarine Ray260 Fixed Mount VHF – European Version                       1 pcs

Raymarine 218E VHF Radio (Standart Programs)                          1 pcs

Raymarine Icom GM 1600E GMDSS                                                          1 pcs

GALLEY EQUIPMENTS

Electrolux Set-top Deep Fryer 400 mm                                            1 pcs

Electrolux 3 Compartment Cooler                                                    1 pcs

Electrolux Infrared Owen 4 zones 800 mm                                      1 pcs

Electrolux Wall type Paddle box Master                                          1 pcs

Electrolux Convection Owen                                                                       1 pcs

Electrolux Refrigerator 400 LT                                                        1 pcs

Electrolux Deep Freezer 400 LT                                                      1 pcs

Electrolux Dish Washer                                                                    1 pcs

Electrolux Thumble Drier                                                                 1 pcs

Electrolux Washing Machine                                                                       1 pcs

Electrolux Small Fridge                                                                    1 pcs

Electrolux Ice Maker                                                                        1 pcs

Walkin Fridge 0/+4 RSD1500 3277 Watt Hermetic 1.50 Hp R-404 -8+50’C        1 pcs

ENTERTAINMENT SYSTEM

Automatic Satellite Search & Skew  Control

KNS Tv Antenna Super Track S8                                                    2 pcs

Multiswitch 8—12                                                                            1 pcs

Internet Antenna Super Track 1.0 Mt Ku Band VSAT                                1 pcs

V-SAT Idirect X5 Modem                                                                1 pcs

Samsung UE-55HU8500 Tv                                                             1 pcs

Samsung UE-46H7000 Tv                                                                1 pcs

Samsung UE-32H5570 Tv                                                                6 pcs

NETWORK SYSTEM

HP 1910-24G-PoE (365W) 24 Port Gigabit PoE Switch                 1 pcs

AFT DECK

Sonos Connect Zone Player                                                              1 pcs

Amx Wap250g Access Point                                                                        1 pcs

JL Audio M770 CCX CG WH 7.7’’ Marine Speaker                                   4 pcs

JL Audio M10IB5-CG-WH 0-inch (250 mm) Marine Subwoofer Driver, White Classic Grilles 1 pcs

JL Audio M600/1 Monoblock Class D Marine Subwoofer Amplifier, 600W        1 pcs

JL Audio M400/4 4 Ch. Class D Full-Range Marine Amplifier, 400W                  1 pcs

SALOON & DINING AREA

Sonos Connect Zone Player                                                                          1 pcs

Apple Apple Tv                                                                                            1 pcs

B&W CCM 362 6 ‘’ Inceiling Speaker                                                                    7 pcs

B&W ASW608 Active Subwoofer                                                              1 pcs

Harman Kardon AVR 360 7.1 Surround Receiver                                       1 pcs

Harman Kardon BDT 360 Bluray Player                                                     1 pcs

Amx Wap250g Access Point                                                                                    1 pcs

OWNER’S CABIN

Sonos Connect Zone Player                                                                          1 pcs

Amx Wap250g Access Point                                                                                    1 pcs

B&W CCM 362 6’’ Inceiling Speaker                                                                     2 pcs

Harman Kardon BDS2 2.1 Bluray Receiver                                                            1 pcs

Bow Thruster

1 x 510xxxxx 500 T Aluminium Hub Hydraulic, Max. output 75 hp

1 x XXXXXXXX 500 Tunnel tube Glass Fiber ± 2.5 meter thickness 10mm

Hydraulic System

Stainless steel tank with 2 x 15 kW 400V pump on it, which will give 80 L/Min by 230 Bar.

Tank is including all necessary fittings like temperature, oil filter and high/low level.

With 80 L/Min output we can have easy 4 winches running the same time depending on load.

Valve blocks to operate the following functions:

Bow – 5 function valve block

2 x Furler

1 x Thruster 500T

2 x Data Anchor winch

Foremast - 7 Function valve block

2 x 88 mast winch

1 x CW60000 Main sheet

1 x Boom vang foremast sail

1 x Yankee halyard -30 cylinder

1x Stay sail halyard -22 cylinder

1 x Outhaul cylinder -30 cylinder

Mid Ships Foremast – 5 function valve block

2 x Foremast Runner

1 x Side boarding platform

2 x Yankee sheet 111S/HST

Main mast – 4 function valve block

2 x 88 SHST winch

1 x Main sheet winch CW6000

1 x Outhaul cylinder -30 FE

Aft deck main mast – 6 function valve block

2 x 111 SHST winch

1 x Boarding platform

1 x Locking Cylinder boarding platform

1 x Function for double backstay

1 x Spare function

Power created from main engine and generators

Both main engines Caterpillar C18 will have 147cc pump including clutch, mounted on the PTO of the front of the engine.

Two generators 47kW each has a clutch option and a  pump mounted from 80/90cc.

Lewmar designed a complete system ready for operation and easy installation including all other valves and necessary equipment.

Control systems

28 function pcs control box

System alarm panel for controlling the power pack

System control panel to operate CW winches and hydraulic cylinders

2 x commander soft start, AC, Motor control boxes

Deck Equipment

Foremast

6 x 29395069 130mm block stainless steel including deck plate SWL 5 T

4 x 29397069 155mm single block including deck block SWL 7,5 T

Main Mast

6 x 29395069 130mm block stainless steel including deck plate SWL 5 T

1 x 29397069 155mm single block including deck block SWL 7,5 T

Foremast Sheet

1 x 29398069 175mm single block including deck block SWL 9,5 T

Main Mast Sheet

1 x 29398069 175mm single block including deck block SWL 9,5 T

Main Mast Runner

2 x 29398069 175mm single block including deck block SWL 9,5 T

2 x 2939XXXX Eye plate for dead end runner SWL 8 T

2 x 299022xx Runner Fly Blocks 200mm , aluminum

2 x 29394069 105 mm single block including deck plate SWL 3.5T

2 x 29101412 D2 single stopper for 10/12 line

Foremast Runners

2 x 29398069 175mm single block including deck block SWL 9,5 T

2 x 29397069 155mm single block including deck block SWL 7,5 T

2 x 29902209 Runner Fly Blocks 200mm with becket, aluminum

2 x 29394069 105 mm single block including deck plate SWL 3.5T

2 x 29101412 D2 single stopper for 10/12 line

Gennaker

2 x 29397069 155mm single block including deck block

1 x 2939XXXX Special 155mm block on deck plate on the bow sprit

Yankee Sheet

The system is made from T track, full SS high gloss finish

2 x TBA Drilled plunger track, length = 2 meter

1 x 299034xx Genoa car with slide rods and plunger stopper (port)

SWL 6 T

1 x 29903458 Genoa car with slide rods and plunger stopper (starboard)

SWL 6 T

2 x 29905xxx Impact endstop (front end) machined on track

2 x 29905xxx Endstop (aft end)

Staysail System will be made from SS high gloss finish

1 x 2991744x Sz 4 Drilled Plunger Track, L = 4 meter, radius = tbd

1 x 2990340X Sz 4 staysail car, SWL 8T including 1 upstands

2 x 299054xx sz 4 High Load impact end stop.

2 x 29174129 Sz 4 adjustable end stops.

1 x 2919150X 130mm S/S single block with swivel for on sail.

1 x 2931616x 155mm Stainless Steel single block with eye

and becket mounted on slider

Pad eyes for Preventers

8 x 29904054 130 mm pad eye

Navtec Hydraulic Cylinders

Boomvang Foremast

1 x A850-VC-090C -90 boomvang PLC to be confirmed

Backstay Cylinders

2 x 250-LE-030 -30 extra long cylinder.

2 x J100-2828 Clevis on top of cylinder.

2 x H120-282828 Toggle to mount cylinder on deck fitting.

Foremast Outhaul

1 x 250-FE-022 -22 extra long flattener cylinder.

Foremast Halyard Cylinder

1 x 250-FE-022 -22 extra long flattener cylinder staysail

1 x 250-FE-030 -30 extra long flattener cylinder yankee

Mainmast outhaul

1 x 250-FE-030 -30 extra long flattener cylinder

Engine room ventilation:                  Portside air intake using Gianneschi ELL 450/2 and air

discharge Gianneschi ELL 450/2 Fire dampers 450X450X150mm

Gearboxes for Main Engines                         (2) ZF ZF 3060 A, Ratio total: 3.00 : 1

Gearbox mounts                                            (2) custom suspention

Flexible coupling:                                          (2) ERMAKSAN

Drive train compl.:                                        (2) BRUNTON 90mm shafts

Propeller                                                         (2) Milper - 2015

Exhaust                                                          (2) Custom made with Stainless steel insulation over Exhaust Pipe System

Generators & Electricity

Output:                                                                                  400/230V/3 Phase/50 Hz

Generators:                                                                            2x  43 kW Onan

                                                                                               1x 17 kW Onan

CATERPILLAR® MARINE GENERATOR C4.4 38 Kw SPECIFICATIONS

I-4, 4-Stroke-Cycle-Diesel

Displacement                                                             4.4 L (269 cu. in.)

Bore                                                                           105 mm (4.13 in.)

Stroke                                                                        127 mm (4.99 in.)

Combustion                                                               Direct Injection

Aspiration                                                                  Naturally Aspirated

Governor                                                                   Electronic

Gen Set Package Dry Weight (approx)                     755 kg (1664 lb)

Total System Capacity

Cooling System                                                         16.5 L (4.36 U.S. gal)

Lube Oil System                                                        8.5 L (2.25 U.S. gal)

Oil Change Interval                                                   500 hr

Rotation (from flywheel end)                                                Counterclockwise

CATERPILLAR® MARINE GENERATOR C2.2 18 Kw SPECIFICATIONS

I-4, 4-Stroke-Cycle-Diesel

Emissions                                                                  Tier 2 Compliant

Displacement                                                             2.2 L (135 cu in)

Bore                                                                           84 mm (3.31 in)

Stroke                                                                        100 mm (3.94 in)

Aspiration                                                                  Natural

Governor                                                                   Electrical Ischronous

Cooling System                                                         Heat Exchanger

Weight (approx)

Open Set                                                                    389 kg (857 lb)

Enclosed Set                                                              466 kg (1027 lb)

Refill Capacity

Cooling System                                                         9 L (2.4 US gal)

Lube System                                                              10.6 L (2.8 US gal)

Oil Change Interval                                                   500 hours

Fuel consumption

1800 rpm                                                                   6.2 L/hr (1.63 US gal/hr)

1500 rpm                                                                   5.2 L/hr (1.37 US gal/hr)

Batteries Energys                                           (2) sets of 24 V engine starting,

Radio battery set and (1) general service battery set 24 V+ (1) Emergency 24 V for emergency lighting and alarms.

1. Each generator has its own 24 V starting battery

Generators are installed above waterline with water separator exhaust system Battery chargers & Inverters are Victron

General description

Installation and quality of the pumps are according to CLASSIFICATION's Standards

Pipes are  adequately supported to prevent undue vibration.

Where necessary, flexible connections are made.

The relevant piping systems  are  pressure tested and cleaned prior to system operation

Piping materials

Materials of the piping systems:

•Bilge / Fire fighting System Geberit Mapress Cunife

•Fuel Oil System  Hansaflex Flexible hose (It has Type Approval and ISO 15540-ISO 15541certificates)

•Sea water cooling System  Geberit Mapress Cunife

•Fresh water system Aquatherm green PPR

•Black and Grey water system GIRPI PVC-C

•Hydraulic pipes Steel seamless precision pipes

•Exhaust pipes Stainless steel (with steel flanges)

Bilge / Fire fighting system:

(2) Gianneschi ACB531/A  (2"  Q= 500/180 Lt/min @ H Tot.=3/33Mt), (1) Gianneschi  MACB 531 diesel (  Q= 550/100 Lt/min @ HTot.=5/55 Mt,(4) PROVAL PRO100 Electrical, Actuator  ID: 38 mm - 1 1/2", Deck hydrant and fire hose (15 meters 1 1/2" Storz)

Fuel Oil System:

(2) Separ Filter SWK-2000/10/UM, (3) Separ Filter SWK 2000/5/M,(1) ALFA LAVAL Solids-retaining Centrifugal Separator, (max. , 760 litres per hour of diesel, 230 V AC@50 Hz), (1) Gianneschi CP30 A1(Q= 20/90 Lt/min @ H Tot.= 20/3 Mt)

Fresh Water System:

2x Zerosalt ZSM 350 Watermaker – were renewed in May, 2023.

Sterilizer: Ag Iyon ENWA SilSter 168 Digital 1 silver electrod 1 pc

Black and Grey water system:

(3) Gianneschi MVI 60 (Q= 55/51 Lt/min @ H Tot.= 20/10Mt), (1),Gianneschi MVI 80 (Q= 95/61 Lt/min @ H Tot.=10/30 Mt), (5) TECMA SANISPLIT NK3 - 24V  Shower Pump, (1) SELMAR Blue Sea 7000 (300 lt / hr, 3ph, 400 V)

Hydraulic System:                               LEWMAR Hydraulic System

Sails                                                    DOYLE

Note: Mizzen and mainsail were renewed in 2021.

Mast

Main Mast                                        From top of mast collar 39.071 m

From top of keel plate 45.011m

Fore Mast                                        From top of mast collar 36.764 m

From top of keel plate 41.174 m

Sail Area

Main Sail                                                                   Stratis  Doyle 365 m²

Fore mast                                                                               Stratis Doyle 235 m²

Yankee                                                                      Stratis Doyle 160 m²

Stay Sail                                                                    Stratis Doyle 100 m²

Genneker                                                                               Nylon Doyle 750 m²

Winches

Foremast

Halyard Winches

2 x 49088109 88/3 SHST hydraulic winch with grey self-tailing crowns.

Stainless steel base.

On mast

2 x 49065004 65 S/ST standard winch for mounting on mast.

Yankee

2 x 49111109 111/3 SHST hydraulic winch with grey self-tailing crowns.

Stainless steel base.

Foremast Runners MPS sheet

2 x 49088109 88/3 SHST hydraulic winch with grey self-tailing crowns.

Stainless steel base.

Main Mast

Halyard Winches

2 x 49088109 88/3 SHST hydraulic winch with grey self-tailing

crowns and stainless steel base.

On mast

2 x 49065004 65 S/ST standard winch for mounting on mast.

Main Mast Runners / Mooring Lines

2 x 49111109 111/3 SHST hydraulic winch with grey self-tailing crowns.

Stainless steel base.

Switches and Winch Handles

20 x 48000100 Custom stainless steel deck switch

4 x 480001xx Custom stainless steel deck switch closed lid, for anchor system

6 x 29141121 10” Winch Handle
