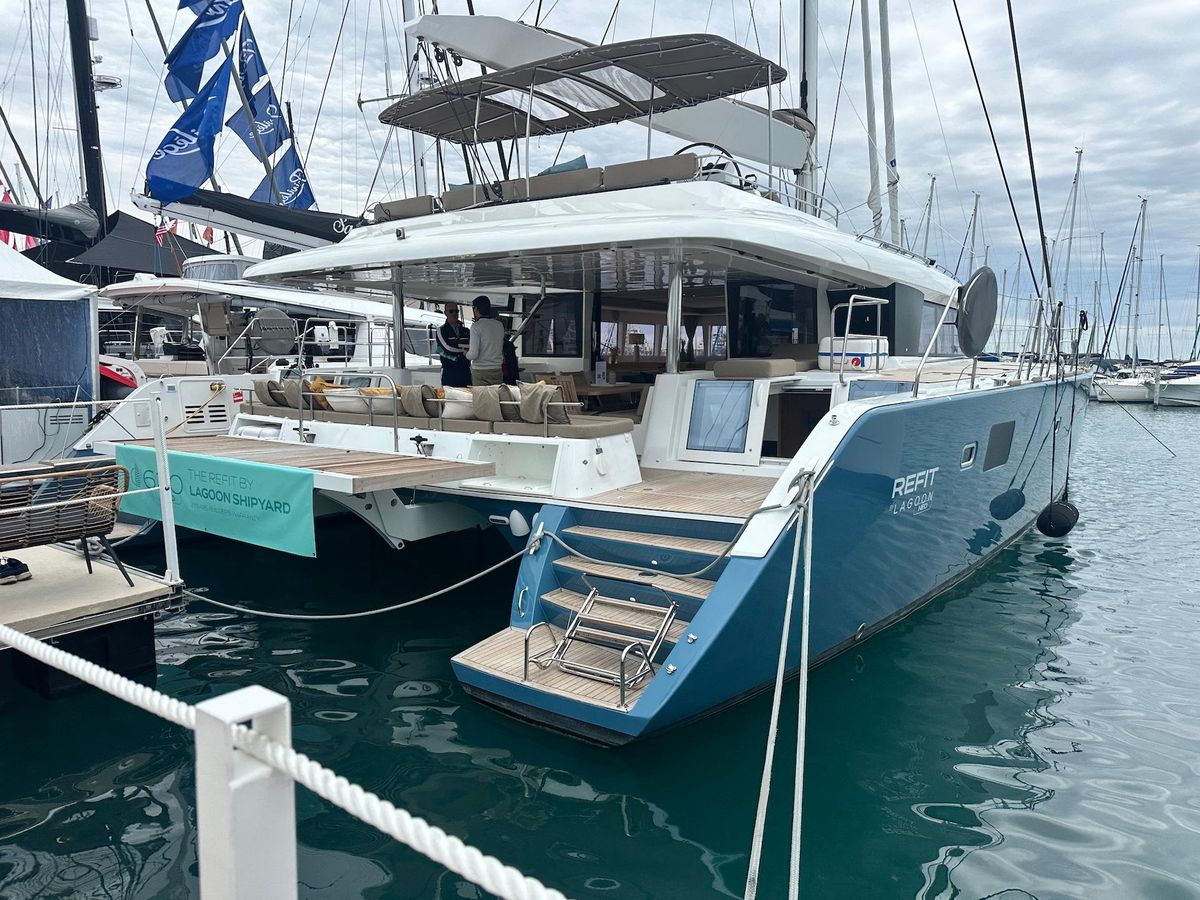

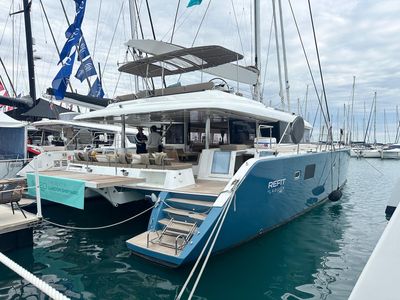

LAGOON NEOWhat is Lagoon NEO?
• Official Lagoon refit programme - carried out by the Lagoon shipyard
• Developed to bring used Lagoon yachts technically and visually up to new-build standard
• Ideal for buyers who value quality, sustainability and a shipyard warranty
What makes Lagoon NEO special?
• Comprehensive refit: technology, electrics, rigging, interior, comfort & safety - all checked and modernised
• Certified & guaranteed With Lagoon shipyard certificate and 2 year warranty on key components
• Sustainable Thinking: component re-use, resource efficient processes
• Yacht is delivered fully operational
EQUIPMENT• Polyester and high quality anti-osmotic resin
• Hull, deck and coachroof laminated by infusion
• Balsa core hull and deck, solid laminated under waterline
• Laminated or glued plywood composite bulkheads
• Awlgrip Stars & Stripes Blue painted hulls - NEW
• White gelcoat deck and roof with non-skid areas - NEW

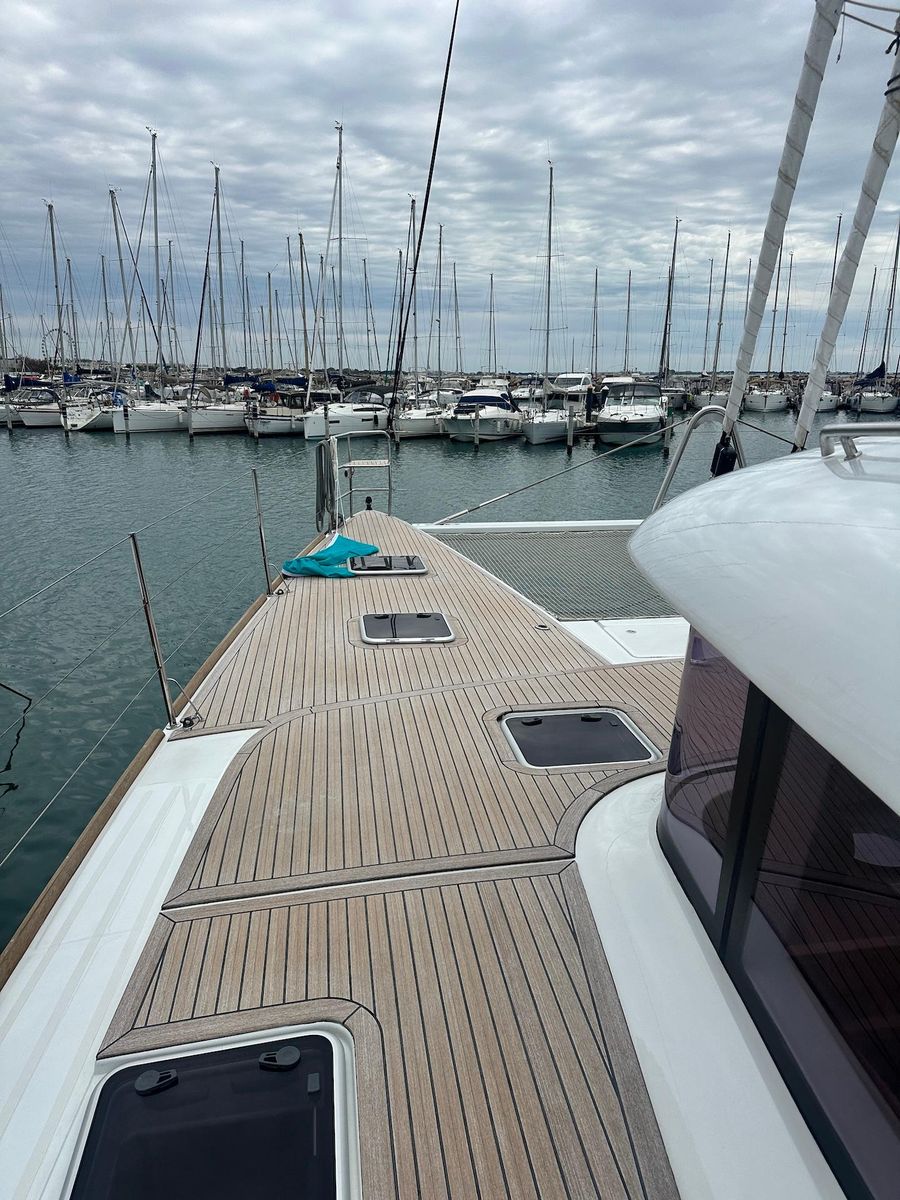

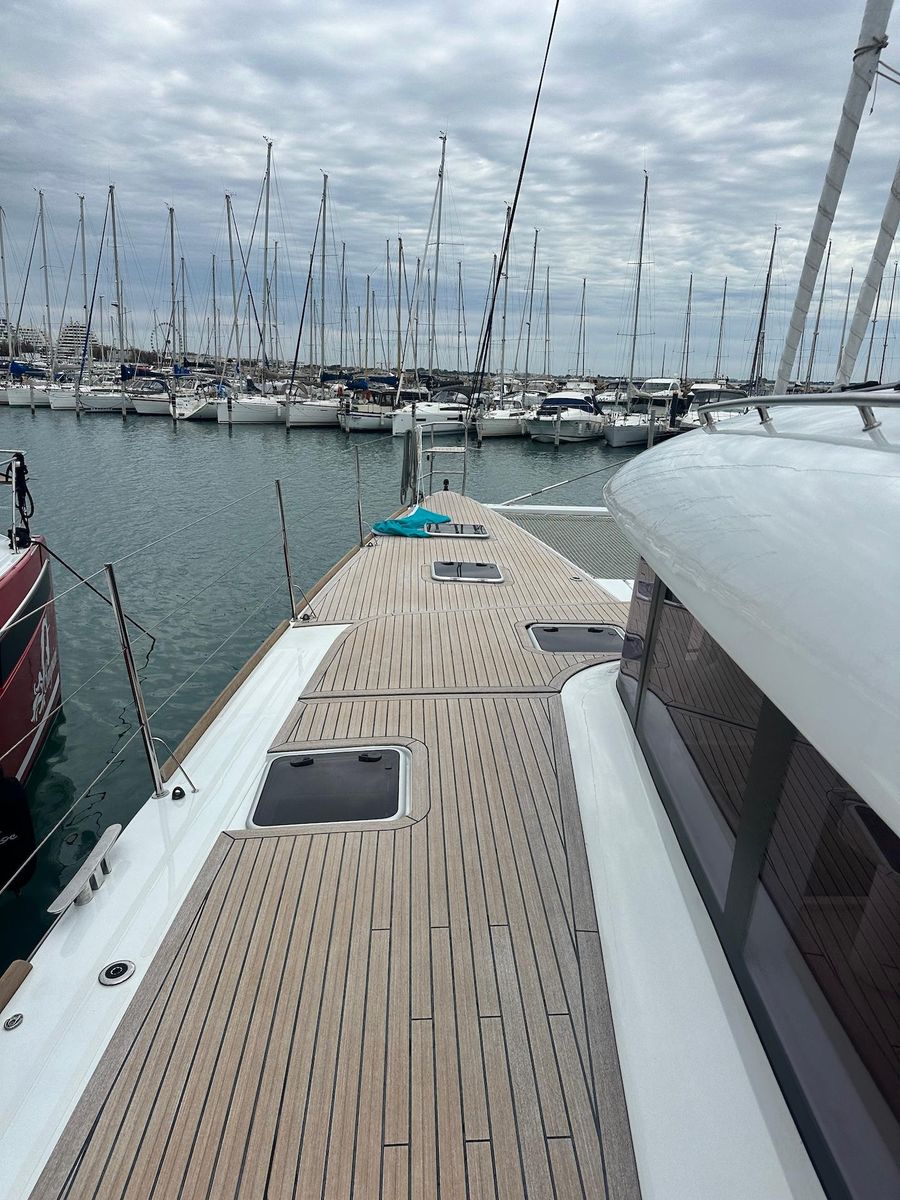

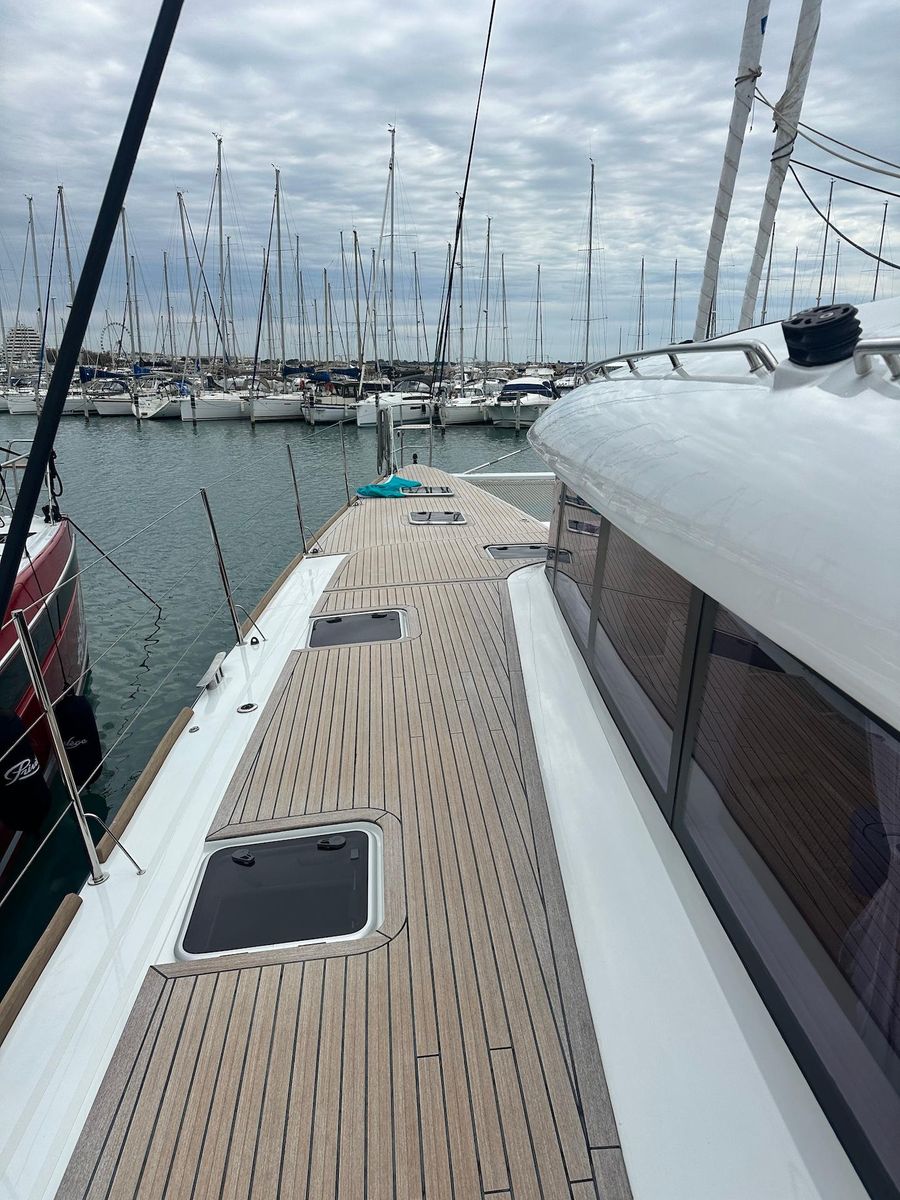

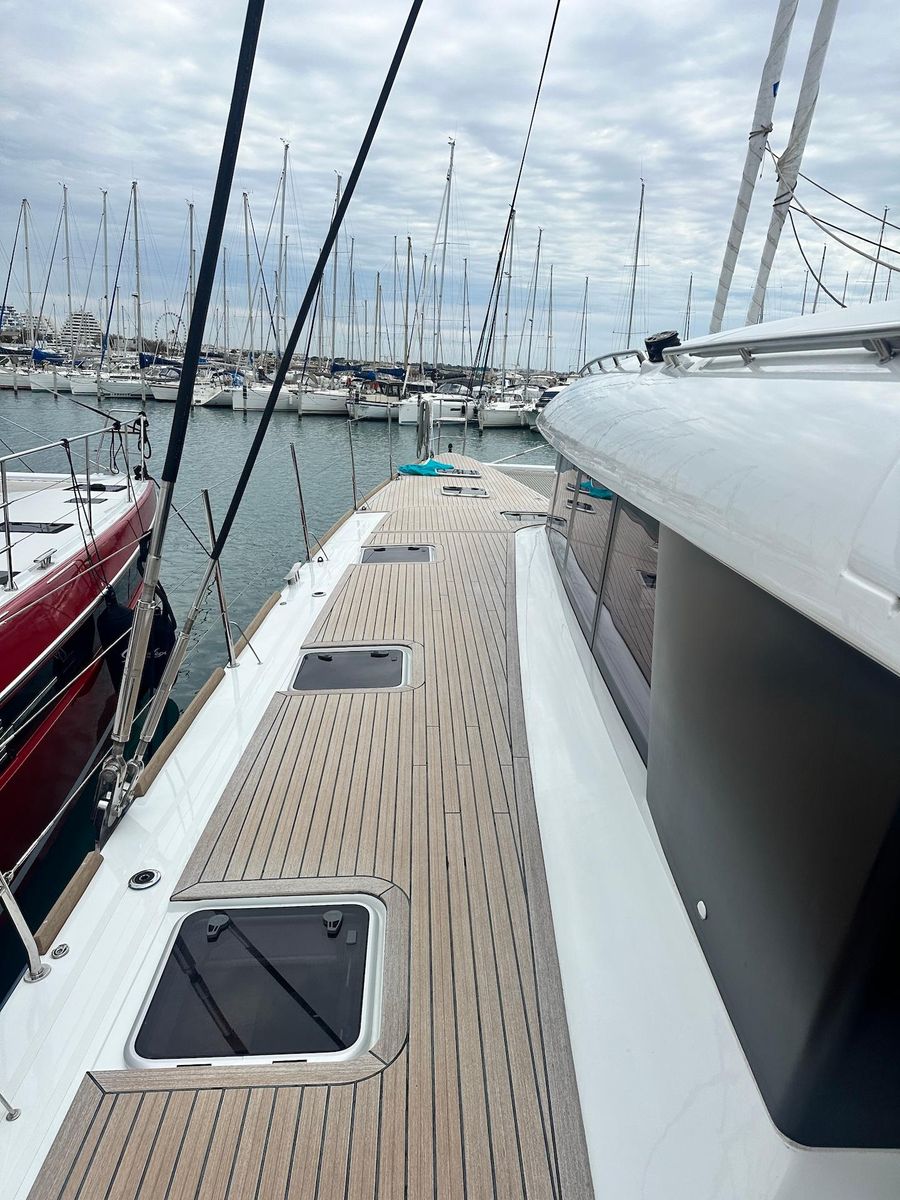

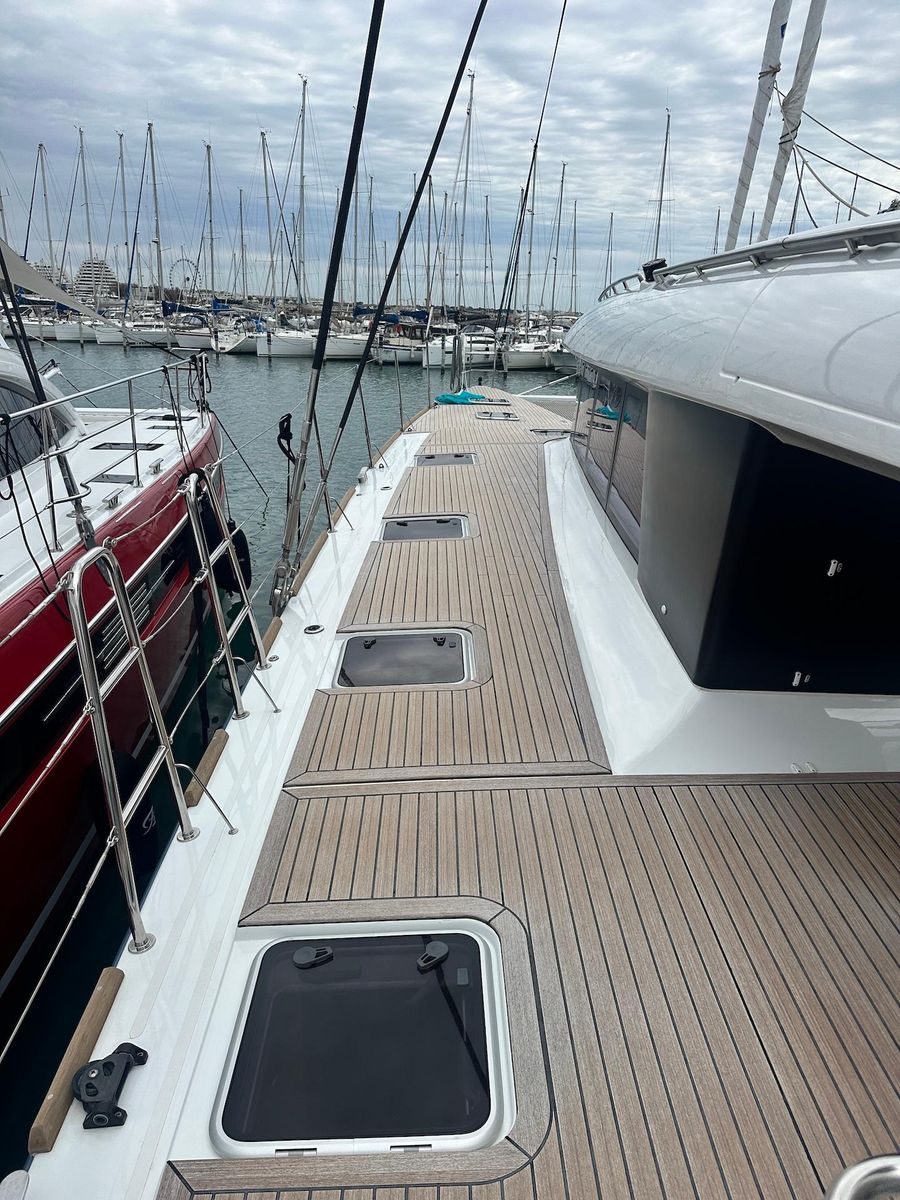

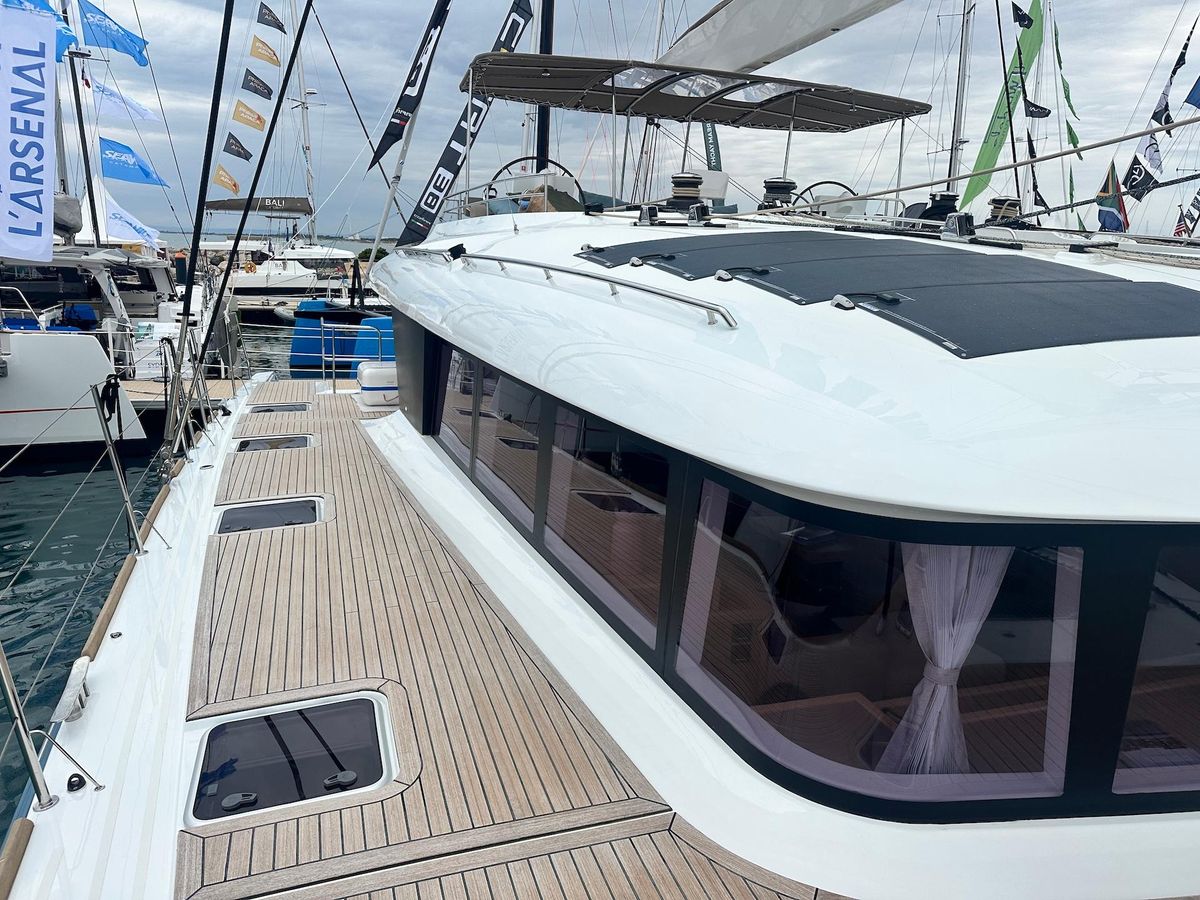

• Iroko deck on main deck - NEW
• Teak deck on flybridge
• 2 suspended rudder blades
• Hydraulic steering transmission
• Emergency tiller
sails
• Squared top, full battened, hydranet Mainsail - NEW
• Furling Hydranet Genoa – NEW
• Furling Hydranet Staysail - NEW

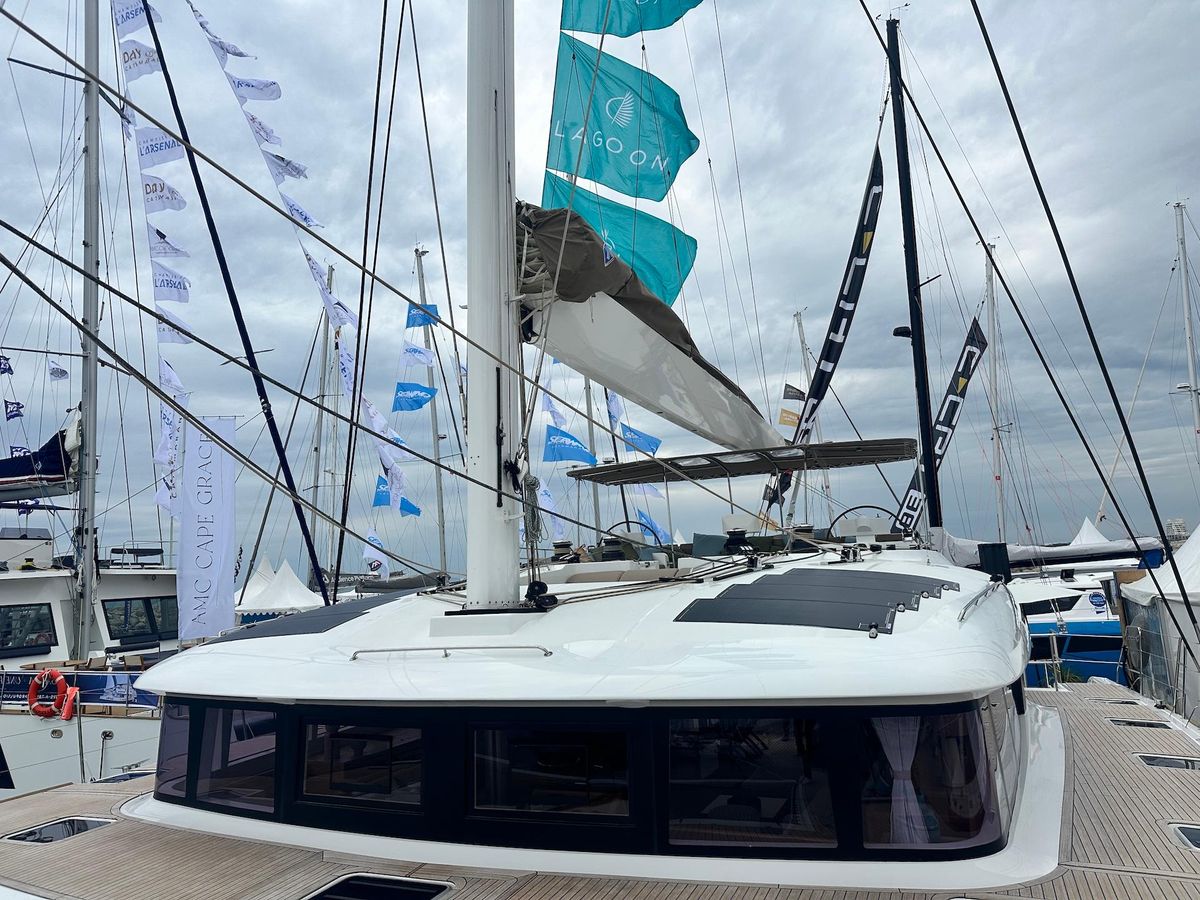

standing rigging
• White painted aluminium mast
• White painted carbon canoe boom
• 2 spreaders stages rig
• Coated shrouds - NEW
• Electric furling forestay for genoa - NEW
• Electric furling stay for staysail - NEW
• Ajustable lazy-jacks - NEW
running rigging - NEW
• Mainsail halyard
• Genoa halyard
• Staysail halyard
• Mainsheet
• 2 genoa sheets
• 2 staysail sheets
• 3 reefing lines
• Mainsail sheet led back to winches via boom
• Boom uphaul
• 4 electrical winches Harken® 80.2
• Footblocks & clutches for halyards, reefing lines and sheets
• Genoa car on port and starboard
• White painted aluminium crossbeam with fixing point for the genoa forestay - NEW
Composite longitudinal Frontbeam with integrated chain run, anchor spade 55kg (NEW) and mooring cleat
• 10 mooring cleats
• Lewmar® 2000W / 24V electrical windlass with vertical axis, chain 14 mm - NEW

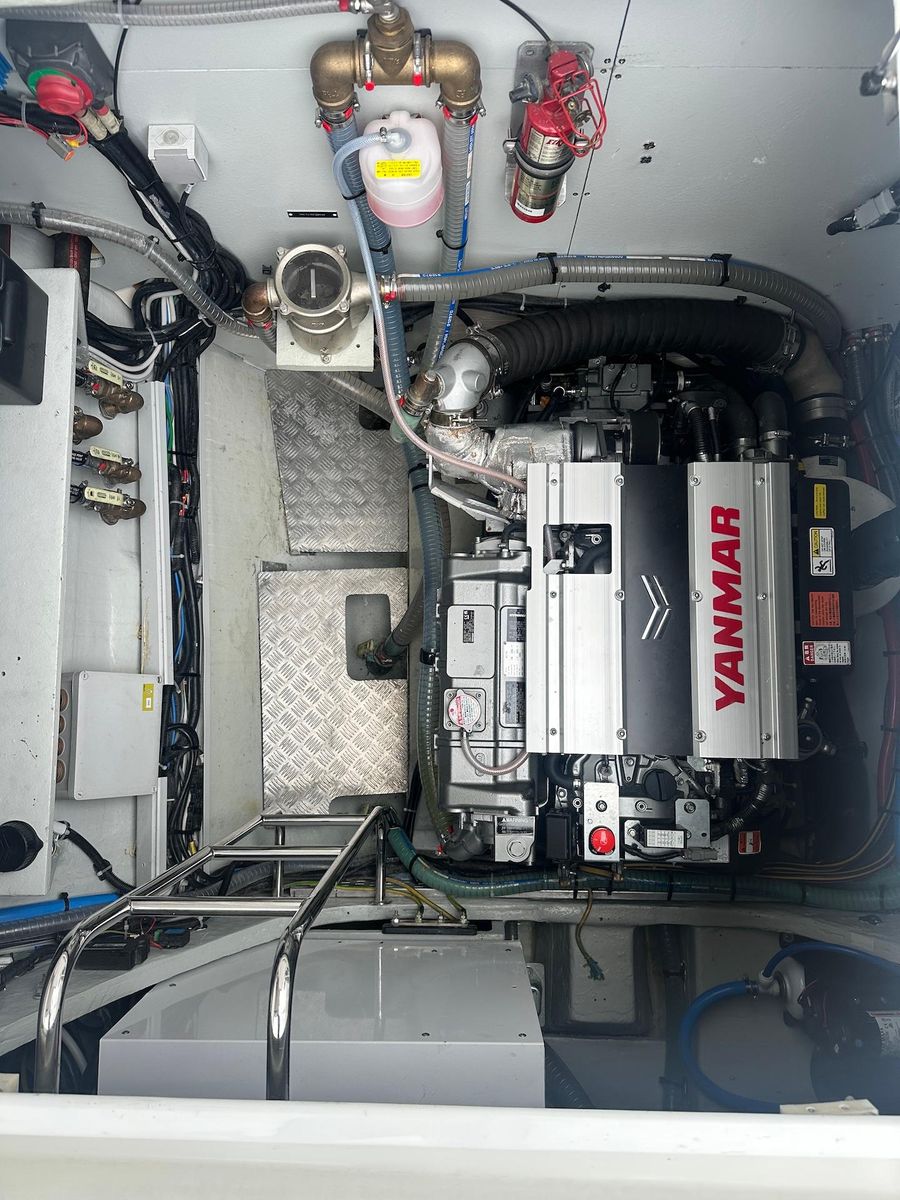

• 2 diesel engines Yanmar® 4LV150 150CV - NEW
• Foldable 4-blade Flexofold® propellers - NEW
• Sea water filter
• Electrical engine throttles at the 2 helm stations
• Engine compartment ventilation: 24V electrical extraction in the aft transom - NEW
• Fuel circuit:
- 2 tanks of 650L / 172 US gal
- Fuel filter systems
- Fuel shut off valve
- Gauge at the general control panel on touch screen
• 1 hydraulic Max Power® bow thruster on starboard - NEW
fresh water circuit
• Fresh water tank: 960L with gauge at the chart table
• Fresh water circuit with 1 main water group 36L/mn – NEW
• 2 water heaters 60L / 12 US gal water heater – NEW
• UVOJI UV water disinfection for galley tap – NEW
• 1 Watermakers : 1x BlueWater® 1850 (220V, 290 L/h) – NEW
• Grey water drainage cockpit and salon direct to the sea
• Shower and sink draining integrated into shower tray composite.
Dedicated unitary pump.
black water circuit
• Black water holding tanks: 4 x 110L + 50L (forward peak)
• Tank drain by gravity or deck plate
• Electric toilet freshwater
bilge pump circuit
• 1 manual bilge pump per hull
• 1 automatic pump per forward peak
• 1 automatic and electric bilge pump in each engine compartment
• Connection of the engine compartments and forepeaks to the main pump and sump
• Bilge pump management on general control panel
• Self-draining cockpit compliant with EC certification
• Seanapps® connectivity - Battery voltage and GPS position on mobile app - NEW
• Raymarine® Navigation Pack – NEW
dc power circuit - 24V
• 2 engine starting batteries 50Ah (AGM) - NEW
• 1 generator starting battery 50Ah (AGM) - NEW
- 1 dedicated charger 25A
- 2 alternators 24V – 100A

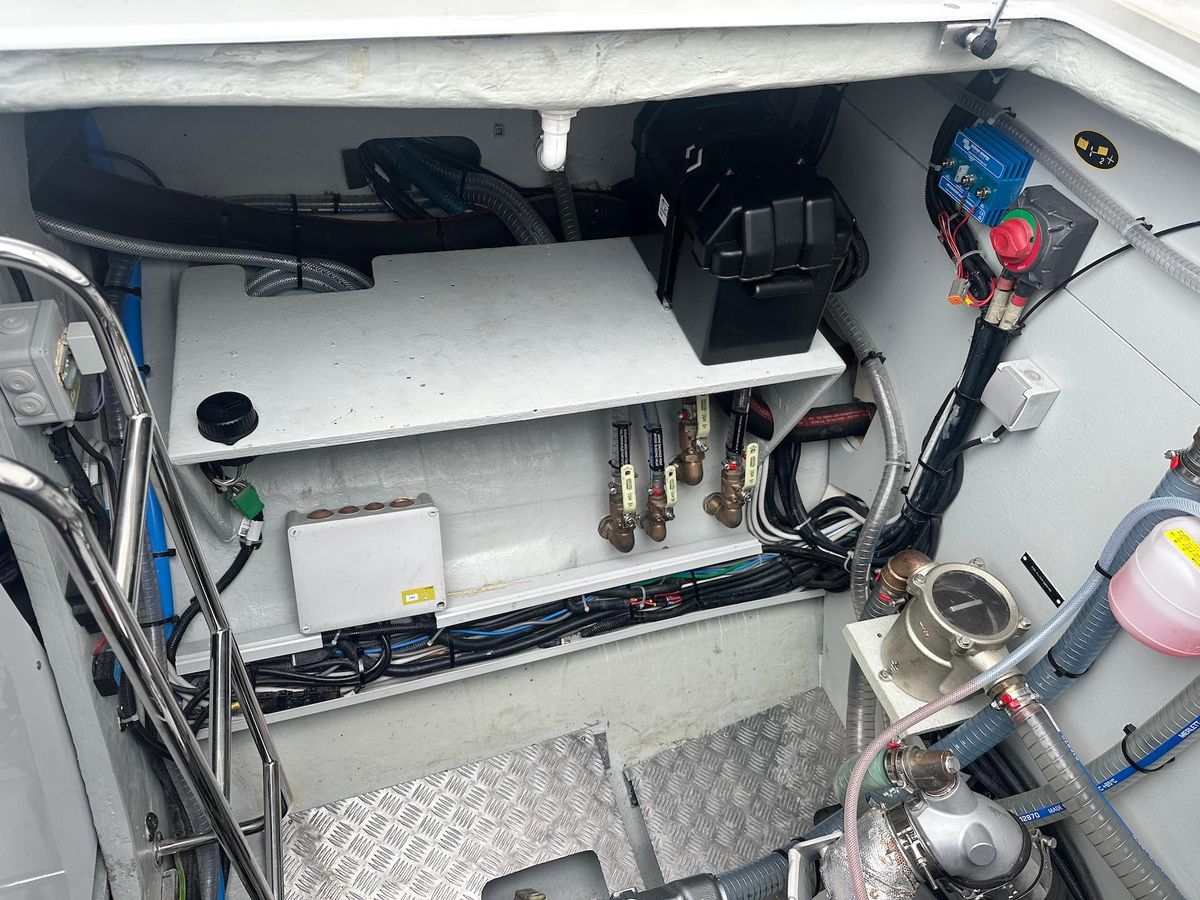

- Battery shutoff switch in each engine compartment + 1 coupling
• 5 Victron® service batteries 200Ah (Lithium) - NEW
- 2 Dolphin® chargers 24V - 100A - NEW
- Battery shutoff switch in each engine compartment
electric distribution panel
• 24V general distribution panel
• USB socket 24V included in the electrical panel and helm station
• Scheiber multiplexing with navicolor display and Yatch Management System via Raymarine

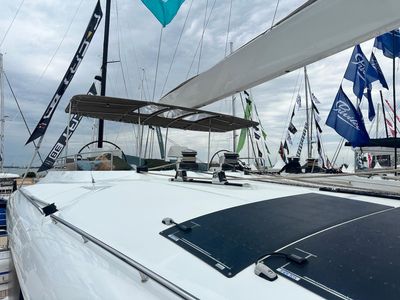

• Solara® Solar panels 8 x 115W - NEW
220V ac circuit
• Inverter 24/220V 50Hz 5000VA
- NEW

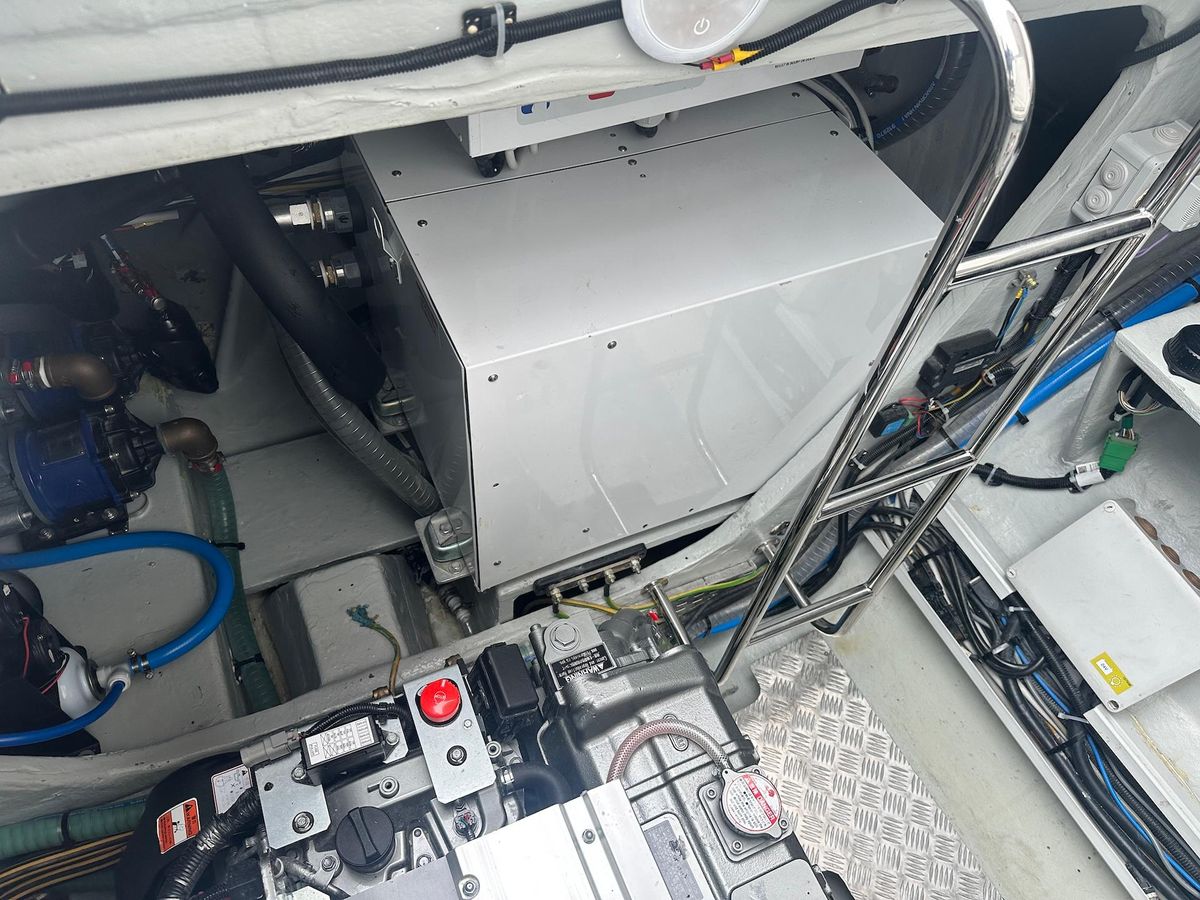

• Onan® Generator set 19 kVA – NEW
• Sources selectors via Scheiber
lighting
• LED interior lighting and reading lights
• Lighting in engine compartment
• LED navigation lights
Air conditioning
• Webasto® 77,000 BTU - NEW
Audio Video
• LCD TV screens in all cabins and salon - NEW
• Fusion® audio display in all cabins and salon - NEW
Hot/cold deck shower on port and starboard side
• S/S telescopic swim ladder with fixed handles on starboard side

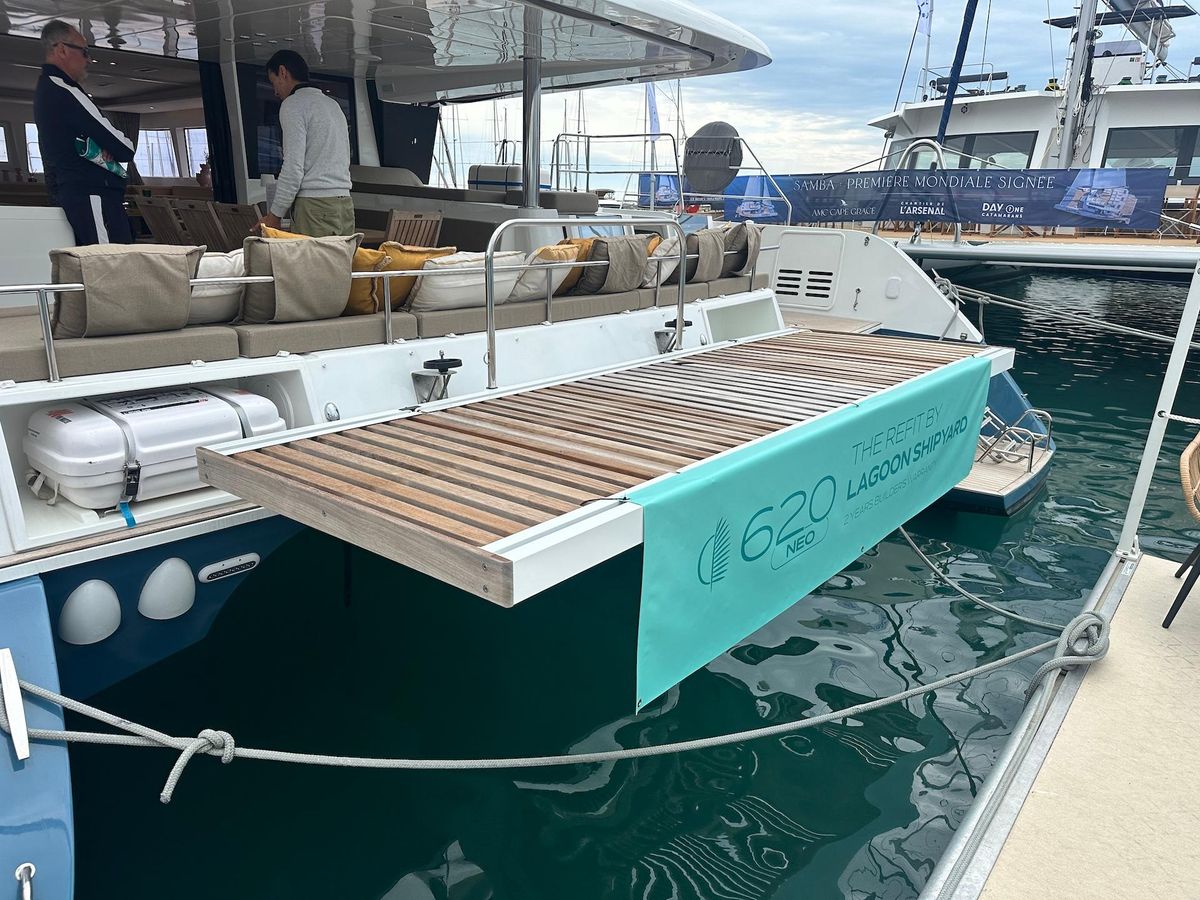

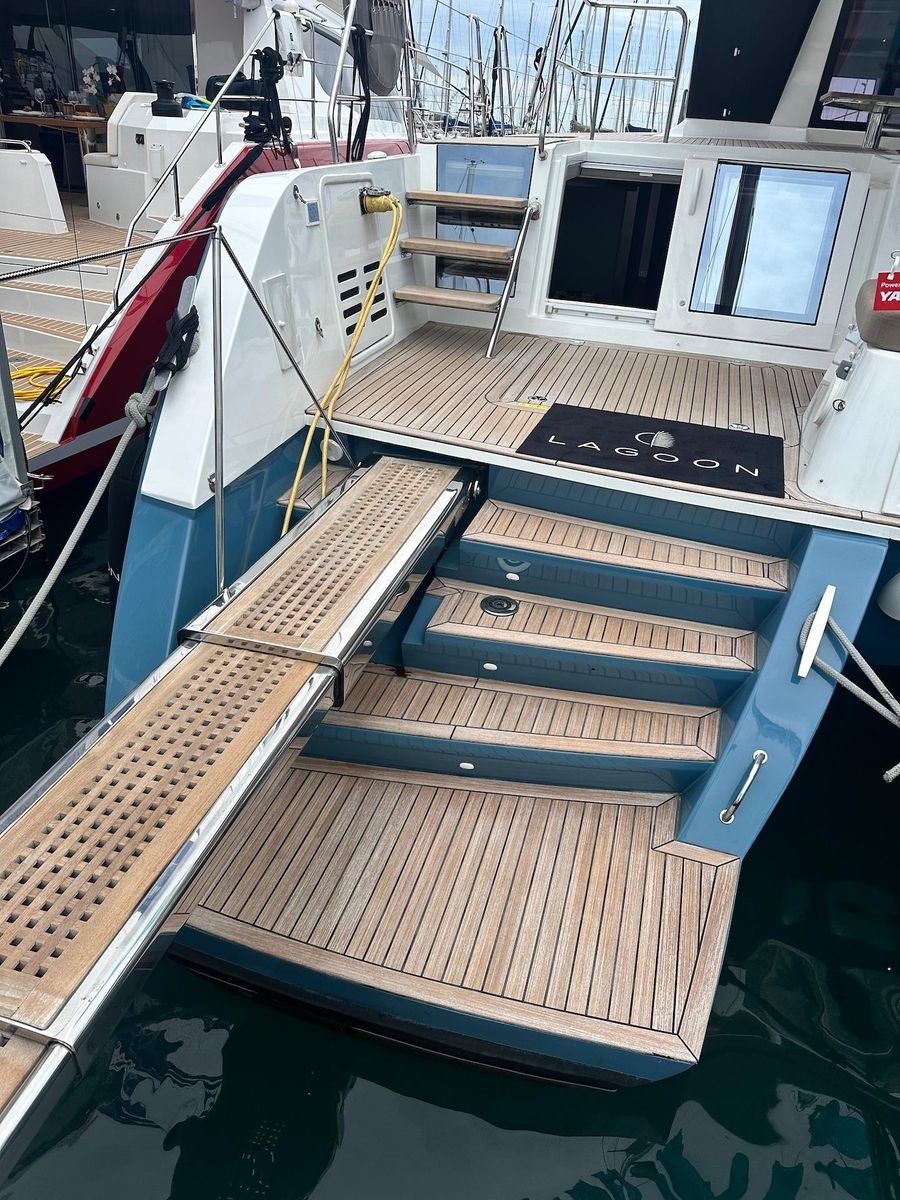

• Hydraulic Tenderlift® platform
- NEW
NEW carpets
• Hydraulic Opacmare® gangway on starboard side

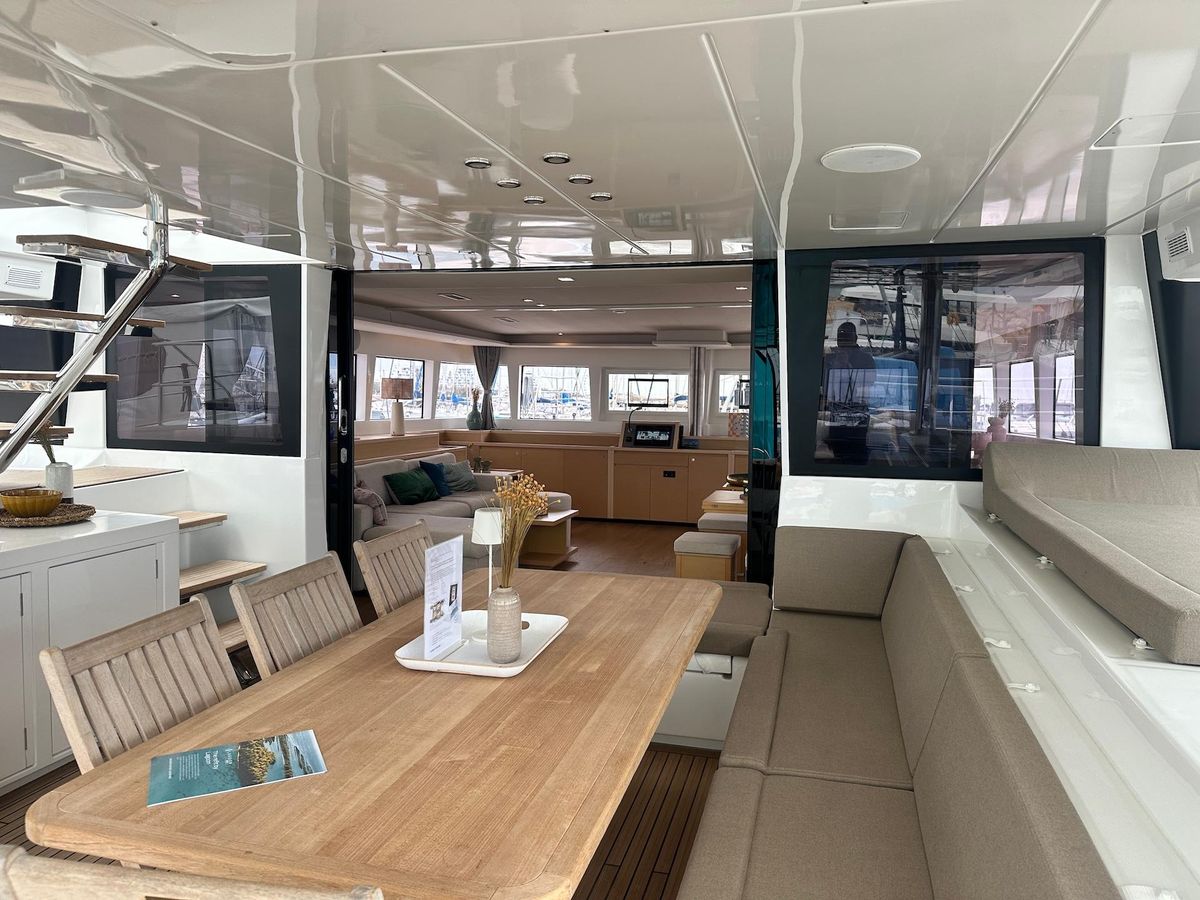

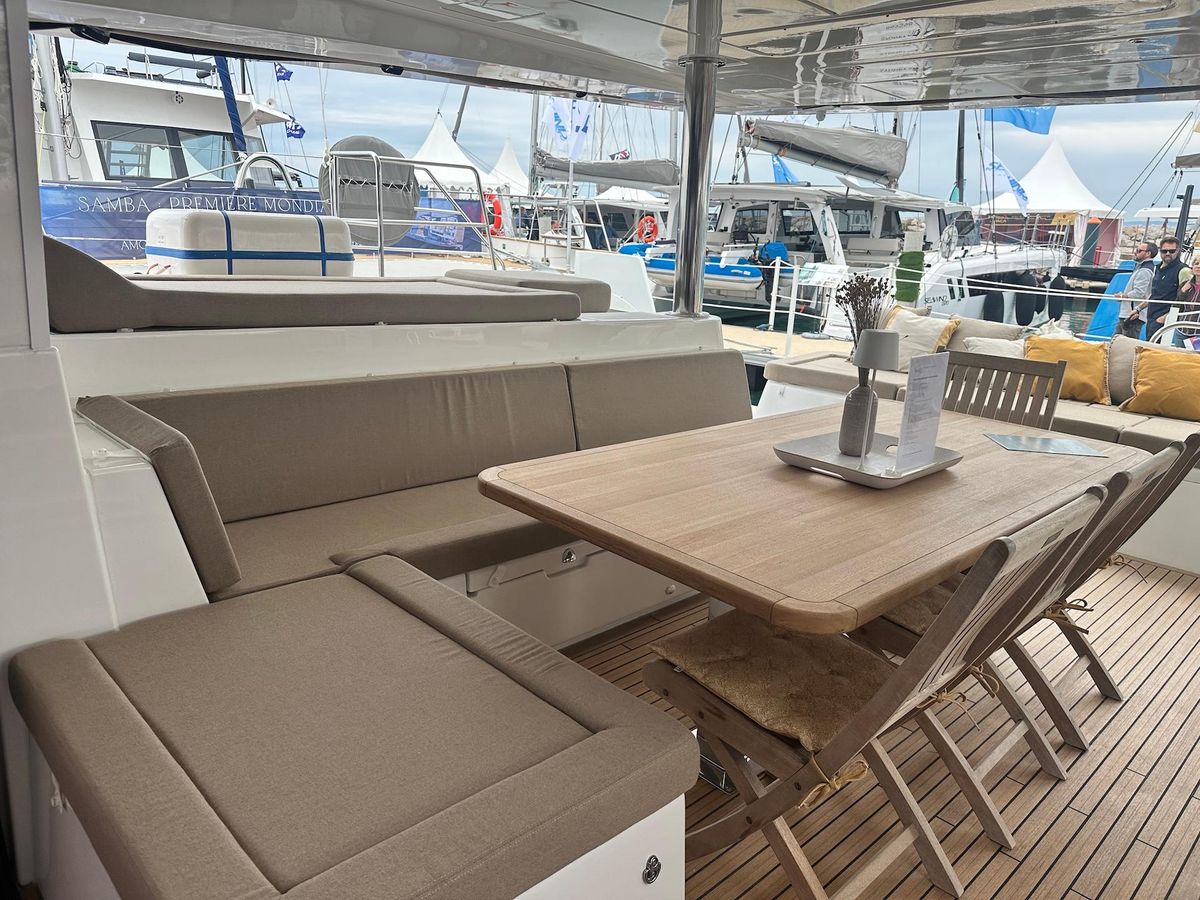

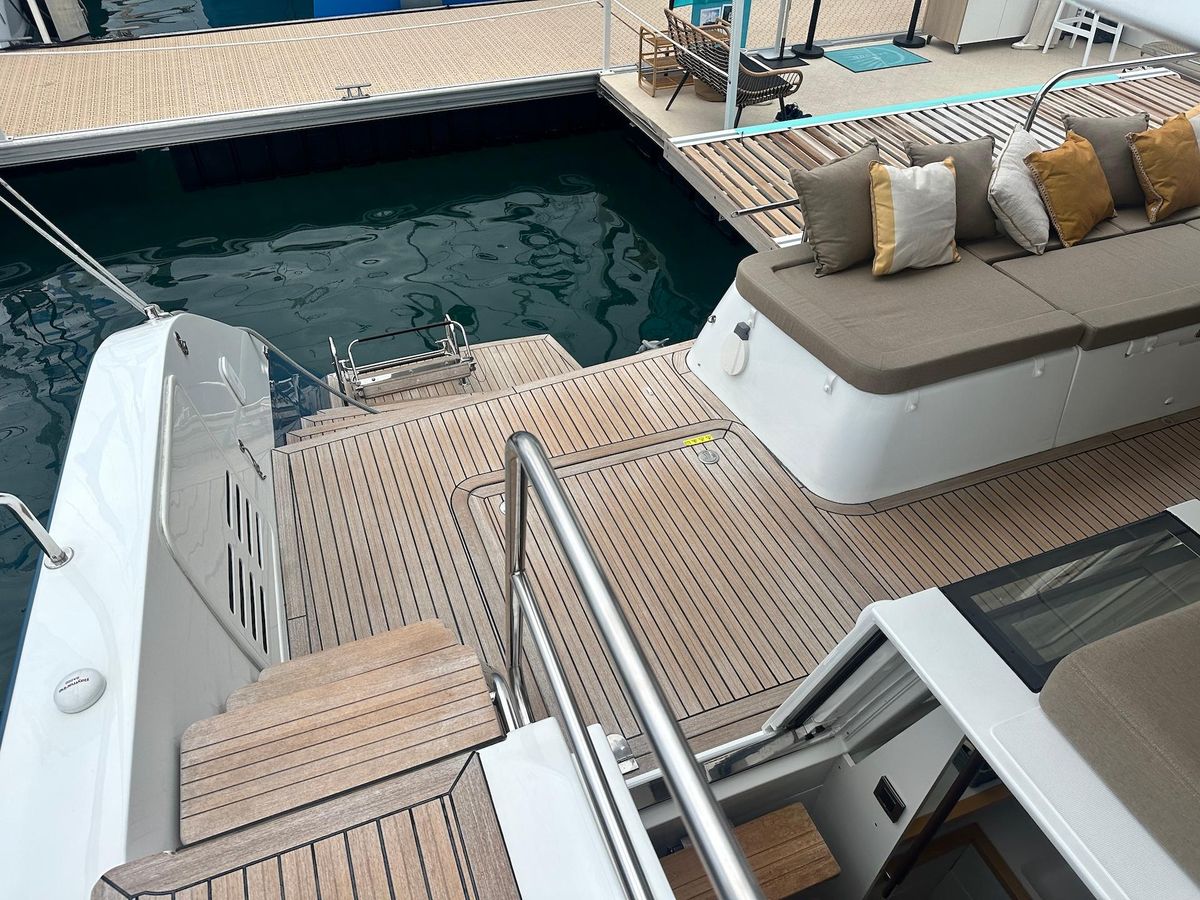

aft cockpit
• Seating and lounging area on port and starboard sides
• Teak cockpit table top – NEW
• Cockpit flush-decked with saloon
• Iroko cockpit floor - NEW
• Self-draining cockpit with wooden grating
flybridge

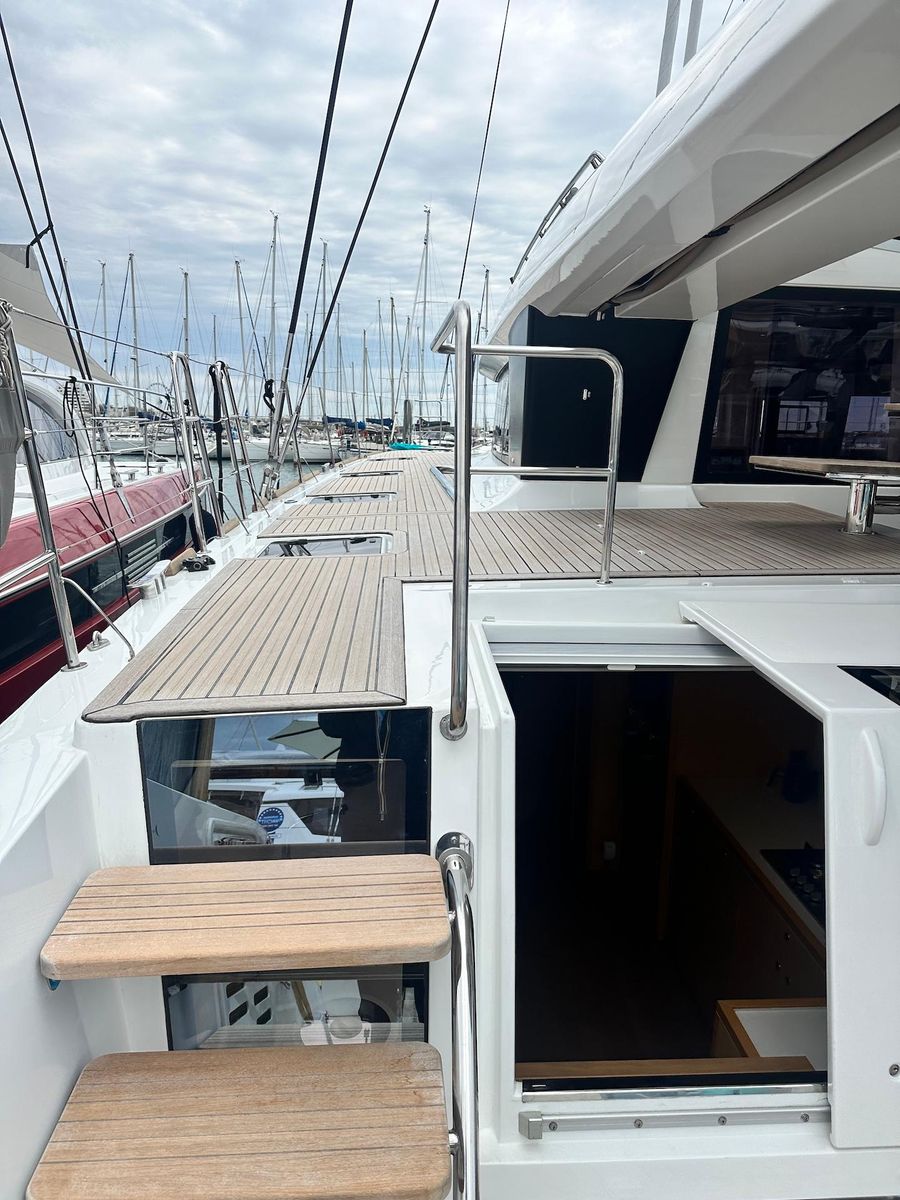

• Stairway access from cockpit on portside
• Double helm seat
• L-shaped seating area with storage lockers
• Sunbathing area forward of flybridge
• Steering wheel ø900mm
• Engine throttles and panel
• Console for screen and instrumentation
• Storage bag for halyards

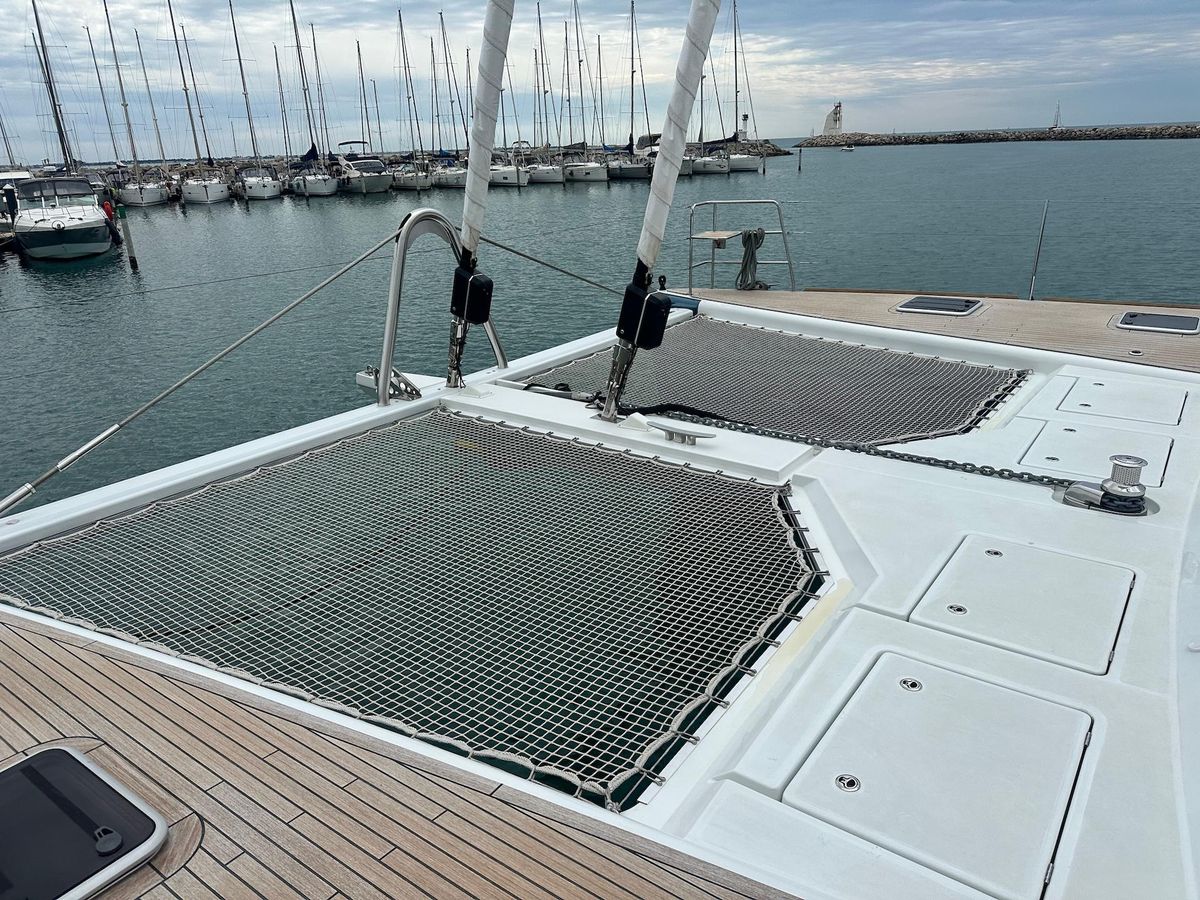

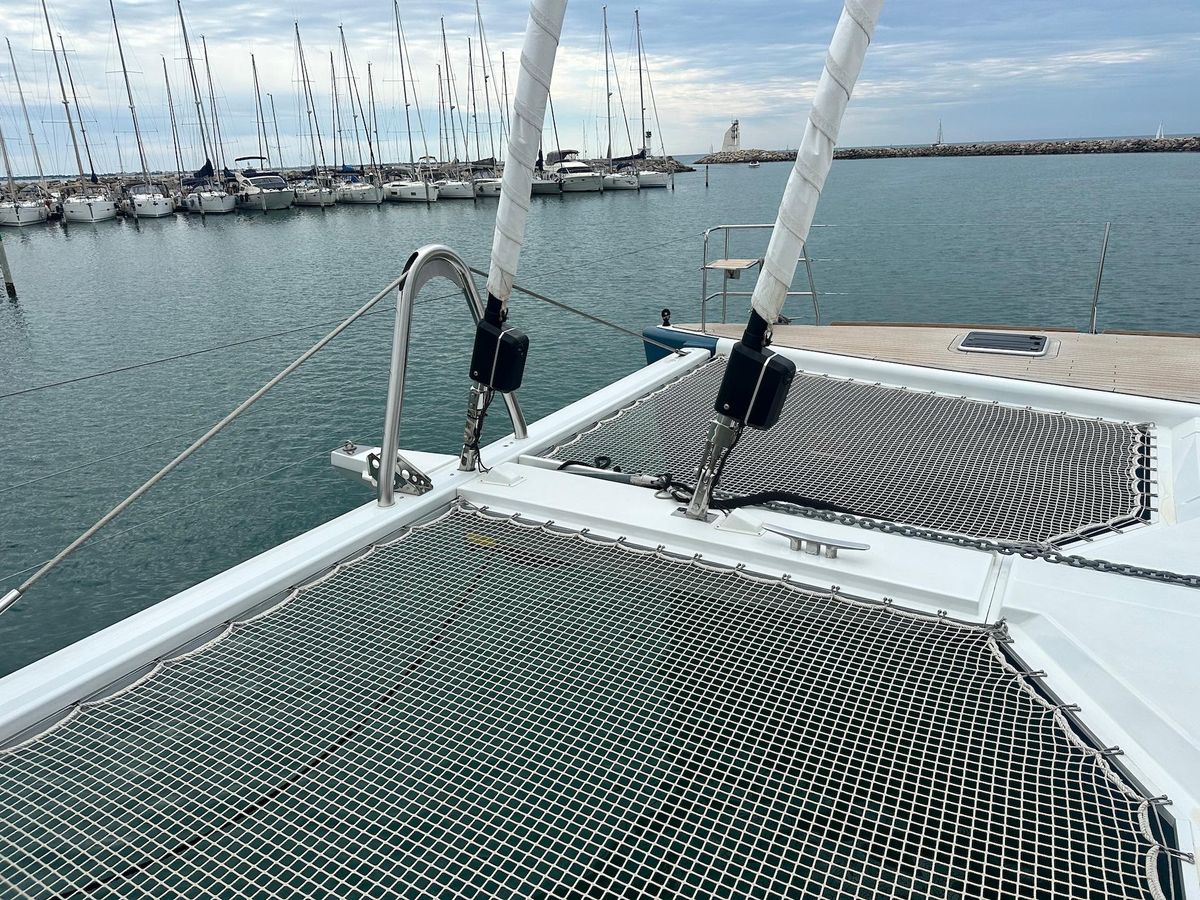

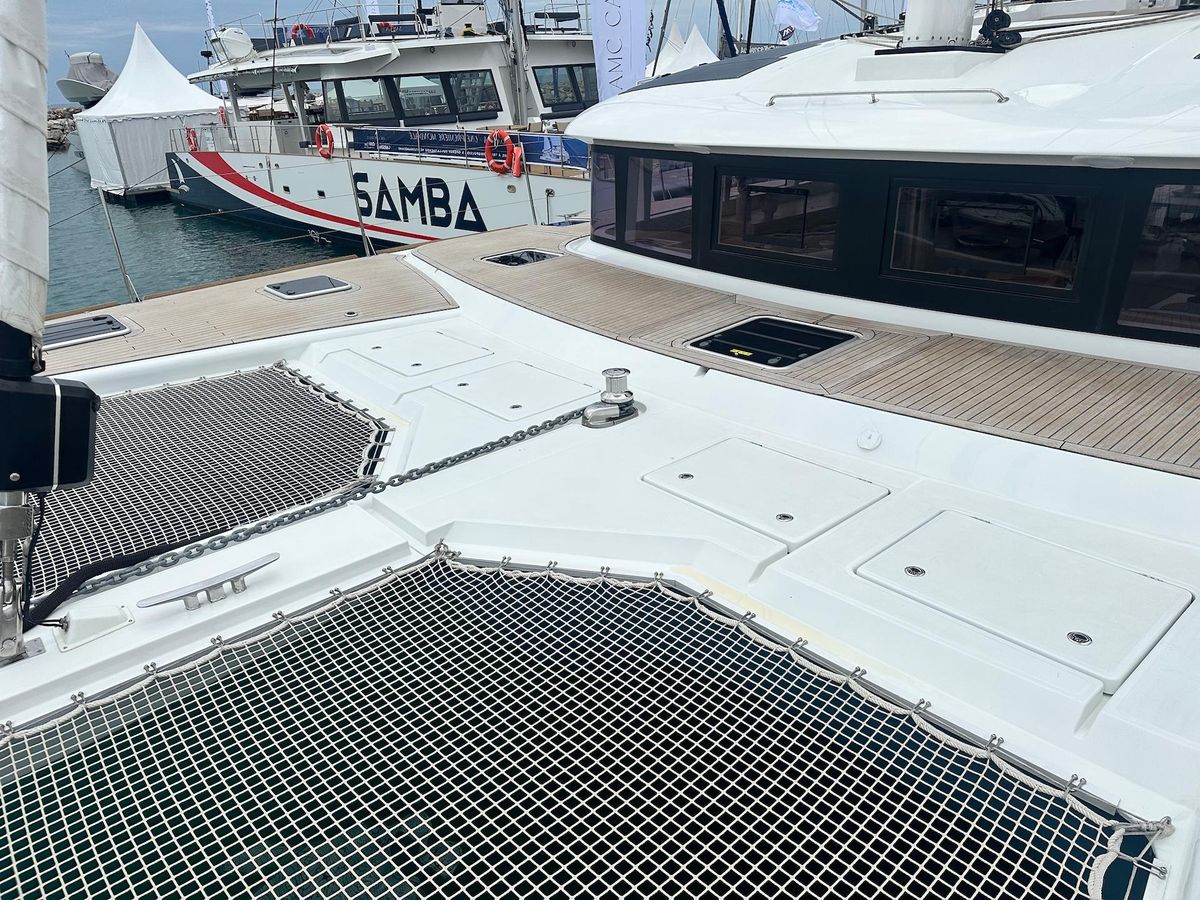

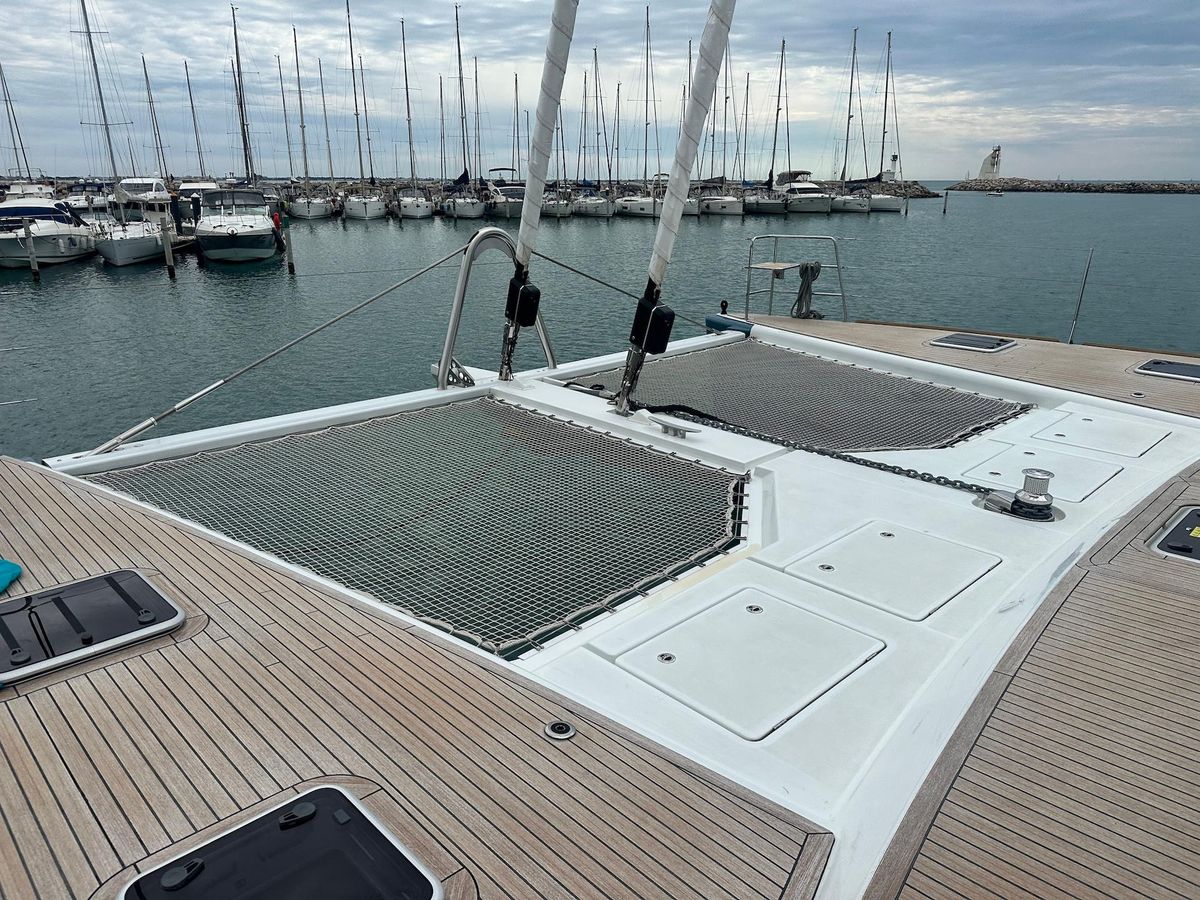

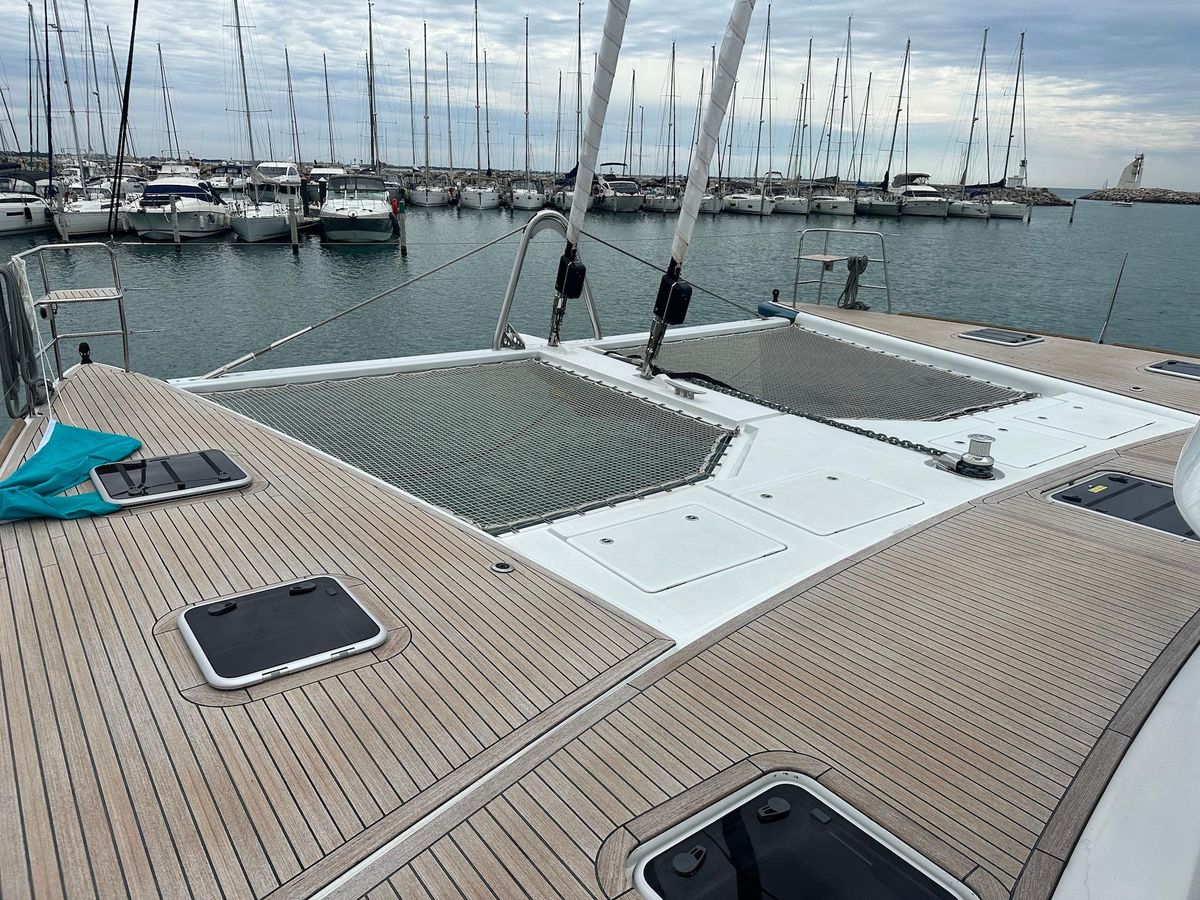

forward cockpit

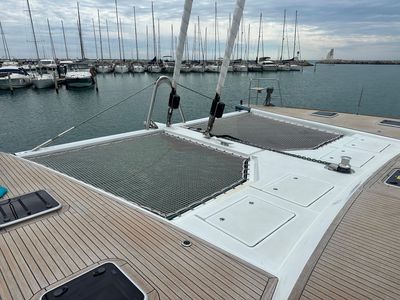

• Sunbathing area
• Nylon netting - NEW

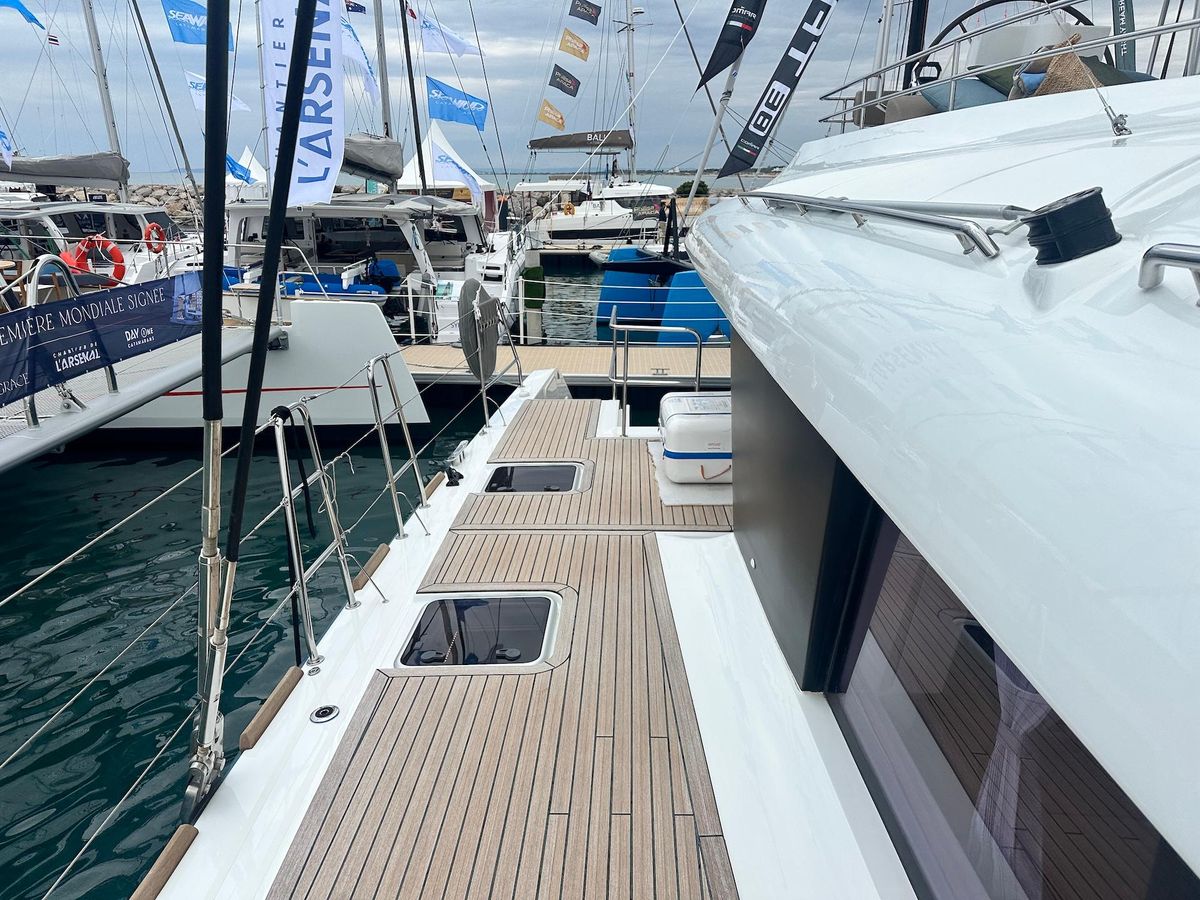

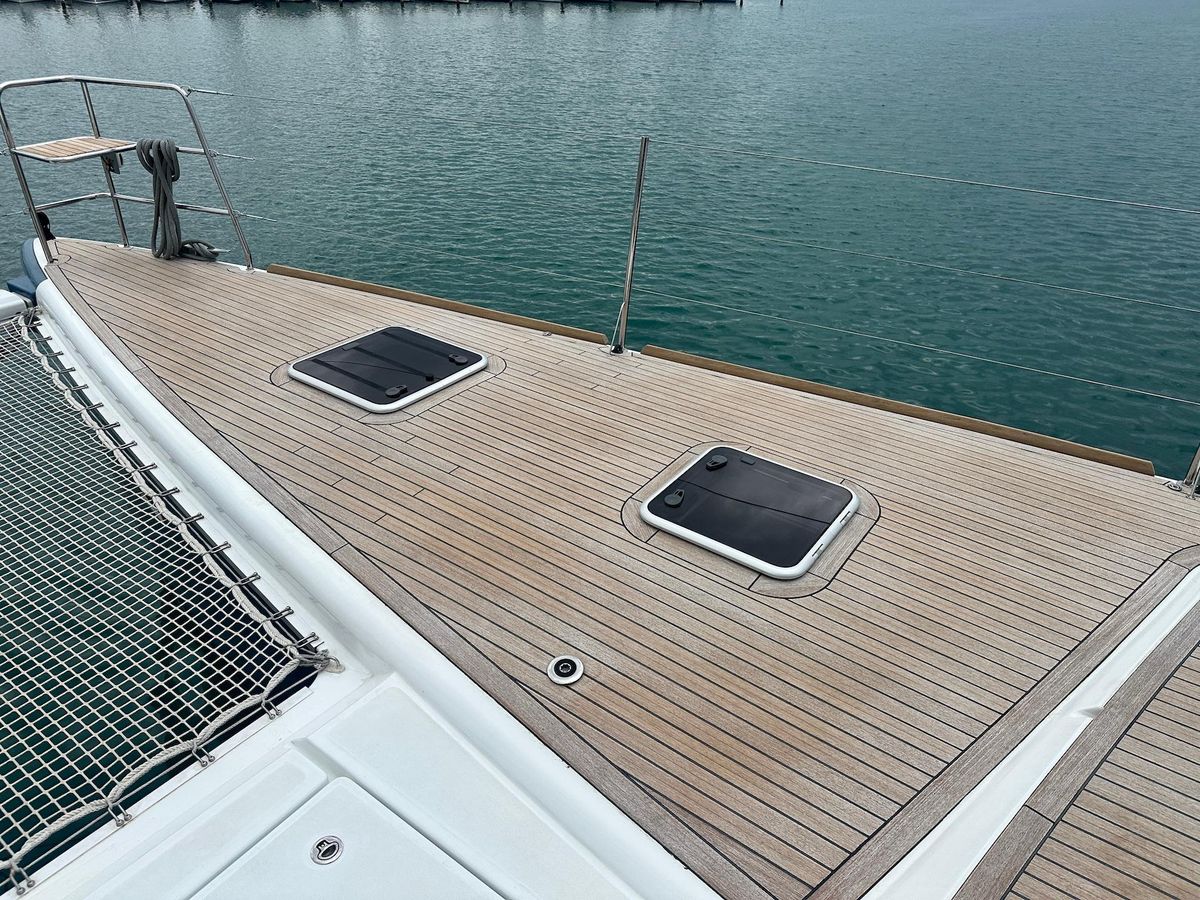

bow lockers
• Access through LEWMAR T70 deck hatches – NEW
• Grey non-slip floor
• LED lighting
• Port bow compartment with integrated berth, sink, shower and toilet for crew
stanchions and lifelines
• Pushpits: H850 mm / 2’9’’
• Stanchions and pulpit: H700 mm / 2’4’’
• Double S/S lifelines - New
general
• Construction in Alpi Blond Oak UV finish plywood
• Laminated floor Dark Oak in the cabins – equipped with
• Laminated floor Light Oak in the saloon and galley - NEW
• Upholstered plywood ceilings and linings

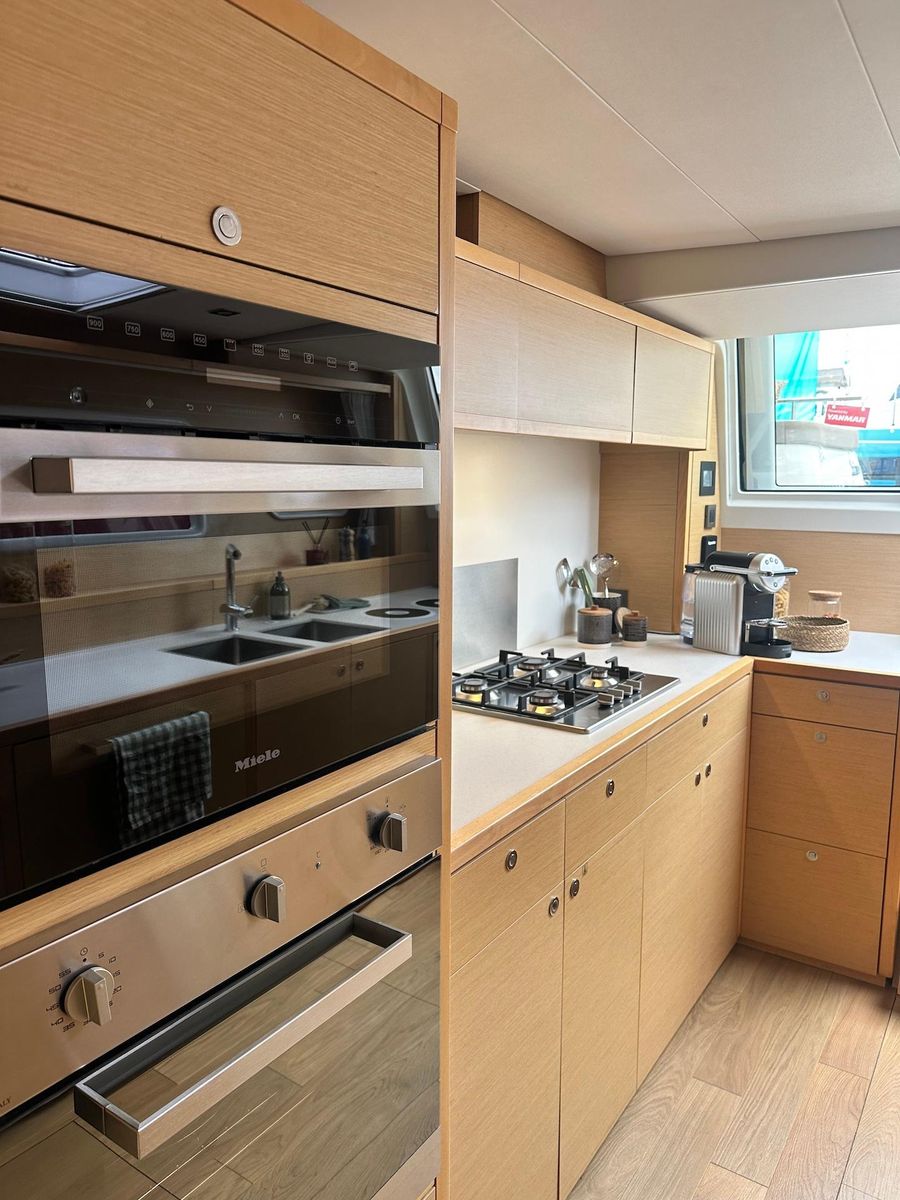

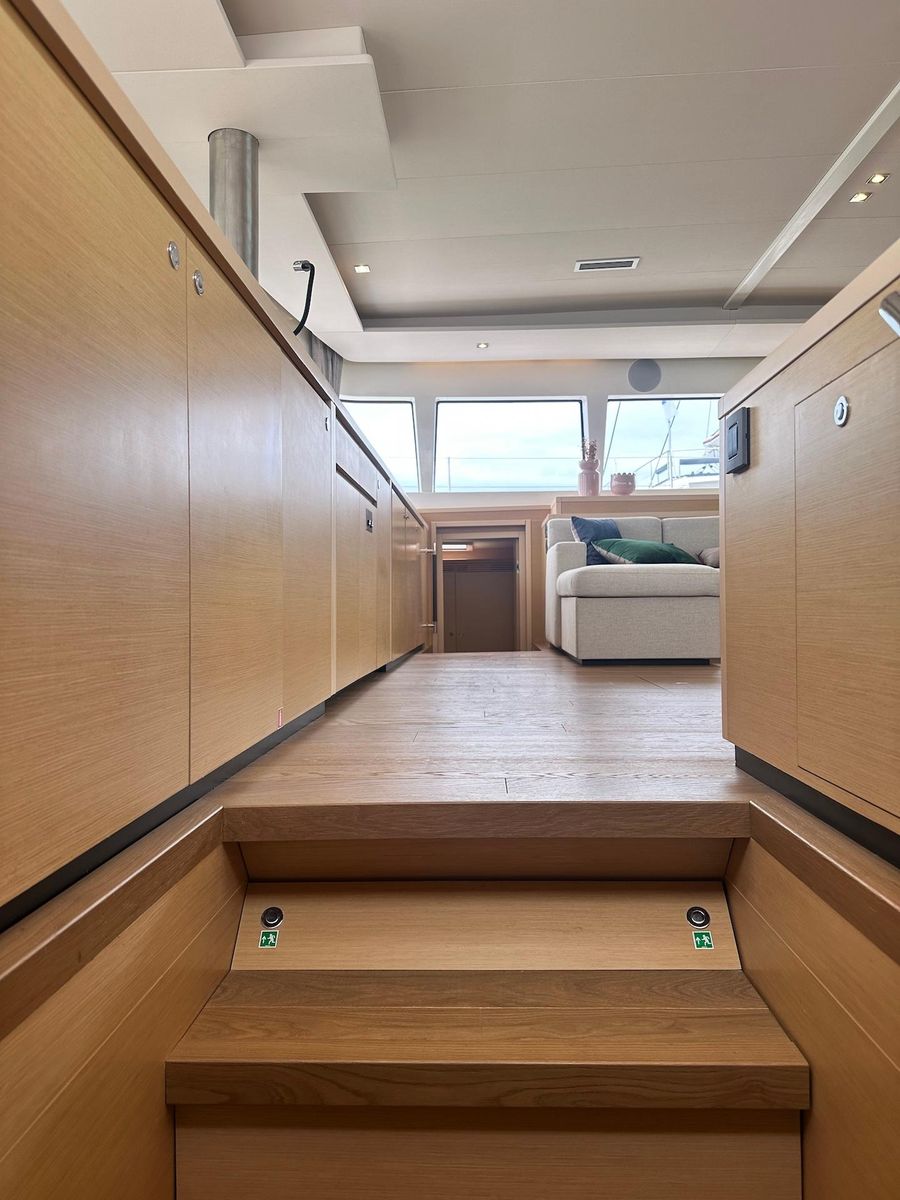

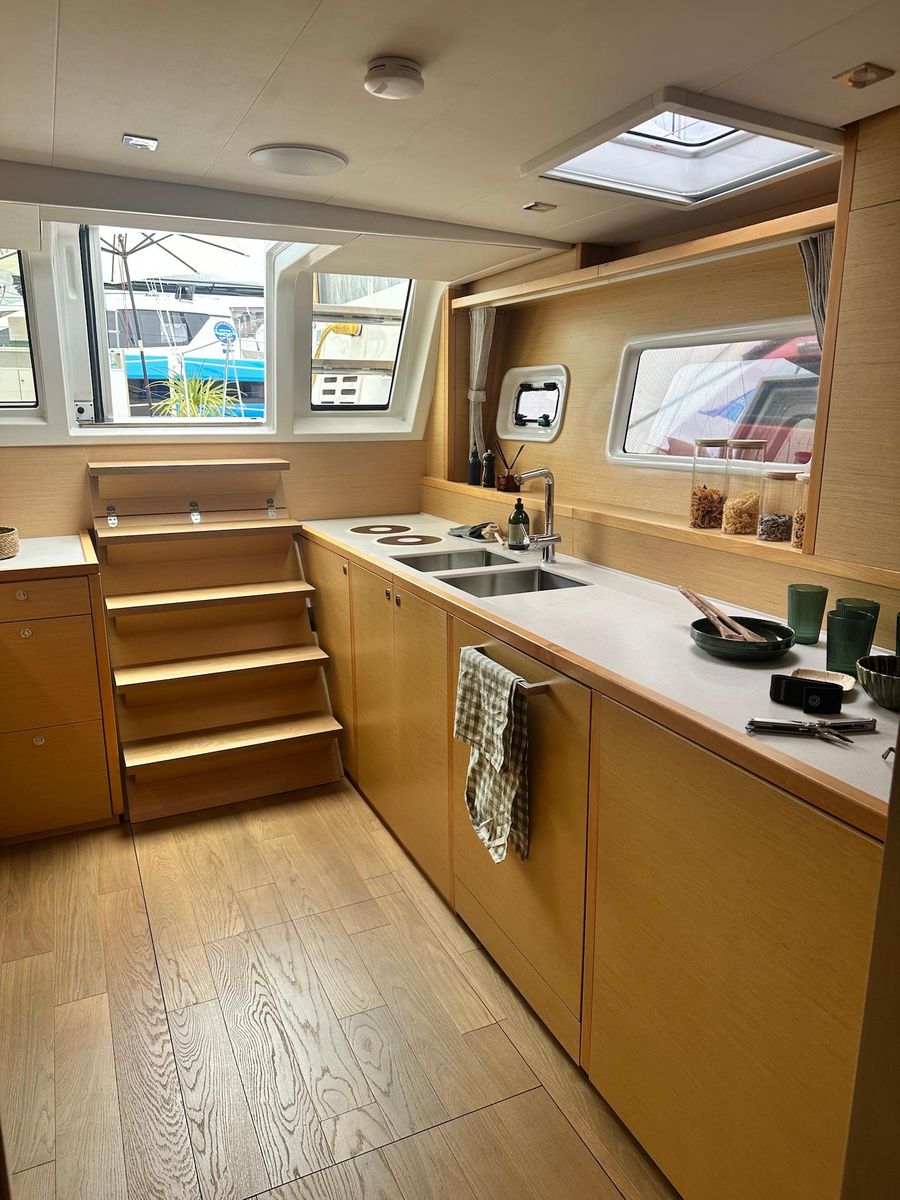

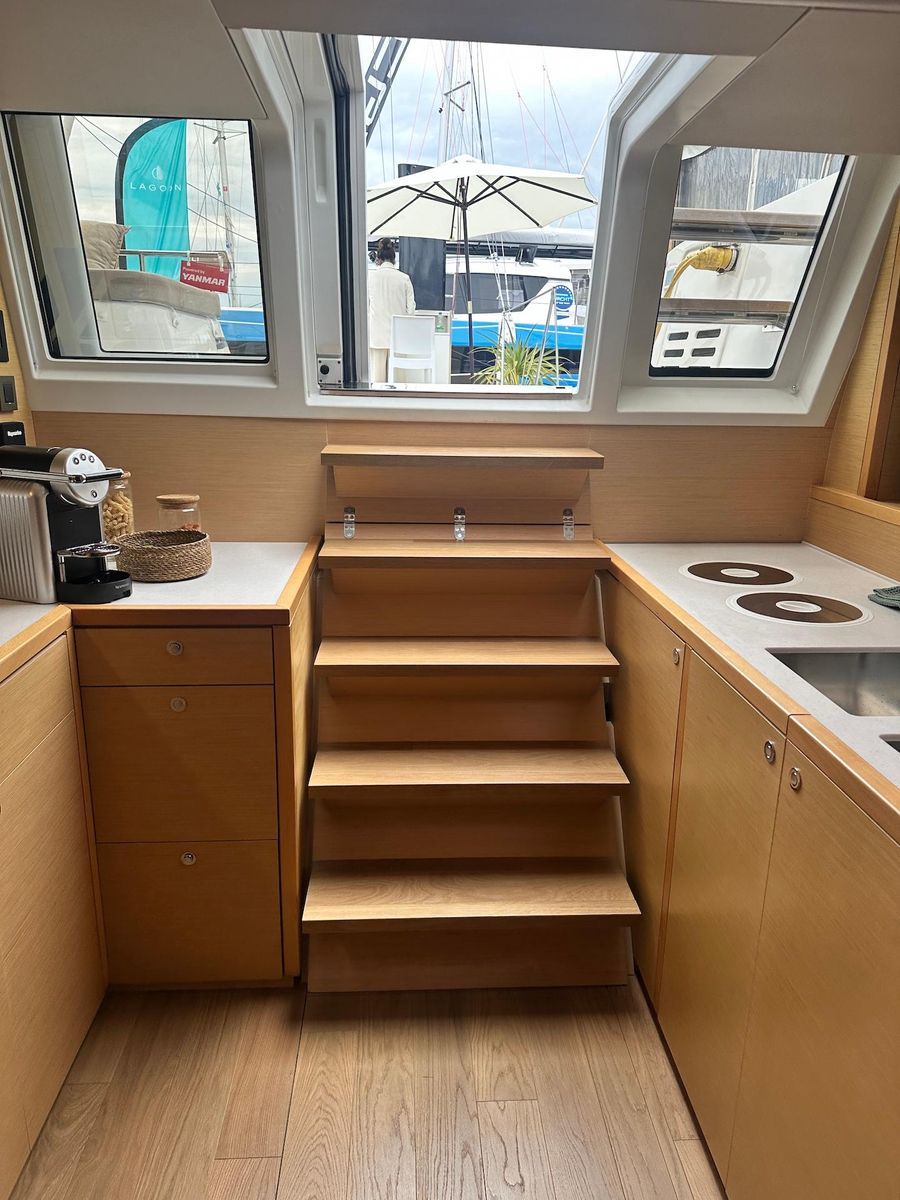

lateral galley
• Direct access from the aft cockpit
• Limestone Prima Corian® countertop - NEW
• Double stainless steel sink
• Hot/cold mixer tap - NEW
• Gas cooktop and oven - NEW
• Miele® Microwave oven - NEW
• Samsung® Fridge / Freezer 617L / 163 US gal 220V - NEW
• Miele® Dishwasher - NEW
• Siemens® Washer-Dryer - NEW
• 2x Bin caps 42L / 11 US gal - NEW
• High and low-level storage units

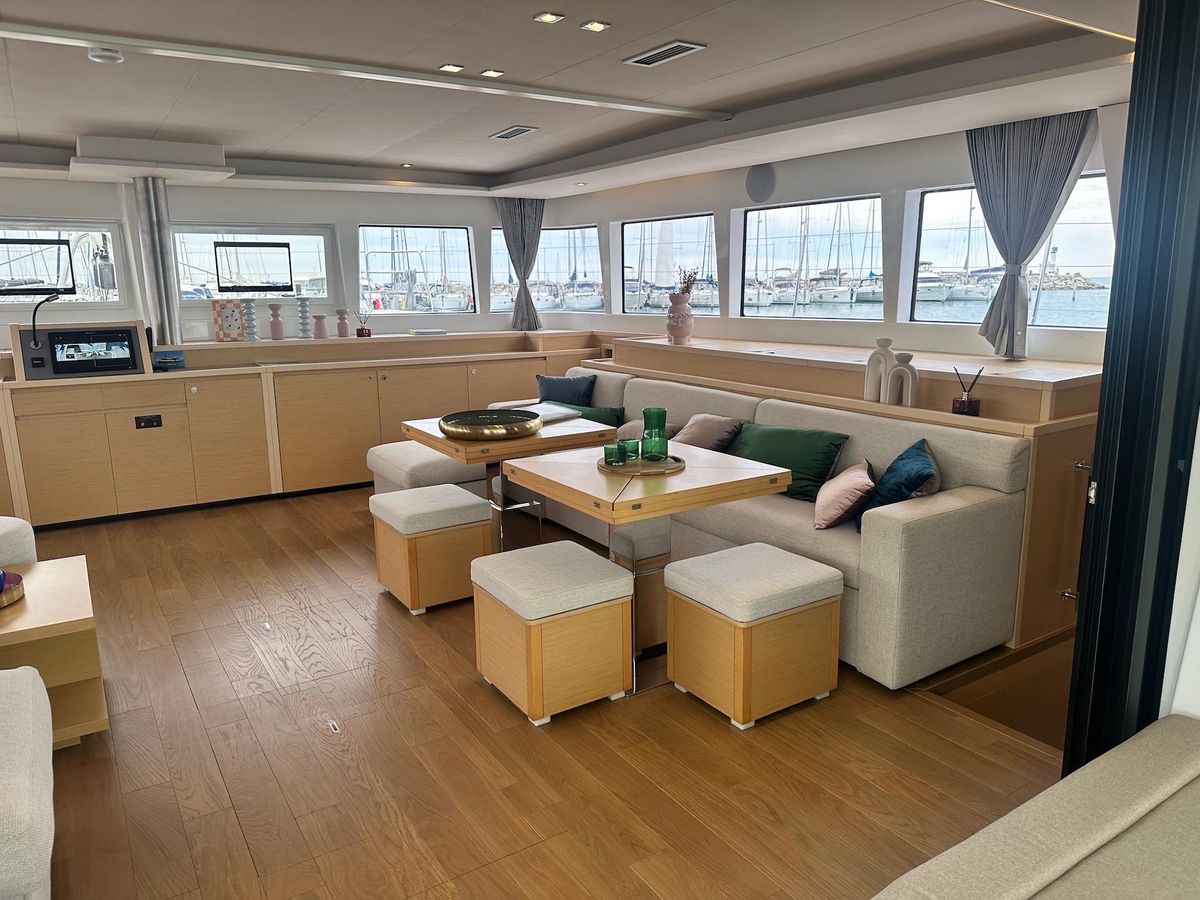

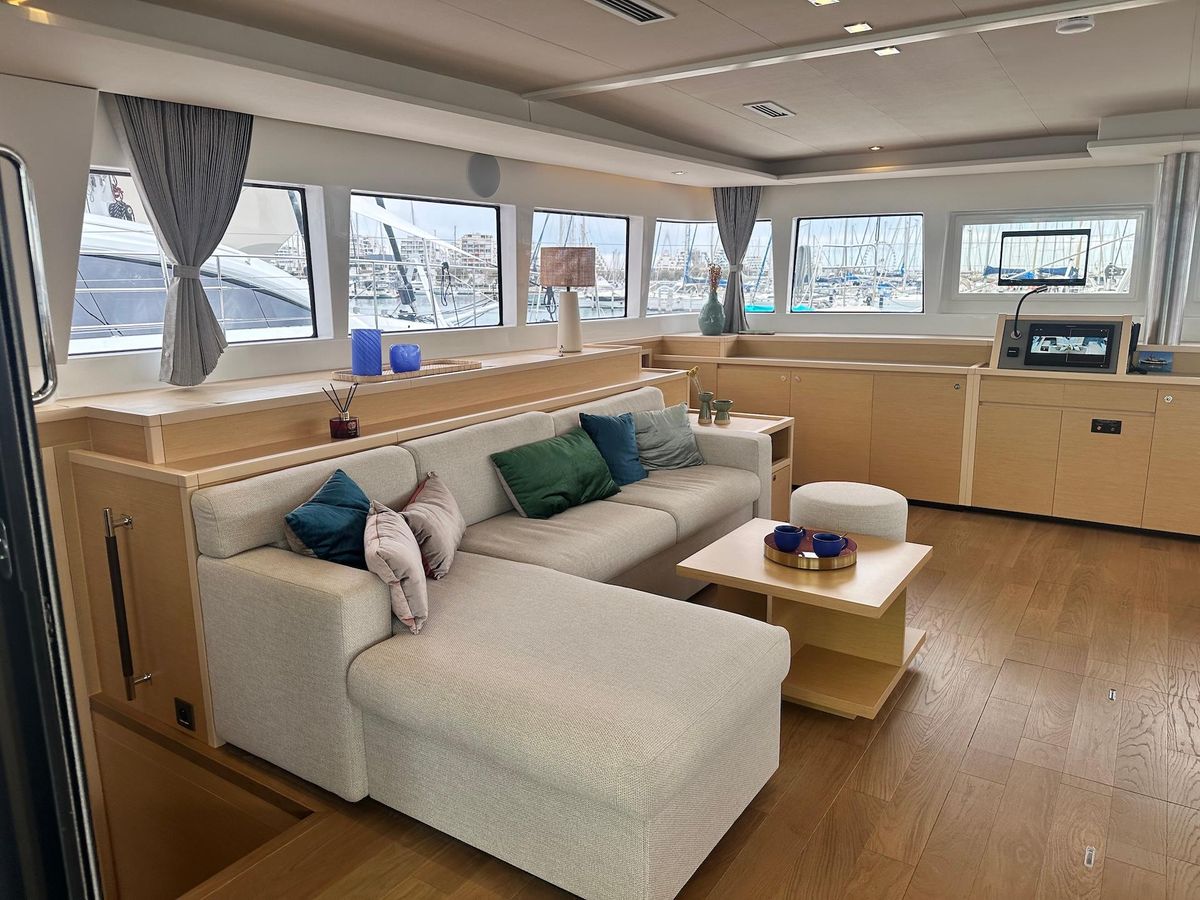

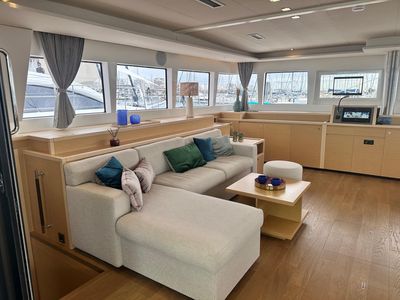

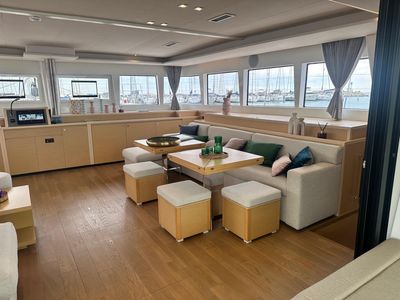

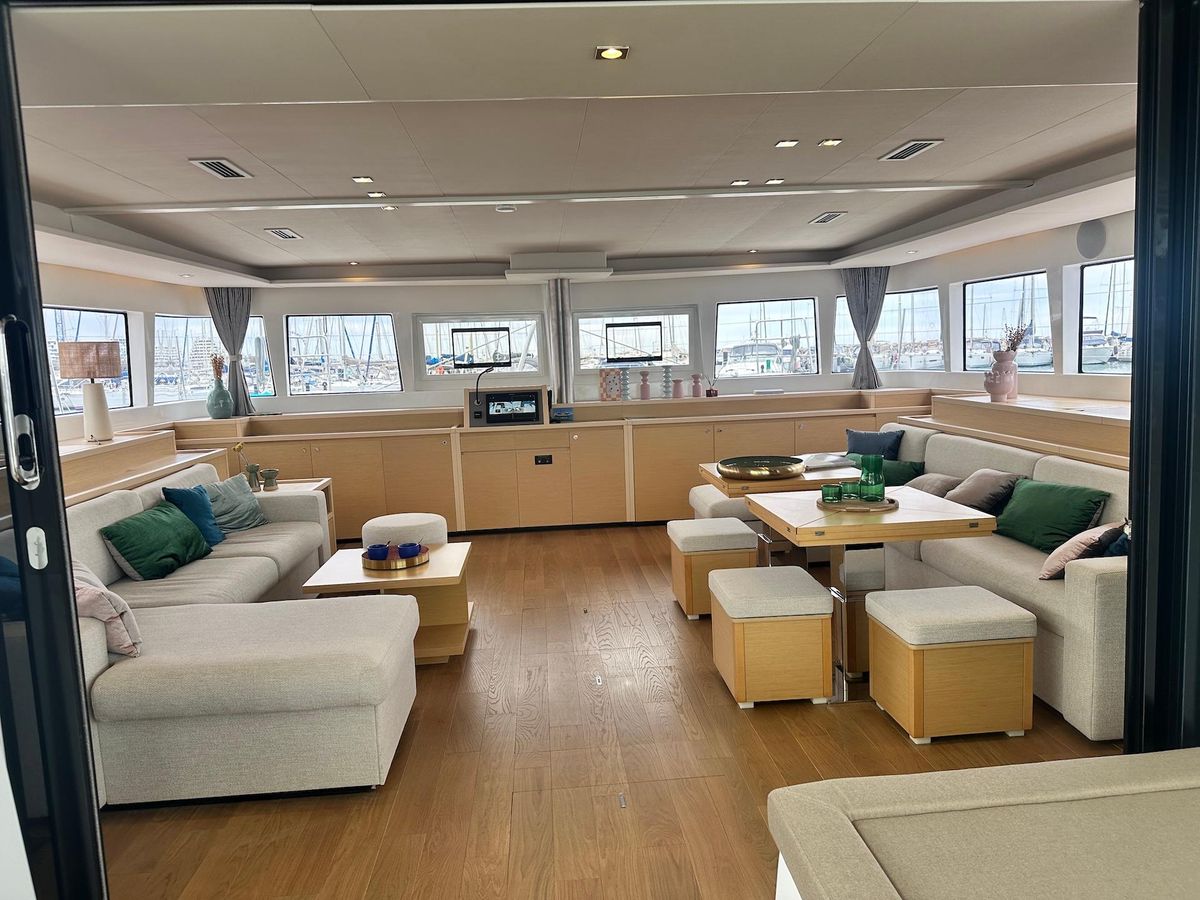

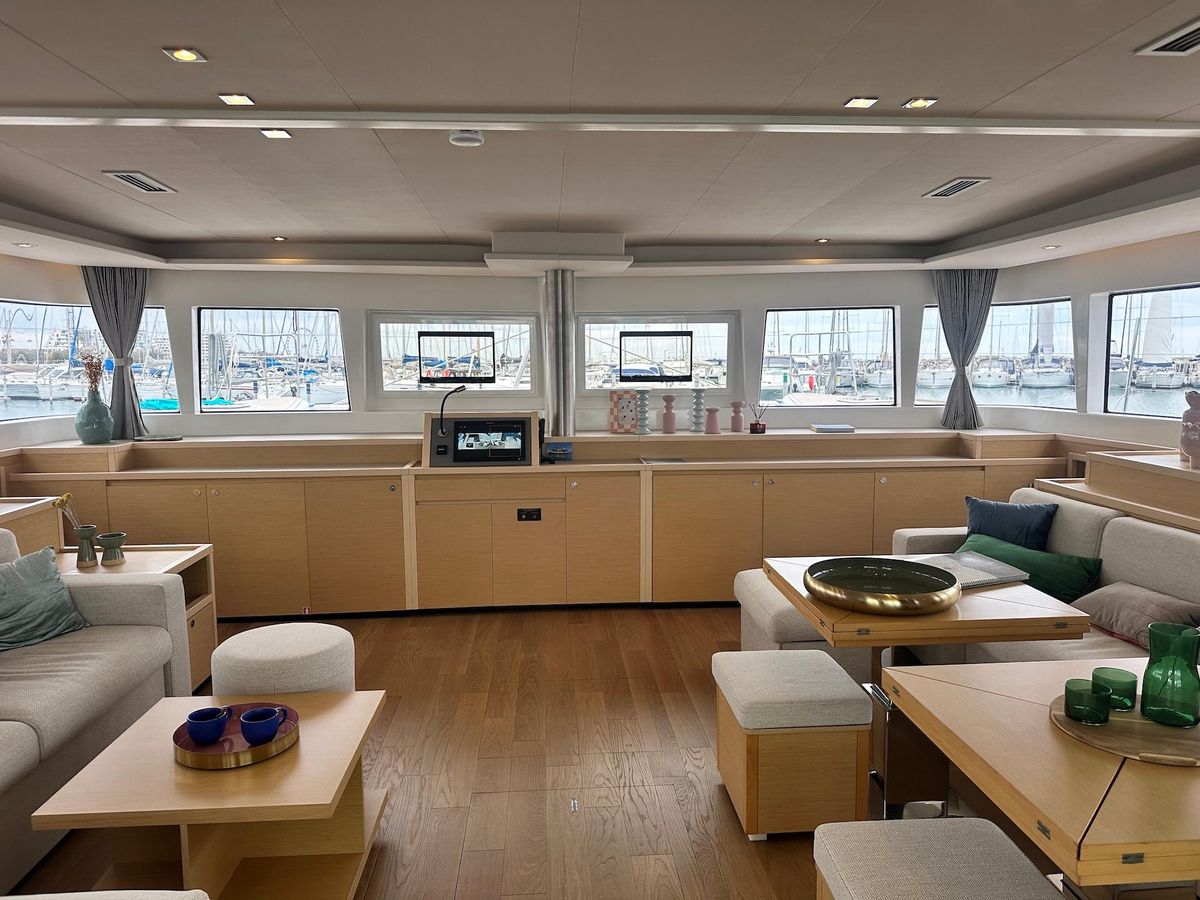

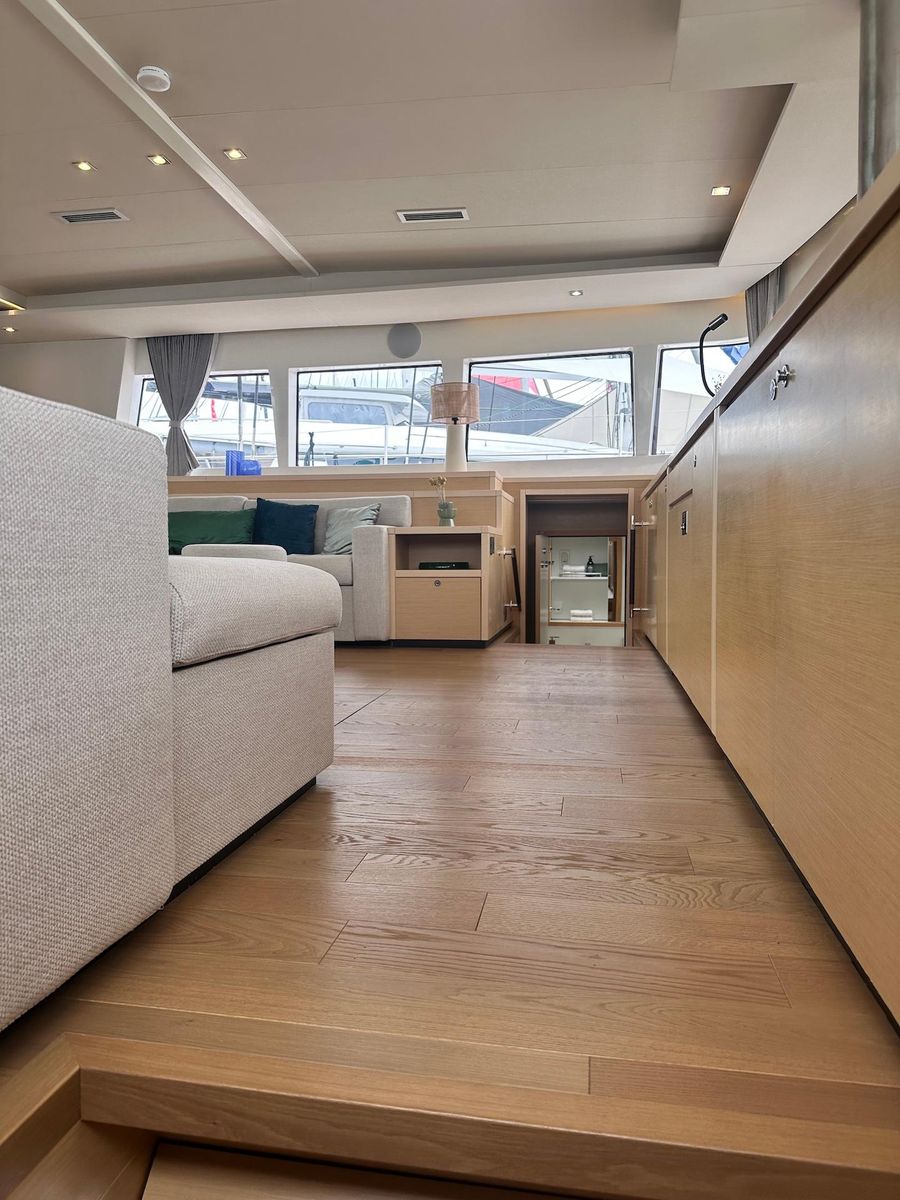

salon
• L-shaped benches
• High and low wooden tables

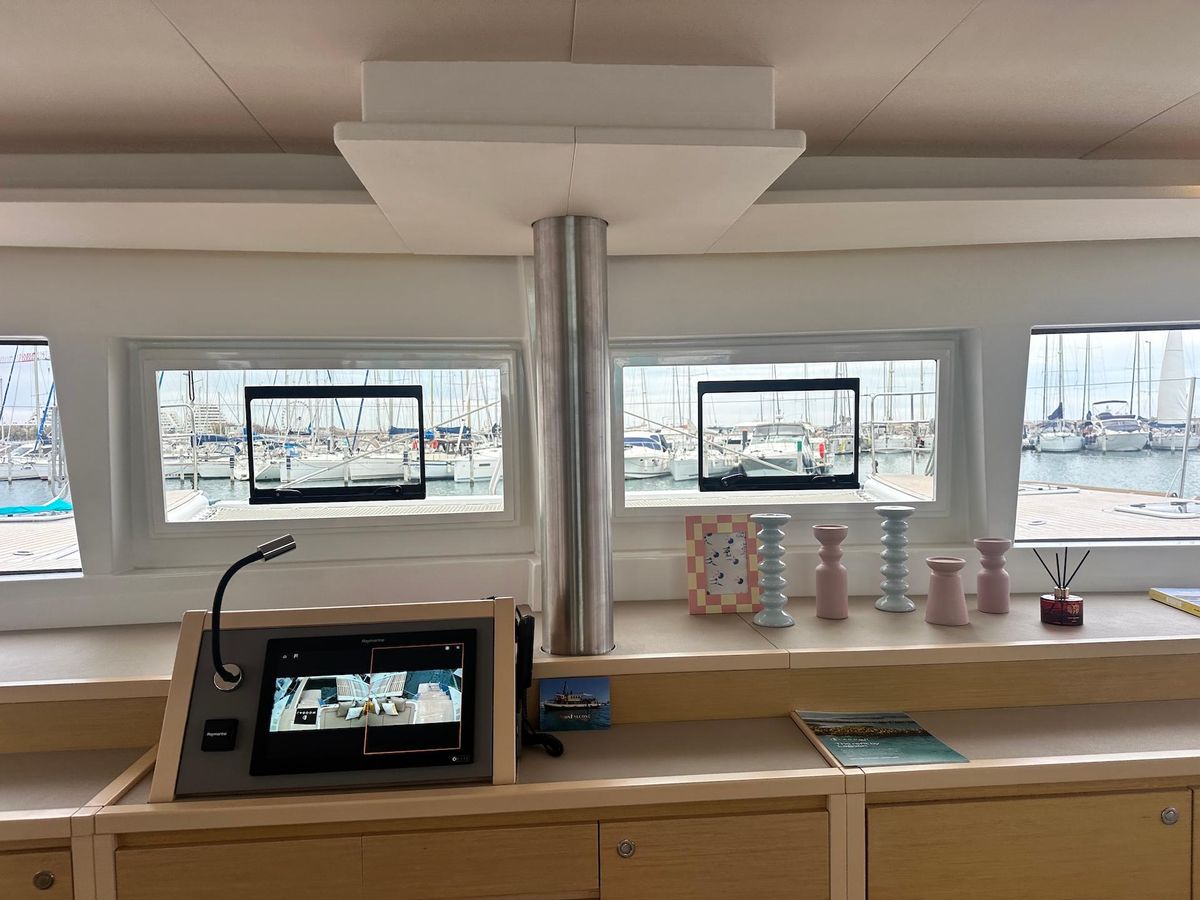

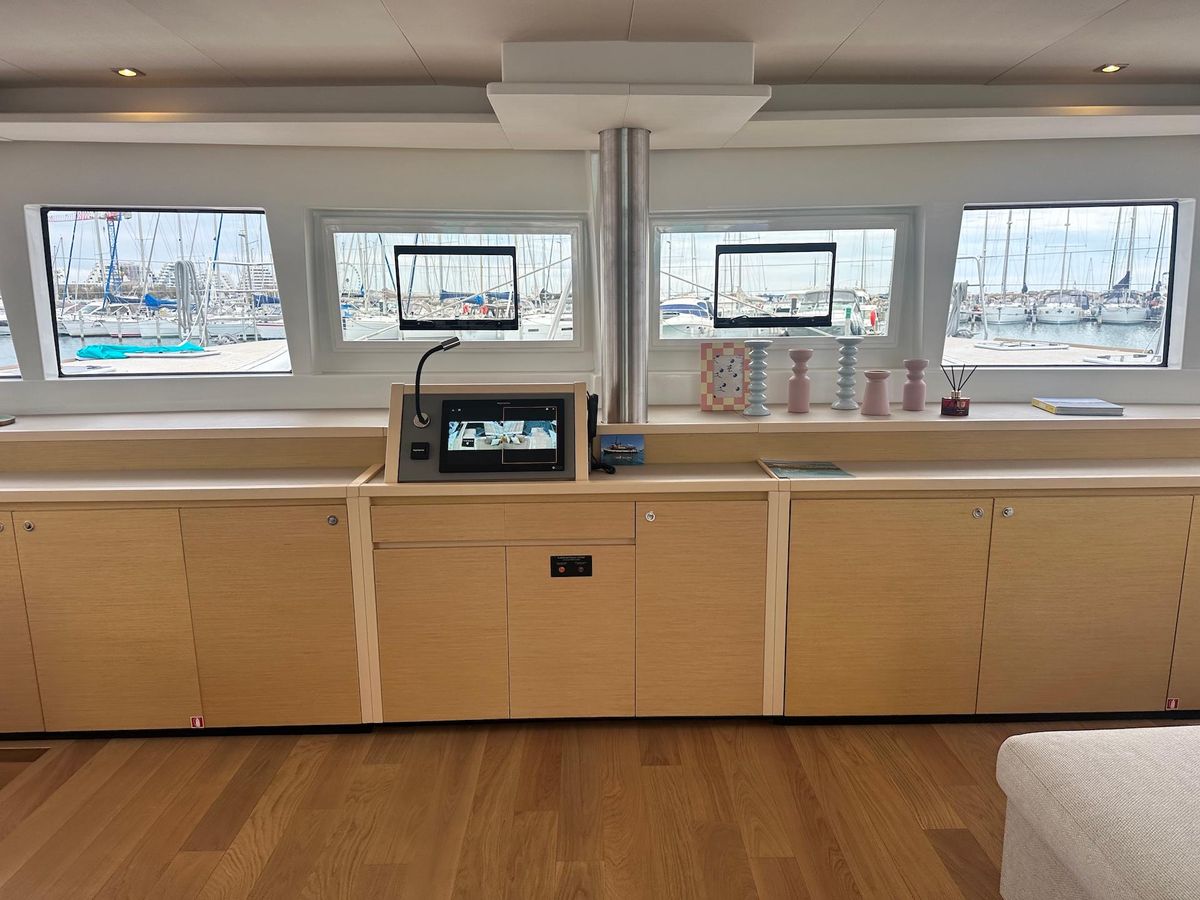

• Console with navigation instruments - NEW
• High and low storage units and bottle rack
• New front cockpit windows

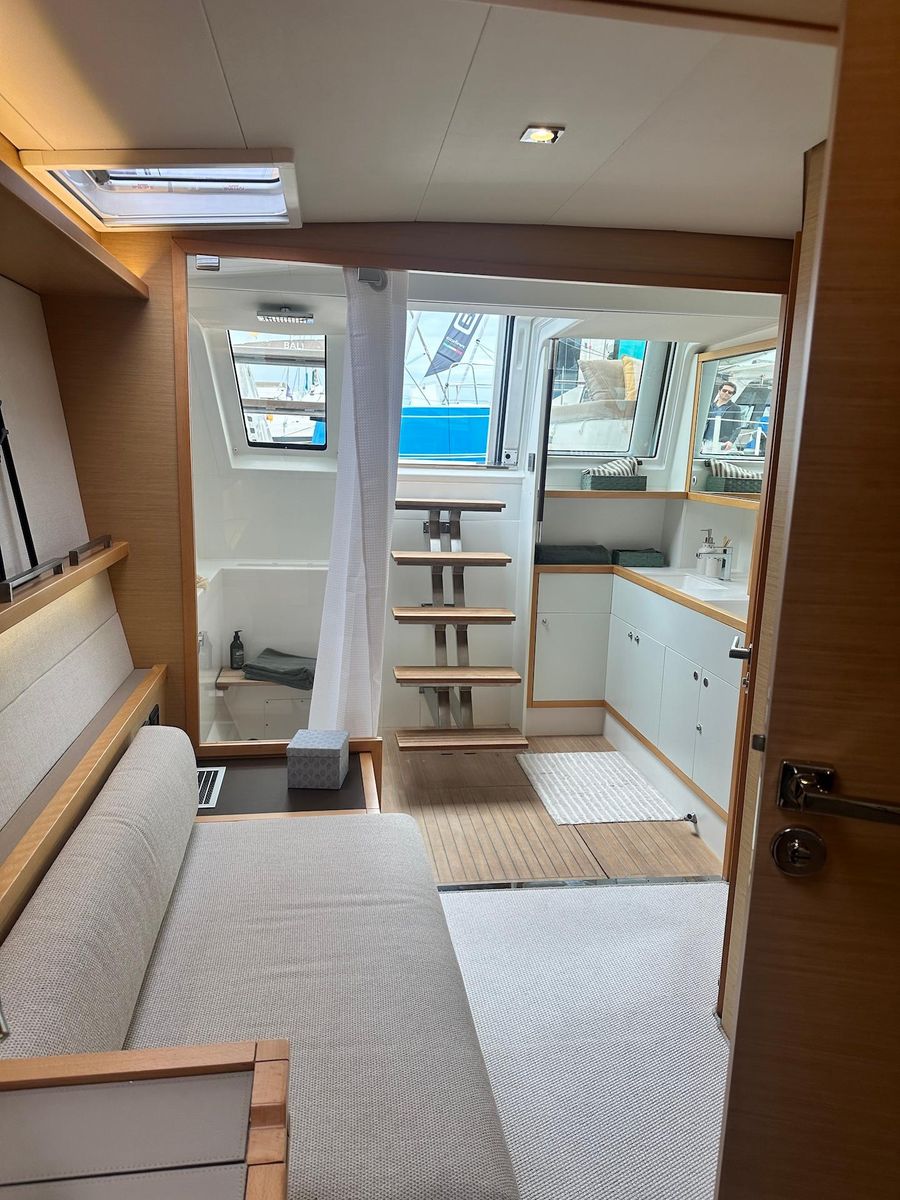

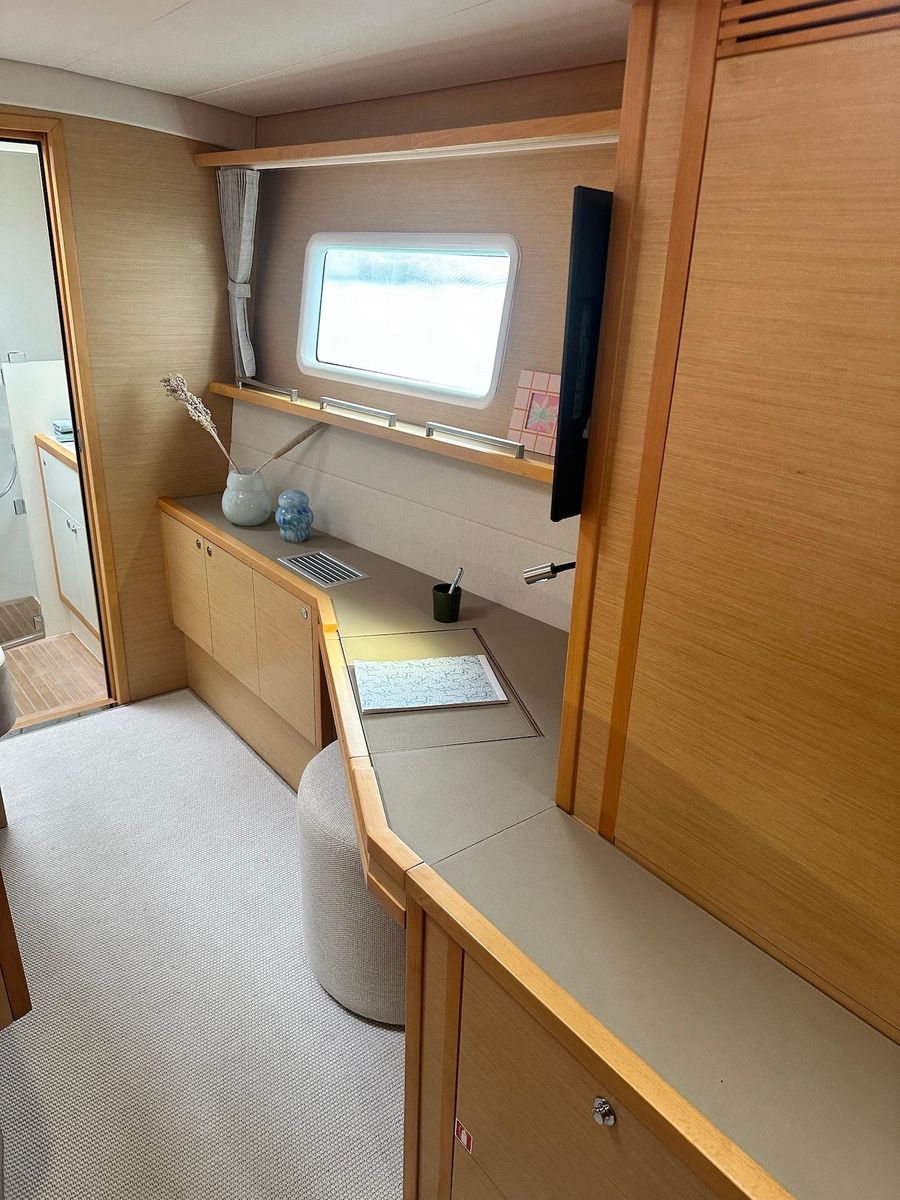

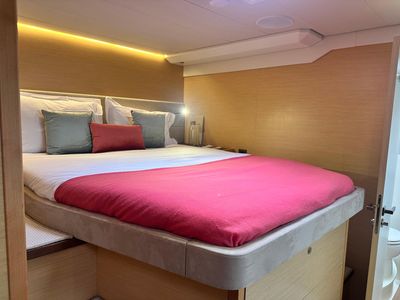

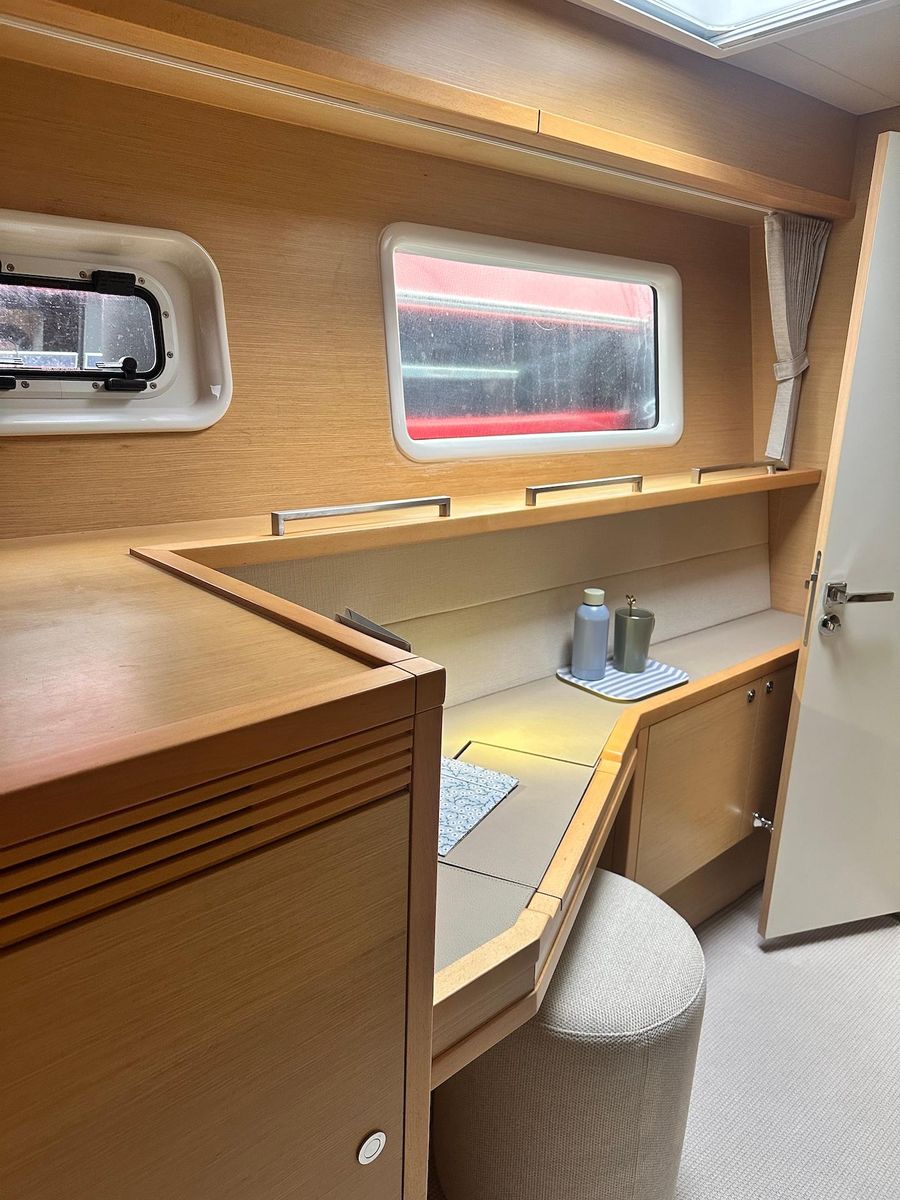

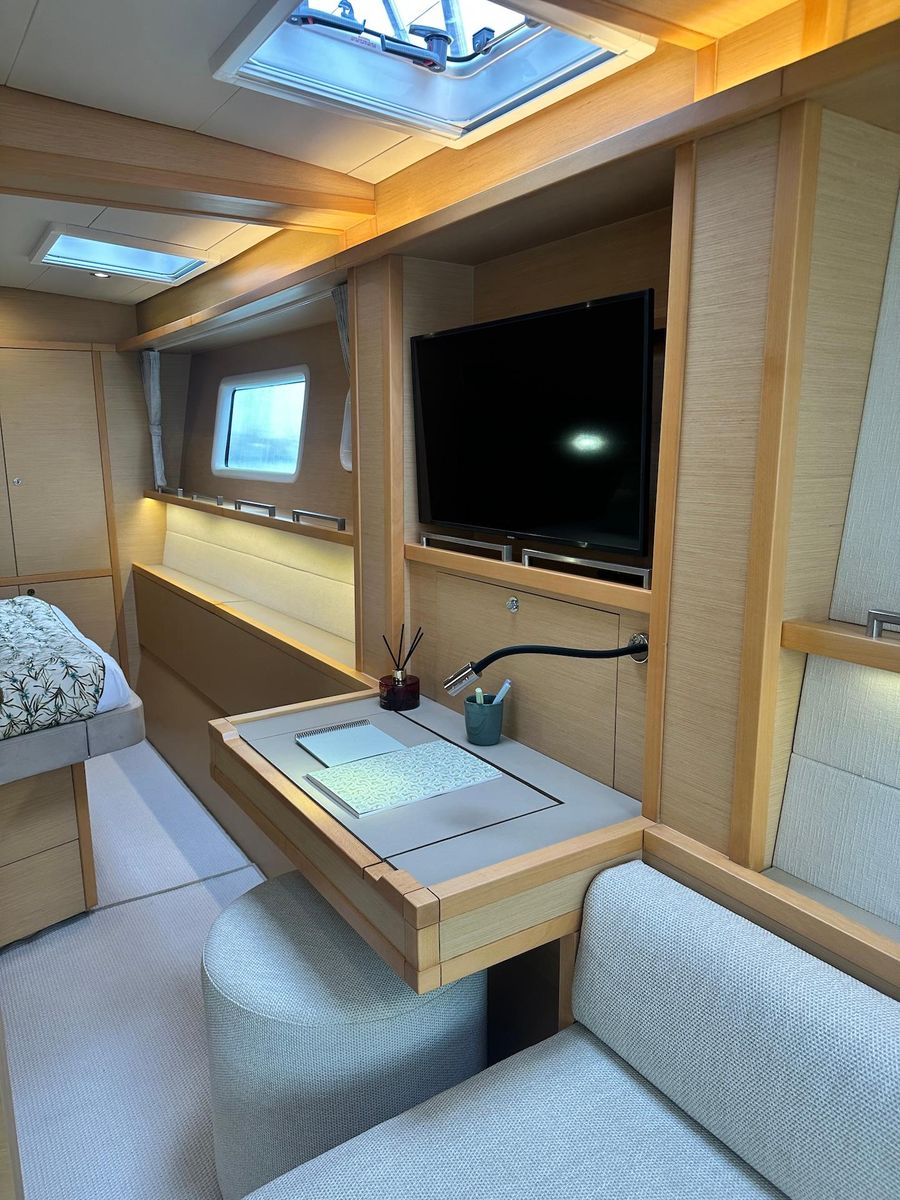

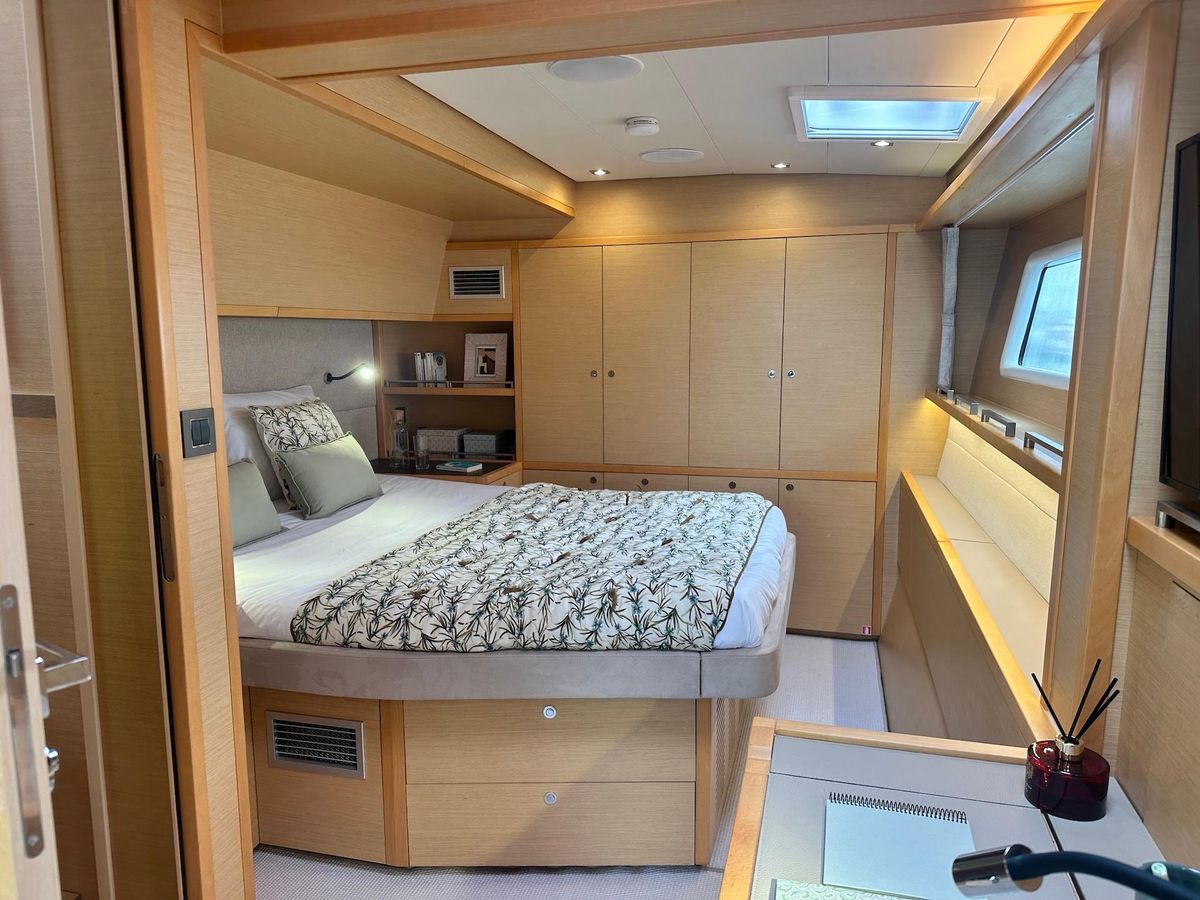

owner’s cabin
• Private access from the aft cockpit
• Double bed with lateral access (2,00 x 1,70 m / 6’7’’ x 5’7’’)
• Treated cellular foam mattress
• Bedside tables
• Under bed storage
• Storage units with shelves, drawers and wardrobe
• Desk with 1 stool
• T10 and T44 opening flush deck hatches - NEW
• Fixed hull window in PMMA with integrated opening portholes and roller blinds - NEW
owner’s head
• Private access from the Owner’s cabin
• Corian® countertop
• Integrated sink with hot/cold mixer tap
• High and low-level storage units
• Separated shower with PMMA door
• Separate electric toilet with storage space
• T44 and T10 opening flush deck hatches - NEW
• Fixed hull window in PMMA with integrated opening porthole and roller blinds - NEW

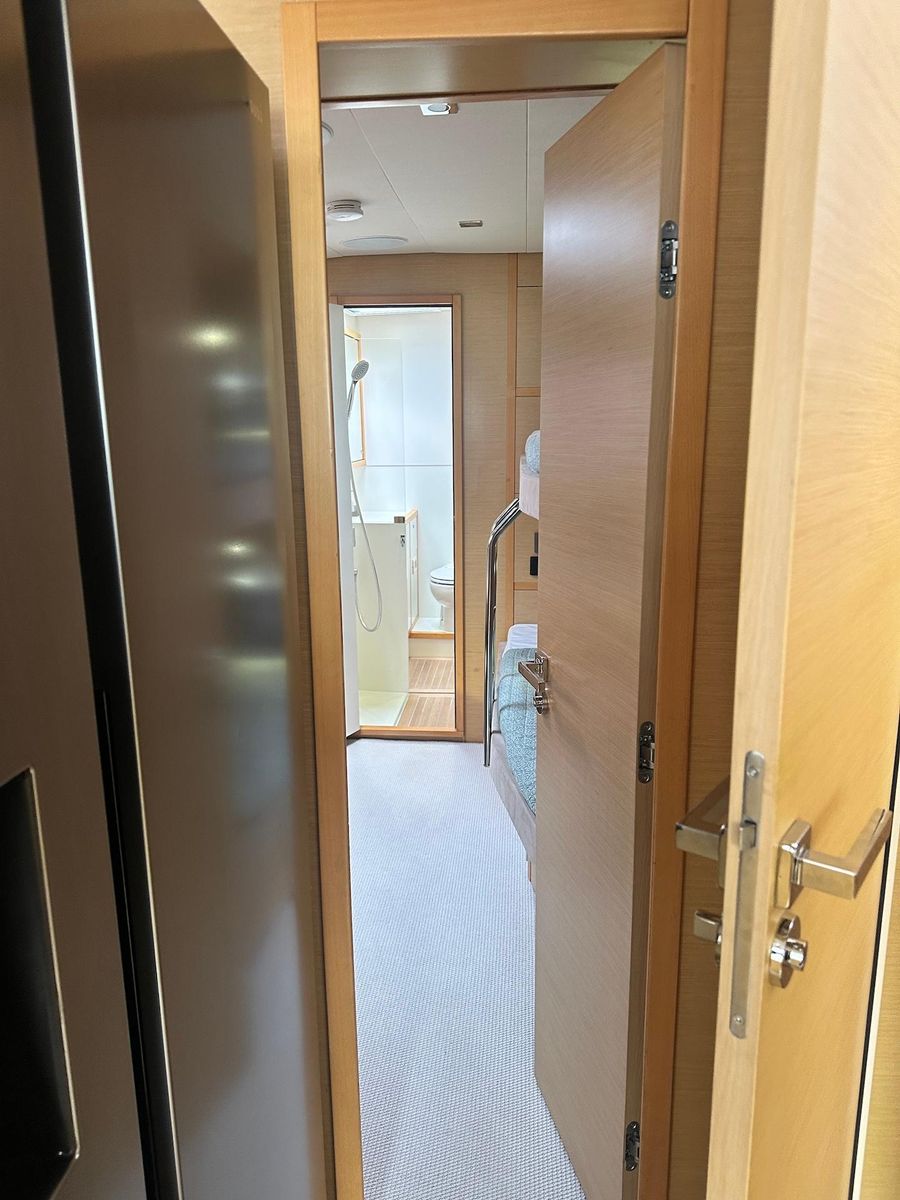

lateral cabin
• Modular single beds (2,00 x 0,85 m / 6’7’’ x 2’9’’)
• Treated cellular foam mattress
• Bedside table
• Storage units with shelves and wardrobe
• T44 opening flush deck hatches - NEW
• Fixed hull window in PMMA with integrated opening porthole - NEW
and roller blinds

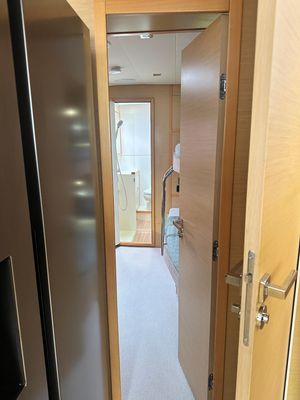

• Private access to the dedicated head

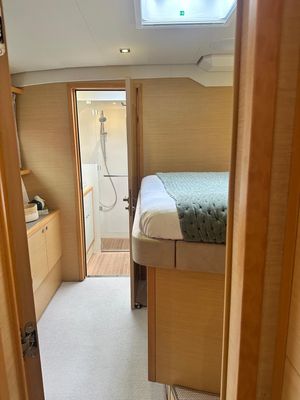

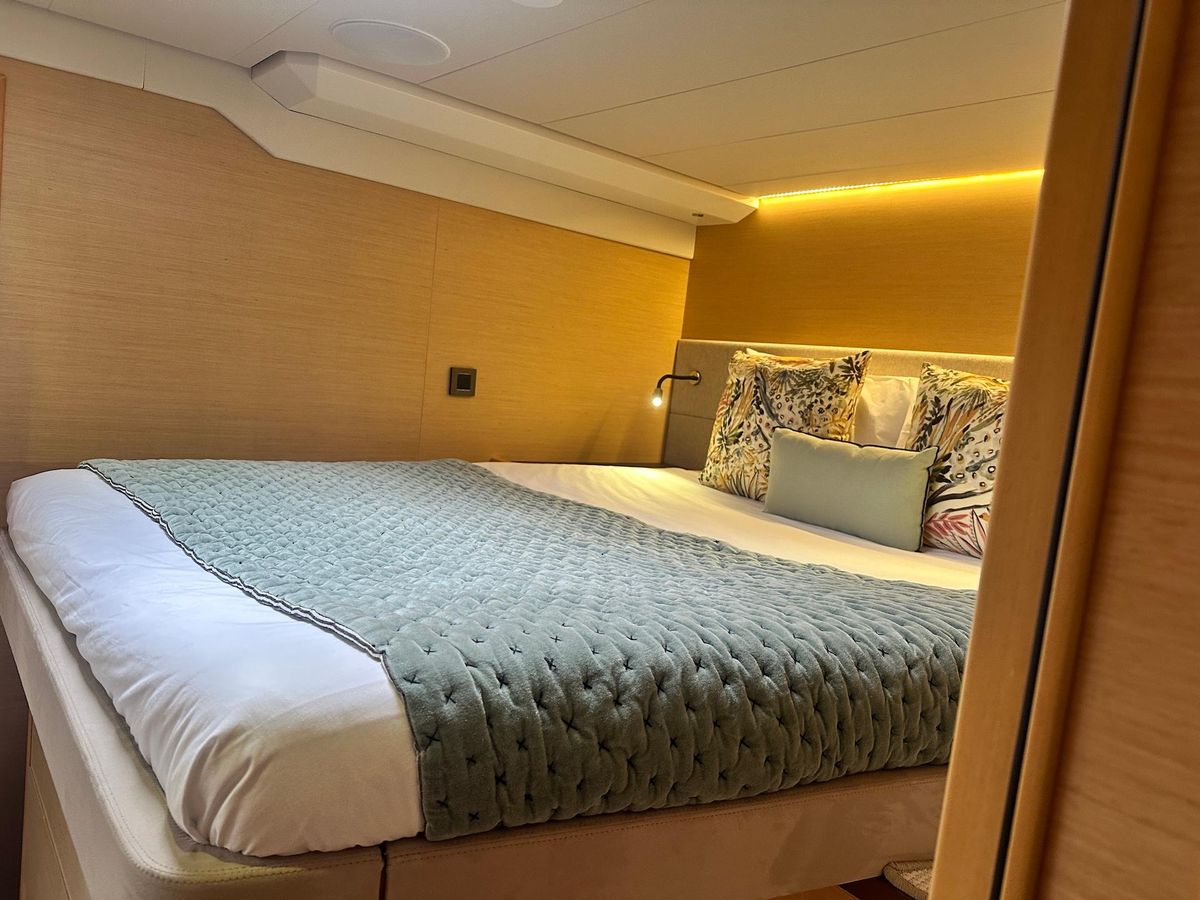

forward cabins
• Double bed with lateral access (2,00 x 1,60 m / 6’7’’ x 5’3’’)
• Treated cellular foam mattress
• Bedside shelves
• Under bed storage
• Storage units with shelves, drawers and wardrobe
• T44 and T10 opening flush deck hatches - NEW
• Fixed hull window in PMMA with integrated opening portholes and roller blind - NEW
• Private access to the dedicated head

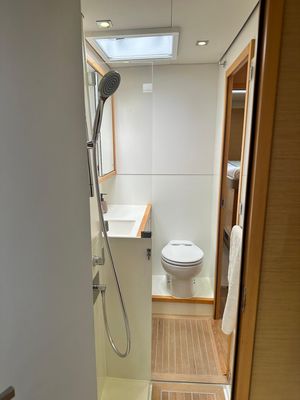

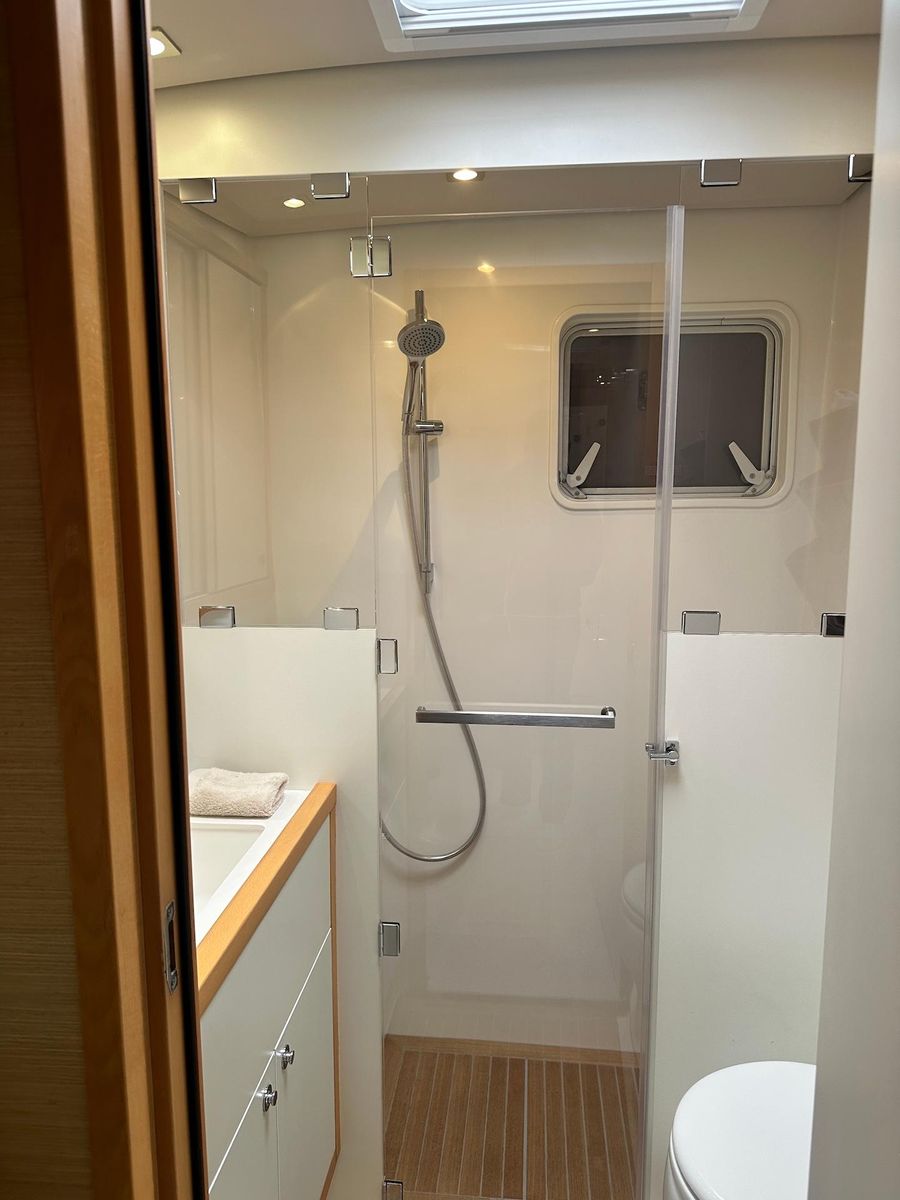

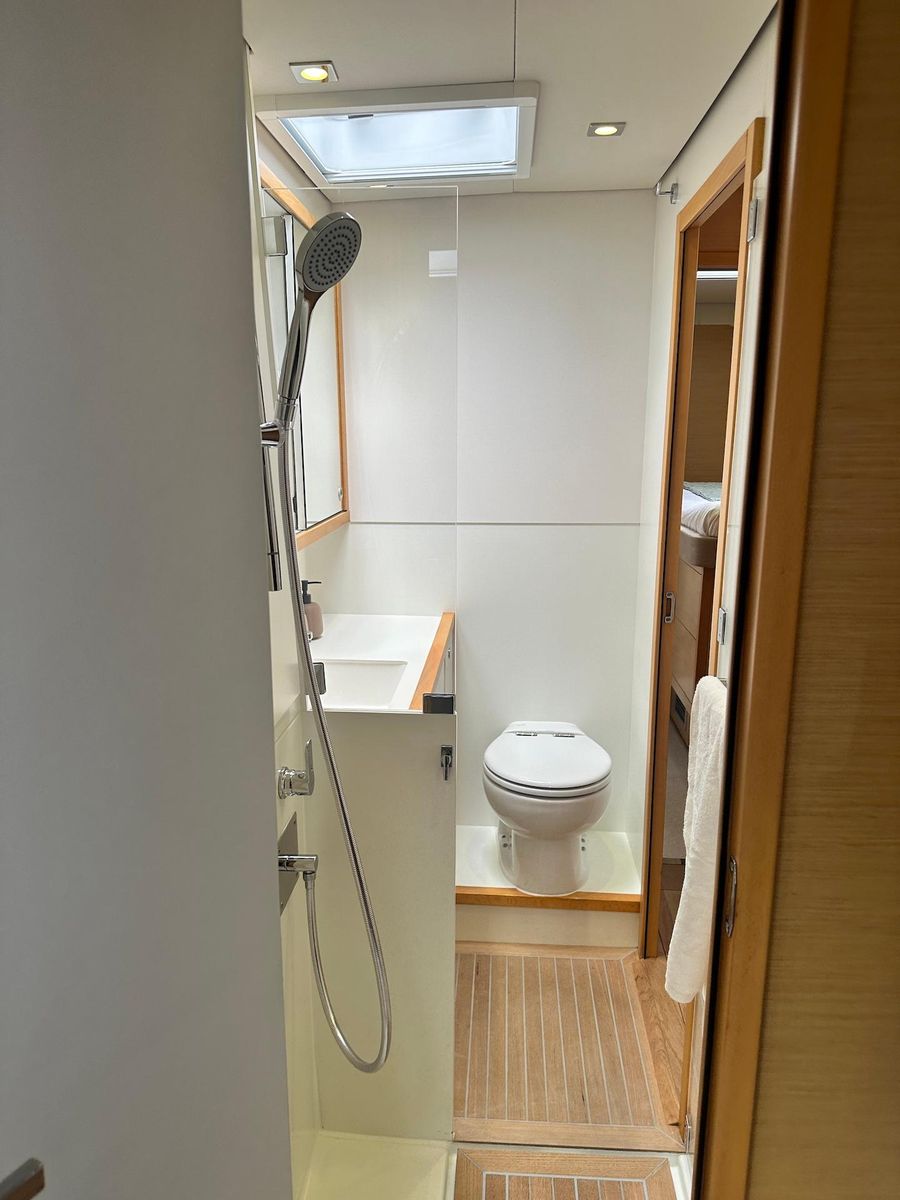

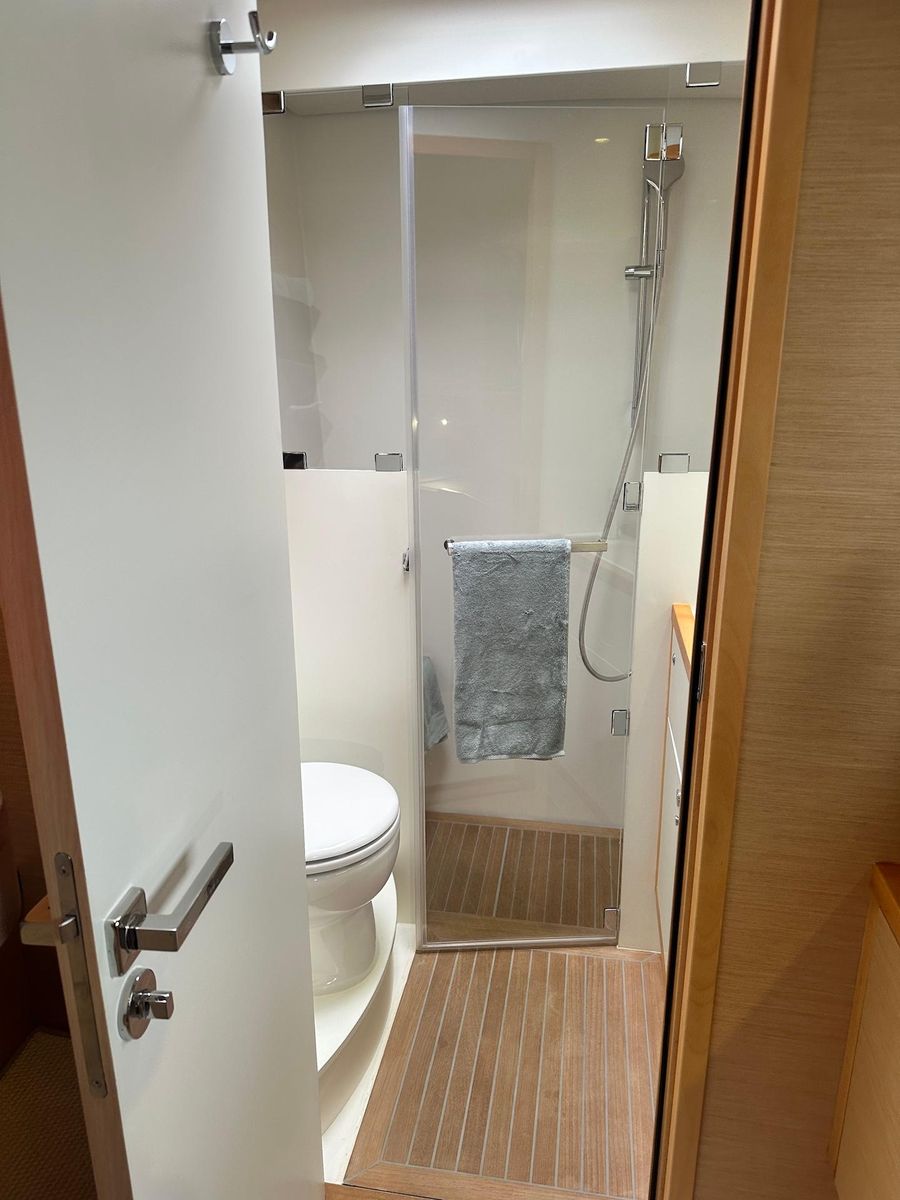

heads
• Corian® countertop
• Integrated sink with hot / cold mixer tap
• High and low-level storage units
• Separated shower with PMMA door
• Electrical toilet
• T10 or T44 opening flush deck hatch (depending on the head) - NEW
• Fixed hull window in PMMA – NEW
