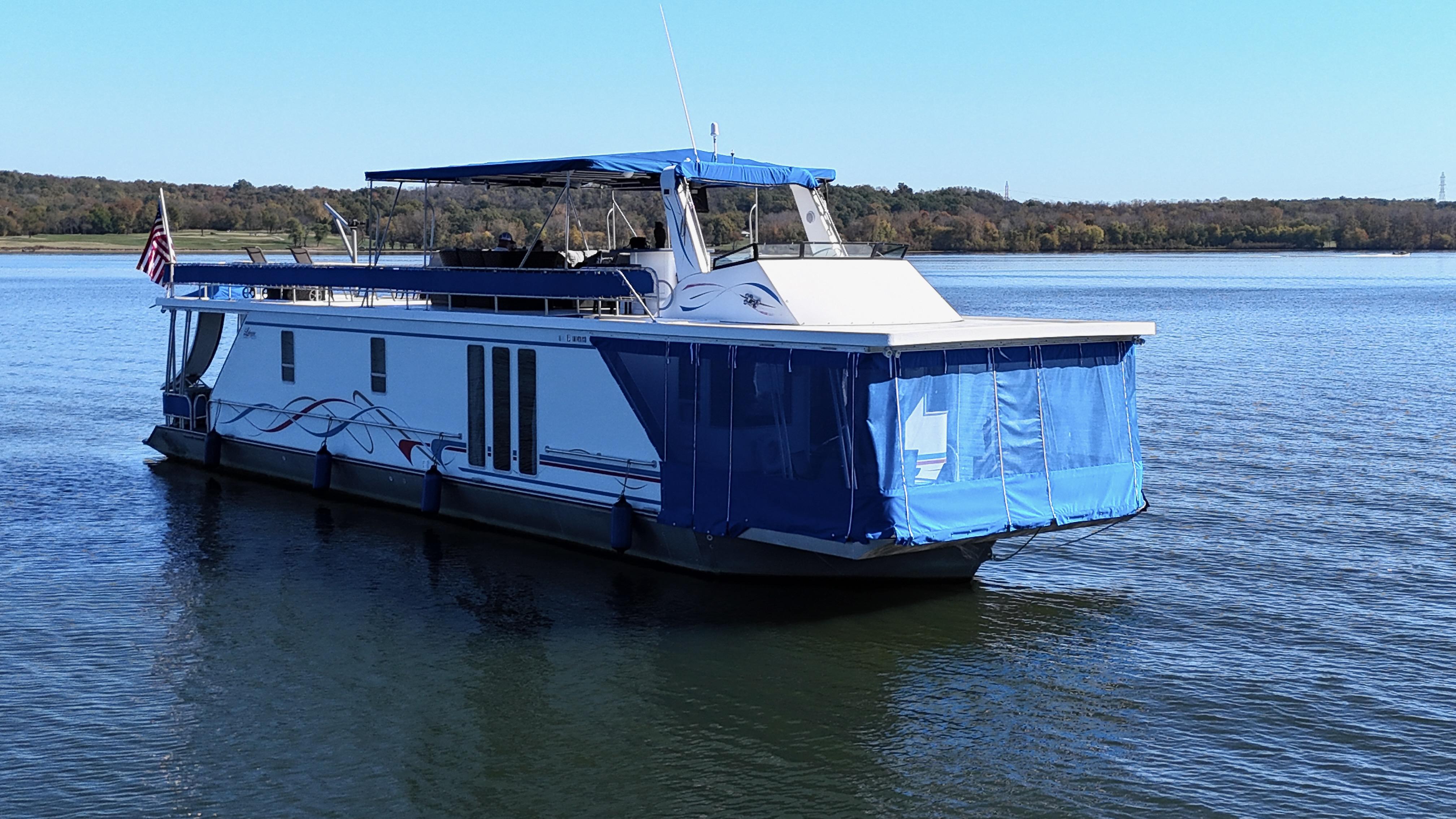

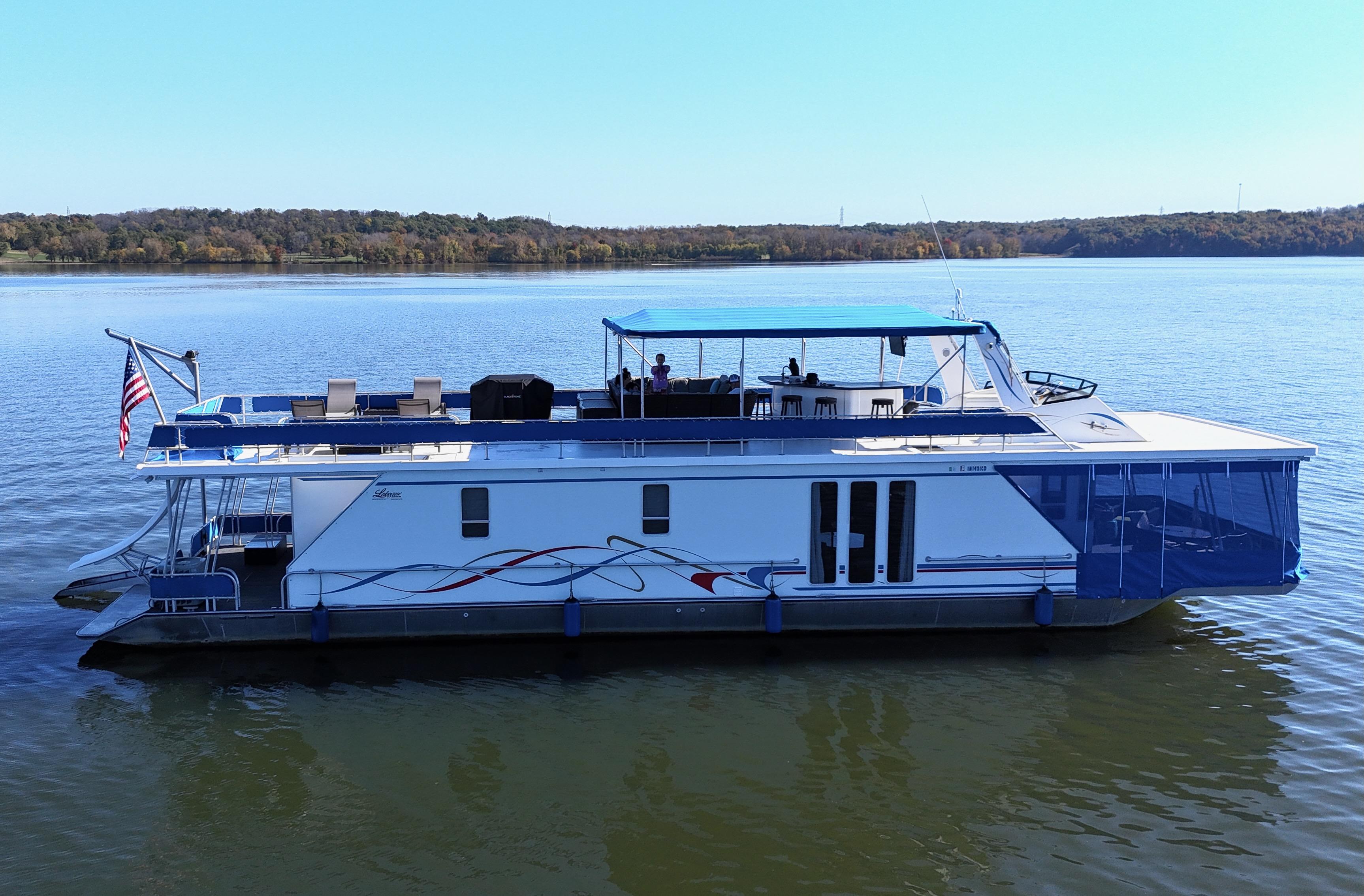

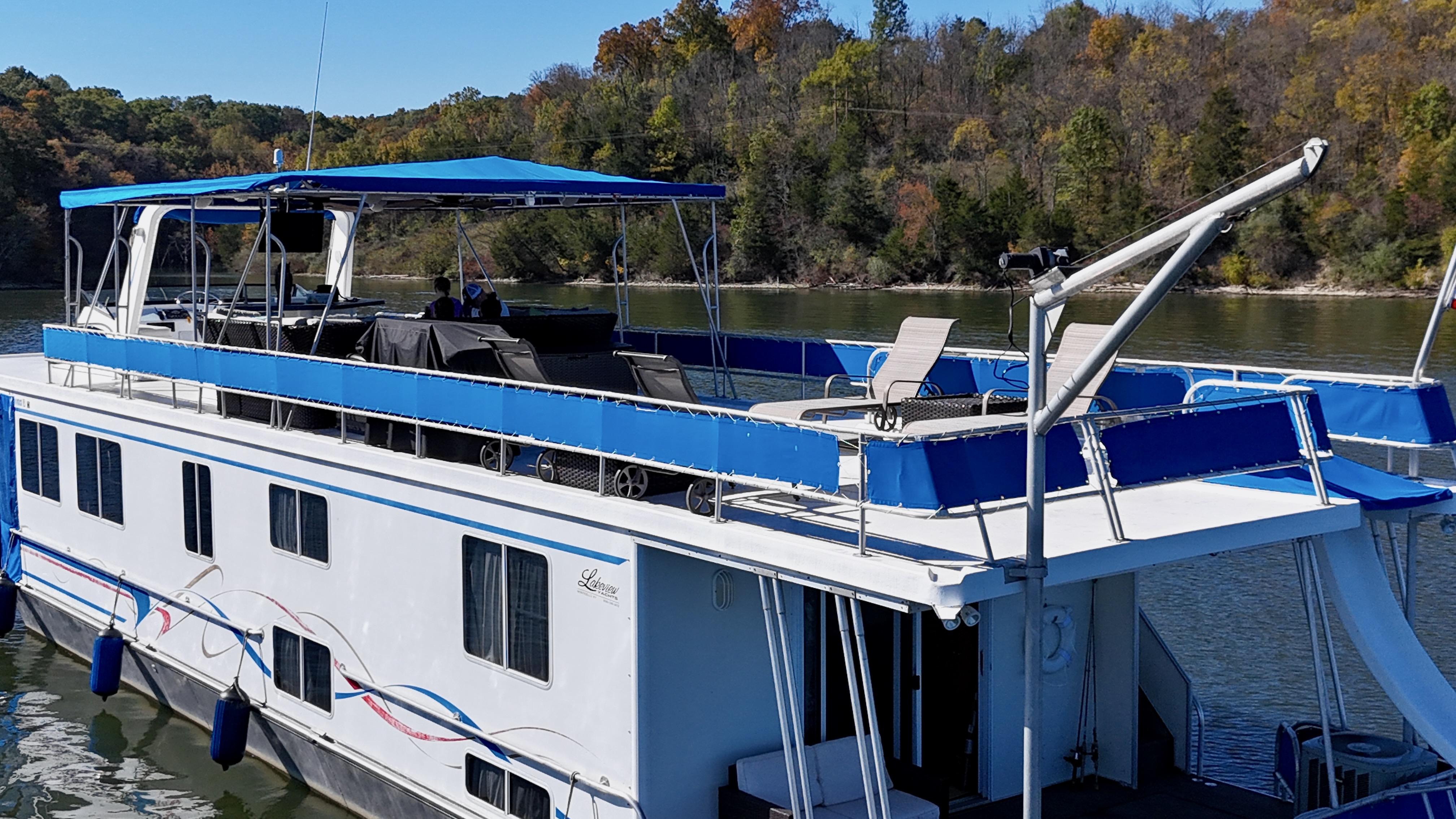

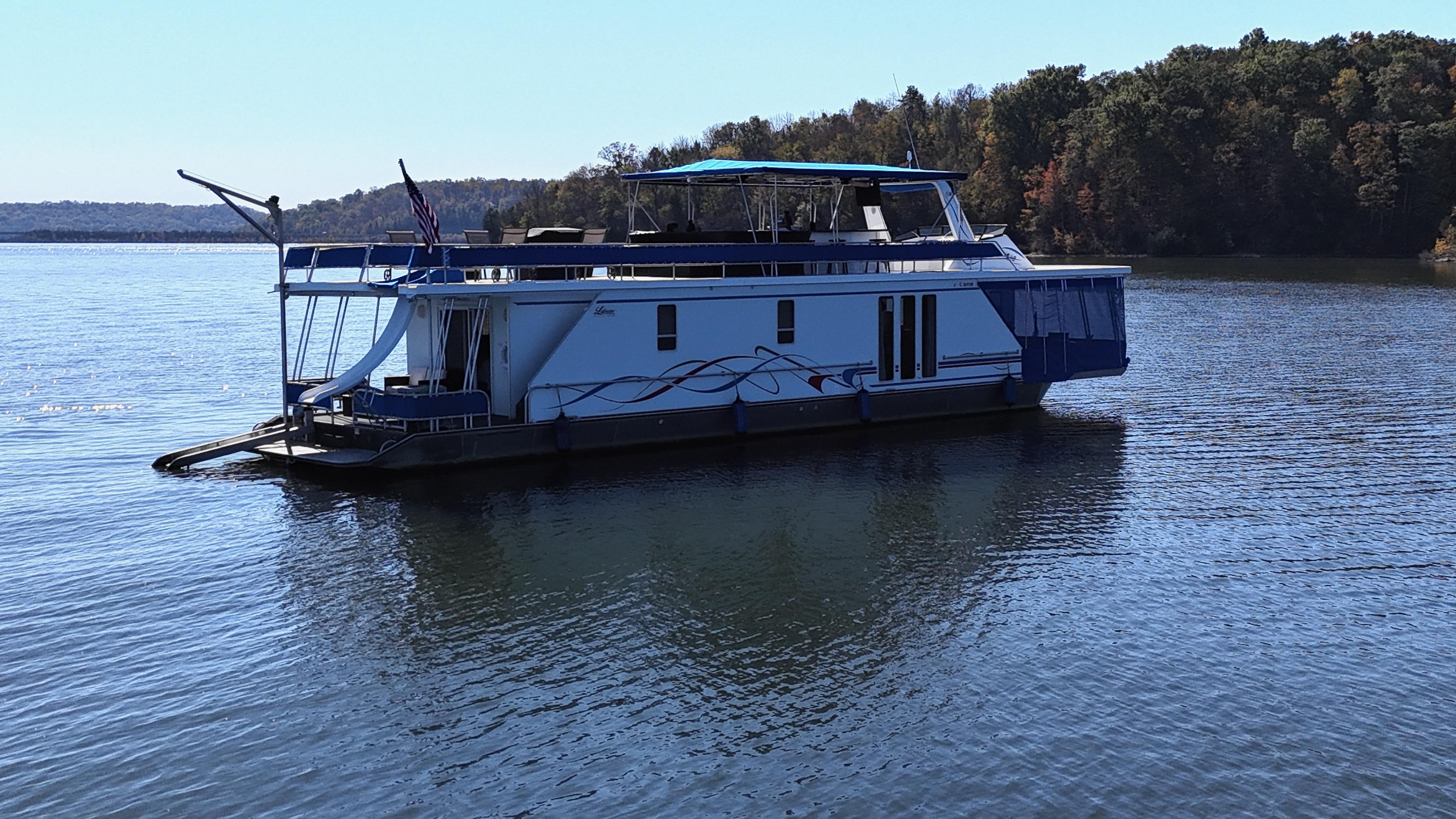

2006 Lakeview WidebodyGeneral Information
Manufacturer: Lakeview Yachts
Year Built: 2006/2024
Dimensions: 16’ wide X 70’ LOA (wide-body style)
Construction: Aluminum hull / Fully insulated interior

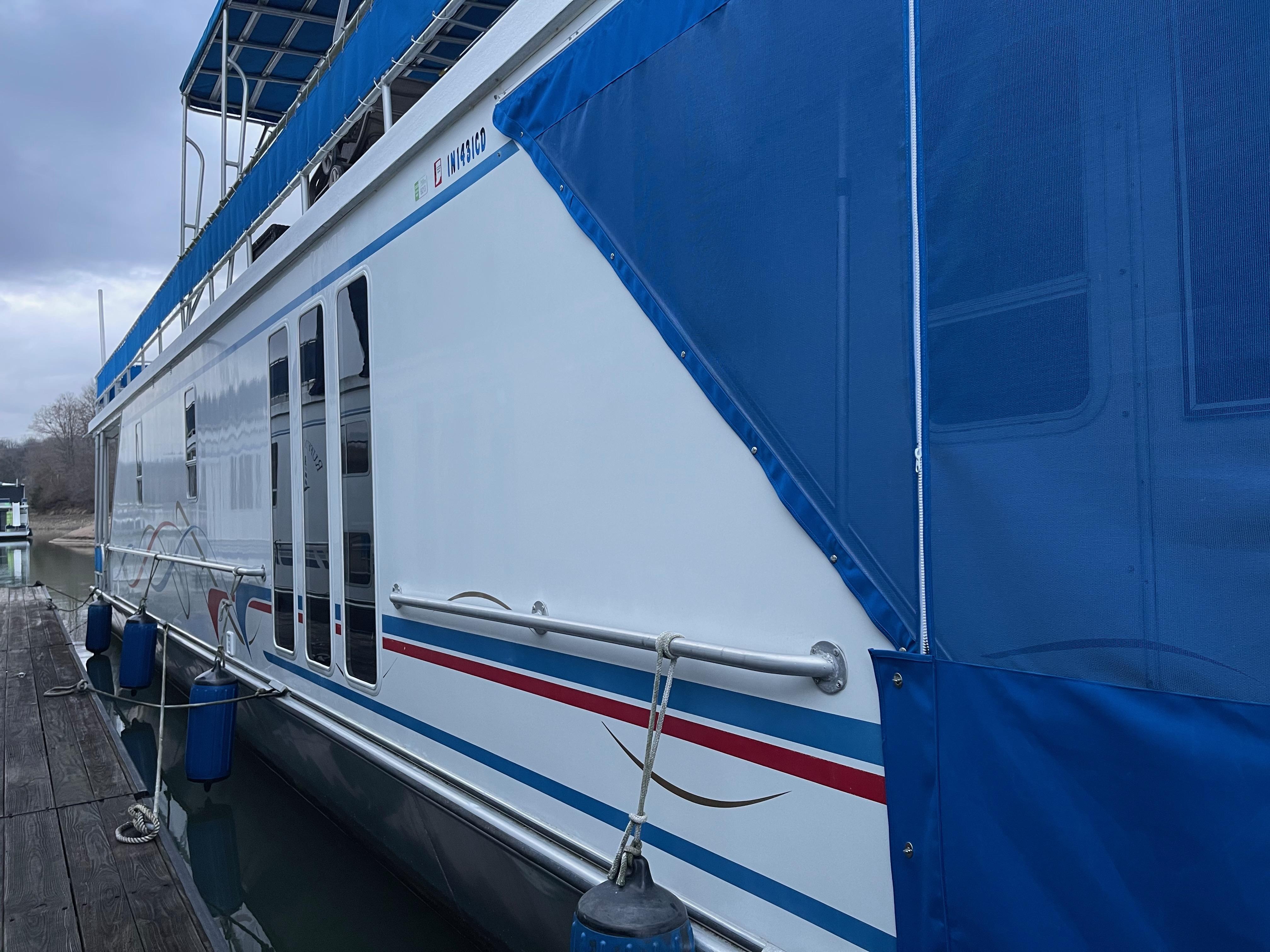

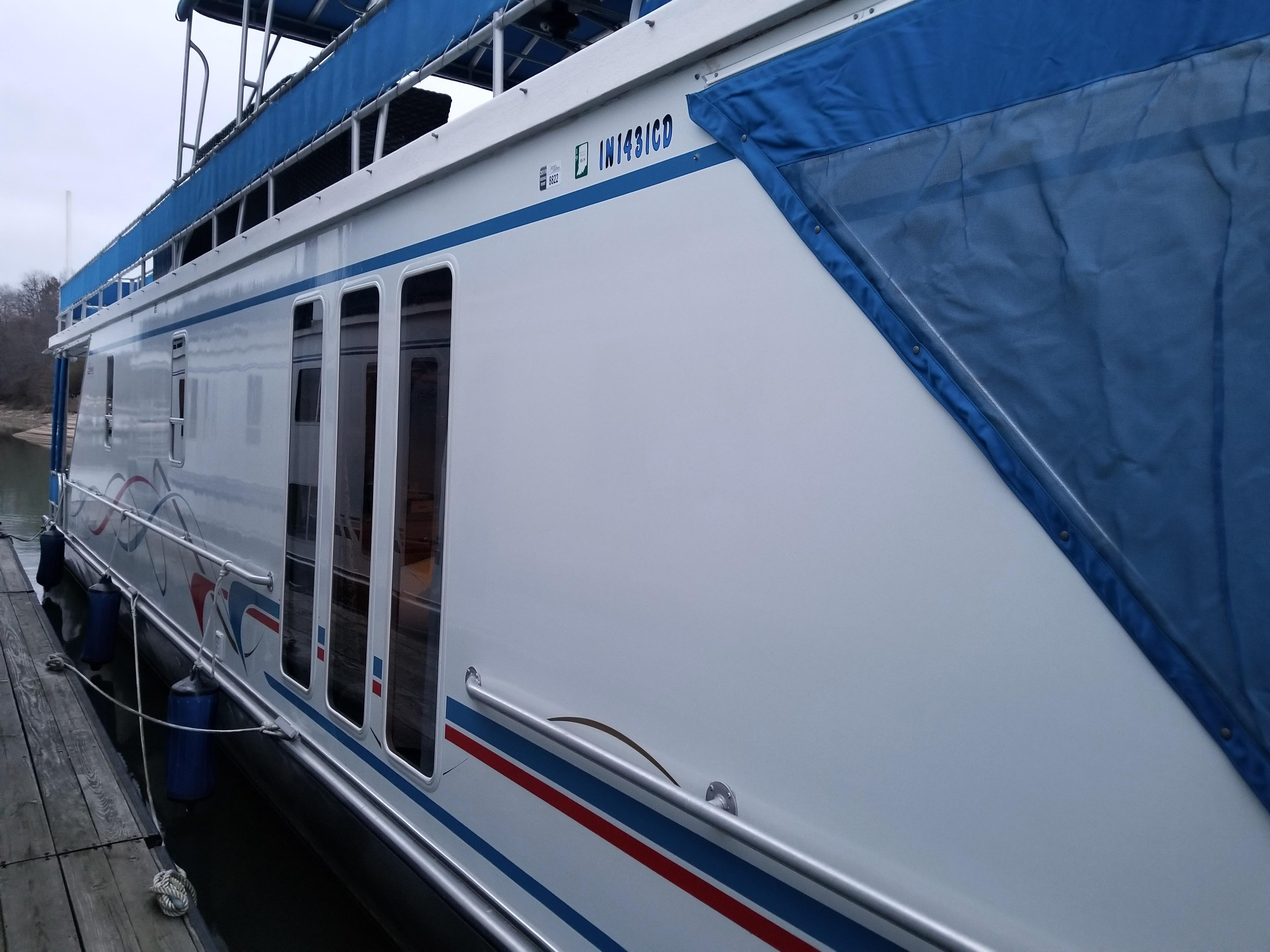

Color Scheme: Pacific blue, red & gold graphics on white gelcoat, Pacific blue canvas, grey carpet & grey PlasDeck teak decking
Propulsion / Control

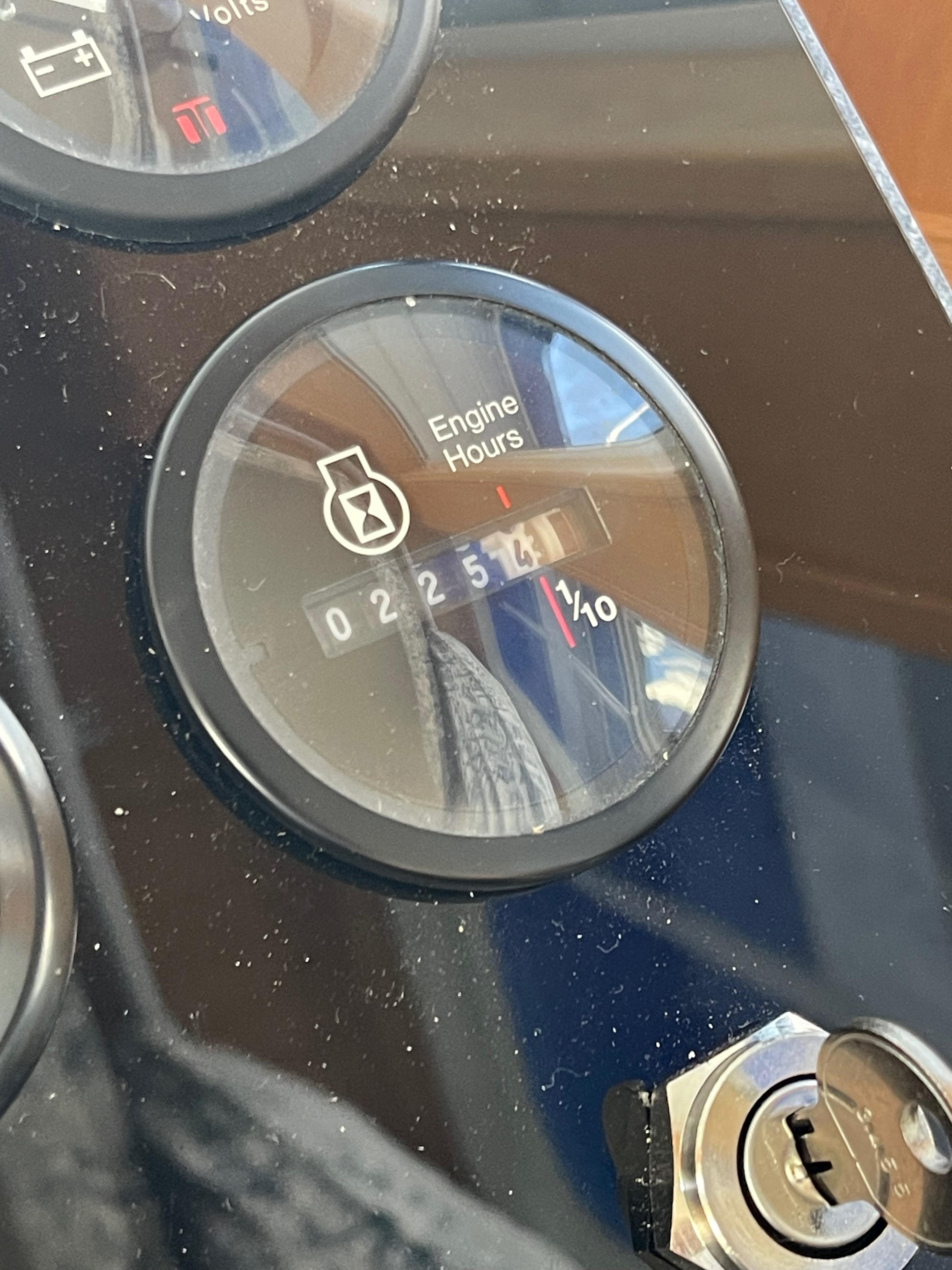

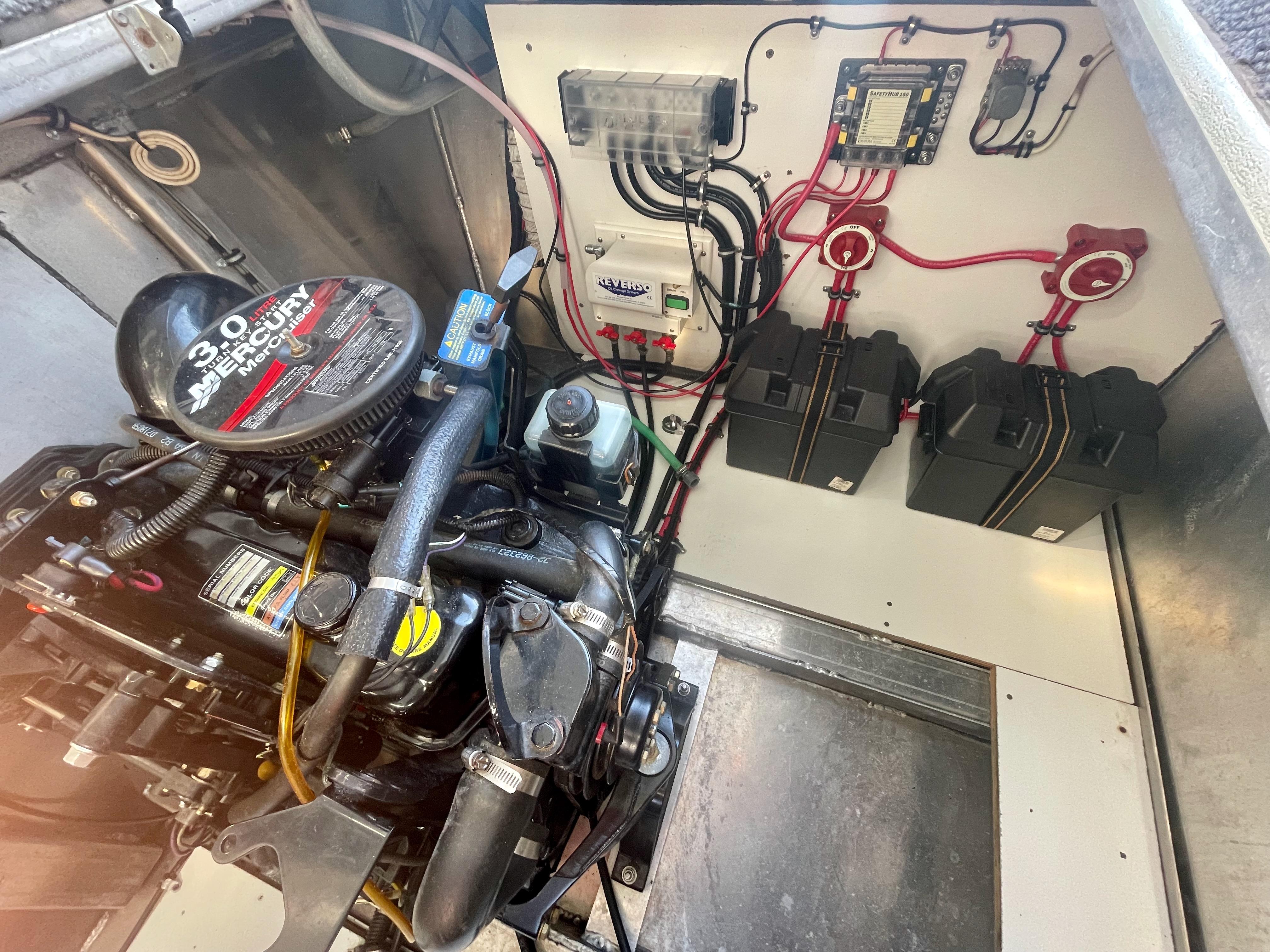

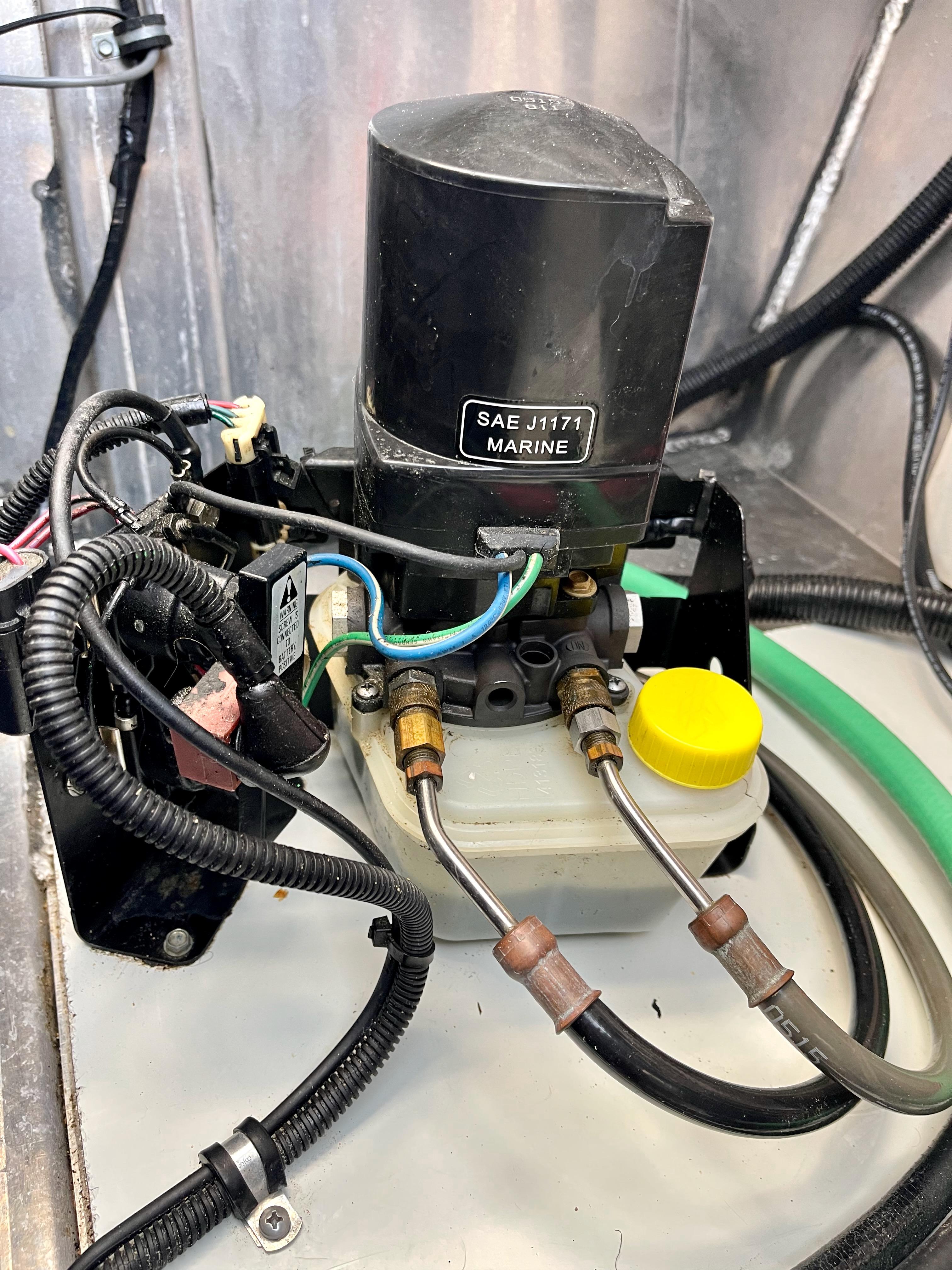

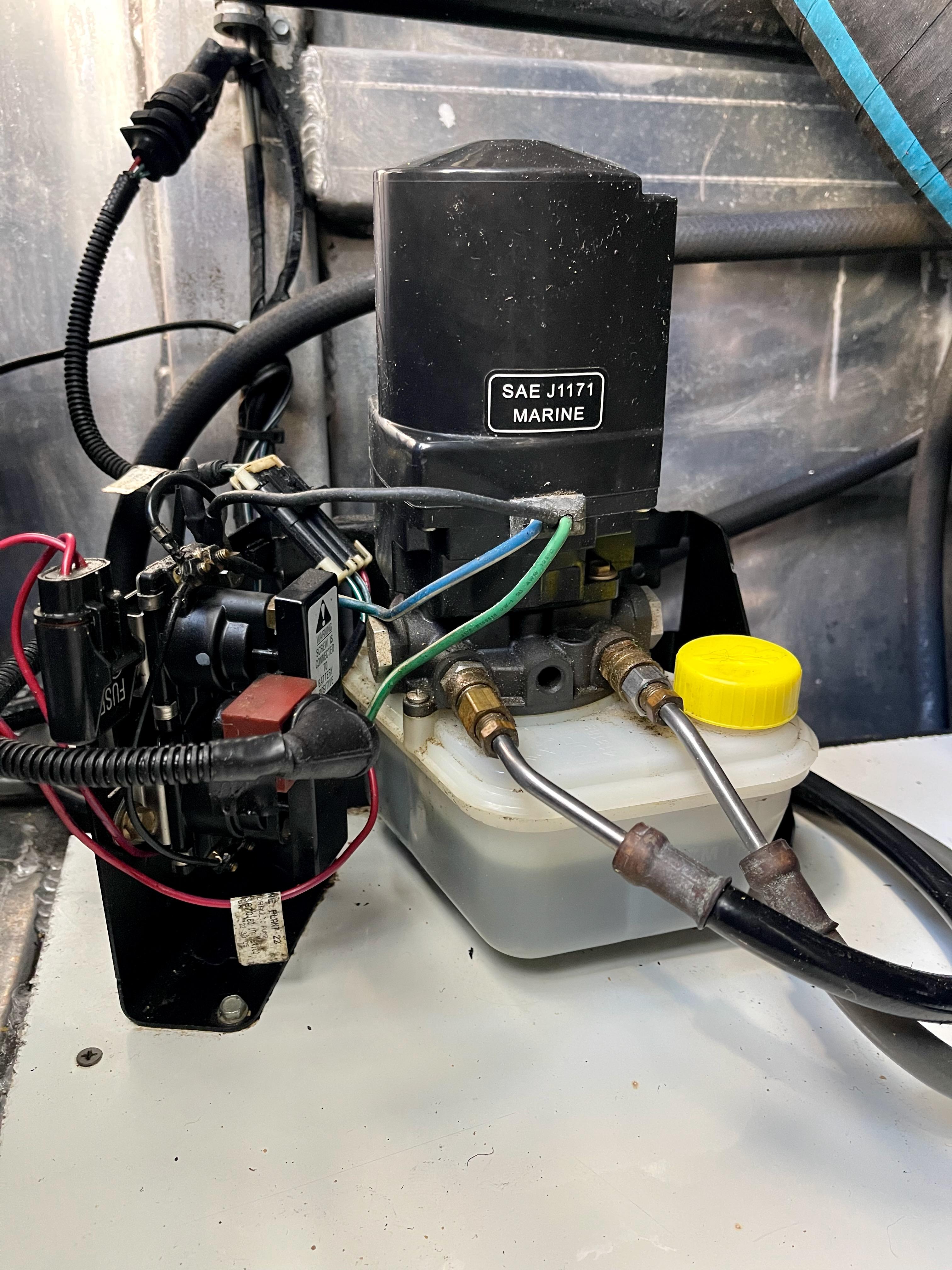

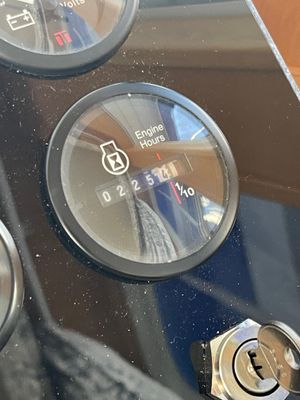

- Twin MerCruiser Marine 3.0L 4 cyl engines w/ Alpha One trim/tilt stern drives (STBD = 225 hrs. / PORT = 224 hrs.).
- ZF Marine MicroCommand actuators w/ digital throttle /transmission controls at both lower helm and flybridge.
- (2) 80 gal. aluminum fuel tanks for total160 gal. fuel capacity.\

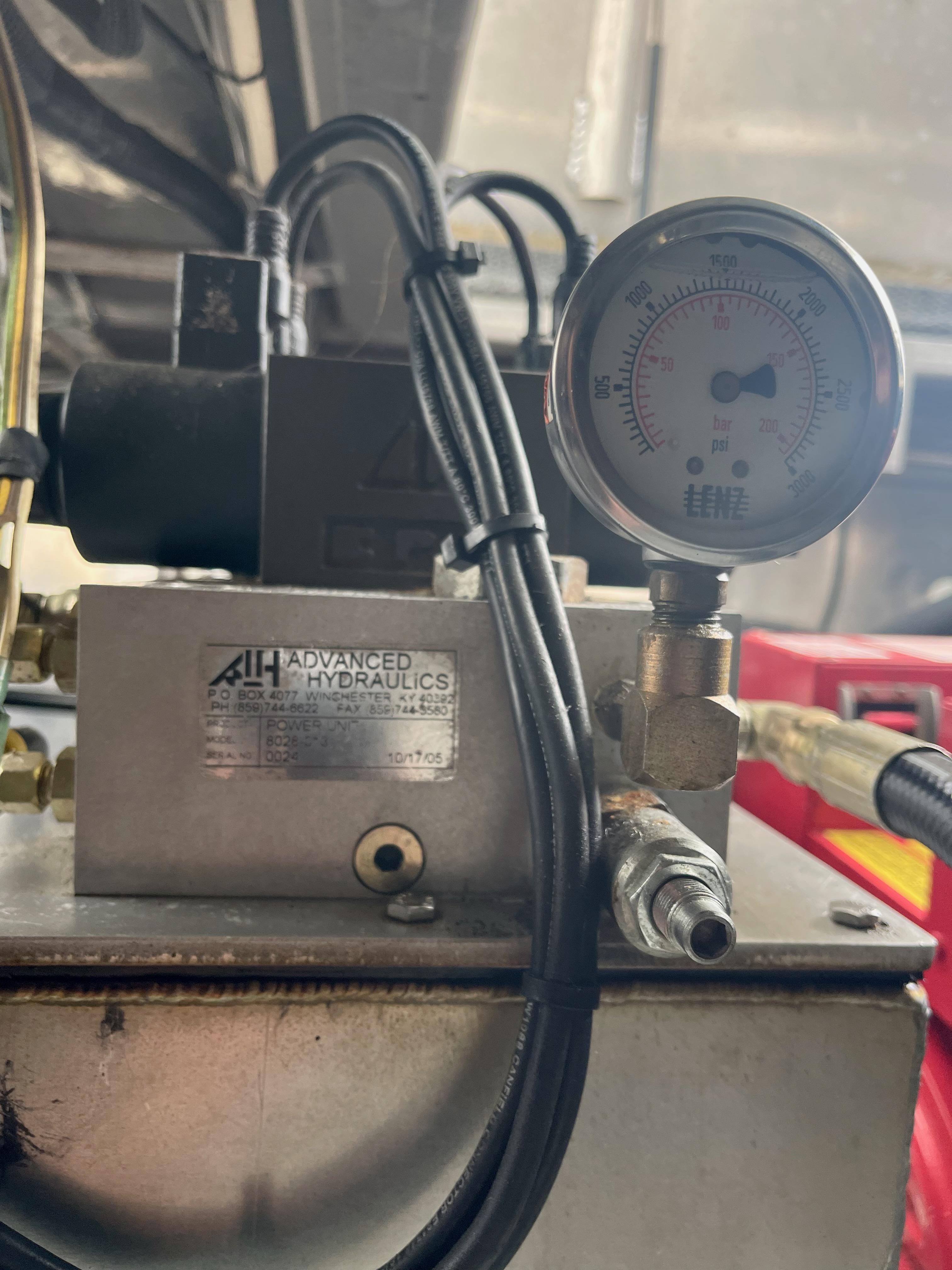

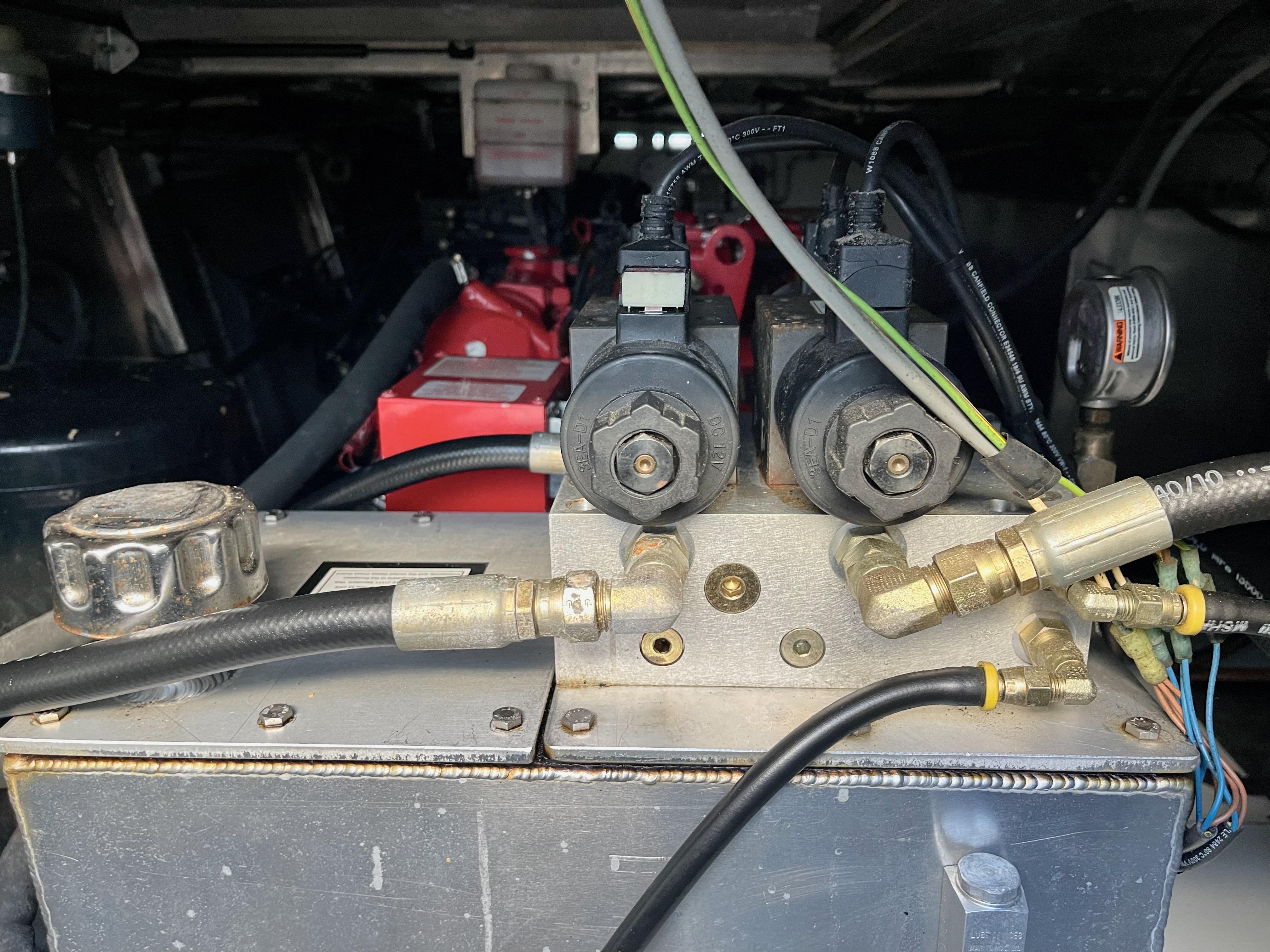

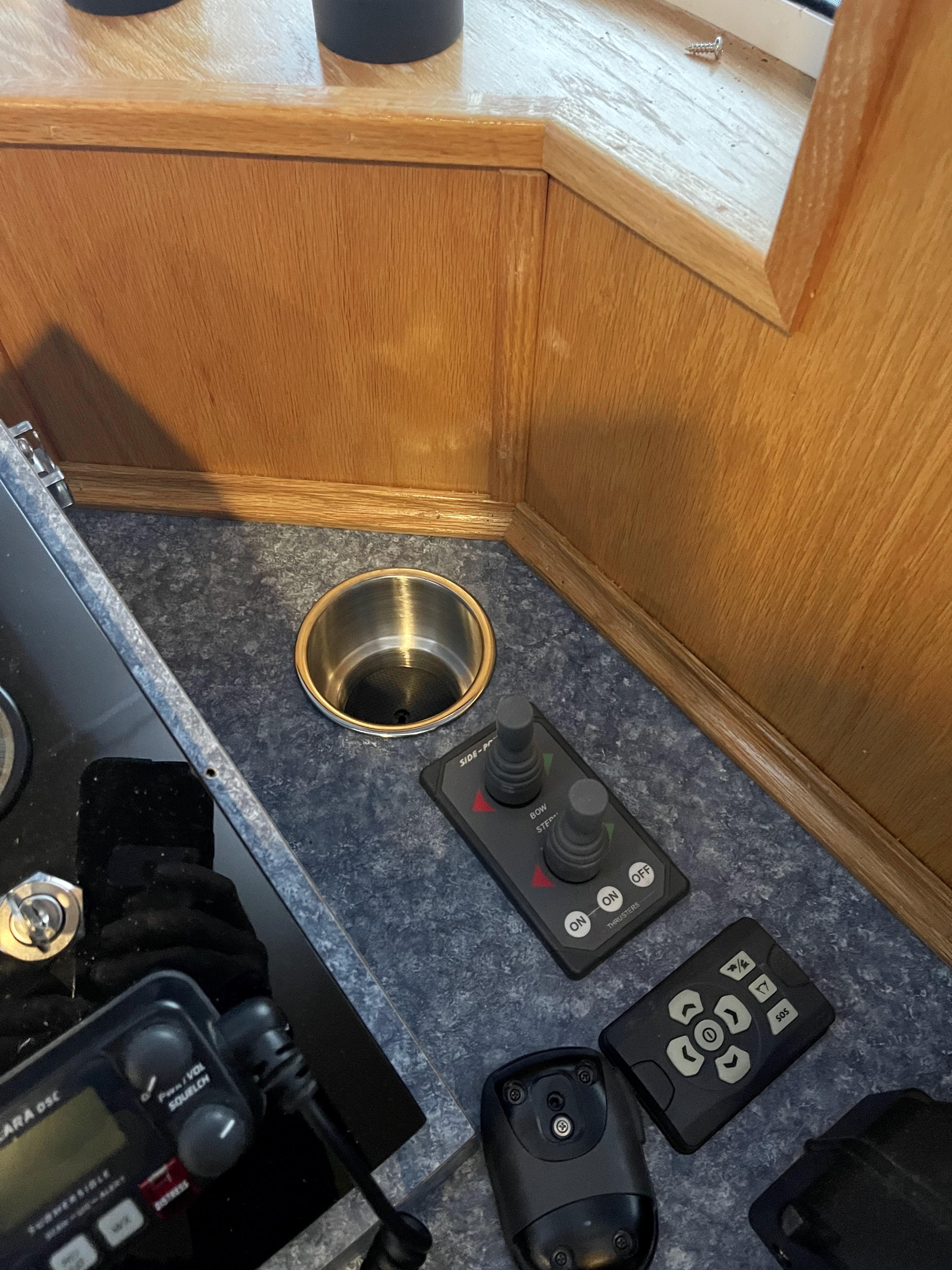

- Both front & rear hydraulic /counter rotating thrusters w/ dual Side-Power joystick control at both lower helm and flybridge.

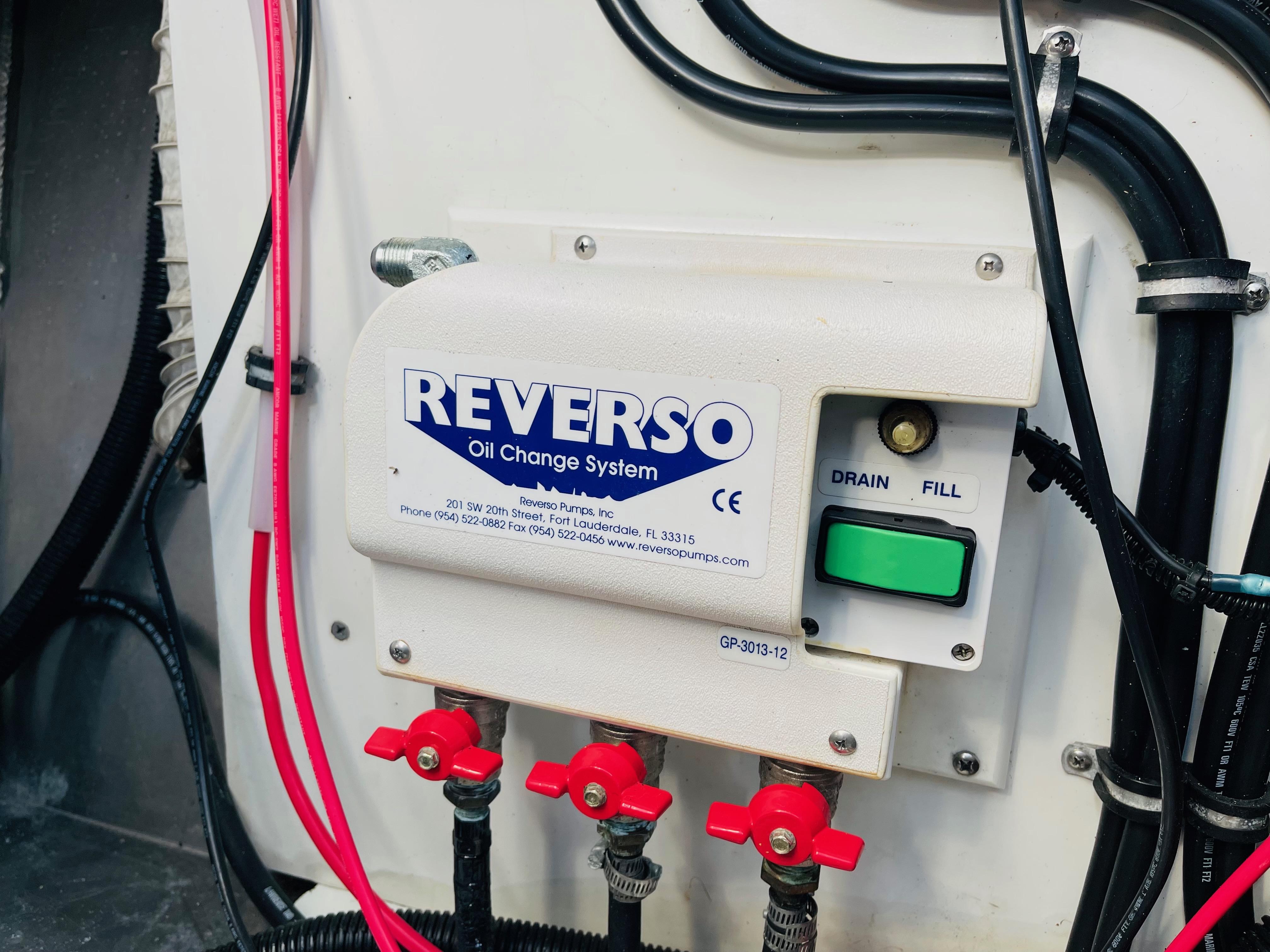

- Reverso 3-valve on-board engine oil changing system.

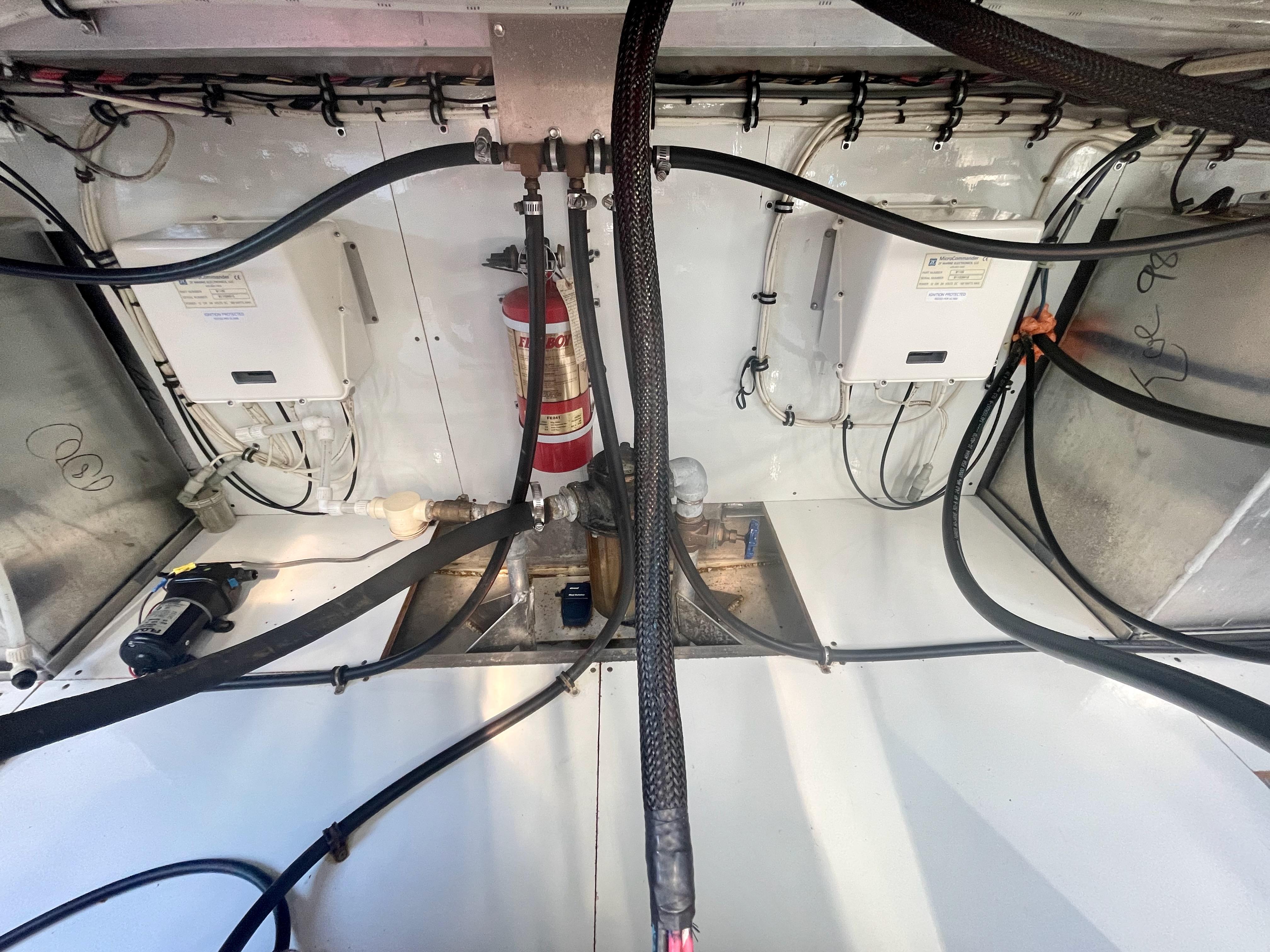

- FireBoy automatic vertical fire suppression system installed in engine bay.
Electrical Systems - Dual 240V/60Hz port-side shore power inlets (pedestal cables included).

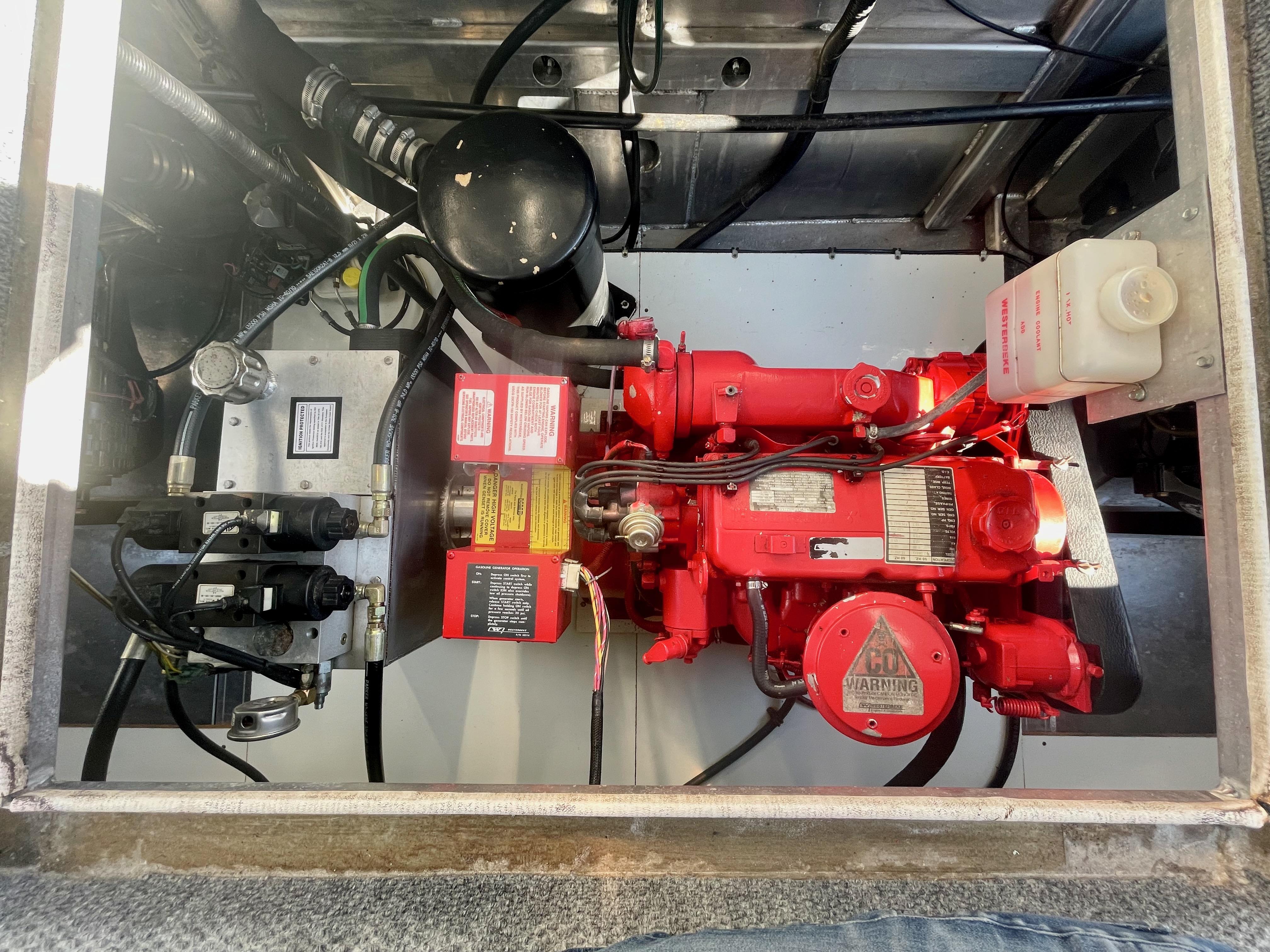

- Westerbeke 15Kw (65A @ 240V), 4 cylinder genset (319 hrs). NOTE: Generator exhausts to top of boat (not under swim platform) ? RARE safety feature! Exhaust is integrated as flag pole to be unnoticeable as exhaust stack.

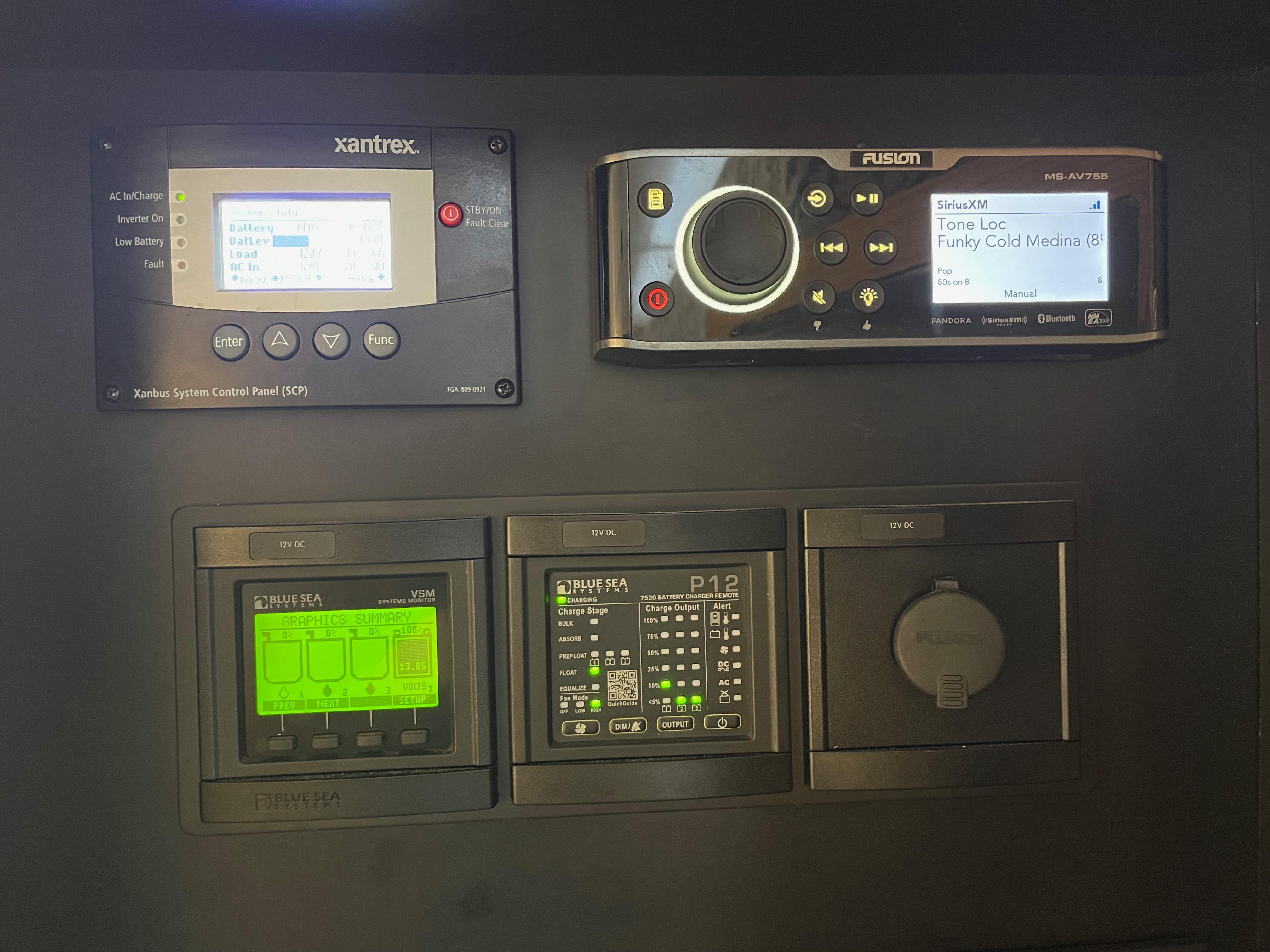

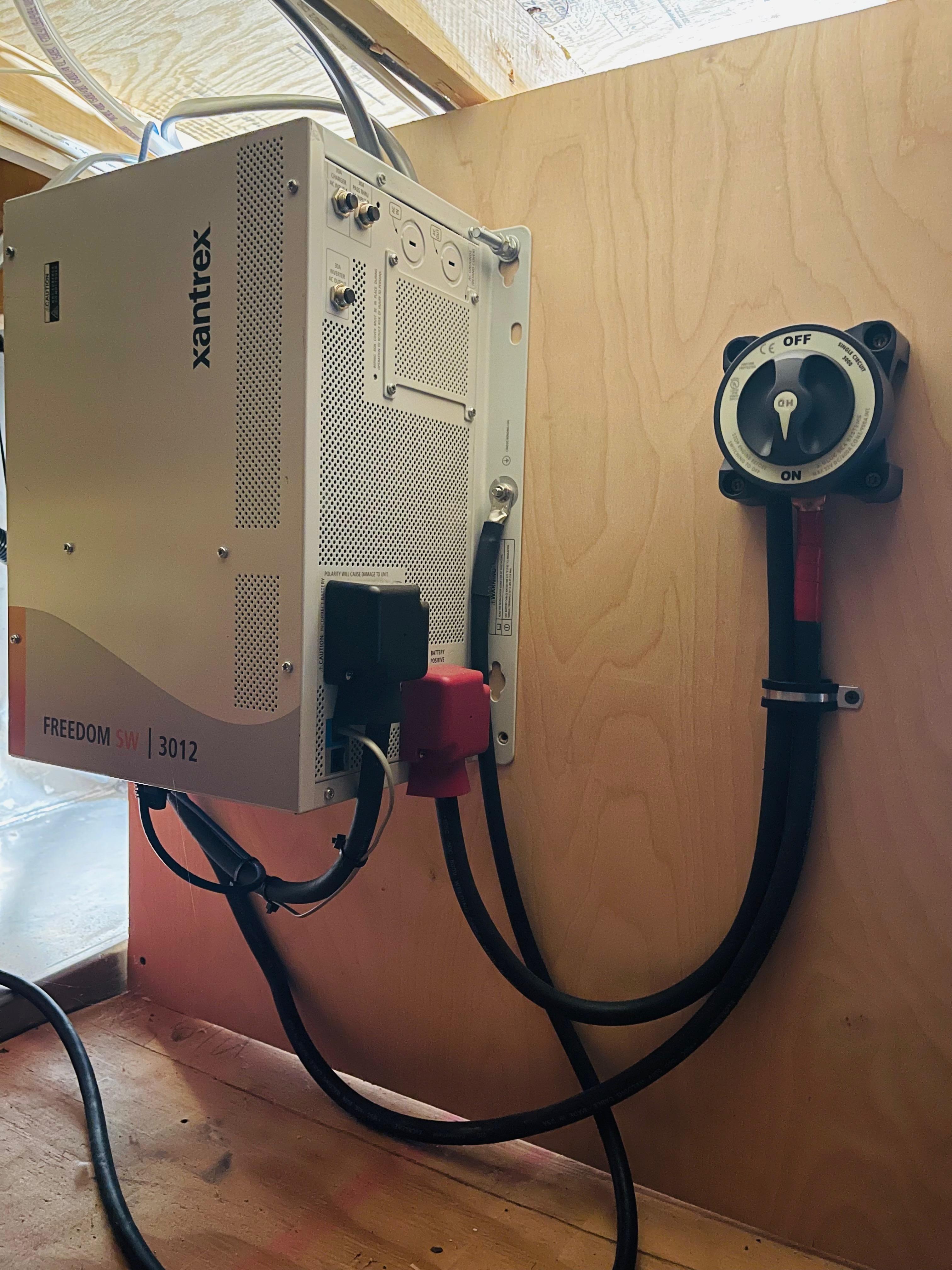

- 2022 Xantrex SW3012 Freedom 3,000W Continuous AC /Pure Sine Wave Inverter + Charger w/ remote monitor & control panel. Includes (6) Interstate 6V deep cycle batteries (440 amp/hrs @ 120V / replaced new in 2023).

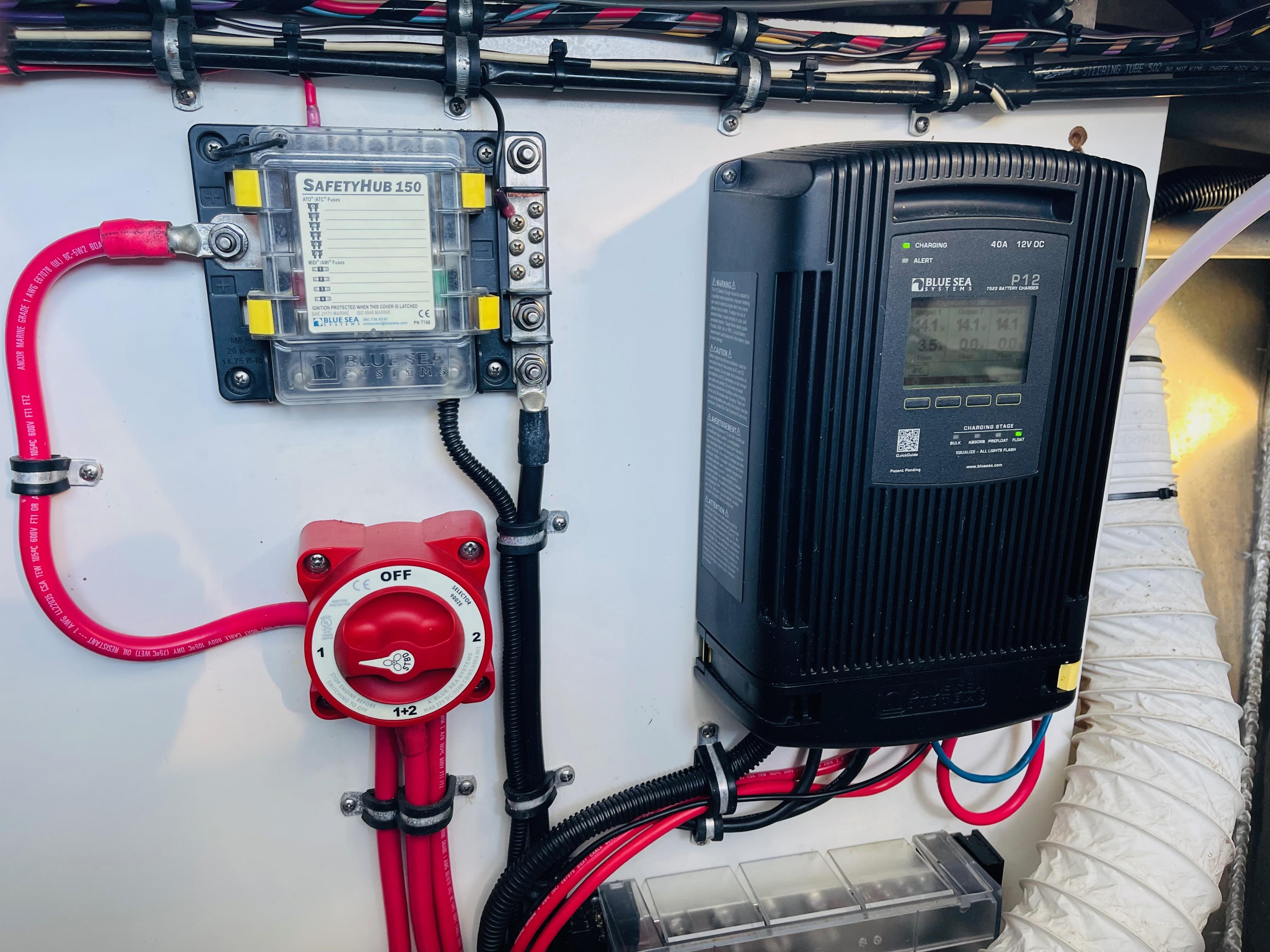

- Blue Seas P12 12V /40A smart battery charger w/ remote monitor & control panel (simultaneously charges (3) battery outputs - replaced new in 2023).

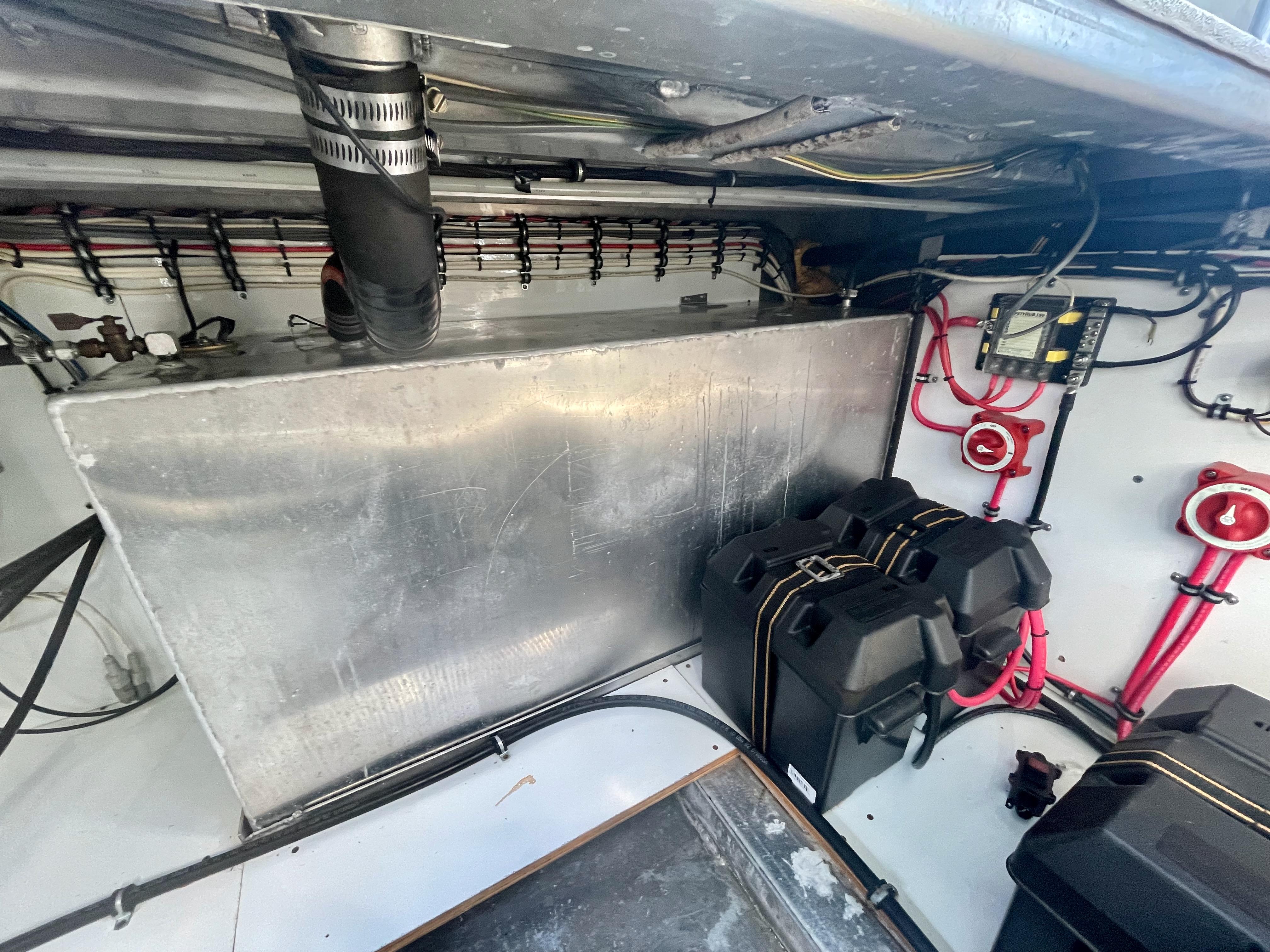

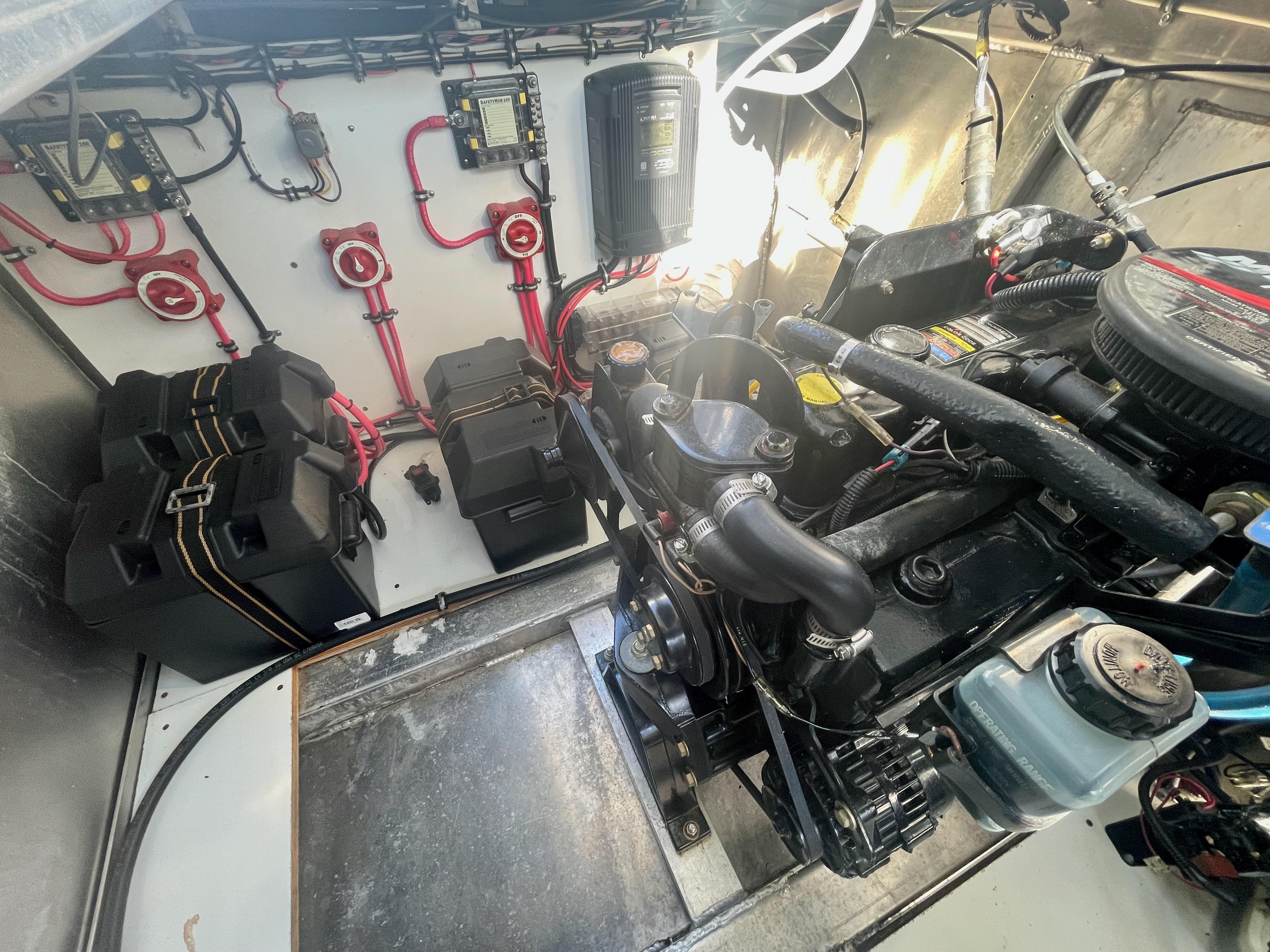

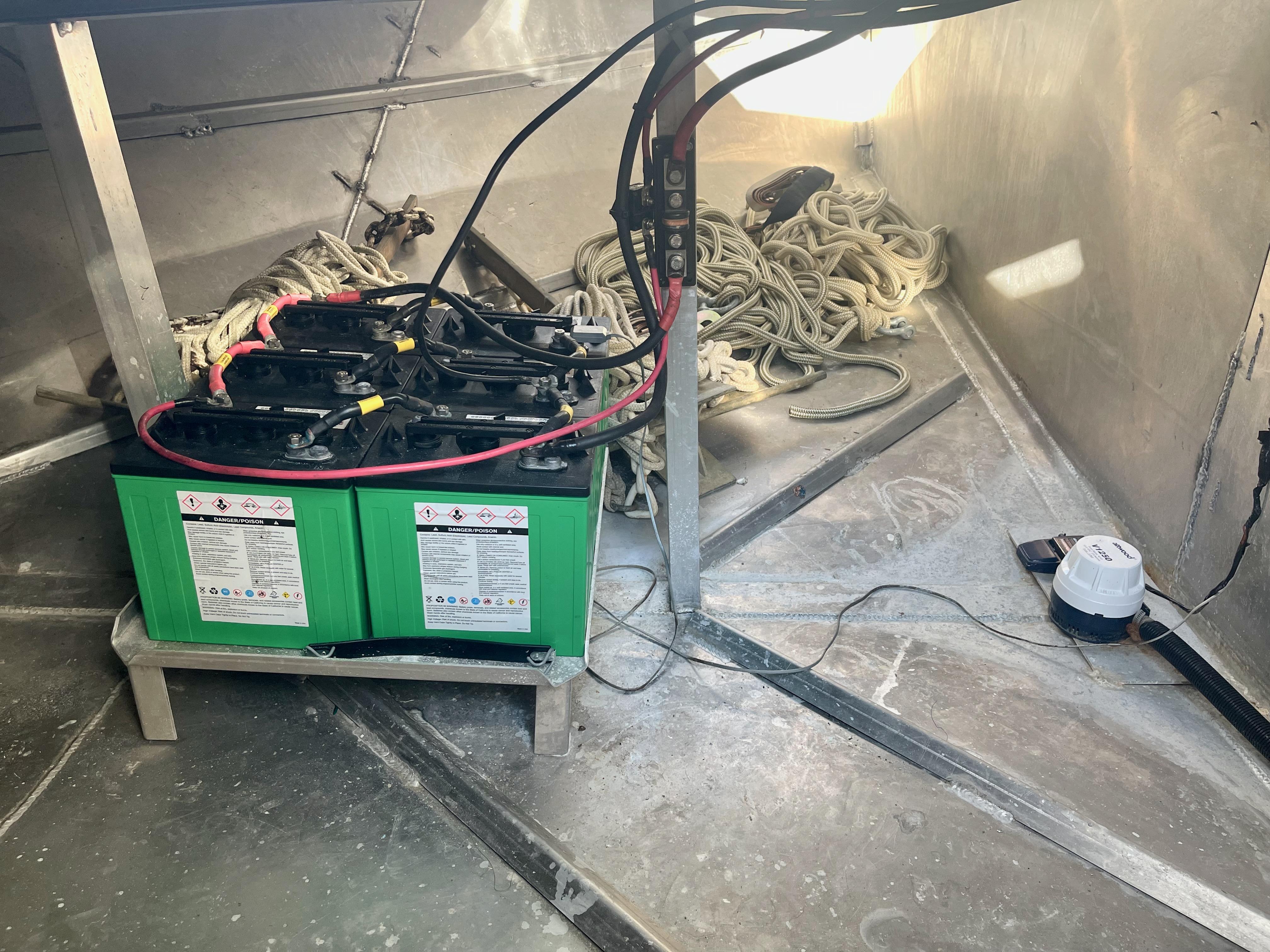

- (2) Interstate 6V house batteries, Interstate 12V main + backup STBD motor starter batteries, Interstate 12V main + backup PORT motor starter batteries /Generator motor starter battery, Interstate 12V dedicated deep cycle amplifier battery w/ Marinco Charge-Pro 6V on-board battery charger.

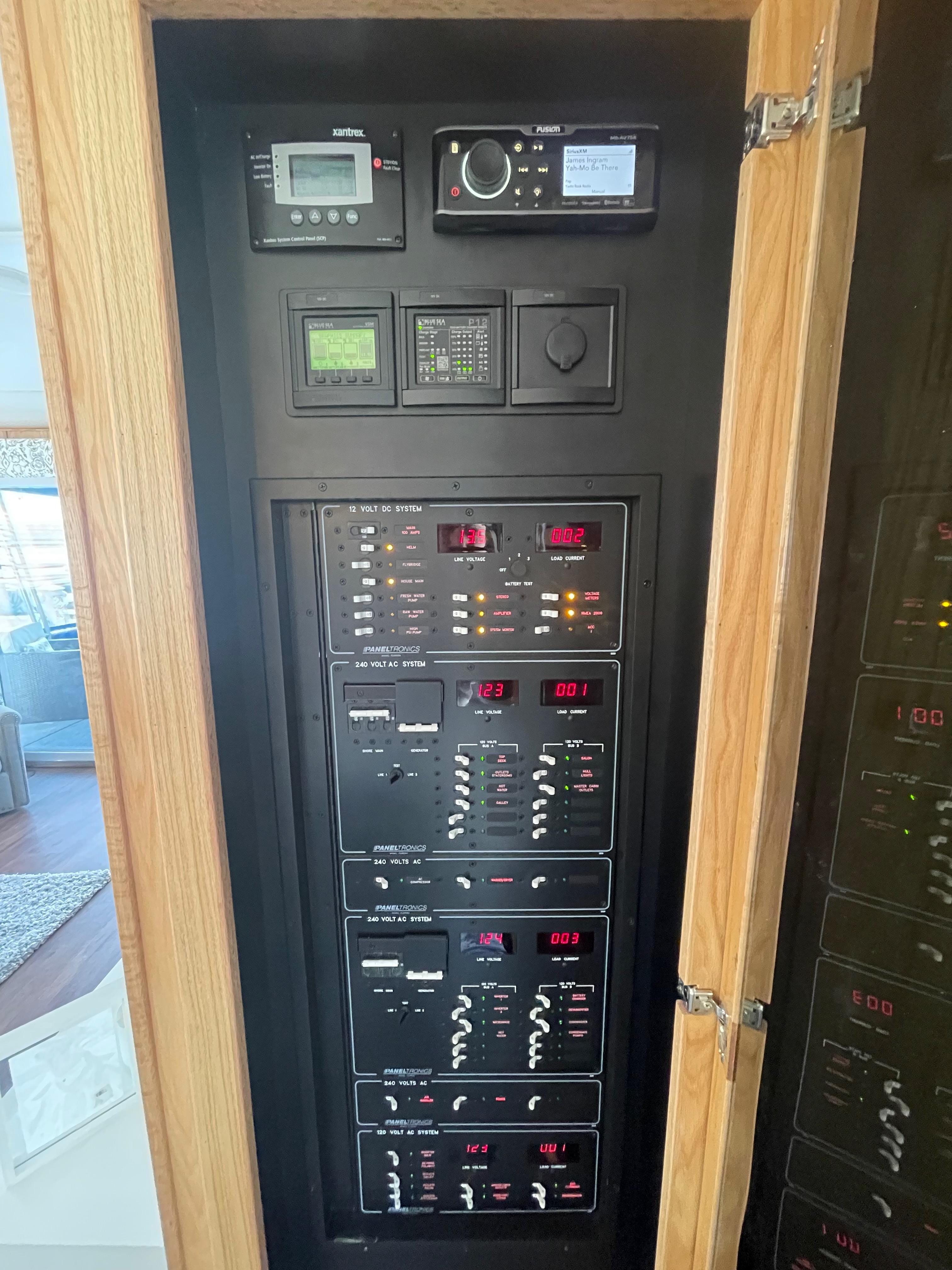

- 2024 Installed Paneltronics Marine IBYC certified circuit protection w/ 3-pole transfer switching between shore power pedestal and generator (per new marine electrical code). Dedicated panels per each 240V/60Hz service, dedicated panel for inverter system and 12V DC house system. Panels have marine style hydraulic breakers, LED backlit & labeled circuits and LED on/off indicators lights w/ digital meters for both voltage and amperage per each panel - $10K upgrade.
- Full DC System upgrade w/ grounding buss bars, (4) Blue Seas systems 150A SmartHubs for circuit protection, and Battery Selector Switches per each DC battery per IBYC code in 2018.
- ProMariner Pro-Safe 30A Galvanic Isolator (prevents galvanic corrosion through shore power grounding system).
- (5) Up-to-date /required Fire Extinguishers & (2) interior smoke detectors
Navigation Systems - Both upper and lower helm stations w/ radar arch on fly-bridge.

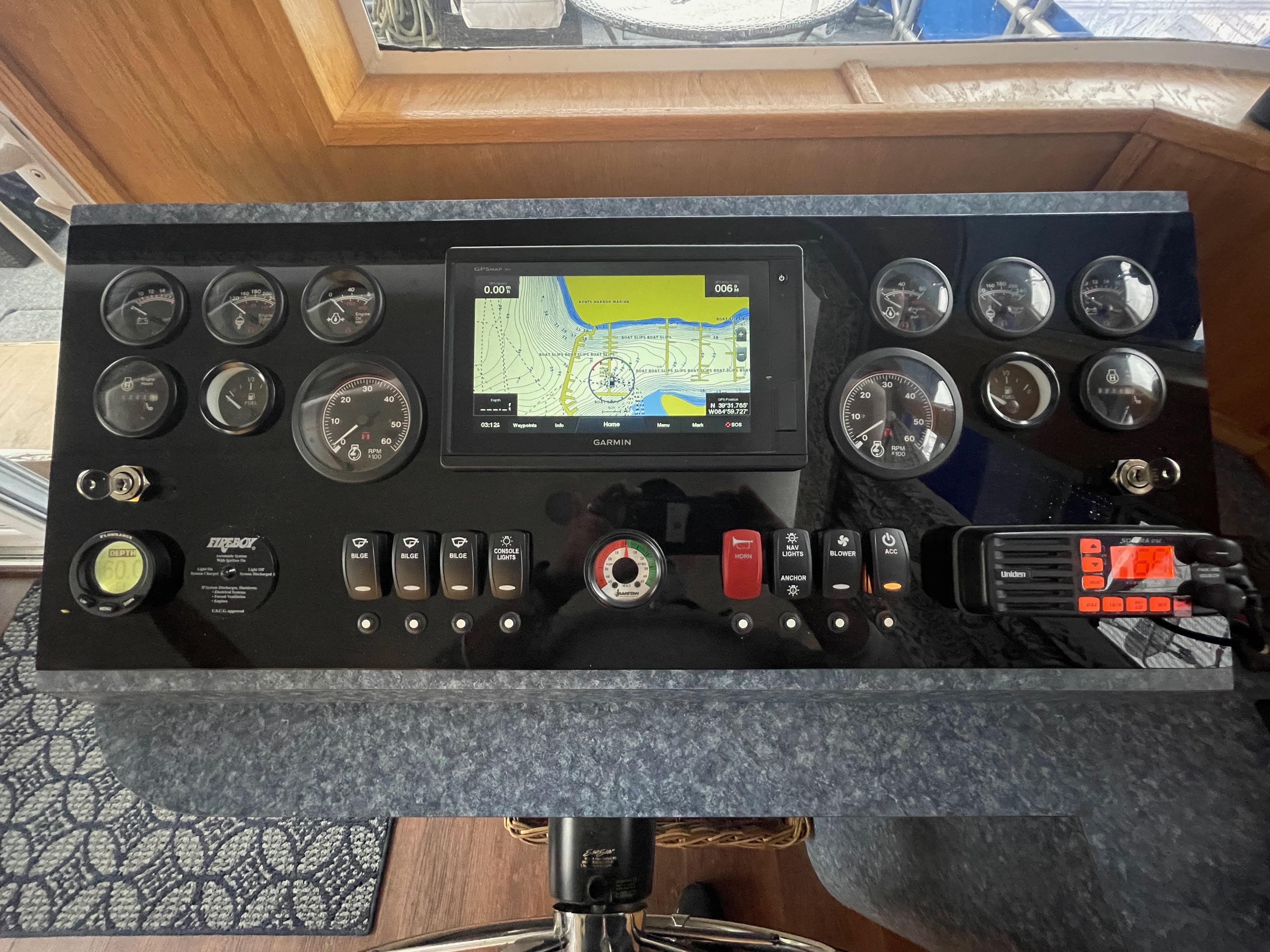

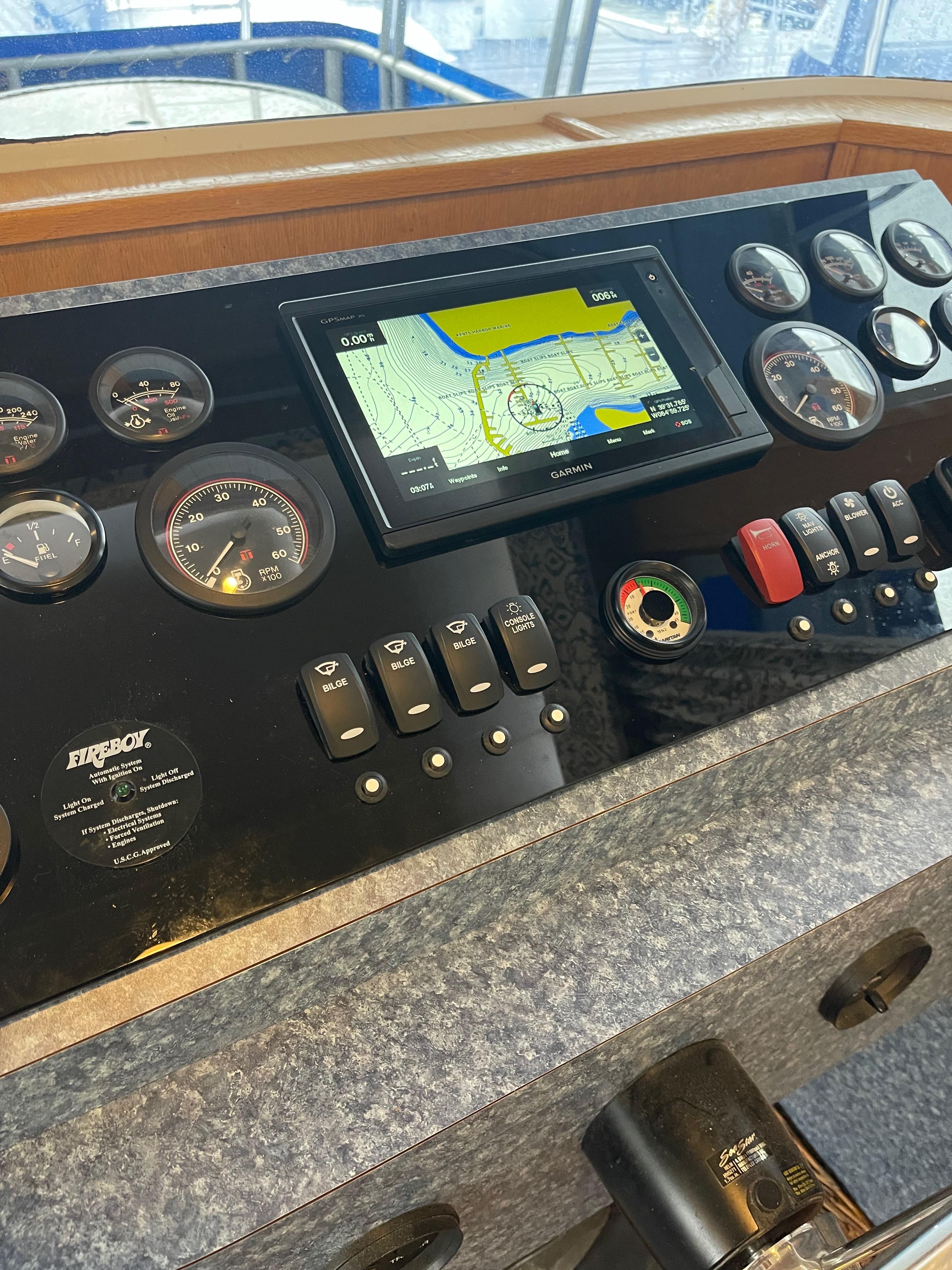

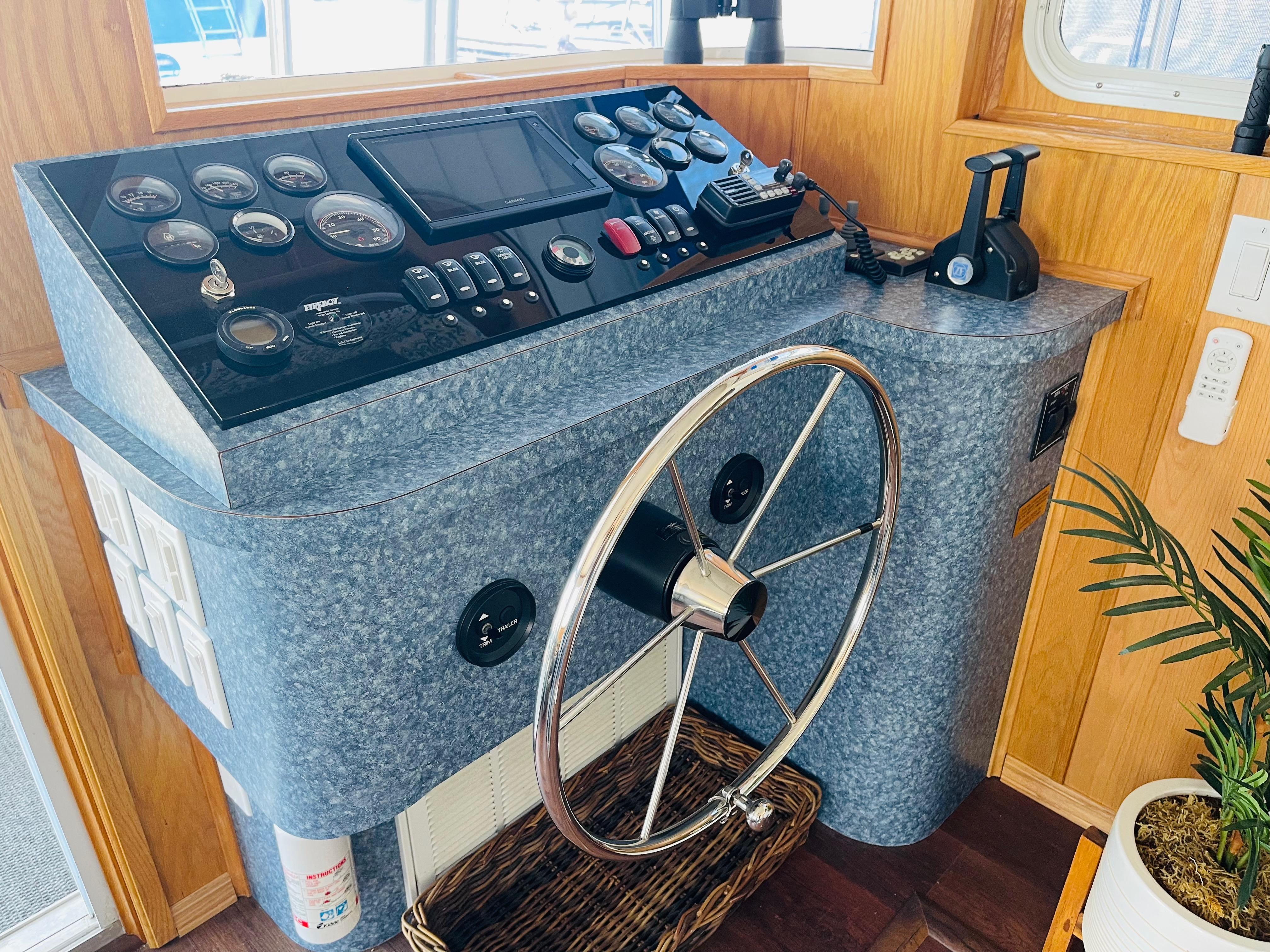

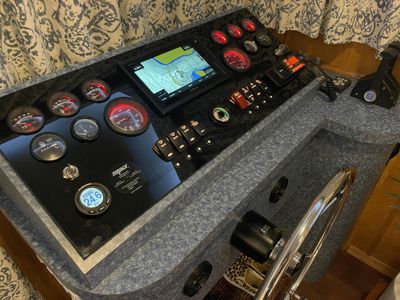

- New black acrylic instrumentation baker panel on lower helm.
- Garmin GPS Maps 942xs MFD Chart Plotter (nav charts installed, anchor alarm, sonar transducer included, radar, Flir IR camera, wind instrument capable).

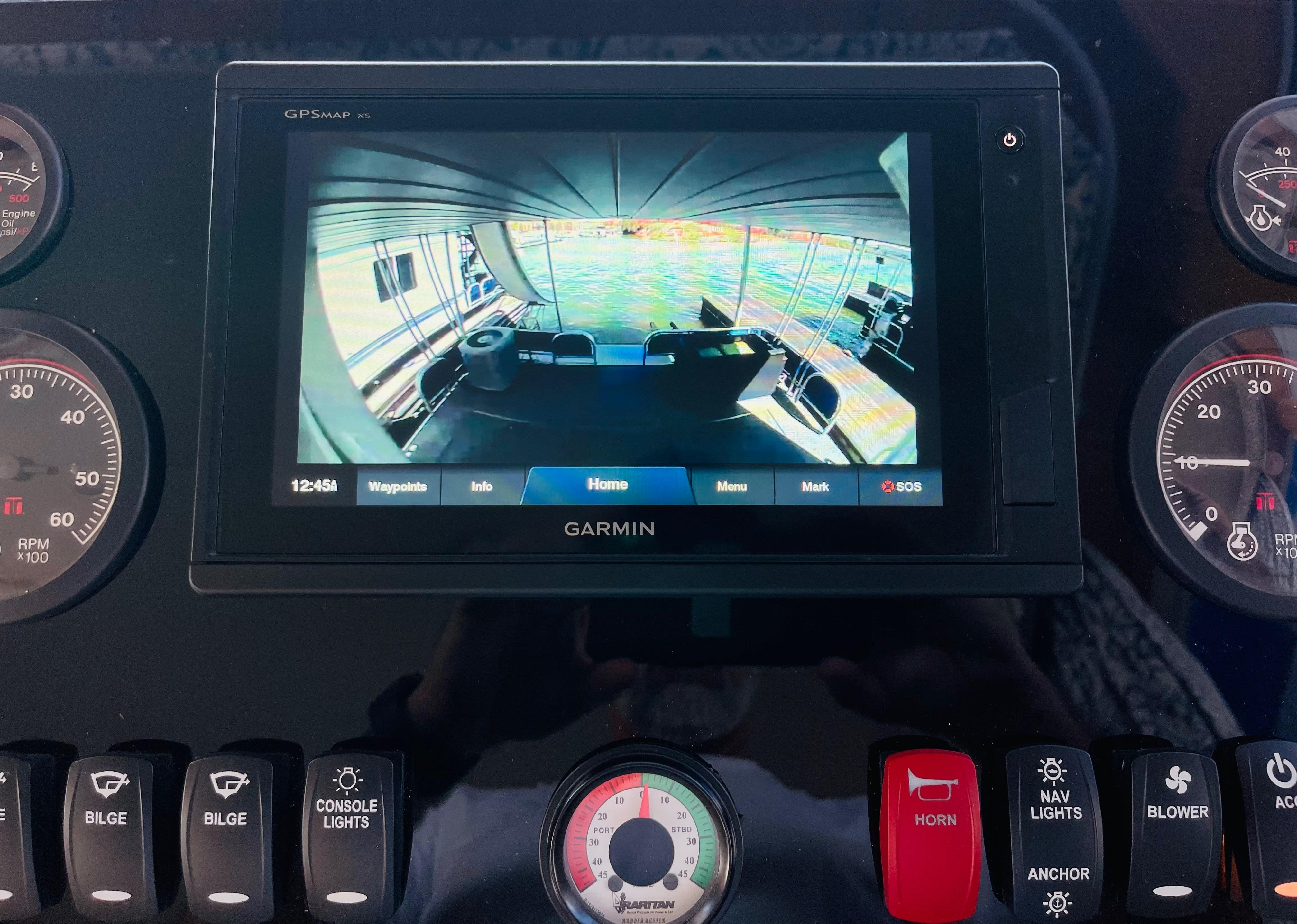

- Garmin GC-100, 720p rear-view camera display on 9? Garmin MFD.
- NMEA 2K network installed in 2023.
- Raritan Ruddermaster Rudder Angle Indicator Kit (installed 2023)

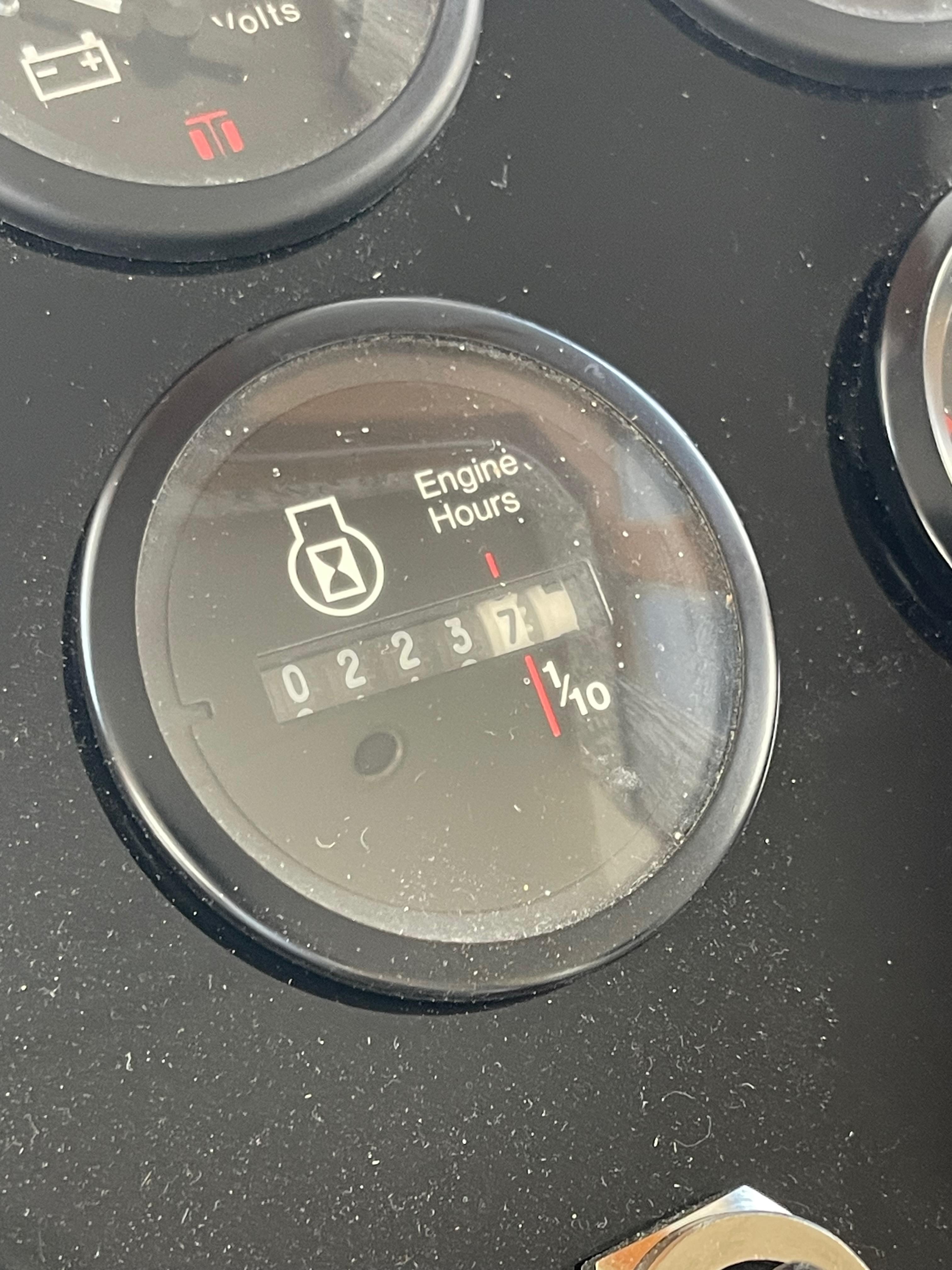

- Full Mercruiser /Teleflex LED backlit analog instrumentation / depth guage.

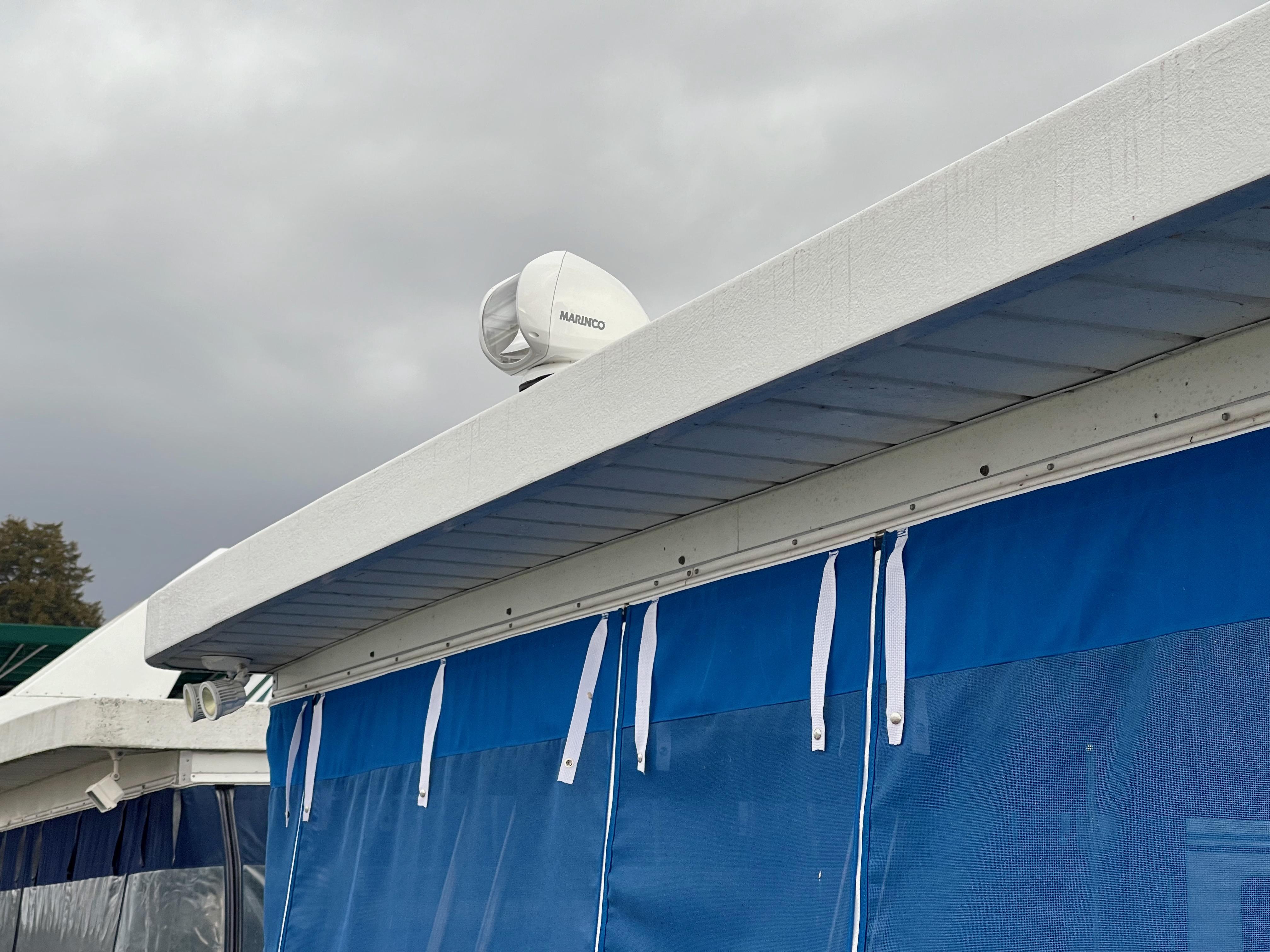

- Marinco SPL-12V Precision 100W Spot Light w/ keypad control at both helm stations.
- Uniden UHF Marine radio w/ weather and new 6? Shakespeare whip antenna installed on radar arch.
- Full LED 2NM navigation lighting w/ separate anchor light and stern light.

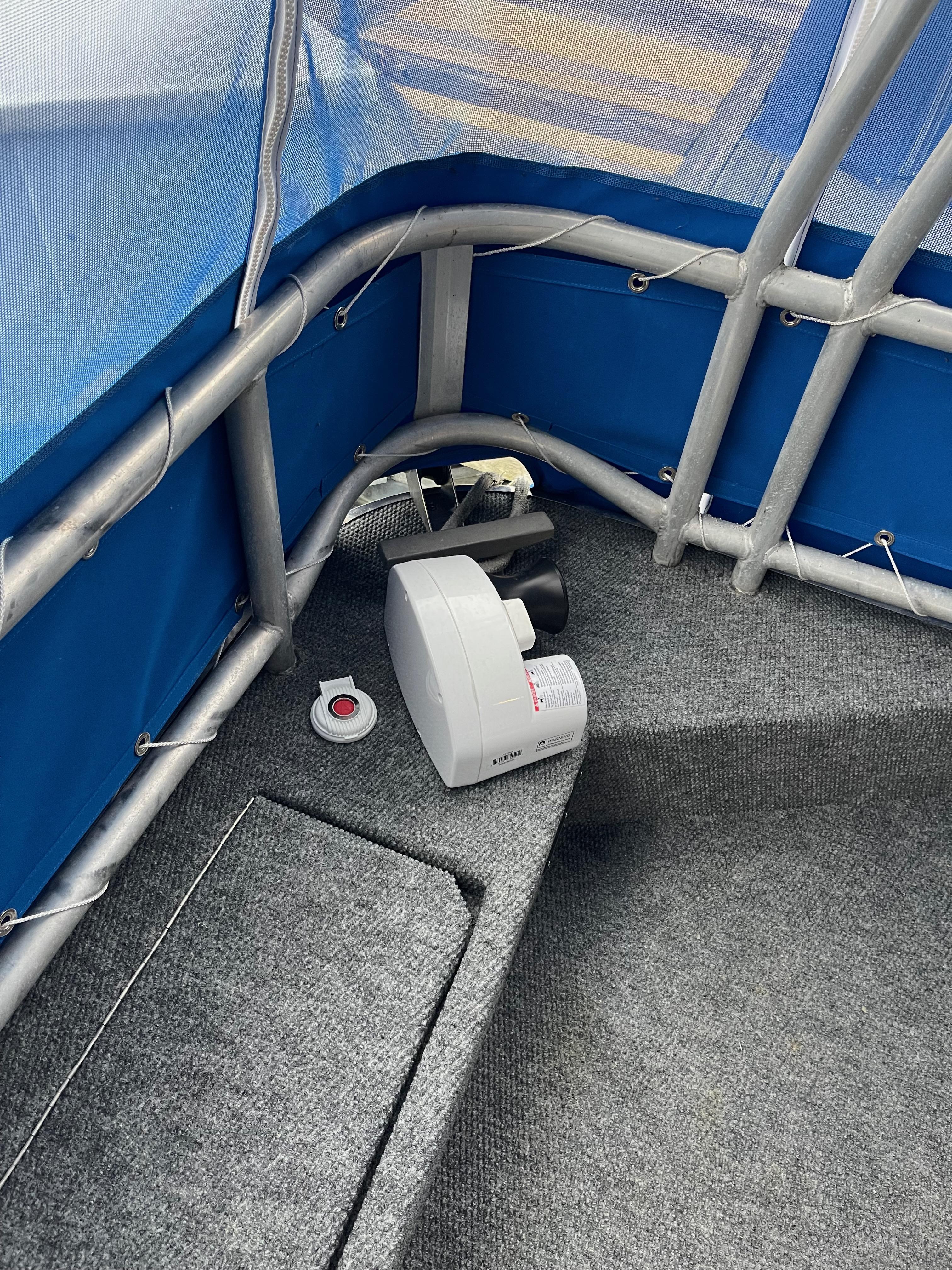

- New Powerwinch Capstan 300 Rope Winch (1000lb. pulling power).
- (2) Heavy-Duty Danforth style anchors (front / rear) included.
- Uniden 2-Way Radio Comm between lower help, upper helm and stern
- (8) TaylorMade Big-B Fenders included.
Water / Sewage Systems - Port-side city water inlet w/ (2) 80 gallon fresh water tanks for off-dock storage.
- (2) 80 gal. black water storage tanks (1 per each head).
- Boat slip has pump-out station on STBRD finger. Pump-out hose/valve included w/ sale.
- Blue Sea1800 ultrasonic remote tank monitoring system installed in 2023 for all storage tanks.

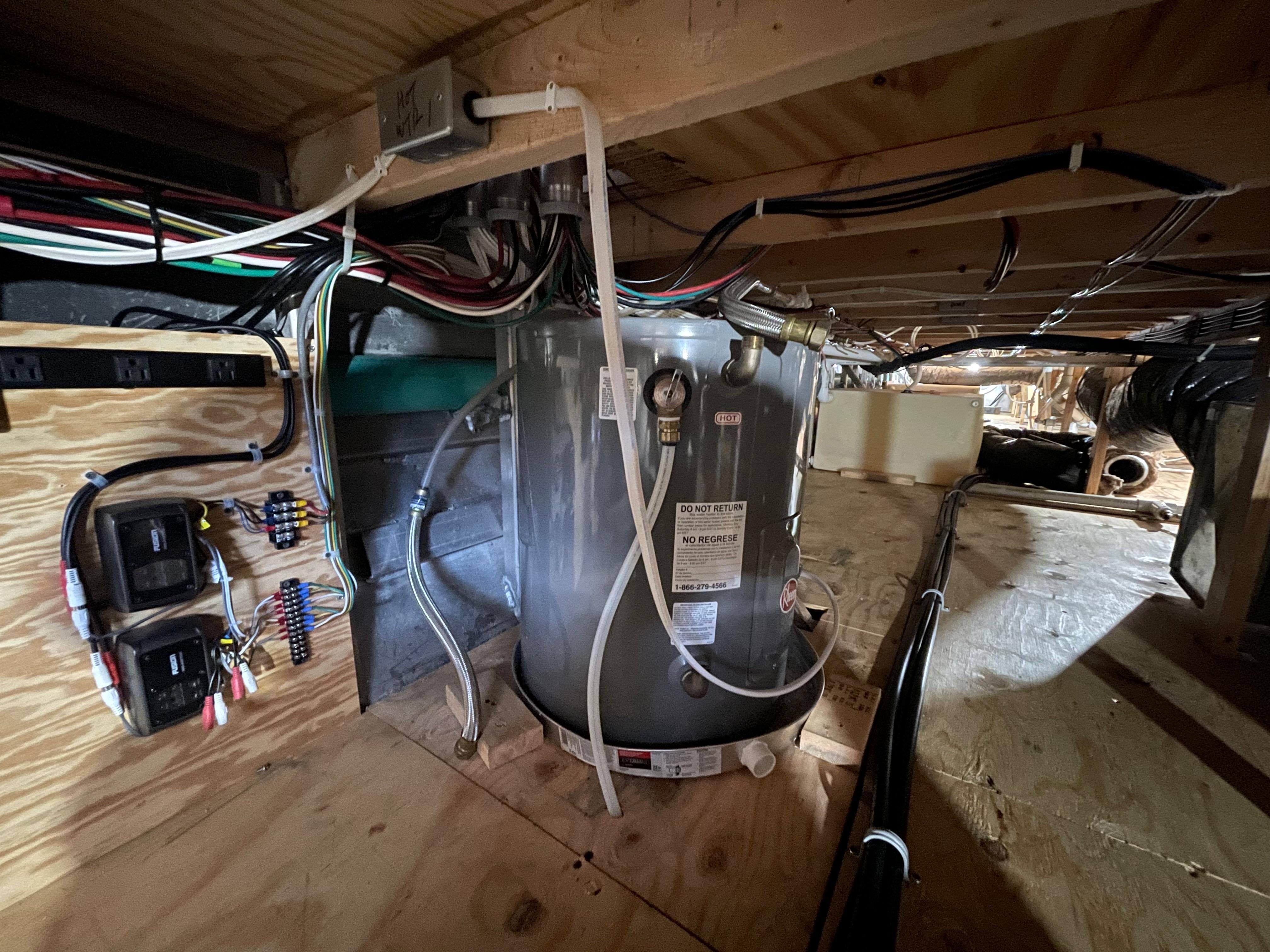

- 20 gal. /20A hot water heater. Prewired for second tank if desired.
- New SEAFLO 55-Series Diaphragm Pump - 12V DC, 5.5 GPM, 60 PSI with Heavy Duty Pressure Switch, Self-Priming, Quiet Operation + 5 gal. pressure tank for fresh water delivery when not on city water. Maintains 60/40 water pressure.

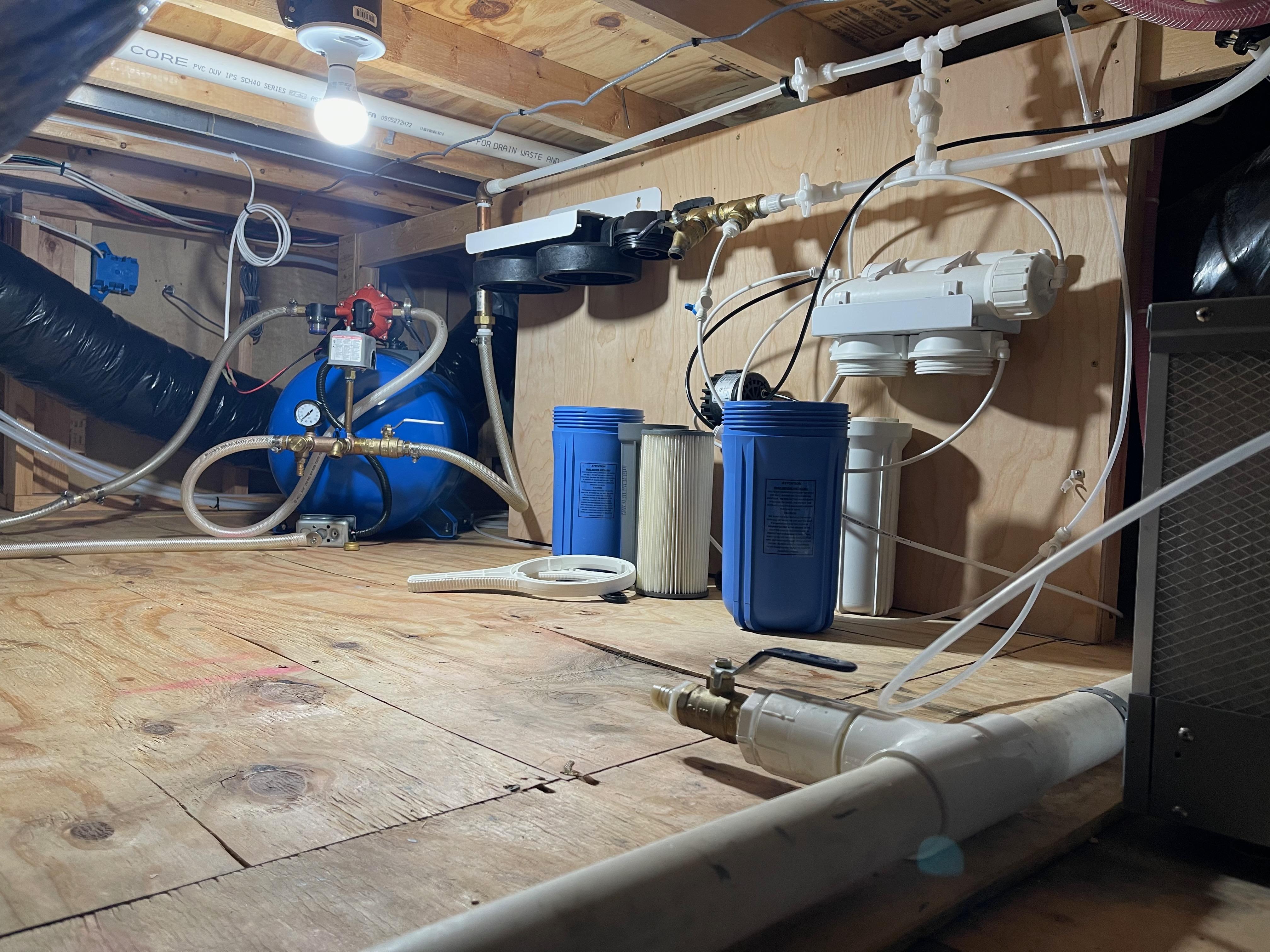

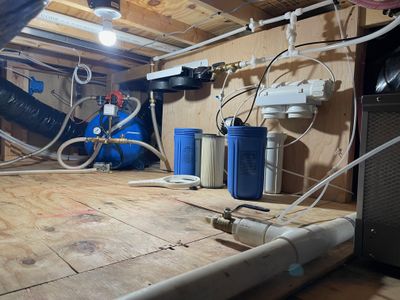

- Water softener, whole house sediment & carbon filters w/ Pulsar Quantum disinfection system installed below deck - $2K upgrade.
- 5-stage reverse osmosis (RO) system installed below deck for drinking water & ice makers.
- (3) automatic bilge pumps (bow / mid-ship / engine compartment).
- 12V DC sea water pump for swim platform wash-down / slide water fall / bow anchor wash down and party top wash down spigots.
HVAC System

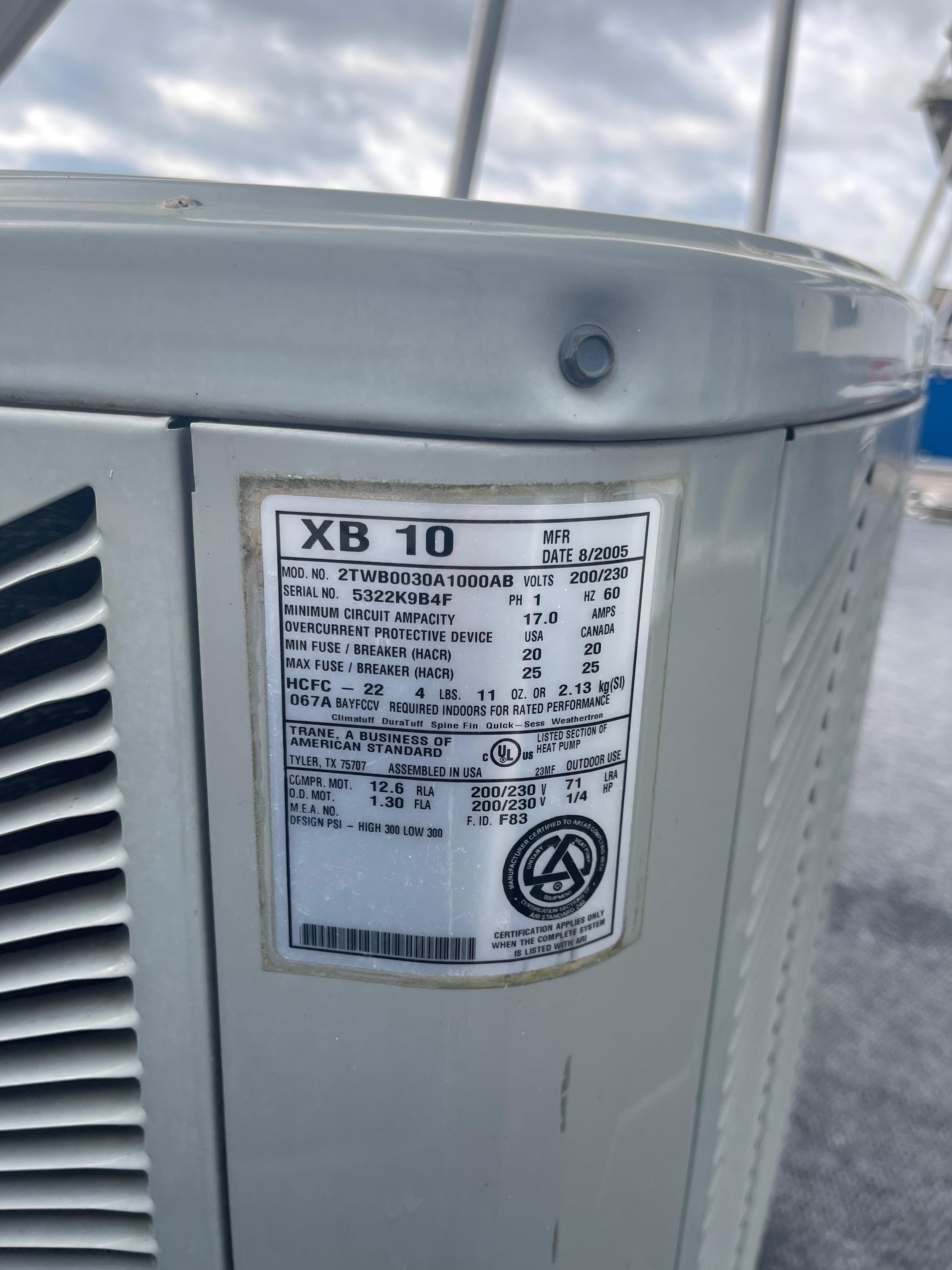

- 2006 Trane 3-ton heat pump (split system w/ air handler below deck).
- Below deck de-humidifier w/ remote panel (rarely used ? below deck is bone dry all year).
- New condensation pump for HVAC system /de-humidifier installed 2023
Entertainment Systems / Internet / Security
- Fusion AV755 4-zone marine stereo system w/ NMEA 2K, Bluetooth and wifi control via phone app (in addition to head unit). (3) zone amplifiers (front deck, salon, MBR & party top). Party top additionally includes dedicated 12V Interstate deep cycle battery w/ Marinco charger to power a 4-channel Fusion amplifier to (4) EV line array speakers and a mono-block Jl-Audio amplifier to power (2) Jl Audio 10? subwoofers (w/ LED accent lighting) installed in flybridge. Sirus XM receiver /antenna installed on radar arch.
- Salon has new 50? Samsung LED TV w/ soundbar. All bedrooms have new Samsung LED TV?s from 24-27?, and Party-top has a 32? Sun-Bright outdoor LED TV.
- Boat has VeCOAX MiniMod2 digital RF modulator to deliver digital FTA antenna on radar arch, marina cable TV, Fusion DVD player video and Shield Media Player (live on on-demand IPTV) to all TV?s in boat.
- 4G cellular modem / wifi router installed under fly-bridge (T-Mobile typical weekend bandwidth 20-60Mbs ? transferrable SIM card). Marina also provides wifi at slip (fiber).
- Security camera on rear deck to record, monitor & notify of unwanted activity around jet ski, engine hatches, etc. via Ring App. Additional camera on party deck to monitor bar appliances /TV, fly-bridge and marine electronics (amps, speakers, etc.).
Floor PlanGeneral Interior Notes:
- Beautiful Casked-aged oak premium LVL waterproof flooring installed throughout entire interior in 2023.
- Natural oak wall panels & trim.
- New white /padded marine vinyl ceiling panels installed in 2024 throughout.
- New window treatments installed in 2024 for most interior windows (white coastal style 2” faux wood blinds).
- All outlets and switches replaces w/ new Decora style devices.
- Boat will be sold fully furnished w/ the furniture /fixtures shown in pictures (less some minor exceptions).
- Boat is fully insulated (both ceiling and side walls).

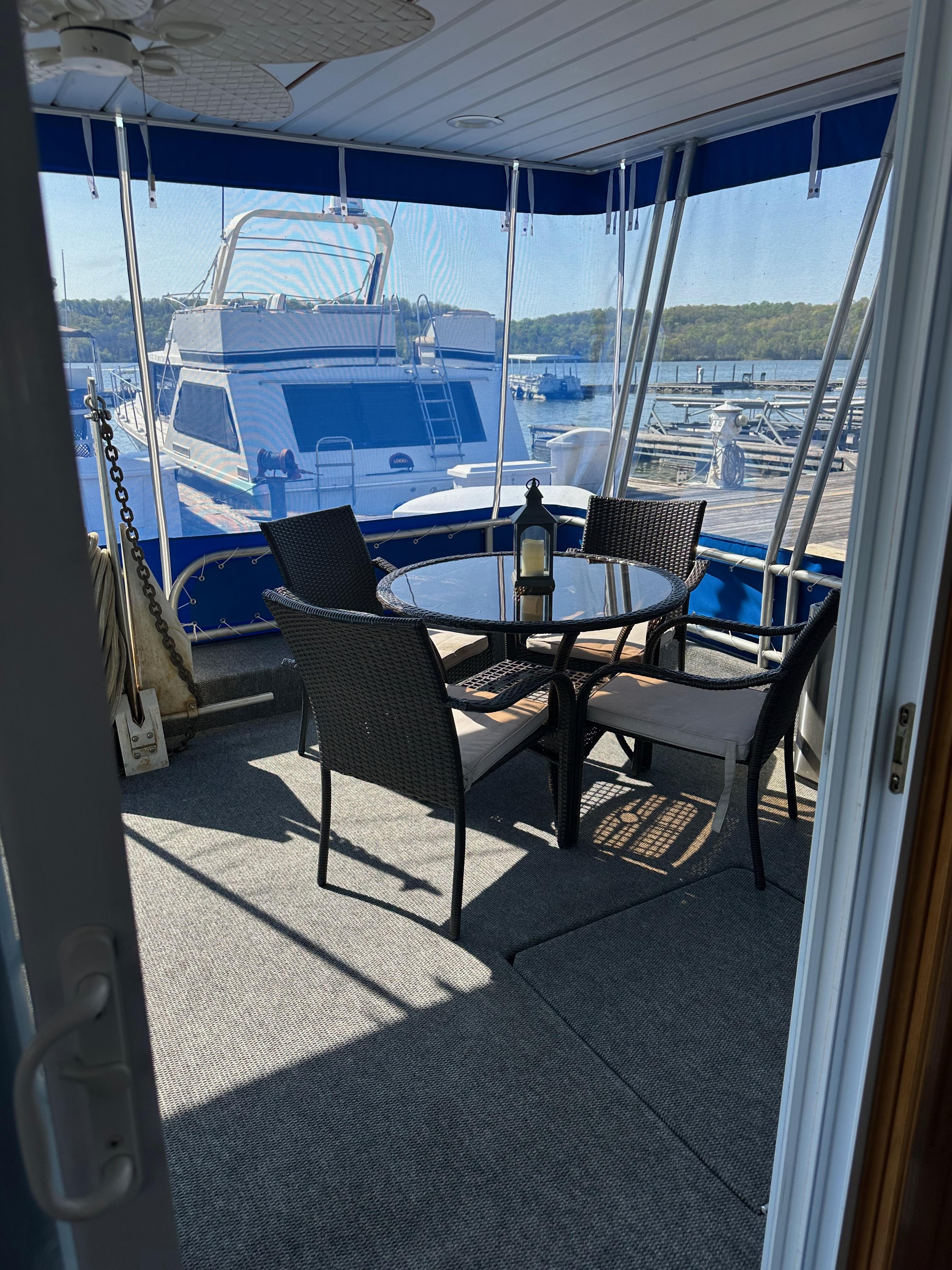

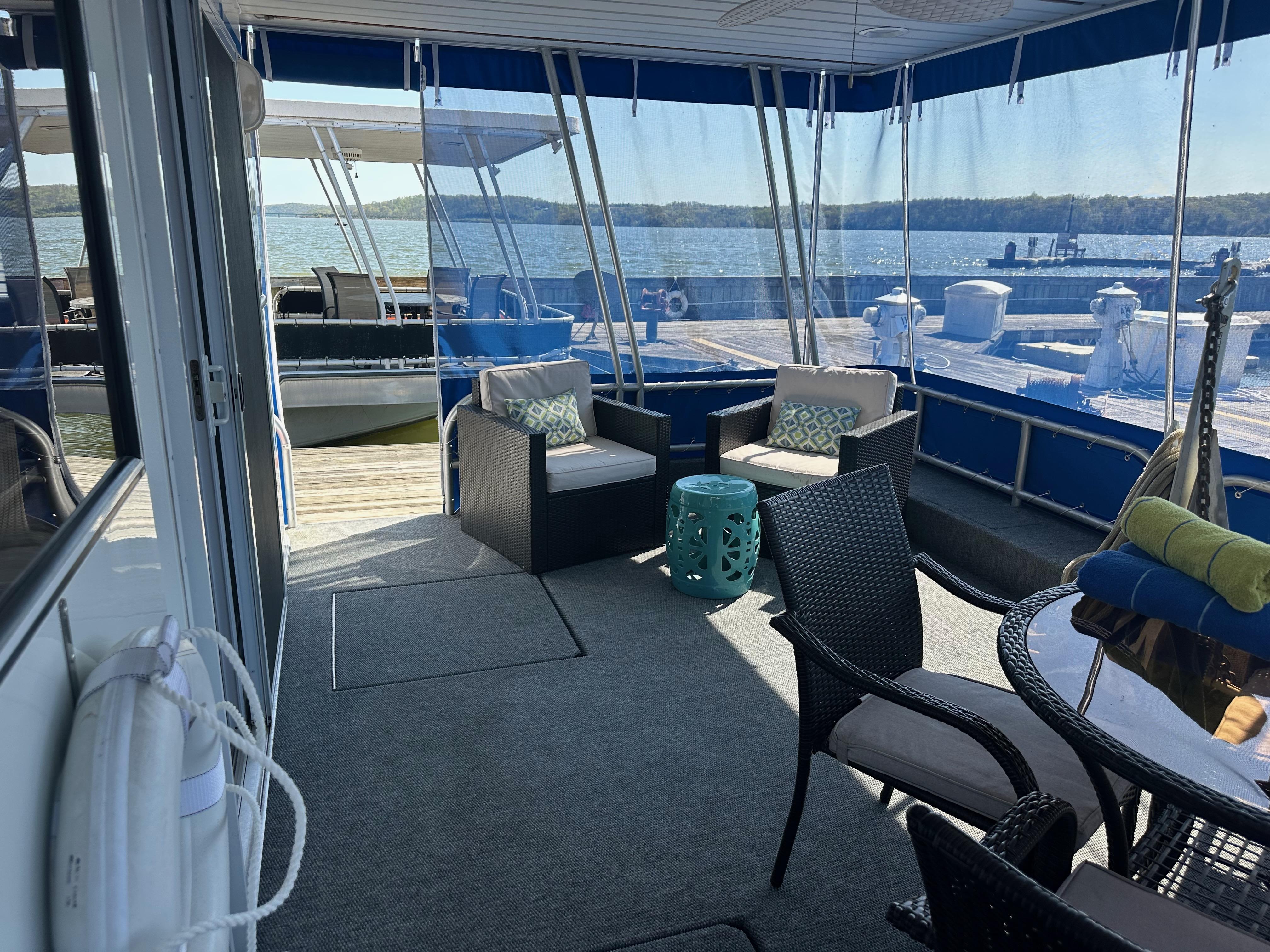

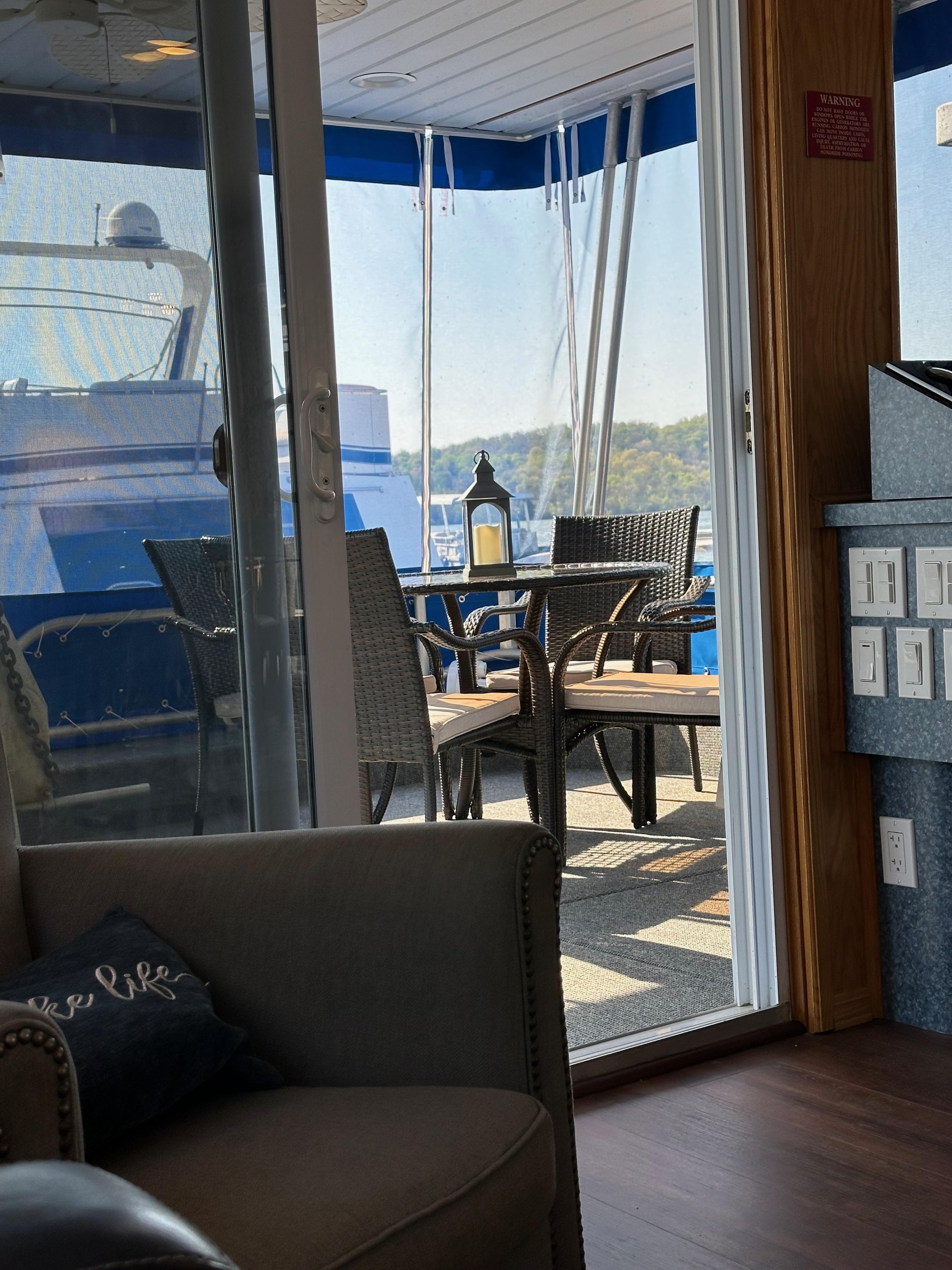

Front Deck (16’ X 11’):
- Fully furnished (patio table w/ (4) chairs & (2) loungers).
- New outdoor carpet installed in 2024.

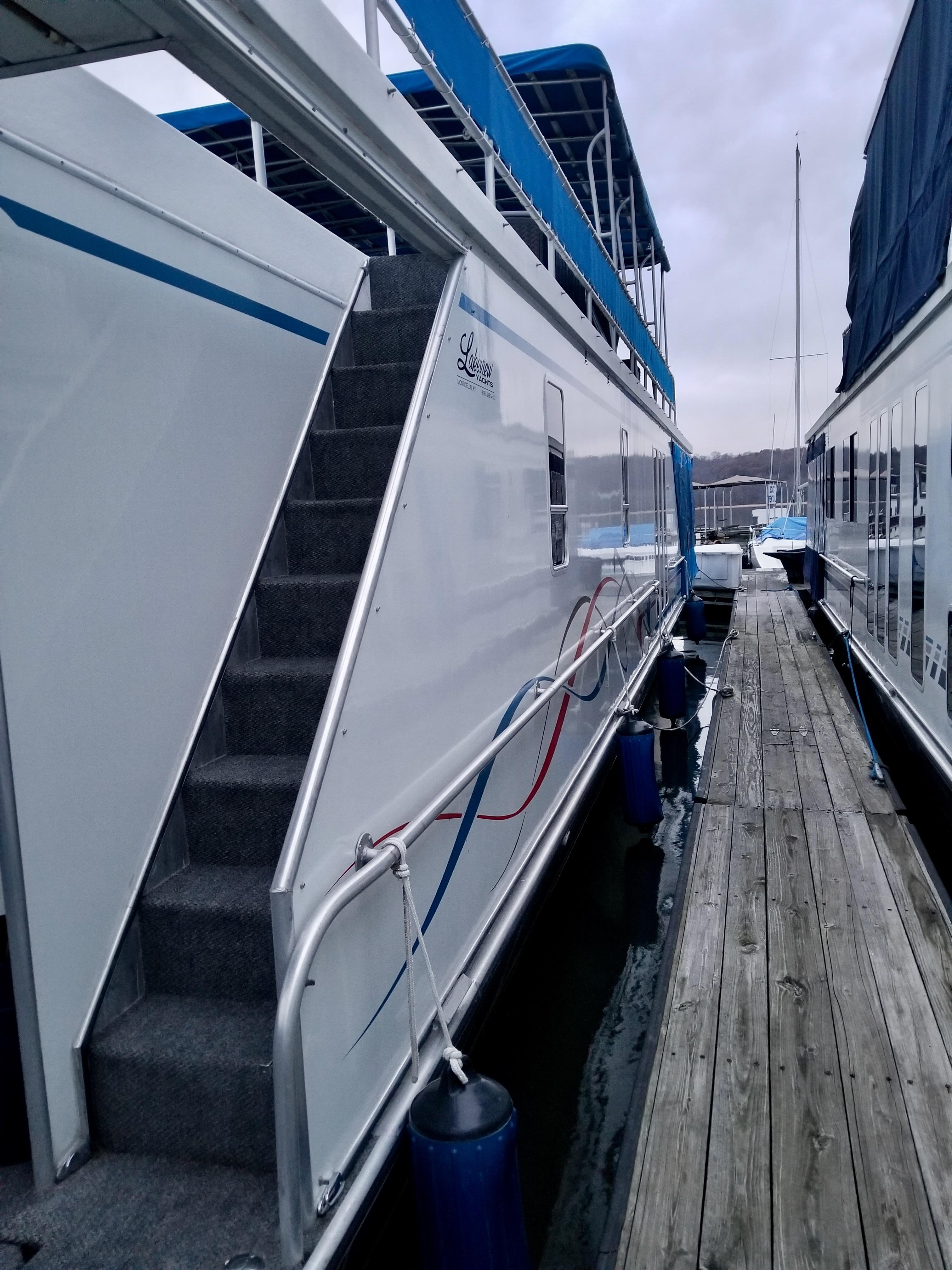

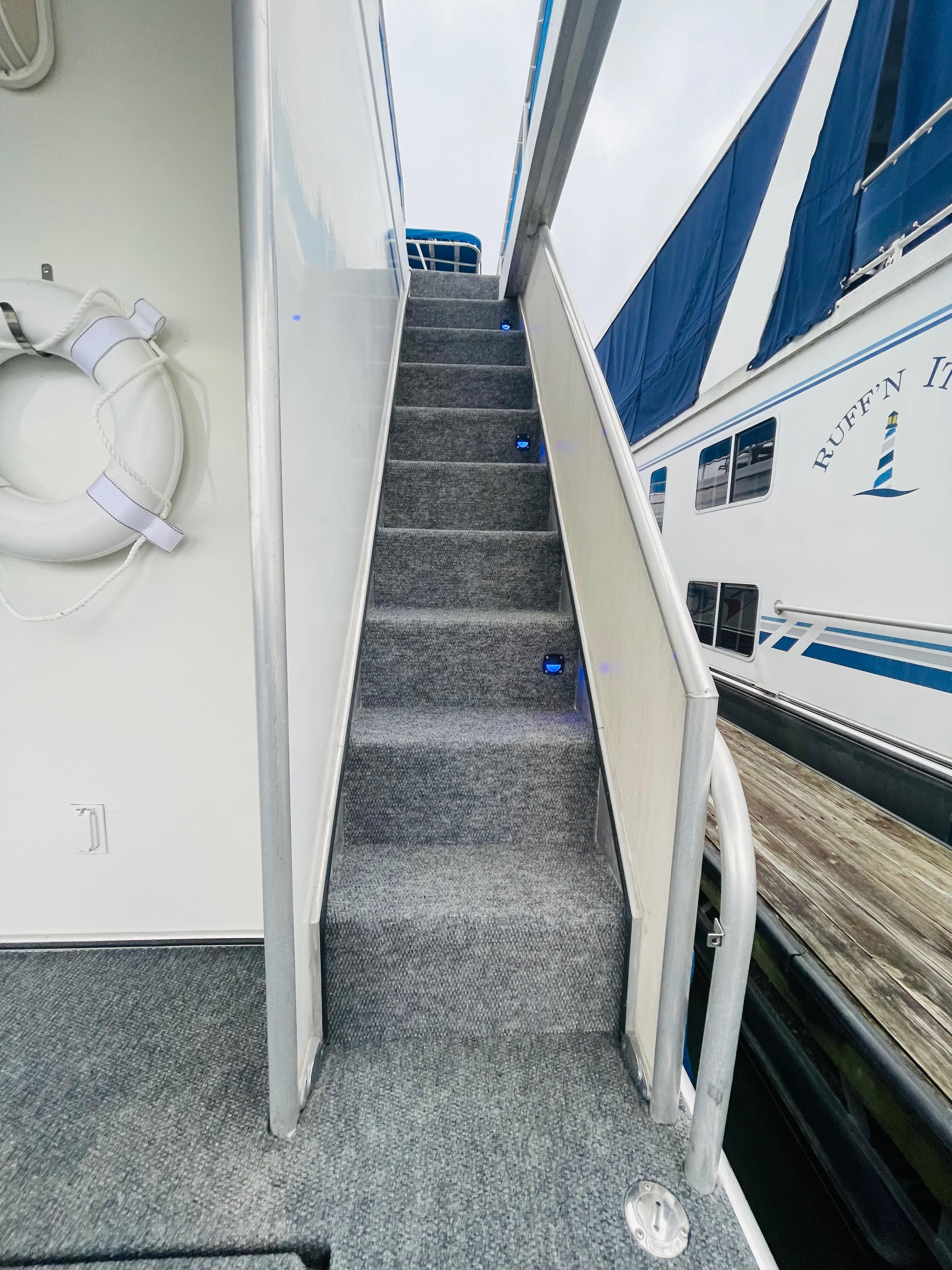

- Access to top deck via stairs w/ blue LED courtesy lighting.

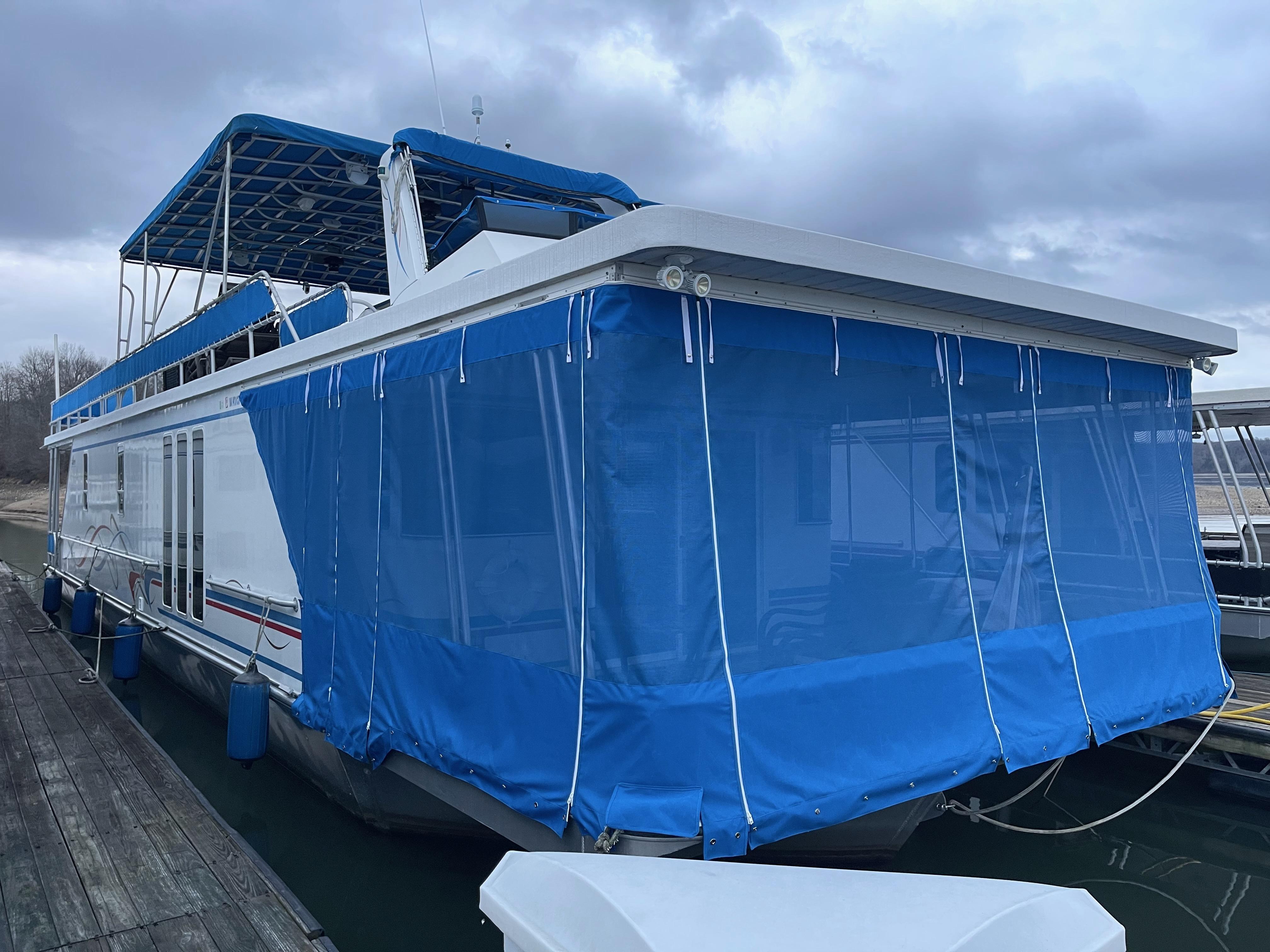

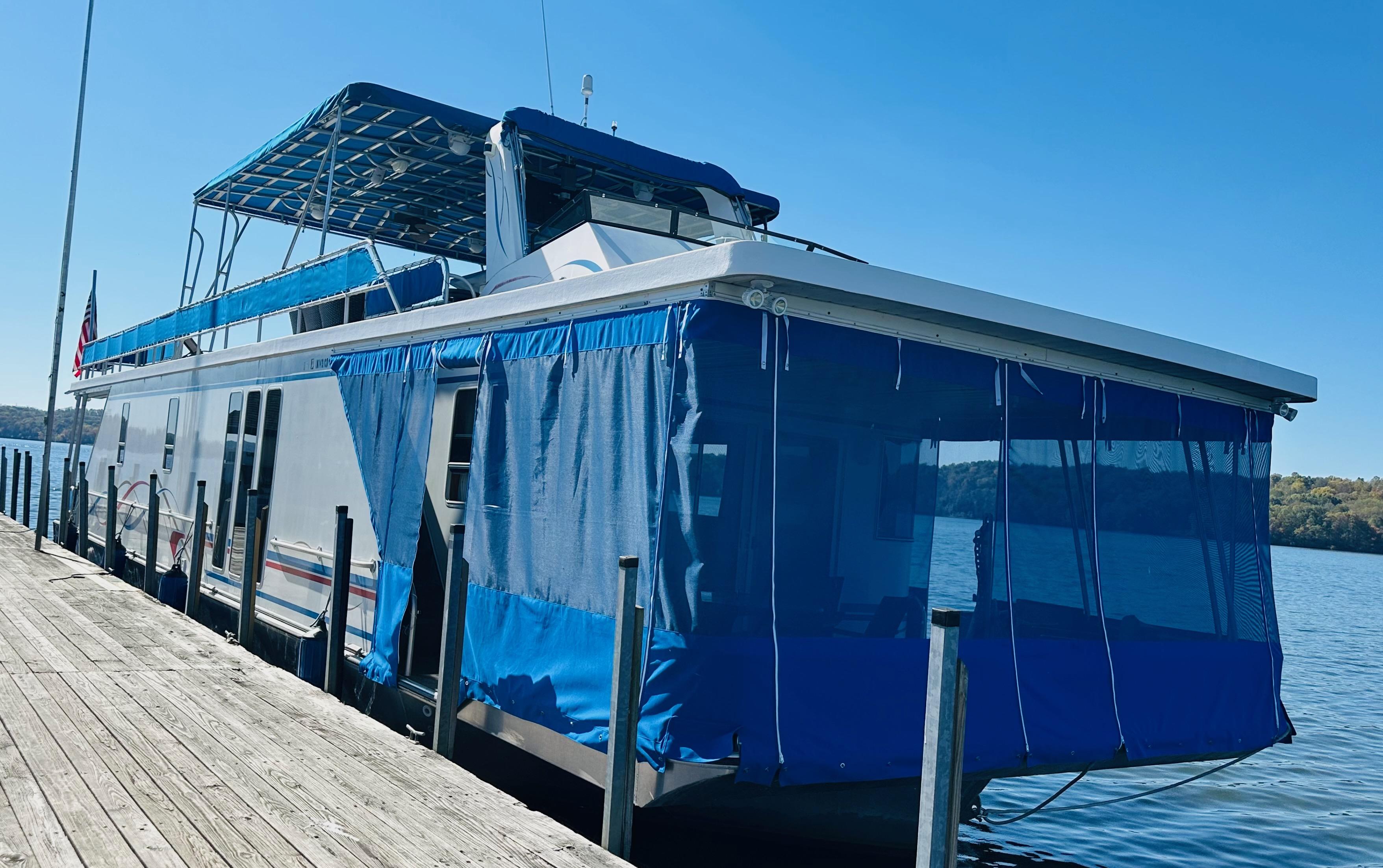

- New custom canvas /mesh screen full surround for bug free evenings.
- Ceiling fan, AC & DC puck lighting, forward facing LED flood lights & (2) nautical styled “no-bug” lights.

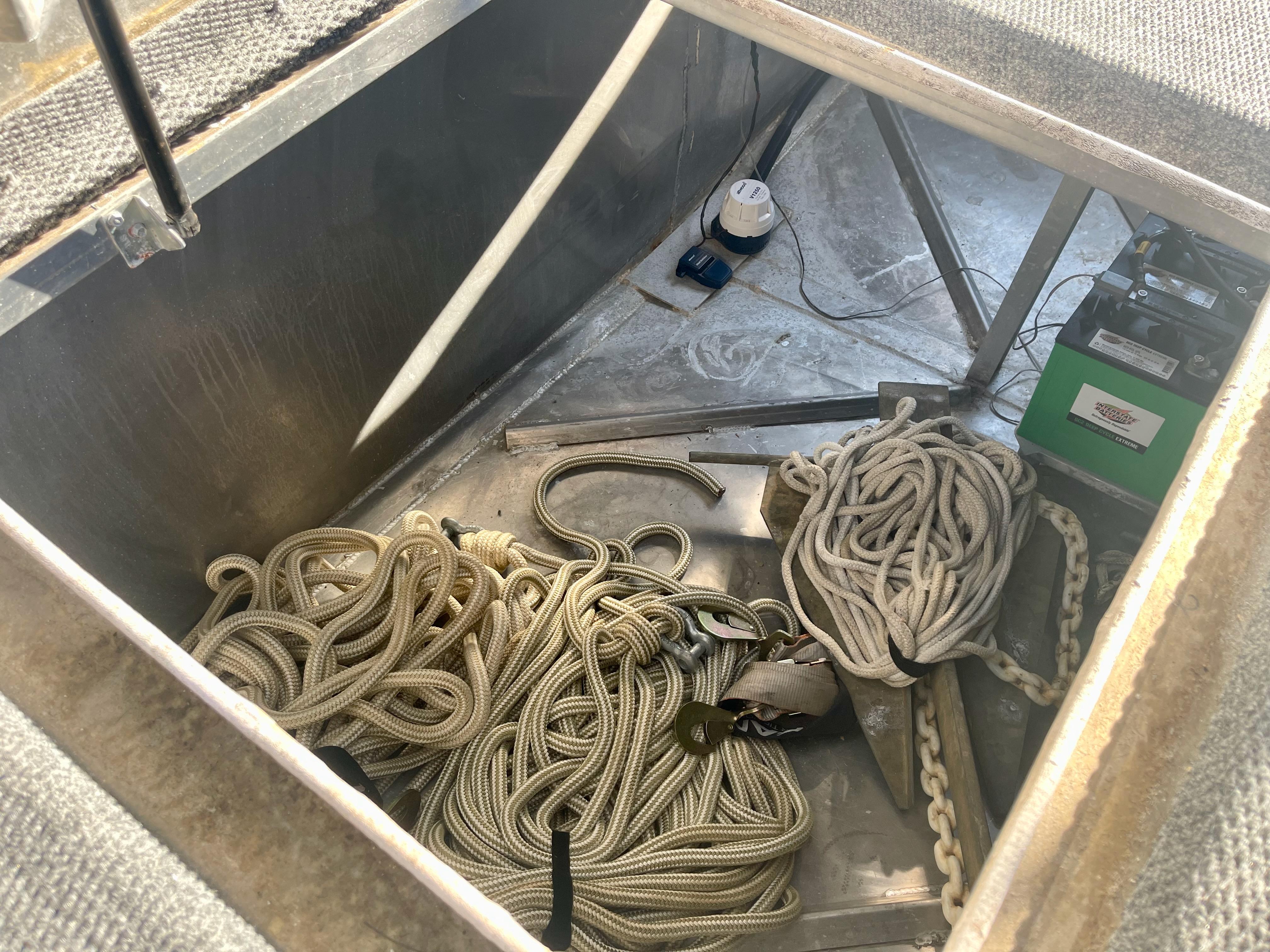

- (2) large hatches for anchor & rode storage, (2) small hatches for add’l hose & rope storage.
- Wash down spigot and capstan winch w/ foot control for bow anchor.

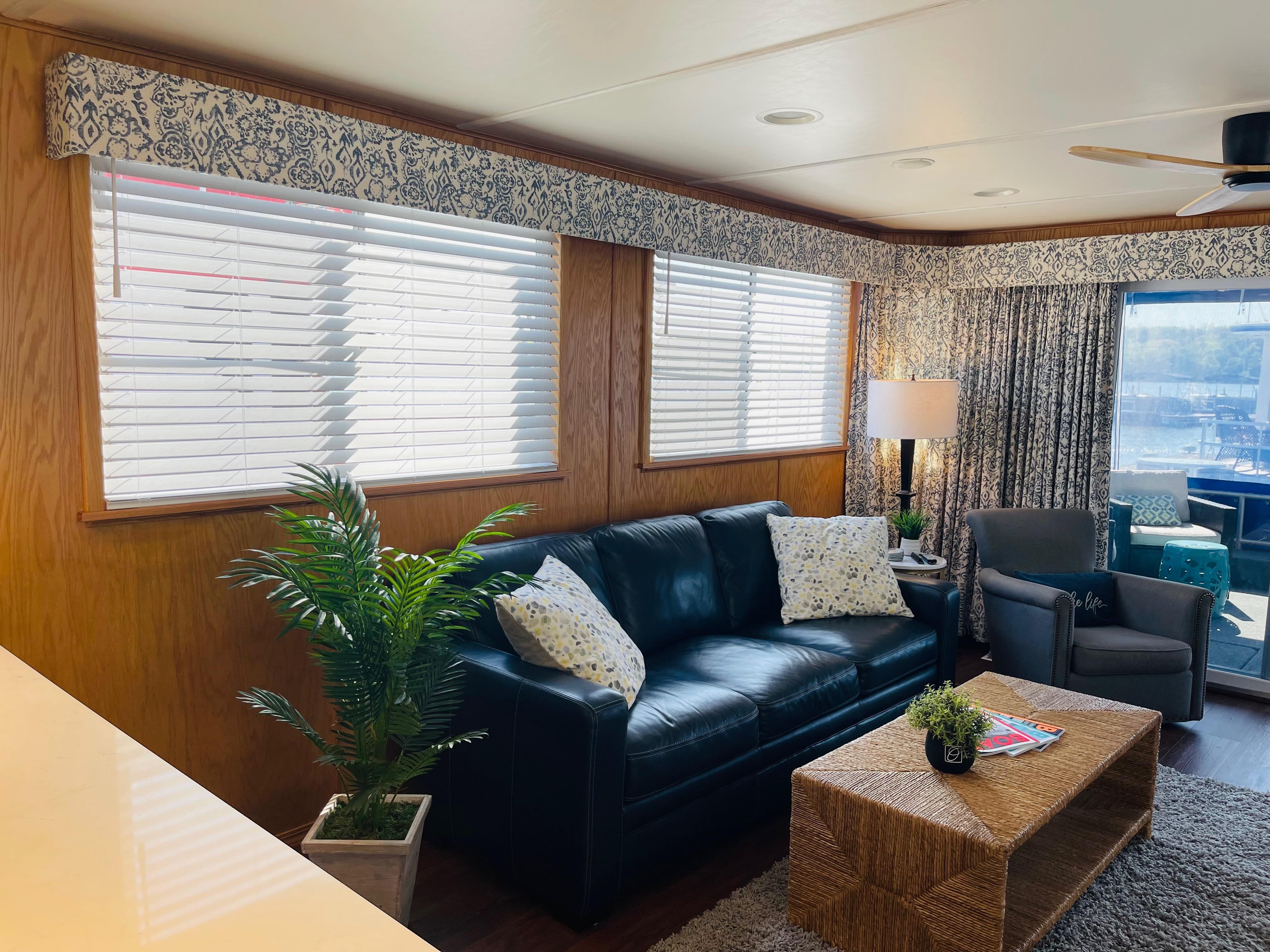

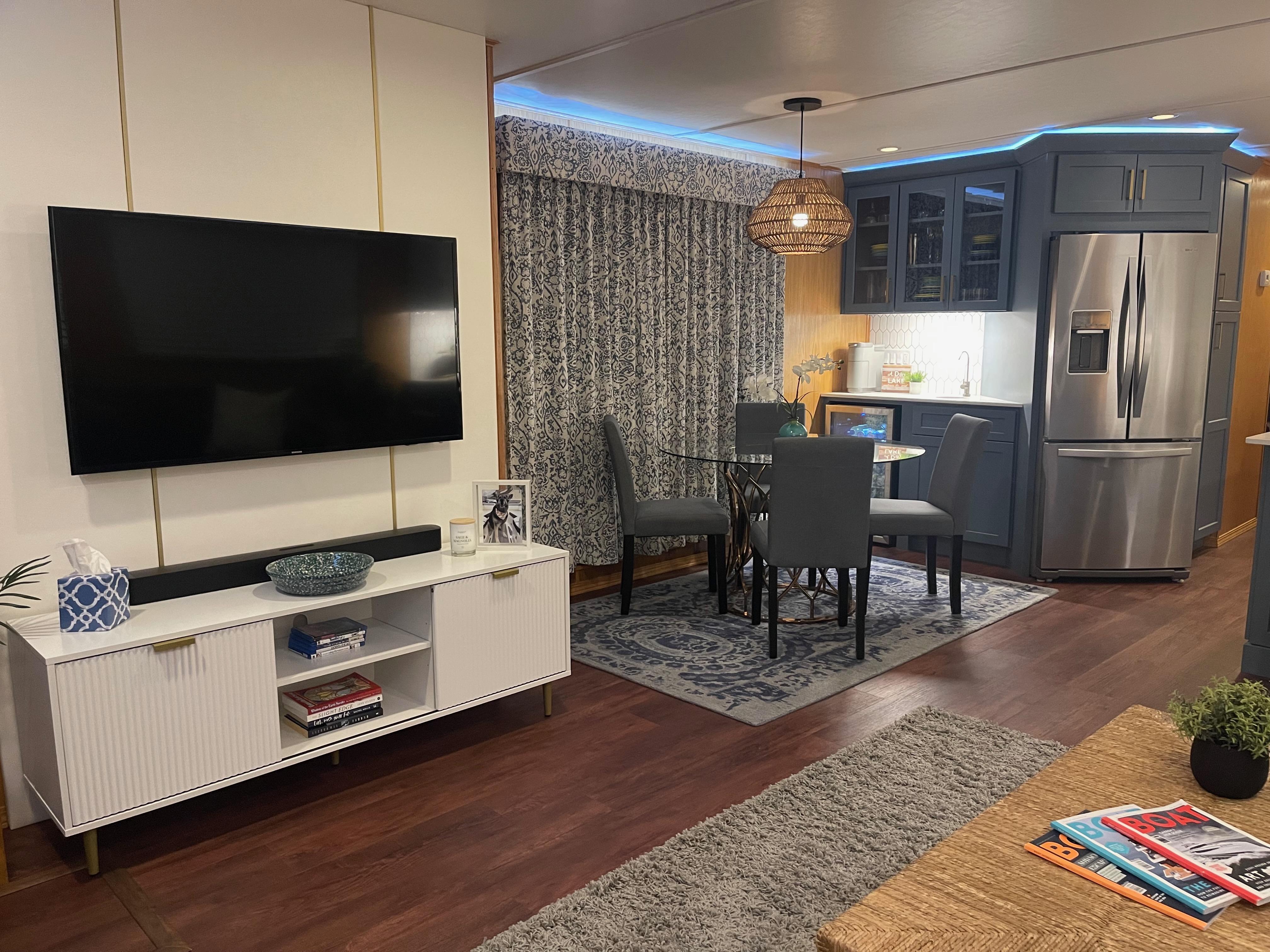

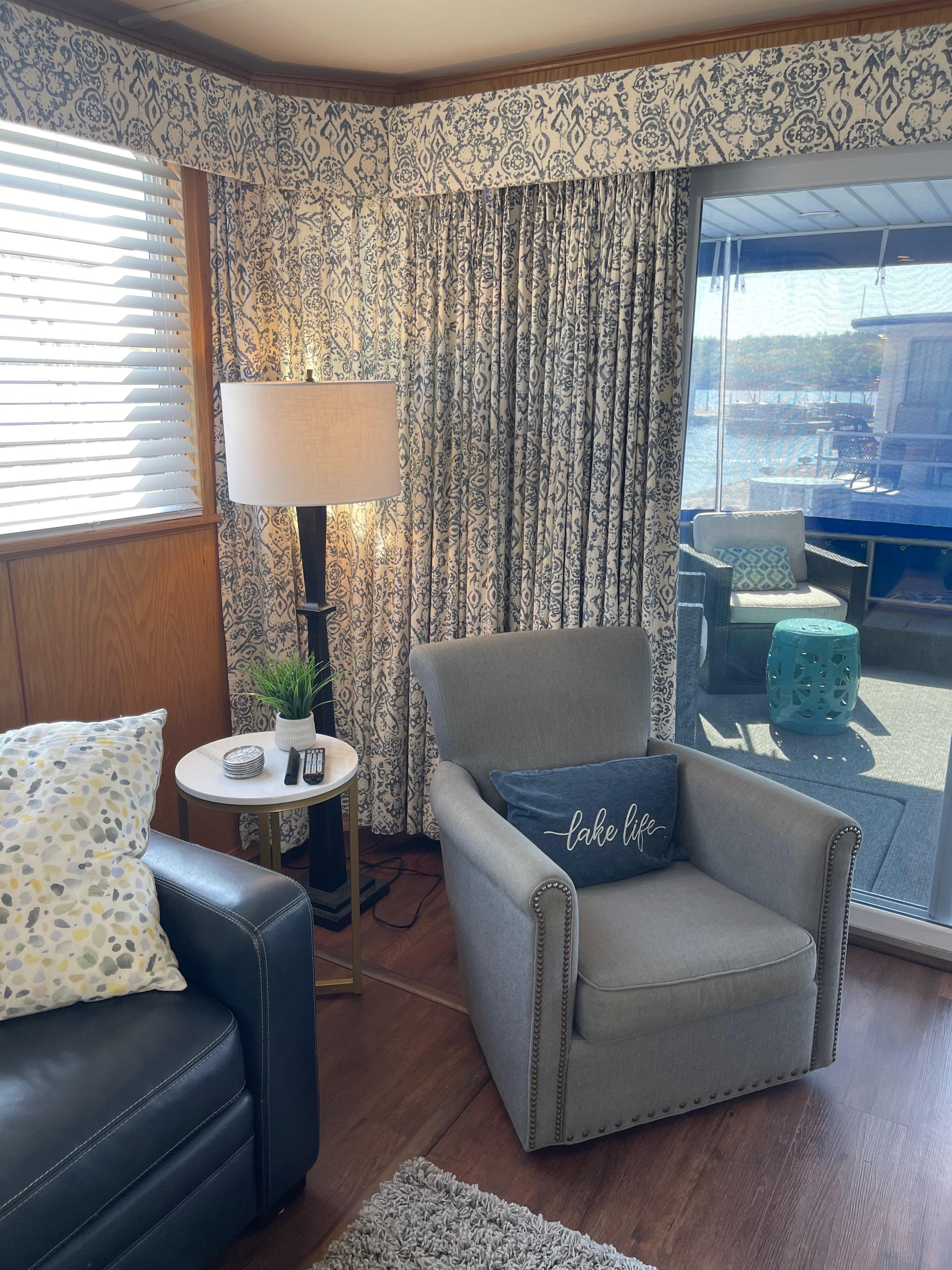

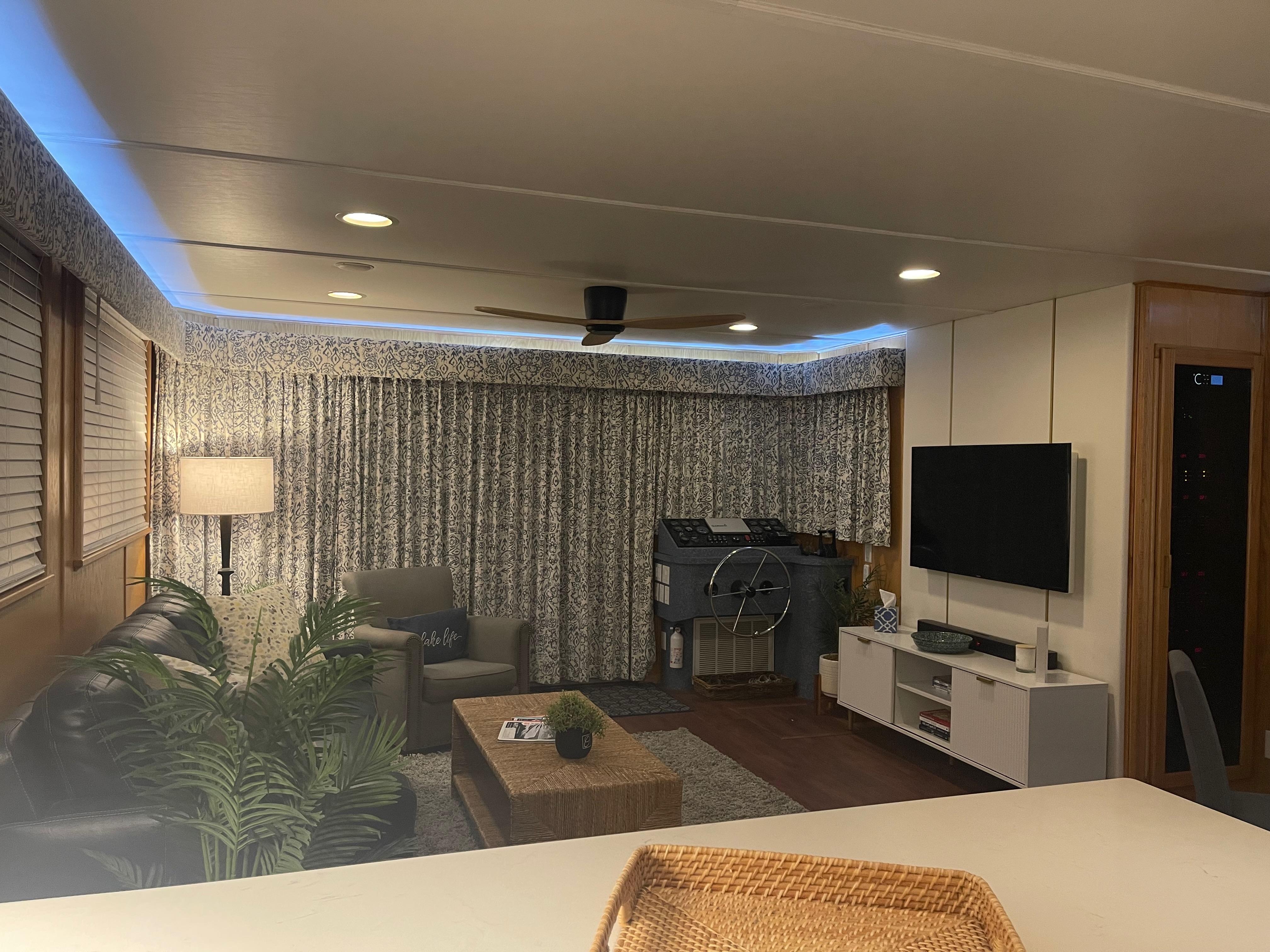

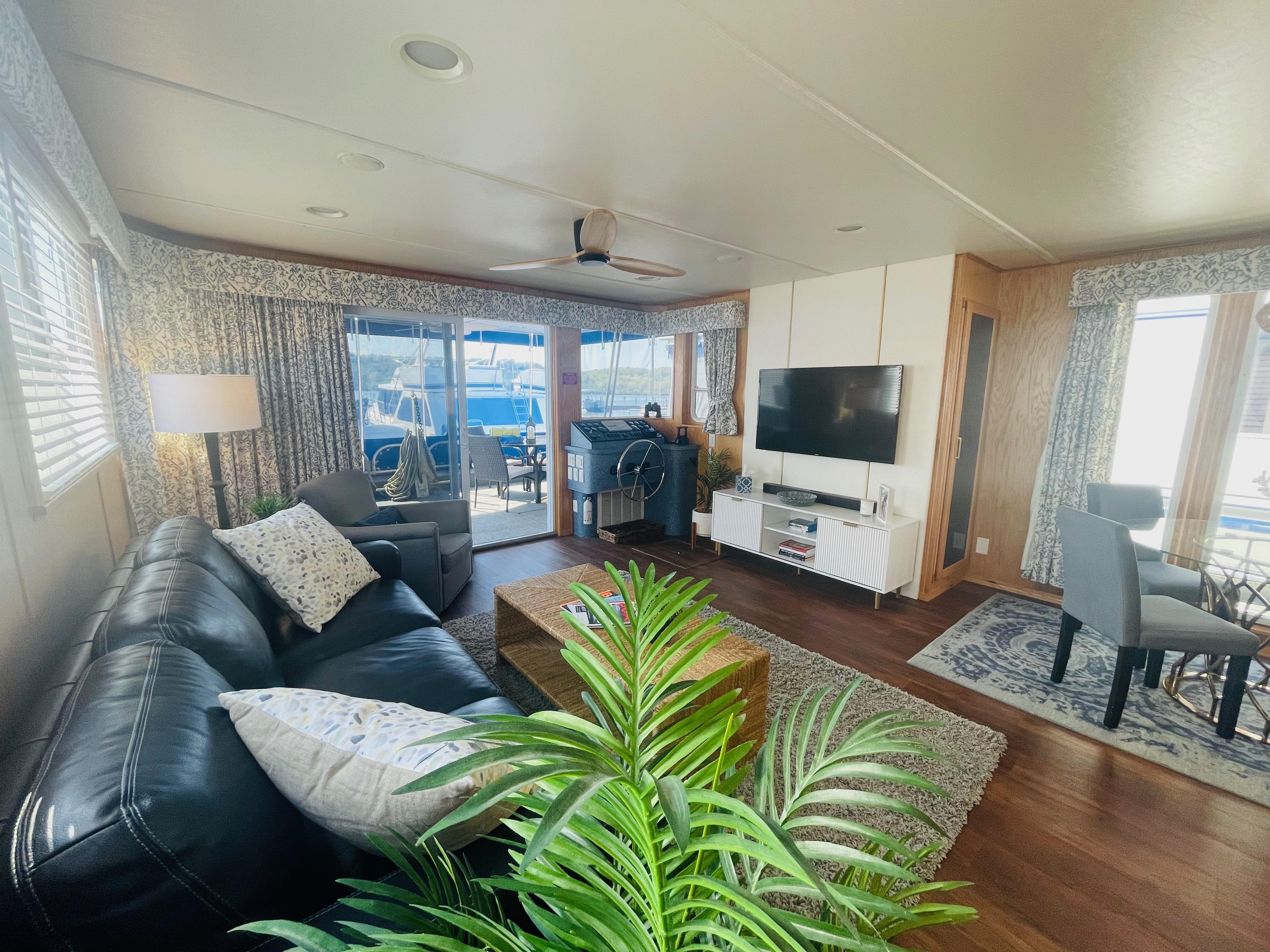

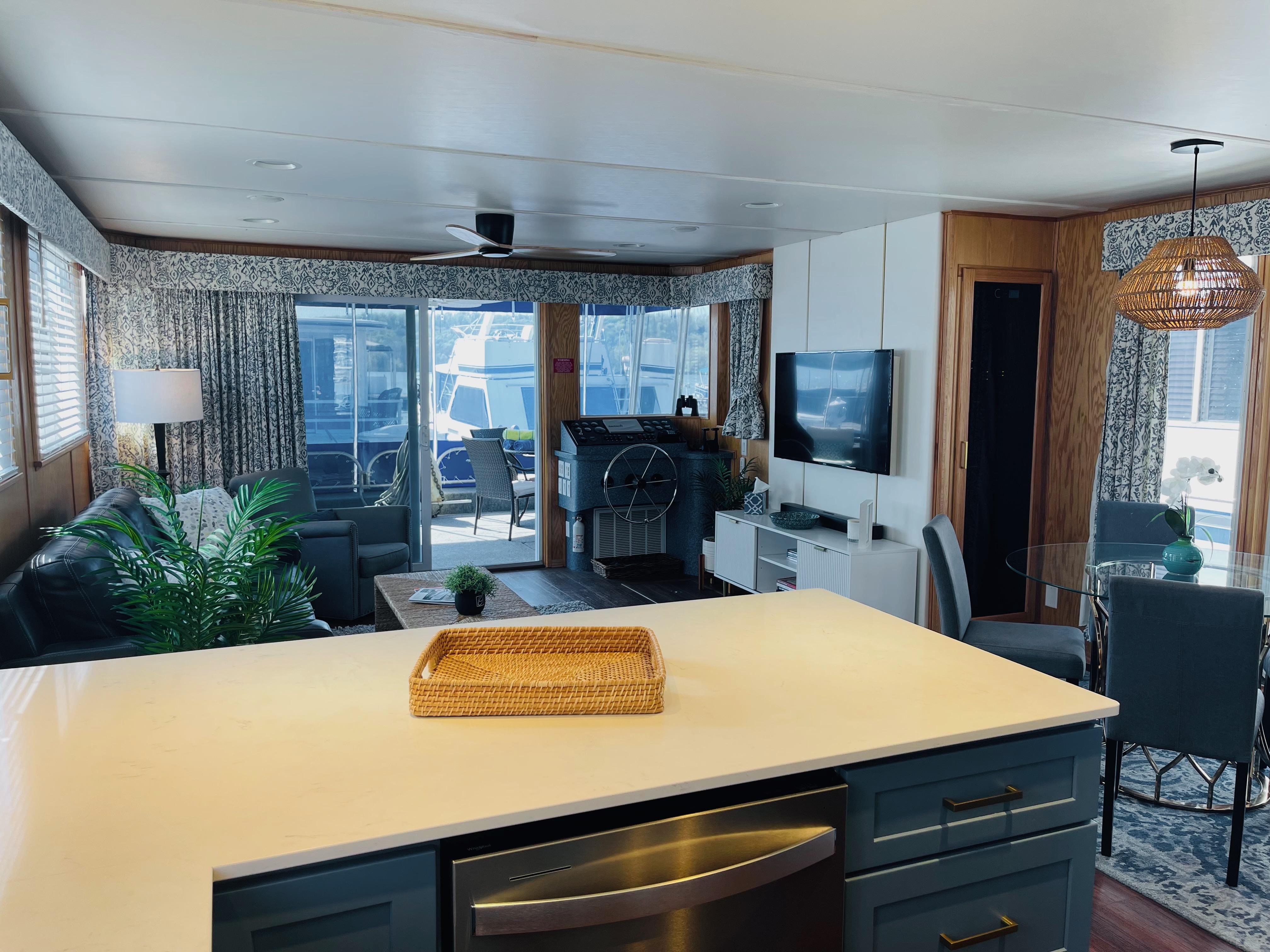

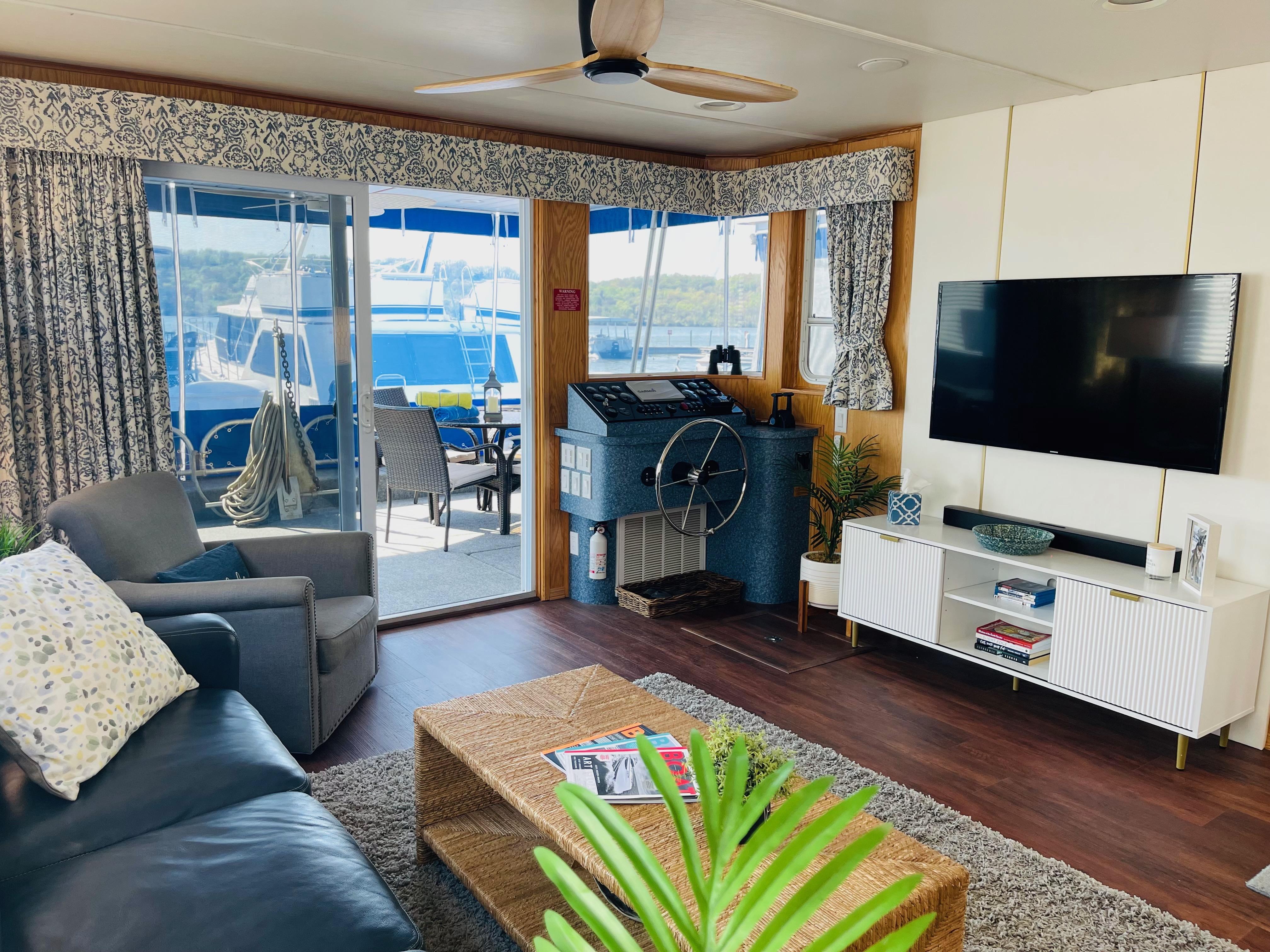

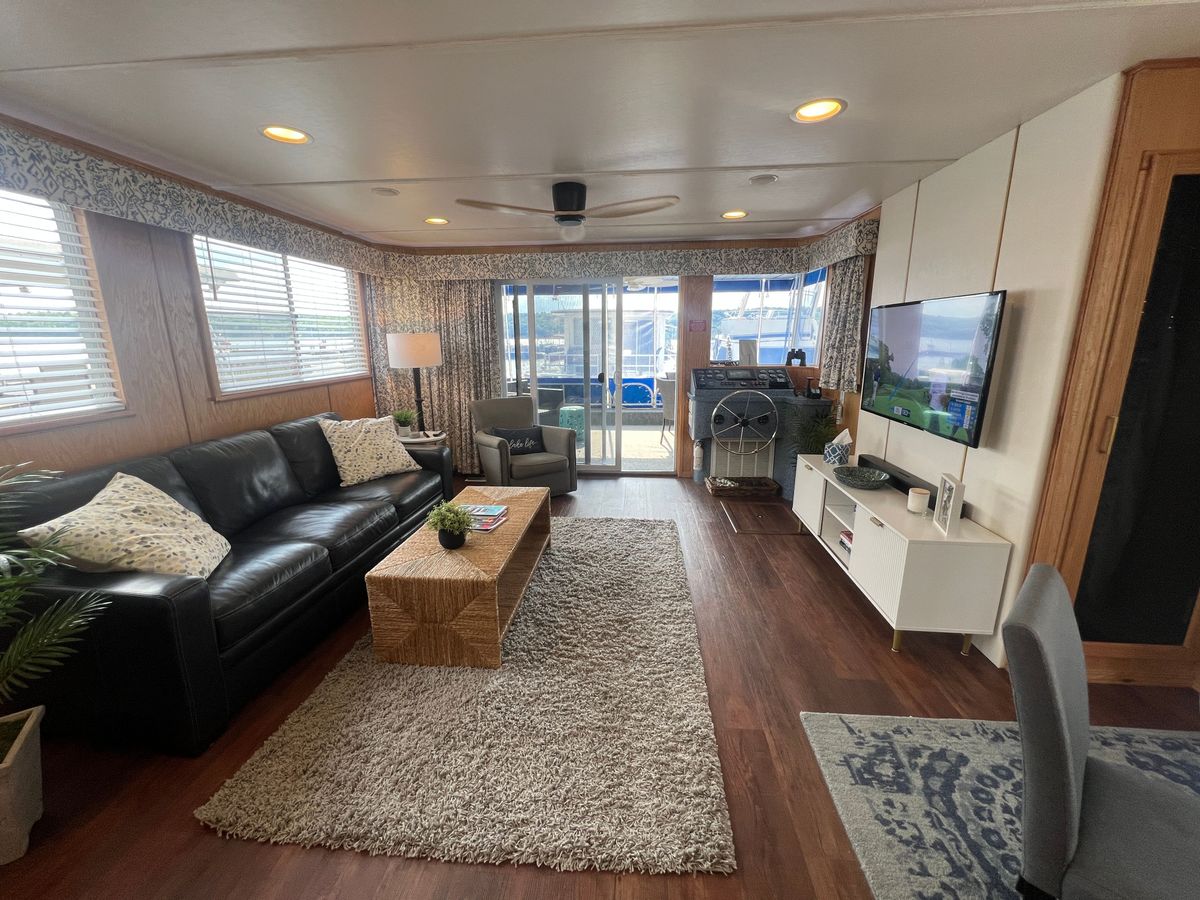

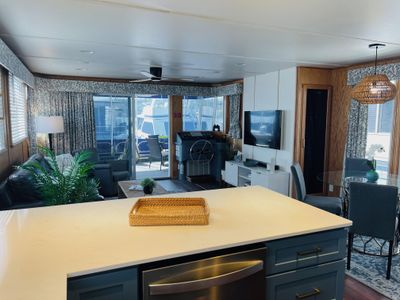

Salon (13’ X 16’):

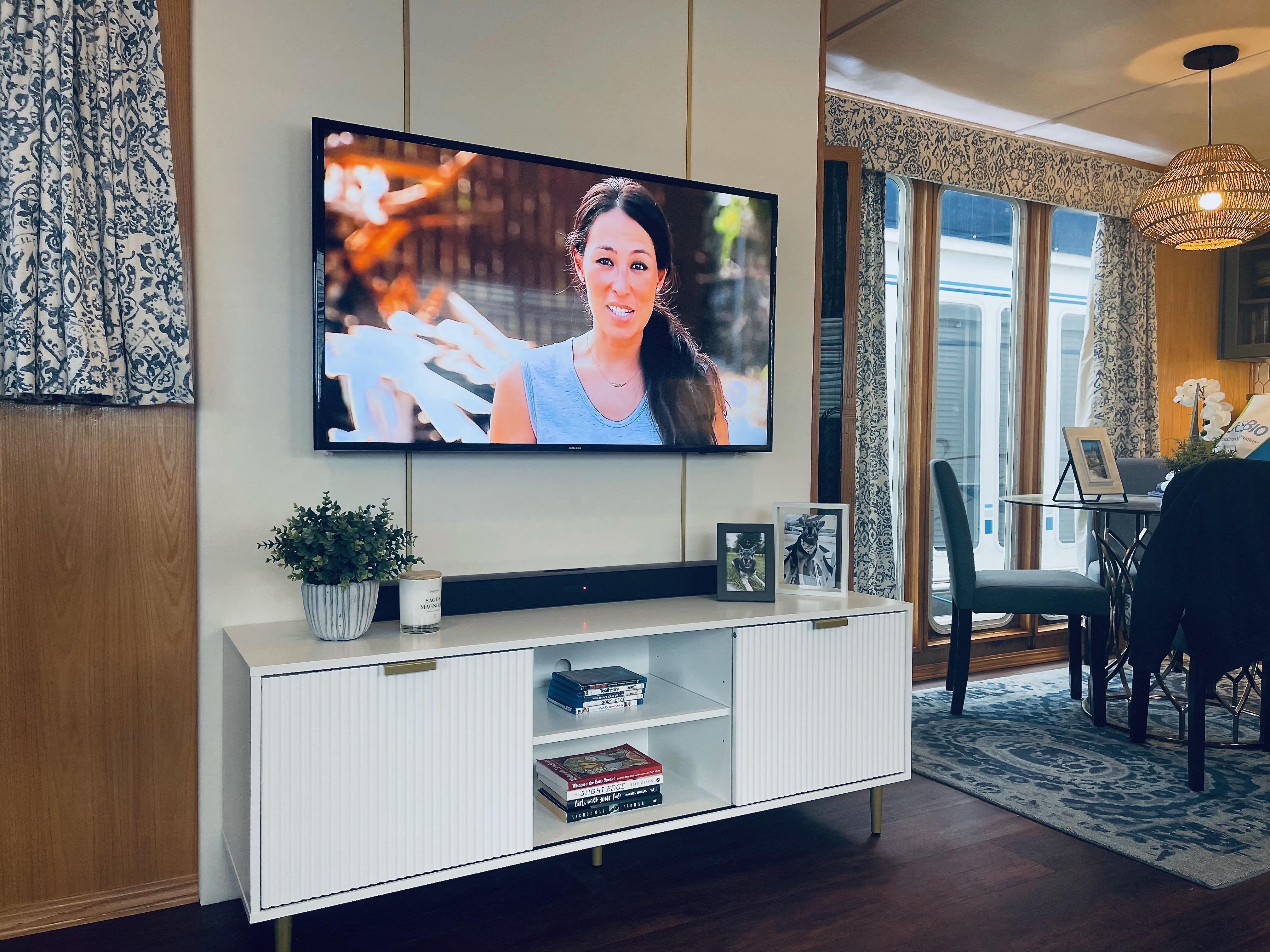

- Remodeled Media / Entertainment center w/ 50” LED TV and soundbar.

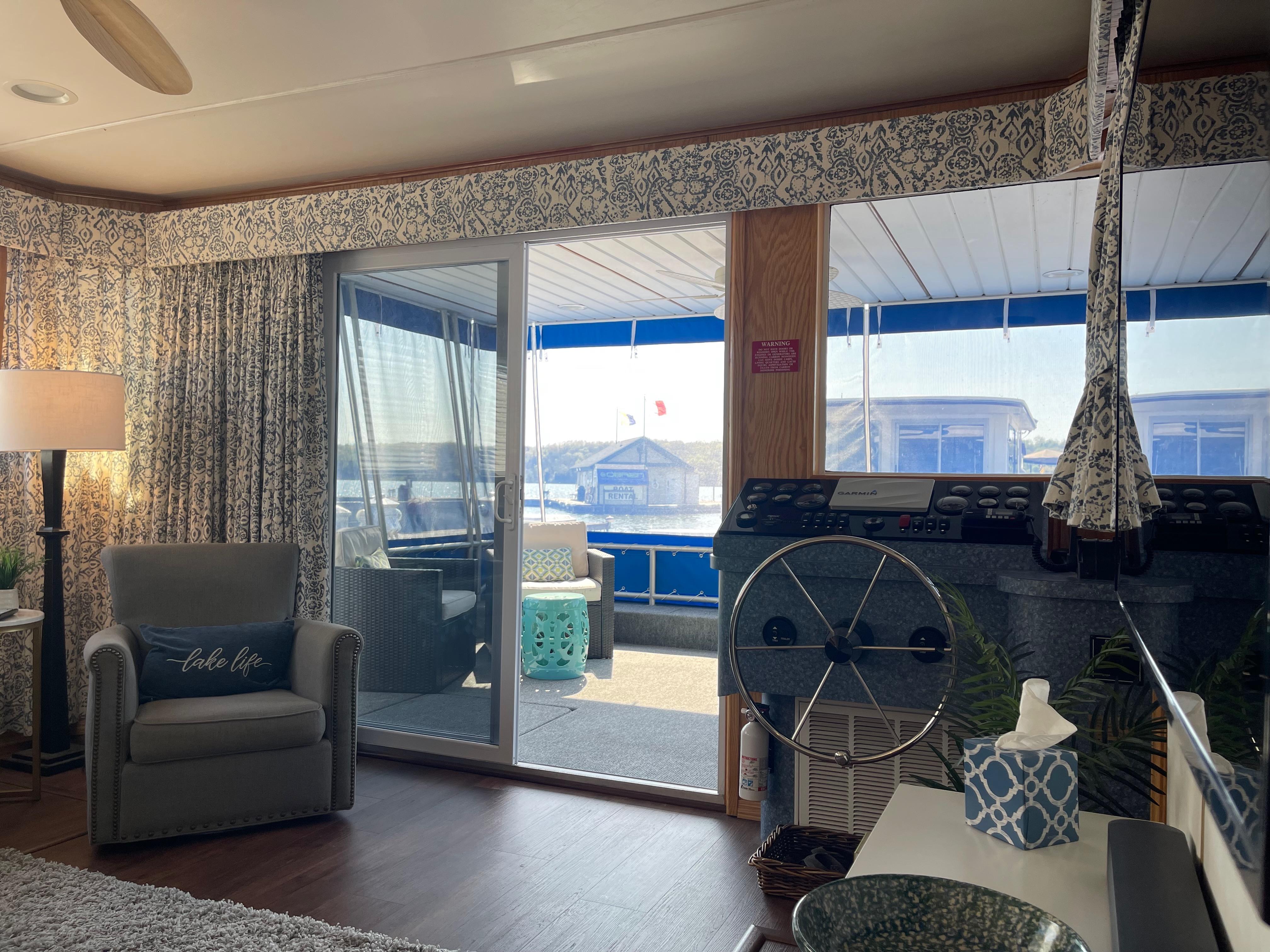

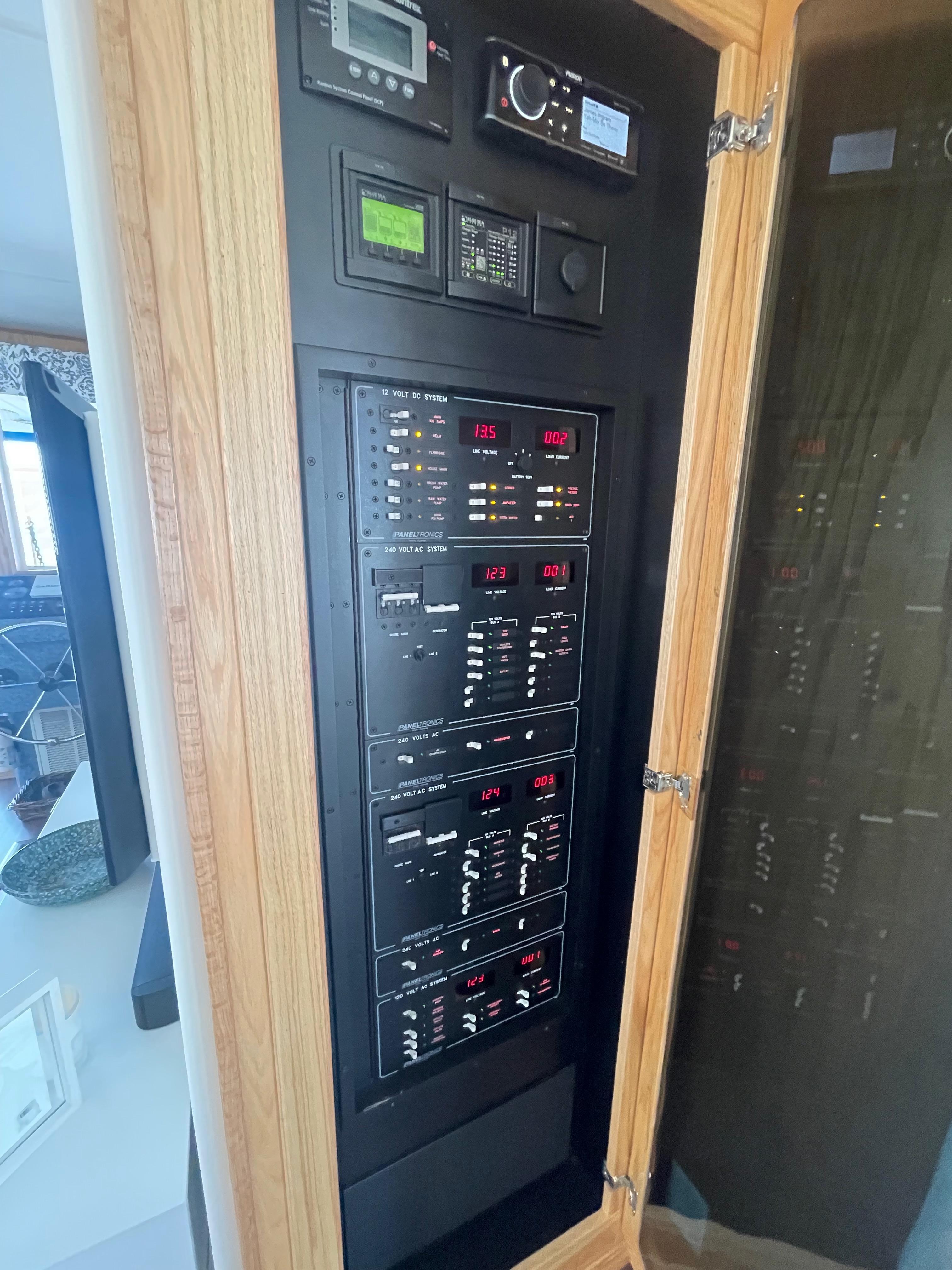

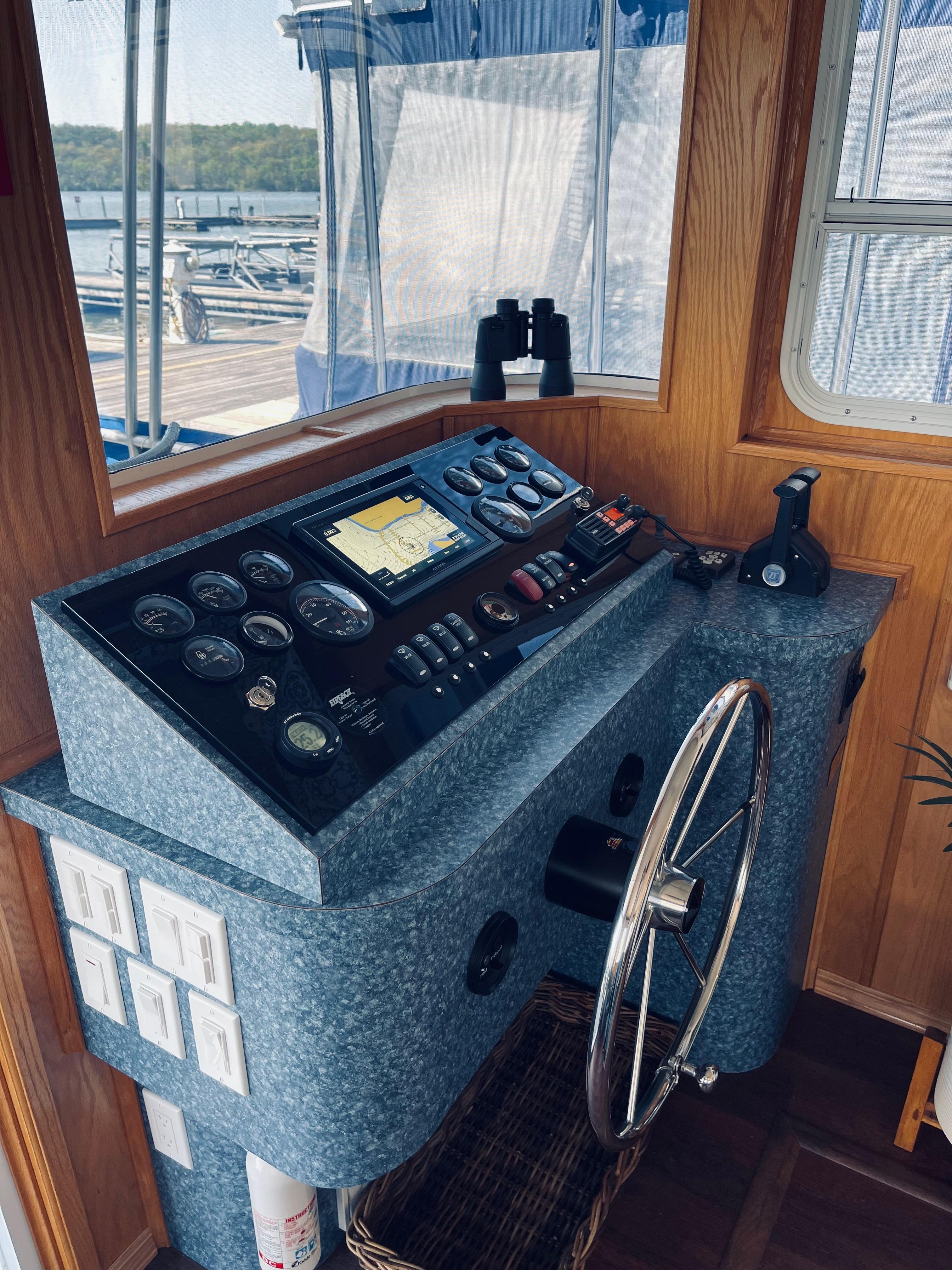

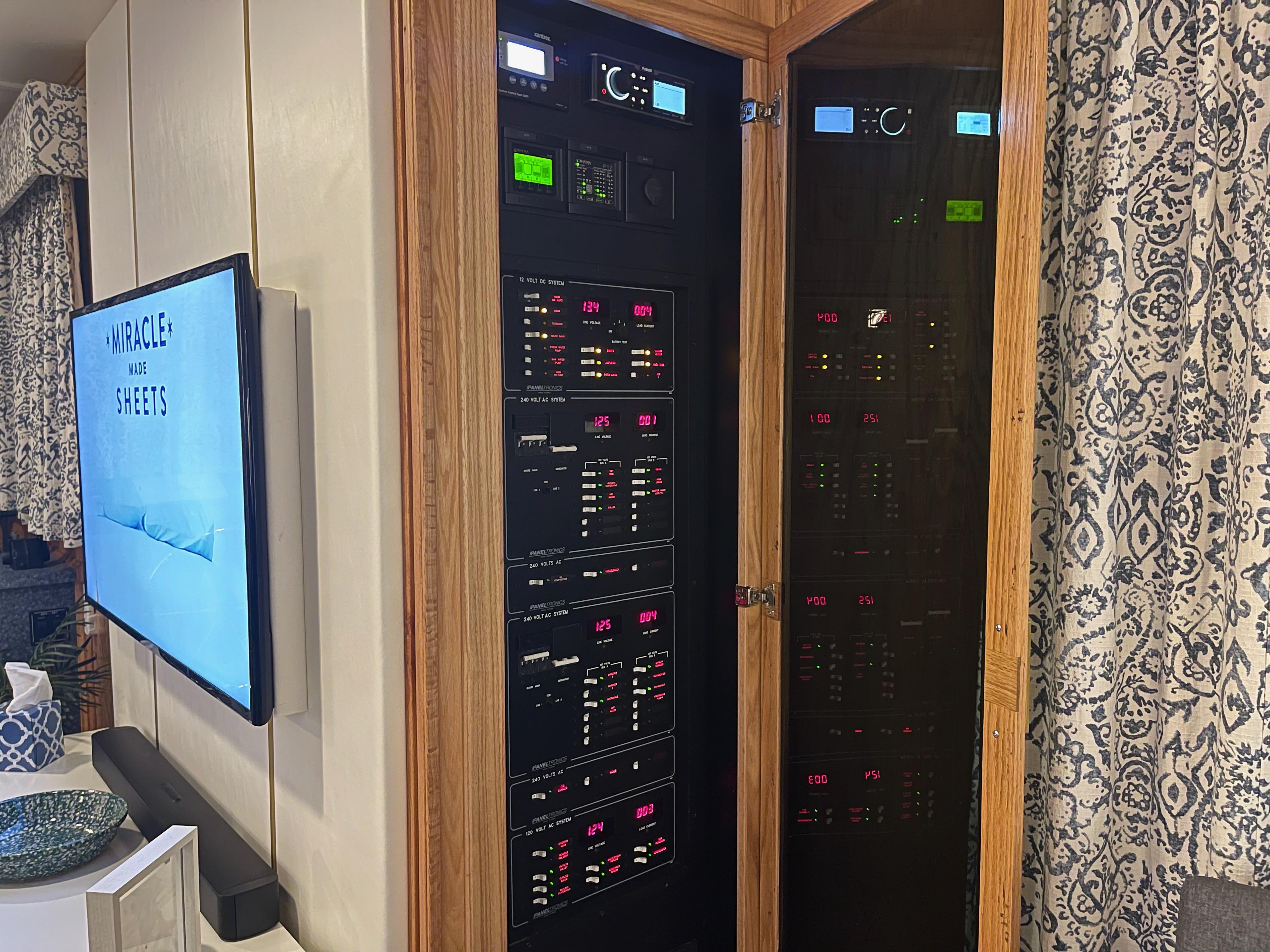

- Remodeled front helm & vessel systems control panels behind smoked glass access door.
- Ceiling fan w/ remote. Leather sofa, rugs and additional salon furniture included.
- Dimmable mood lighting via LED rope upwash above all valances and media center.

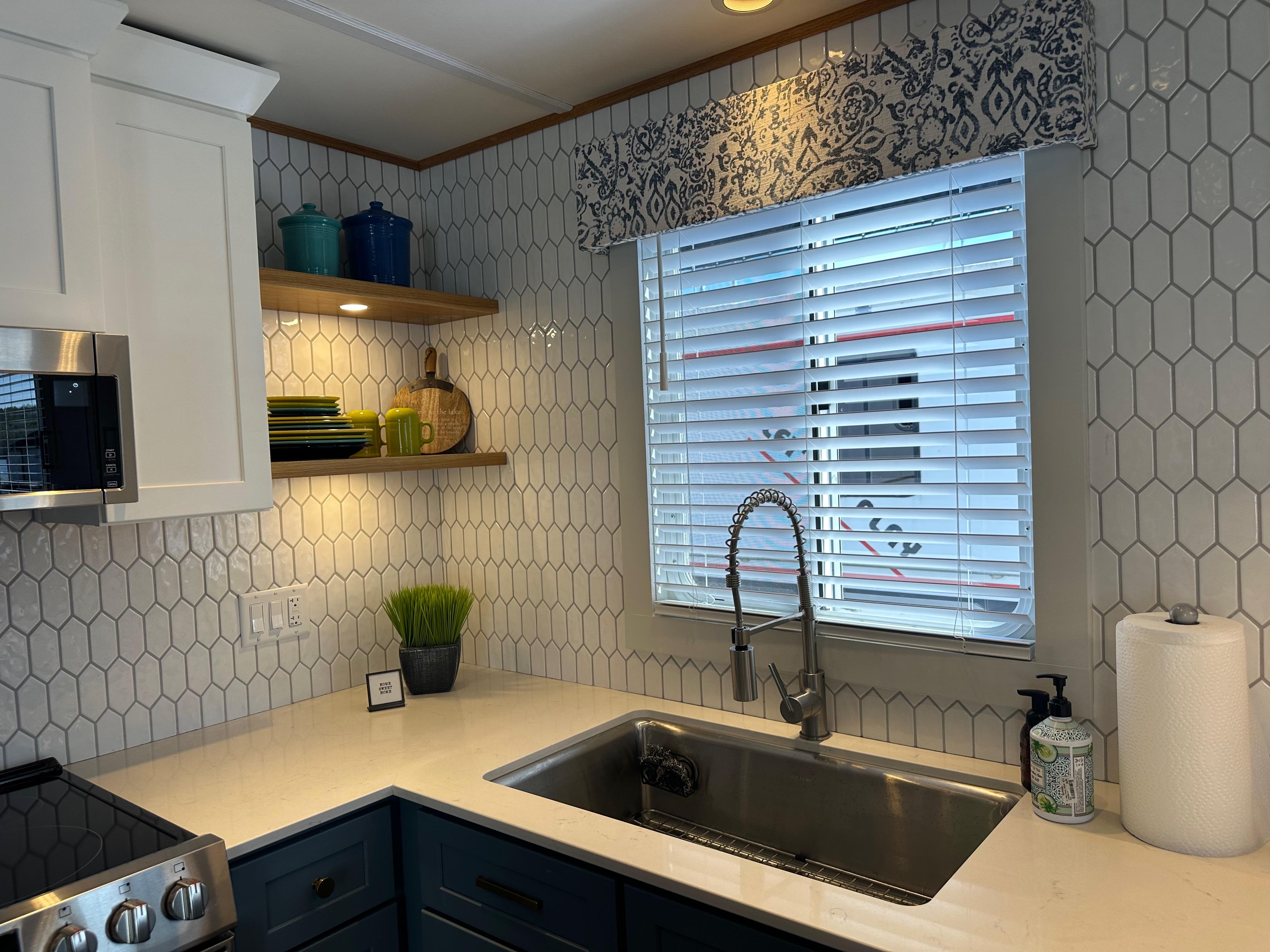

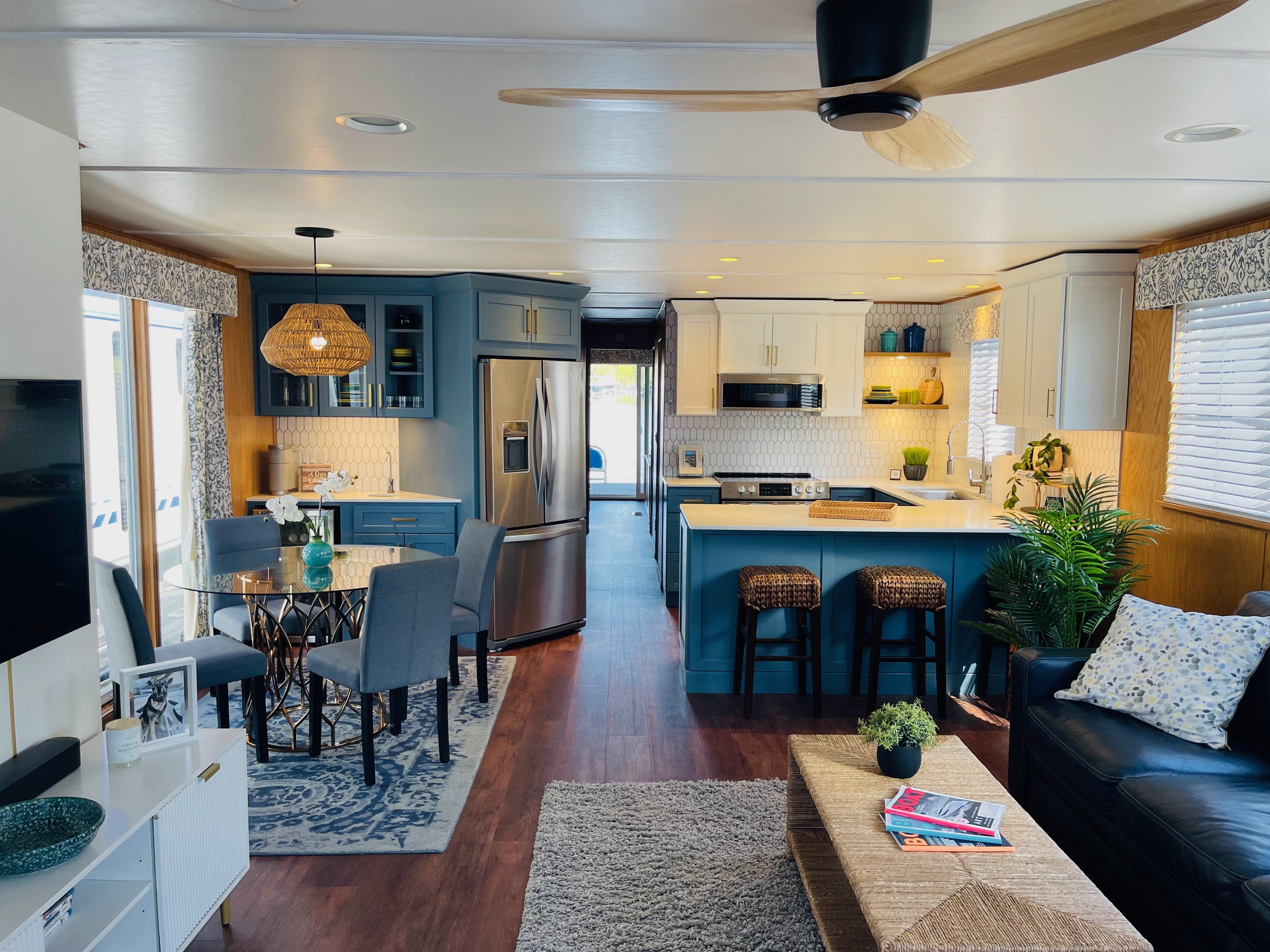

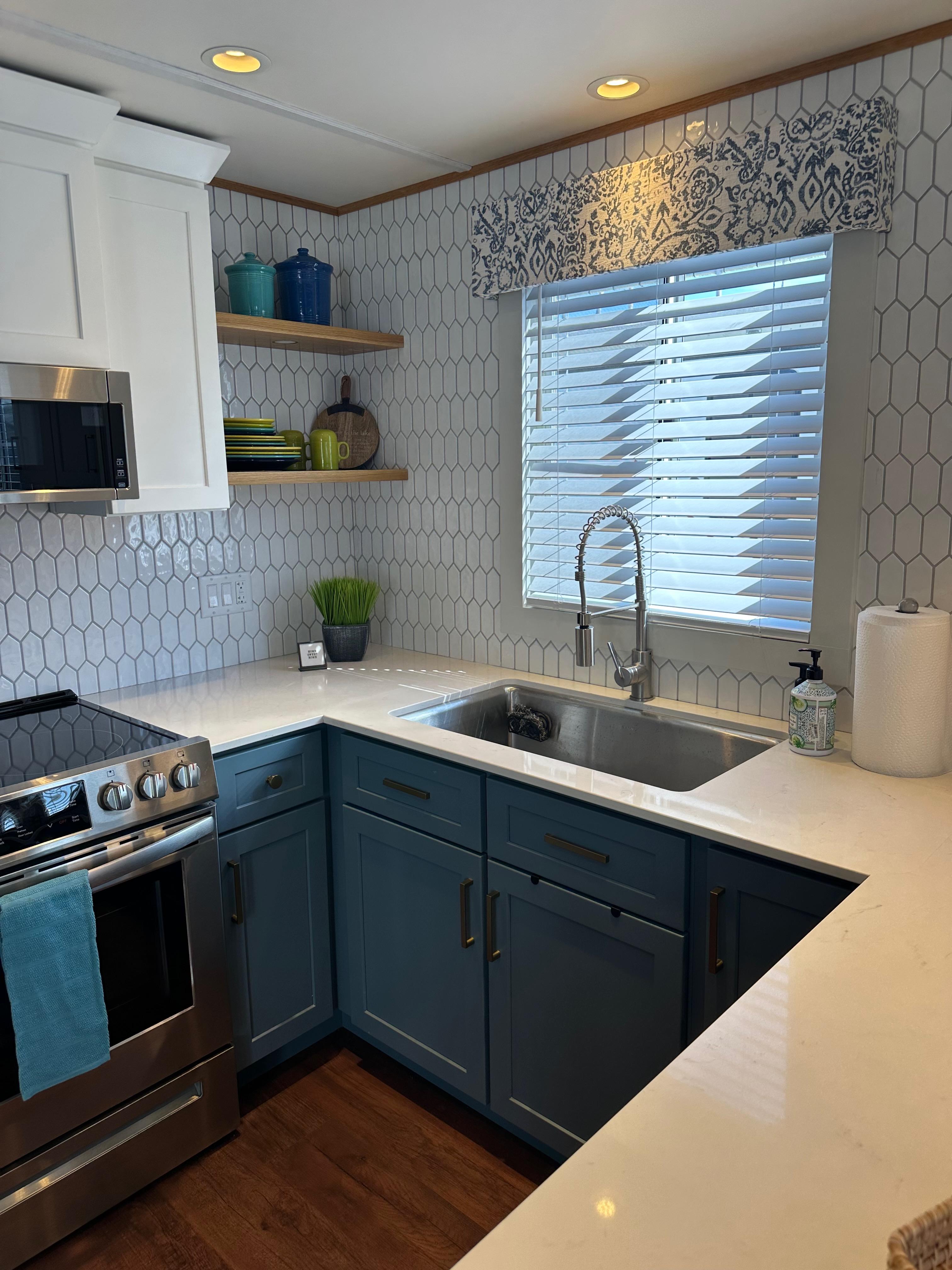

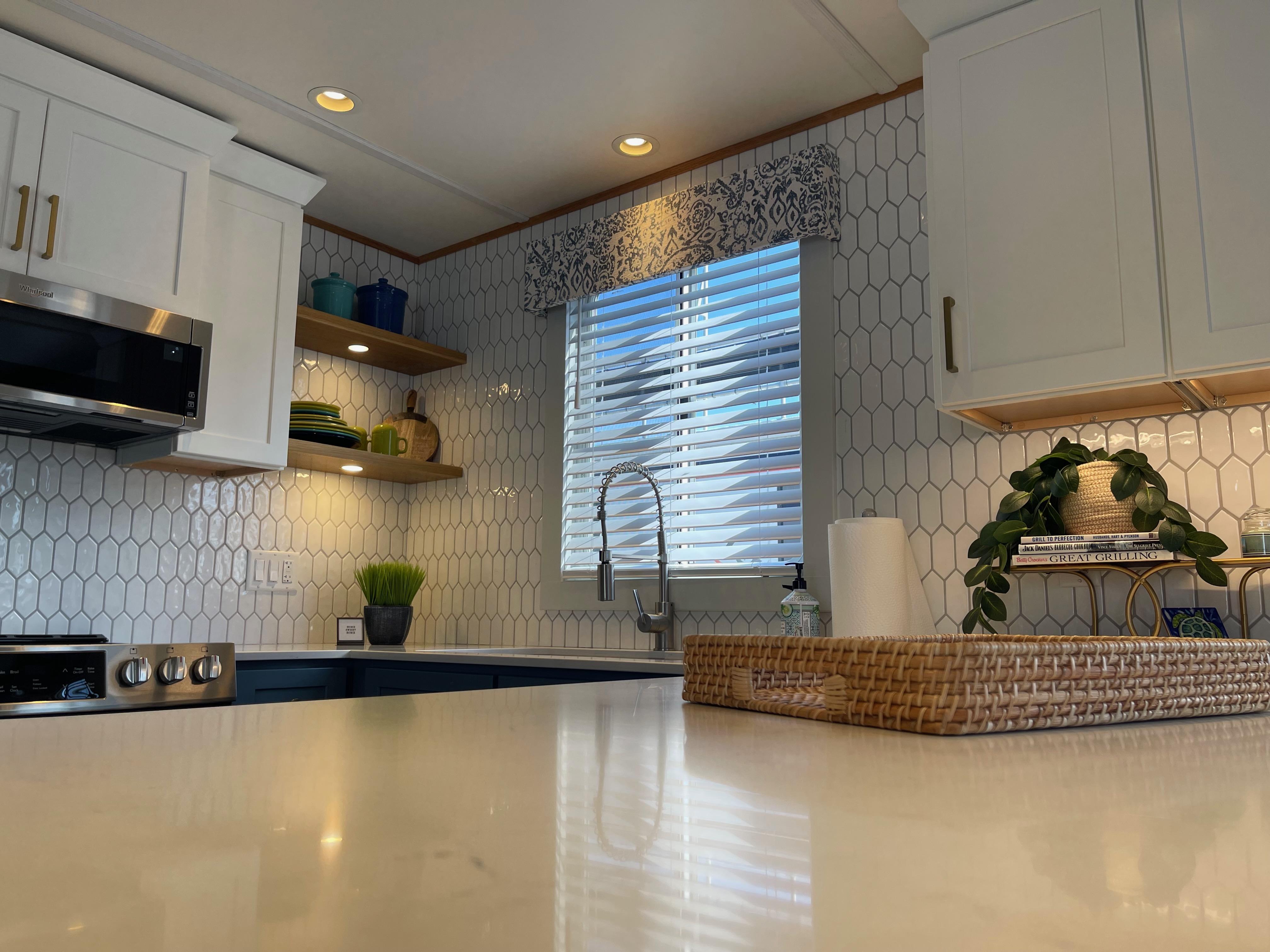

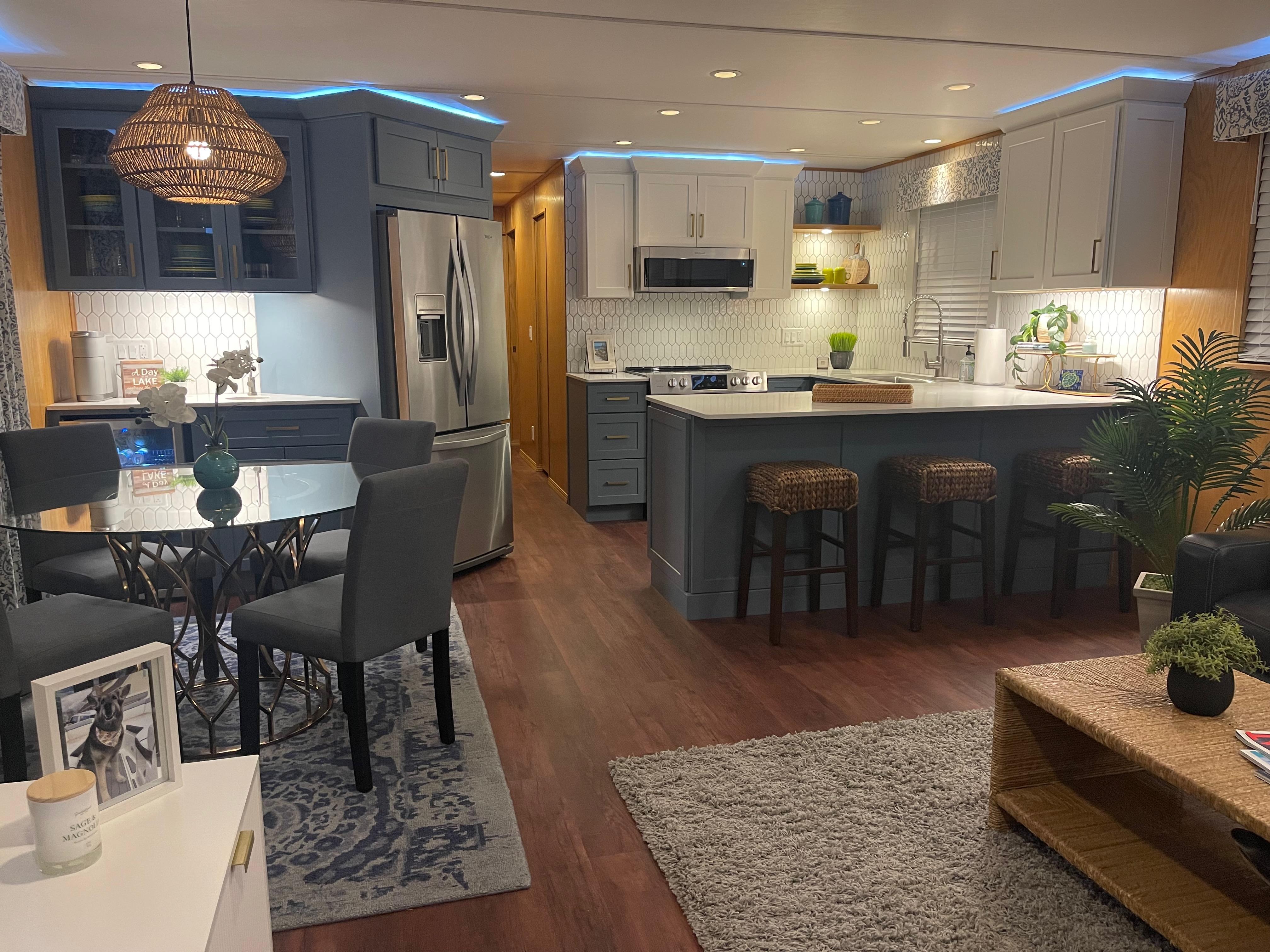

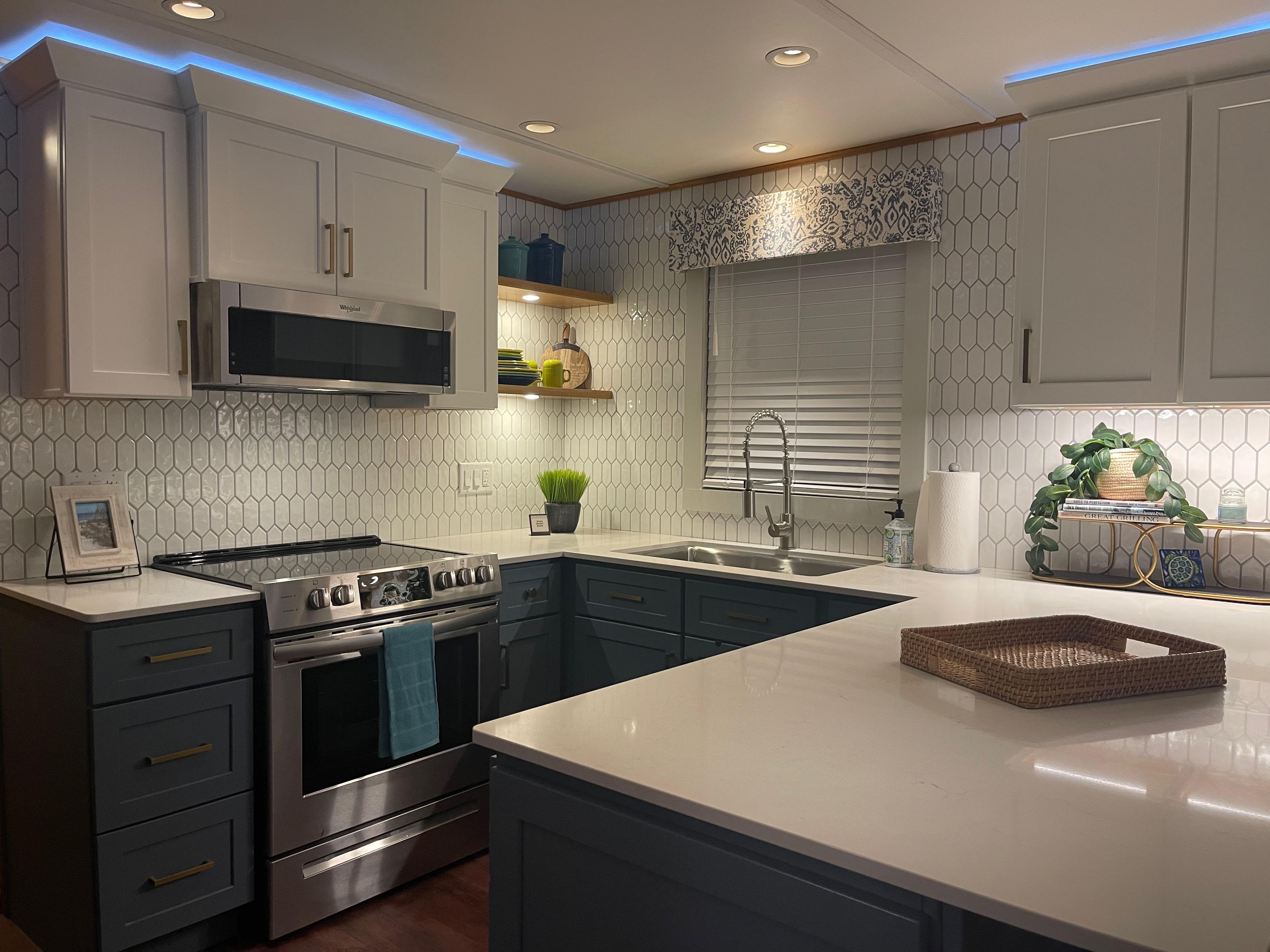

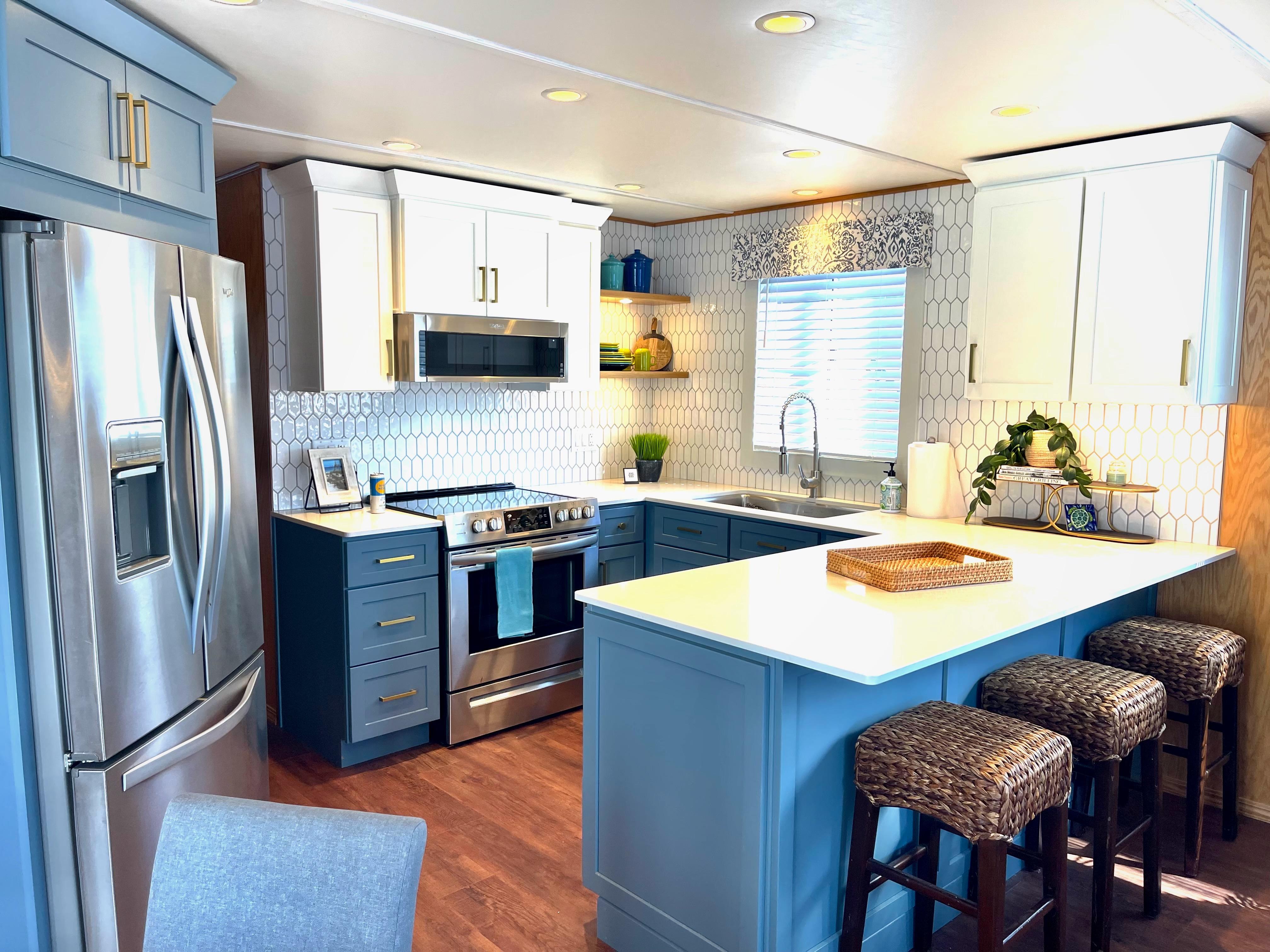

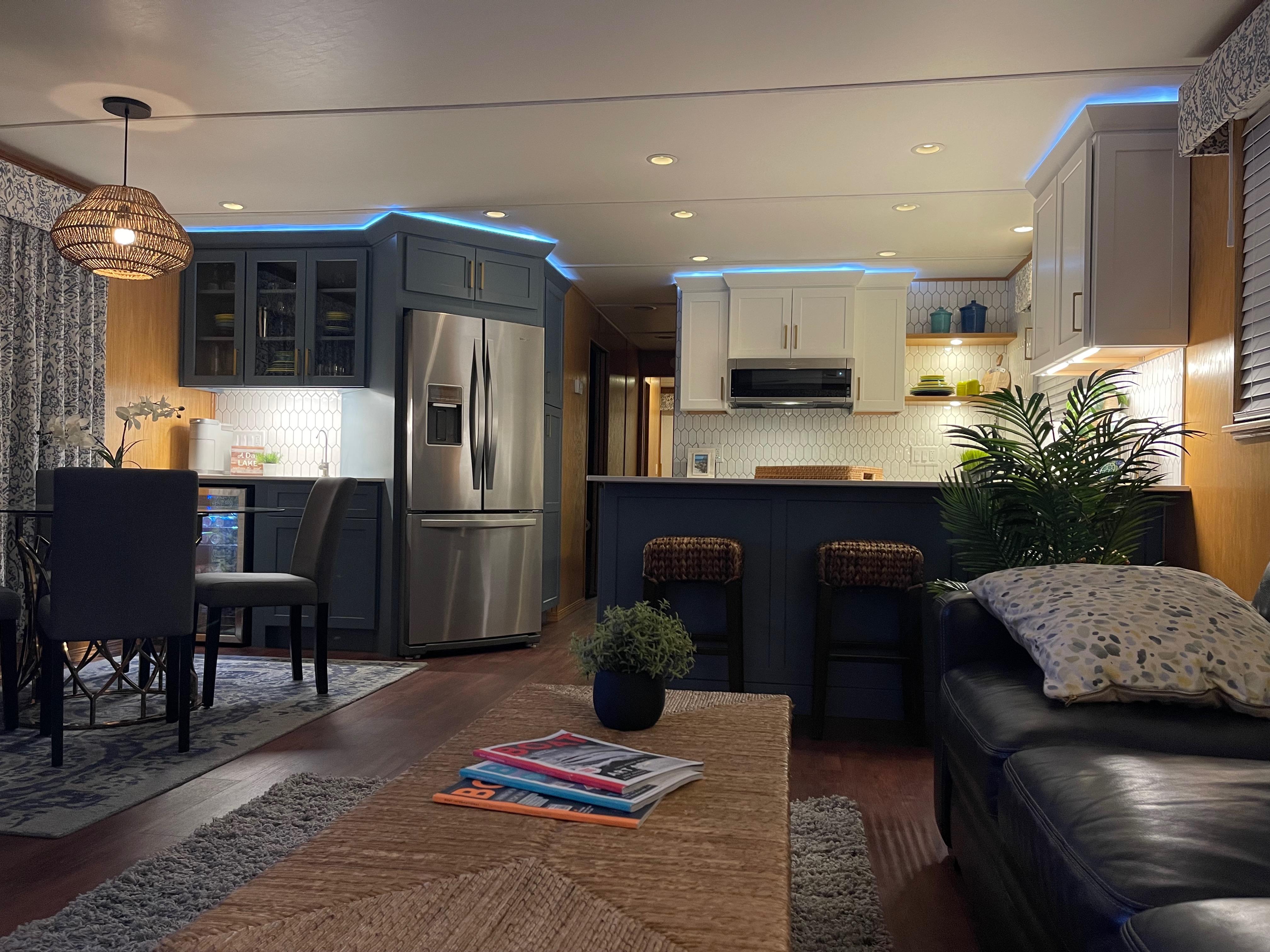

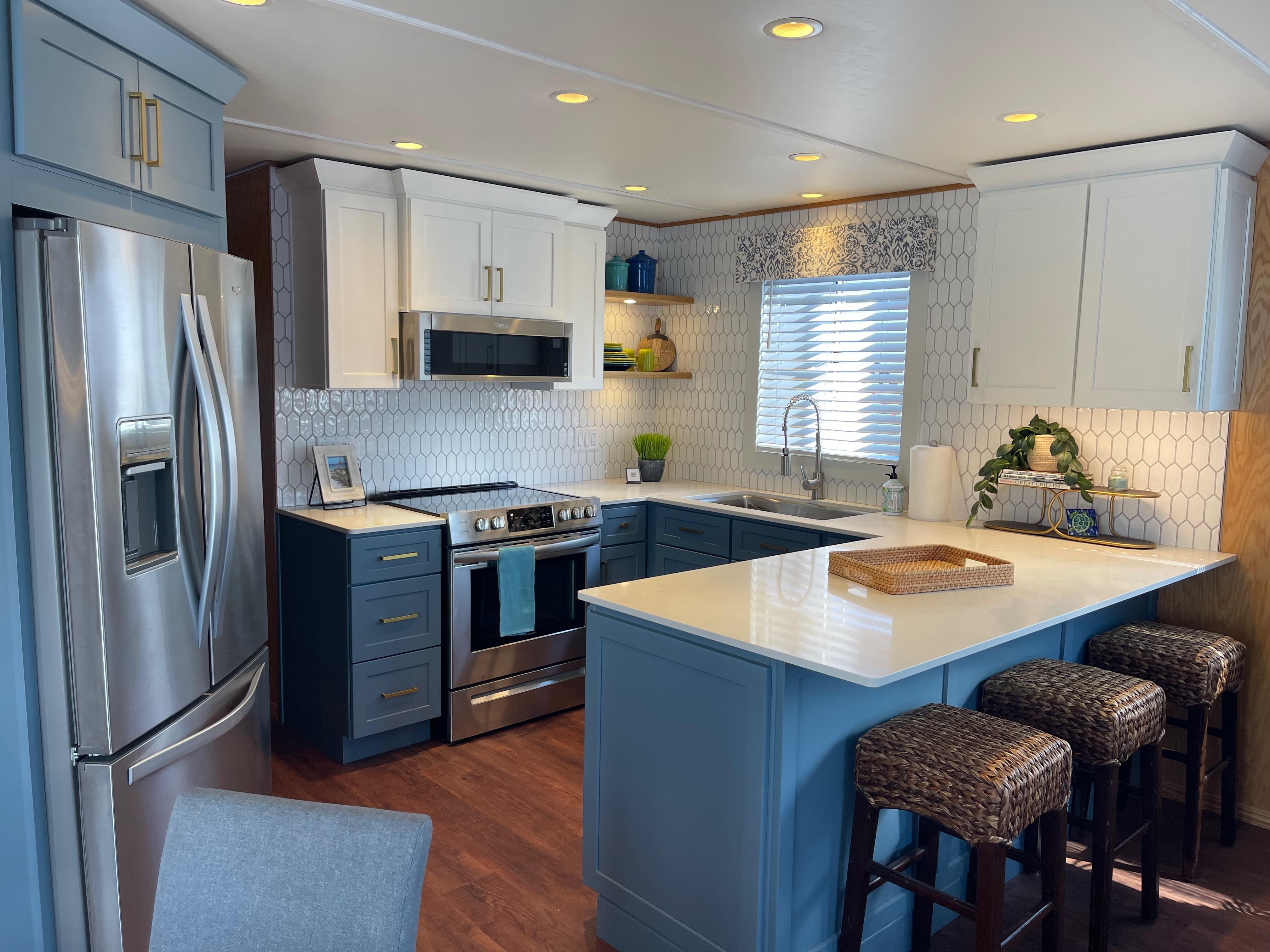

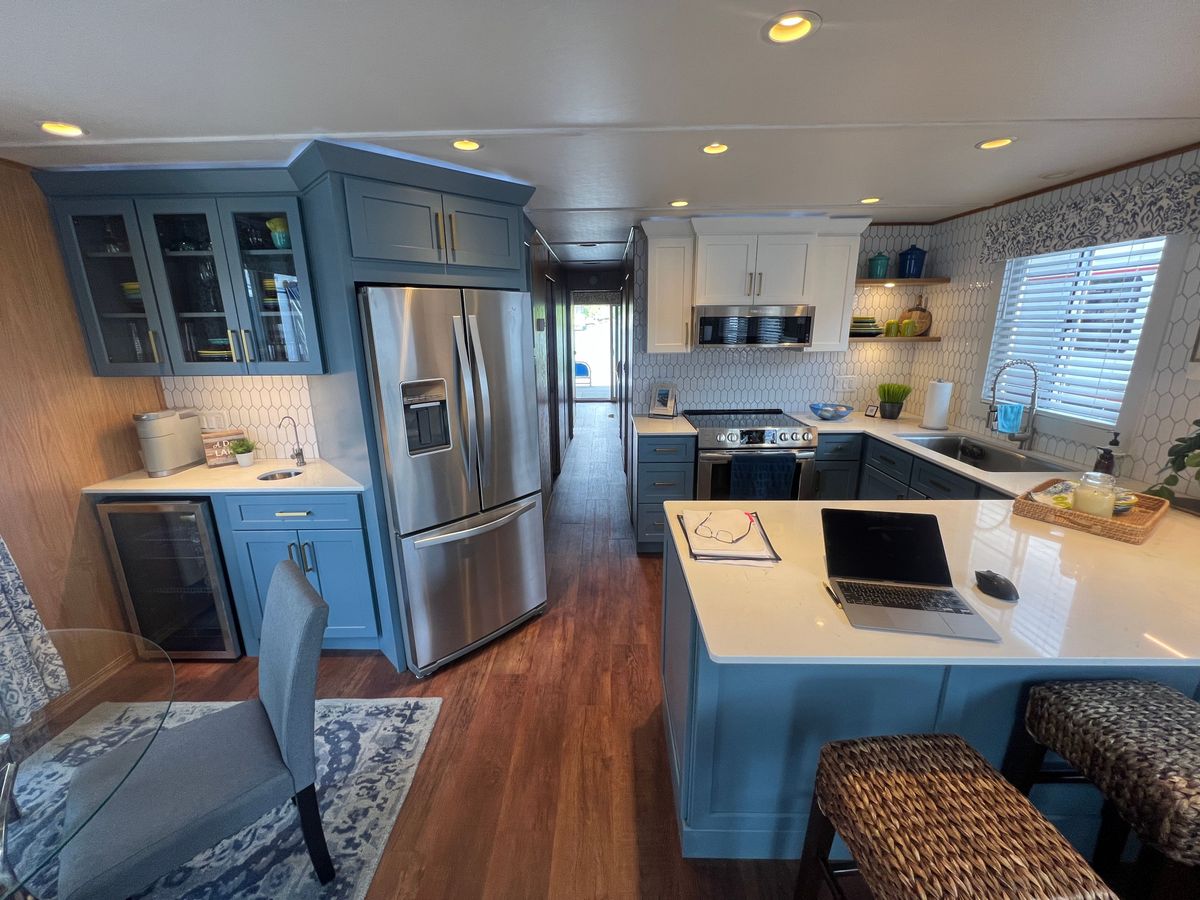

Galley (9’ X 9’):

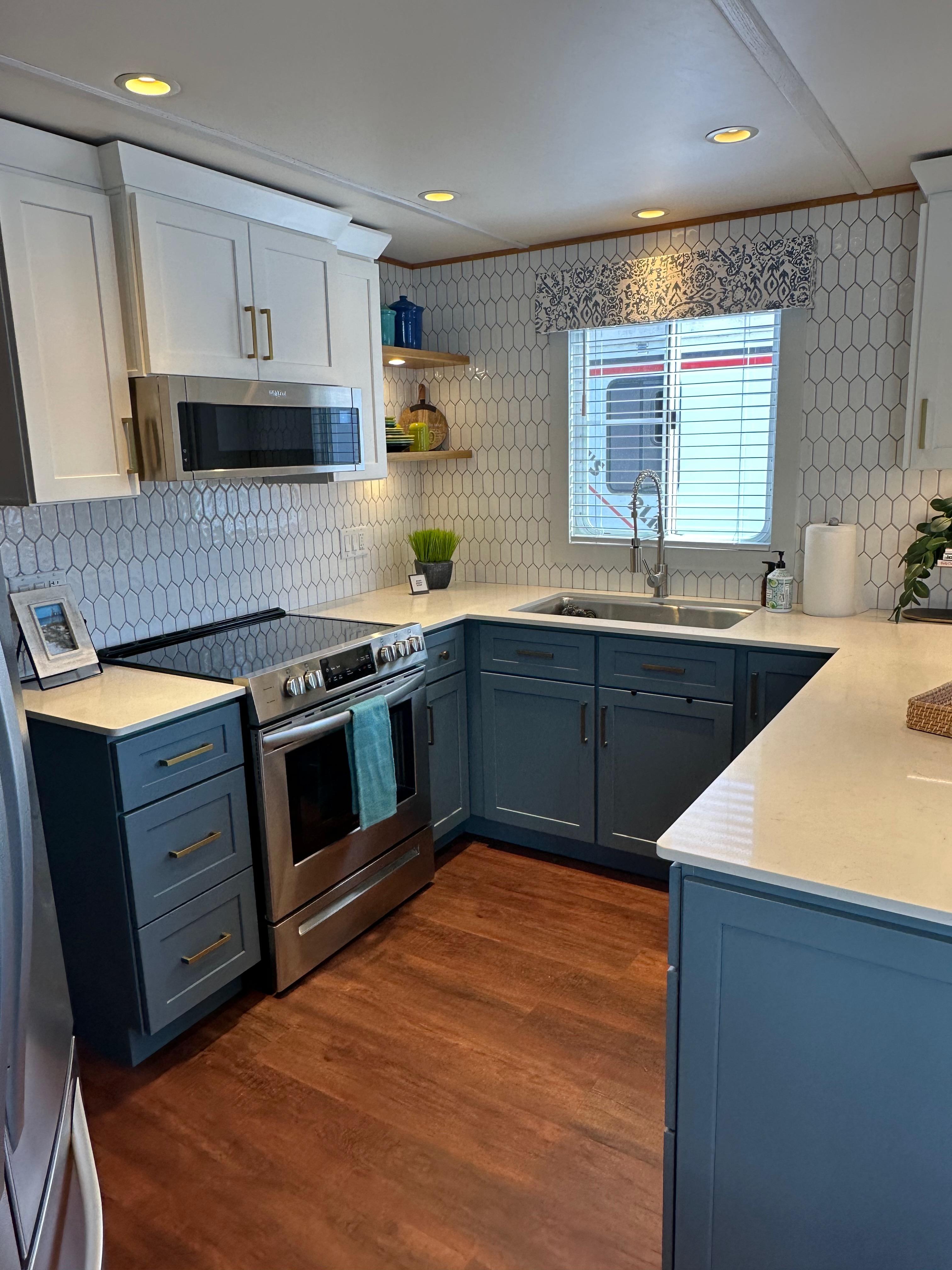

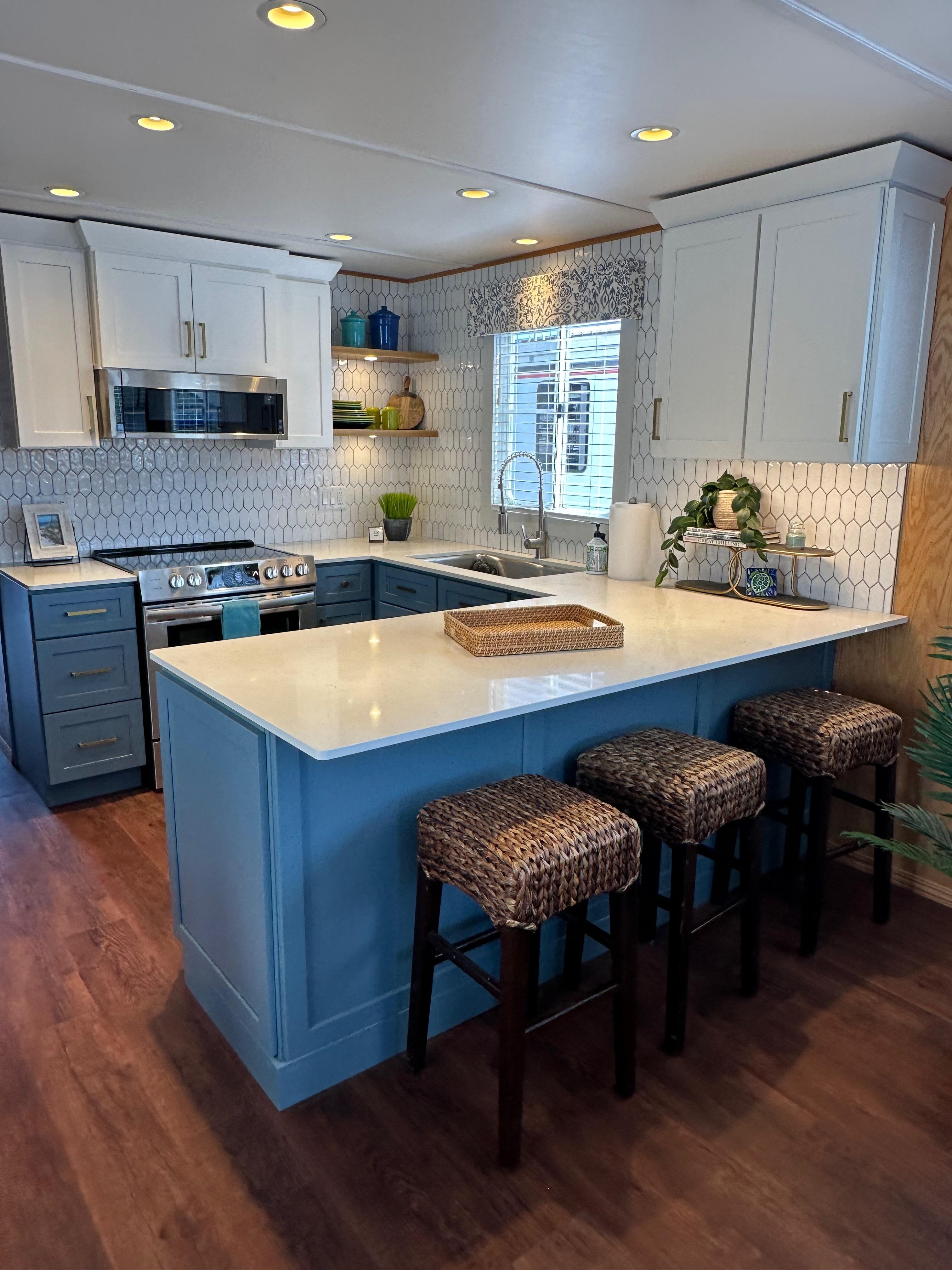

- Fully remodeled in 2023 with all new stainless-steel appliances, new cabinets, ceramic tile back-splash and quartz countertops.
- Includes dimmable undercabinet & above cabinet LED accent lighting.

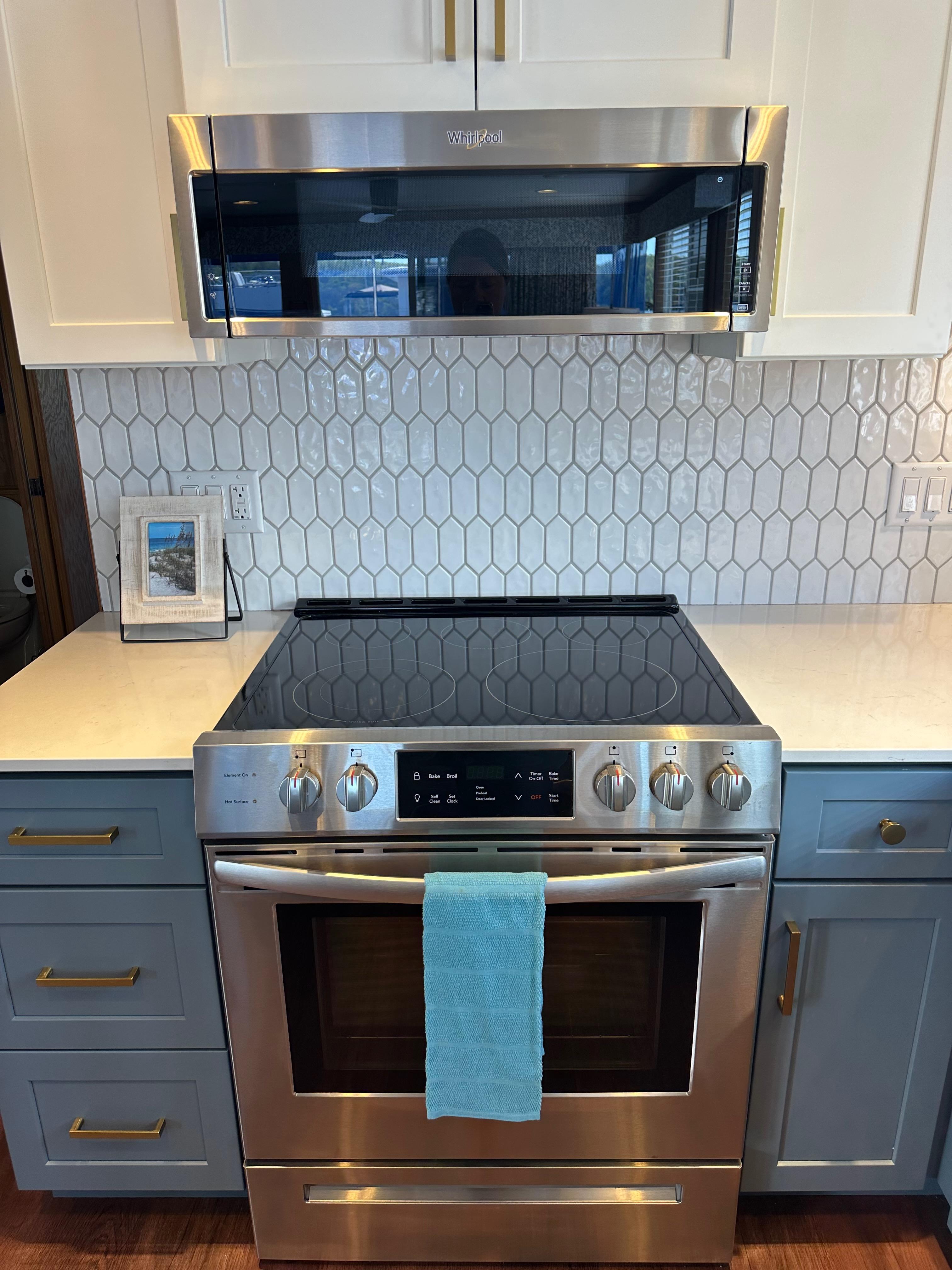

- Appliances include Whirlpool 20cu ft. refrigerator w/ RO water dispenser and ice maker, dishwasher, new slim-style microwave & slide-in Frigidaire smooth surface cooktop /range.
- 3-person bar (counter-top level) w/ bar stools.

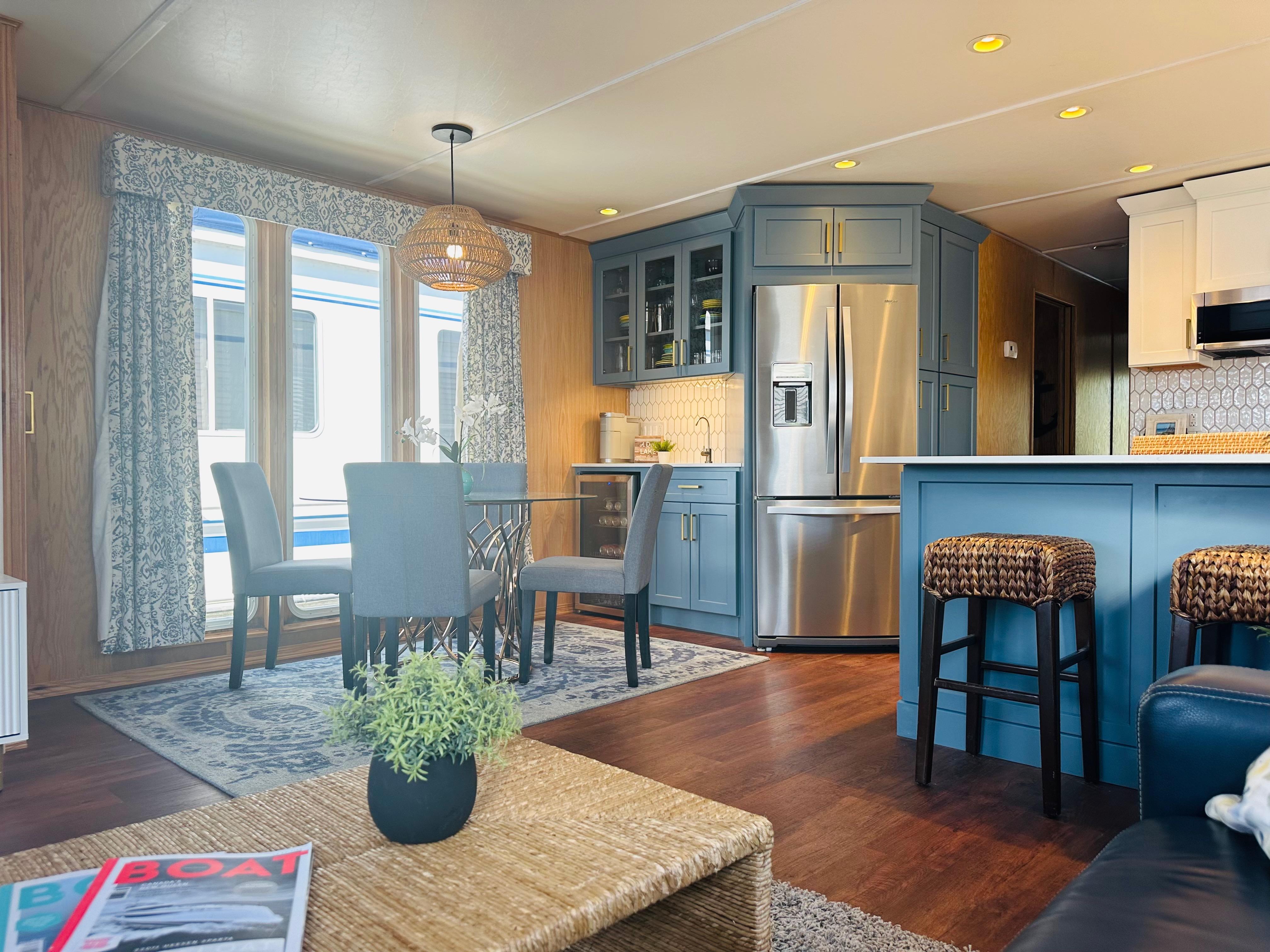

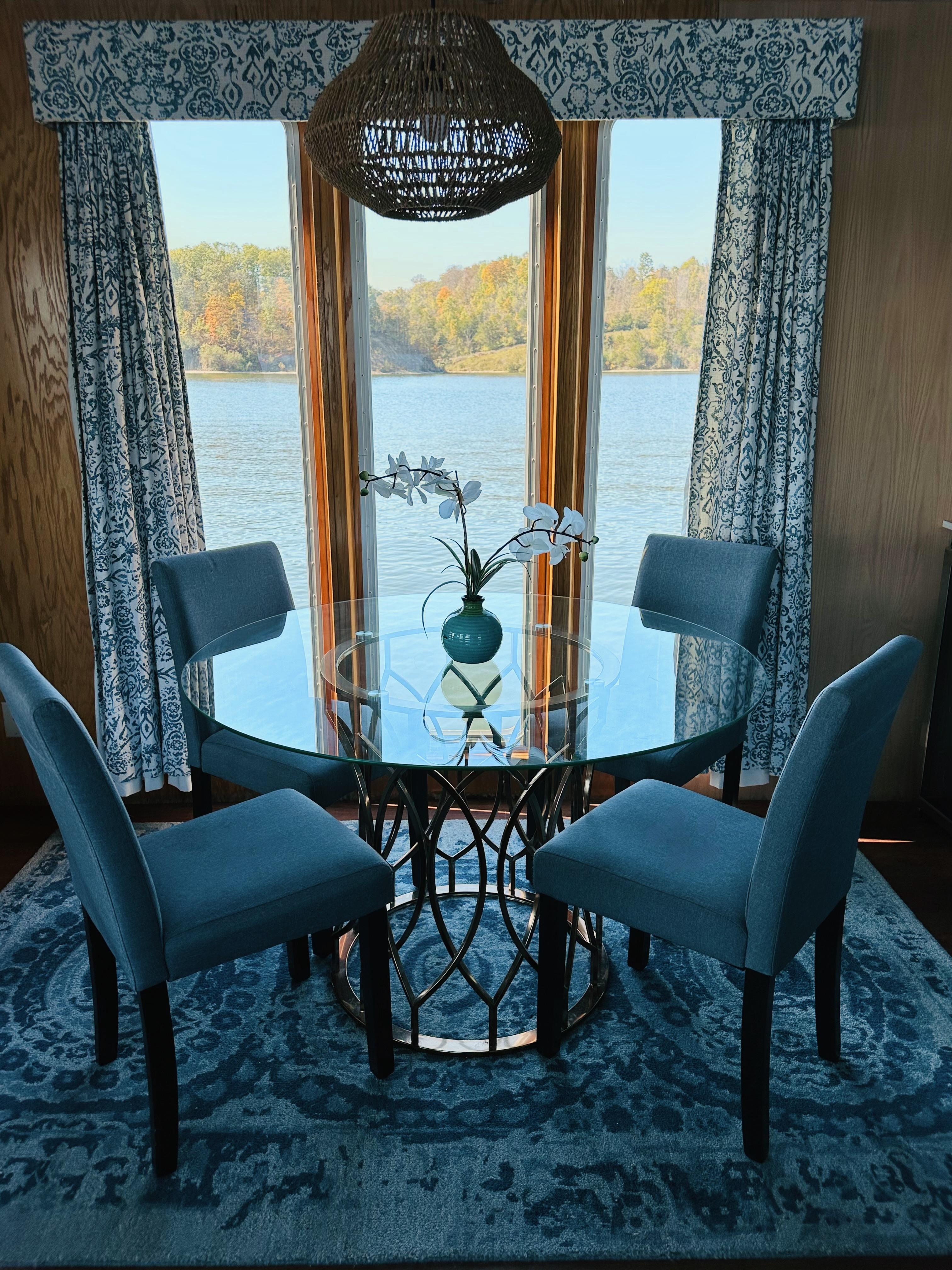

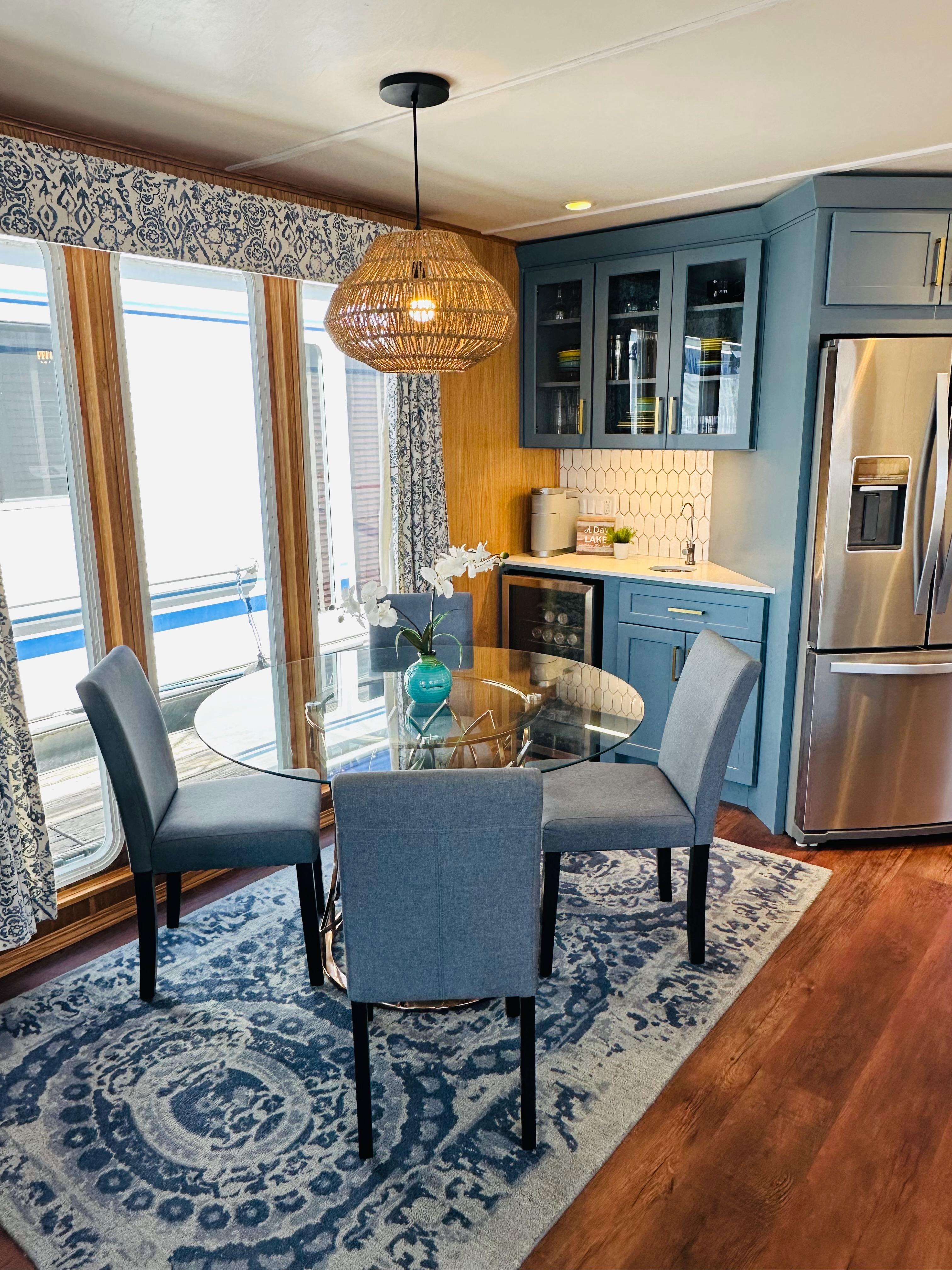

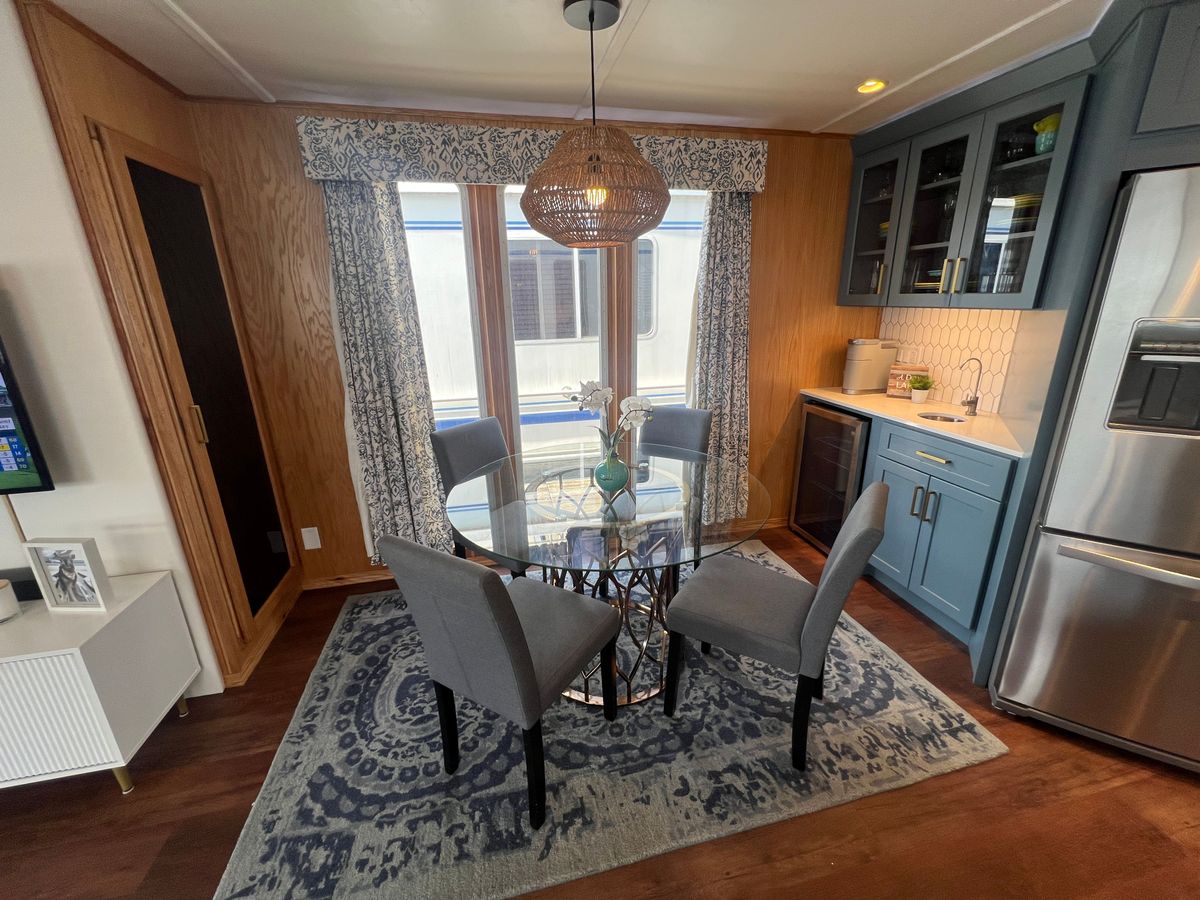

Dining Area (8’ X 11’): - Glass top dining table & chairs w/ rug.
- Next to (3) large floor to ceiling windows for beautiful view of lake while dining.

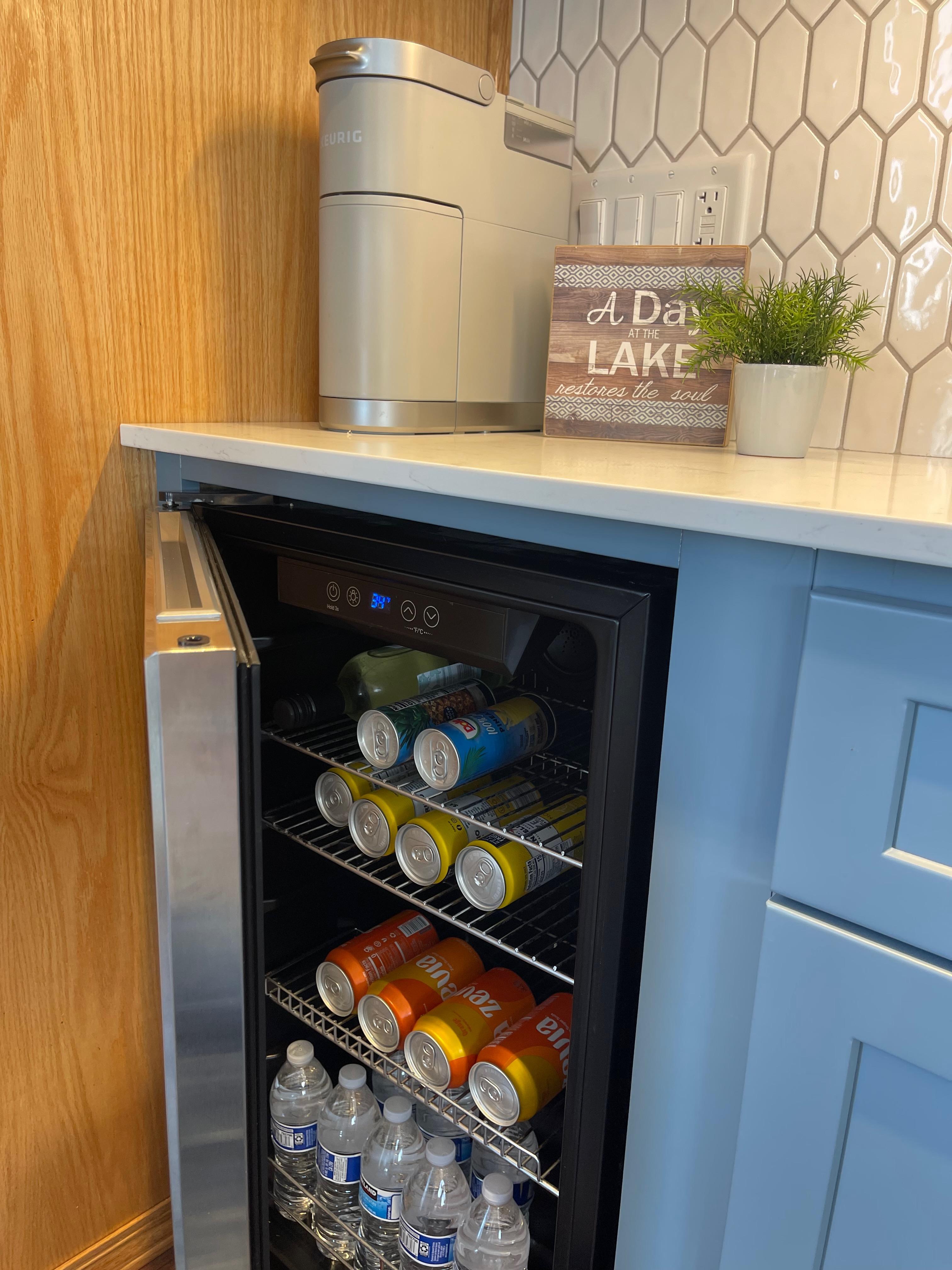

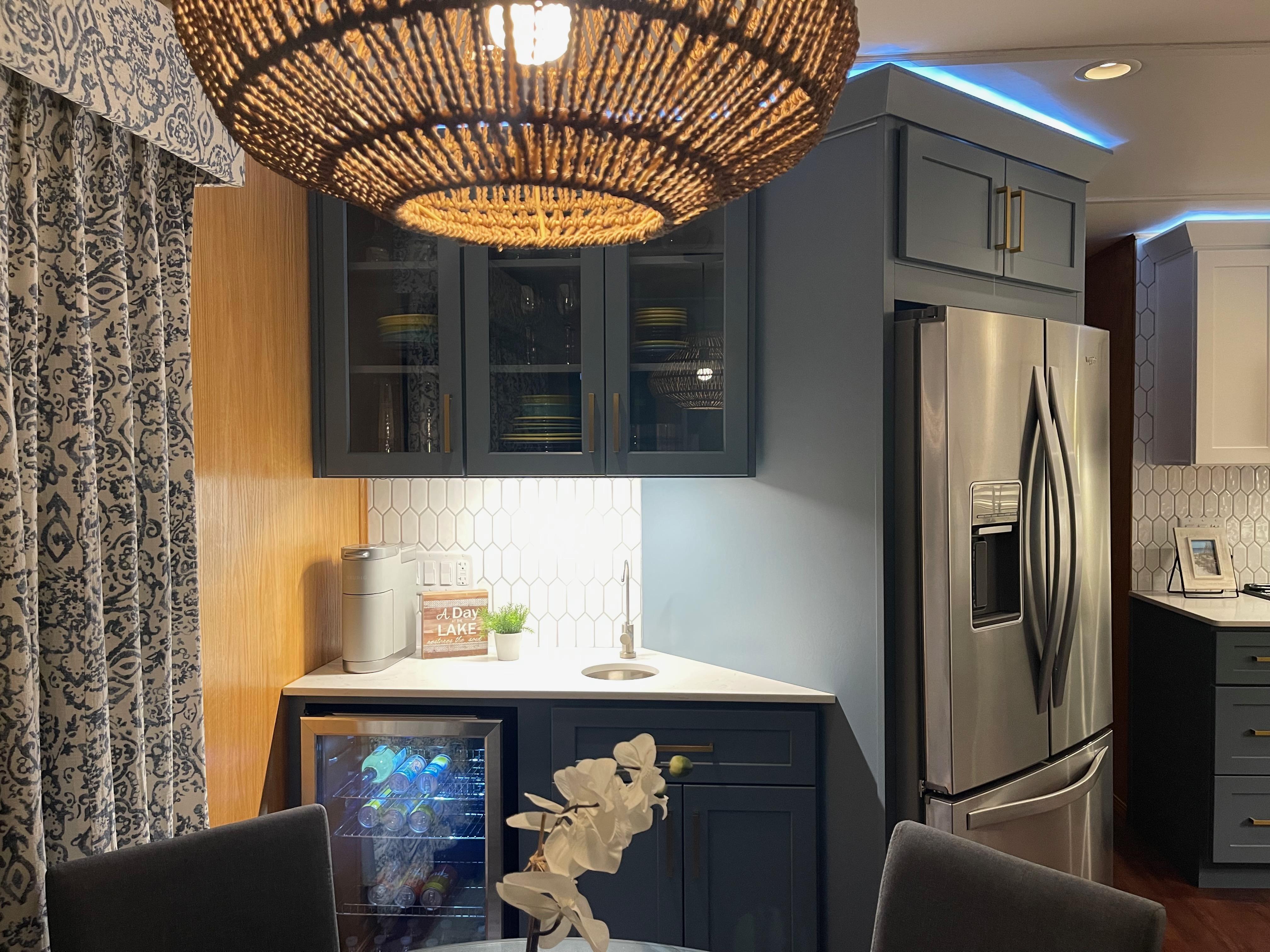

- Beverage center & coffee bar w/ bar sink, quartz countertop and under counter stainless-steel beverage cooler.
- Glass insert cabinet doors in upper cabinets above bar.

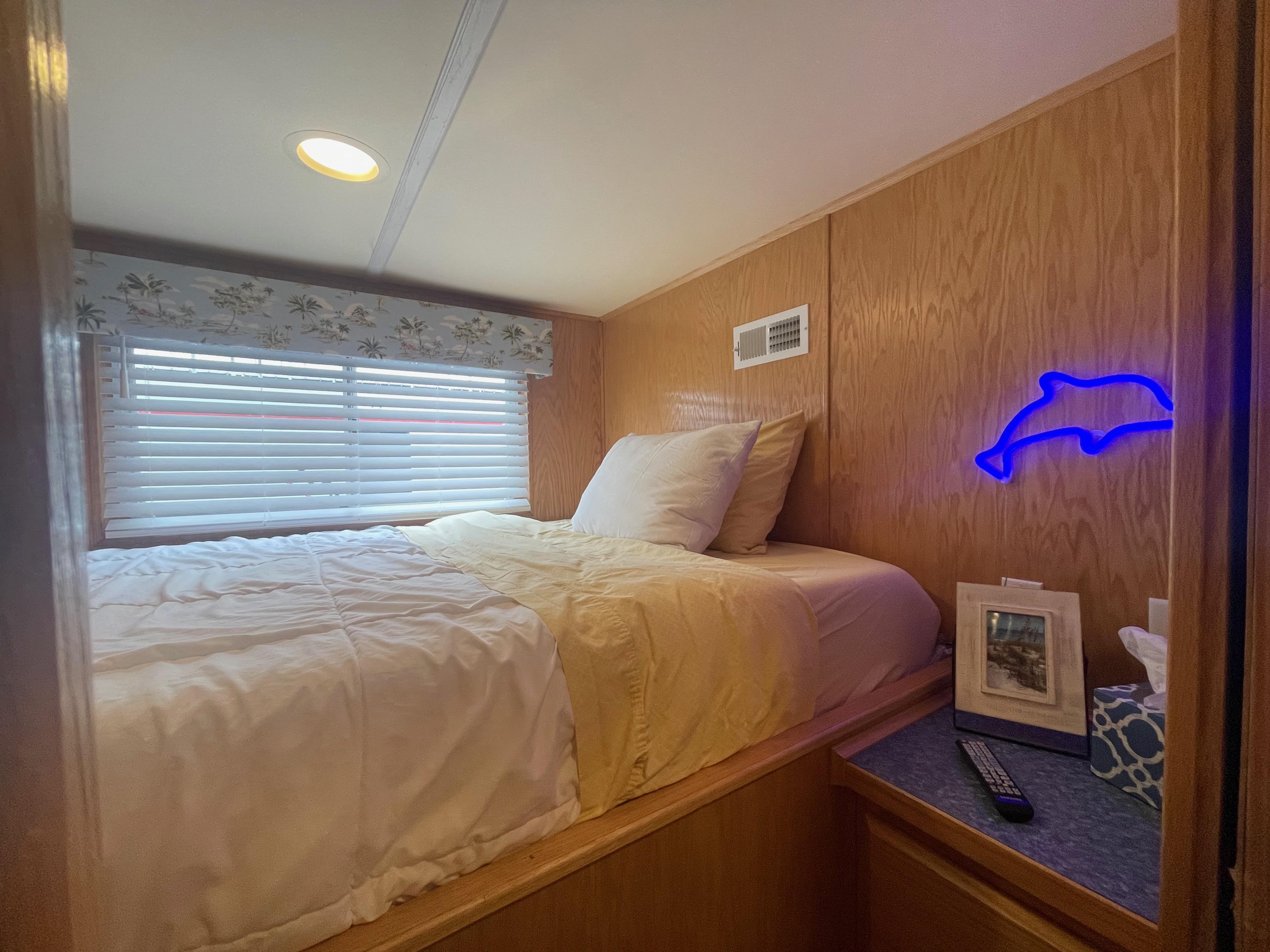

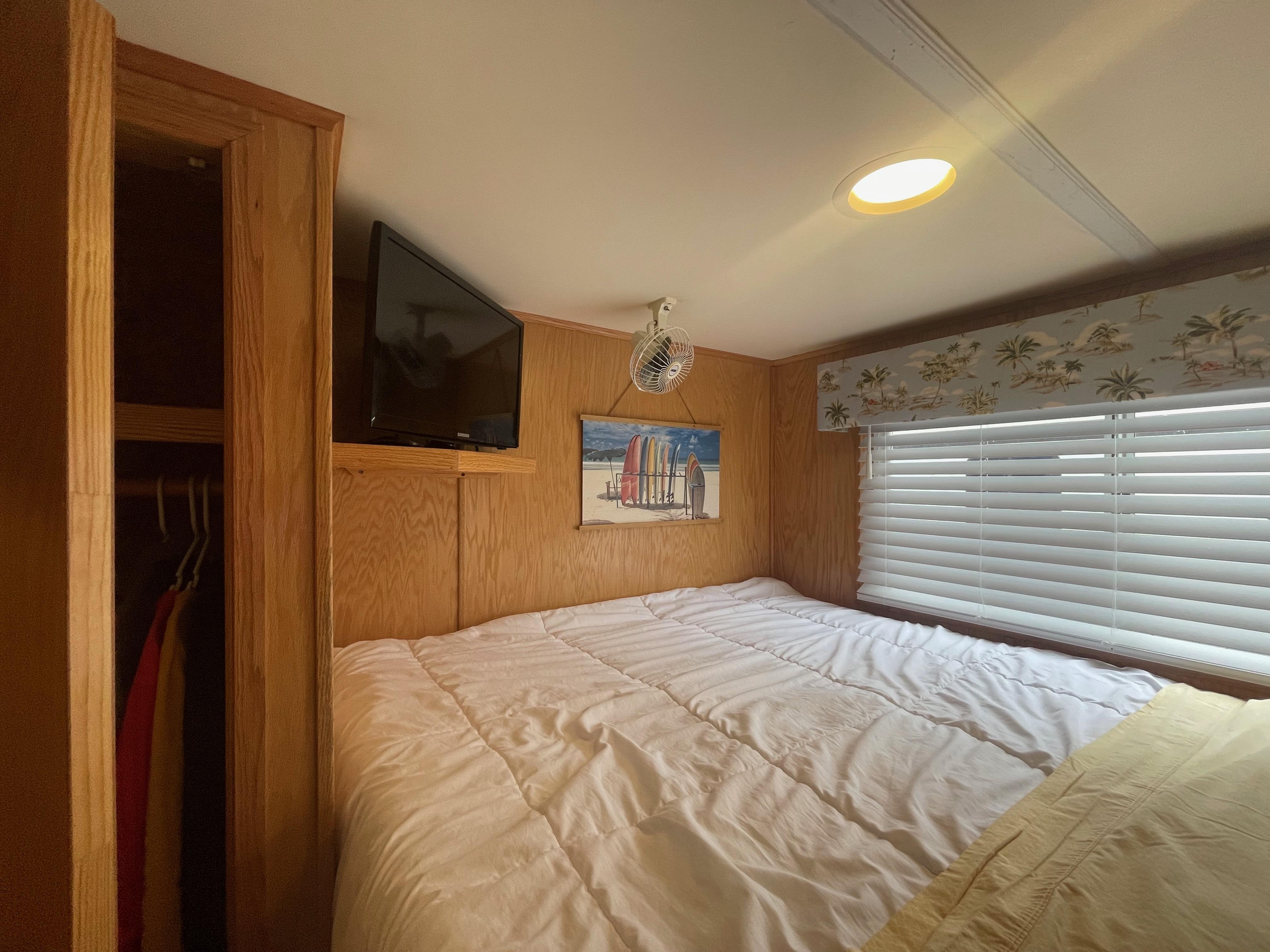

State Rooms (4):

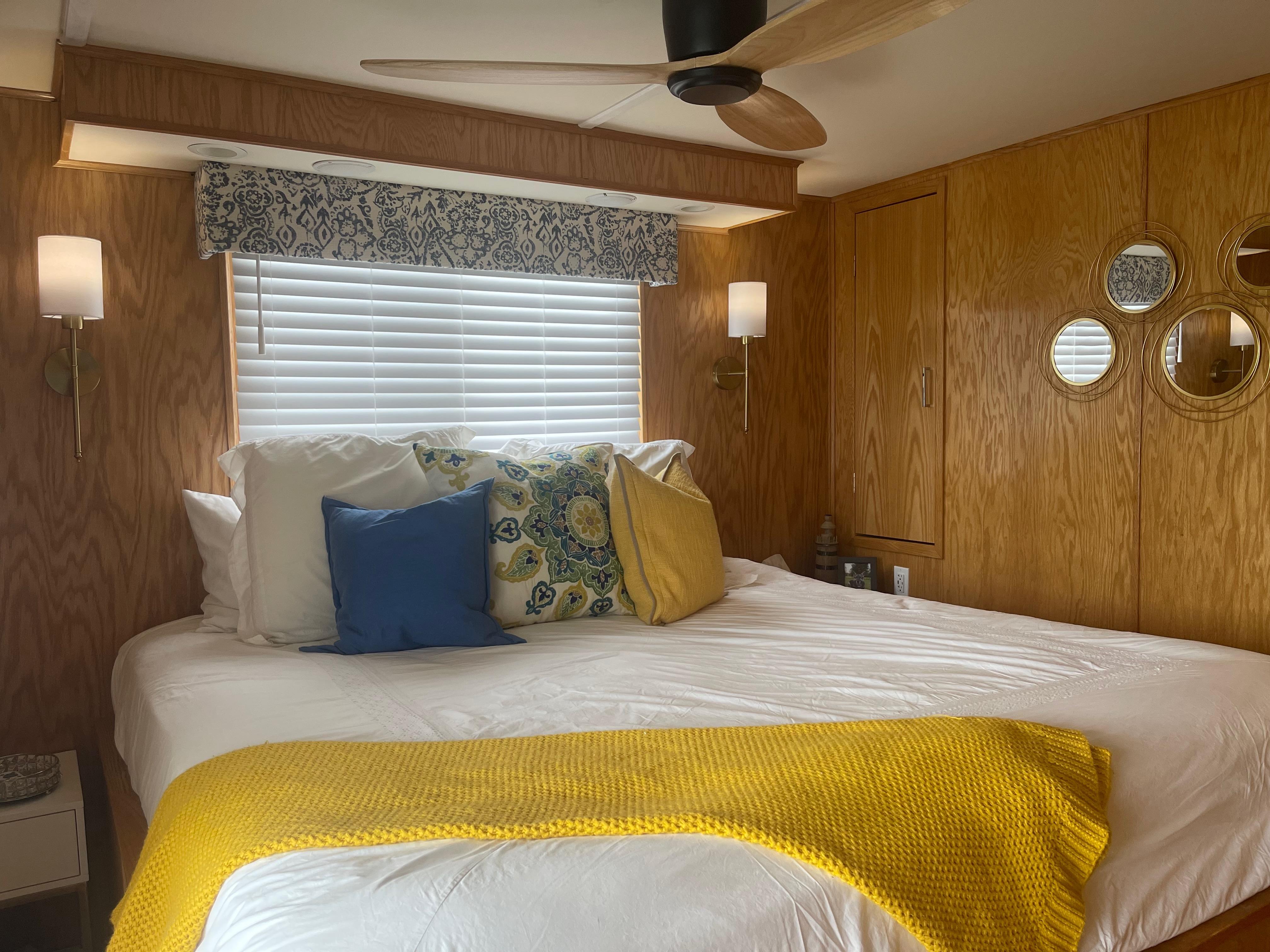

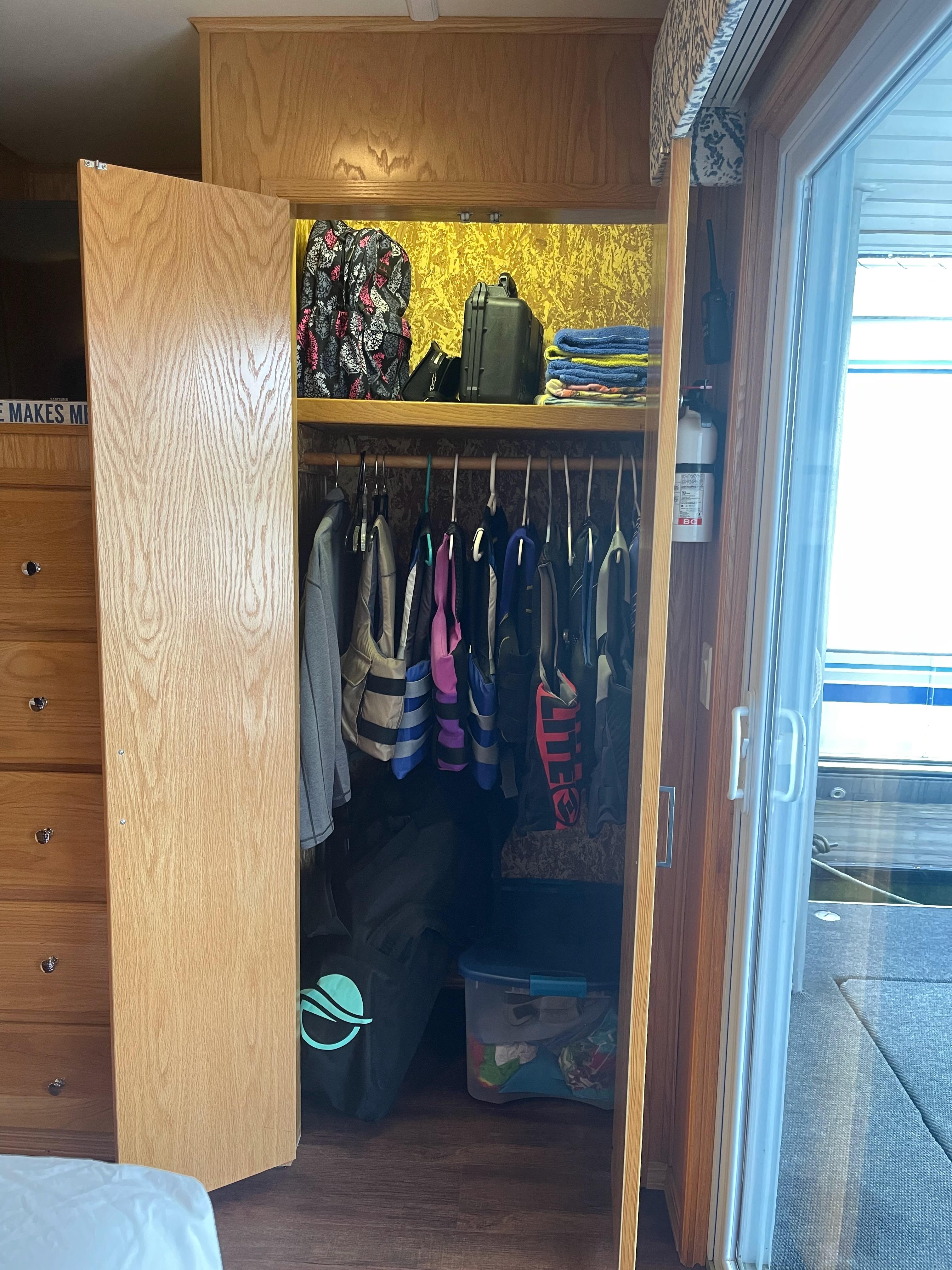

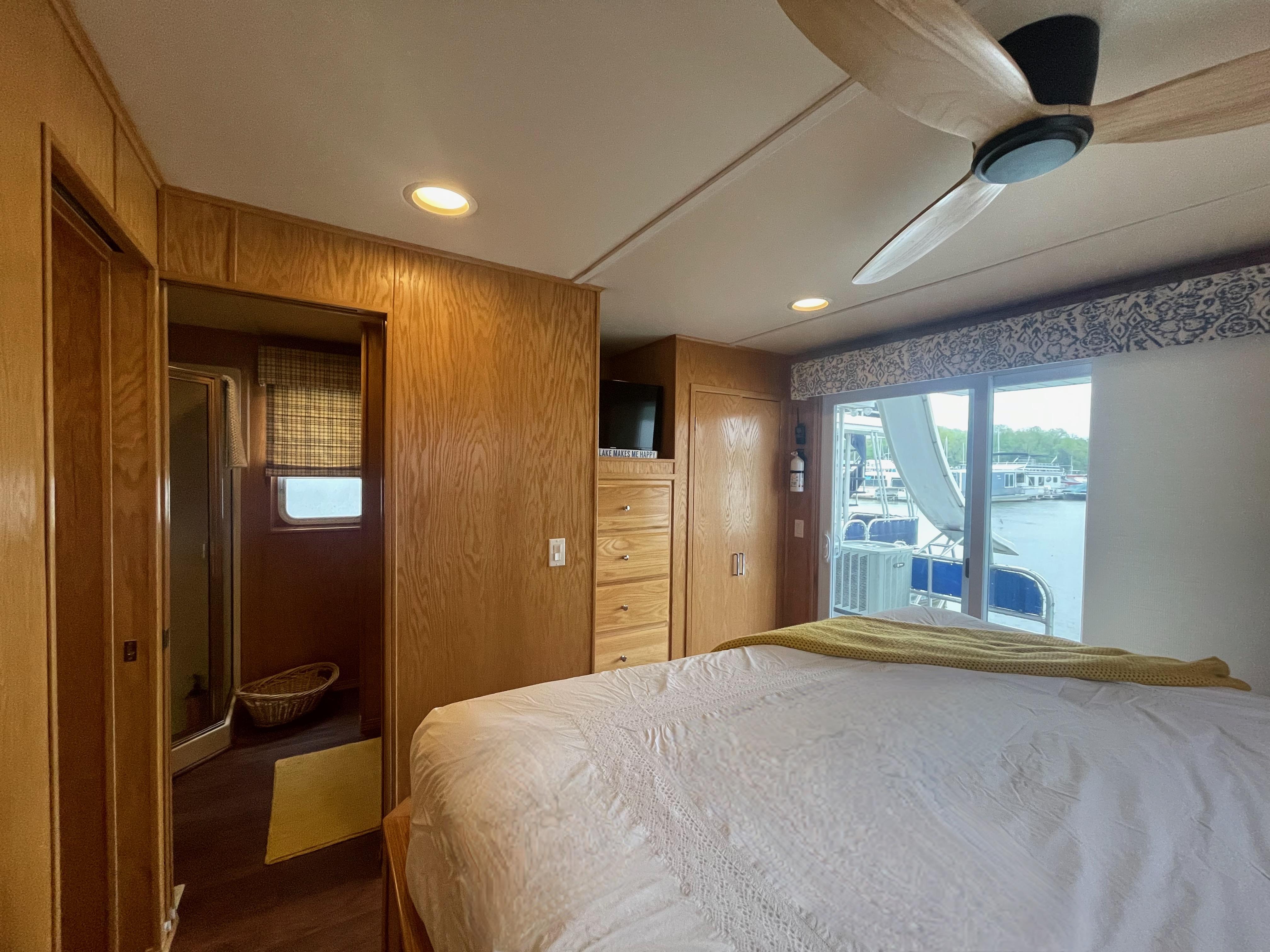

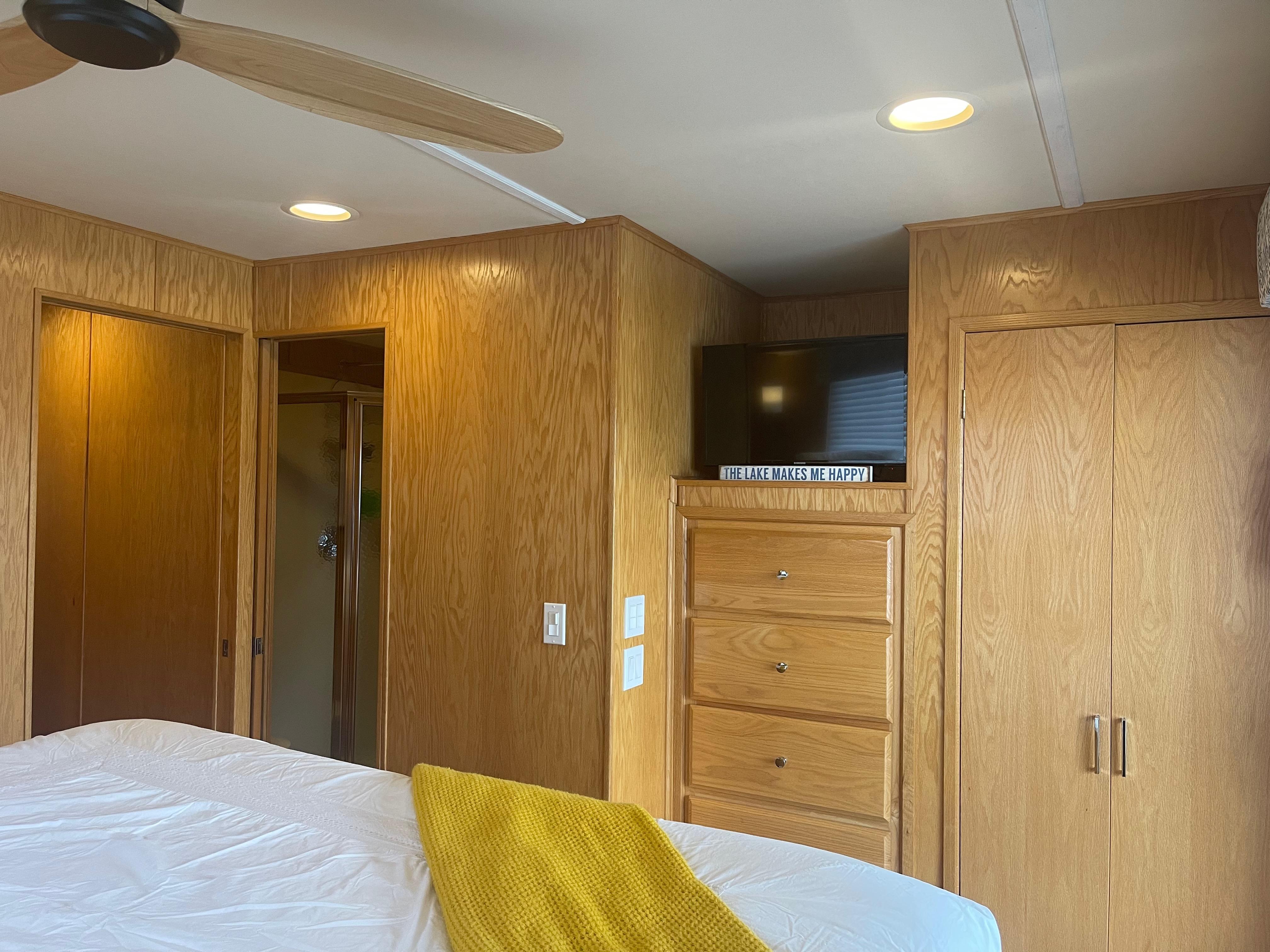

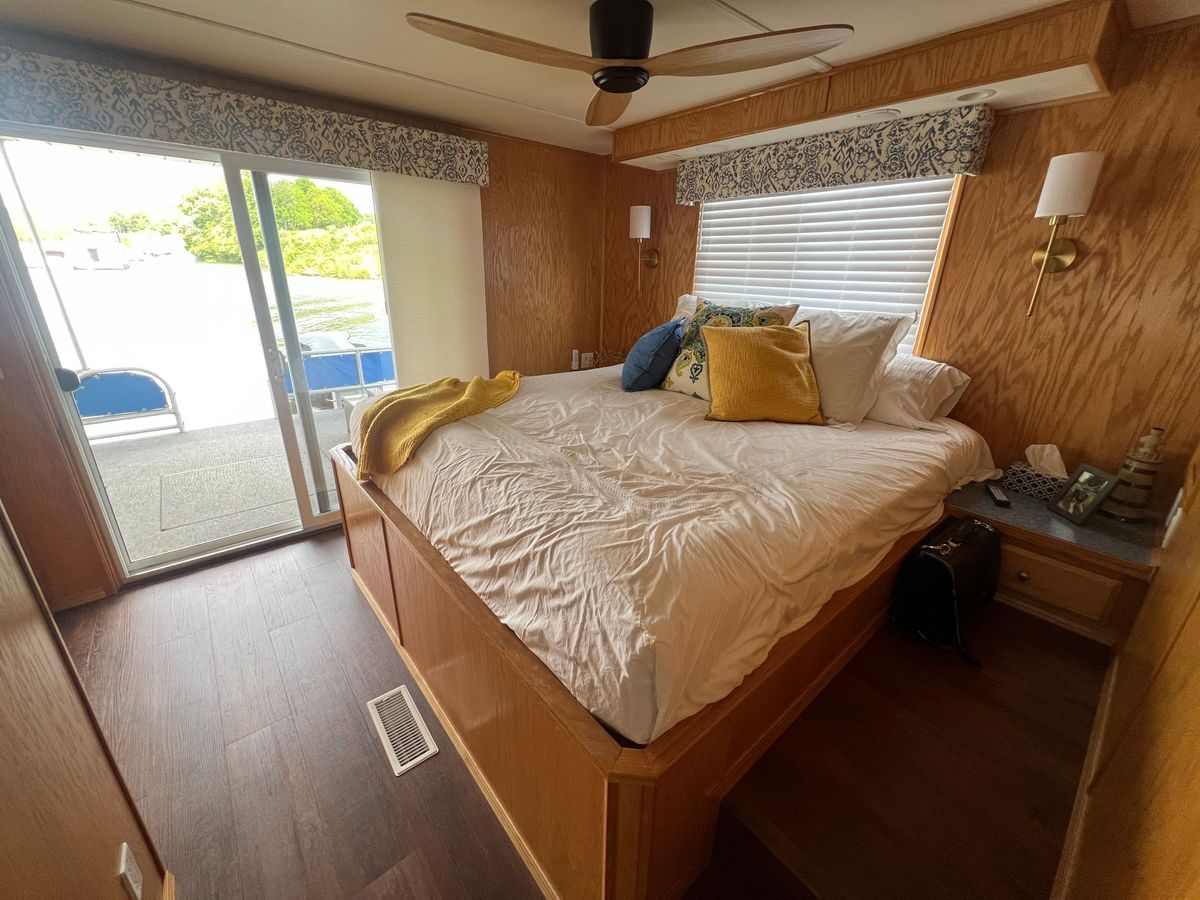

- Owner Suite (13’ x 10’) w/ ensuite bathroom. Sliding glass door to rear deck reveals beautiful views of lake. King size bed, (2) full cedar lined closets (w/ LED lighting) and (5) drawer built in cabinet. (2) bed-side night stands. 27” Samsung TV. Stylish ceiling fan w/ remote.

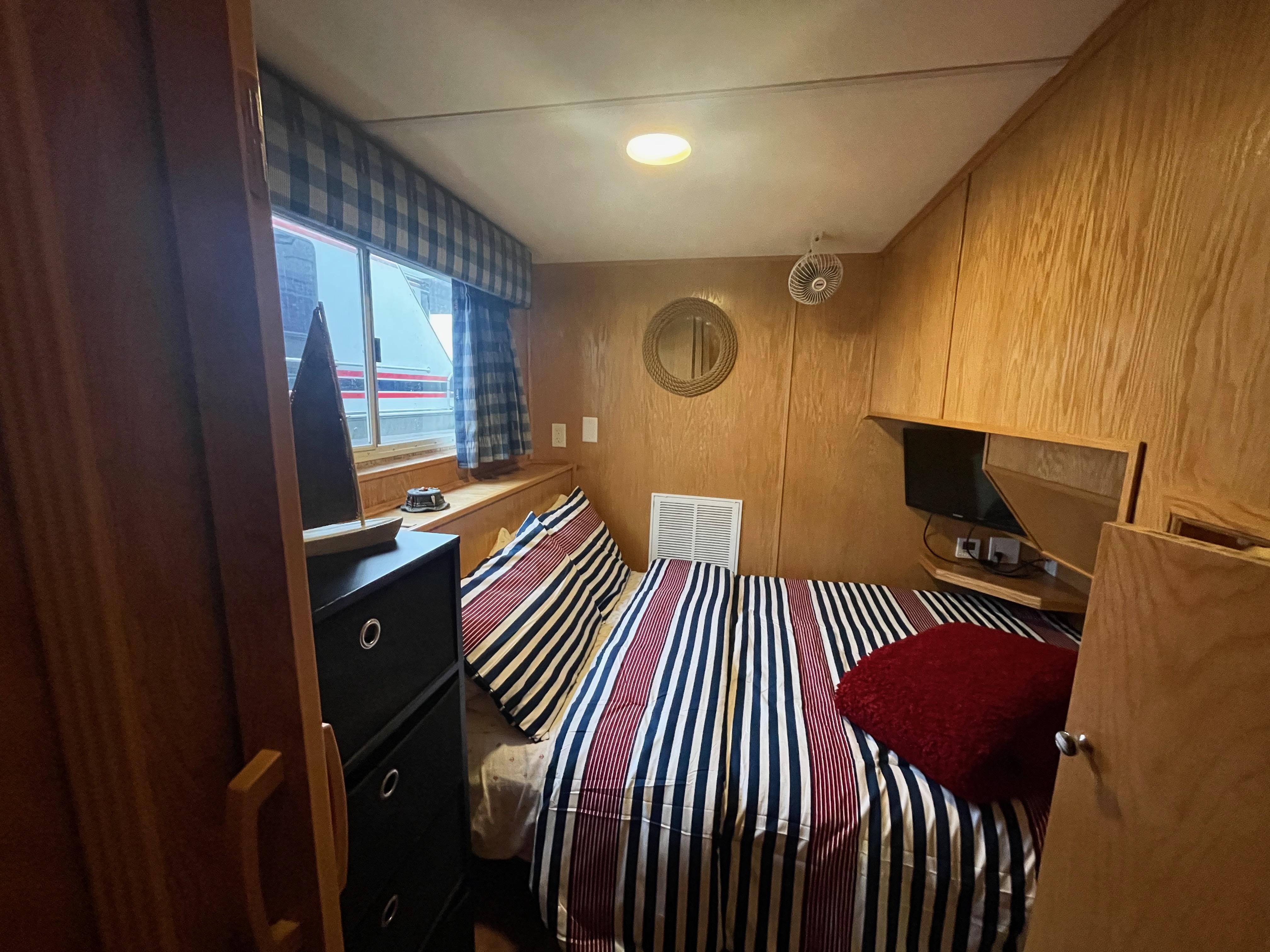

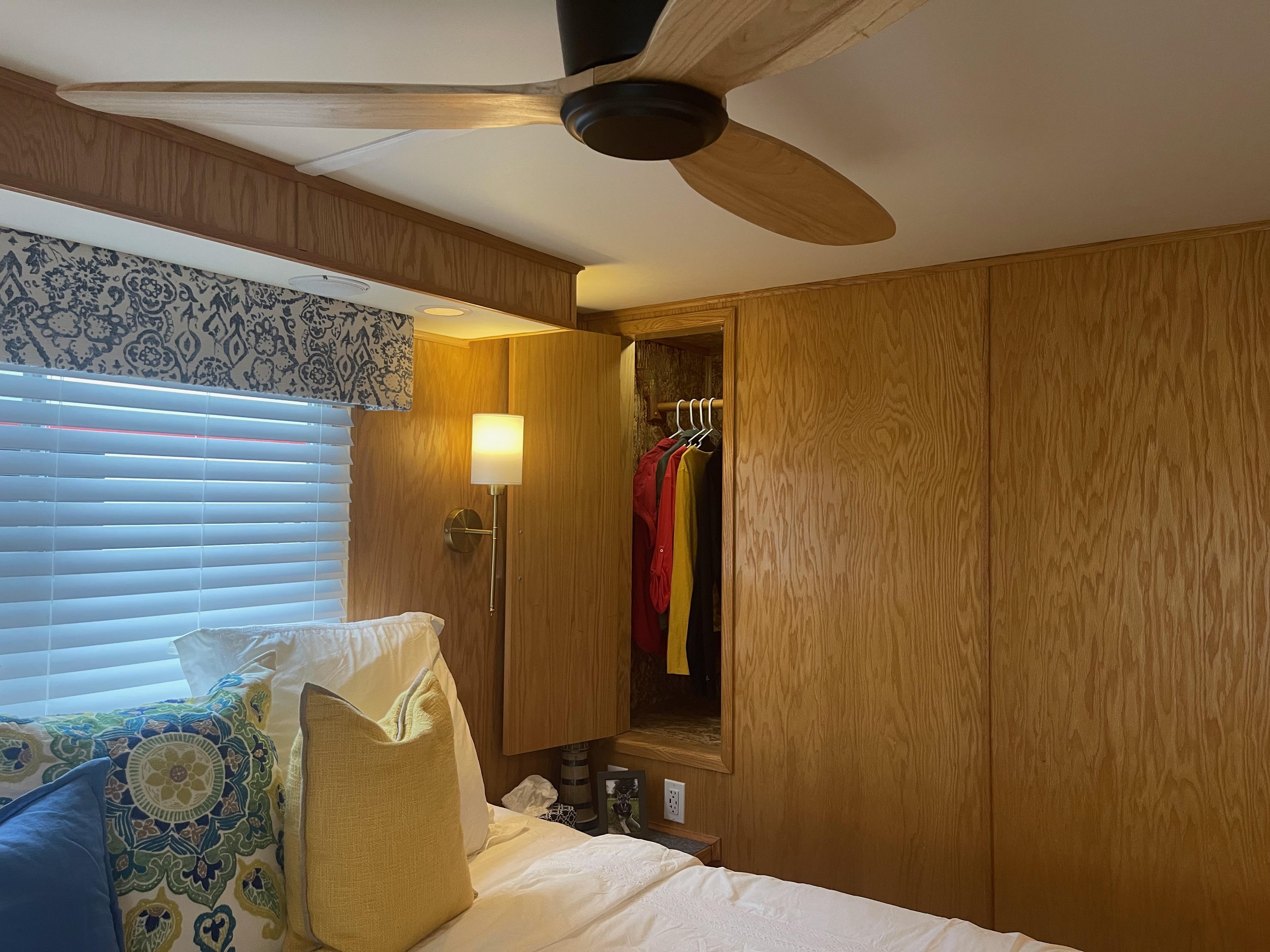

- VIP state room (7’x9’) w/ Queen size bed, full cedar lined closet w/ LED light and bed-side night stand. 24” Samsung TV. New mattress.

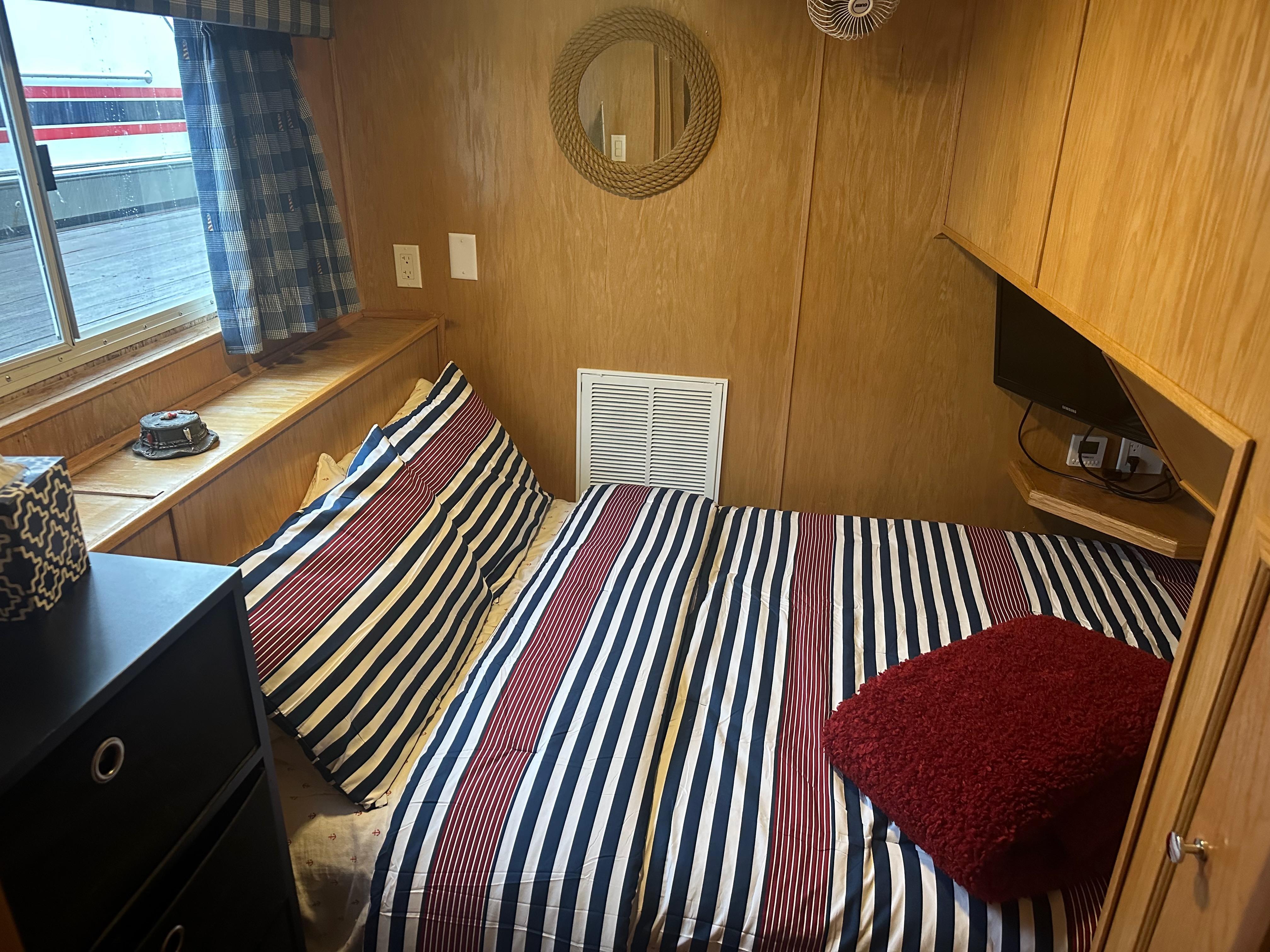

- Lower State Room (7’x8’) w/ Queen size bed, full cedar lined closet w/ LED light. 4 drawer storage. 24” Samsung TV. Full height head-room. New mattress.

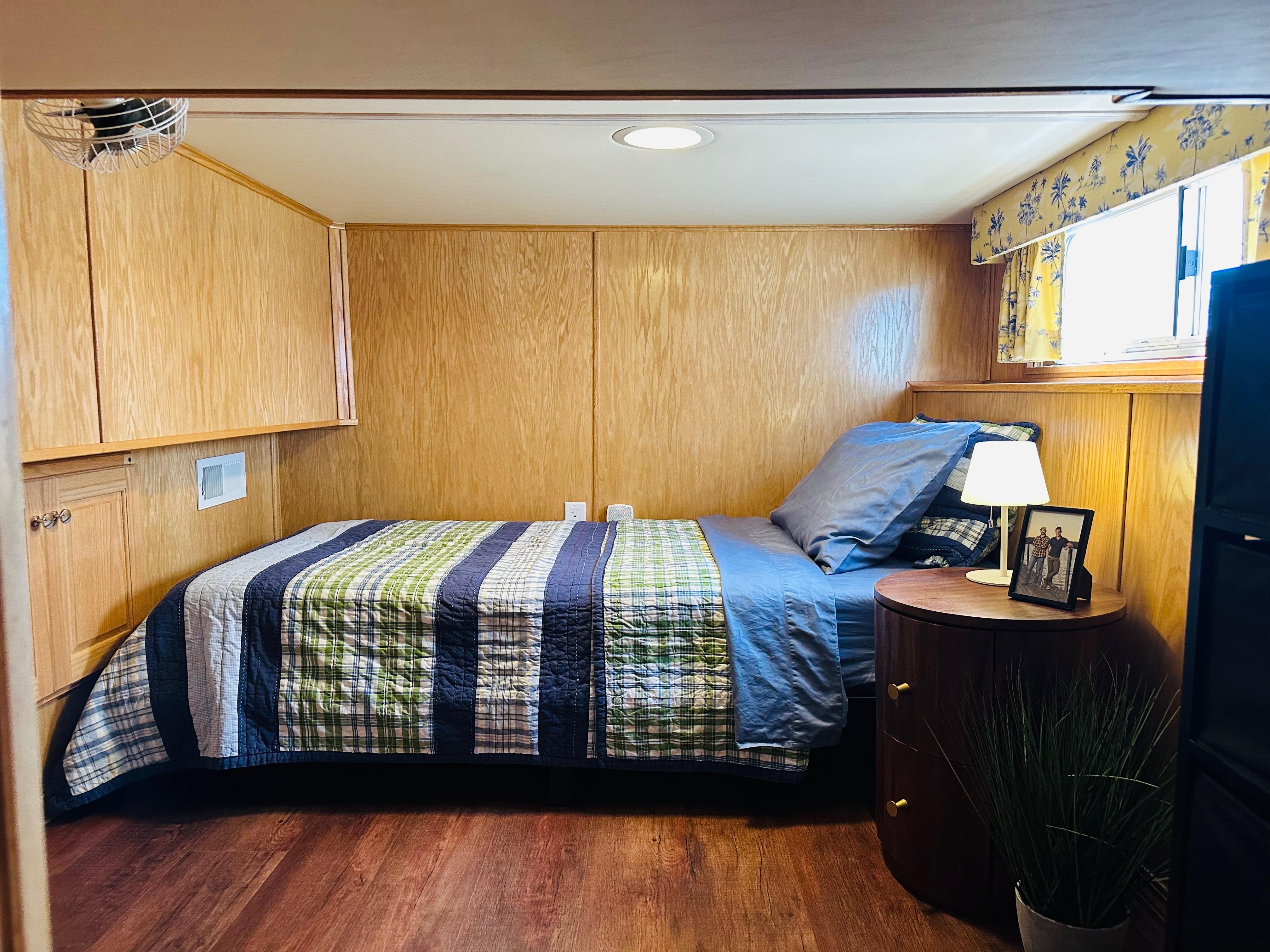

- Lower Cuddy (7’x8’) w/ Twin size bed (room for add’l twin), 4 drawer storage and bed-side night stand. 24” Samsung TV. Newly installed 12V (direct wire) FireBoy Xintex CO2 detector. New mattress.
- All state rooms equipment w/ USB & USB-C Decora style outlets for charging smart devices and phones.

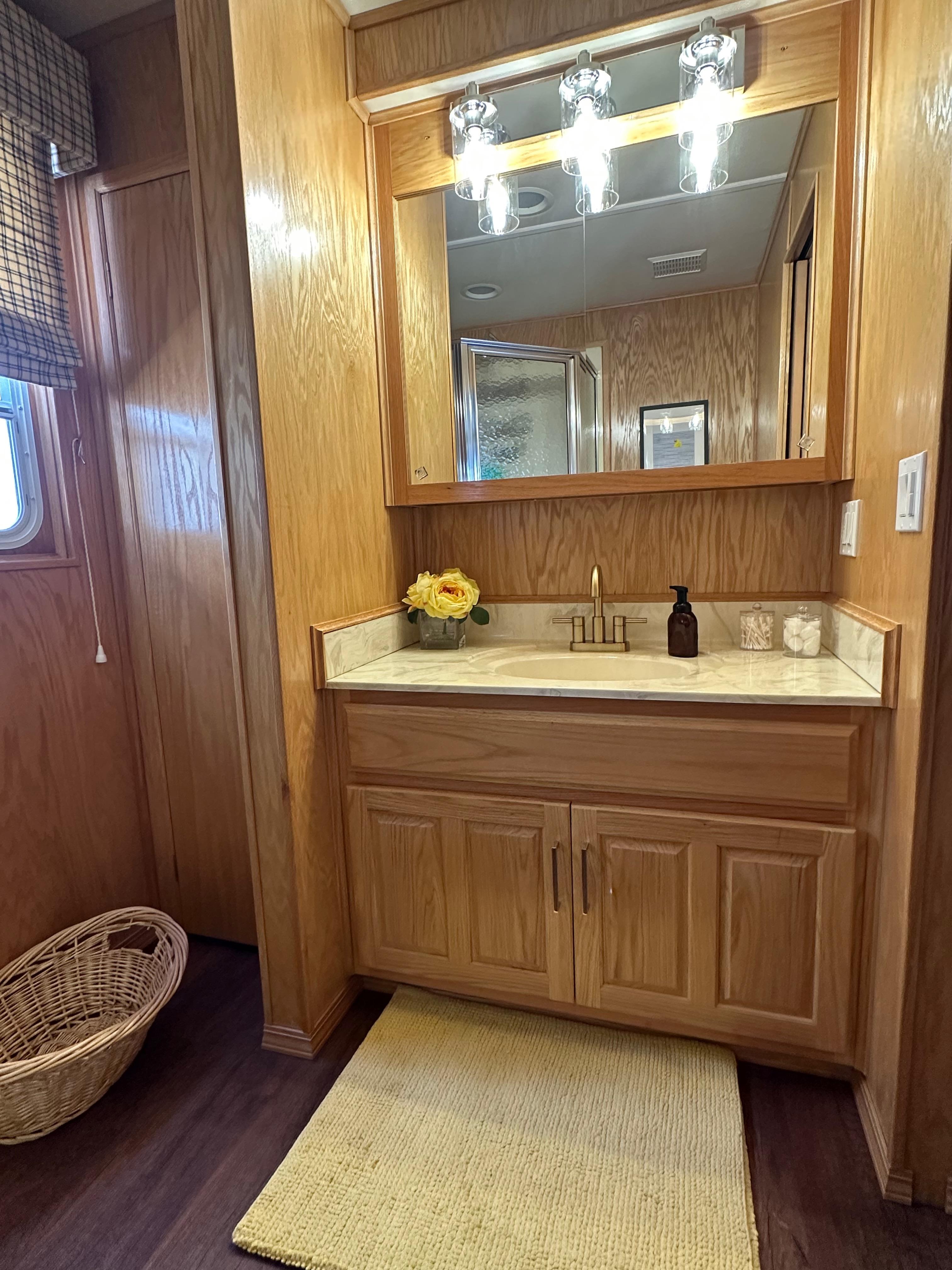

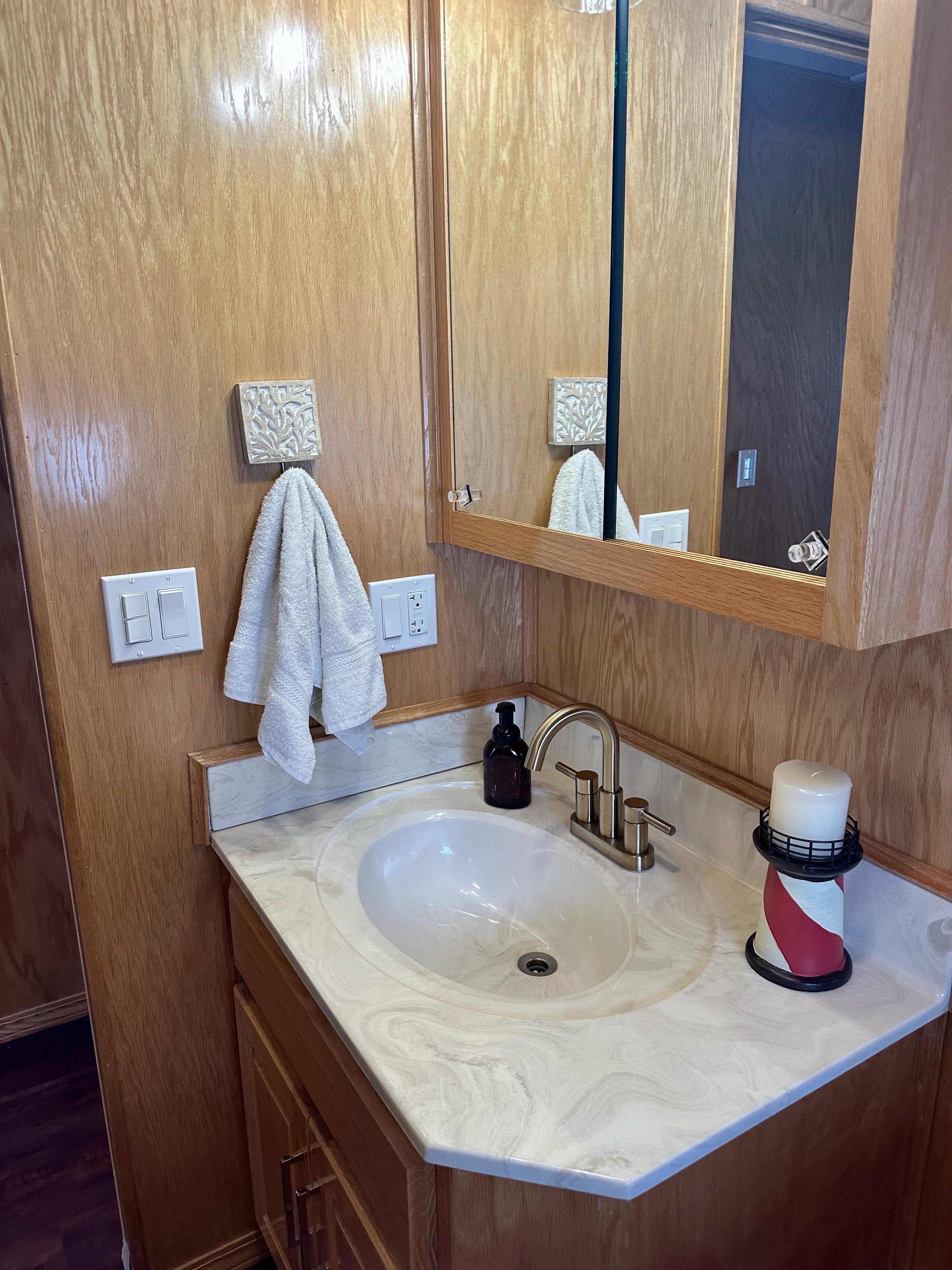

Bathrooms (2) / Utility:

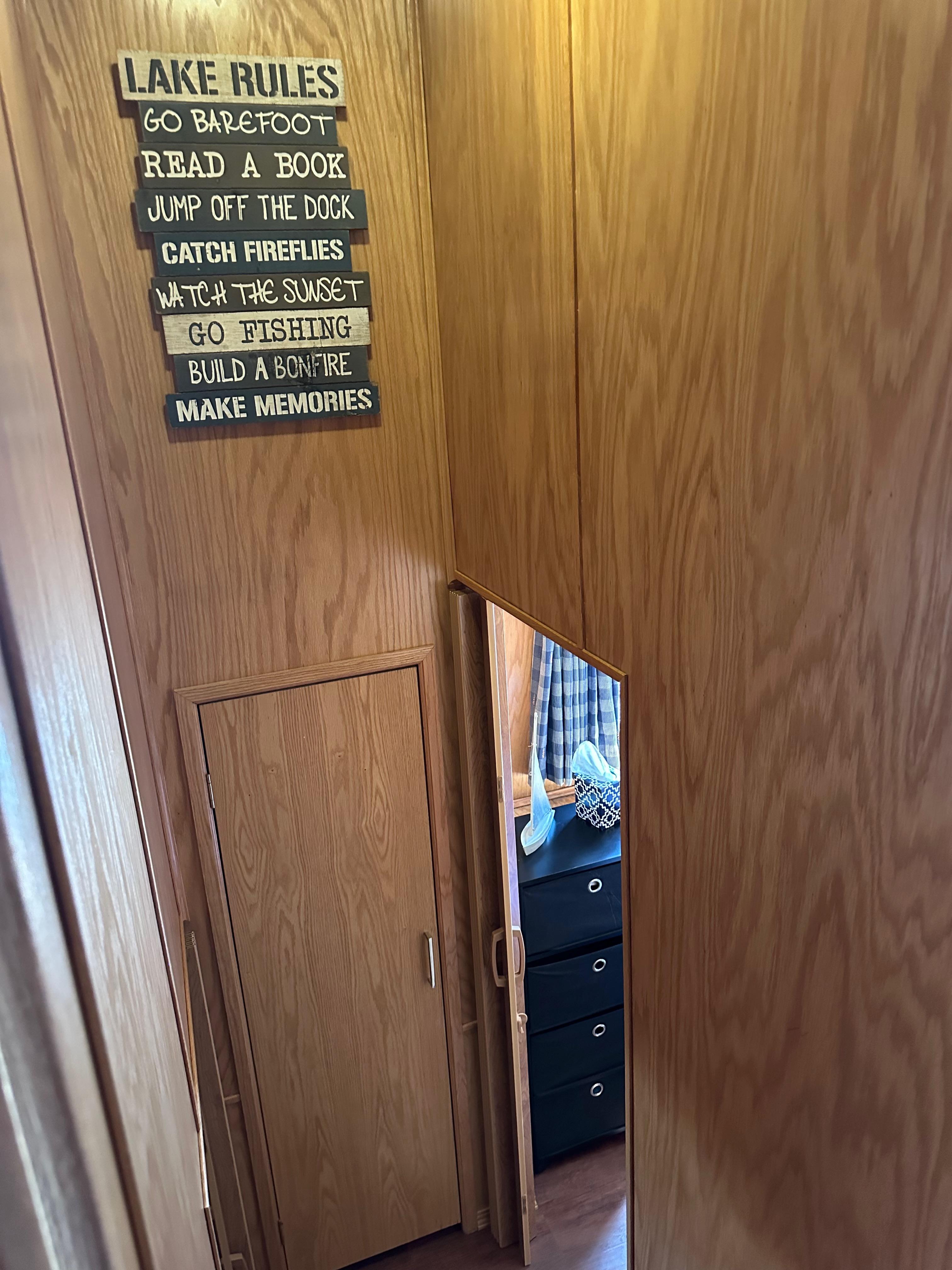

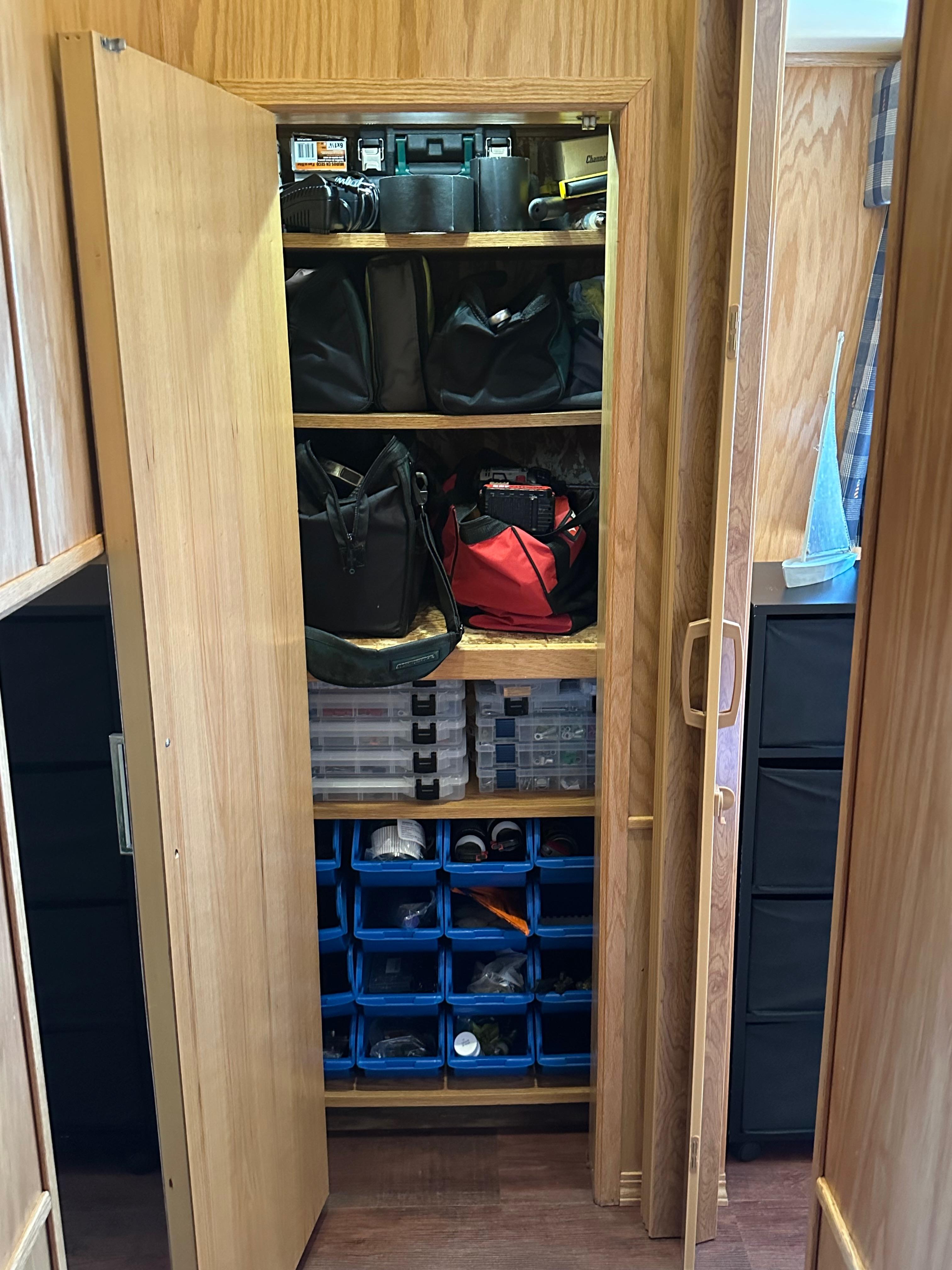

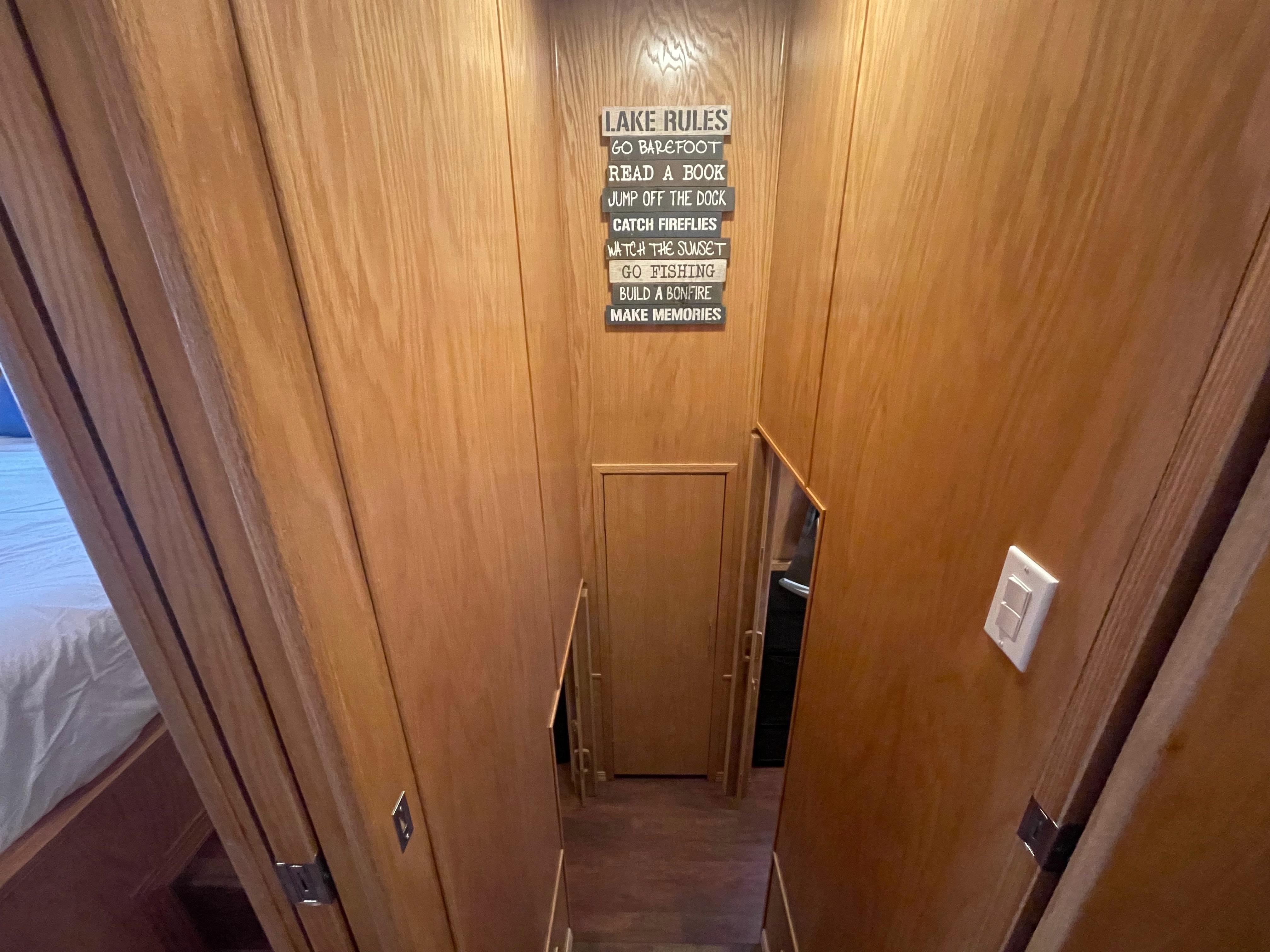

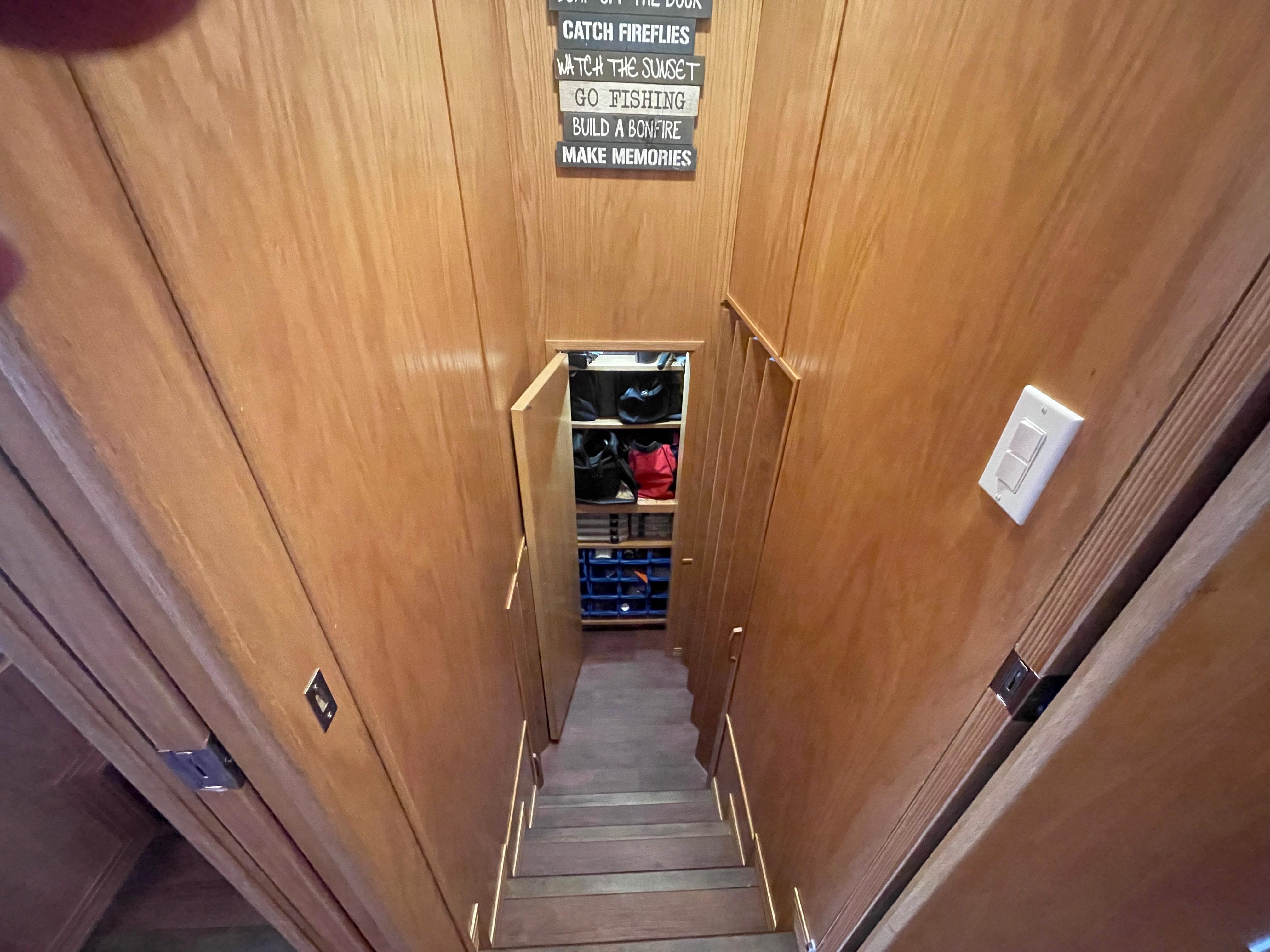

- Lower utility closet w/ LED light (at bottom of stairs).

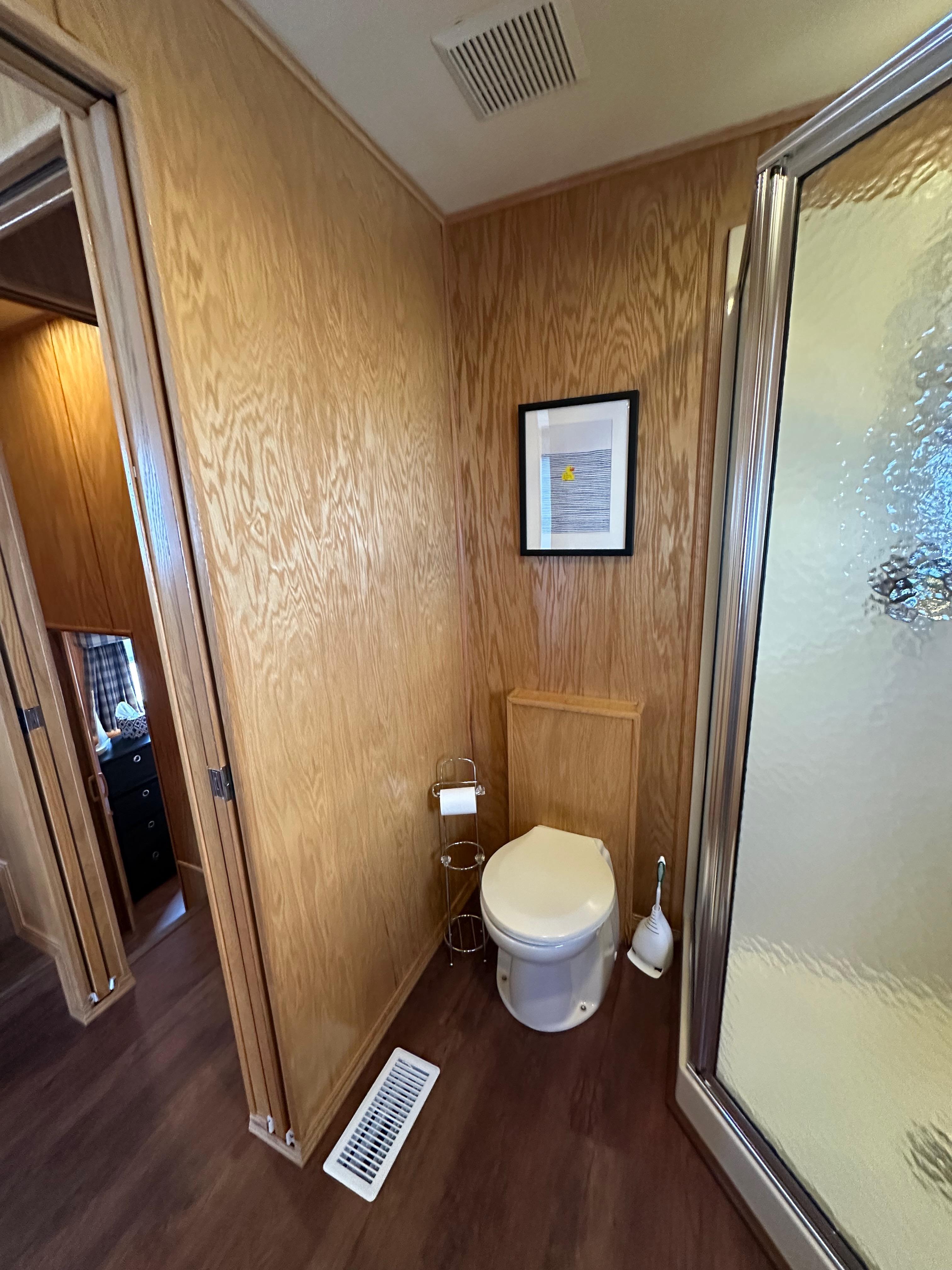

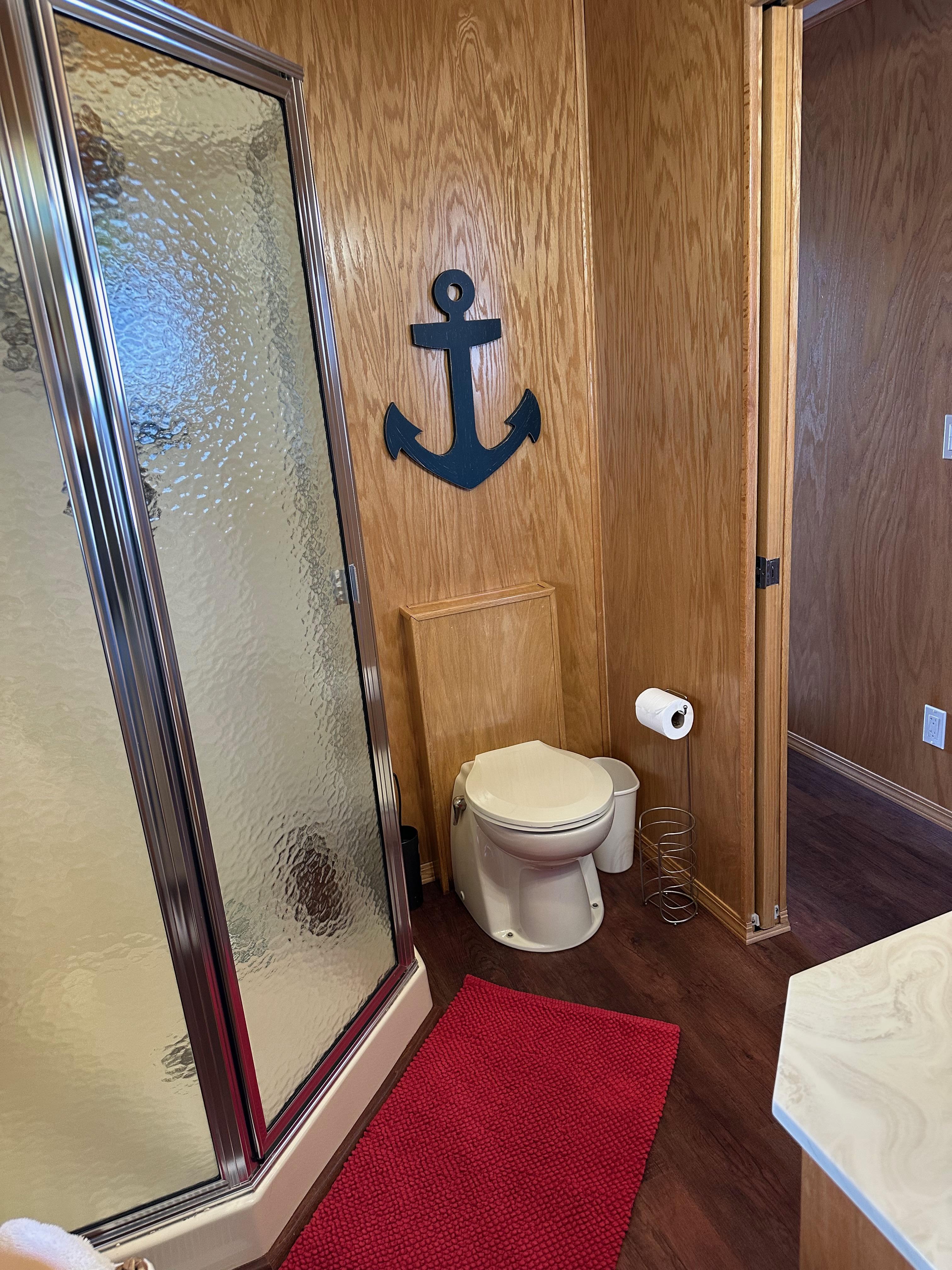

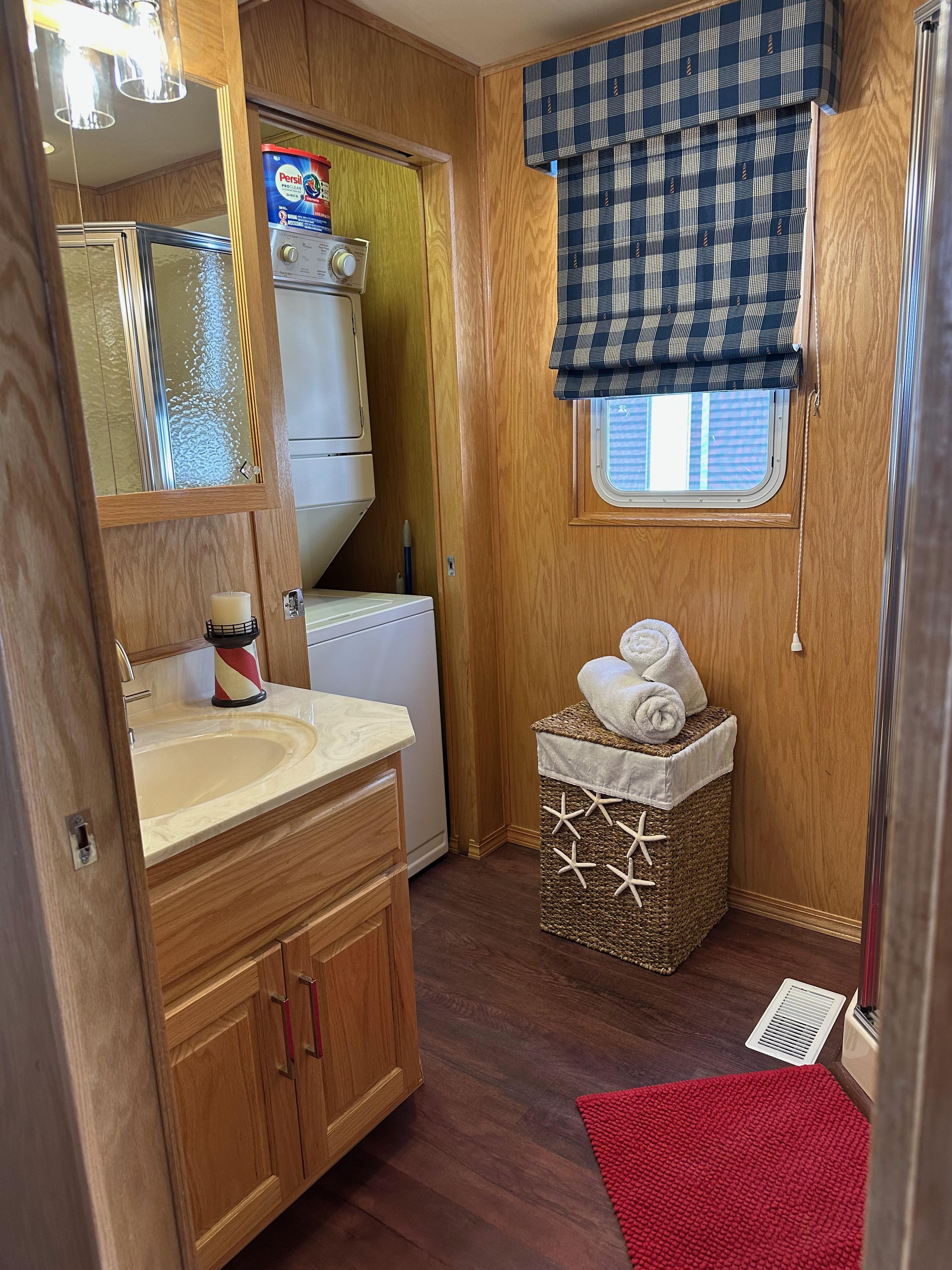

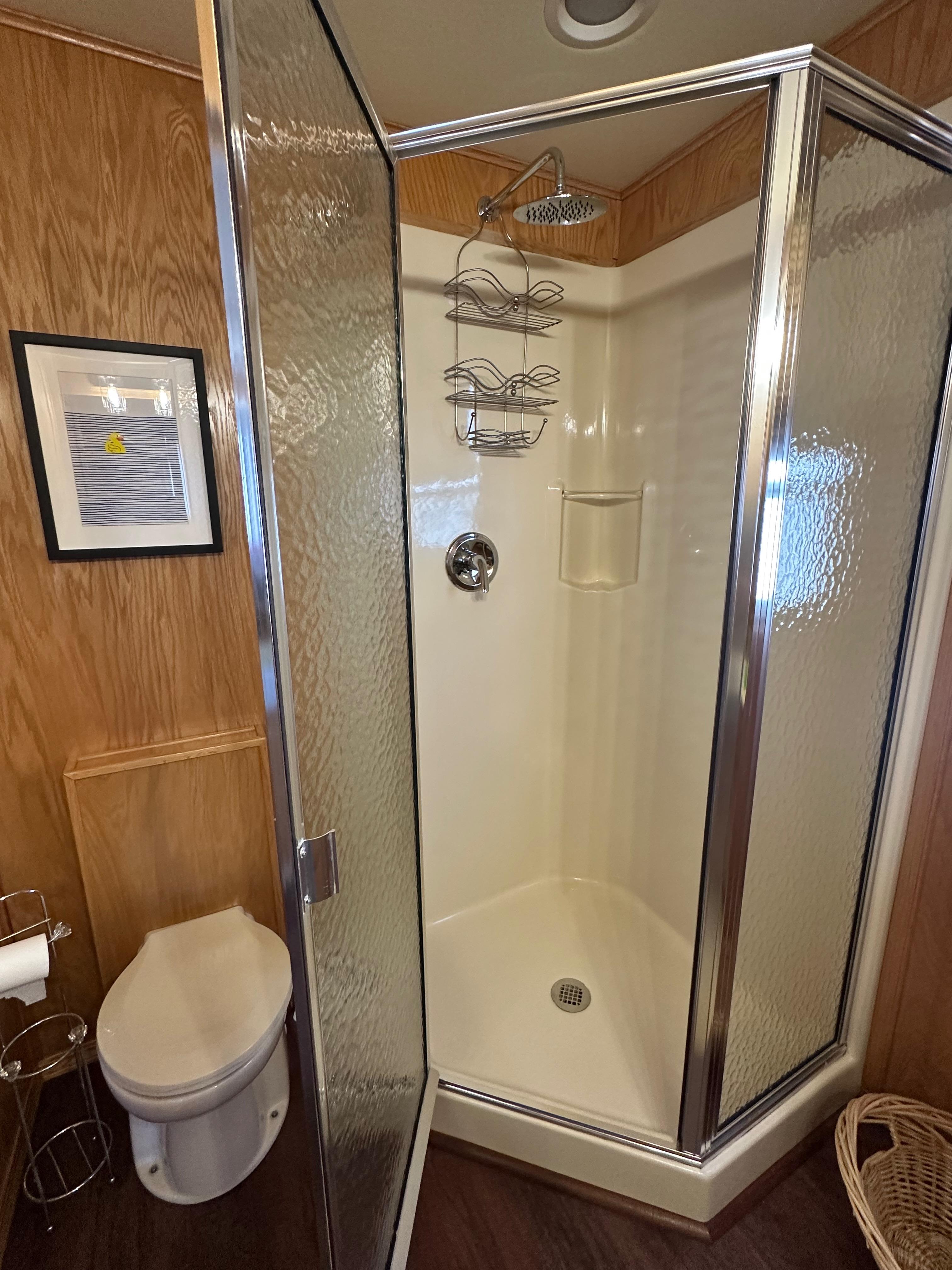

- Day Head (bathroom) w/ Raritan Atlantes Freedom 12V toilet (refurbished w/ all new internals in 2023), full walk-in shower, vanity, full-size washer & dryer (in dedicated utility closet w/ LED lighting).
- Owner Suite ensuite w/ Raritan Atlantes Freedom 12V toilet (refurbished w/ all new internals in 2022), full walk-in shower, extended vanity, full height cedar lined linen closet w/ LED lighting).

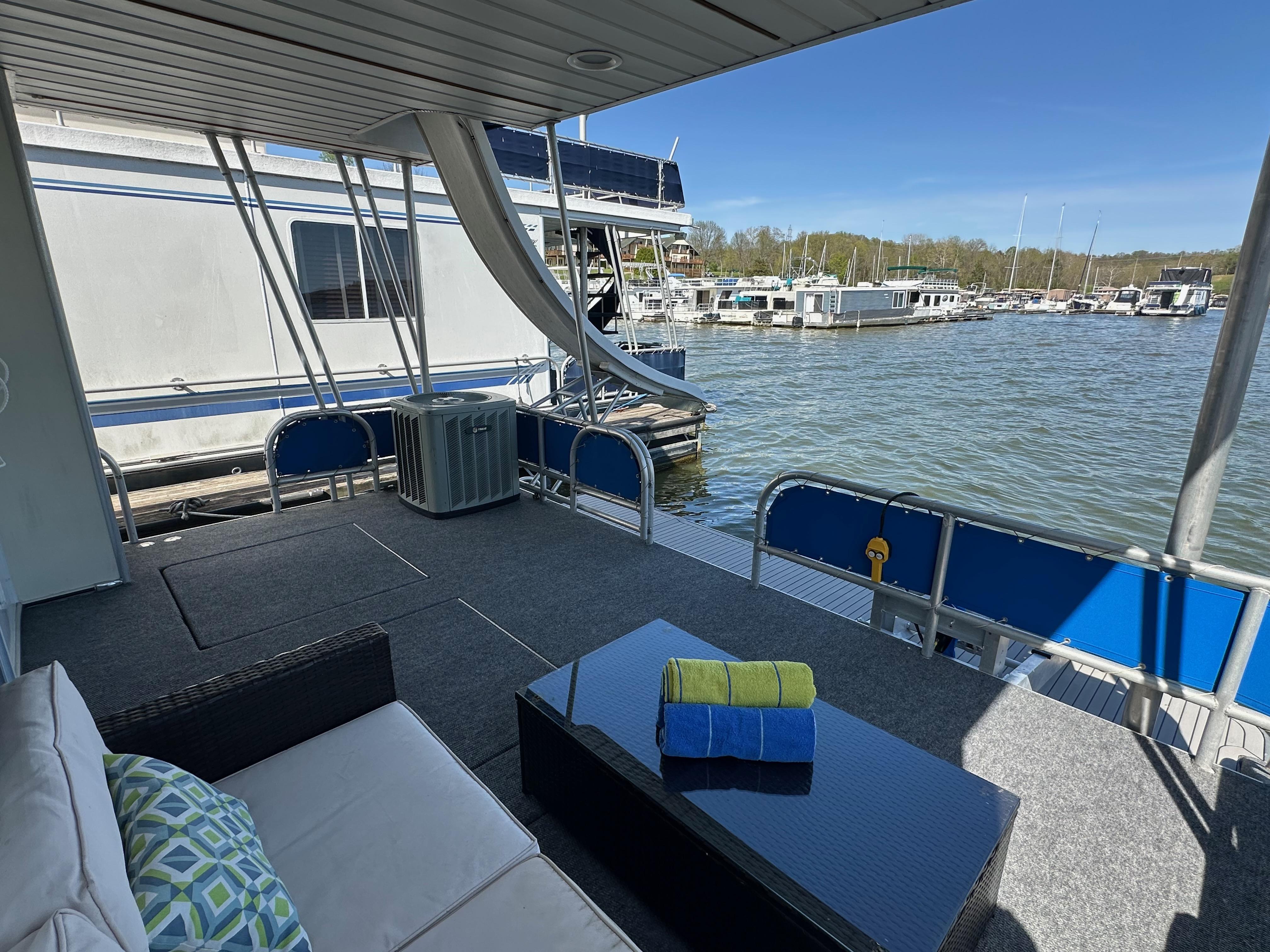

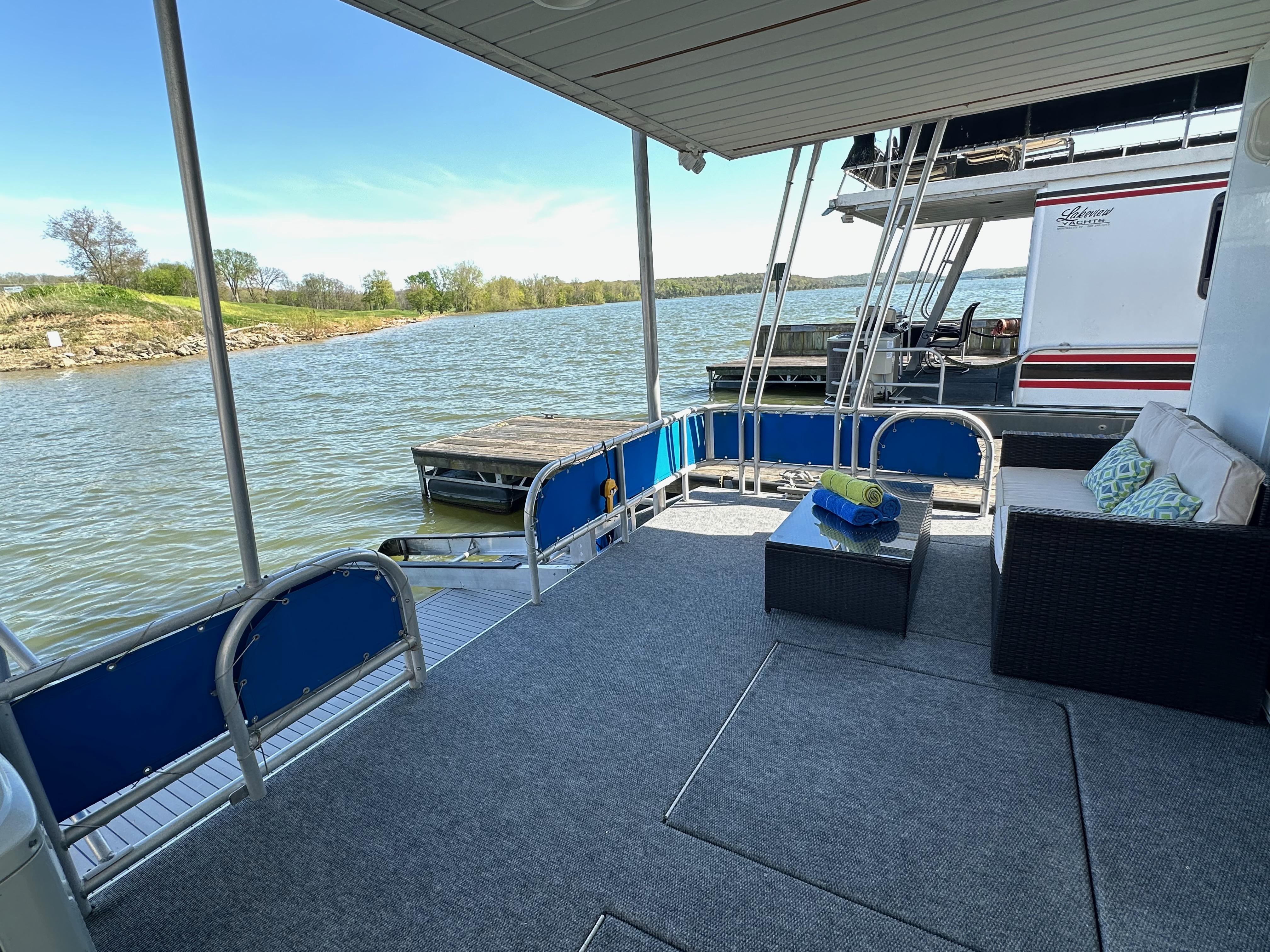

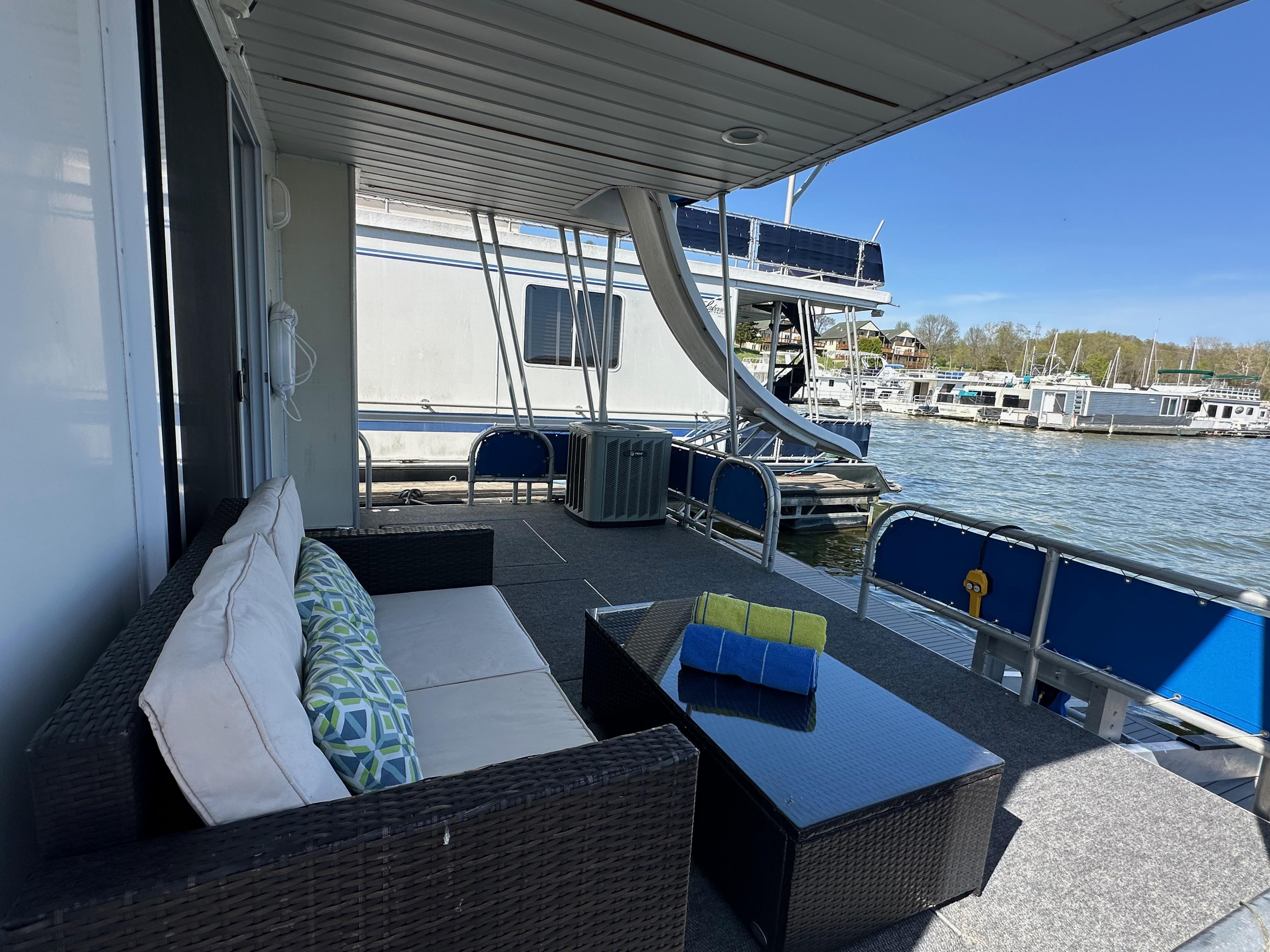

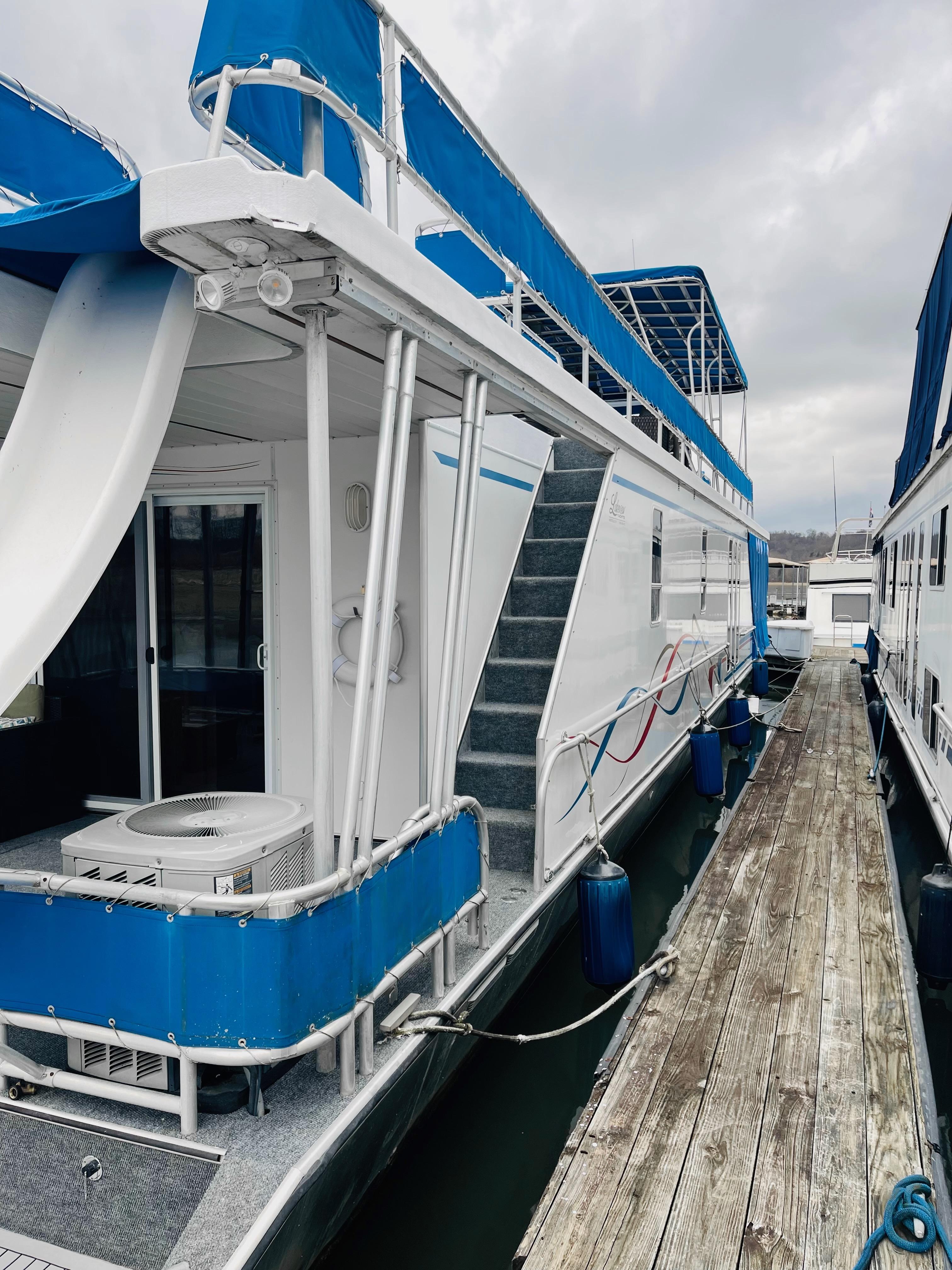

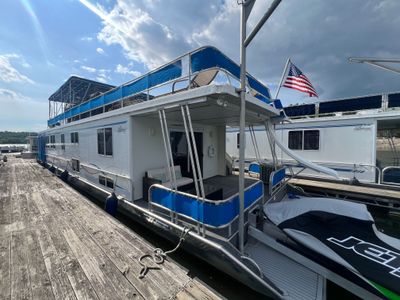

Rear Deck (16’x9’):
- New carpet installed in 2024.
- Fully furnished (love seat and coffee table).
- AC & DC puck lighting, rear facing LED flood lights & (2) nautical styled “no-bug” lights.

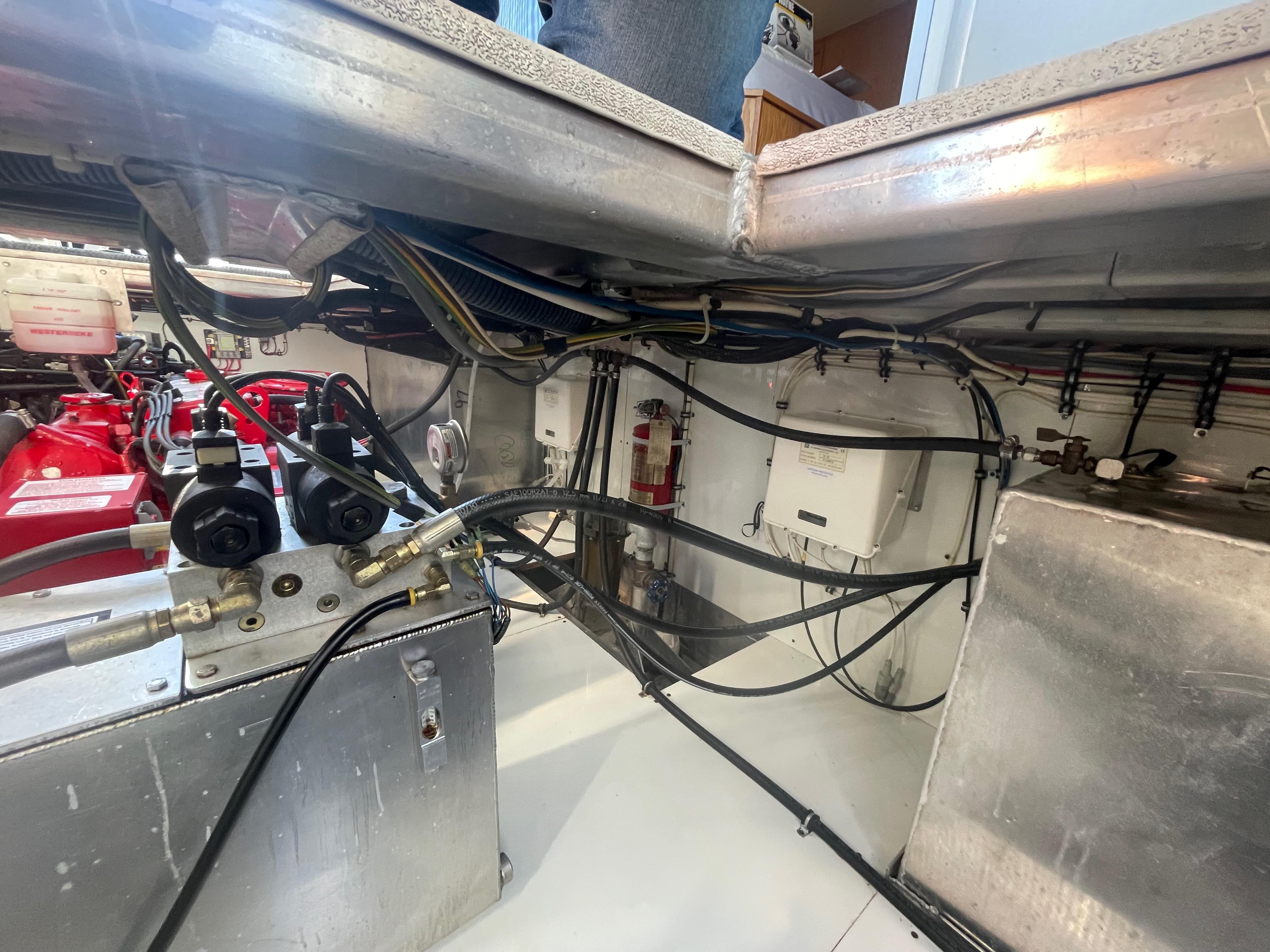

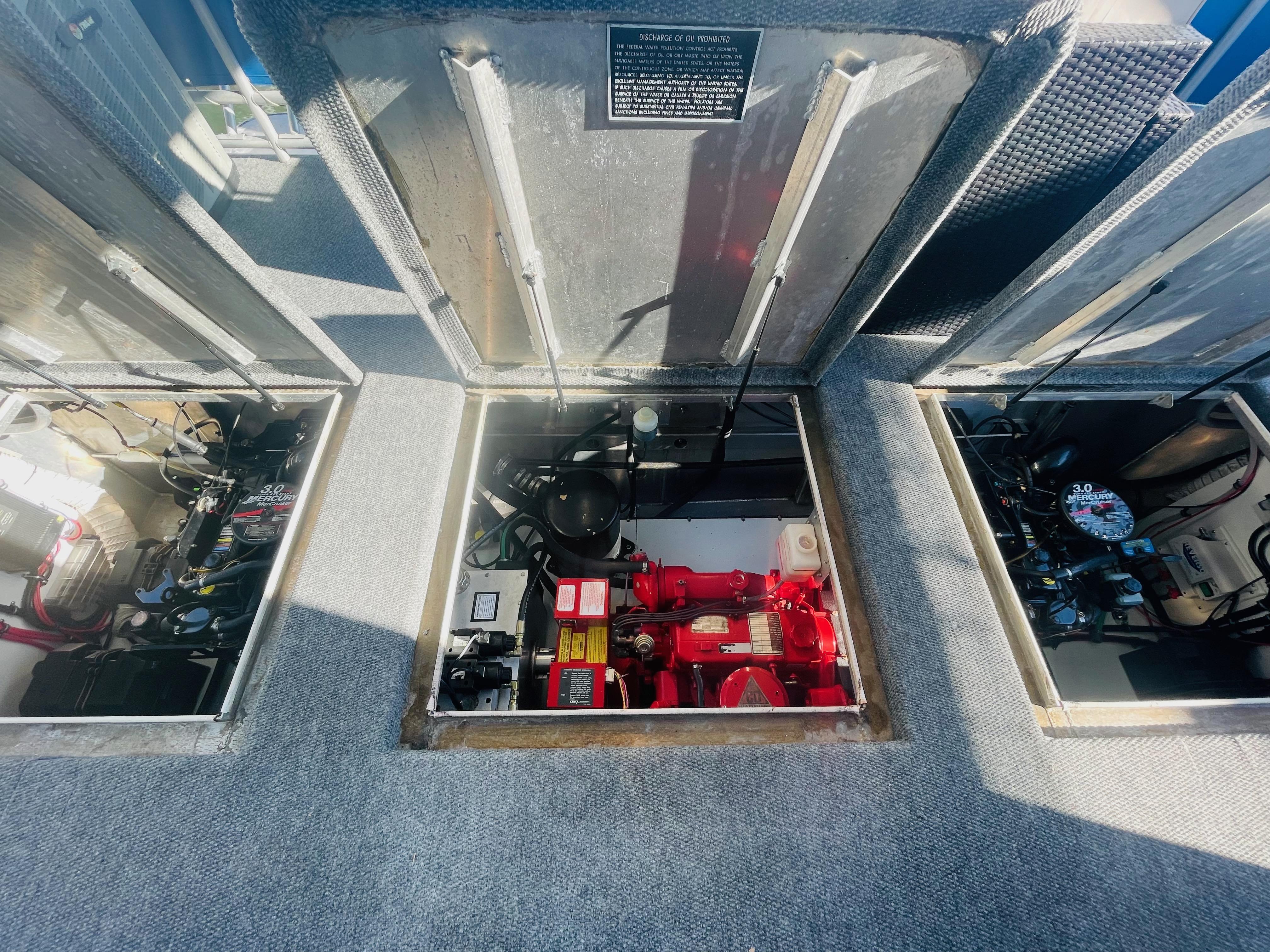

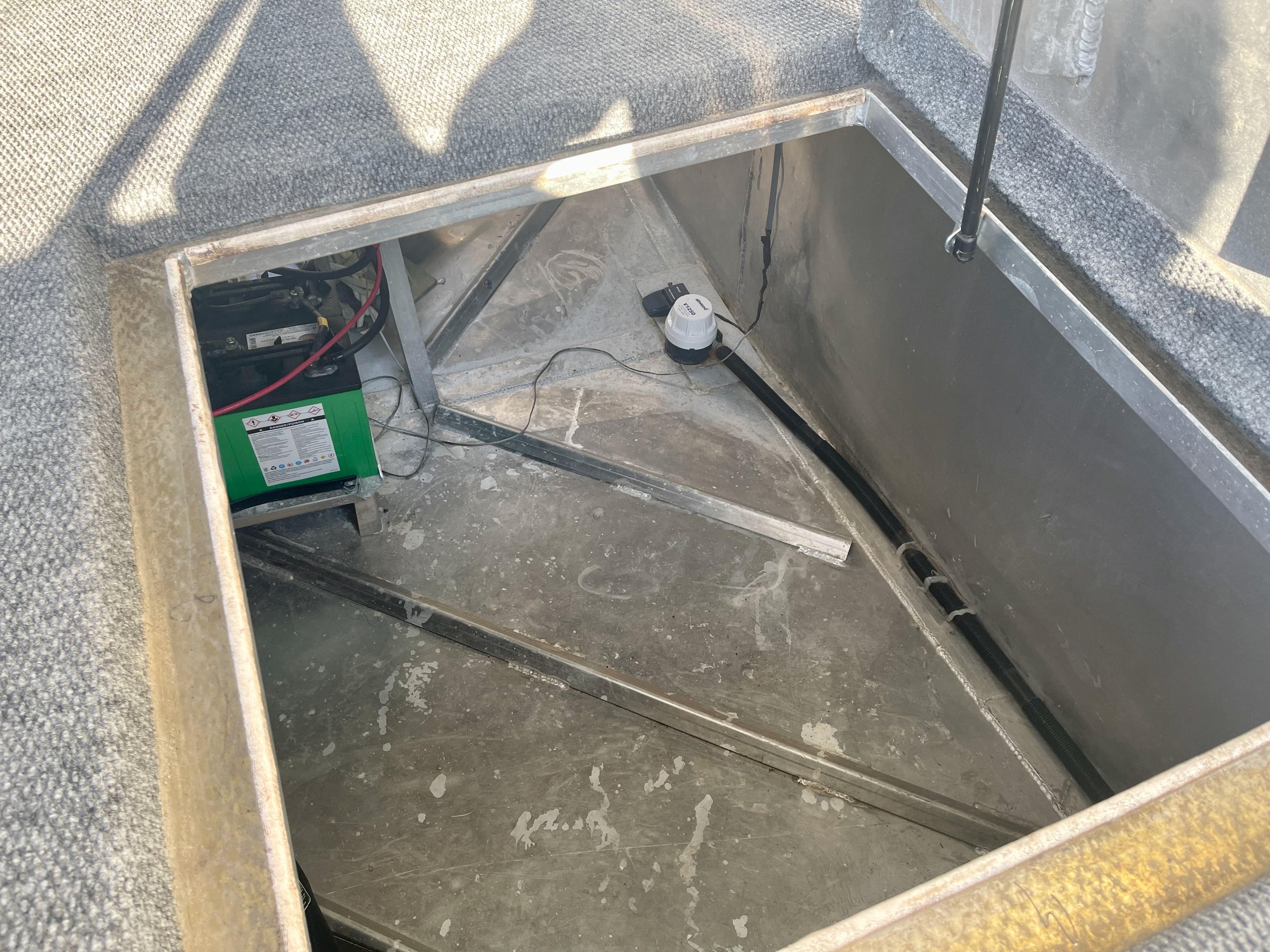

- (3) large hatches to access engine room, gen-set, hydraulics & bilge.
- Fiberglass slide w/ waterfall.
- Access to top deck via stairs w/ blue LED courtesy lighting.

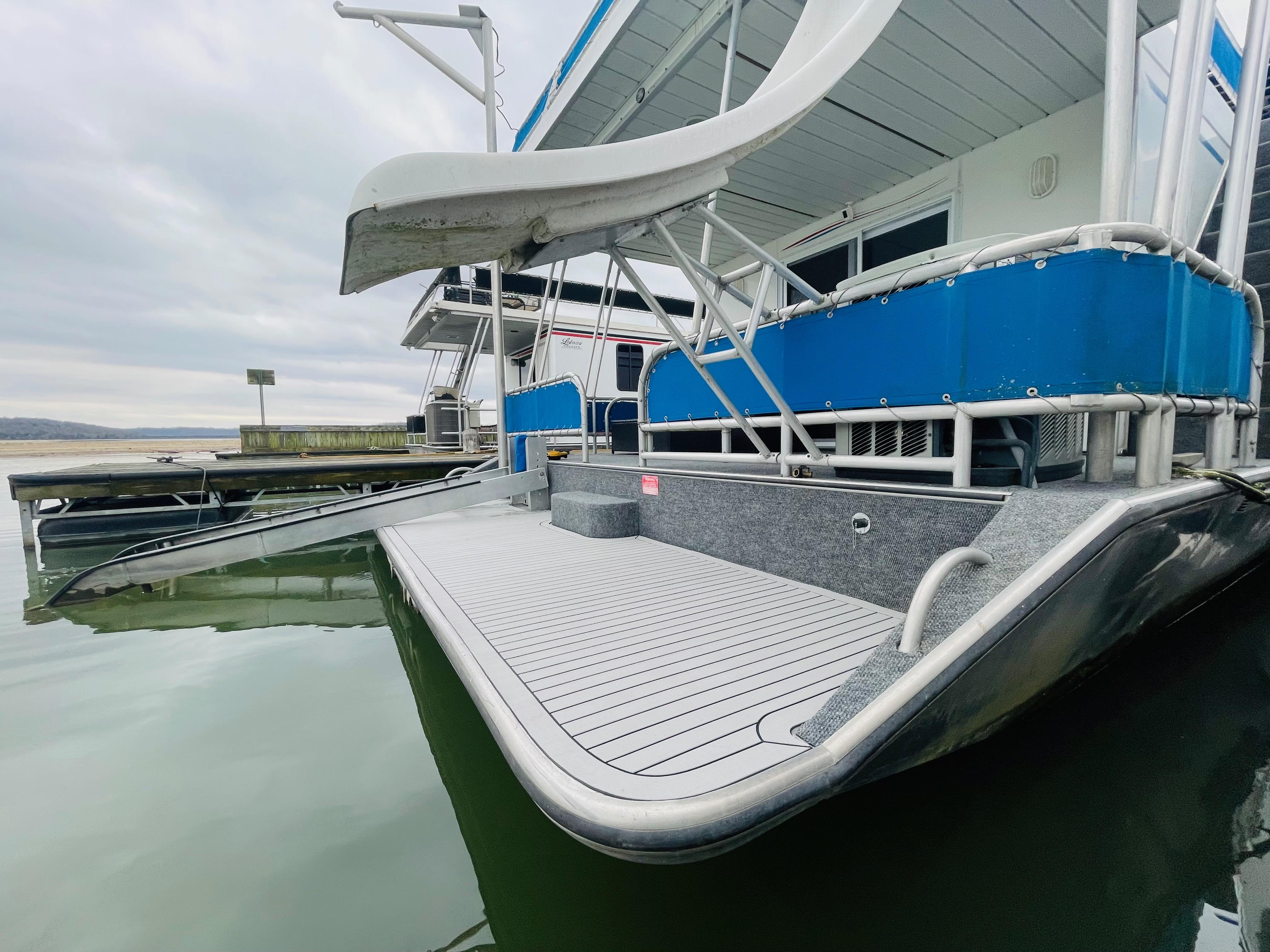

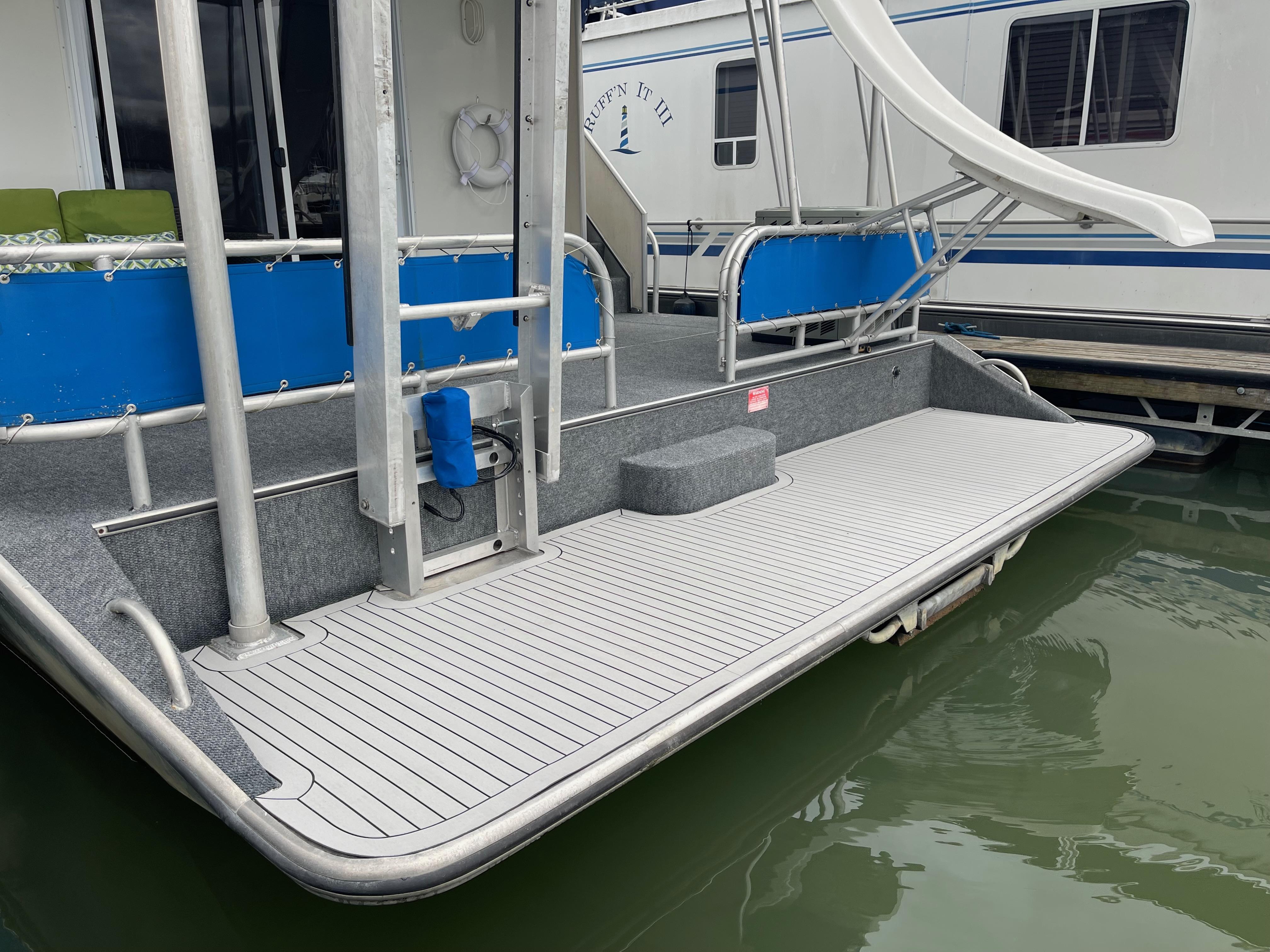

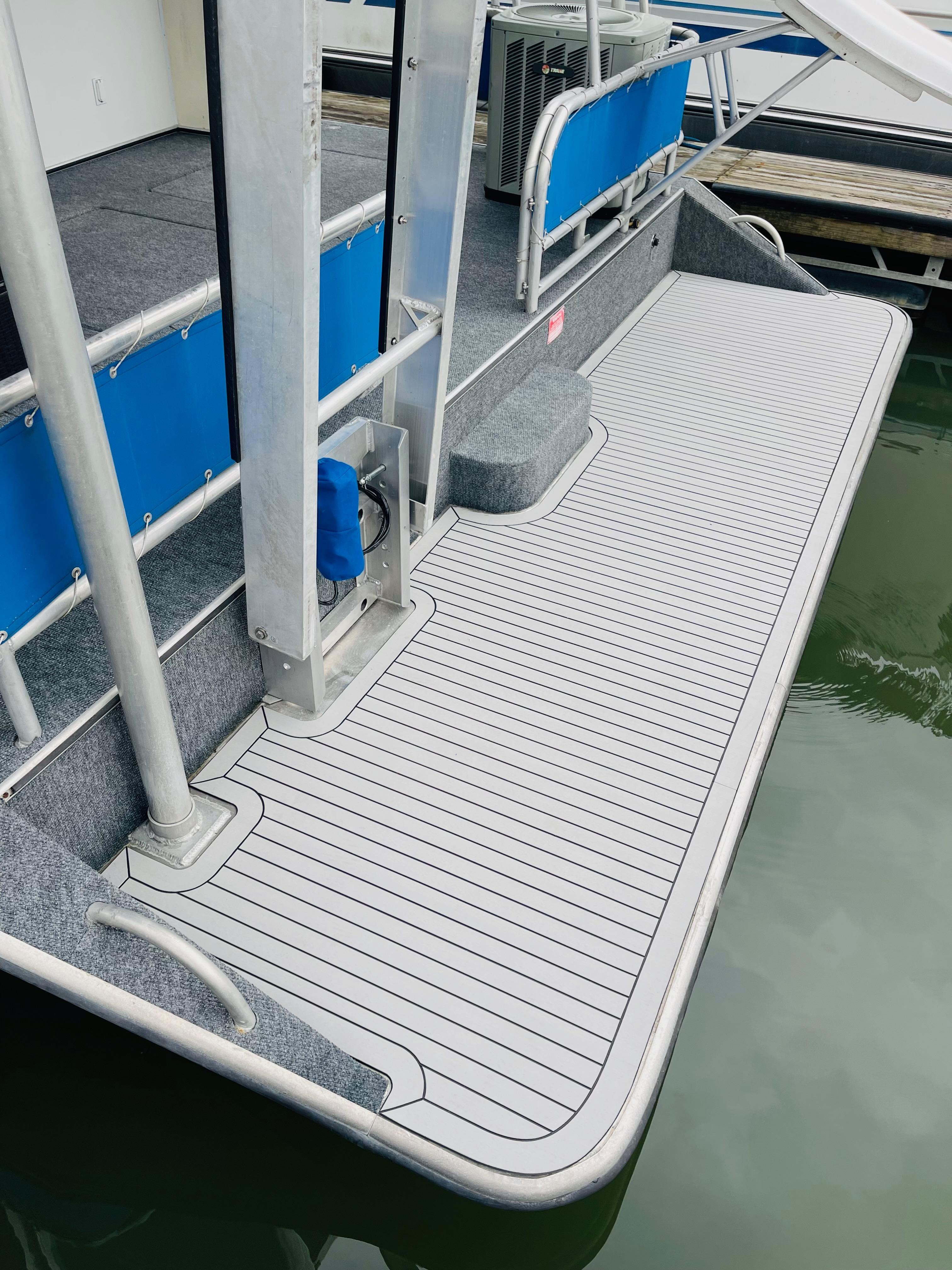

Swim Platform (16’ X 4’):
- New PlasDeck teak decking installed in 2024.
- Wash Down pump spigot & hose.
- Under deck blue LED lighting.
- Heavy duty /tuck under aluminum swim ladder.

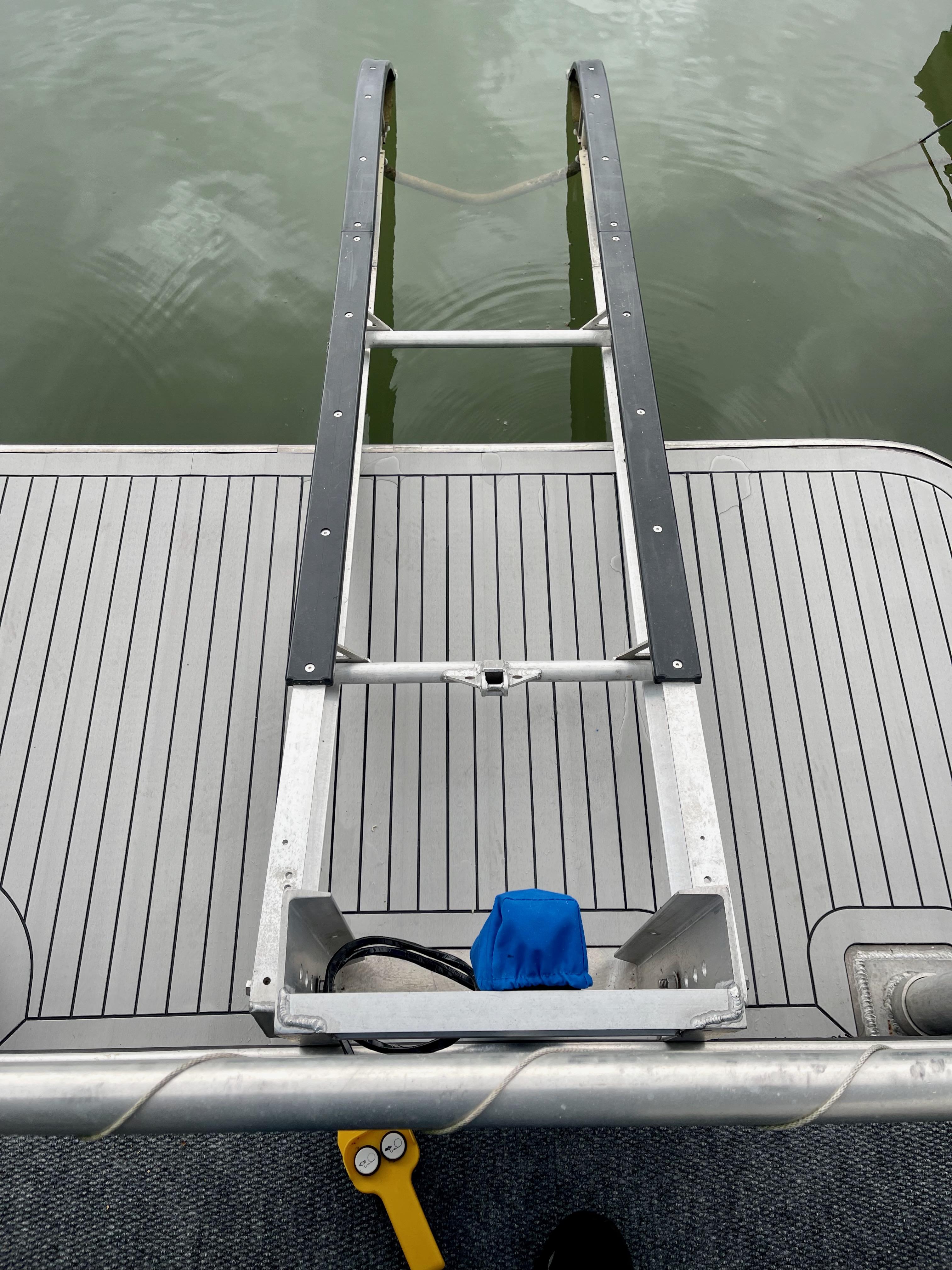

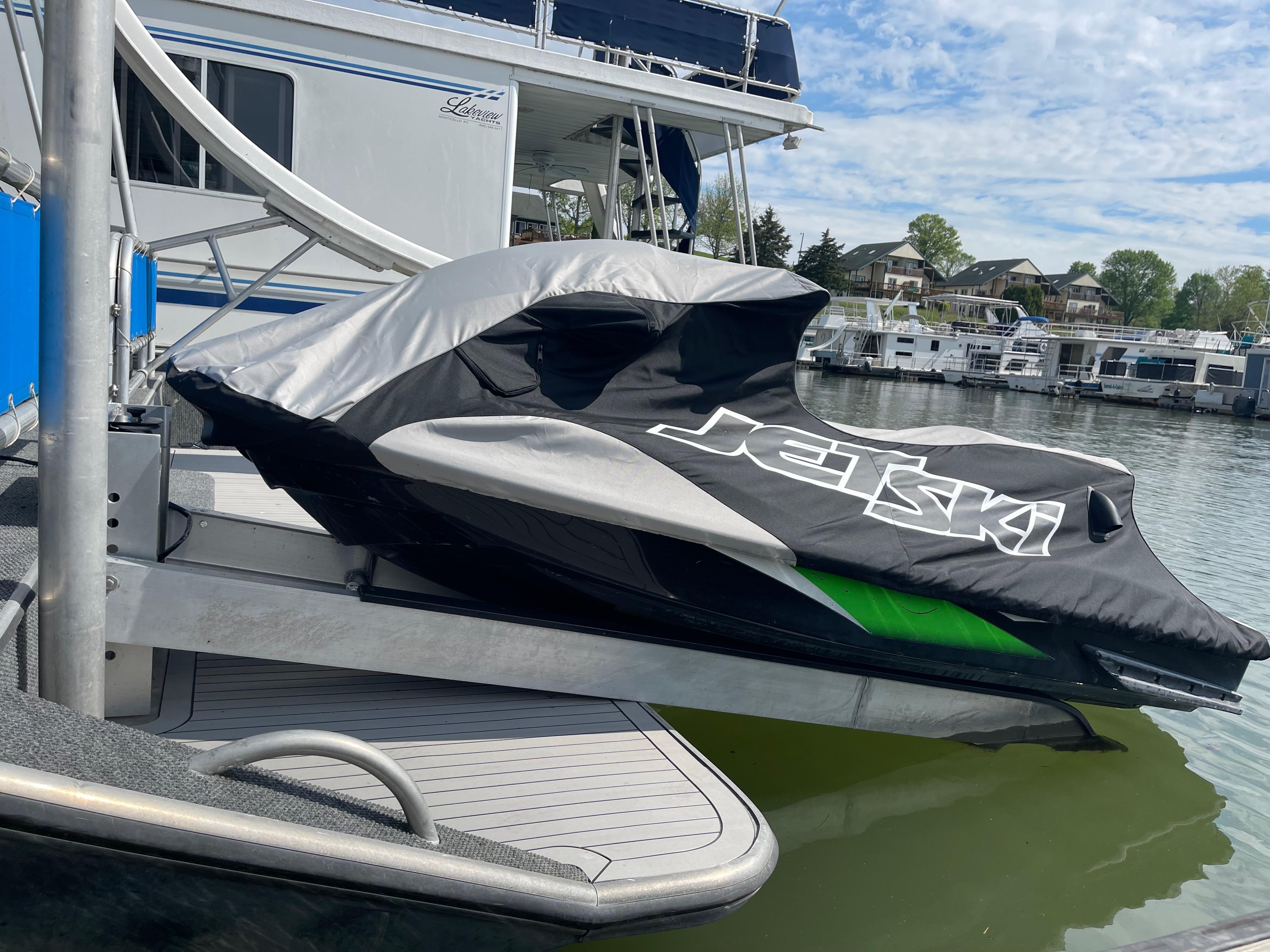

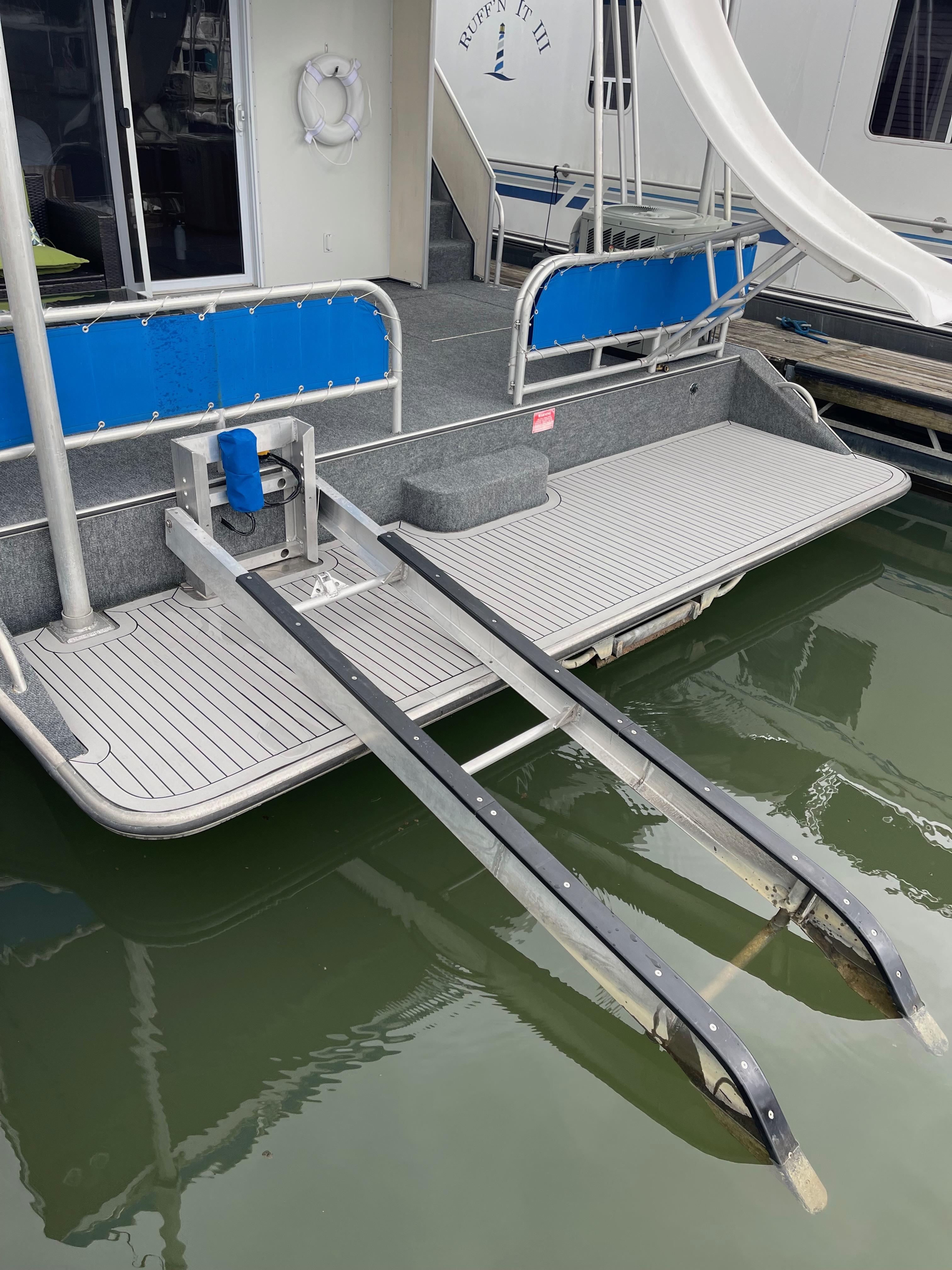

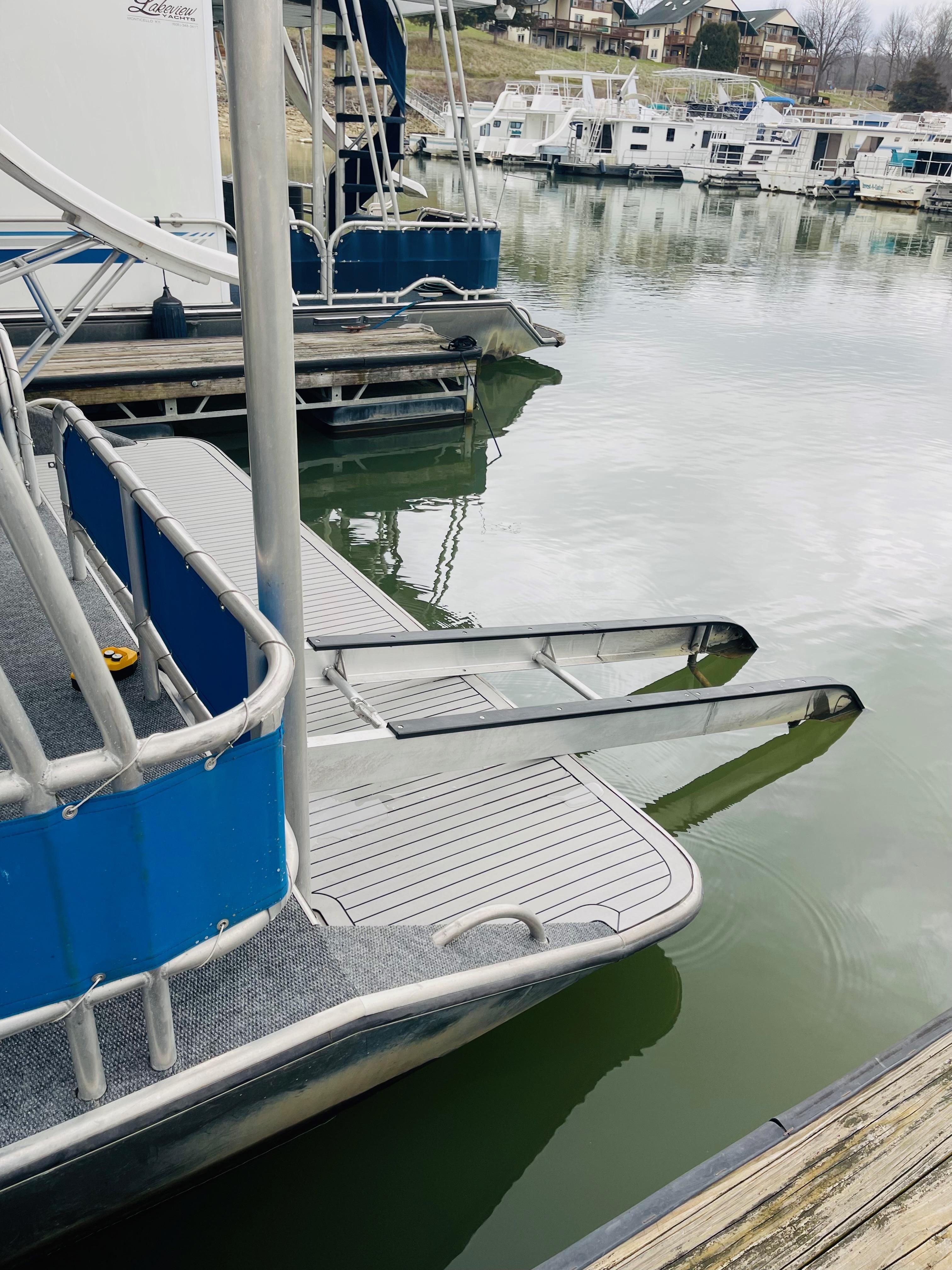

- Custom aluminum Jet ski ramp w/ electric winch. Ramp is hinged to be fully upright when not in-use to clear deck space for swimmers.

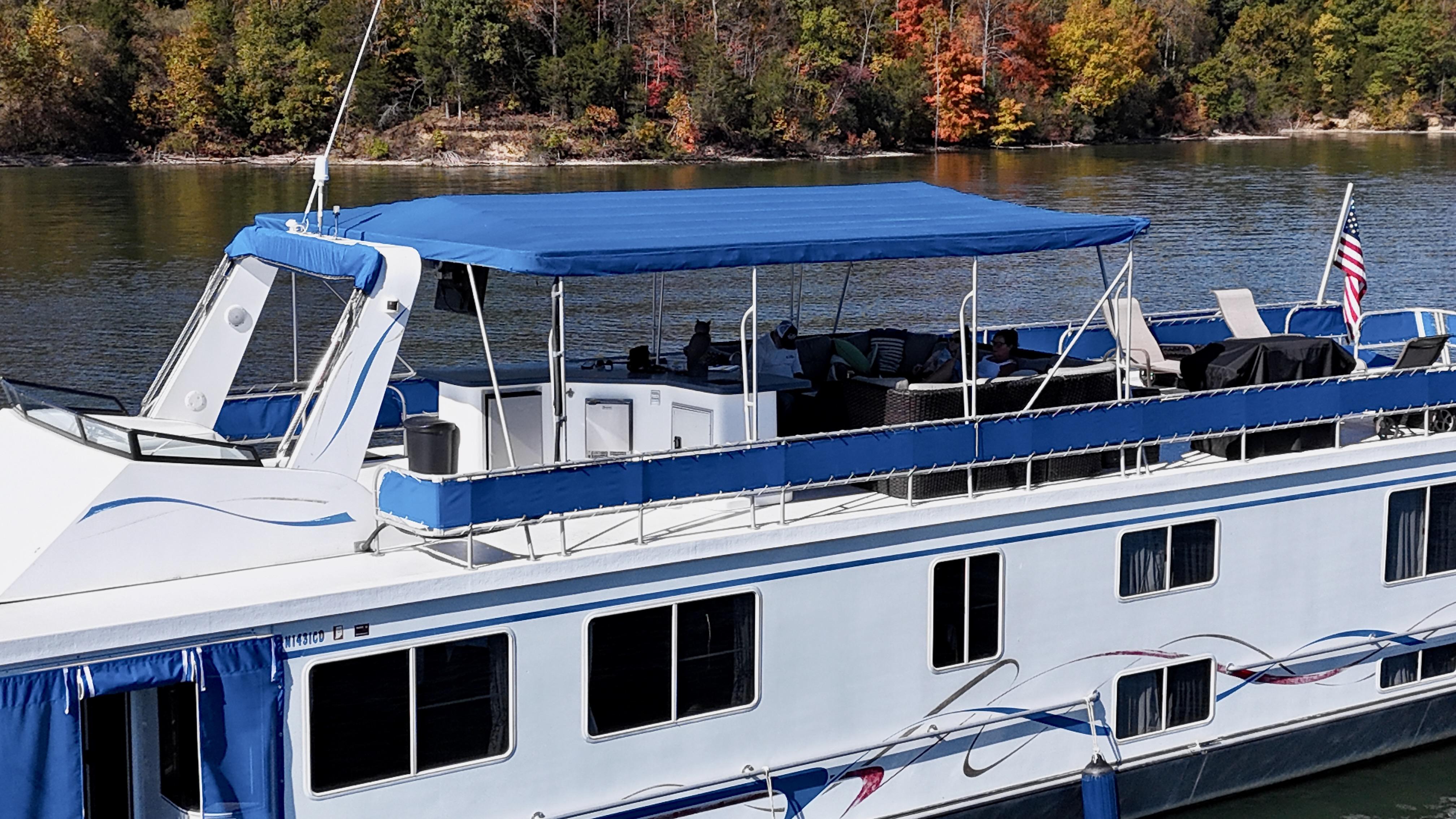

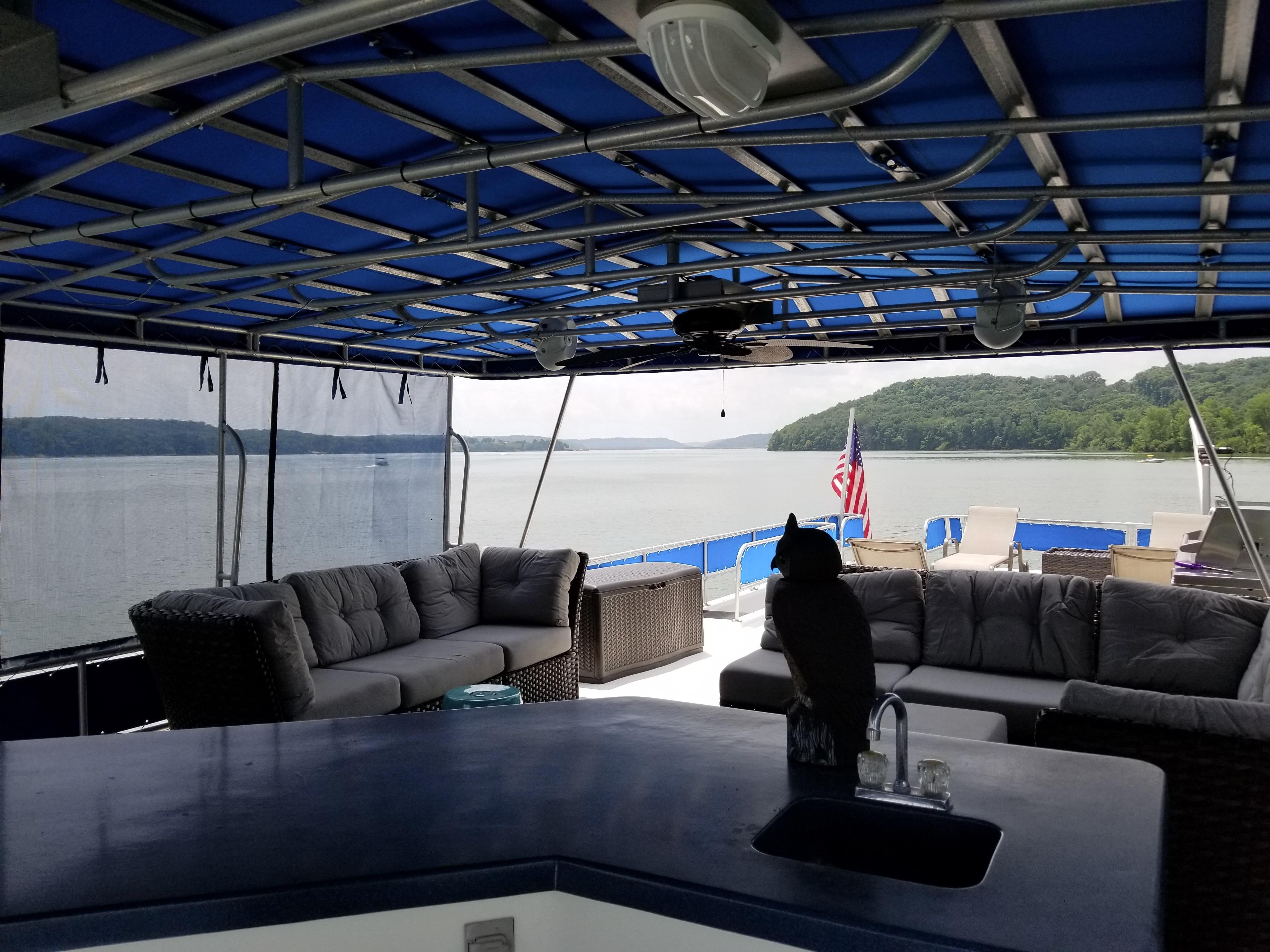

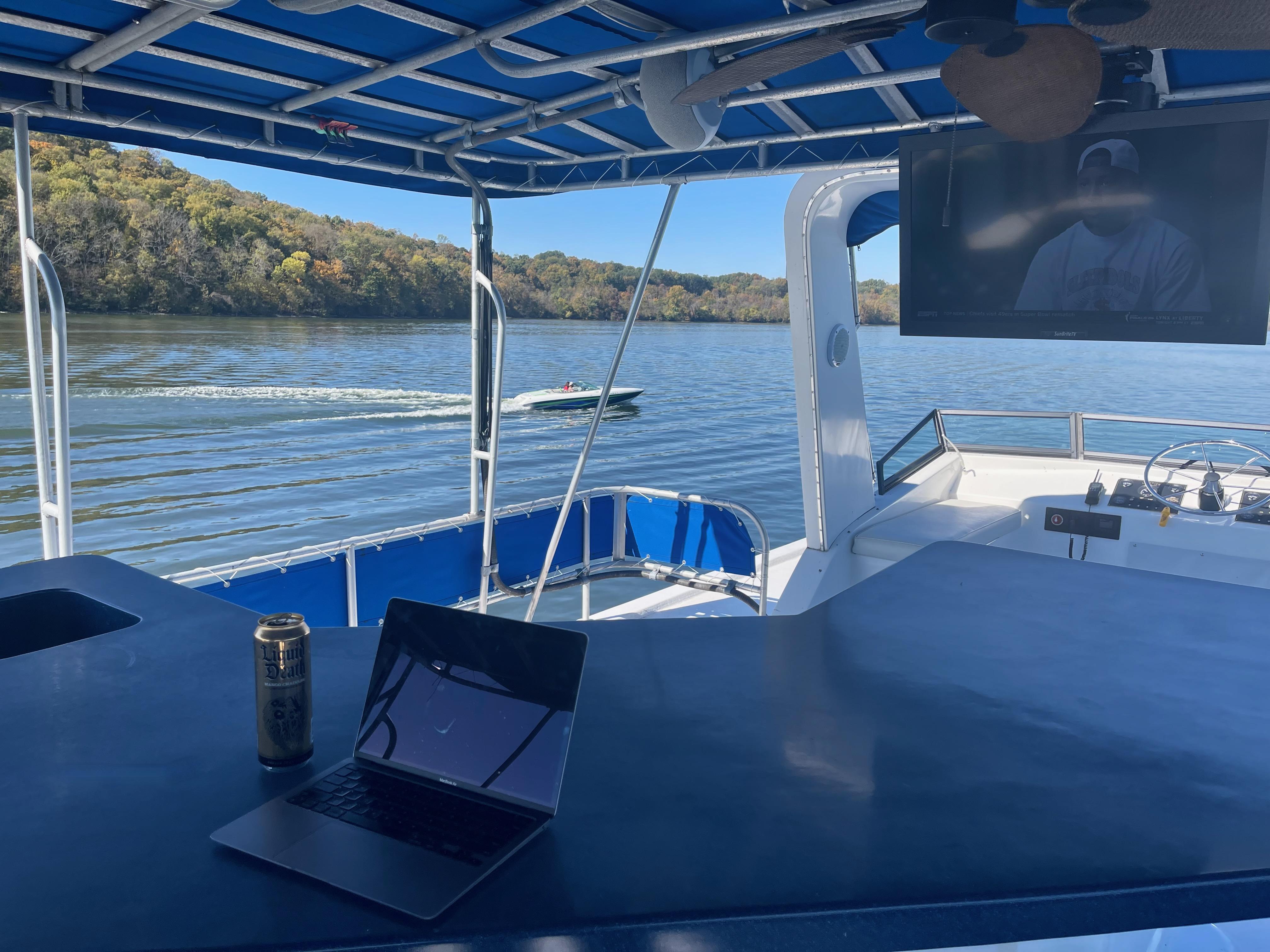

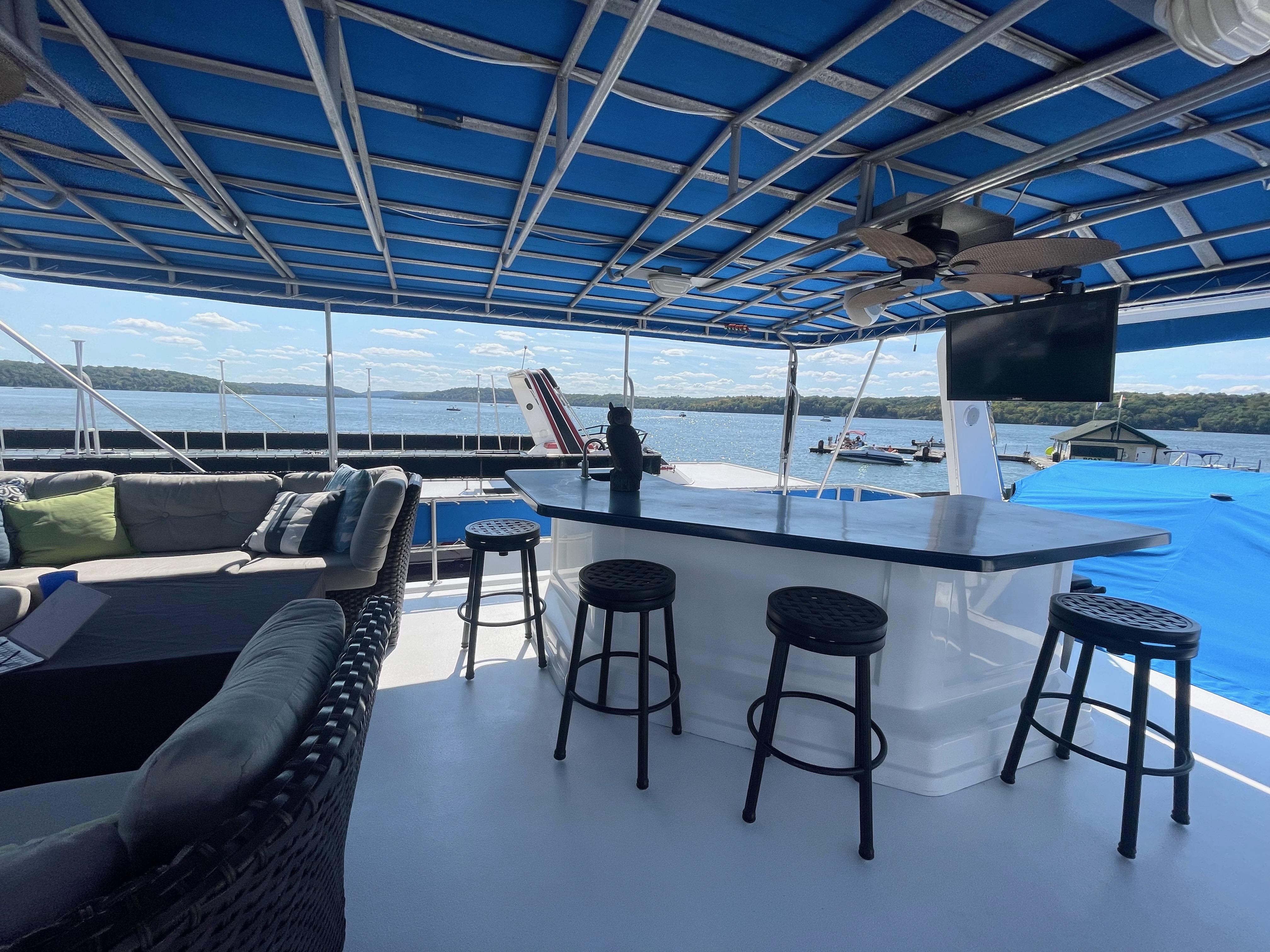

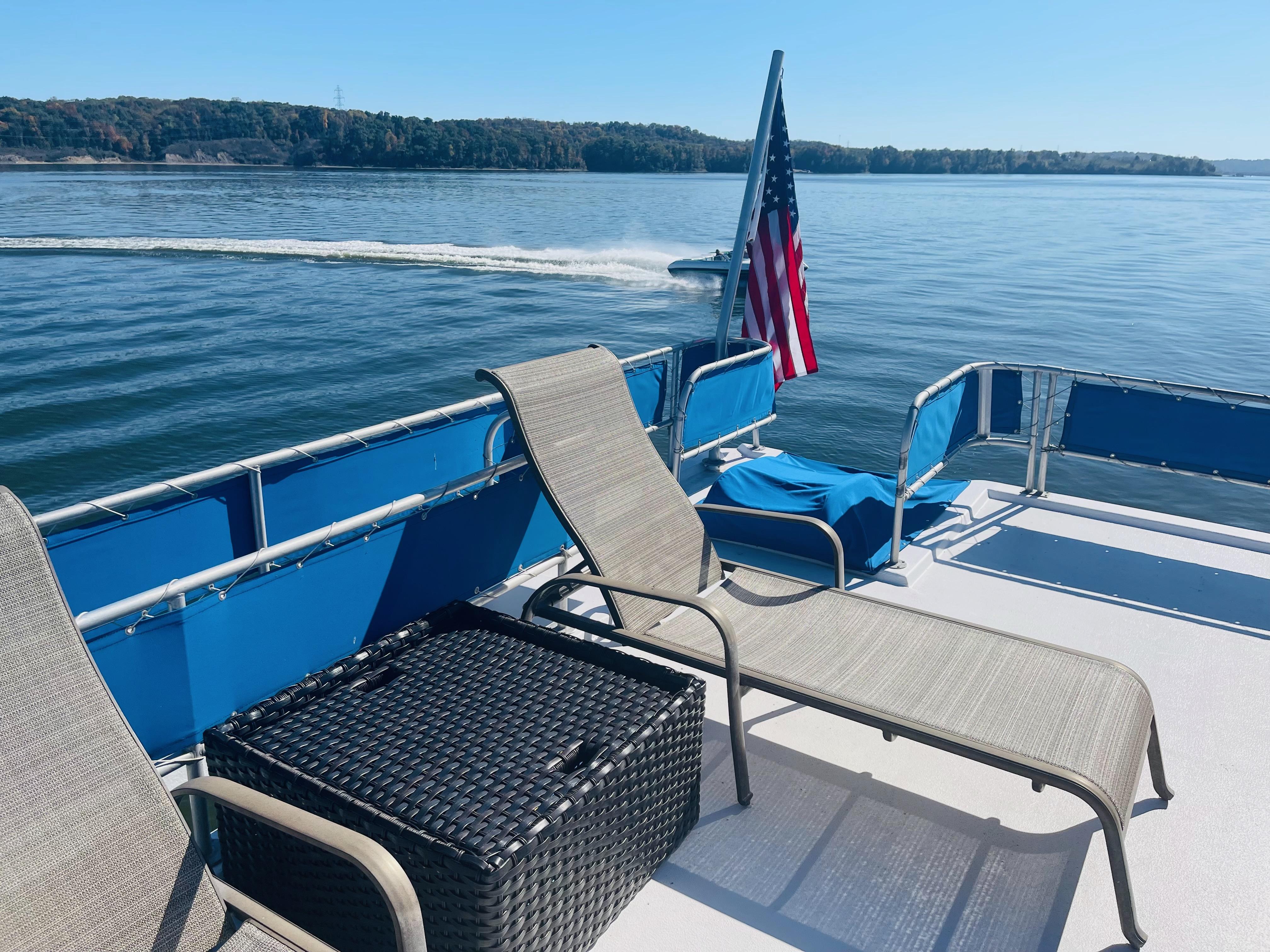

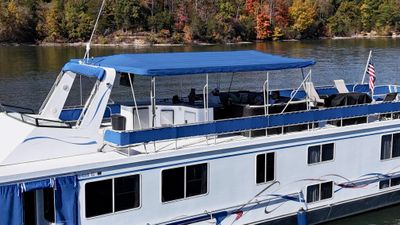

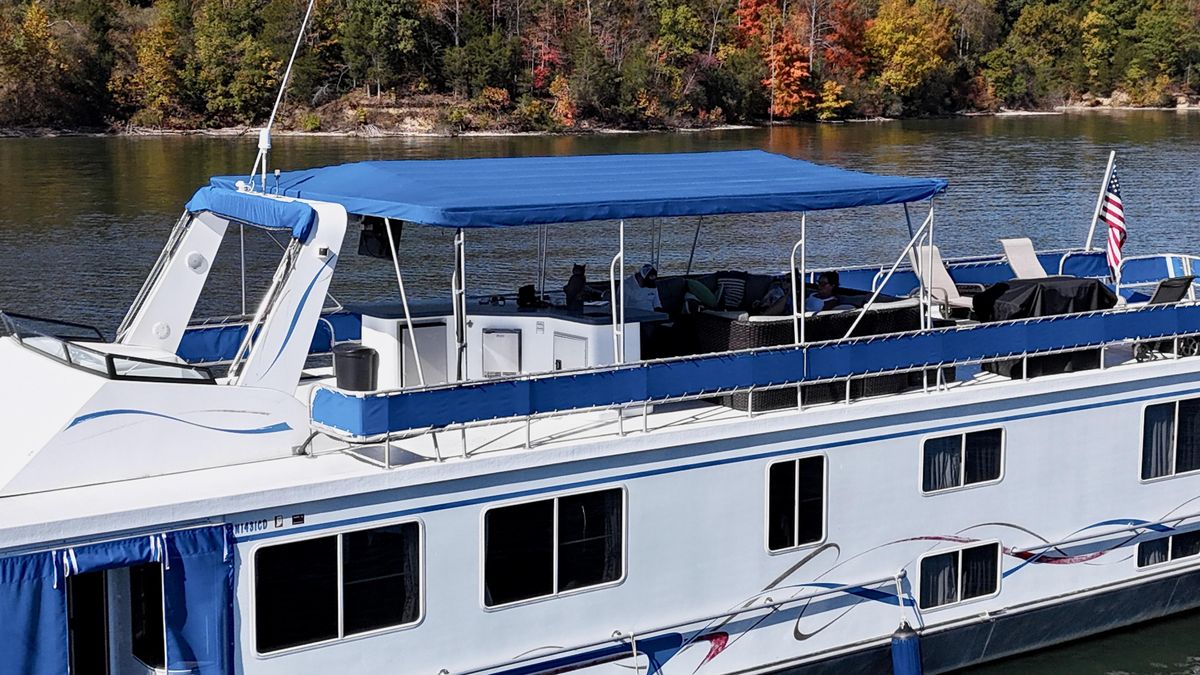

Party Top (16’ x 65’):
- Gelcoat totally refinished in 2023-2024. Good for another 10+ years.

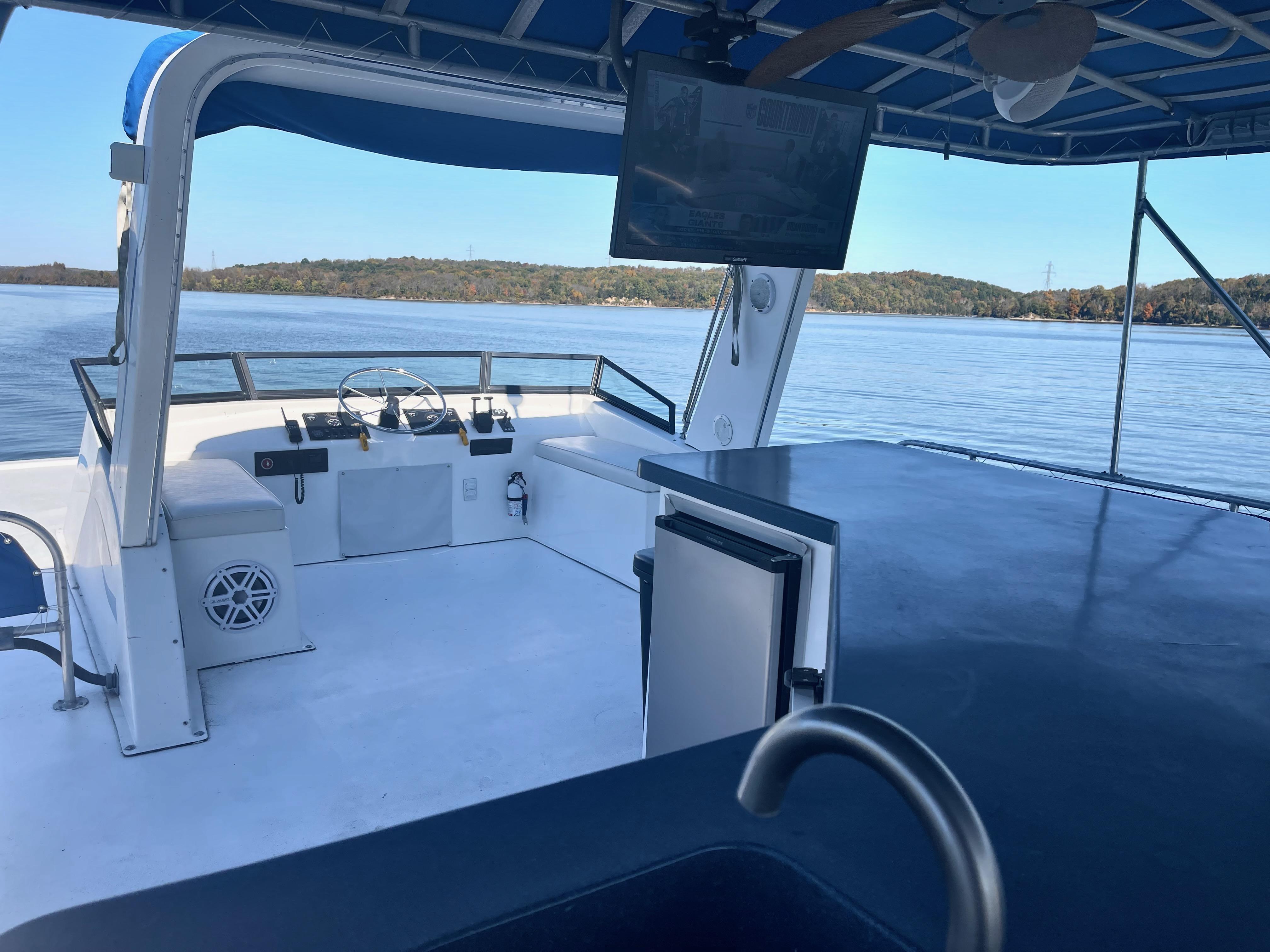

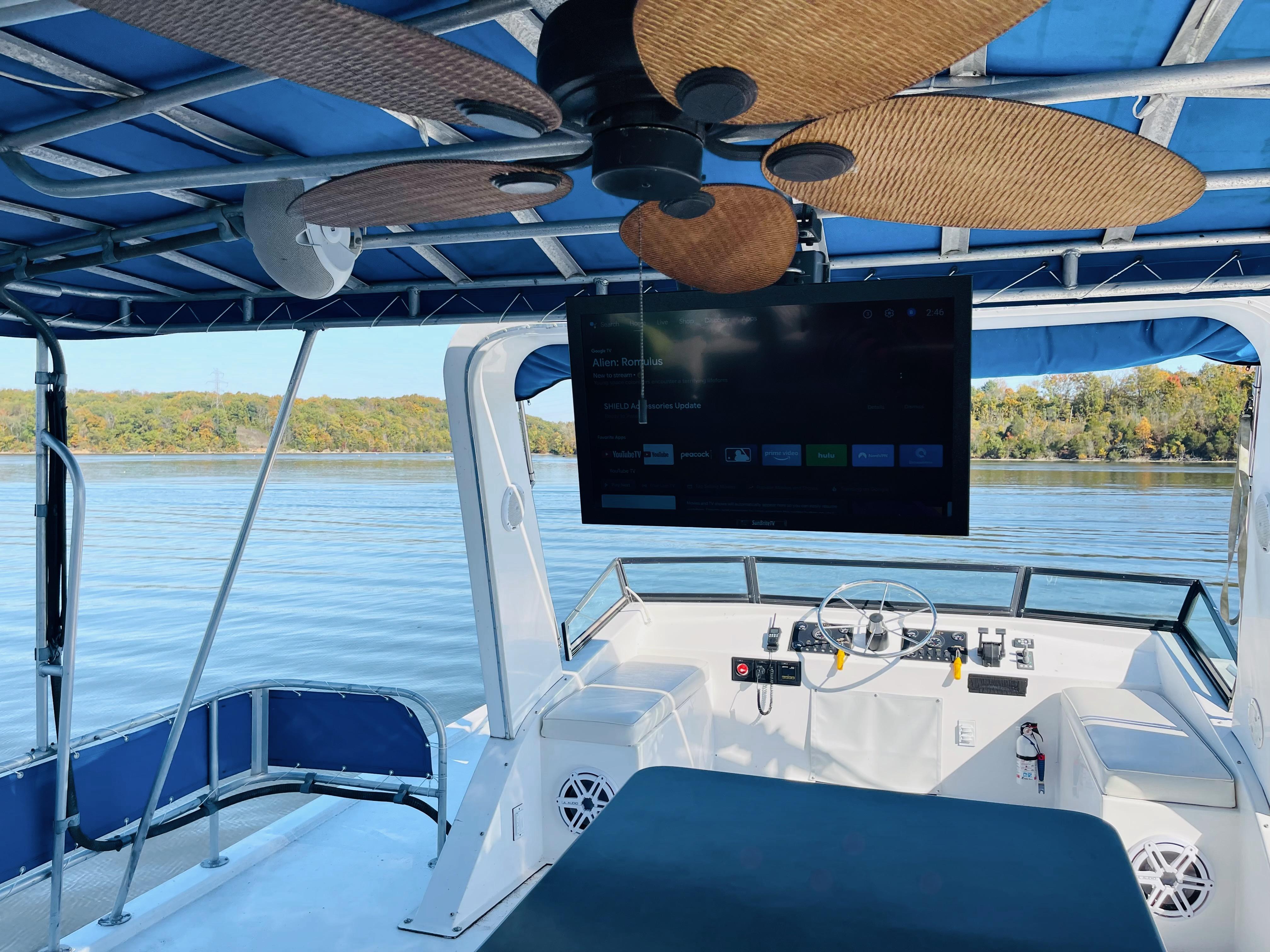

- Fly-Bridge w/ upper helm, radar arch and seating.

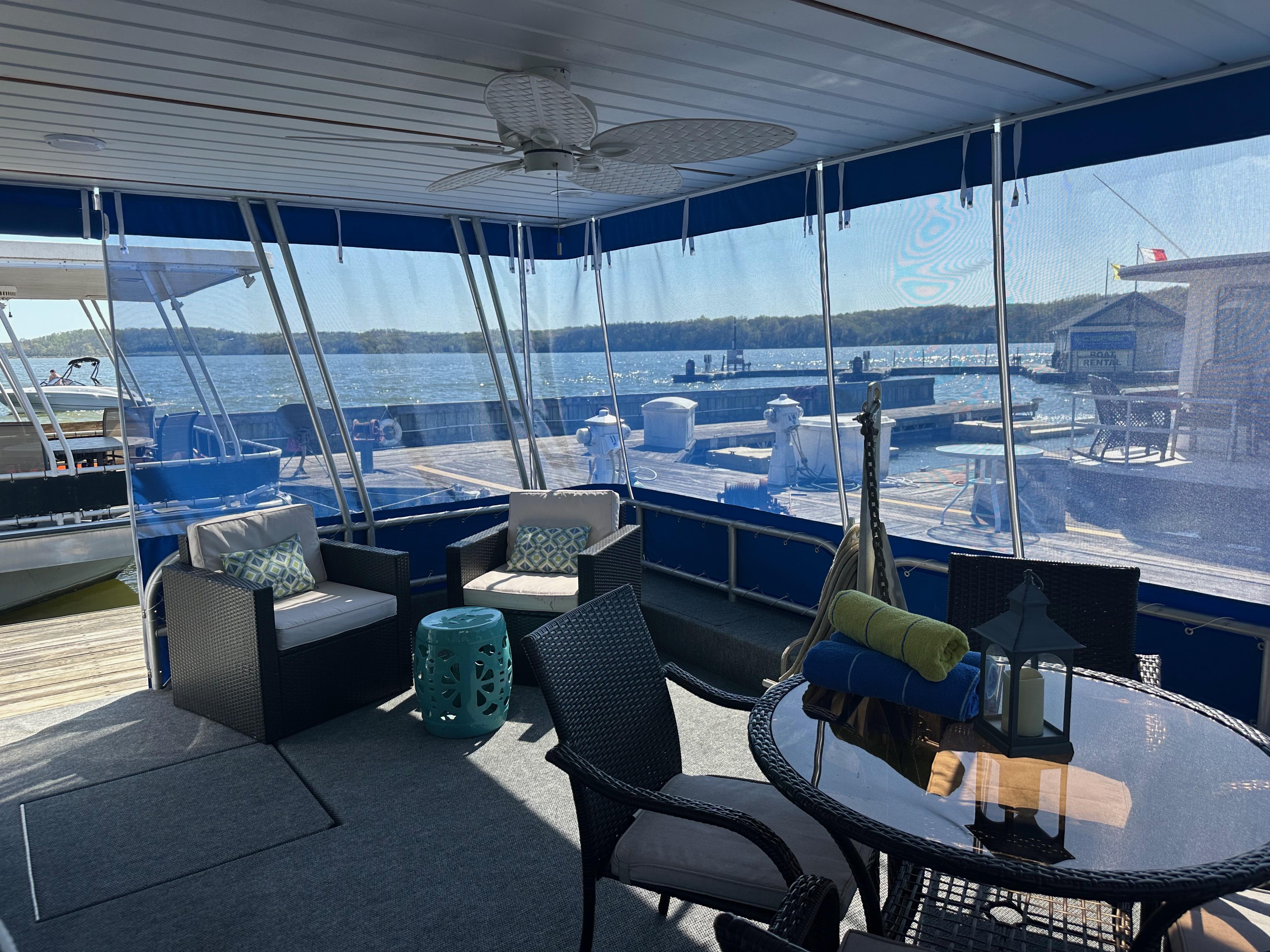

- (16’x20’) canvas top over bar and outdoor seating area.

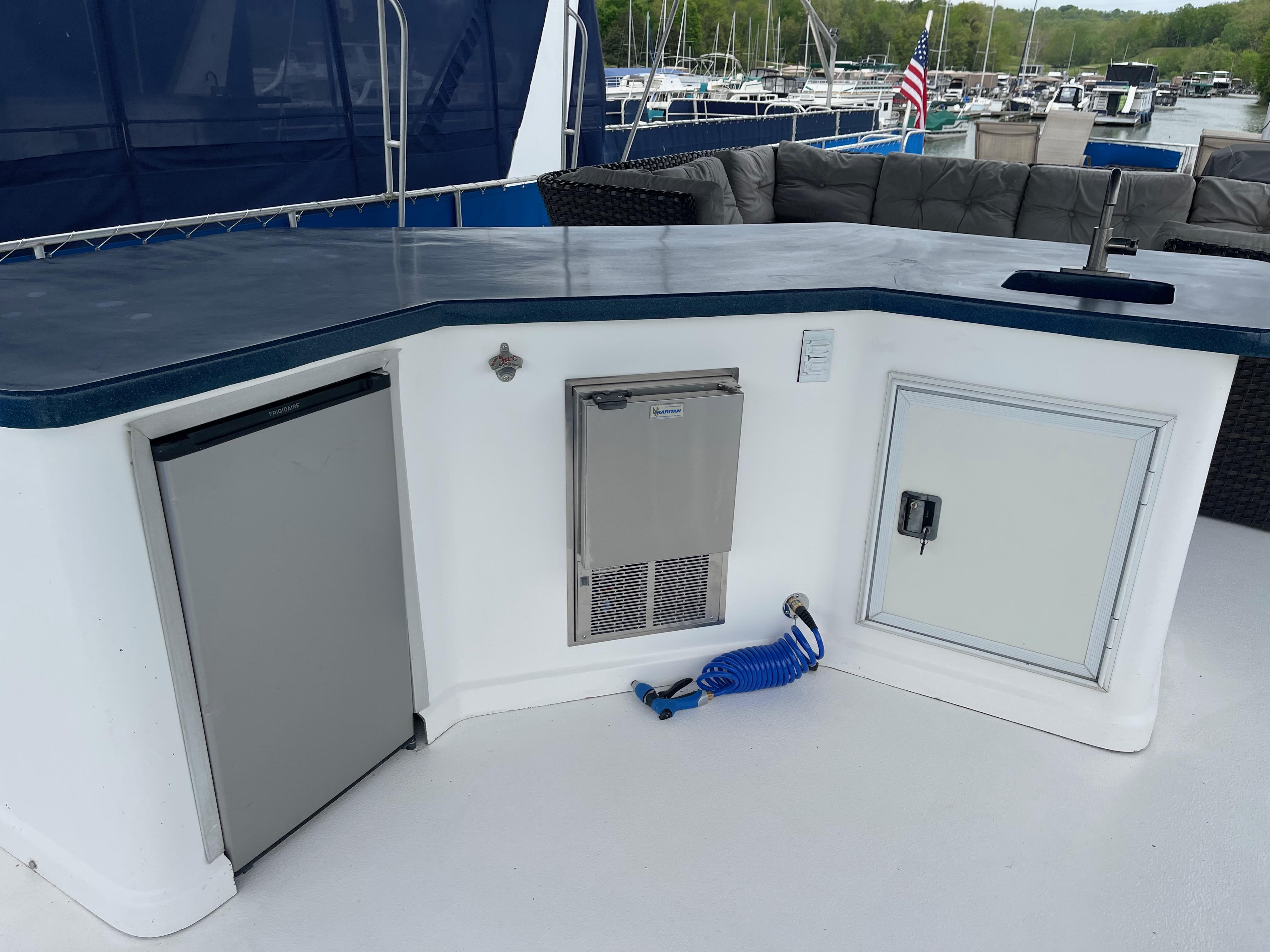

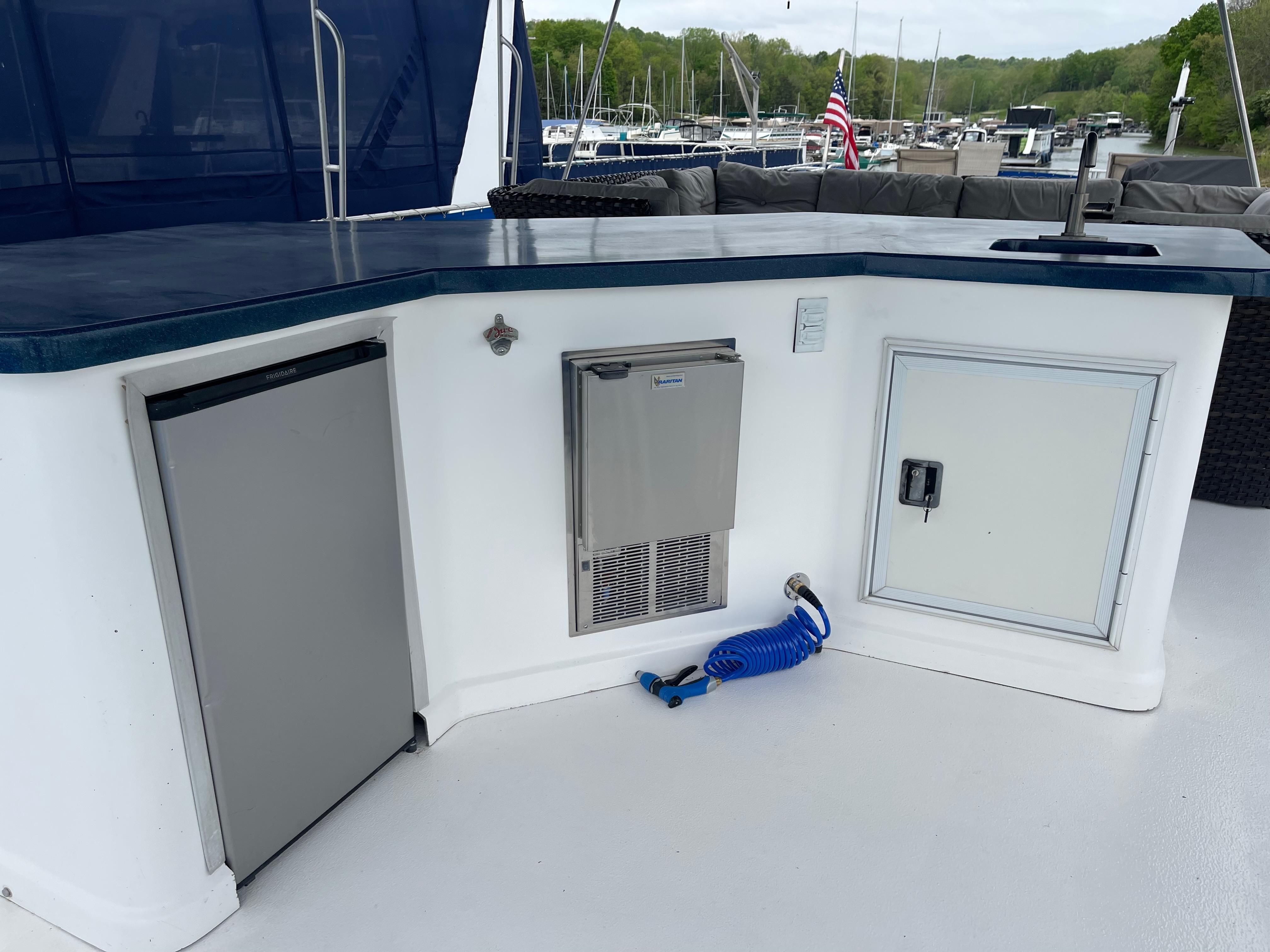

- Large bar w/ (4) bar stools, bar sink, wash down spigot, stainless-steel mini-refrigerator, new Raritan stainless-steel ice maker.
- Sunbright 32” outdoor LED TV.

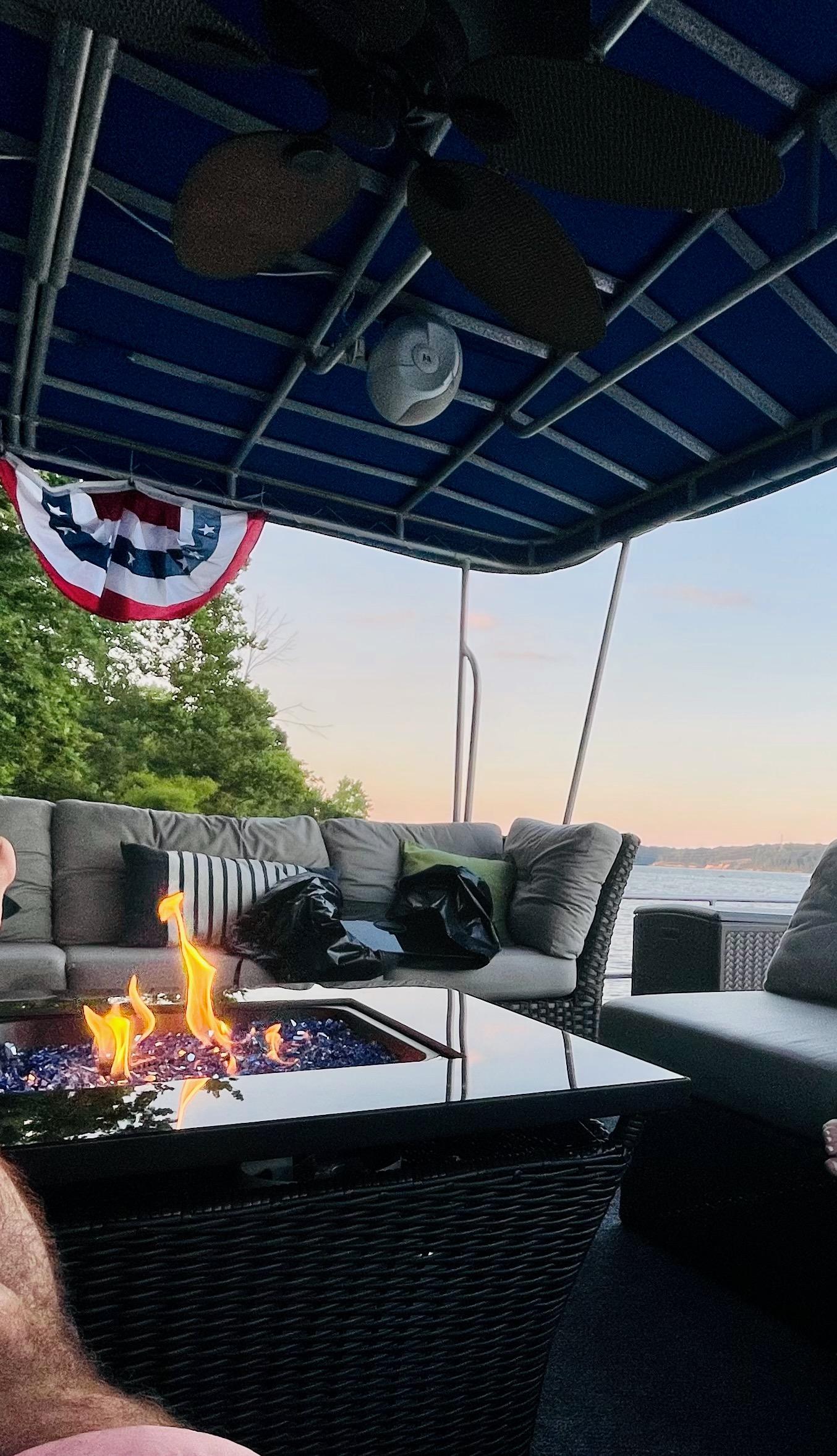

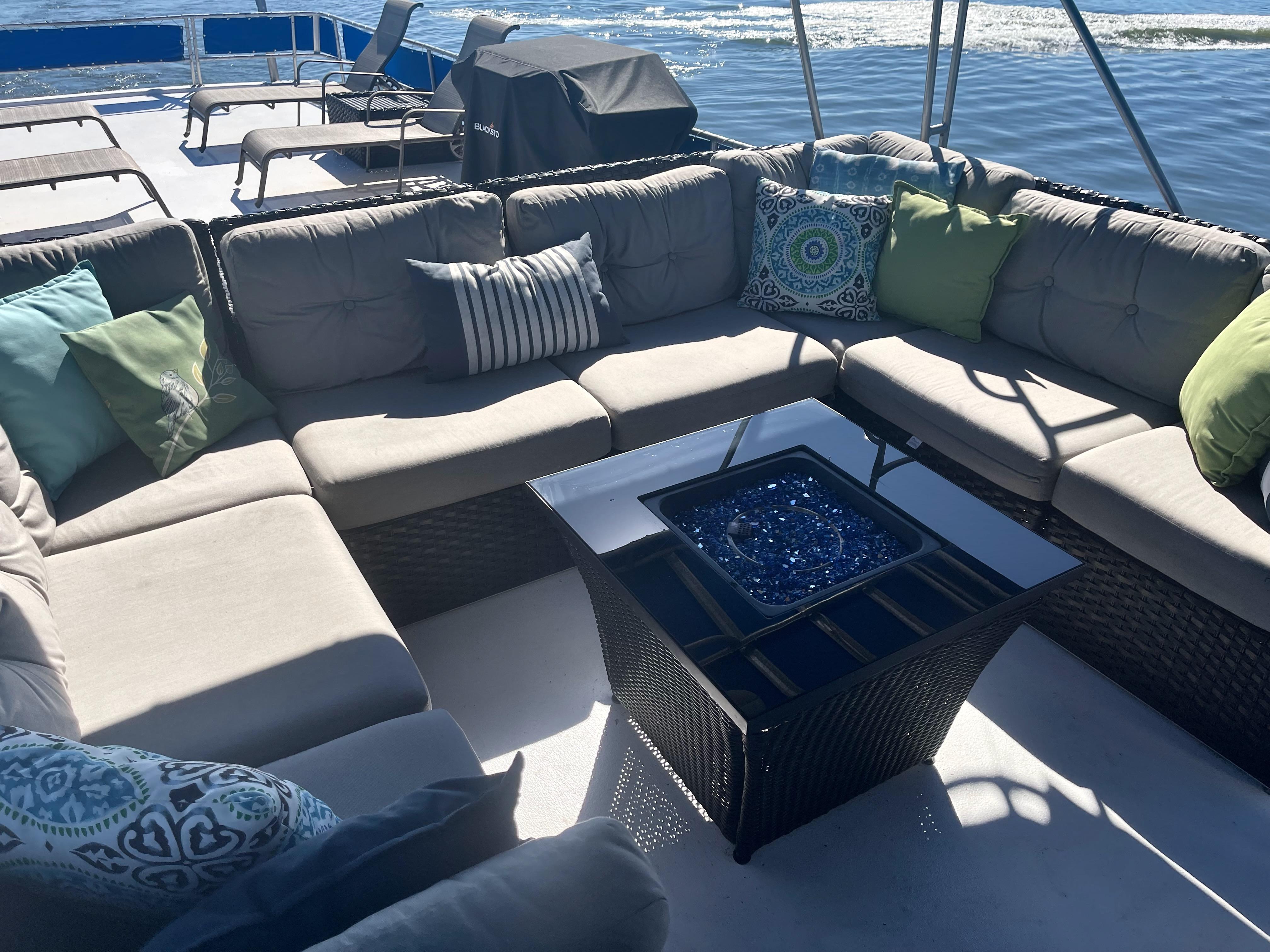

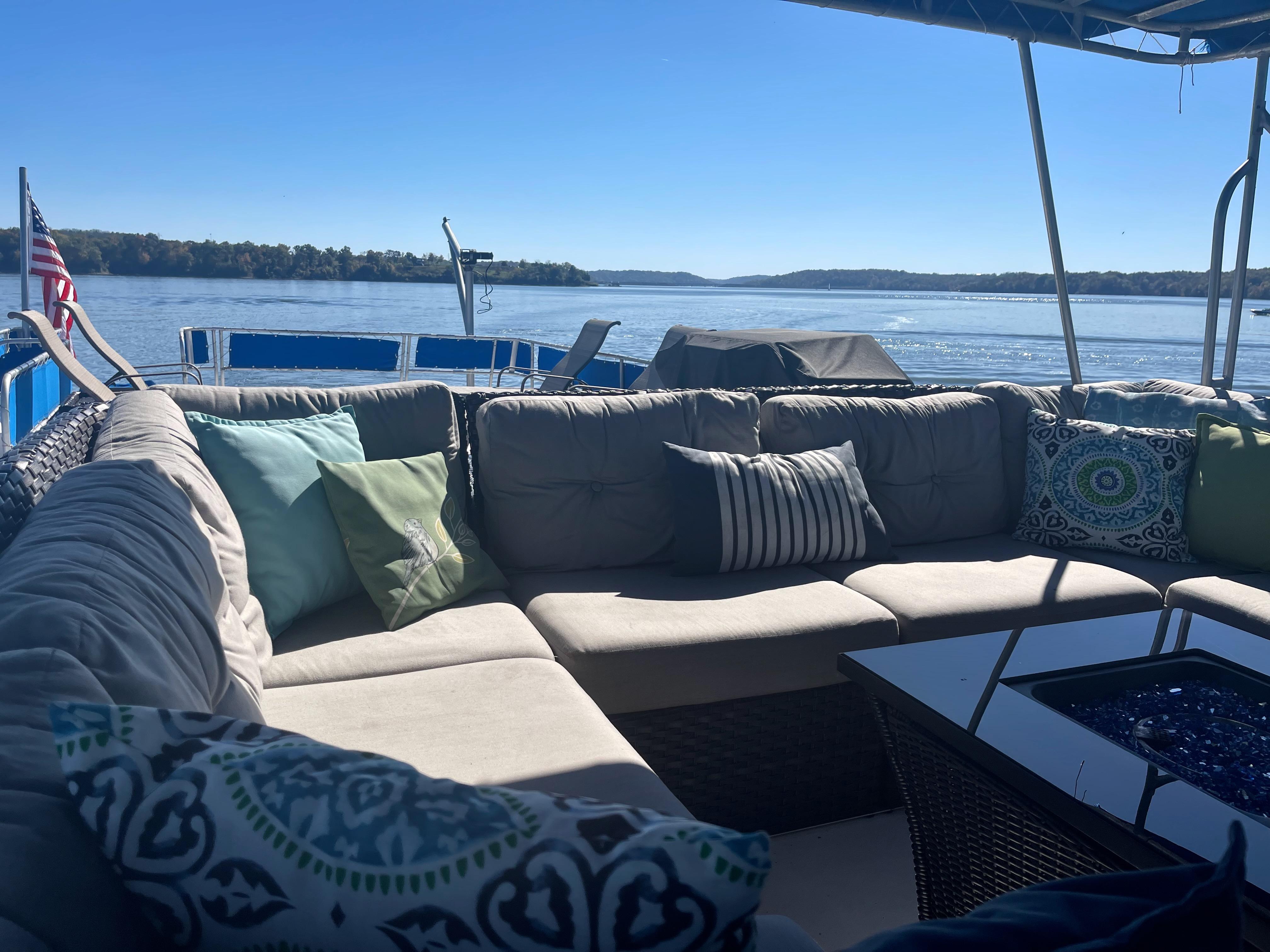

- Outdoor “U” shaped lounging sofa and propane firepit included in sale.
- Weber propane grill included in sale.
- (2) coastal style ceiling fans
- (2) large matching dock boxes included in sale.

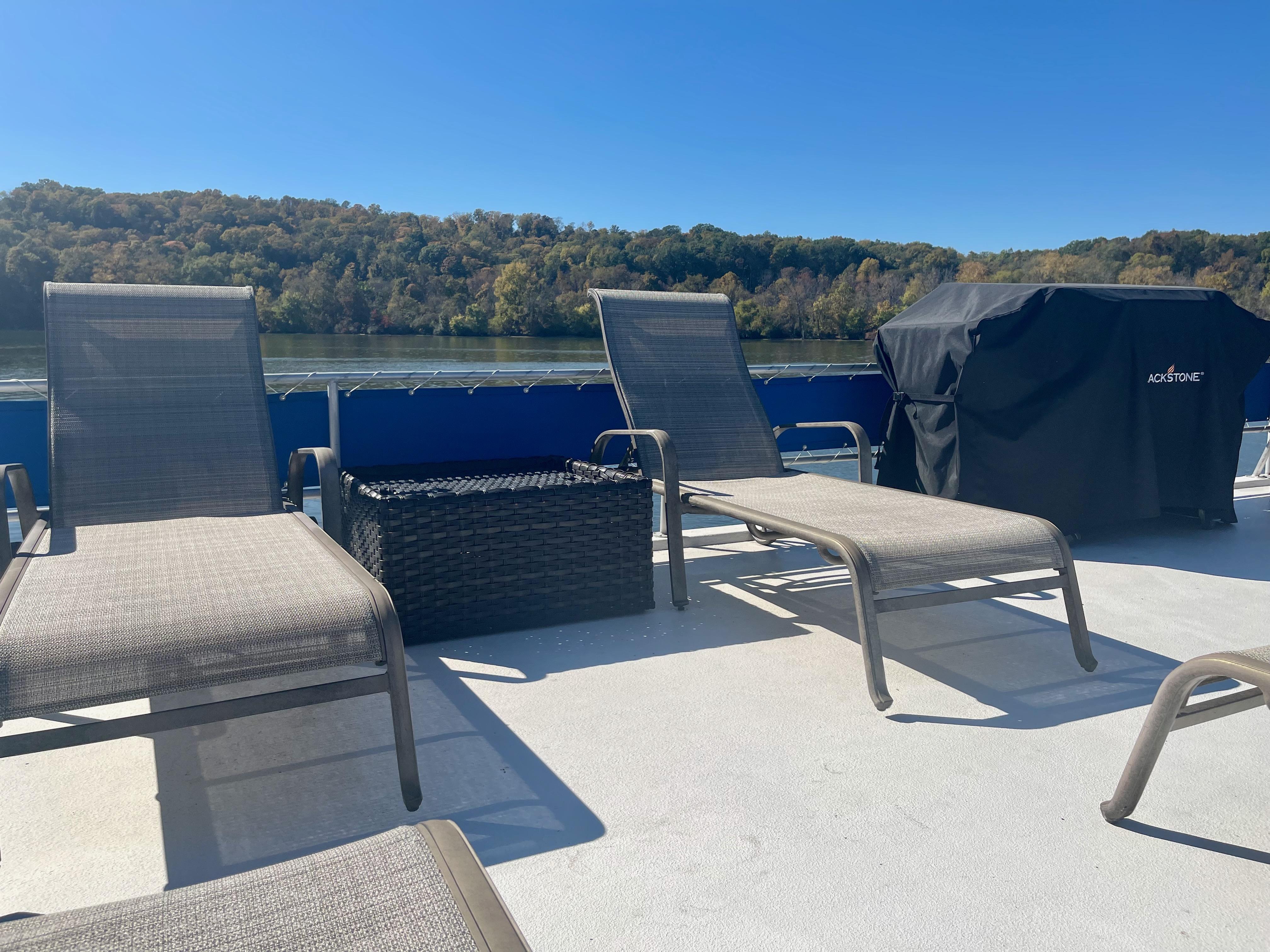

- (4) outdoor sun loungers included in sale.
- Premium Fusion sound system w/ (4) array-style speakers and (2) 10” subwoofers to immerse entire party in premium sound.
- Dimmable LED mood lighting installed under canvas top.
- (2) nautical styled “no-bug” lights.
- Rear Davit w/ new electric winch for hoisting heavy furniture / equipment to top deck.
