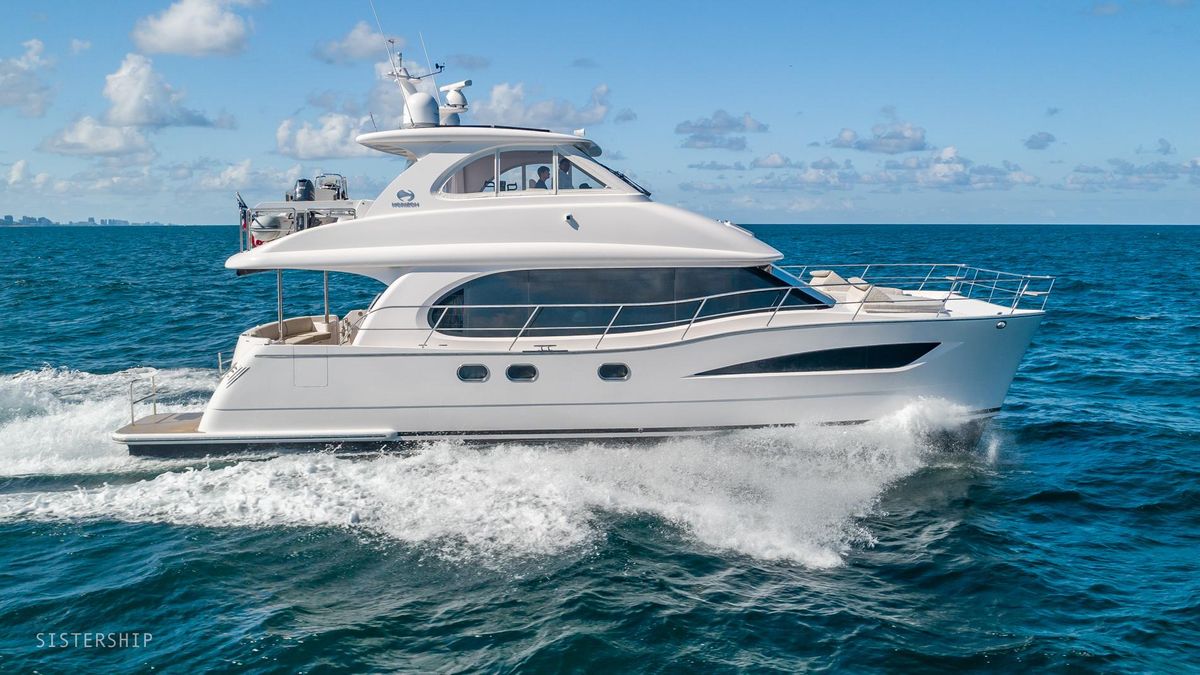

This 2015 Horizon PC52 is a well-maintained and thoughtfully updated power catamaran that offers a blend of efficiency,

comfort, and space in a manageable size. Known for its stable ride and practical layout, the PC52 is ideal for island

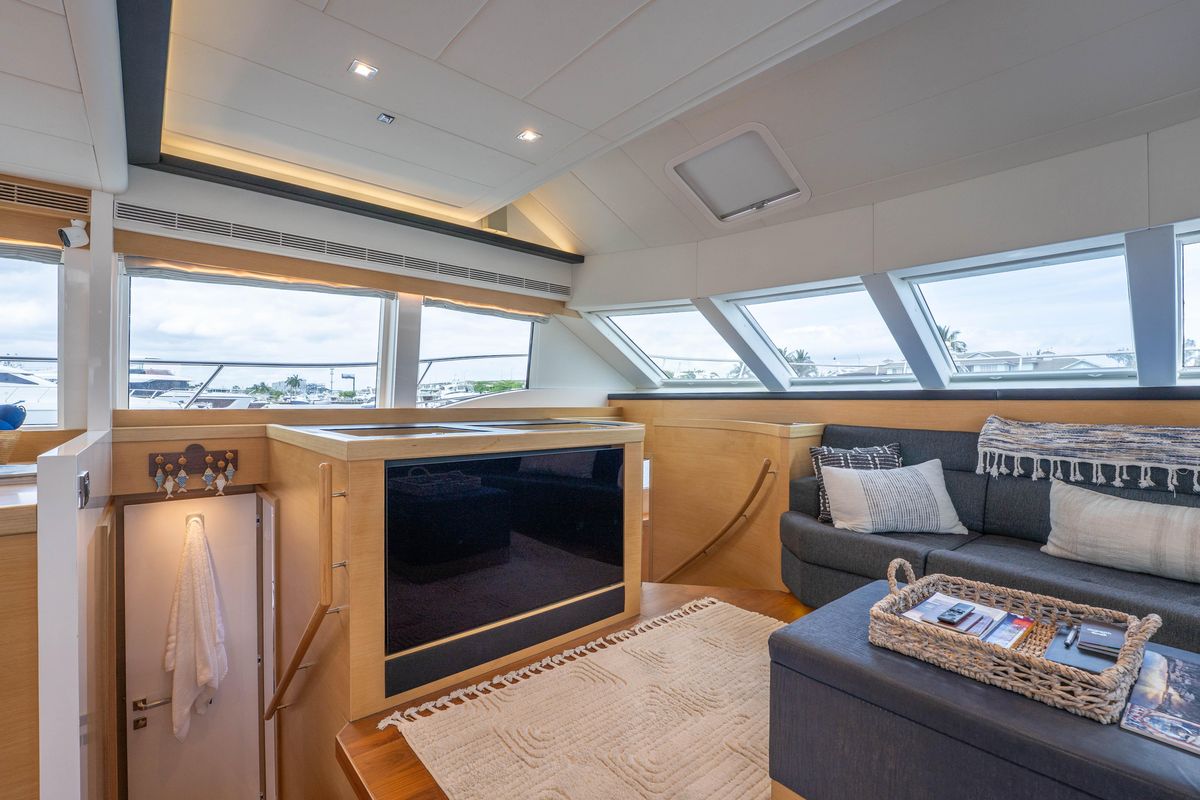

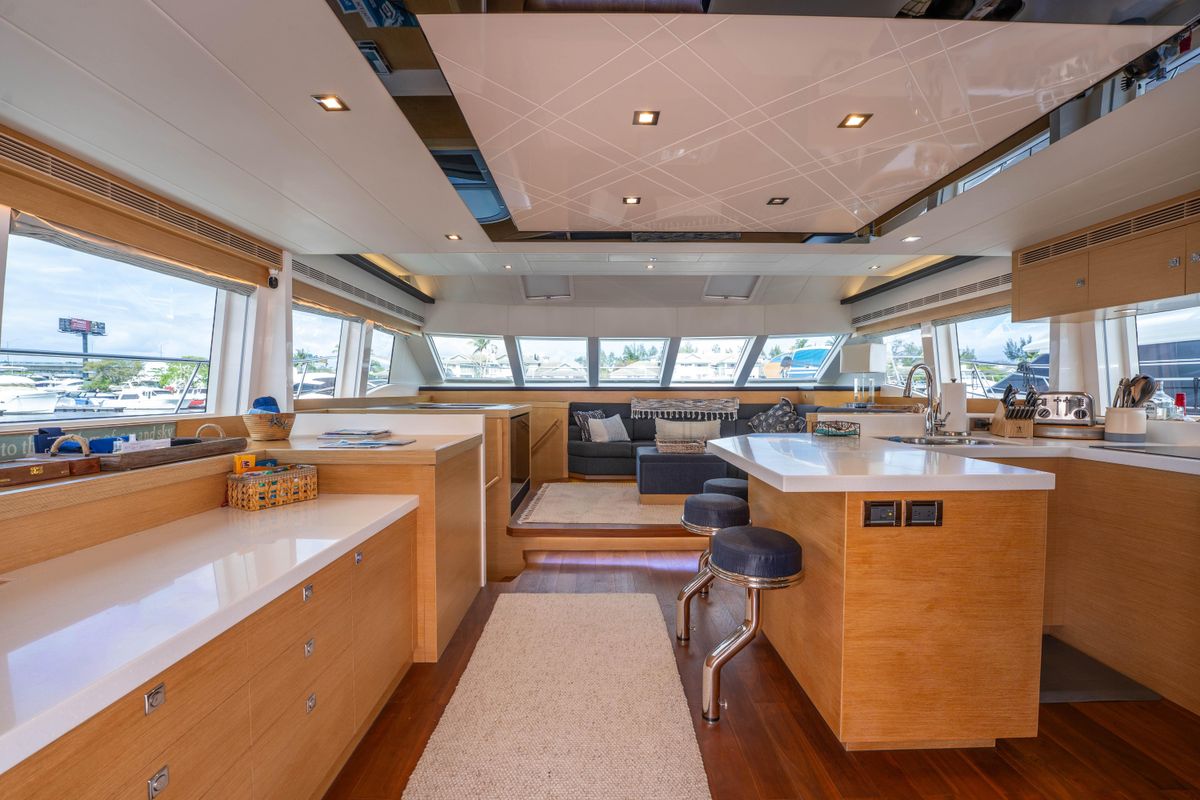

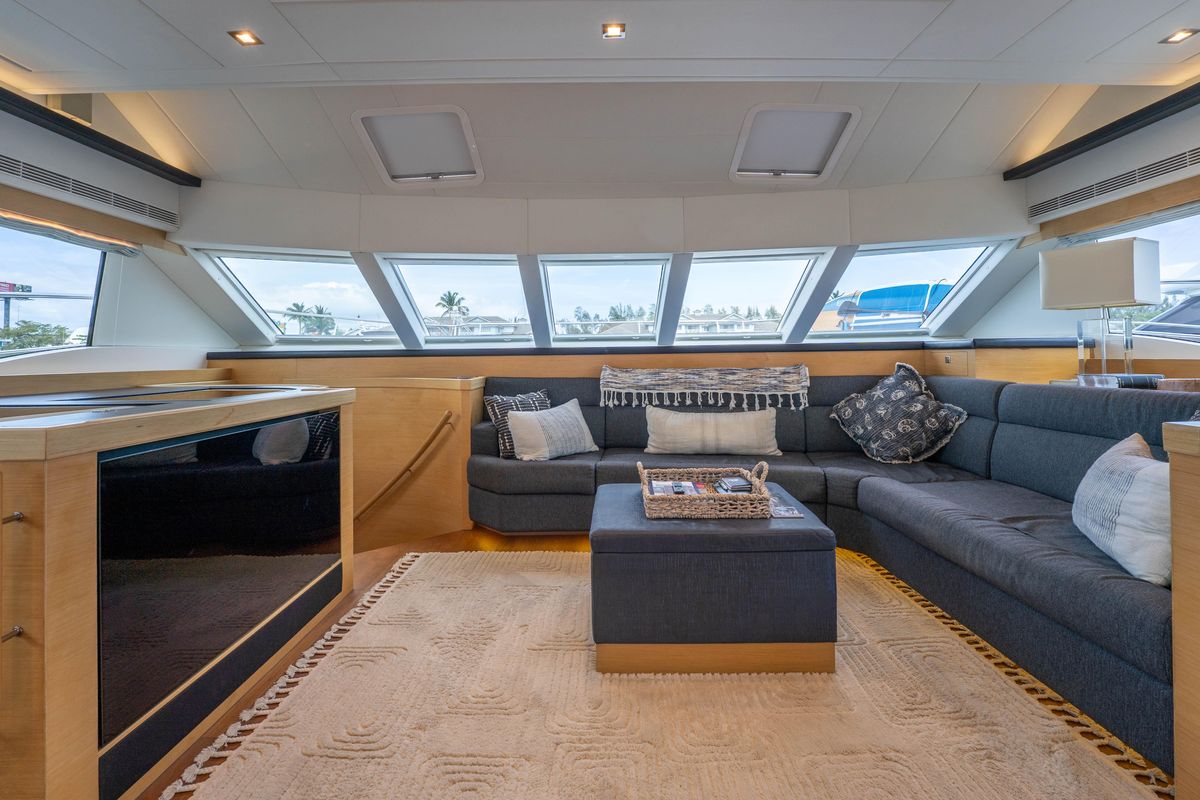

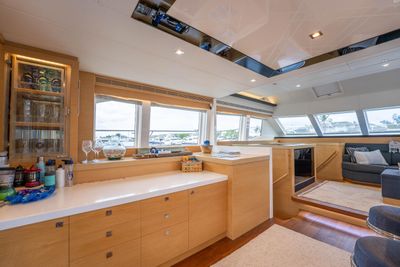

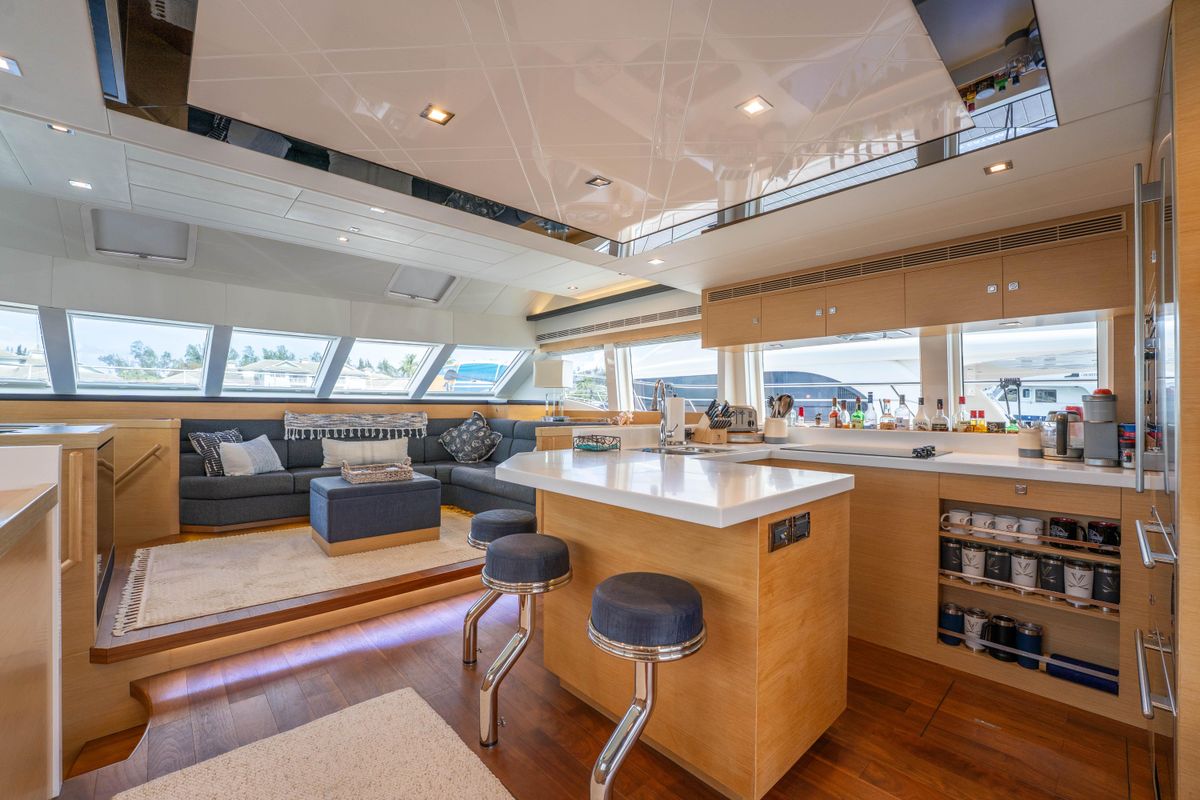

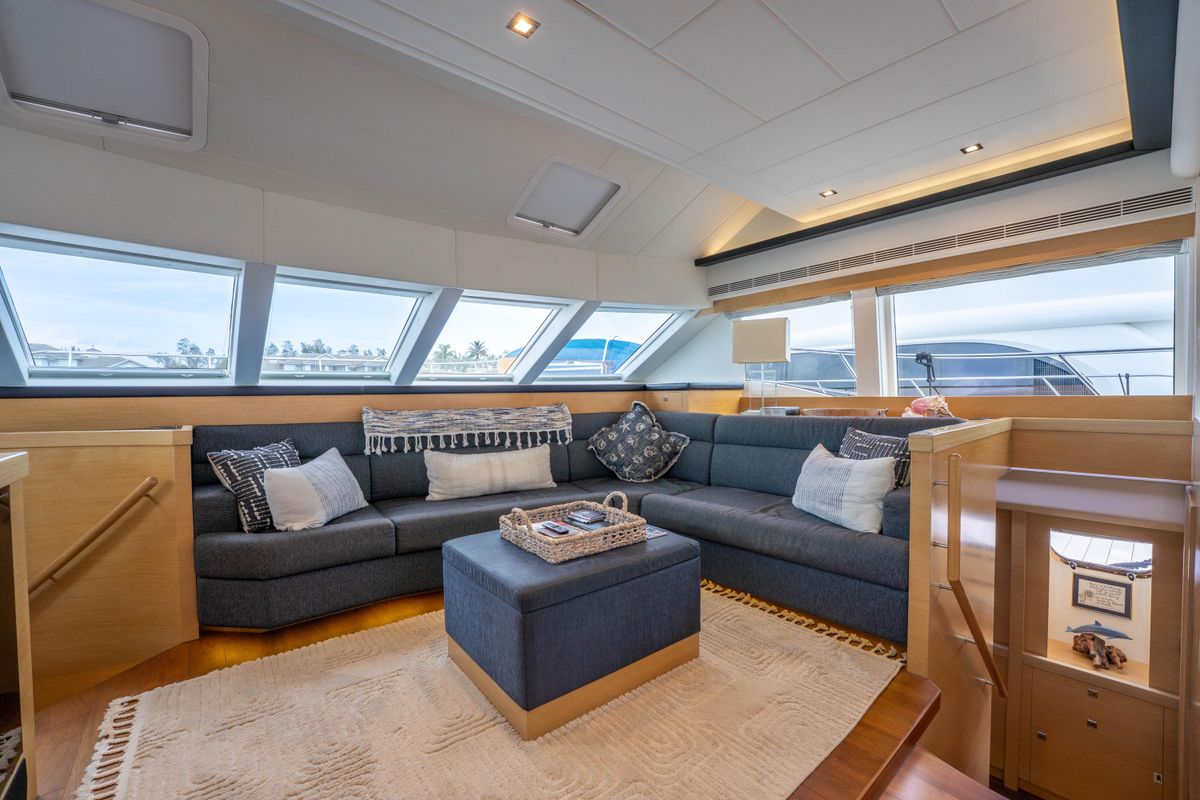

cruising, coastal exploration, or extended stays aboard. The open salon layout allows for an expansive interior

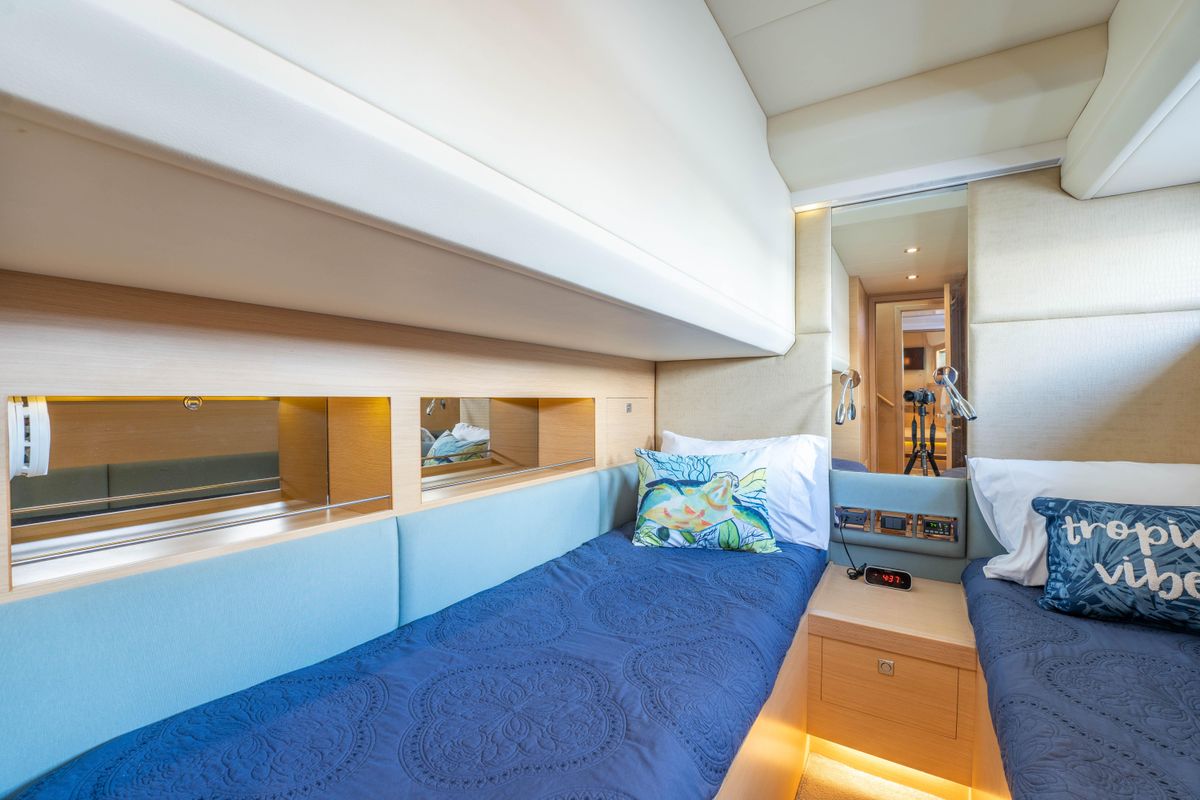

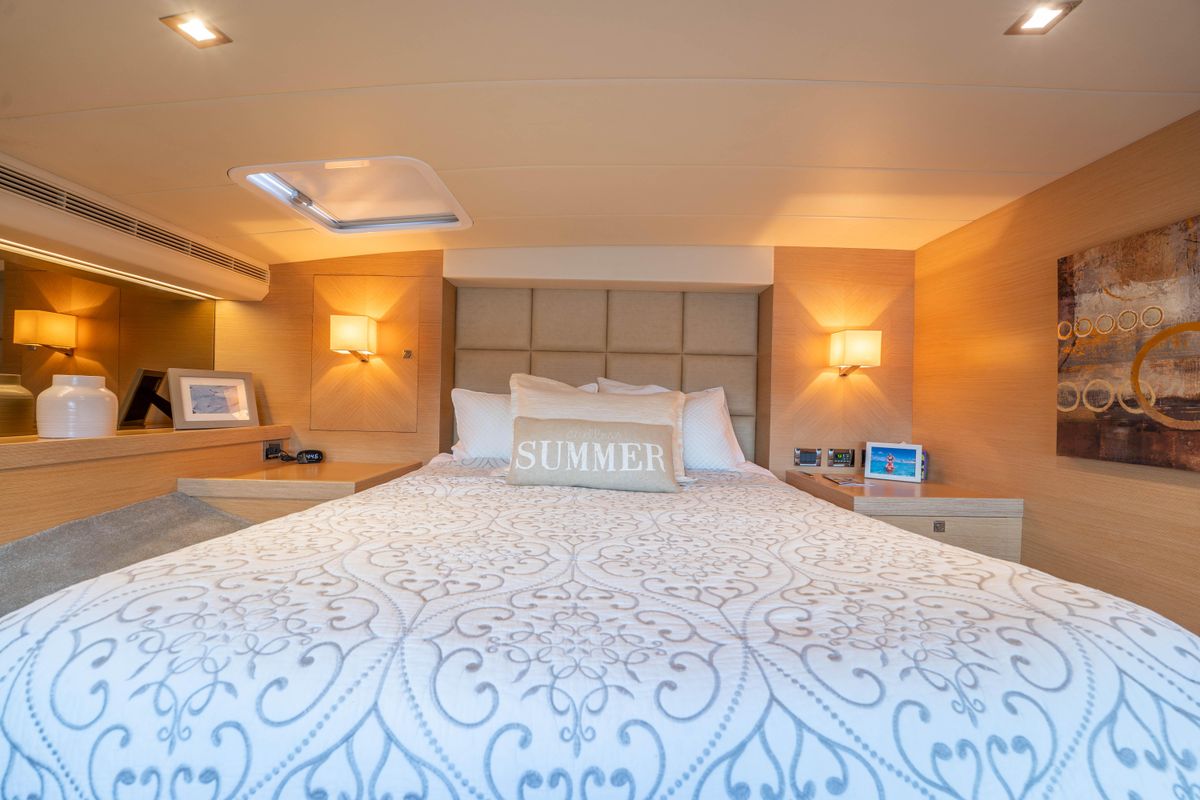

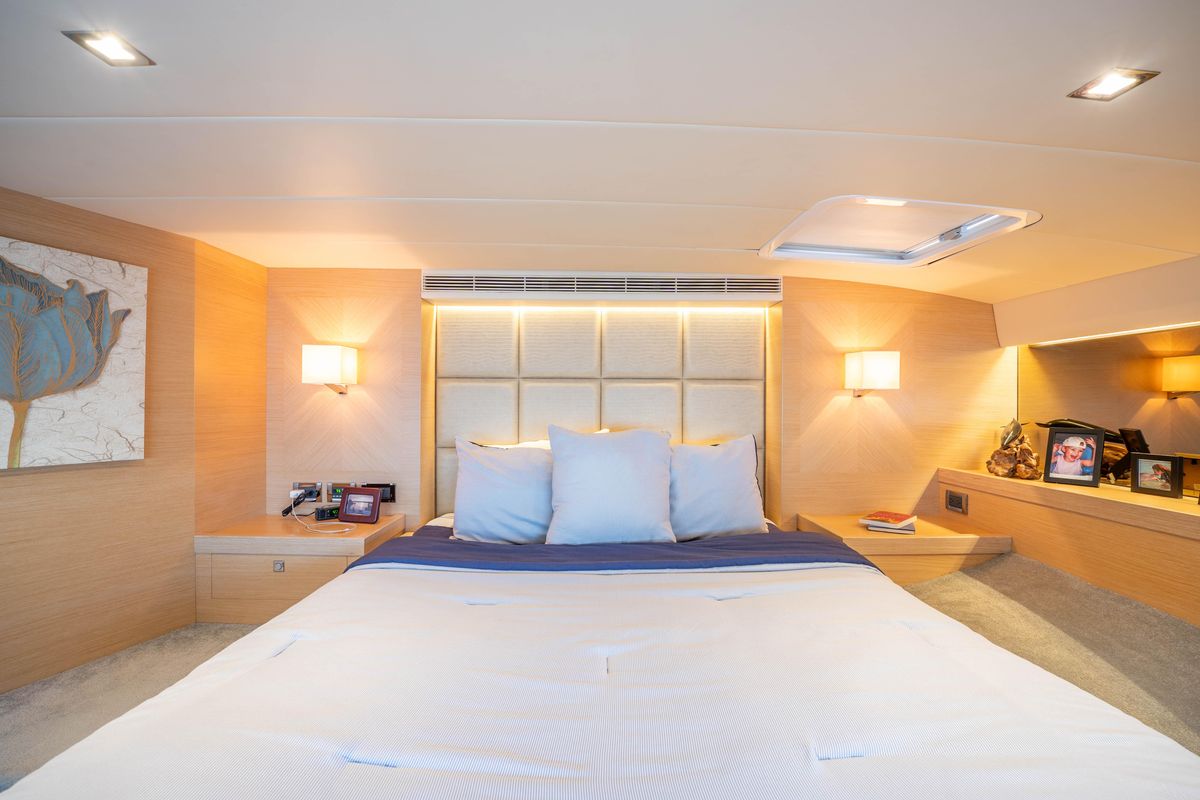

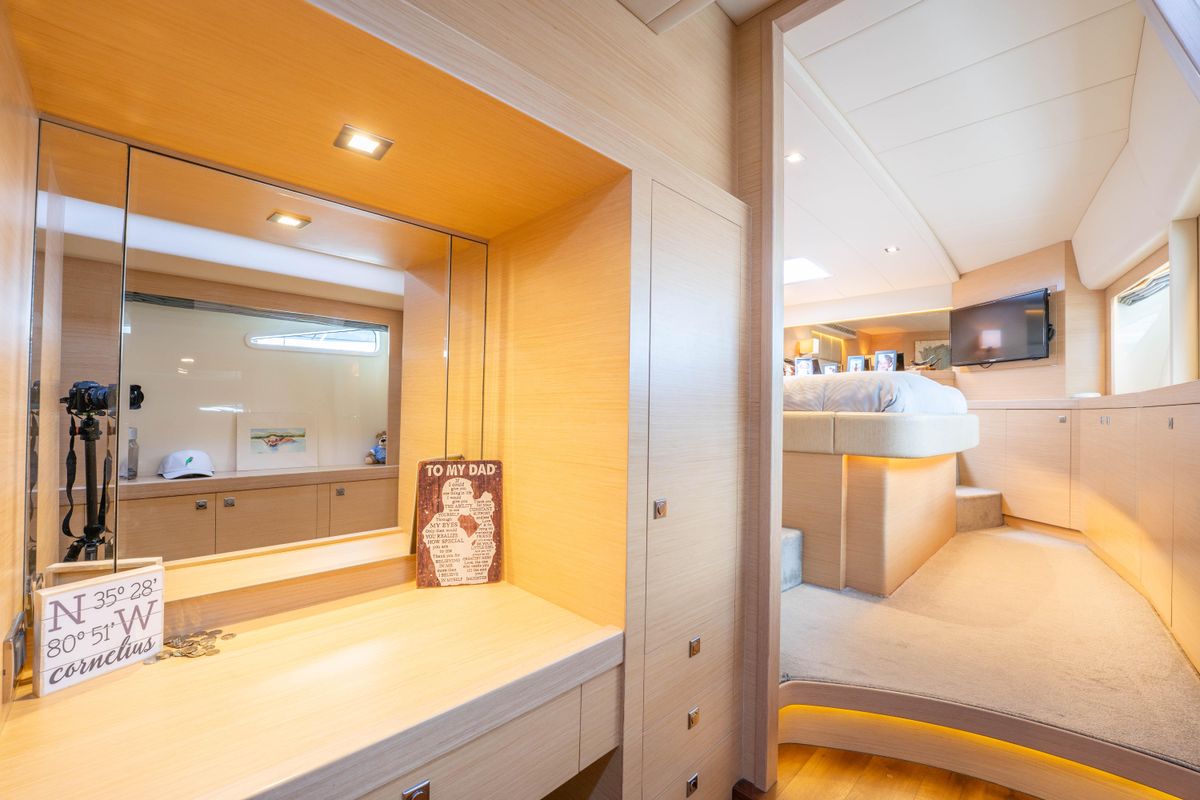

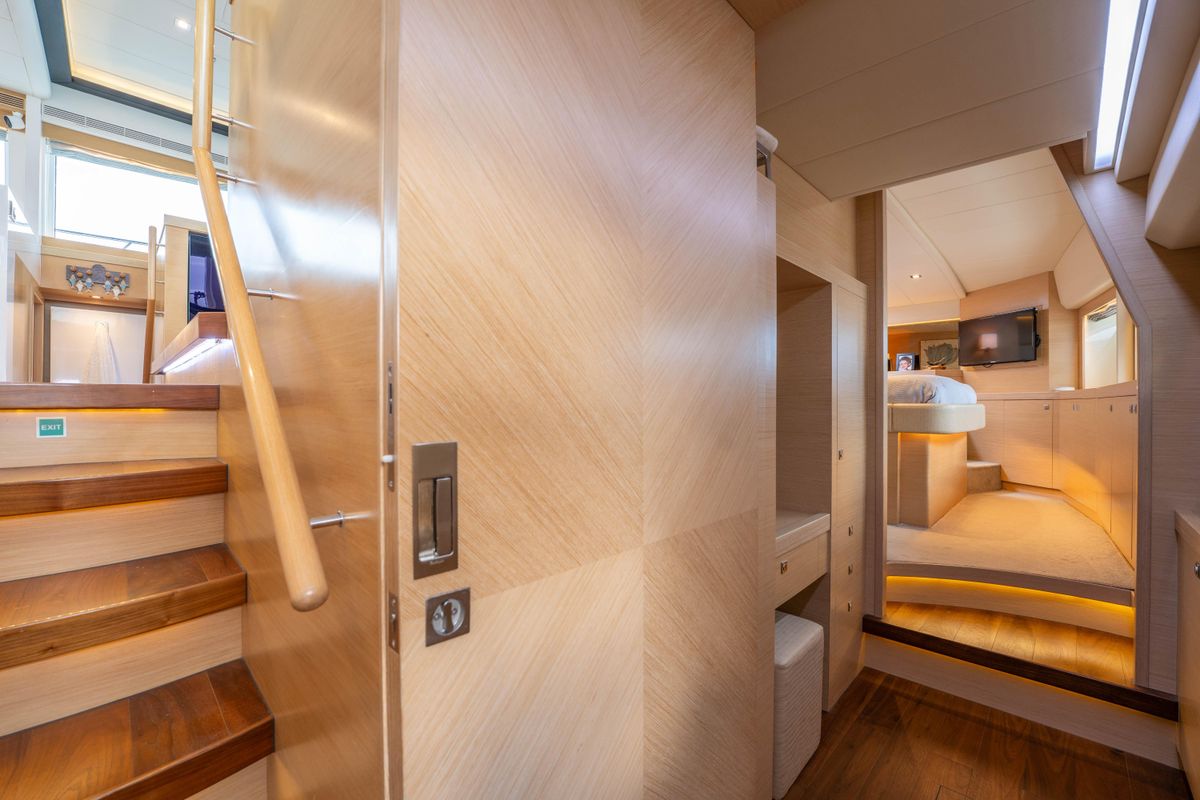

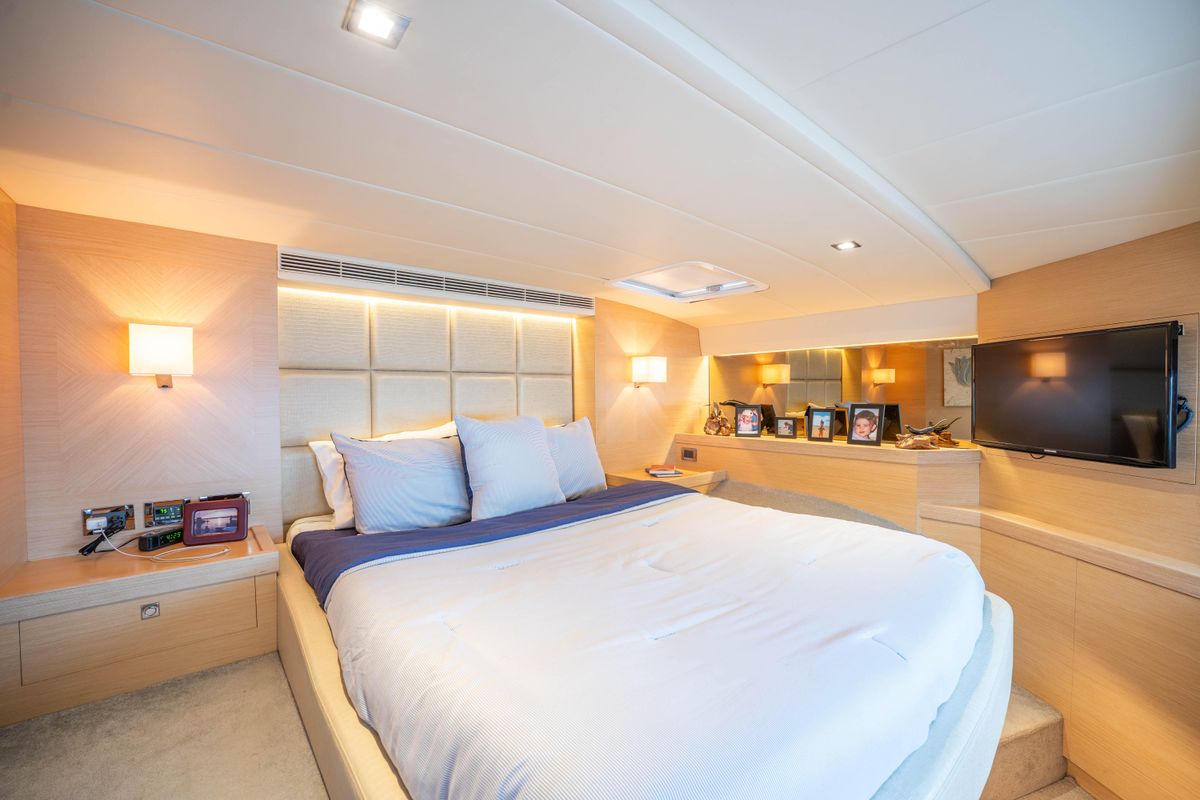

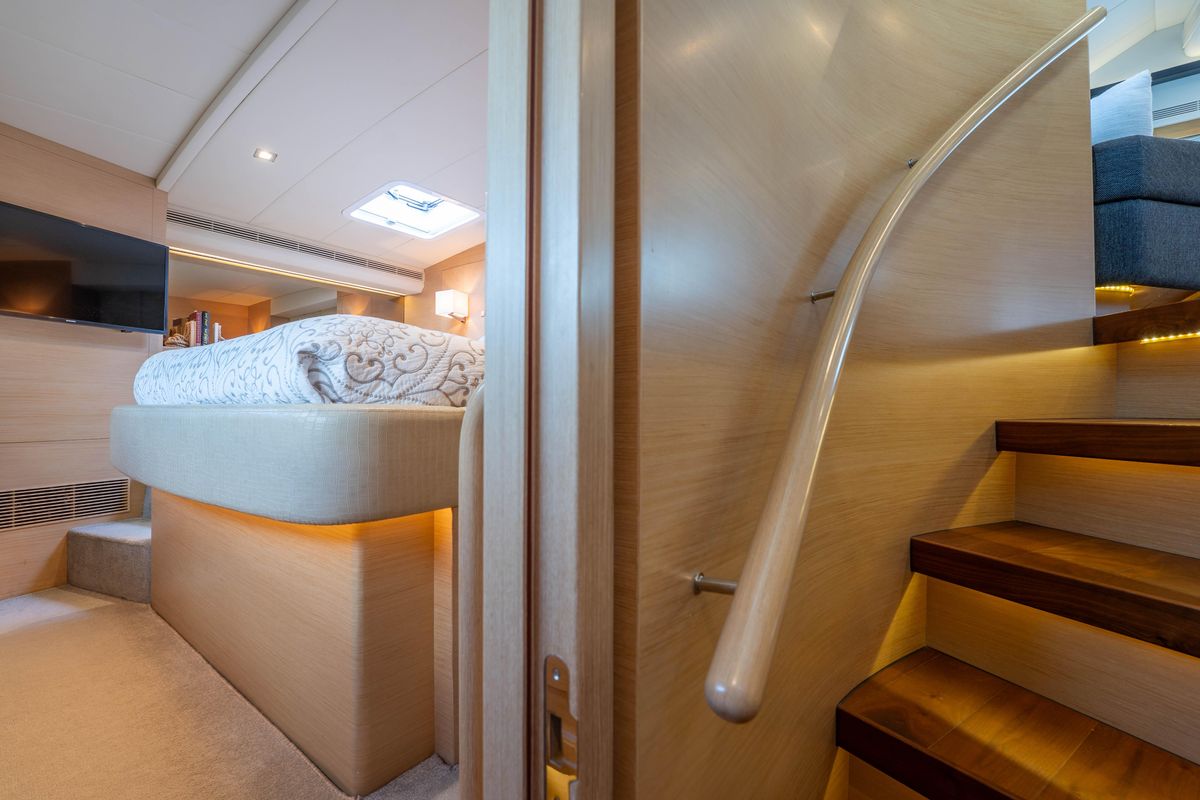

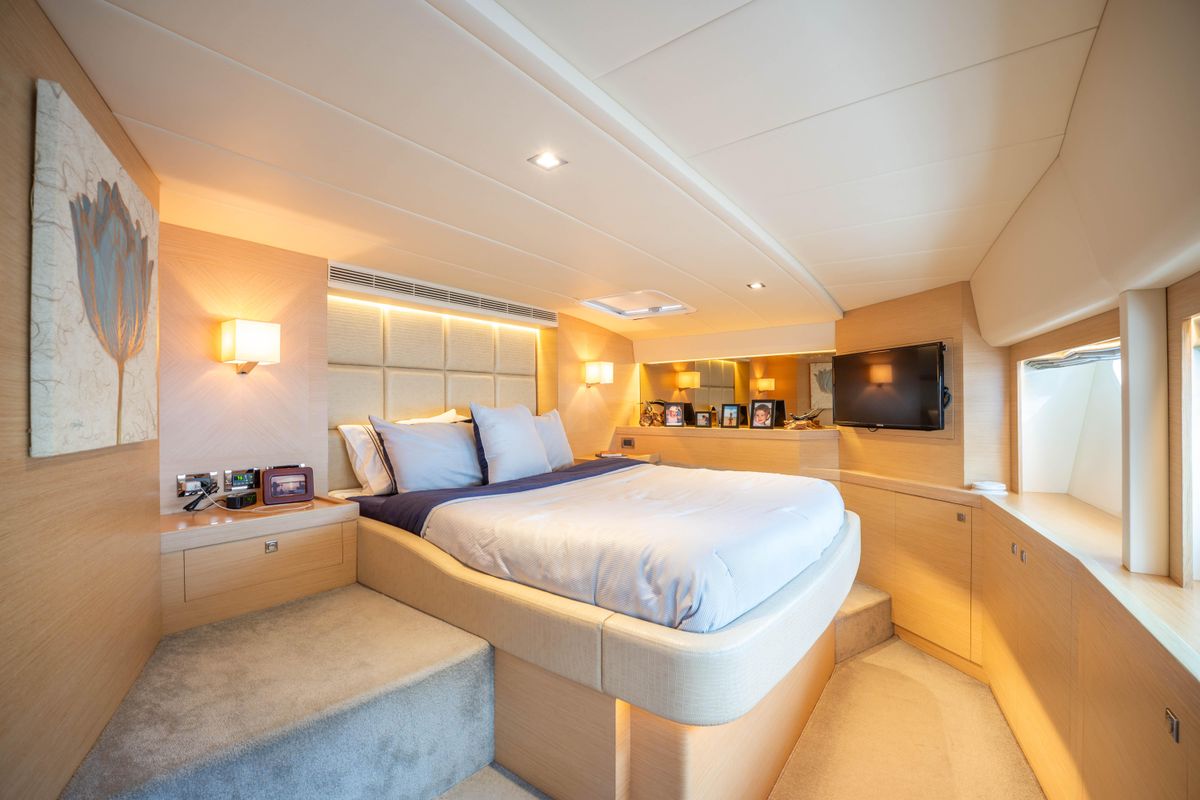

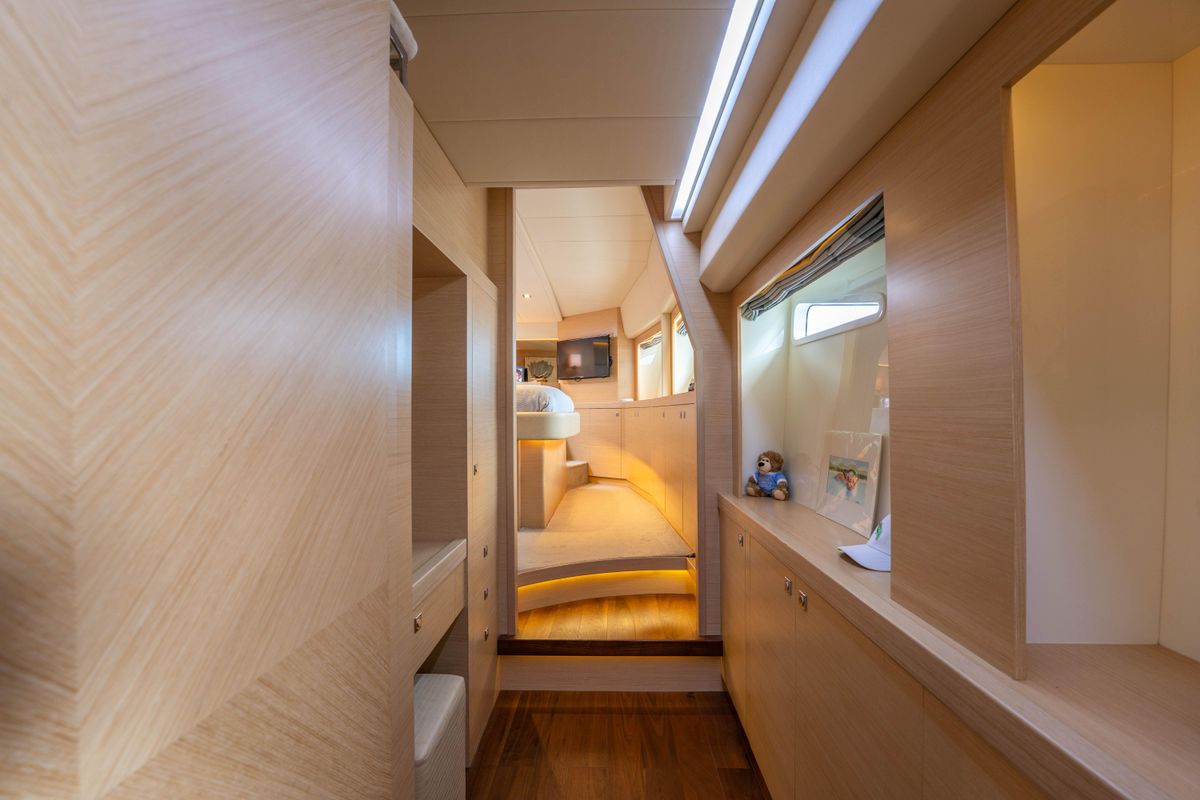

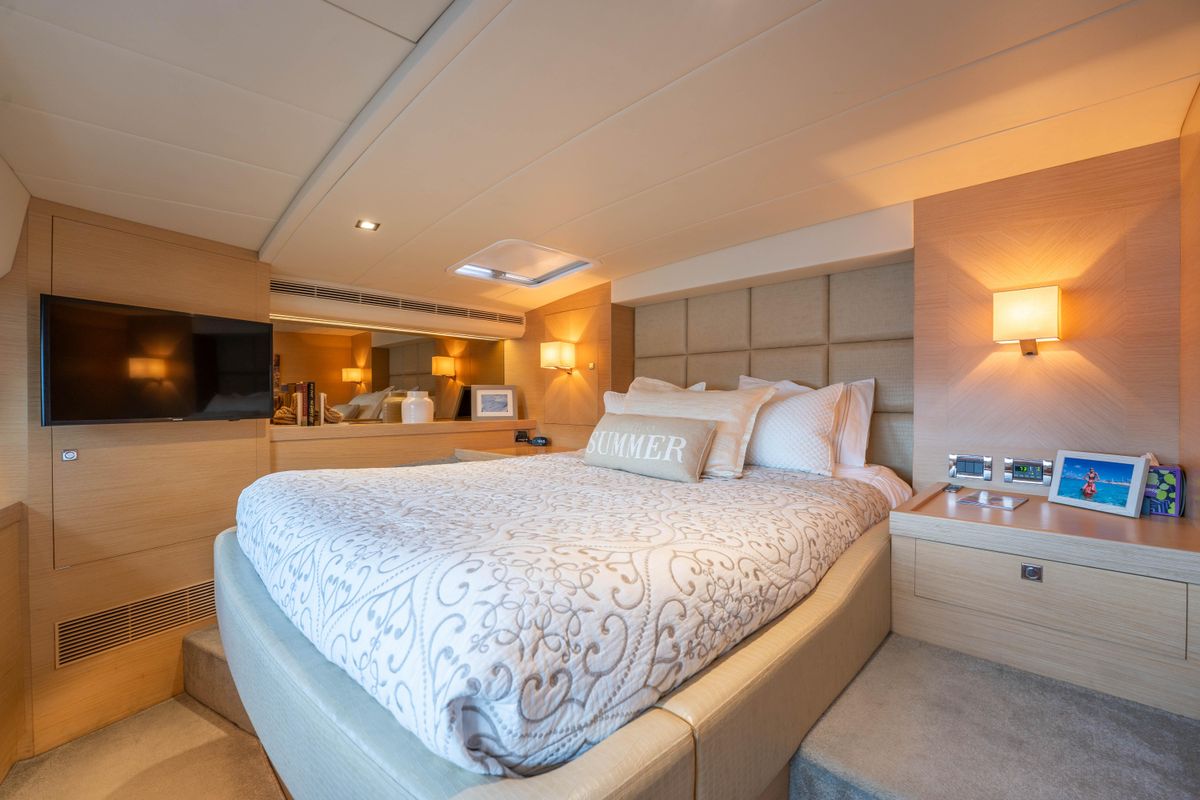

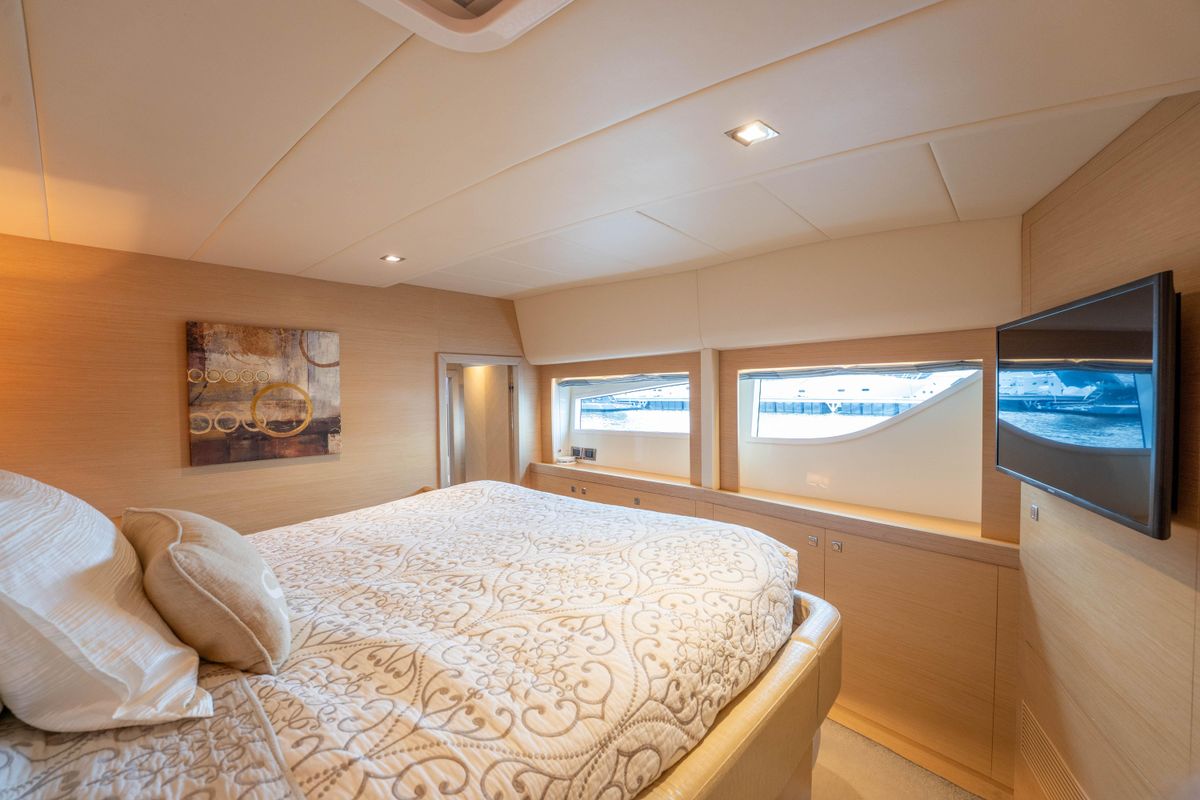

living/social space that flows into the galley. The three cabin layout sees the entire starboard hull as the owners cabin

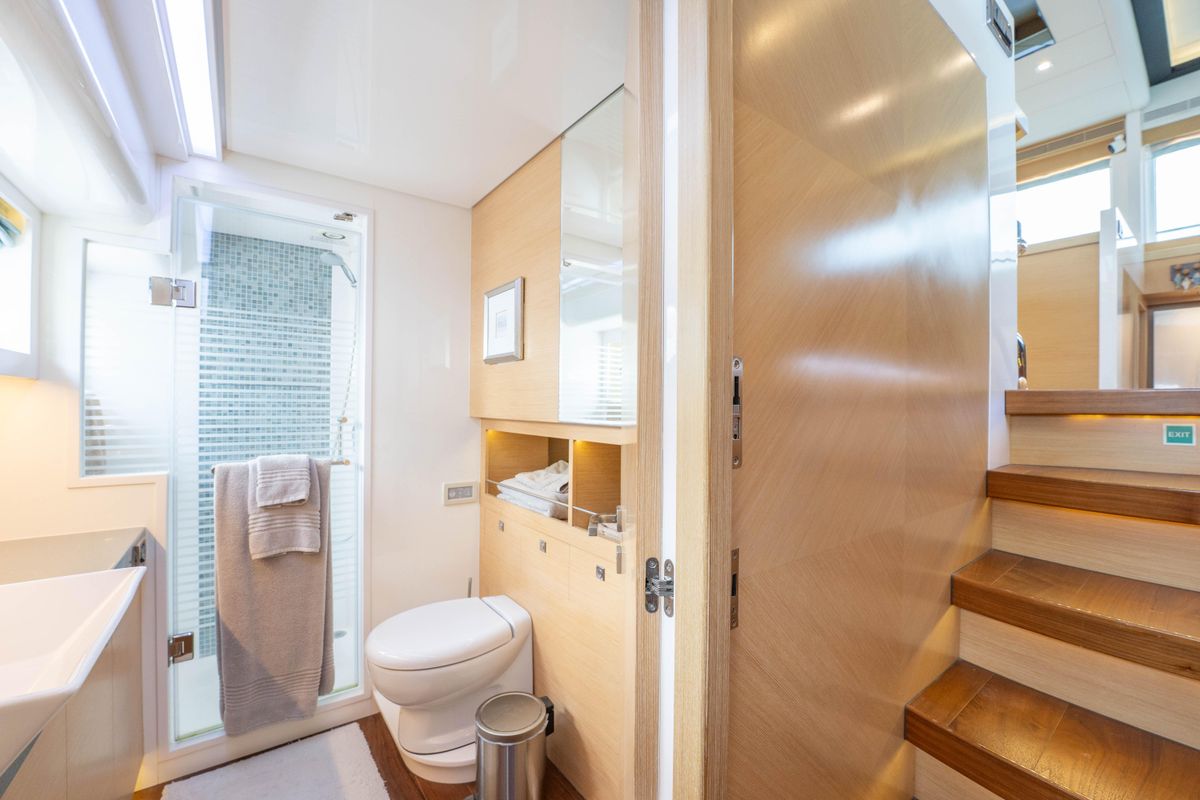

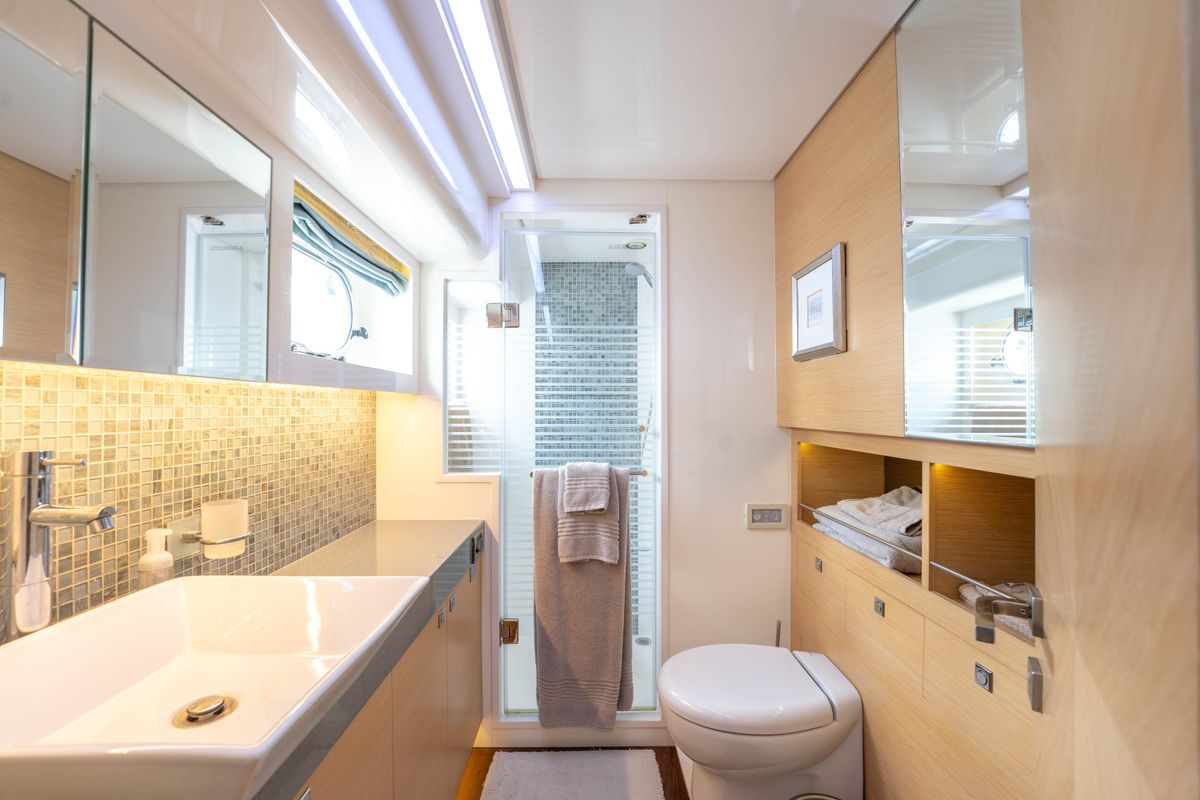

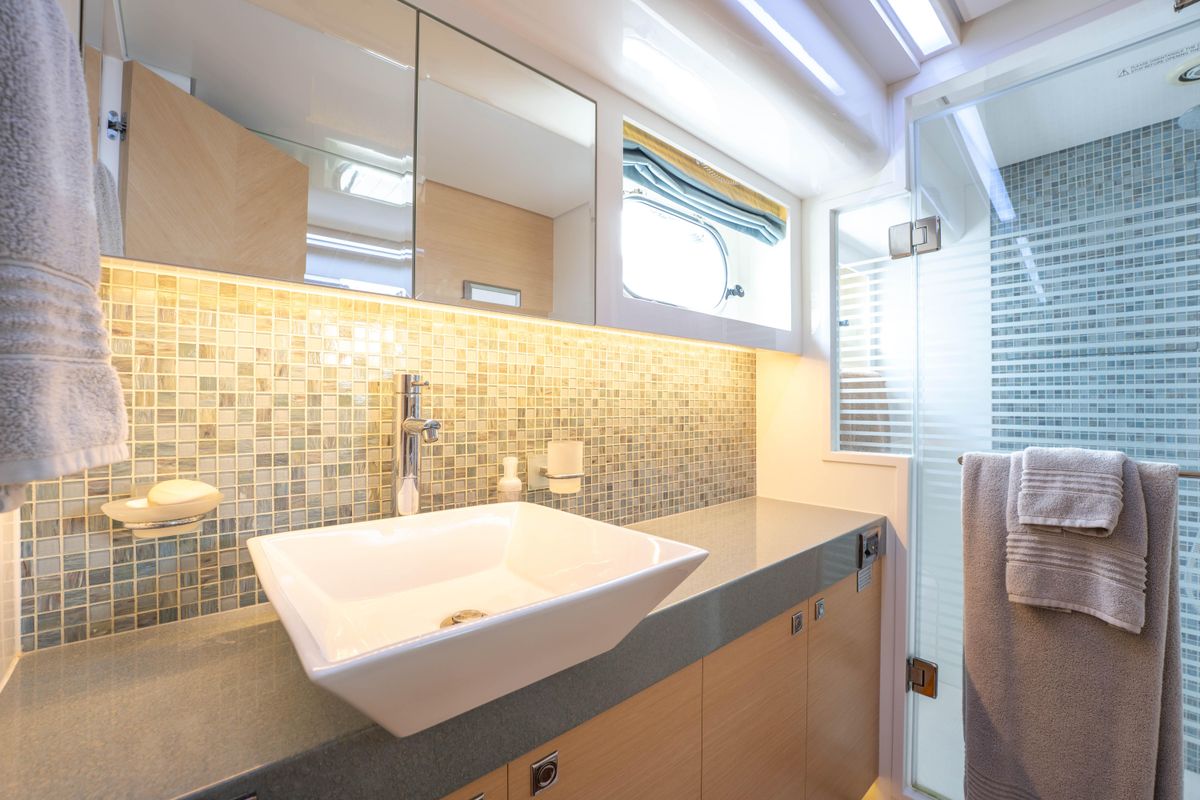

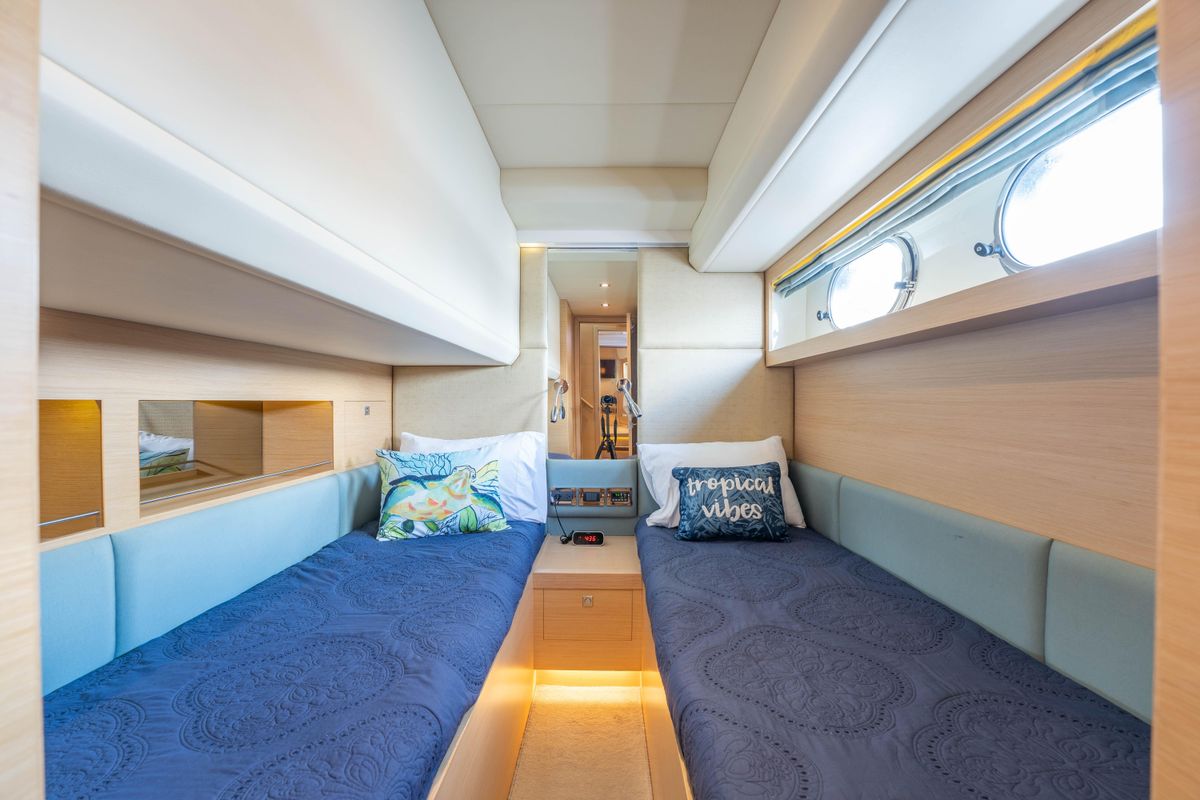

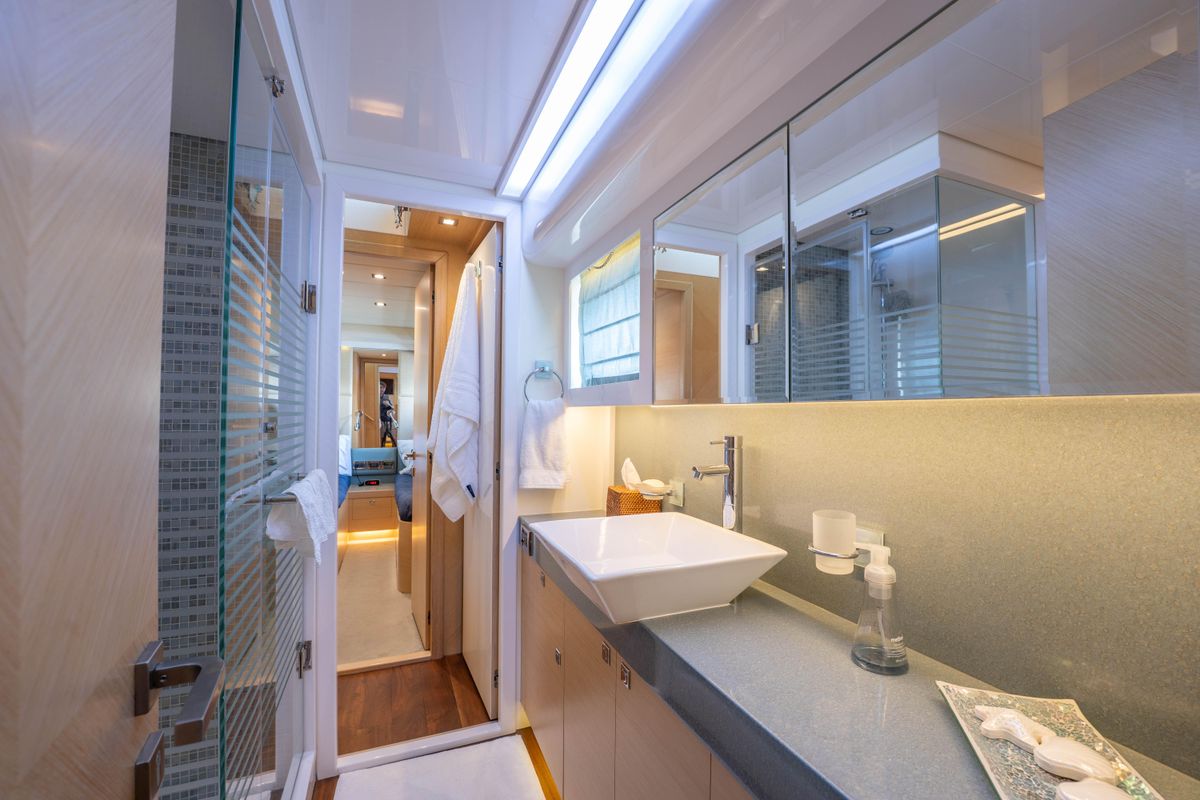

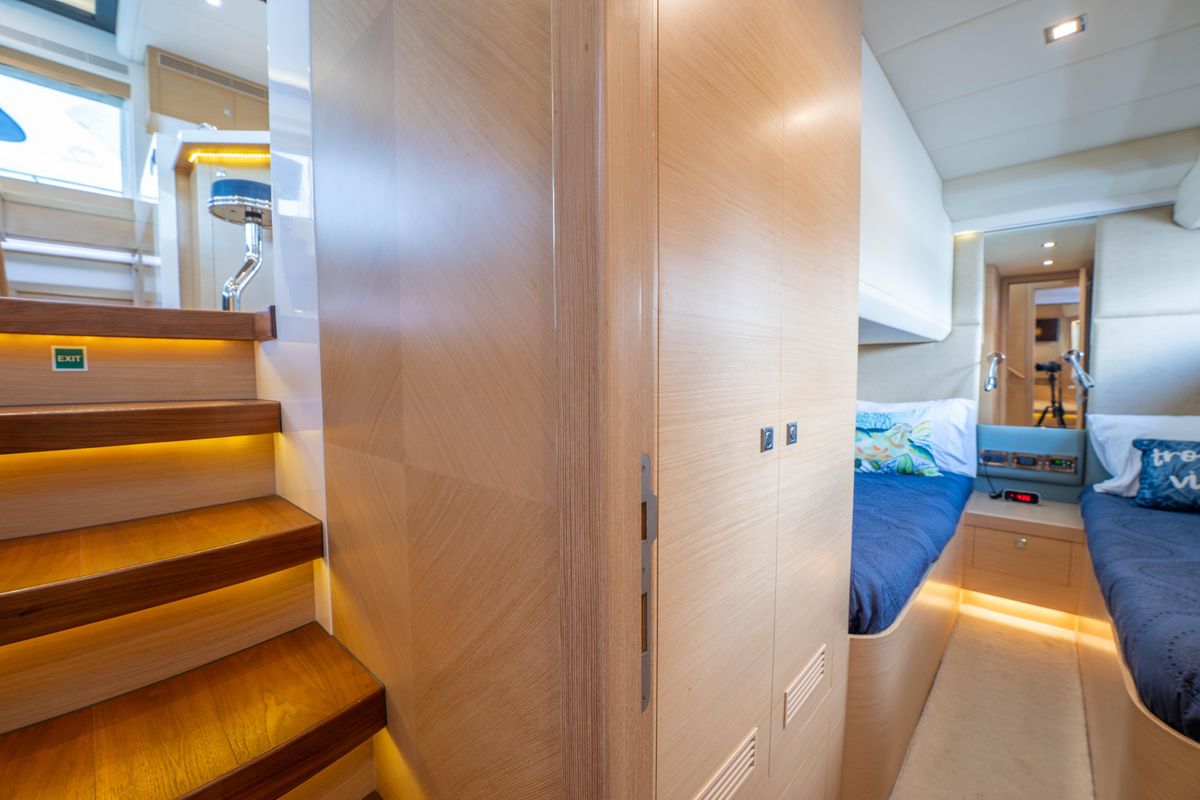

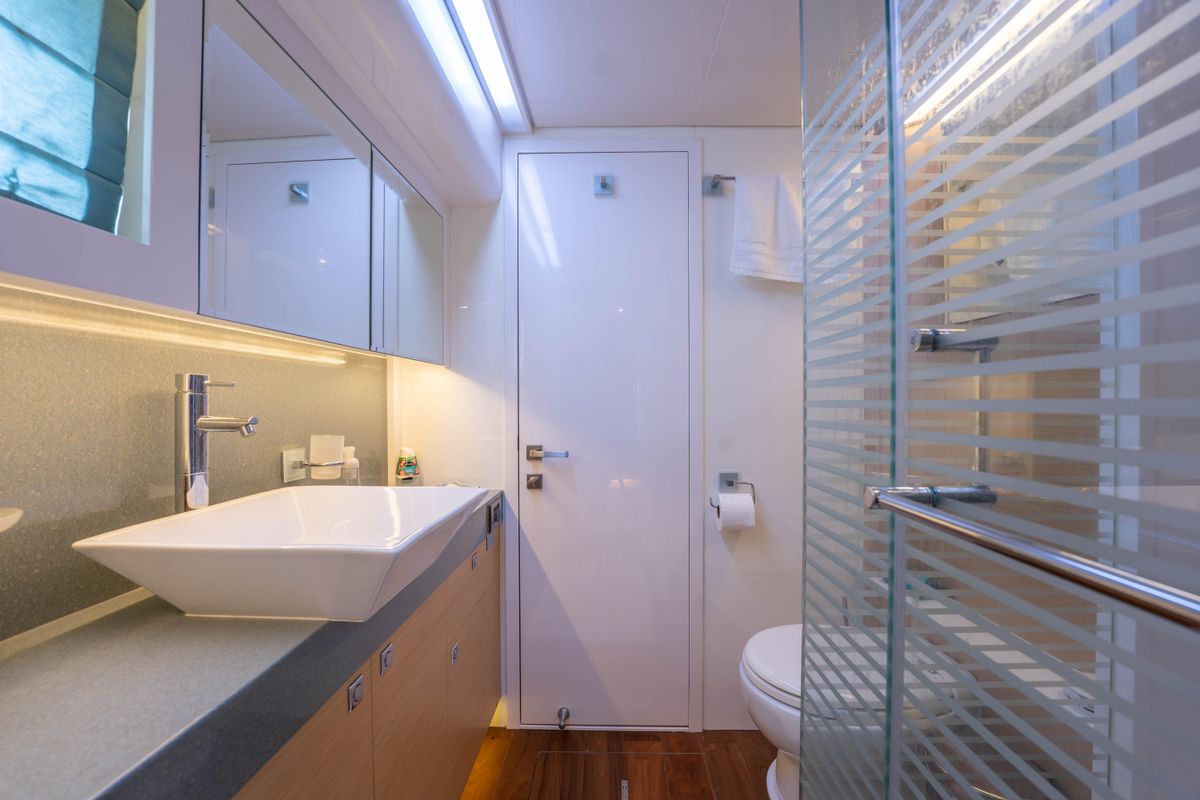

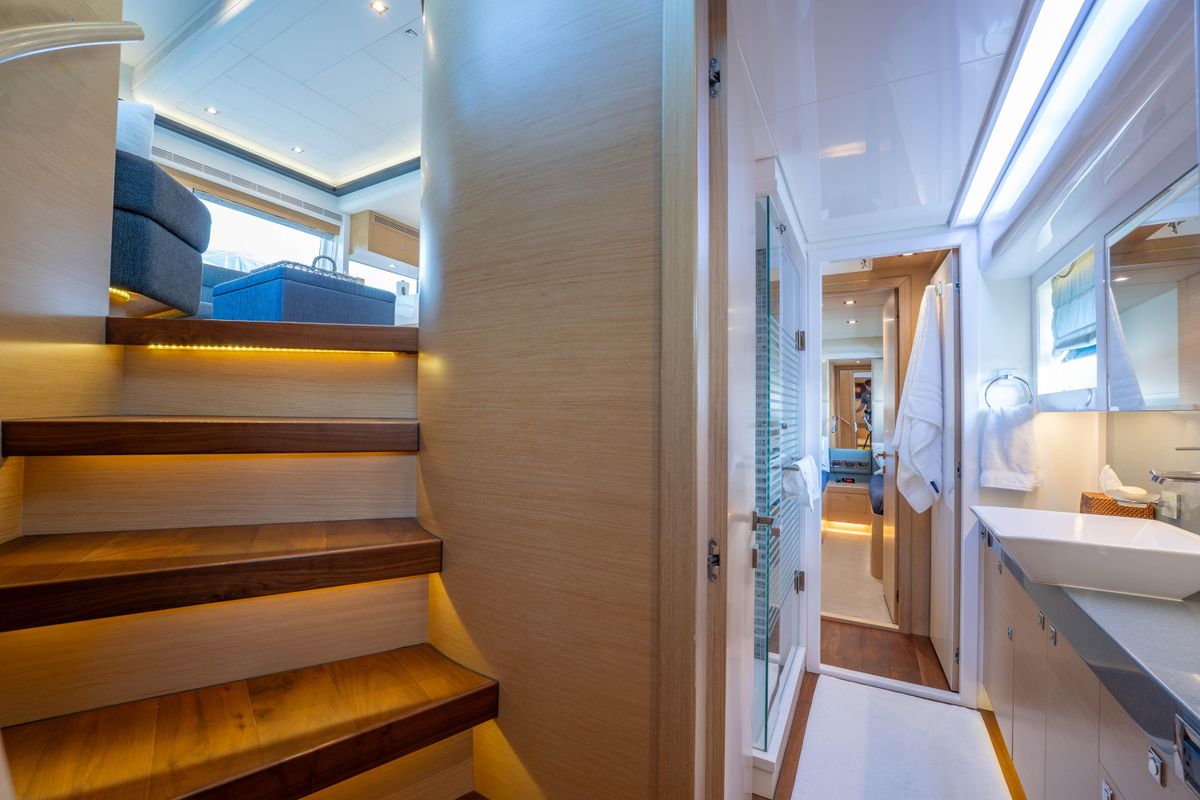

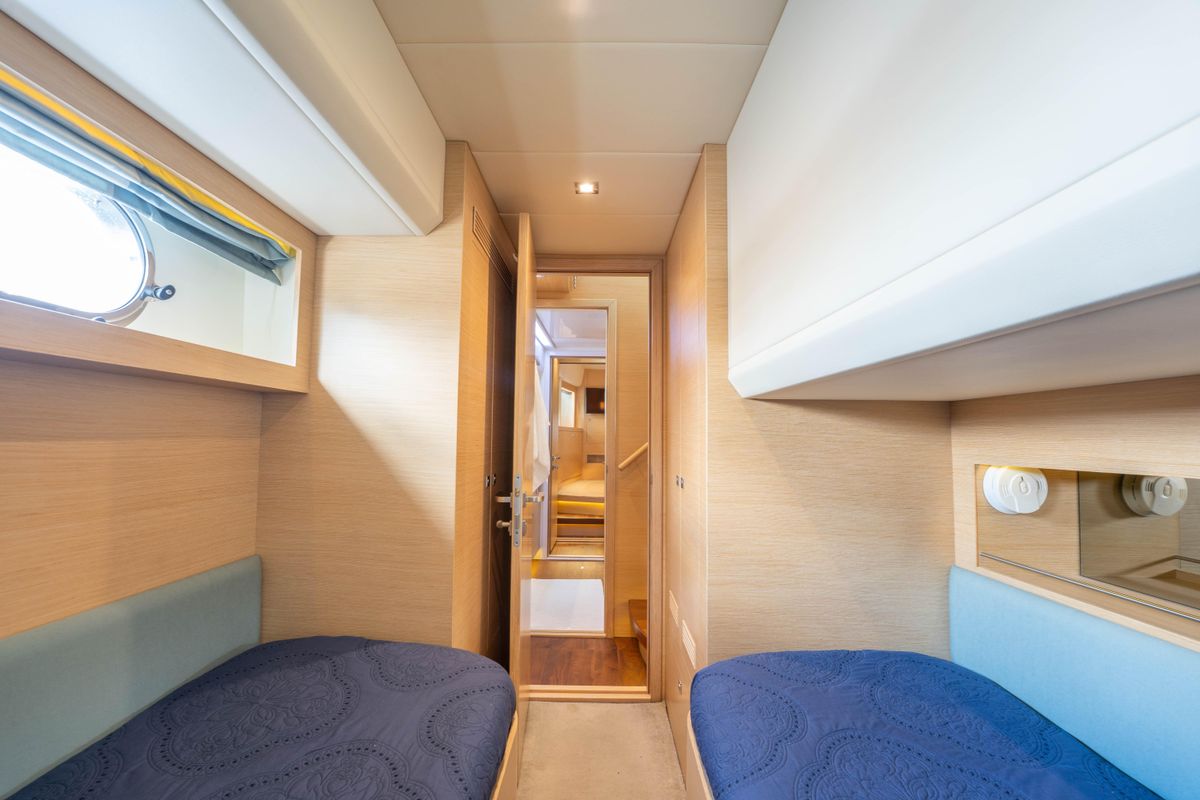

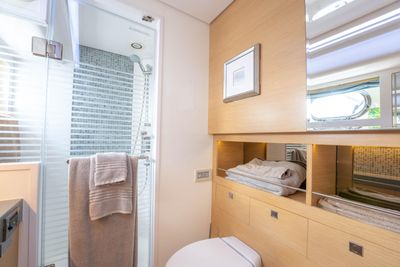

and en-suite bathroom with the port side sharing the VIP and twin cabins, whom share a Jack and Jill style head and

shower to maximize volume. Powered by twin CUMMINS QSB 6.7 diesel motors w/ 550HP, you will have a fast cruise of

18 knots with a range of 450NM and a slow cruise of 9 knots with a 1,050 NM range.

Recent updates to this vessel:

• Full haul out bottom service (paint, zincs, and propspeed) December 2024
• Full engine service to port and starboard April 2025
• Generator service January 2025
• Interior/Exterior soft goods refinished 2023
• Ceramic coating on all exterior gel coat January 2025
• Starlink Installed

With a proven hull design, spacious accommodations, and recent upgrades, this 2015 PC52 is ready for her next chapter

on the water.

Main Description

1. White Gelcoat finish for hull above water line, exterior deck, furniture and superstructure.
2. Hull is built with licensed process SCRIMP™ for improved strength and less weight
3. High density foam cored construction bottom and topsides
4. Solid fiberglass laminate stem, keel.
5. Nonskid main deck
6. Teak covered aft deck & Steps.
7. Fiberglass cap rail.
8. S/S rub rail around hull deck joint.
9. Heavy-duty S/S #316 1-1/4² handrail w/1”( stanchions)
10. 10 Mooring cleats on deck.
11. Locker for 24V anchor windlass.
12. 50KG DELTA anchor.
13. 150ft of high tensile 3/8” chain and 150ft warp.
14. Roller for anchor.

Doors, Hatches, Windows & Port Holes

1. SS sliding salon door.
2. Two bow storage lockers with access through flush FRP deck hatches.
3. 2 x Deck hatches with blinds & screens.
4. Engine access through manual deck hatches in cockpit floor with manual struts.
5. Two large hull side frameless window.
6. Six oval portholes.

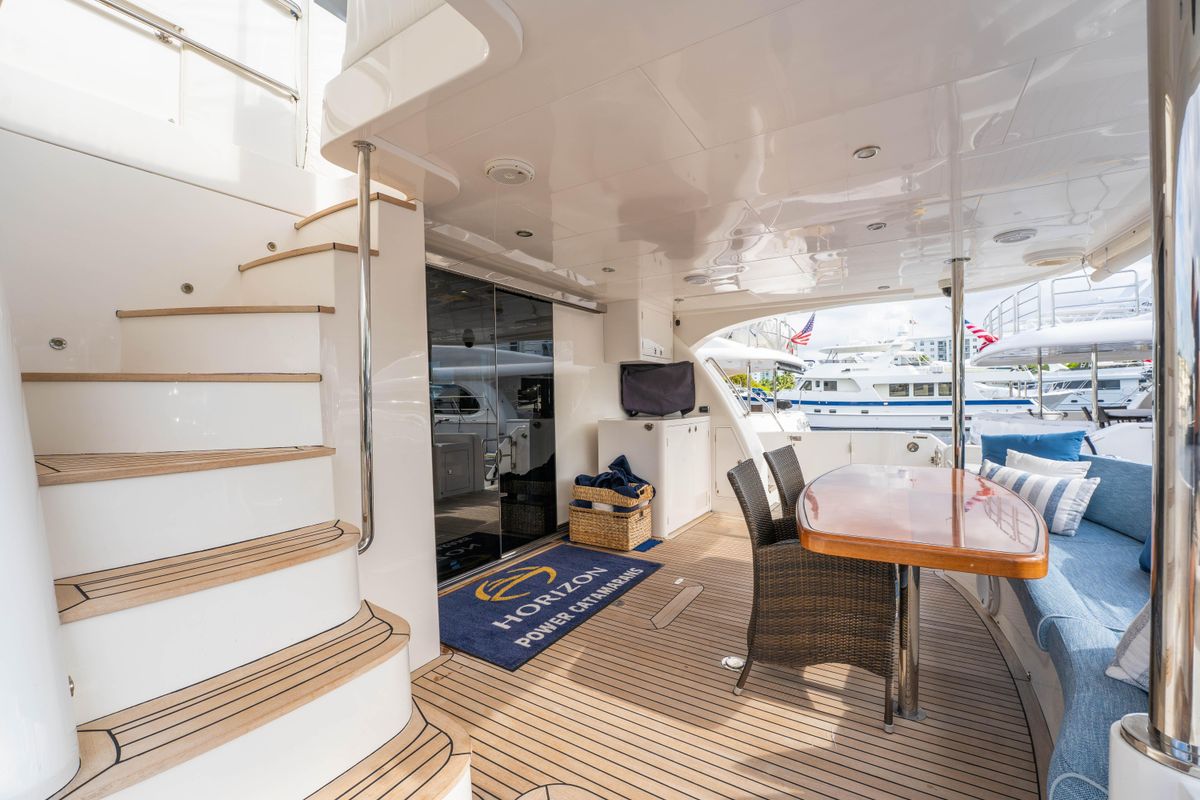

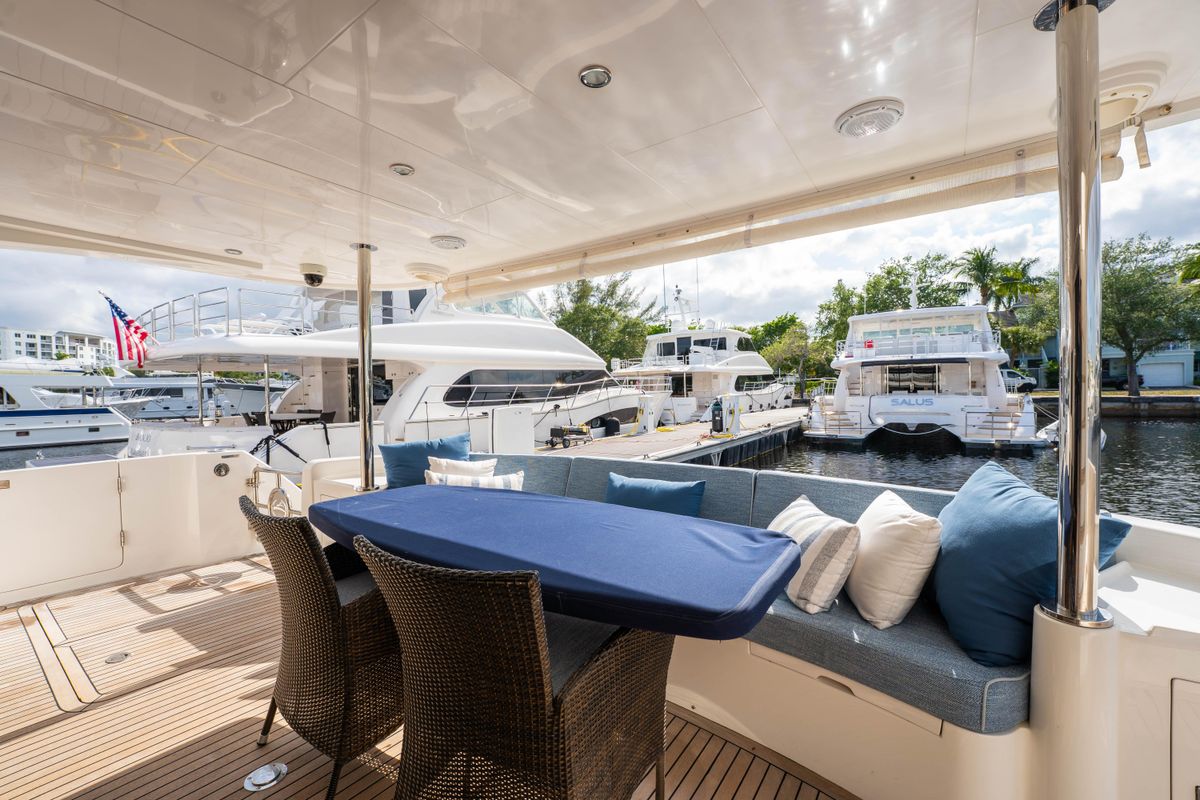

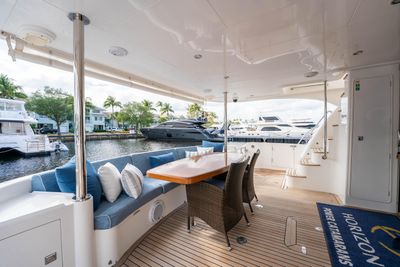

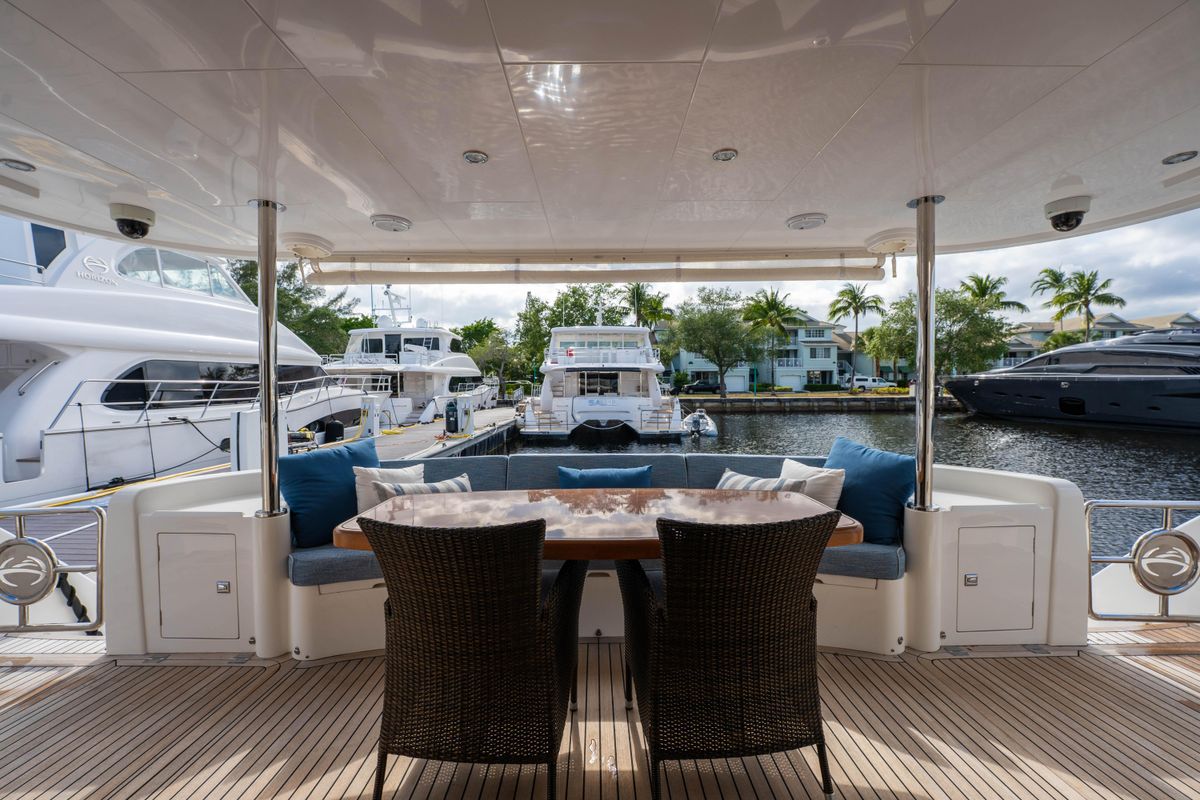

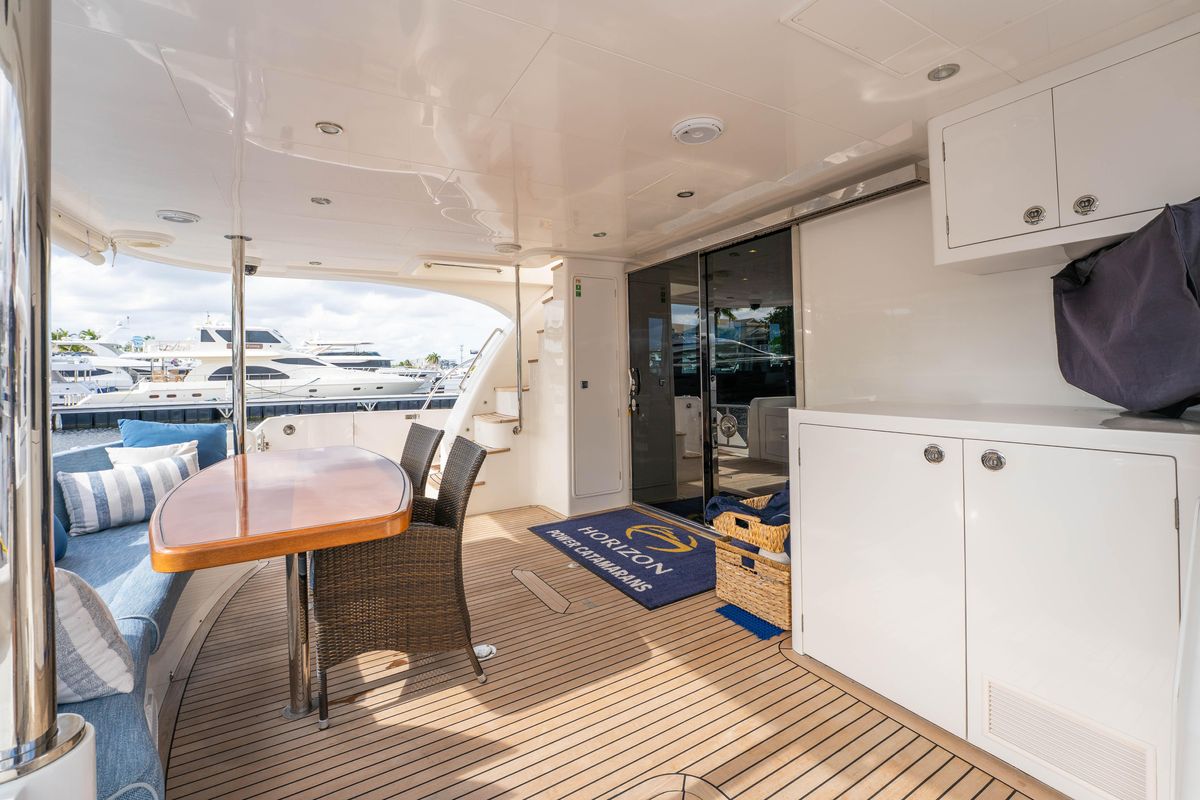

Aft Deck Area

1. FRP Curved seat with cushions at aft. deck.
2. Teak cockpit table.
3. Aft Deck Bar with Fridge and Scotsman Icemaker\
4. TV on Aft Deck NEW 2025
5. Dimmer switch for Aft. deck ceiling lighting

Swimming Platform Area

1. Built-in shower with hot/cold water.
2. Swim ladder on STBD side.
3. S/S safety rail on swim platform

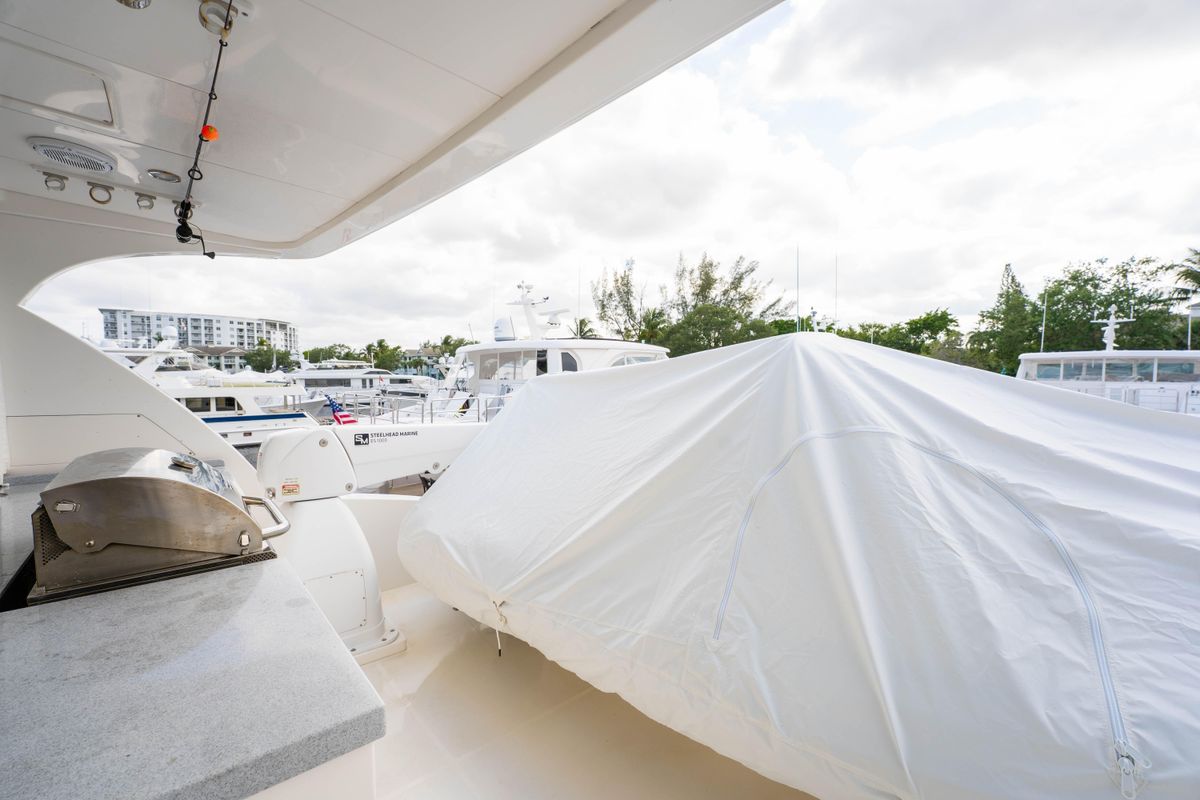

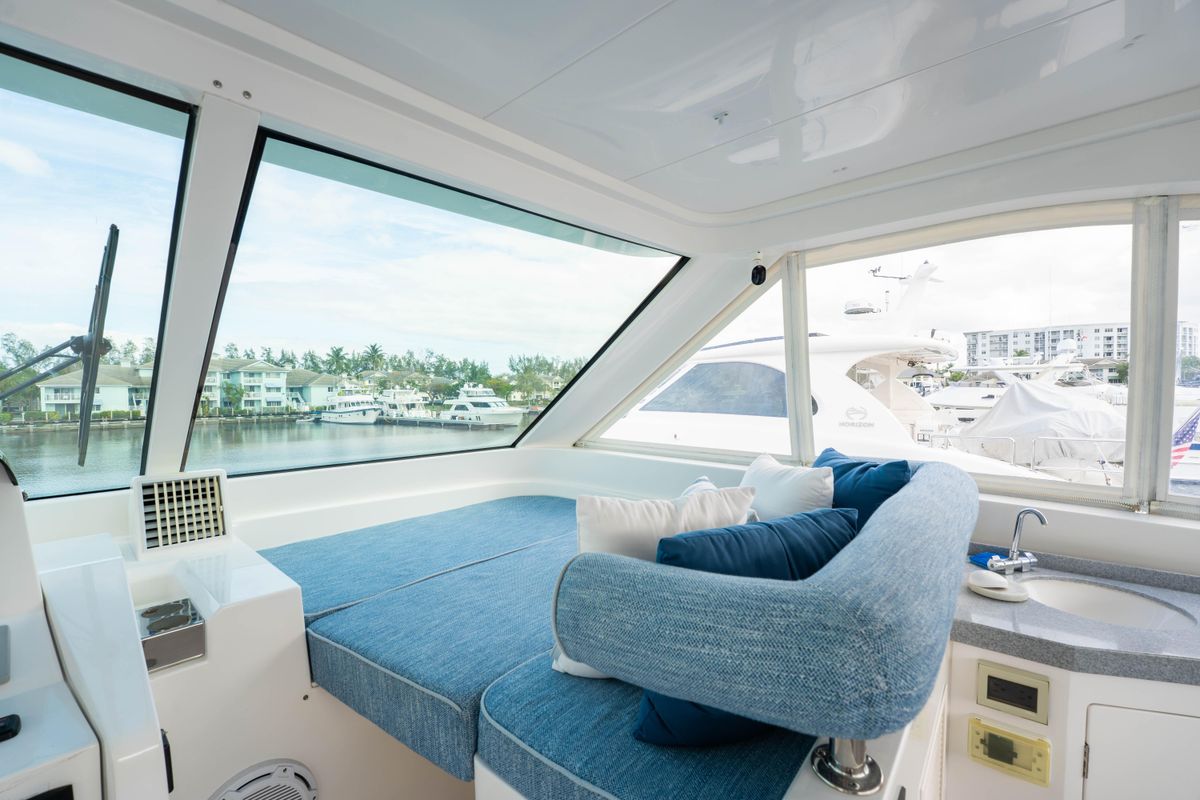

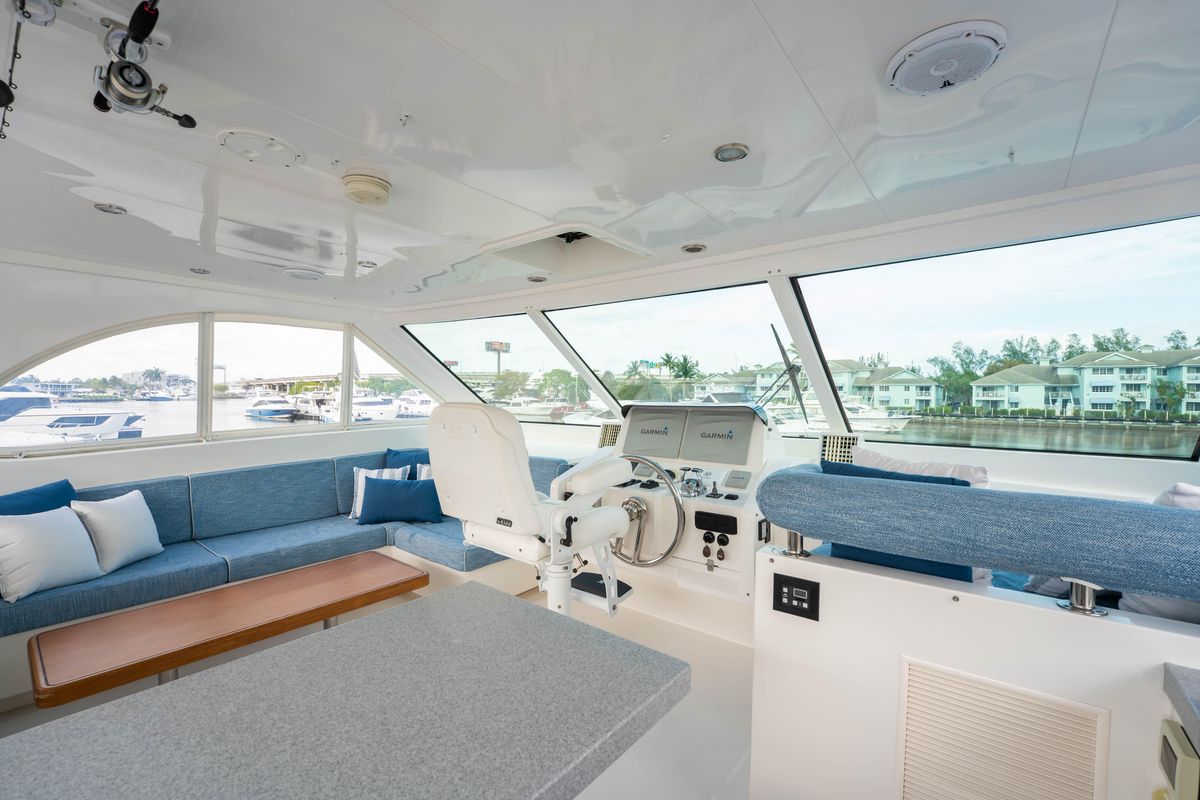

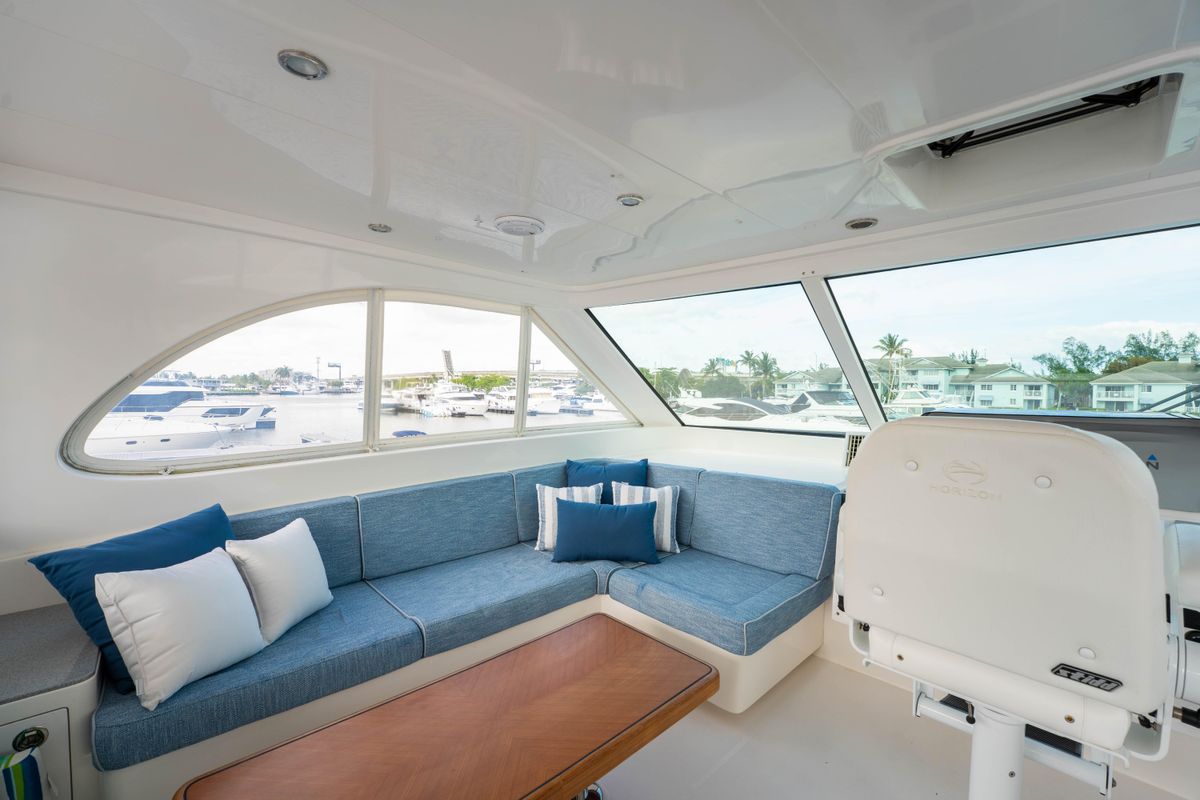

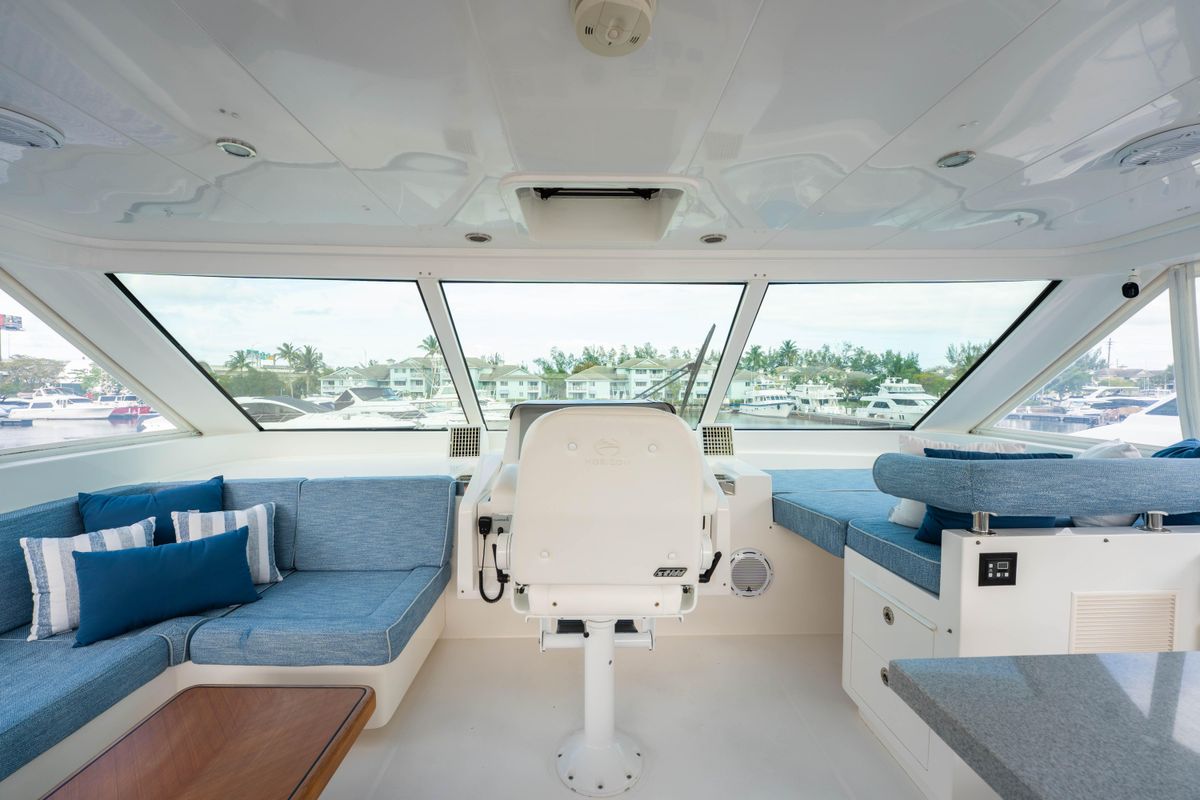

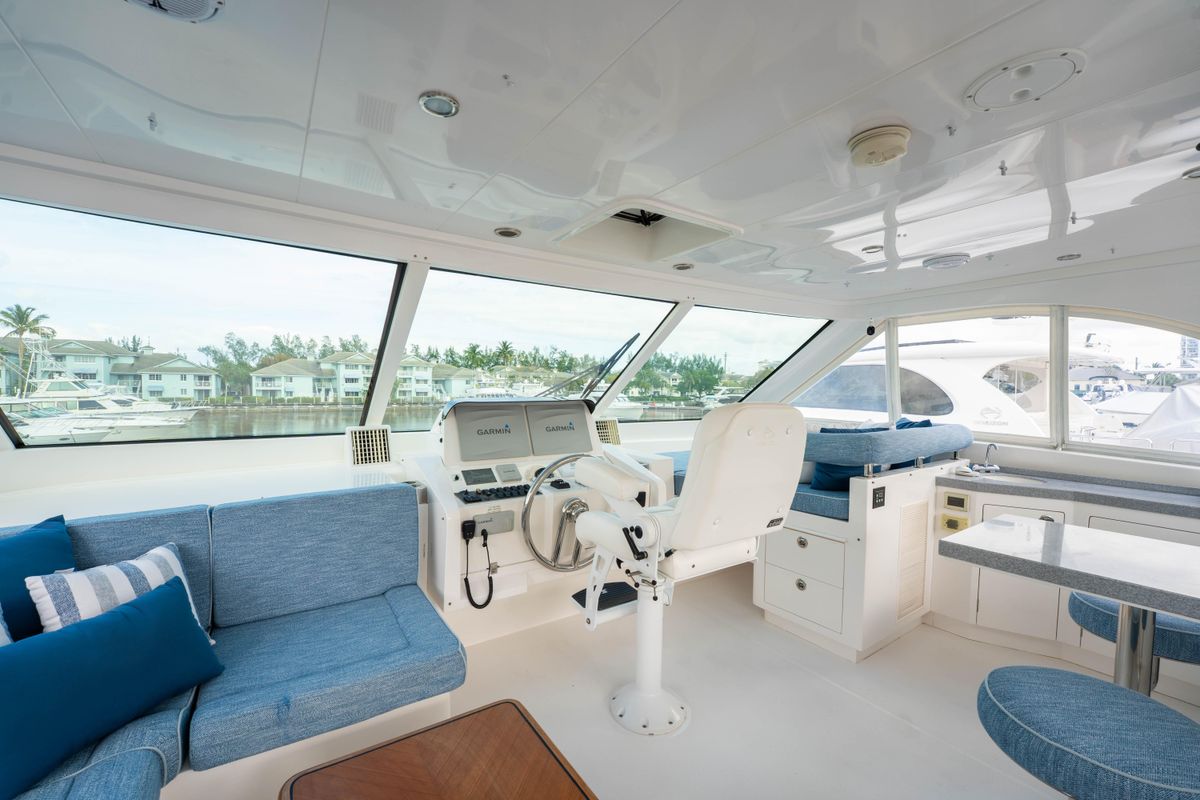

Flybridge

1. Flybridge Carpet
2. Three Fixed Glass Front Windscreens with 1 x Washer/Wiper
3. Seacrylic side and Aft Enclosures
4. Flybridge Fully Airconditioned
5. Built in BBQ NEW APRIL 2023

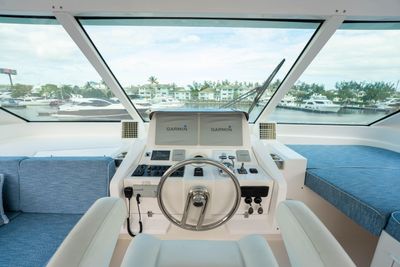

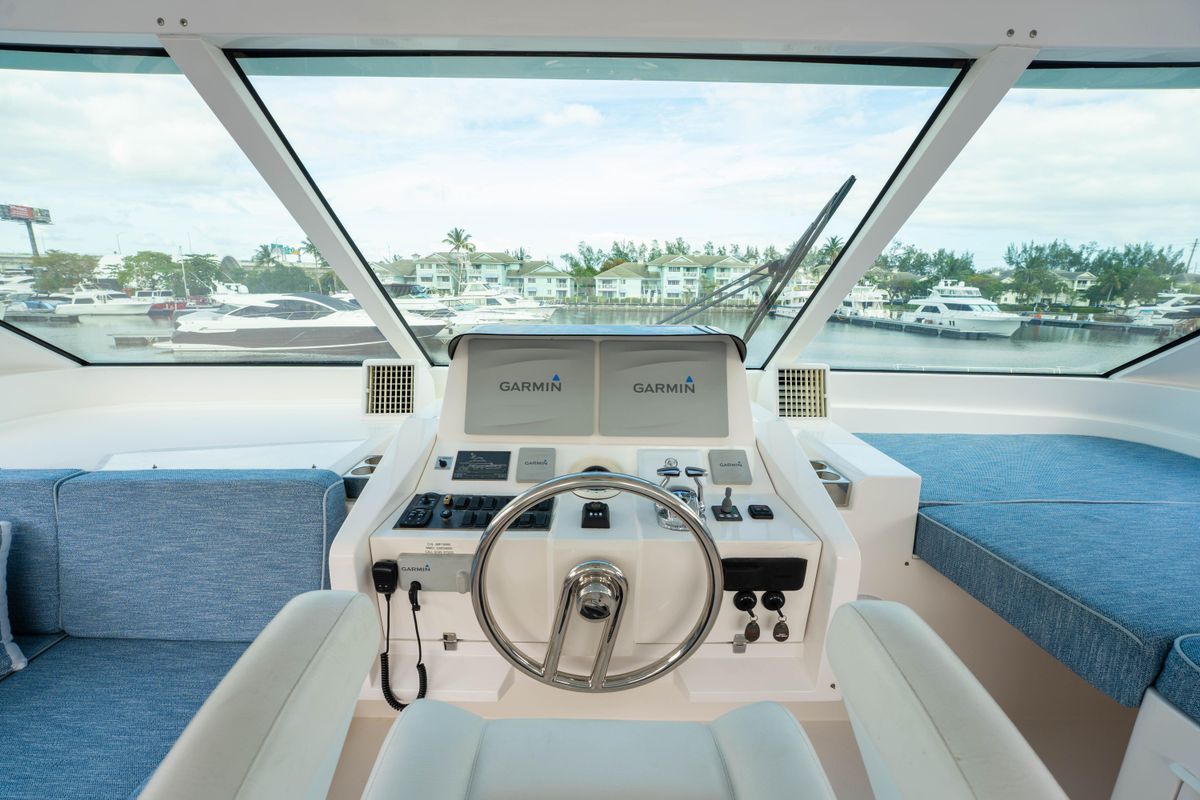

6. Helm station with stainless wheel and instrument console.
7. Single STIDD helm chair
8. FRP Arch & FRP Hardtop.
9. Wet bar package:FRP module bar with sink, with hot and cold water.
10. Sunning bed/ Bench Seat stb side of helm console with cushions
11. Ample locker space for storage.

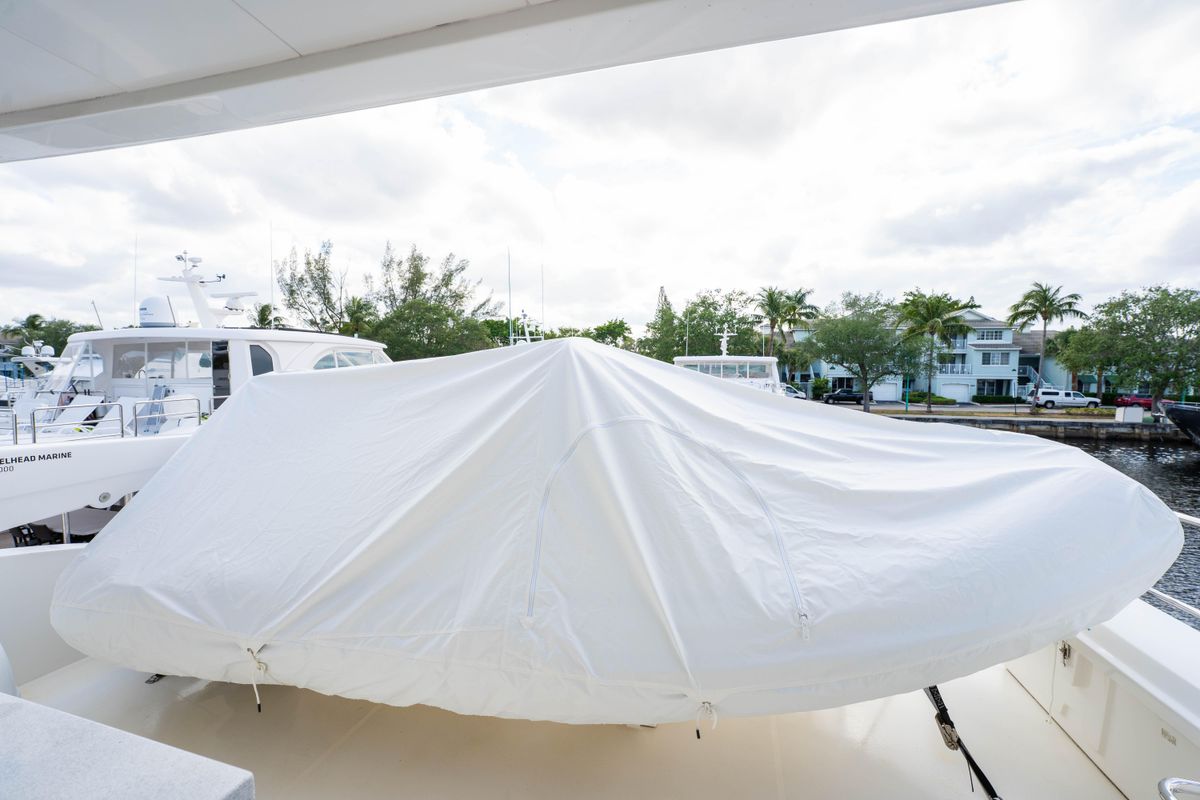

12. ES1000 Steelhead Crane
13. Covers for F/B Seating and console

     Electrical system:

General

1. Color-coded wiring for easy identification.
2. Premium DC distribution board with switches, voltmeter and amp meter.
3. Outlets in Salon / bar / galley / cabins / fly-bridge / aft deck / engine room.
4. Vimar switches for lights and electrical outlets.

 AC/DC Main Power System

1. AC power supply from generator / shore power.
2. Selector switch for AC power supply.
3. Remote panel for generator.
4. Four AGM Batteries for engine & generator start up.
5. Two AGM Batteries for ship‘s service power.
6. BEP battery switch.
7. One battery charger for all batteries.
8. One inverter 3.0 KW.
9. Premium AC panel with switches

Shore Power System

1. Glendenning shore power 50Amp connector with 100ft cord.

Fuel and Lube Oil System

1. Dual Racor 900FG filters for both engines.
2. One oil change pump for engines,  generator and Gearboxes.

Fresh Water System

1. 270 Gal of water tank integral to hull.
2. Color coded piping for easy identification.
3. Marine grade lines for fresh water system
4. One 17 Gal/110V or 220V water heater.
5. 2 x High volume 24V fresh water pump with accumulator tank.
6. Fresh water washdown for anchor.
7. Fresh Water Washdown on Aft Deck.

Sanitary System

1. 2 x 30 Gal of holding tank integral to hull
2. Electric fresh water flush toilets, pumps with Y valve for automatic discharge. and dock side pump out (2).

Bilge Water System

1. 4x electric 24V bilge pumps.
2. High level bilge water alarm.

Fire Safety System

1. One Seafire automatic/manual fire extinguisher in each engine room.

Air Conditioning System

1. Dometic Marine Air –air conditioning for salon.
2. Dometic Marine Air - air conditioning for VIP and MASTER NEW SEP 2024
3. Electrosea Airconditioning Cleaner System Oct 2022

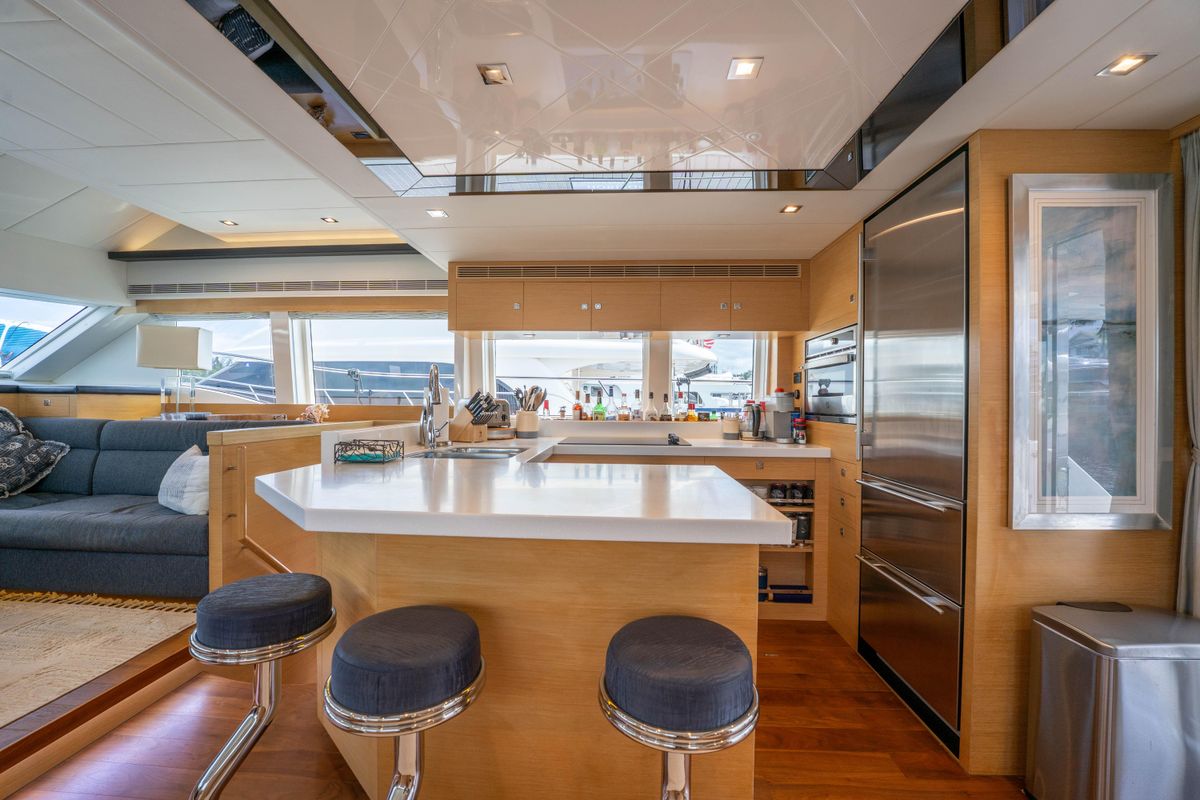

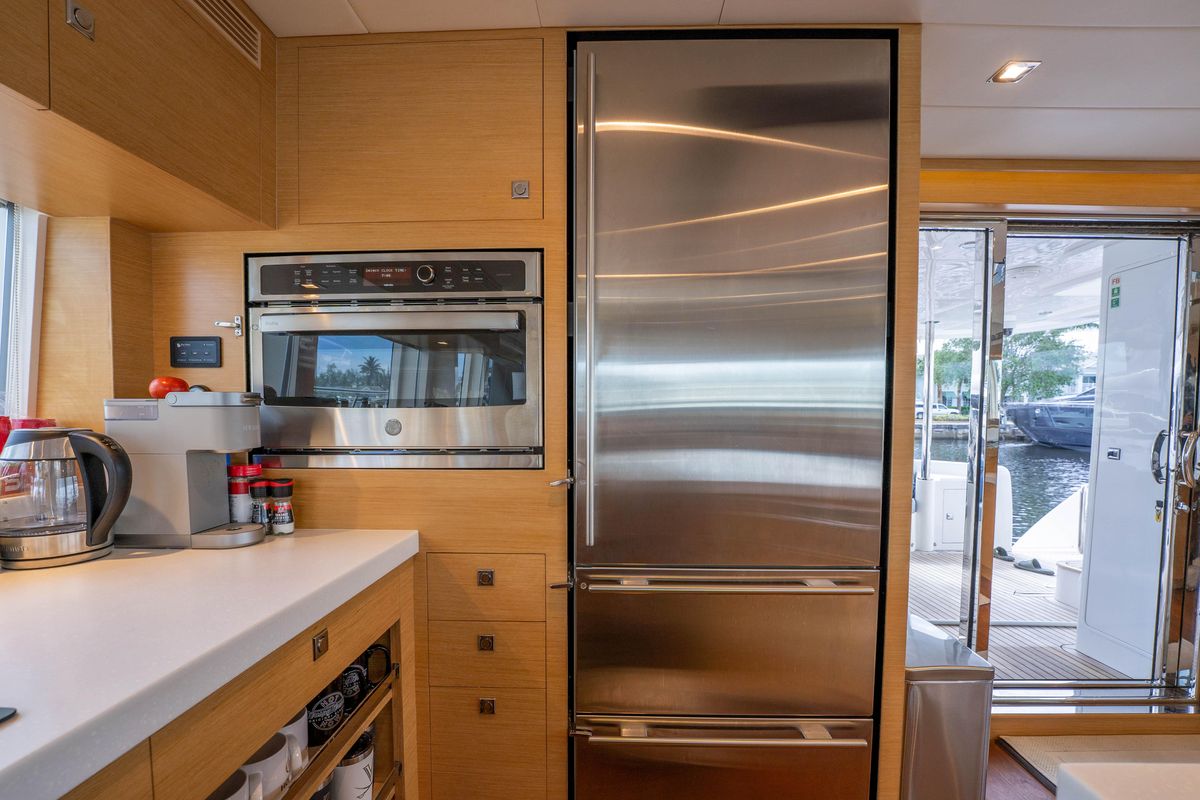

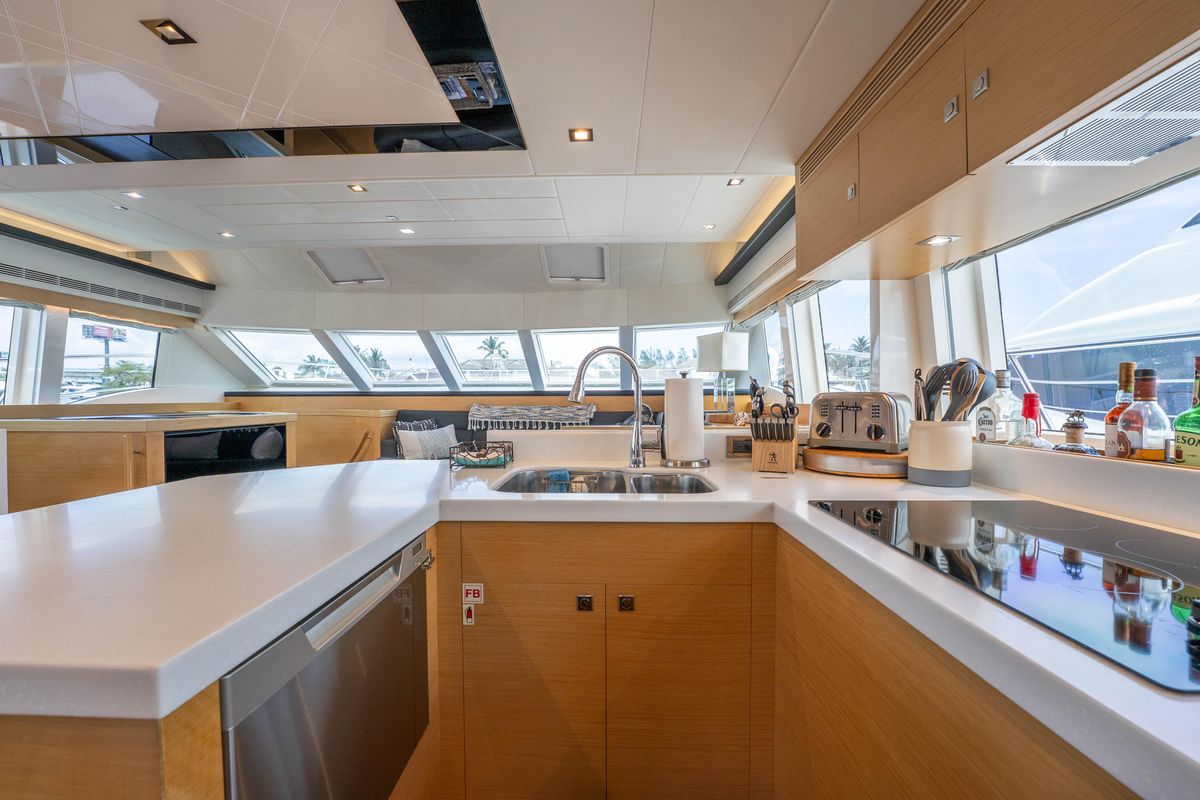

 Galley

1. GE- 4 burner Elec. cook top.
2. Extractor over cooktop.
3. GE Microwave / Convection oven.
4. Sub Zero 700TCI refrigerator w/ freezer and Icemaker.
5. Fischer Paykel Dishwasher
6. Double sinks with tap.

  Navigation & Instrumentation: & Audio Video Equipment:

1. 2 x Garmin 8215 15” touch screen chart plotter with GPS antenna on Flybridge.
2. Garmin Auto pilot.
3. AIS
4. Garmin GMR 404 4ft open array 48 mile radar.
5. 2 x Garmin GSD 26 Depth transducers.
6. Additional GM120 display
7. Garmin VHF 200 on flybridge.
8. Fusion UD750 Stereo on Flybridge
9. Sirius XM Module and Antenna
10. Fusion 51600 Amp
11. JL Audio Sub woofer & 4 x 7” JL Audio Speakers on Flybridge
12. Sonos Connect on Flybridge
13. Sonos Connect on Aft Deck with 2 x 7”JL Audio Speakers
14. Sonos Connect on Bow with 2 x 7” JL Audio Speakers
15. Sonos Playbar in Salon with 2 x Play 1 speakers and Sub woofer
16. 48” Samsung LED TV in Salon
17. 32” Samsung LED TV in Master
18. 32” Samsung LED TV in VIP

Additional Equipment:

1. Aft Deck Sun Awning

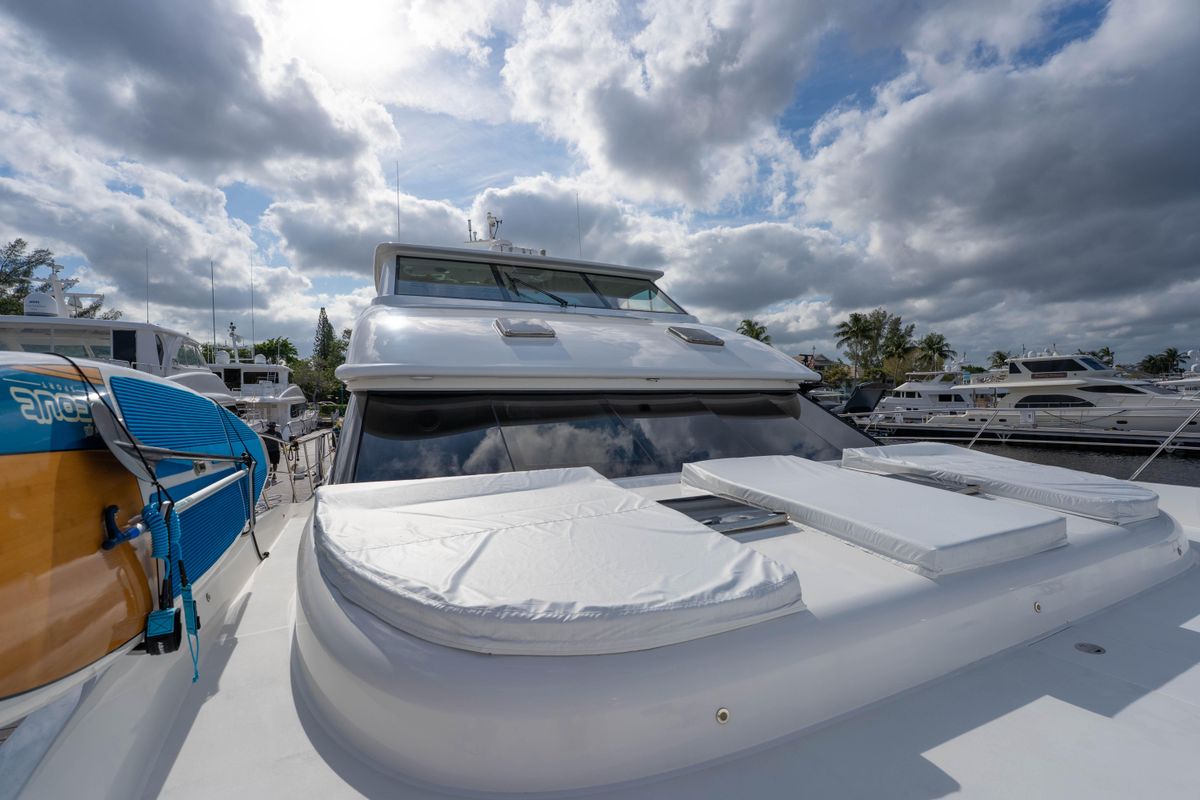

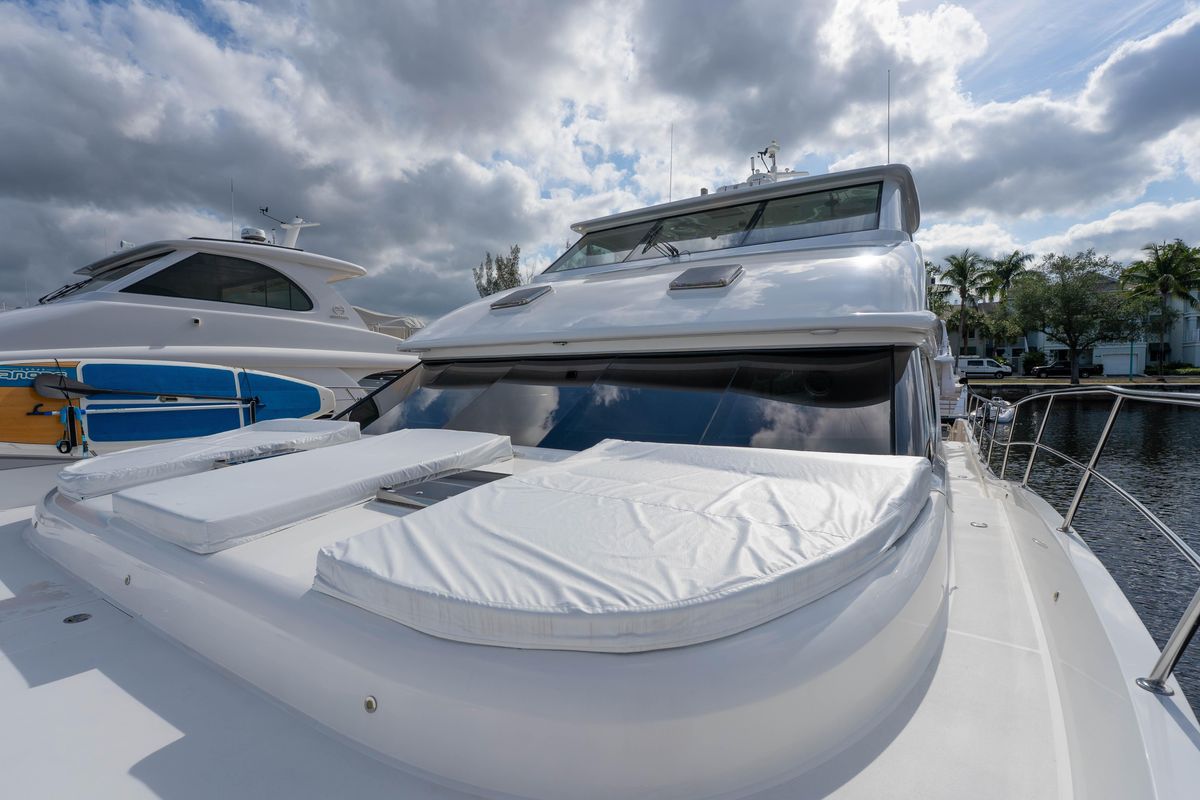

2. Bow Deck Cushions
3. Flybridge Clear Enclosure
4. 700 Gal/day Water-maker
5. New 5 Blade Veem Propellor
