YACHT NAME:
2002 Passport 470 Altair
MODEL:
470
BUILDER:
Passport
YEAR BUILT:
2002
LOCATION:
Annapolis MD
ASKING PRICE:
$415,000
DESIGNER:
N/A
HULL:
Fiberglass
CATEGORY:
Center Cockpit
DESCRIPTION:

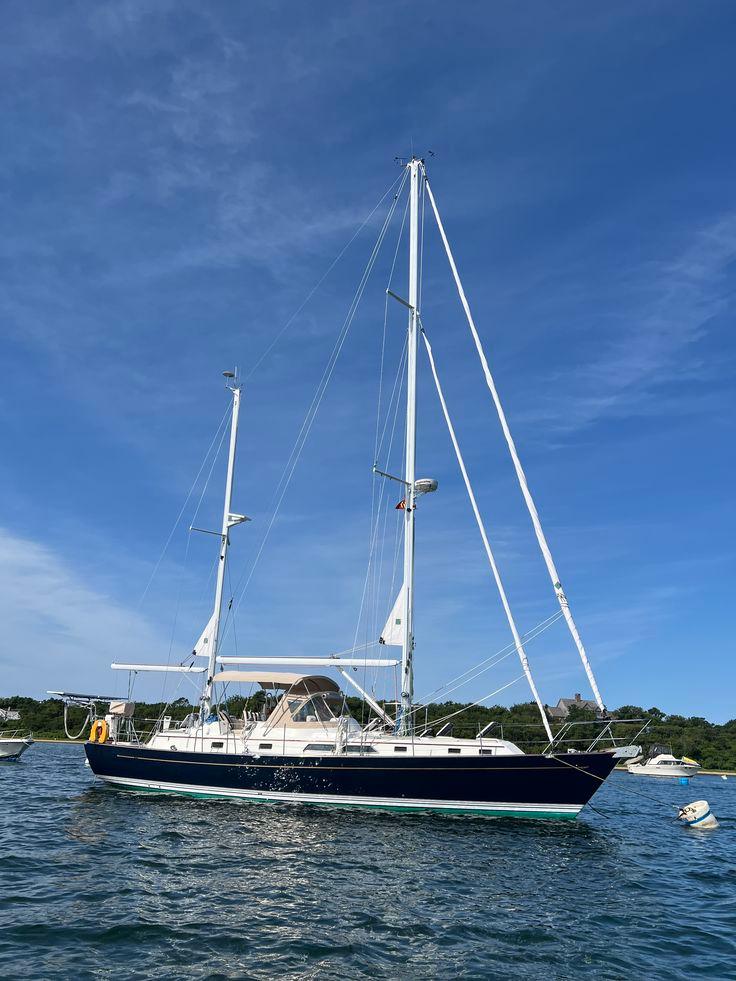

Altair is a very special Passport 470 center cockpit! She was designed and built for her original owner with a custom three-stateroom interior layout and a staysail ketch rig. Although Altair is technically a ketch with her mizzen mast located forward of the rudder post, she has the appearance of a yawl because the mizzen mast is shorter than a traditional ketch. With her striking blue hull and split rig, she is truly beautiful and obviously very versatile under sail. All of her sails are roller furling and can be operated from the cockpit, adding to her ease of handling and safety at sea.
Recent upgrades:
- New Quantum sails including a mainsail, jib, staysail, and mizzen sail (2023).
- New dodger, Bimini and helm cover (2022).
- New cutlass bearing (2022).
- New Sure Seal dripless stuffing box (2022).
- Transmission removed and serviced (2022).
- New pressure plate (2022).
- Engine and generator completely serviced (2022)
- Engine turbo cleaned and serviced (2022).
- All new uncoated lifelines installed with upgraded fittings (2022).
- All New halyards and running rigging (2022).
- Deck nonskid areas completely redone (2019).
- New Raymarine electronics installed (2014).
Altair has been meticulously maintained and upgraded by her knowledgeable owner. She comes equipped with everything needed for extended bluewater cruising or island hopping in style and safety. Just bring beer, wine and ice and you too can be off on your next adventure. Come we Altair soon, you won't be disappointed.
General Construction - Solid fiberglass hull, hand laminated, using Knytex knitted biaxial fiberglass fabrics in conjunction with mat and woven roving. Vinylester and Isophthalic resins.
- Isophthalic Gelcoat on all exterior fiberglass surfaces.
- A matrix of longitudinal and transverse foam cored stringers in the lower hull and hull sides provide maximum hull stiffness.
- Internal lead ballast glassed into a modified fin keel.

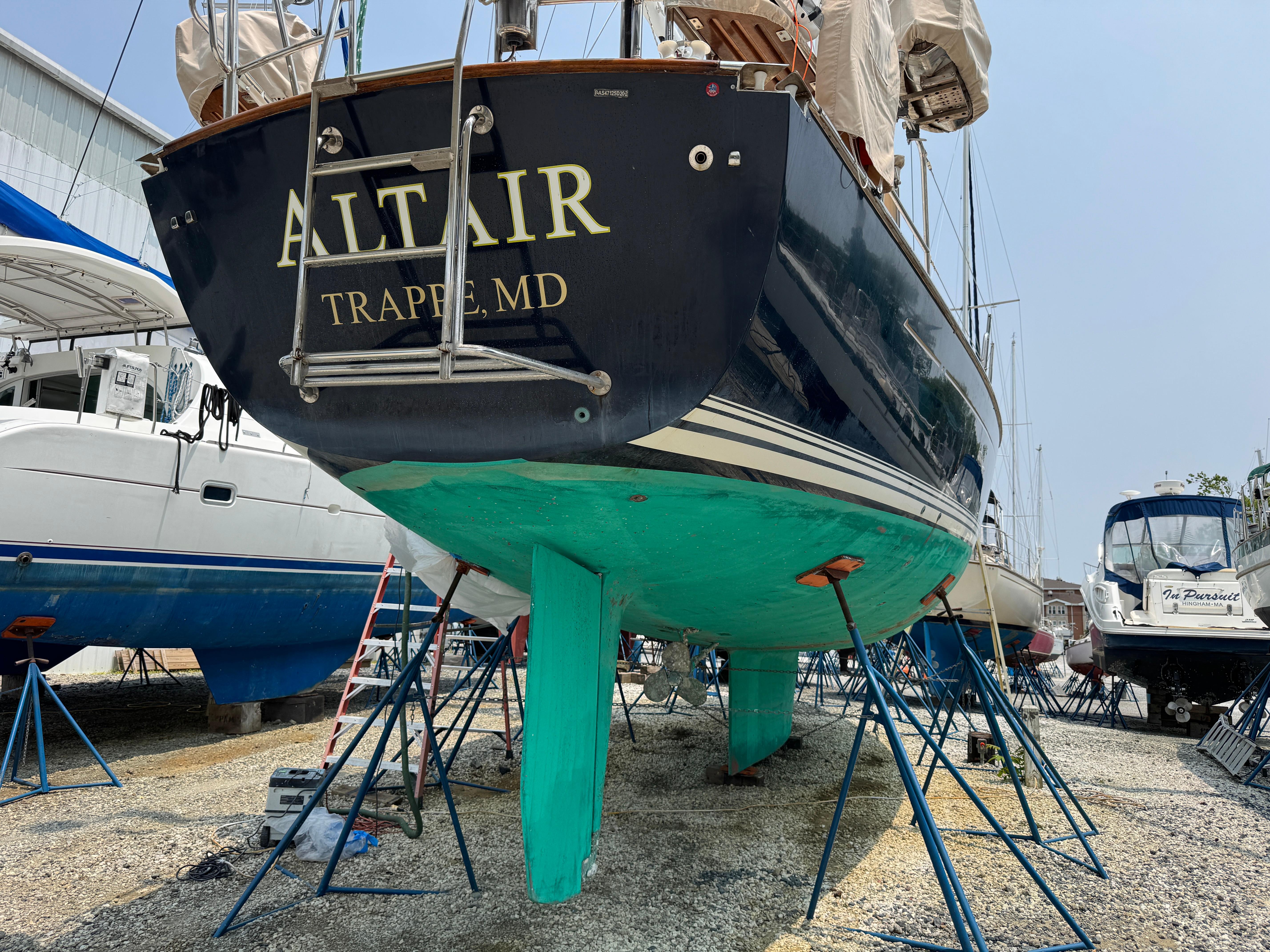

- Skeg mounted rudder, with internal stainless steel rudderpost and integral stainless steel reinforcement.
- The deck structure is a composite construction using closed cell foam coring.
- All deck hardware areas are reinforced using encapsulated marine grade plywood and through-bolted using stainless steel backing plates.

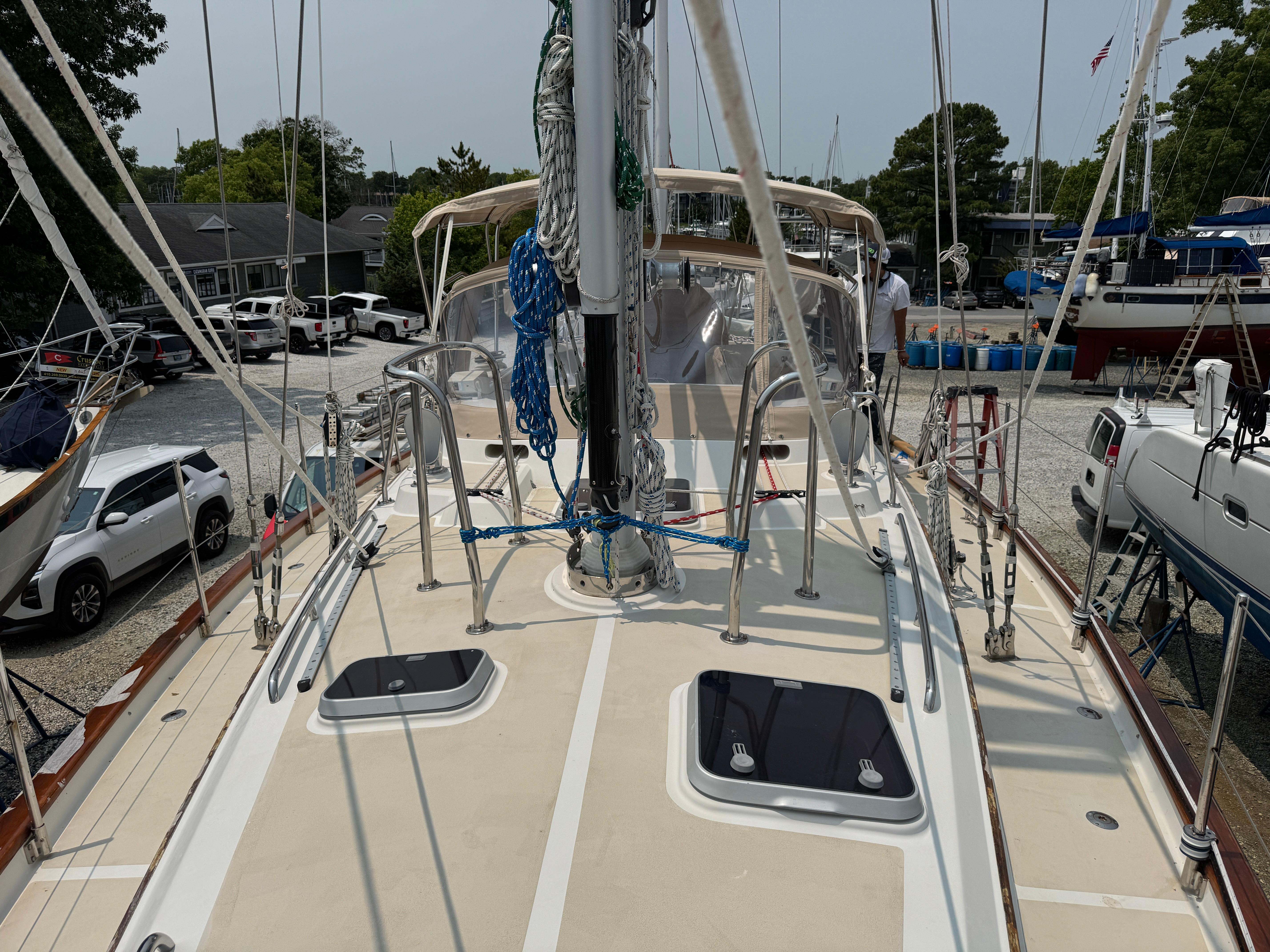

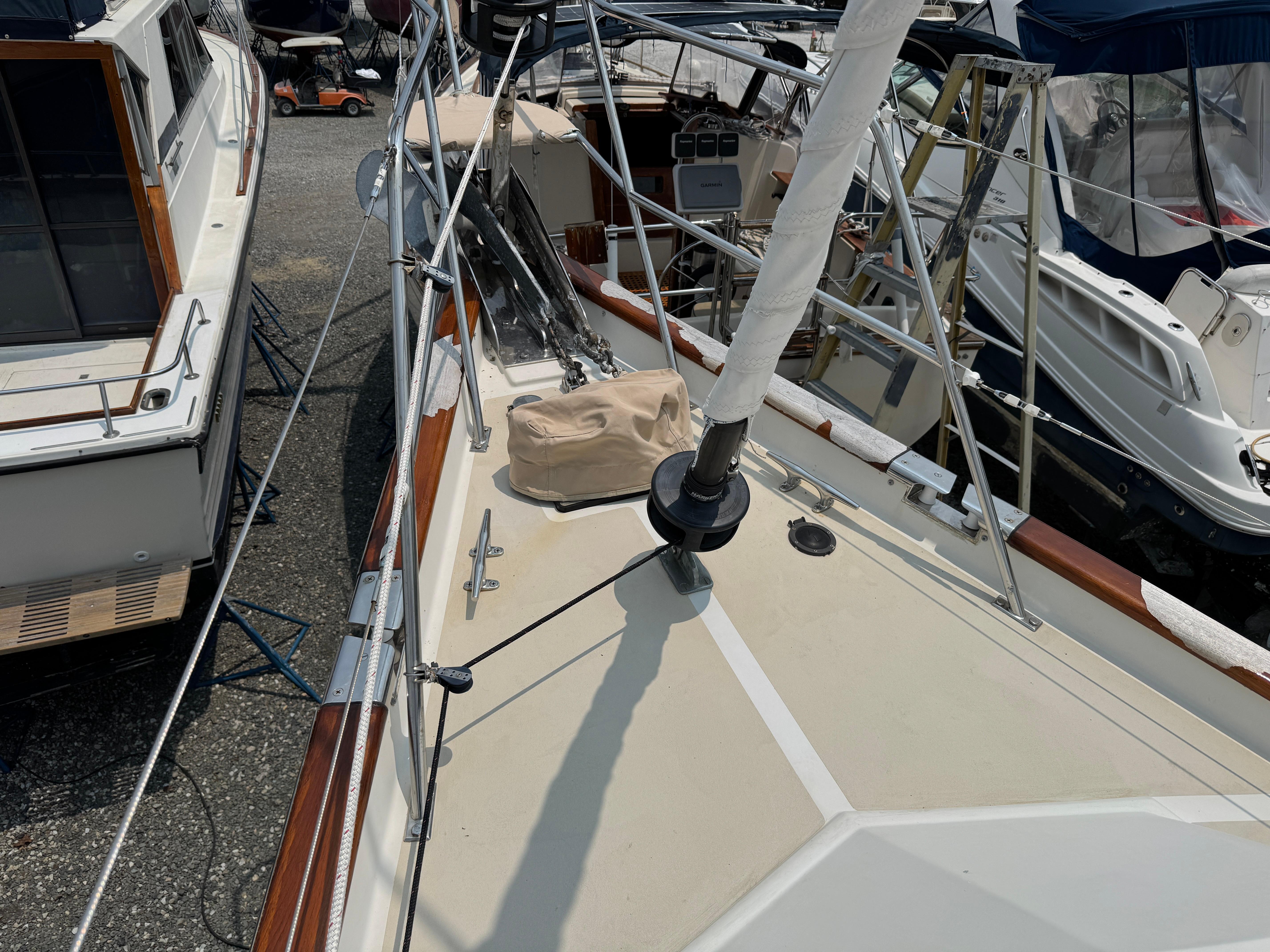

Hull and Deck

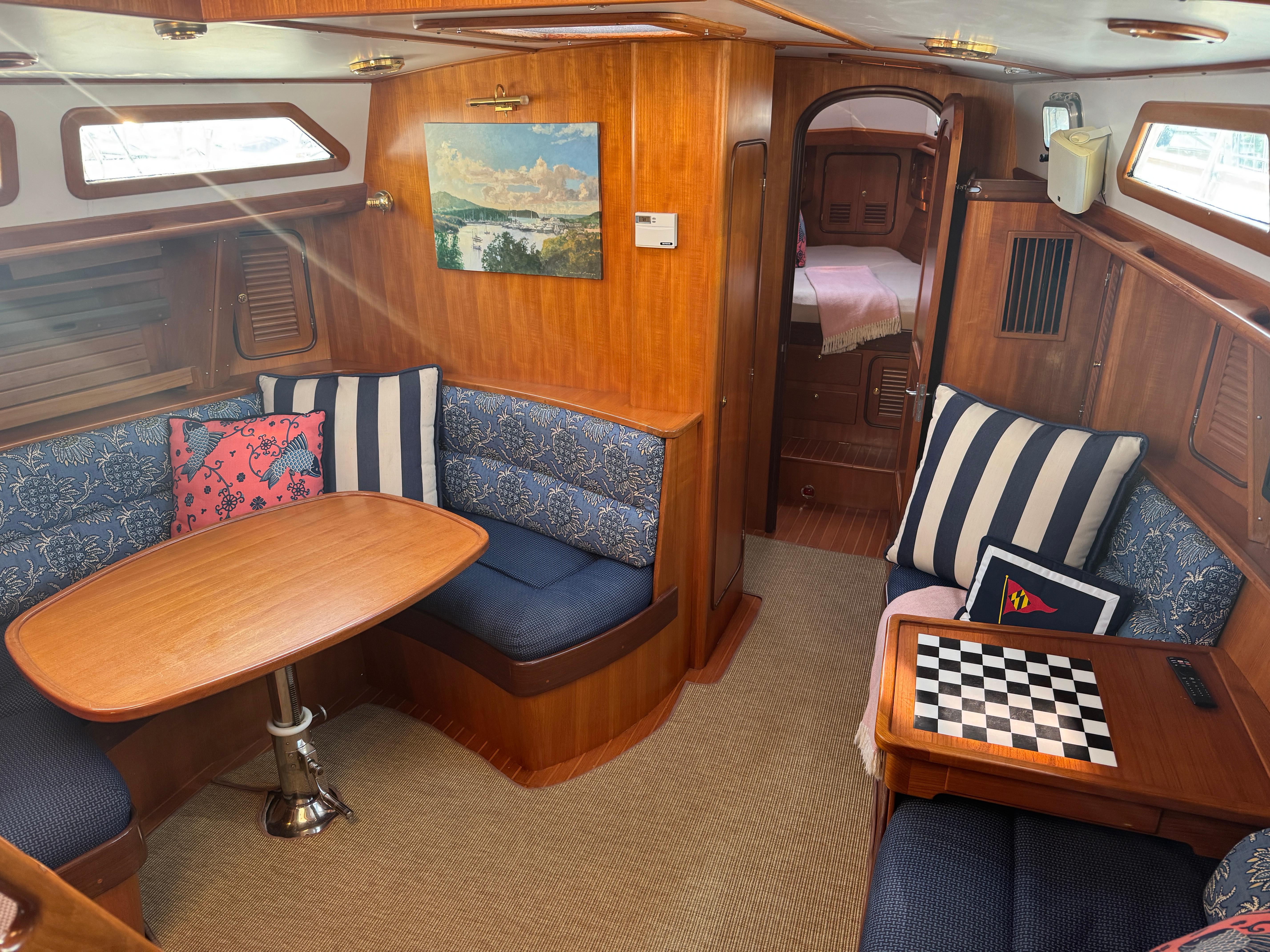

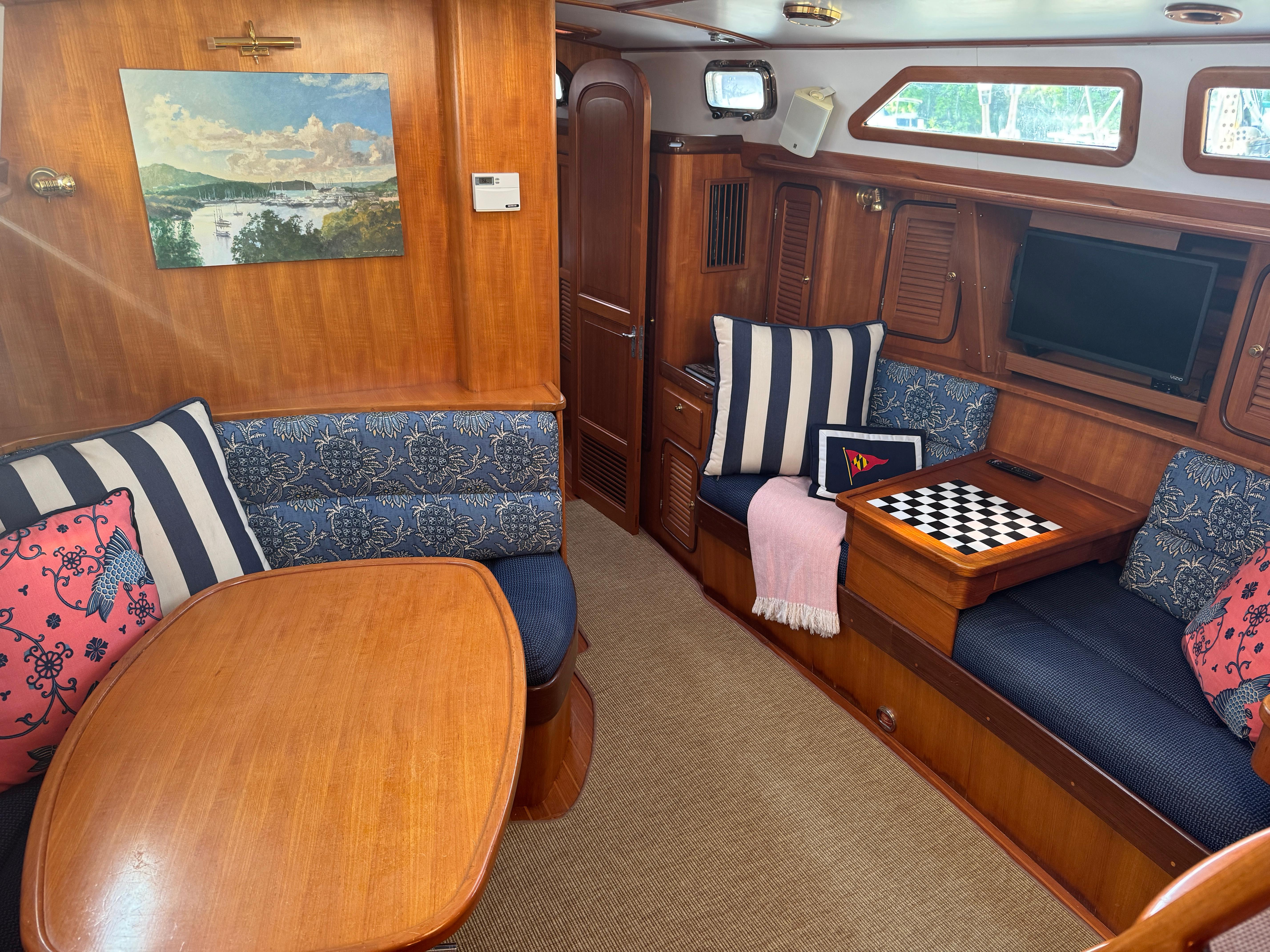

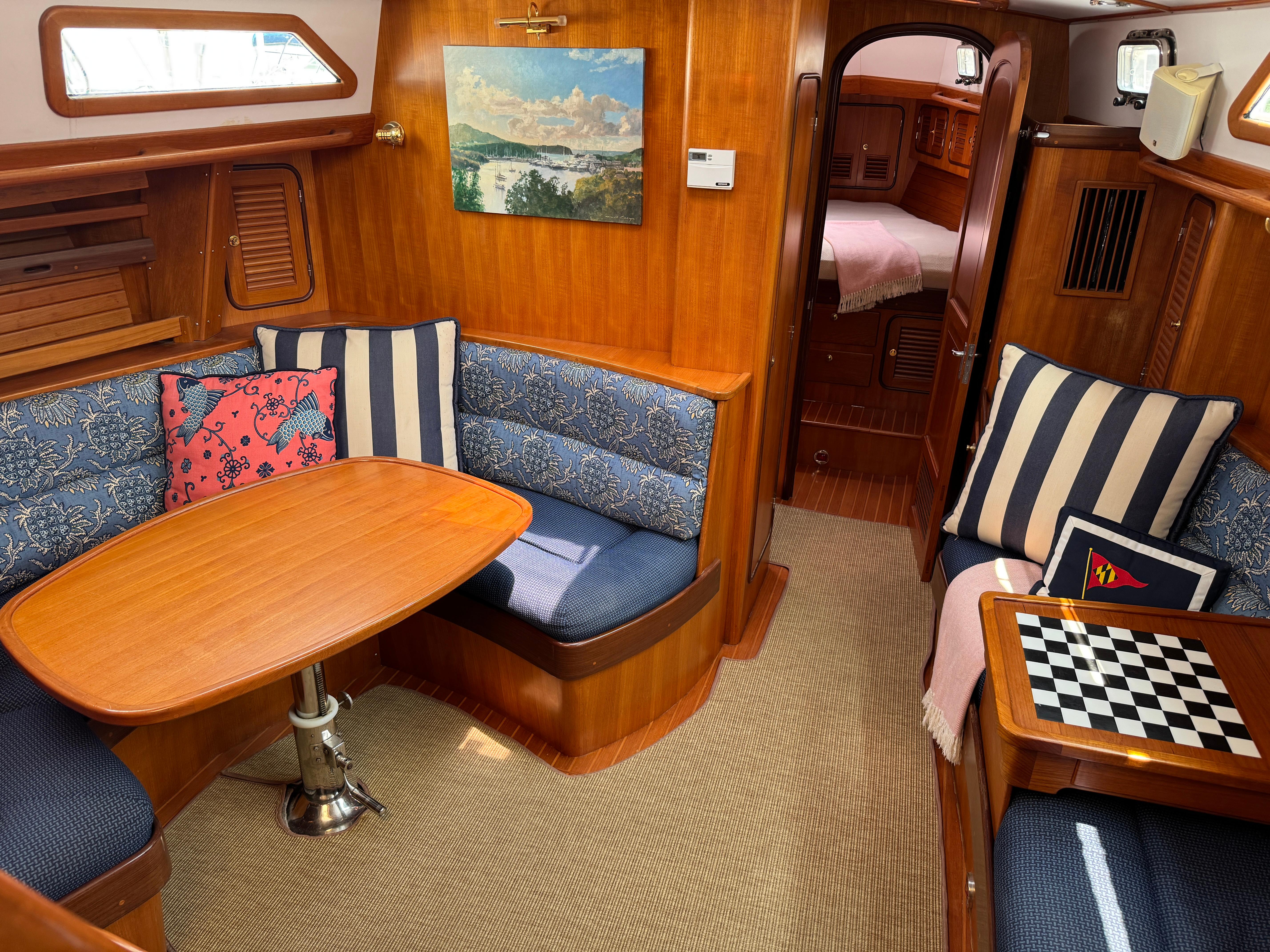

Accommodations - Custom three staterooms, two head layout arrangement.

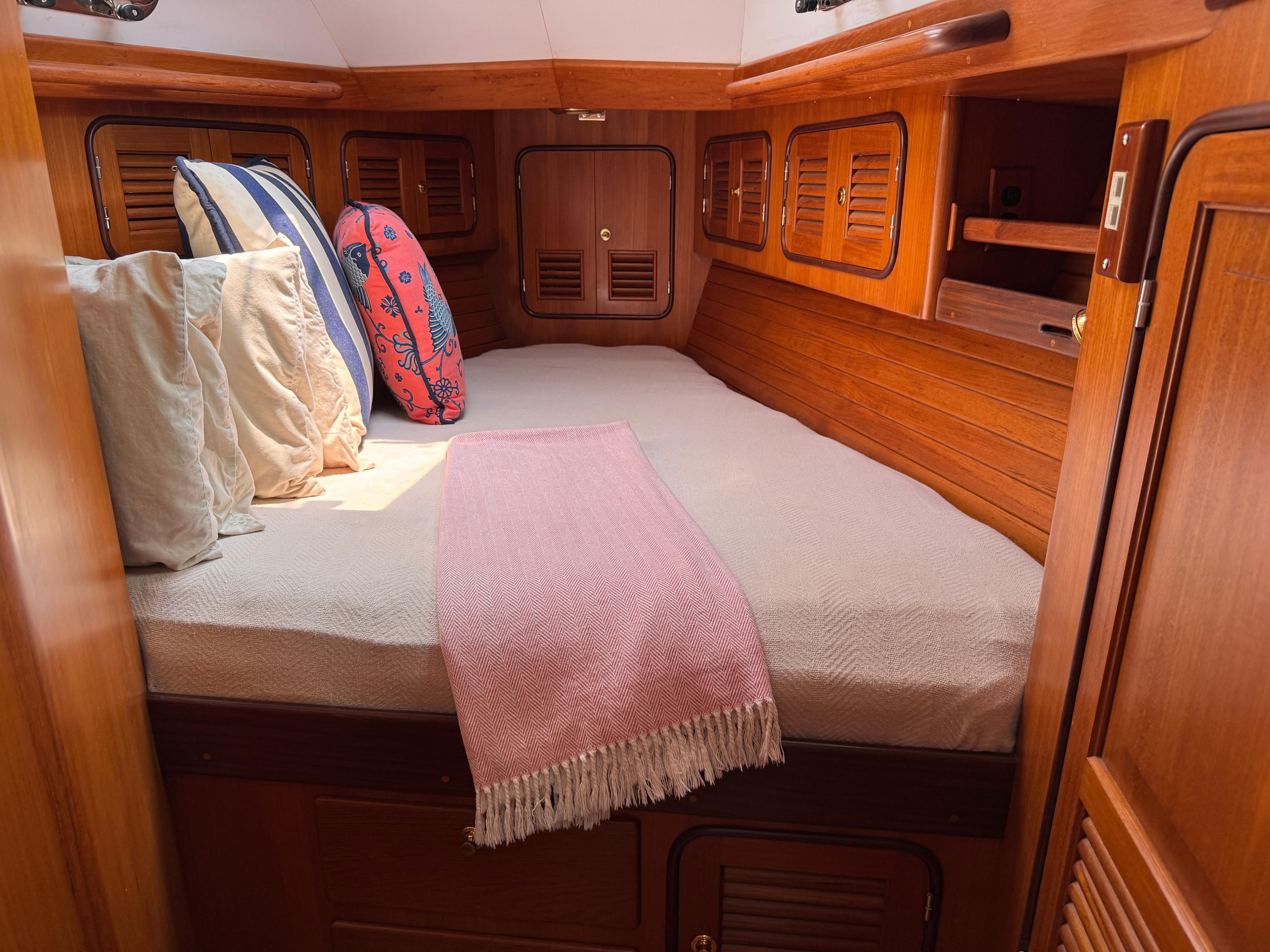

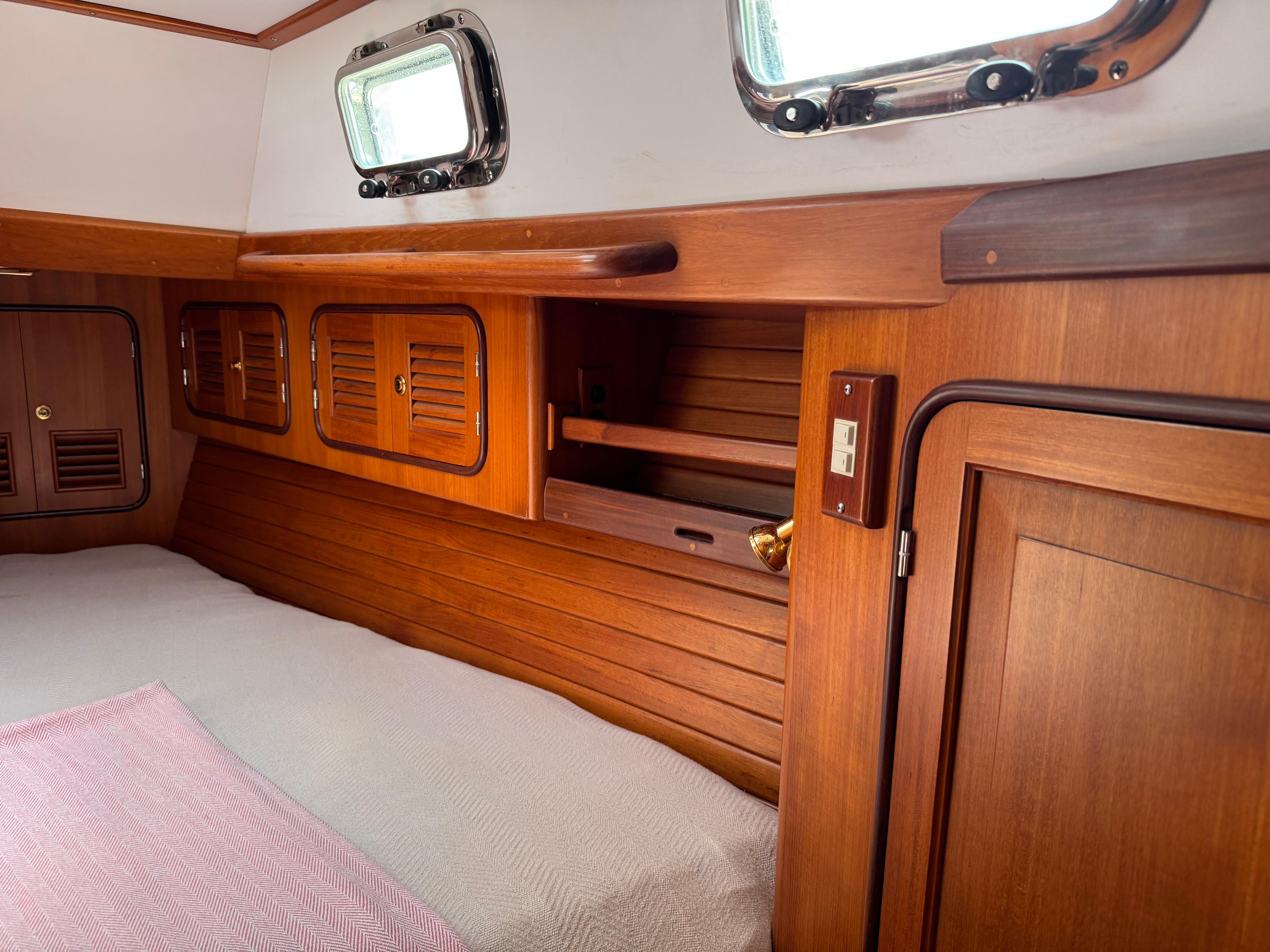

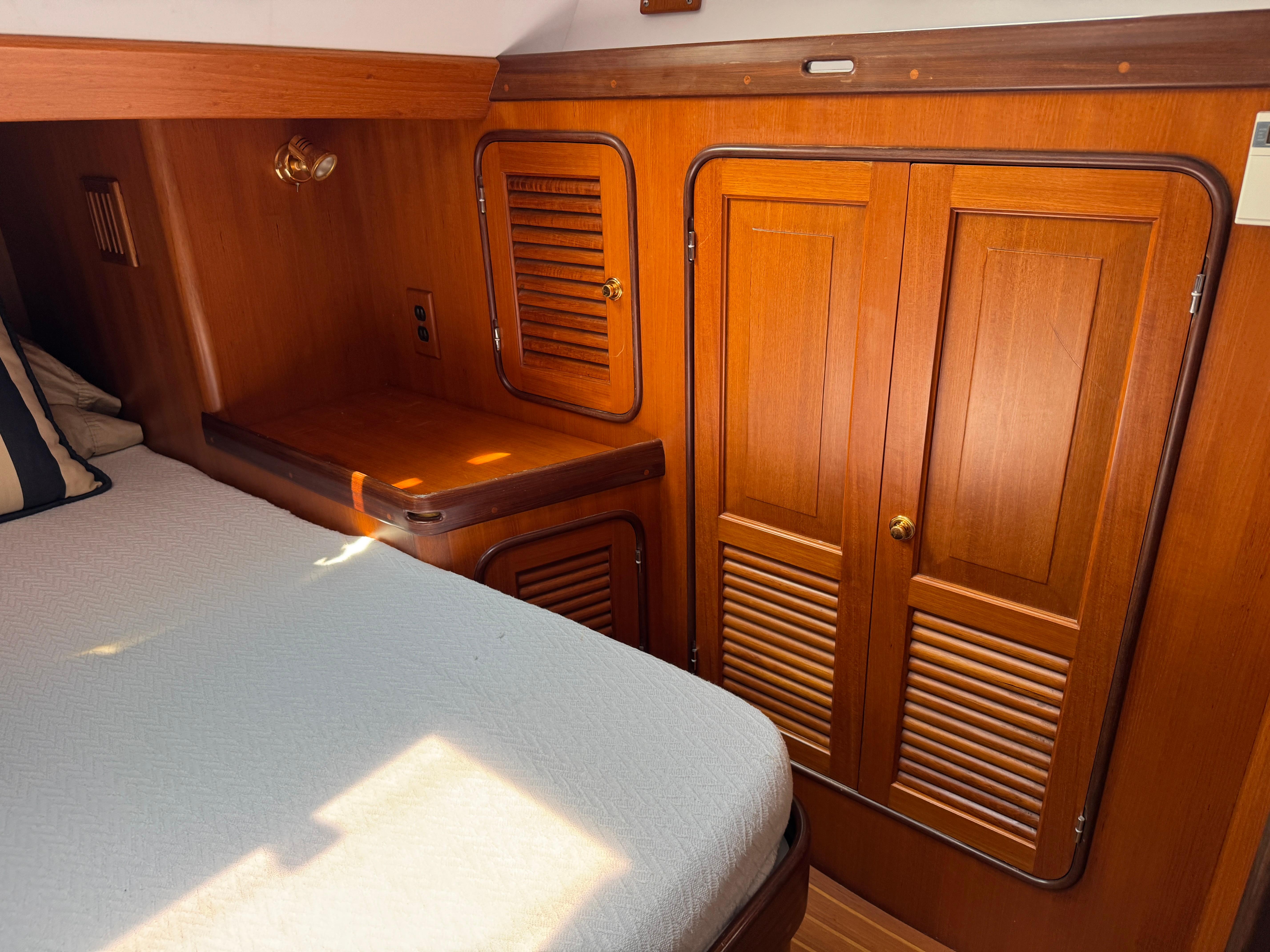

- Owner's stateroom aft with centerline queen.

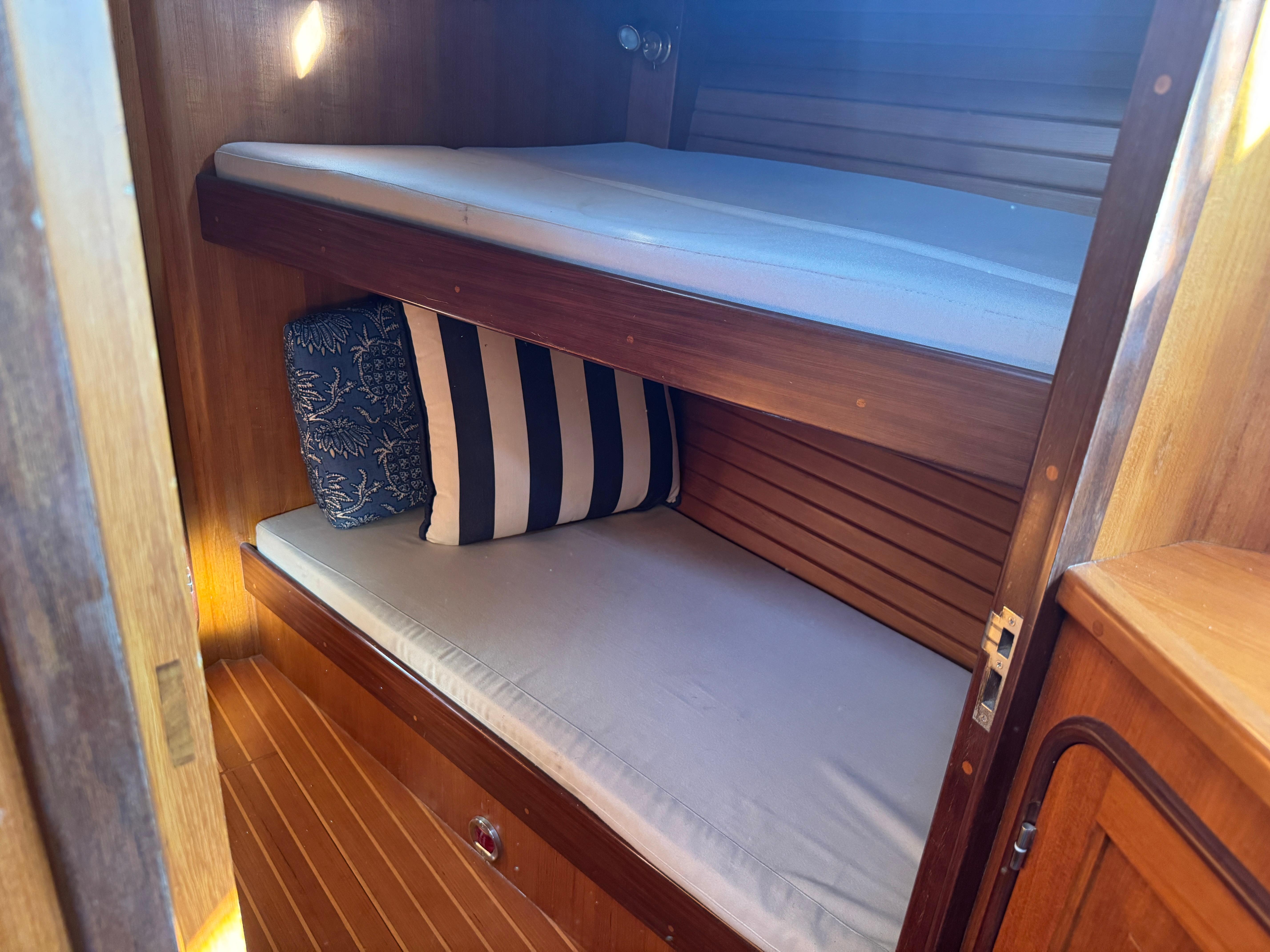

- Portside amidships stateroom with over/under bunk beds.

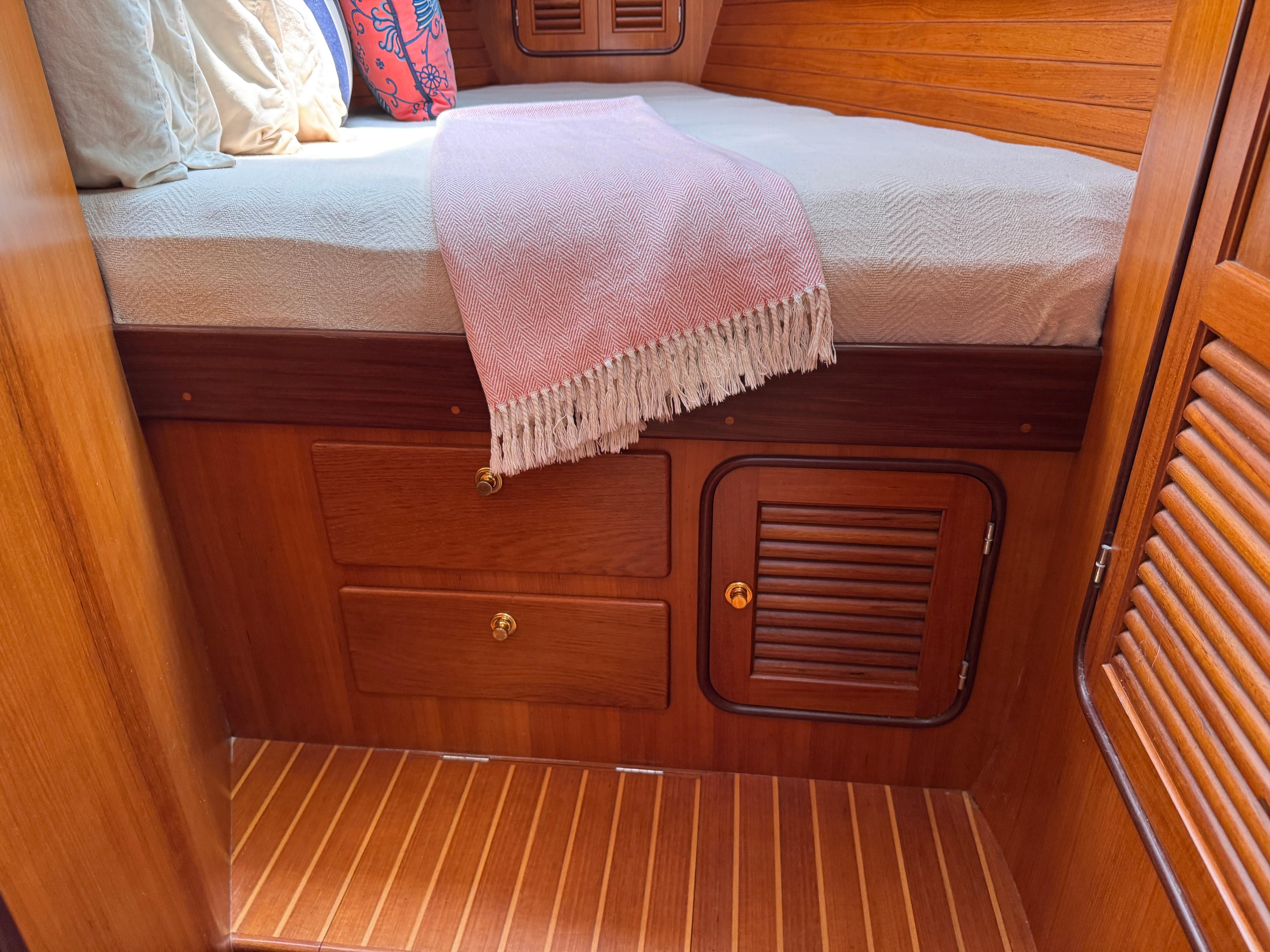

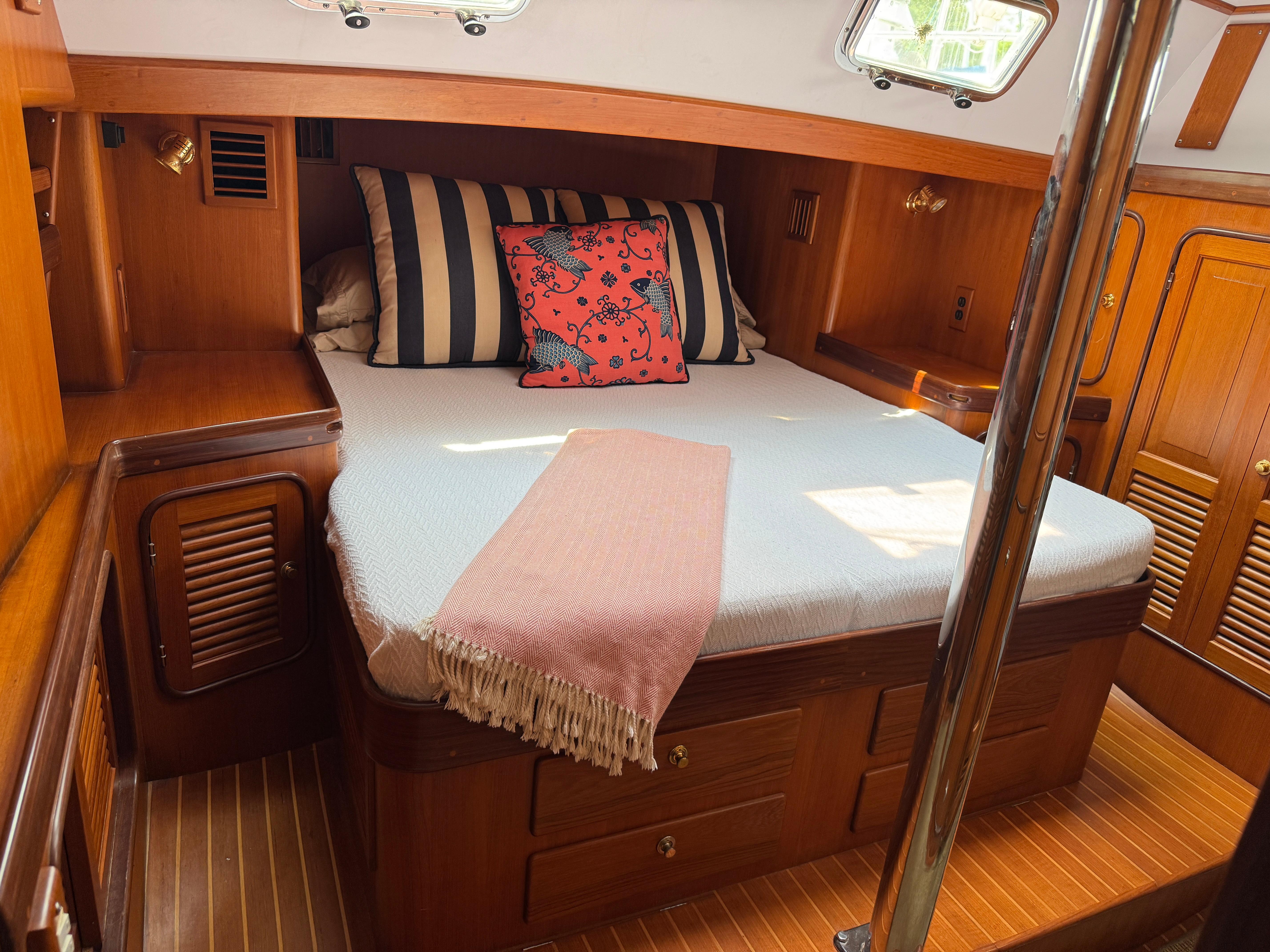

- Guest stateroom forward with queen centerline v-berth.
- All bulkheads are of marine grade plywood with compression fillets against hull sides.
- Teak veneer and solid teak trim on all interior bulkheads and cabinetry.
- Teak beveled cabin doors with louvers.

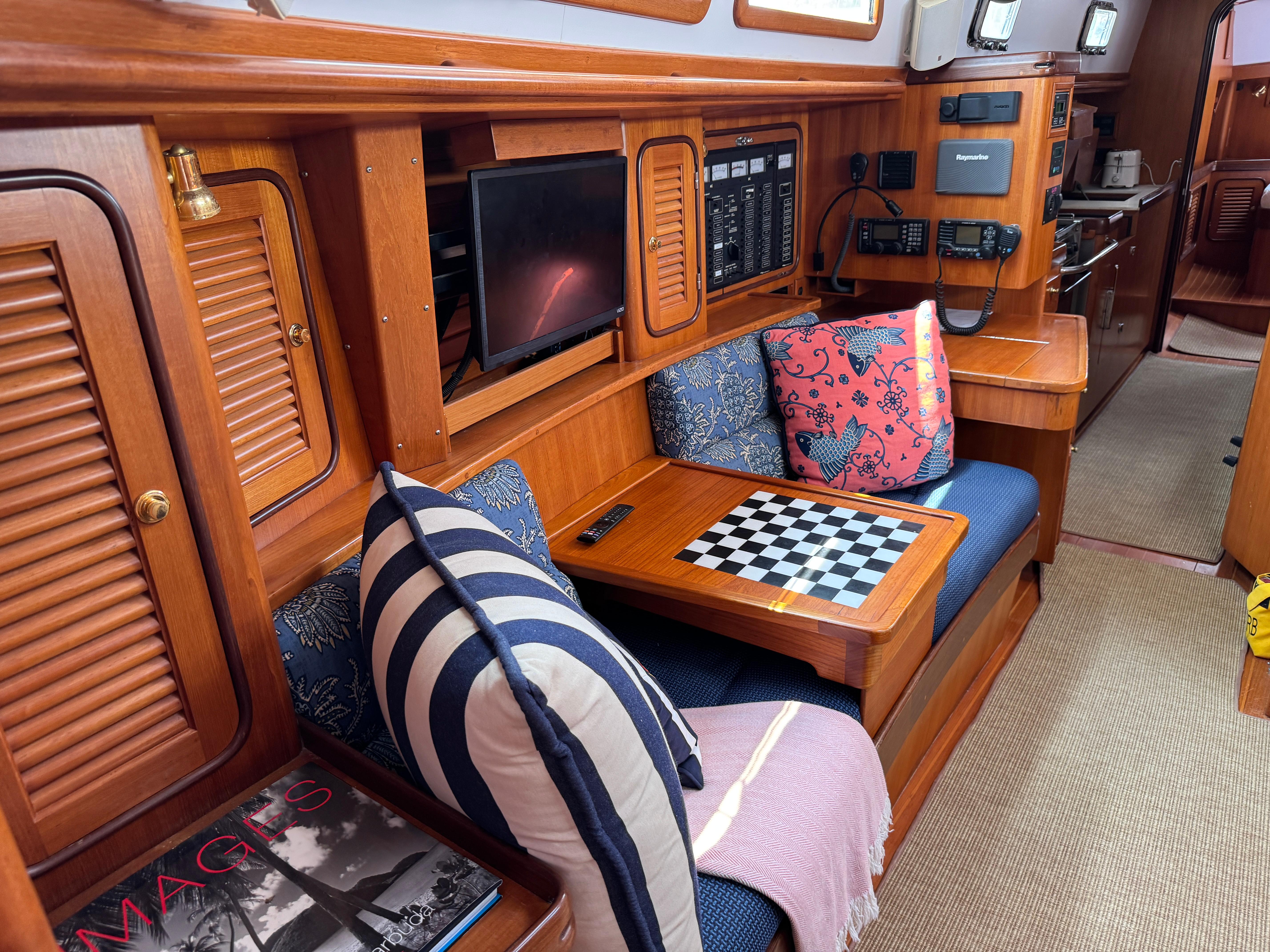

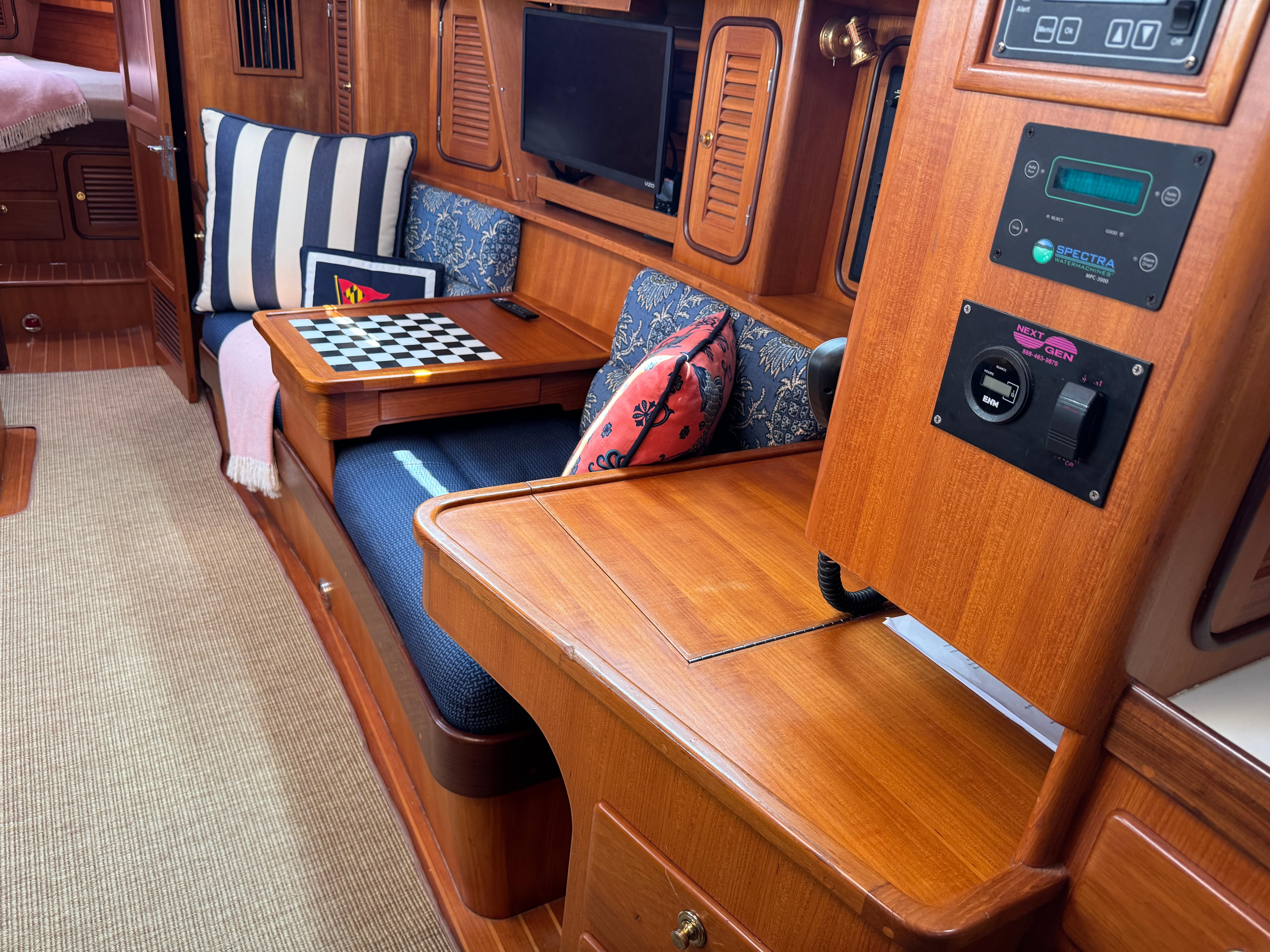

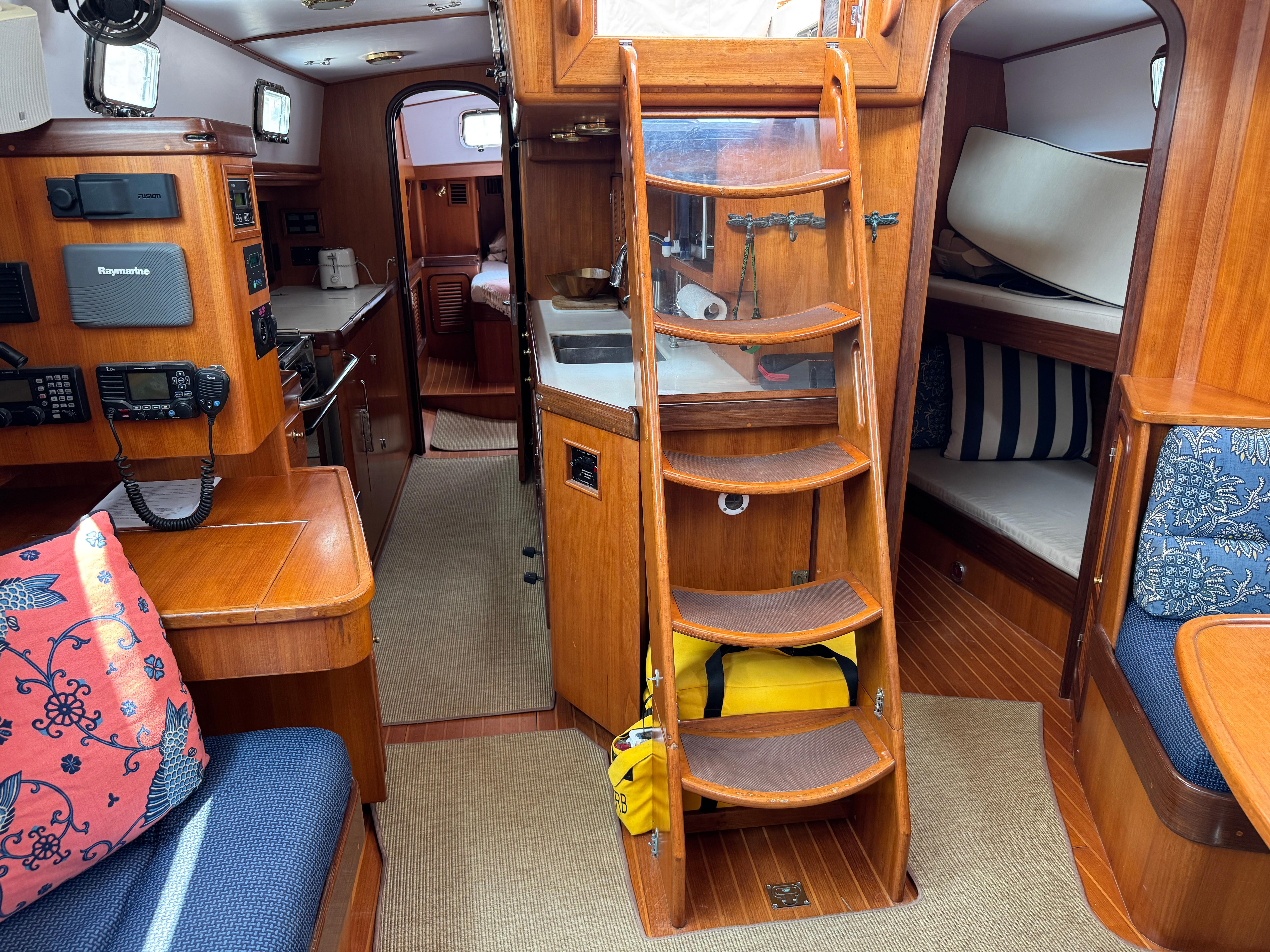

- Custom teak navigation station.

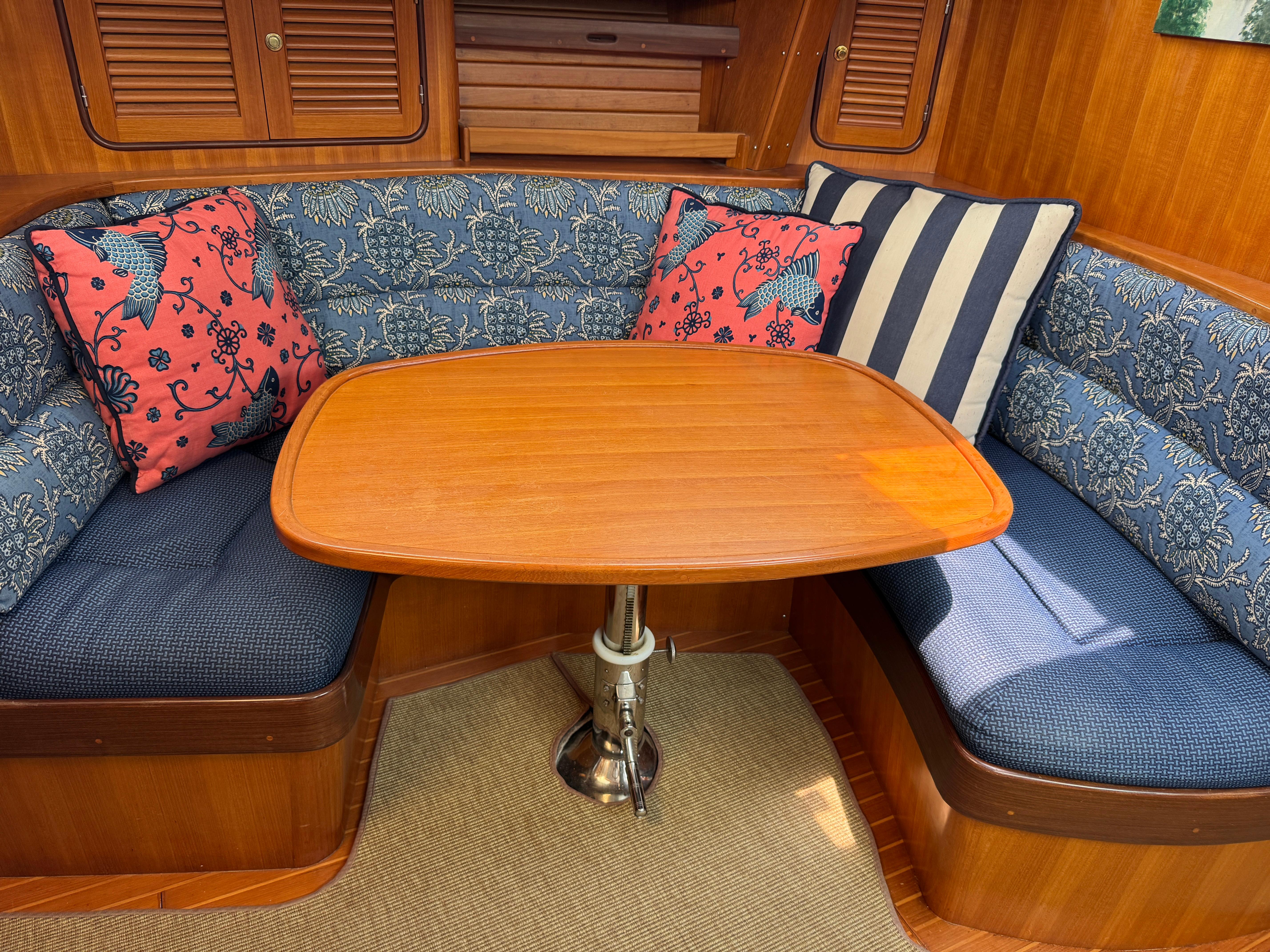

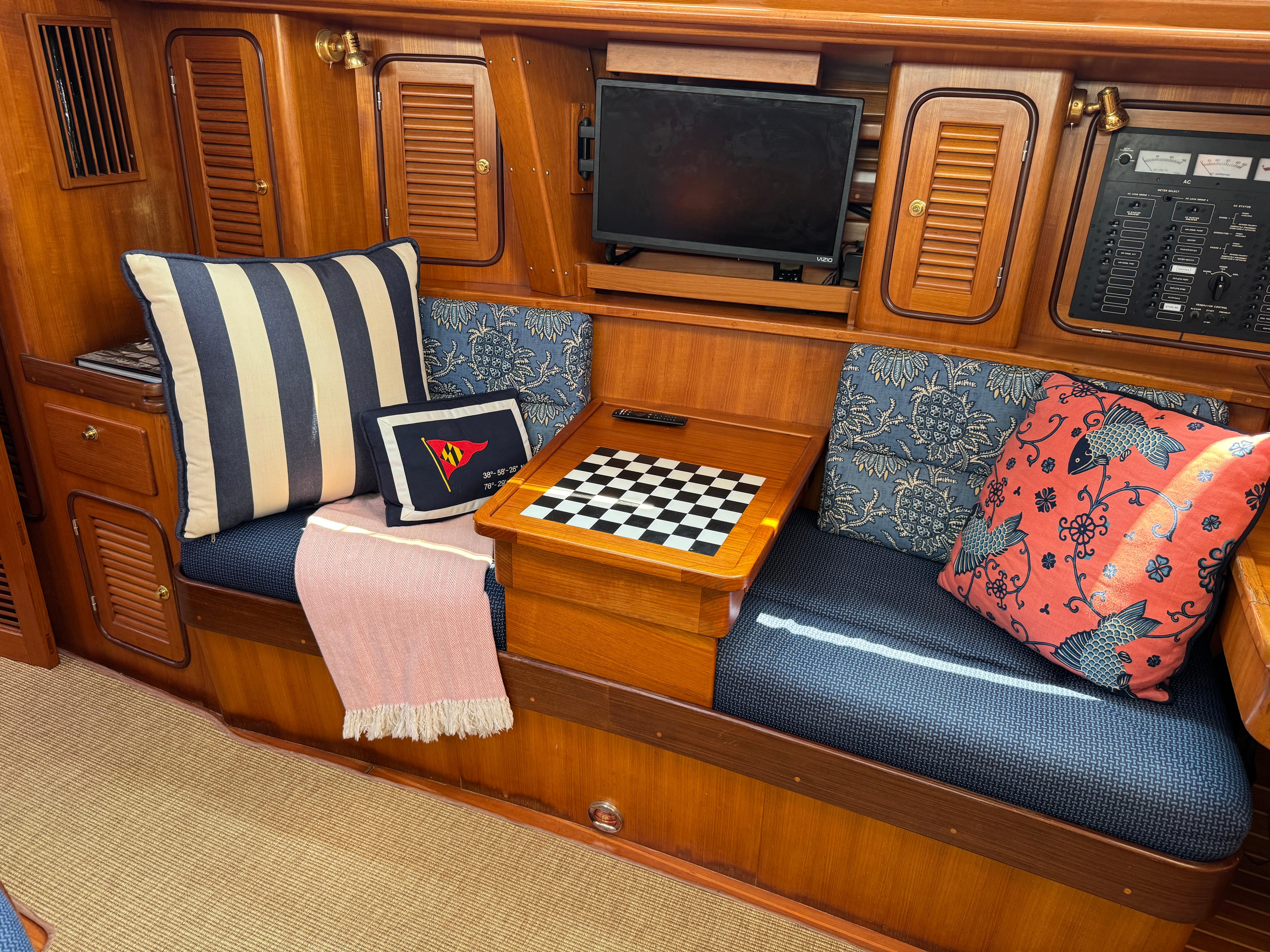

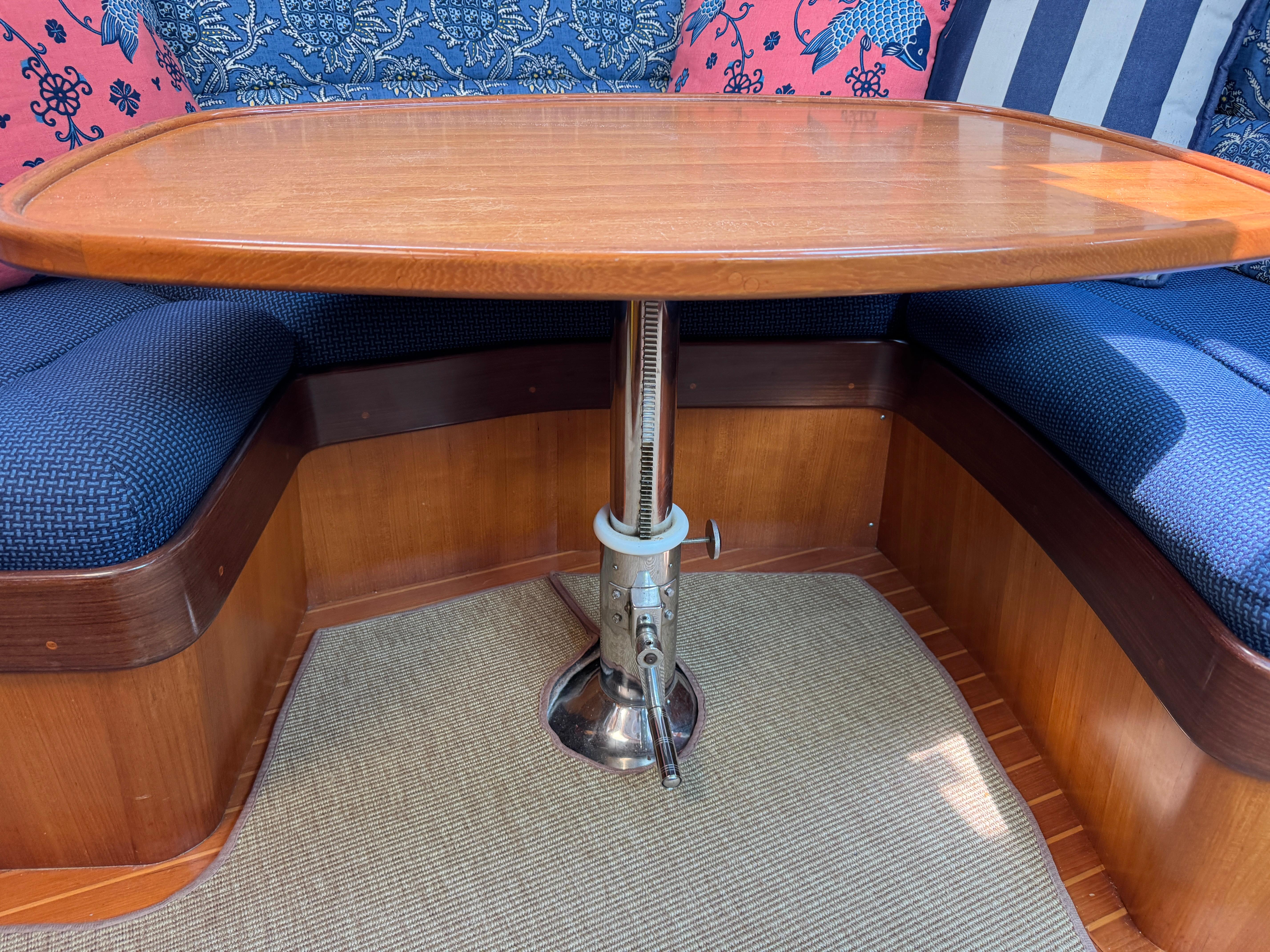

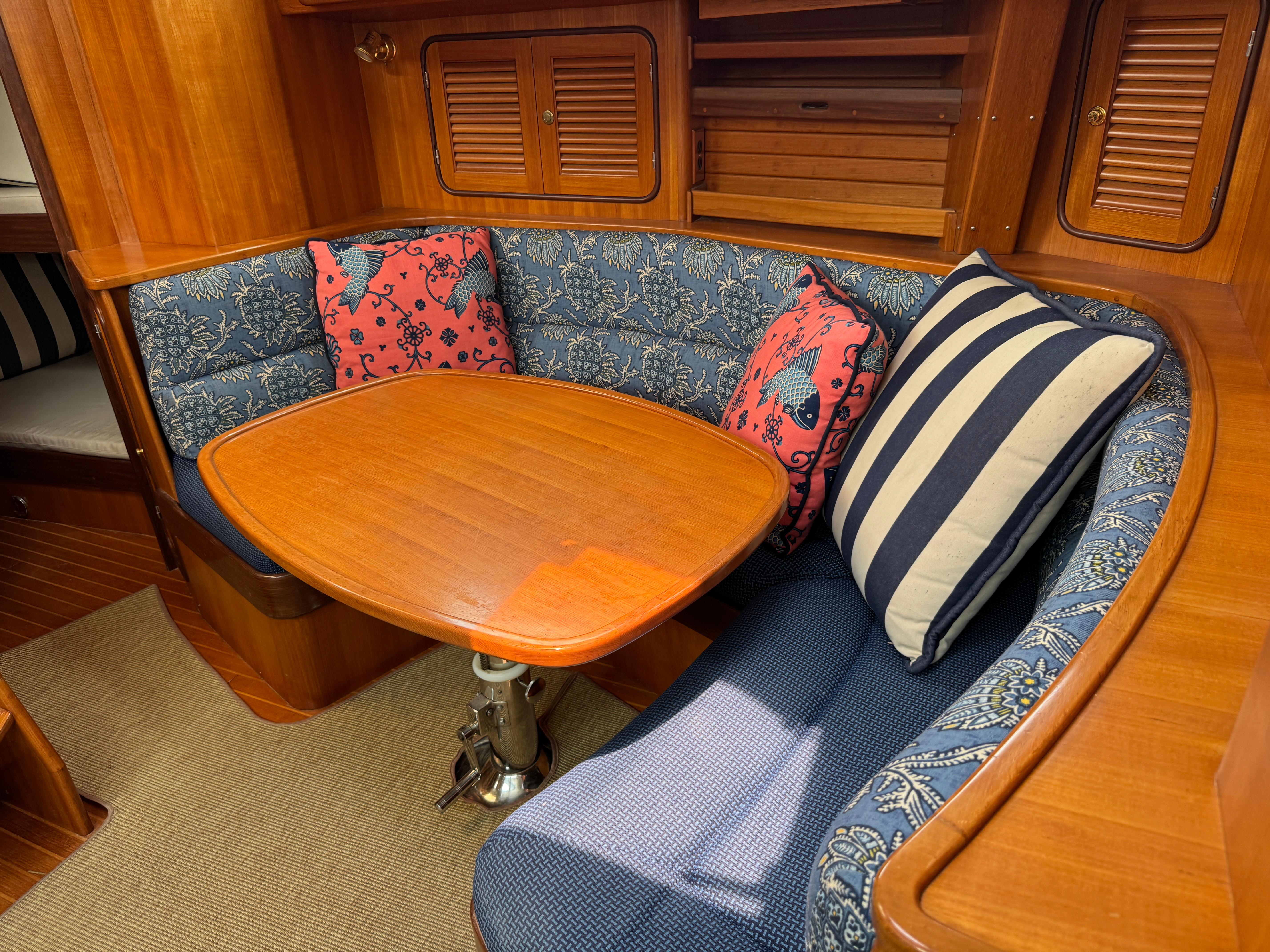

- Teak dinette table.
- Teak ceilings on exposed hull sides.
- Teak handrails port and starboard.
- Removable Formica overhead with teak battens.
- Solid teak and holly cabin sole.
- Numerous removable, locking floorboards with stainless steel hardware.
- Brass hardware on all lockers, doors, and cabinets.
- Corian countertops in galley and heads with stainless steel sinks.
- A medicine cabinet in each head.
- New (2024) Custom upholstery using indoor/outdoor fabrics.
- Complete linens and pillows for all bunks
- Complete set of towels, hand towels, washcloths, bath mats.
- New (2024) rugs throughout.

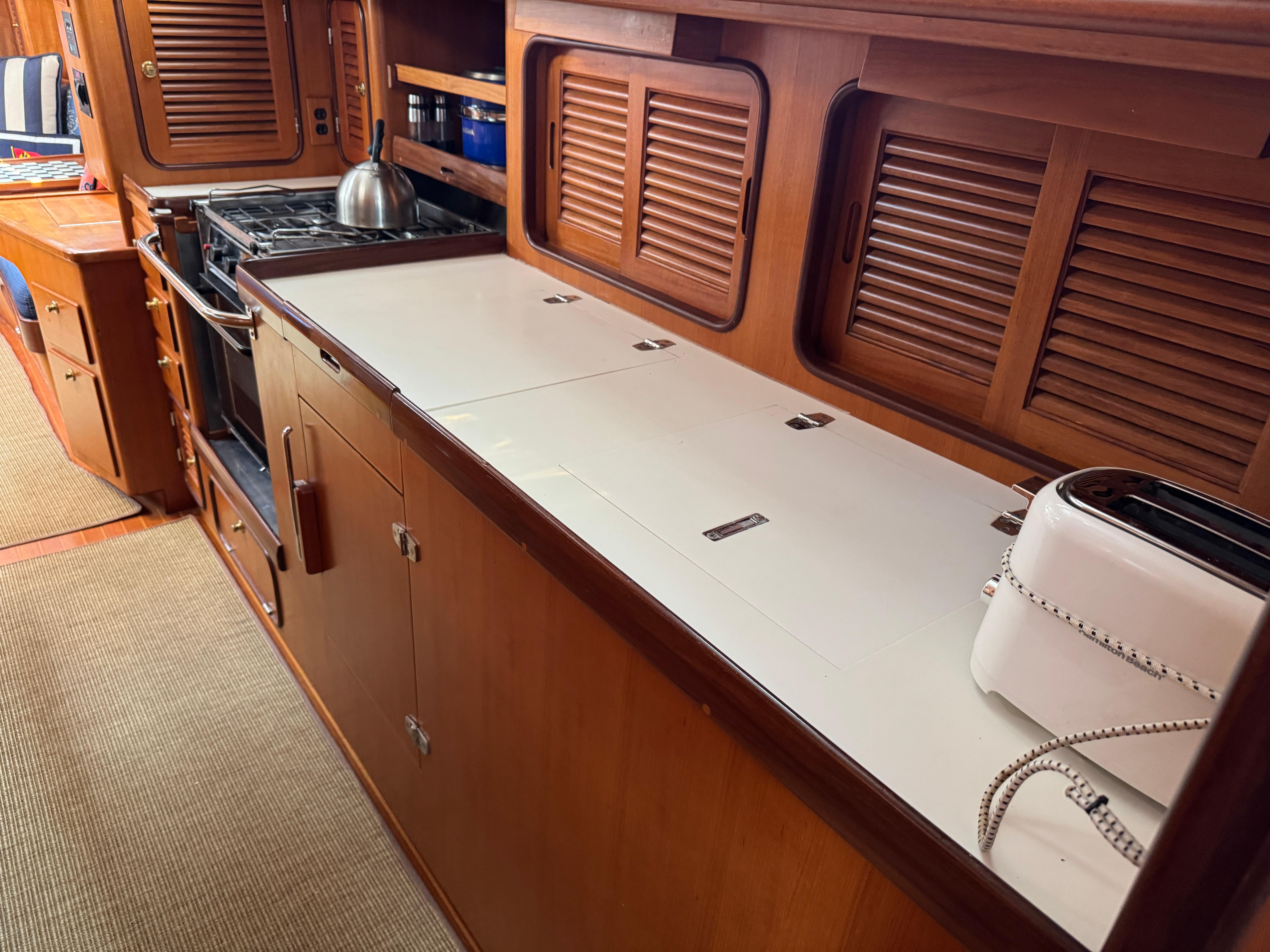

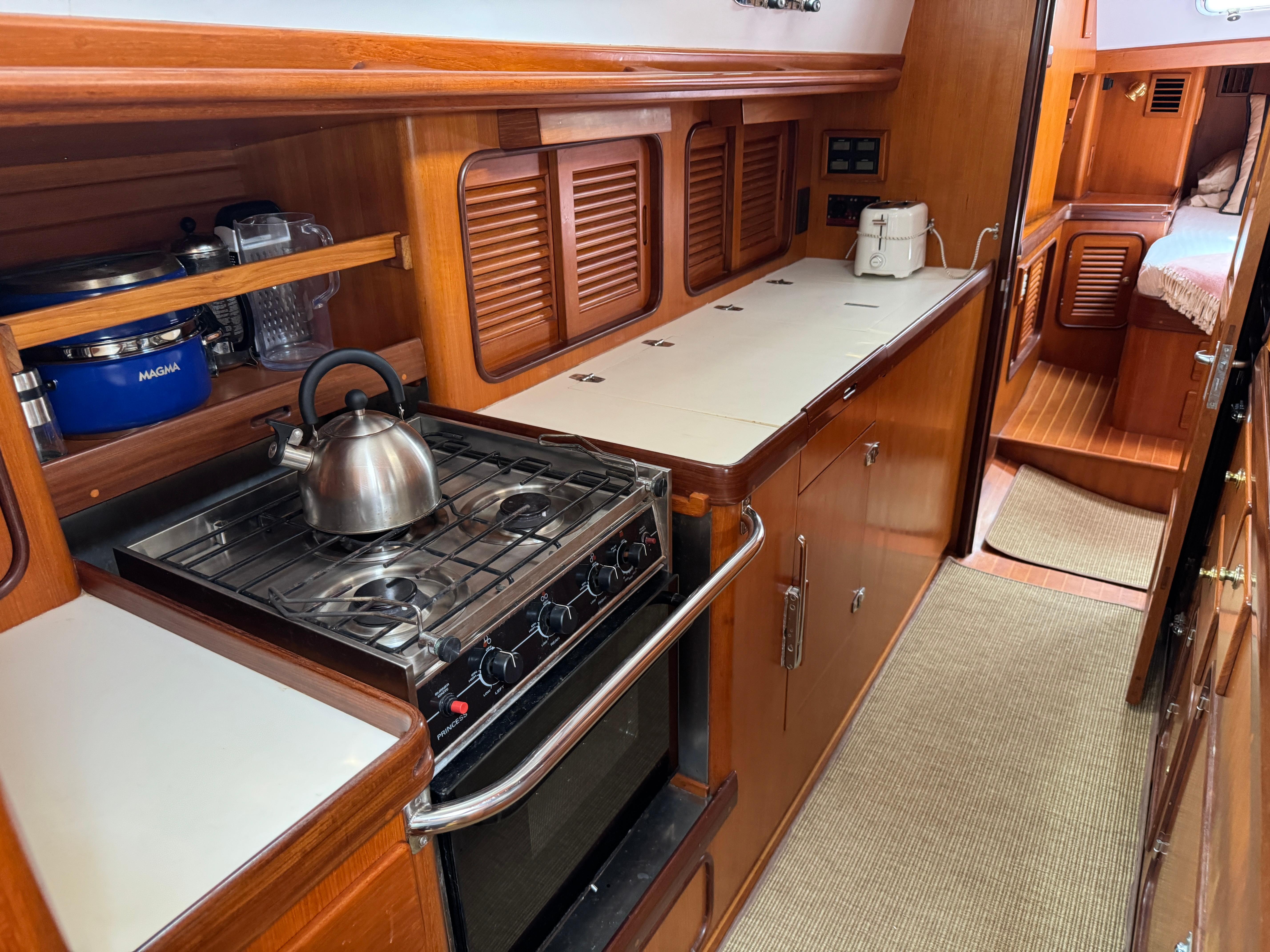

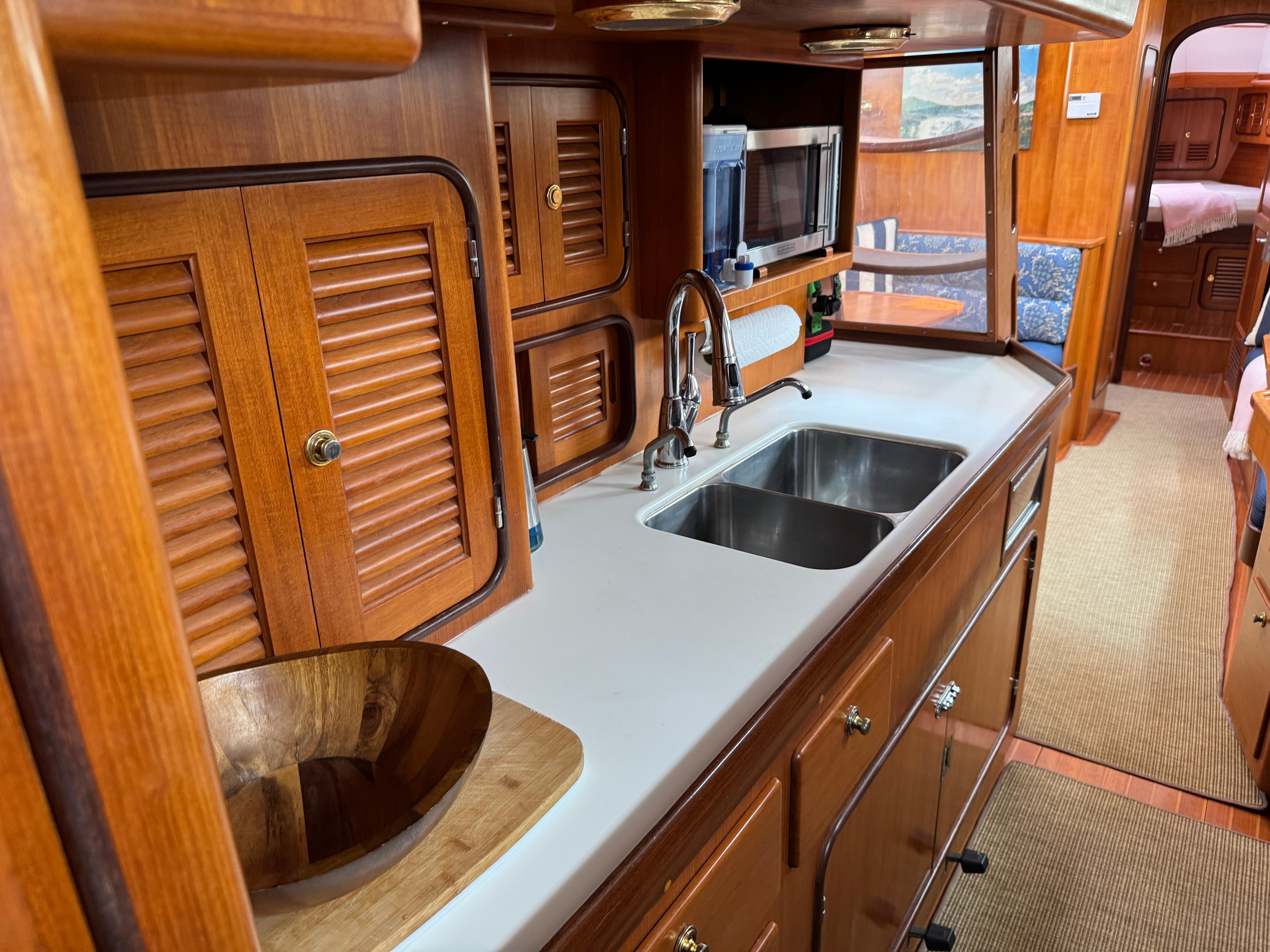

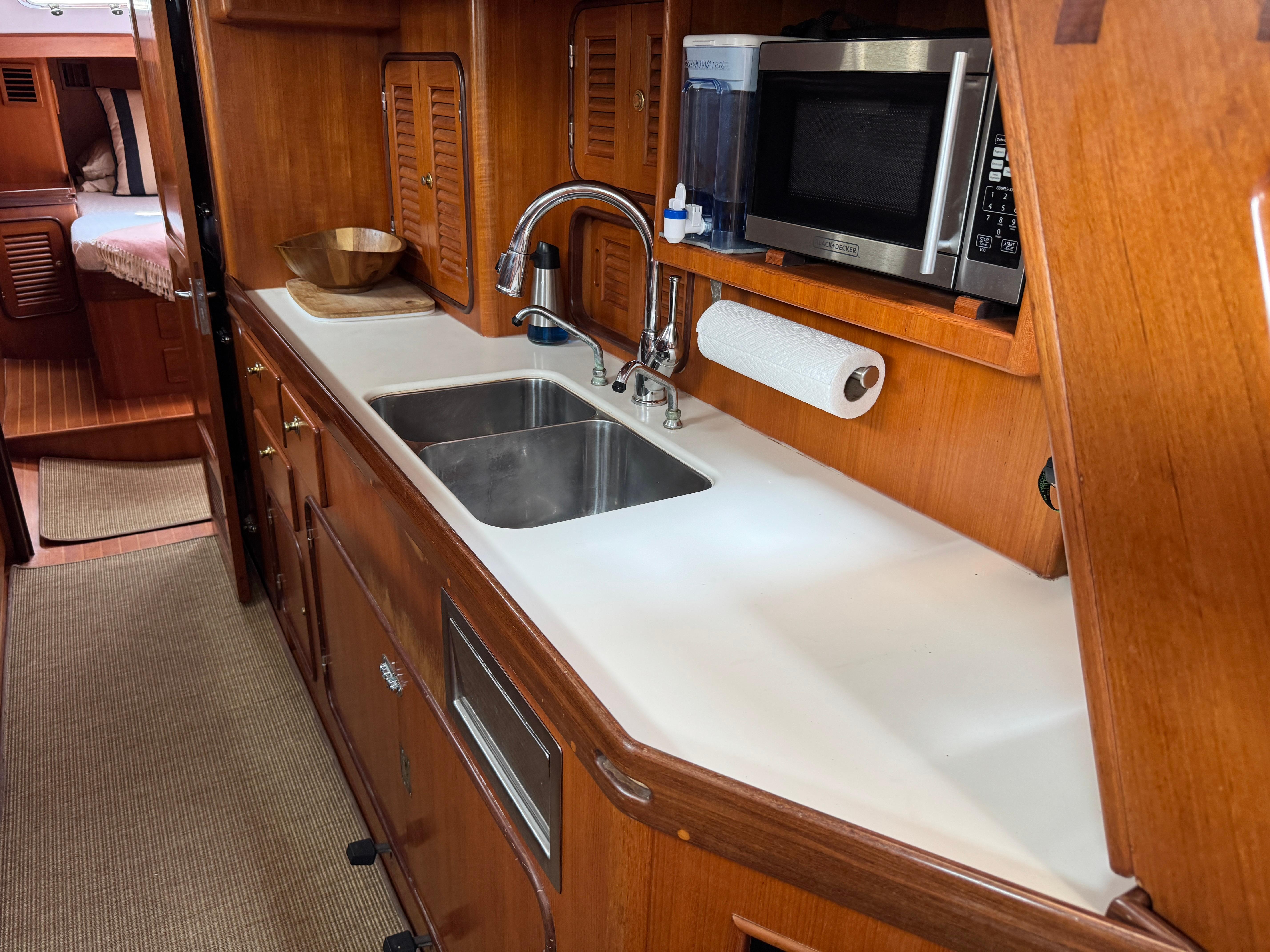

Galley - Walk thru galley to starboard.
- Seafrost 12v Refrigerator and Freezer systems.
- Poured foam insulated refrigerator and freezer compartments.
- Top and front opening access to the refrigerator compartment.
- Three-burner stainless steel propane stove with oven.
- Stainless steel lined stove area.
- Stainless steel stove safety bar.
- Safety LPG panel with a solenoid.
- Two aluminum propane tanks in self-draining deck locker.
- Custom deep double stainless steel sinks.
- Corian counter tops.
- Built-in microwave oven.
- Trash bin.
- Numerous drawers, lockers and dry storage bins.
- Altair comes with a complete set to glasses, plates and cookware.

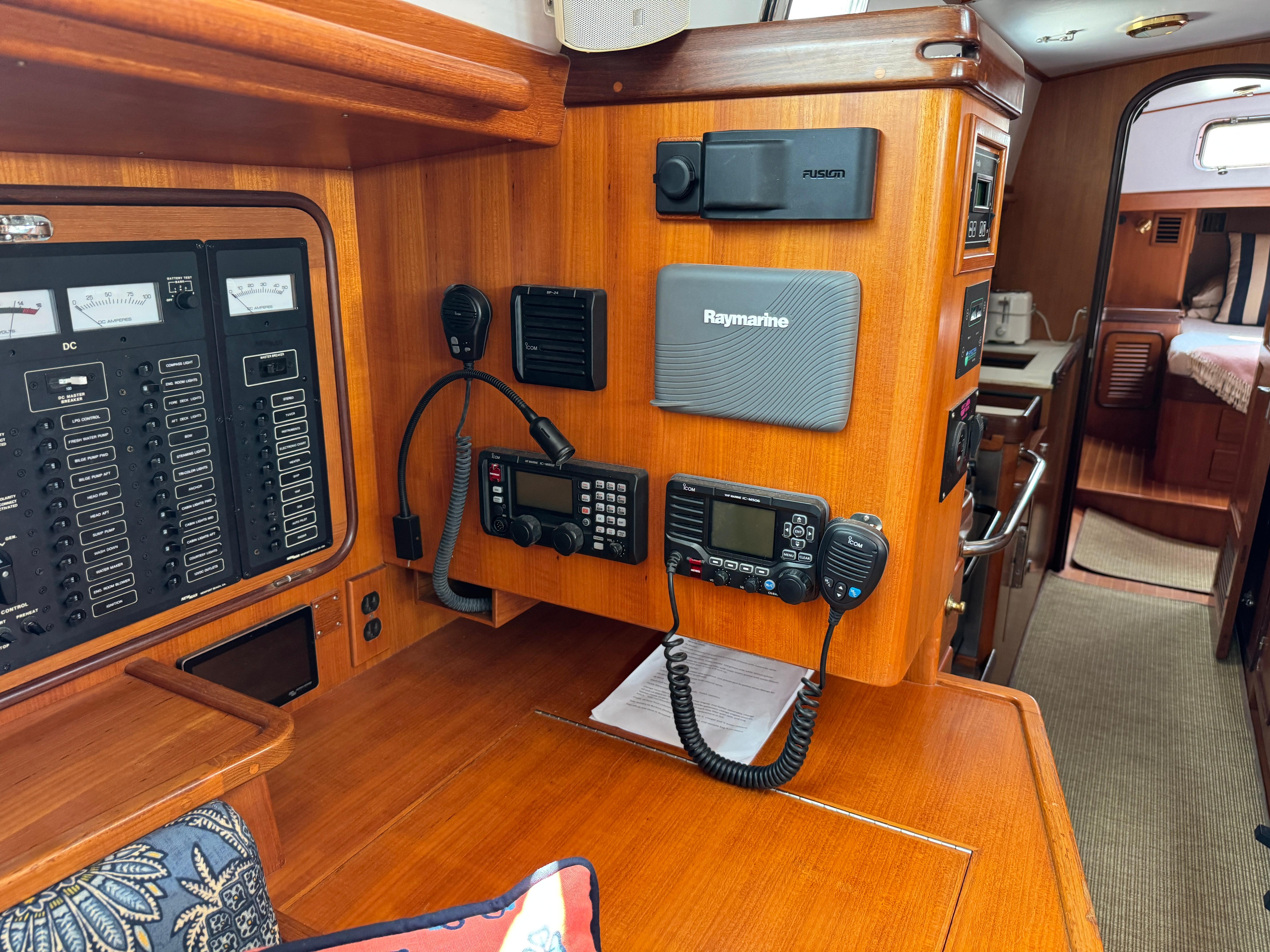

Electronics and Navigation - Raymarine i70 sailing instruments [depth, speed, and wind] (2014).
- Raymarine Evolution EV-400 Autopilot w/ hydraulic linear drive (2014).
- Raymarine E125 Chartplotter at the helm (2014).

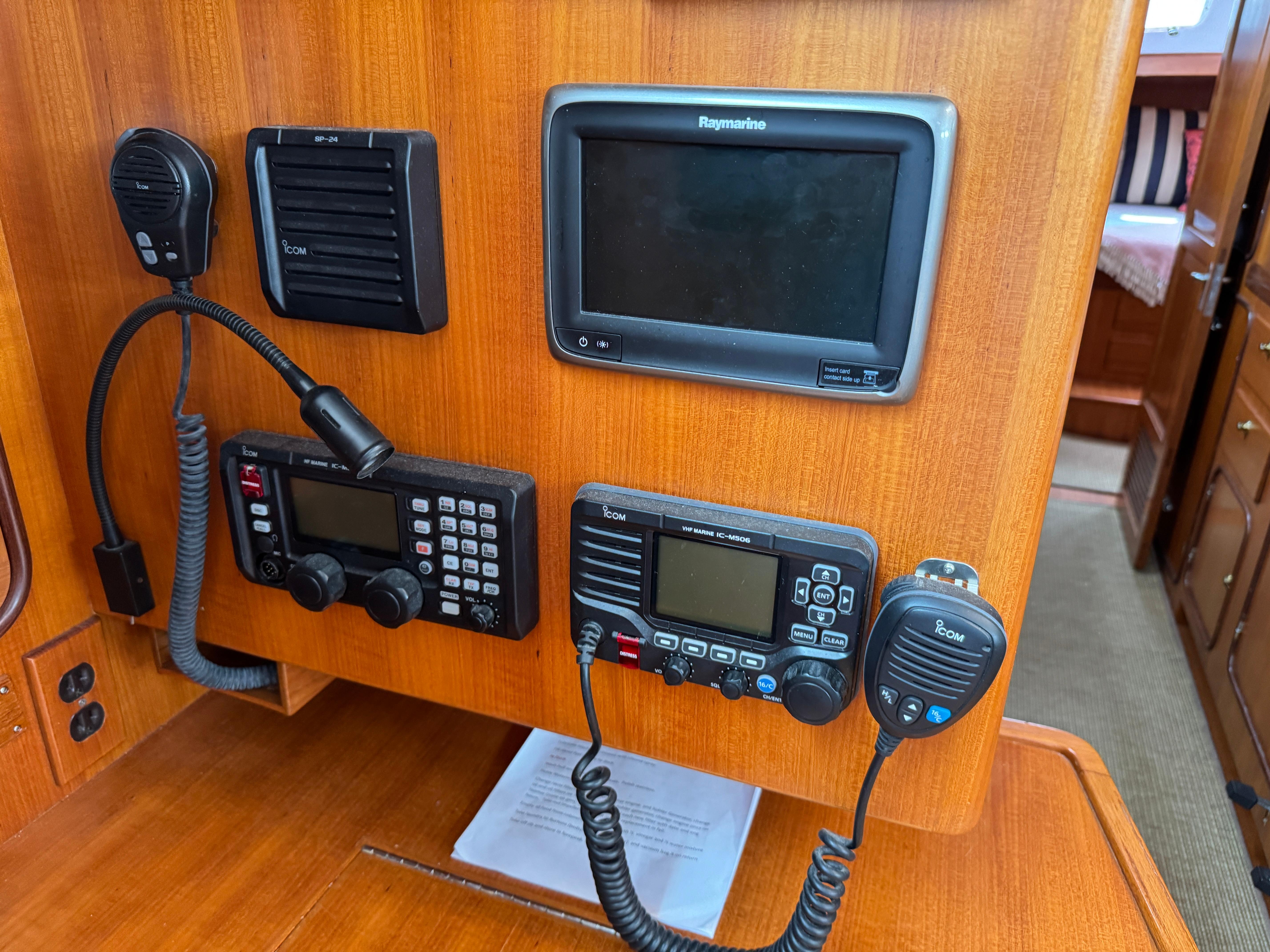

- Raymarine a75 Chartplotter at the Nav station (2014).
- Raymarine 650 AIS transceiver (2014).
- Raymarine GPS 130 external antenna (2104).
- Raymarine digital 4kw Radar scanner (2014).
- Icom M802 SSB radio with Icom AT-140 auto tuner (2014).
- Icom M506 VHF radio at chart table (2014).
- Icom M412 in the cockpit with masthead mounted antenna (2014).
- Ritchie 5" pedestal mounted compass with cover.
- New (2023) Sony Stereo with speakers in main cabin and cockpit.
- Pactor Modem (SCS PTC-Ilex).
- Vizio TV in the main salon.
- Iridium-Go Exec portable Satellite Phone.
- Star Link satellite internet.

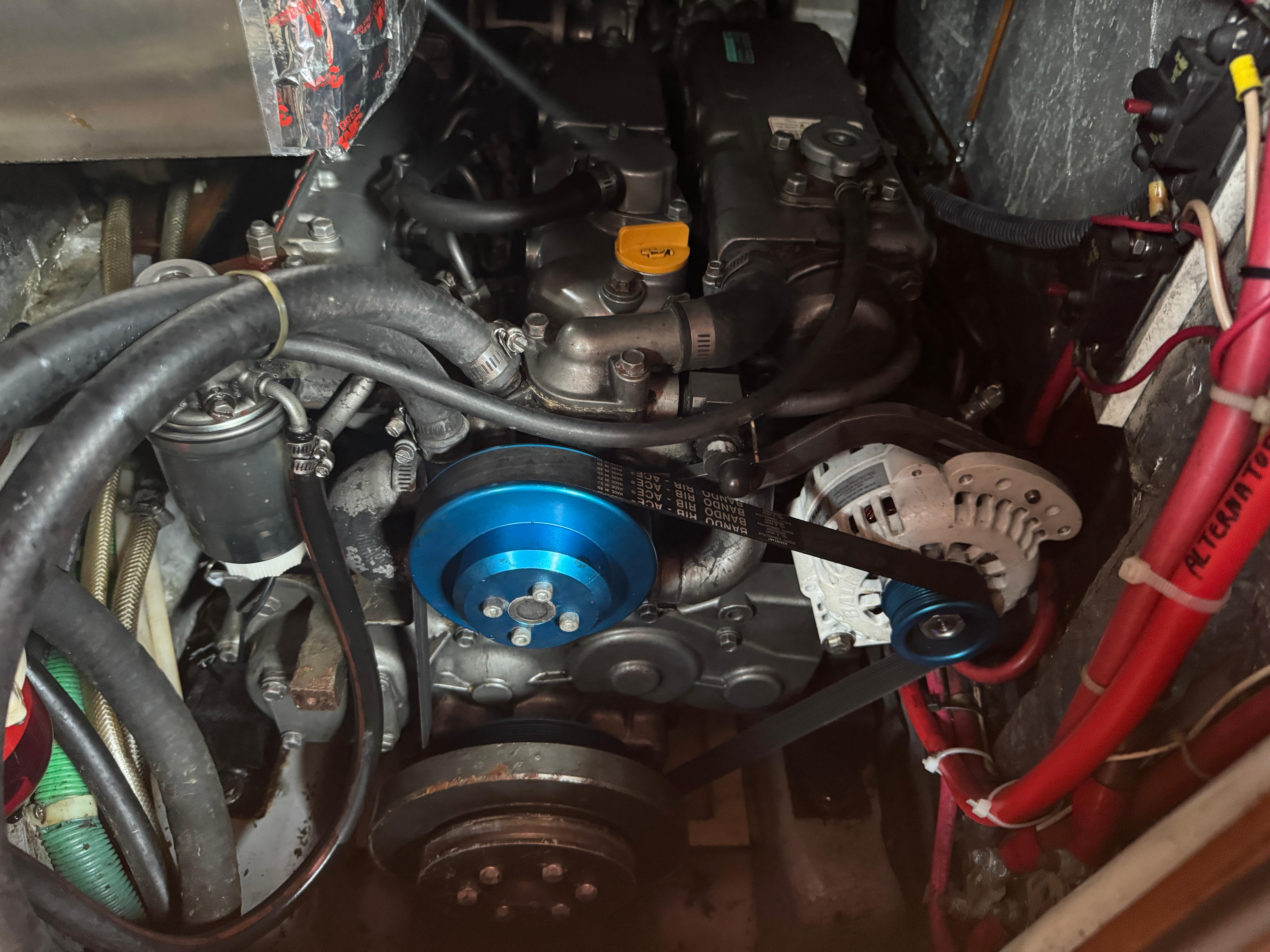

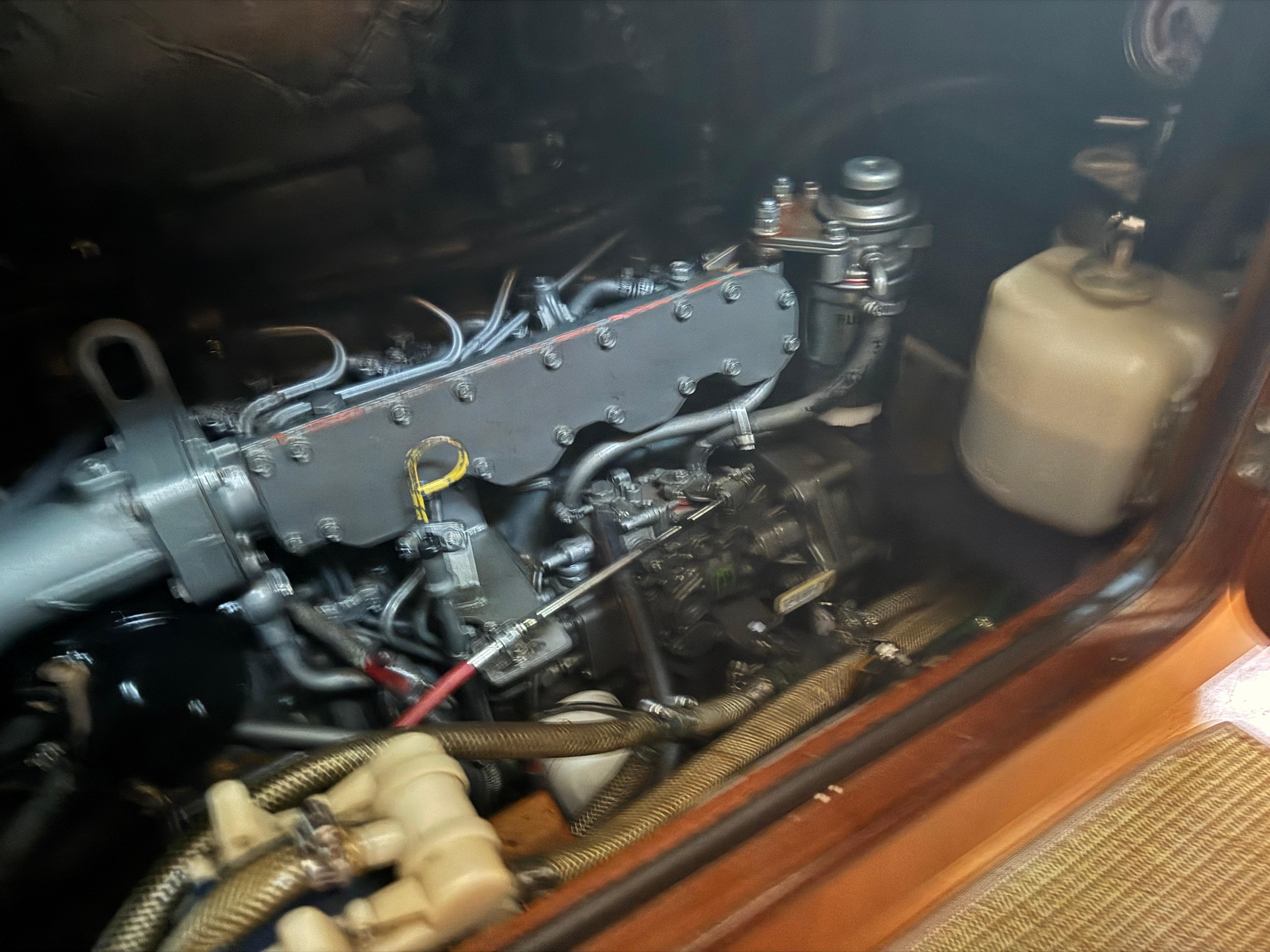

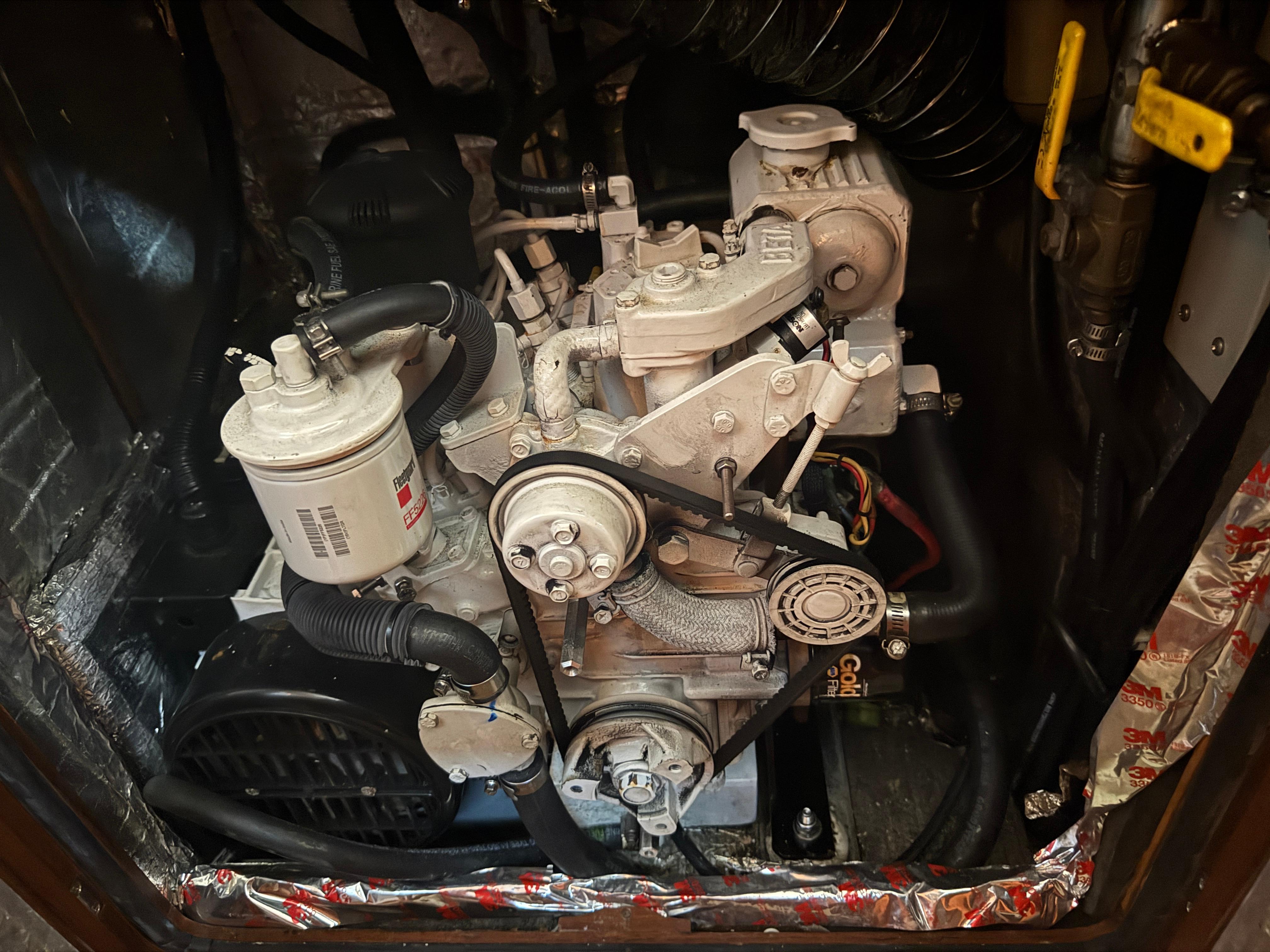

Mechanical - Yanmar 4 cylinder 4JH3-TBE 75hp marine diesel engines (3,194 hours)
- New (2022) drip-less Sureseal stuffing box.
- New (2022) cutlass bearing.
- Flexible engine mounts.
- Racor 500 FG fuel filter.
- Engine alarm systems.
- Lead foam insulated engine room.
- 12 Volt exhaust fan for the engine room.
- Raw water strainer for engine intake
- Scot Anti-siphon valve.
- Muffler/water lock system.
- Shaft strut with cutlass bearing.
- 1 1/2" stainless steel prop shaft with a three-blade 18" Max Prop
- Custom bronze stuffing box.
- Three-aluminum fuel tanks with baffles (172 gallons total)

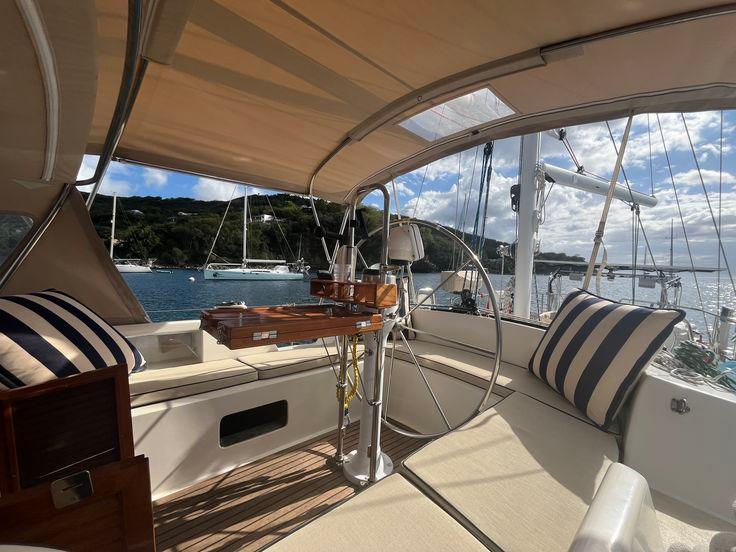

- Edson pedestal steering system with dual lever controls.
- Stainless steel "destroyer" type steering wheel.
- Emergency steering system with the tiller.
- Bronze rudder shoe.
Electrical - NextGen 5.5kw diesel generator (approx. 296 hours).
- 800 aH Relion LifeP04 lithium batteries.
- One Group 31 start battery.

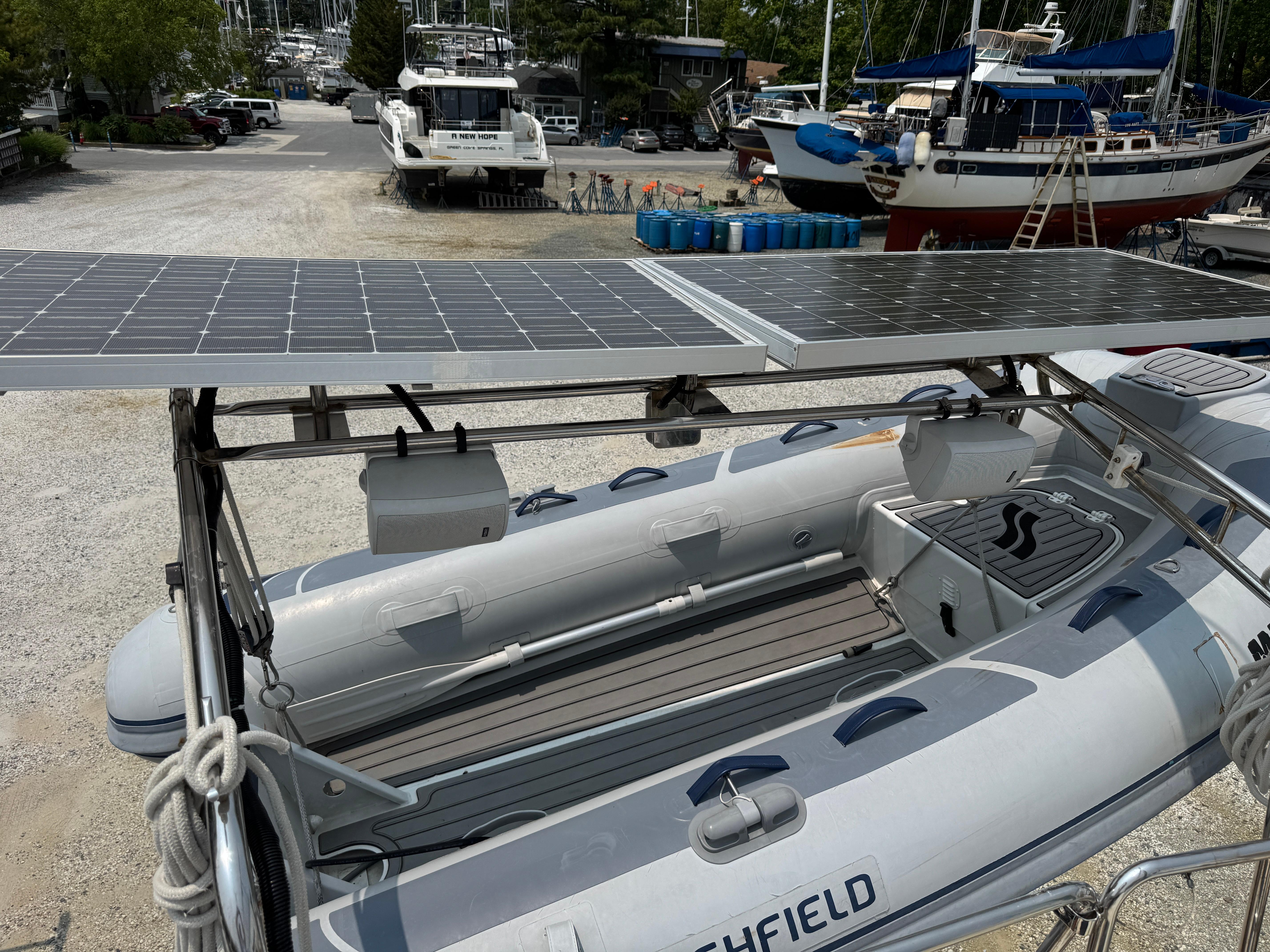

- Two 110 watt Sheil Solar panels mounted over davit.
- Kiss wind generator on Mizzen mast.

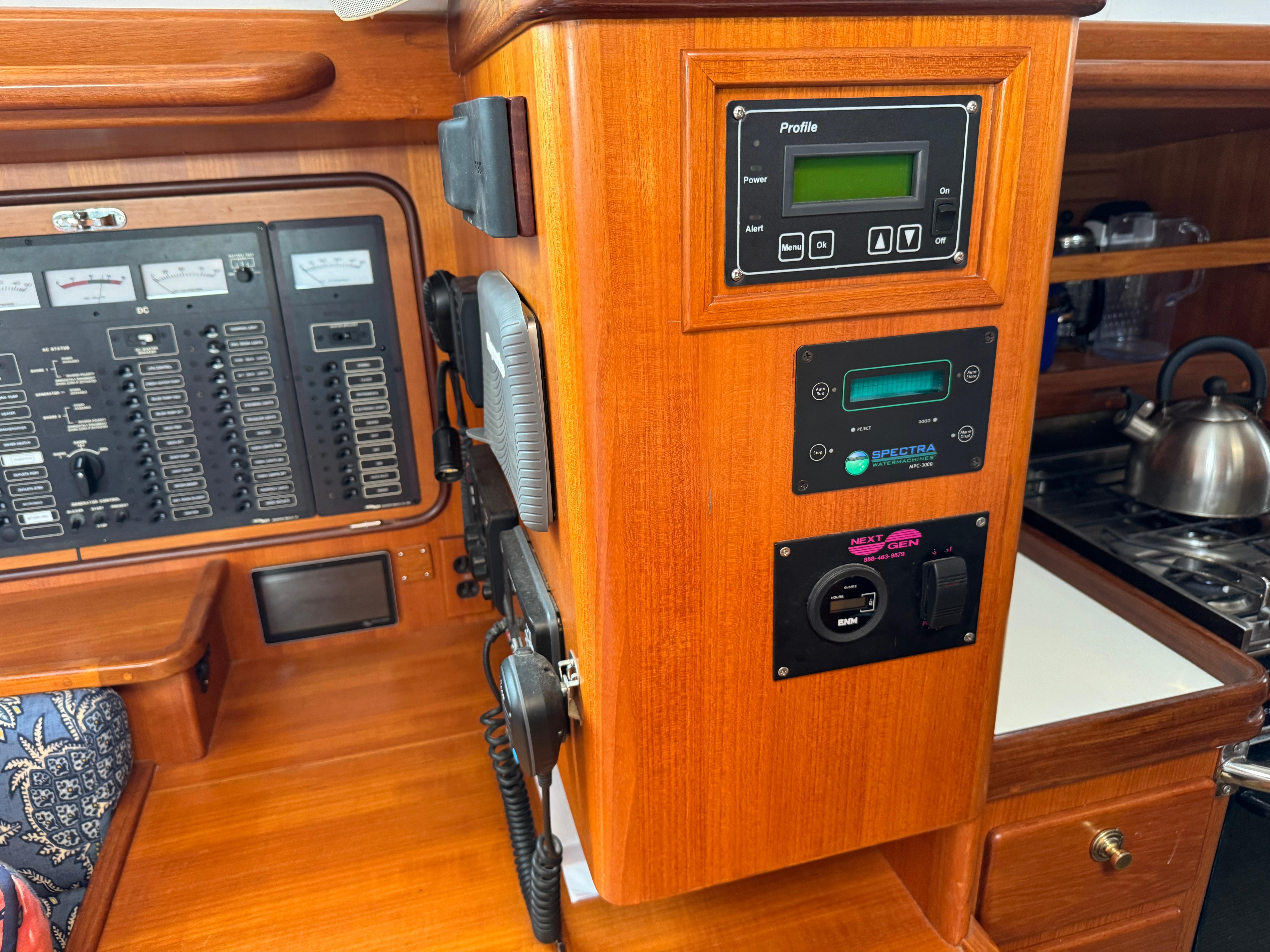

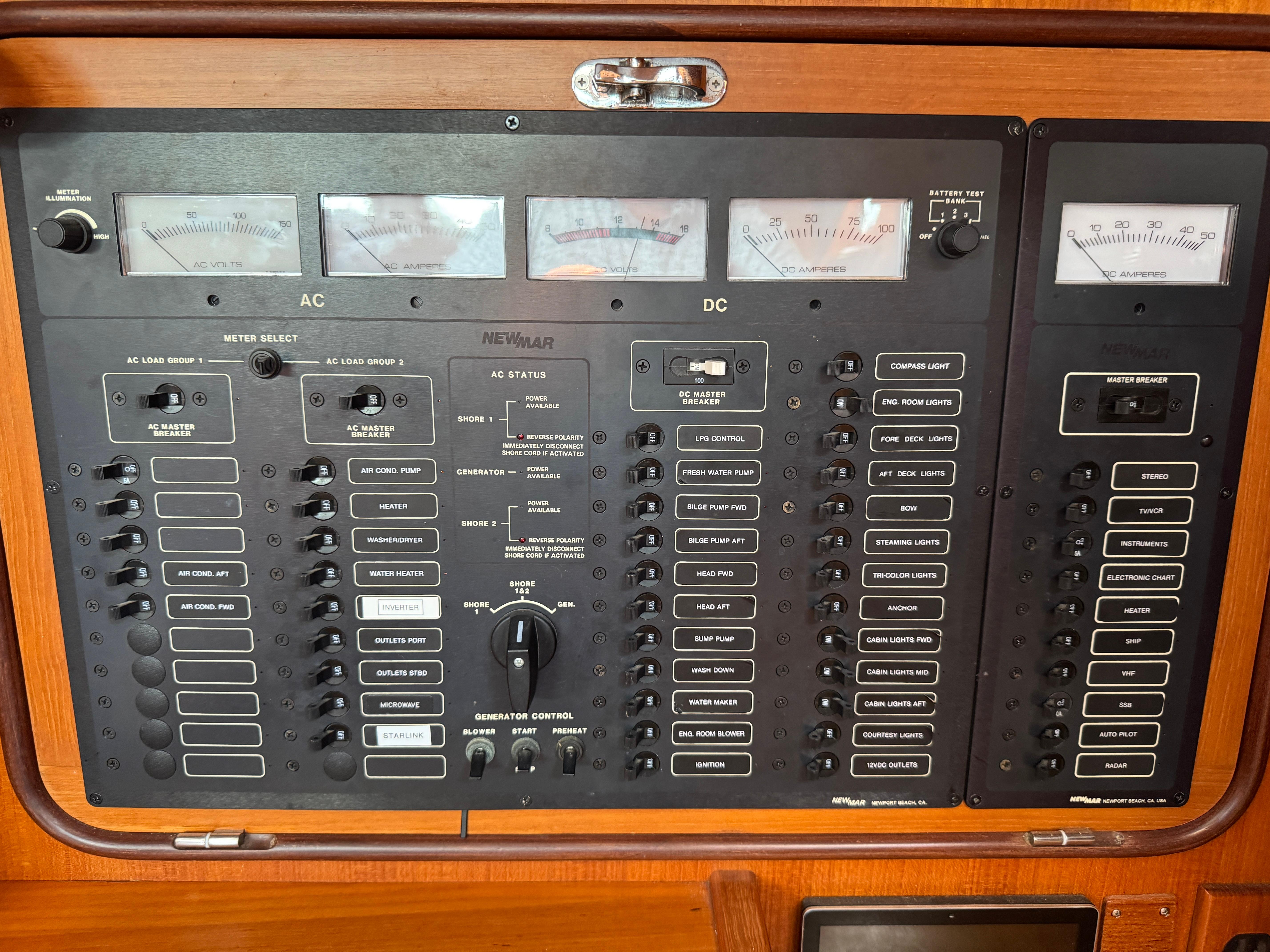

- Customized Newmar electrical panels.
- D/C panel sections include two master breakers for two load groups.
- Five gauges for A/C and D/C panels.
- 110-volt shore power system.with two 30 amp power cords
- 110-volt outlets throughout.
- 110-volt GFI outlets in both heads and galley.
- A/C and D/C electrical wiring conduits.
- Two Guest heavy-duty battery selector switches.
- Balmar 100 Amp Alternator with 3 stage regulator.
- Victron inverter/charger with remote and battery monitor
- Internal bonding system.
- Two (2) Mermaid Marine reverse cycle heat and air conditioning units.
- Numerous overhead LED cabin lights designed to the custom interior lighting plan.
- Interior red courtesy lights at floor level.
- Engine room and lazarette lights.
- Dual function chart table light.
- Running lights to international rule.
- Four 12 volt 6" cabin fans.
Plumbing - Three 93) Stainless steel water tanks with baffles plus additional flex tank (160g total)
- Eleven-gallon hot water heater (110 volt and engine driven).
- Hot and cold pressure water system.
- Spectra Catalina watermaker.
- Transom-mounted hot and cold pressure water shower.
- Two galley floor pumps, salt, and freshwater.
- Floor foot pumps in each head
- Large stainless steel double sinks in the galley.

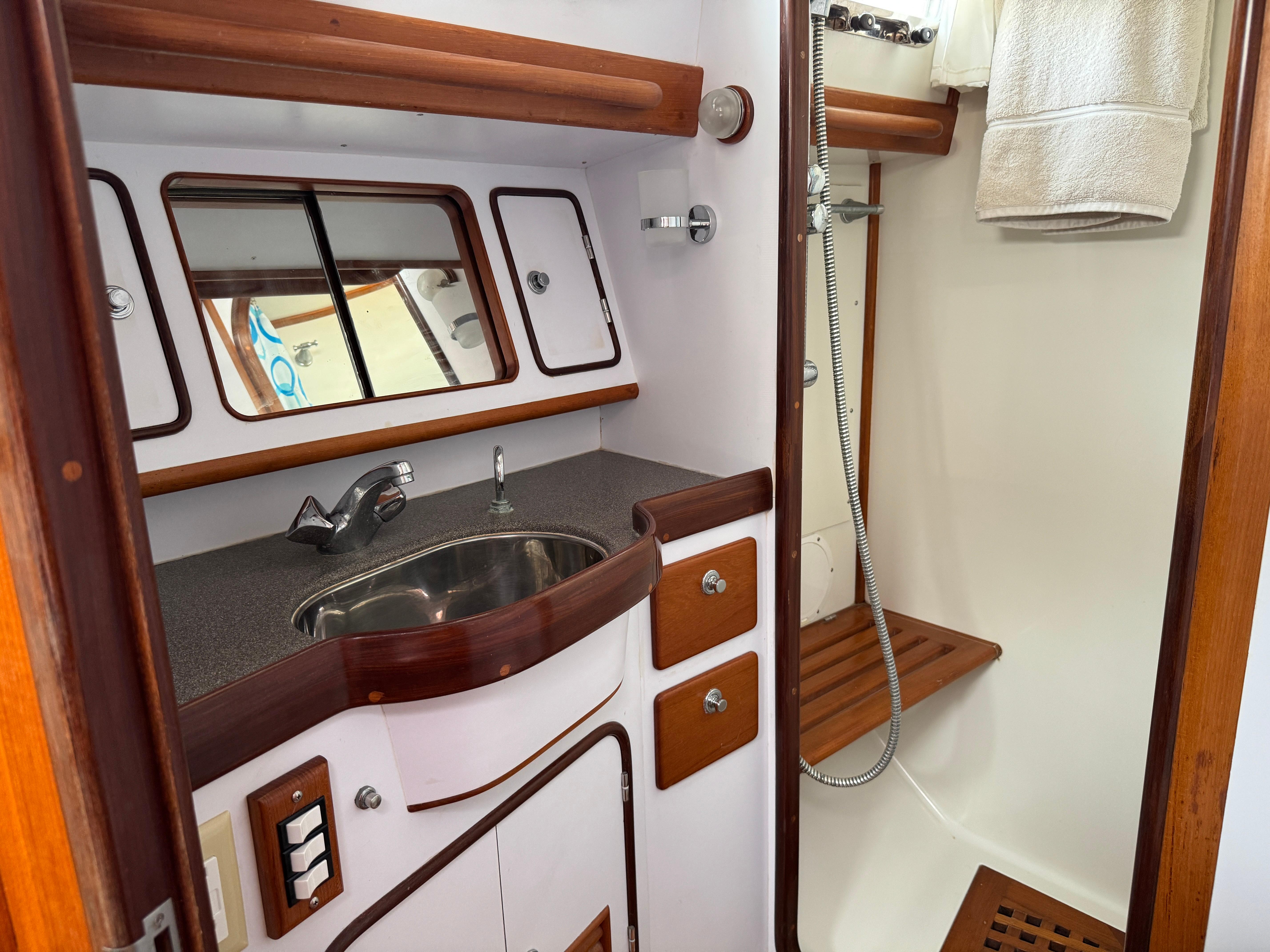

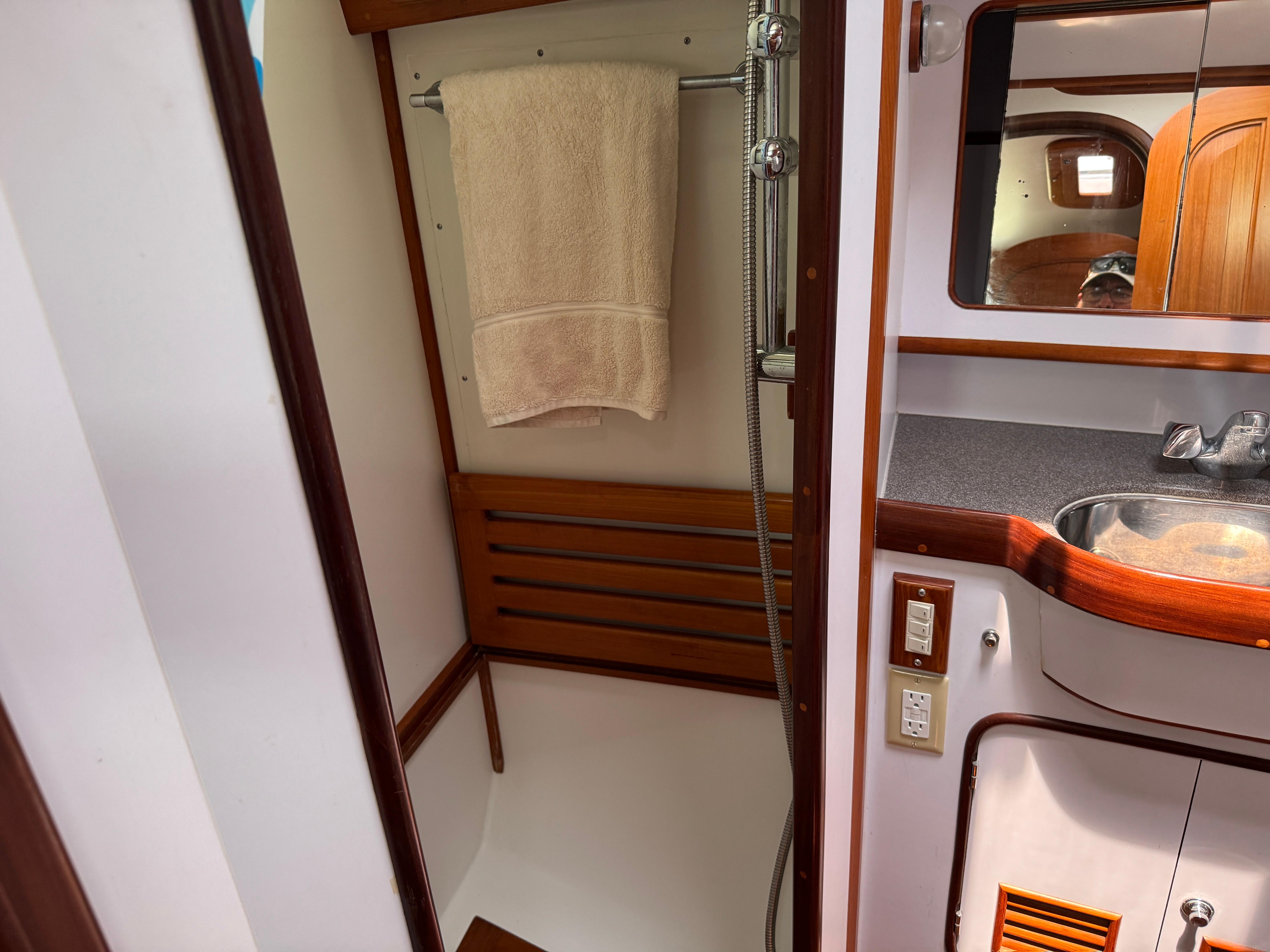

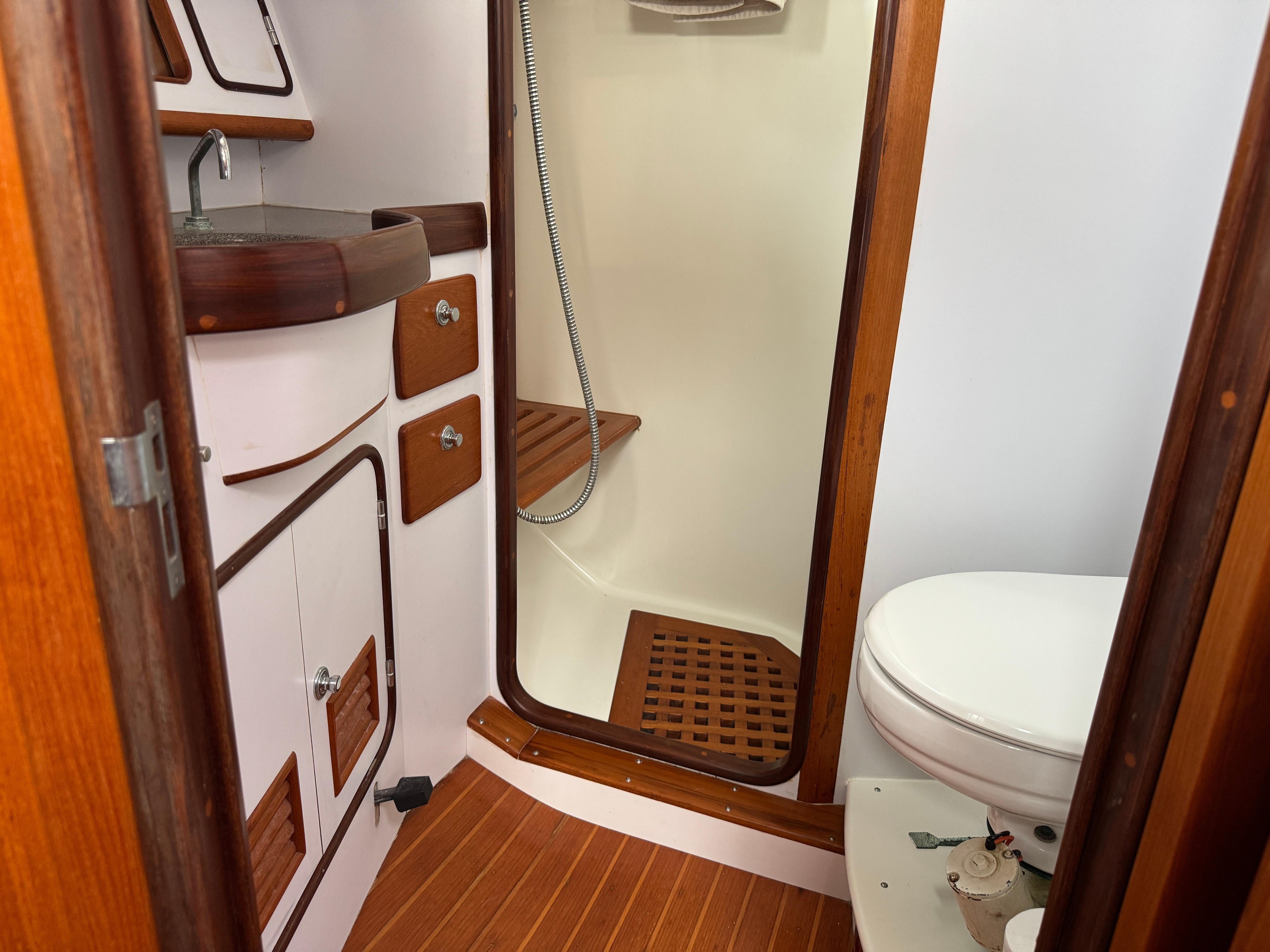

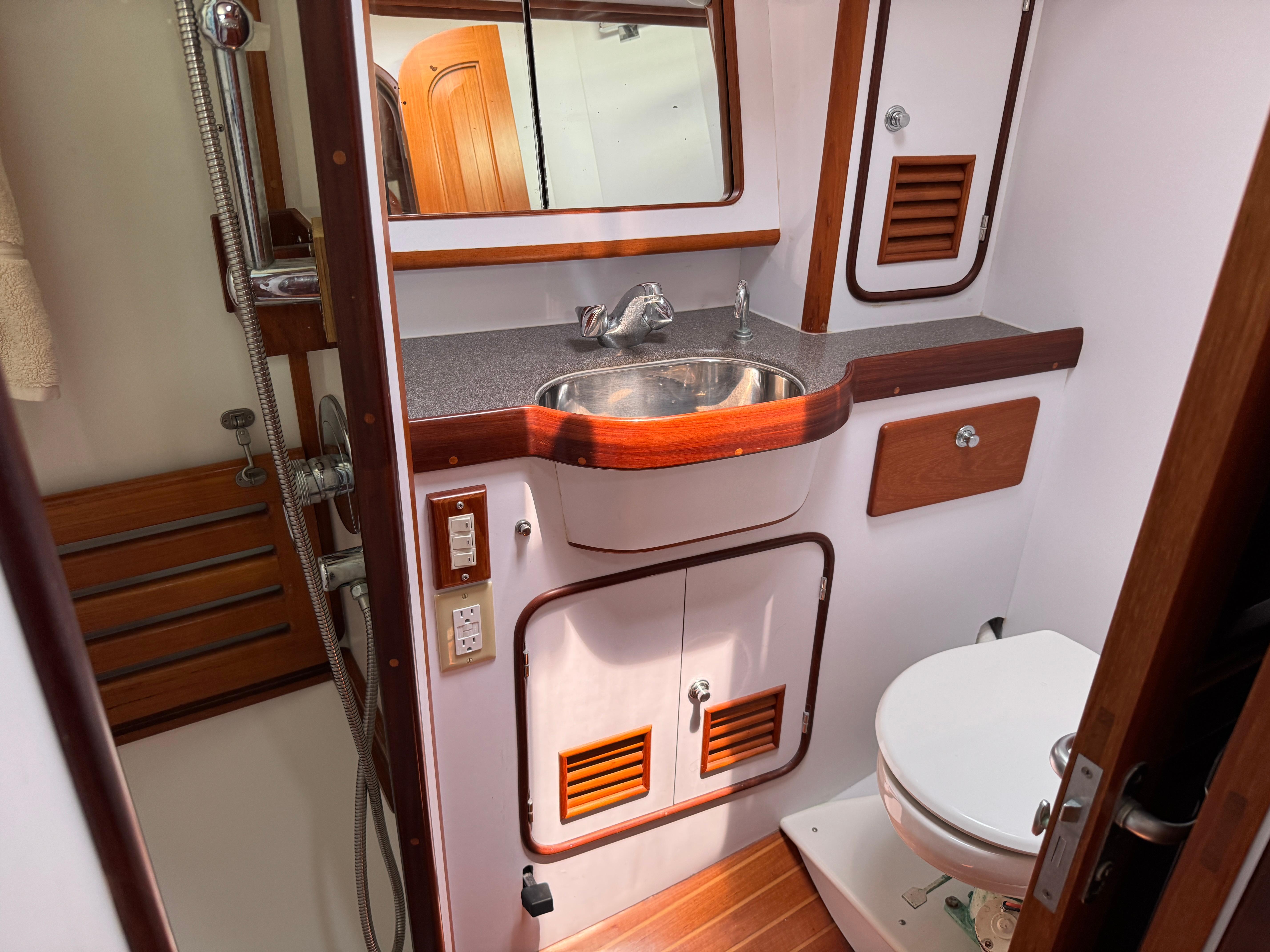

- Two large heads with separate showers.
- Large stainless steel sinks in each head.
- Automatic sump pump in each head.
- Groco Model-K toilet in each head.
- Holding tank and piping for waste disposal in each head.
- SCAD Tank monitor
- Bronze ball cocks/thru-hull fittings bonded to ships system.
- Rule 2000 electric 12-volt bilge pump w/ automatic float switch.
- Rule 3500 electric 12-volt emergency bilge pump w/ automatic float switch.
- Manual bilge pump, cockpit operated.
- Salt and freshwater deck washdown system
Sails and Canvas - New (2022) Quantum Sails furling mainsail.
- New (2022) Quantum Sails 115% furling Genoa.
- New (2022) Quantum Sails Mizzen.
- New (2022) Quantum Sails furling staysail.

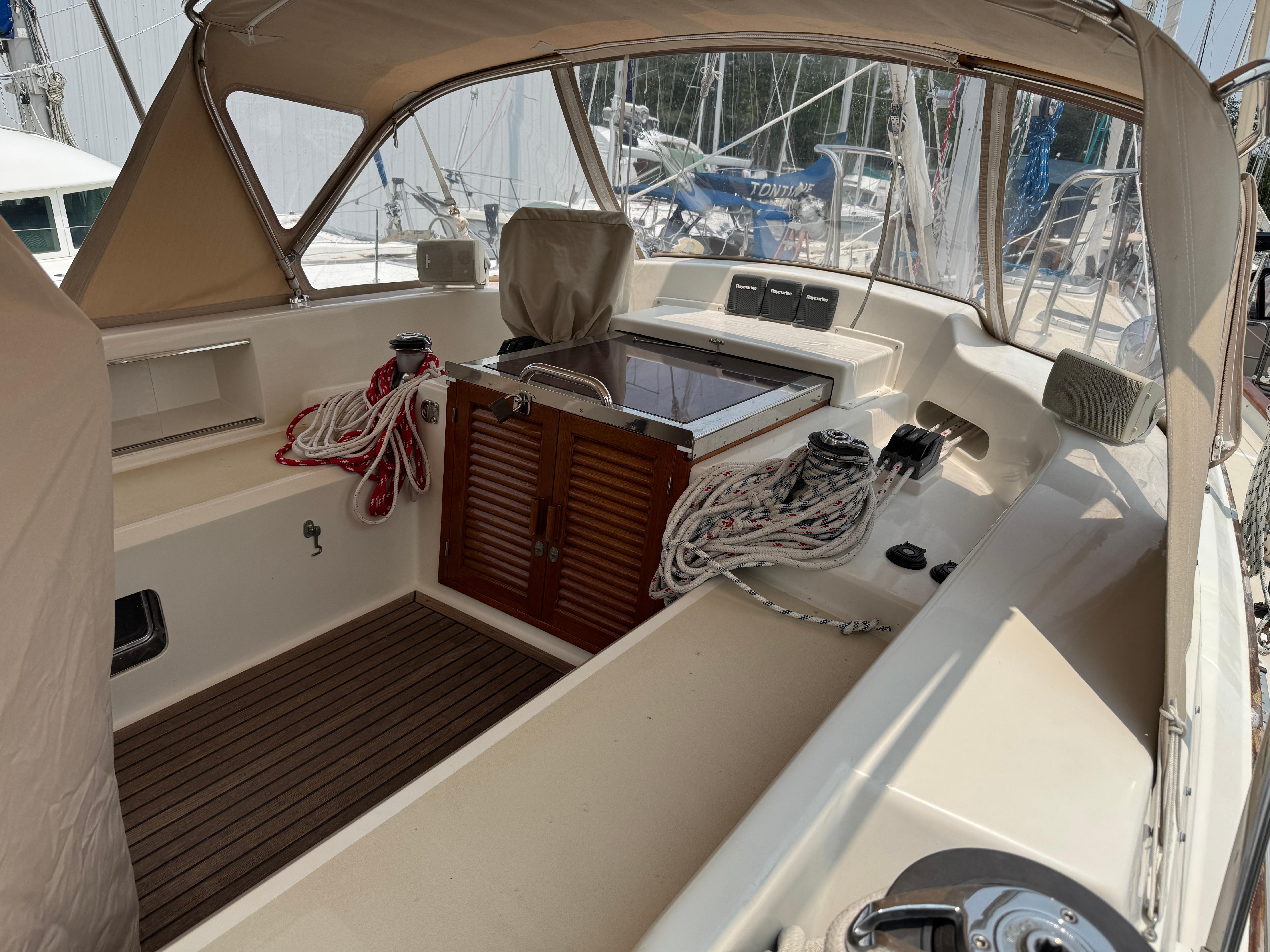

- New (2022) Canvas Dodger and Bimini with connector.
- Custom cockpit cushions.
- Custom cap rail covers
- Custom hatch covers
- Vinyl cockpit enclosure with sunscreens.
Spars & Rigging - Custom internal furling main mast with an integral storm trysail/spare mainsail track.
- Custom furling ketch mast.
- Five halyards; main genoa, staysail, spinnaker and topping lift, led internally (New 2022)
- Rigid Vang
- Flag halyards at spreaders.
- Masthead LED tricolor and anchor light.
- Steaming lights.
- Deck LED lights.
- Masthead mounted Windex.
- 316 stainless steel rigging with Hayn Marine Hi-Mod compression fittings.
- Harken furling system for head stay.
- Harken furling system for inner stay.
- Flag halyards at spreaders.

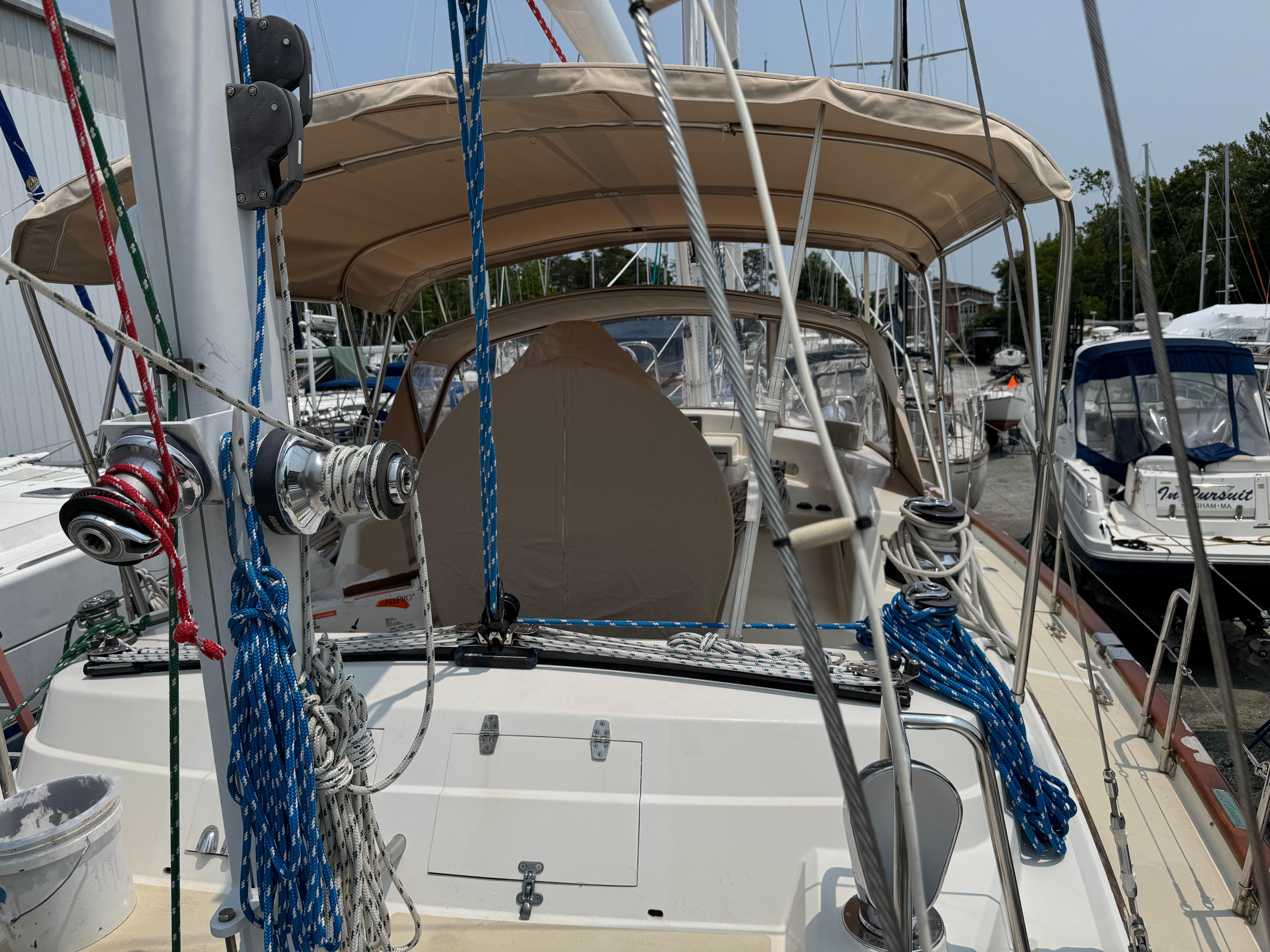

Winches
- 2 - Two-speed #66 STC Genoa (Primary) winches.
- 1 - Two-speed #44 STC main sheet winch.
- 1 - Two-speed #40 STEC electric utility winch starboard
- 1 - Two-speed #40 STC utility winch port
- 1 - Two-speed #44 STC halyard winch.
- 1 - Two-speed #40 STC halyard winch.
- 4 - 10" locking winch handles.
Safety Gear - Winslow 6-person 60SLOP life raft in a pelican case.
- Lifesling
- Horseshoe ring with light
- Adventure Medical Kit 1500 First Aid Kit.
- 2 West Marine auto-inflate life vests
- Package of 4 standard life vests
- Jack Lines
- Emergency fire blanket
- 4 fire extinguishers
- Completely outfitted USCG list Ditch Bag
- EPIRB
- Ditch Bag GPS
- Large bolt cutters
- Large emergency anchor
- Emergency tiller
- Sea Drogue with spool of anchoring line
- Radar reflectors
Additional Gear & Equipment - New (2024) 10.5' Highfield Inflatable solid floor rib w/ 15 HP Honda 4-stroke outboard.
One CQR anchor and one Danforth anchor on the bow with chain and rode
One Danforth anchor on the stern with chain and rode
Dock lines & fenders
complete set of hand tools
Numerous spare parts
Exclusions:
- Landscape painting in the Main Salon is not included.
