YACHT NAME:
2019 Azimut Magellano 53
MODEL:
Magellano 53
BUILDER:
Azimut
YEAR BUILT:
2019
LOCATION:
Sibenik
ASKING PRICE:
$877,200
DESIGNER:
N/A
HULL:
Fiberglass
CATEGORY:
Flybridge
DESCRIPTION:
Dimensions
Length Overall (LOA): 16.90 m (55’ 5”)
Hull Length: 15.12 m (49’ 7”)
Waterline Length: 14.45 m (47’ 5”)
Beam: 4.70 m (15’ 5”)
Draught (Keel): 1.01 m (3’ 4”)
Draught (Max): 1.44 m (4’ 9”)
Height (Radar Arch): 6.29 m (20’ 8”)
Height (Light Mast): 0.90 m (2’ 11”)
Height (Flybridge Screen): 4.17 m (13’ 8”)
Weight & Capacity
Light Displacement: 24.38 t (23.995 tn l.)
Loaded Displacement: 30.79 t (30.304 tn l.)
Maximum Load (People + Baggage): 1,260 kg (2,777.8 lb)
Tank Capacities
Fuel (Diesel): 3,200 l (845.4 US gal)
Fresh Water: 700 l (184.9 US gal)
Black Water: 350 l (92.5 US gal)
Grey Water: 175 l (46.2 US gal)
Layout
Cabins: 3 + utility room + optional crew cabin
Berths: 6 / 7 + optional crew berth
Heads: 2 + optional crew head

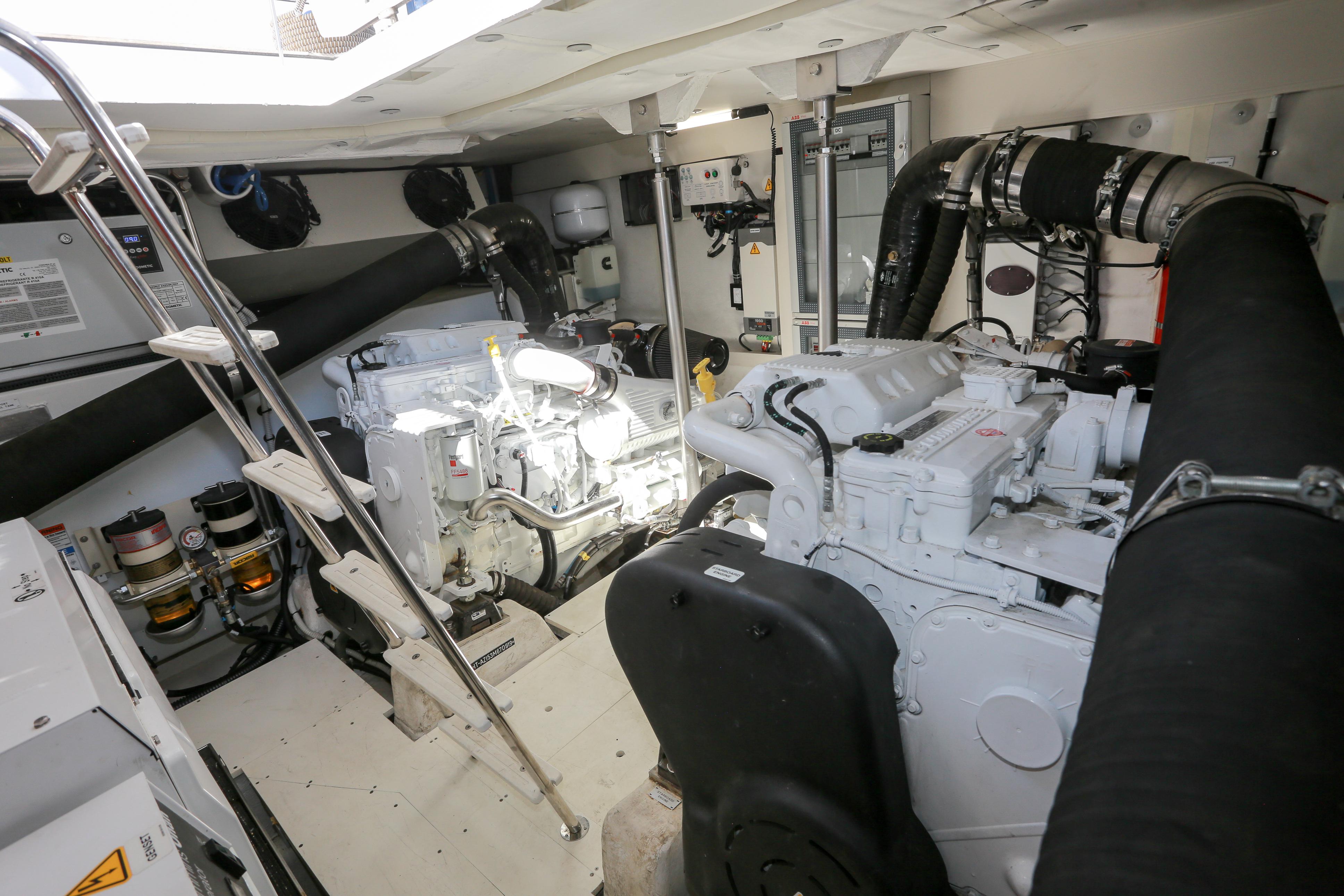

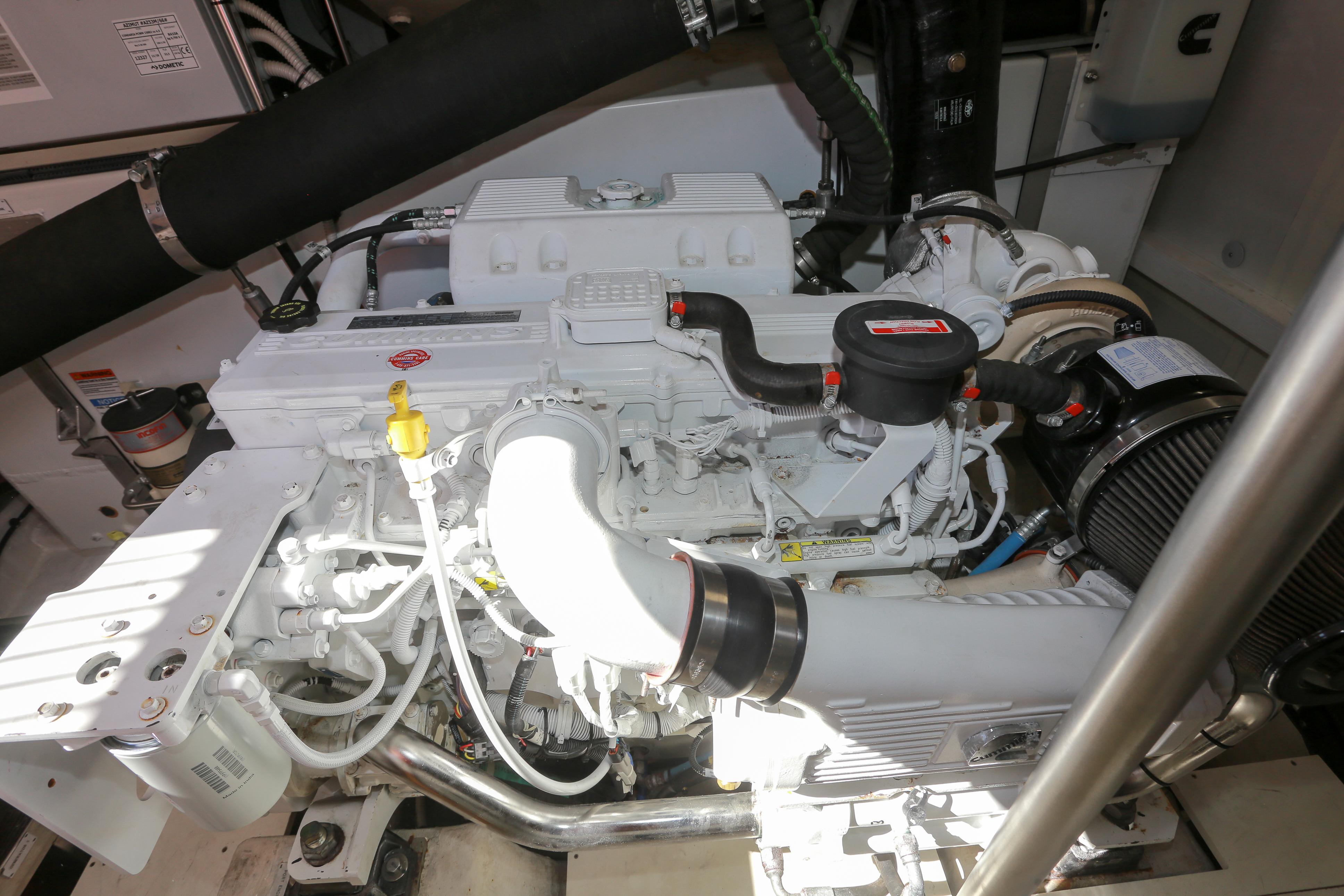

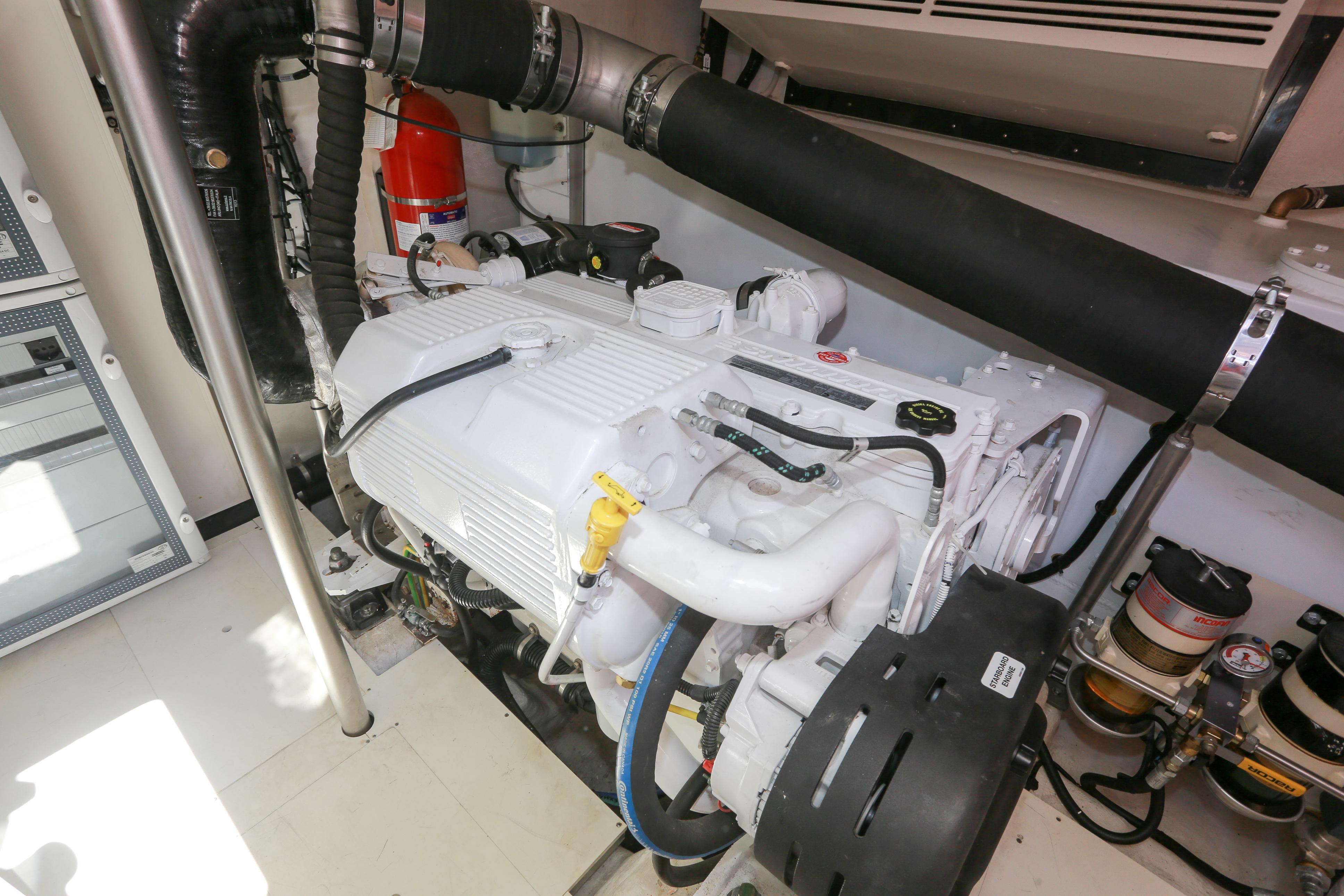

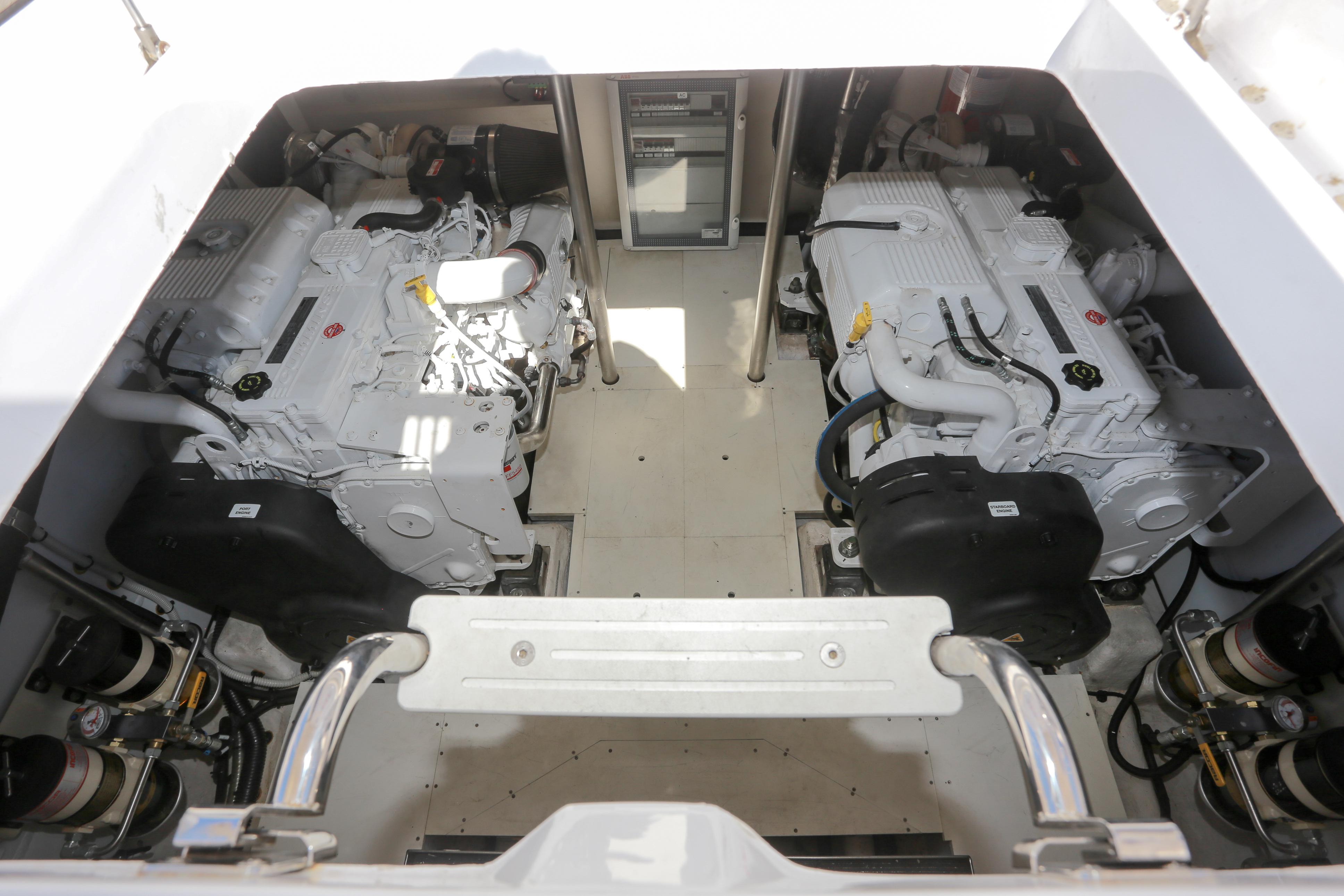

Engines
Manufacturer: Cummins
Model: QSC 8.3
Type: In-line 6-cylinder diesel
Power: 2 x 368 kW (500 hp) @ 2600 RPM
Engine hours: 1255 and 1256
This Azimut Magellano 53 has had the same owner from the beginning. The boat has mosly been used privately by the owner and only couple of weeks in charter.
The Azimut Magellano 53 is a 16.90-meter (55' 5") semi-displacement motor yacht designed for long-range cruising with comfort and style. Built by Azimut Yachts, it features a hybrid hull designed by Bill Dixon, allowing efficient navigation in both displacement and planing modes.
Powered by twin Cummins QSC 8.3 diesel engines (2 x 500 hp), the yacht reaches a top speed of 22 knots and cruises comfortably at 16 knots. It has a fuel capacity of 3,200 liters, offering a range of up to 500 nautical miles at 10 knots.
The layout includes 3 guest cabins, 2 bathrooms, and an optional crew cabin, accommodating up to 7 guests plus crew. The interior, styled by Azimut’s Style Department, emphasizes spaciousness and panoramic views, with circular glazing and a well-appointed flybridge.
Additional features include a hydraulic swim platform capable of lifting a tender up to 400 kg, a large cockpit with bar and sofa, and CE Class A certification for ocean-going capability.
Equipment:
Advance Package:
MAIN SYSTEM:
Air Conditioning BTU 60.000
Automatic Fire Fighting system
Bow thruster + joystick
Double Racor filters for main engines
Onan 19 kw Generator
Racorfilter for generator
Spare conduits connecting engine room/wheelhouse/mast on fly
Water maker Predisposition (salt water - fresh water - electrical)
EXTERIOR:
Additional searchlight control at lower helm
Chaincounter control on fly bridge
Cleats in stainless steel
Electric mooring winches in cockpit
Electric searchiight
Shore water plug
INTERIOR:
Decor upgrade
APPLIANCES:
Miele appliances (microwave combo and cooktop)
ELECTRONICS:
Chaincounter control at main helm
Raymarine AIS 700
Raymarine Silver Package
Extra socket supplementare
Interior and exterior LED lighting
Under water lights x 4
Chocks tender
INTERIOR:
Ash oak fumiture
Crew cabin with air conditioning
Dimmered lights in salone and cockpit
Electrical socket Shuko type
Hard Top on fly (not foldable)
Cockpit table
Teak on side decks
Salon table
Dishwasher in galley
Refrigerator in cockpit positioned in stair locker
Refrigerator on flybridge
Safe in master cabin
Teak Deck on swim platform
Standard equipmnet:
Flybridge
● Flybridge GRP and teak access ladder
from cockpit
● Flybridge stainless steel access handrail
● Stern flybridge handrail, flybridge access
protection handrail, flybridge stainless
steel liferail
● Watertight access door to flybridge in
aluminum and Plexiglas
● Flybridge non skid GRP flooring
● Plexiglas flybridge screen
● Stainless steel steering wheel covered in
fabric
● "C"-shaped sofa with cushions on port
side, with locker below
● Table with teak plane and stainless steel
base
● Central GRP mast carrying lights, antennas and electronic navigation instruments
● Mast base with storage compartment
● Fixed shower built into the GRP mast,
with hot/cold mixer tap
● Cabinet with GRP cover on starboard
side, sink with cold water only, and lockers below
● Zone for positioning the life raft (not
included) on port side, behind the sofa
● Drainage scuppers
● Manual depth searchlight

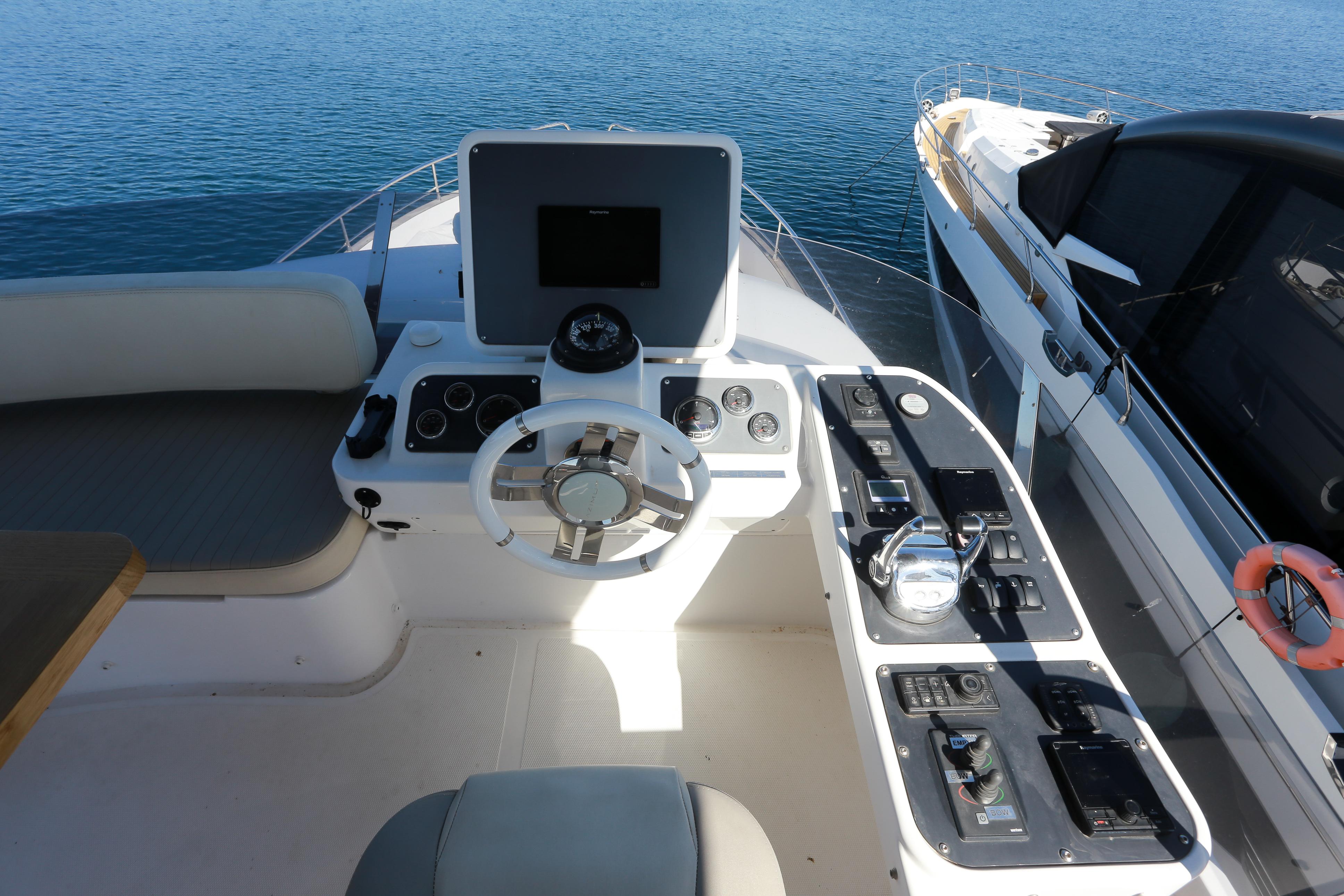

● Flybridge dashboard equipment:
Bow thruster controls
Cummins ETS engine remote controls,
with speed synchronization
Horn switches
navigation lights
Flybridge GRP mast lights
Winch
Chain washing pump switch
12V socket
Cummins multi-function instruments
alarm indicator lights
Bow / walk arounds

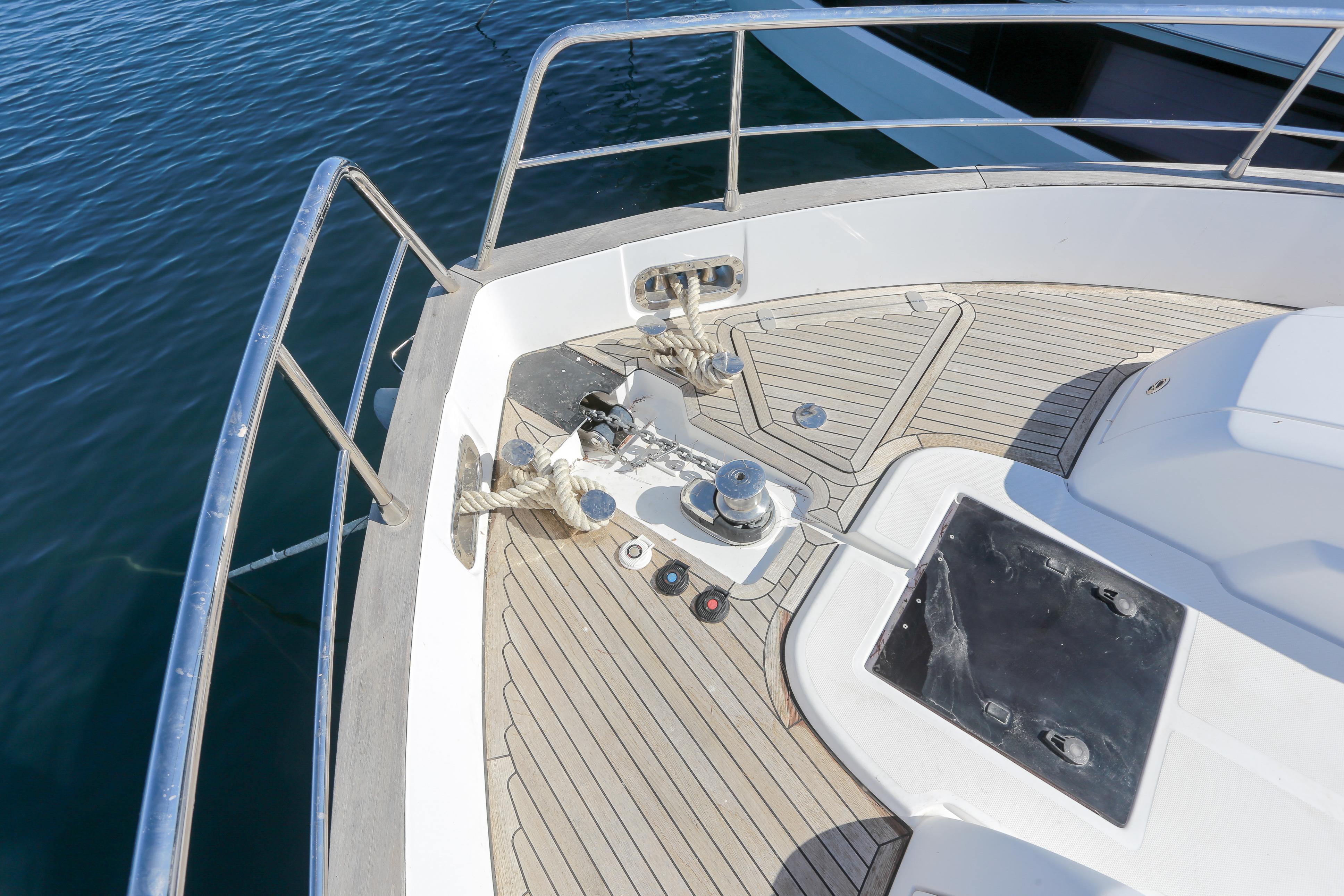

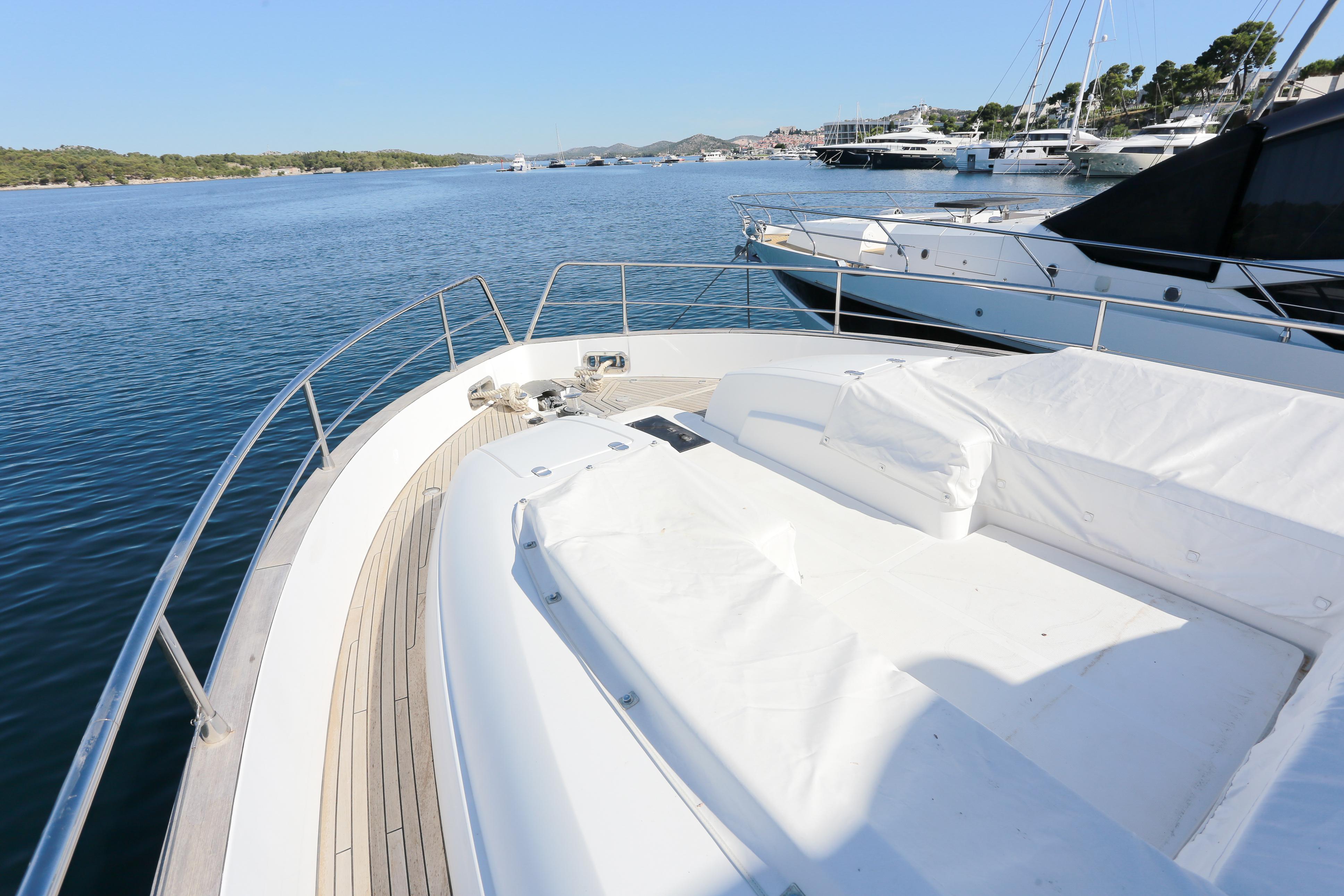

Bow
● Anchor chain and fender locker with water drainage
● Delta 25kg galvanized steel anchor
● 75-meter high-resistance gaged chain,
diameter 10mm
● Bow roller and protection shield
● 1700 W WINCH
● 2 stainless steel T-head cleats
● 2 roller hawseholes
● Chain washing system with pedal controls

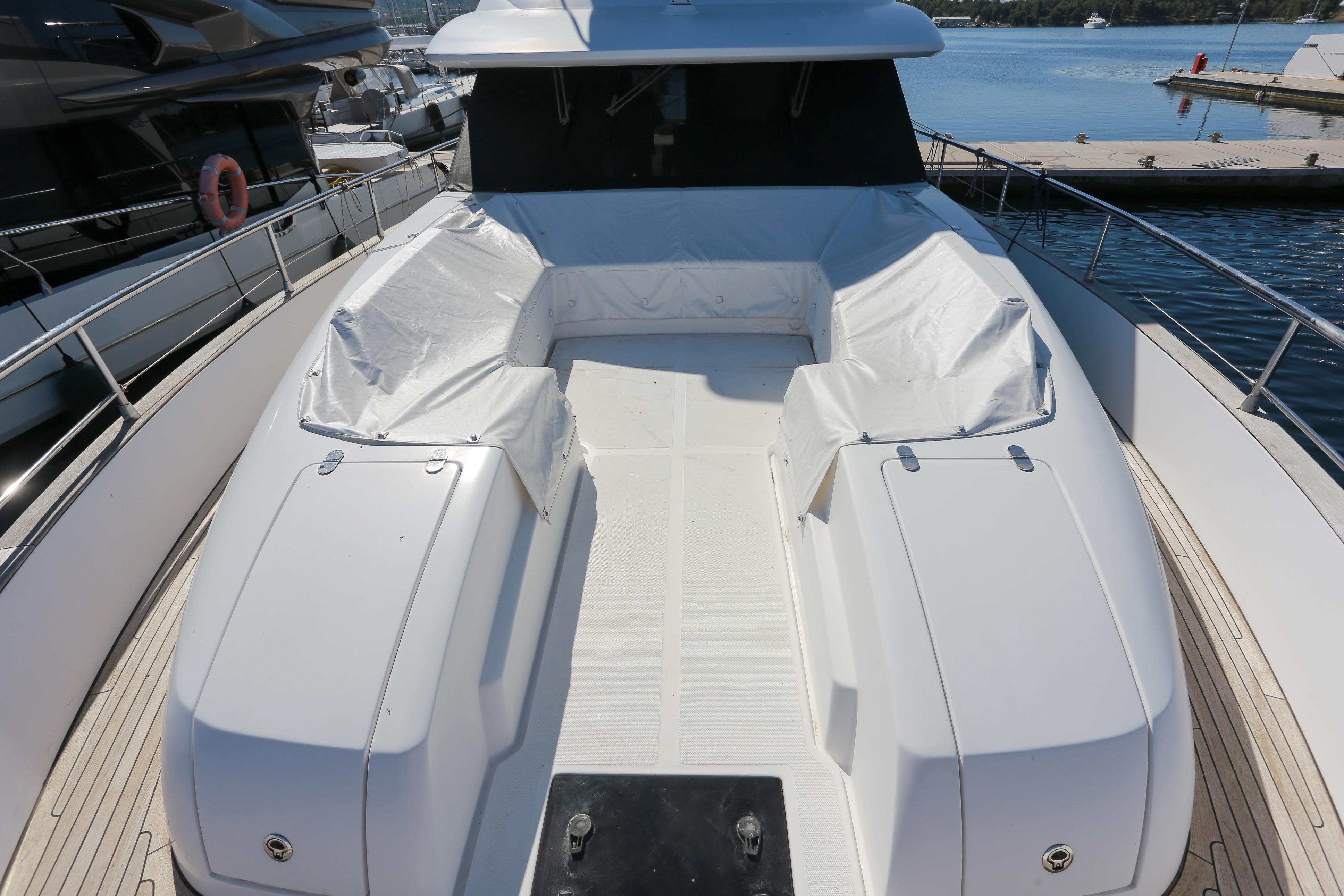

● "C"-shaped sofa in the bow, with cushions and backrest
● 4 external lockers on the sides of the sofa
● Lockers under the bench

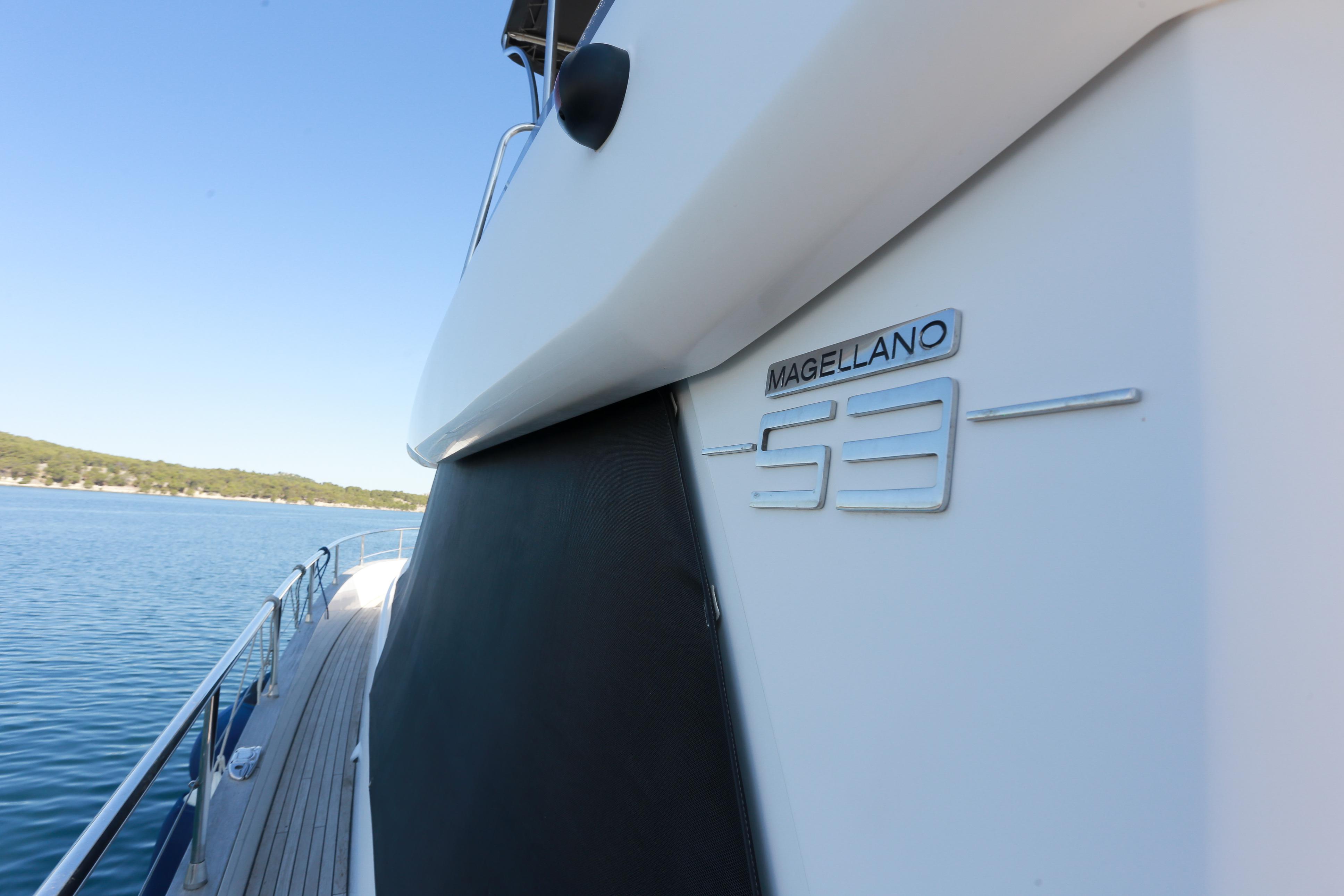

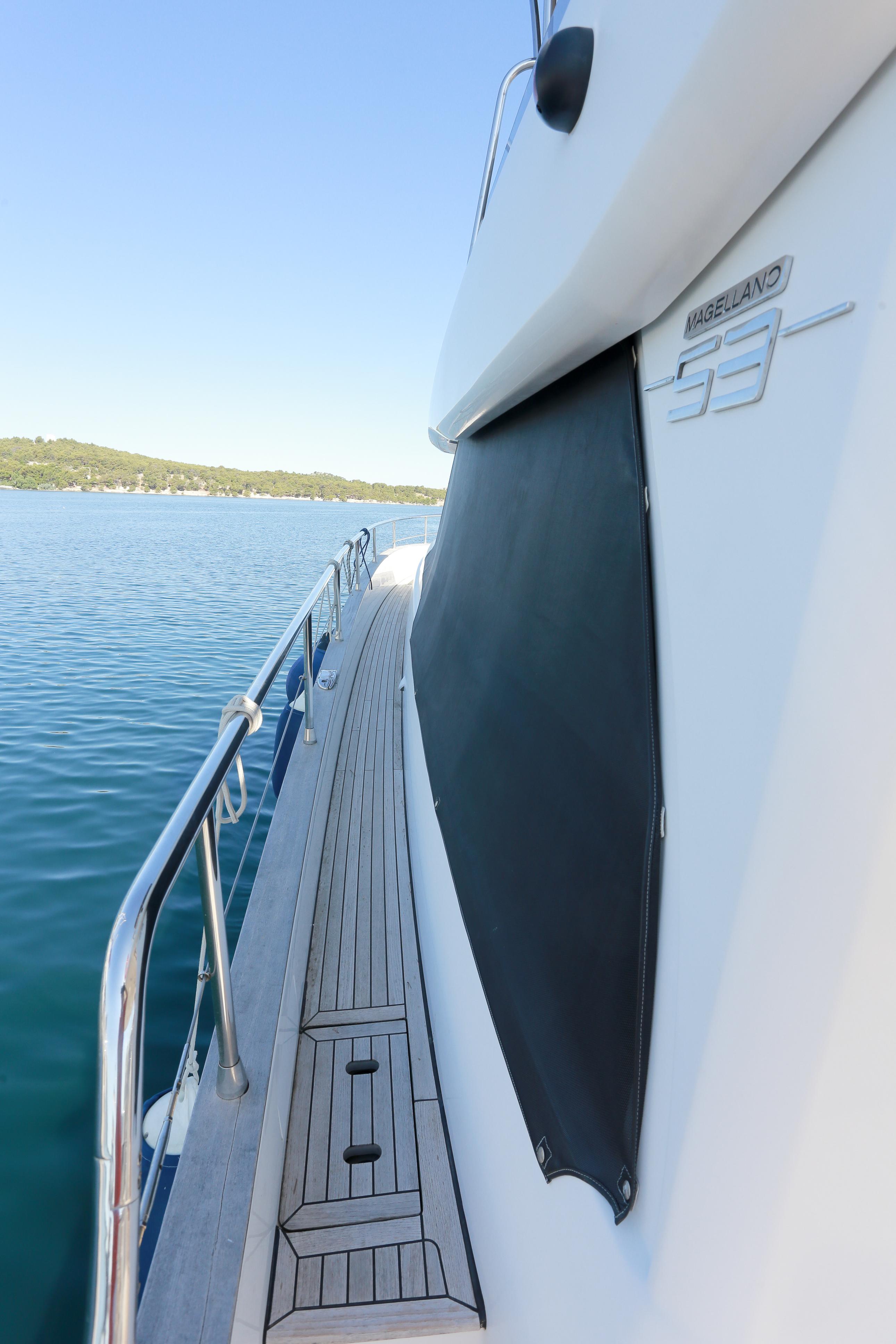

Walk arounds
● Refueling: 2 "Diesel" refueling plugs with
cover and scuppers
● Fresh water filling: 1 "Water" filling plug
● Black water outlet: 1 "Waste" outlet
water plug
● 2 intermediate stainless steel cleats on
the gunwale
● Non skid GRP floor
● Stainless steel pulpit, D. 40mm, Th.
2mm
● Teak gunwale with washboard
Cockpit and platform

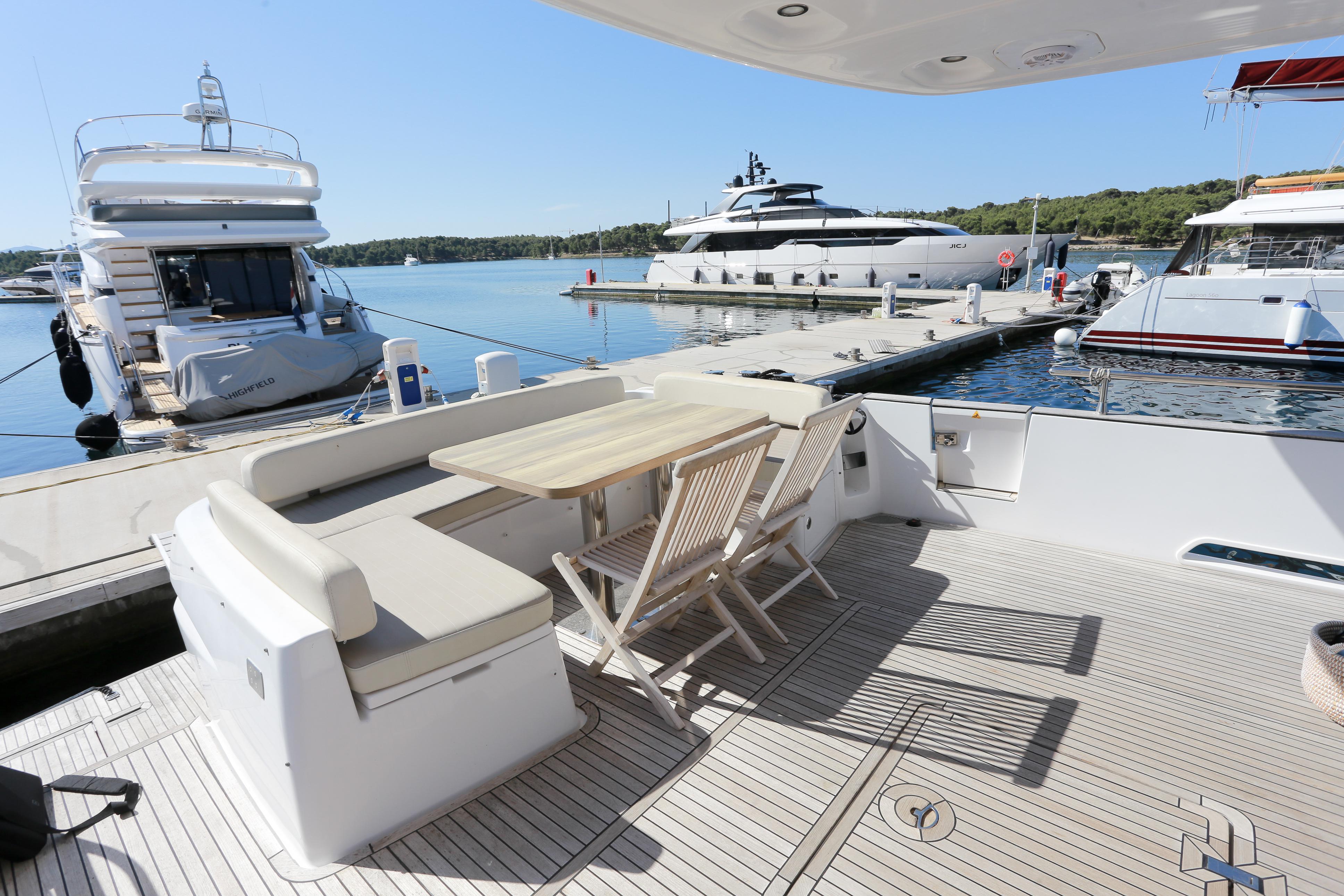

Cockpit
● Cockpit access through 3 non skid GRP
steps
● Steel and Plexiglas gate
● Non-slip floor
● 2 mooring stations
● 1 chock and 1 cleat in stainless steel for
each mooring station
● Stainless steel door, watertight level 3
and tempered flat glass door with 2 sliding panels
● 5-seater C-shaped sofa provided with
cushions and backrest with lockers under the bench on aft side port and starboard
● Engine room access via door in cockpit
floor
● Engine unloading door
● Scuppers
● Lighting with watertight spotlights
● Cabinet built into the flybridge ladder,
with a large locker
● Rudder hold access door from starboard
side bench
● Fire extinguishing controls
● Walkway lights on cockpit access steps
● Shower head with hot and cold water,
starboard side
Platform
● Lifting platform in GRP with outer
reinforcement frame in polyurethane.
Width: 4300mm Depth of mobile part:
1205mm. Total depth of stern platform:
1700mm (lifting platform + fixed part)
● Rubber rub-rail with stainless steel insert
all around the edge of the GRP lifting
platform
● Electro-hydraulic tender lift mechanism
in electro-polished steel.
● Locker for shore power sockets
● Non skid GRP floor
● Stainless steel manual swimming ladder
with teak steps and retractable handle
built on starboard side
● Open housing for the tender (not included)
● INSTALLABLE TENDER (OPT):
MAXIMUM DIMENSIONS OF TENDER -
PLATFORM: 3.20 x 1.70m
LIFT PAYLOAD EXCLUDING GRP, TEAK
AND LADDER: 380Kg
RECOMMENDED TENDER -
PLATFORM: WILLIAMS 285

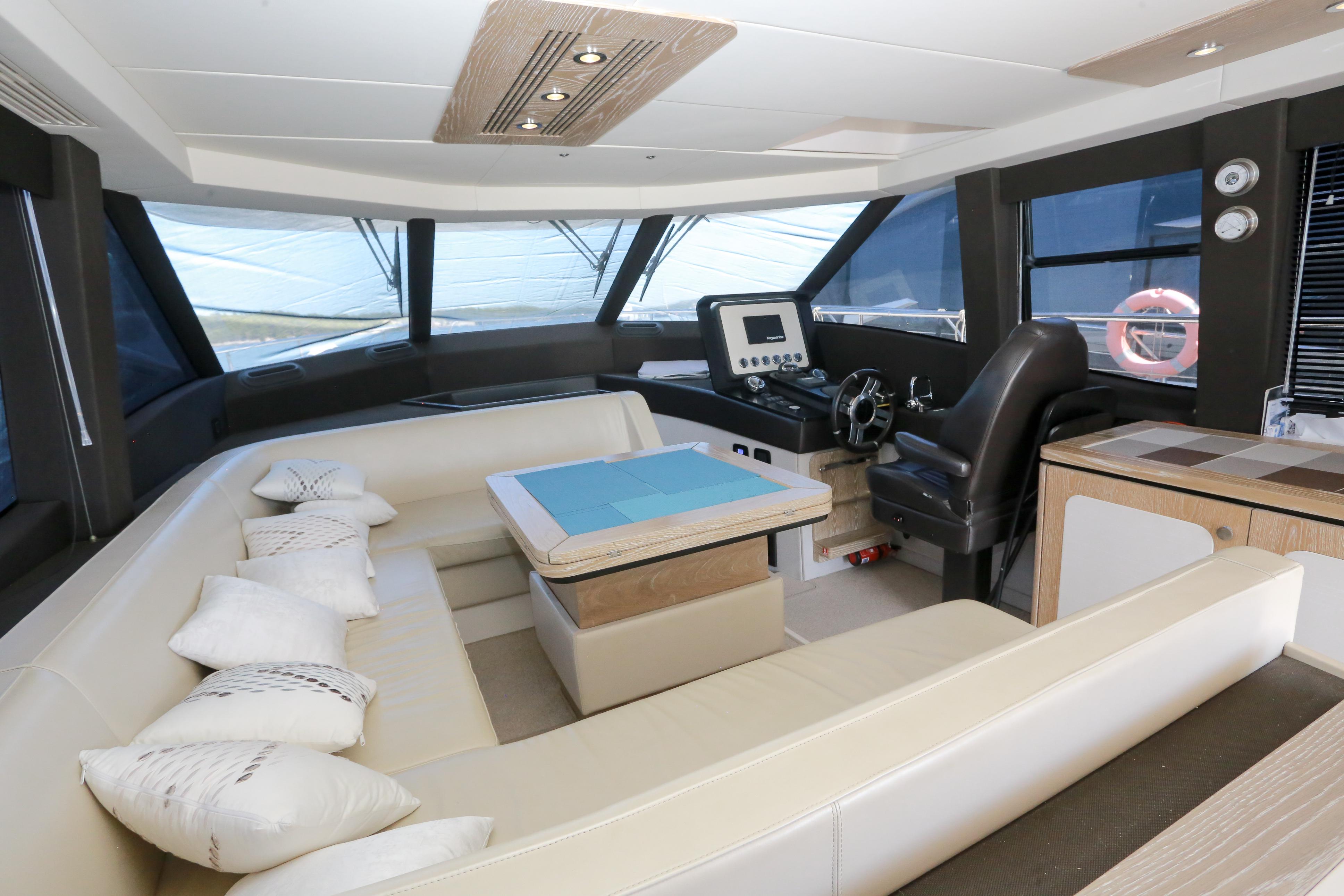

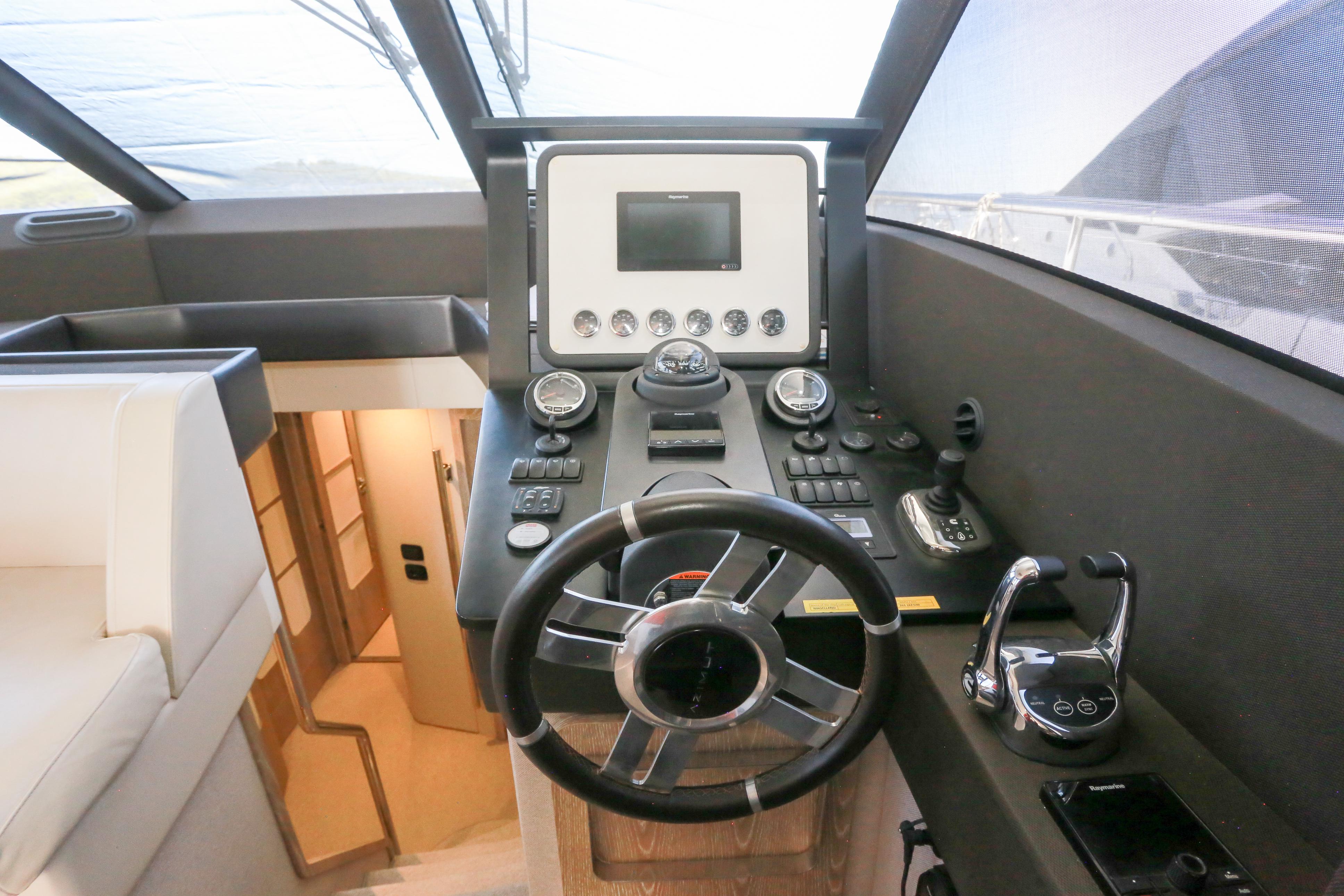

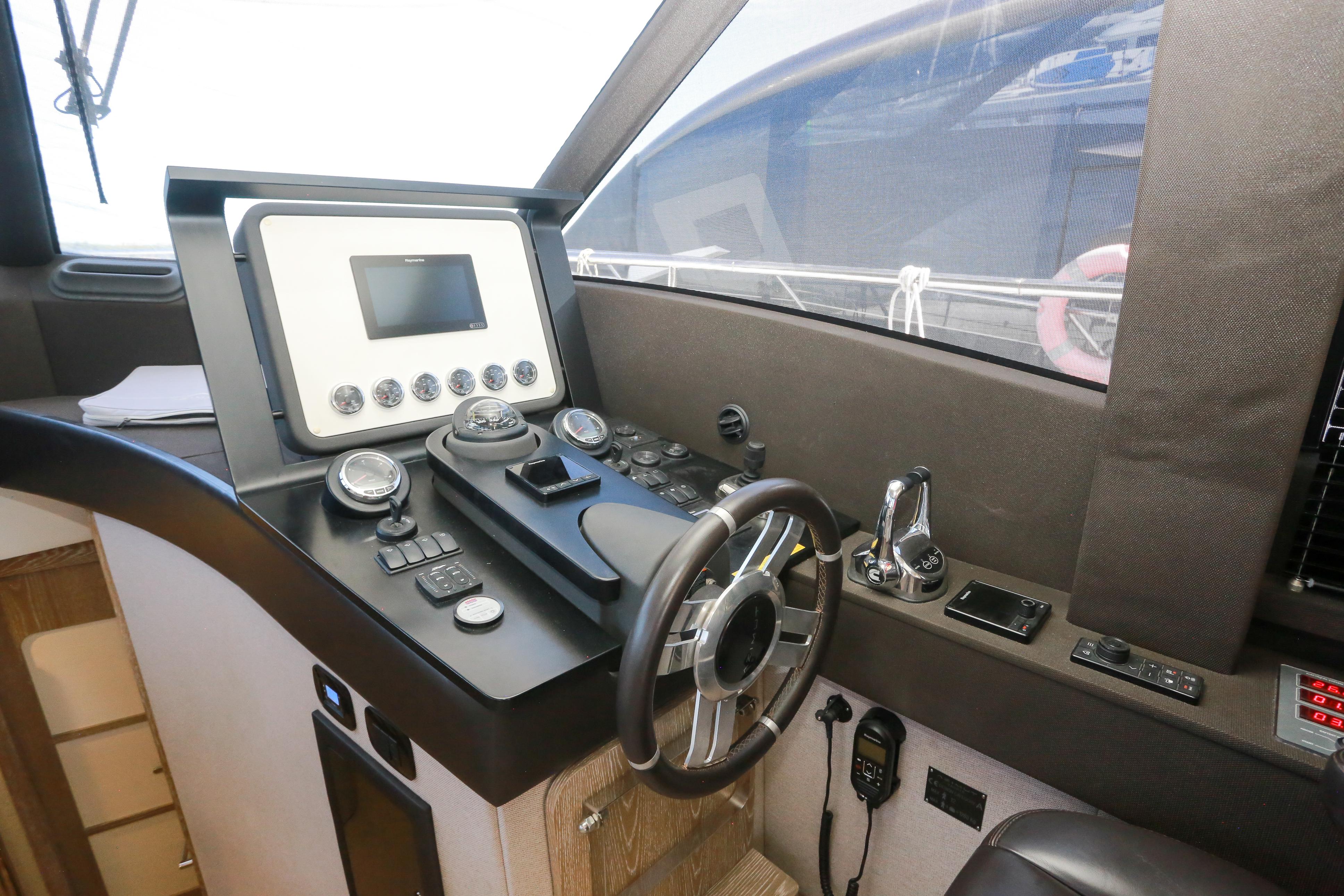

Wheelhouse
● Helm seat with armrests and manual
horizontal slide adjustment. Electric piston for up-down movement
● Foldaway footrest
● Manually-operated window on
starboard side

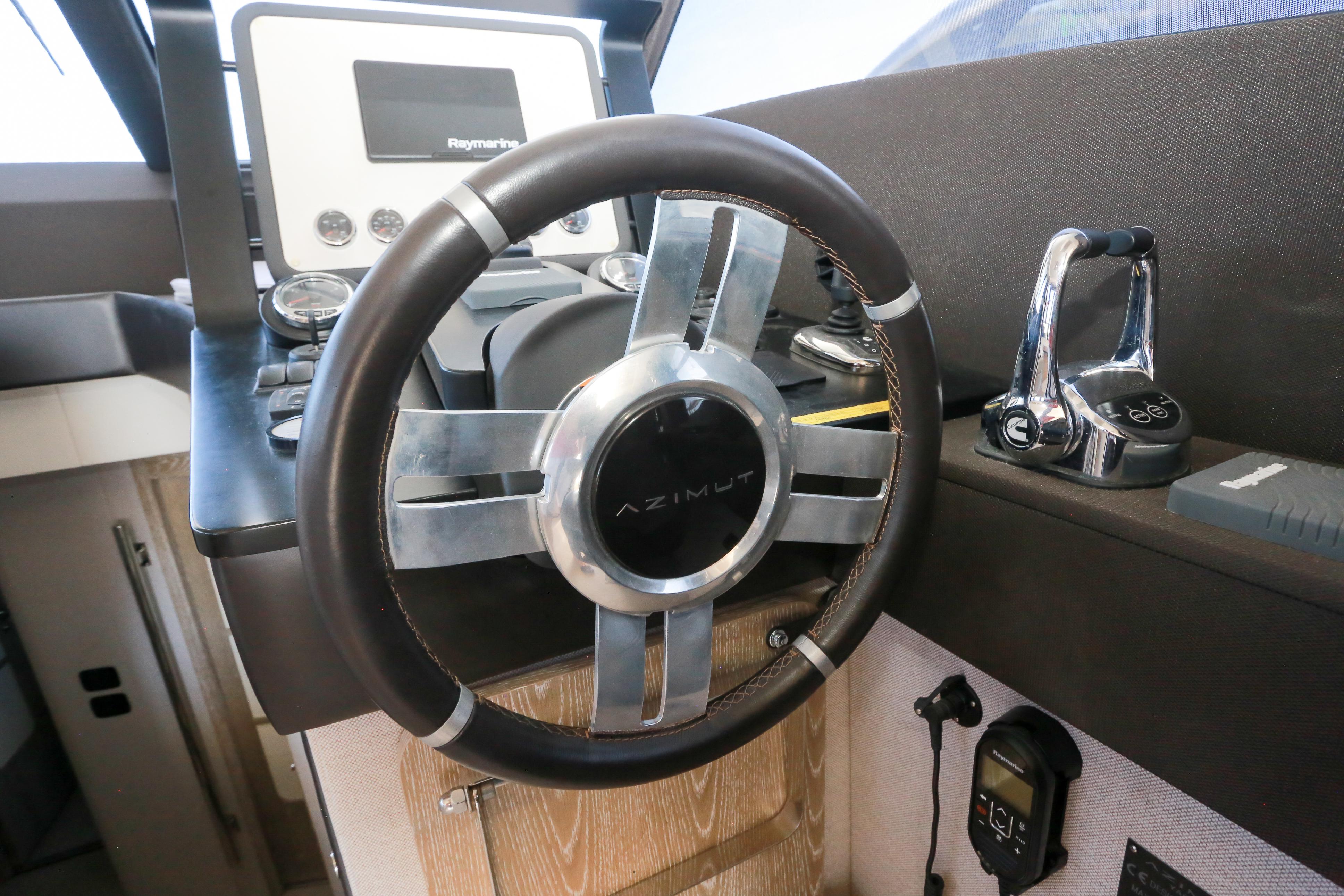

● Steering wheel

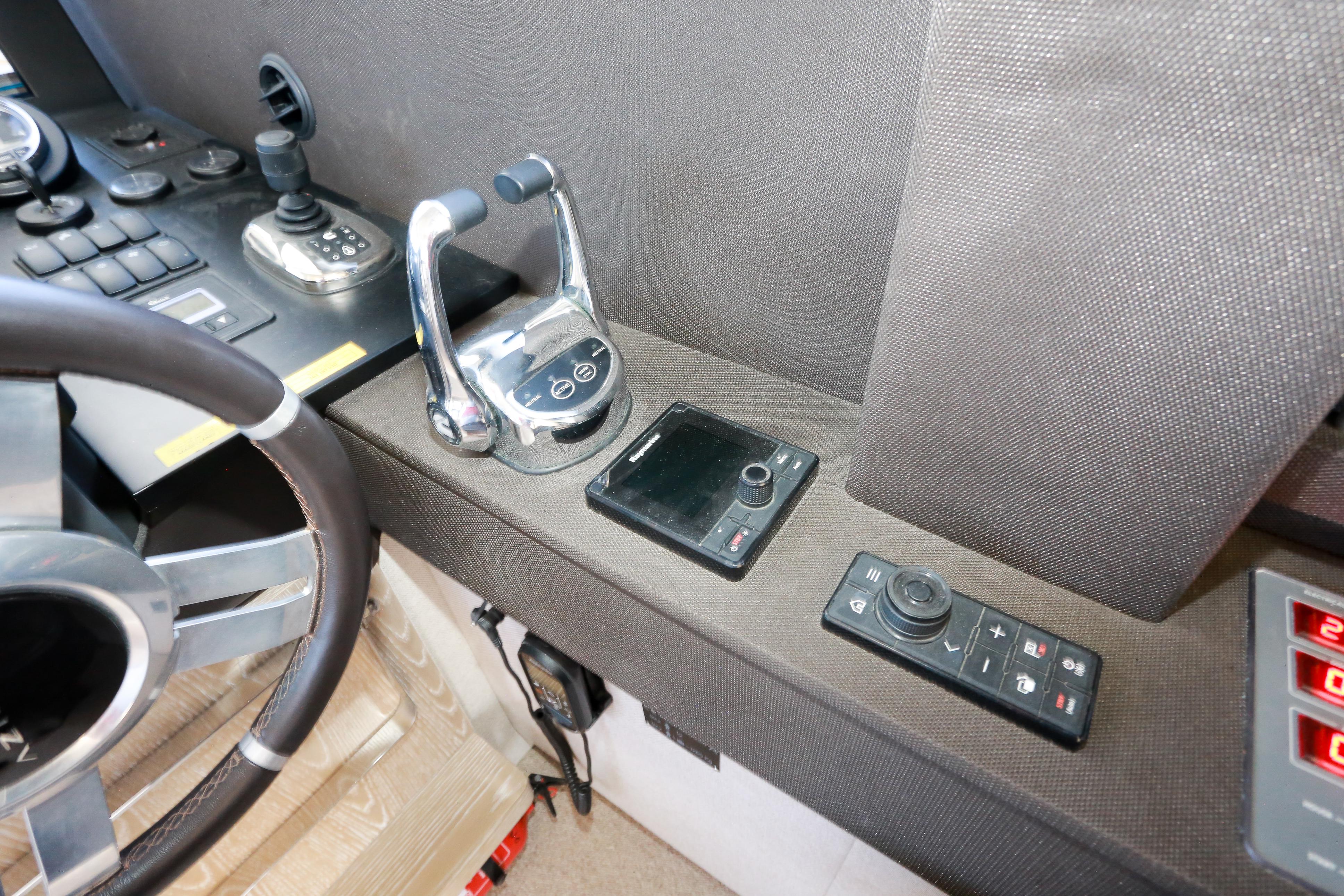

● The wheelhouse includes:
Bow thruster controls
Cummins ETS engine remote controls,
with speed synchronization
Horn, navigation lights, wiper switches
Activation of bilge pumps
Emptying of black and gray water tanks
Engine room ventilation
12V socket
Chain washing pump switch
Analog indicators of diesel tank level
engine start-up
rev counter
hour counter
engine pressure gages and thermometers
ammeters
alarm indicator lights

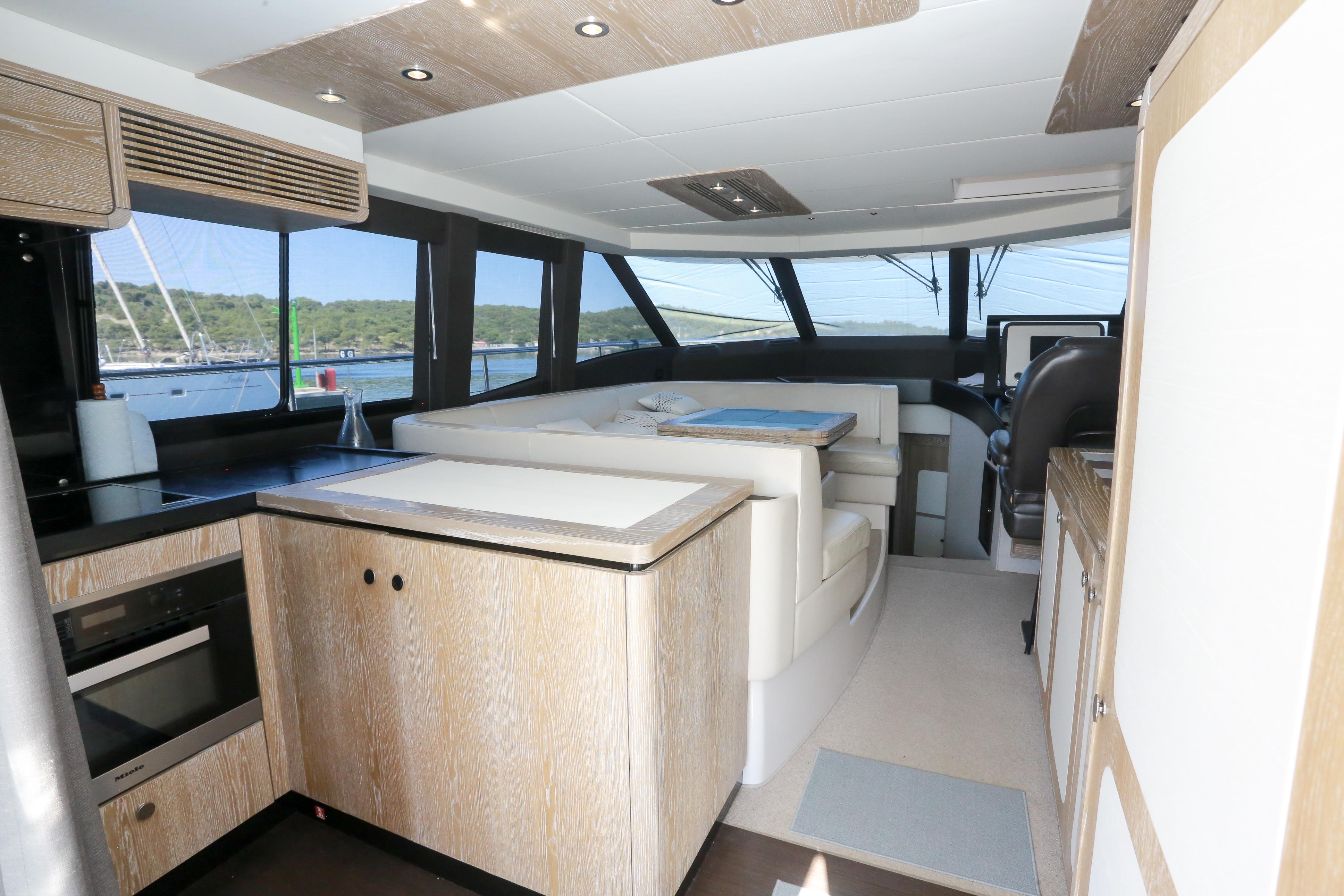

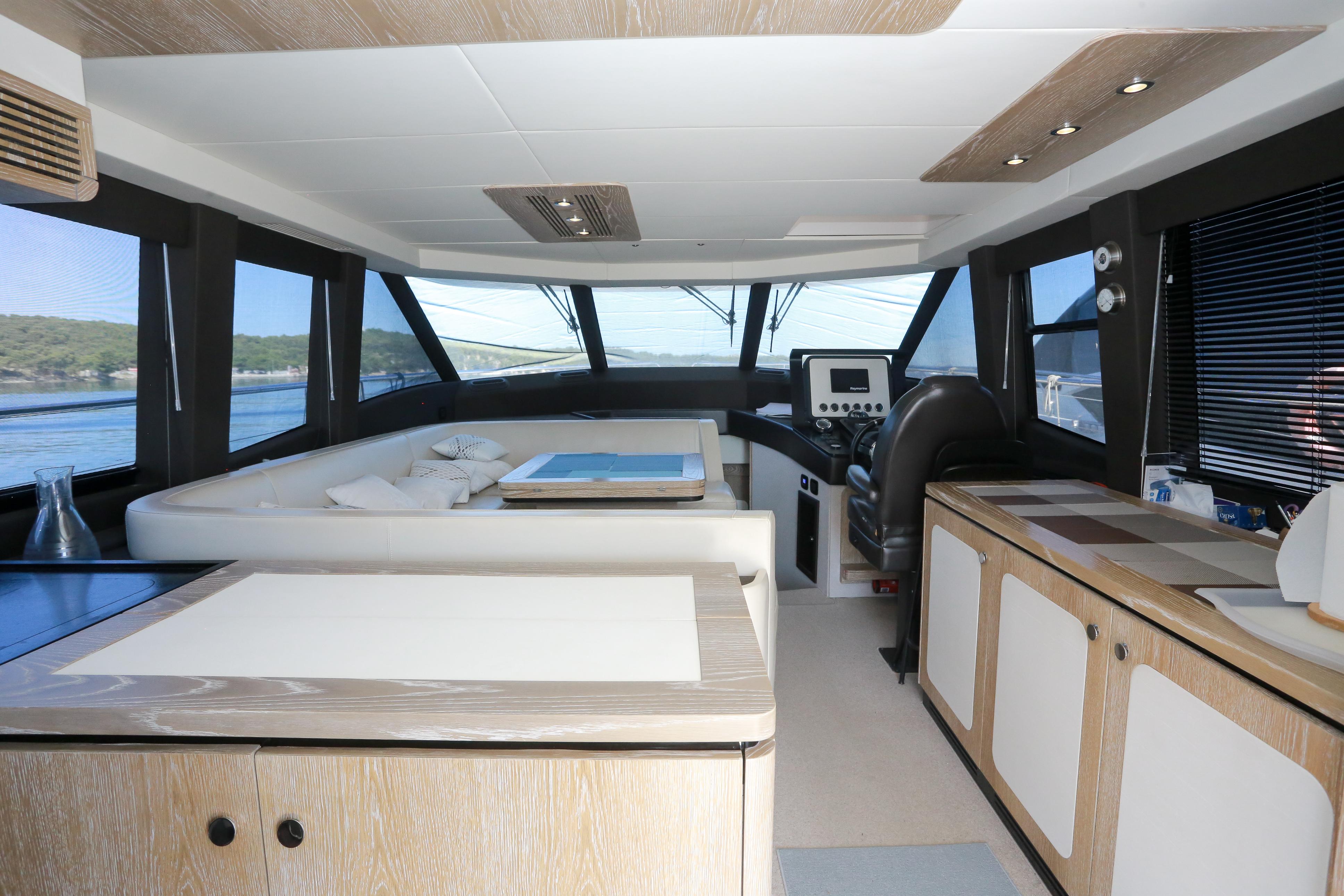

Dinette / Galley

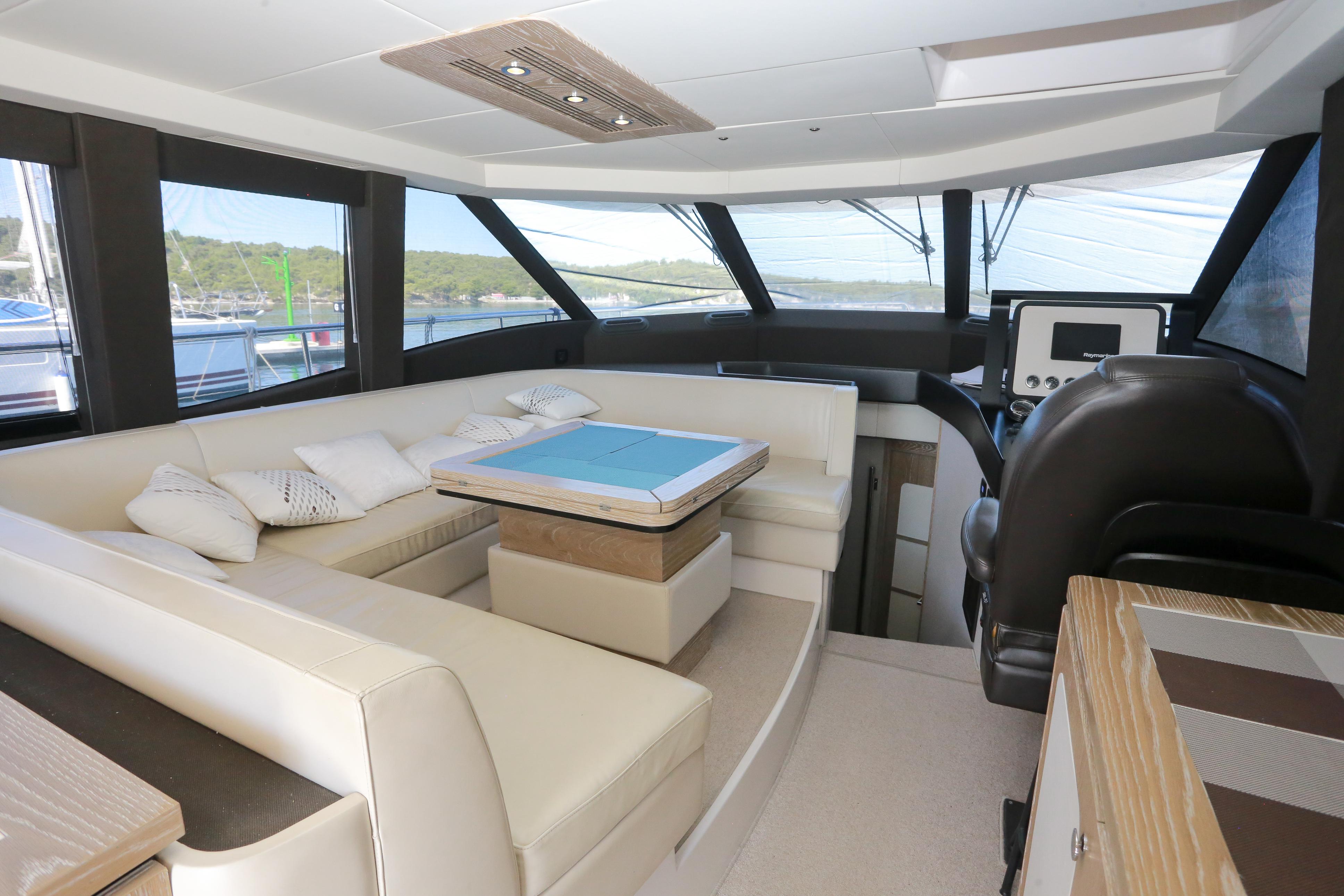

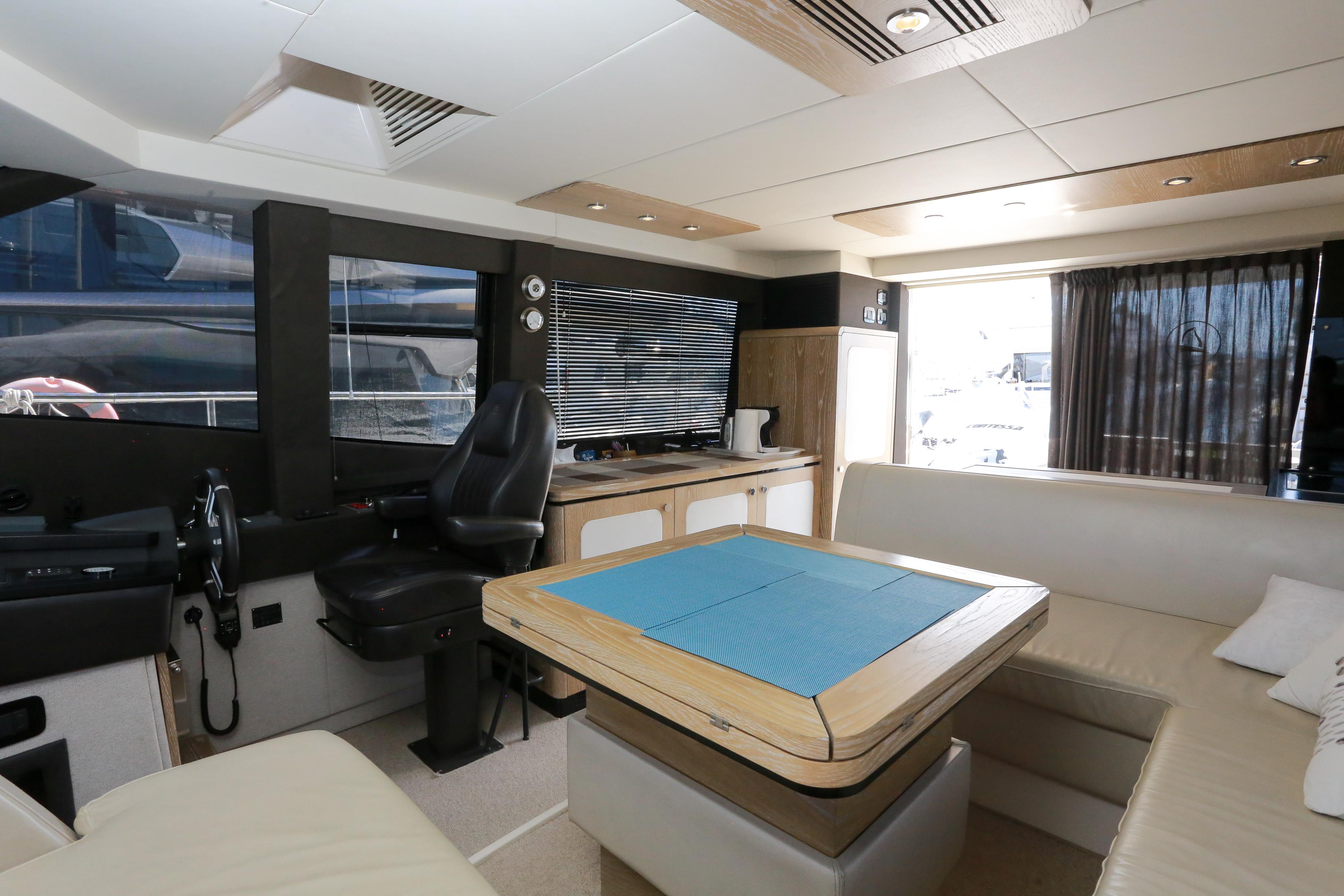

Dinette
● Sofa on port side, with 6-8 seats
● Dining table with foldaway wooden top
for 6 people on port side. When the top
is folded away, the grabrail is visible and
a cup holder and storage compartment
become available.
● 3-panel storage cabinet on starboard
side, with housing for crockery and
drawers inside the central panel.
Cabinet top in solid walnut (covered)
● TV system with aerial socket in saloon
● Ceiling and walls covered in fabric;
wooden inserts in the ceiling
● Manual Venetian blinds for side windows, and sliding curtain for saloon door
● 220V sockets
● Carpeted floor
Galley
● "L"-shaped galley located at the entrance
to the boat from the cockpit (port side)
● Refrigerator cabinet on starboard side,
at the entrance to the boat from the
cockpit
● Laminated foldaway cover for black
worktop with sink and hot/cold mixer
tap
● Microwave oven + grill (20-liter capacity)
● Ceramic glass 4-hob range and silicone
pot holder
● 1 cutlery drawer under the worktop
● Drawer under the oven
● 24V extractor for galley
● Manually openable window on port side
● 1 wall unit
● Rubbish bins for sorted waste below the
sink
● 220V socket

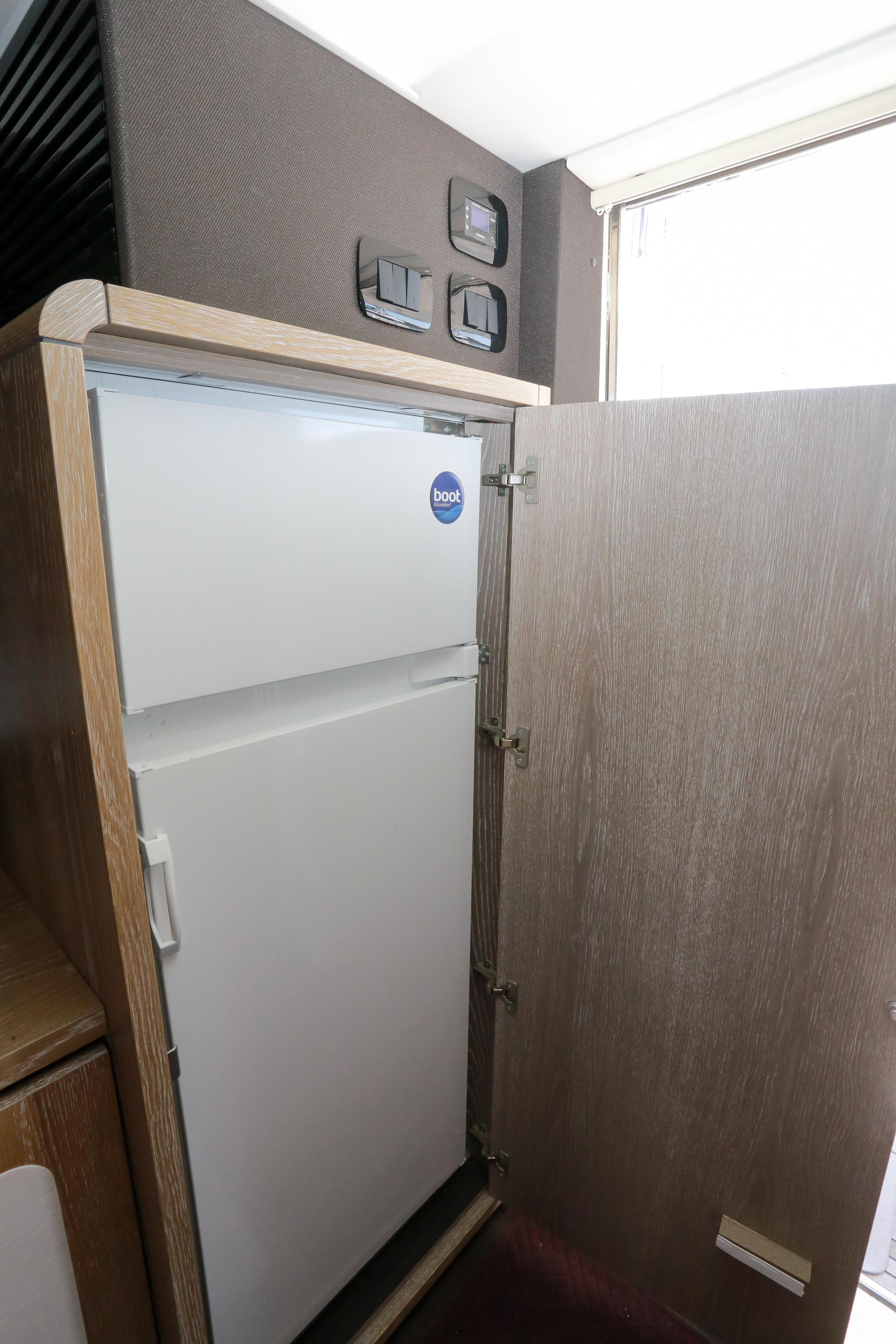

● Upright refrigerator/freezer

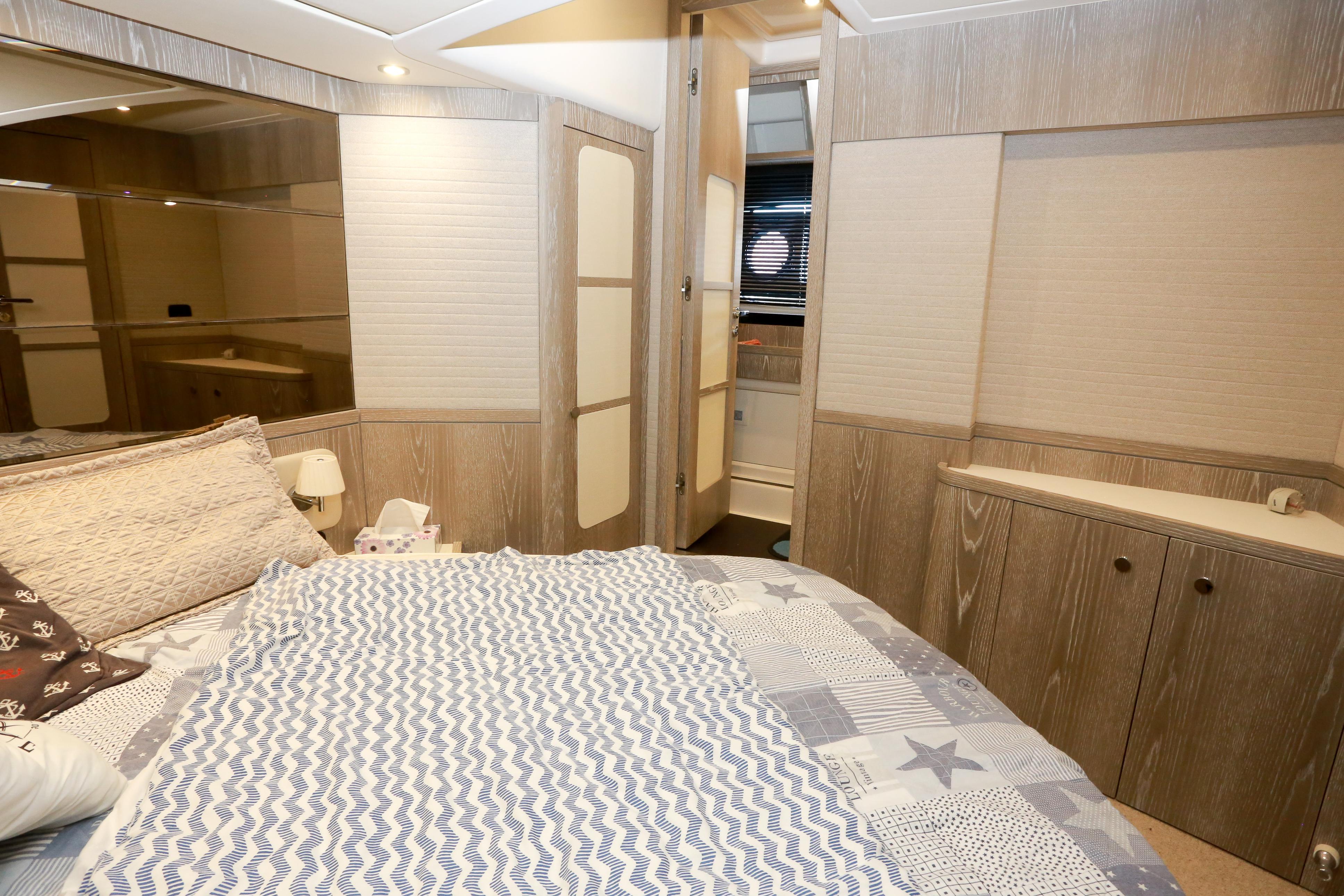

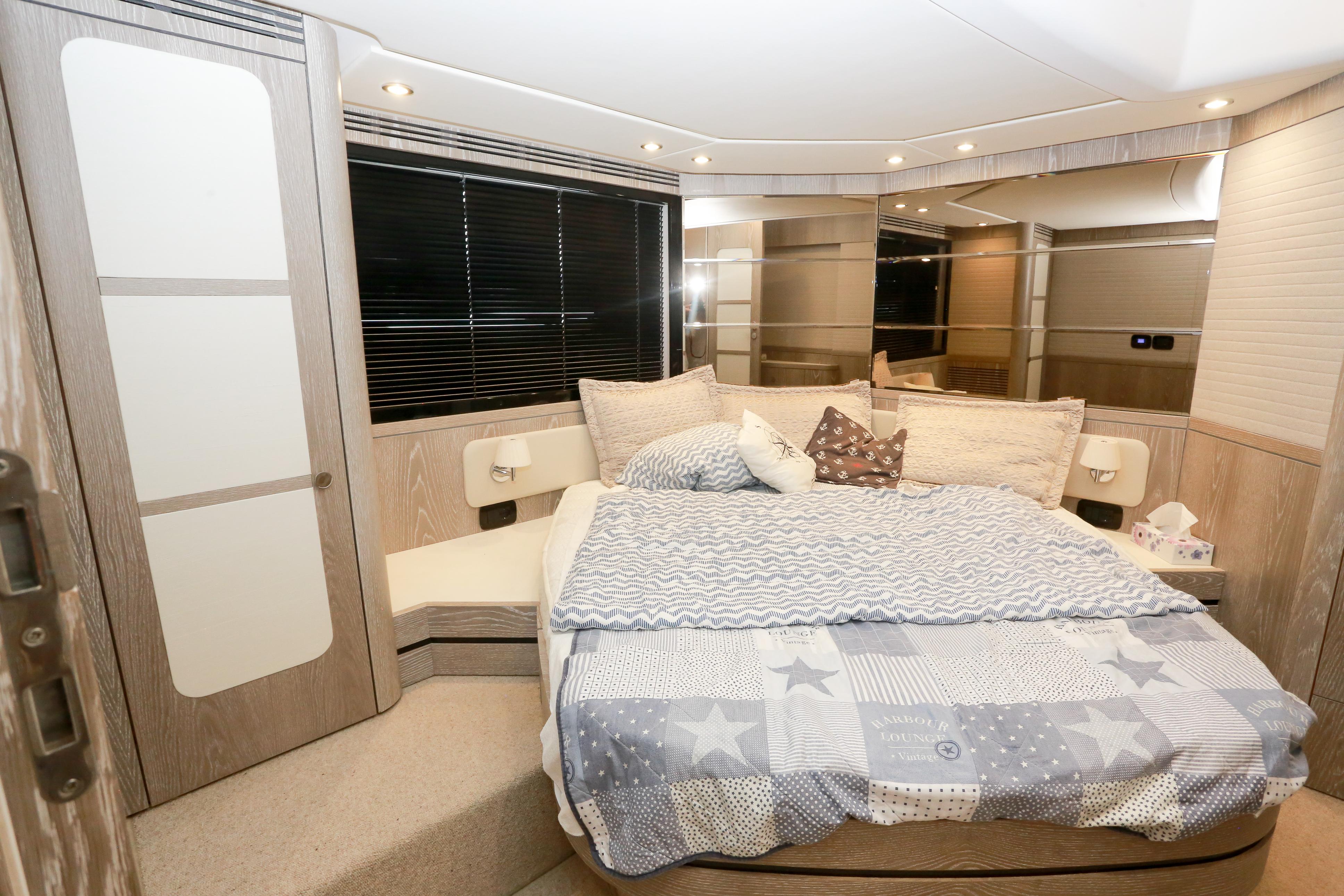

Owner’s cabin
● Located midship
● Diagonal double bed with headboard on
starboard side
● Foldaway bed for accessing the locker
below
● Padded headboard with panel to access
a storage compartment with mirror and
two wall lights
● 2-panel storage cabinet with shelf on
port side
● Wardrobe with hanger bar and drawer
below, on port side
● Wardrobe with shelves on starboard side
● Large windows on starboard side, with
openable portlight
● Spotlights
● Carpeted floor
● Direct access to head on port side
● Venetian blind
● 220V sockets

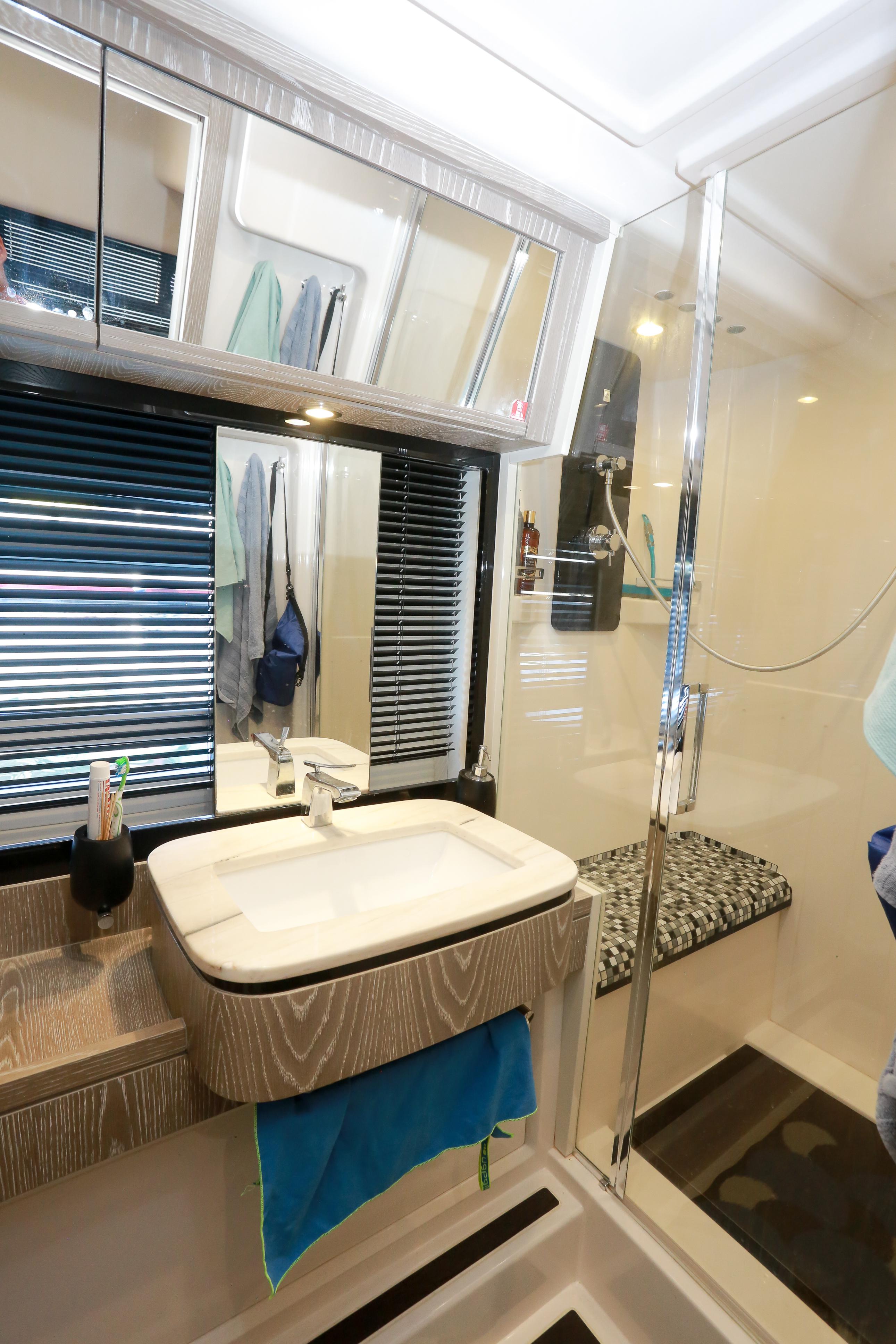

Owner's head
● Located on the port side of the owner's cabin, with access from the owner's
cabin.
● Washbasin top in marble
● TECMA toilet
● Chromed mixer tap

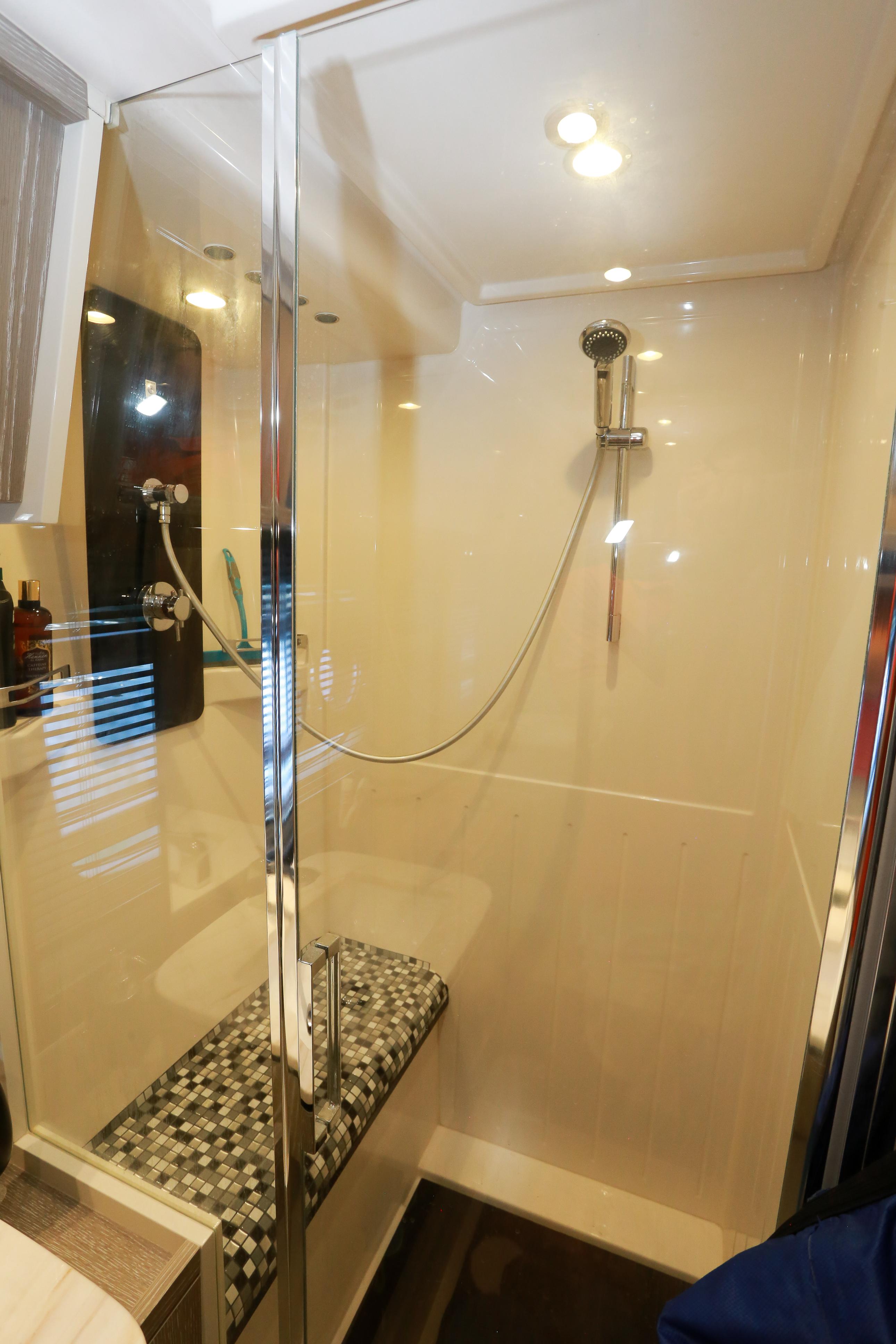

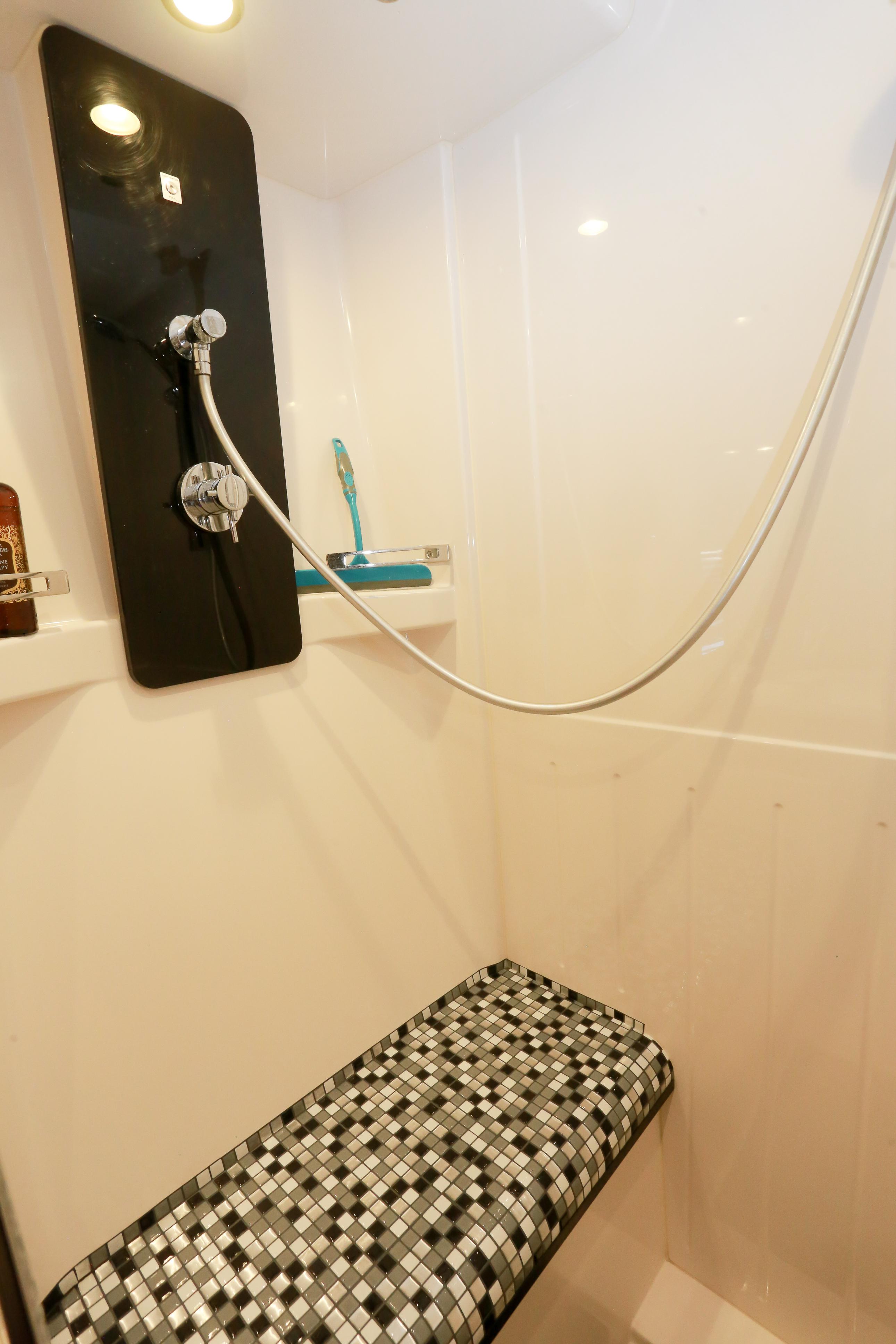

● Separate shower with seat; flat door in
tempered glass
● Shower column
● 2 wall units
● Mirror
● Venetian blind
● 220V socket
● Laminated floor (walnut finish)
● Head air extractor: forced suction from
the shower ceiling panel
● Head accessories:
1 toilet brush
2 clothes hooks
1 toilet roll holder
1 handrail doubling as a towel-holder
VIP cabin
● Located at the bow
● Central double bed
● Foldaway bed for accessing the locker
below
● Two armchairs at the sides of the bed
● Hatchway for accessing the fore sunbed
area
● Wardrobe with hanger bar and shelves
on port side
● Large windows on both sides, with openable portlights
● Carpeted floor
● Spotlights
● Direct access to guest head
● Venetian blind
● 220V sockets

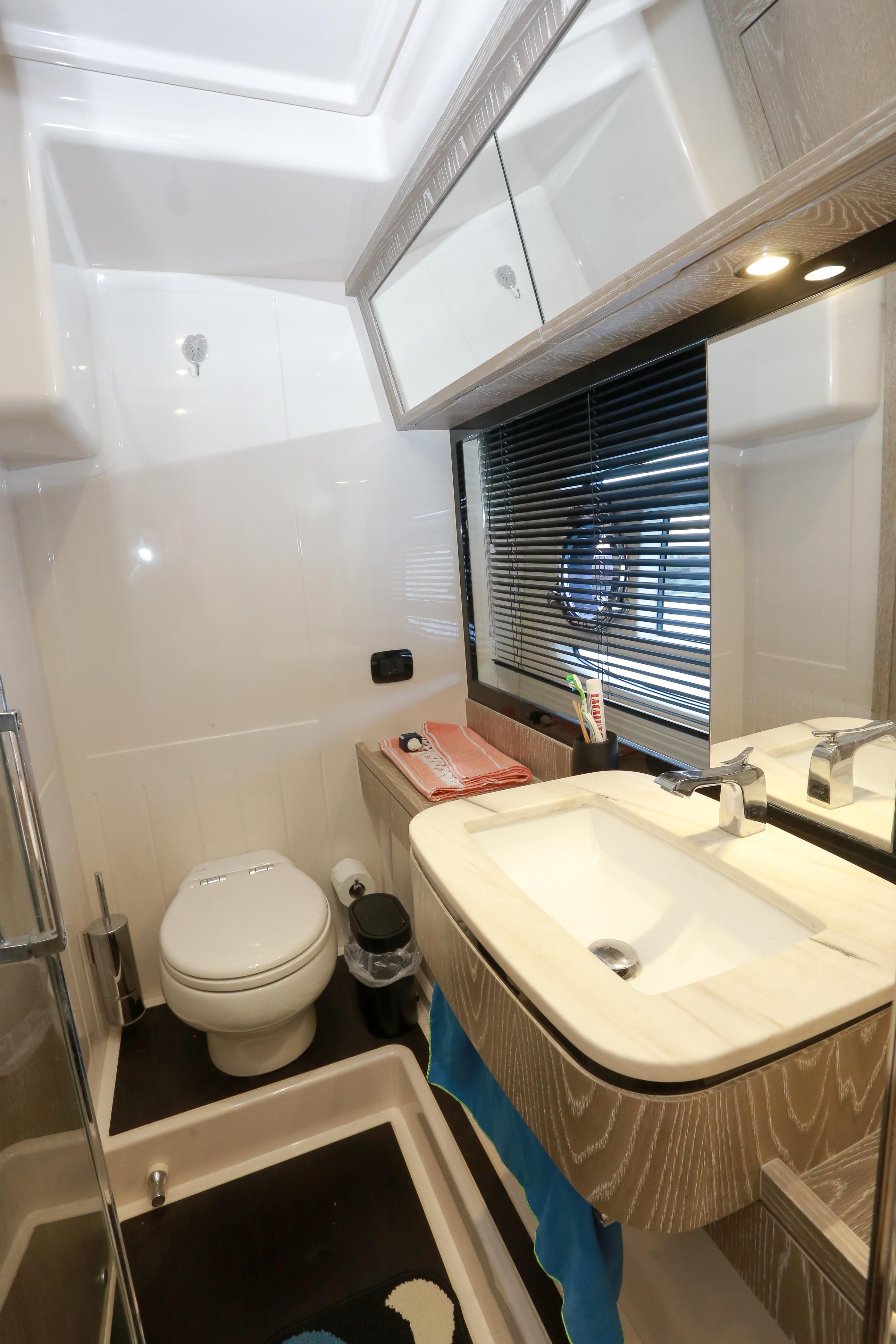

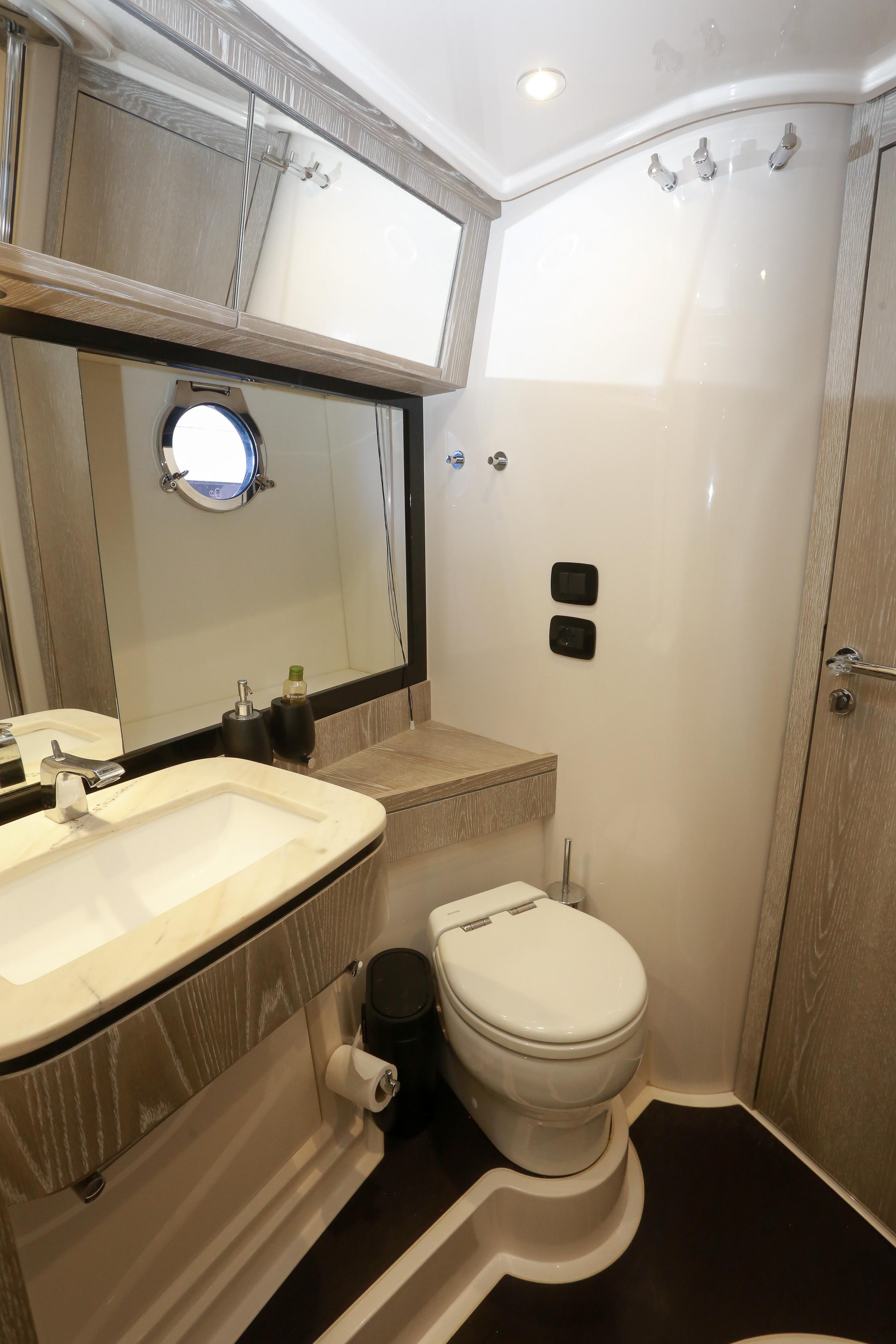

VIP / Guest head
● Located abaft of the VIP cabin, on starboard side
● Direct access from the VIP cabin or from
the lobby
● TECMA toilet
● Washbasin top in marble
● Chromed mixer tap

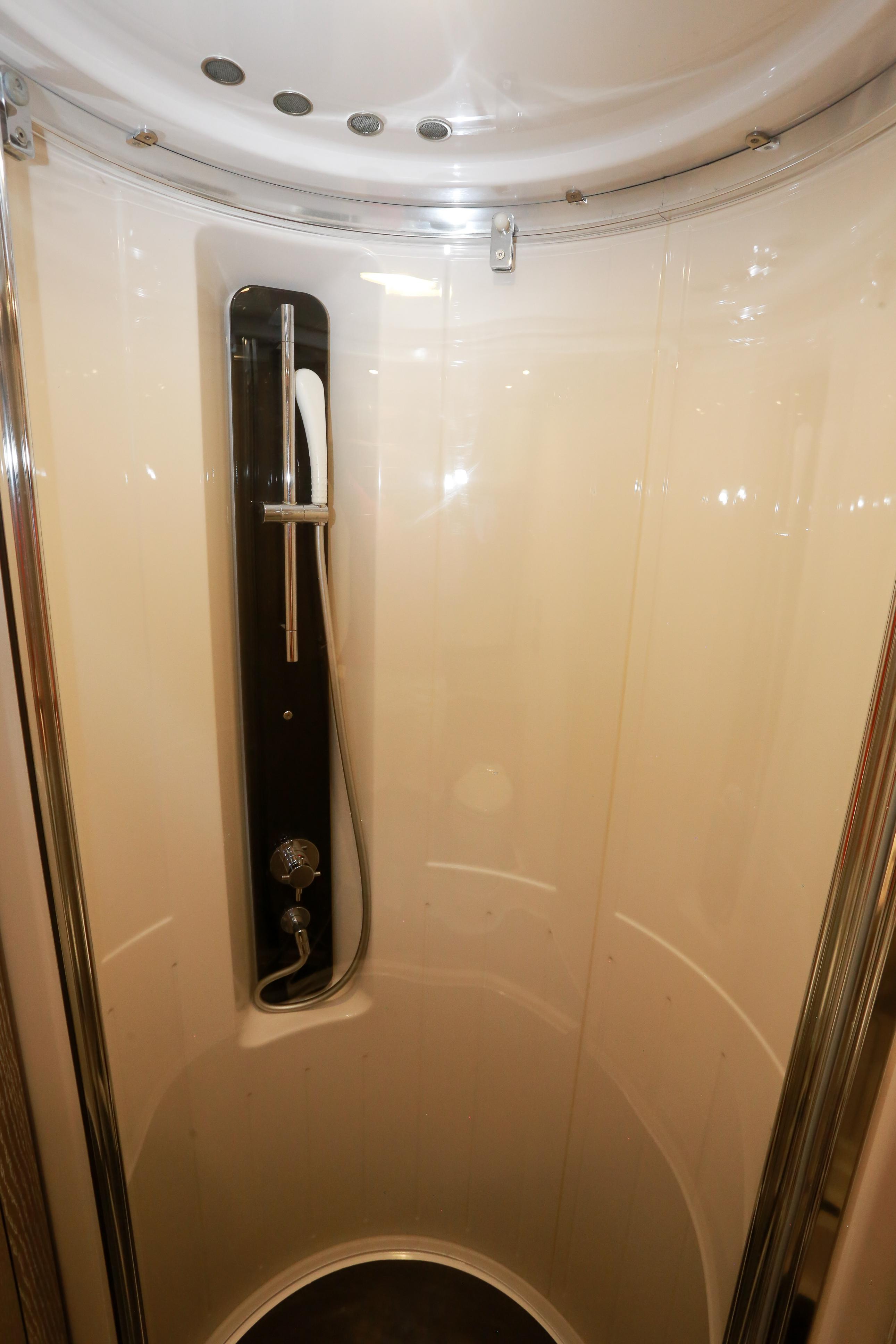

● Shower: circular enclosure with 1 Plexiglas panel
● Mirror with spotlights
● Wall unit with 2 panels above washbasin
● 1 openable round portlight with Venetian blind
● Laminated floor (walnut finish)
● 220V socket
● Head air extractor: forced extraction
(from the shower ceiling panel)
● Head accessories:
1 toilet brush
2 clothes hooks
1 toilet roll holder
1 handrail doubling as a towel-holder

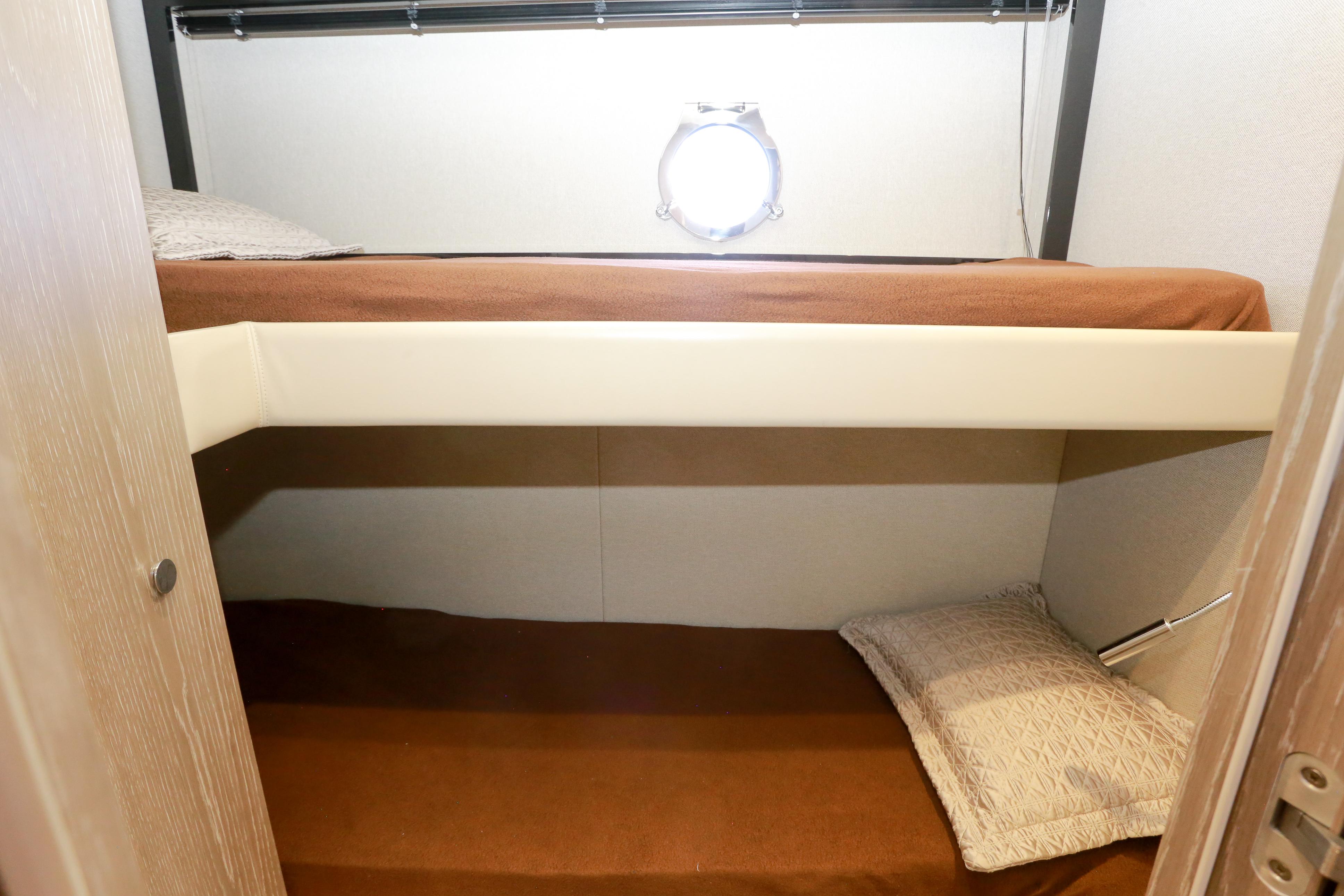

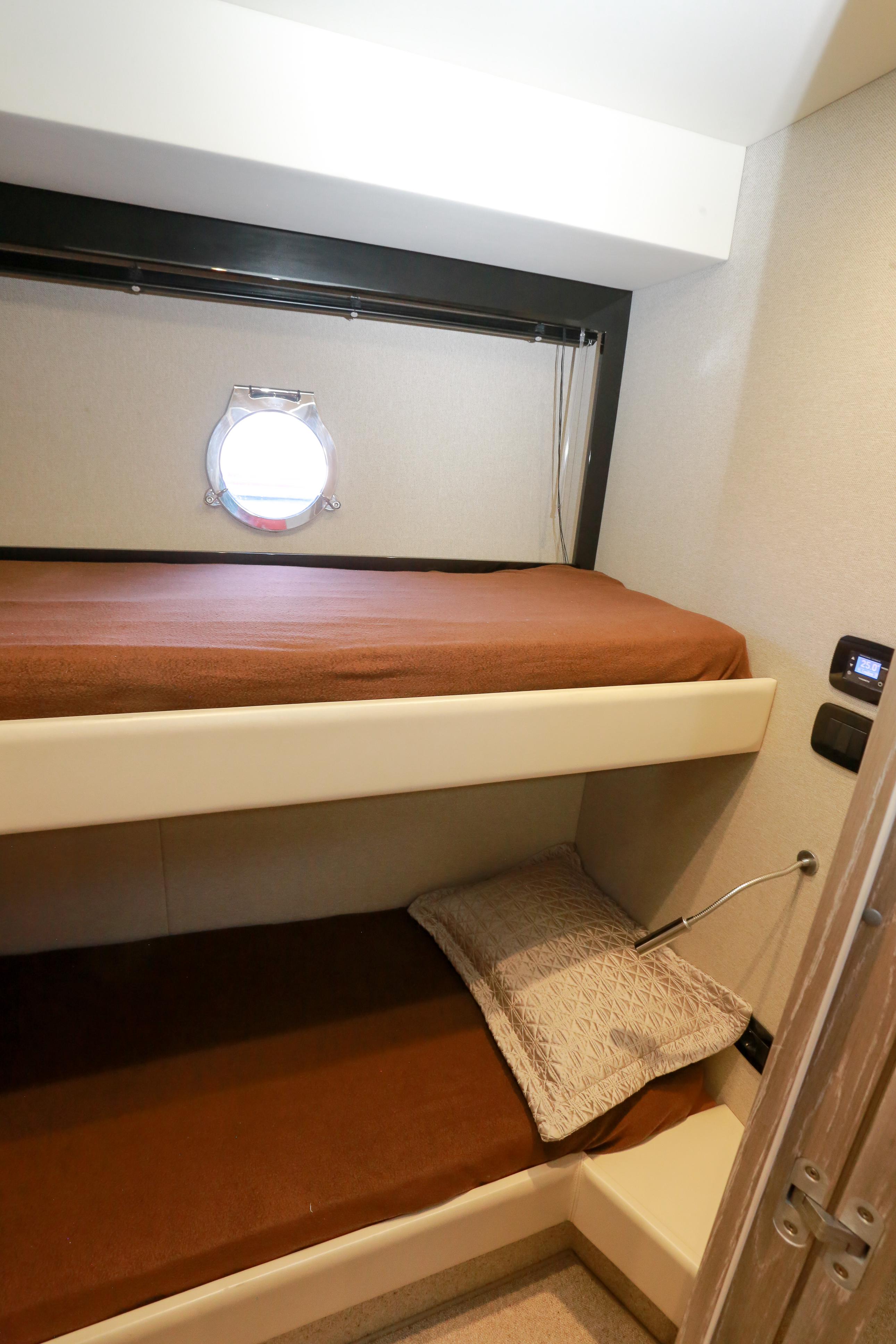

Third cabin
● Located on the port side, with access
from corridor
● Two bunk beds
● Openable portlight with Venetian blind
● Carpeted floor
● Spotlights
● Adjustable reading lights
● Wardrobe on stern side of the cabin
● 220V socket
Utility Room
● Located on starboard side, with access
from corridor
● Openable portlight
● Carpeted floor
● Spotlights
● Wardrobe on stern side of the cabin
● Large, open storage compartments
● Worktop above storage compartments
can be used as base for extra bed (not
included)
● 220V socket

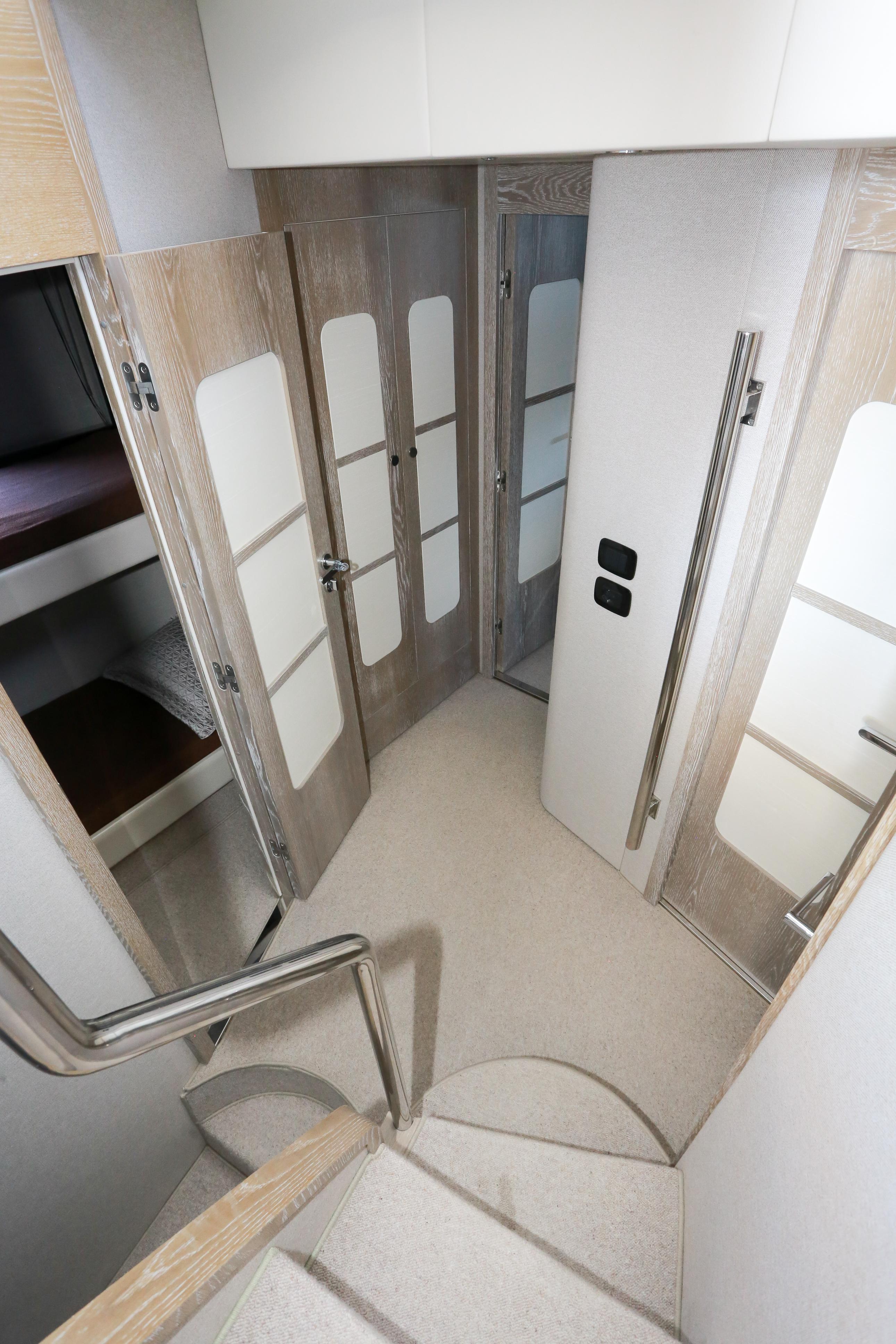

Lobby
● Located midship, with access from ladder descent
● Handrail for stairway
● Large, full-height wardrobe on port
side, with space for washer-dryer (not
included)
● Wardrobe with shelves under the ladder
● Carpeted floor
● Spotlights
Crew cabin (OPT)
● Located at stern
● Access from cockpit bench, starboard
side
● 1 single bed
● Large window astern, with openable
portlight
● Wardrobe
● Spotlights lighting
● 220V sockets
● TECMA toilet
● Washbasin with pull-out mixer tap for
showering
● Shower with anti-spray curtain and grating
Electric system
Main characteristics
● Onboard voltages:
230V-50Hz AC
24V DC
12V DC (for VHF equipment and
cigarette lighter socket)
● The main boards are in the wheelhouse,
engine room and cabin access stairway
● The power circuit breakers for protecting
the utilities - 220V and 24V - are in the
panel to the right of the ladder leading
from the saloon to the lower deck. This
panel also contains the 220V AC shore or
generator source selectors.
● The main panels in the engine room contain additional power circuit breakers for
protecting the various 24V DC and 220V
AC utilities; two panels are located on
the fore bulkhead and one in a central
position and astern.
● The alarm panel is on the console on the
right side of the wheelhouse
Galvanic current insulation
● zinc anodes
Generator
● A 3.5 kW 50 Hz generator is provided
Shore power sockets
● 1 shore power socket, 50A, astern
Batteries
● Set of six 24V 270Ah batteries, for services
● Set of two 24V 90Ah batteries, for engines
● Battery 12V 70Ah, for generator
● Electronic battery charger 80A (220 /
110V)
● Battery charger for generator 20A (220 /
110V)
Lights and sockets
● AC sockets: EU type
● DC sockets: cigarette lighter type
(wheelhouse, flybridge)
● 24V watertight halogen lighting for outside and LED for inside
● External watertight lights
Electronic navigation instruments
● Wheelhouse:
HELMSMAN magnetic compass 12/24V
Raymarine Bronze Package
● Flybridge:
HELMSMAN magnetic compass 12/24V
Raymarine Bronze Package
● For a detailed list of alternative/additional equipment available,
please refer to the Optionals price list
Bilge system
● 3 automatic bilge pumps (dinette, crew
cabin, engine room), with controls on
the wheelhouse
● 1 electric bilge pump in owner's cabin
● 1 manual bilge pump in owner's cabin
● 1 manual bilge pump in cockpit's locker
● 3 level alarms
● Rapid pumping of engine room via engine water pump
Fire extinguishing system
● 1 cylinder with nozzle on engines and
marine gears
● Activation handle in cockpit, and emergency key
Fuel system
● 2 connected tanks, 1600 l each (total
capacity 3200 l), in aluminum
● Electronic gage in wheelhouse (for starboard tank)
● Optical gage on port tank
● 2 single RACOR 900 filters (decanters)
for engines + 1 PFG20 NAUCO filter for
generator
● 2 refueling plugs on walk arounds
● 2 vents on bulwarks
● Remote diesel shut-off (engine and generator) via 24V solenoid valve
● Fuel drawing tap on starboard tank
Fresh water system
● A 700-liter stainless steel tank below the
bed of the VIP cabin
● Water caps on fore port side
● Level sensor with electronic gage in
wheelhouse
● 1 tank vent on the bulwark
● Pressure pump
● 60l 220V water heater
● Hot/cold water line: heads, galley,
bathing platform shower head,
flybridge shower; Cold water only in
flybridge washbasin; Cold water only in
engine room.
● Fresh water toilet flushing
● System that can be isolated by ACORN
Manifolds
Black water system
● 2 connected tanks, 175 l each, in
polyethylene
● Level sensor (2 levels)
● 2 tank vents on bulwark with anti-odor
filters (one for each tank)
● 1 macerator pump
● Suction point from deck walk around
● Tecma toilet (with macerator pump). All
the toilets discharge into the tank.
● Sea outlet from tank (manual only)
Gray water system
● Polyethylene tank, 175 l, below the lobby
● Gray water outlet directly into the sea
from bulwark raisers (for flybridge washbasin)
● Level sensor (3 levels) with indicator on
alarm panel in wheelhouse
● Water discharge: from tank (automatic
/ manual)
● Diaphragm pump
● Fancoil condensation discharge into
auxiliary collection tank and main tank
Seawater system
● Engine cooling system: 2 dynamic seawater intakes - 2.5”
● Generator cooling system: submerged
outlet: 1 dynamic 1" seawater intake
with filter and valve
● Air conditioning cooling system (not included): submerged outlet: 1 dynamic 1"
seawater intake with filter and valve
● Chain washing pump: seawater
Engine exhaust system
● Gas exhaust system: submerged engine
discharge and minimum bypass on bulwark
● Insulated stainless steel raisers
● Exhaust pipes: structural muffler in GRP
● Water/fumes separator for generator,
with side exhaust
Engine room (other)
● Access from engine room via cockpit
door and ladder.
● Engine unloading door in cockpit
● Battery housing: 1 tank for engine batteries and 1 tank for service batteries
● Sound-proofing
Ventilation
● Rooms:
Ventilation of owner's head: forced
extraction 24V
Ventilation of VIP head: forced extraction 24V
Ventilation of galley: extractor fan 24V
● Engine room:
air intakes on hull (grating + separator
filters)
Natural air intake
forced extraction with 2 fans 24V, D.
250mm
Air conditioning system (OPT)
● WORLD SPEC water system version
● 1 compressor unit with 60,000 BTU dual
compressor, located above the port
diesel tank
● 1 seawater pump with relevant seawater intake in engine room
● Distribution:
Dinette: 2 evaporators, 9,200 BTU (on
starboard side next to refrigerator, and
on port side above sofa ceiling panel)
Wheelhouse and windscreen: 1
evaporator, 18,000 BTU (inside lobby
wardrobe)
Owner’s cabin: 1 evaporator, 9,200 BTU
(starboard wardrobe)
VIP cabin: 1 evaporator, 9,320 BTU
(port wardrobe)
Third cabin: 1 evaporator, 6,200 BTU
(in wardrobe)
Utility Room: 1 evaporator, 6,200 BTU
(in wardrobe)
Lobby: 1 evaporator, 4,800 BTU (in
wardrobe)
Crew cabin: 1 evaporator, 4,800 BTU
(in wardrobe)
● A/C controls: 5 power cards and 3 auxiliaries
● Remote control panel in dinette and controls in individual cabins
The yacht is registered under the Polish flag. EU VAT NOT PAID.
