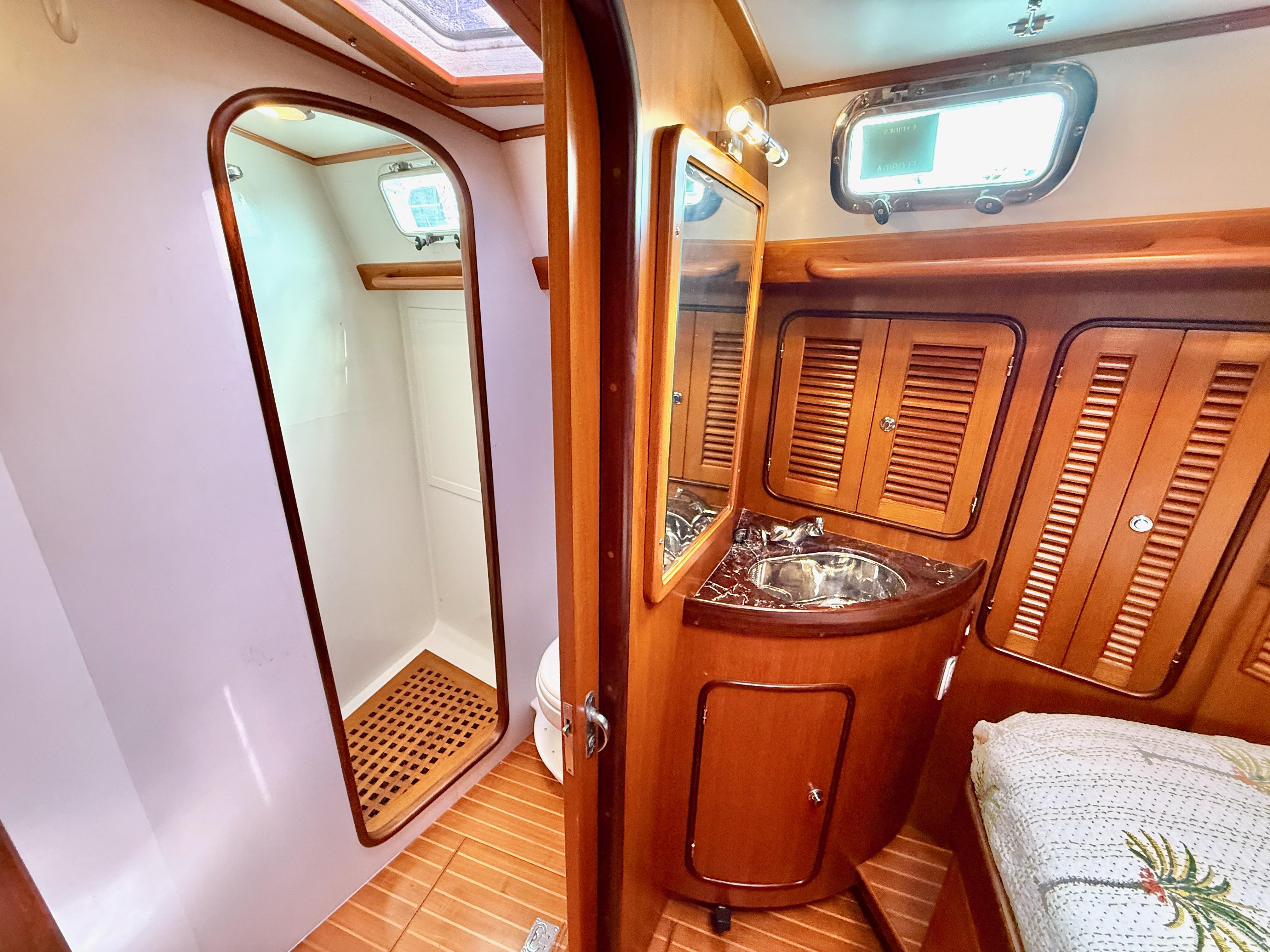

Accomodations2 cabin 2 head layout each with separate stall showers

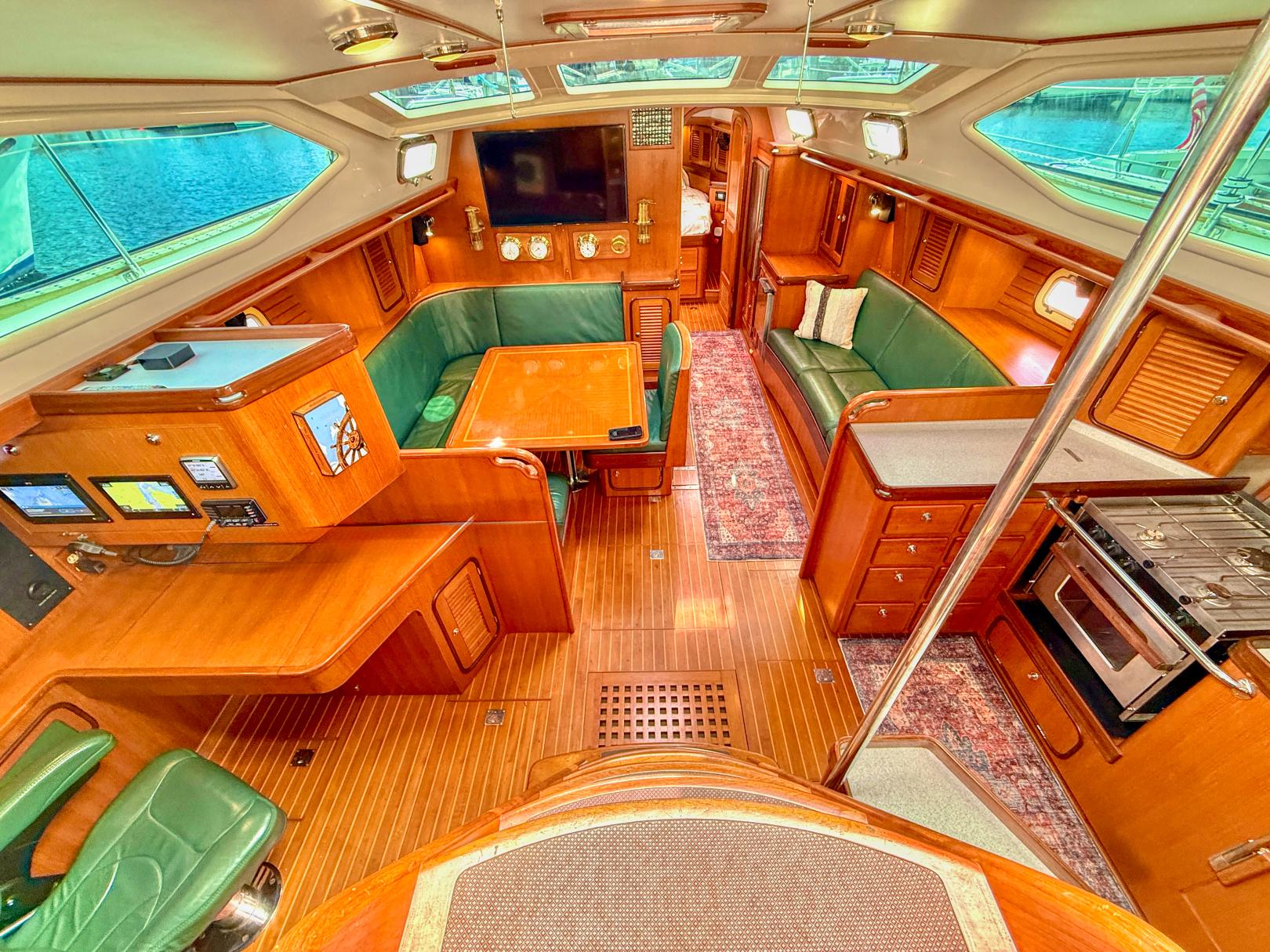

The interior layout is very spacious with impressive headroom and plenty of light making her an easy boat to live aboard for long periods at sea. The interior is hand built by skilled shipwrights. There are great flow and sight lines from forward to aft. The joinery all fits perfectly and wood grains match where possible. The boat is solid with no creaking floorboards when you walk around nor with bulkheads in a seaway.
The layout from forward to aft begins with a guest stateroom forward with a centerline berth with an ensuite head next aft to port. There are lockers outboard of berth and drawers under and a large hanging locker starboard. A pocket door provides access to enter the head with sink in the stateroom. The stall shower has a teak seat and automatic shower sump pump. There is separate access to the head from the passageway.
Outboard to starboard is a front opening Frigoboat refrigerator with a locker under. There is a liquor locker and additional lockers in this location. An ice maker is located next to the refrigerator. Inboard is the mast hidden behind a door.

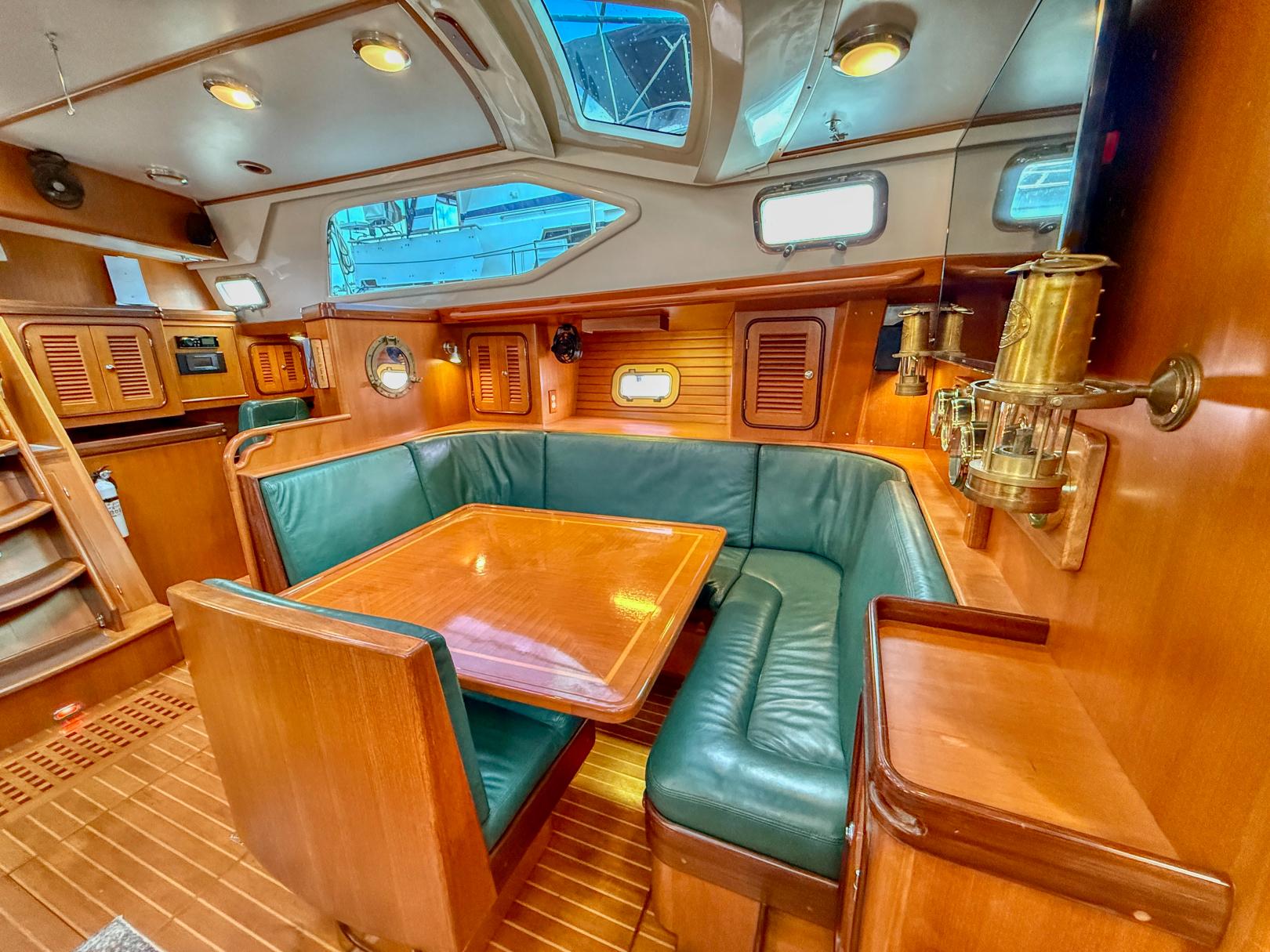

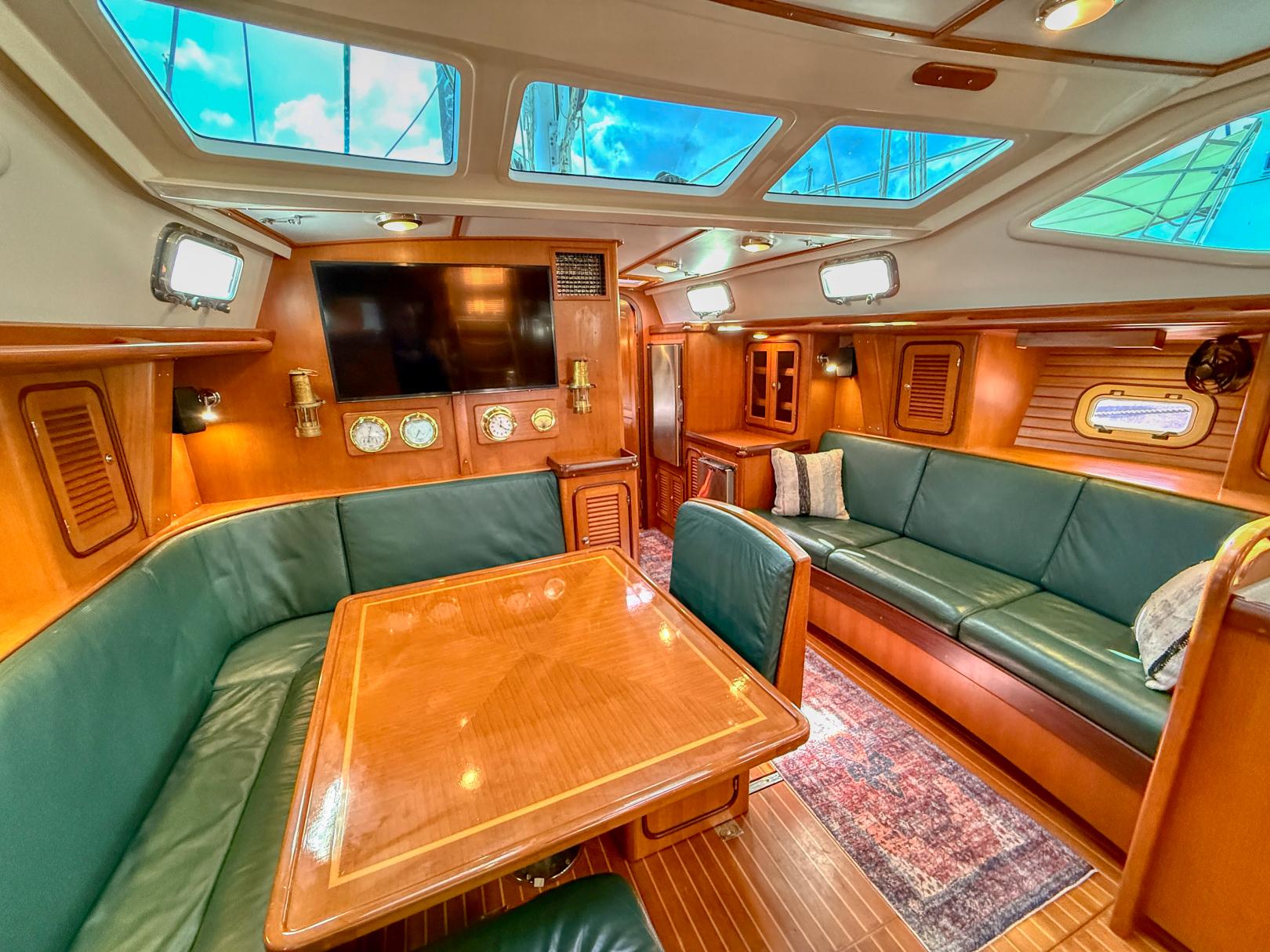

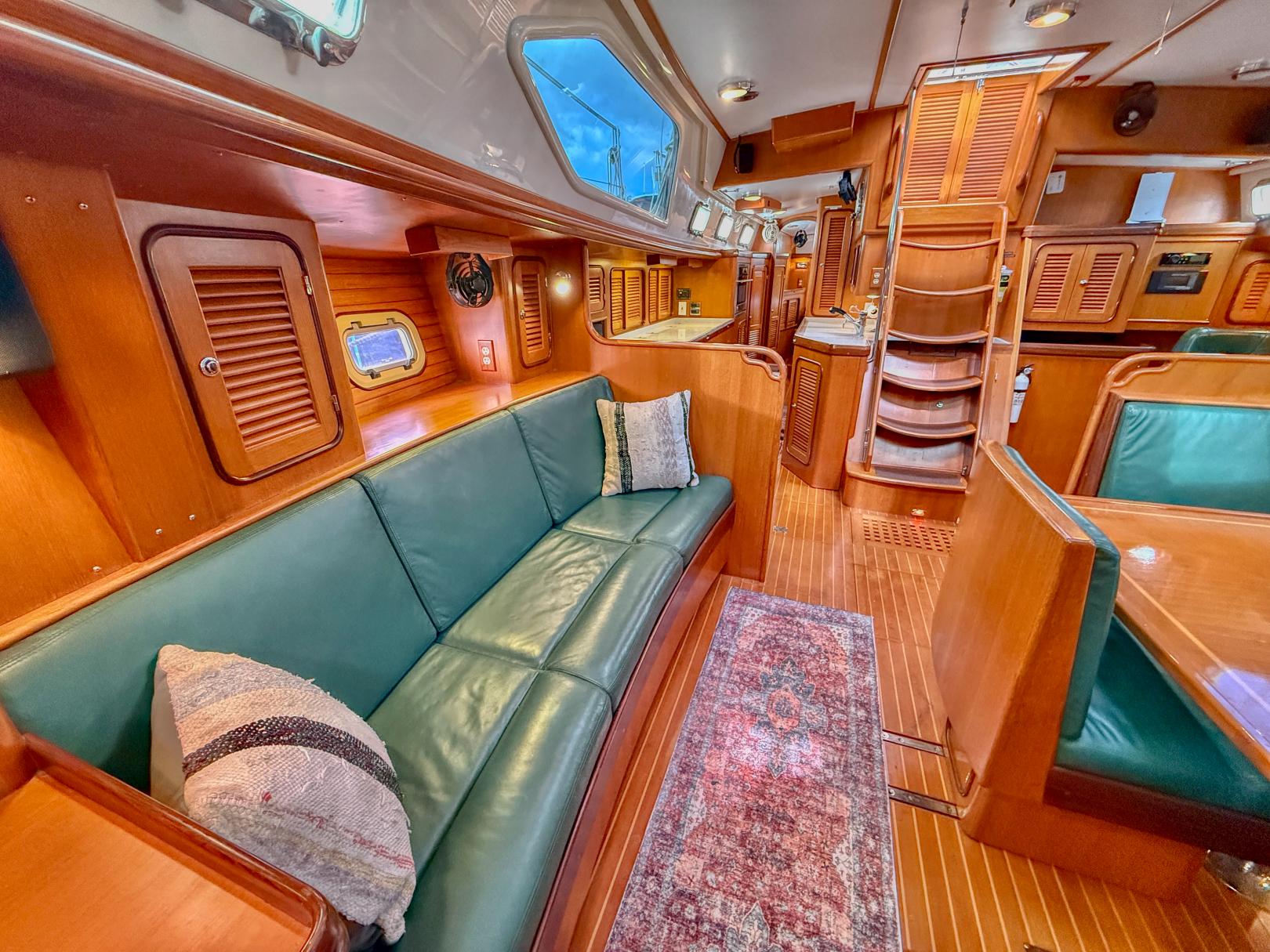

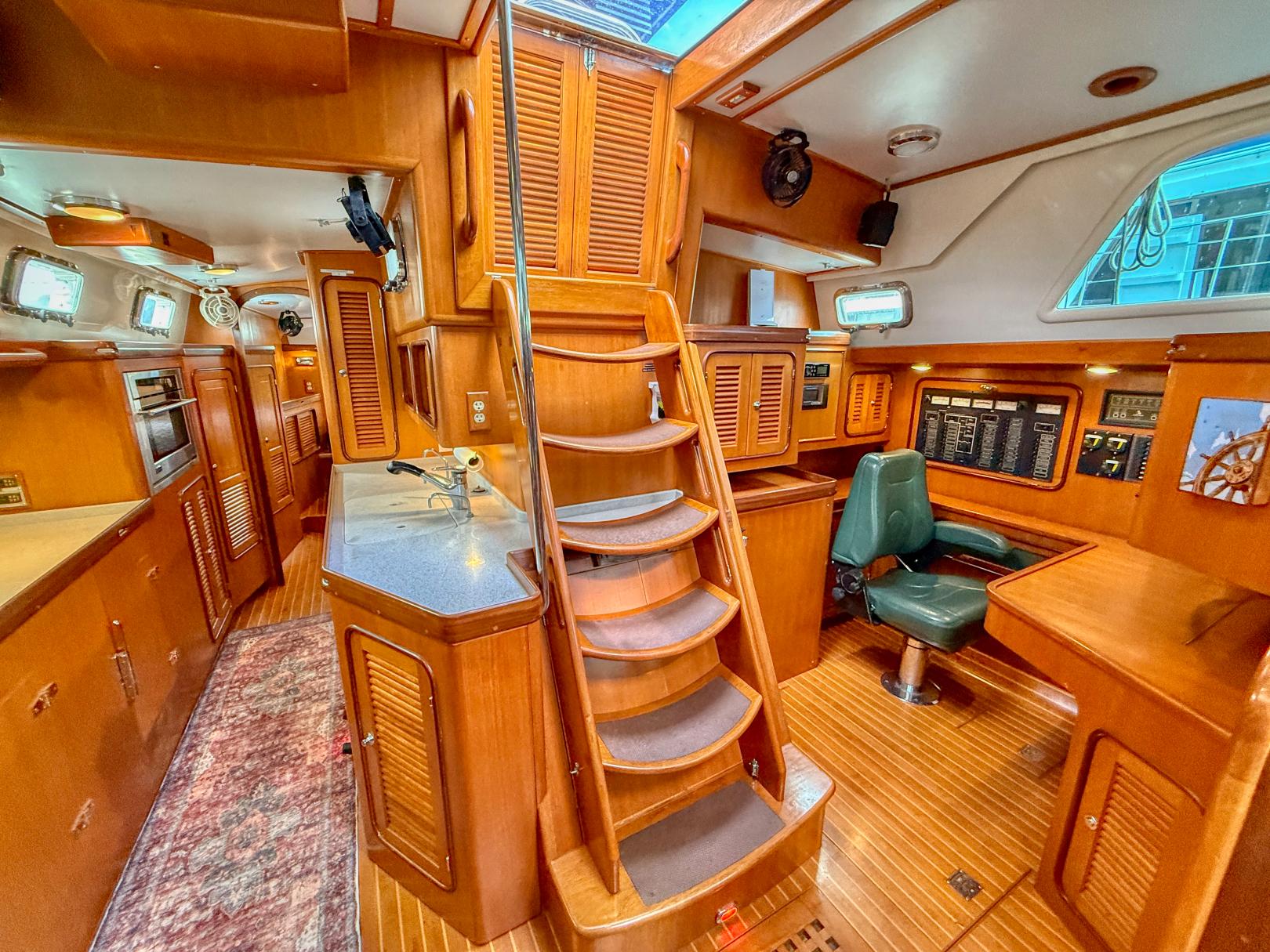

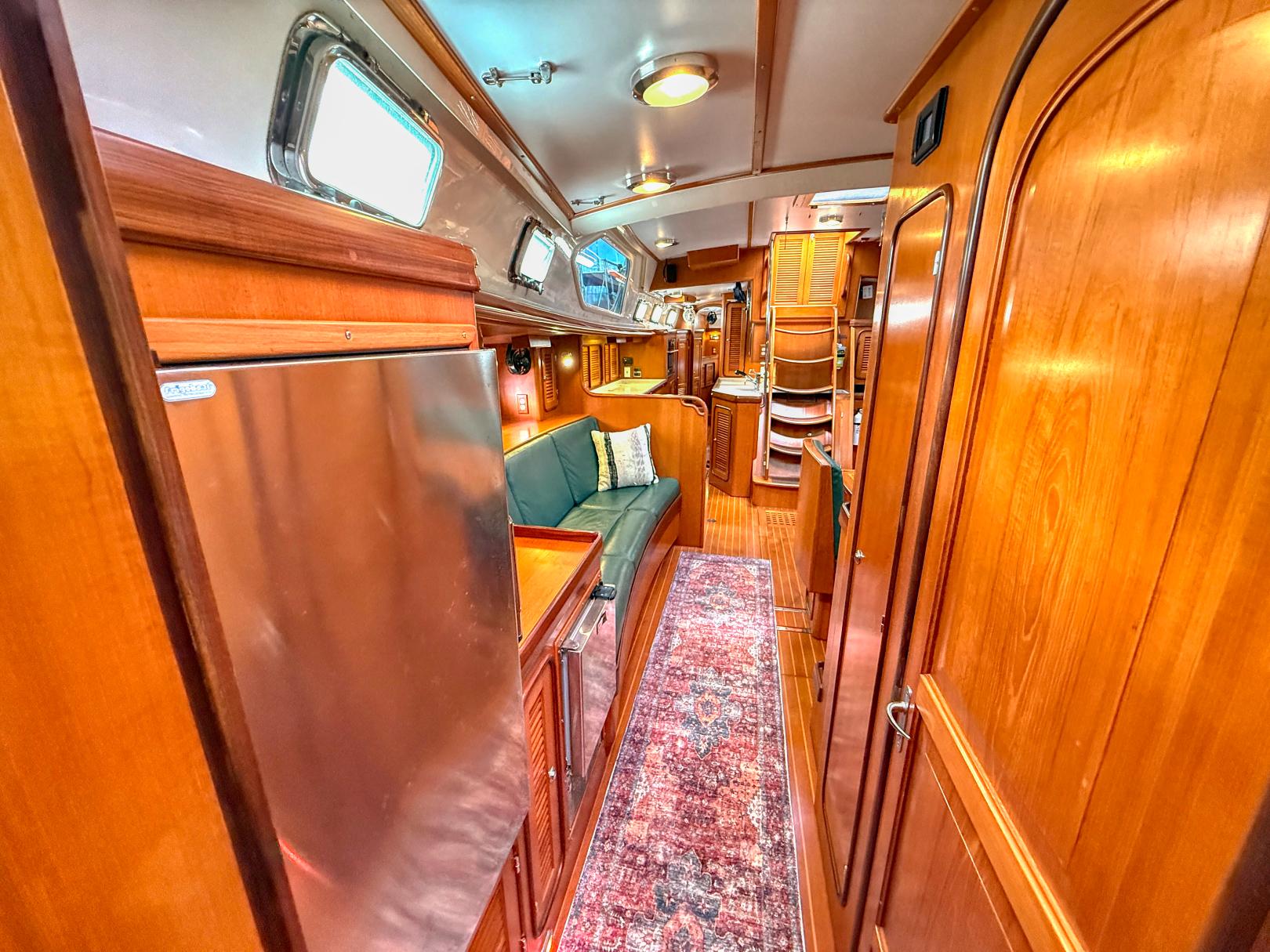

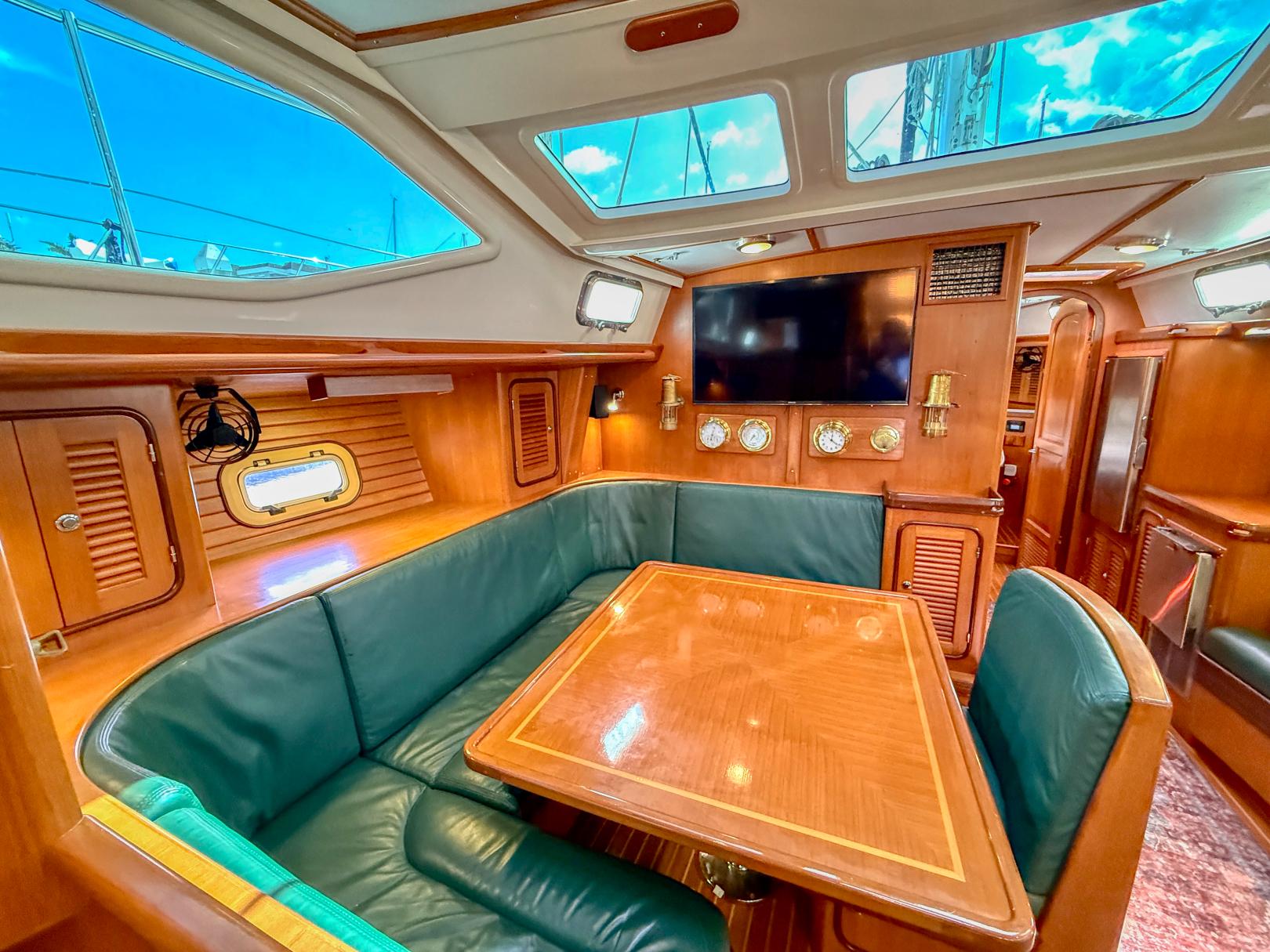

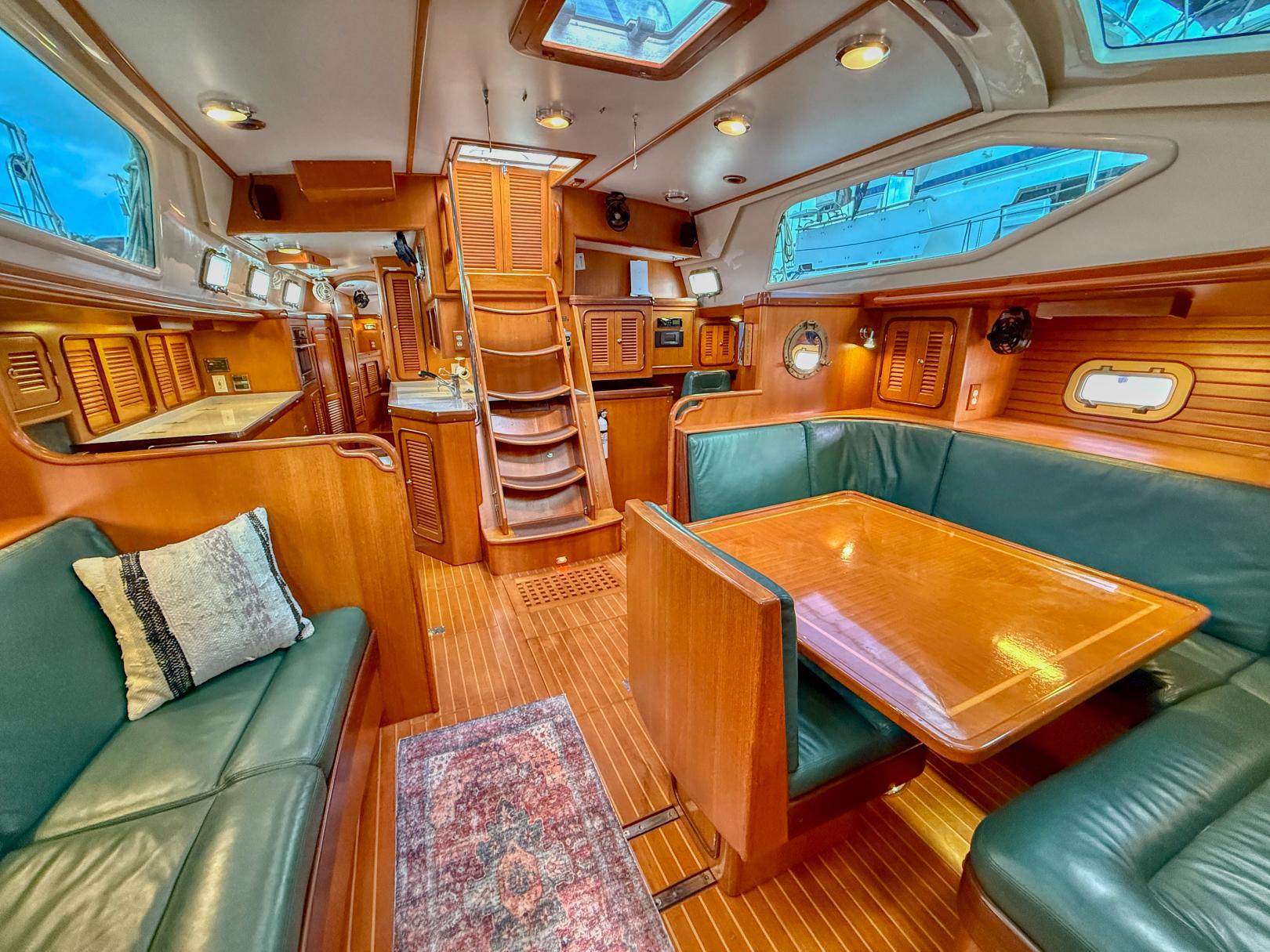

The salon has a straight settee on the starboard side and a U-shaped settee to port with a teak dining table. A bench seat inboard provides additional seating on tracks to slide in and out. The dining table can be lowered and converted to a double berth. Custom cushions are covered in rich green leather. Next aft to port is the full-size navigation station which is adjacent to the cockpit companionway. It features a large desk, plenty of storage, and a very comfortable adjustable navigation chair covered in matching leather upholstery.

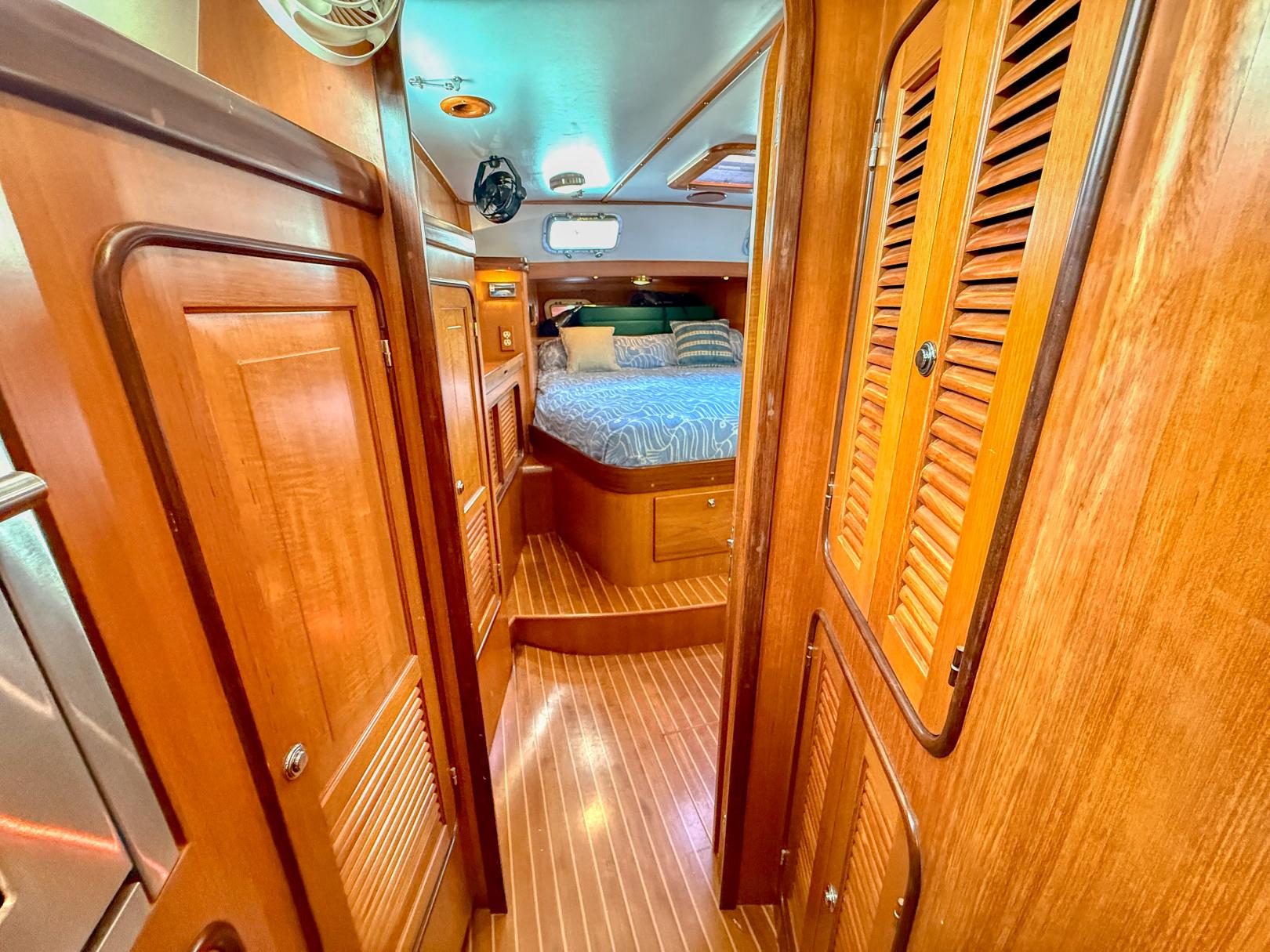

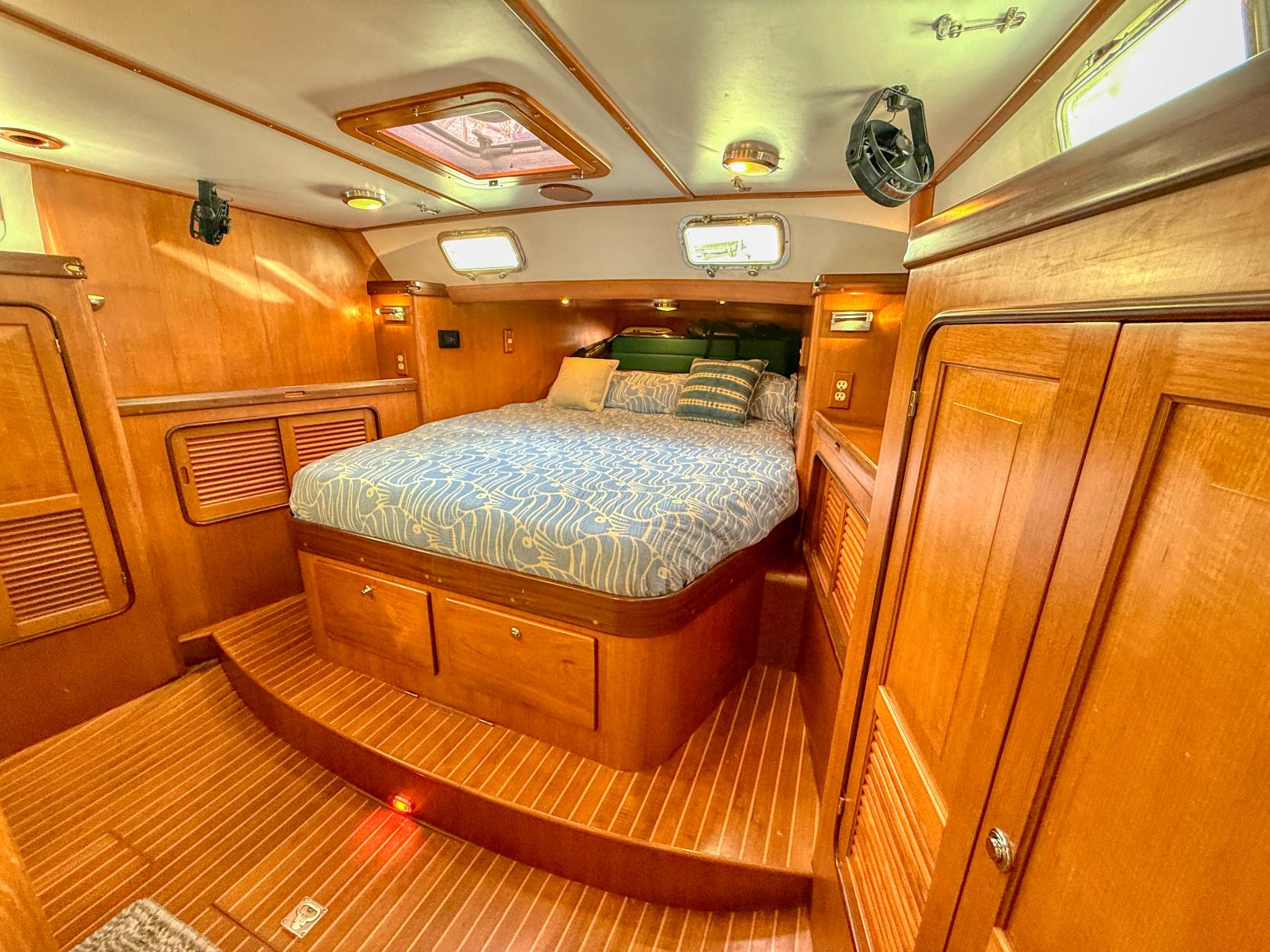

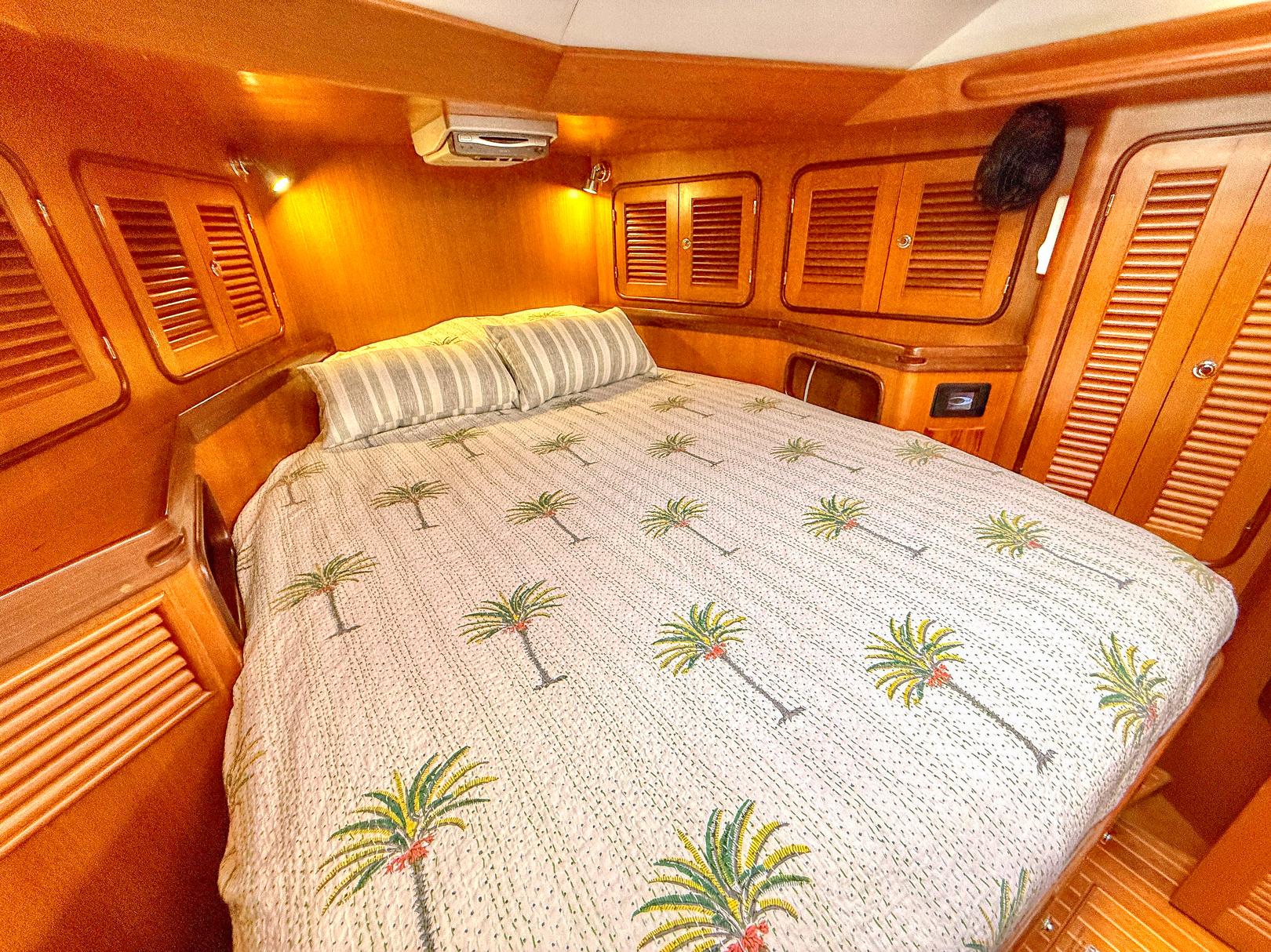

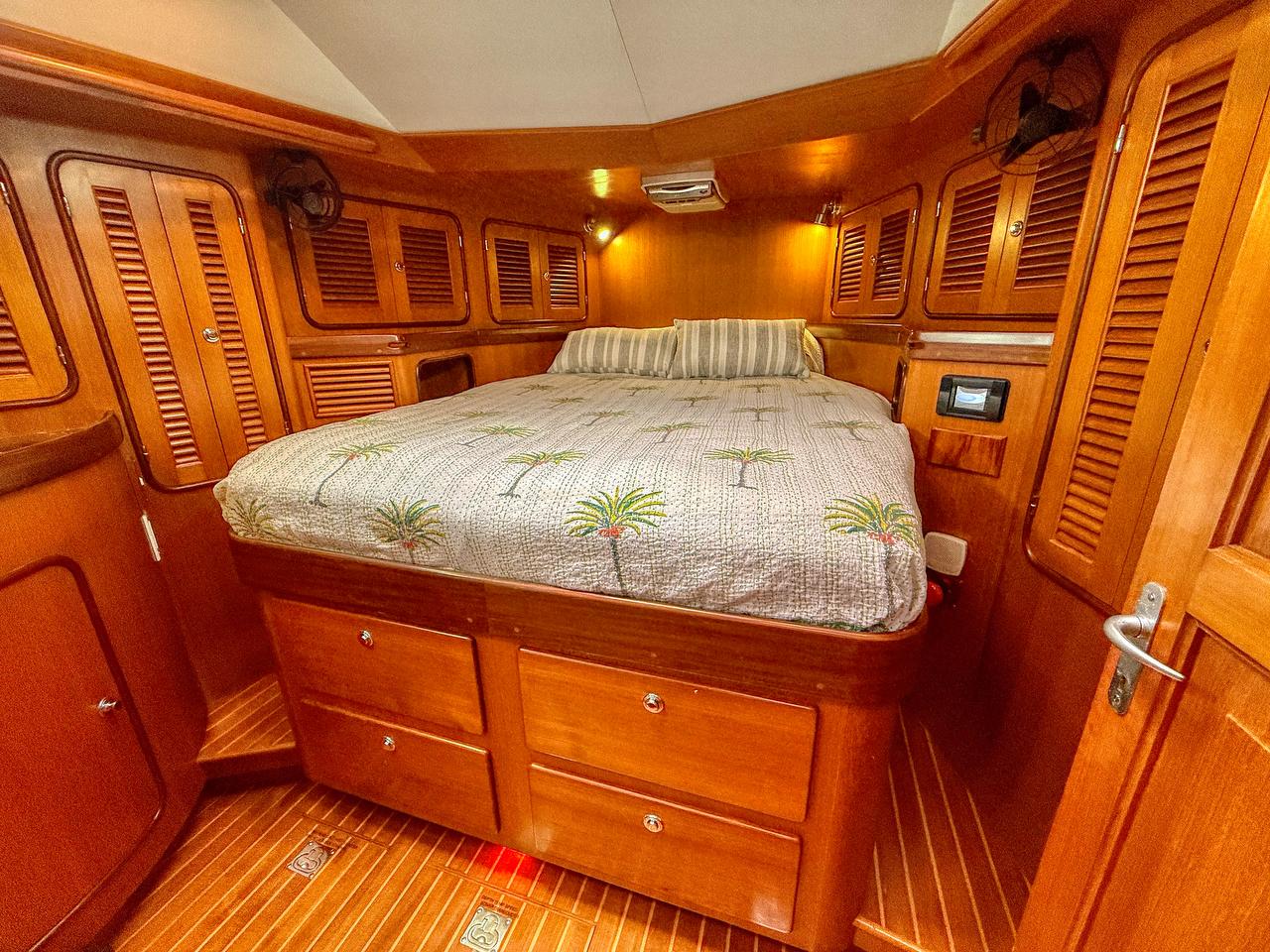

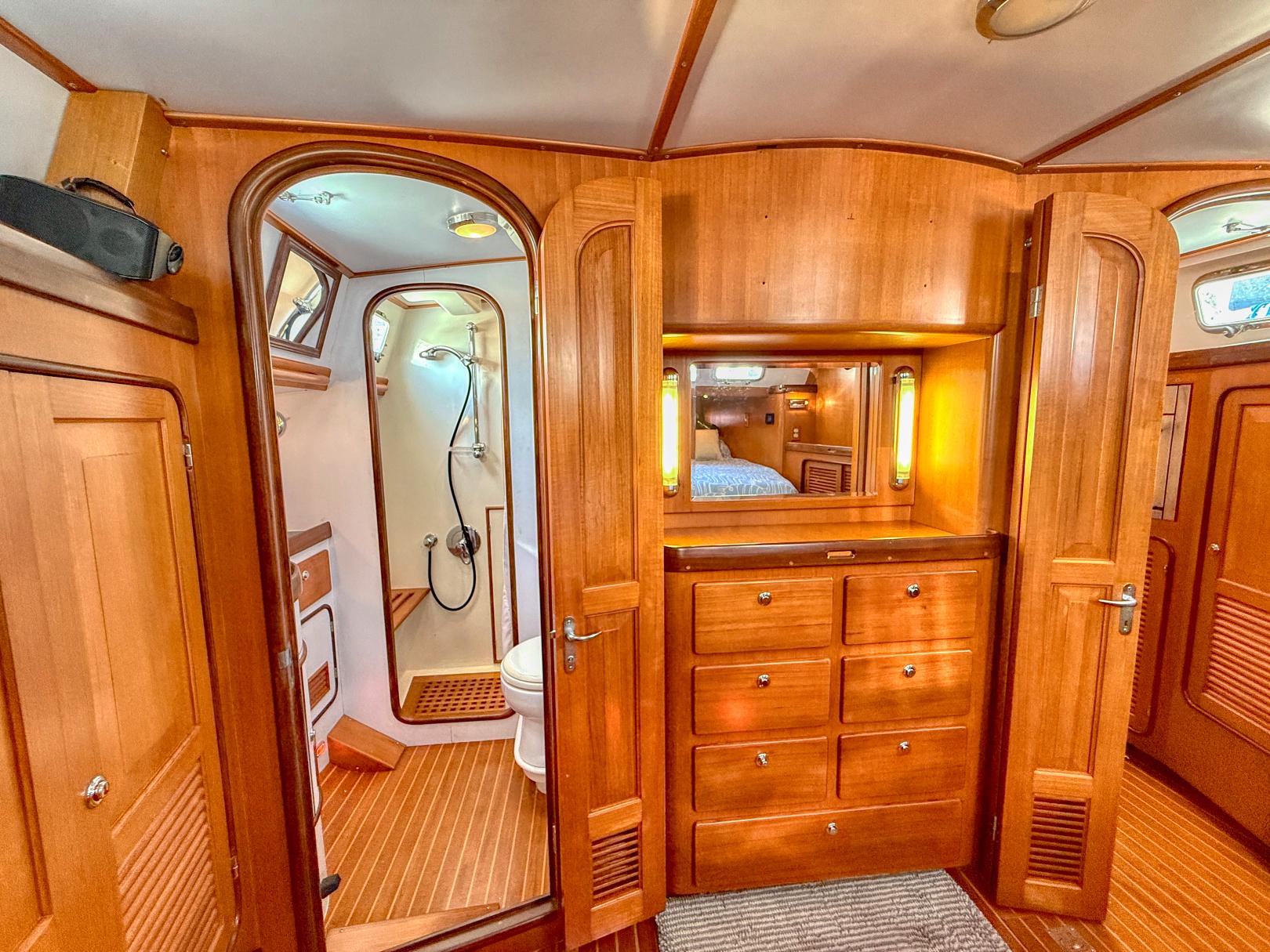

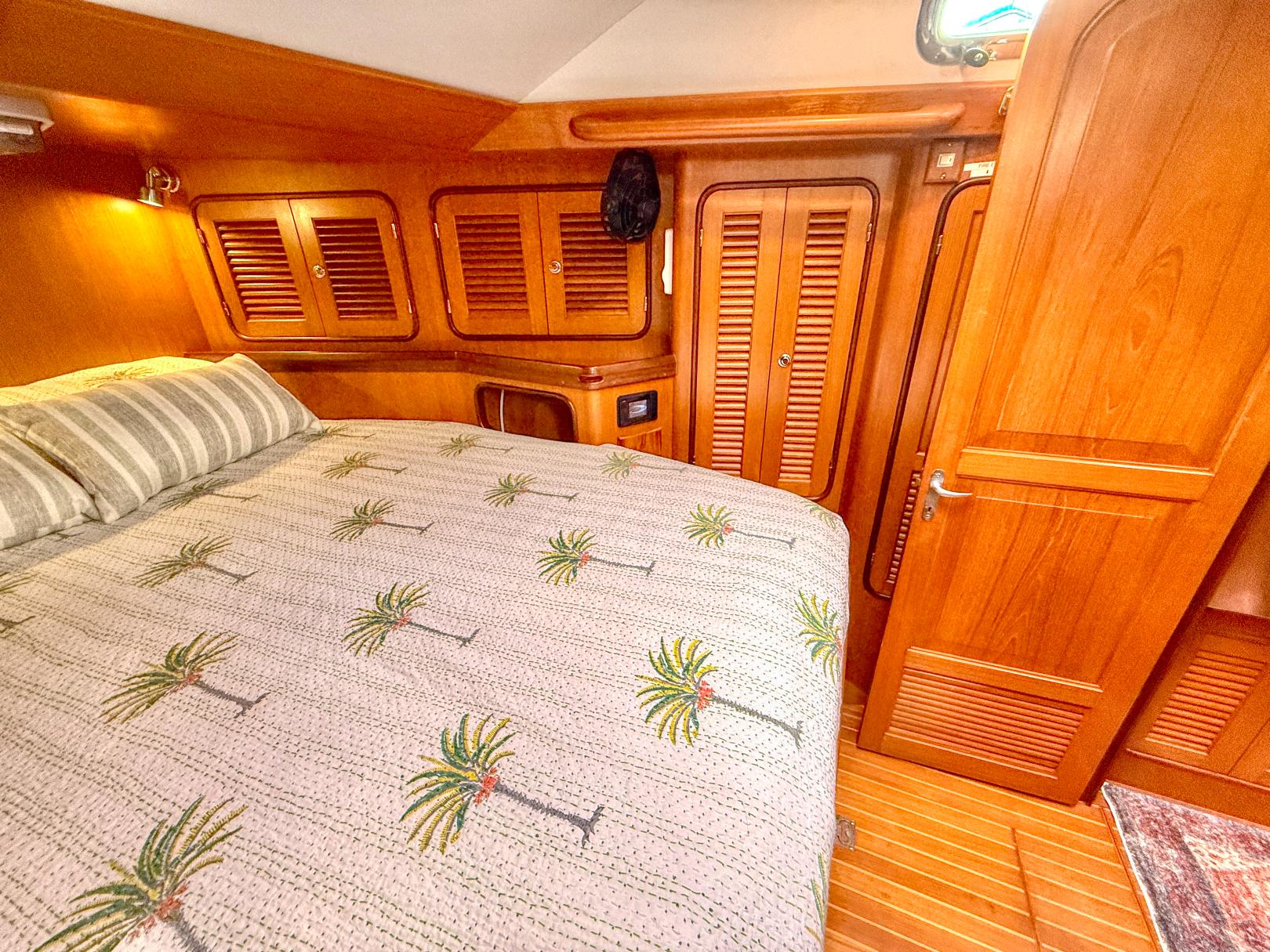

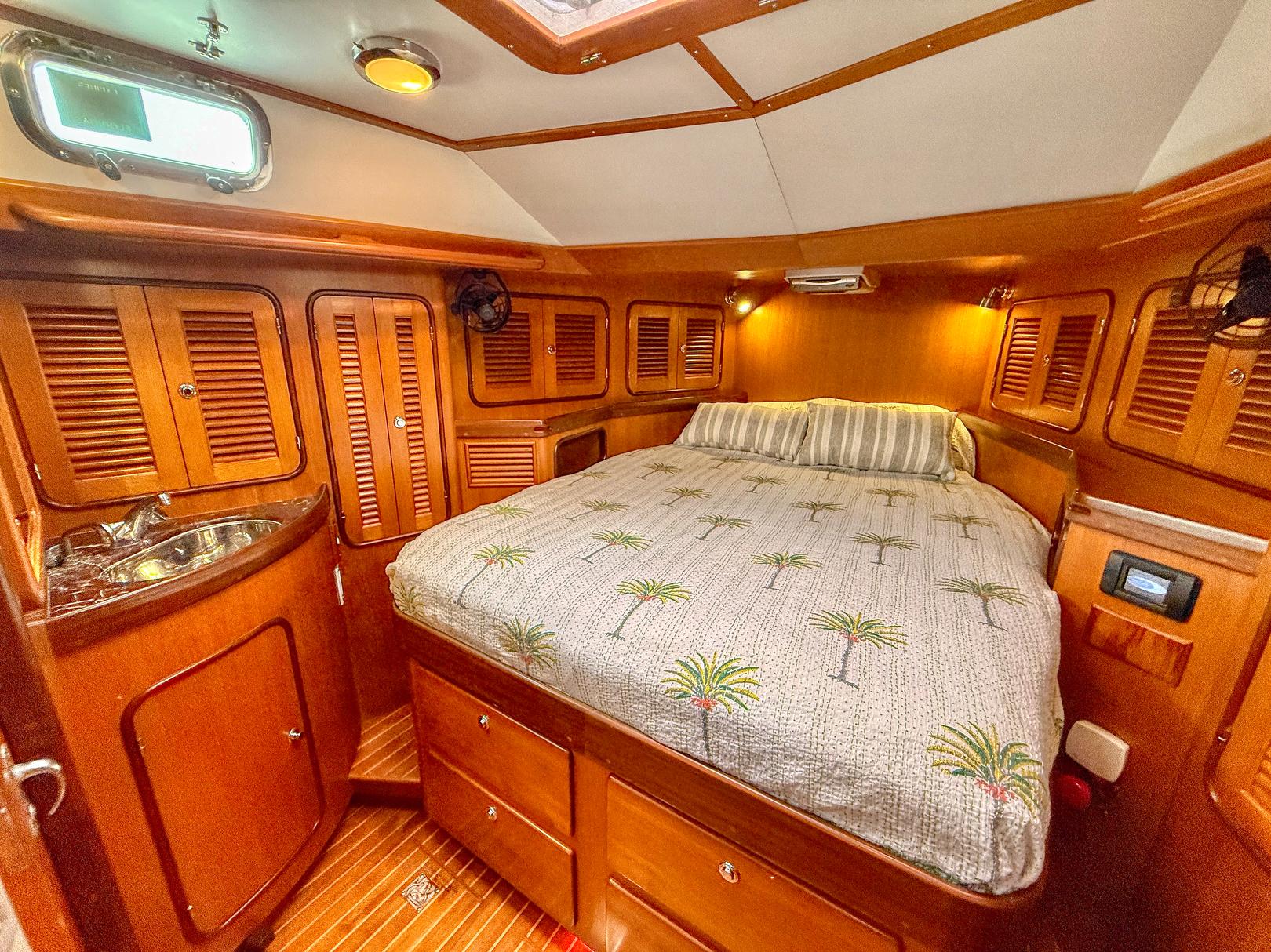

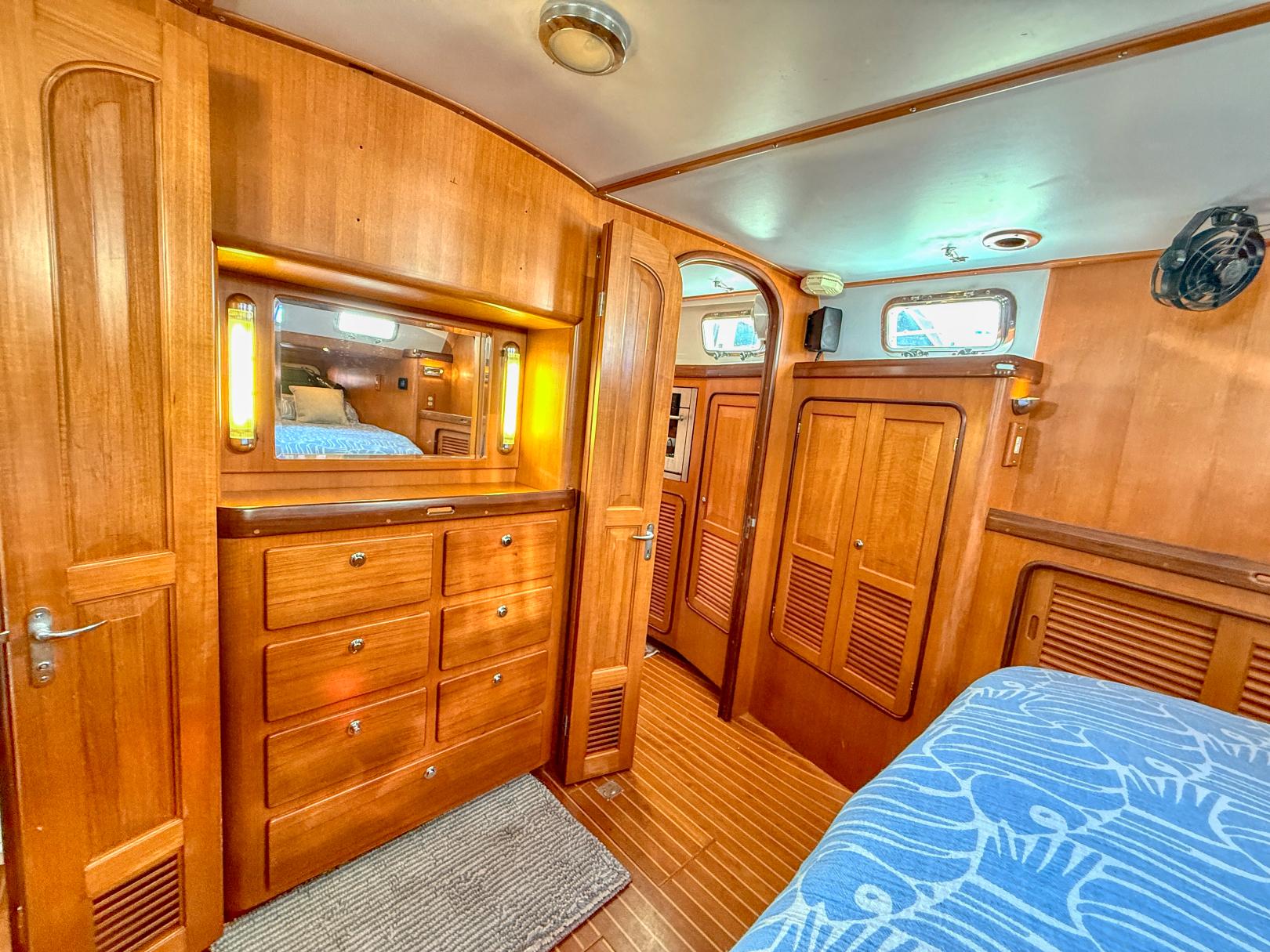

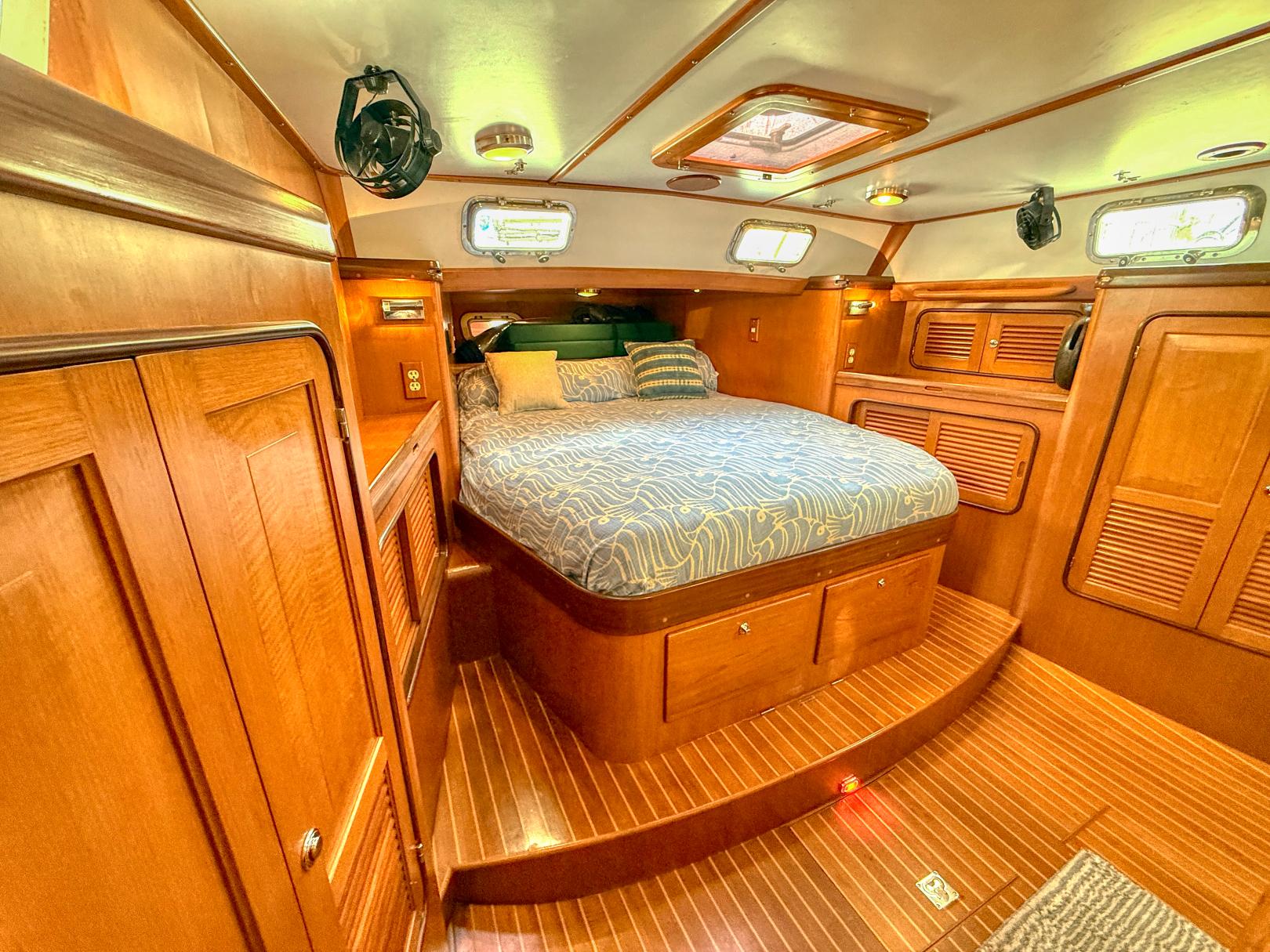

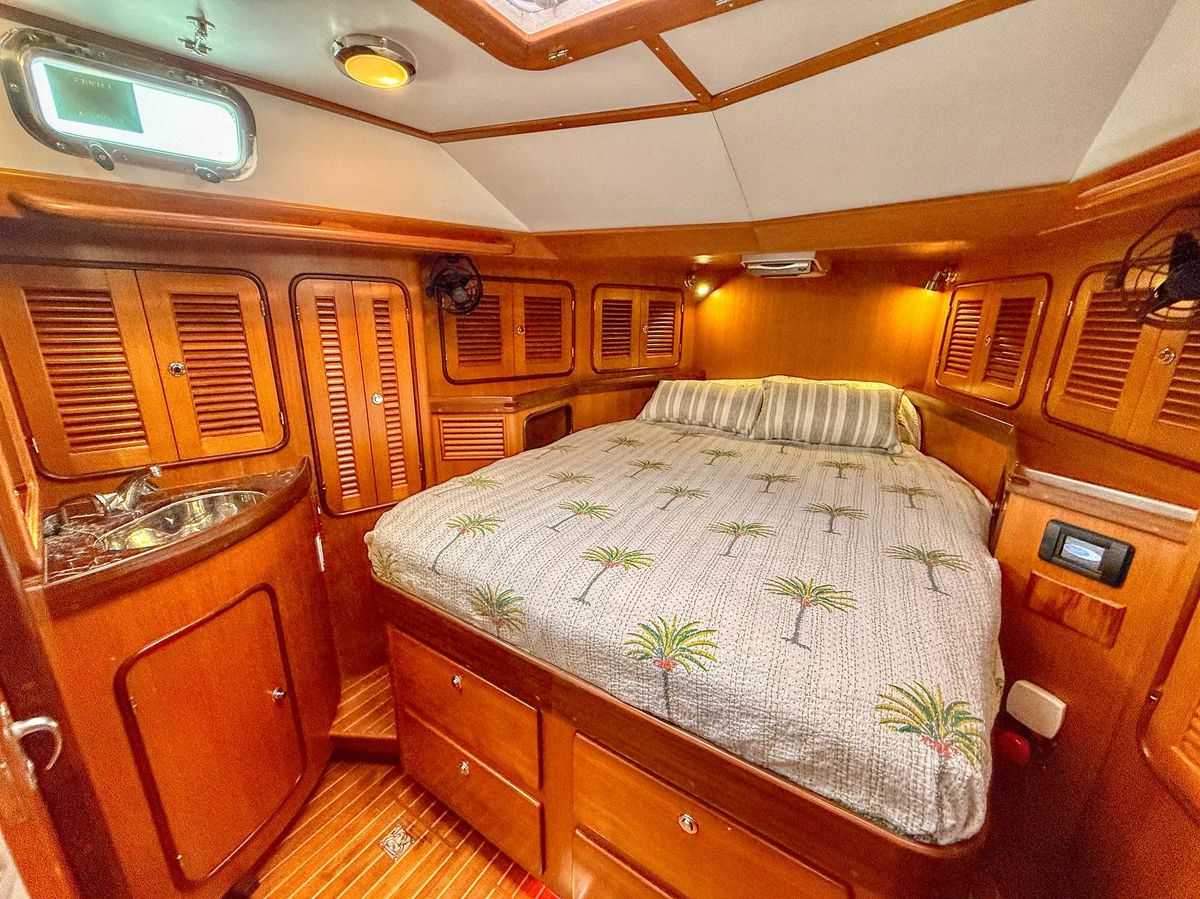

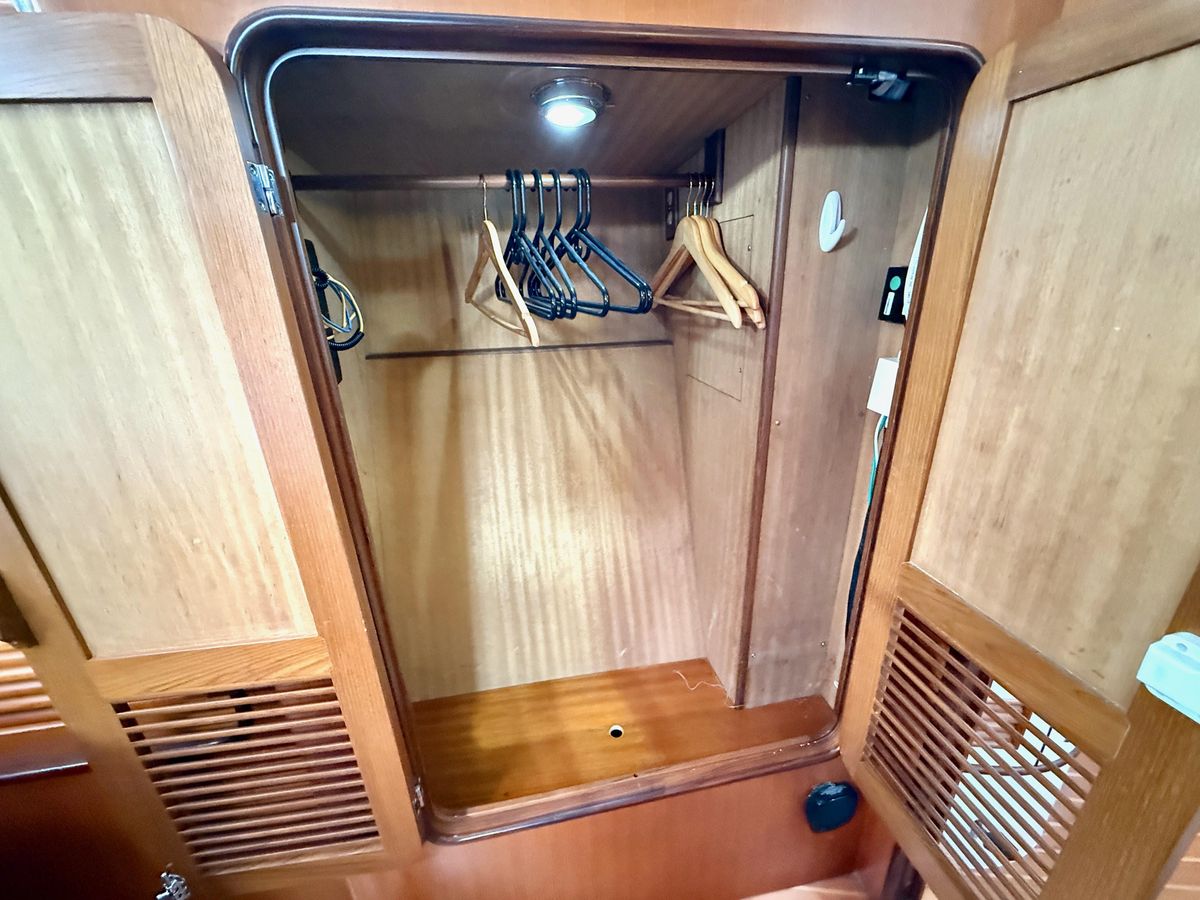

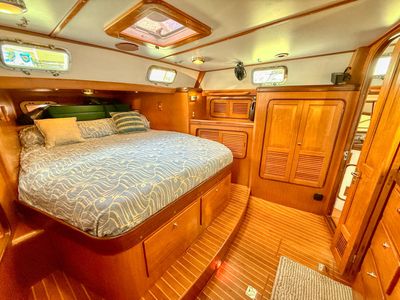

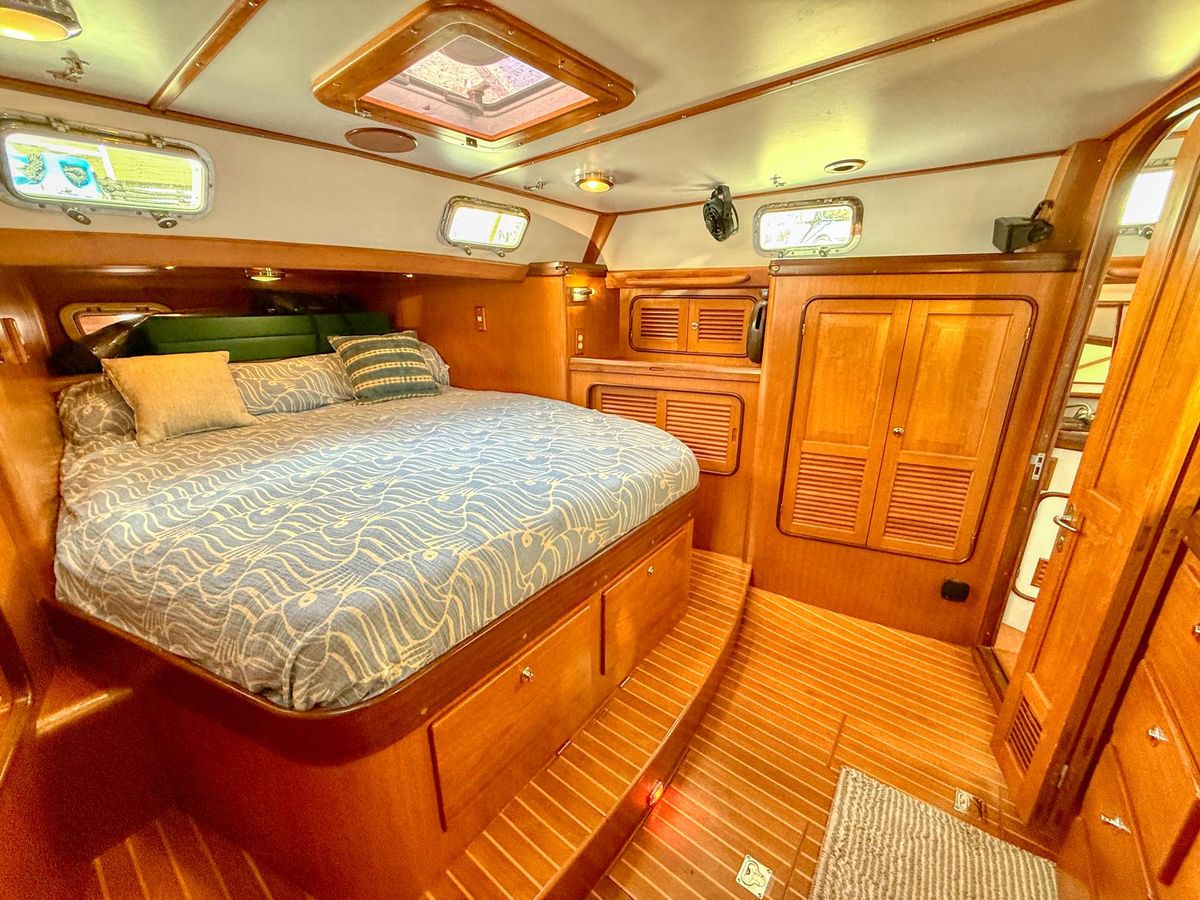

Continuing aft is the luxurious master stateroom with centerline berth, hanging lockers port and starboard, bureau forward on the centerline, and ensuite head with separate stall shower with teak seat. In the shower is the access to the washer/dryer and walk-in engine room.
ADDITIONAL FEATURES:
Solid teak trim on interior bulkheads and cabinets
Solid teak doors
Teak cabin doors with louvers
Solid teak and holly cabin sole
Locking floorboards with stainless steel hardware

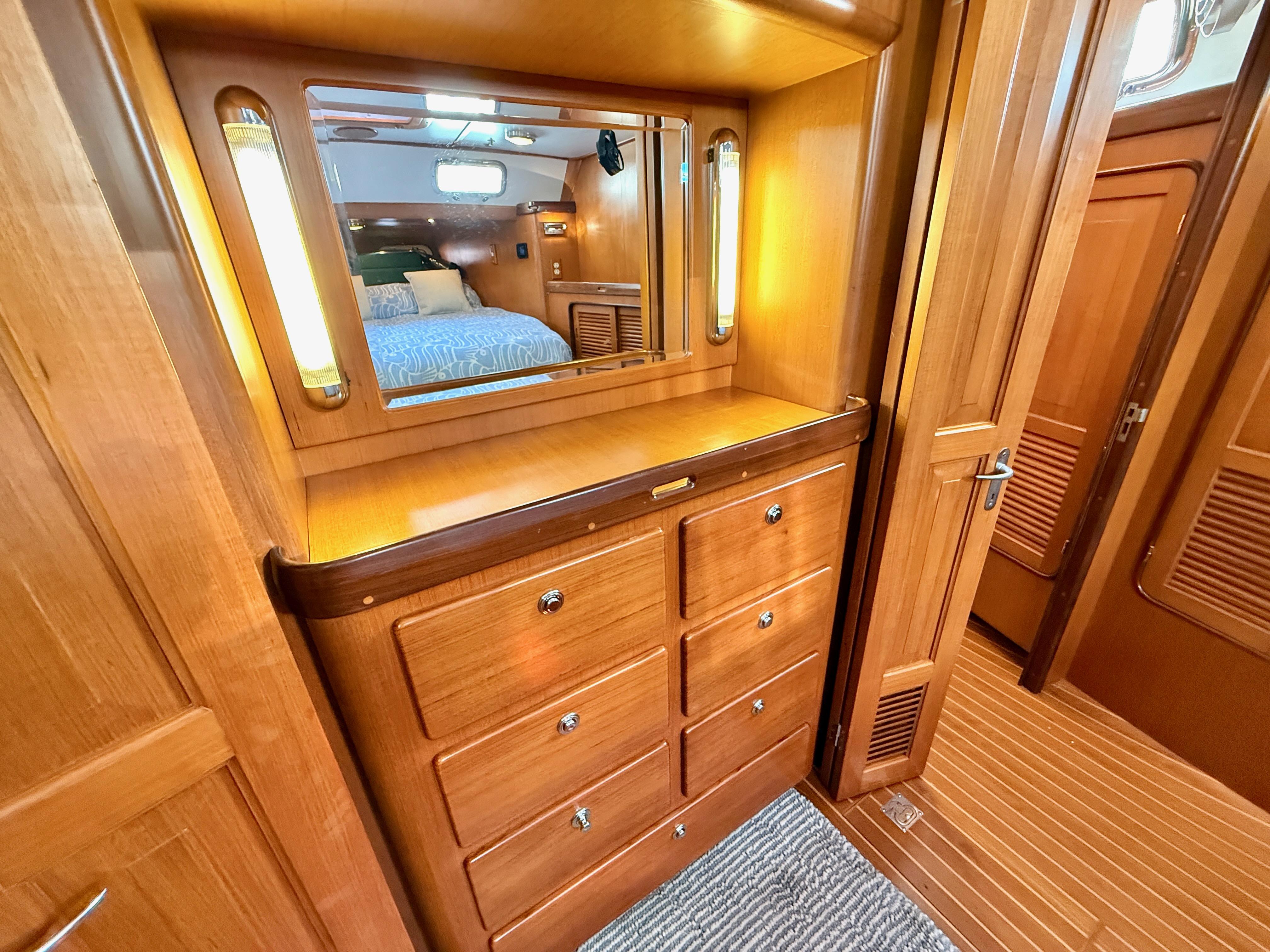

Removable dresser to access the generator (twist locks inside drawers)
Removable Formica overhead panels with teak battens
Grohe faucets in heads
Automatic shower sump pump in each head

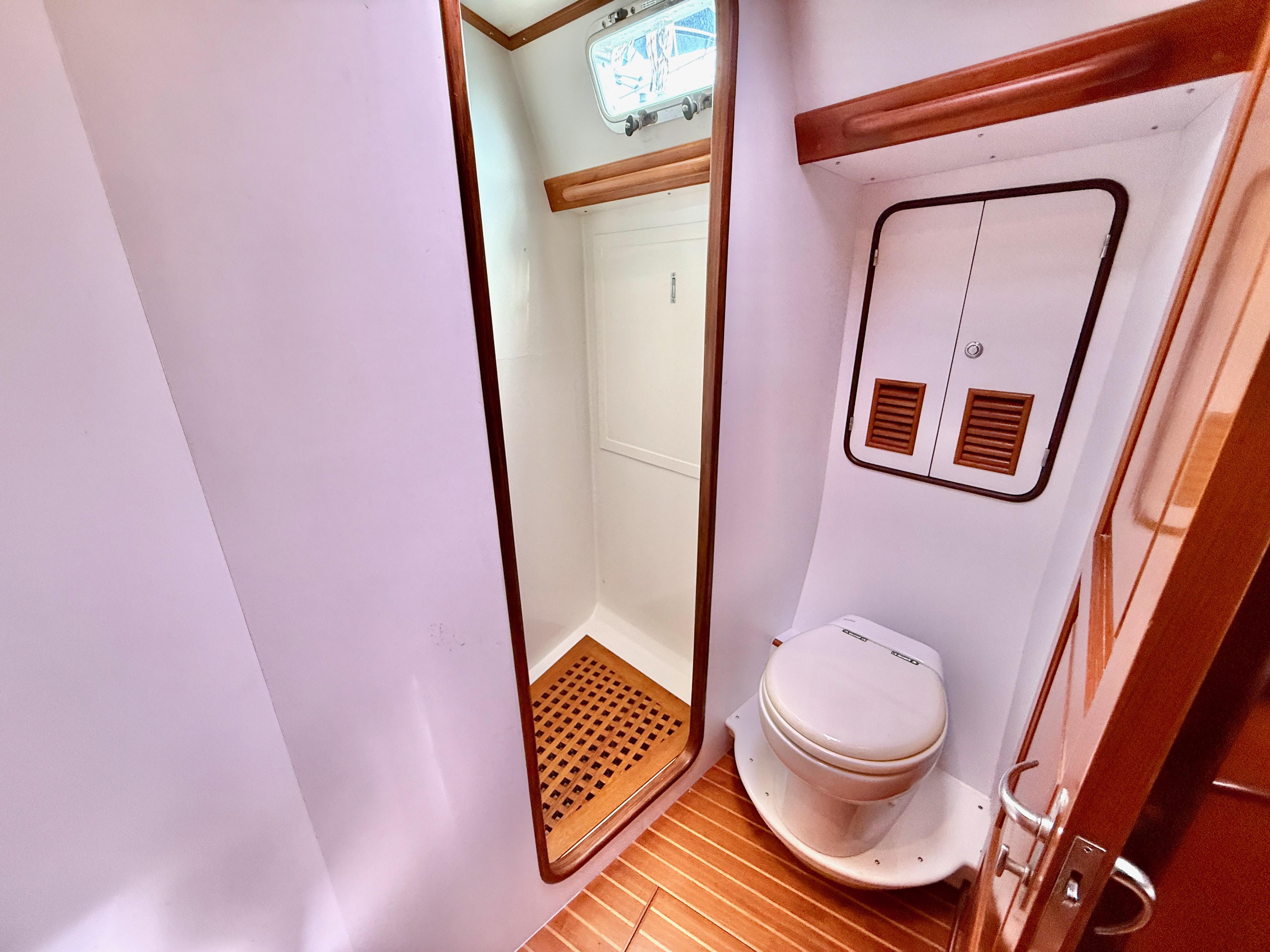

Tecma heads with macerators, salt or freshwater electric toilets for each
Holding tanks with deck pump-out and overboard discharge (gravity feed) for each head
Bidet attachment for aft head
Carbon Monoxide detectors

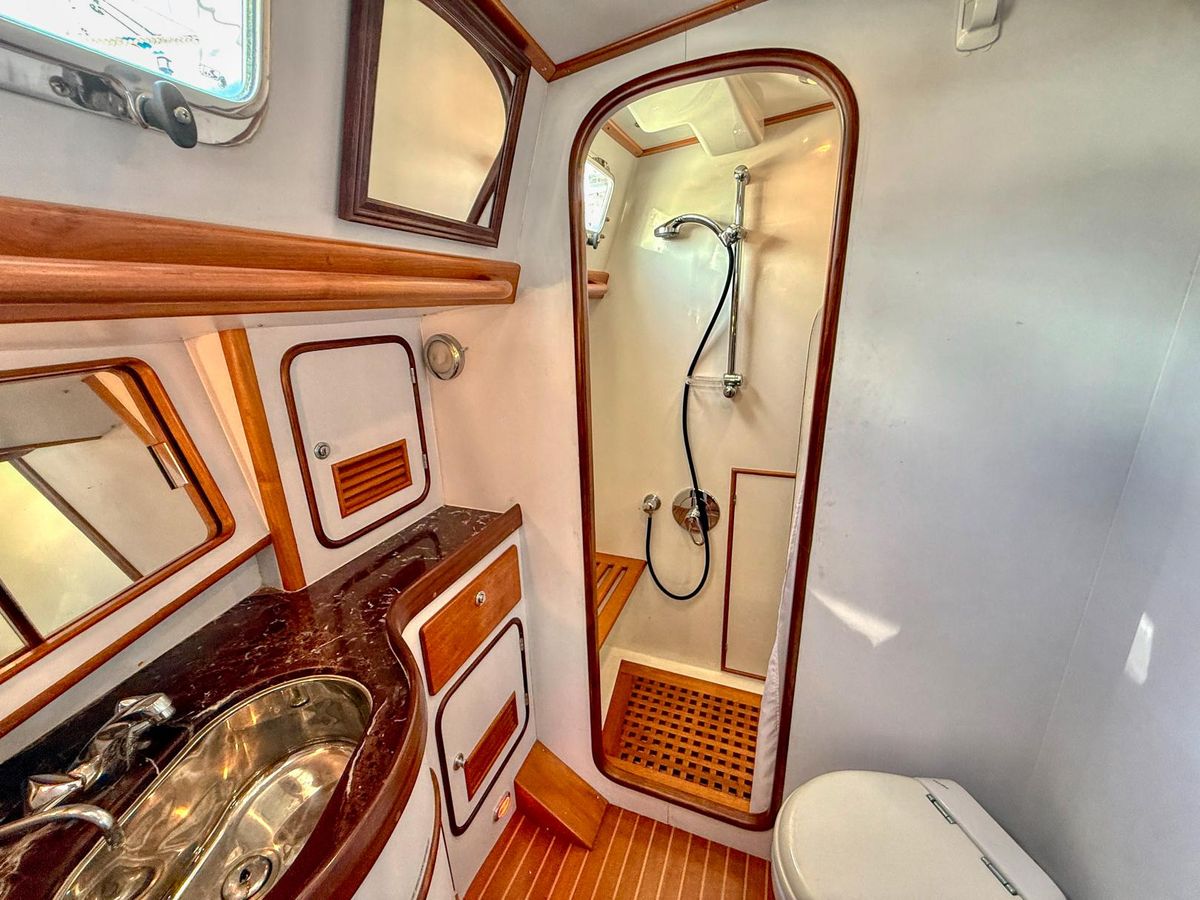

Marble counter tops in heads
7” thick custom latex foam mattress in both staterooms
Light and Ventilation:

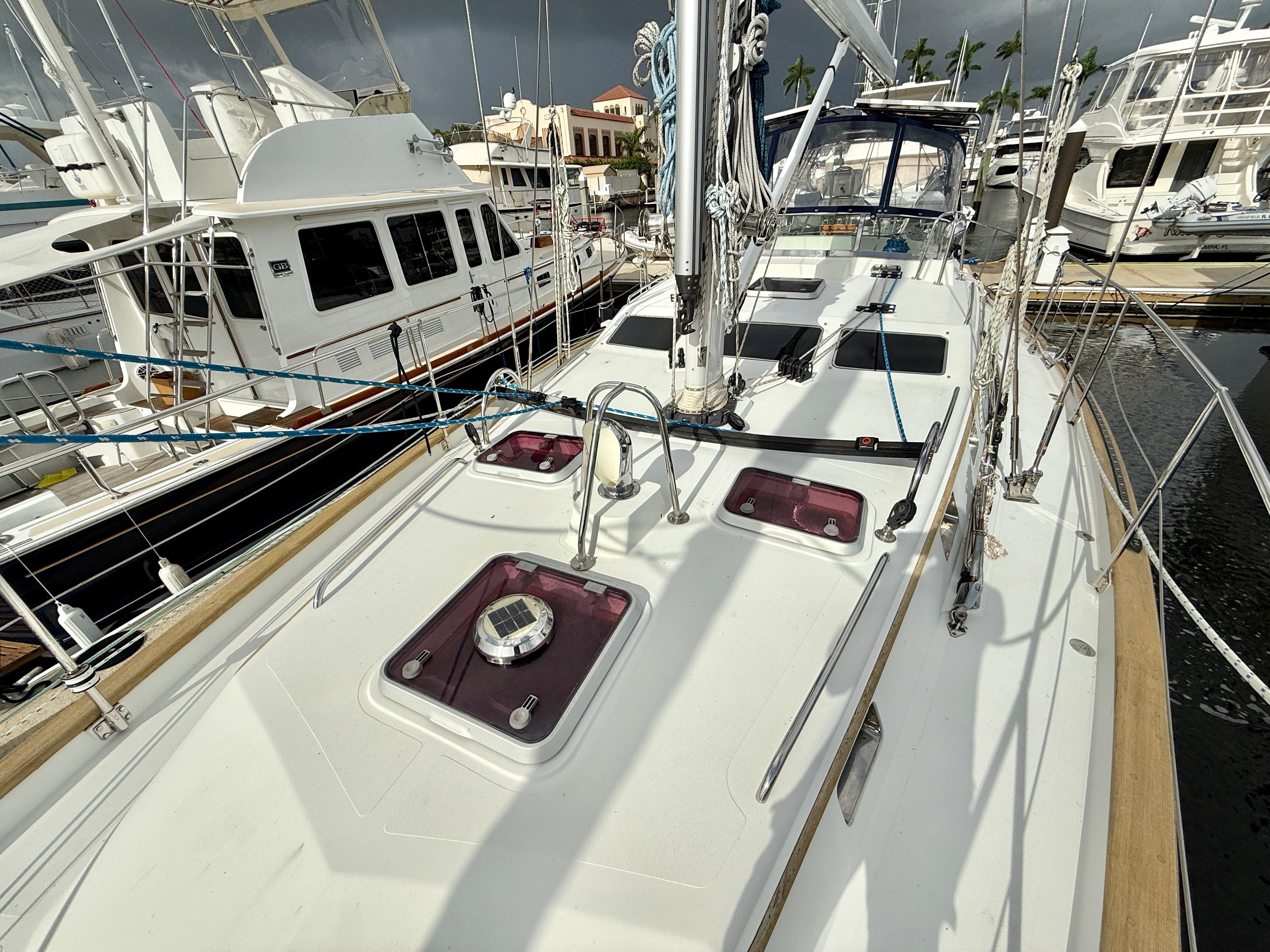

Five Lewmar Offshore overhead hatchs, (with two Nicro solar vents)
Hood stainless steel opening ports with safety glass and screens
Four Lewmar offshore ports in the hull (port and starboard in salon
And two on the stern in aft cabin
Custom fixed windows with laminated glass upgraded from 10mm to 13mm thickness
Five dorades with stainless steel controls, plates and guards
Twelve 1 halogen/2-volt 6” cabin fans
Cantalupi halogen and LED lights throughout

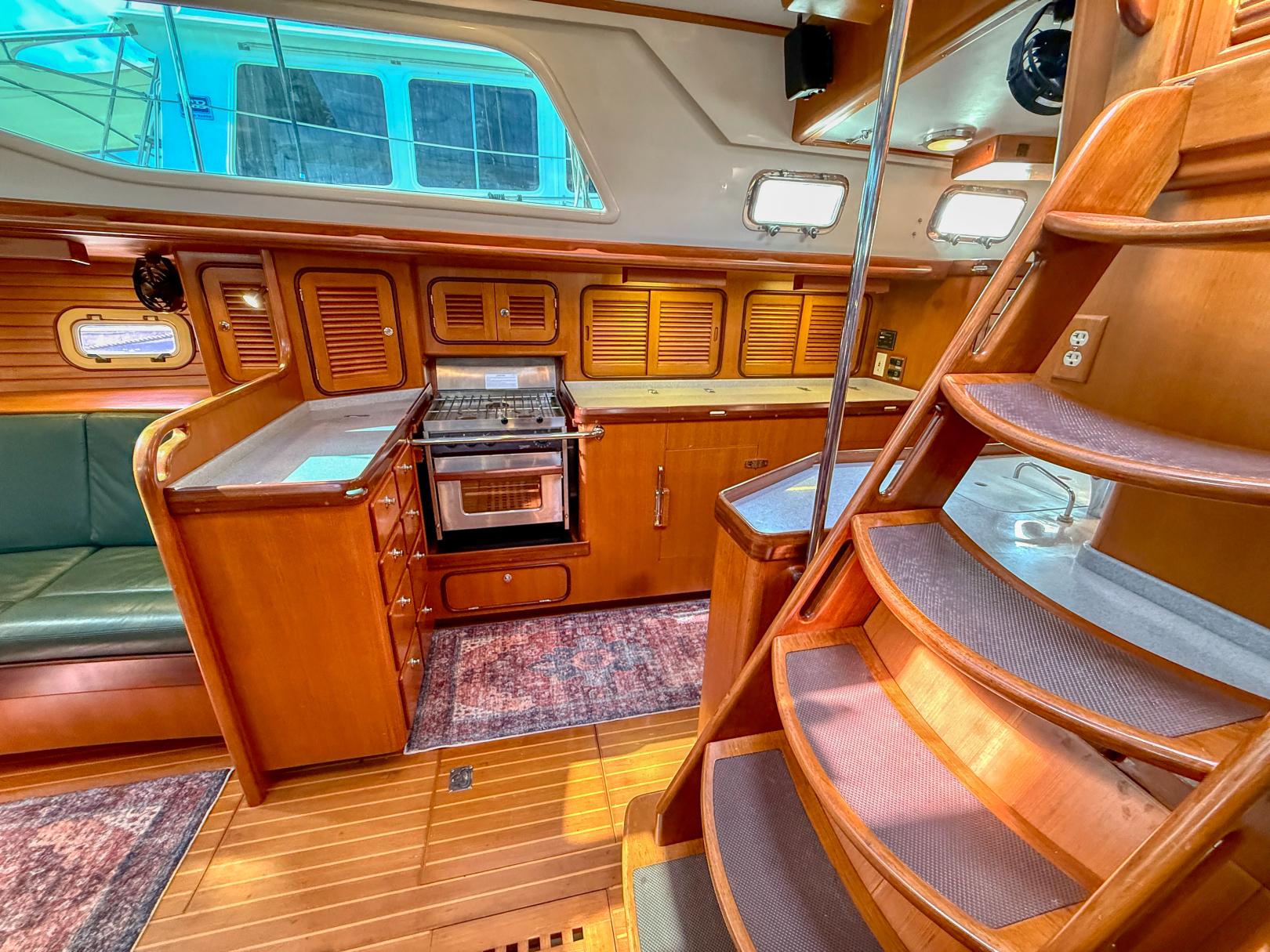

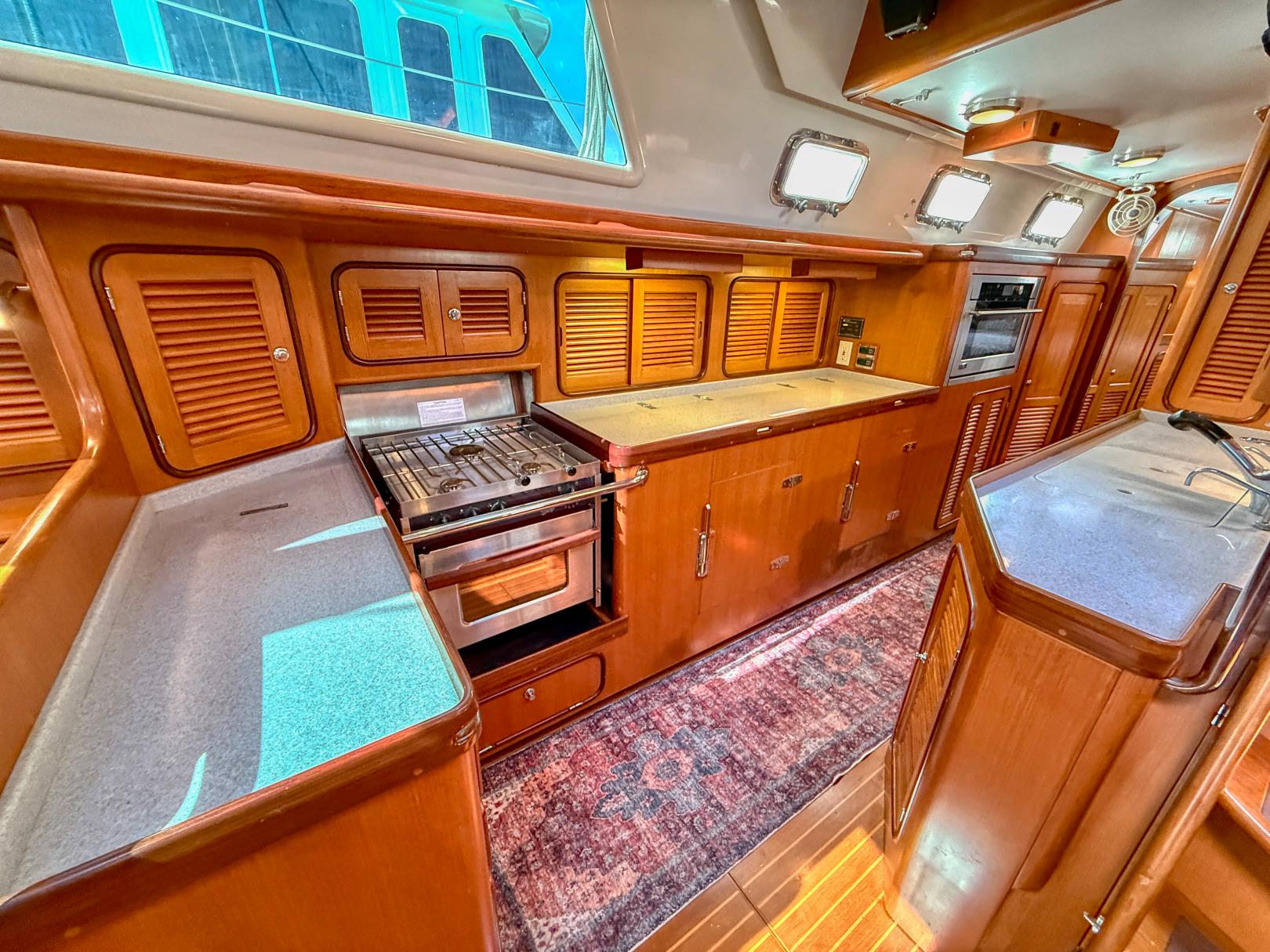

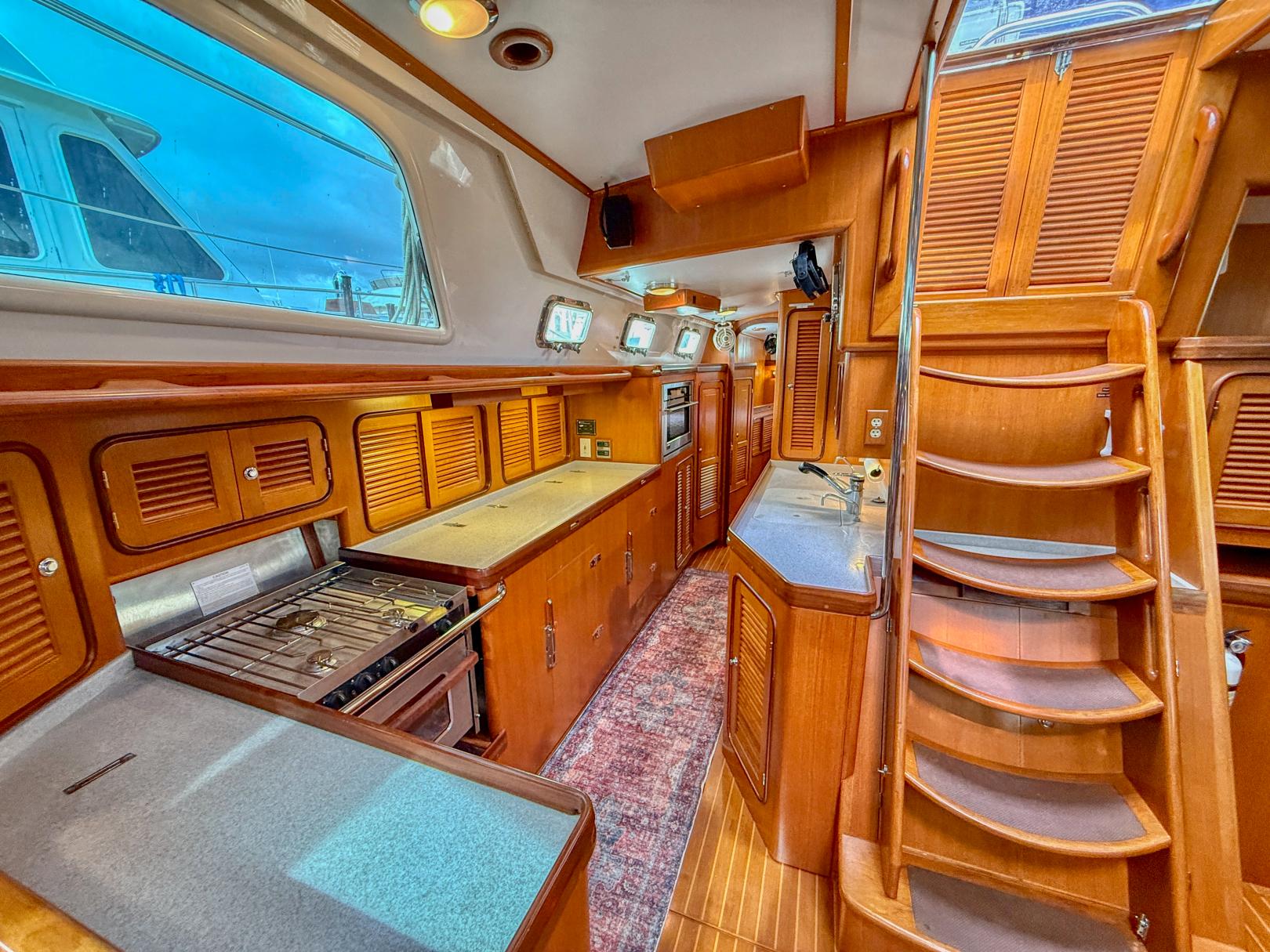

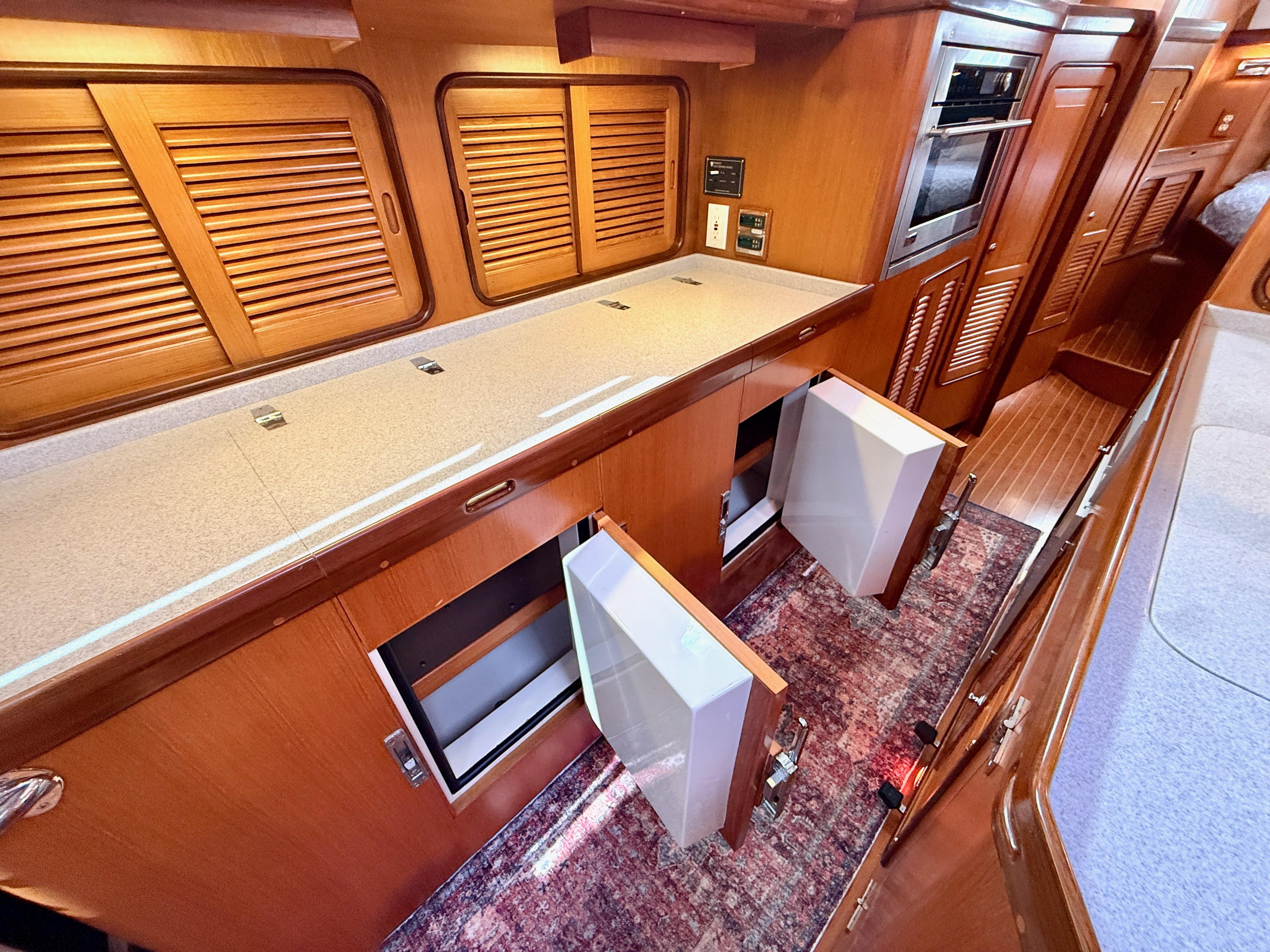

GalleyForce 10 three burner stainless steel propane gimbaled stove with oven and broiler in stainless steel lined stove and safety bar
Two fiberglass propane 20lb tanks in vented storge compartment topside just aft of cockpit
Safety propane control with solenoid
Spectre Newport 400 compact water maker with Zion

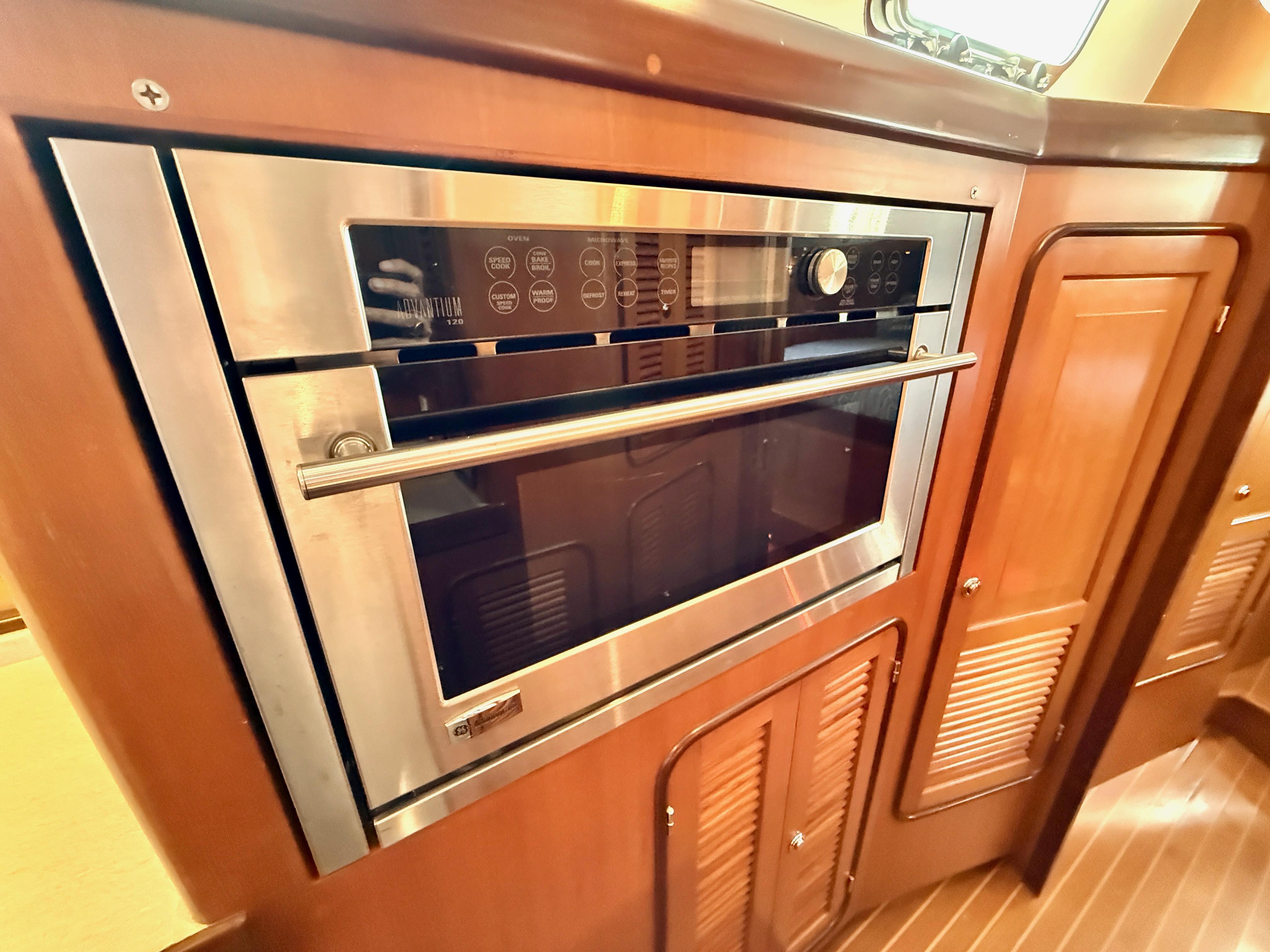

GE Advantium 120 Microwave/Halogen/Convection Oven
12 volt Frigoboat refrigeration with digital controls and smart speed controls, top and front opening
12 volt Frigoboat freezer with digital controls and smart speed controls, top and front opening

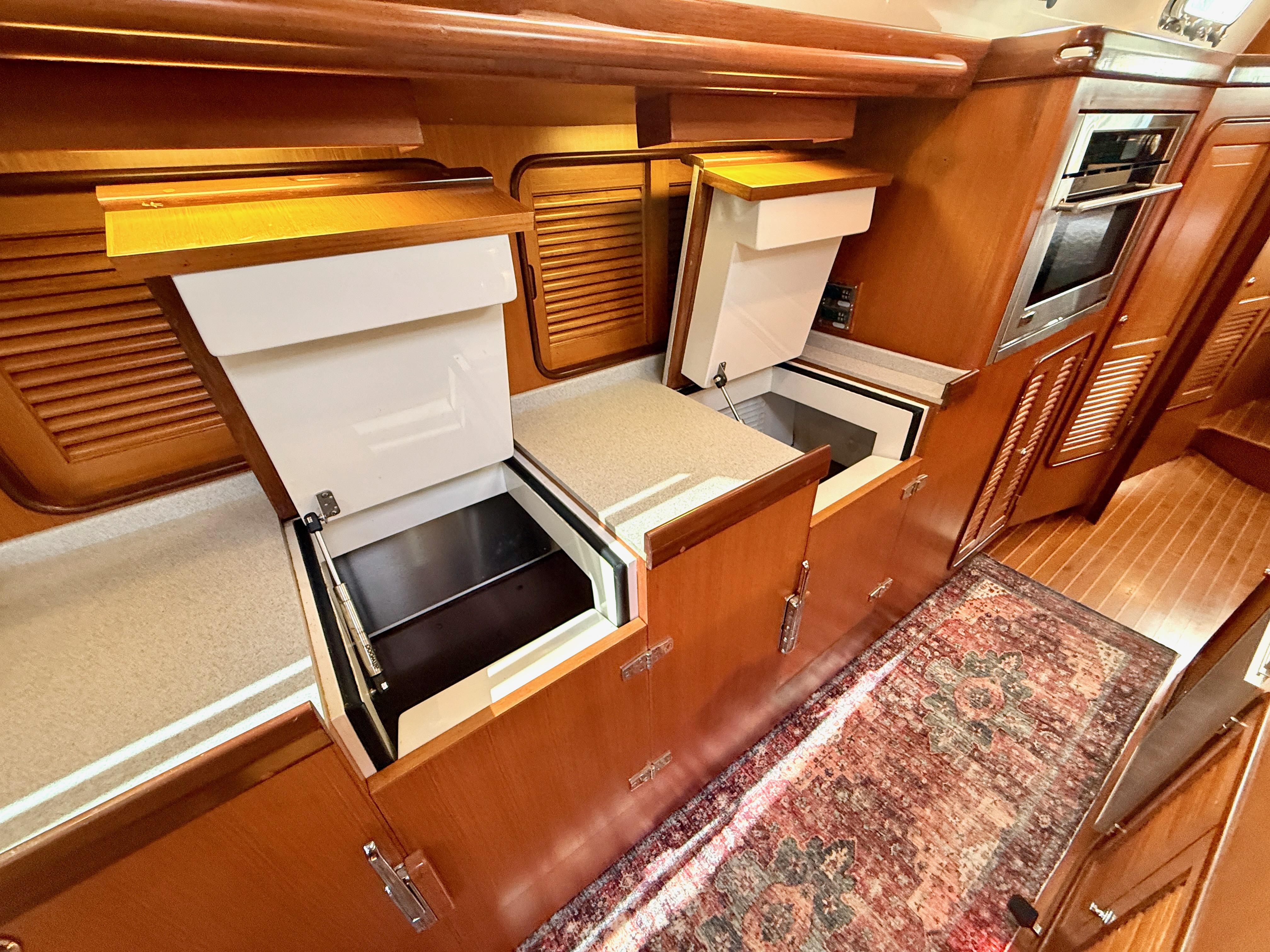

Both refrigerator and freezer have top and front opening access with poured foam installation

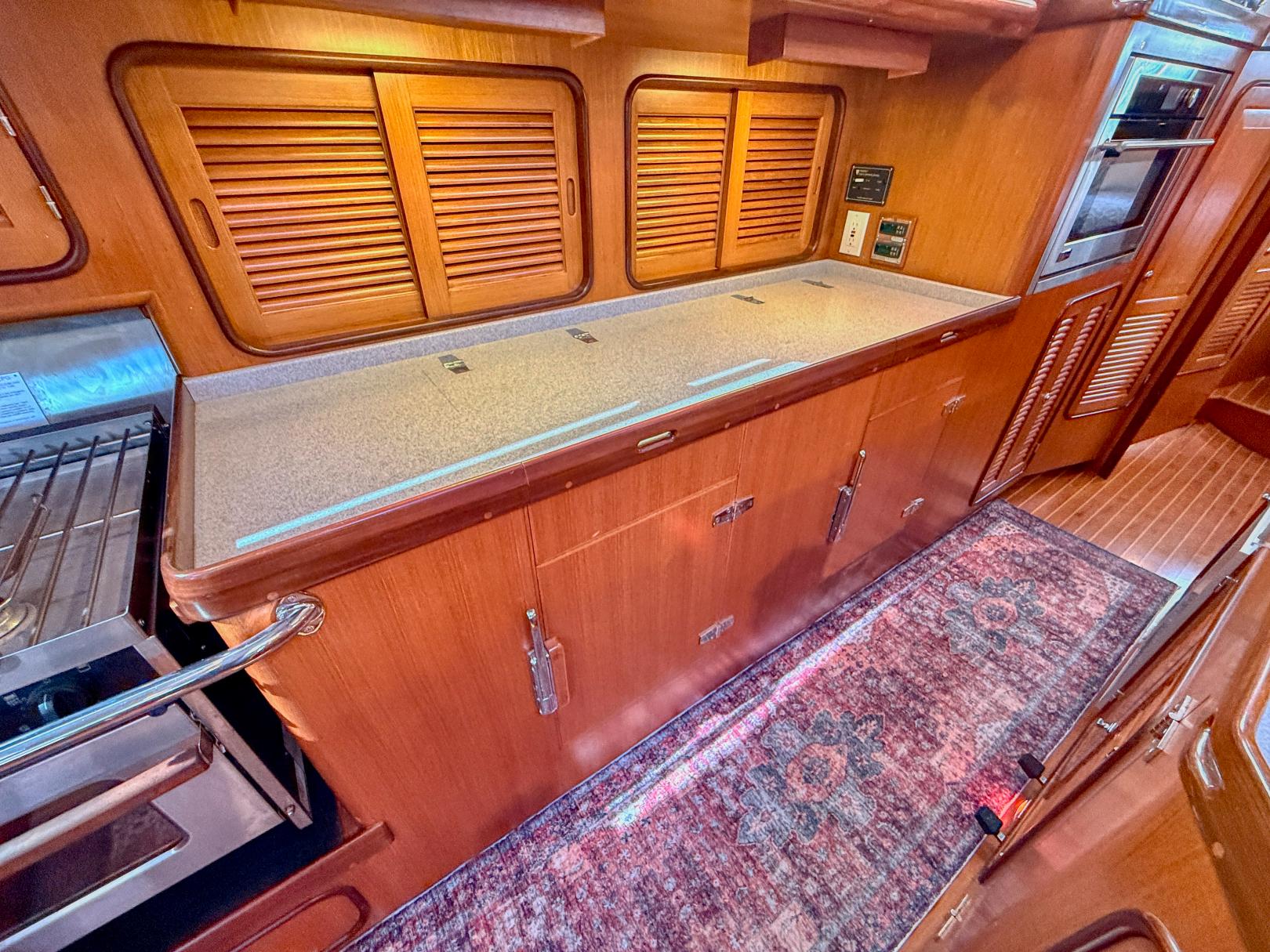

Corian countertops

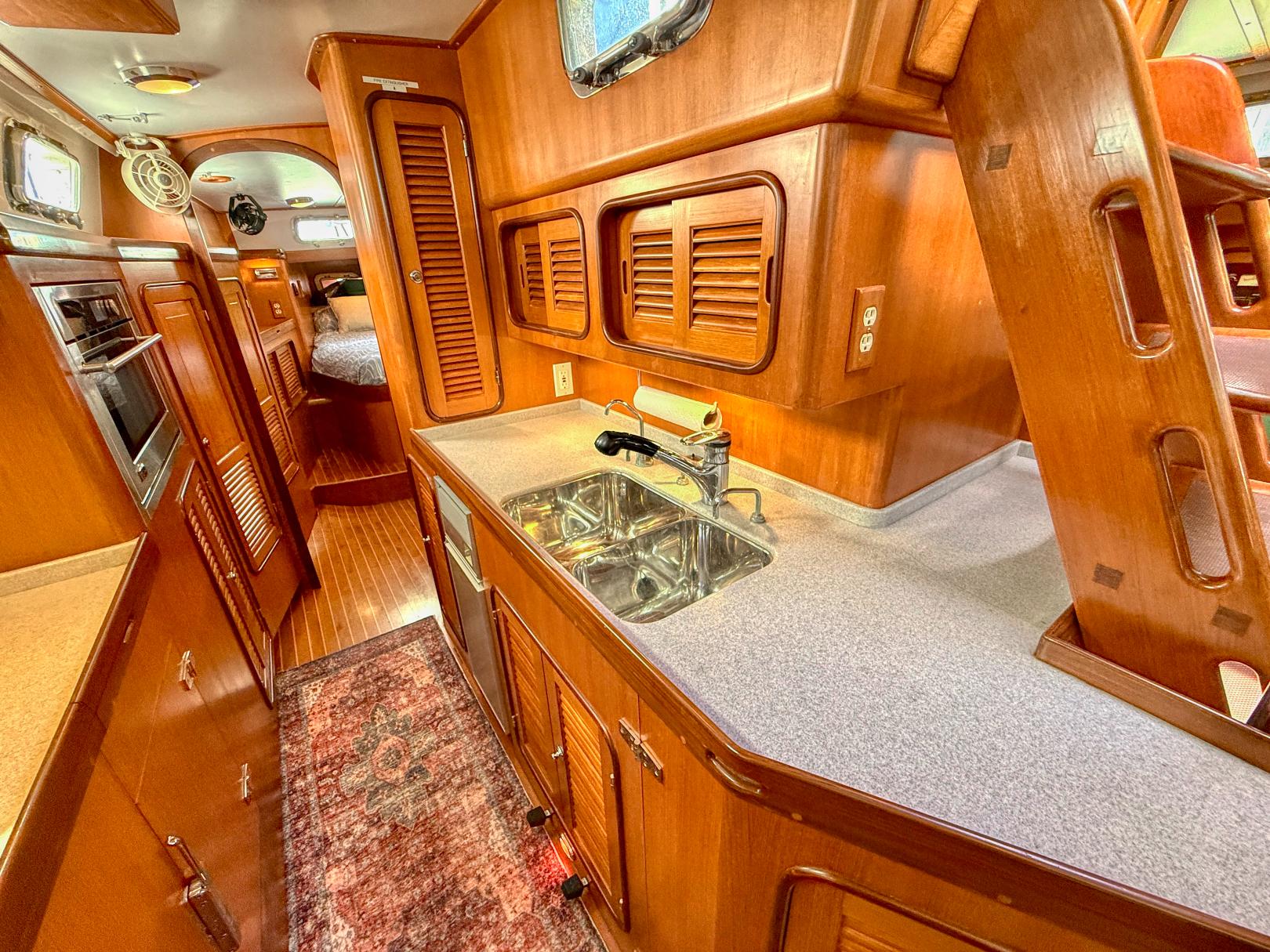

Custom deep double stainless steel sink with Corian covers
Grohe faucet at galley sink
Seagull drinking water purifier with a faucet at galley sink
Salt and freshwater foot pumps at galley sink
Broan trash compactor

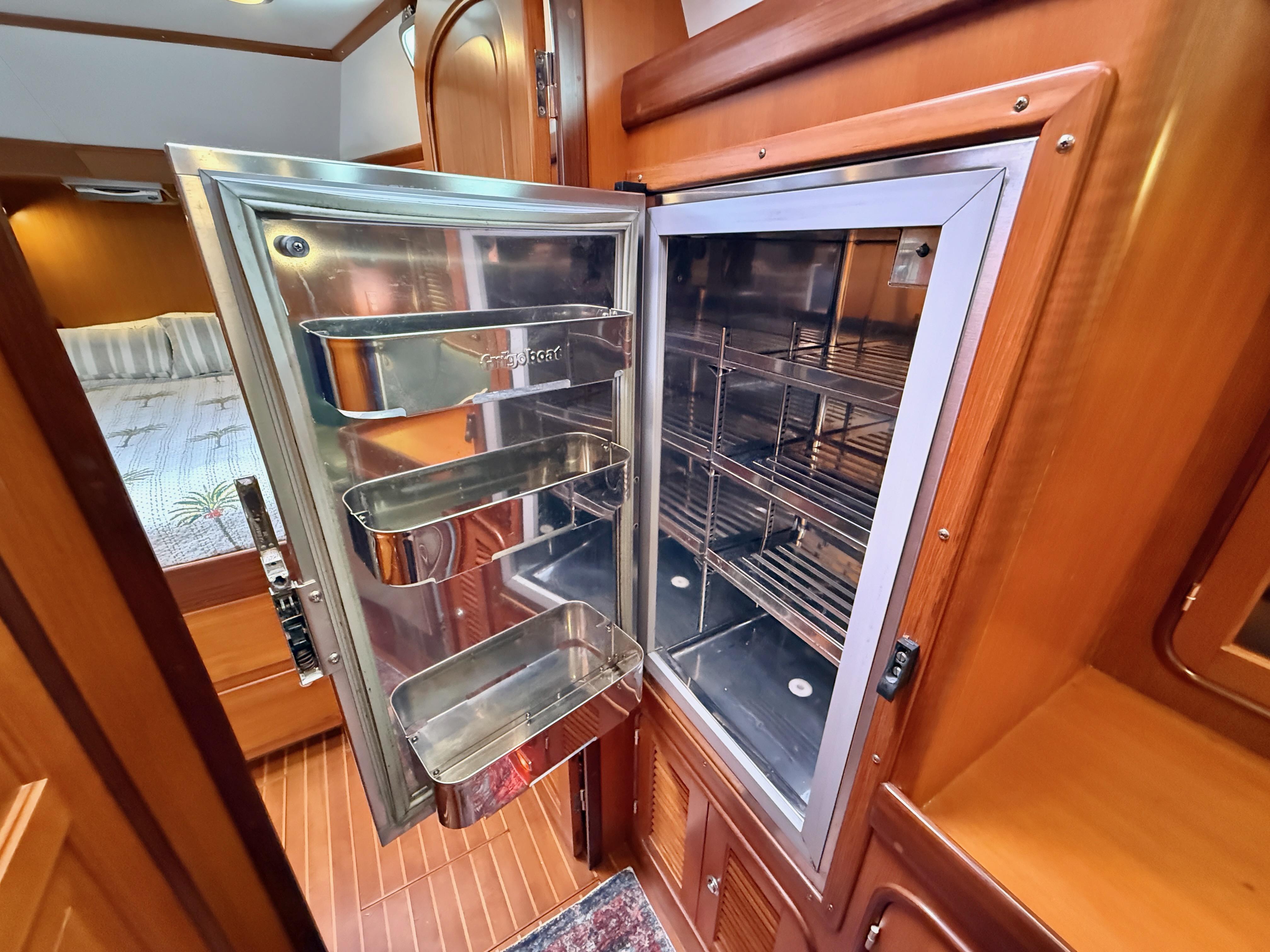

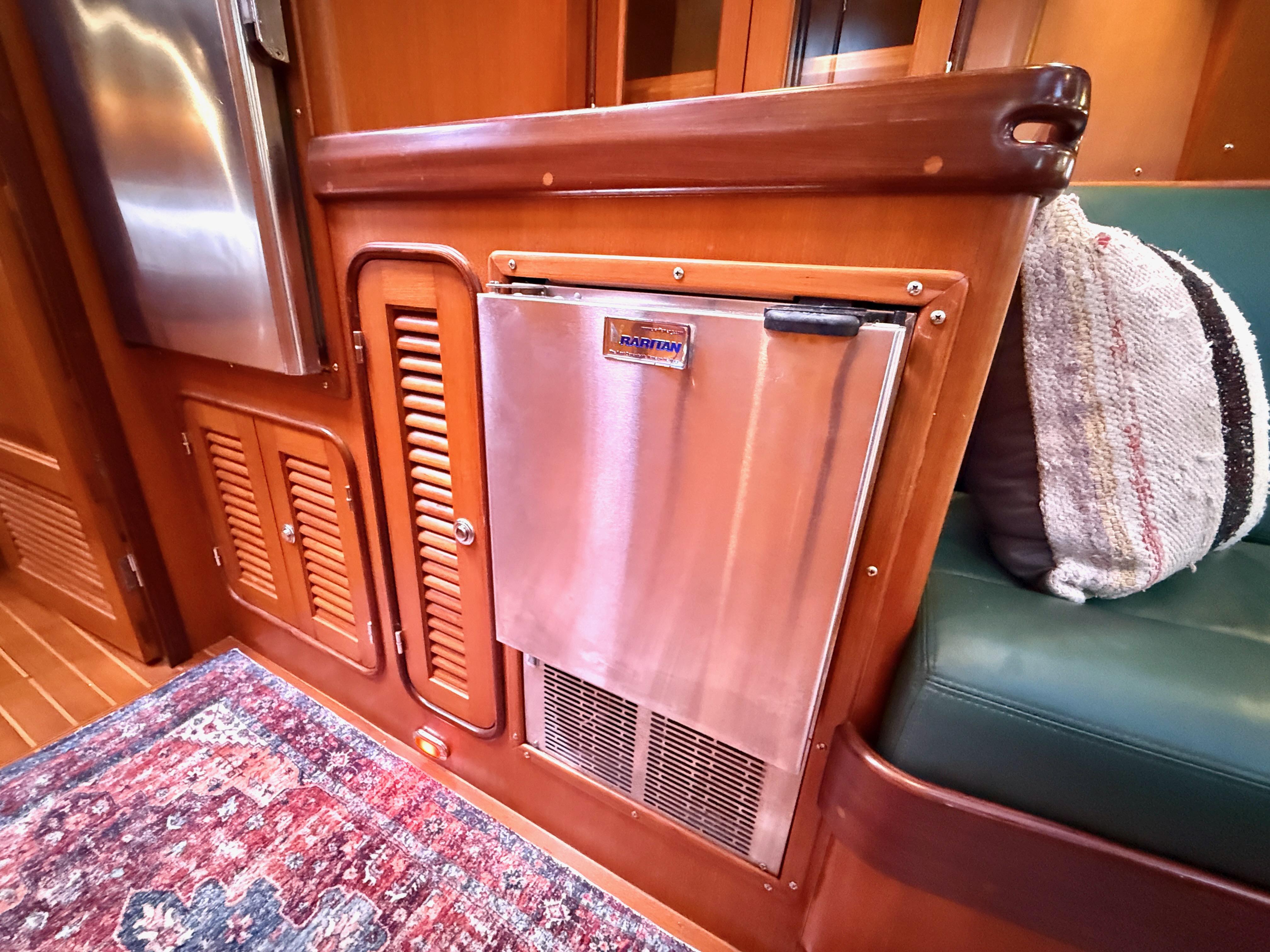

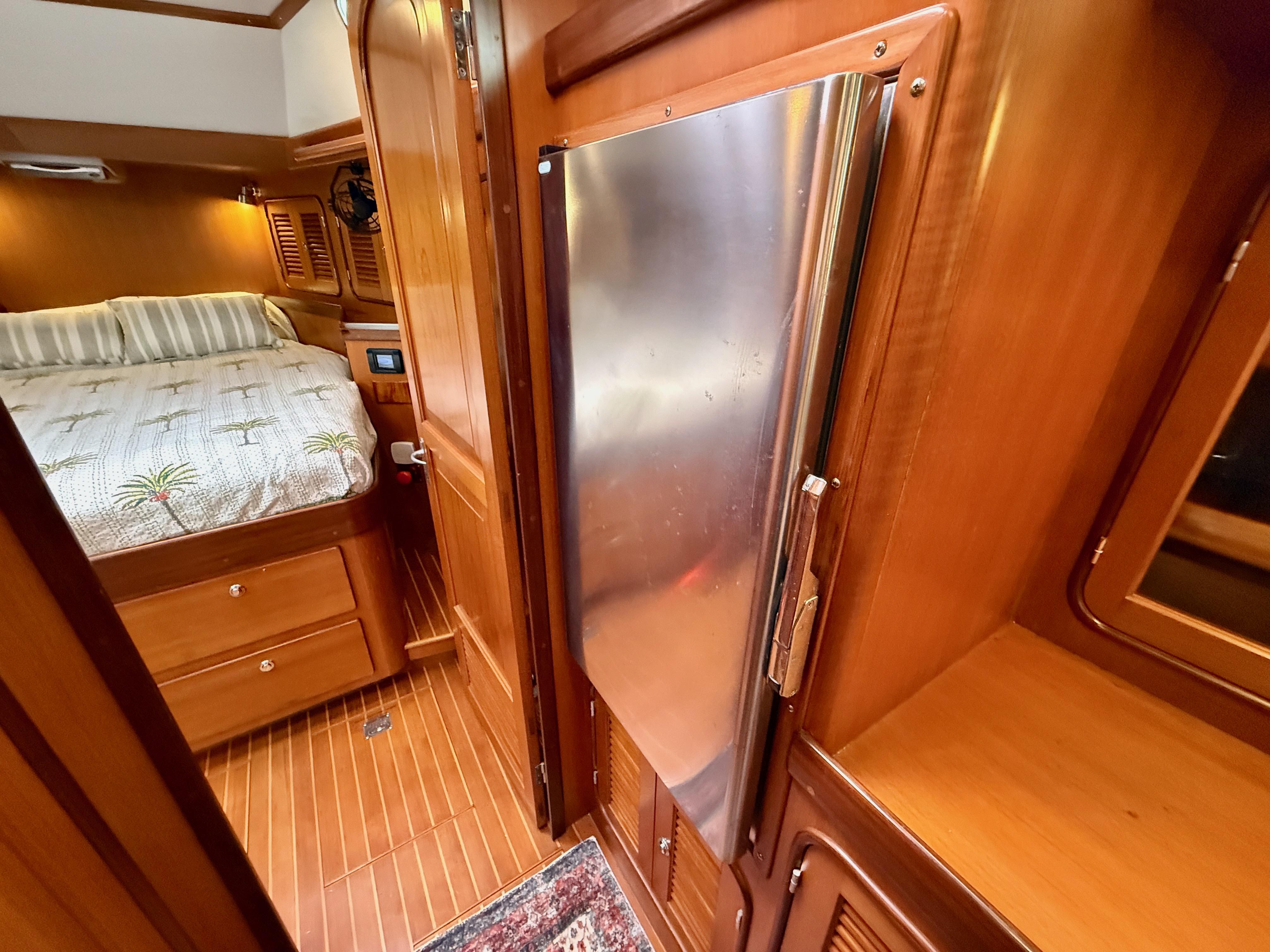

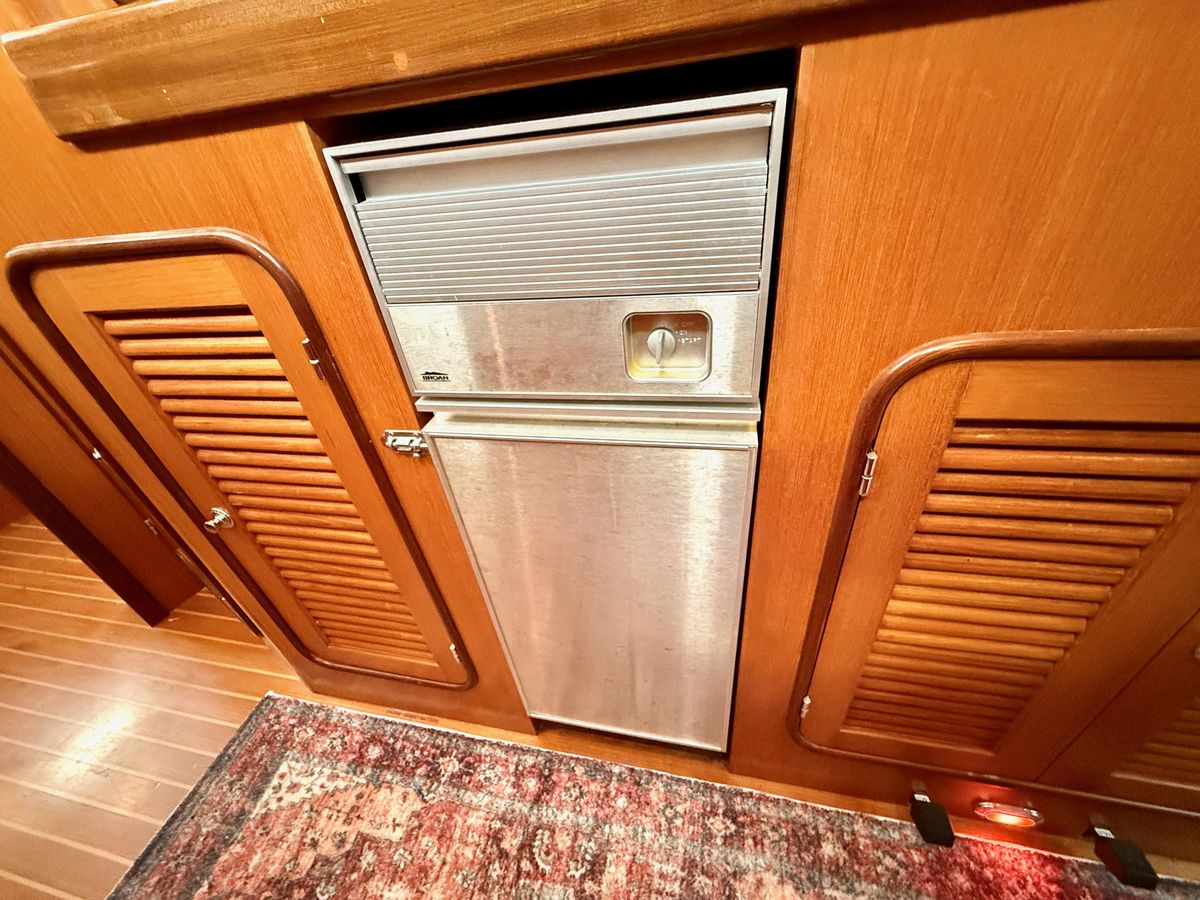

Traditional front opening upright Frigoboat refrigerator forward of salon
Large pantry and generous storage numerous drawers, lockers, and dry
bins

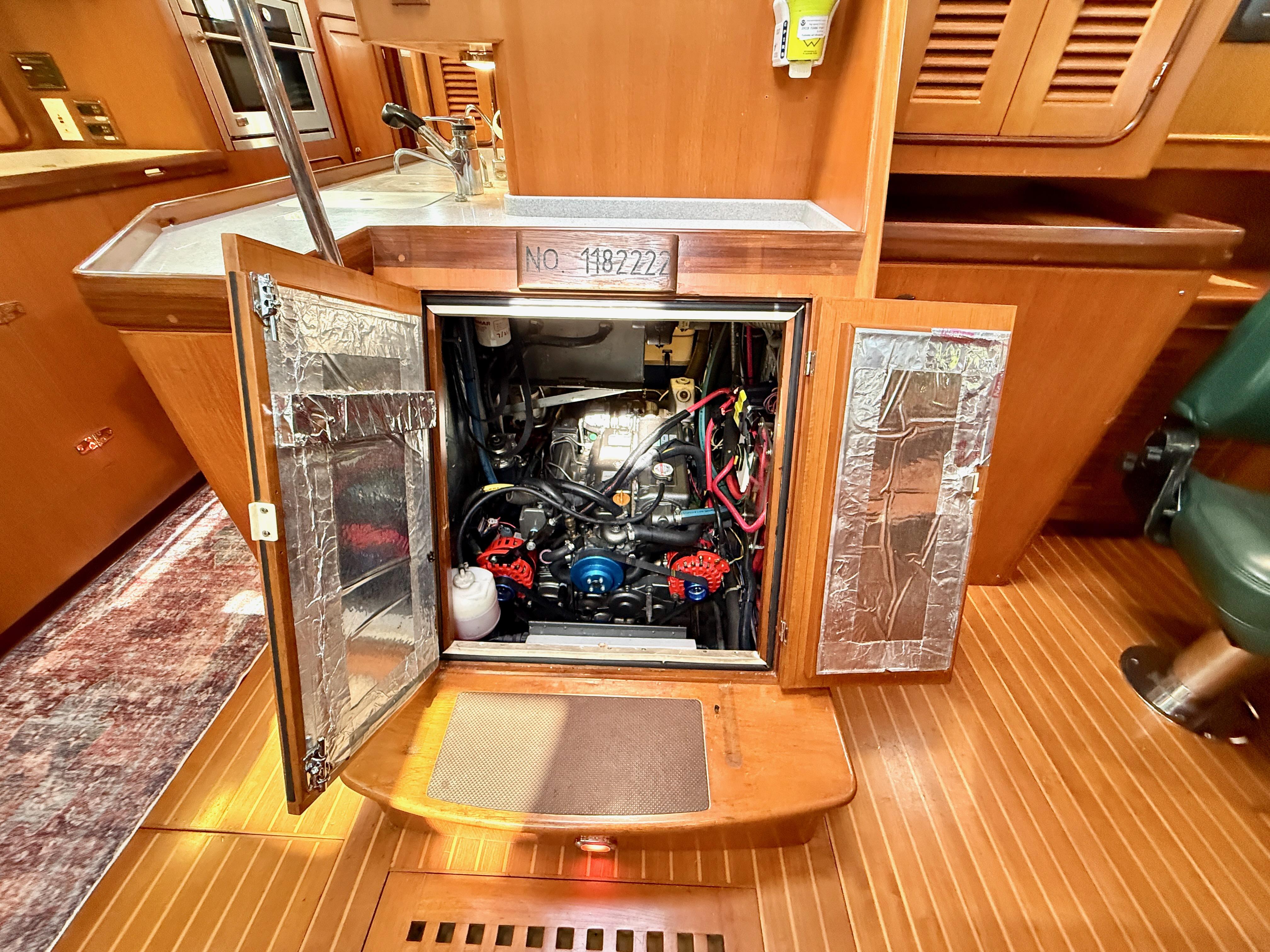

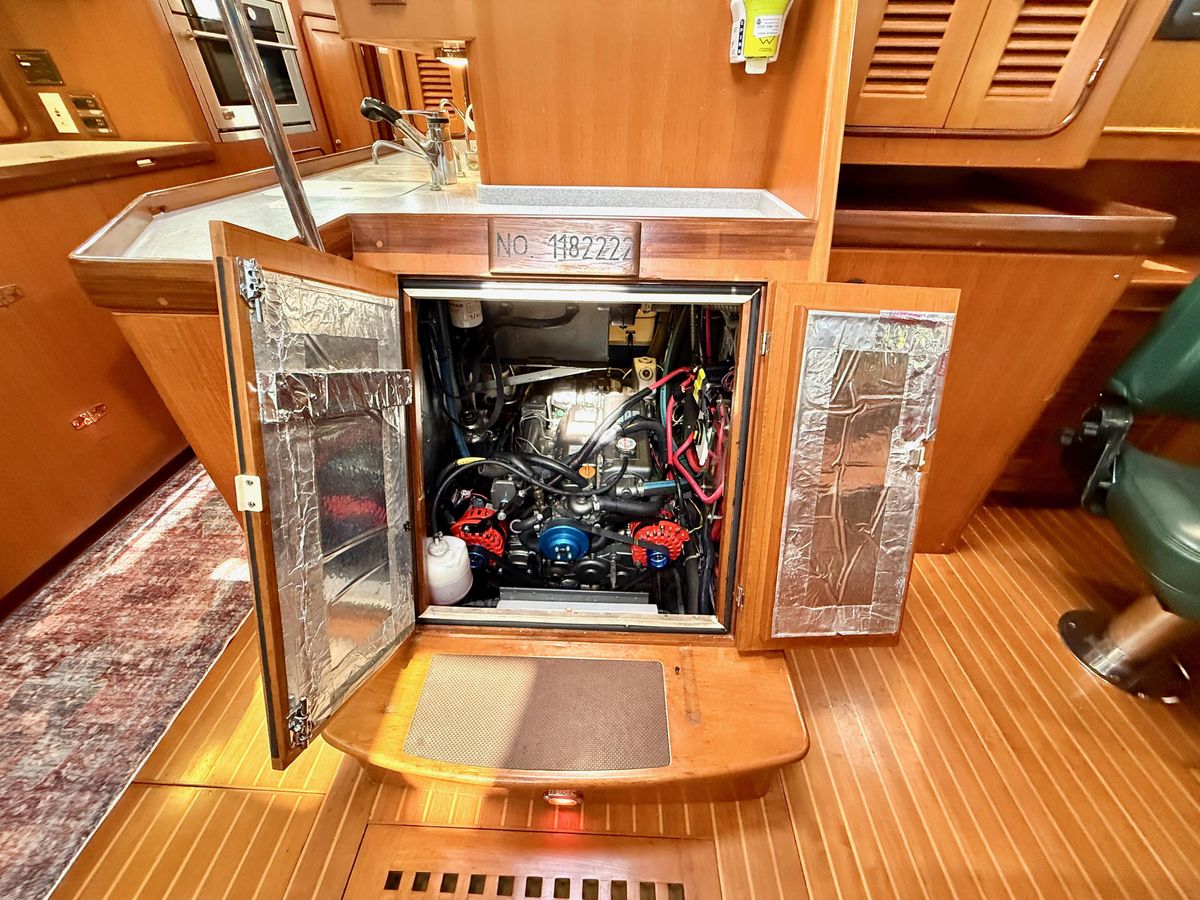

Ingenious hinged cabinet to access side of engine
ElectronicsIn 2023/2024 all electronics replaced and upgraded:

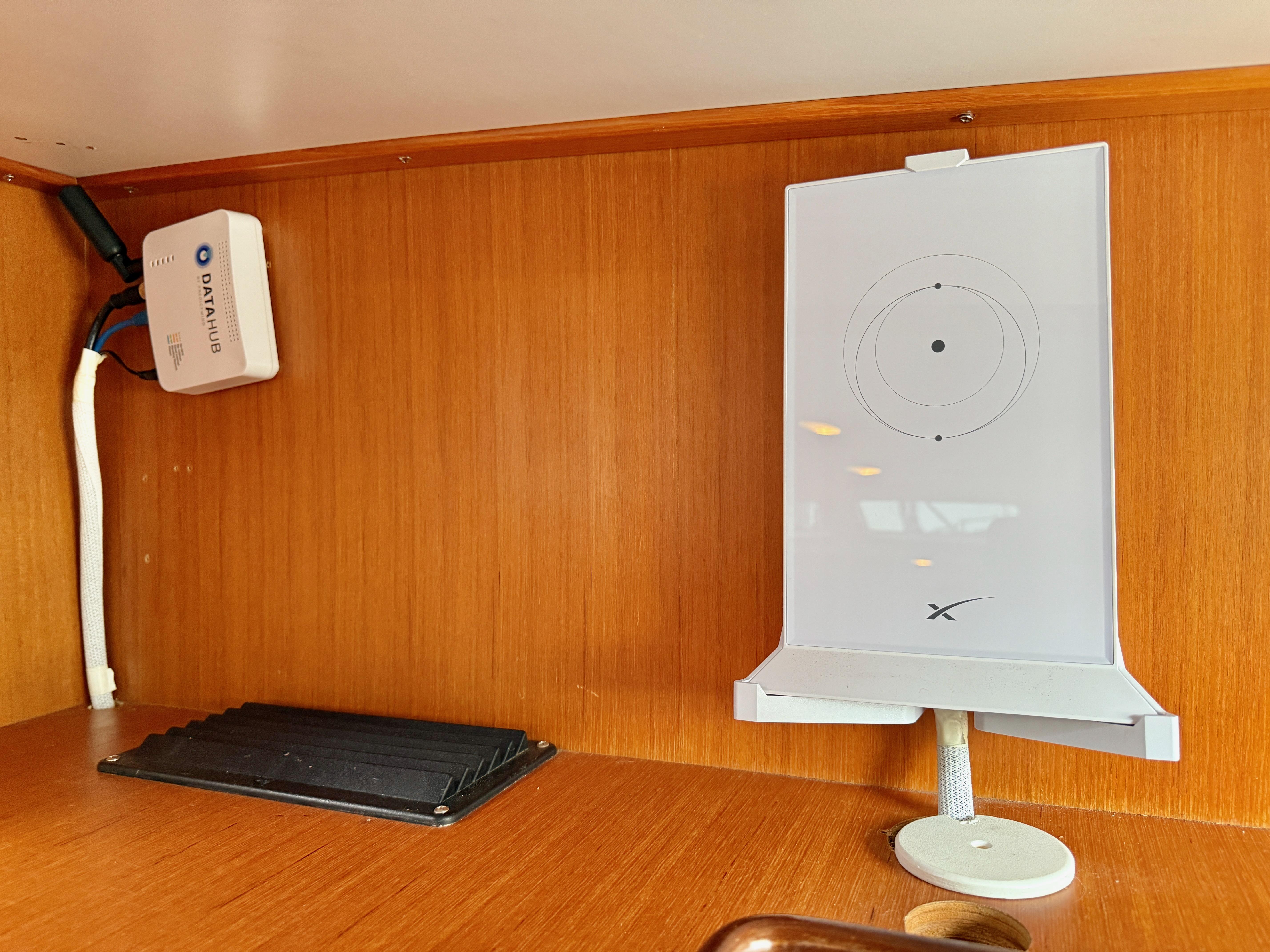

Starlink and Predict Wind data hub
Apple TV
LED masthead and anchor light new 2022
Running lights new 2022
Masthead mounted Windex
LED Deck lights on spreaders new 2022
Raymarine ST60 depth, wind, and speed instruments over the companionway
Raymarine EV 400 Sail Evolution auto pilot, with type 3 hydraulic linear 12 volt ram
Raymarine Quantum 2 Q24D radar doppler w /15m power and data cables, weems and plath mounting bracket
Shakespeare 40w Loud Hailer Horn Speaker
Add new Raymarine RS-150 external GPS antenna to interface with existing Raymarine and Victron systems to newly added Garmin network
Installed new Garmin forward Scan transducer and Airmar DSt transducer
Installed New Garmin 743 GPSMAP MFD (7”display_ along with existing instruments onlower Navpod at Helm Station 2022 S/N6UB006862
Garmin Forward scan transducer S/N 50648737

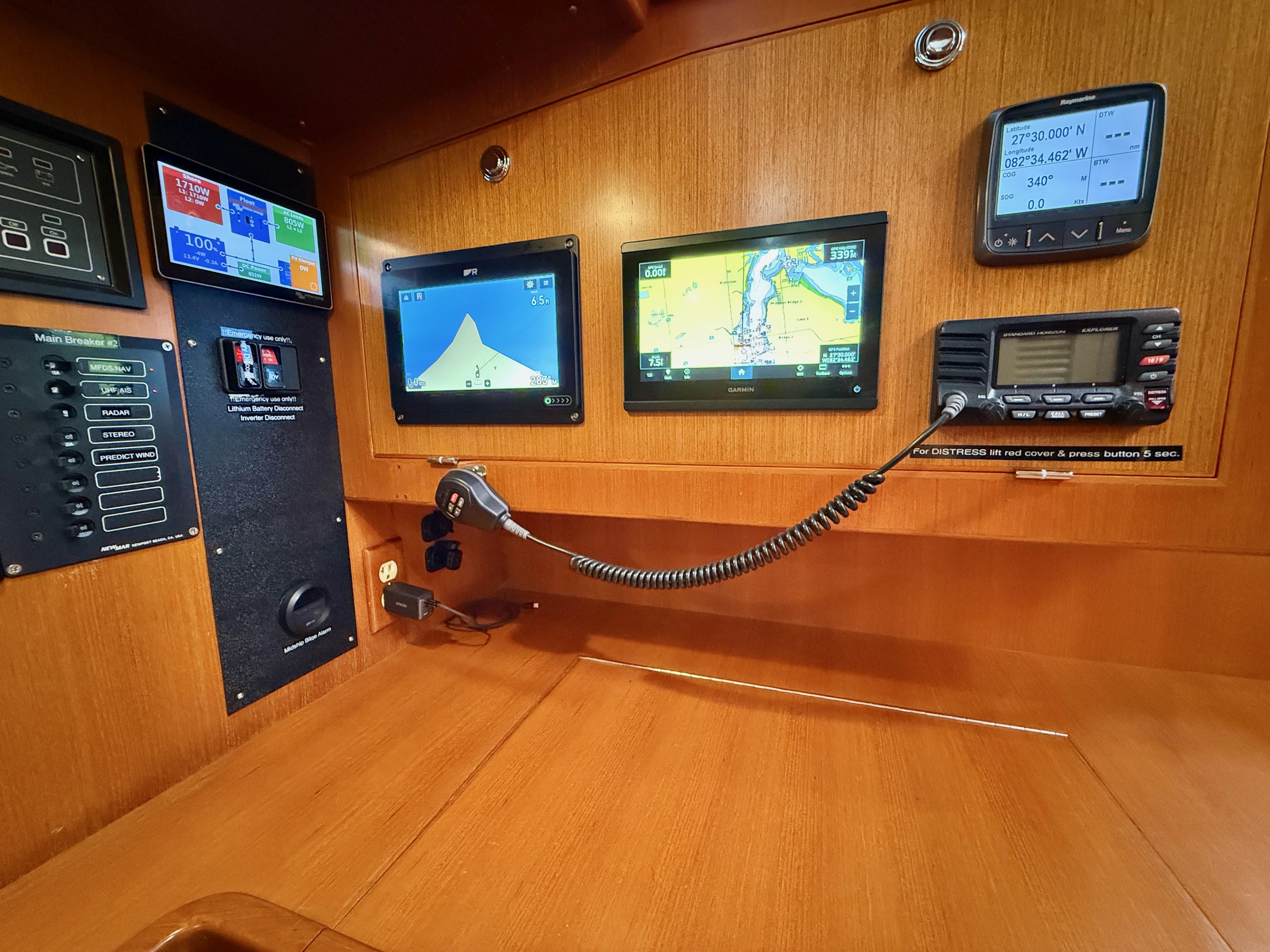

Garmin 9” GPSMAP 943 MFD display at nav station 2022 S/N6UG014491
Raymarine 12” MFD display on upper pod of helm station 2022
Raymarine 9” MFD display at navigation station 2022
Raymarine RS-150 Eternal GPS Antenna S/N 09101711
Lighthouse Vector charts 2022
Raymarine AIS Class B transceiver 2016
Uniden ES UM 525 VHF radio
SSb ready with insulated backstay antenna and copper grounding plate in hull
Cordless RAM Standard Horizon Intrepid Plus VHF radio
ACR Rapidfix 406 RLB-33 EPIRB
Computank fuel, water and holding tank gauges monitored on Victron panel
Samsung 4G 32” flat screen TV in main saloon with Apple TV
Sony 12v DC DVD player in forward stateroom

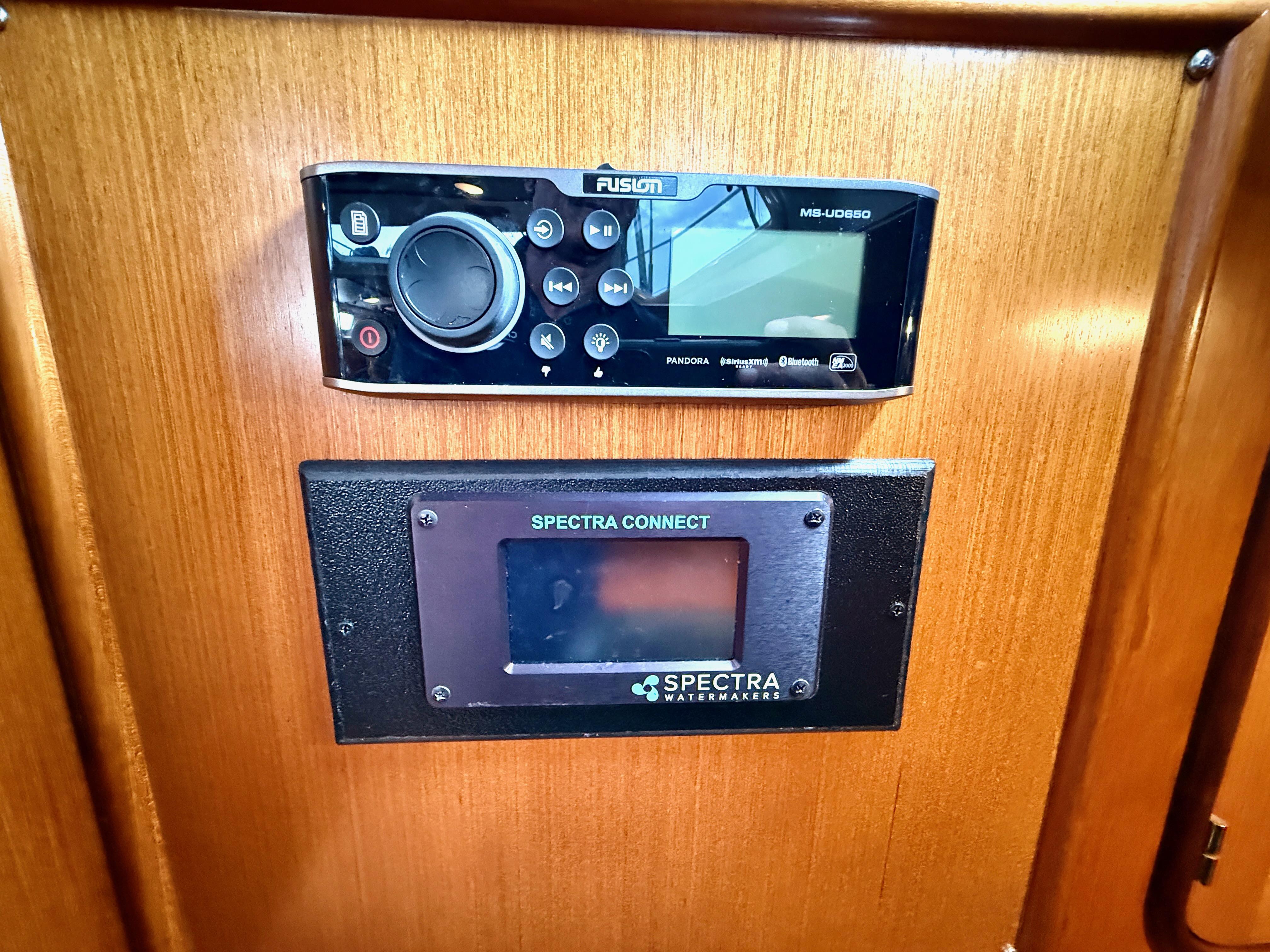

Fusion MD-UD650 Uni-dock marine stereo with 3 zones (sloon, topside,and aft cabin)
Under water camera 2022
Underwater lights 2022
Spectra Newport 400 ultra efficient compact water maker with Zion tech (17 gph) 2023
Ritchie Globemaster 515 pedestal mounted compass with cover
ConstructionHull and Deck
Bottom paint 2023
Hull: Solid fiberglass hull, hand laminated, using Kyntex knitted and stitched biaxial fiberglass fabric in conjunction with mat and woven roving, vinylester resin and with Kevlar reinforcement in high impact areas in the hull layup
Matrix of longitudinal and transverse foam cored stringers in the lower hull and hull sides to provide maximum hull stiffness
Isophthalic gel coat is on all exterior fiberglass surfaces.
Watertight bulk head located forward
Internal lead ballast (14,00 lbs) glassed into a fixed modified fin keel (no keel bolts)
Partial skeg mounted semi- balanced rudder with internal stainless steel rudder post and integral stainless reinforcements with bronze rudder shoe
Deck:
The deck is a composite construction using closed cell foam coring
All deck hardware areas are reinforced using solid fiberglass ( no coring)
All deck hardware is through-bolted using stainless steel backing plates and bolts
No wood coring is used anywhere

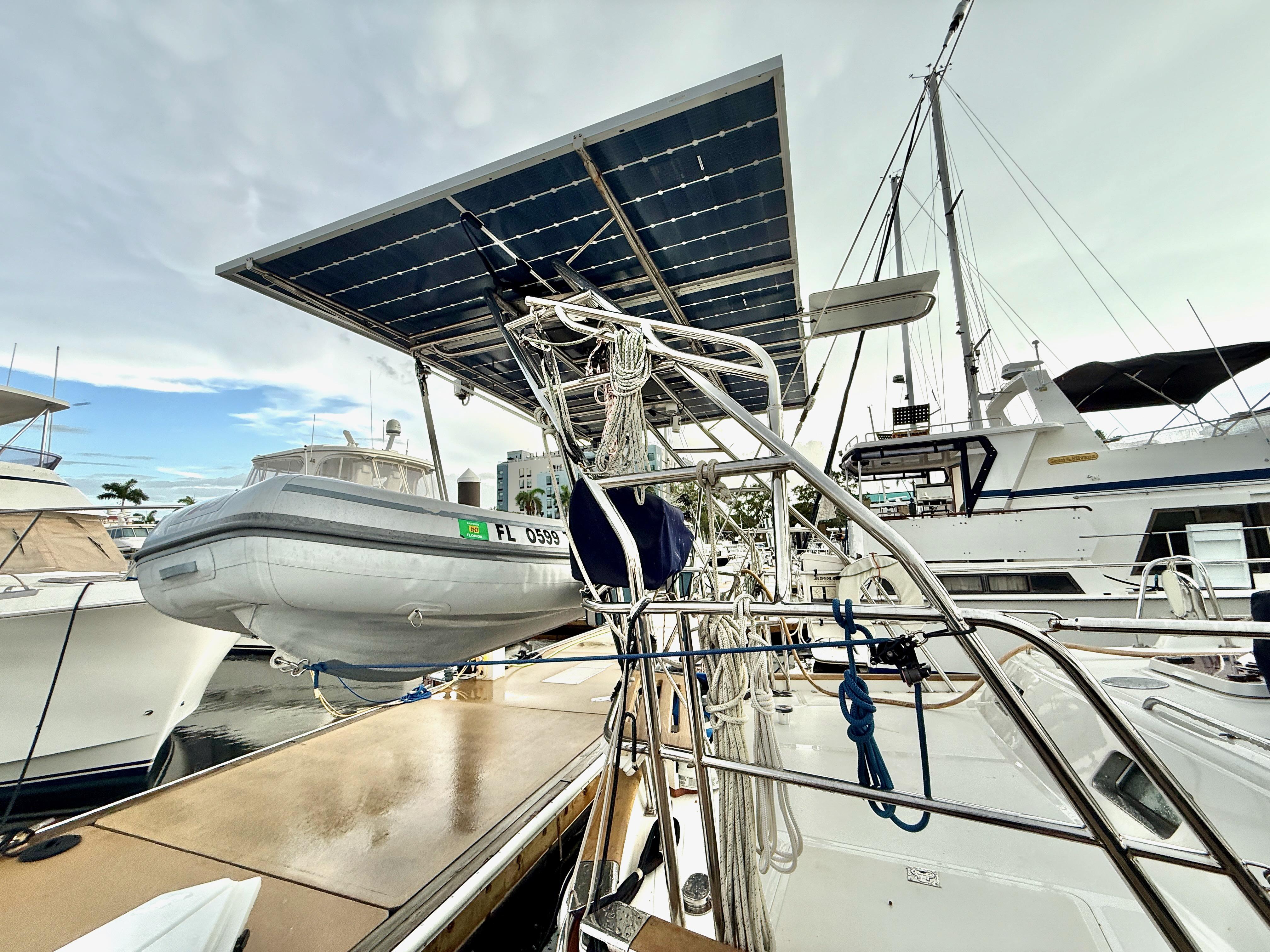

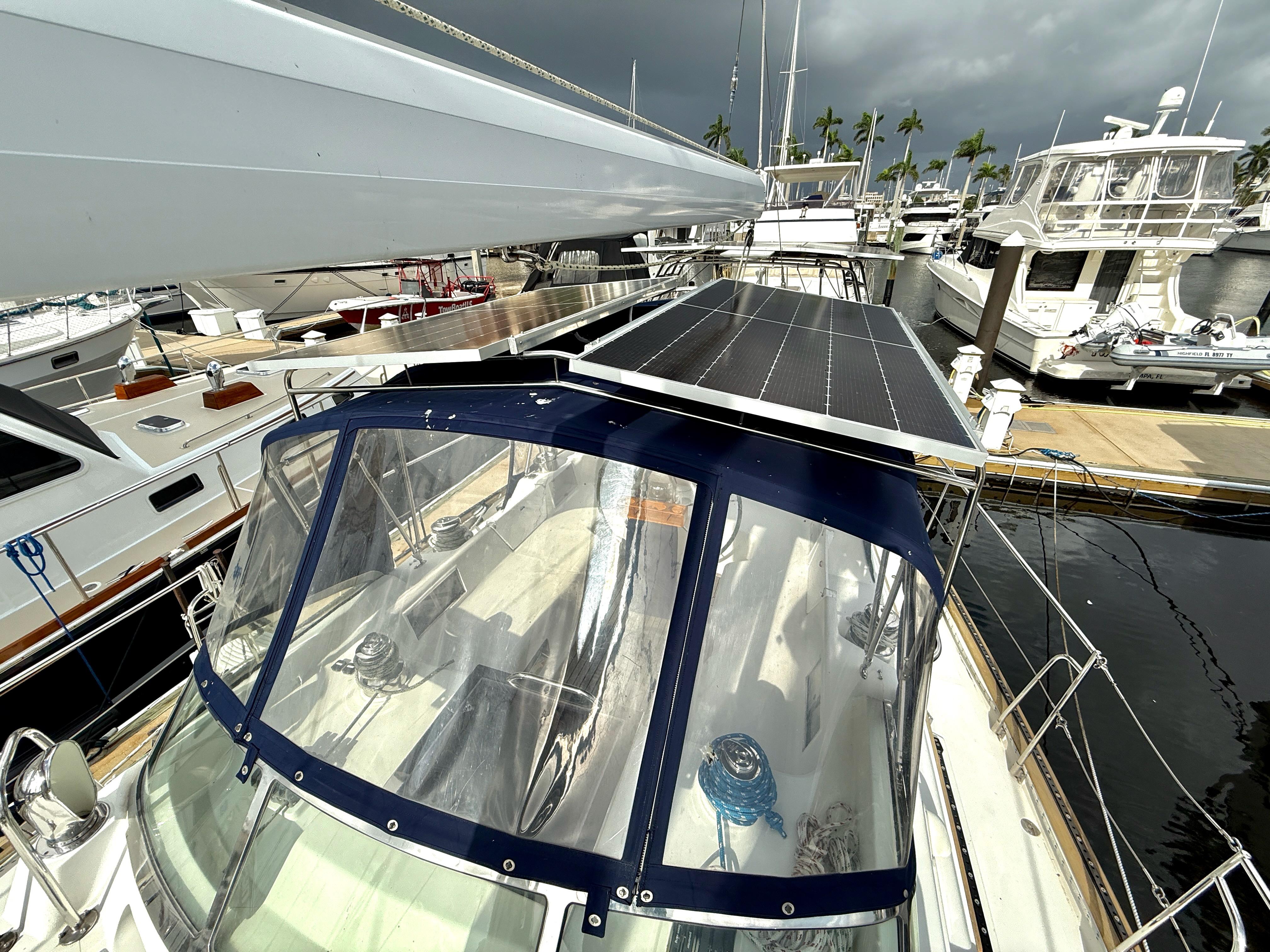

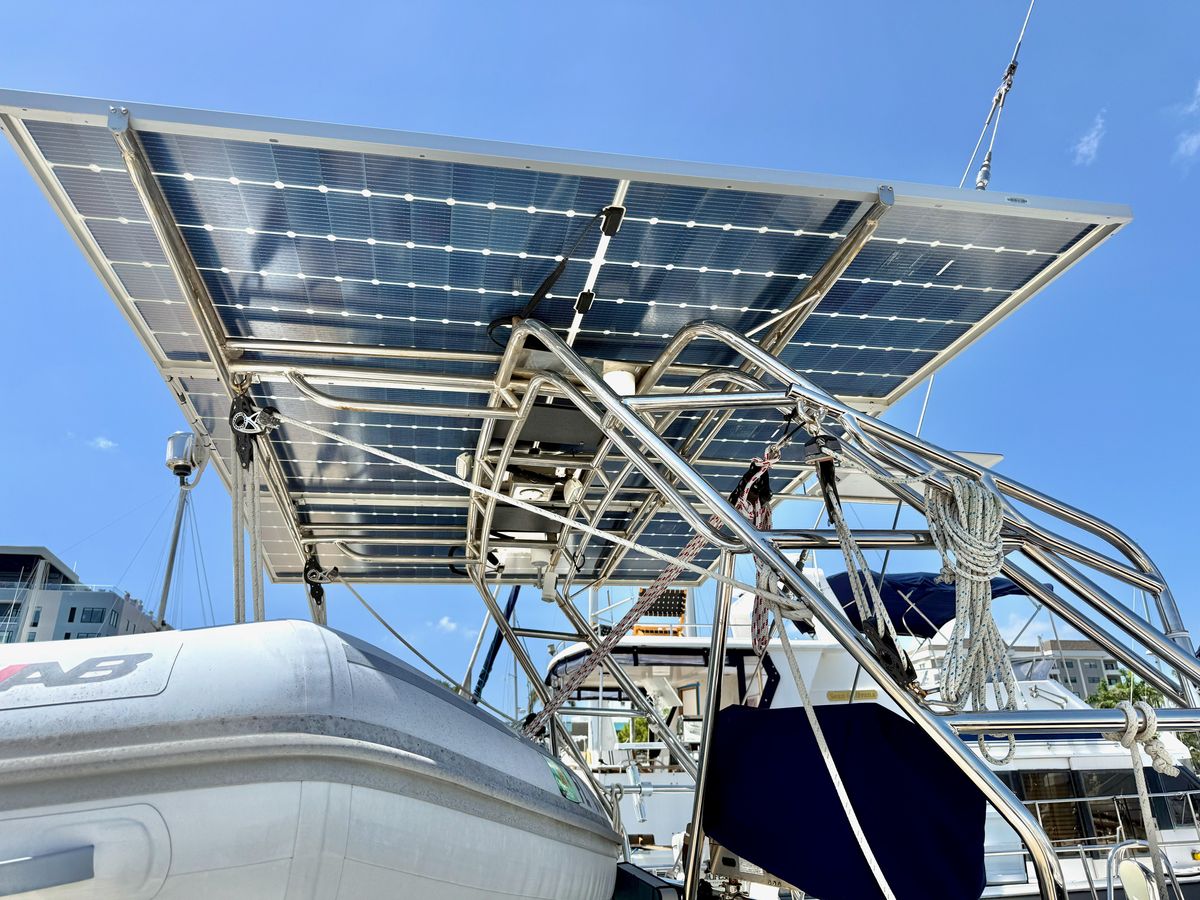

Electrical2200 watts of solar on custom Stainless Steel frames (one mounted to Davit for three 435w bifacial solar panels and one above bimini for two 435 w solar panel)
Five Lithium ion iron phosphate 300 amp hr batteries 2022
Group 31 AGM marine starting battery for engine and generator
Two Group 31 AGM marine batteries for bow thruster and windlass
Two Balmar highoutput alternators
Two Arco Zeus alternator regulators
Converted v-belts to Serpentine Belts
DC two Bridgeport 60amp isolation transformers
Water, fuel holding tank monitors
DC to DC chargers
Victron BMV-712 smart battery monitor
2- Victon Multiplus 2 inverter/charger 3000 watt

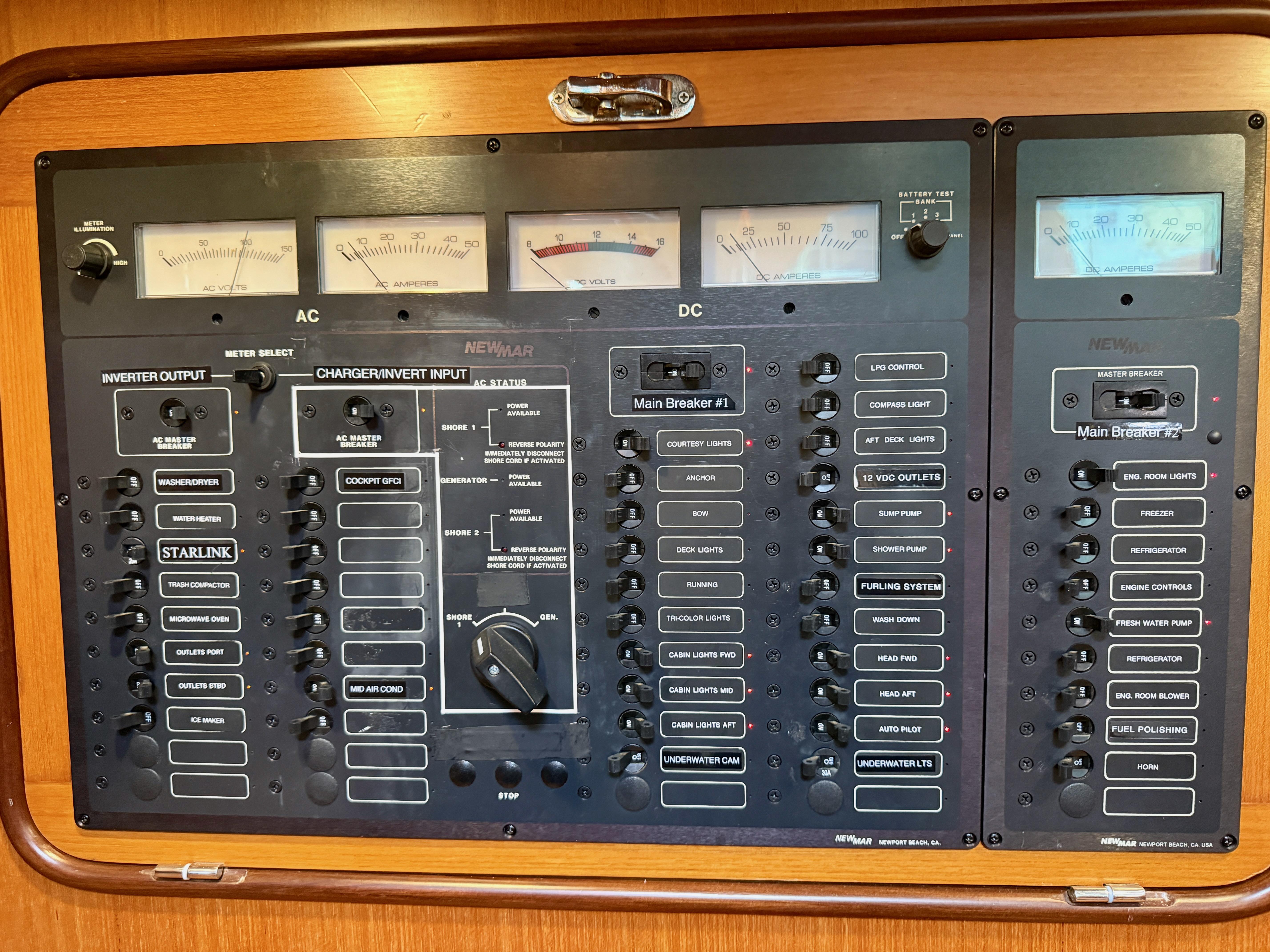

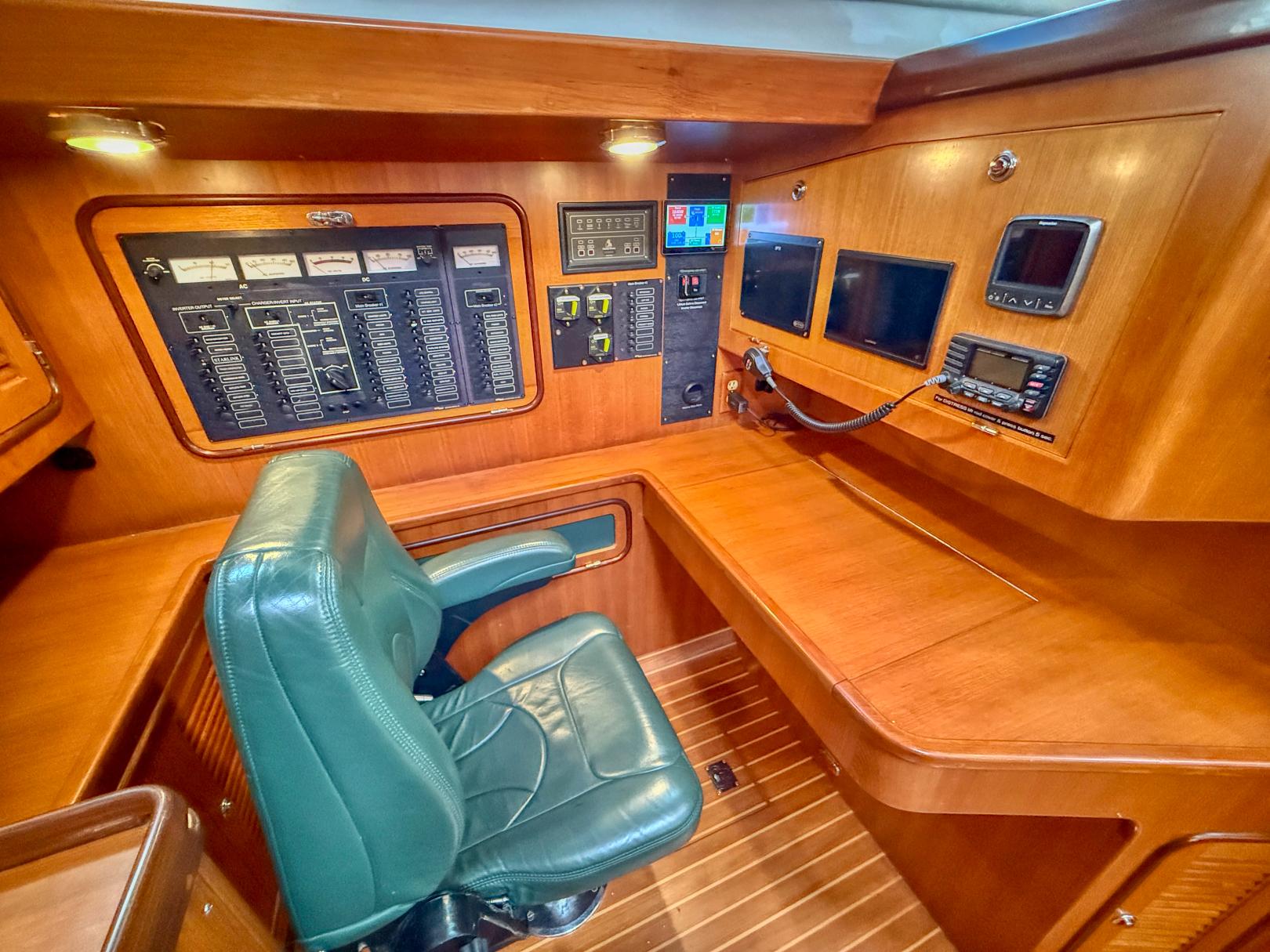

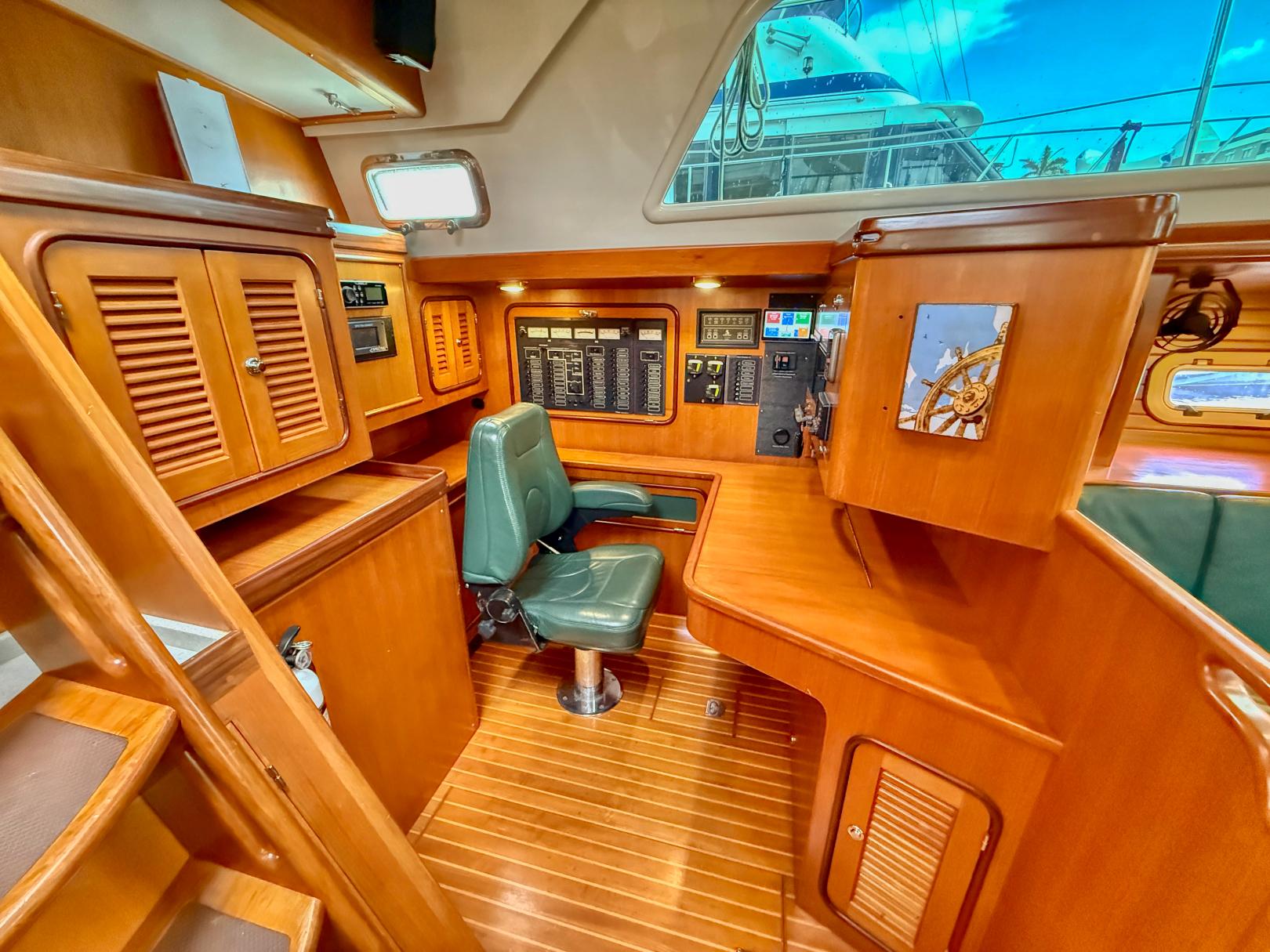

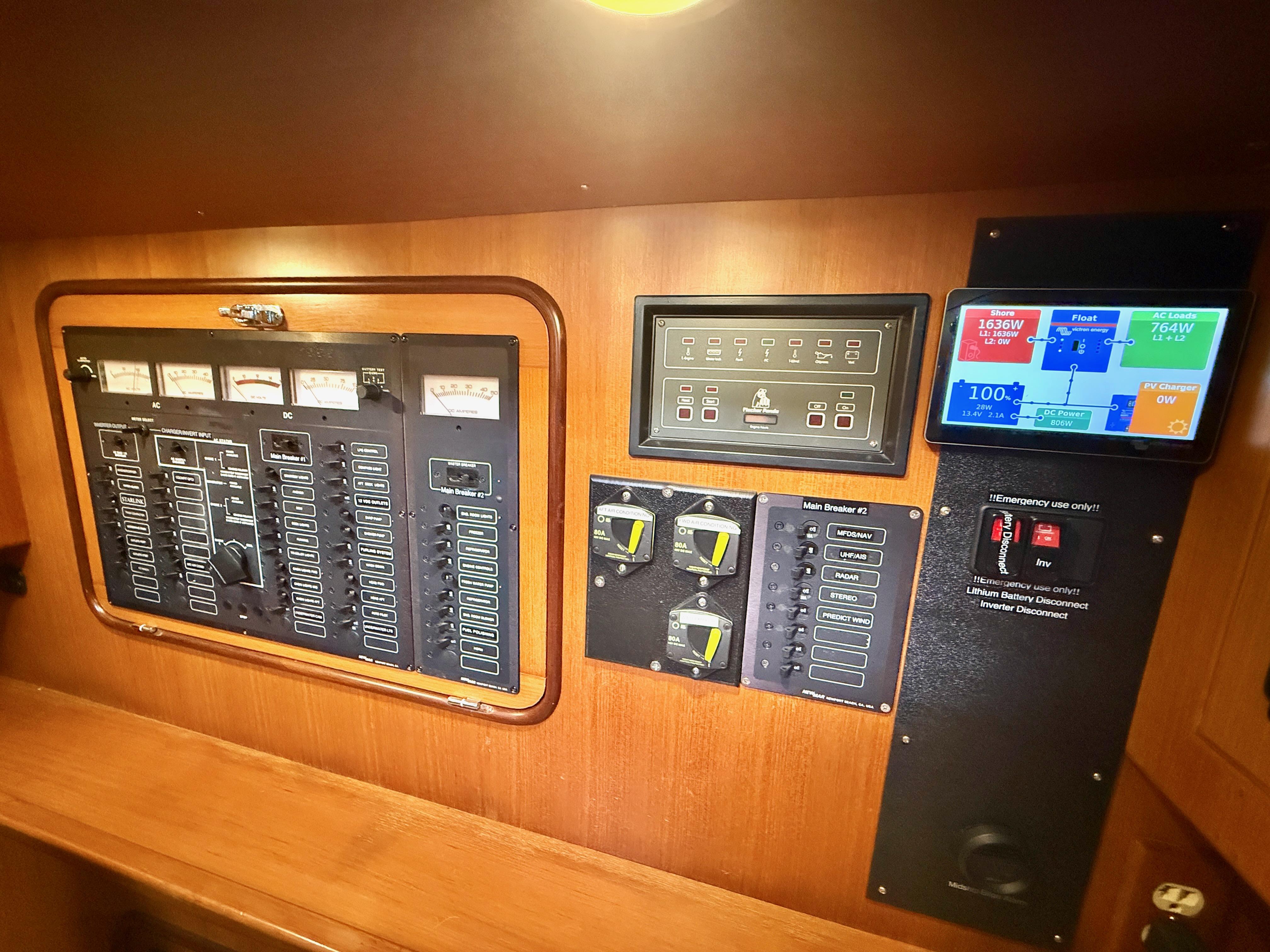

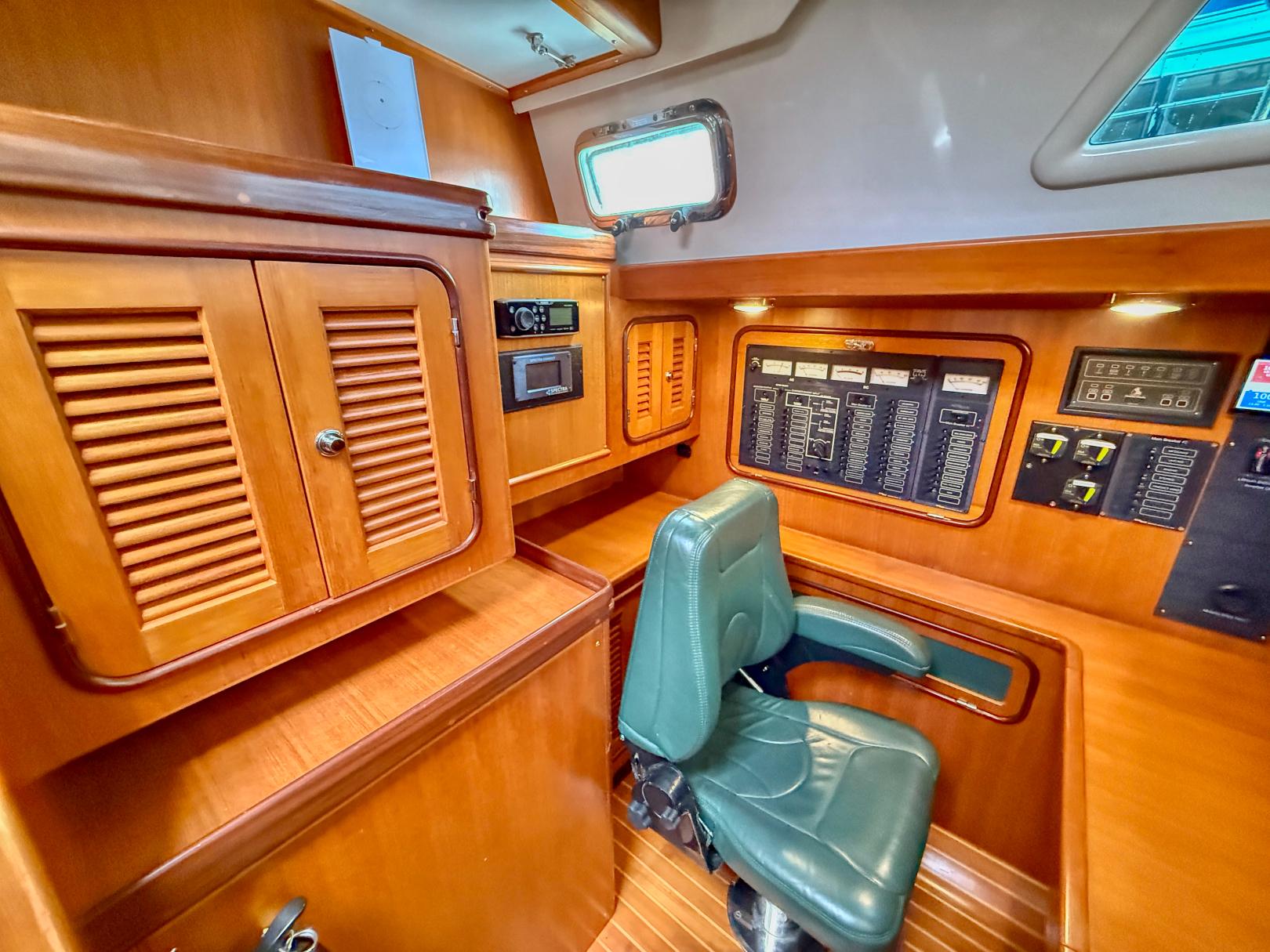

Custom Newmar ES-5 and ES-6 electrical panel(CE and ABYC compliant) at navigation station
110-volt 50amp/250-volt shore power inlet and shore power cables
Selector switch for shore power or generator
AC electrical panel section includes two load groups
DC electrical section includes two master breakers for two load groups
Five gauges for A/C and D/C panels
110 volt outlets throughout with GFI outlets in both heads, galley and the cockpit
AC and DC electical wiring conduits
Two Guest heavy duty battery selectors
Two cut off switches for emergency use on Lithium Batteries
On and Off switch at helm station to shut off alternators

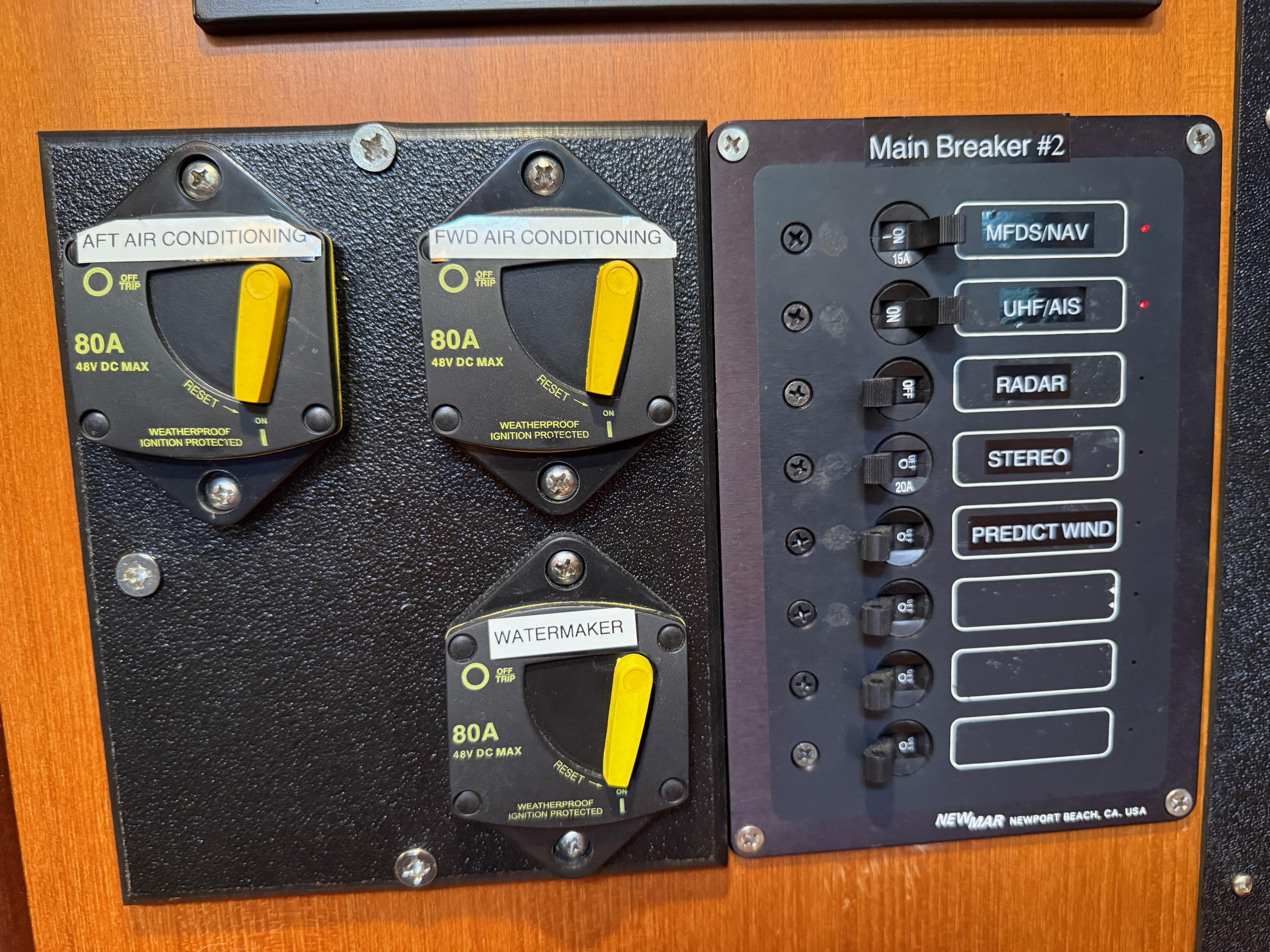

Three heavy duty breakers for two mabru air conditioners and the Spectra water maker
Internal bonding system to all chainplates, thu-hulls,engine, and rudder system
Four 12 volt outlets (one in cockpit and three at nav station)
LED nav lights 2023
Underwater lights and underwater camera

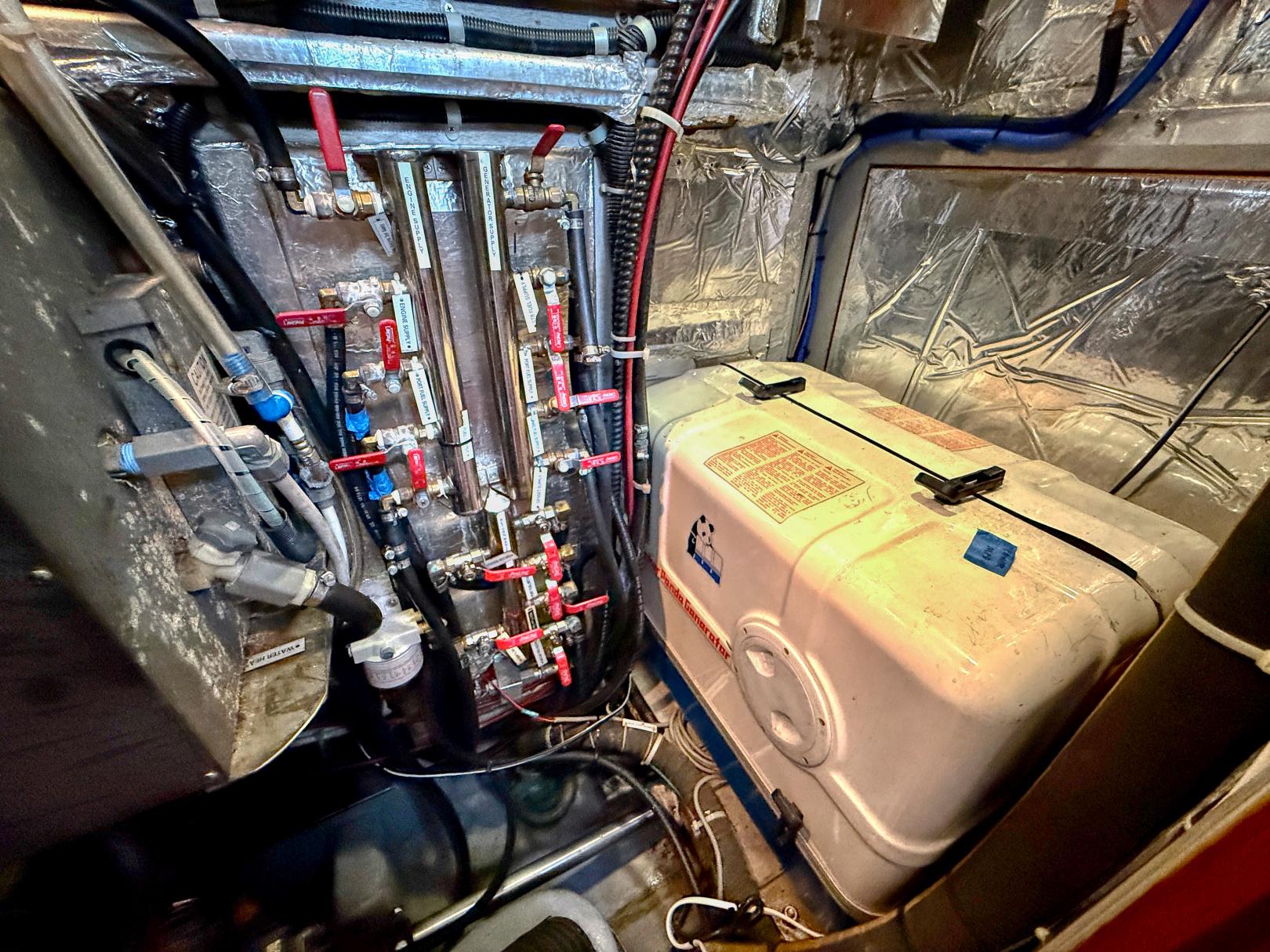

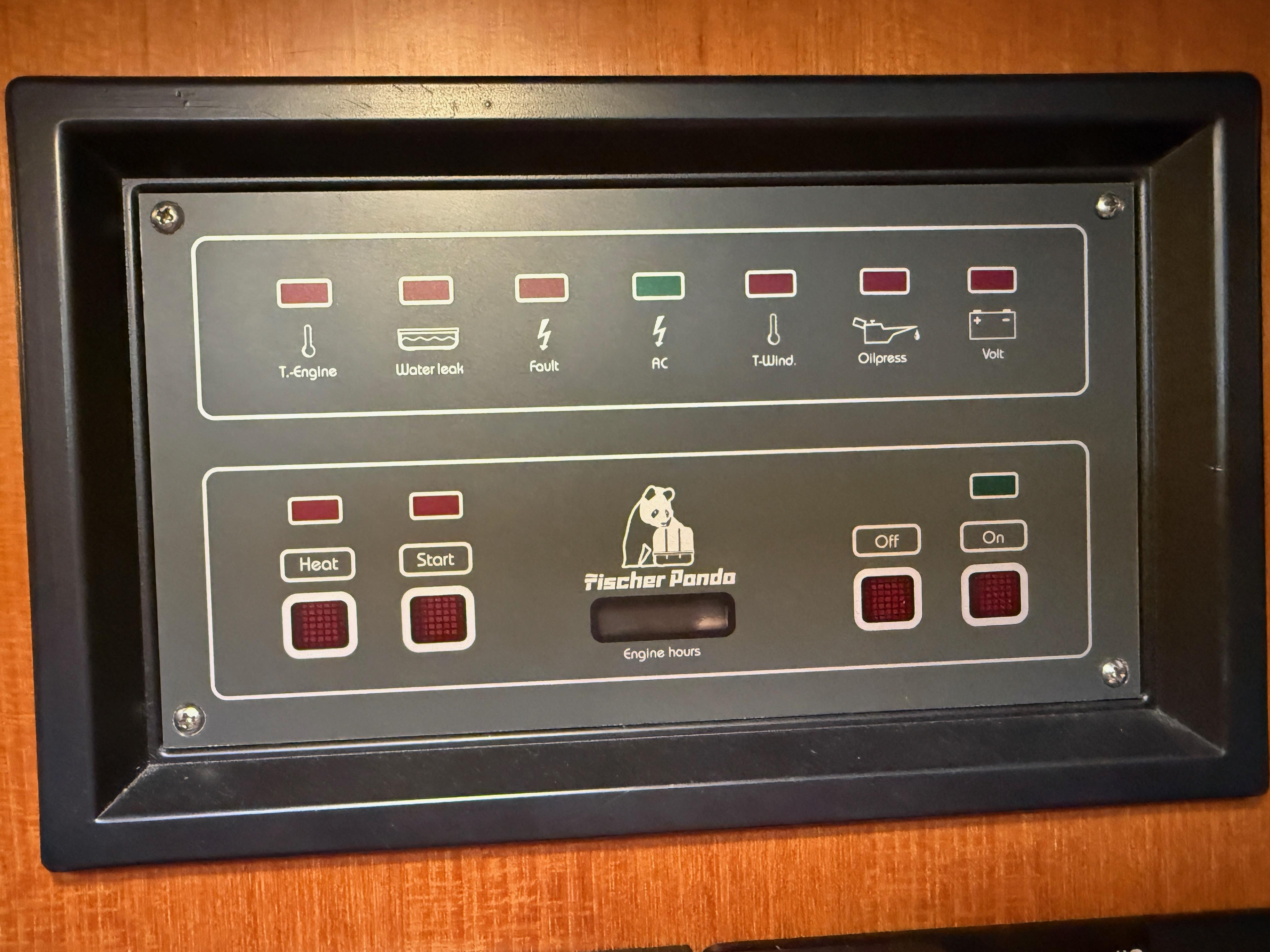

Fisher Panda Mini 12-12kw generator with sound shield 200 hours, with access thru engine compartment and aft cabin behind removable dresser

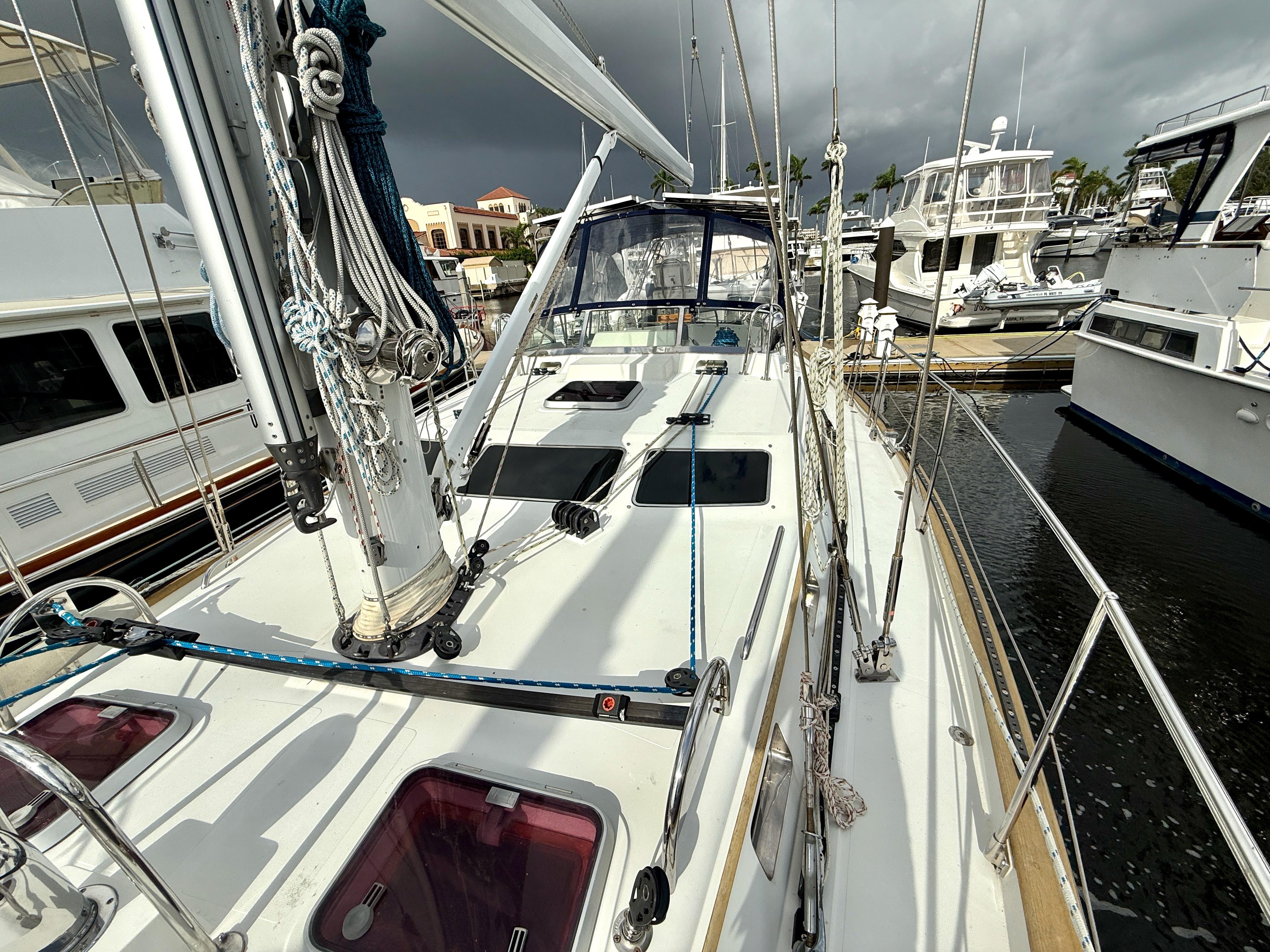

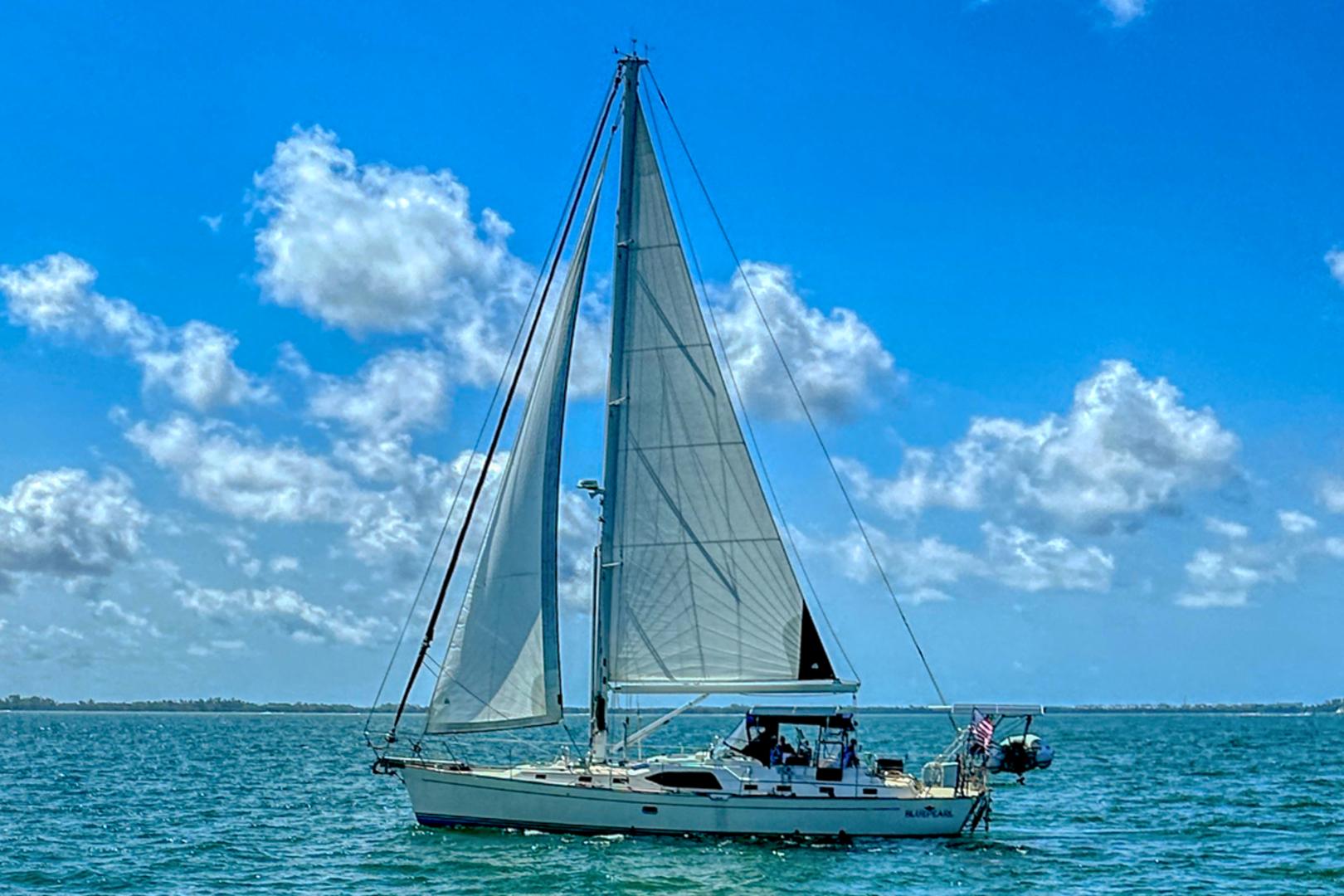

Sails and Rigging
All new standing rigging 2022
Selden triple spreader mast and boom removed and repainted 2022
Selden internal furling mainsail
Six internal Halyards all internally led
Spinnaker pole topping lift
Selden hard boom vang
Removable inner forestay with Hy-Field lever and storage system
Flag halyard port and starboard

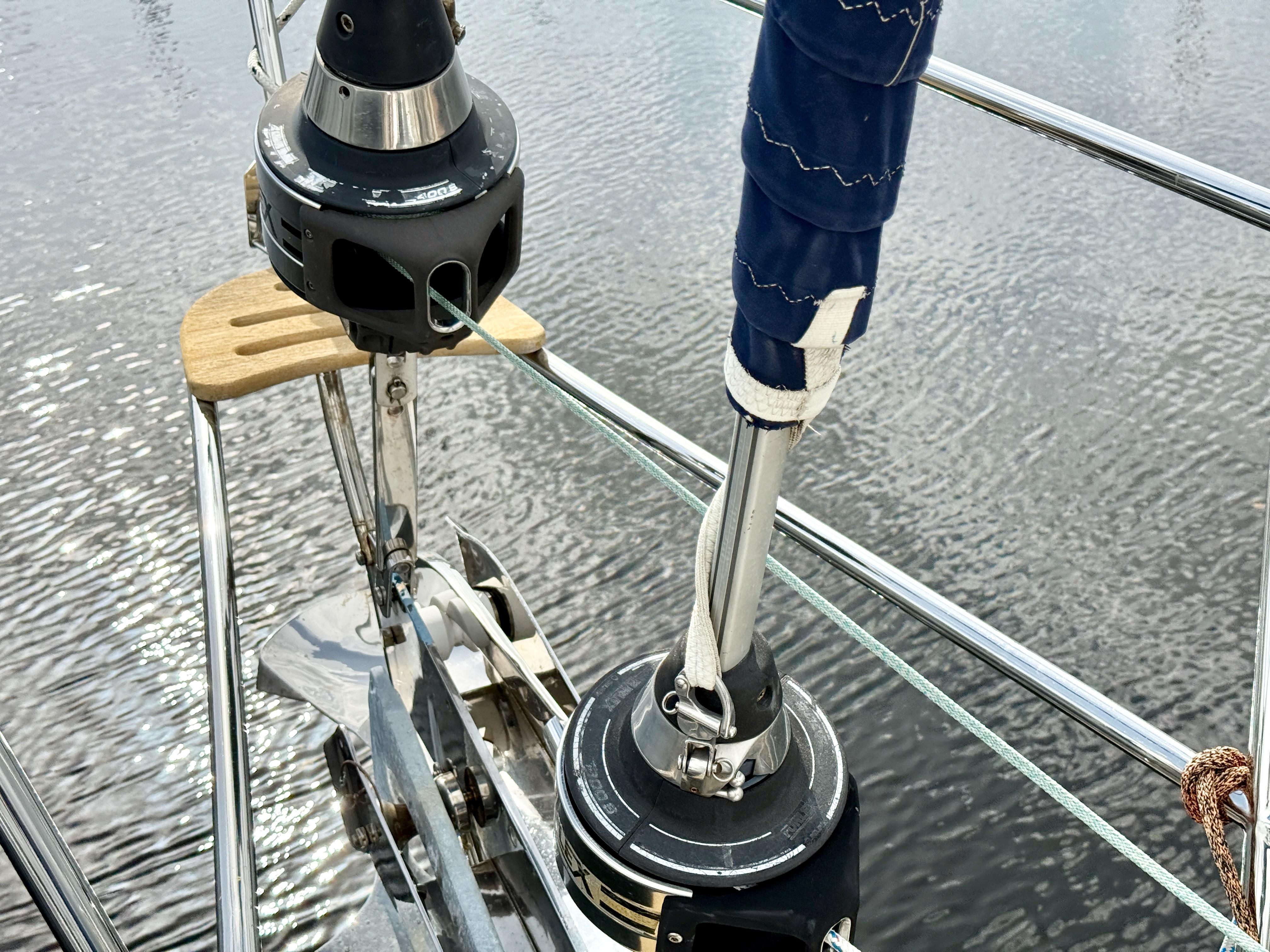

Furlex 400S furling system for reaching
Furlex 300S furling system for working jib
Harken Aluminum Genoa and jib tracks with cars (inboard and outboard tracks)
Harken ball bearing mainsheet traveler system
Harken ball bearing curved arthwartship traveler for working jib forward of the mast
Running backstays
Custom boom preventer at aft end of boom
Harken deck organizers port and starboard
Spinlock sheet stoppers (rope clutch) five port and five starboard and two along starboard toe rail for furled genoa and jib

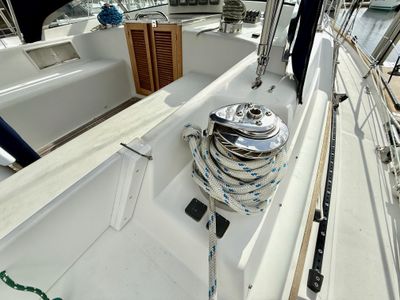

9 Anderson stainless steel winches
Two Anderson 58 ST two speed primary winches

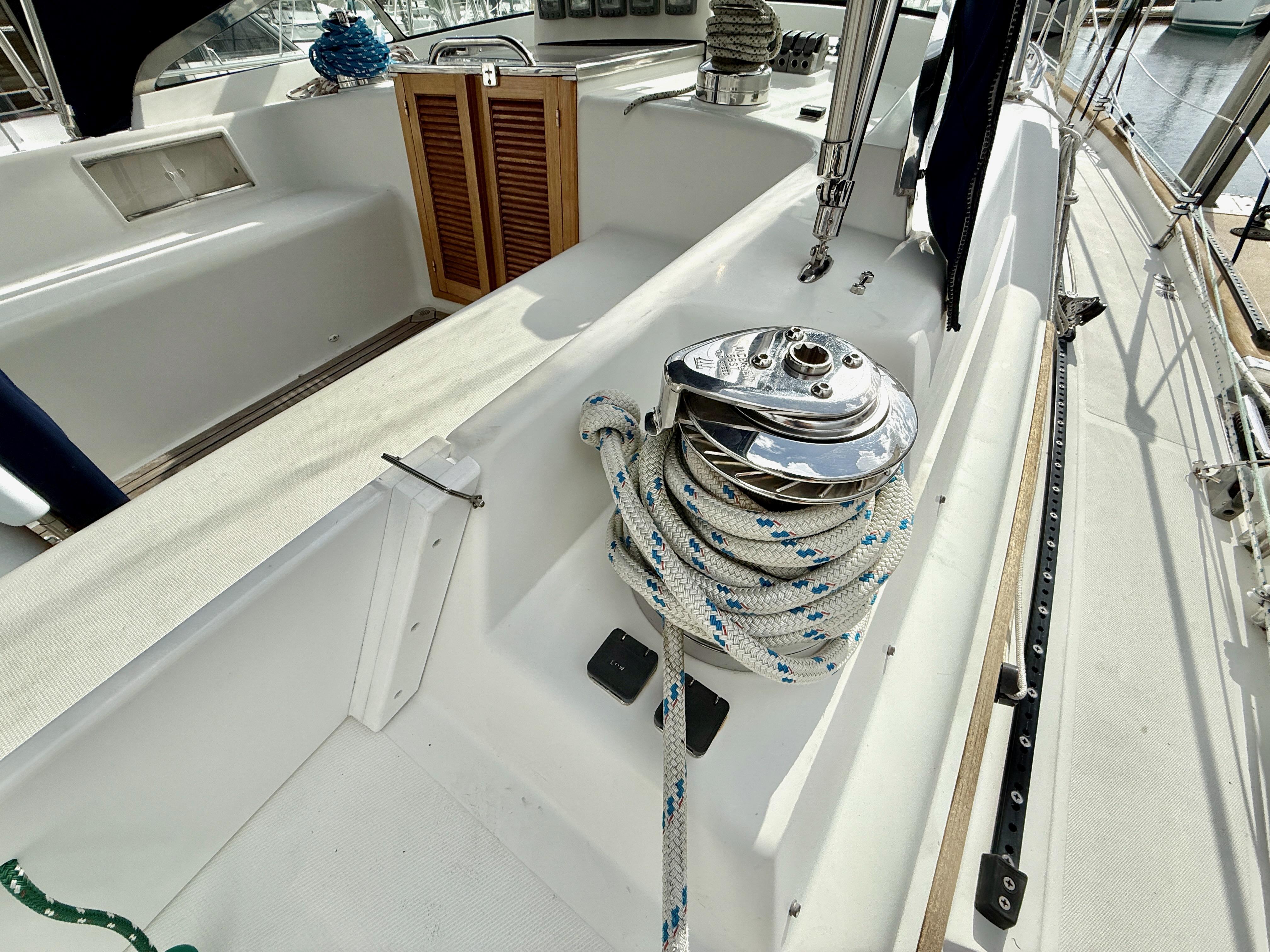

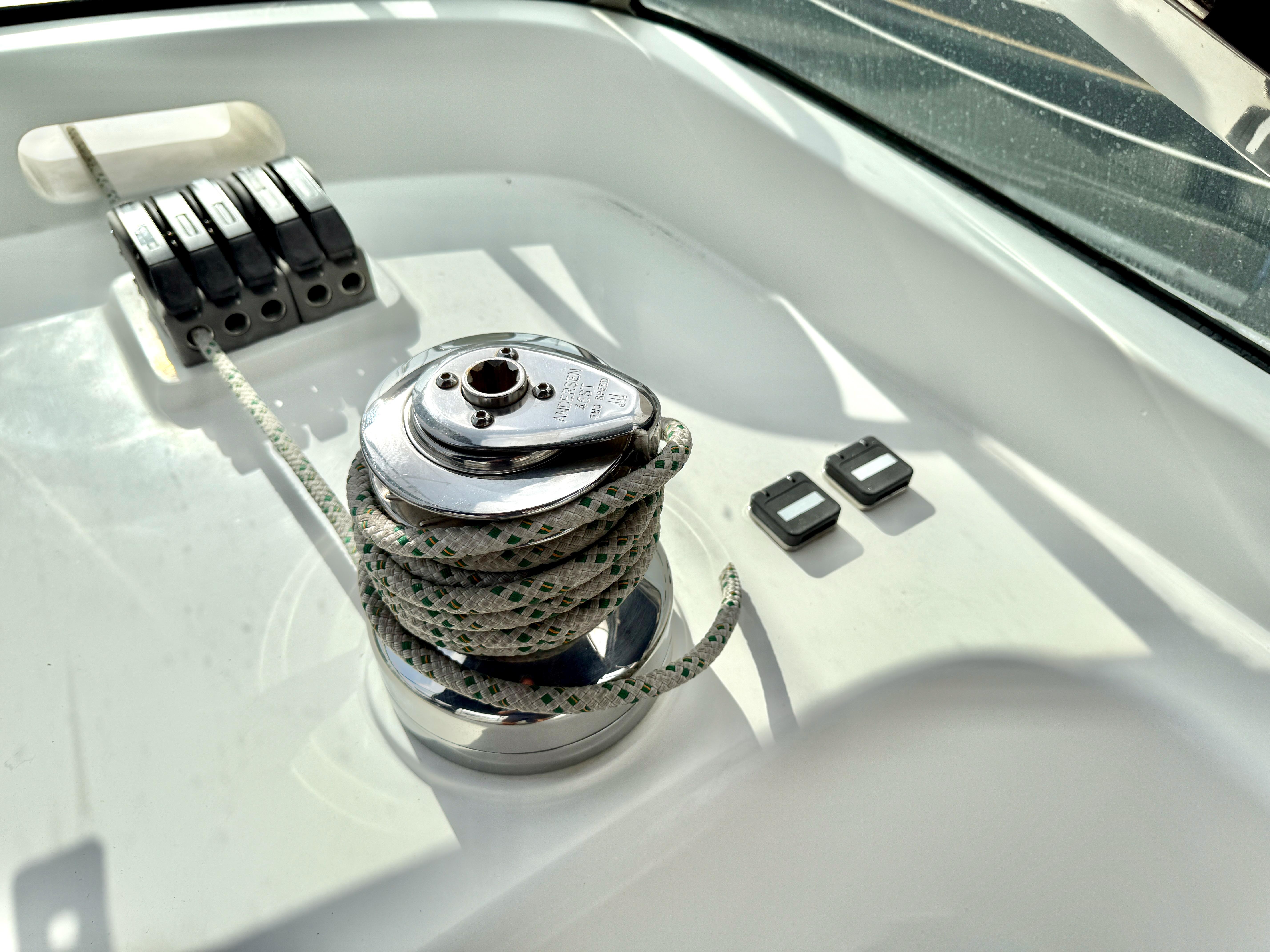

Anderson 46 ST two speed electric winch in cock pit forward port side
Anderson 46 ST two speed electric winch in cock pit forward starboard
Anderson ST electric halyard winch
Anderson ST two-speed winch on mast
Two Anderson 46 ST two-speed mainsheet winches
Anderson 40 ST compact electric winch for code zero, spinnaker in starboard coaming
Solent rigging
Doyle tri-radial in-mast furling mainsail 2016
Doyle 98% working jib 2017
Doyle tri-radial 120% furling Genoa 2016
SAIL AREA:
Main: 529 sq. ft.
Genoa: 704 sq. ft.
Working jib: 445 sq. ft.

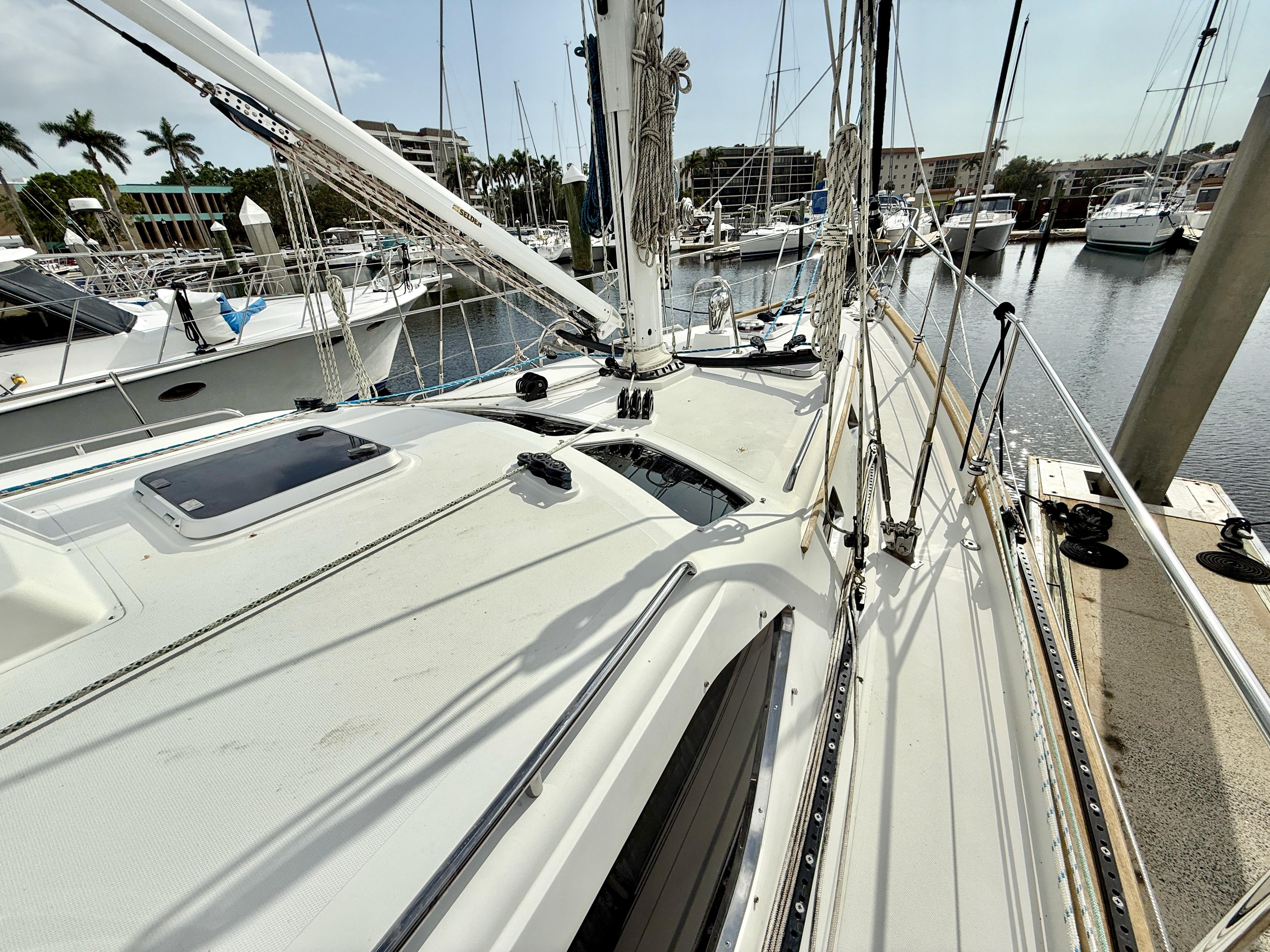

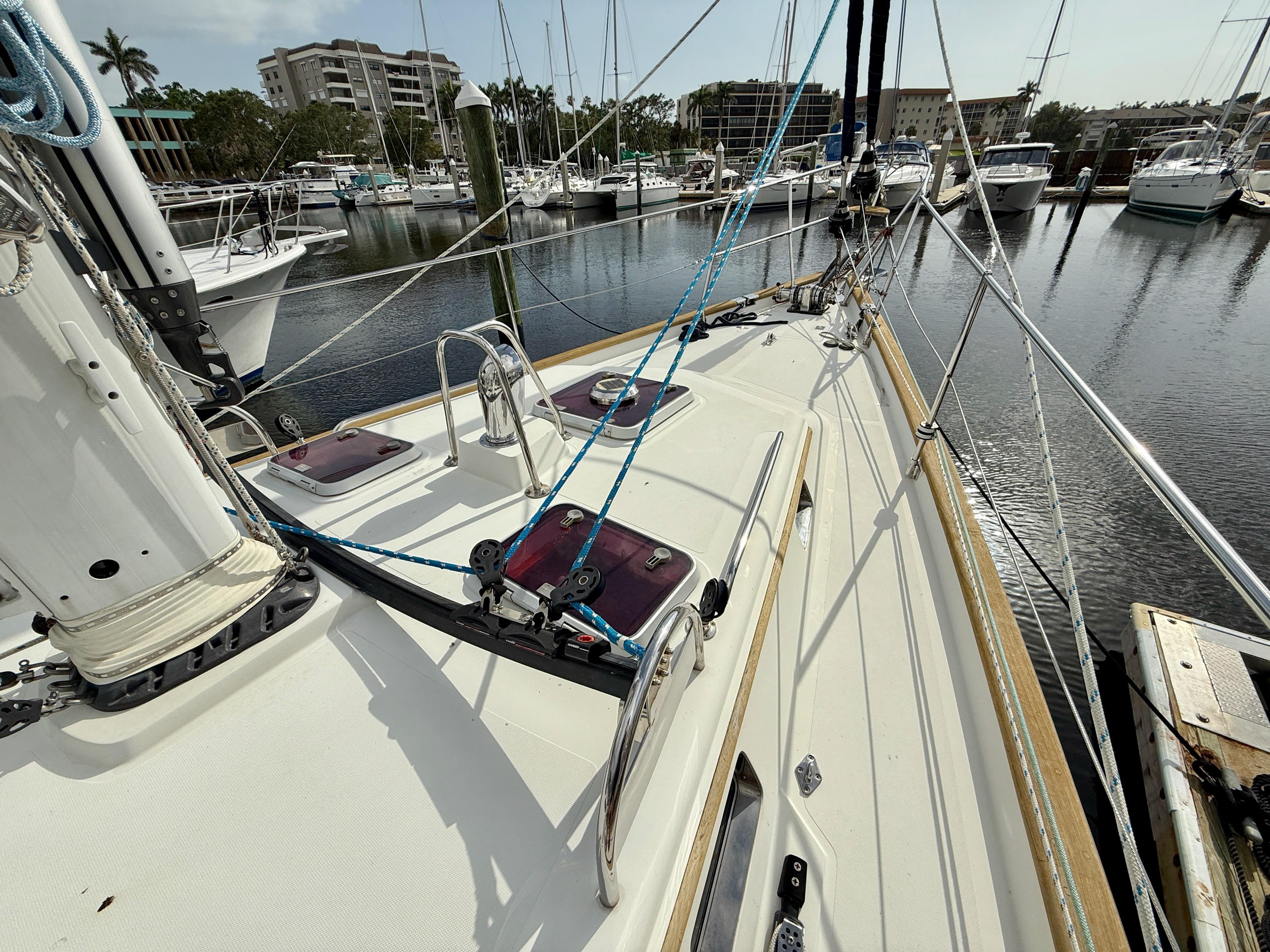

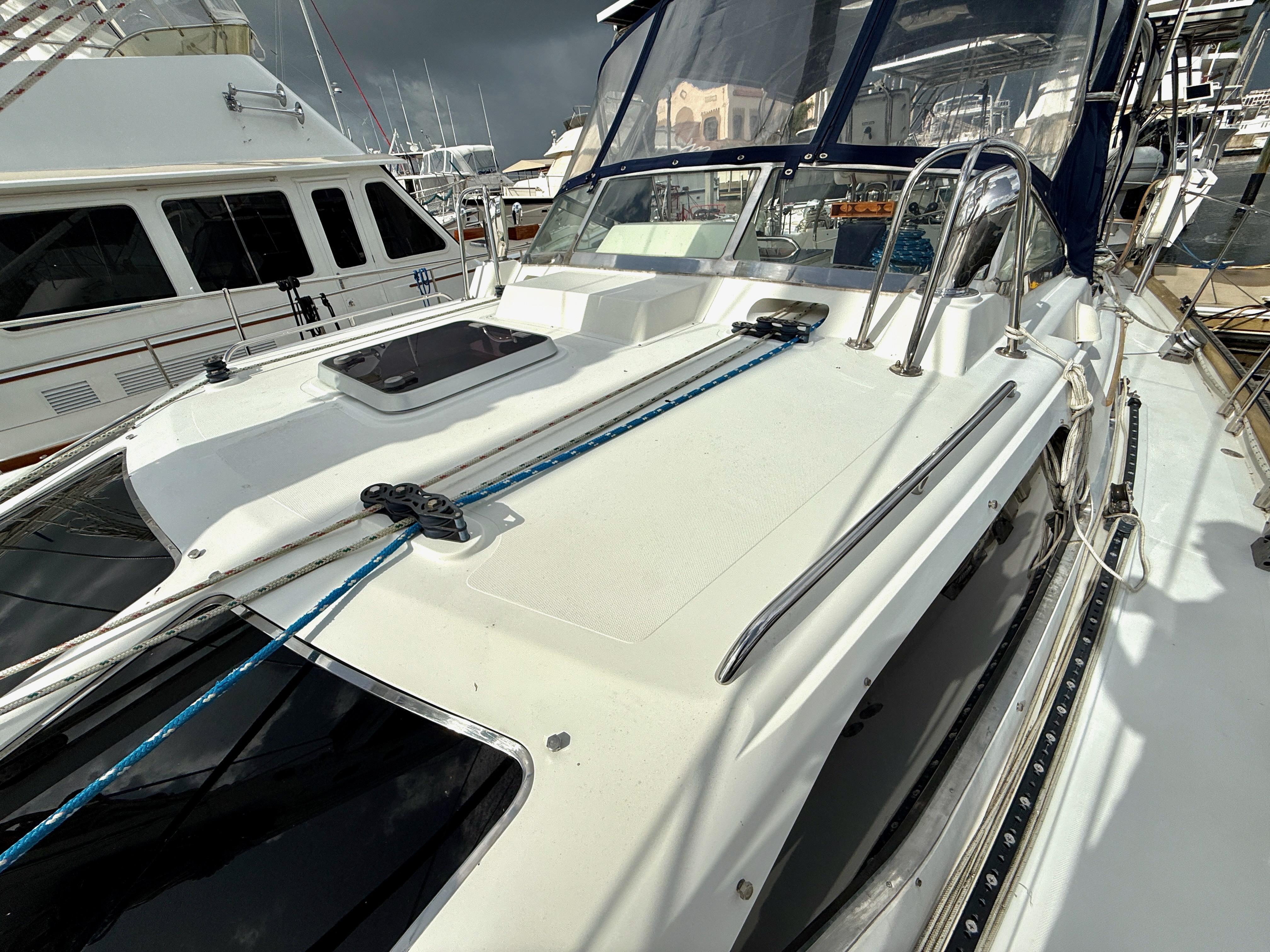

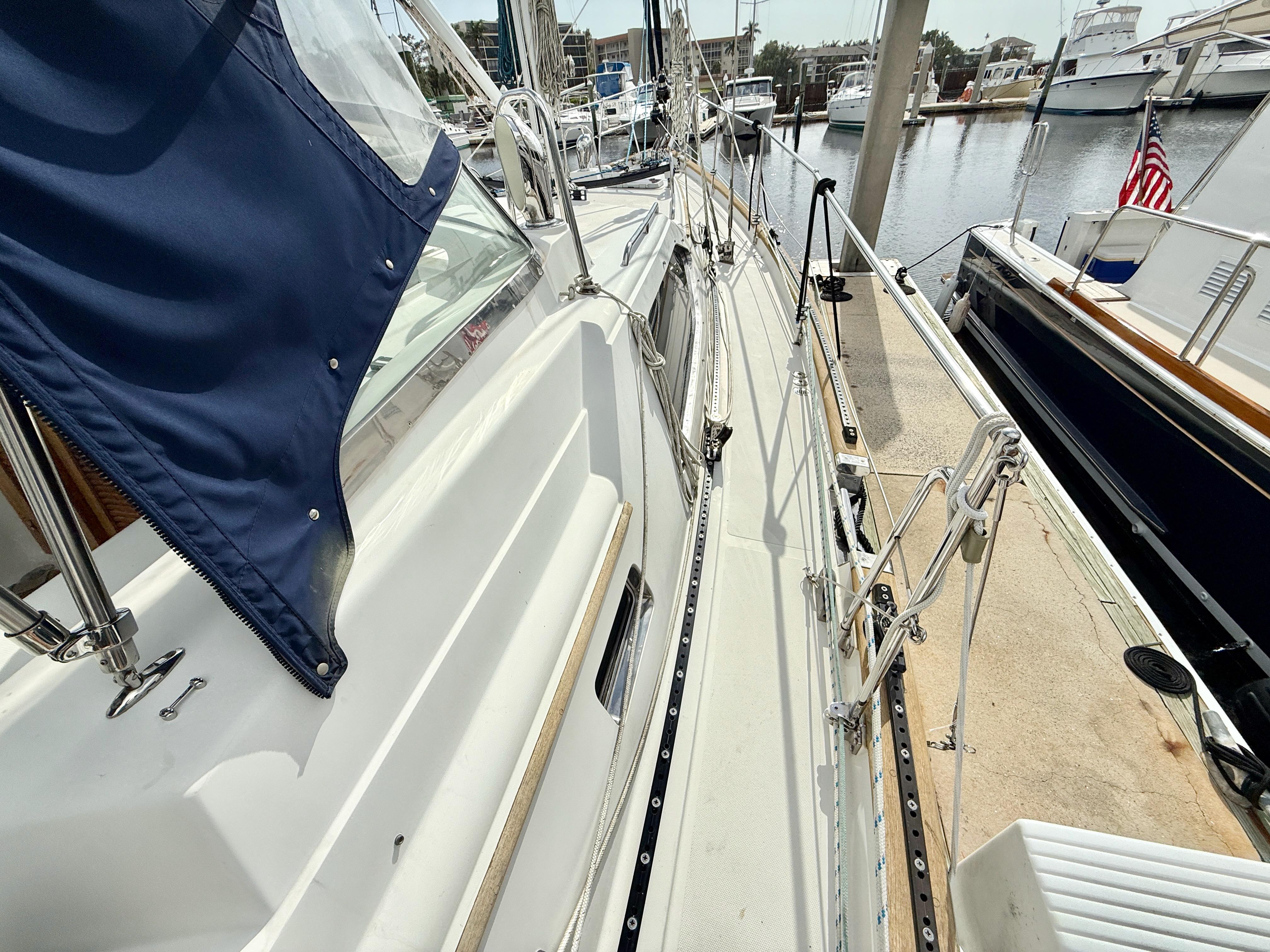

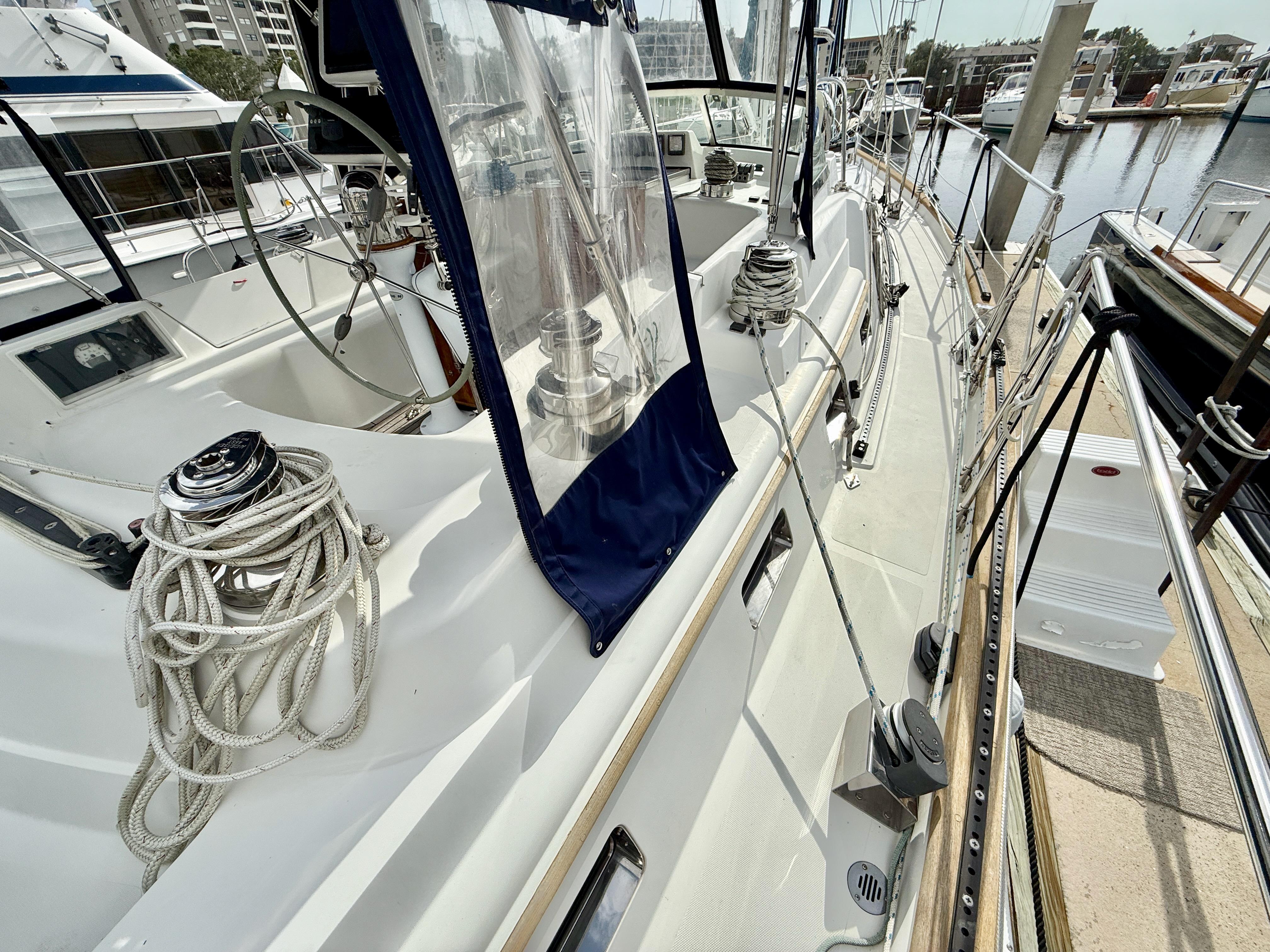

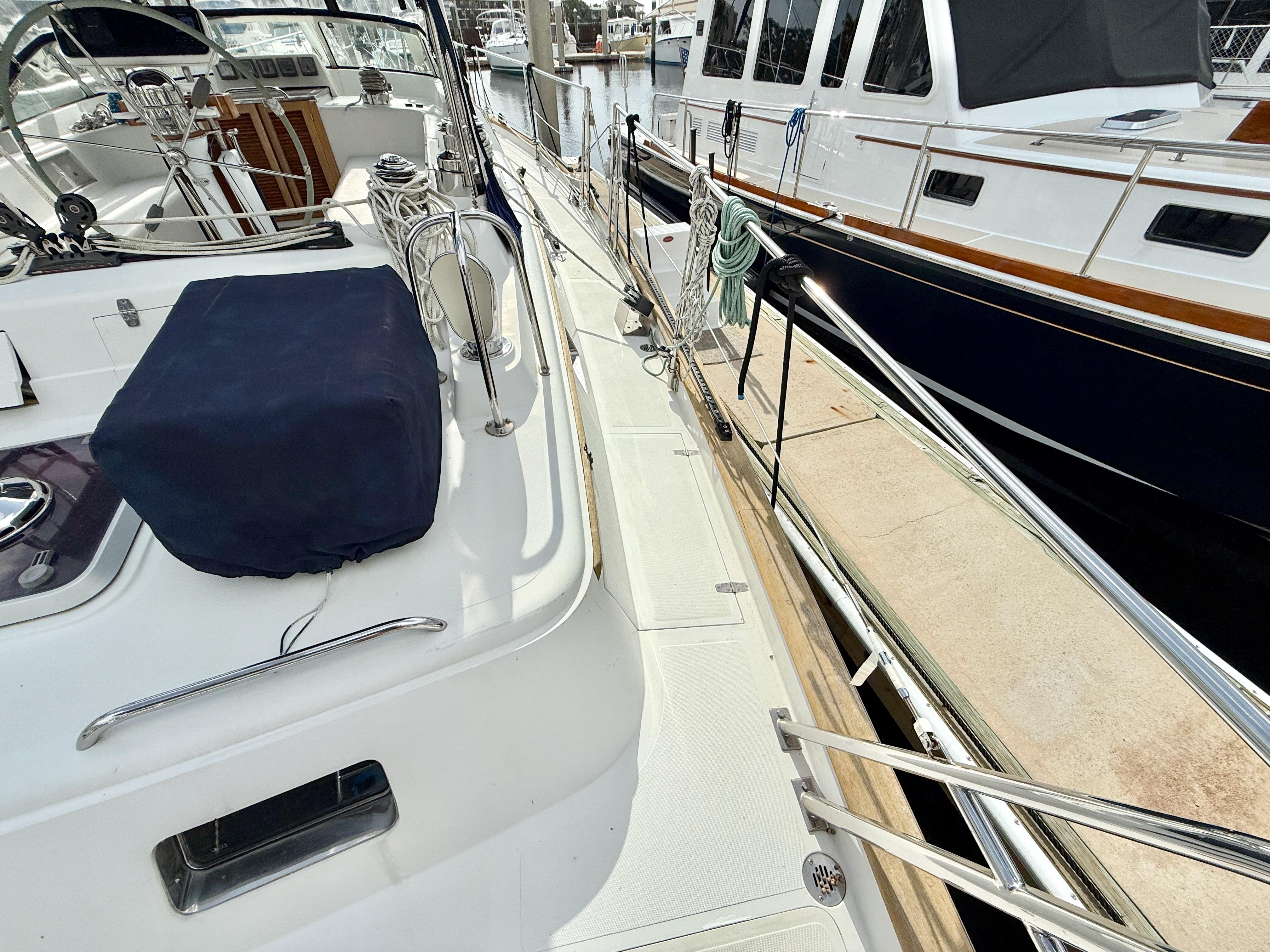

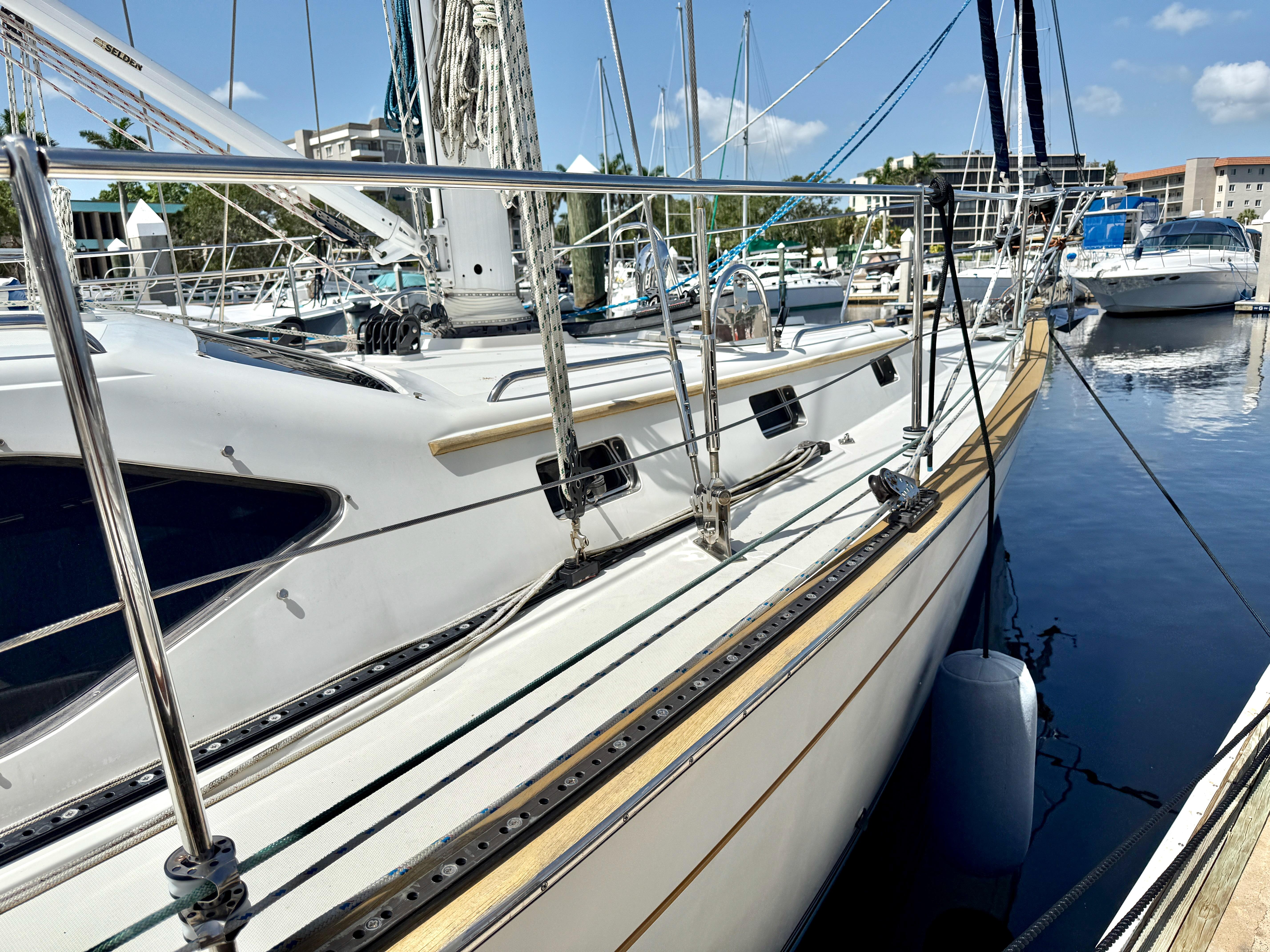

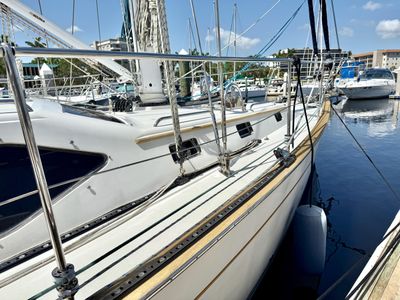

Deck EquipmentNon-skid side decks and cabin top
Solid teak cap rail with stainless steel strikers
Six custom Yachtsman type 316 stainless steel mooring cleats and fairleads with over sized backing plates
Custom stainless steel bow and stern pulpits

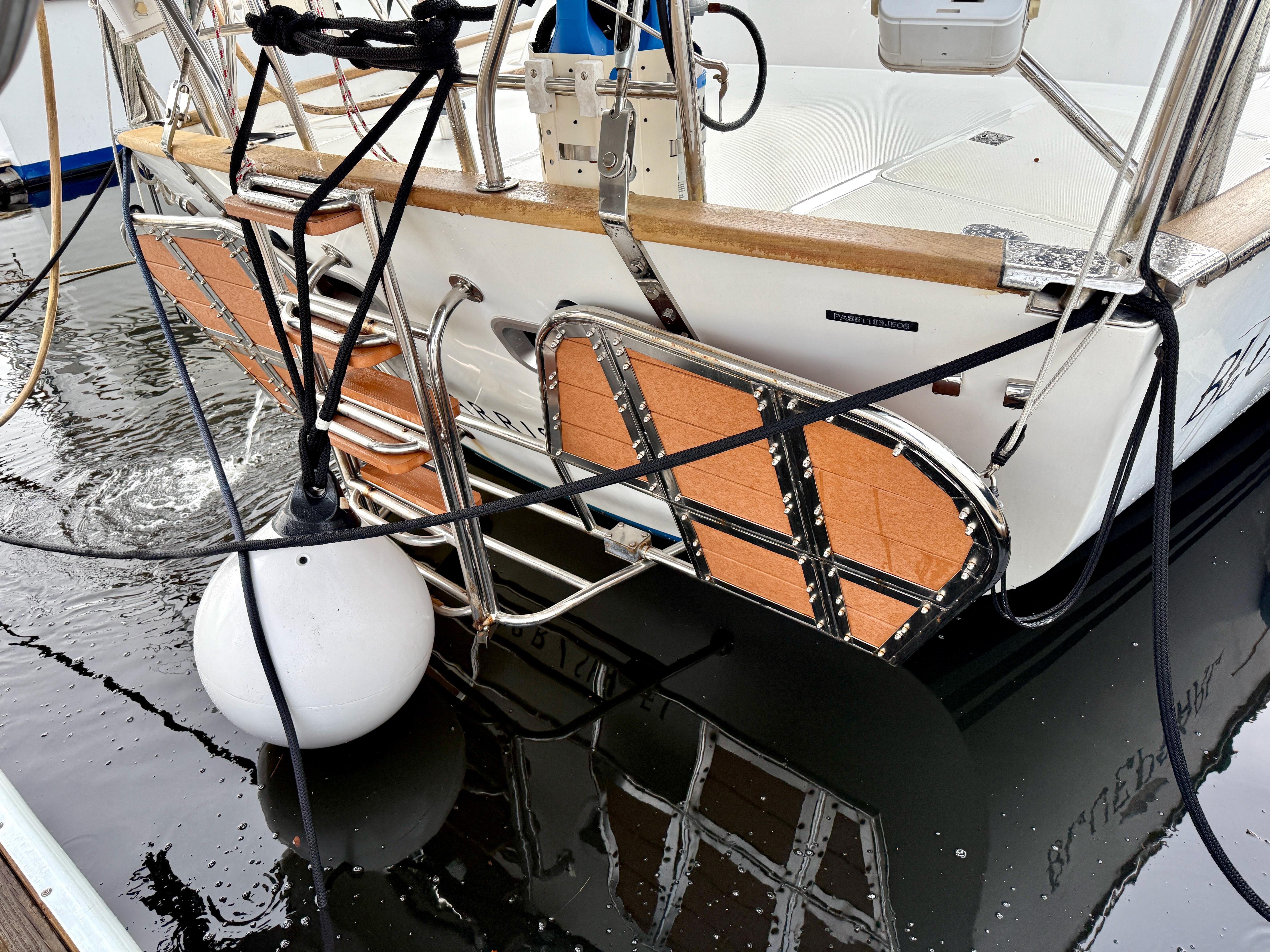

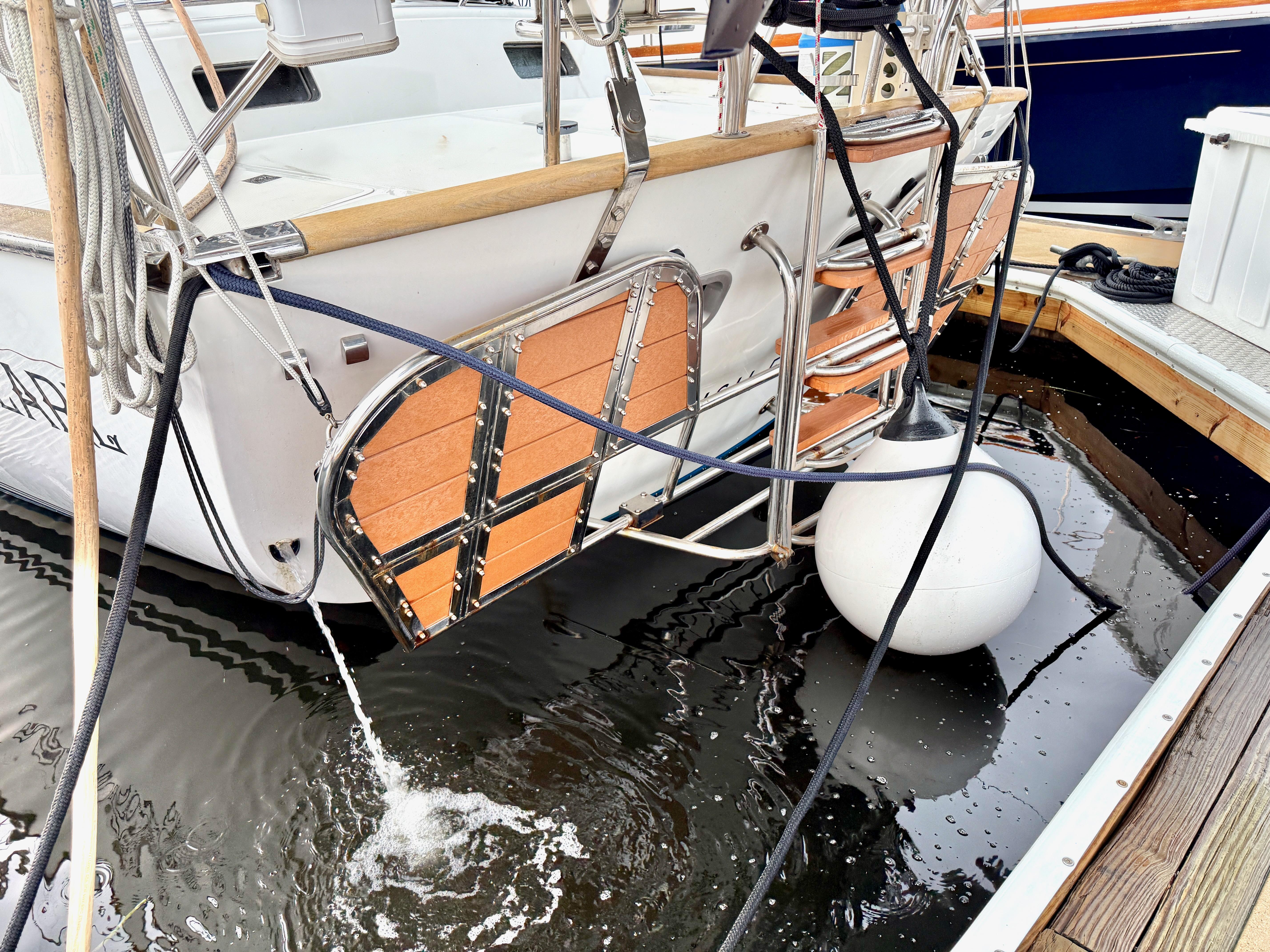

Custom folding stainless steel stern platform with polymer cedar decking
34” high 316 stainless steel stanchions with custom bases
Double stainless steel lifelines 20
Custom 1” stainless steel tubing replacing top lifeline from bow to stern 2022
Boarding gates port and starboard 2016
Custom stern rail mount for 20hp outboard dingy motor

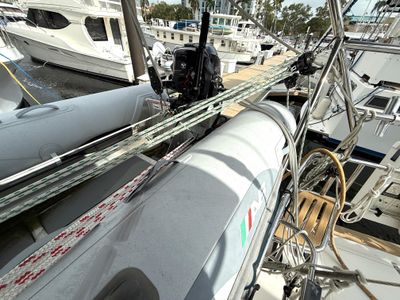

Custom tender system for dingy

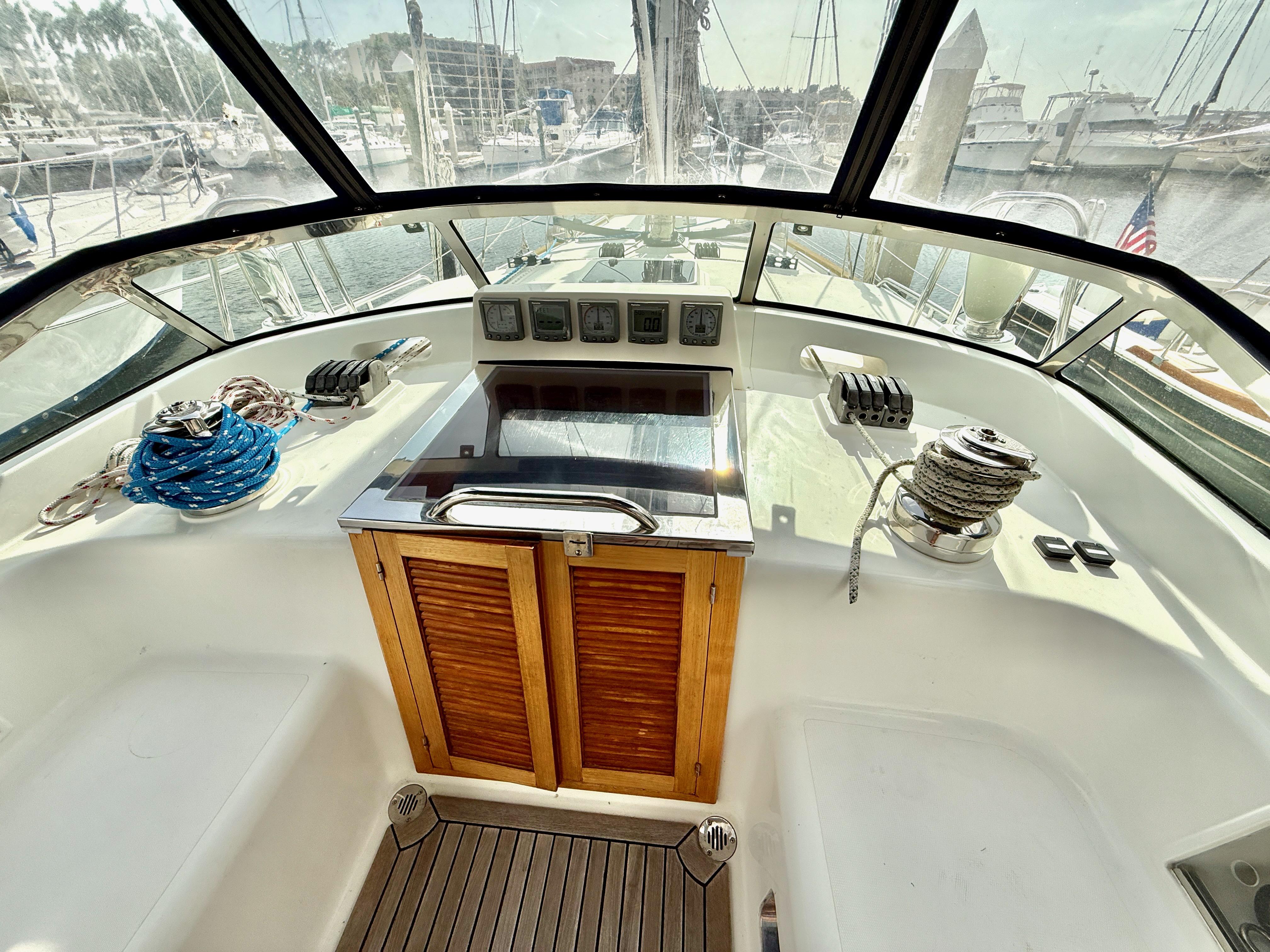

A custom stainless steel fixed laminated glass windshield

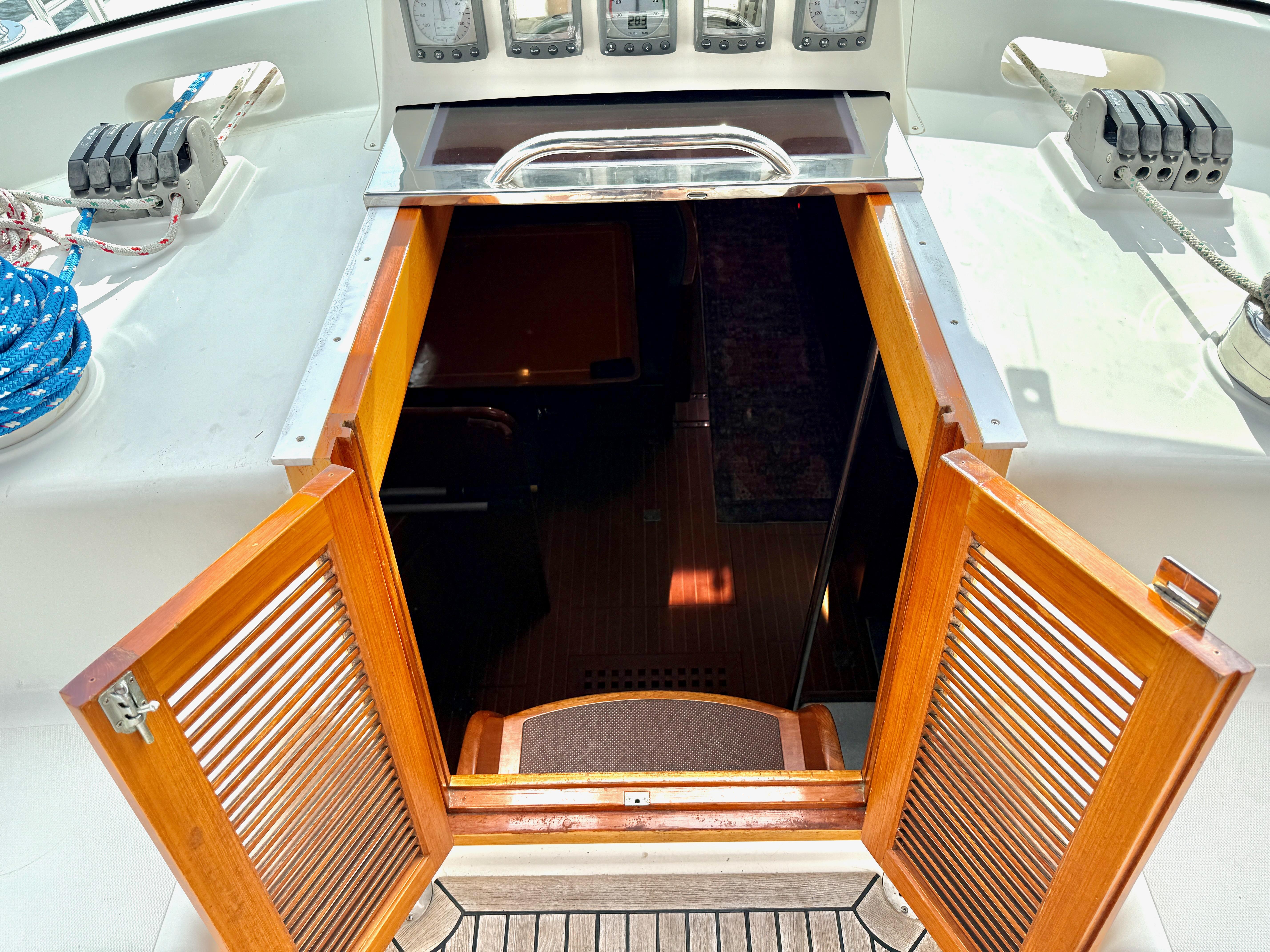

Teak companionway doors and tinted Lexan drop boards
Custom 316 stainless steel companionway sliding hatch with Lexan insert
Teak cockpit table with foldout leaves

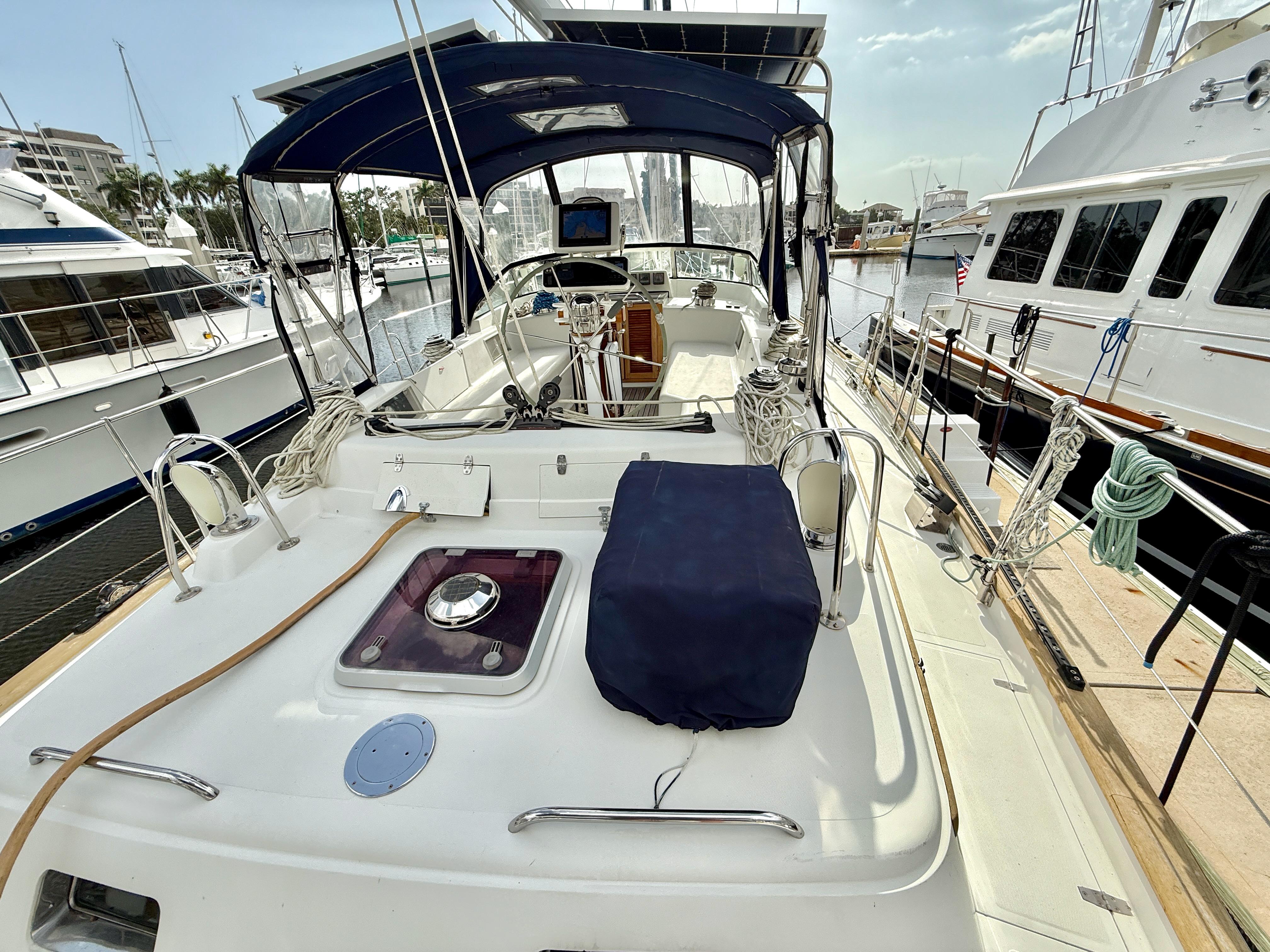

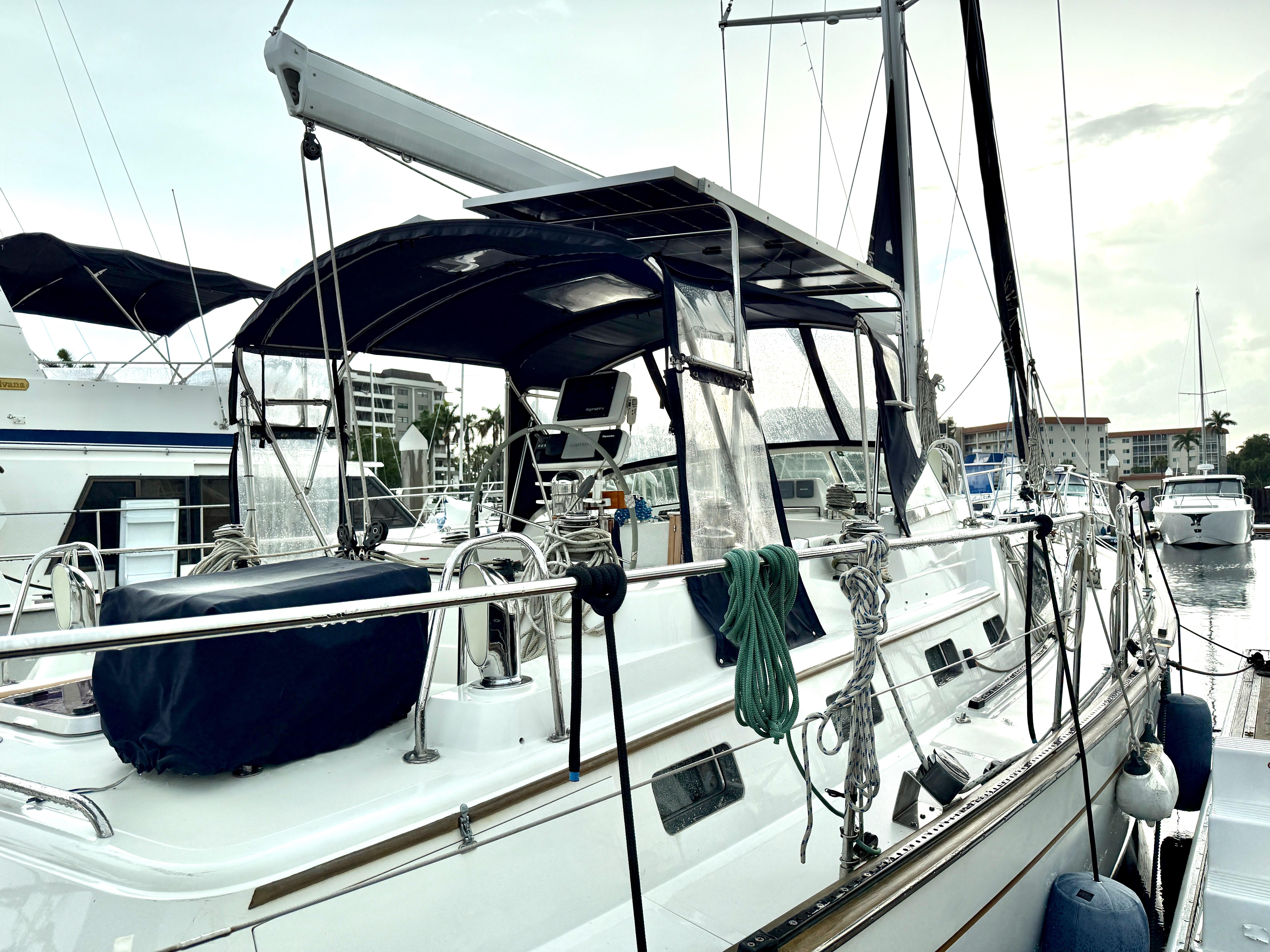

Sunbrella dodger with extra-wide removable 30 gauge strata glass front window and wrap around side panels 2016
Sunbrella dodger bimini with window with rollup cover and removable cover on bottom 2016
Bimini collapsible aft with cover
Full cockpit Nine-panel enclosure with winch access 2016

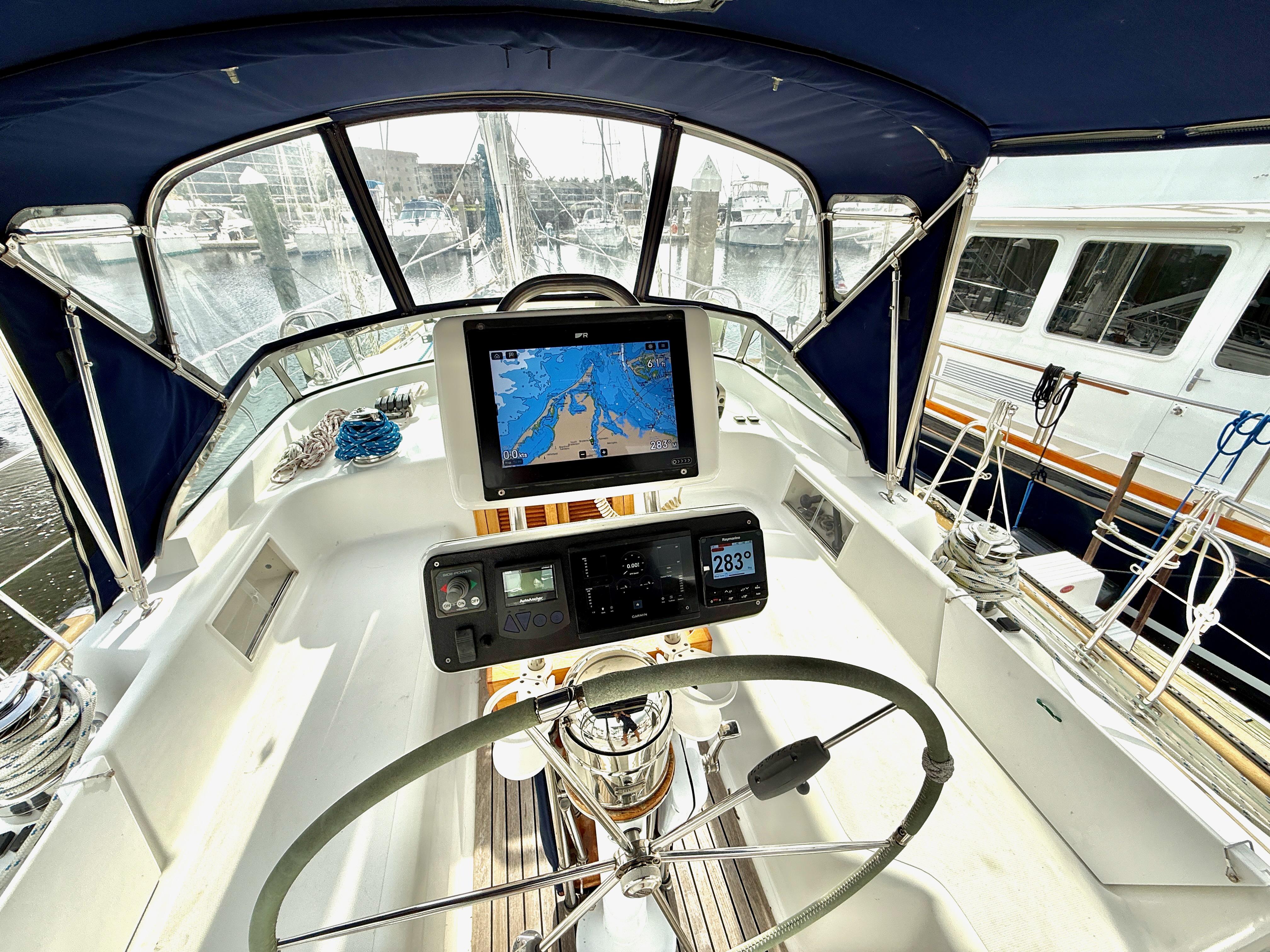

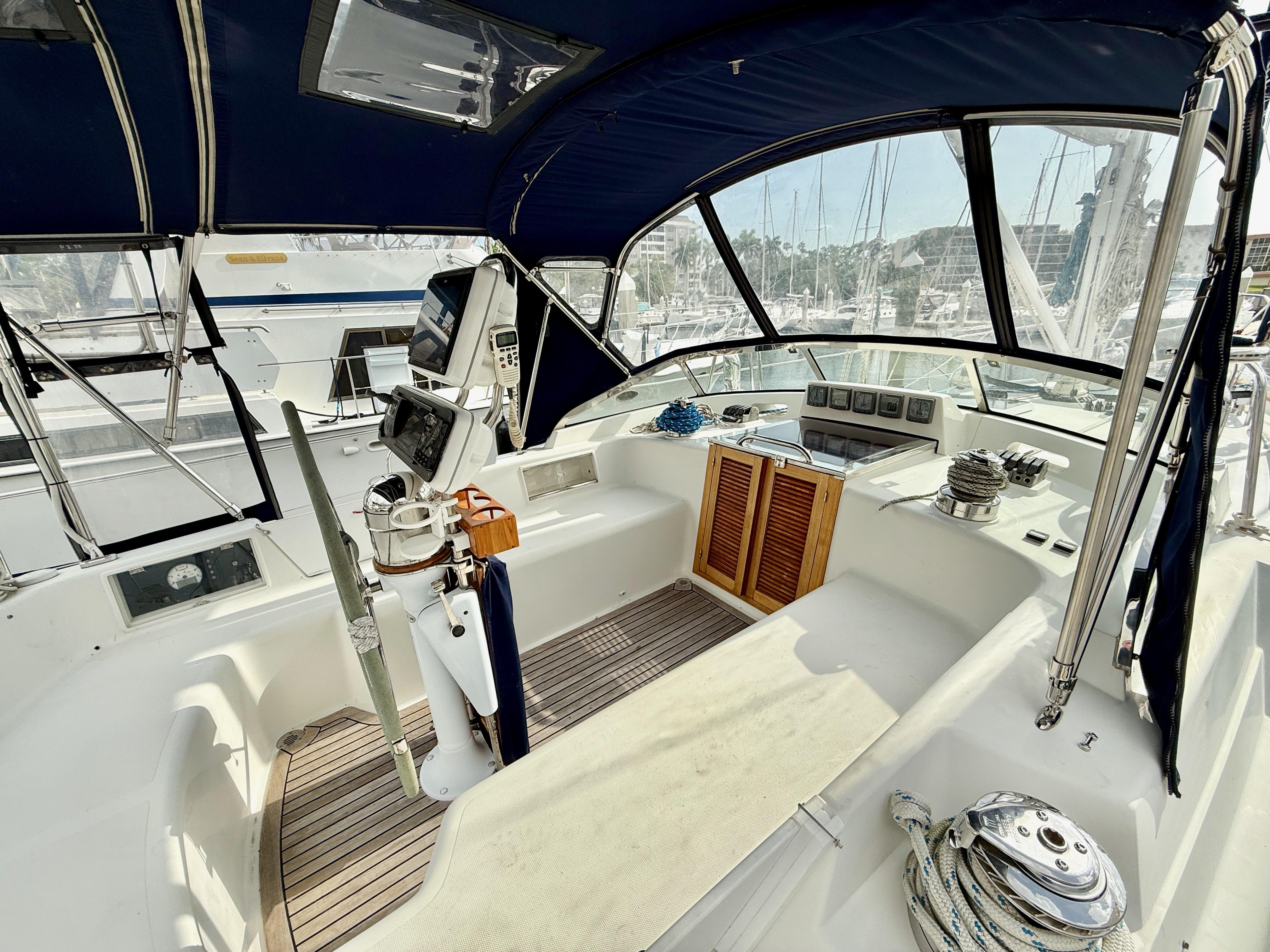

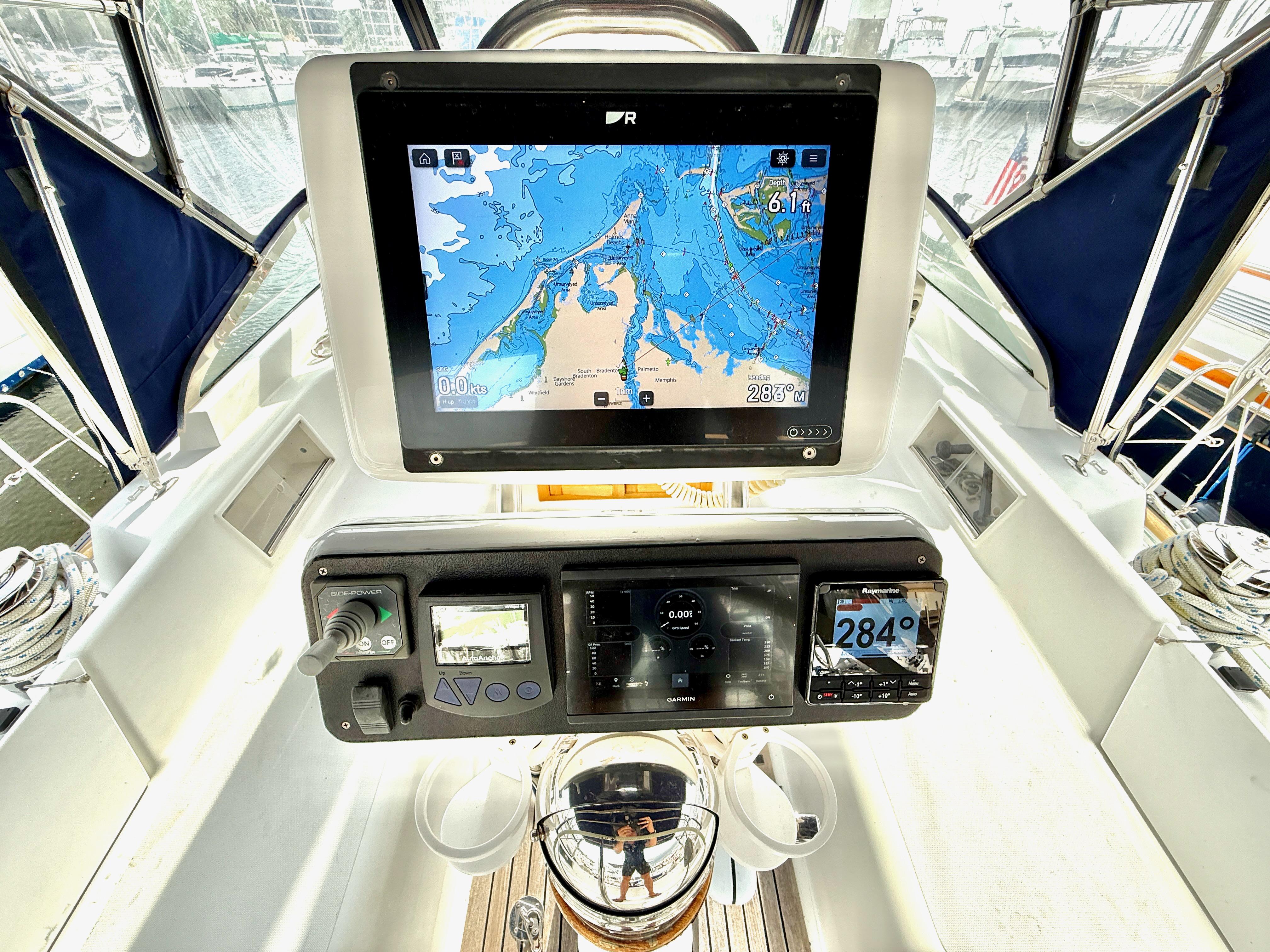

Custom NavPod (with Raymarine 12” chart plotter, Garmin 7” chart plotter/ forward facing sonar, autopilot control head, anchor chain control switch and counter, bow thruster joystick, horn, alternator cutoff

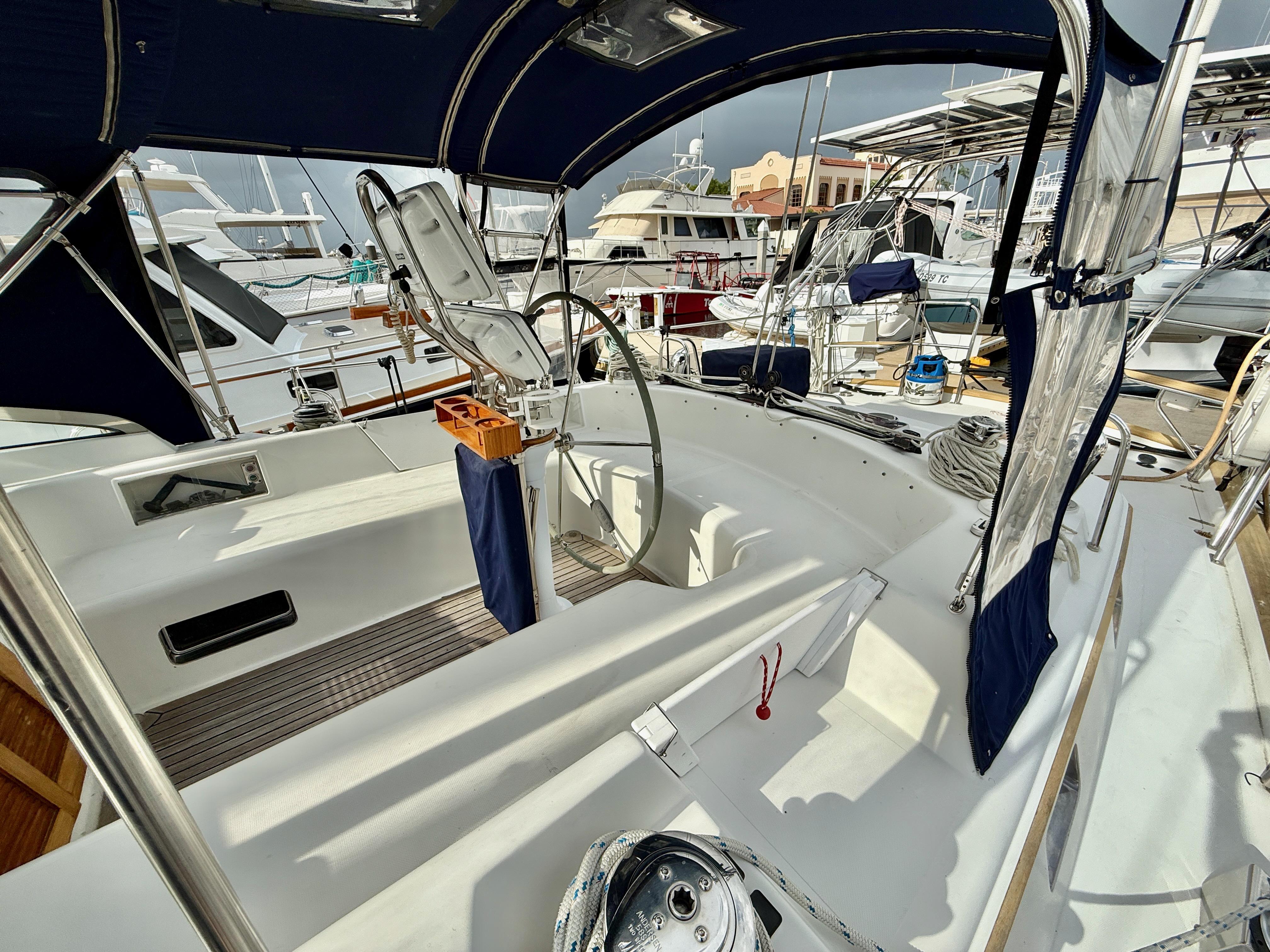

Edson pedestal steering
Folding leather-covered Edson stainless steel “Destroyer” type steering wheel
Two molded coming compartmentsin the cockpit with sliding Lexan doors port and starboard
Custom seat gates in cockpit port and starboard in walk out from cockpit
Emergency steering system with tiller
Teak cockpit sole
Teak eyebrows
Winslow Model 80SLO 8-person life raft (last serviced 7/2016)

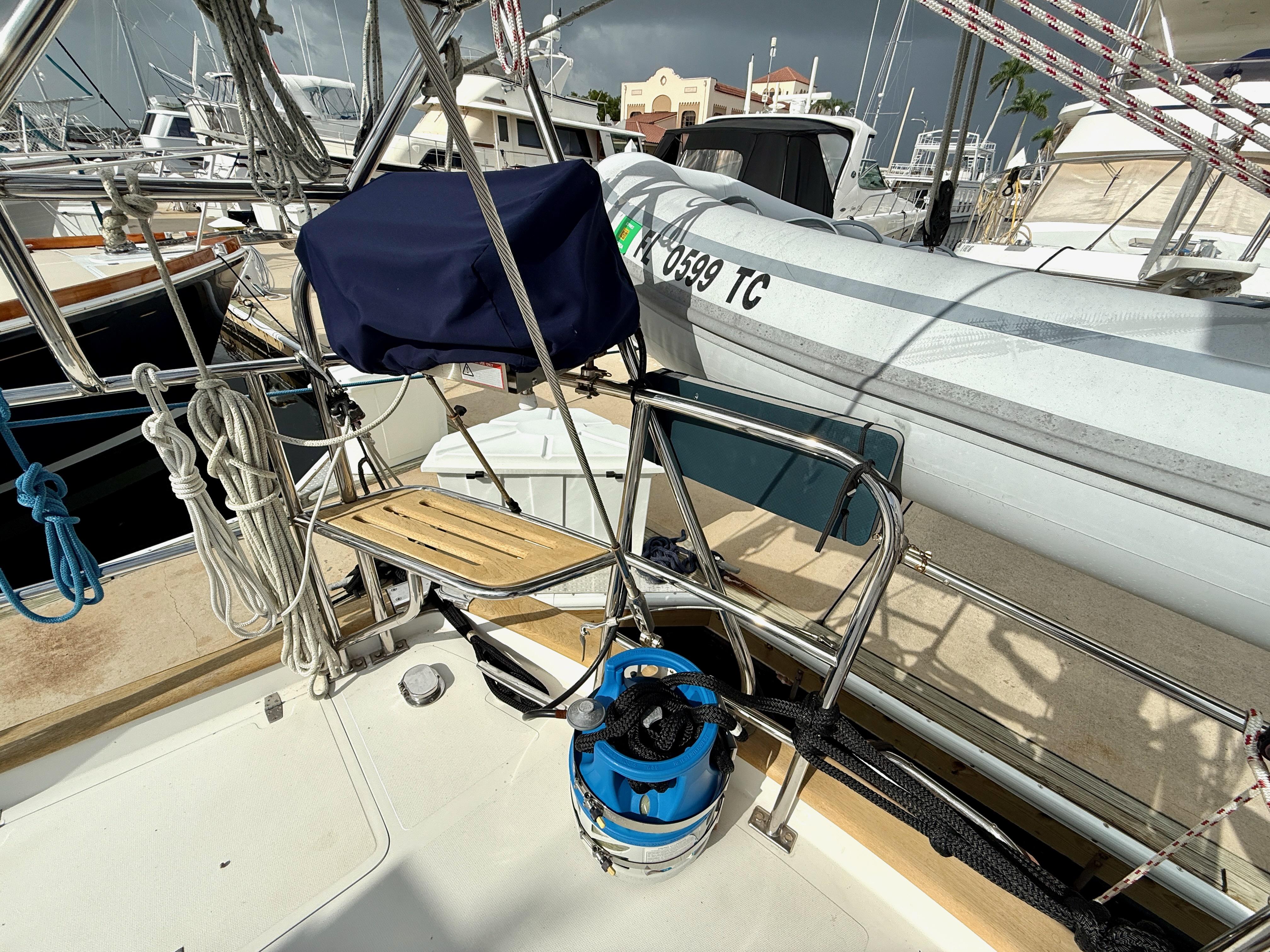

Two teak seats aft
Teak seat at the bow
Teak cap rails with stainless steel strikers
Topside hot and cold pressure water shower on aft deck

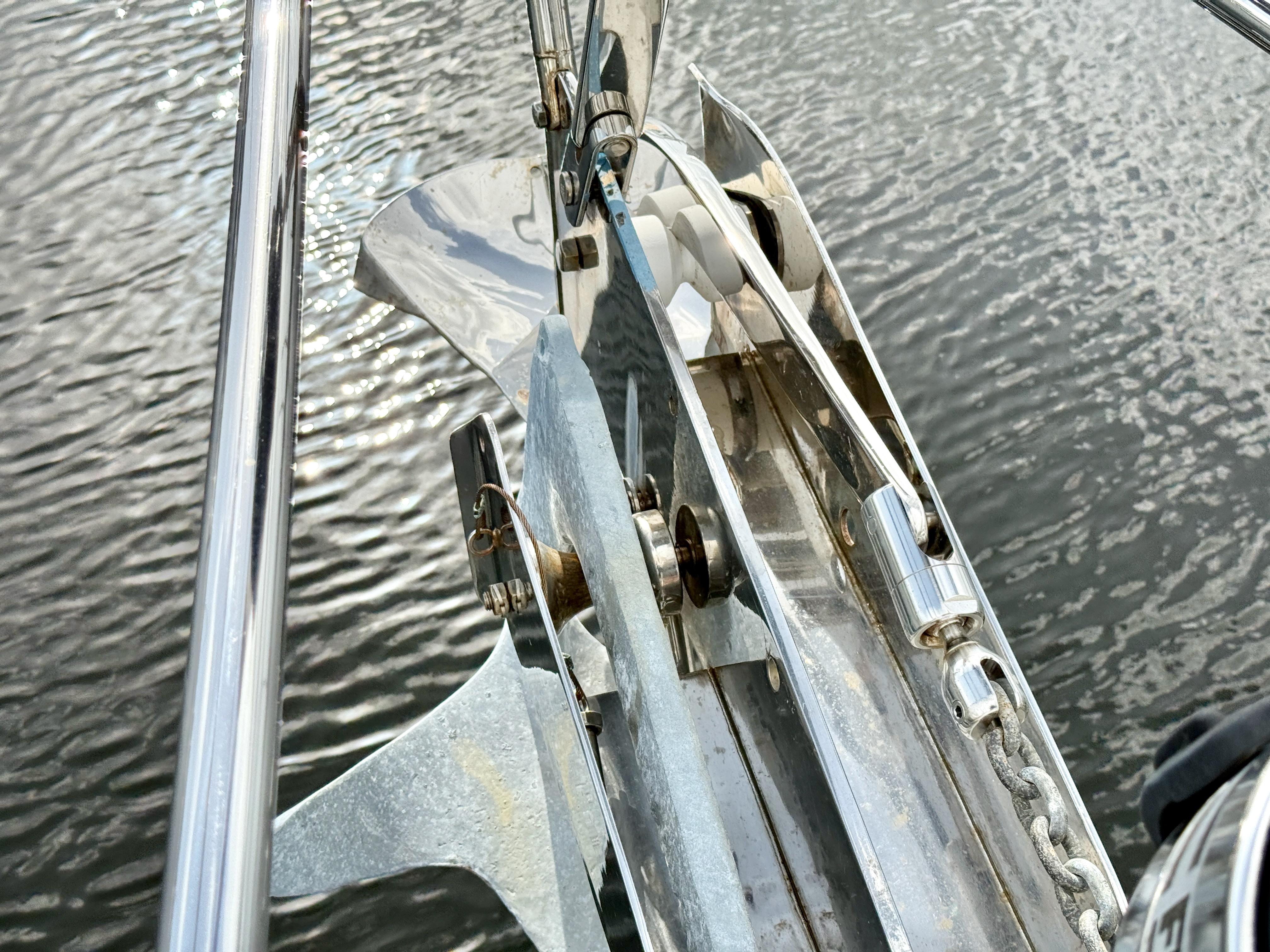

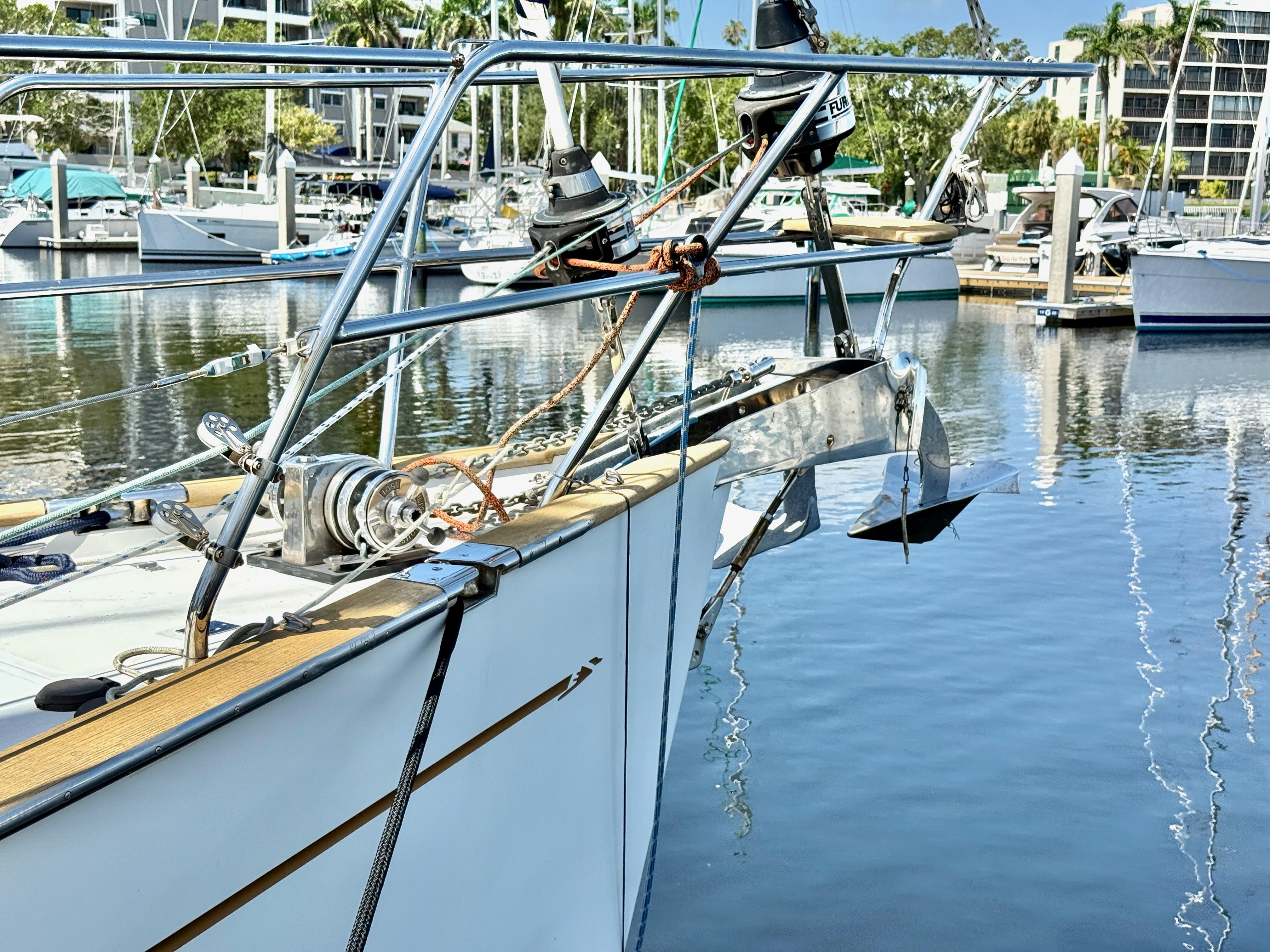

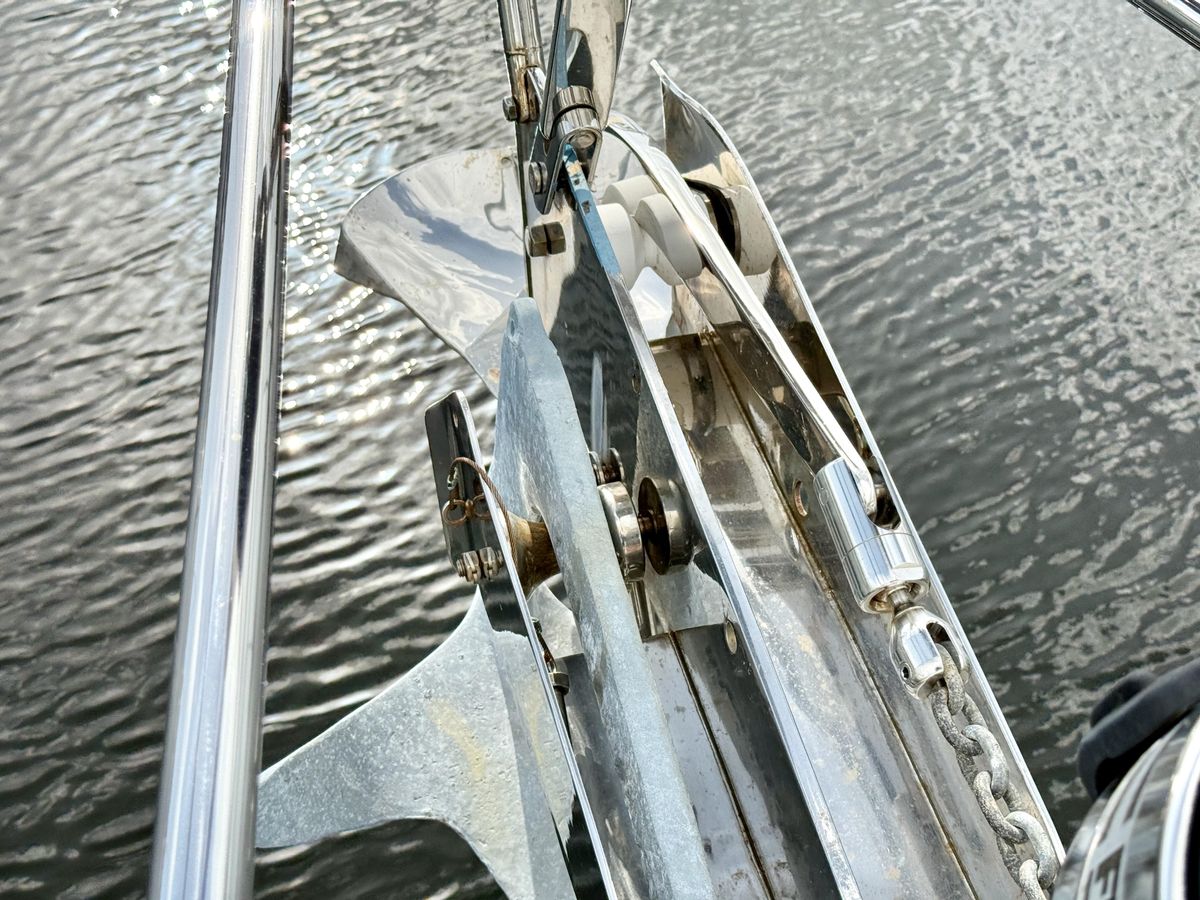

Custom 316 stainless steel double bow roller/stemhead fitting

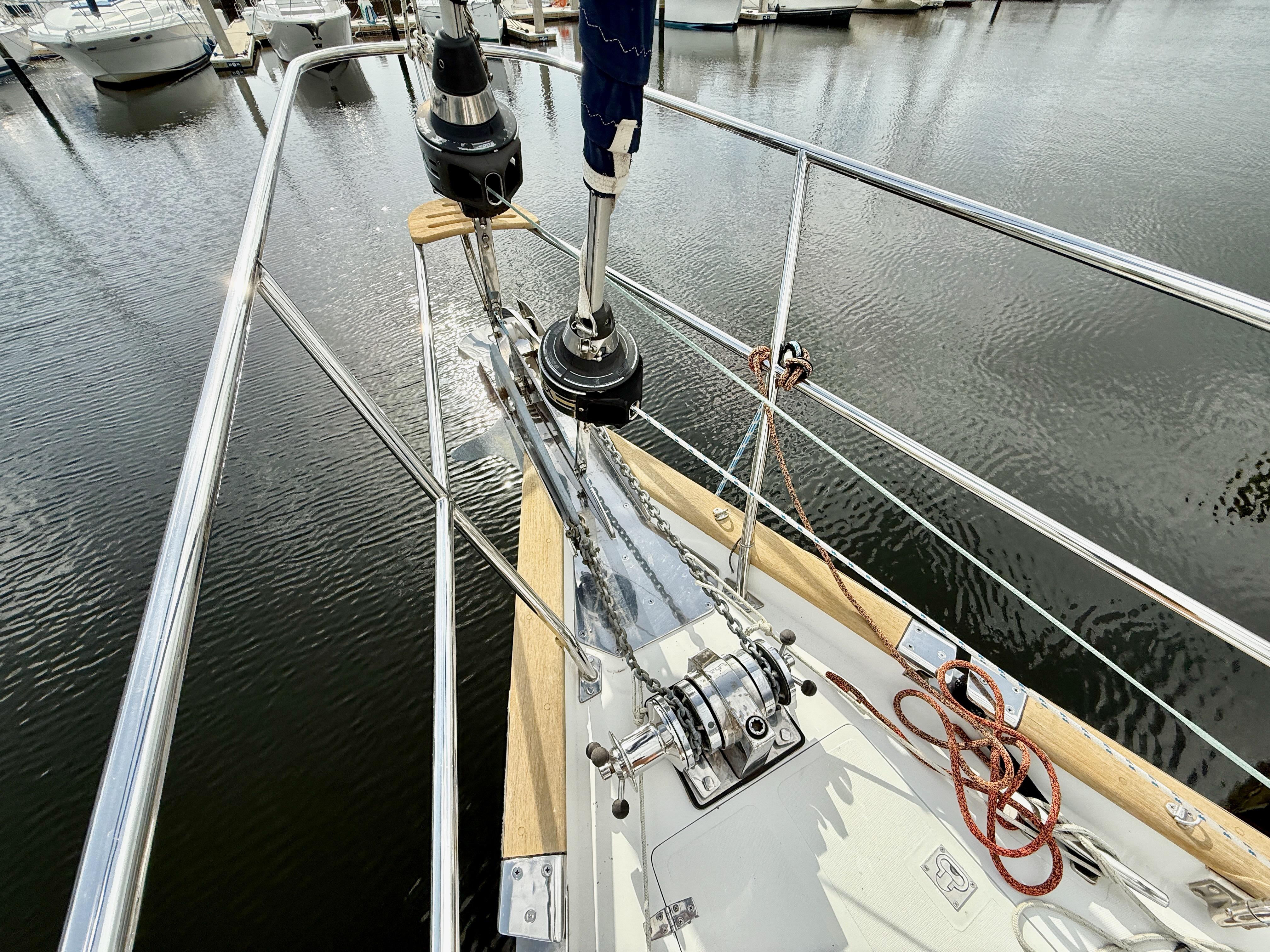

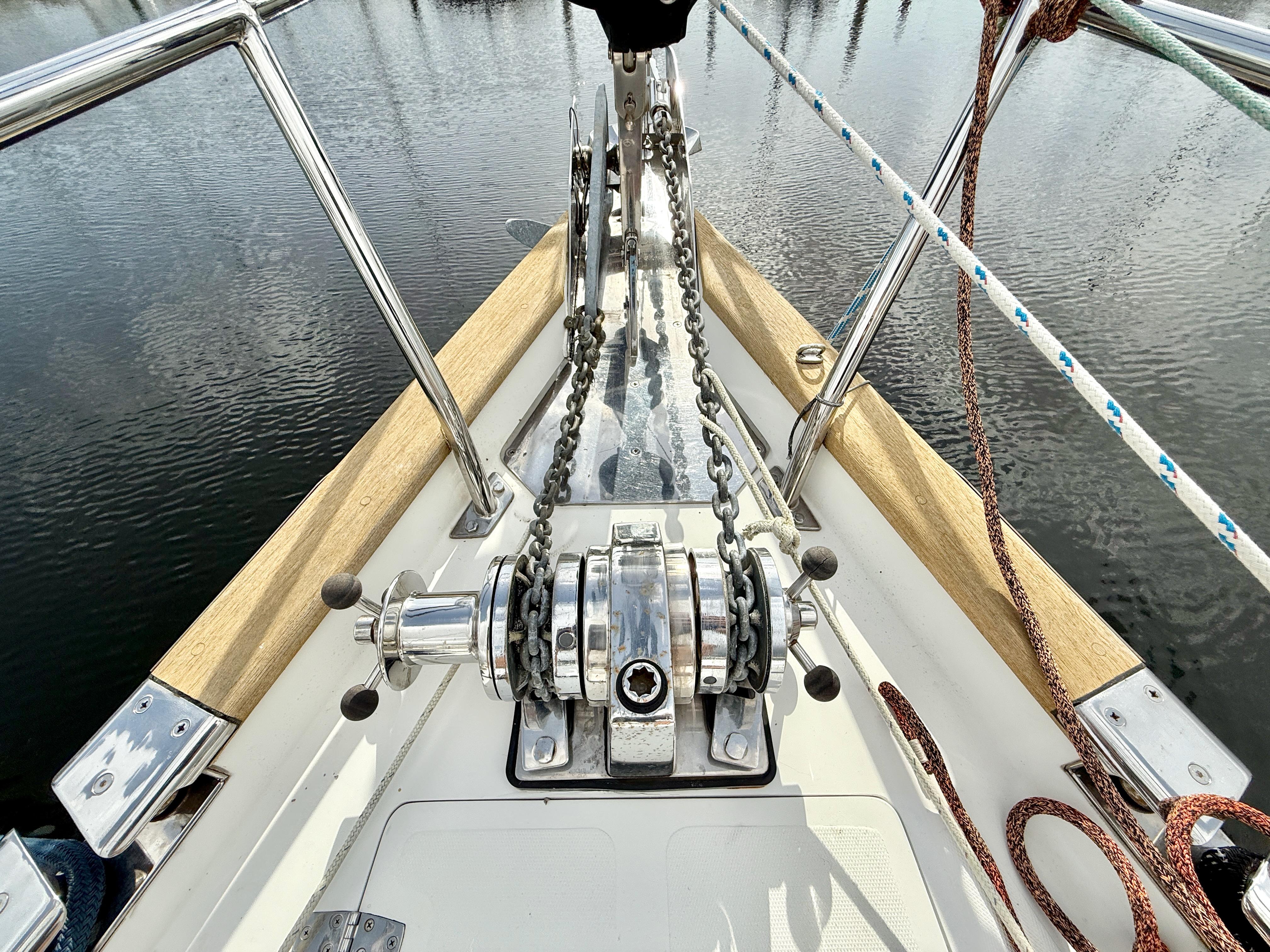

Lighthouse 1501 electric windlass with reversing circuit and up/down buttons, with double wildcat and warping head, and remote control and chain counter at helm
New Lighthouse motor for windlass 2022

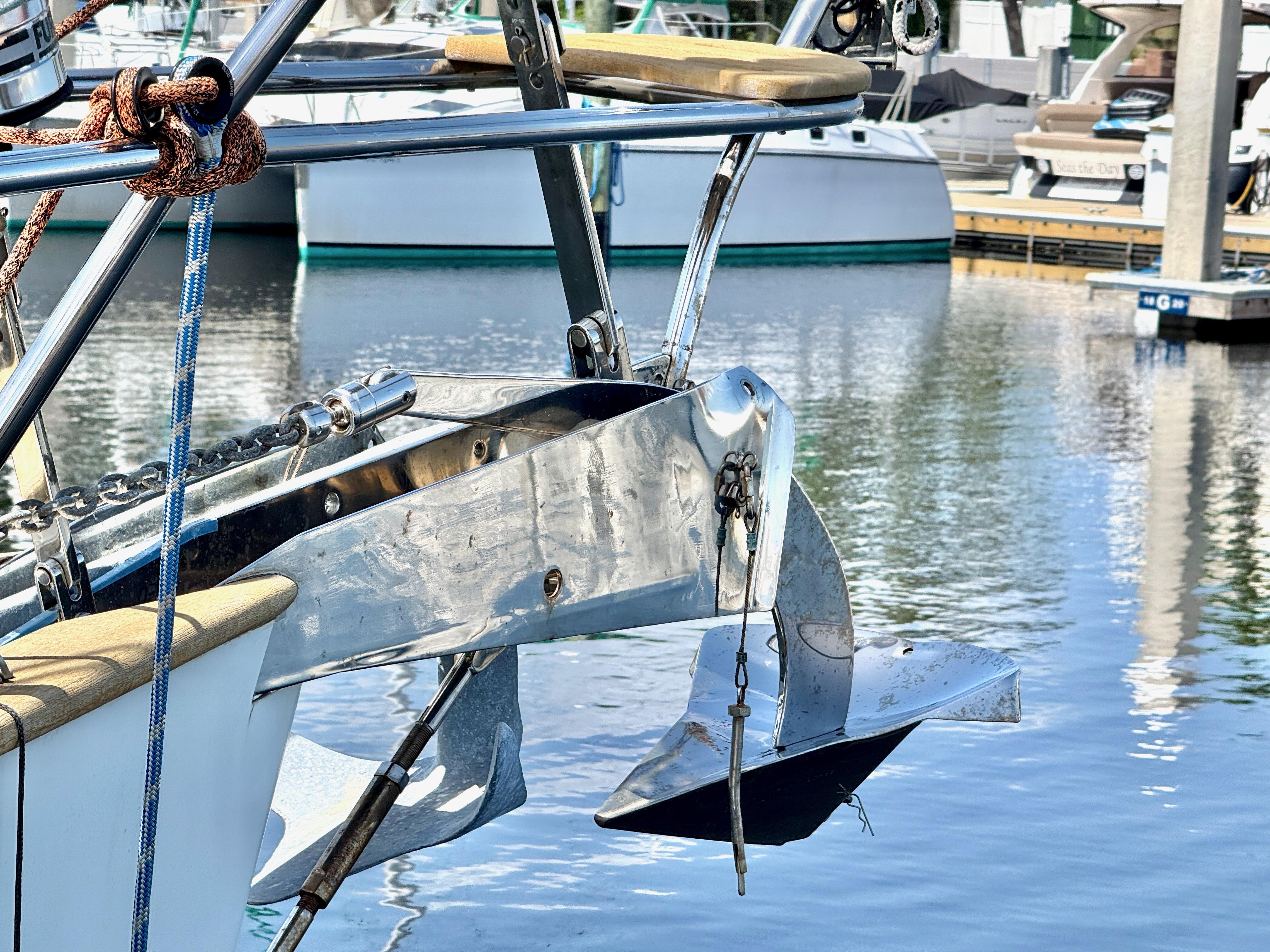

Ultra 60lb polished stainless steel anchor
Bruce style anchor with chain
Custom stern anchor roller, hawse stern anchor locker
Salt and freshwater deck wash pump forward
Dock lines and fenders

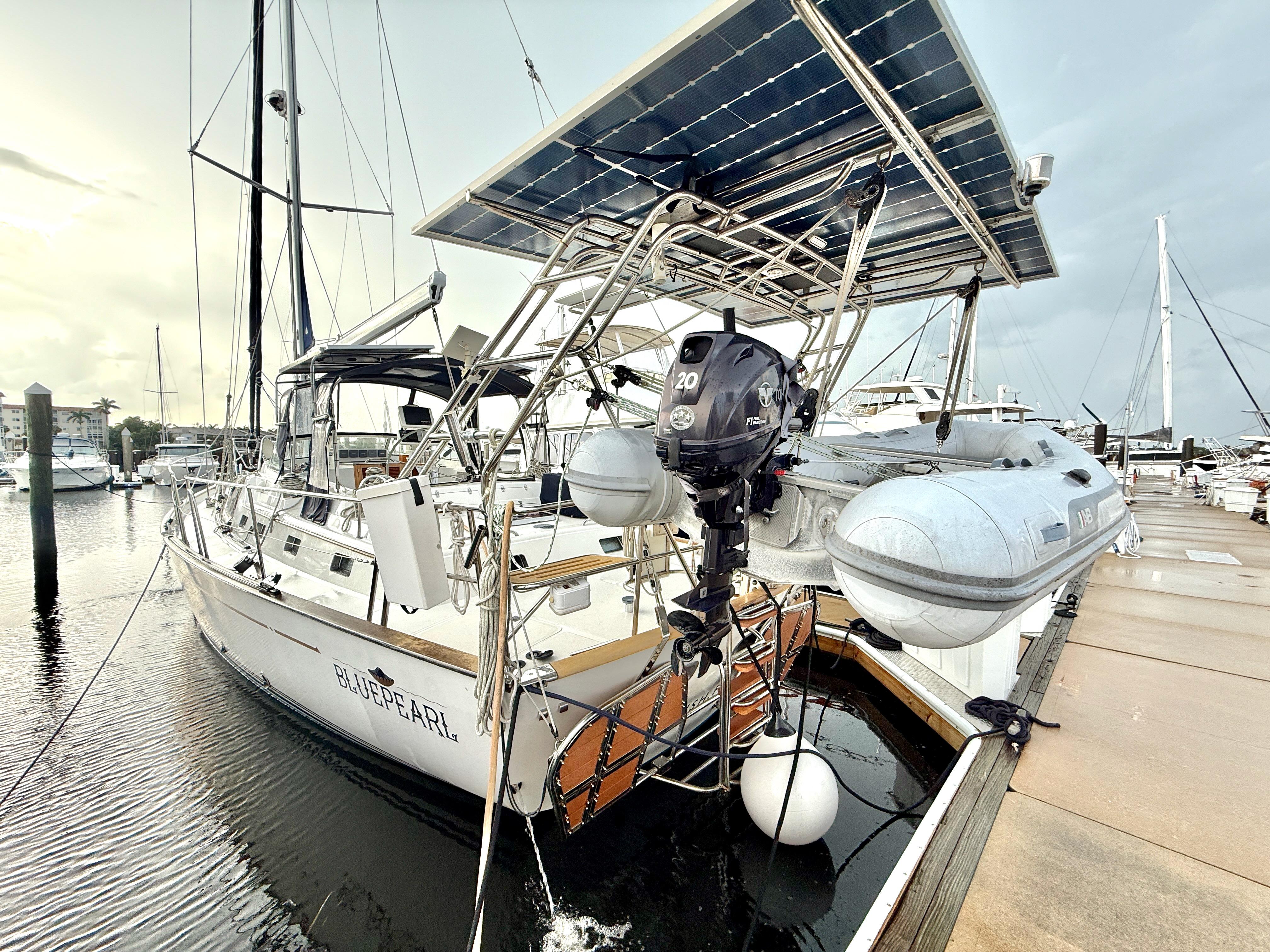

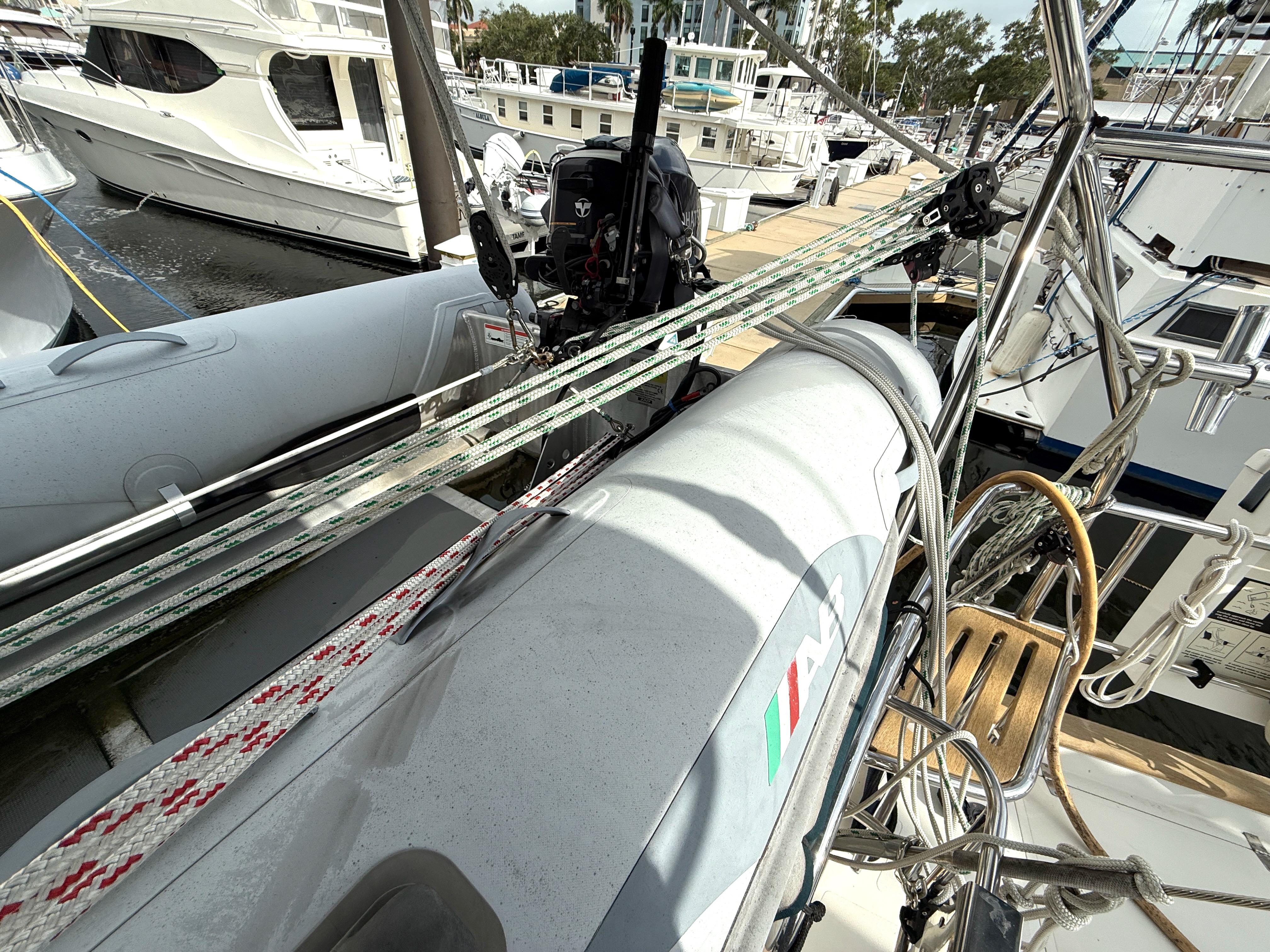

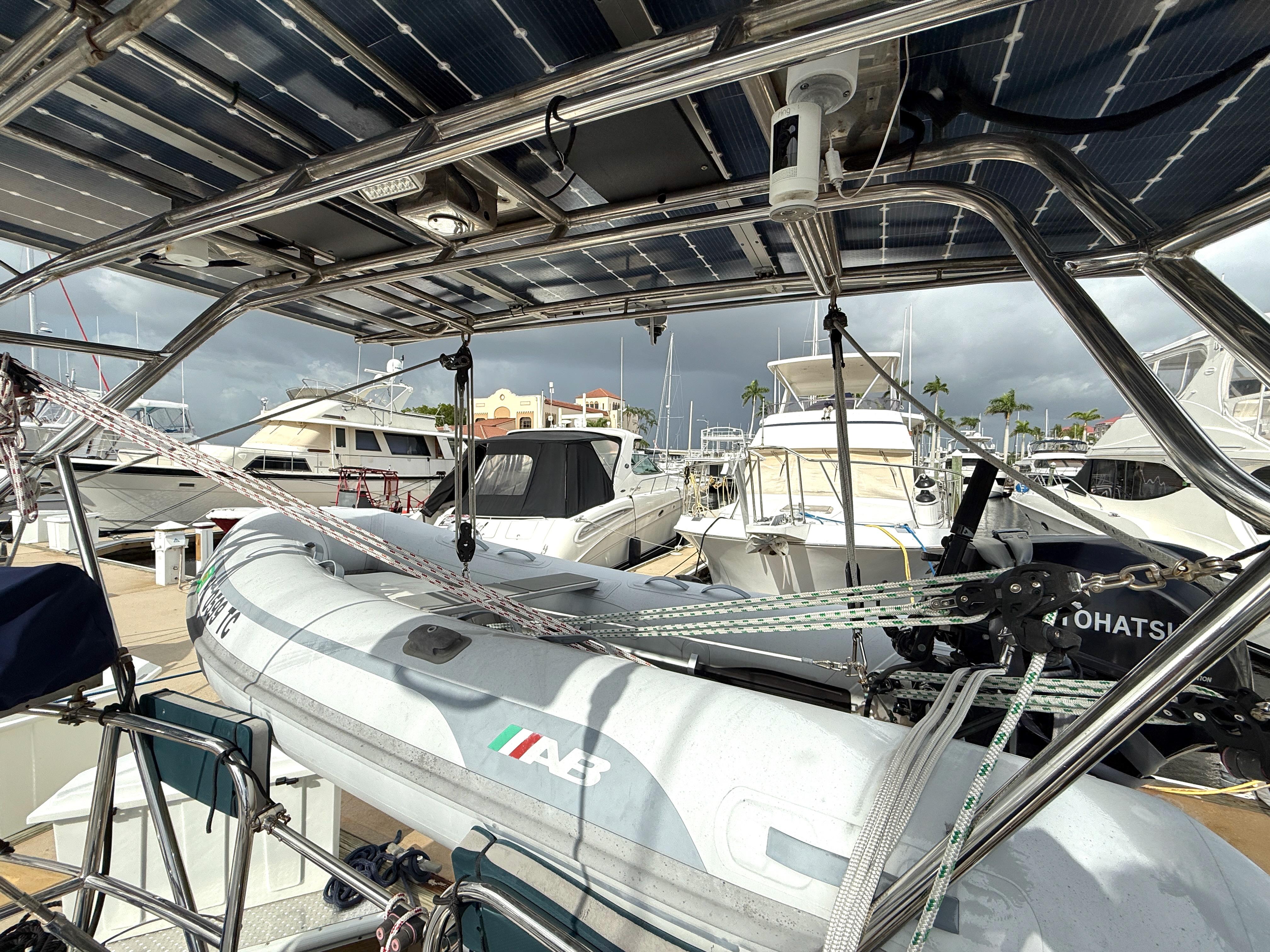

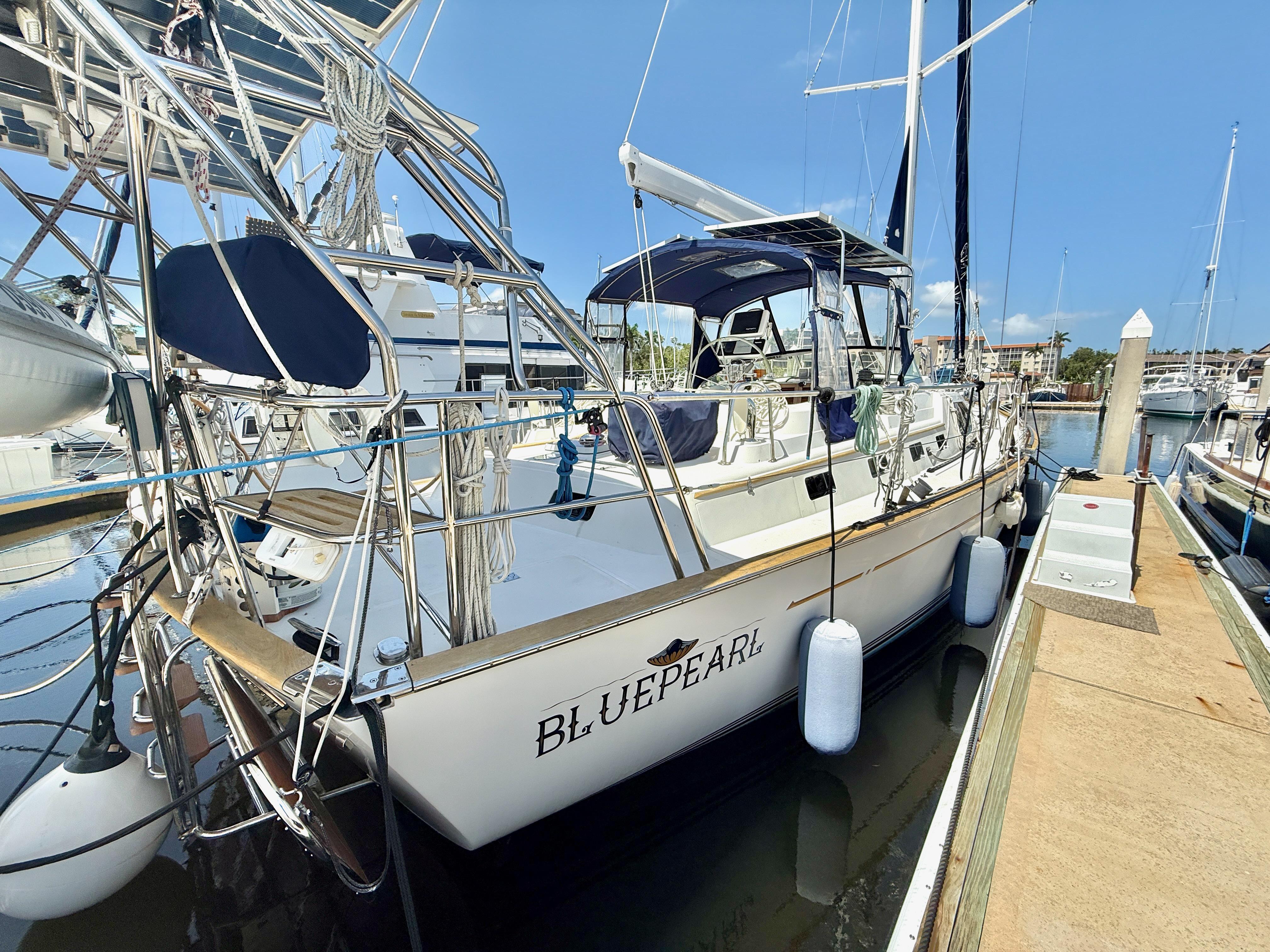

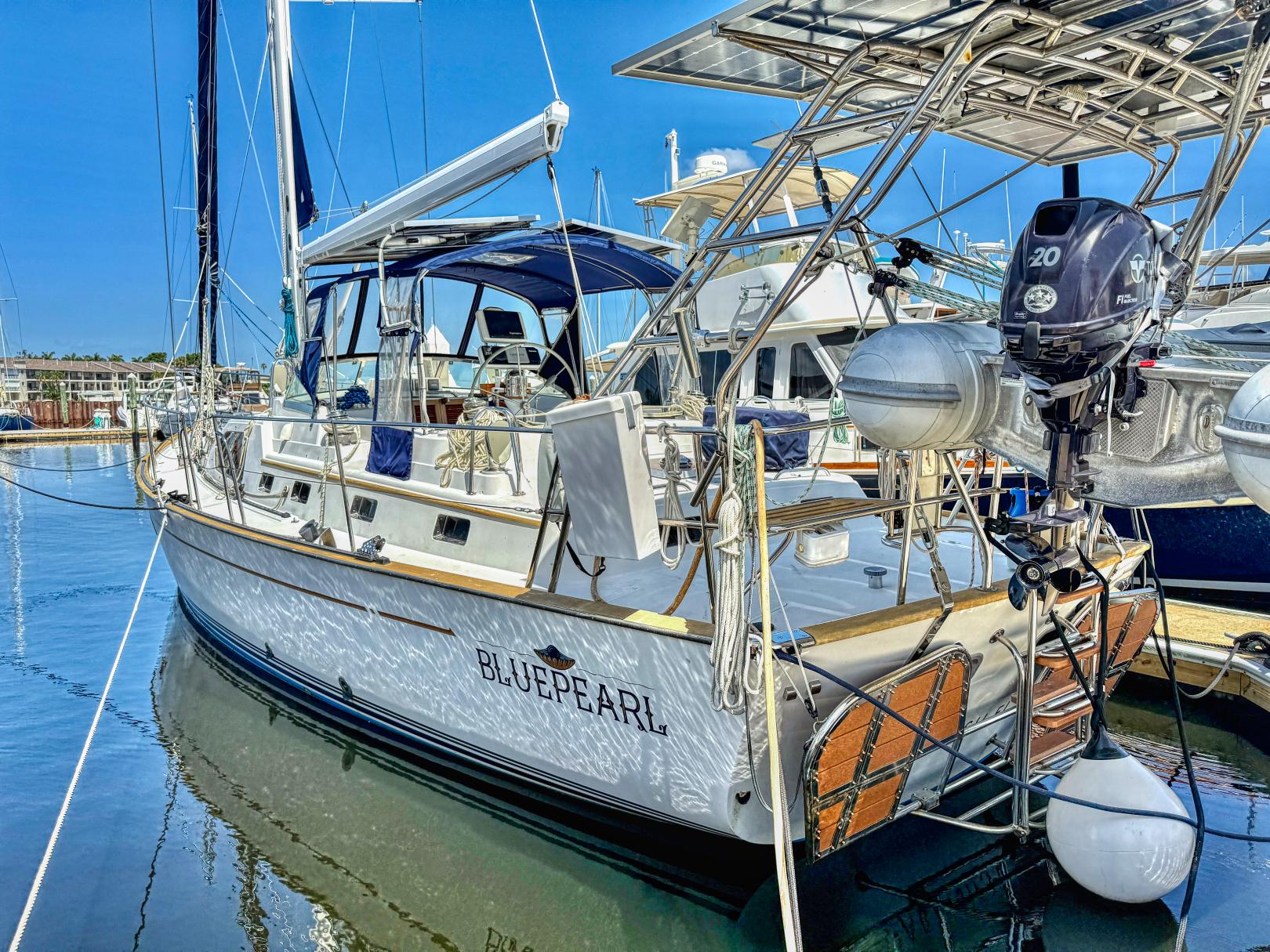

Custom stainless steel dingy arch/solar arch and dingy and motor lift
Two led go lights on dingy arch
Ring camera on dingy arch
Custom Lexan storm windows made for quick installation to cover coach roof windows
Starlink
Nav lights converted to LED

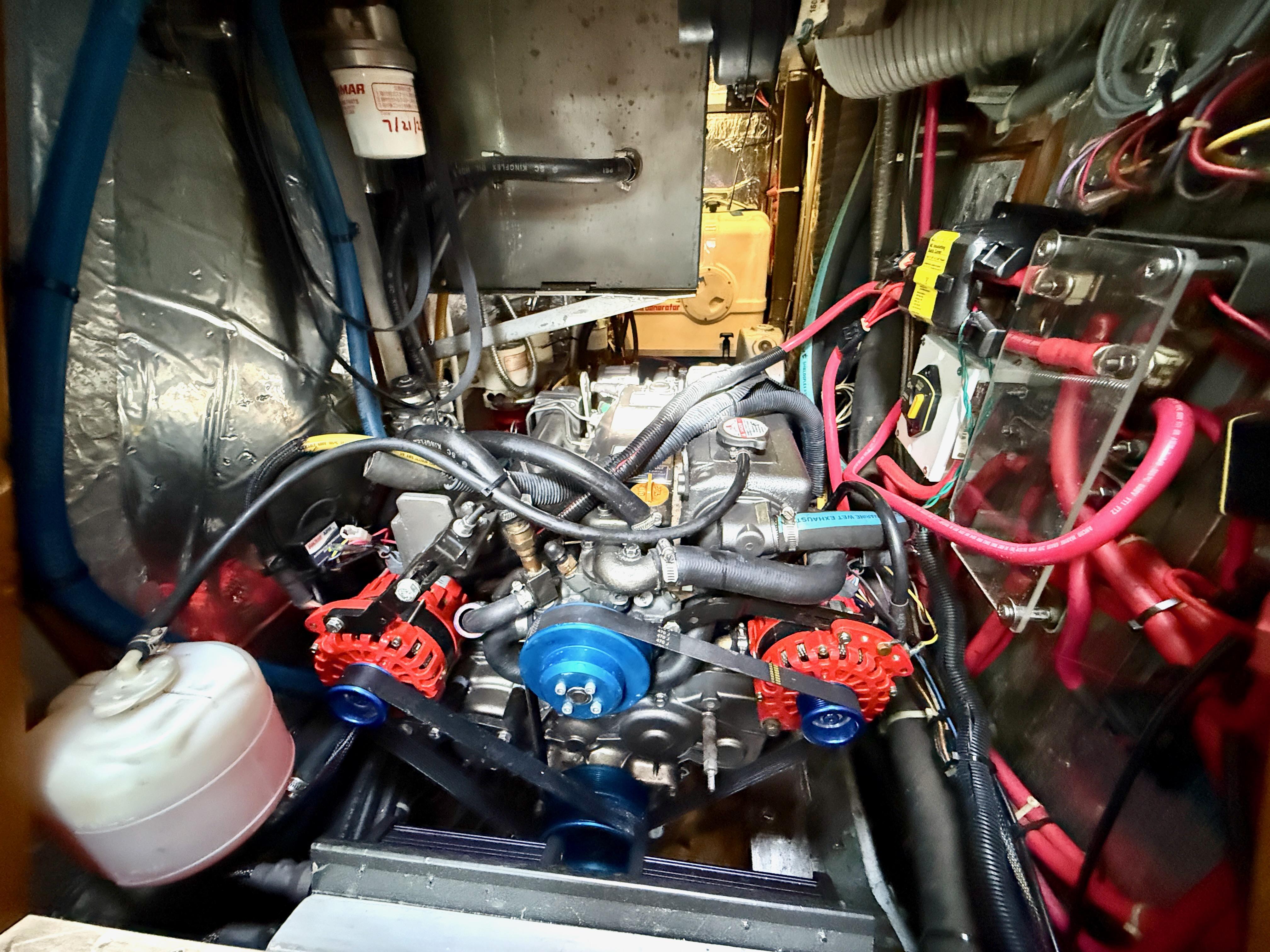

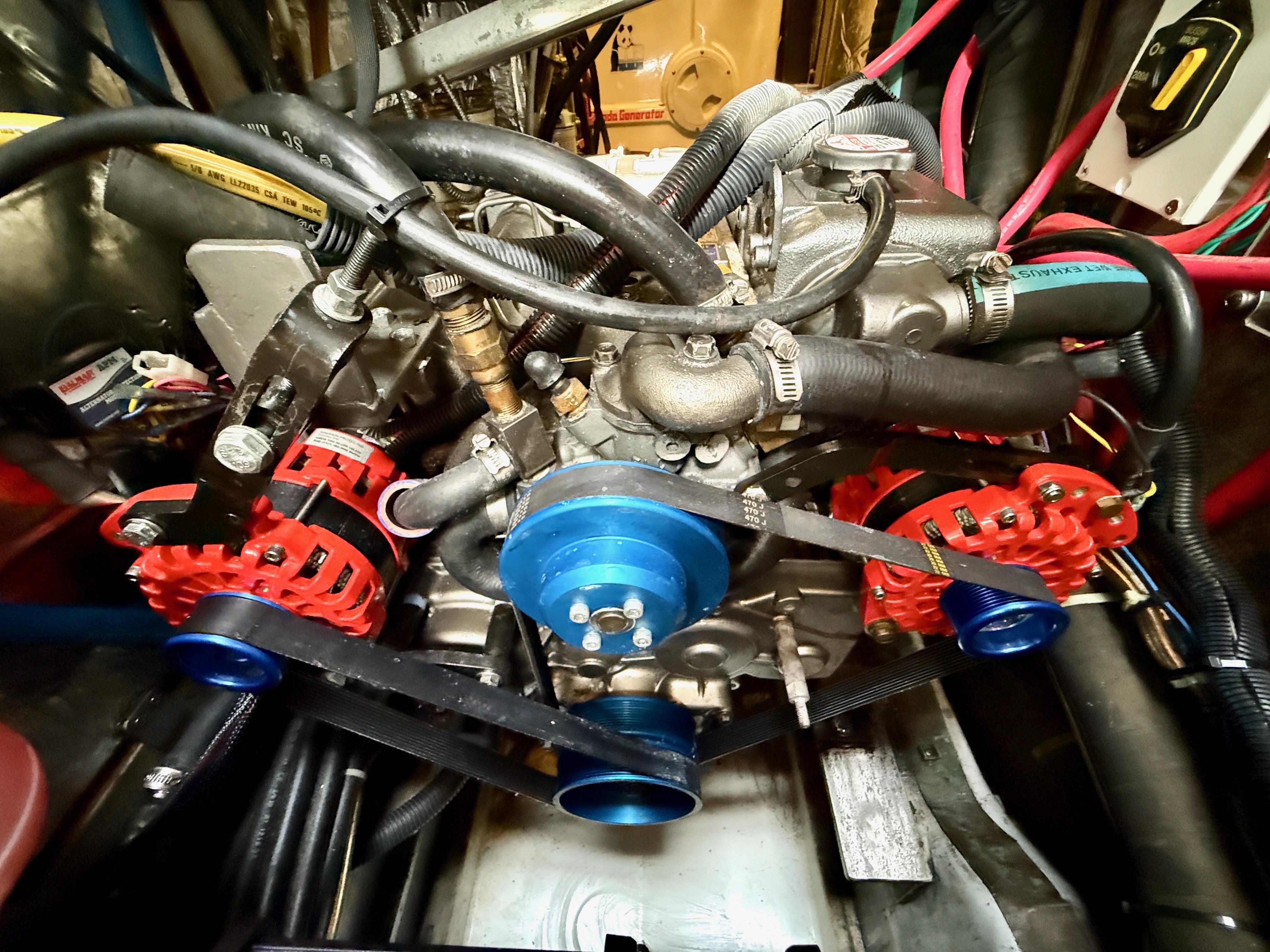

Engine and MechanicalYanmar 75 hp equipped with turbocharger and intercooler with 1100 hours as of July 2025 (new 2014)
Side power 8 hp bow thruster 2018
Edson single lever throttle/transmission control
1 ½” stainless steel shaft 2018
Shaft Shark line cutter
Bronze shaft strut with cutlass bearing
PSS dripless stuffing box 2018
22” Gori three-blade folding propeller (serviced 2018)
Scot anti-siphon valve
Raw water strainers for intake for engine and generator
Muffler/water lock system with water separator
Flexible engine mounts
Racor Dual 500 fuel filter system with selector
Fuel polishing system with Dahl filter/separator
Single Racor filter for generator
Custom fuel manifold
Three aluminum fuel tanks with baffles (250 gals. Total)
Engine alarm systems
12-volt exhaust fan for engine room
Two 12-volt engine room lights
Foam insulated engine room
Two Balmar 170 amp alternators
Two Arco Zeus alternator regulators
Seller states that she easily cruises under power at 1800 rpm=6.5 knots and at 2200 rpm=7-7.5knots. At WOT she turns 3200 and reaches a speed of 8 plus knots.
Spectra Newport 400c water maker with Z-ion (17 gph)
Two DC Mabru airconditioners one in each stateroom
One AC Mabru airconditioner in saloon
Shurflo self-priming freshwater pump (5gpm Aqua King 11) 2023

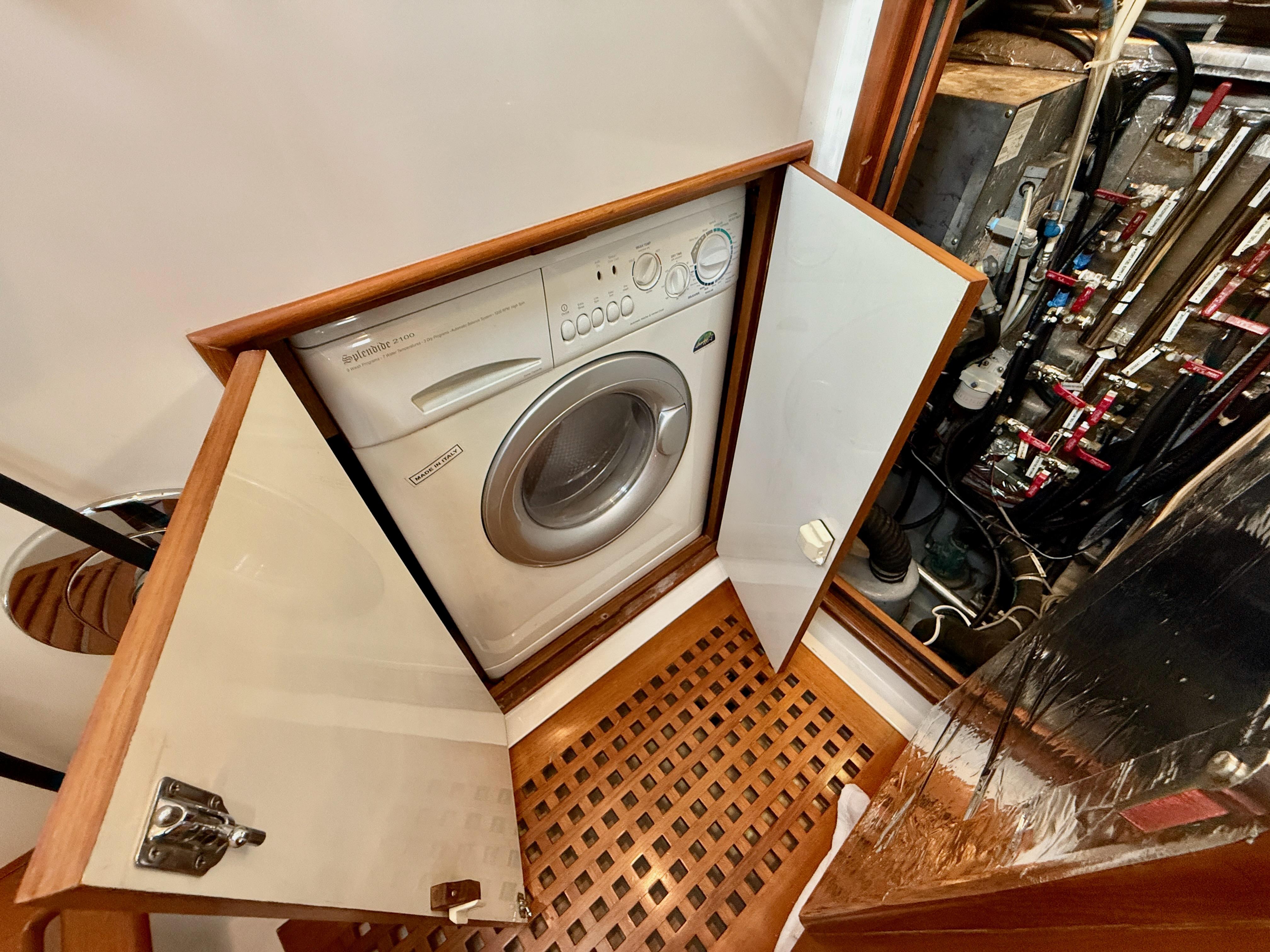

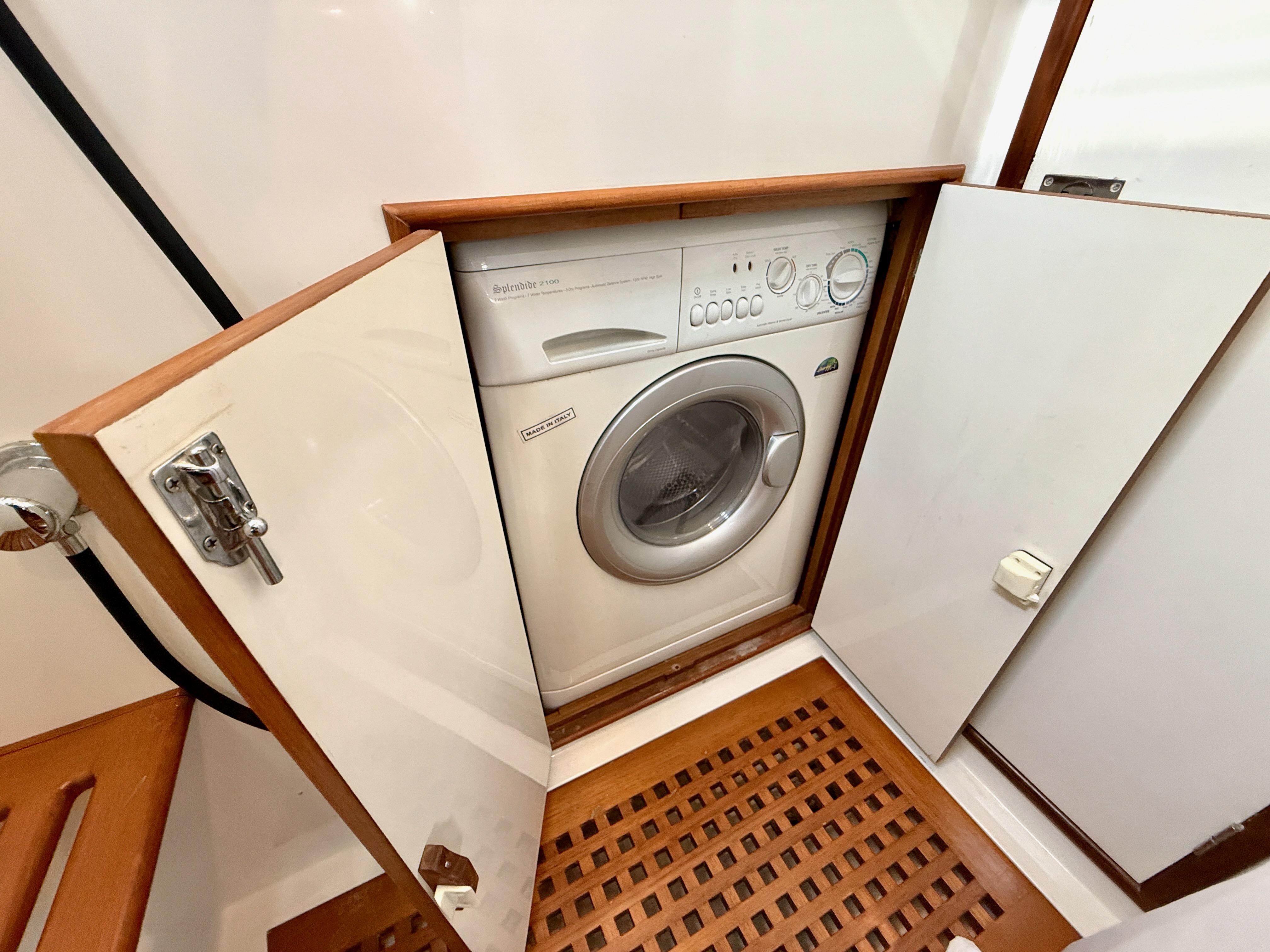

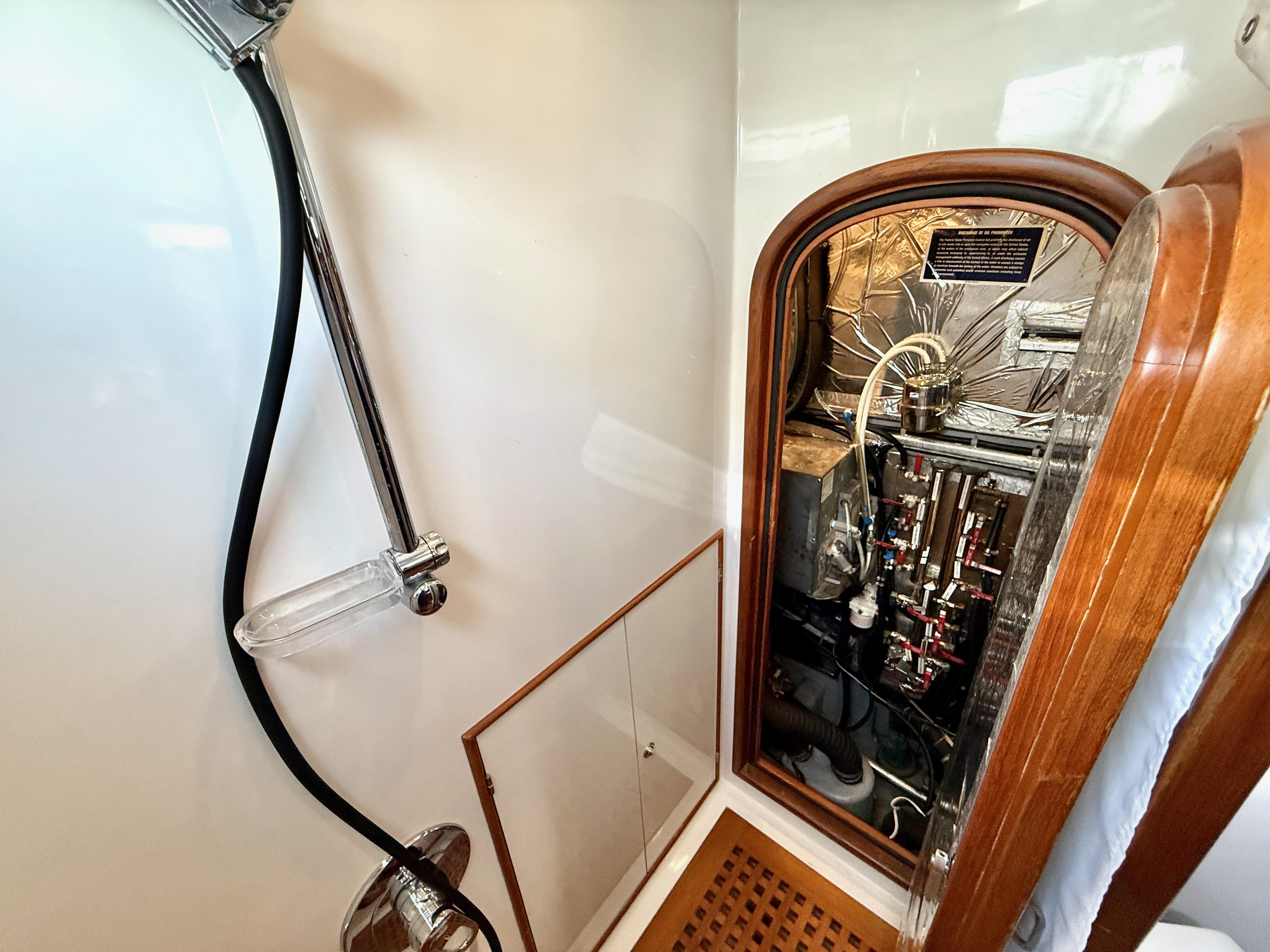

Splendide washer/dryer (access aft head shower)
Eleven gallon hot water heater (110-volt and engine)
Rule 3700 and Rule 2000 electric bilge pumps with automatic float switches and bilge alarm
Manual bilge pump
Bronze ball cocks for thru-hull fittings bonded to ships systems
Caravan stainless steel gas grill and 12 pond fiberglass propane tank mounted to stern rail
DinghyDinghy: AB10 AL Superlight ALU RIB 10’ 6” HYPALON GREY,TOHATSU MFS20EEF 4STR 21 20HP tiller ELECTRIC start capable, 15” shaft, less than 5 hours on outboard
Manufacturer provided description and overviewA better layout for long-distance blue water sailing or live-aboard cruising you will not find in this size range, whether we are talking about the rig design: the cockpit with side walk-thru’s and dodger; the abundance of storage; on deck lounging areas aft; the two amazing cabins with large heads and separated showers; a Huge custom navigation/work station perfect for todays remote work scenarios; best-in-class headroom with modern ‘raised salon windows’; the galley (featuring easy to access refrigeration and freezer spaces, plenty of working counter tops; a household- sized Microwave/Convection oven, trash compactor, or the exceedingly comfortable main salon with bar area and a bonus standup Isotherm refrigerator, perfect for grabbing drinks without bothering the chef; icemaker, washer/dryer, Spectra water maker. And there is more, plenty more: a walk in engine room; substantial arch for antennae, solar panels, davits to carry the tender, stern fold down platform for access to tender in the water; push-button sail handling with electric winches and electric in mast furling. There is a propane BBQ grill with cover on stern rail plus 12 pound plastic propane tank.
DisclaimerThe Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
