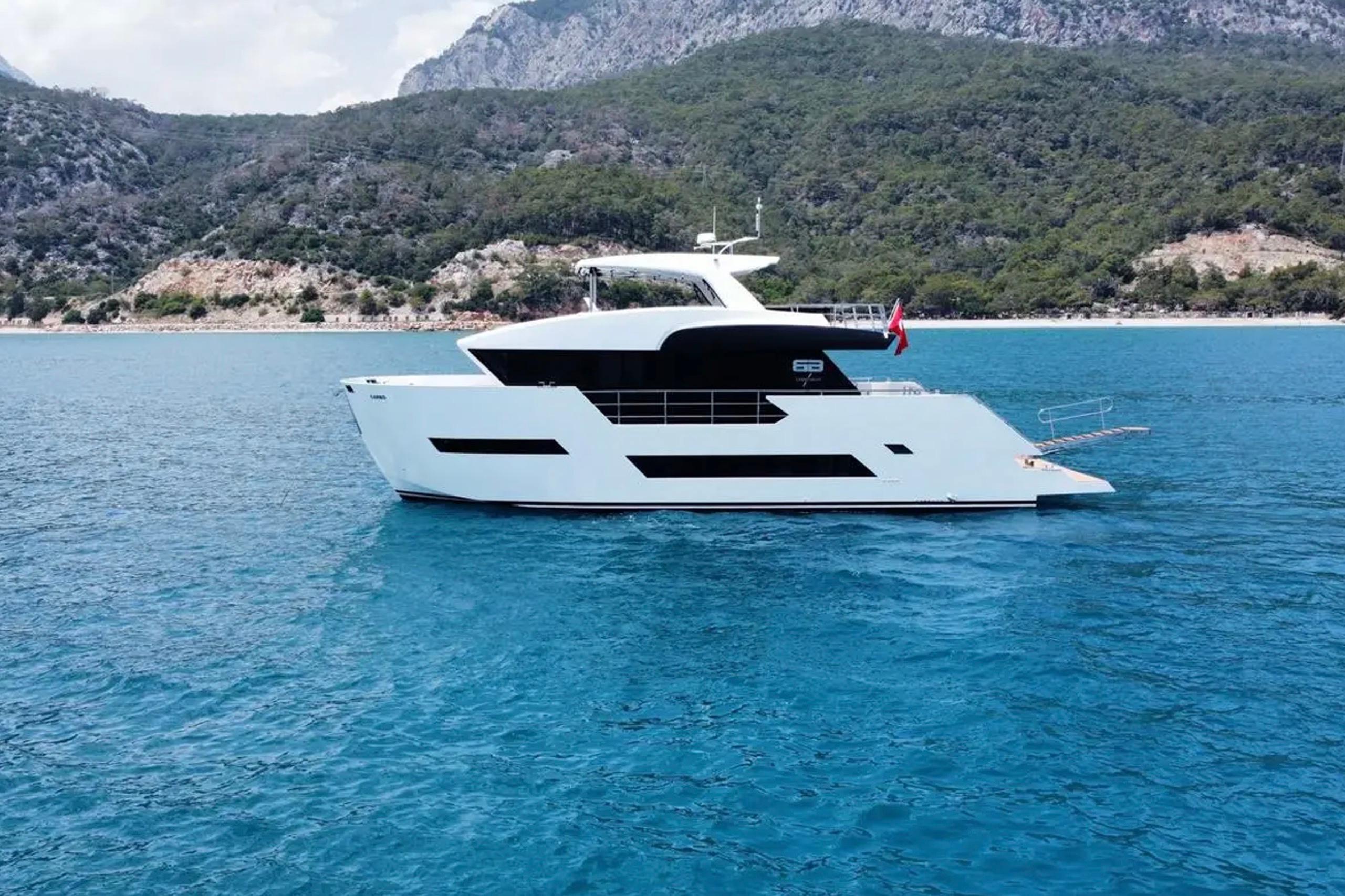

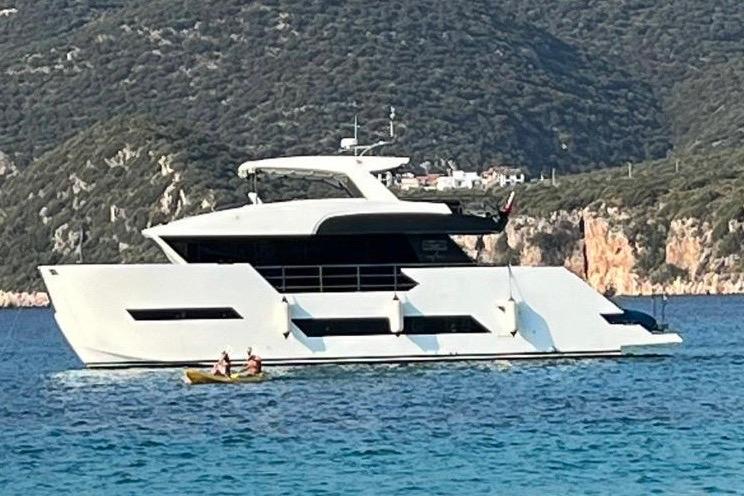

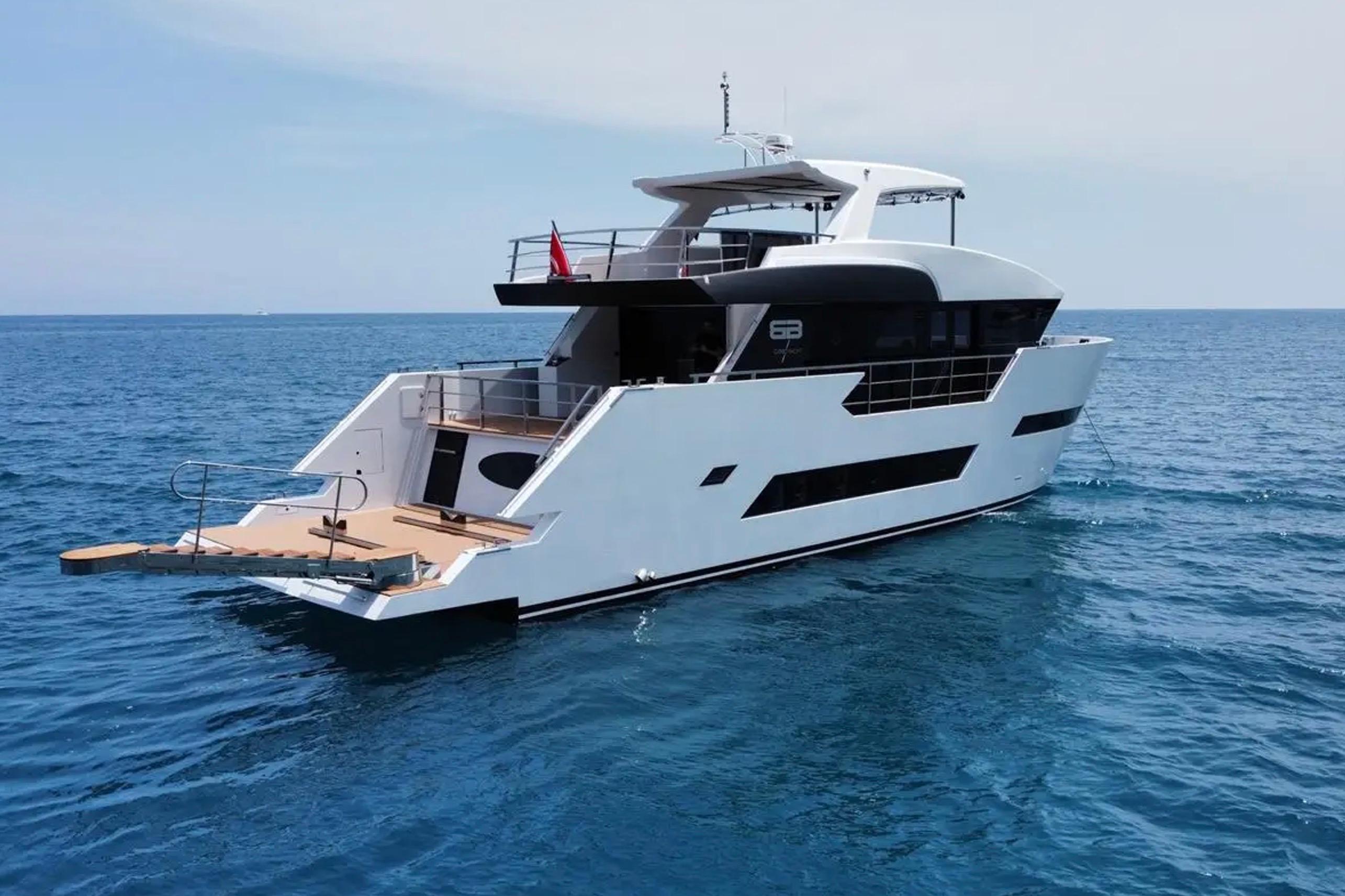

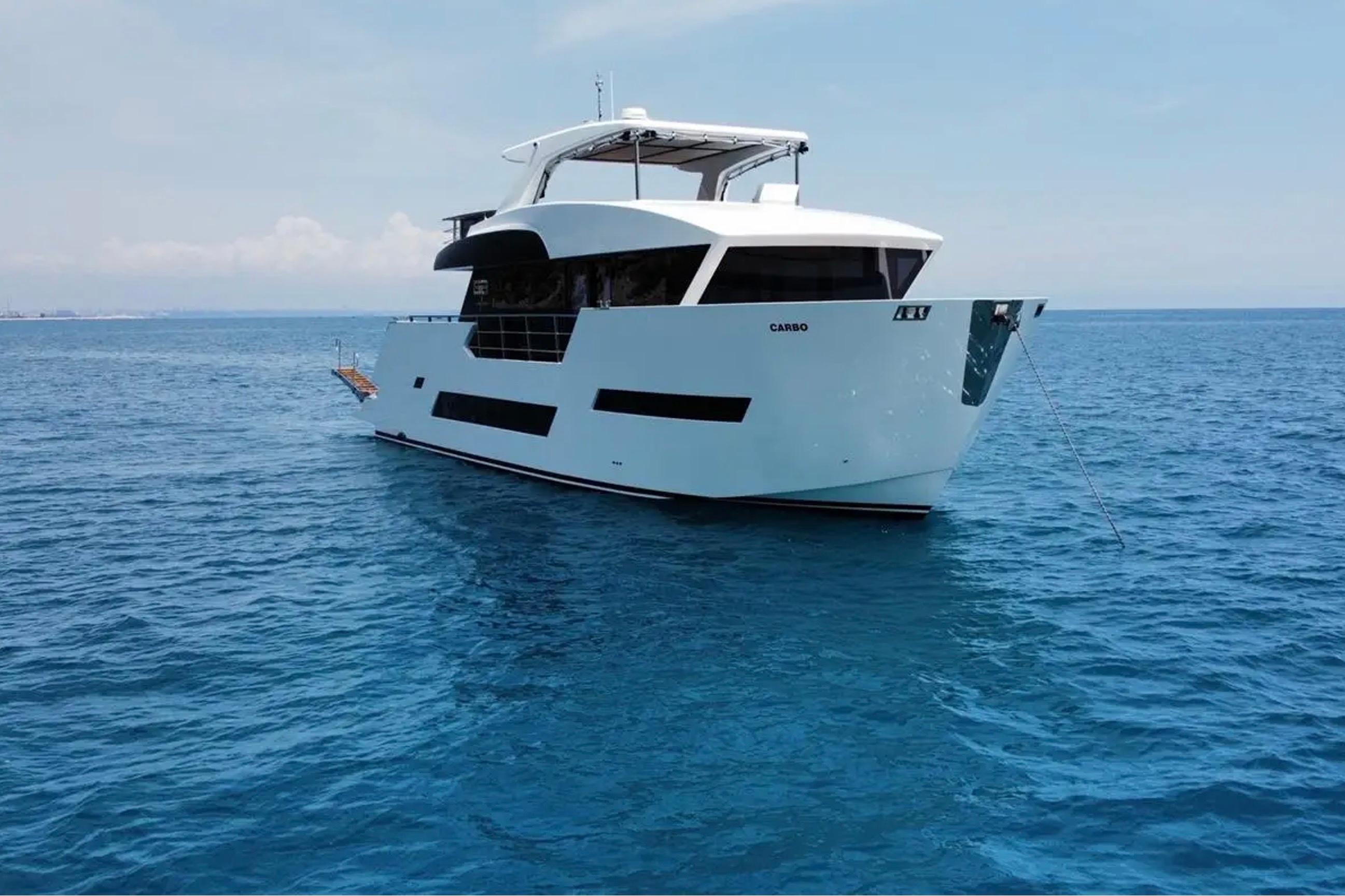

CARBO YACHT 22M TRAWLER – FOR SALE by Skylight Yachting

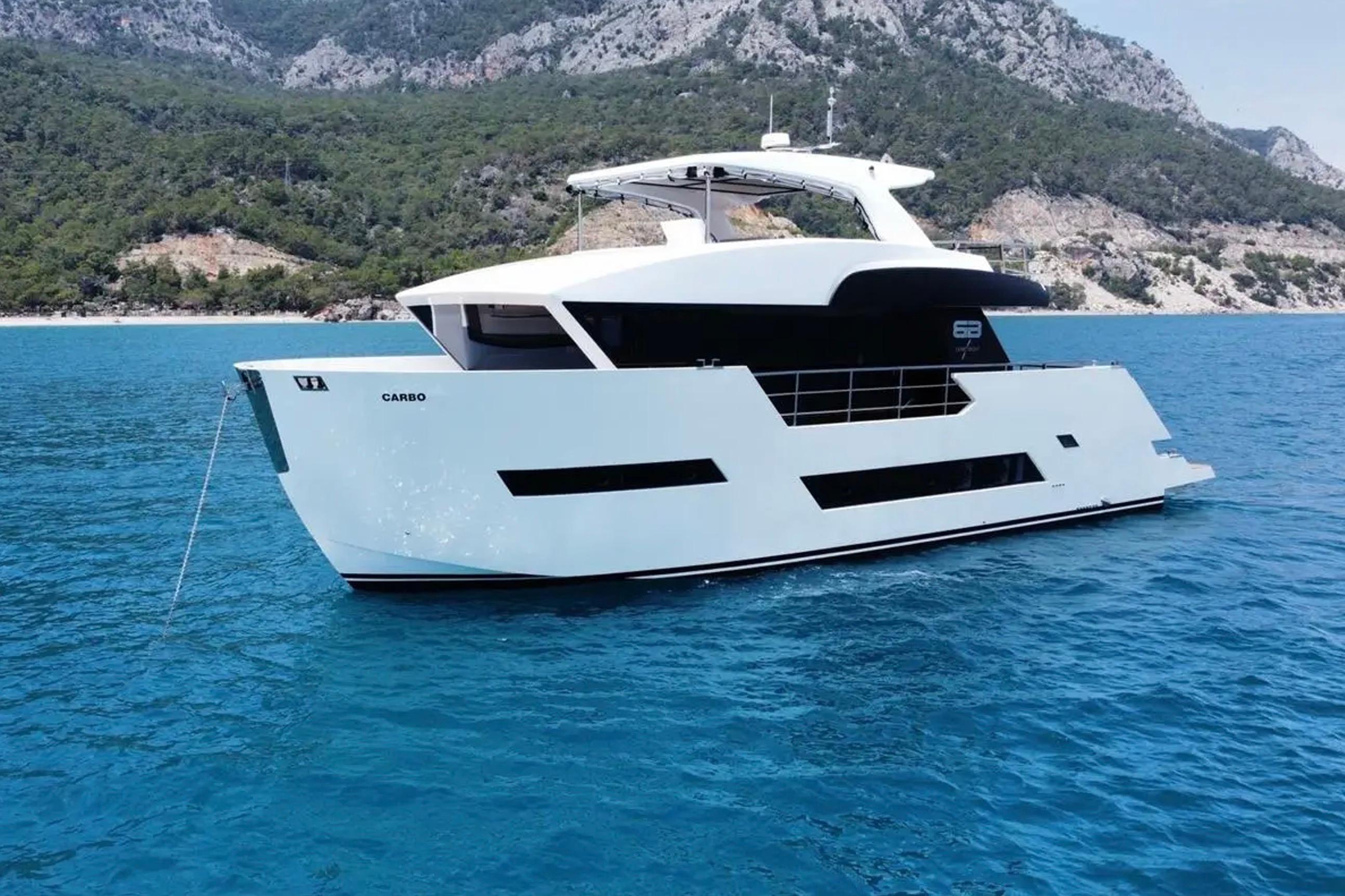

A brand-new aluminum-built trawler by Carbo Yacht Yatçılık A.Ş., combining modern design, seaworthiness, and luxury comfort. With spacious interiors, robust construction, and comprehensive technical equipment, this yacht is ideal both for private cruising and long-range voyages.
GENERAL INFORMATION
- Builder: Carbo Yacht Yatçılık A.Ş.
- Vessel Type: Motor Yacht
- Model: Trawler
- Design Category: C – Inshore
- Passenger Capacity: 12 persons
- Max Load: 2,585 kg
- Hull Material: Aluminum H111 Series 5000 / 5083
DIMENSIONS
- Length Overall (LOA): 22.00 m
- Hull Length: 18.00 m
- Waterline Length: 16.35 m
- Beam: 6.15 m
- Max Draft: 1.70 m
- Displacement: 32.00 tons
ENGINES & PERFORMANCE

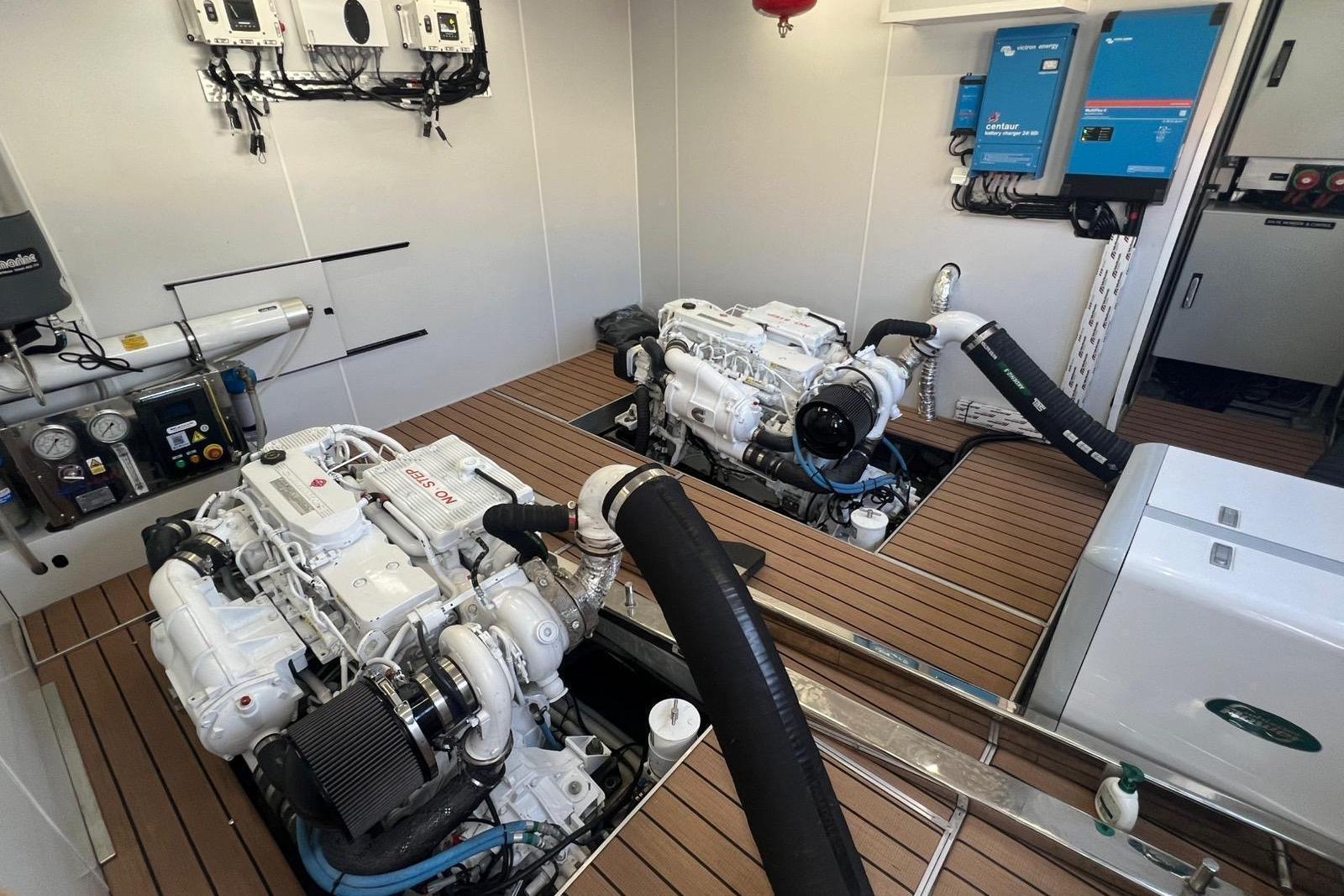

- Engines: 2 x Cummins QSB 6.7-425 (Diesel)
- Power: 2 x 425 HP / 3000 rpm / 6.7 L
- Gearbox: ZF85A, 8° angle, ratio 2.50:1
- Steering: Hydraulic system

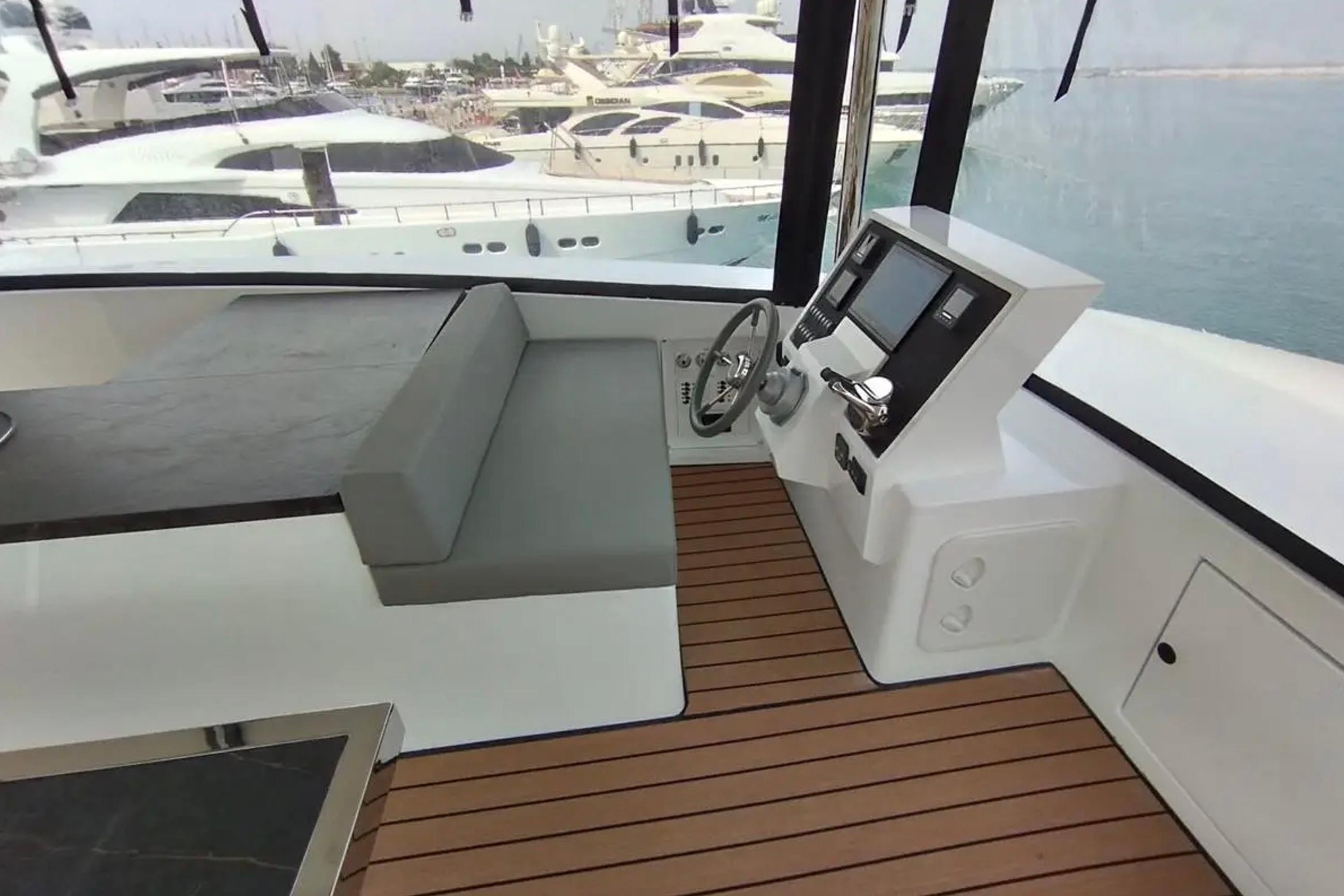

- Controls: Cummins ETS electronic throttle, dual stations (Salon & Flybridge)
- Displays: 2 x ED-4 color screens (Main Helm & Engine Room)
- Max Speed: 16 knots
- Cruising Speed: 10 knots
TANK CAPACITIES
- Fuel Tanks: 2 x 1,500 L (Aluminum, epoxy coated, manual & electronic level indicators)
- Fresh Water Tanks: 2 x 375 L
- Grey Water Tank: 1 x 750 L
- Black Water Tank: 1 x 750 L
ACCOMMODATION

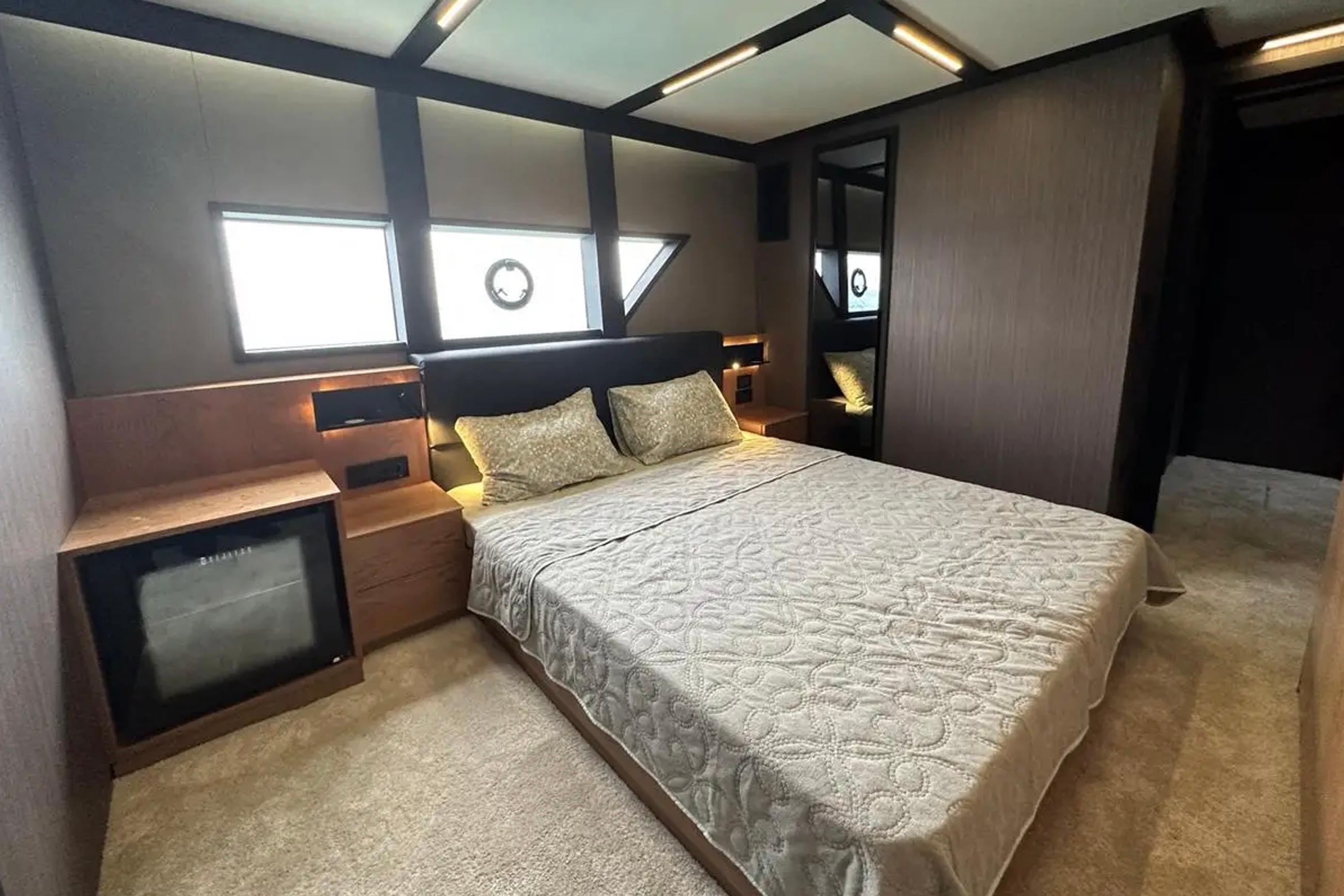

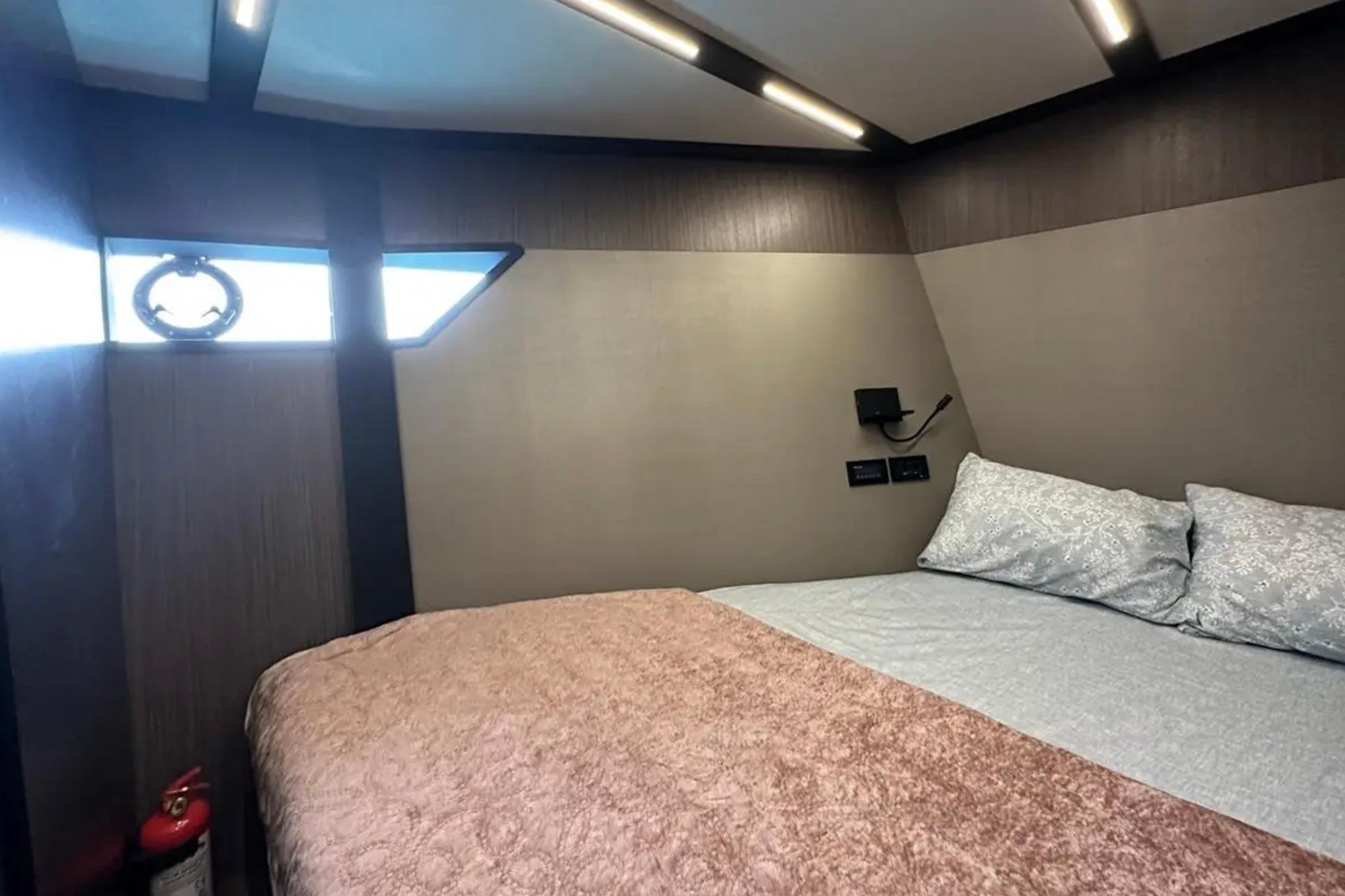

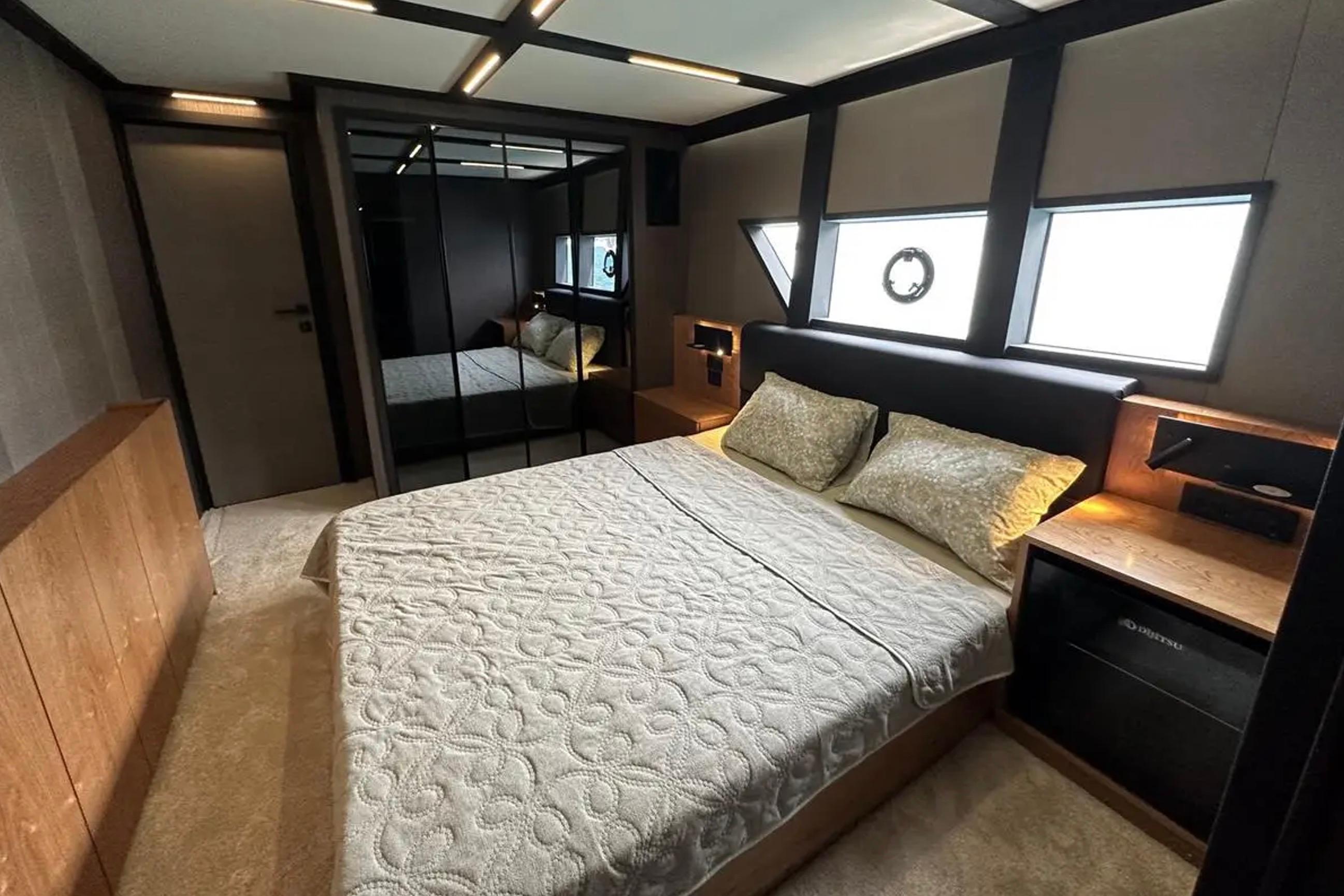

- Cabins: 4 guest cabins (2 master + 2 guest)
- Beds: 4 double beds
- Crew: 2 cabins (one with bunk beds)
- Bathrooms: 6 total
- 2 x en-suite (Master cabins)
- 1 x shared bathroom/WC
- 1 x day-head
- 2 x crew bathrooms/WC
NAVIGATION & ELECTRONICS
- Chartplotter: Garmin 12” multifunction display
- Depth/Speed/Temperature: Garmin Transducer NMEA 2000
- Autopilot: Garmin
- Radar: Garmin
- VHF: Garmin VHF115i
- Cameras: Engine Room + Aft Cockpit
ENTERTAINMENT
- Salon TV: Samsung 65Q80T (65”)
- Master Cabin TV: Samsung 55Q80T (55”)
- Internet: Wireless infrastructure prepared
GALLEY & APPLIANCES
- Refrigerator: Samsung
- Dishwasher: Samsung
- Washing Machine: Samsung
- Cooker, Oven, Extractor: Samsung (with dedicated LPG locker)
- Mini Bars: 3 units
TECHNICAL EQUIPMENT
- Bilge Pumps: 2 x Whale Superb 1100 + 6 x Whale Orka 1300
- Grey Water Pump: Whale Gulper 320
- Toilet Pump: Whale Gulper WC Pump
- Hot Water Boiler: Sigmar 50 L
- Shower Pumps: Custom Jabsco vacuum pumps (3 units)
- Freshwater Pump: Wilo Aqua SPS 50-5.56
- Air Conditioning: Total 50,000 BTU (Salon, Cabins, Crew)
- Bow Thruster: Quick 24V / 10 kW
- Stern Thruster: Quick 24V / 10 kW (dual joystick control)
- Anchor Windlass: Quick Duke 24V / 2000 W (with remote & helm controls)
- Watermaker: Seamar 150 L/h
- Toilets: 6 x Albin Electric Toilets
ELECTRICAL SYSTEM
- Generator: Whisper Power 12 kW
- Inverter: Victron Energy MultiPlus 3000 W / 120 A
- Battery Charger: Centaur 24/60 + Blue Smart 12/20
- Shore Power: Marinco 63A dual connection (separate for yacht & A/C)
- Batteries: 6 x service (expandable), 2 x engine, 2 x windlass, 1 x generator
- Cabling: Marine-grade tinned MYY
- Switchgear & Fuses: Schneider
- Lighting: LED deck, cockpit, flybridge, platform
WATER & SANITATION
- Freshwater System: WILO pump, 750 L tank + Sea Recovery 150 L/h watermaker
- Hot Water: Sigmar 50 L boiler
- Grey & Black Water Systems: 750 L tanks, Whale pumps, odor-free hoses, deck pump-out
DECK EQUIPMENT
- Anchor & Chain: Ultra Marine anchor + 120 m / 12 mm chain
- Stainless Steel: AISI 316 (rails, stanchions, cleats, fairleads, mast)

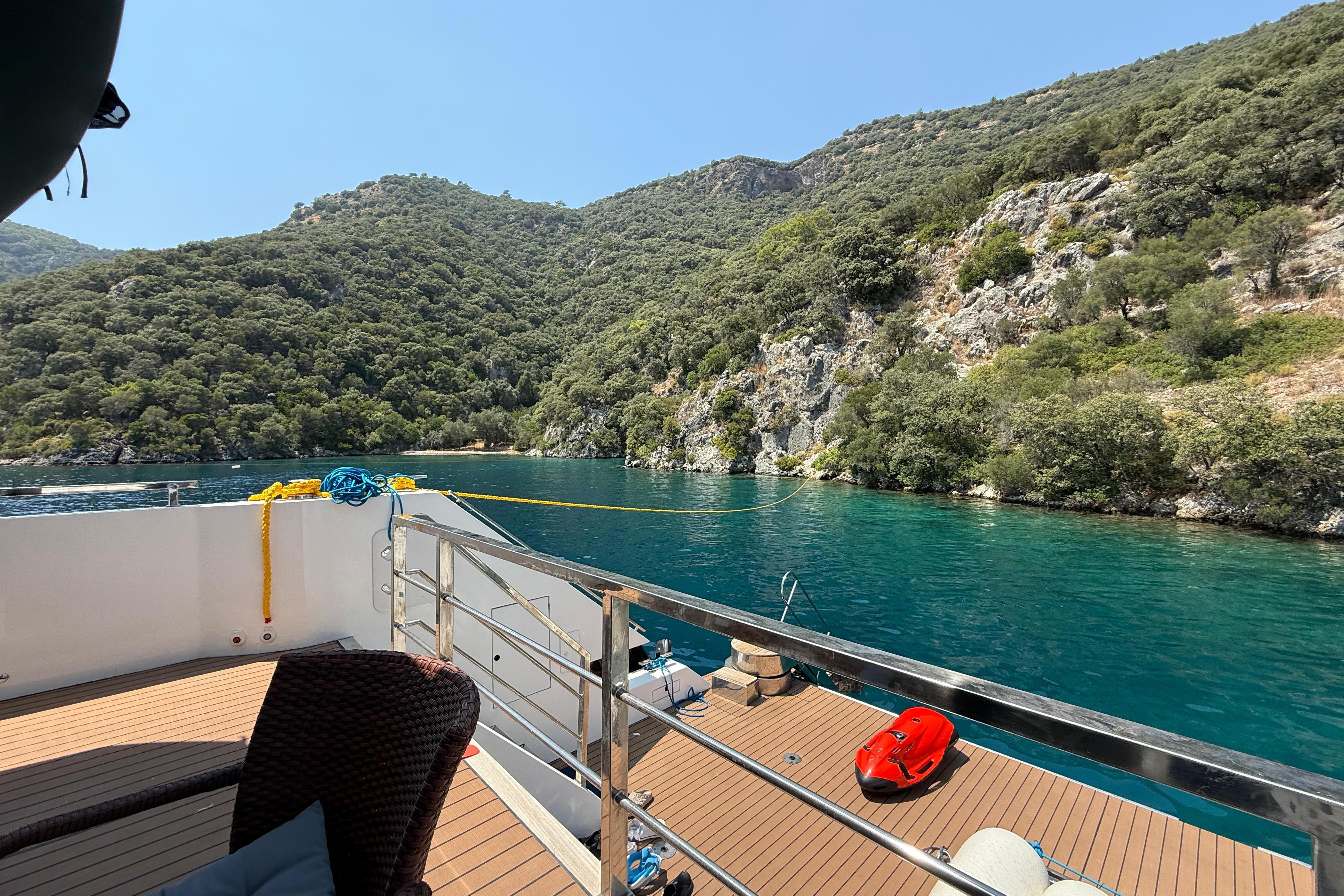

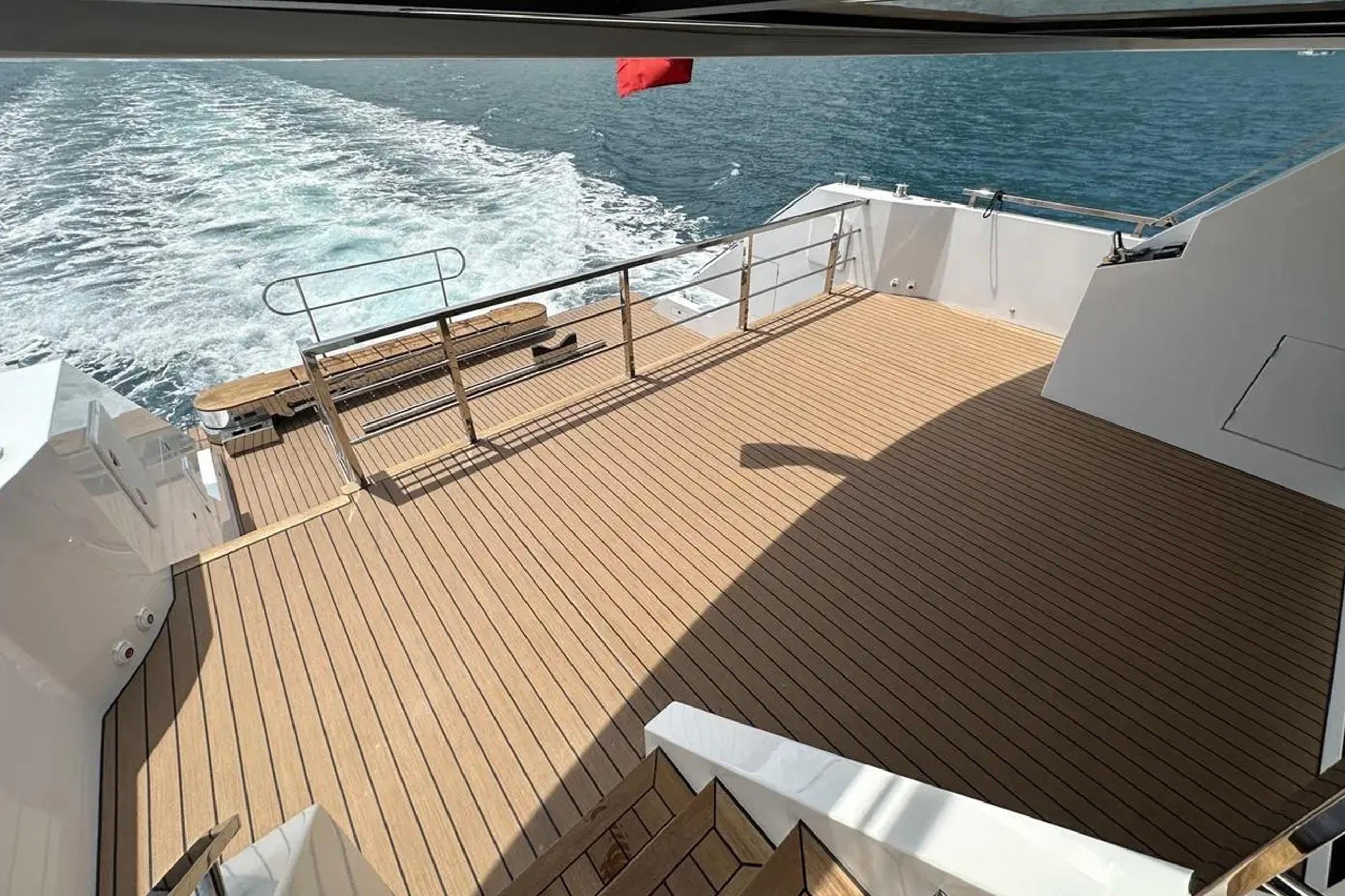

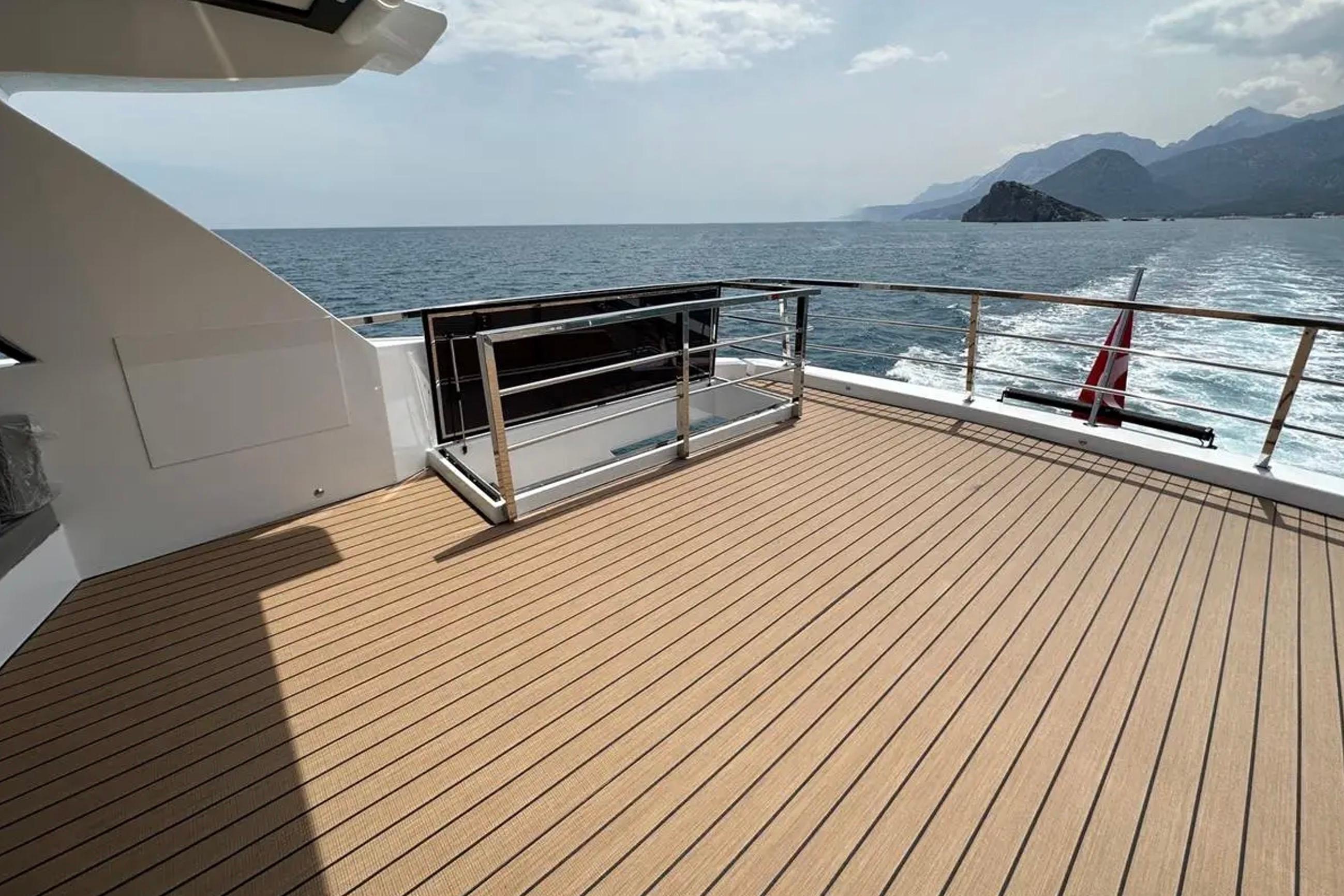

- Decking: Infinity Woven Vinyl – Teak Pattern (fire-retardant, 10-year warranty)

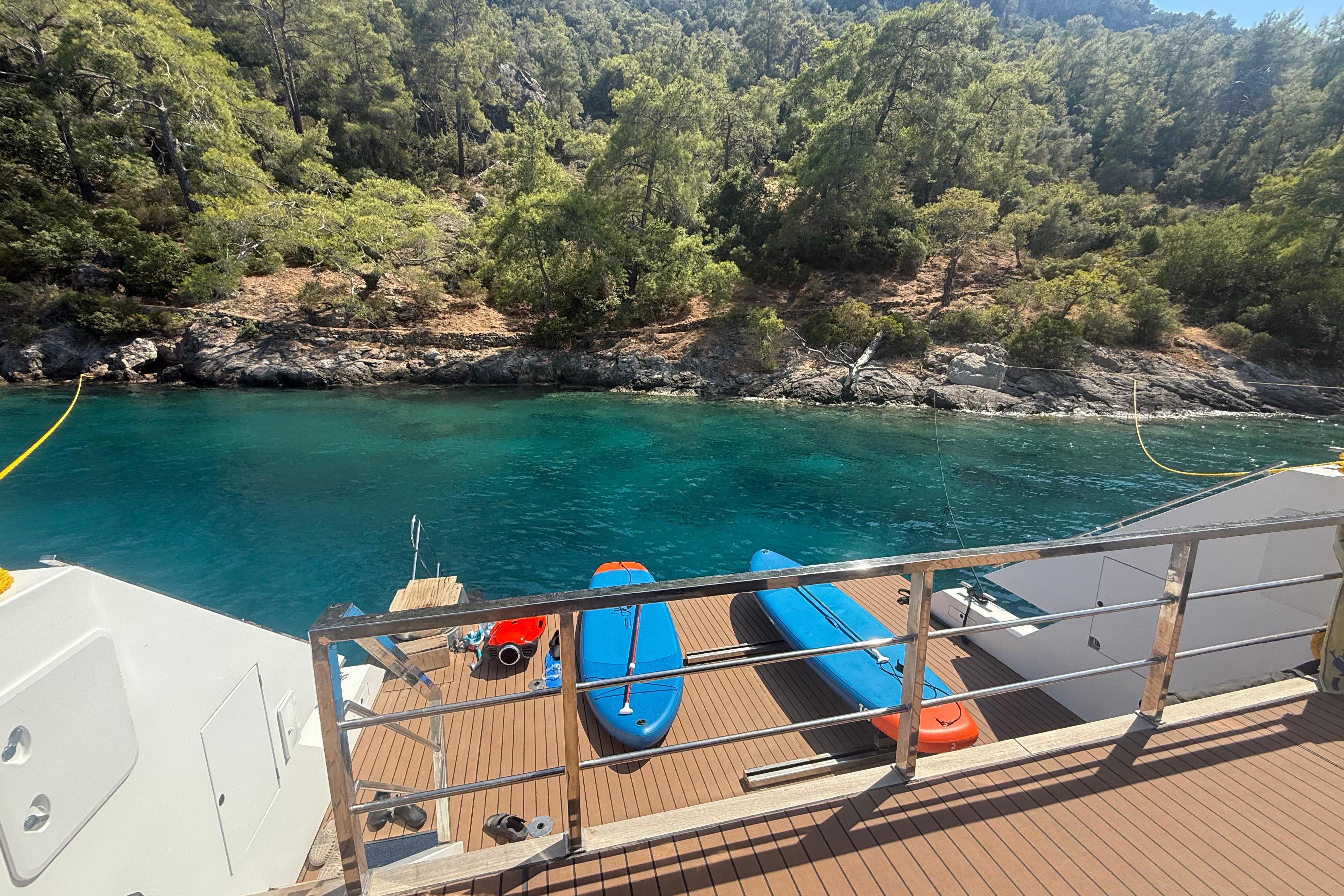

- Platform: EBR Marine transformer with tender lift & boarding ladder
- Deck Shower: Hot/Cold
- Navigation Lights: Osculati
INTERIOR FINISH

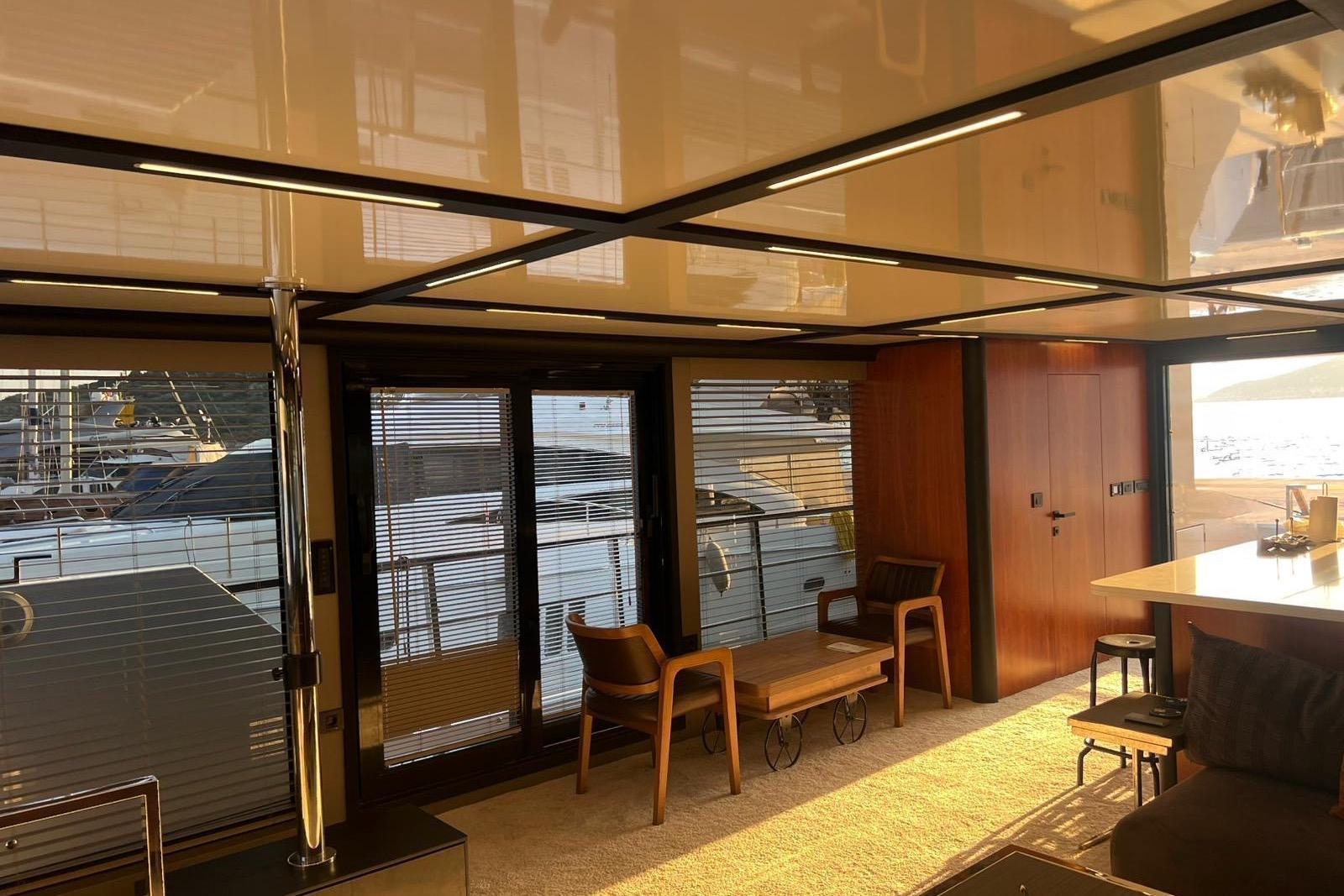

- Ceilings: High-gloss white compact laminate
- Wall Panels: Wood-effect laminate + natural stone combinations

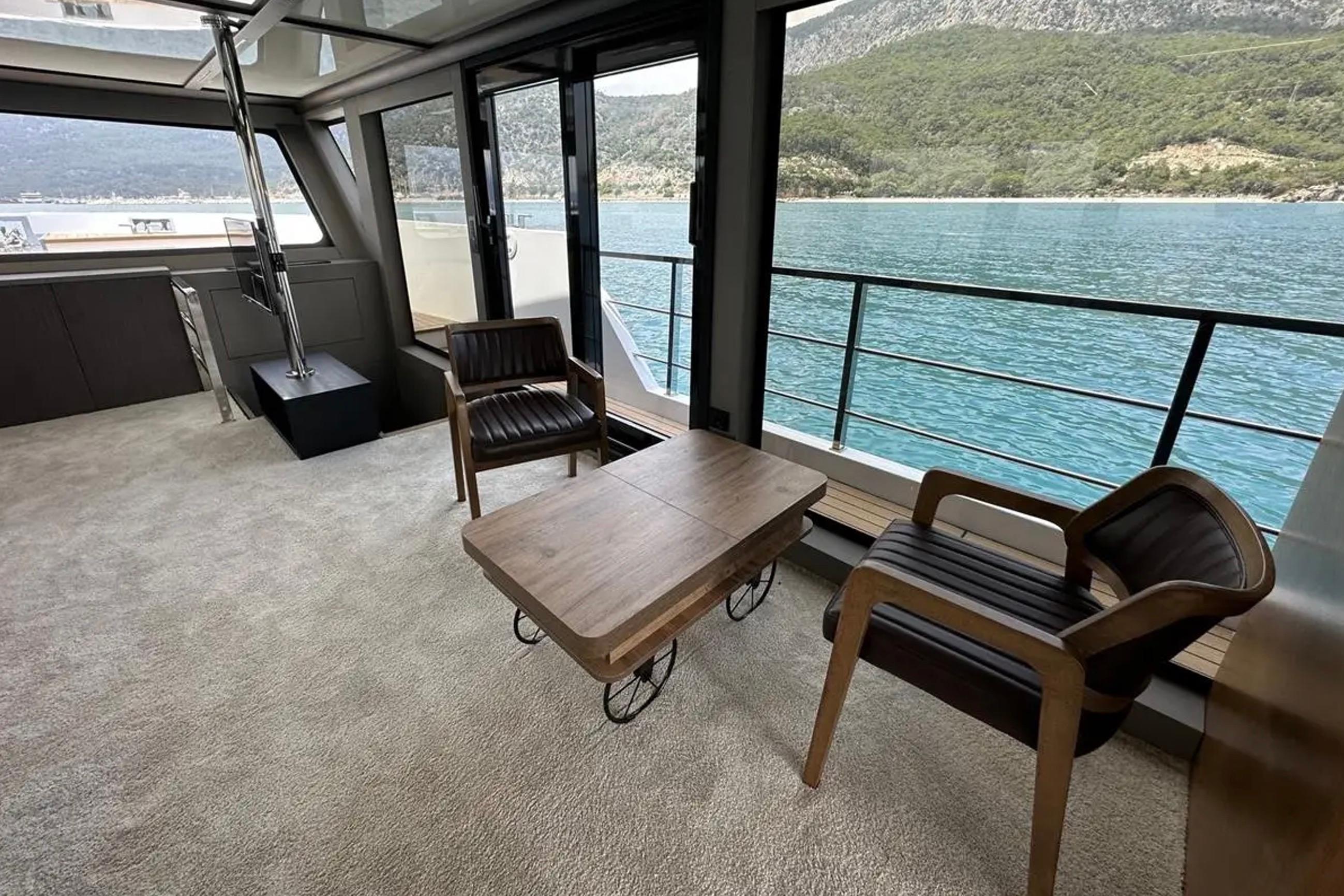

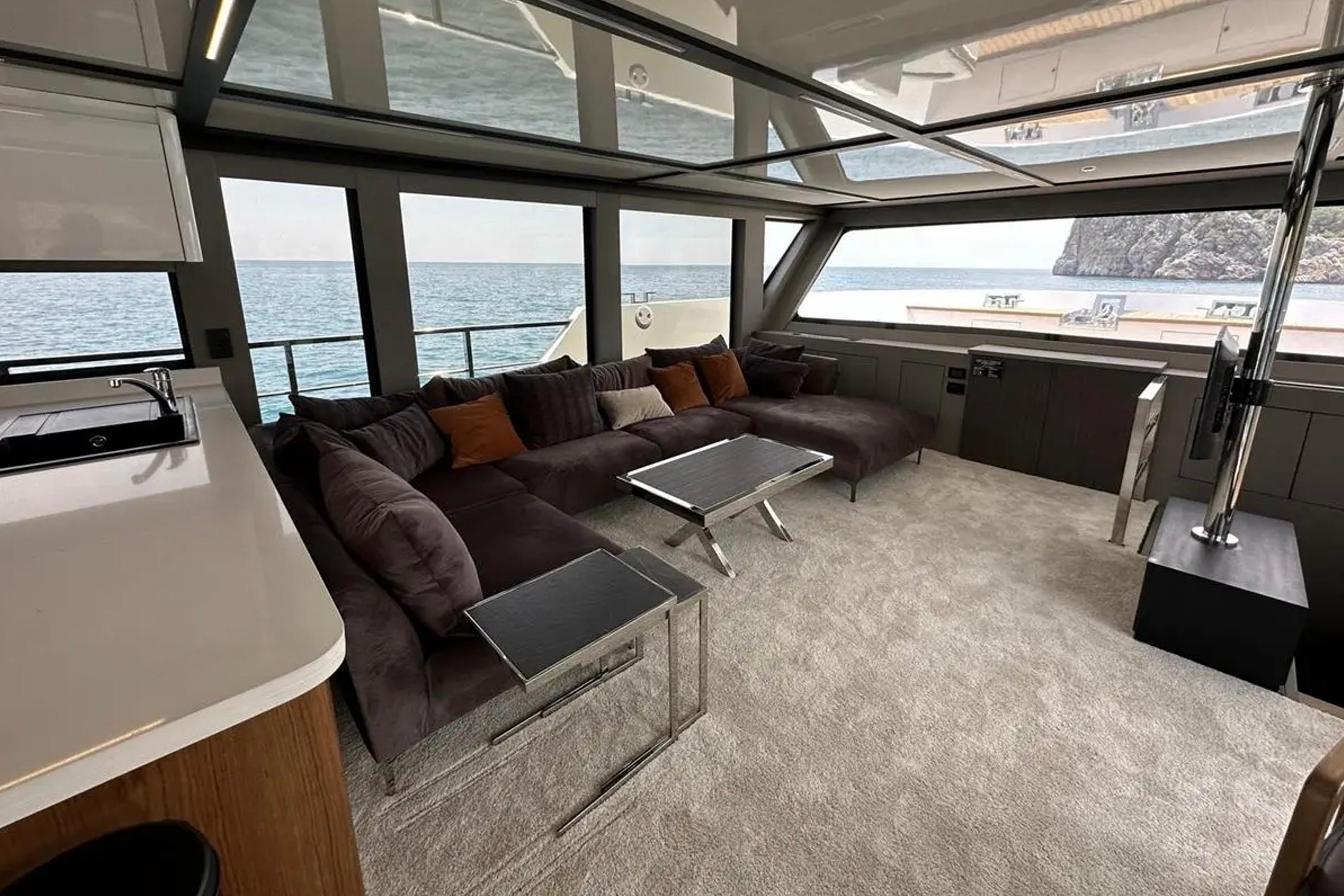

- Floors: Carpets (cabins), parquet/carpet (salon)
- Furniture: Movable sofas, tables, chairs, beds, wardrobes

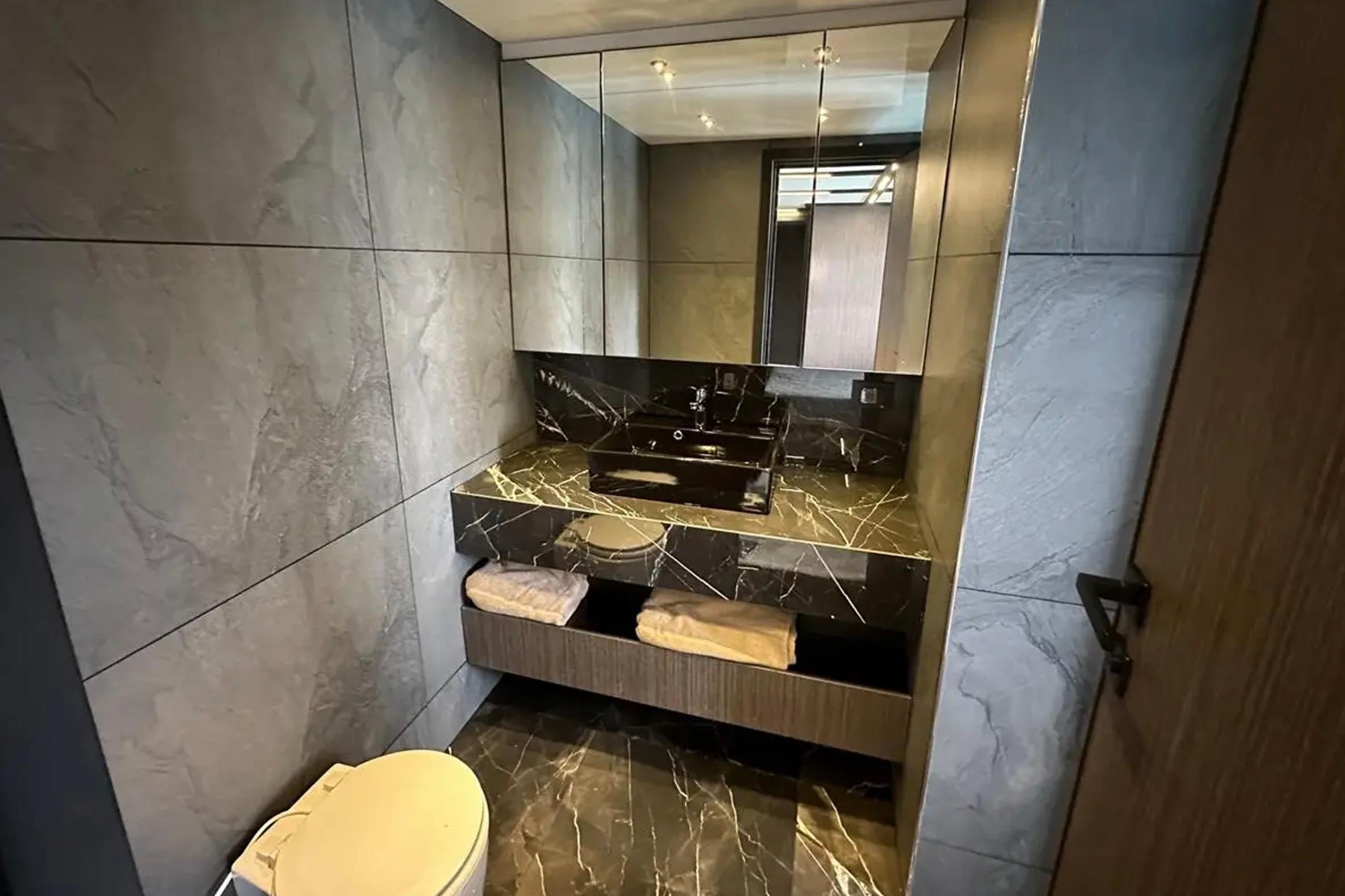

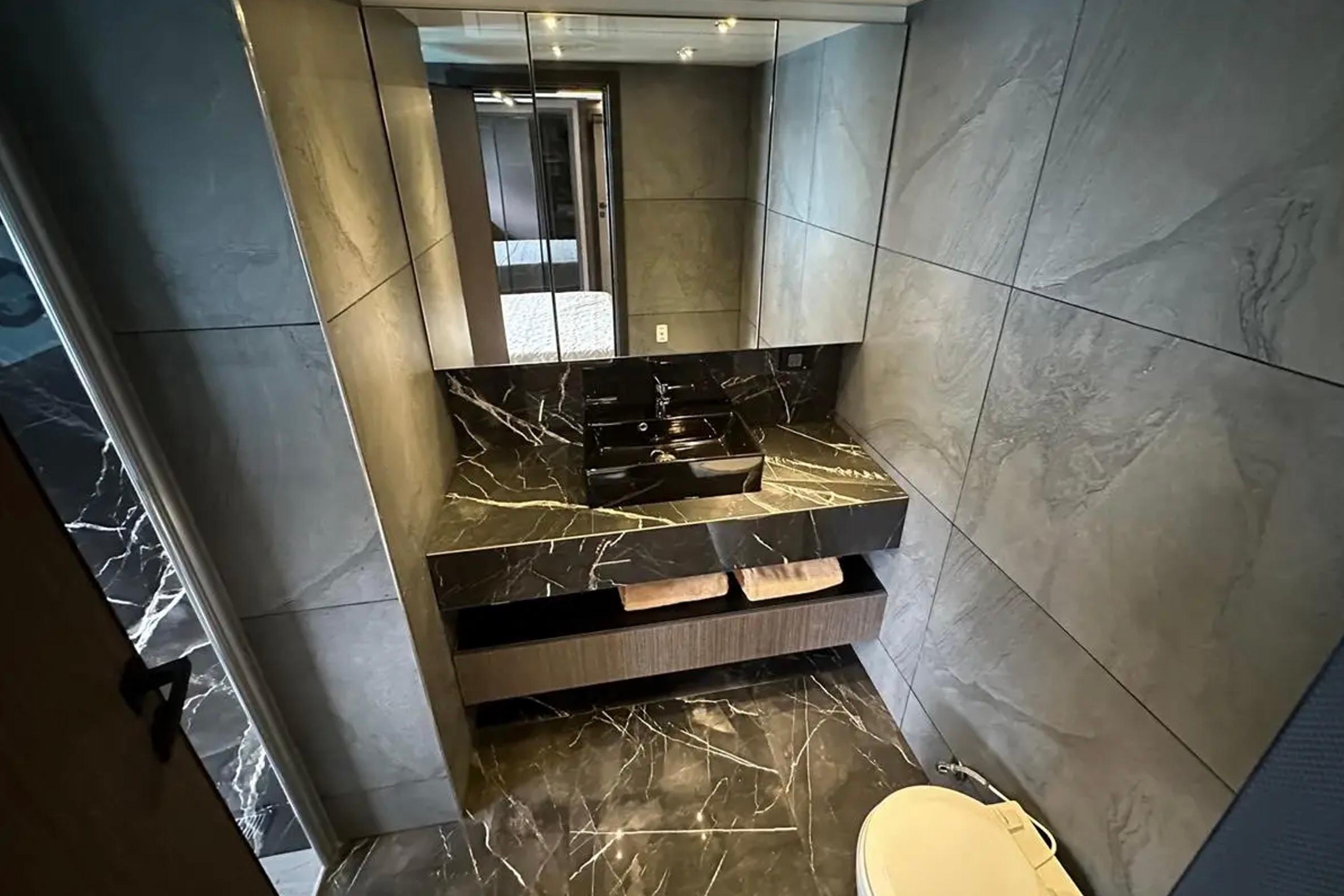

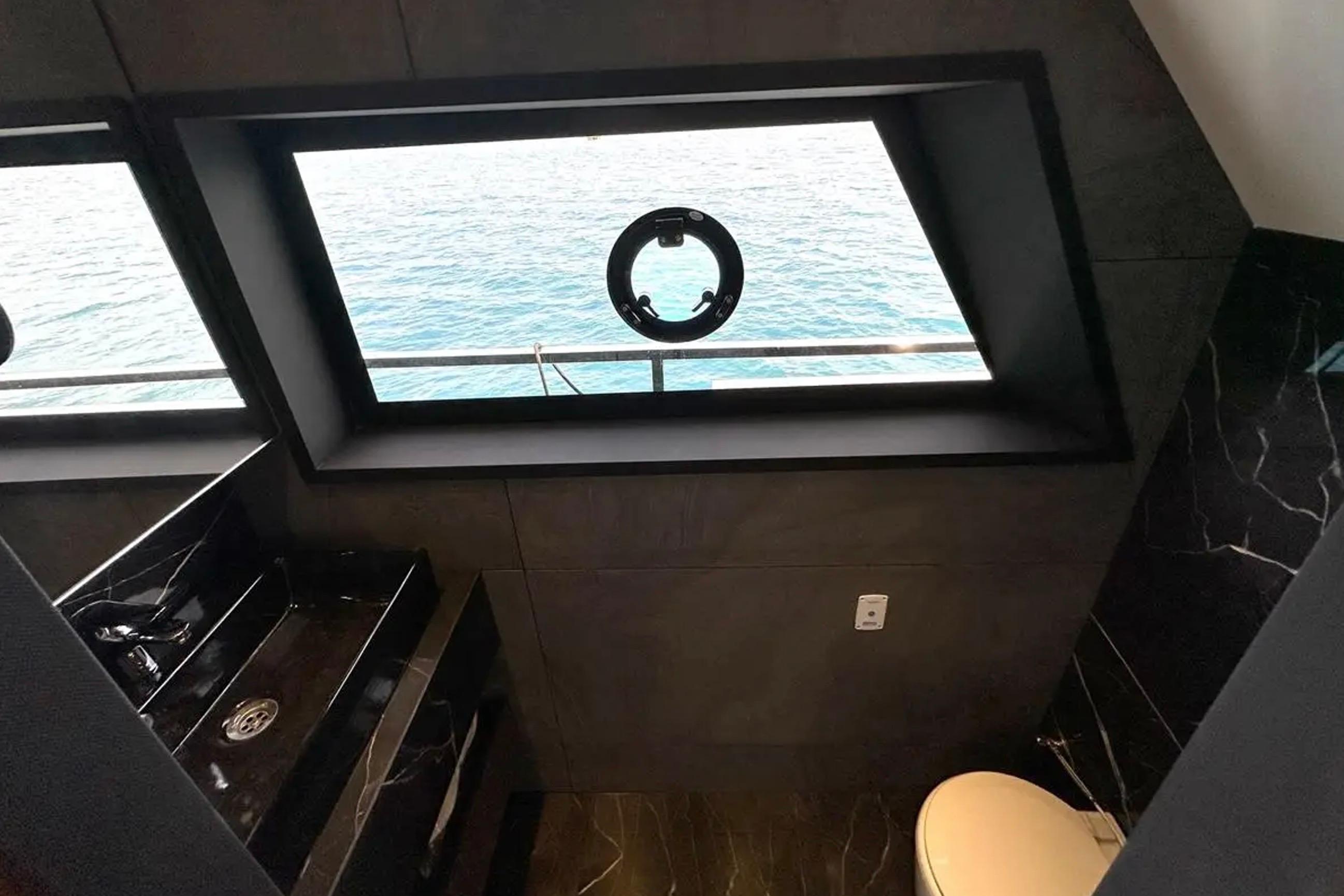

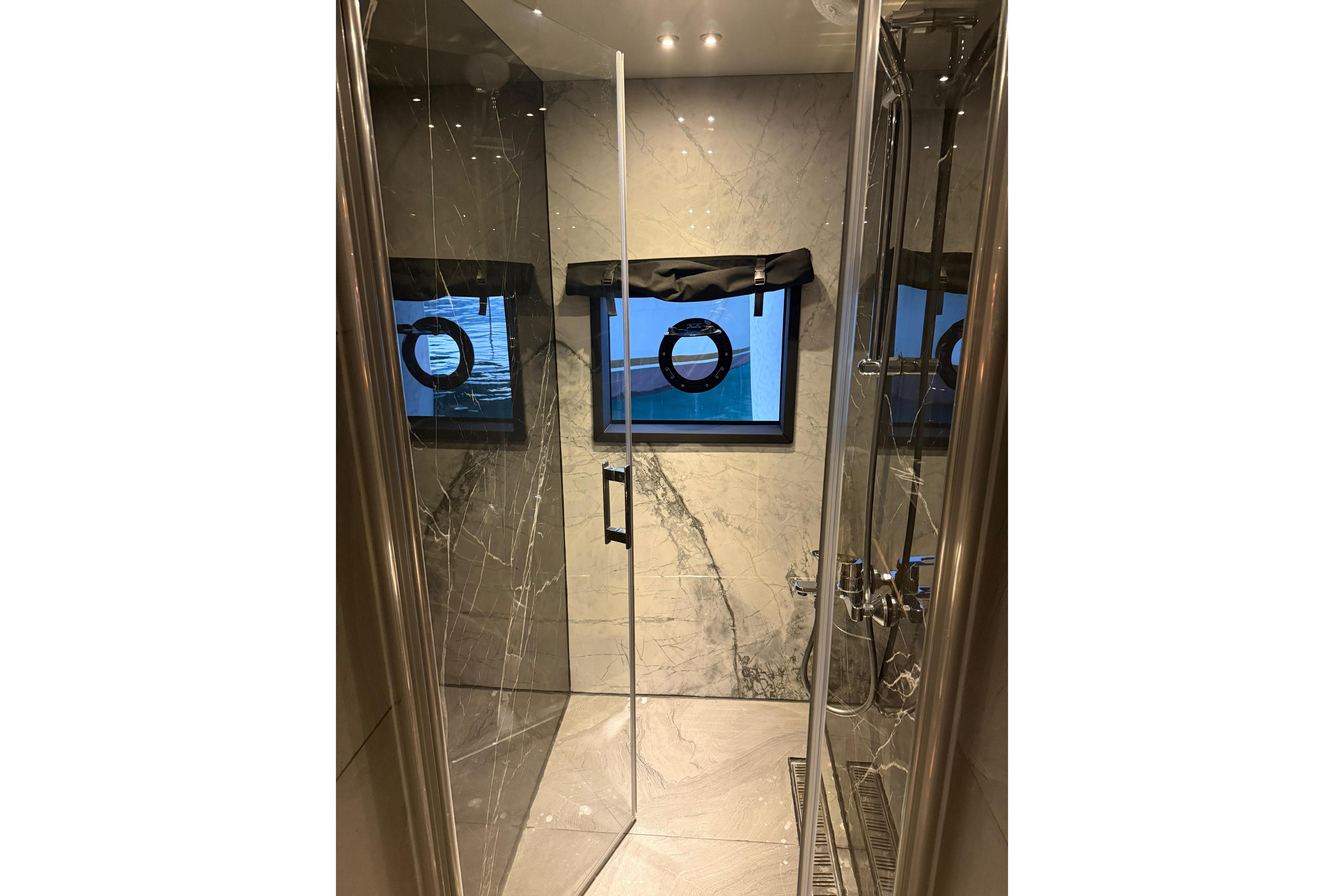

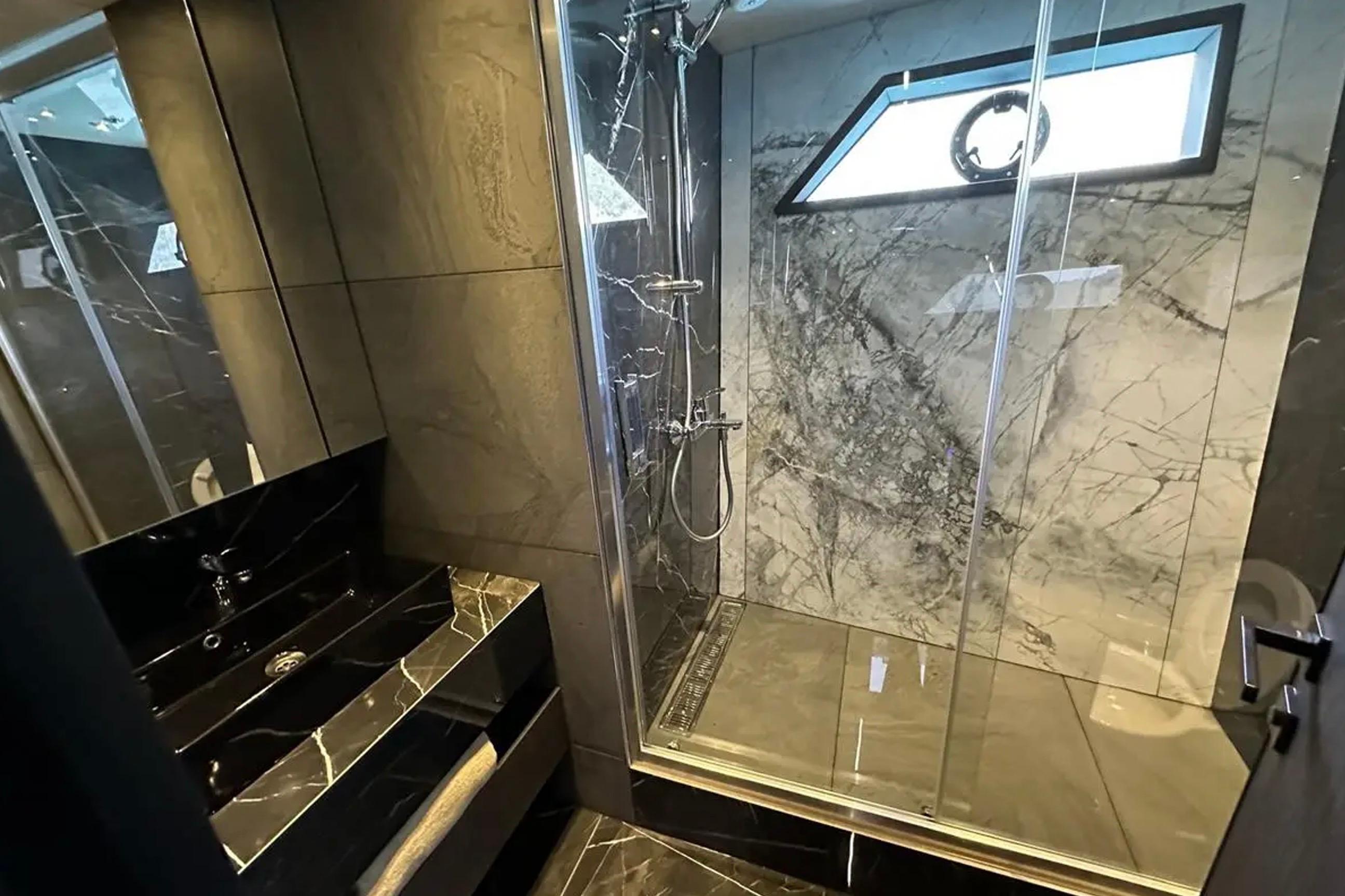

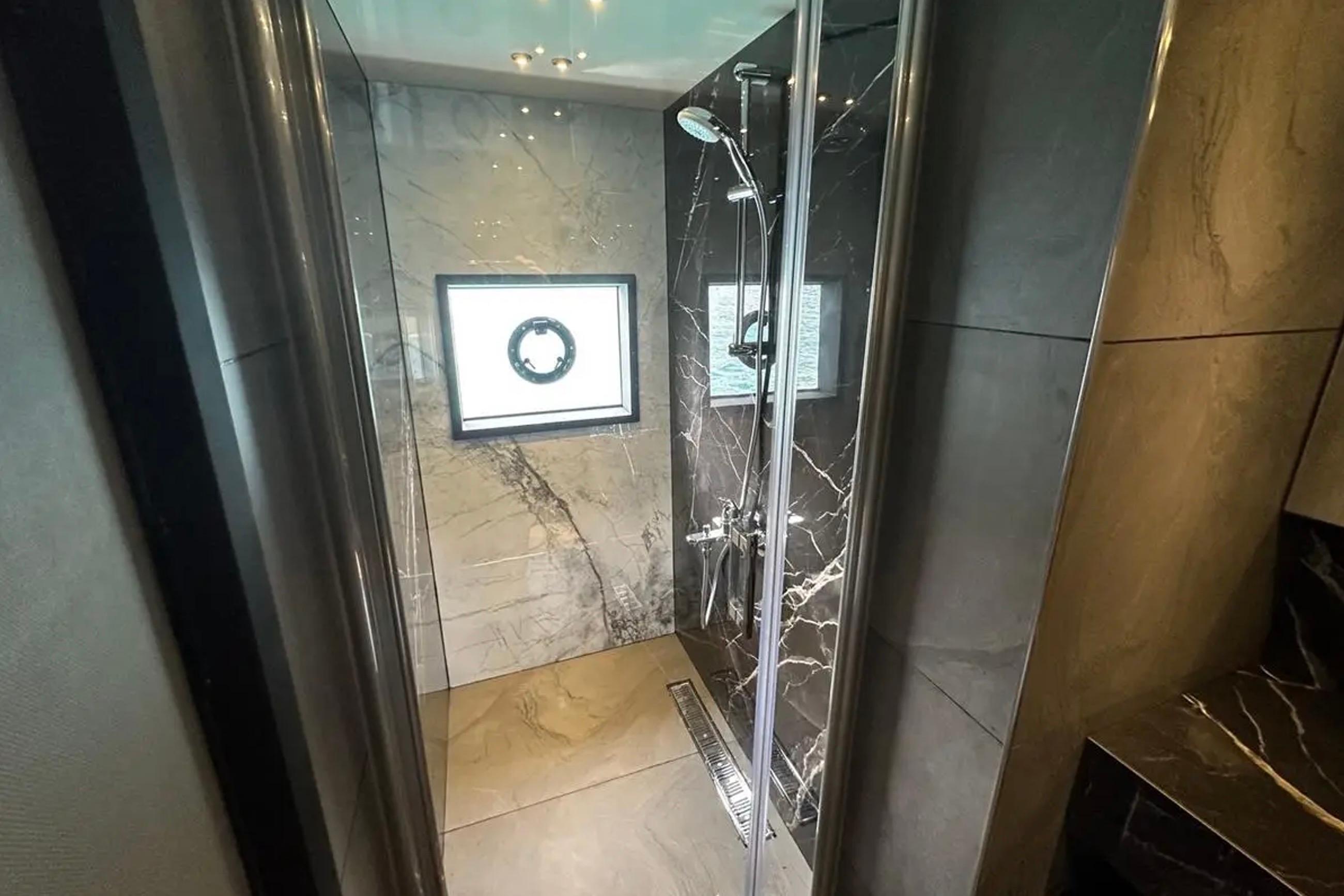

- Bathrooms: Laminam ceramic, tempered glass showers, Grohe fittings, Alvit Arkitekt black basins
- Toilets: Tecma, touch control

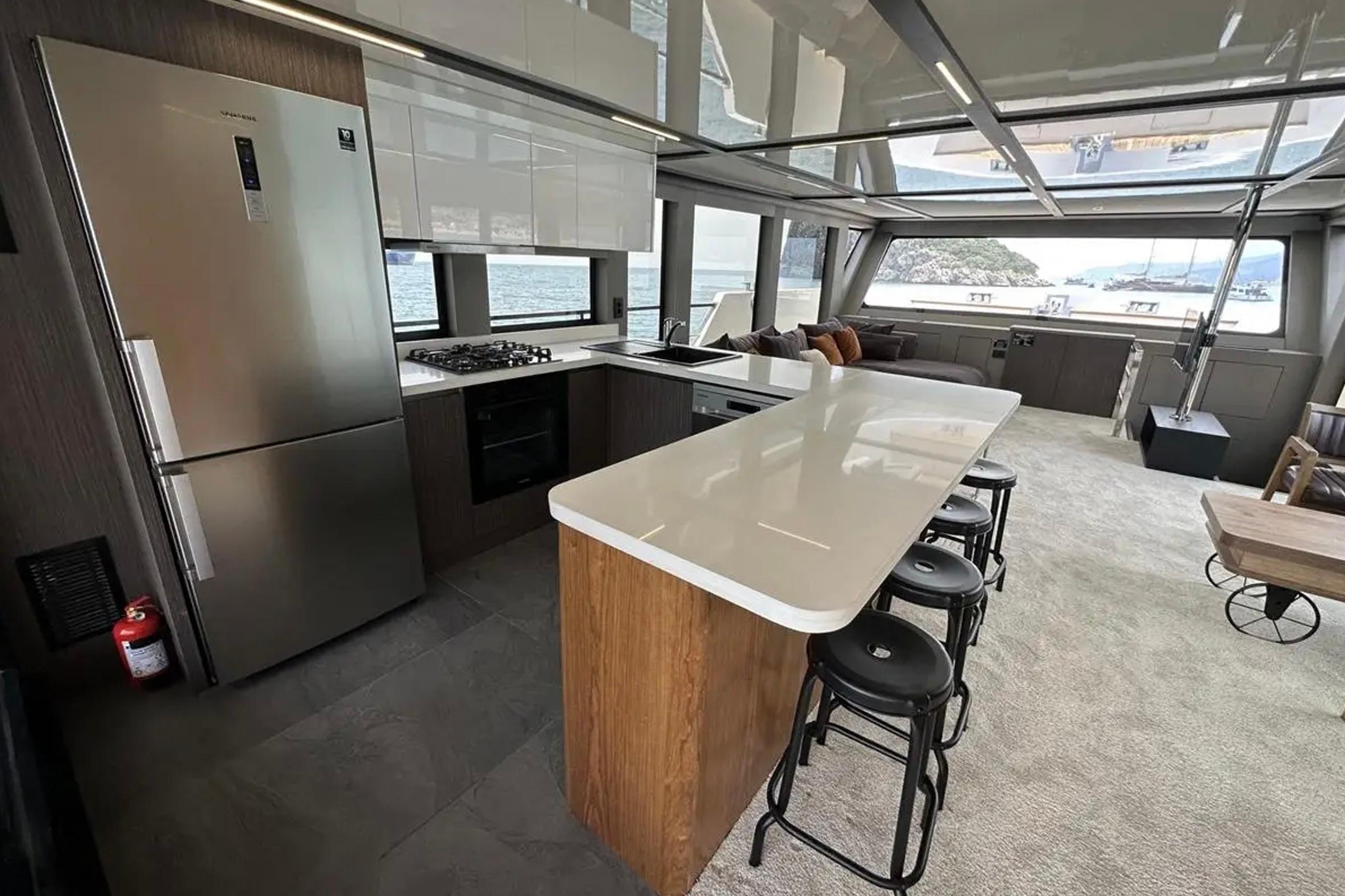

- Galley: High-gloss laminate with Samsung appliances
- Crew Area: 2 single beds, mini galley, bathroom/WC
This yacht is offered with a complete technical specification file and is ready for inspection.
The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
This listing is courtesy of the BoatWizard MLS and may be centrally listed with another broker. It is offered as a convenience by David Walters Yachts to its clients and is not intended to convey representation of a particular vessel.
