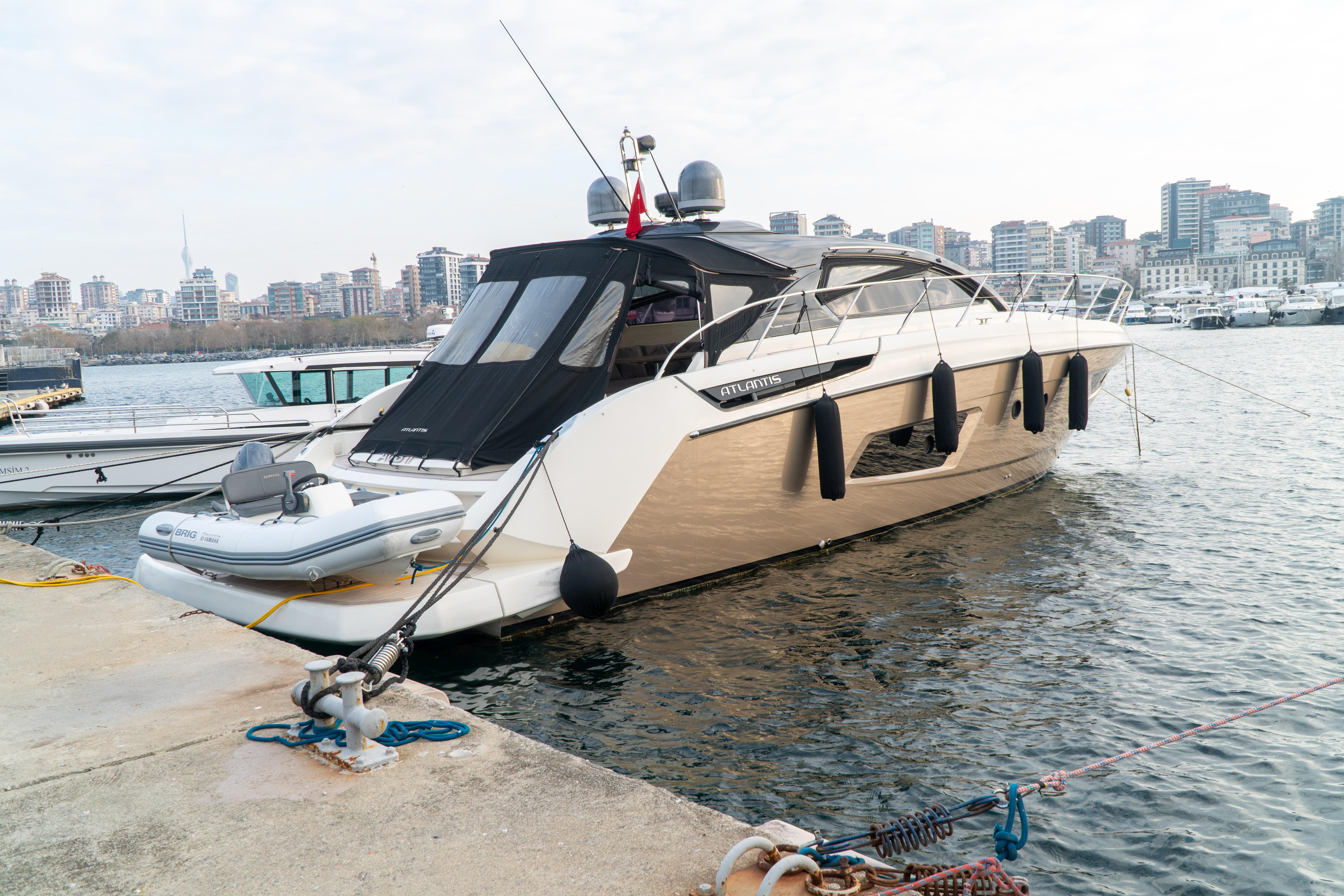

Length overall: 15.94m

Beam overall: 4.35 m

Beam: 4.30 m

Draft: 1.18m

Height Above Waterline: 3.35m

Keel: V-shaped with deadrise angle at transom 15°

Displacement: 18.23 t

Engine(s): 2 x 600 HP (442 Kw) Cummins QSC 8.3, Working Hour(s): 1476/1478 (23.12.2022)

Max Speed: 35.00 knot

Cruising Speed: 32.00 knot

Fuel Capacity: 1700 lt

Water Capacity: 420 lt

Holding Tank Capacity: 150 lt

Cabins: 2

Berths: 4+2

Heads: 2

Hull Material: VTR/GRP

Interior Designer: Neo Design & Azimut Yachts

Exterior Styling & Concept: Neo Design

Builder: Azimut Yachts (Italy)

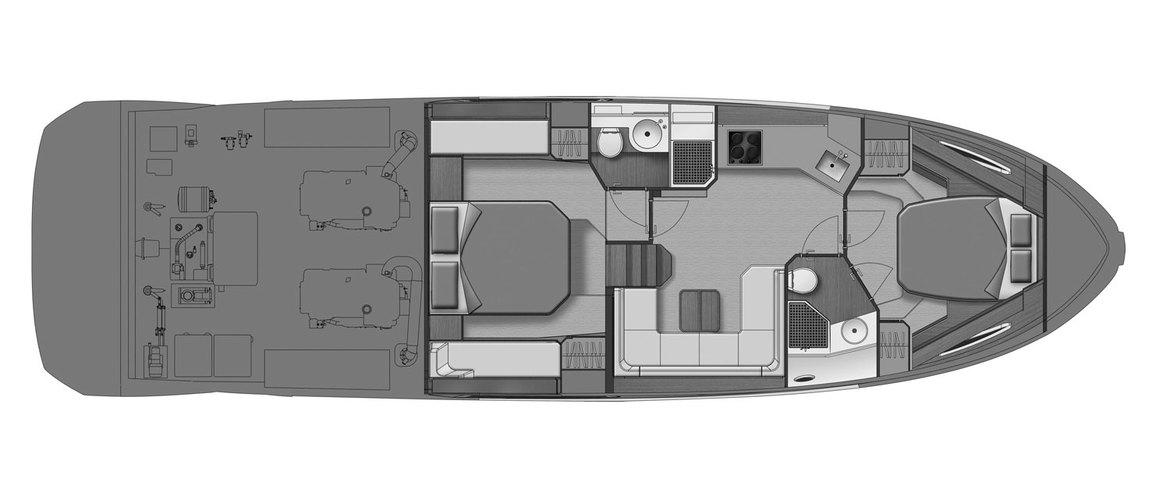

INTERIOR

• Owner's cabin with bathroom
• VIP cabin
• VIP cabin bathroom / day bathroom
• Dining area/kitchen

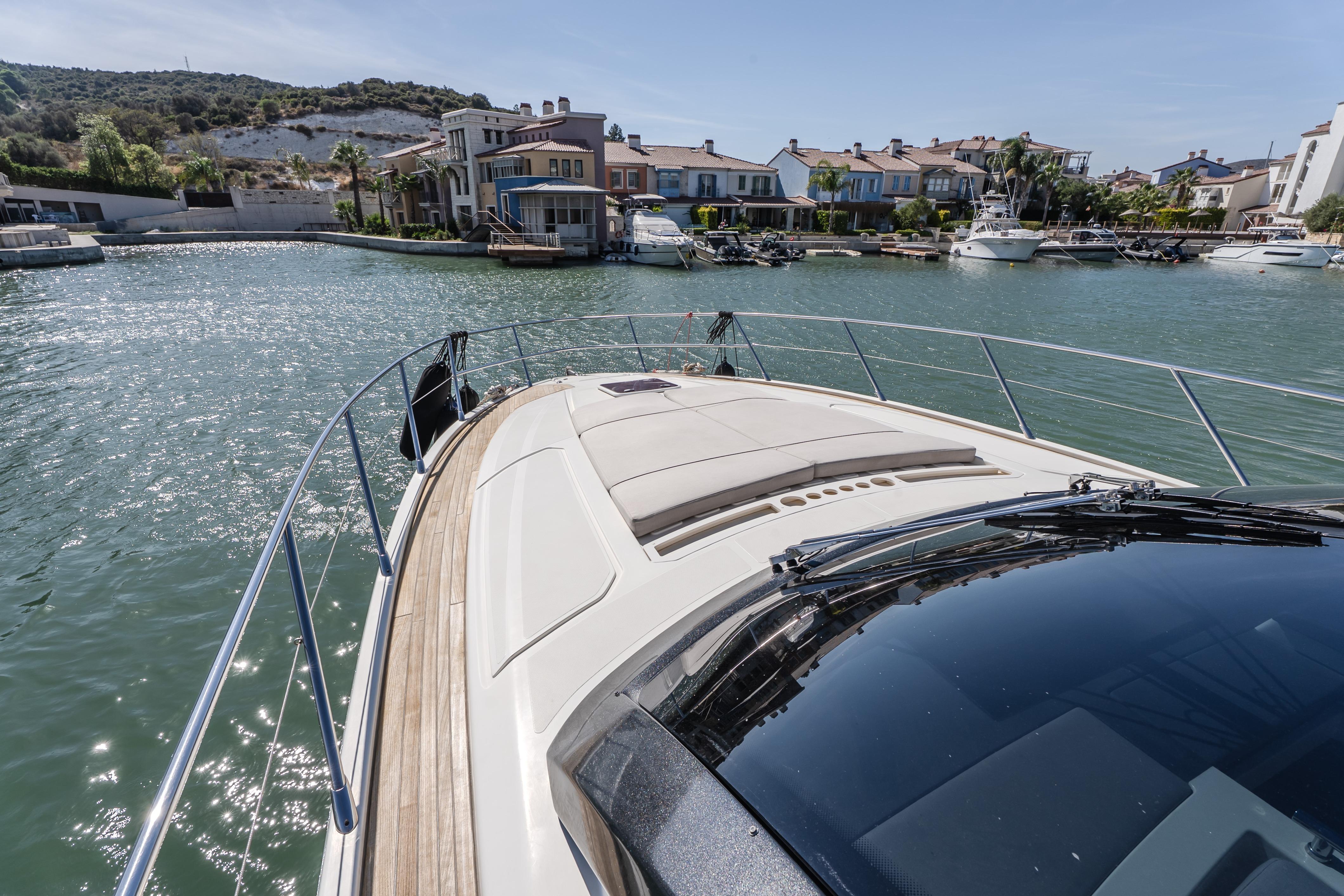

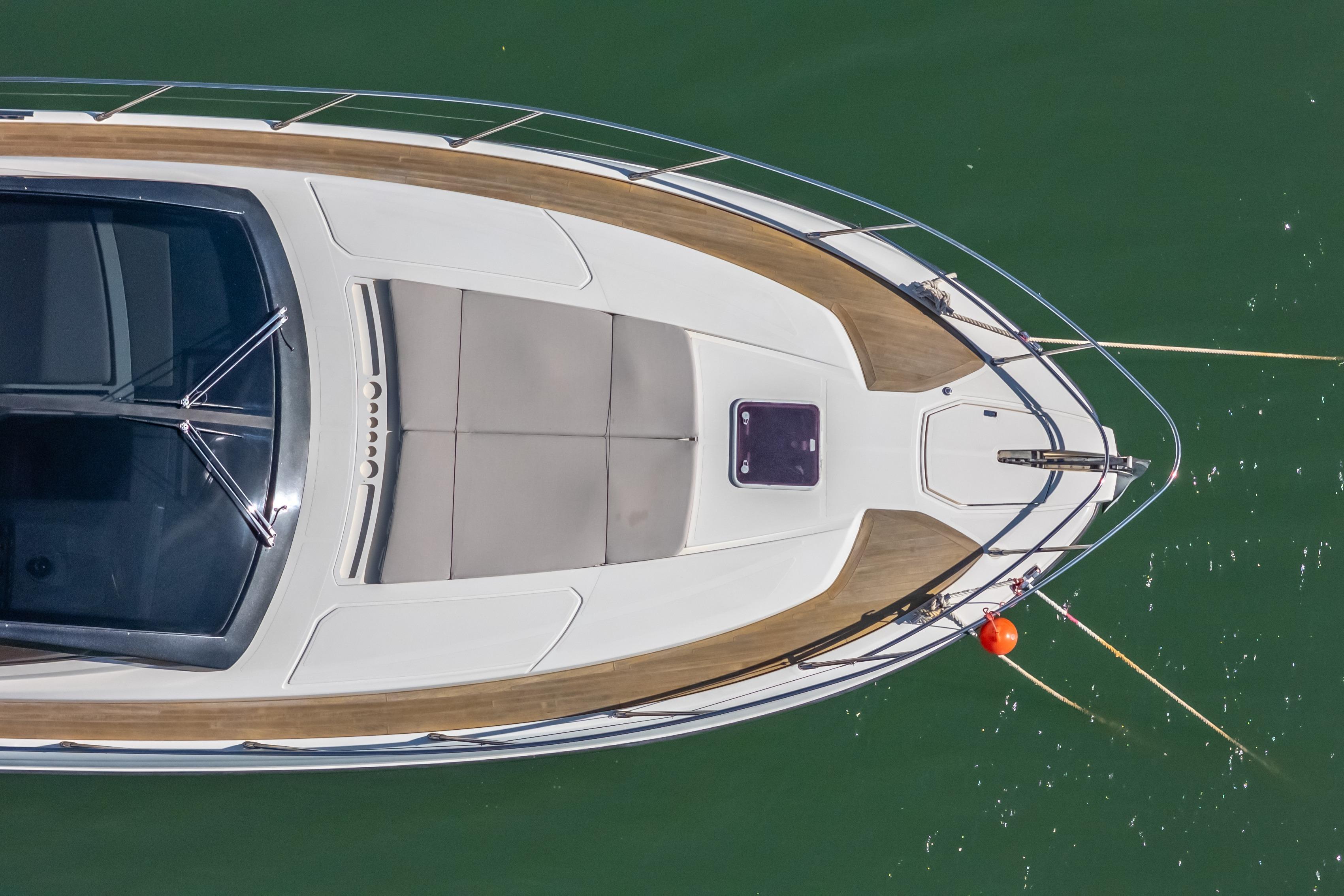

HULL AND DECK

• Anchor 30 kg and anchor chain made of galvanized steel (length 120m, galvanized was renewed in 2021)
• VHF antenna
• Horn
• Stainless steel bollards amidships (2 pcs.)
• Stern bollards made of stainless steel (2 pcs.)
• Stainless steel bow cleats (2 pcs.)
• Foredeck hatch with mosquito net and sun shade
• Nasal pads for sunbathing
• Fixed panoramic windows in the owner's cabin and VIP cabin
• Plexiglass side windows
• Anchor compartment with drainage system

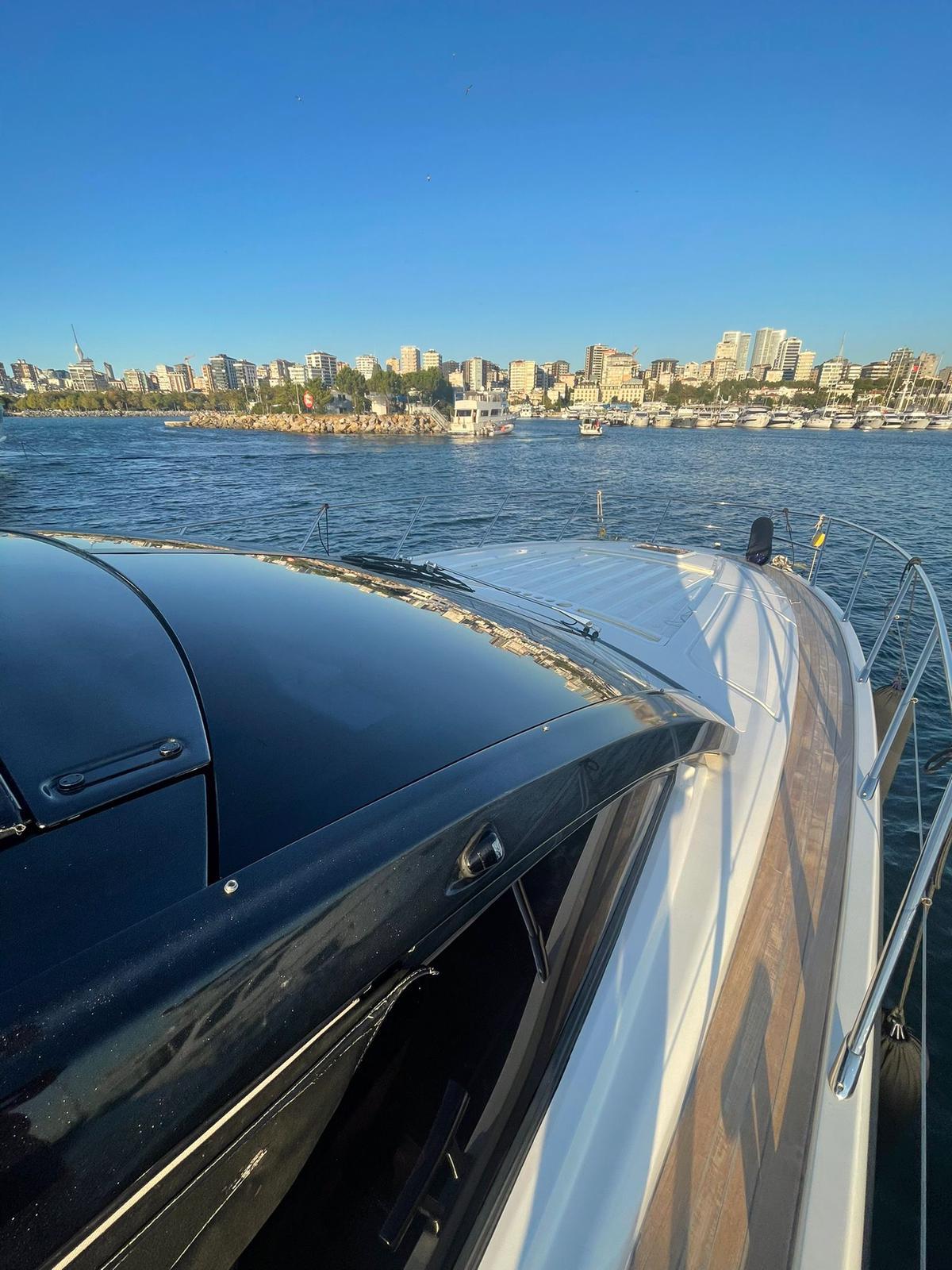

• Rigid automatic sliding roof made of fiberglass, with fabric surface
• Navigation lights
• Anchor rollers made of stainless steel
• Portholes with steel edging and mosquito nets
• Tempered glass windshield
• Stern cleats made of stainless steel (2 pcs.)
• Nasal cleats made of stainless steel (2 pcs.)

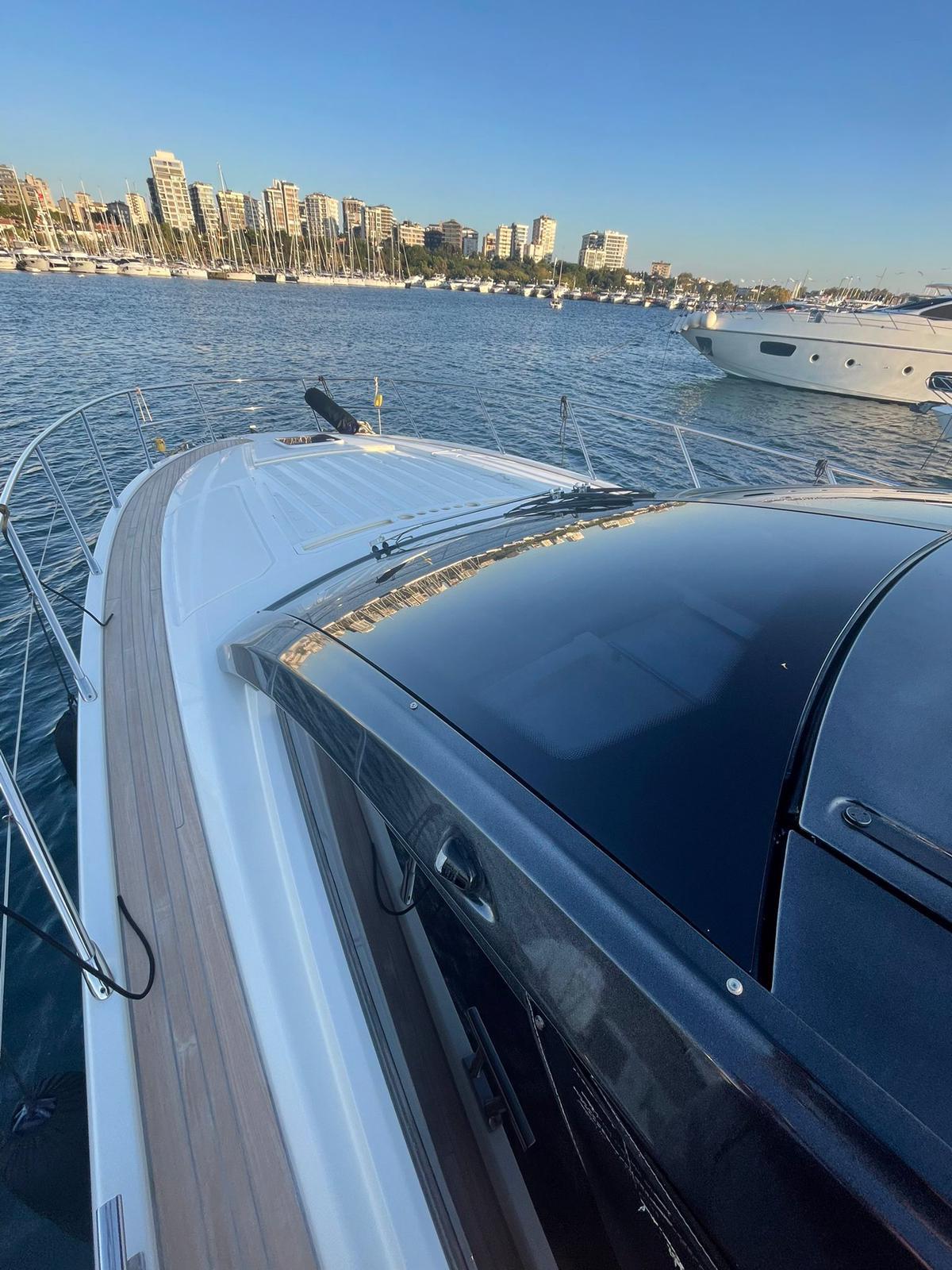

• Teak surface in the bow and side aisles
• Cup holders and storage compartments
• Stainless steel handrails
• Fiberglass radar arch with steel supports for lights, flagpole, VHF antenna and horn
• Fuel filler neck with flame and splash protection system
• Steel fuel tank caps (2pcs)
• Steel water tank caps
• Windshield wipers with glass washer
• Steel handles
• Anchor winch 1500kW with chain washer system and control buttons in the deck

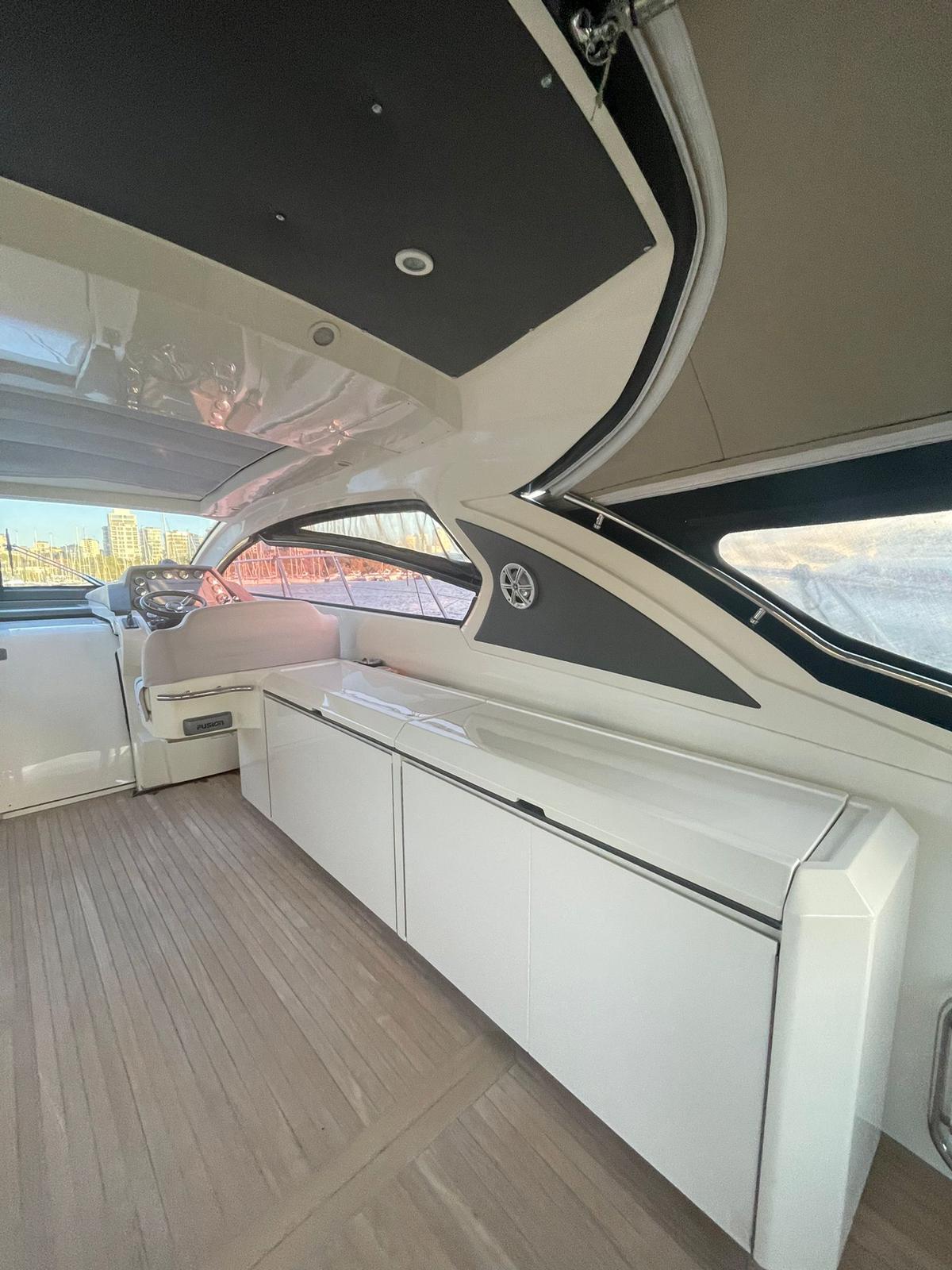

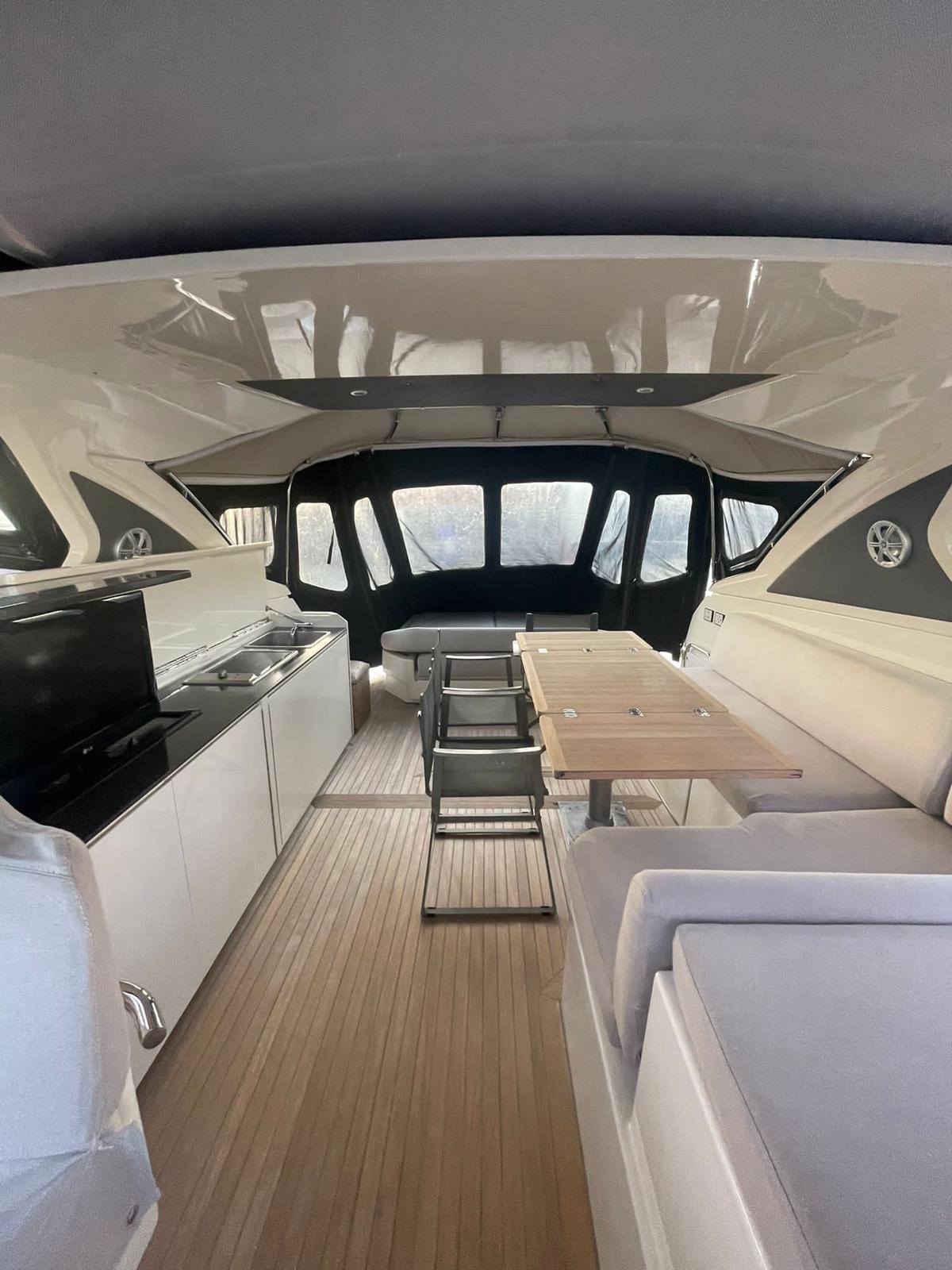

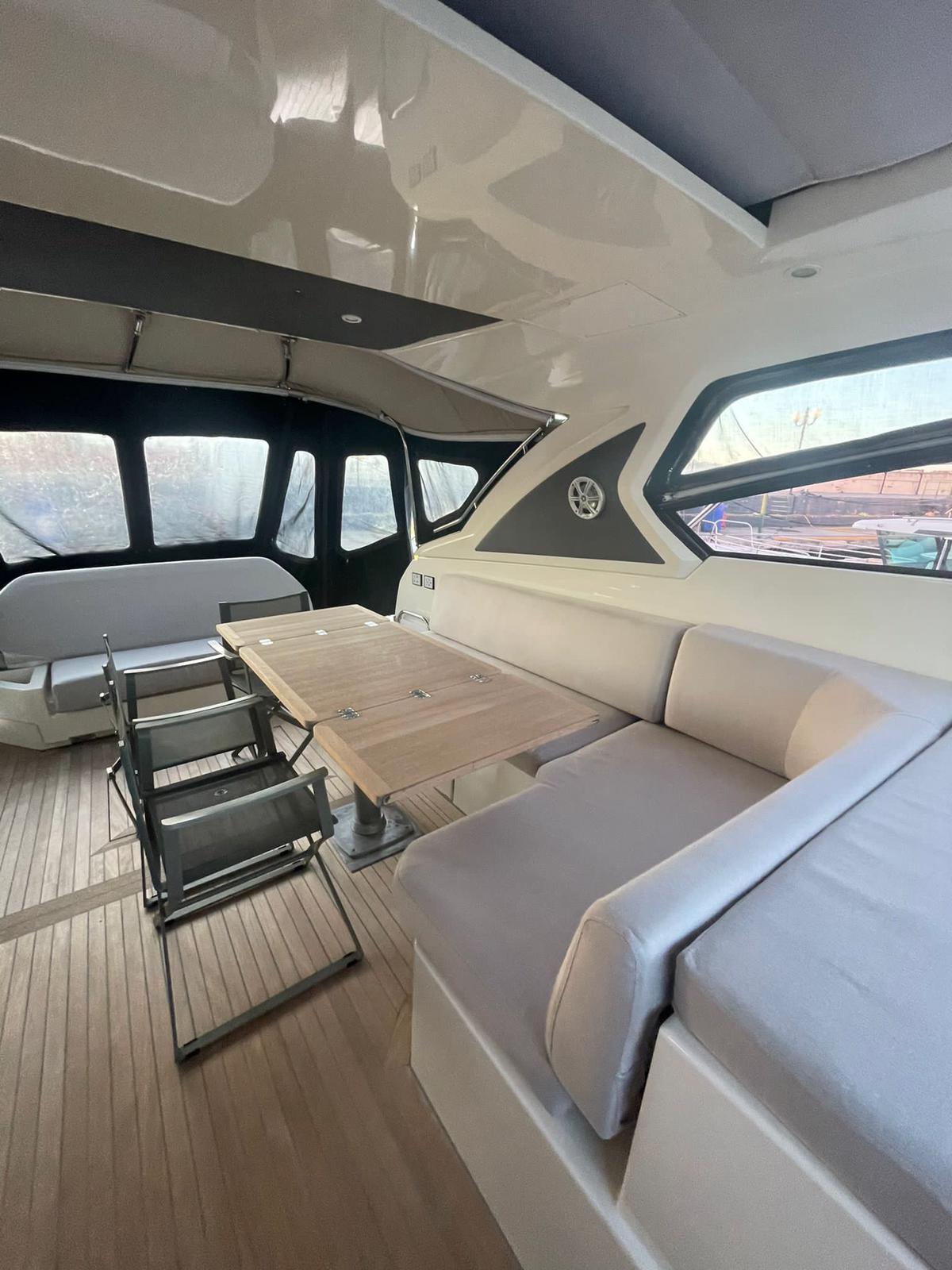

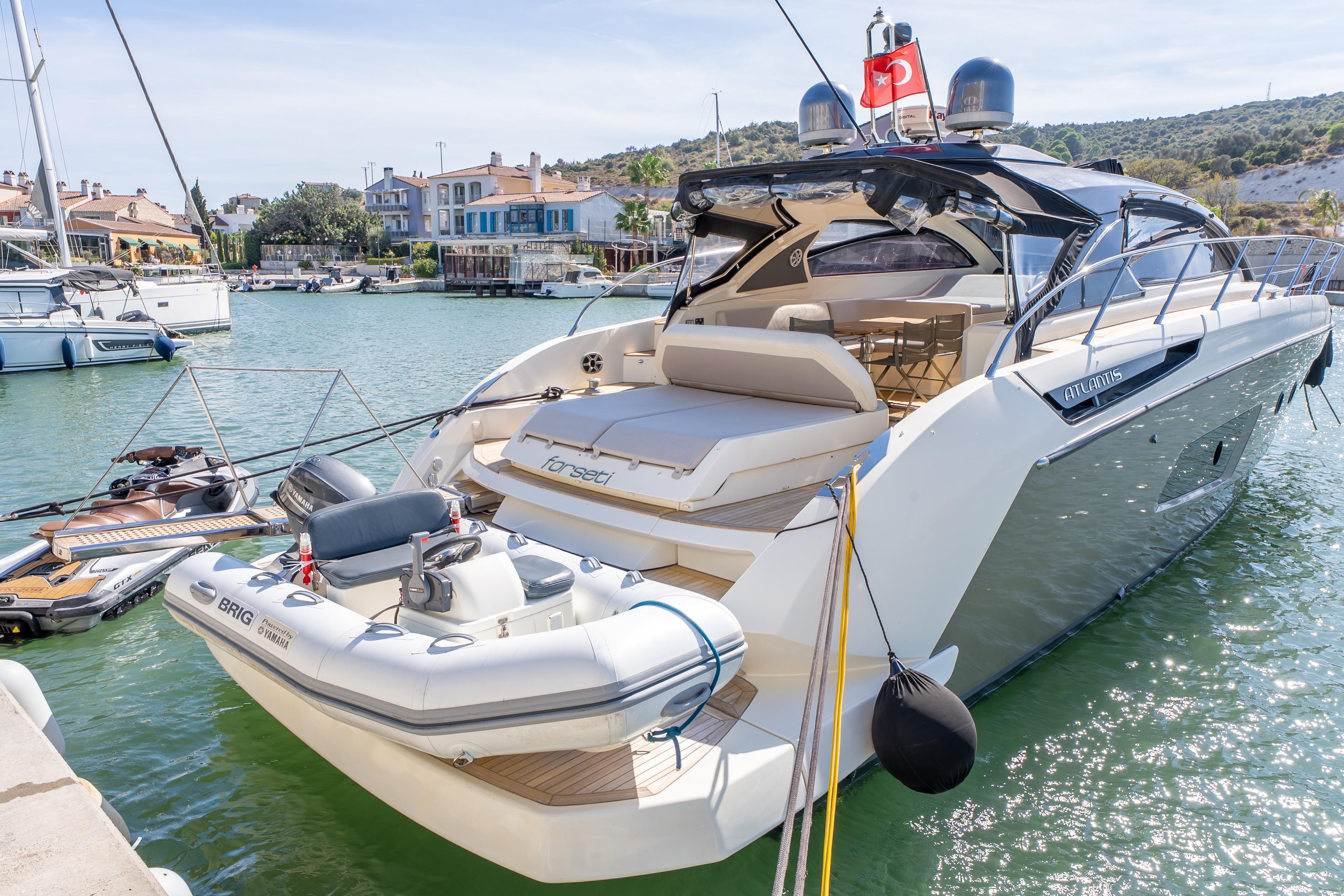

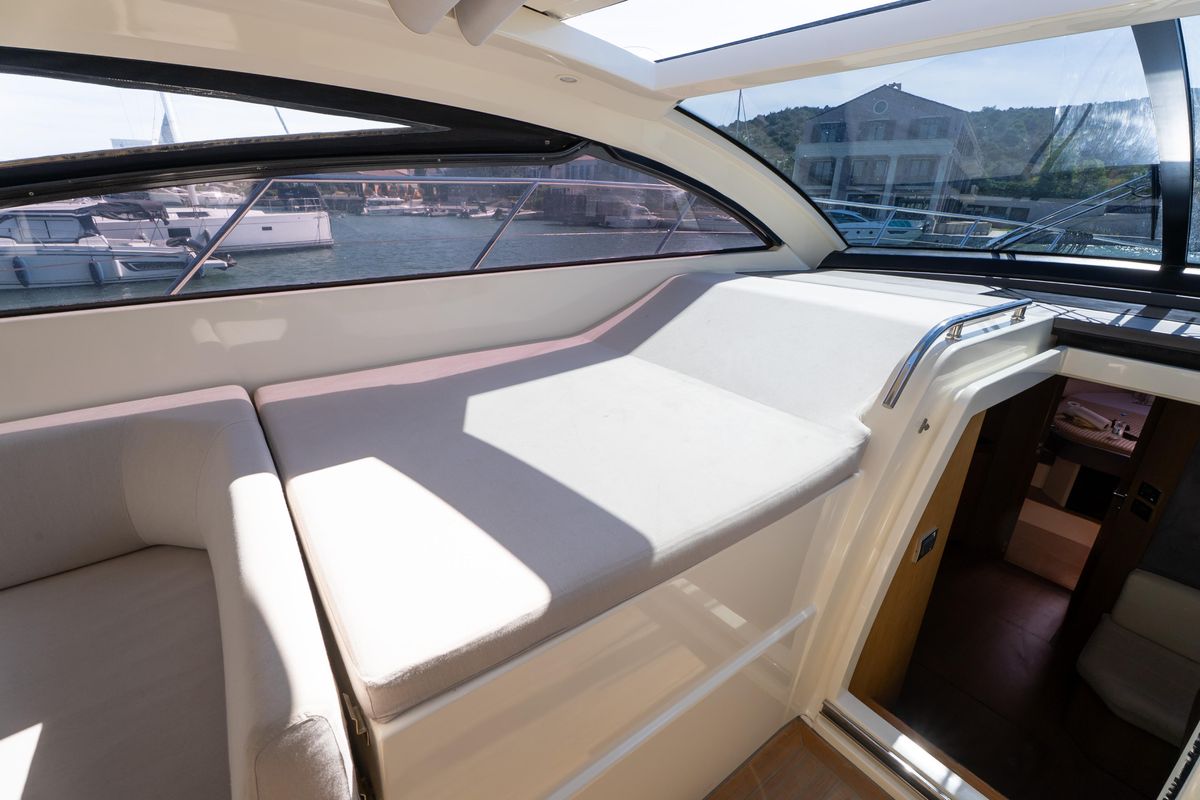

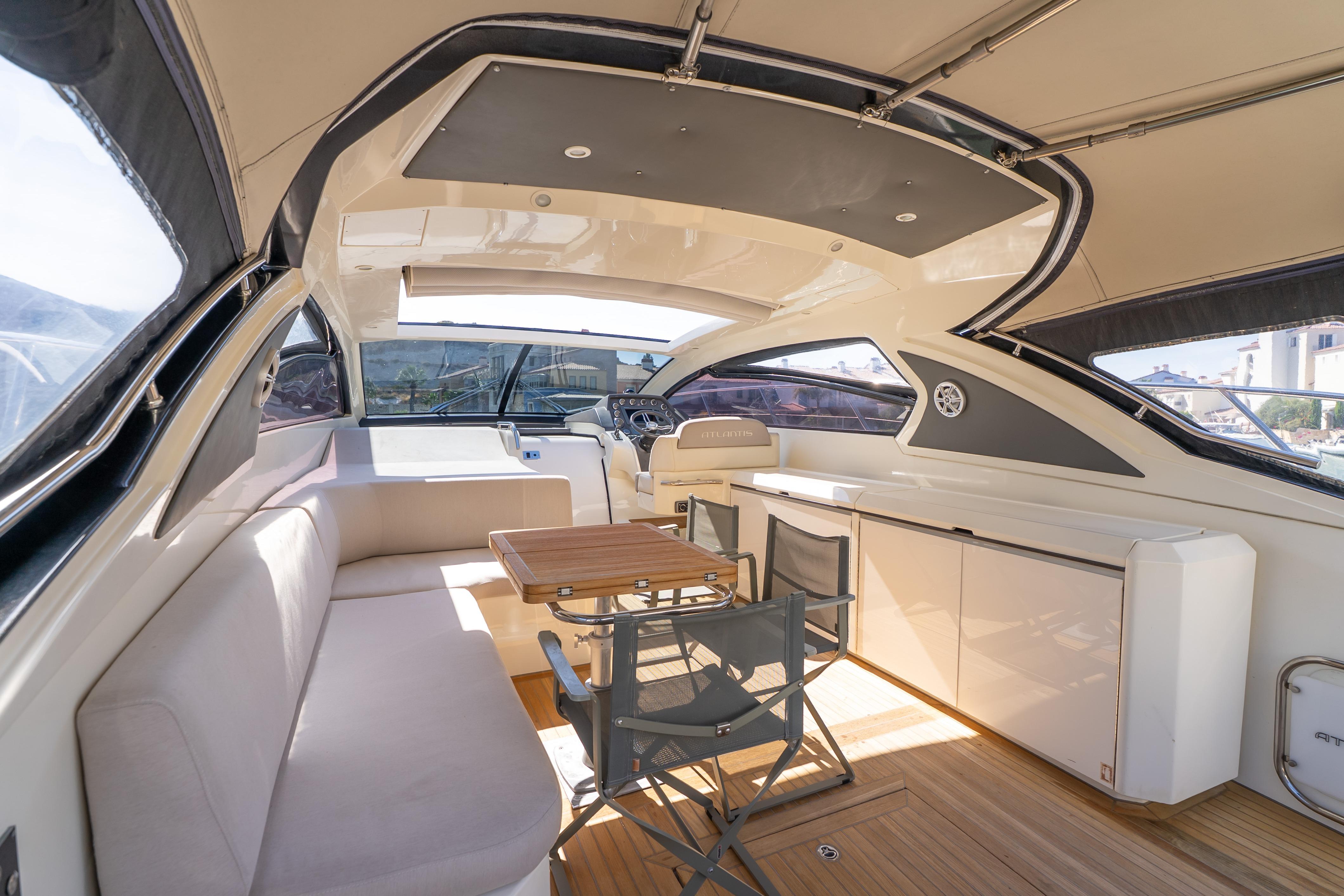

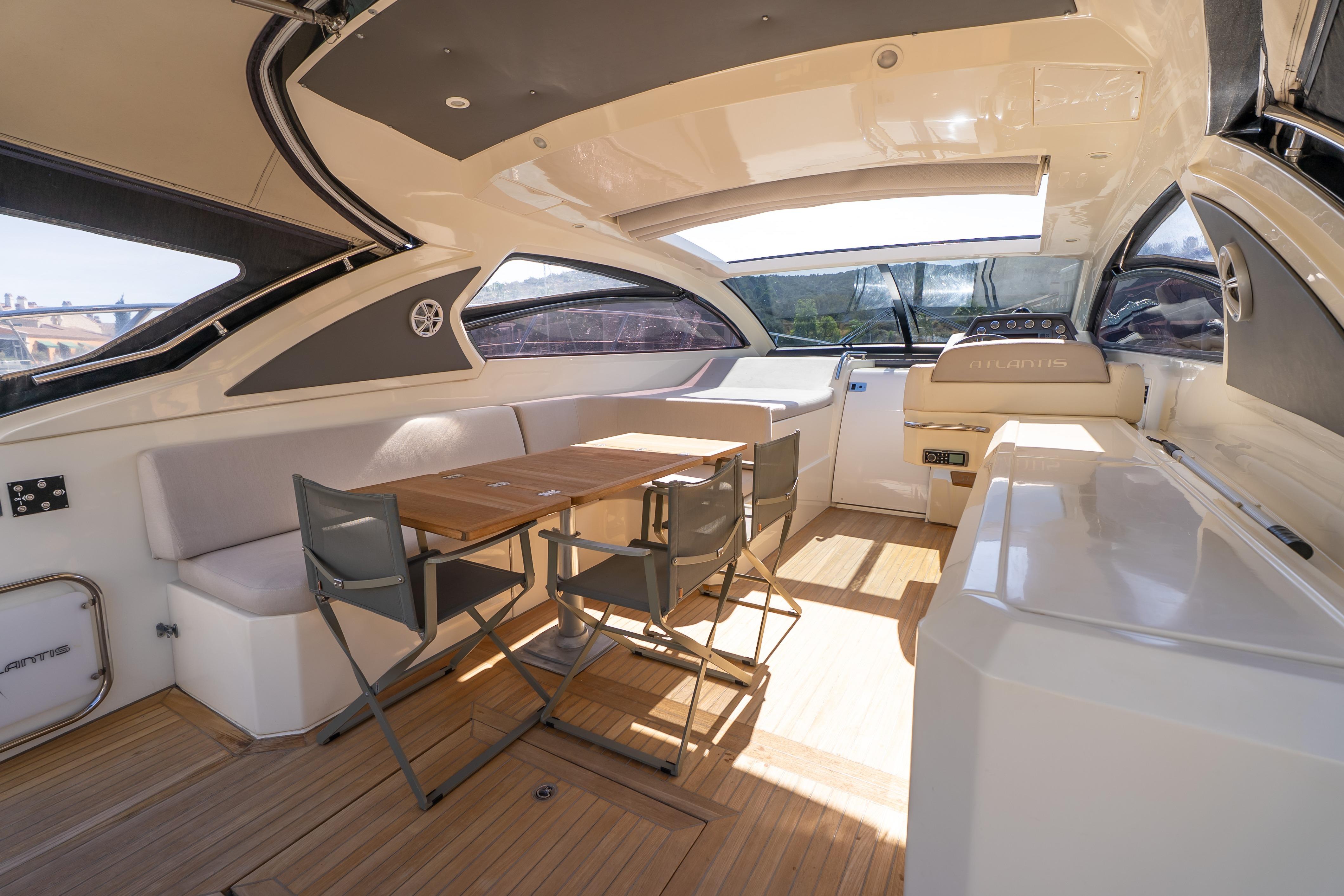

COCKPIT

• Access to the engine compartment through the hatch
• Plexiglas steel framed aft access doors with Atlantis logos (2 pcs.)

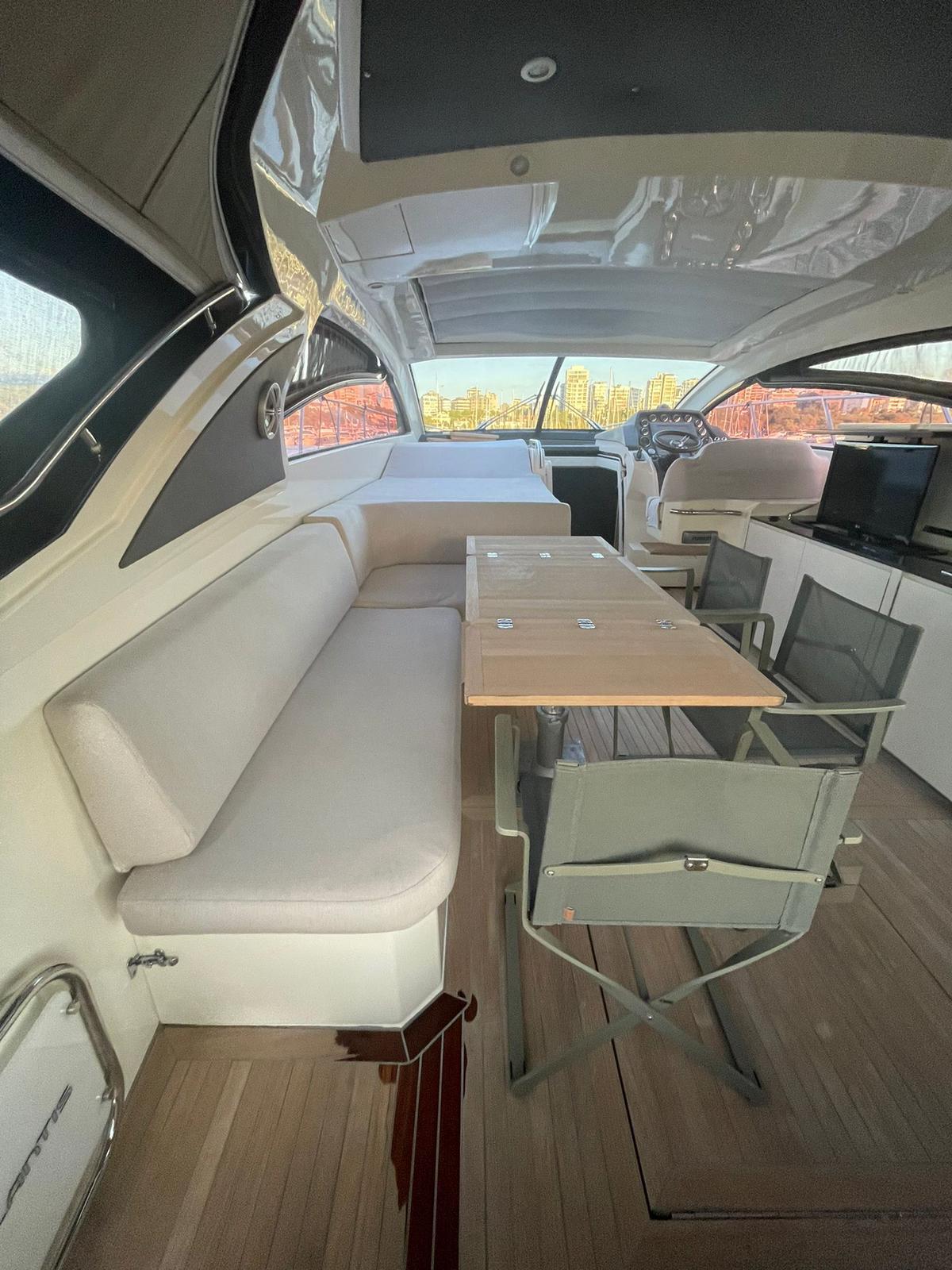

• L-shaped sofa with a storage compartment for a life raft
• Shower on the swim platform
• Refrigerator with a capacity of 75 l
• Waterproof storage compartments
• LED lights
• Main illumination - halogen lamps
• Cockpit kitchen with steel sink and faucet
• Teak floor in cockpit and swim platform

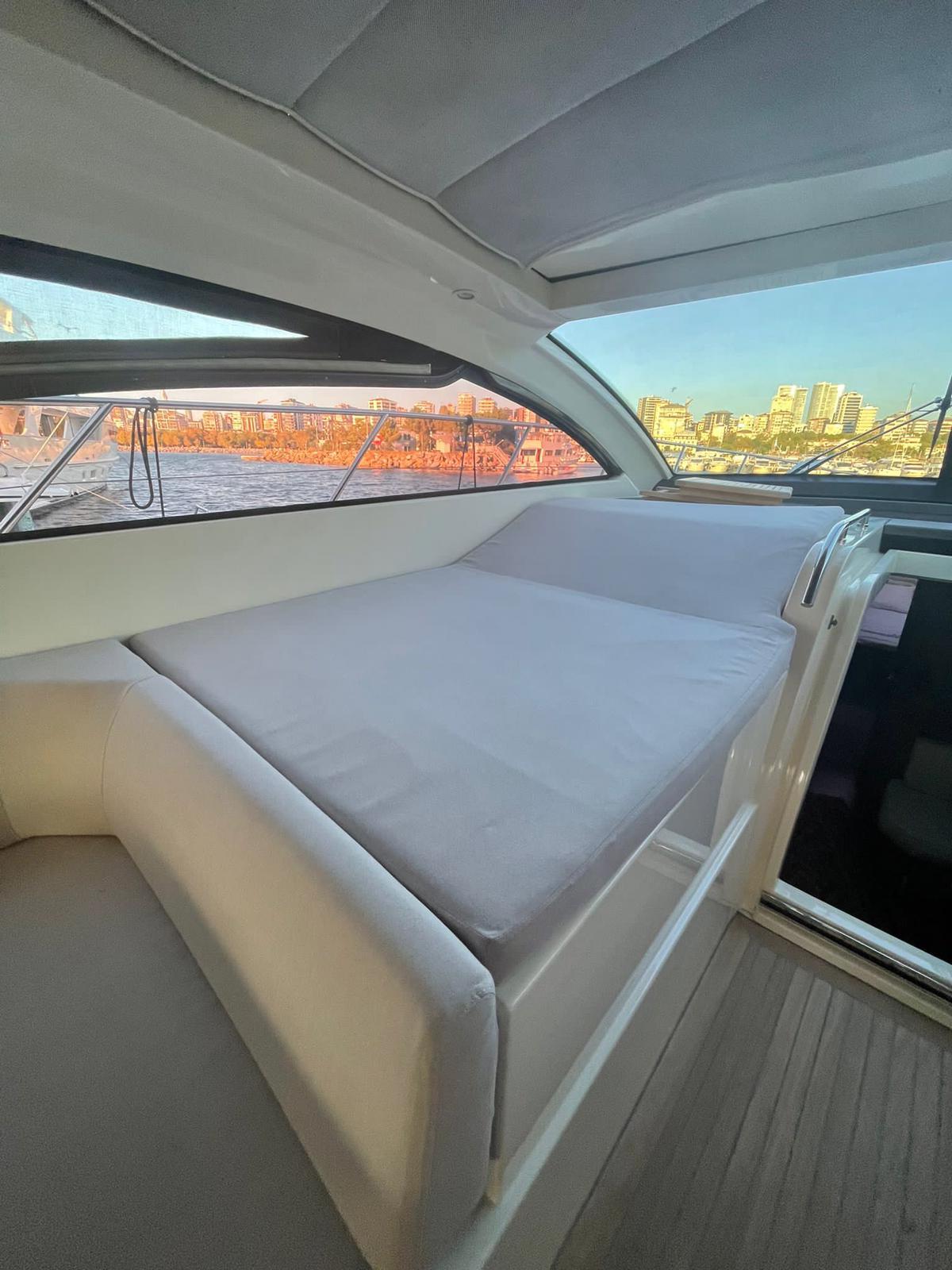

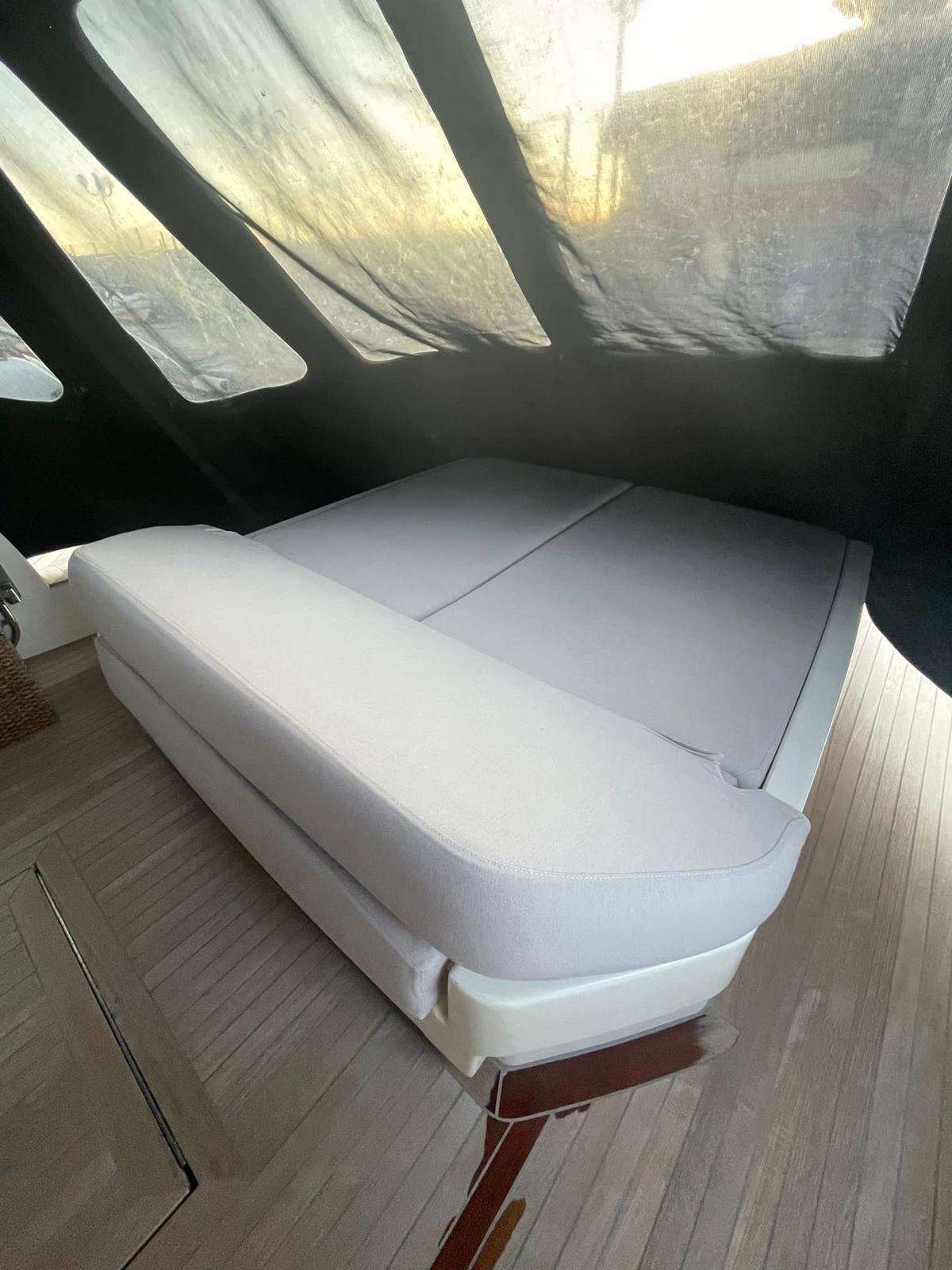

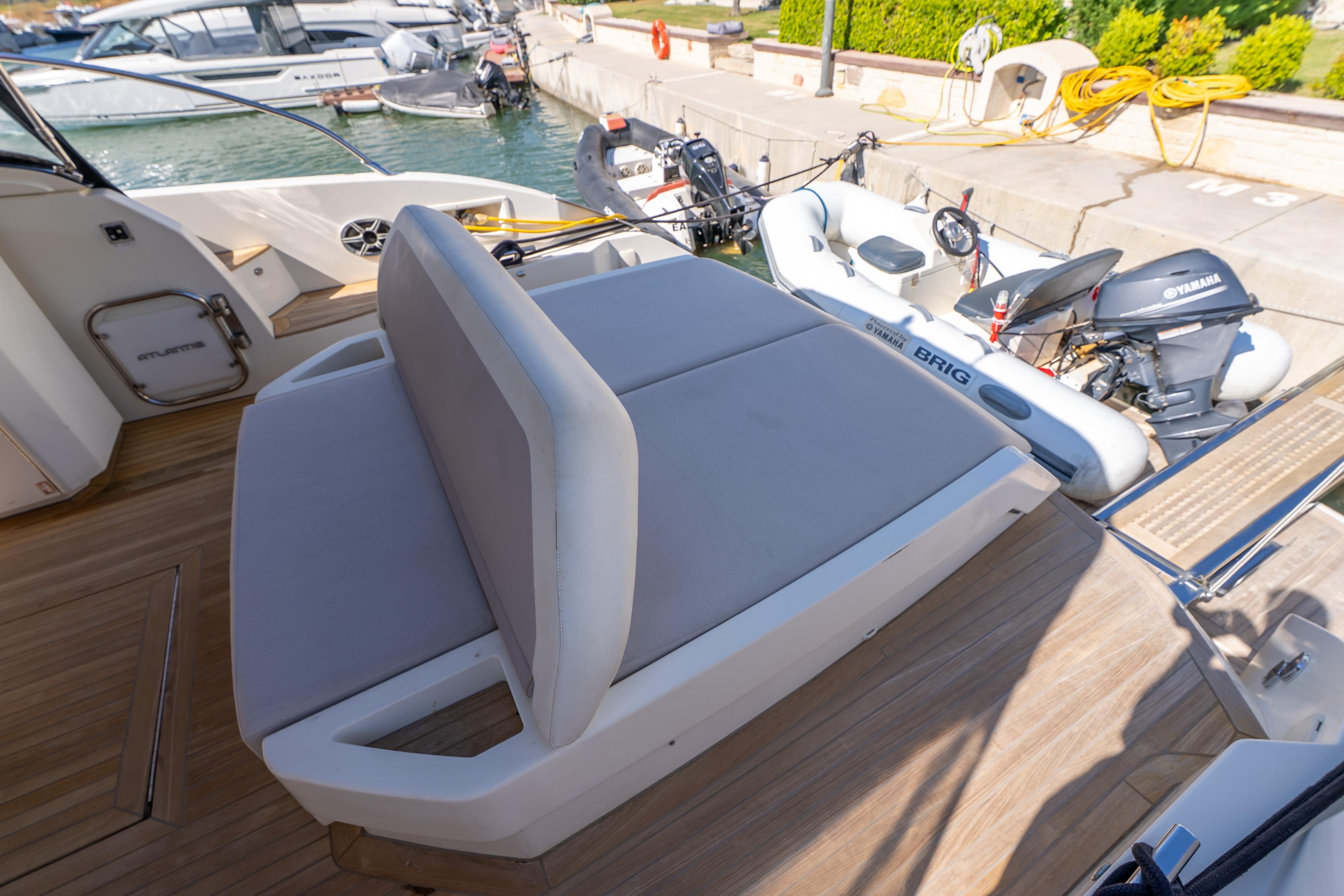

• Aft sunbathing area with adjustable backrest and cup holders
• Socket, 220V
• Water intakes in the body
• USB/Bluetooth System with waterproof speakers (x2)
• Manually retractable swim platform ladder
• Sliding transparent door in white Plexiglass, for access to the lower deck
• Table on a steel fixed support
• Steel handles
• Shore power connector 220V - 50A

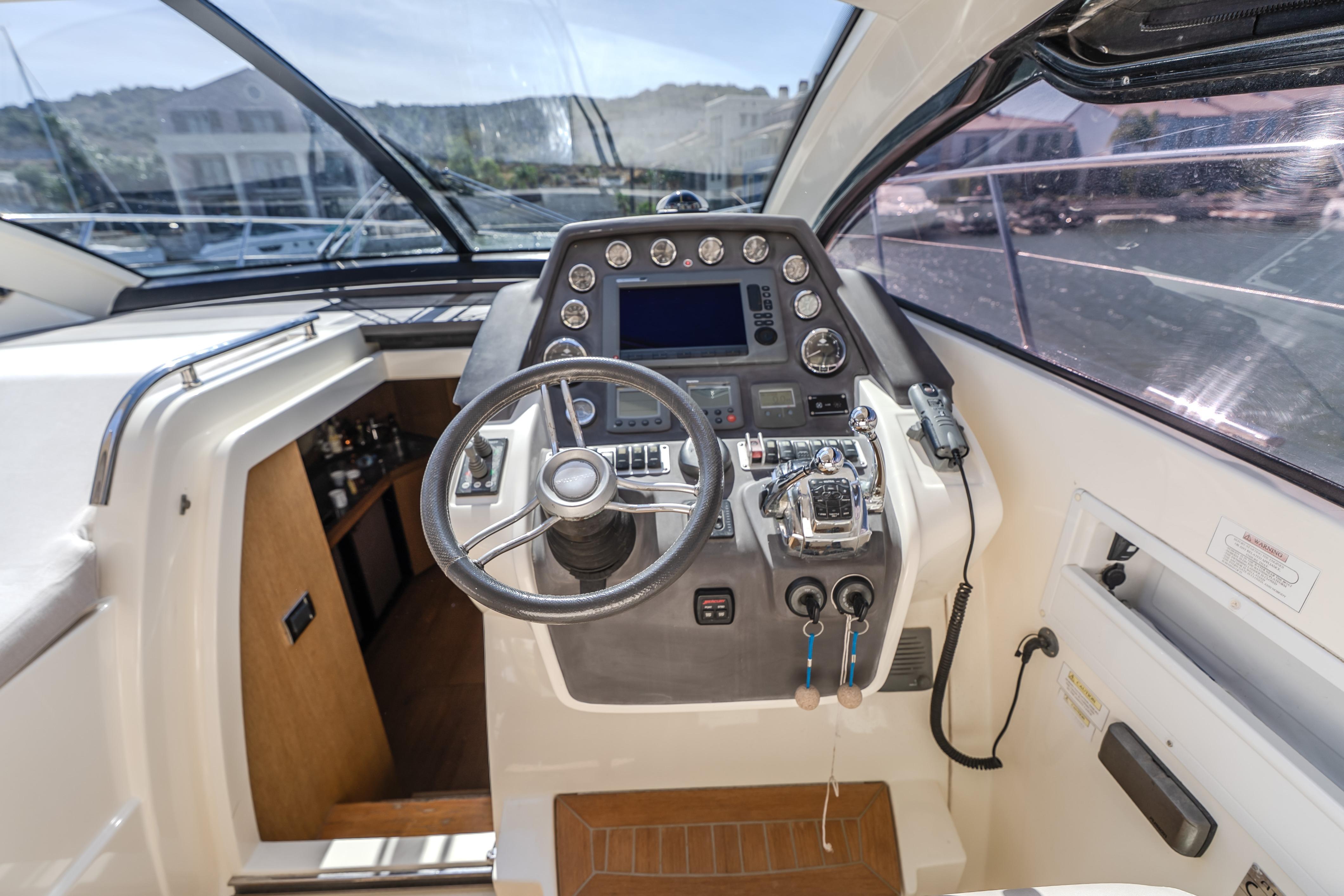

NAVIGATION TOOLS

• Emergency bilge pump
• Rudder position indicator
• magnetic compass
• Electronic engine control knobs
• Tachometer
• Fire safety system status indicator
• Trim tab indicator
• Waterproof switches
• Water level indicator in the tank
• Fuel gauge
• Oil pressure gauge
• Engine emergency stop button
• Shore power indicator
• Coolant temperature sensor
• Display: echo sounder with alert system, trip odometer, water temperature
• Voltmeter
• Radio unit with speaker
• Hydraulic steering system, with adjustable steering wheel made of stainless stell, trimmed with genuine leather

DECOR

• Exterior cushions in fast-drying, closed-cell foam with stain-resistant synthetic fabric upholstery
• Interior cushions with removable covers made of natural fabric
• Upholstered headboard in microfiber
• Furniture, doors and walls in lacquered wood
• Wall upholstery with microfiber
• Carpeted floor
• Microfibre ceiling upholstery
• Aluminum Venetian Blinds

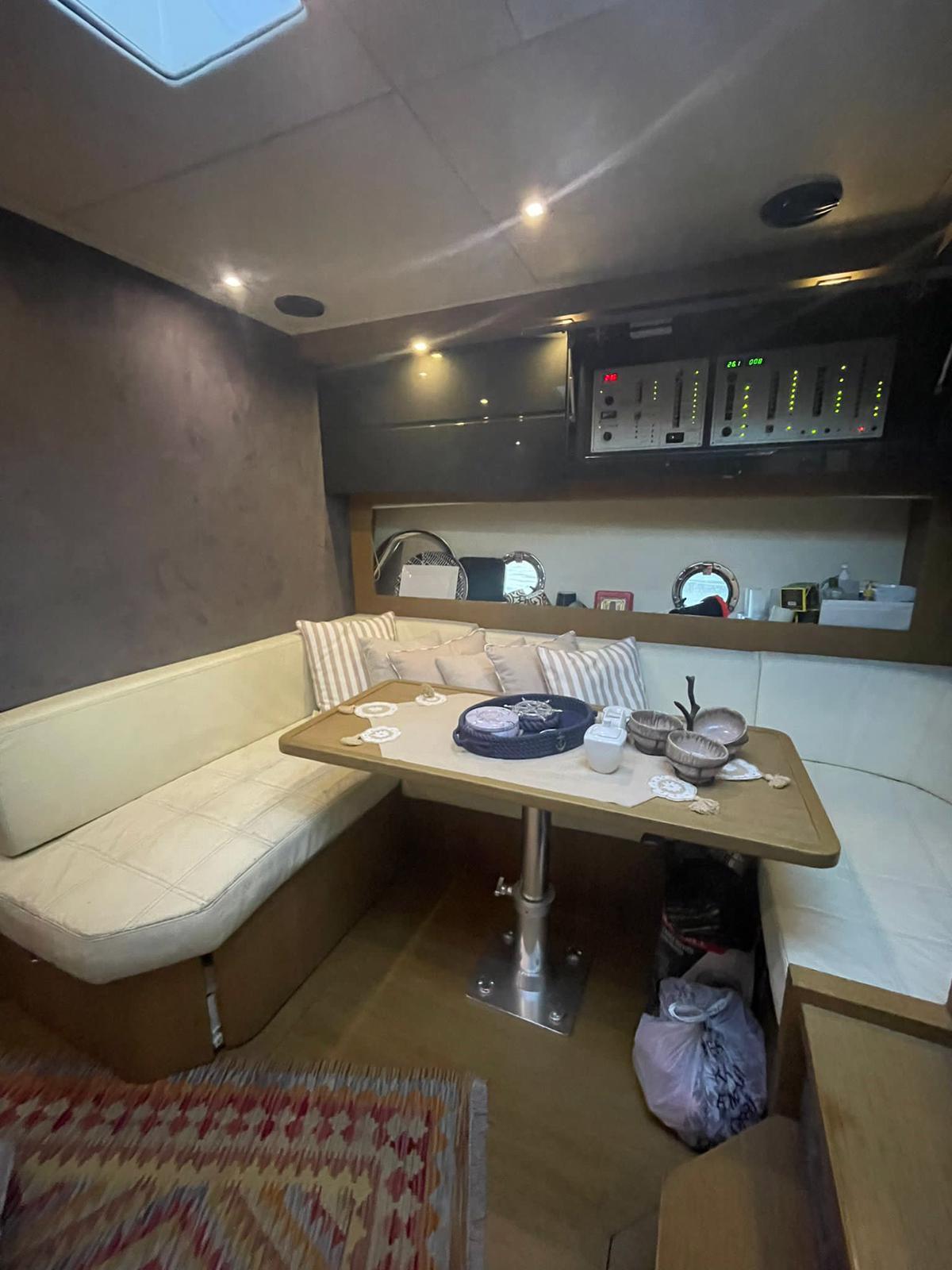

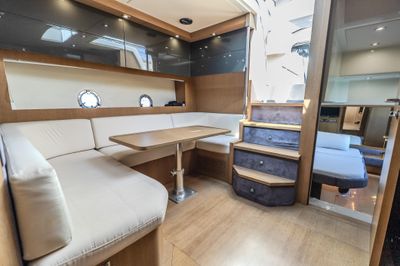

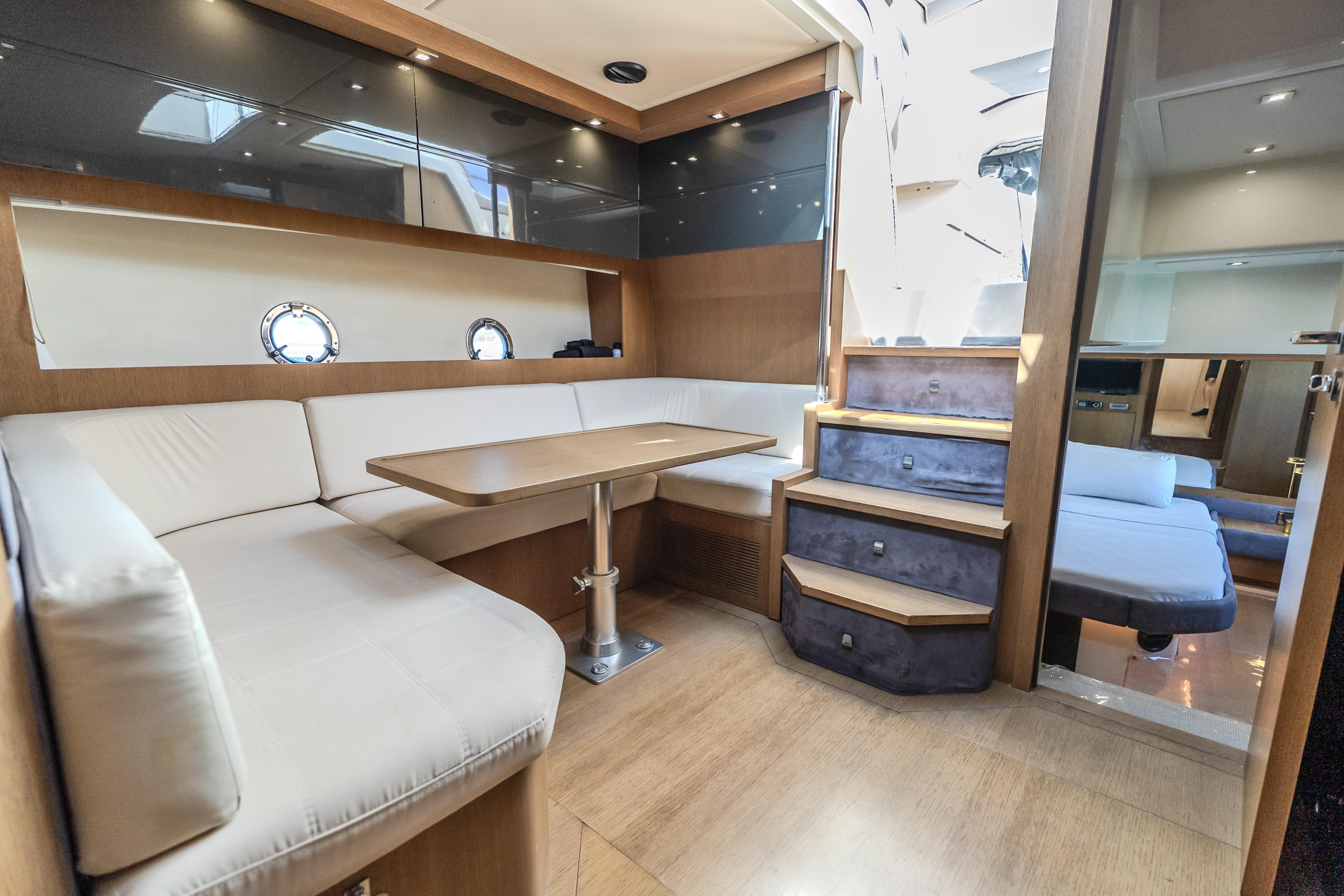

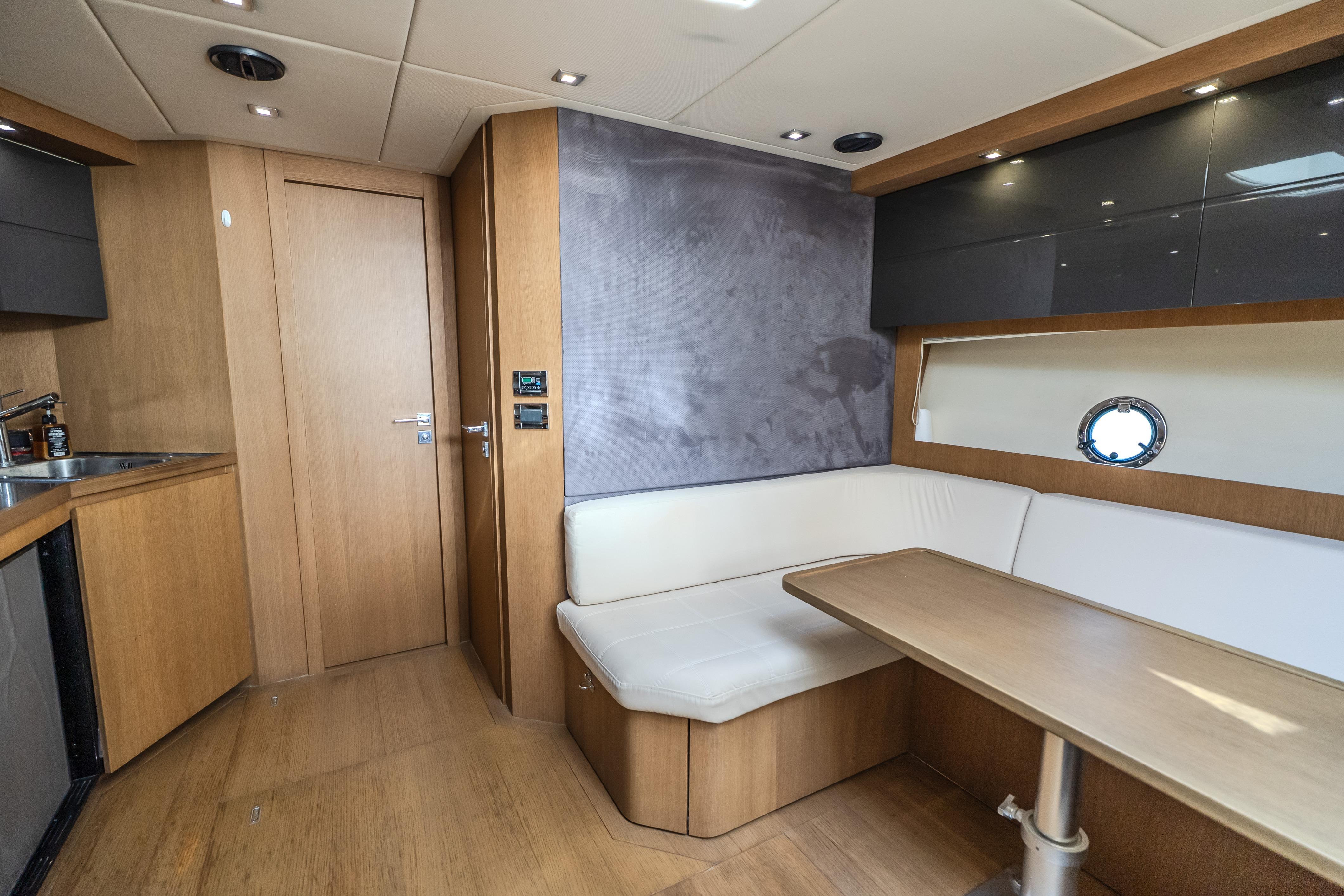

DINNER ZONE

• Door to the VIP / day bathroom

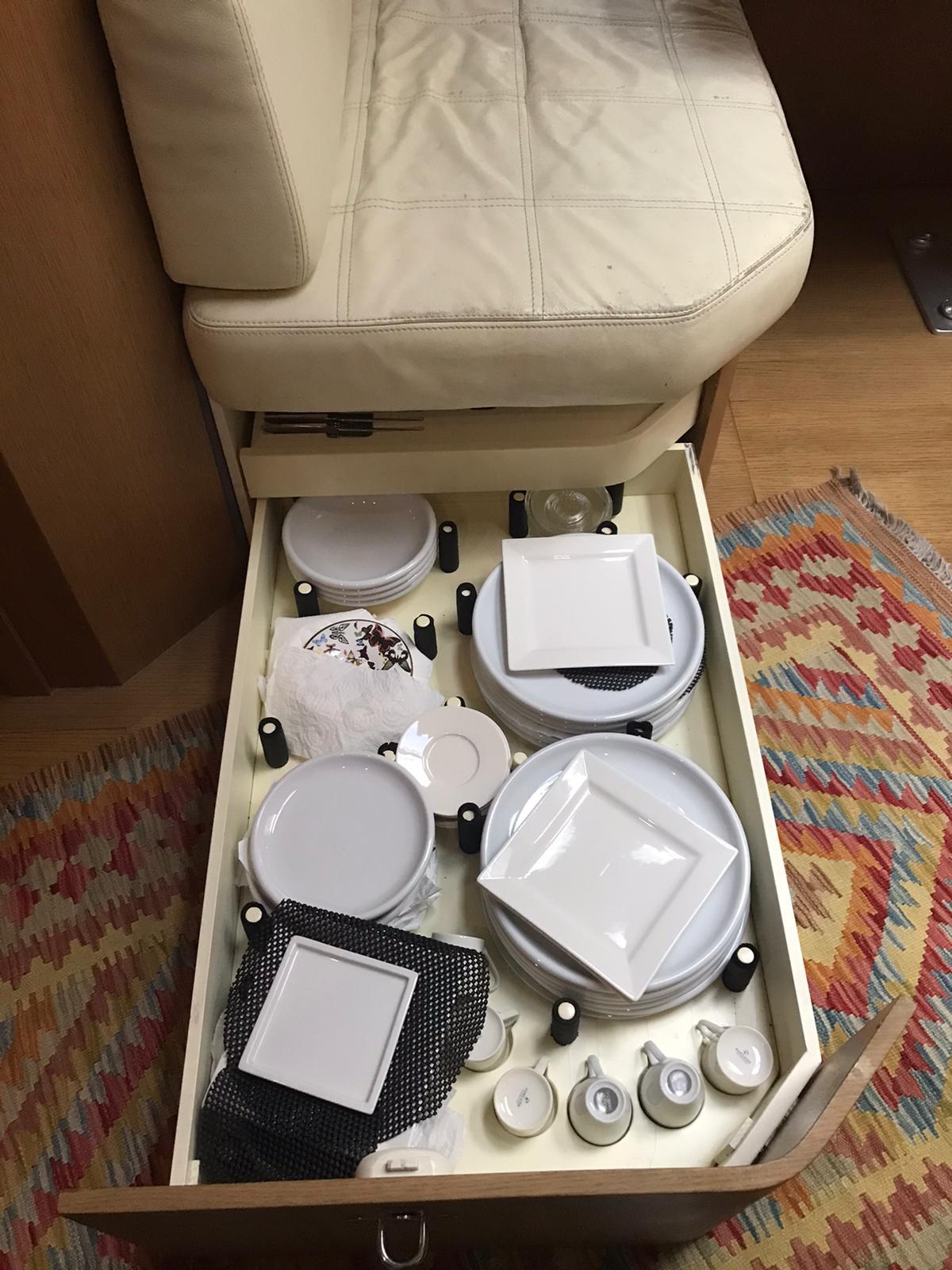

• Wooden sofa base with drawers and storage compartments
• Sofa upholstered in natural fabric
• Fire extinguisher, 1 kg
• Natural wood steps (oak)
• LED and halogen lighting
• Light switches
• Portholes in stainless steel edging, with mosquito nets (2 pcs.)
• Cupboards for dishes
• Table in oak wood with folding top and fixed steel base
• AC/DC electrical panel with thermal magnetic breakers
• Stainless steel handrails near steps

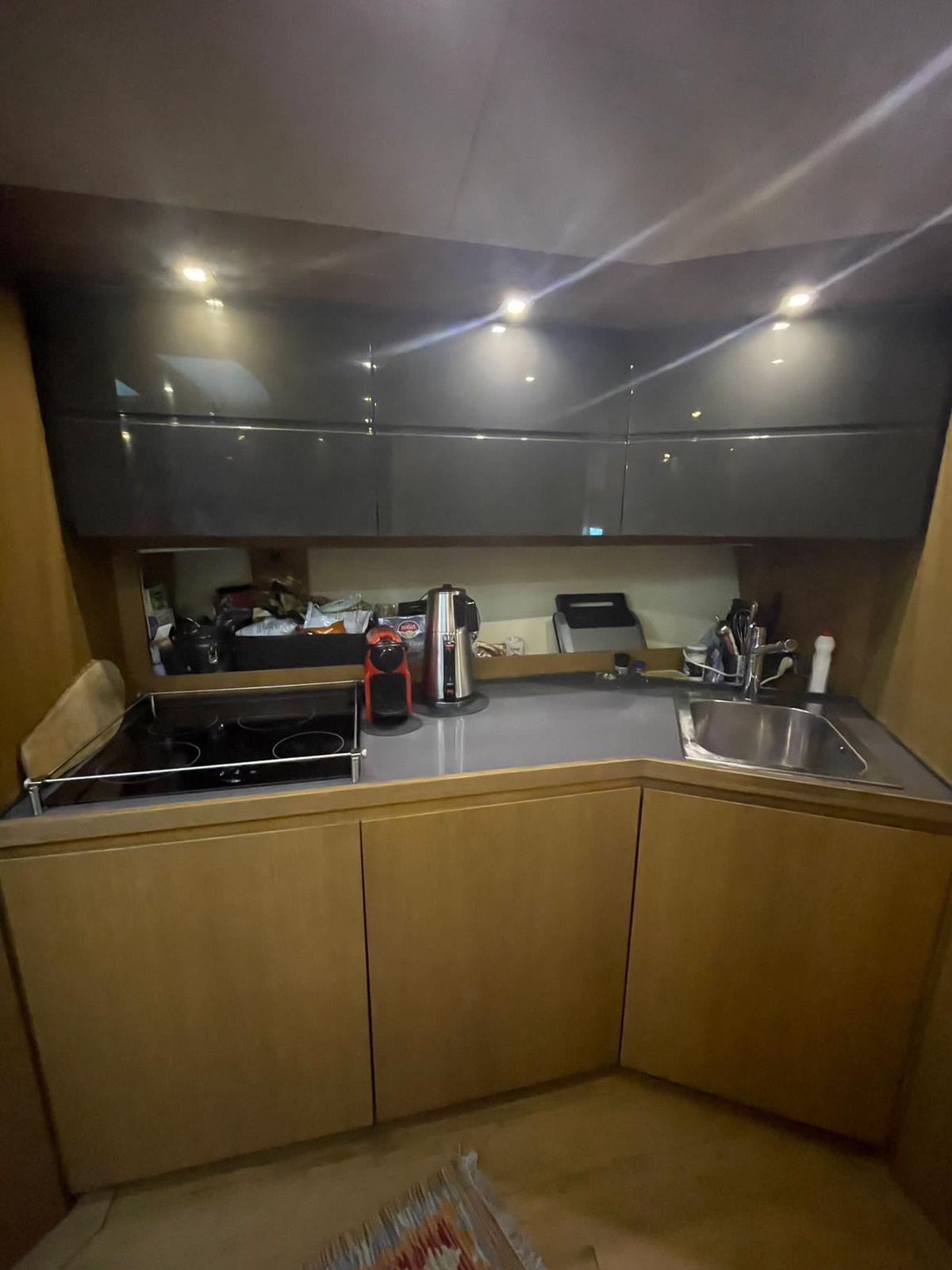

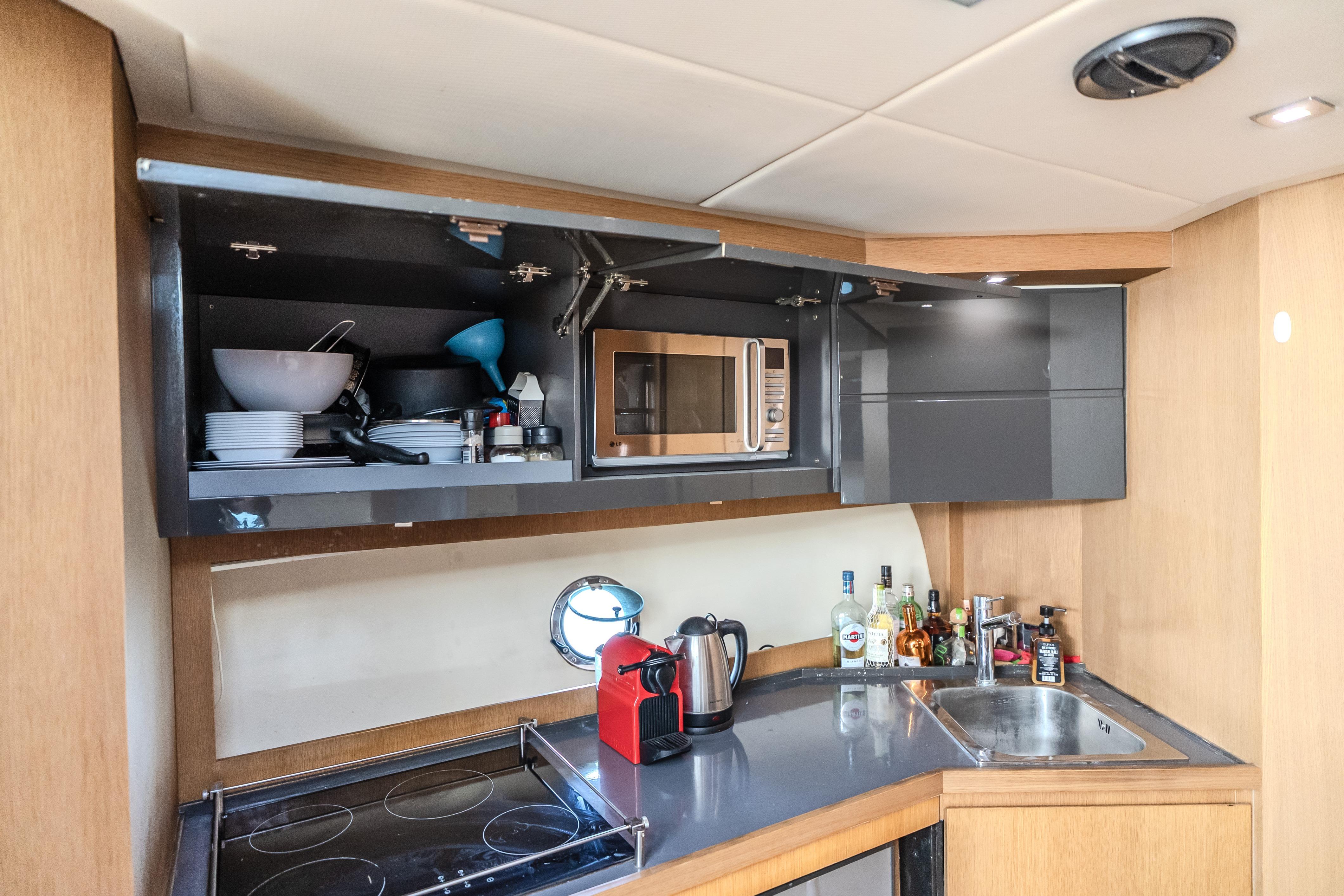

GALLEY (KITCHEN)

• Fire extinguisher, 1 kg
• Exhaust fan
• Combined microwave oven / grill, 220V
• Built-in refrigerator with a volume of 100 l, 24V
• LED lightening
• switches
• Steel sink with faucet
• Portholes with mosquito nets and stainless steel edging (2 pcs.)
• Cupboards, under-worktop storage and pantry
• Glass ceramic hob with 4 burners
• Laminated work surface
• Socket,S220V

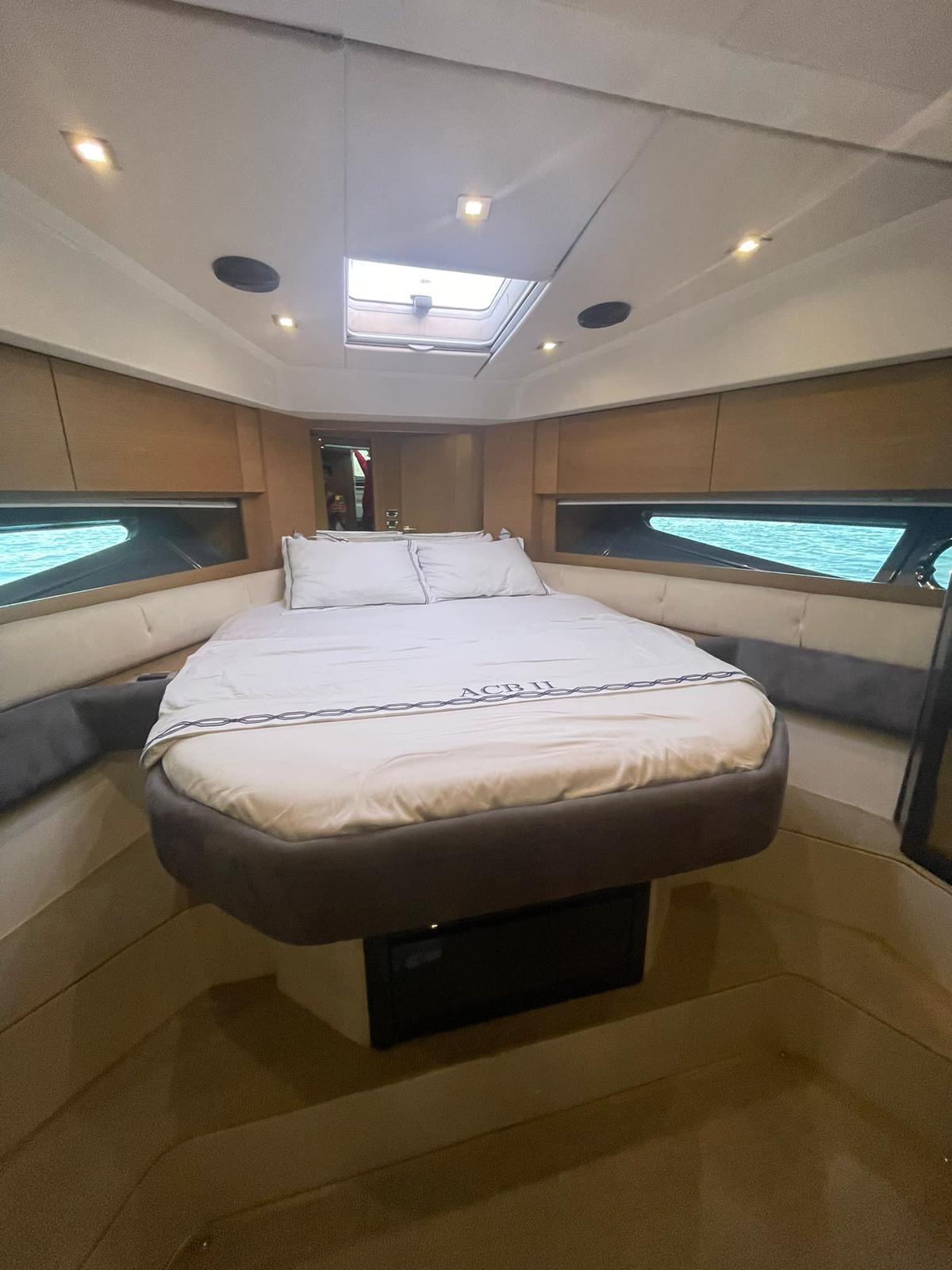

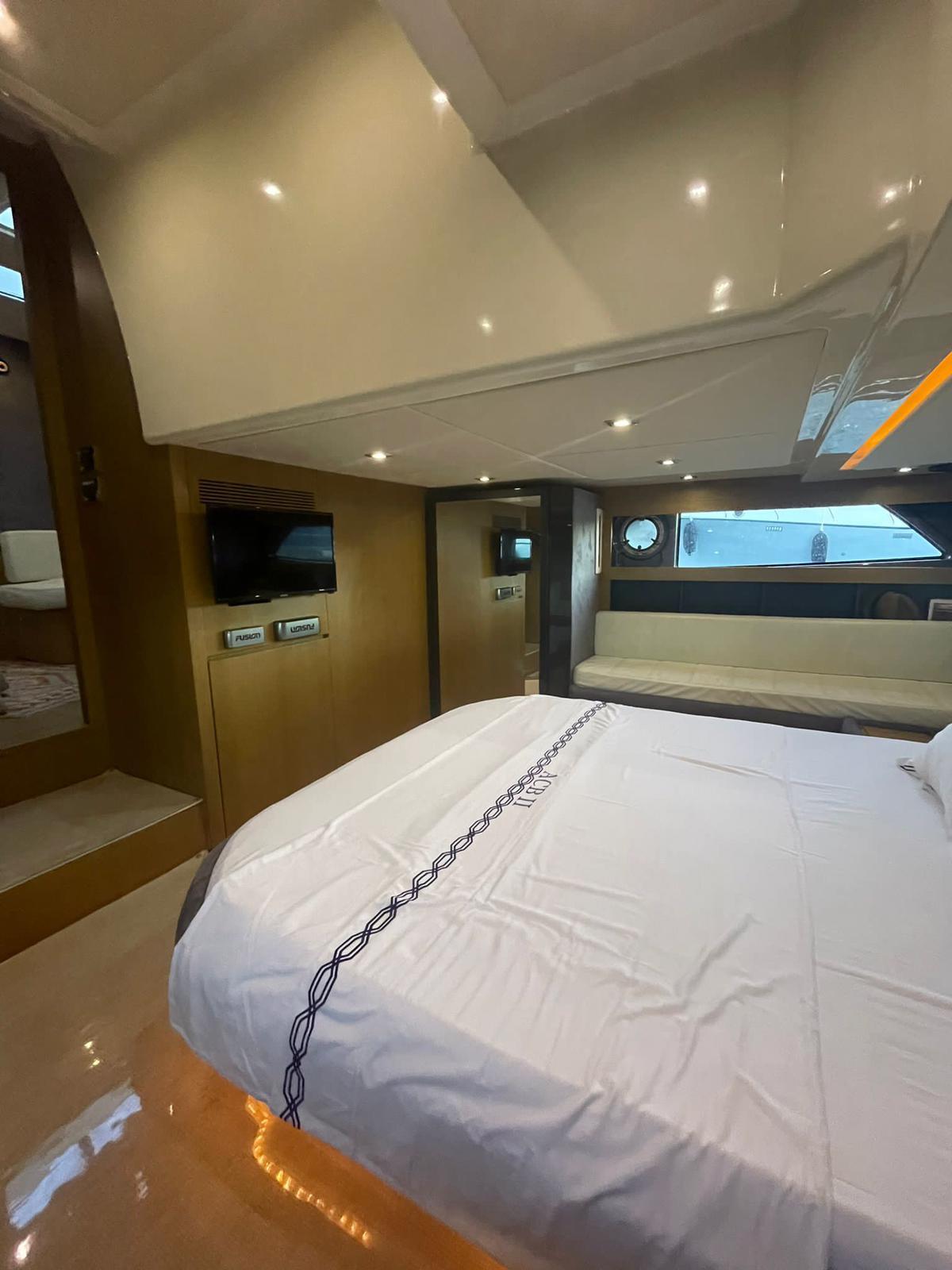

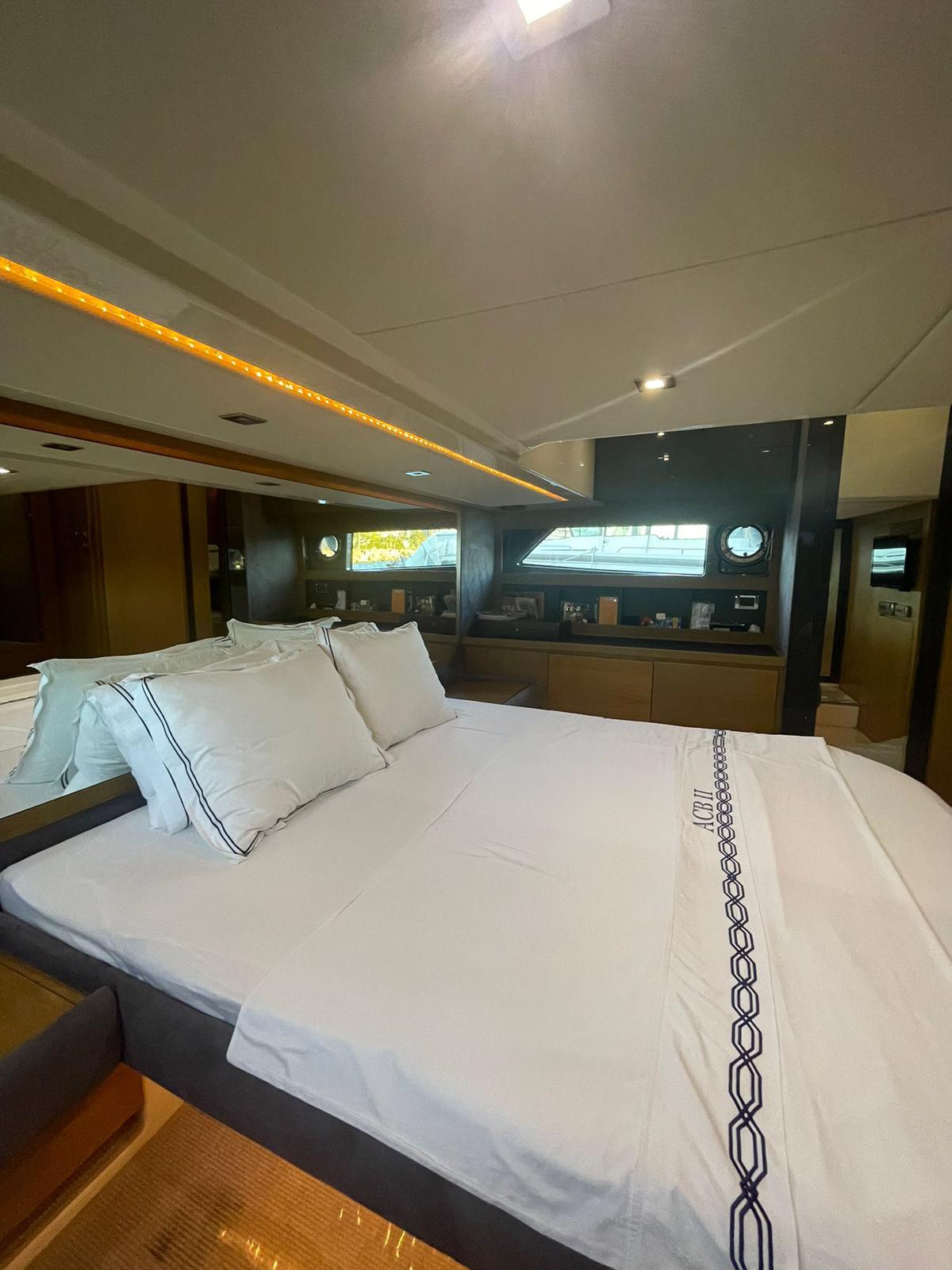

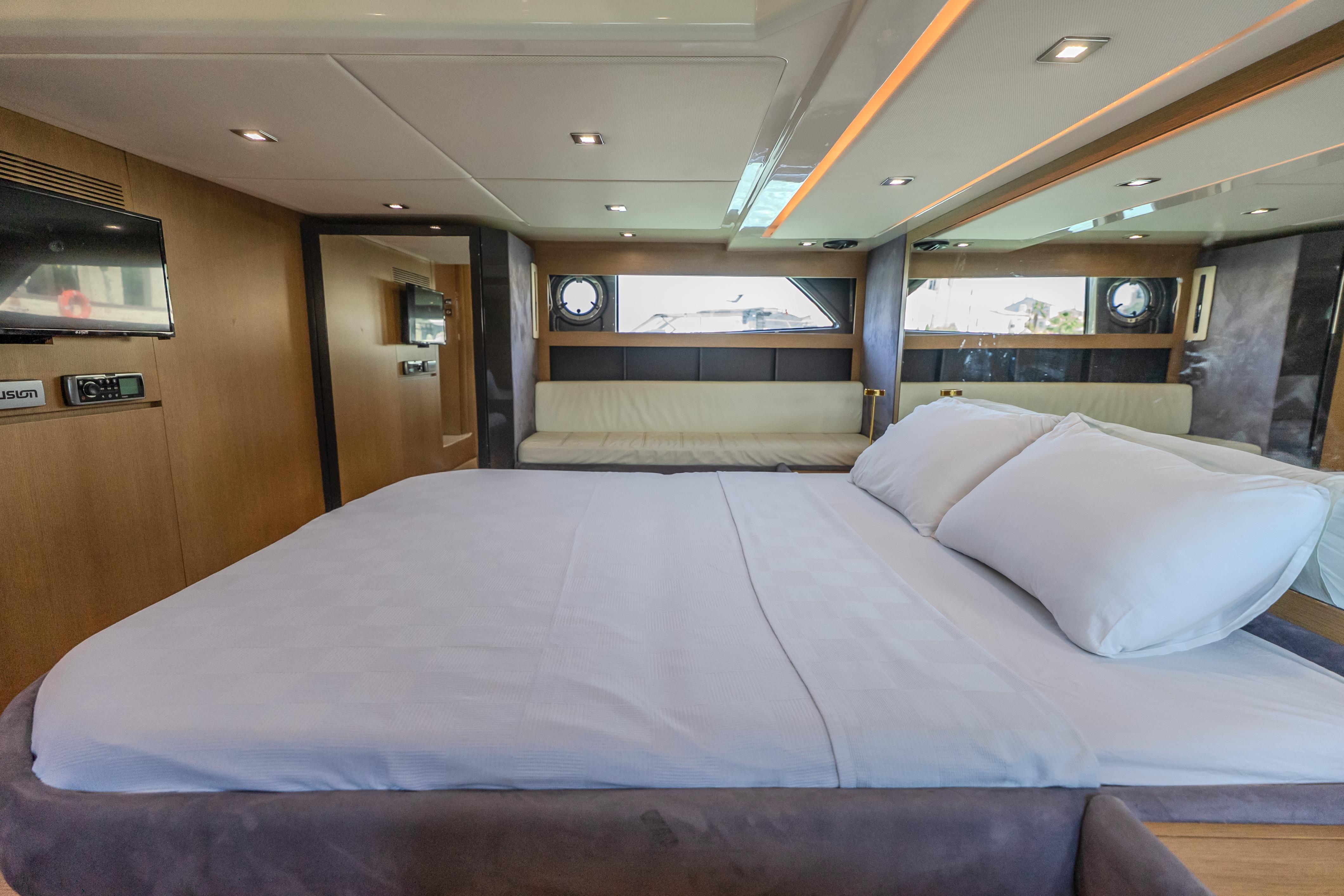

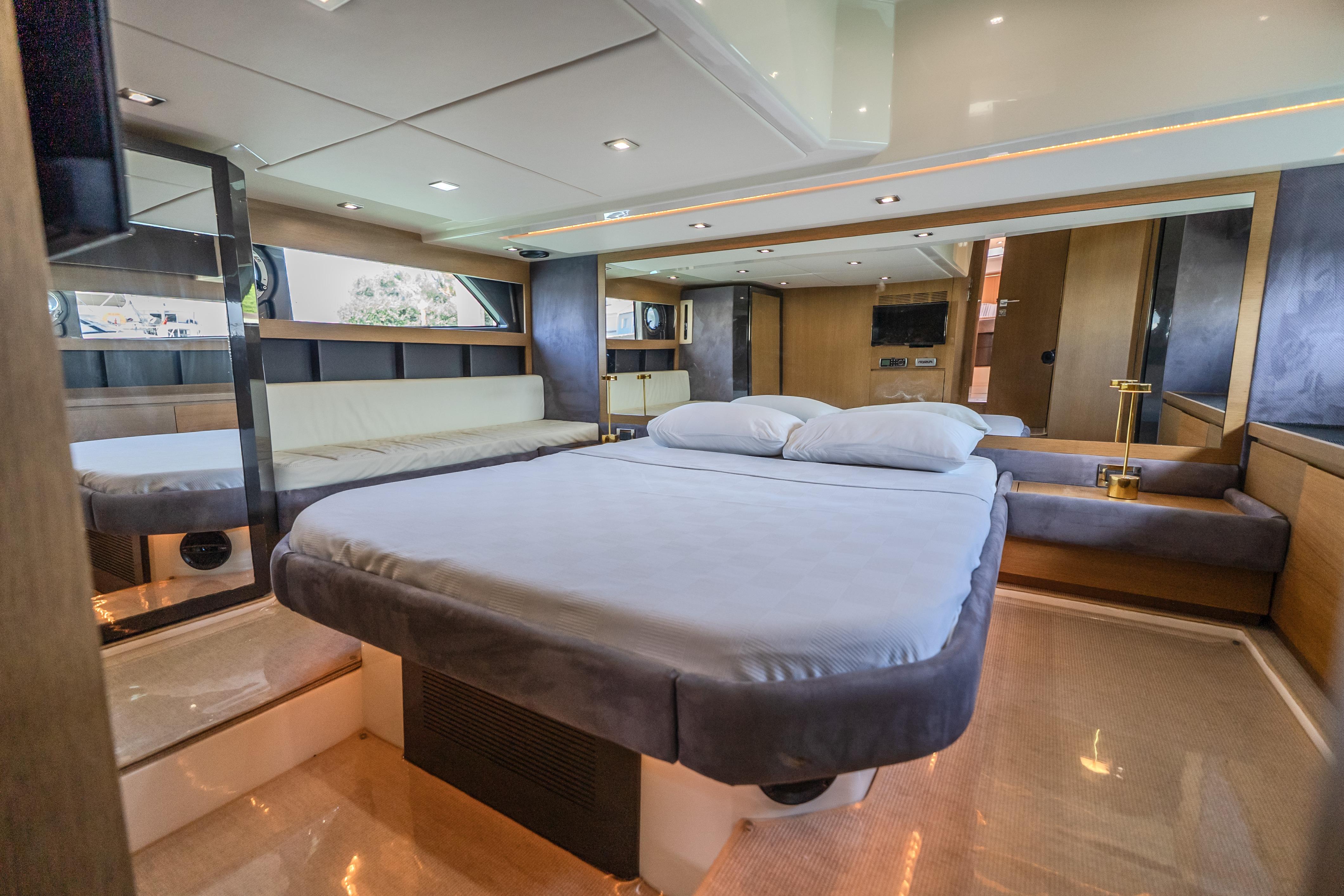

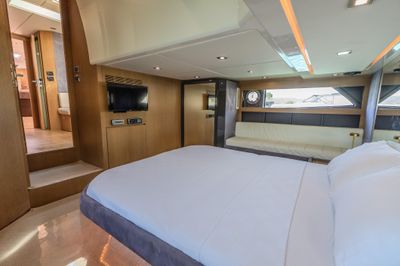

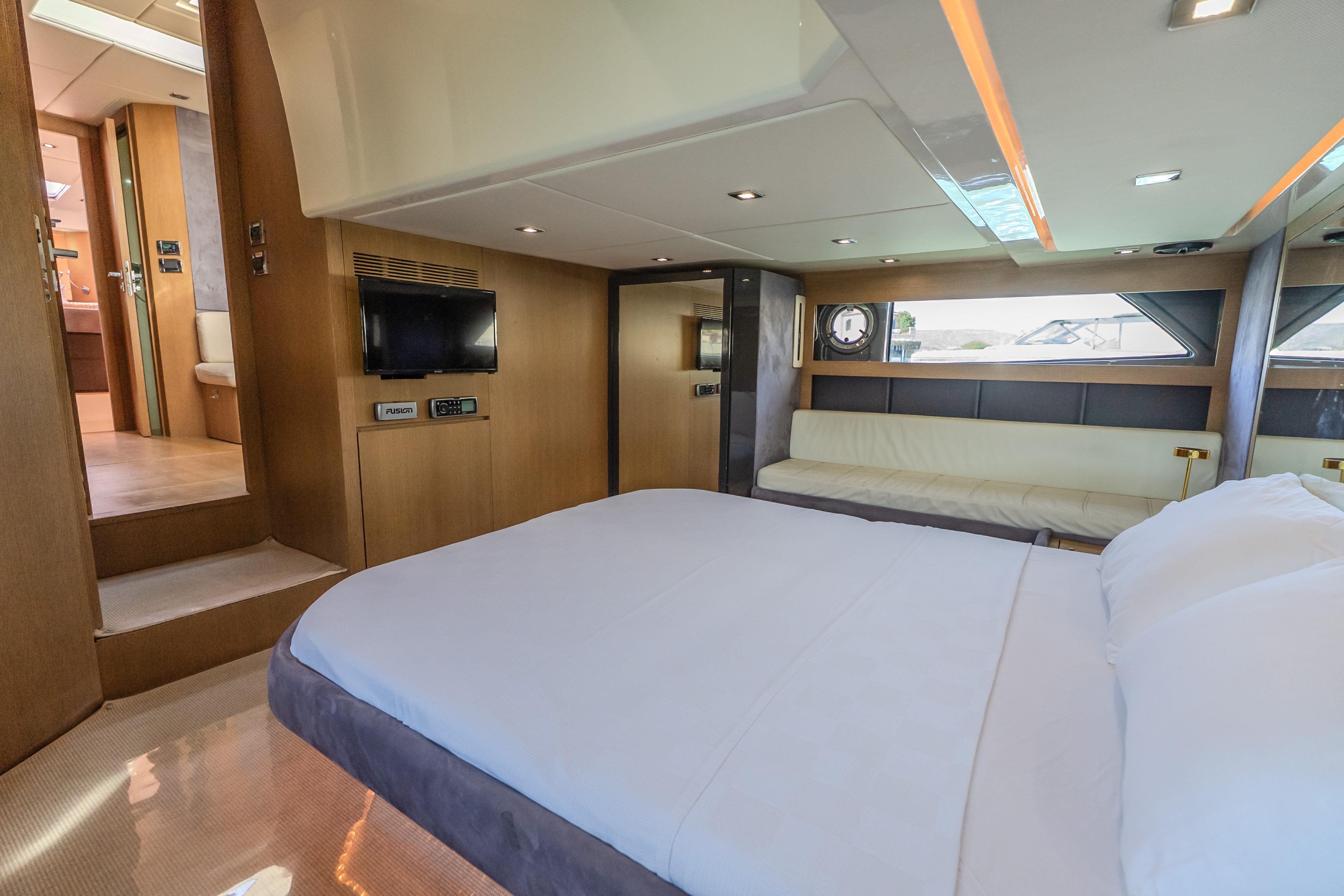

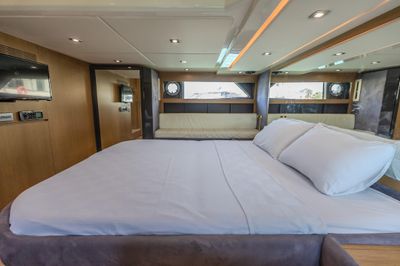

OWNER'S CABIN

• Built-in wardrobe with internal lighting and mirrors on the doors (2 pcs.)
• Study / TV space in front of the bed

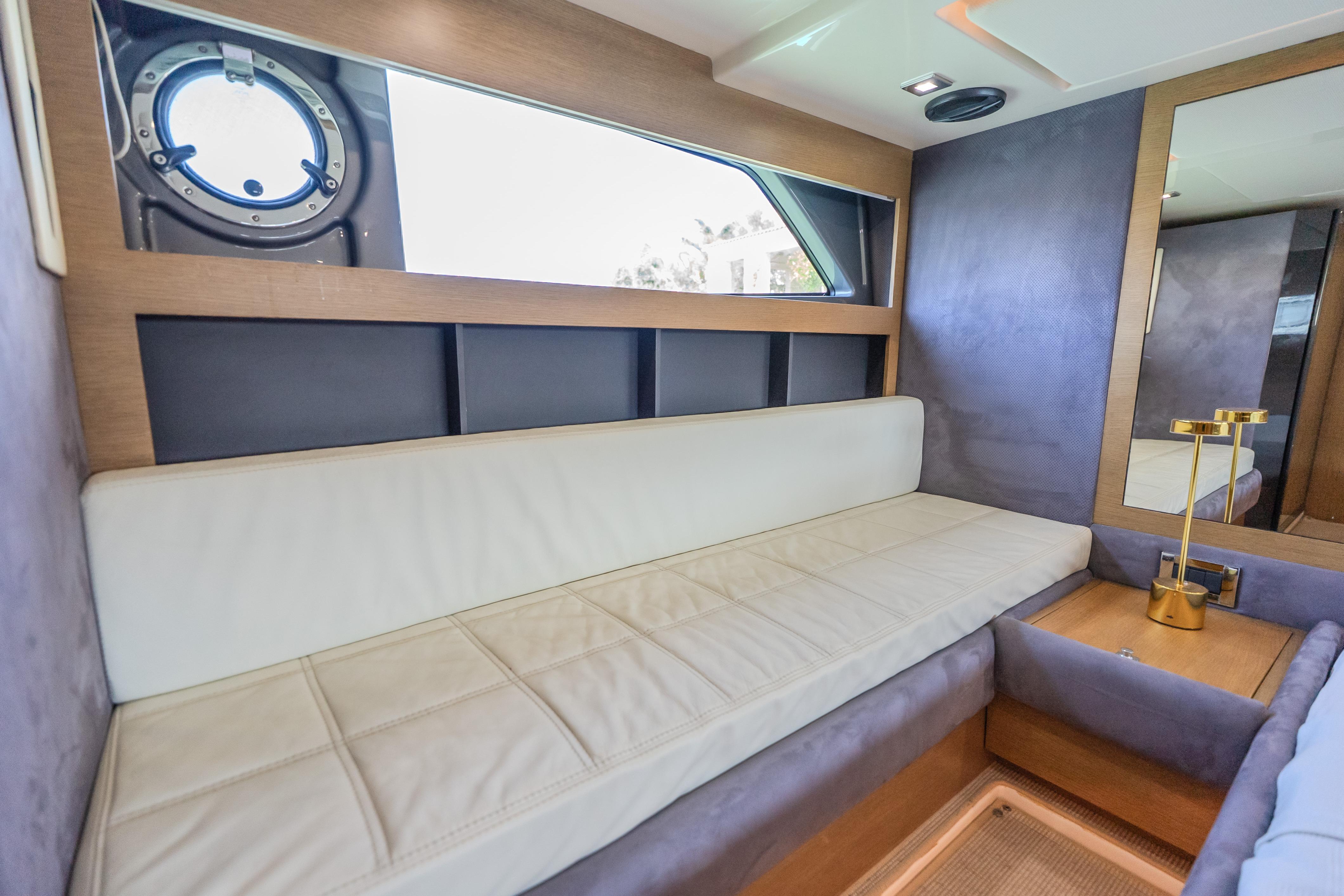

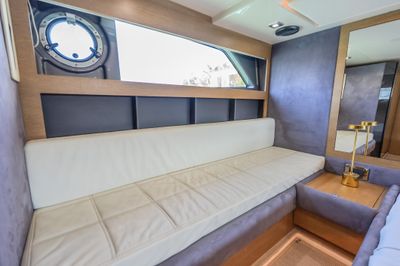

• Sofa to starboard
• Night table with opening top (2 pcs.)
• Fire extinguisher, 1 kg
• Fixed side window
• Halogen lighting
• Switches

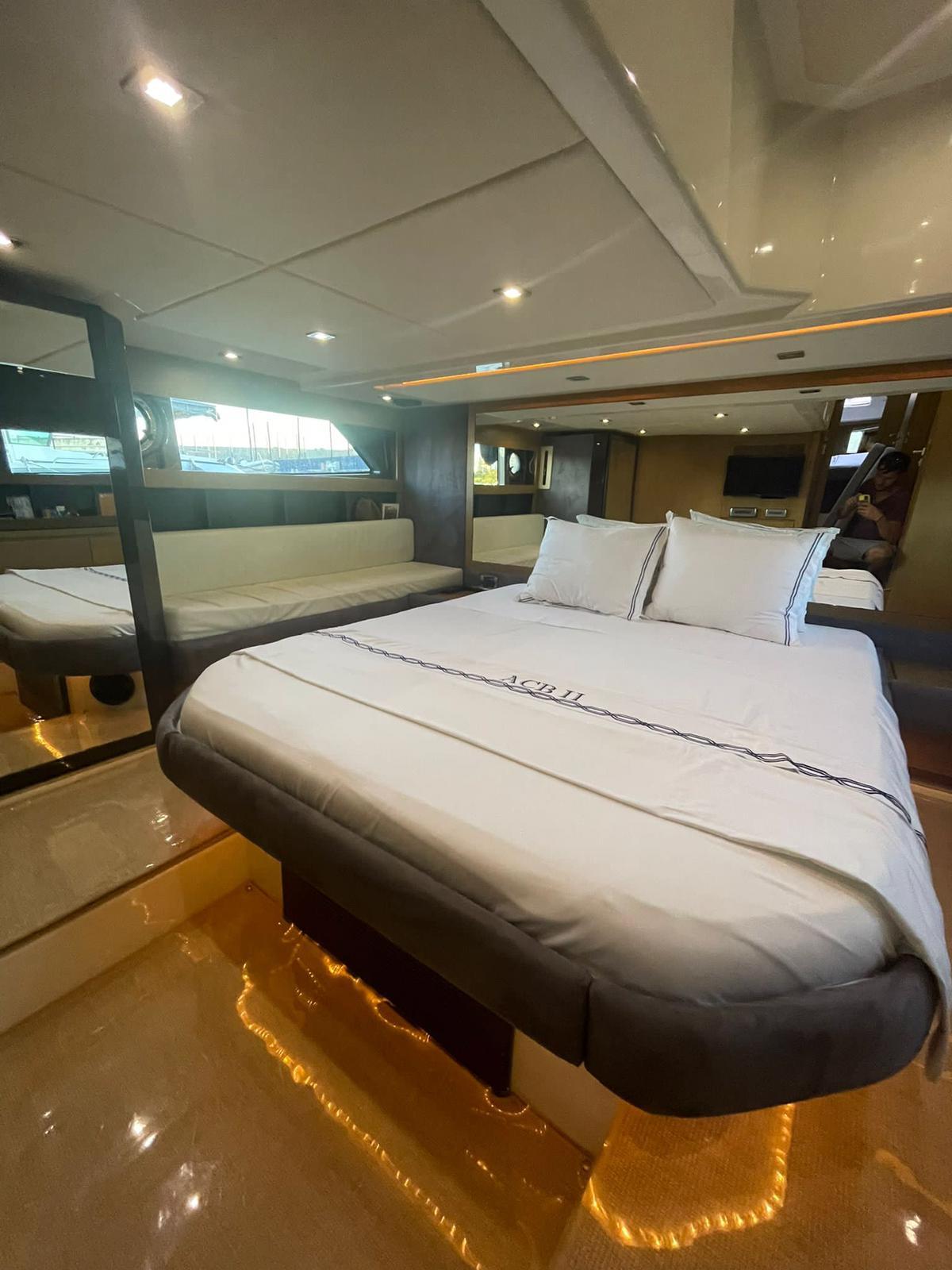

• Double bed with mattress, duvet and pillows
• 2 x reading lamps
• Night illumination
• Lockers on the port side
• Portholes in steel edging, with mosquito nets (2 pcs.)
• Socket, 220V
• Mirror at the head of the bed
• Bed base with storage drawers
• Microfiber headboard upholstery
• Open shelves

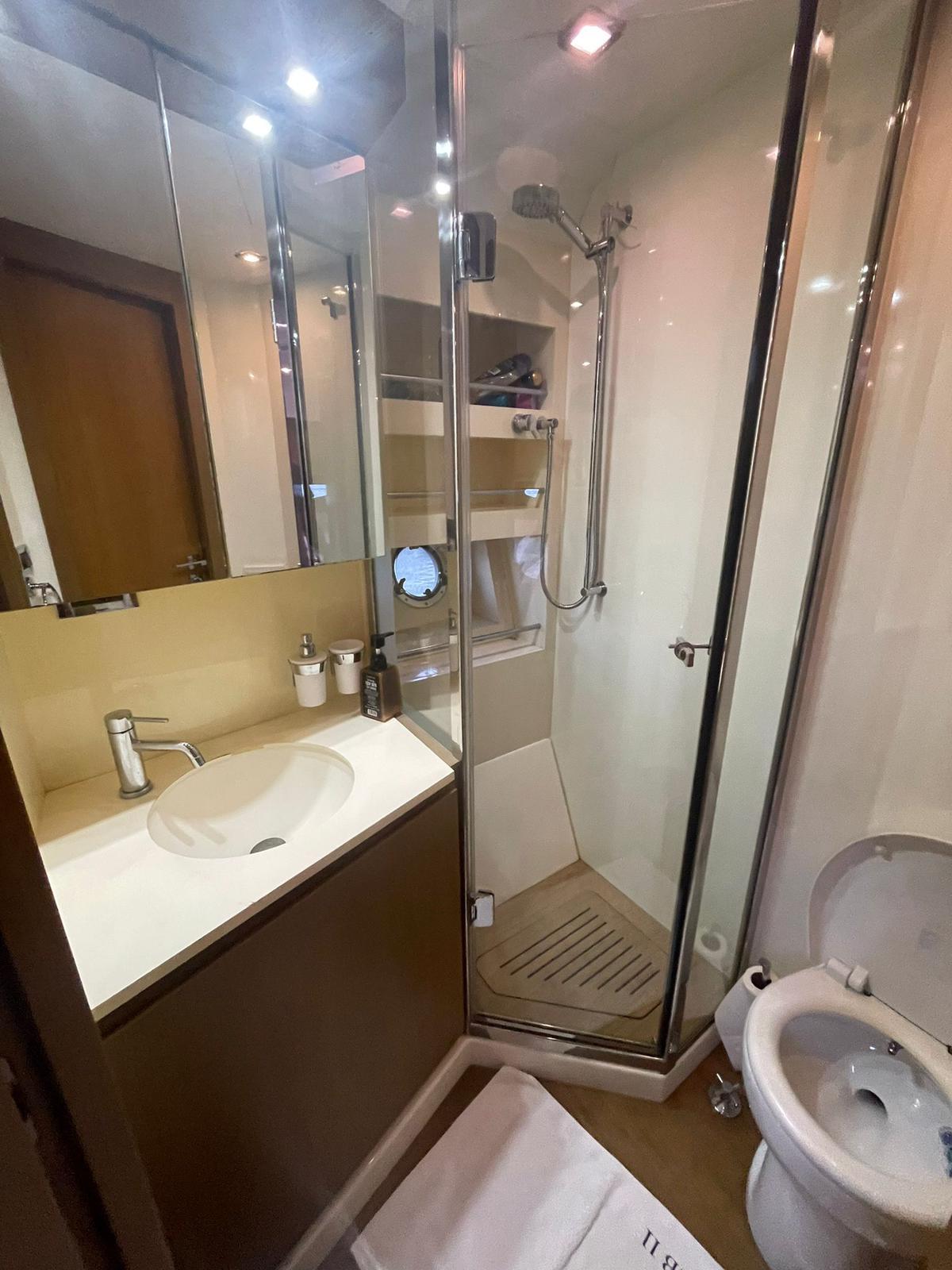

OWNER'S BATHROOM

• Separate tempered glass shower with seat and shelves
• Teak grating on the floor
• Halogen lighting
• Switches
• Faucet and shower in the shower cabin
• Cabinet with sink and faucet
• Porthole in steel edging, with mosquito net
• Wall cabinet with mirror
• Socket, 220V
• Set of bathroom accessories
• Electrical flushing system for fresh water in the toilet

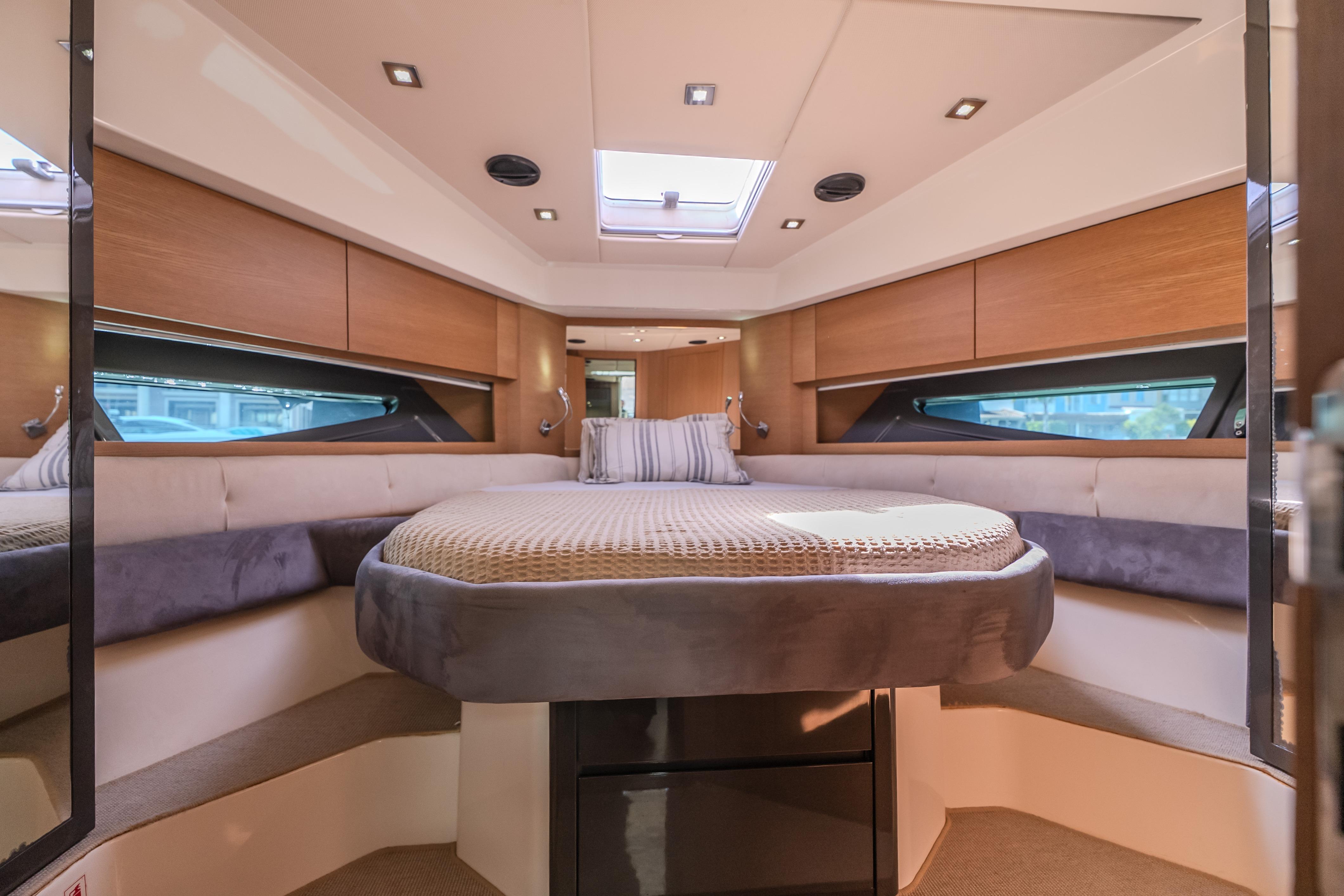

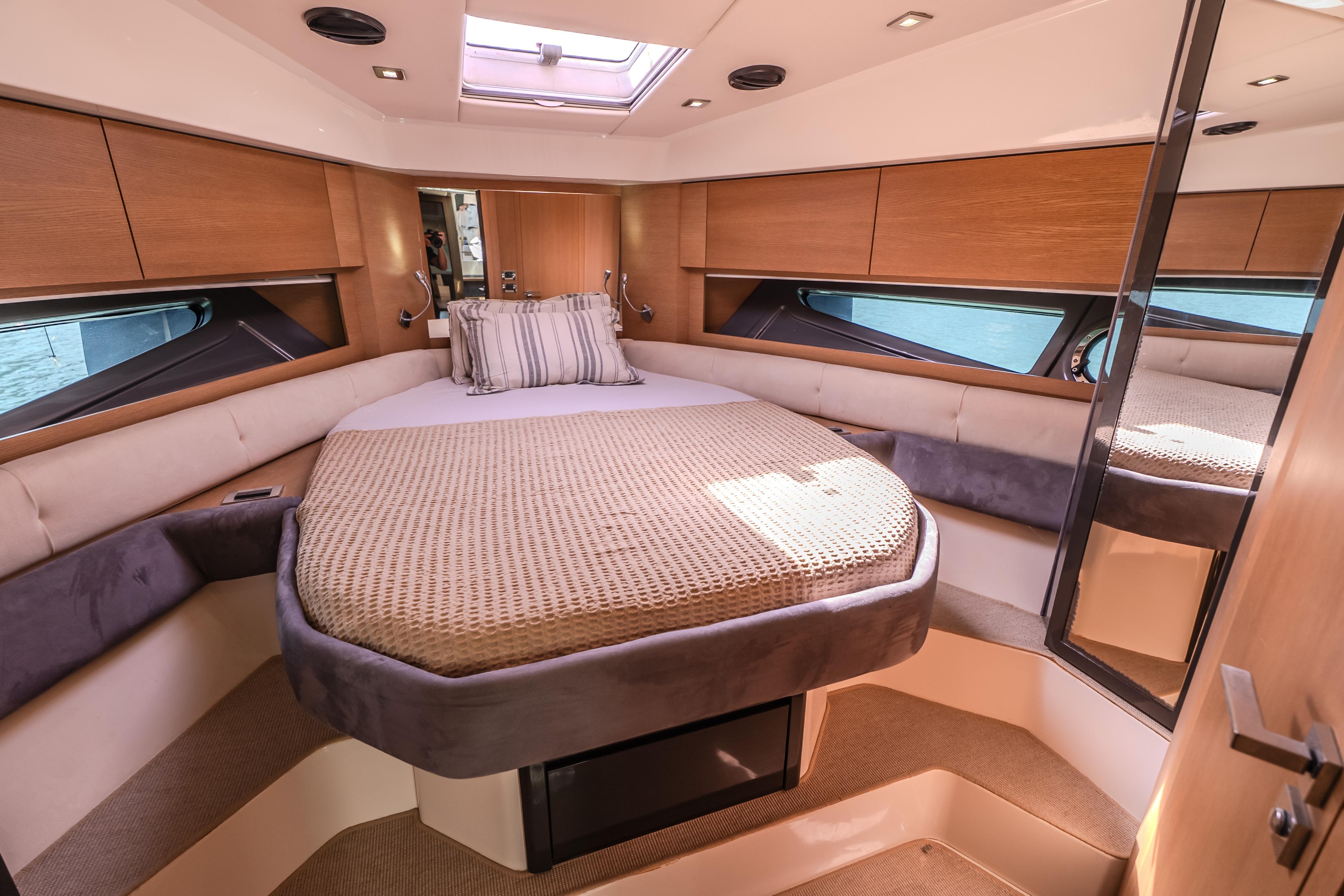

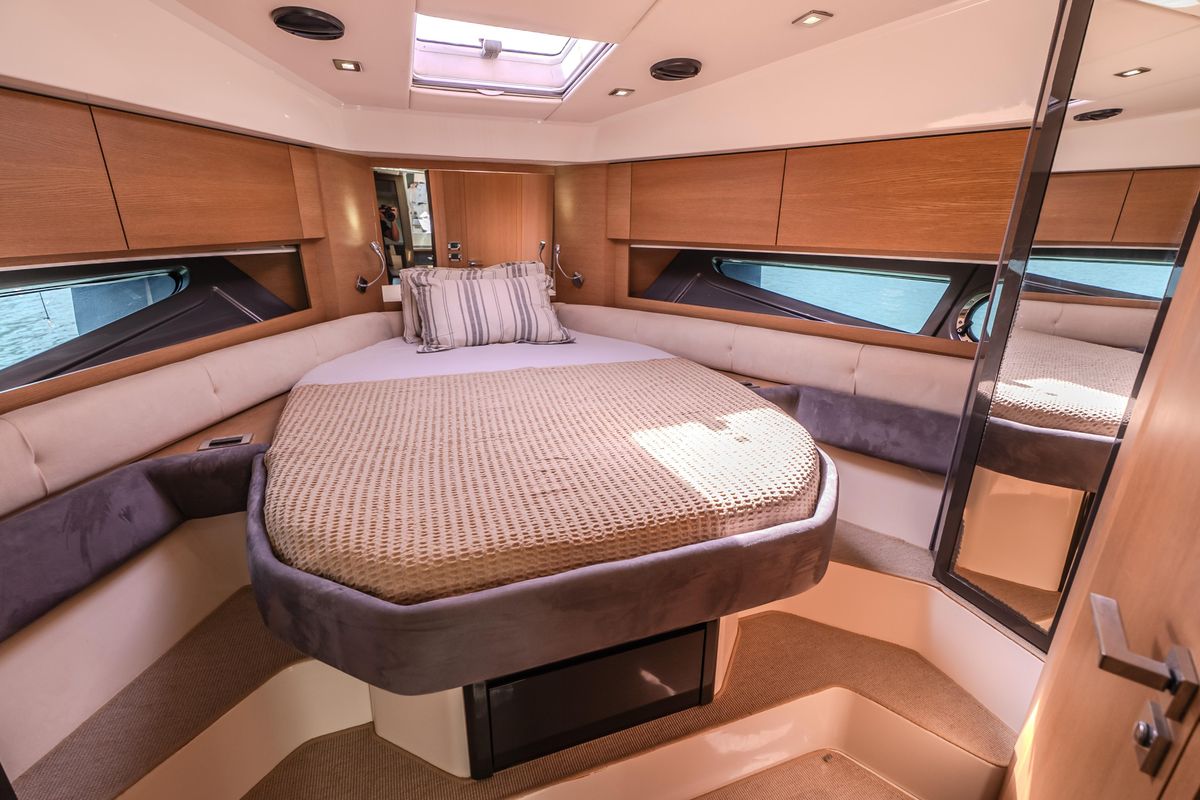

VIP CABIN

• Door to VIP / day WC
• Built-in wardrobe with internal lighting and mirrors on the doors (2 pcs.)
• Fire extinguisher, 1 kg
• Side windows, 2 pcs.
• Halogen lighting
• Light switches
• Double bed with mattress, duvet and pillows
• Reading lamps (2 pcs.)
• Night illumination
• Lockers and shelves on the port side
• Portholes in steel edging, with mosquito nets (2 pcs.)
• Socket 220V
• Mirror in the bow, at the head of the bed
• Fiberglass bed base with storage drawers
• Microfiber headboard upholstery

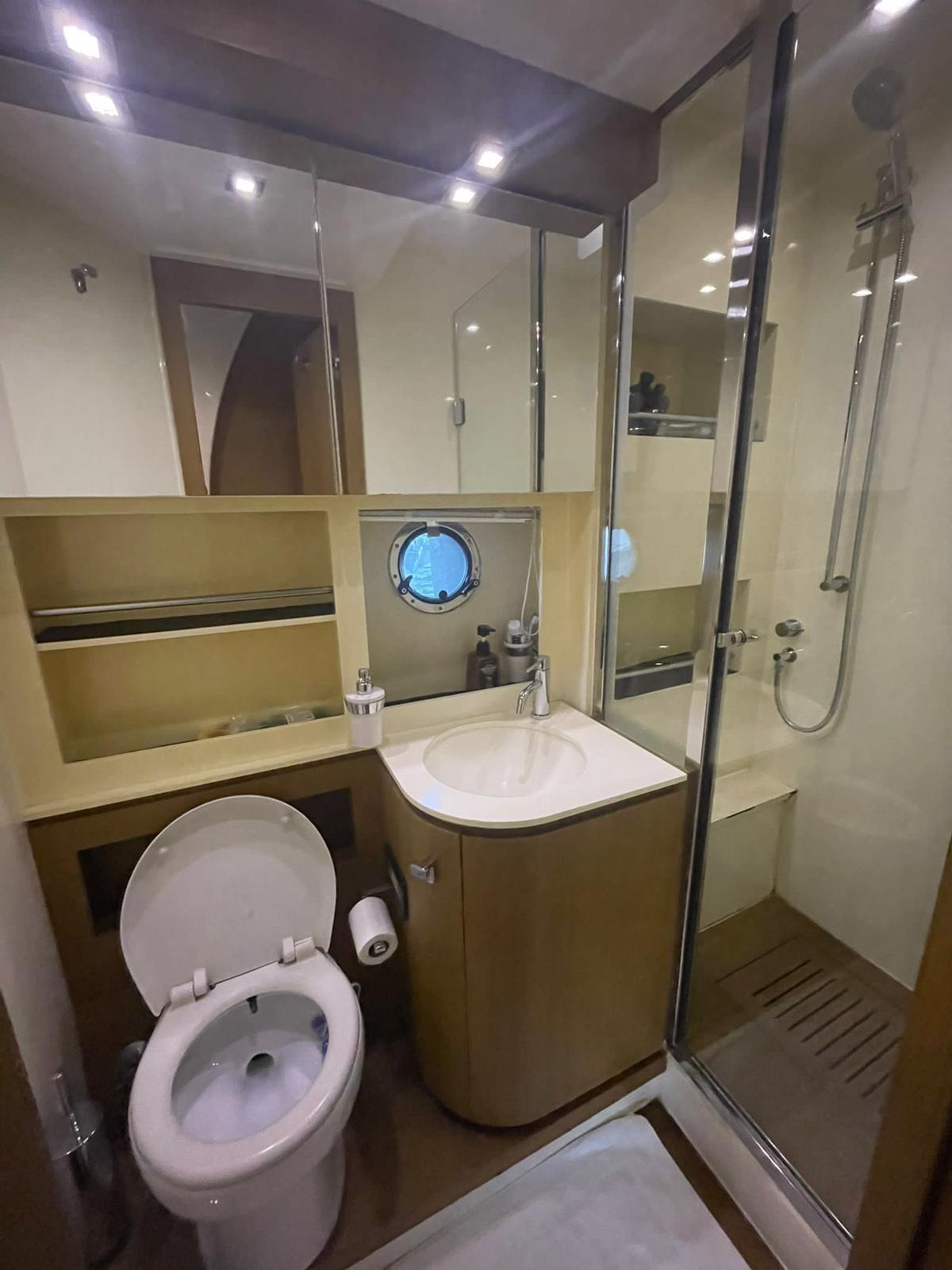

VIP BATHROOM

• Separate tempered glass shower cubicle
• Teak grating on the floor
• Halogen lighting
• Light switches
• Shower faucet with hose
• Cabinet with sink and faucet
• Porthole with steel frame and mosquito net
• Wall cabinet with mirror
• Socket, 220V
• Set of bathroom accessories
• Electrical flushing system for fresh water in the toilet

ELECTRICAL SYSTEMS

• Battery for generator 12V - 100Ah (1 pc.)
• Batteries for engines 12V - 100A / h (2 pcs.)
• Service batteries 12V-100A/h (2 pcs.)
• Automatic charger 24V-80A/h
• Charger for generator 12V-12A/h
• Ventilated battery compartment
• The battery disconnect is located on the electrical panel in the dining area
• Battery parallel operation is in the control room
• Switches for power supply from the generator / shore power (2 pcs.)
• Digital voltage / electricity consumption indicator for AC and DC systems
• Incoming electricity polarity sensor
• Inverter 24V/13V for 12V devices (walkie-talkie, audio system, cigarette lighter socket, etc.)
• Generator 11.5kW, Köhler
• Separate circuit breakers and switches for shore power/generator

WATER SYSTEM AND PUMP

• Bilge alarm for cabins and engine compartment with light and sound signal at the helm station
• Boiler, 30 l
• Shore fresh water connection system
• Automatic fresh water pump in the engine compartment with filter and cold/hot water cut-off valves
• Automatic electric pump for indoors (1 pc.)
• Manual bilge pump for interior spaces (1 pc.)
• Manual bilge pump for engine compartment
• Separate bilge pump for pumping excess oil and fuel (1 pc.)
• Electric bilge pump in the engine compartment with automatic and/or manual control (2 pcs.)
• Fresh water tank 420 l
• Gray water tank (capacity 2 x 9 l) with electric drain pump
• Emergency bilge pump in the engine compartment

FUEL SYSTEM

• Electric valves on the fuel system, for emergency shutdown of the fuel supply
• Fuel filters-sumps (2 pcs.)
• Fuel tanks made of stainless steel, with fuel level sensors (capacity 2 x 850 l, total 1700 l)

ENGINE COMPARTMENT

• Access through hatch in cockpit
• Ceiling lighting with portable lamps
• Fire fighting system (automatic and manual)
• Exhaust and ventilation system, thermostatically activated
• Removable panels in the aft cockpit area for easy engine maintenance
• Socket, 220V
• Anti-corrosion (cathodic) protection of fuel tanks, hoses, etc.
• Stainless steel ladder
• Underwater exhaust system
• Care valve fuses

PROPULSION SYSTEM / MECHANICAL EQUIPMENT

• Steel shafts for screws (diameter 60 mm), 2 pcs.
• 5-bladed propellers (2 pcs.)
• Hydraulic trim tabs (2 pcs.)
• Propeller shaft bracket, diameter 60 mm (2 pcs.)
• Steel rudders (2 pcs.)
• Shaft sleeve, diameter 60 mm, (2 pcs.)
• Gray and black water tanks with level sensors and electronic drain system (capacity 150 l.)
• Bow thruster (8.4 hp, diameter 185 mm)
• Hydraulic swim platform (max. load capacity 350 kg)
• Nose sun pads with cover
• Cockpit cover with side passage and removable transparent “windows”
• Electric spotlight
• Teak cockpit table
• Teak side walkways
• FUSION AUDIO/VIDEO multimedia system (in cockpit, dinette and master cabin), includes Hi-Lo retractable TV system
• Air conditioning 30.000 BTU in cabins
• Air conditioning 46.000 BTU in saloon
• Stern thruster (8.4 hp, diameter 185 mm)

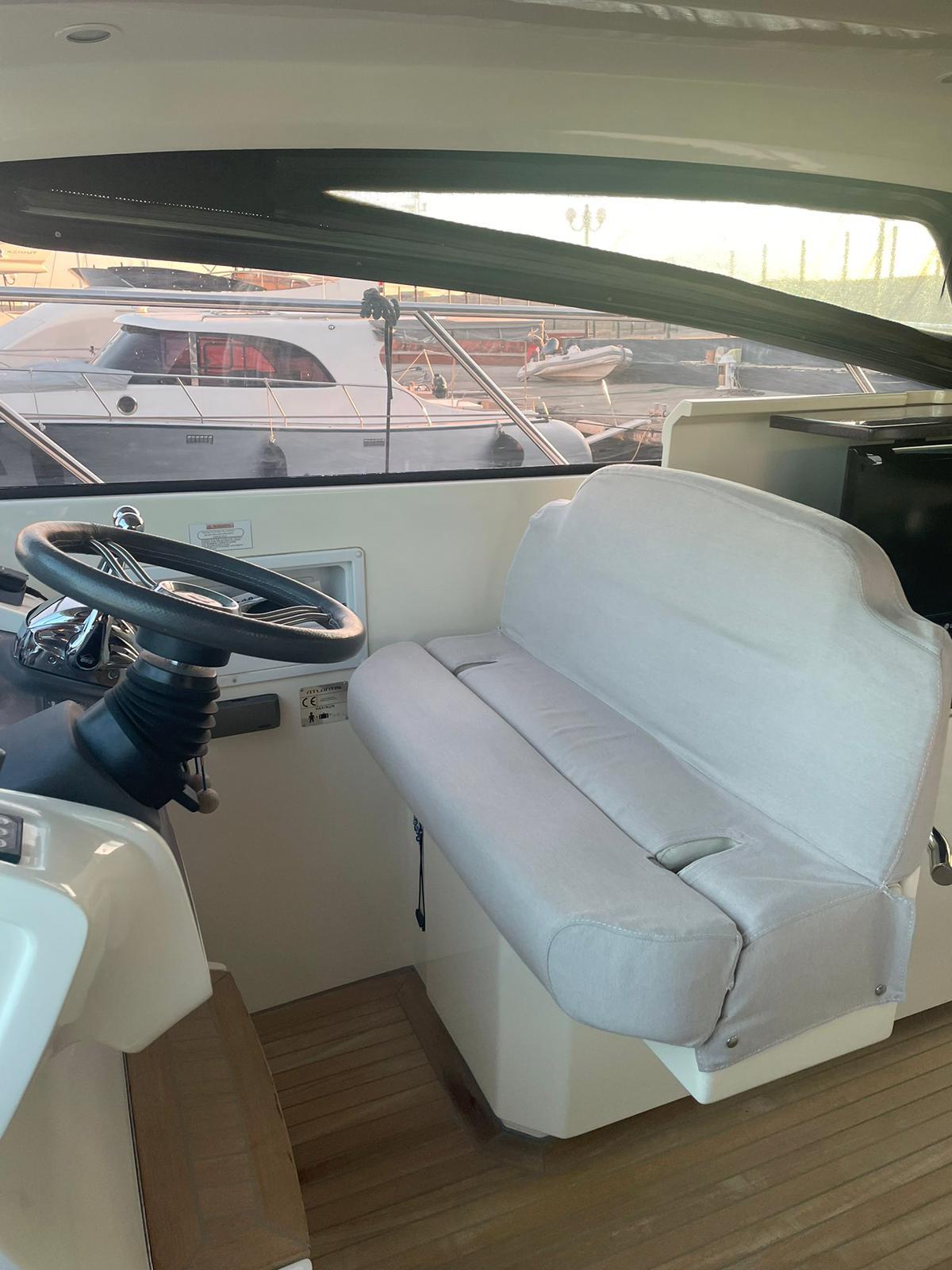

• Cockpit chair
• Cockpit cover with side passage and removable transparent “windows”
• Cover for helm seat and dashboard
• Cushion covers for sunbathing aft
• Electric spotlight
• Teak cockpit table
• Teak side walkways
• Electro-hydraulic boarding ladder
• 4 pieces underwater lights (blue - white two colors, Seablaze)
• Wooden stands for the tender on the platform

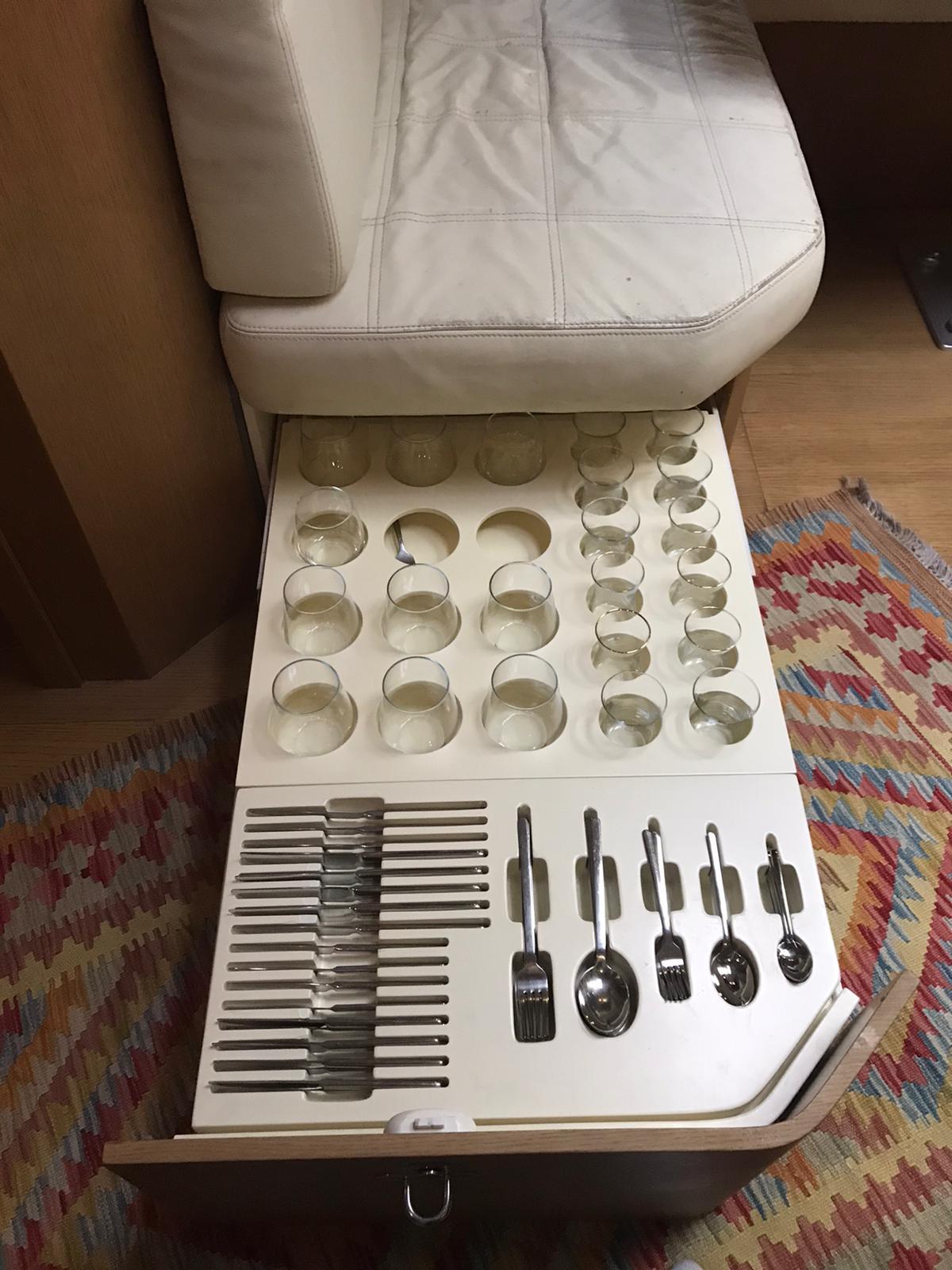

• A set of cutlery, dishes and glasses for 6 persons
• Folding sofa / bed in saloon
• Wooden floor in the dining area on the lower deck (walnut)
• Additional fridge in galley (100 liters)
• BBQ in cockpit

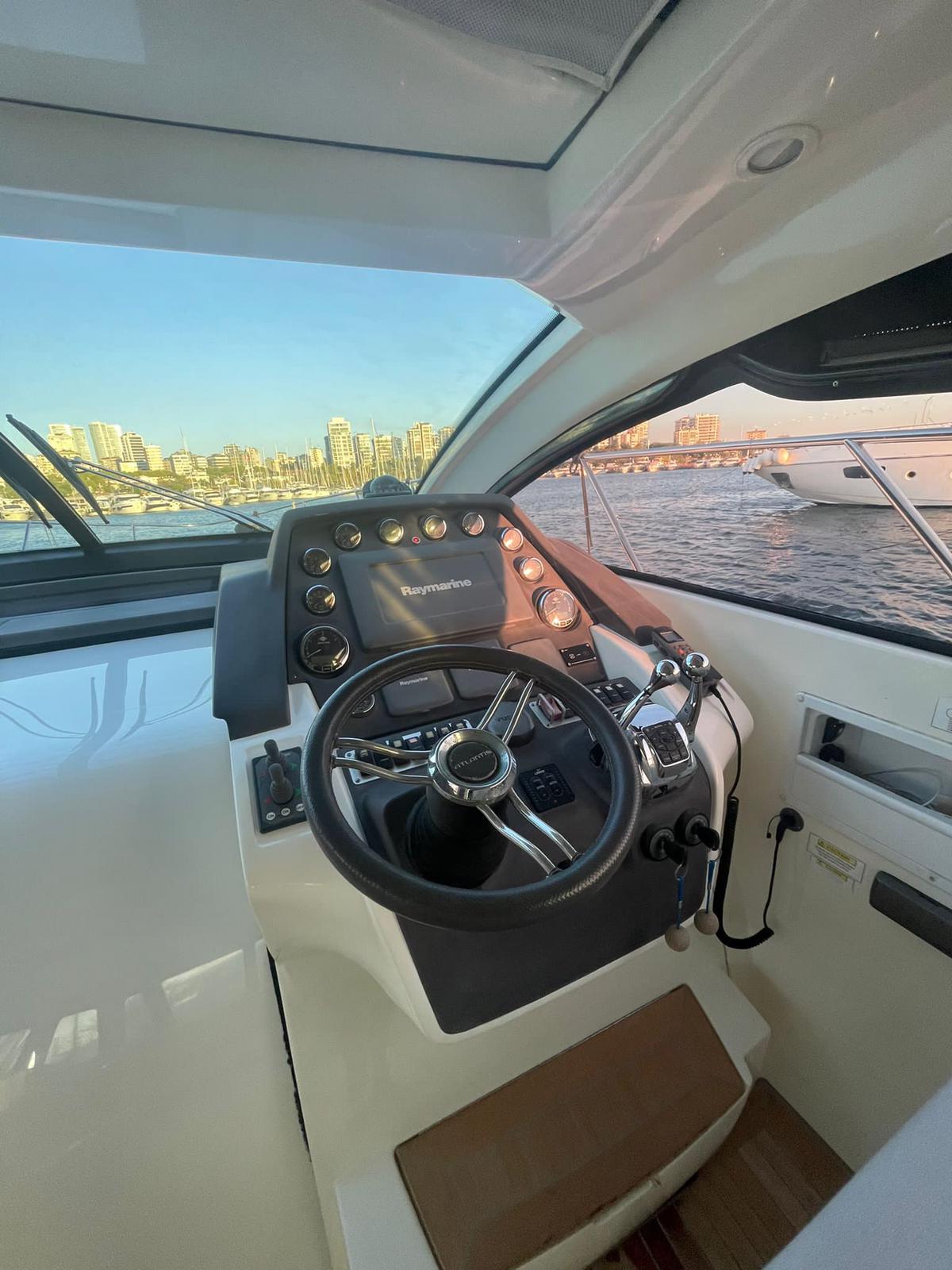

• Raymarine E125 Hybrid Touch Chartplotter, Raymarine p70R Autopilot, Raymarine RD418D 18” 4kW Radar
• Anchor chain counter at helm station

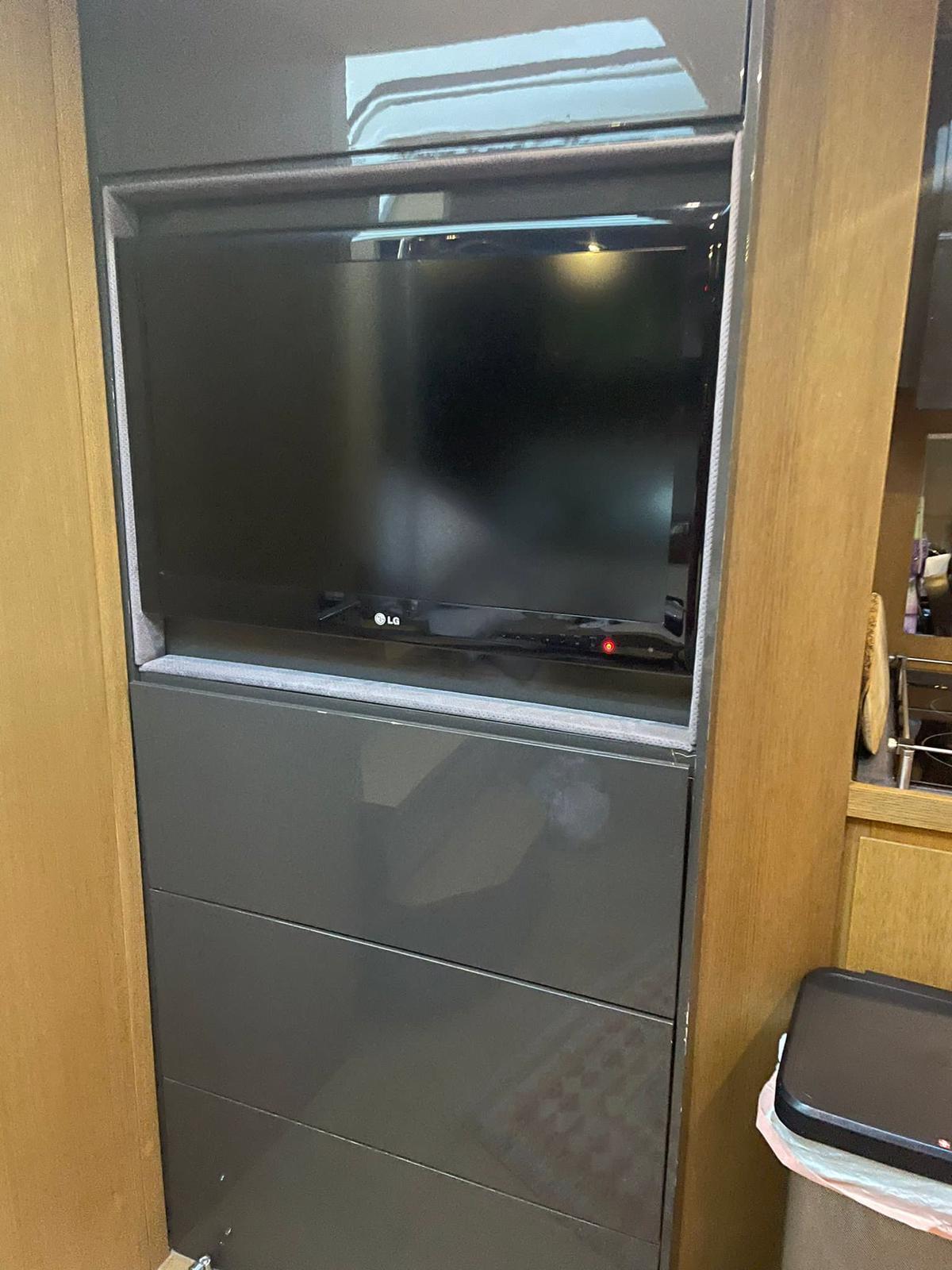

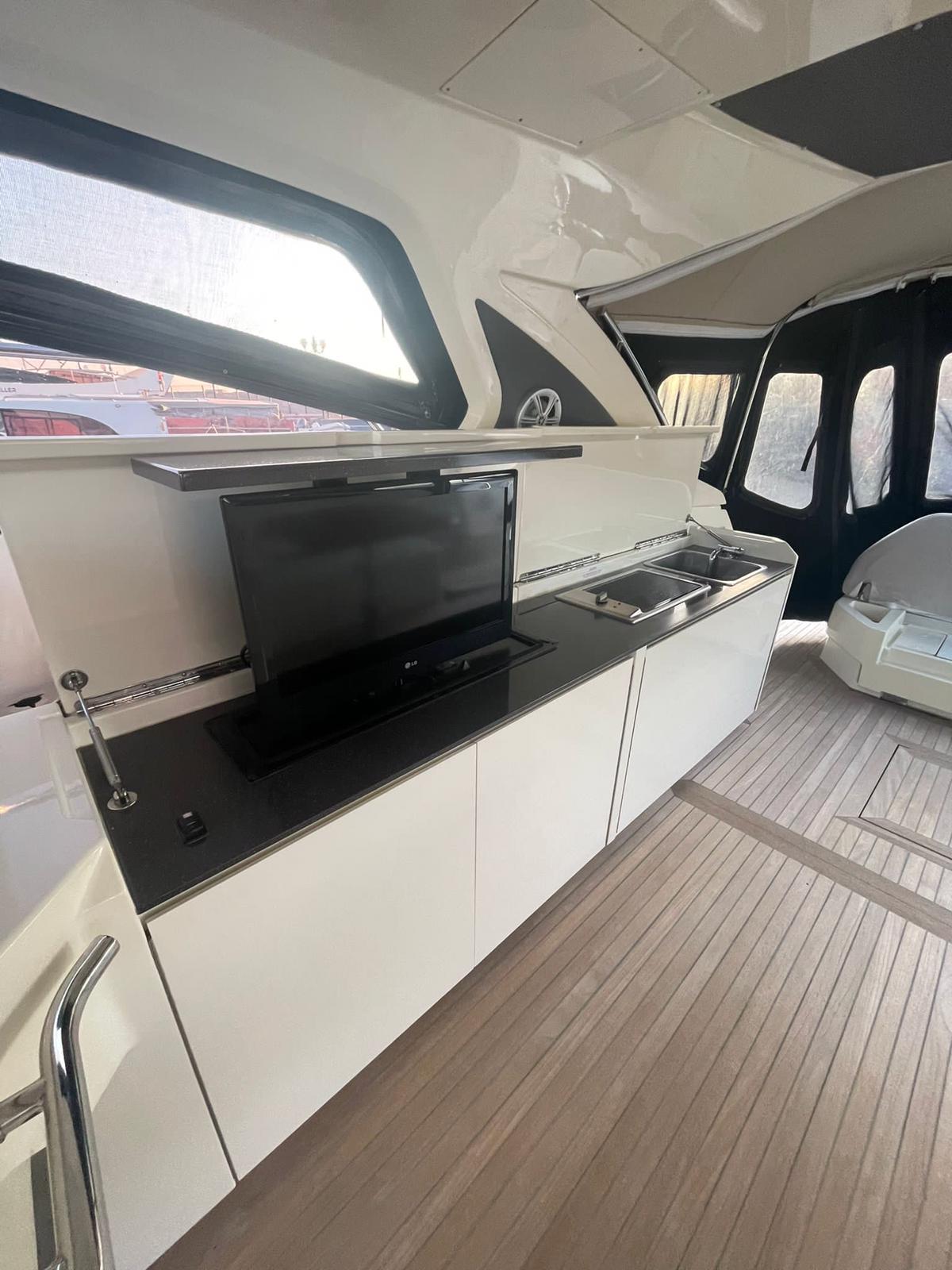

• Hi-Lo retractable system for TV in cockpit
• FUSION AUDIO/VIDEO multimedia system (includes 4 stereo speakers,  LCD TV)
• TV system with receiver in dining area
• TV system with receiver in dinette and owner's cabin
