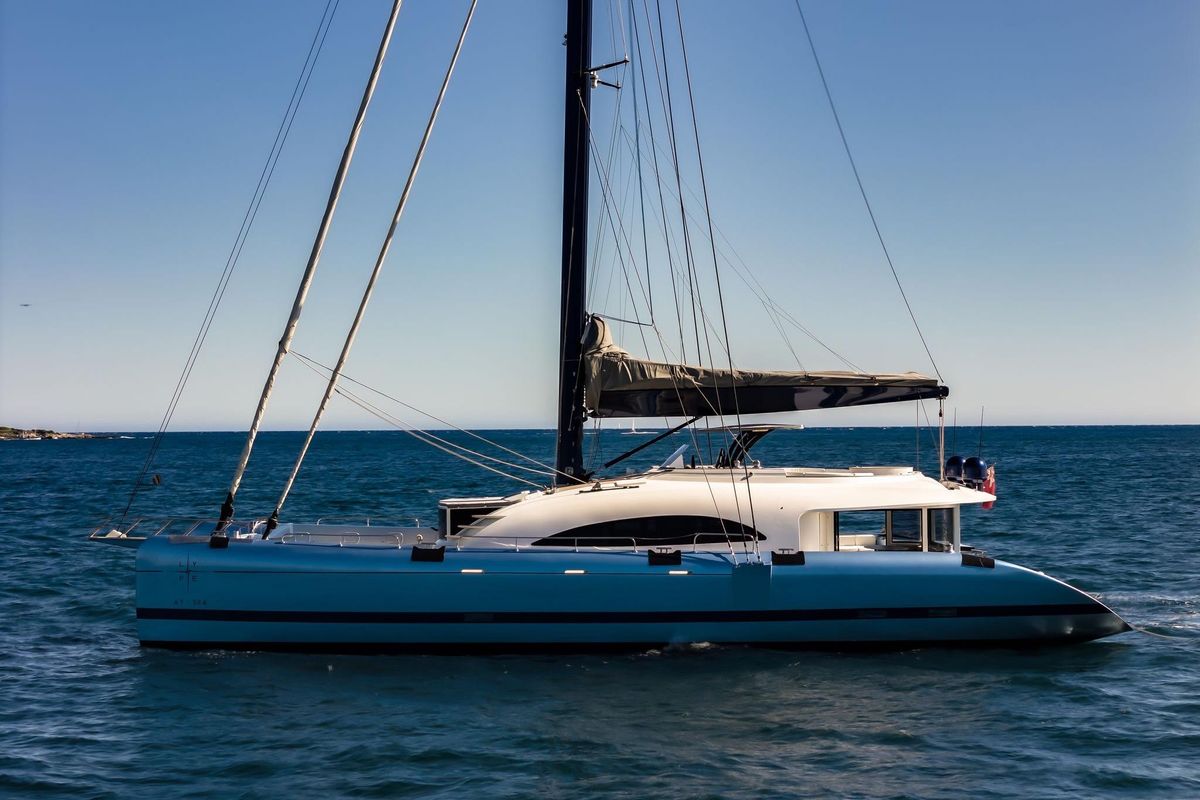

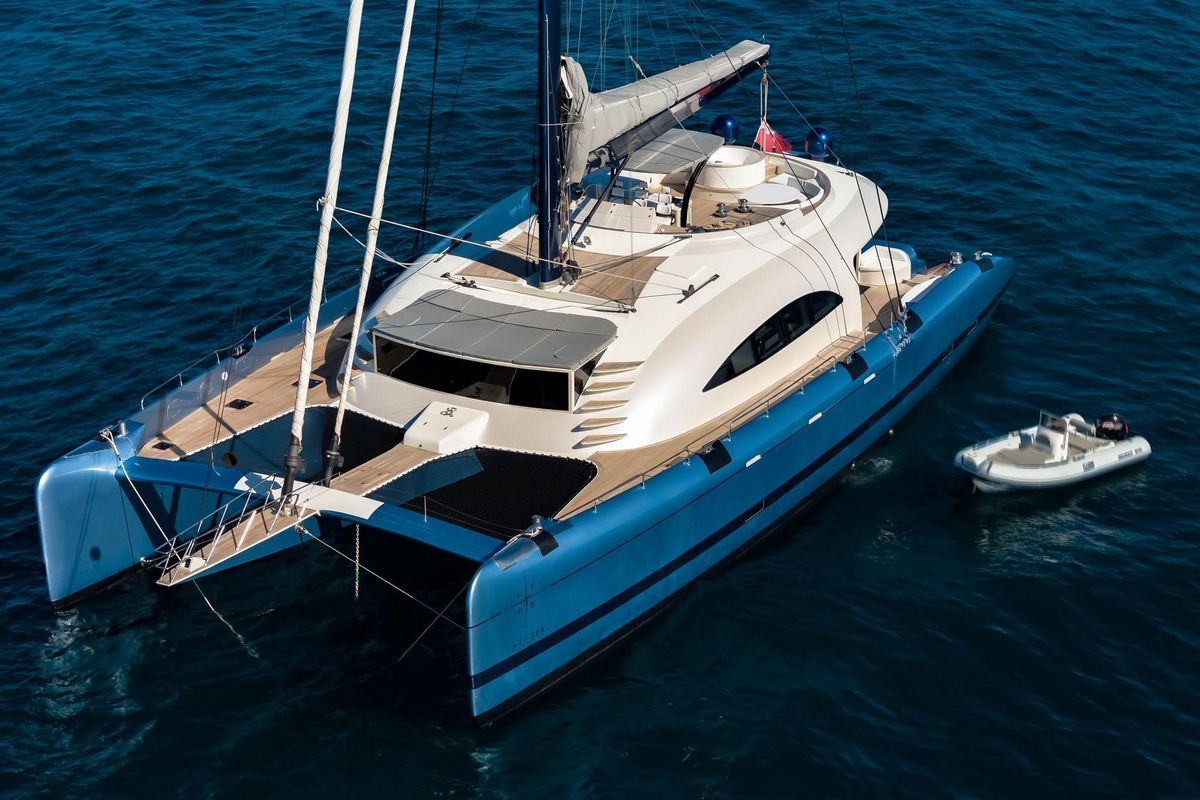

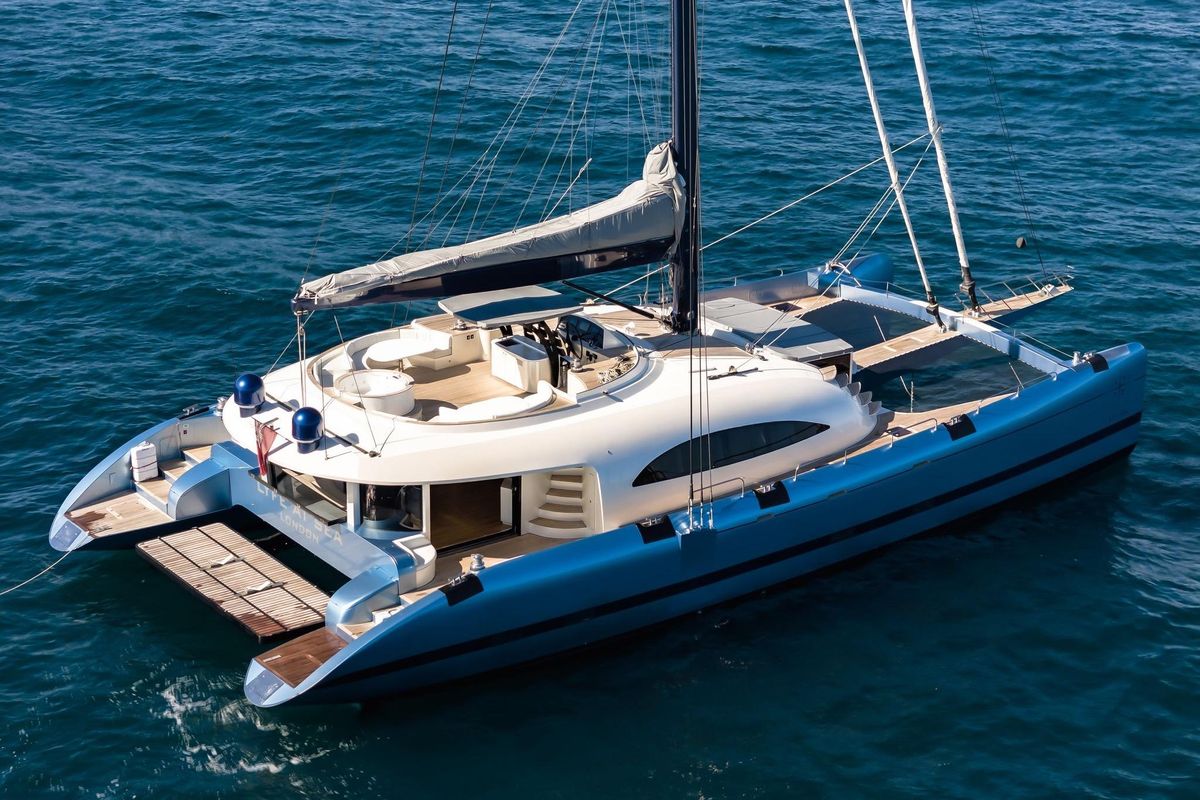

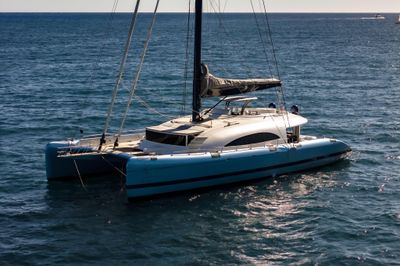

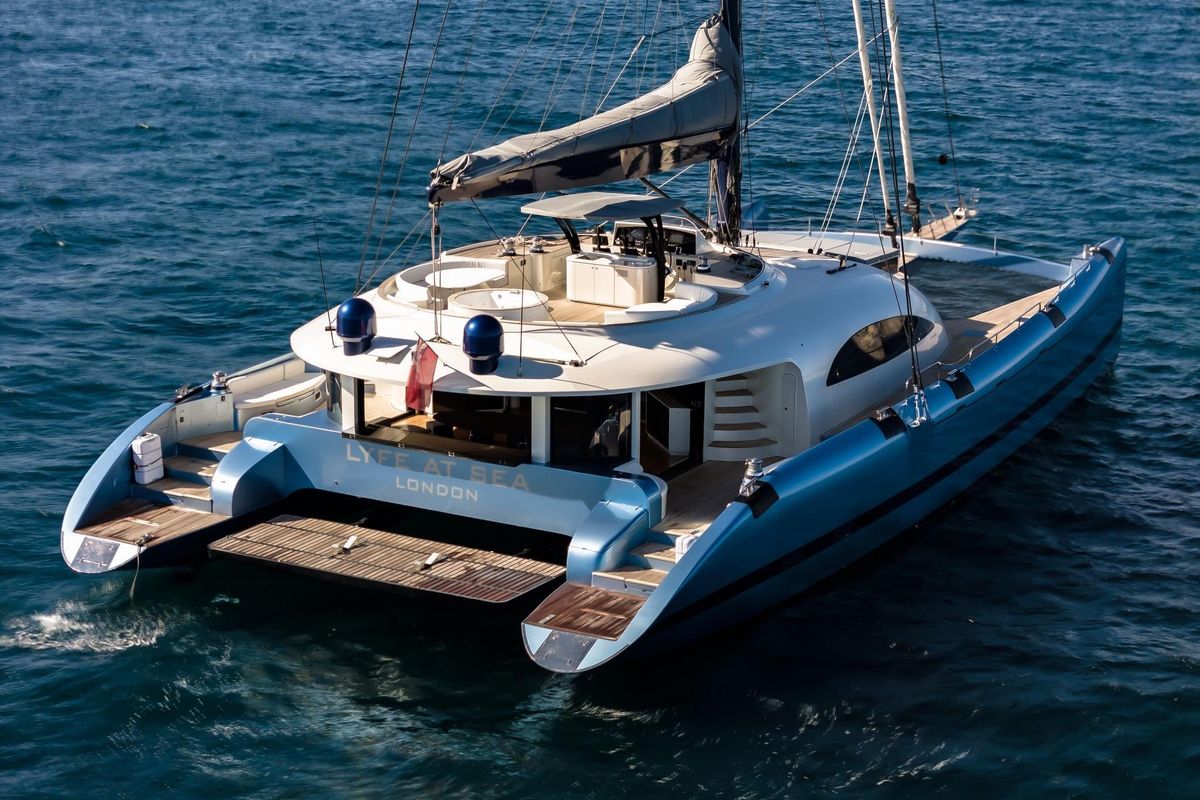

YACHT NAME:

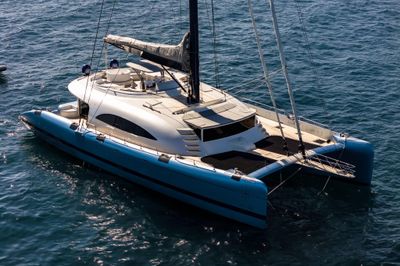

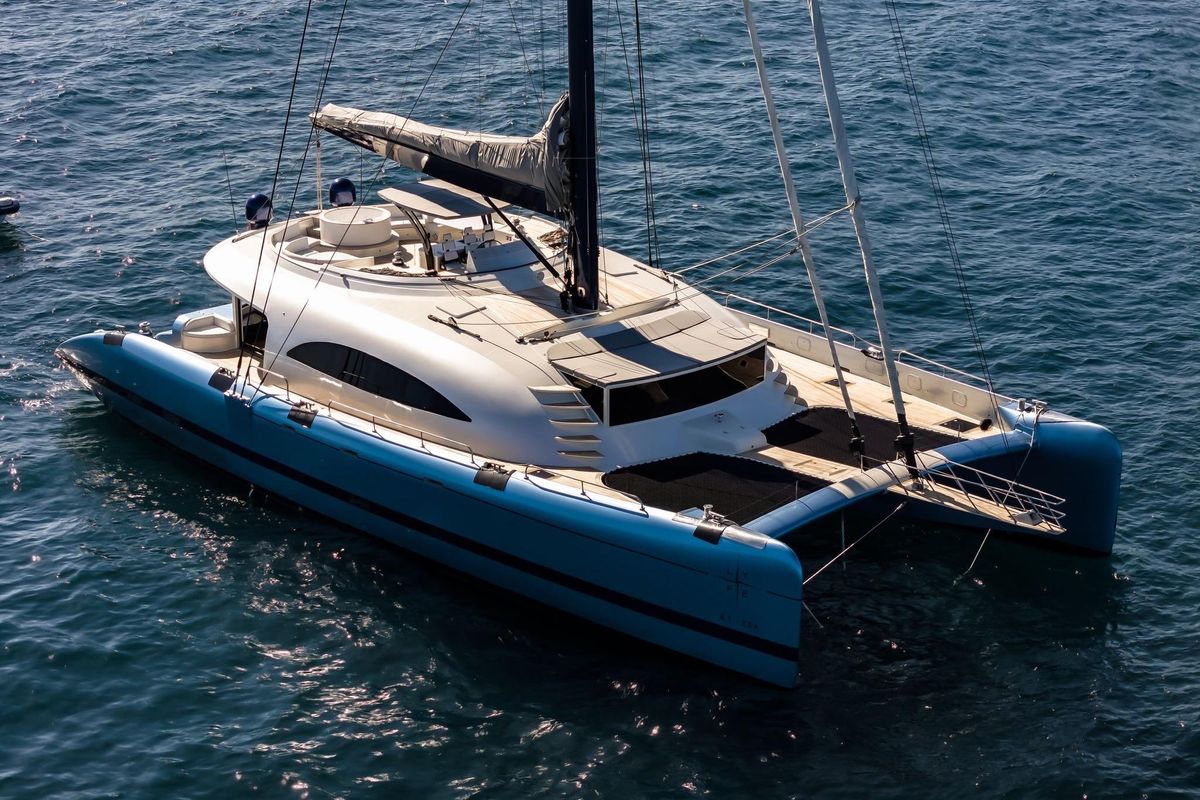

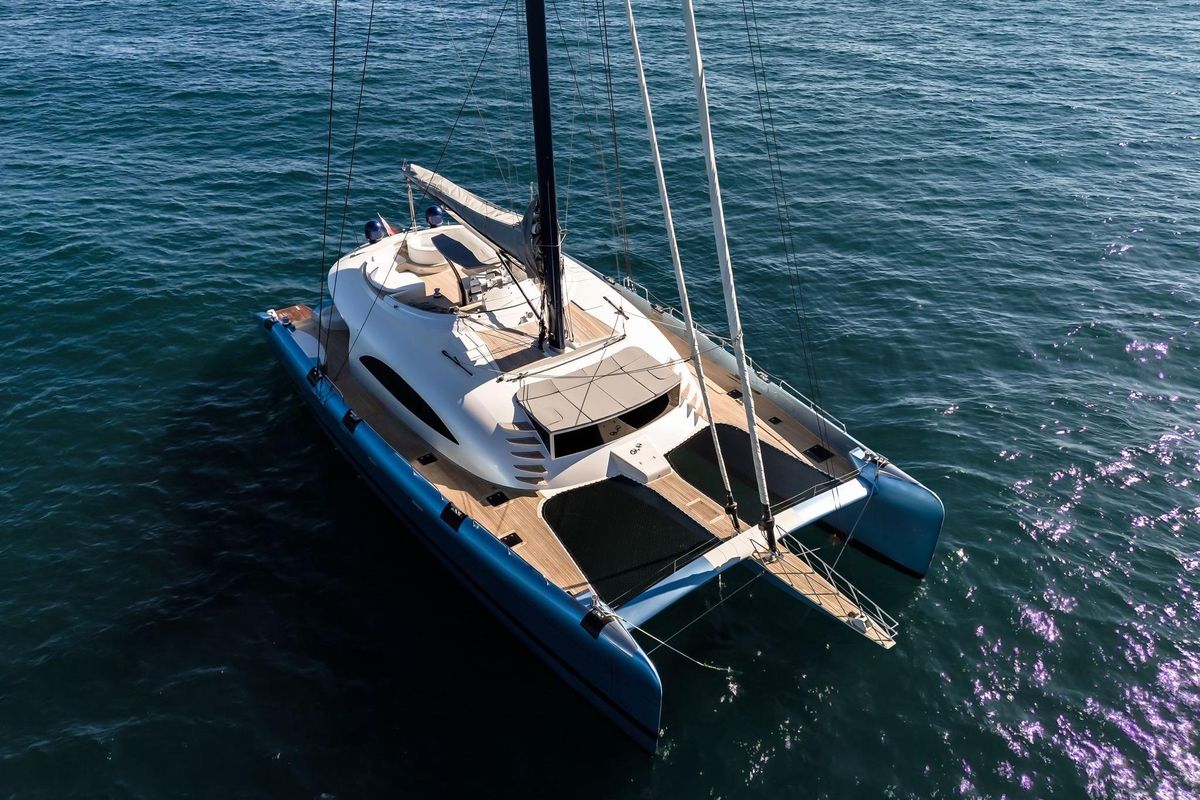

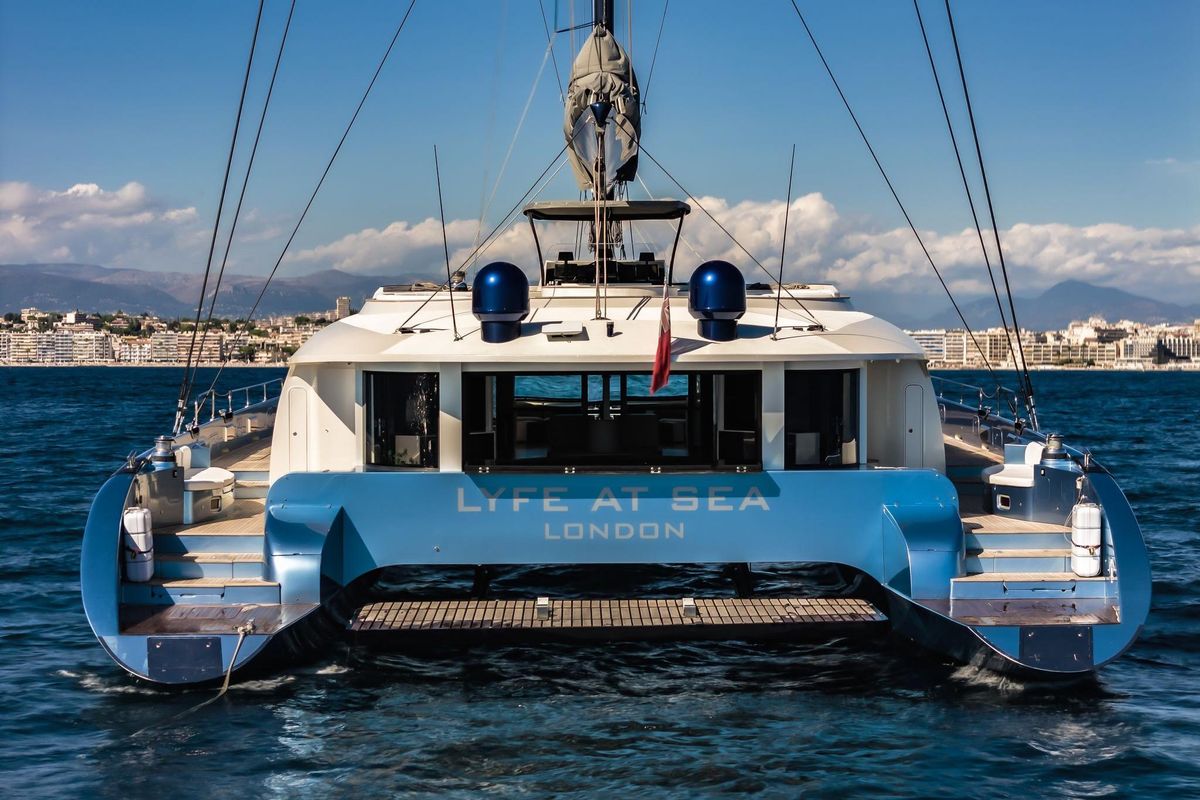

2015 Magic Yachts Custom 88 LYFE AT SEA
MODEL:
Custom 88
BUILDER:
Magic Yachts
YEAR BUILT:
2015
LOCATION:
Cannes
ASKING PRICE:
$6,900,000
DESIGNER:
N/A
HULL:
Other
CATEGORY:
Catamaran
DESCRIPTION:
Preliminary description and images. Full details and updated photos coming soon.
Structure - Advanced composite laminated in infusion with epoxy resin post-care, carbon glass fabrics, Kevlar outer skin on the hull and balsa and PVC core
- Bow beam section 600x400 mm in carbon length 11,000 mm
- Bowsprit length 9,000 mm in glass and carbon
Propulsion - (2) Supercharged diesel engines YANMAR - -Starboard: 6LPA-SPT, Port: 6LPA-STP2, Power 232 kW/315 hp at 3,800 rpm, 6 cylinders, displacement 4,164 cm3
- (2) ZF 63A inverters with 1:2.5 reduction ratio
- (2) AQUAMET steel axles, Ø 60 mm with cone reduced to 55 mm
- (2) MAX-PROP 700 propellers
- (2) Kohler generators, 27 kW model 27EFOZD
- Throttle Levers ZF MICROCOMMANDER 9000 Series
- Engine conversion interface to RAYMARINE for viewing data on networked instrumentation.
Rudder Systems & Equipment - Hydraulic system with actuators, one steering station and two emergency steering rods
- BCS CO15-24 electro-hydraulic autopilot control unit
- Carbon wheel Ø 1,200 mm
- Rudder axles with SOLIMAR seals and bushings
Electrical - DC 24 V
- AC 380/220V 50 Hz
Fire Protections Systems - FM200 in engine room
- Portable powder fire extinguishers in below deck rooms
Sail Hydraulic Systems - (2) Cariboni powerpacks with two 2 x 6,000 W pumps
- Genoa forestay with hydraulic furler Cariboni
- Staysail with hydraulic furler Cariboni
- (4) Magic trim jib sheet Cariboni
- A Cariboni Magic mainsheet trim
- (2) Magic Trim Cariboni mainsail traveler
- Hydraulic vang Cariboni
- (3) Winches Antal 70 W
- (3) Winches Antal 80.3 W
Tanks - (2) 2,693 liters steel diesel storage tanks
- (2)608 liters diesel service bodies made of steel
- (2) 2,914 liters fresh water tanks made of steel
- (2) Black/grey water tanks 2x670 liters in steel
New Backlit Helm Station - (2) Raymarine Axiom + 12” screens
- Raymarine Axiom XL 16” screen
- Card reader
- (1) Raymarine P70S autopilot display
- (1) Second Raymarine VHF station – RAY 290
- (4) VHF antennas, 2 at the masthead and 2 aft on the upper deck
- Raymarine graphic integrated fishfinder with double translator installed in the two Airmar B744V hulls x2
- Extra-long masthead wind transducer
- Raymarine Quantum Radar installed on Spreader
- Camera system visible from all Raymarine screens installed on board consisting of:
- (2) Cam 300 DOME – Starboard bow/stern gunwale
- (2) Cam 300 DOME – Port bow/stern gunwale-
- (1) Cam 300 DOME – salon
- (2) FLIR AX 8 thermal cameras – Right/left machine room
- (1) Thermal Imaging camera mounted on the Spreader - Furuno CH 250 Sonar
Entrance Technical Area - Cerbo GX
- Raymarine Axiom 7” screen
- Inmarsat Sailor Mini C TT6110 GMDSS System
Salon Technical Area - VHF Raymarine RAY 290
- Raymarine Axiom 7” (master) screen
- AIS 700
- Raymarine ACU 700 autopilot control unit
- Domotica Raymarine Empirbus (CCM 16 – DCM 20/11)
- Actisense NMEA 2000-NMEA 0183
- Cruzpro Sog/Speed Converter
- Yacht Sense Link Router with dual SIM for remote management
Main Deck Starboard Cabin (Secondary Helm) - Completely stowable while on charter cruise
- Raymarine Axiom + 9” screen
- Card reader
- EV1 sensor
- Raymarine P70RS autopilot display
- Tiller for autopilot management
- Dual USB socket
- Throttle Levers ZF MICROCOMMANDER 9000 Series
- Commander Cabin
- Raymarine Axiom + 9” screen
Kitchen Access Area - Raymarine Axiom + 12” screen
- Dual VHF 290 RAY handset

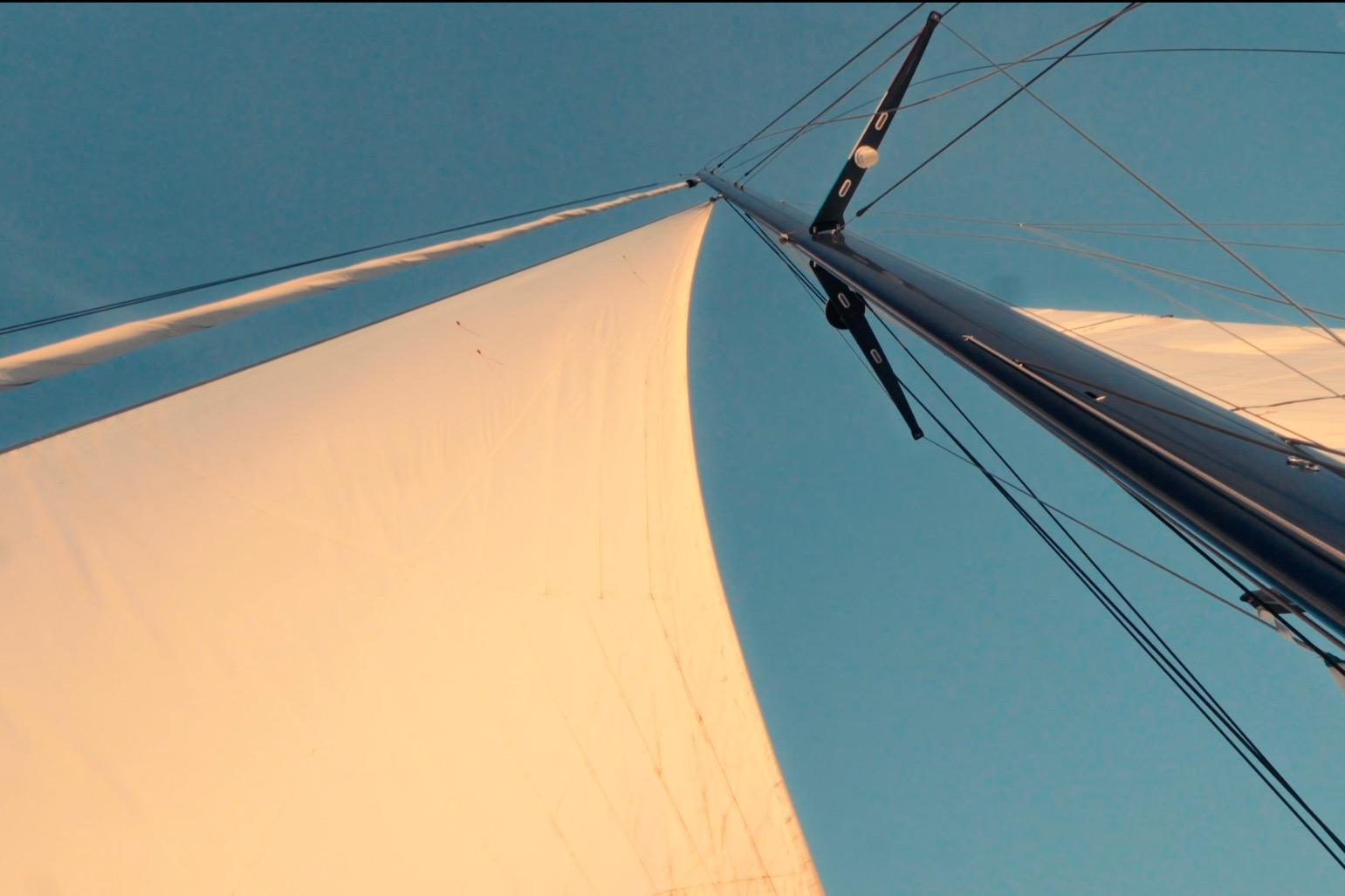

Mast - Maxpar high-strength carbon fiber profile pre-impregnated on an aluminum male mold/mandrel, progressively tapered from the base, compacted and cured in an autoclave at 6 bar
- Length 35 m/114.8 ft
- Theoretical tube weight 1,380 kg
- Finished profile weight with accessories 1760 kg
- Tapering at the head - All new stays and shrouds, 2024
- Forestay and staysail in Nitronic 50
- Shrouds in Kevlar K49
- Halyards, sheets, rigging in Spectra and Dynema
Boom - High strength carbon fiber pre-preg V-section park avenue type tapered progressively from bow to stern
- Length 10.3 m/33.7 ft
Sails - Northsails spectra mainsail 272 m2 DYS, 7 long battens, 3 reefing hands, balumina max moon landing, overhead leech line
- Doyle genoa roller furler 140 m2 TRT LP 100% Spectra DYS, shape strips, UV band
- Doyle staysail TRT 82 m2 spectra dys shape strips, UV band
- (2) 5 mooring cleats on the head of the band + 2 aft cleats
- 140 kg CQR anchor
- 120 m chain with 16 mm calibrated links
- Fortress FX-125 Second anchor
- Anchor winch Maxwell 4500
- (2) Maxwell 4000 bow mooring winches
A/V Equipment - KVH TV6 satellite TV system
- Dual Radom Antenna
- American Direct TV decoder system
- European Sat Decoder
- (2) Fusion indoor and outdoor stereo systems with dock station
- (2) 65” smart TVs in the dining area
- Retractable TV in the living room
- Home automation system for managing lights, air conditioning, audio, video via iPad
- Starlink antenna, internet WiFi
- VOIP phone with Starlink antenna
- Email sending/receiving system via satellite connection
- External audio speakers
- Day/night Dome camera for video surveillance visible on indoor and outdoor monitors
- Fusion audio system:
- Apollo RA 770
- 5-Channel amplifier of 51600
- 4-Channel amplifier of 41400
- AM 702 2-channel amplifier
- Fusion 7.7 Classic Signature speakers
- Fusion 7.7 Sport speakers with LEDs
- Sport Sign 8.8 speakers
- Subwoofer Fusion 12” SL 122 SPW
Other Equipment - Digital fuel display
- Digital level graph fresh water
- Digital level graph black and gray water
- Remote management system through home automation of black water drainage with 2 pumps per tank, one 220v and one 24v
- Emergency lighting system throughout
- Dual power supply 110V – 220V sockets
- Double dock socket on both hulls with Port/Starboard switching switch
- Bilge alarm activation boxes – 10 new Rule 3700 bilge pumps
- Dimable interior lighting system
- 110 V system with phoenix inverter
- Victron 24v/100 amp service battery charger
- Victron 24v/100 amp sail equipment battery charger
- Victron 24v/100 amp radio emergency service battery charger
- (2) Victron 12v/50 amp motor battery chargers
- 12 V equipment lines with Victron stabilized voltage reducers
- (30) Batteries 12v/120 amp
- (6) Victron battery status displays
- Electronic battery switch 12V (4 Pcs)- 24V (8 Pcs.)
- Remote management and monitoring system
- Overhaul of the fire-fighting system
- Emergency shut down safety switches installed at the helm, engine rooms and technical rooms
