Steering SystemJoystick Control
HullModified Deep “V” Planing hull design, with shallow pod drive
tunnels.
- 16º deadrise at transom, 23º deadrise amidships.
- ISO NPG white gelcoat w/vinylester back-up resin.
- Bottom, topsides and transom vacuum-infused biaxial E-glass
with Airex C70 foam core.
- Stringer system biaxial E-glass with foam core.
- Bulkheads vacuum-bagged biaxial E-glass with polypropylene
honeycomb core.
- Molded E-glass swim platform with molded-in anti-skid surface.
- Hull side rubbing strakes.
- PVC rub rail with stainless steel cap.
- Painted (IMRON) double boot top.
- Gold recessed cove stripe.
Deck and Hard TopISO NPG gelcoat.
- Vacuum-infused biaxial E-glass with balsa core.
- Molded-in anti-skid deck surfaces.

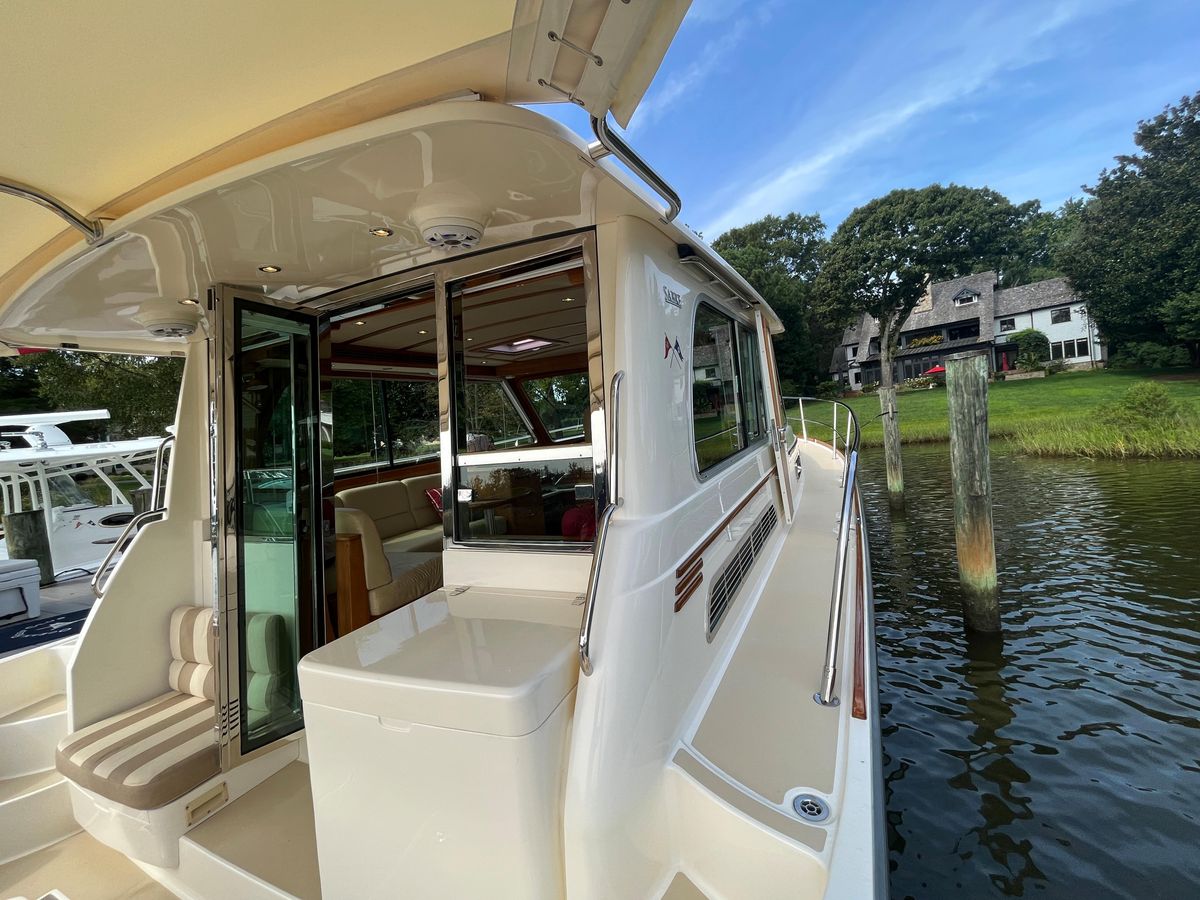

- Stainless steel sliding aft salon door.
- Sliding windows in salon on cabin sides.
- Top hinged windows in salon aft bulkhead.
- Hinged access door to side deck at helm.
- Flush, outward opening, transom door with latch.
- Anchor locker with slam latch.

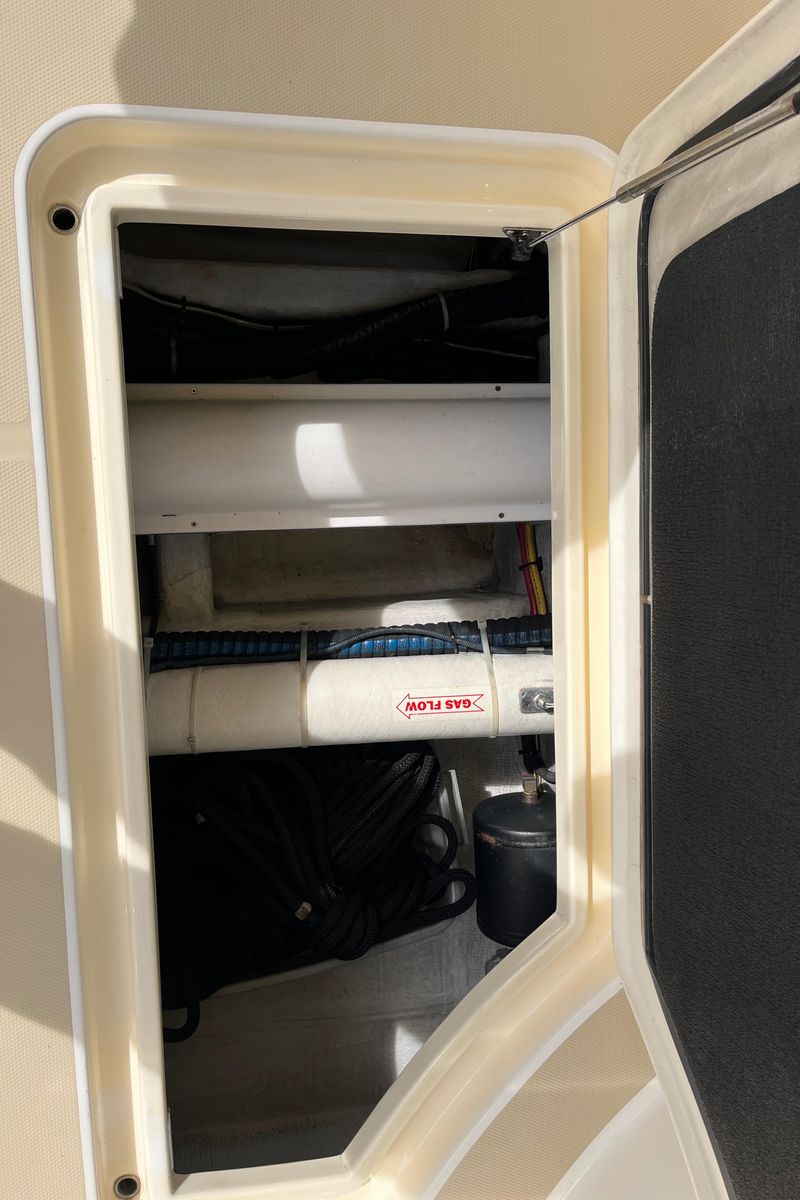

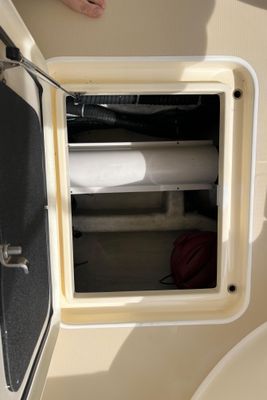

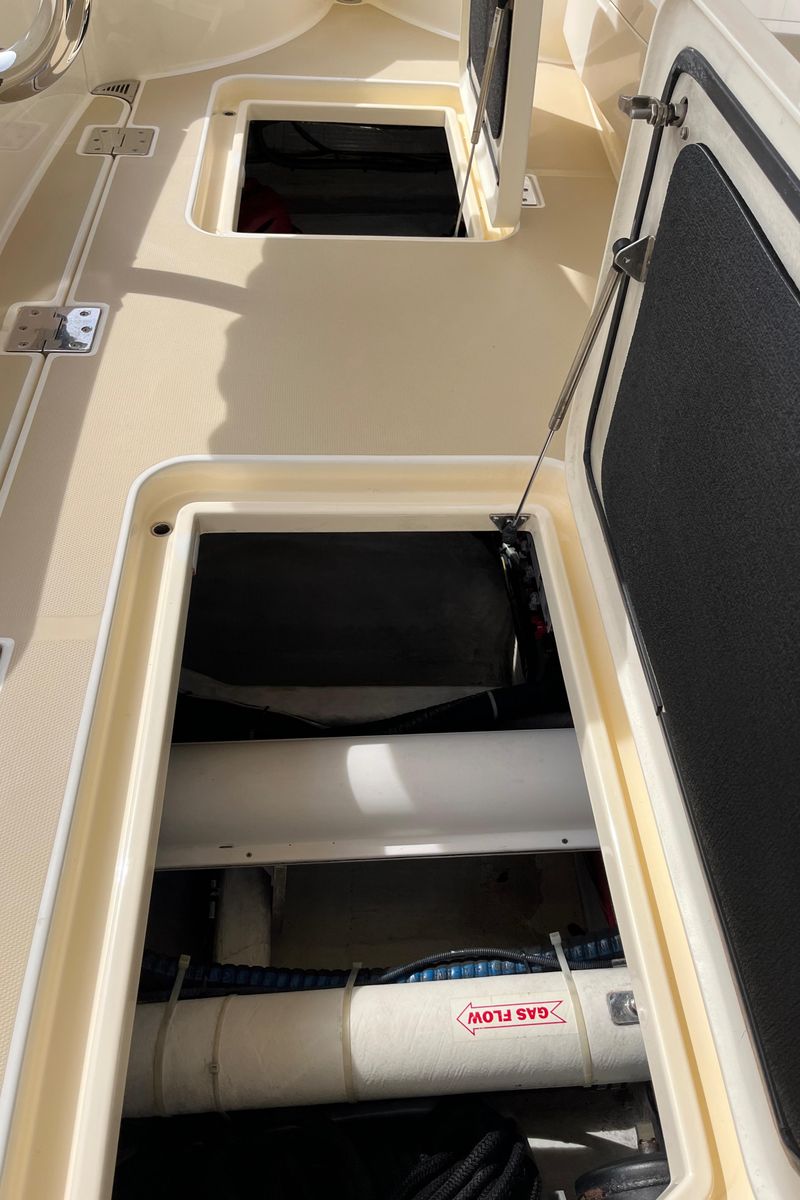

- Lazarette hatch with gas struts and compression latches.
- Hand rails at each corner on cockpit coaming.

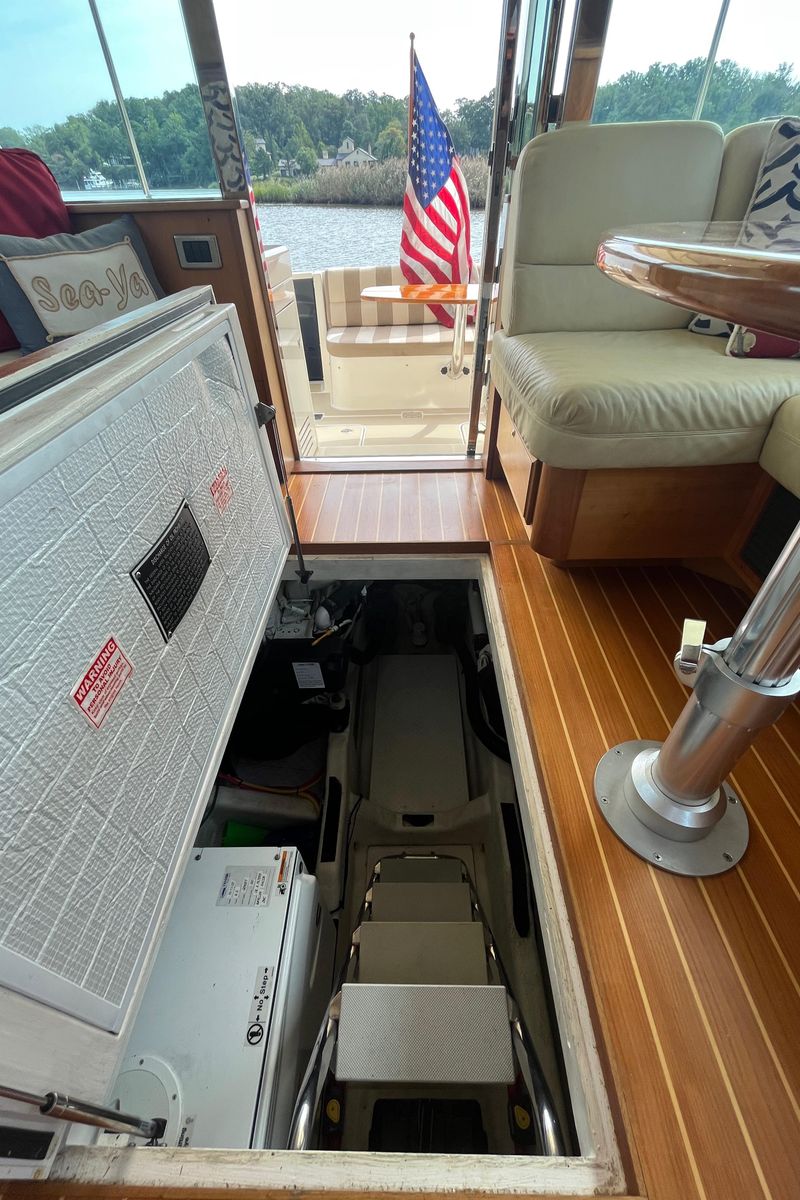

- Large engine room hatch in main salon with compression latch
Deck Hardware1 1/4" Diameter type 316 stainless steel perimeter rail system.
- (6) 12” Stainless steel cleats (2 fwd, 4 mid ship, 2 in aft cockpit).
- (1) 10” Stainless steel cleat to starboard of windlass as anchor
rode tie off.
- (2) Custom cast stainless steel mid-rail line chocks.
- (2) Custom cast stainless steel skene chocks forward.
- (4) Cast stainless steel hawse pipes in transom and hull sides.

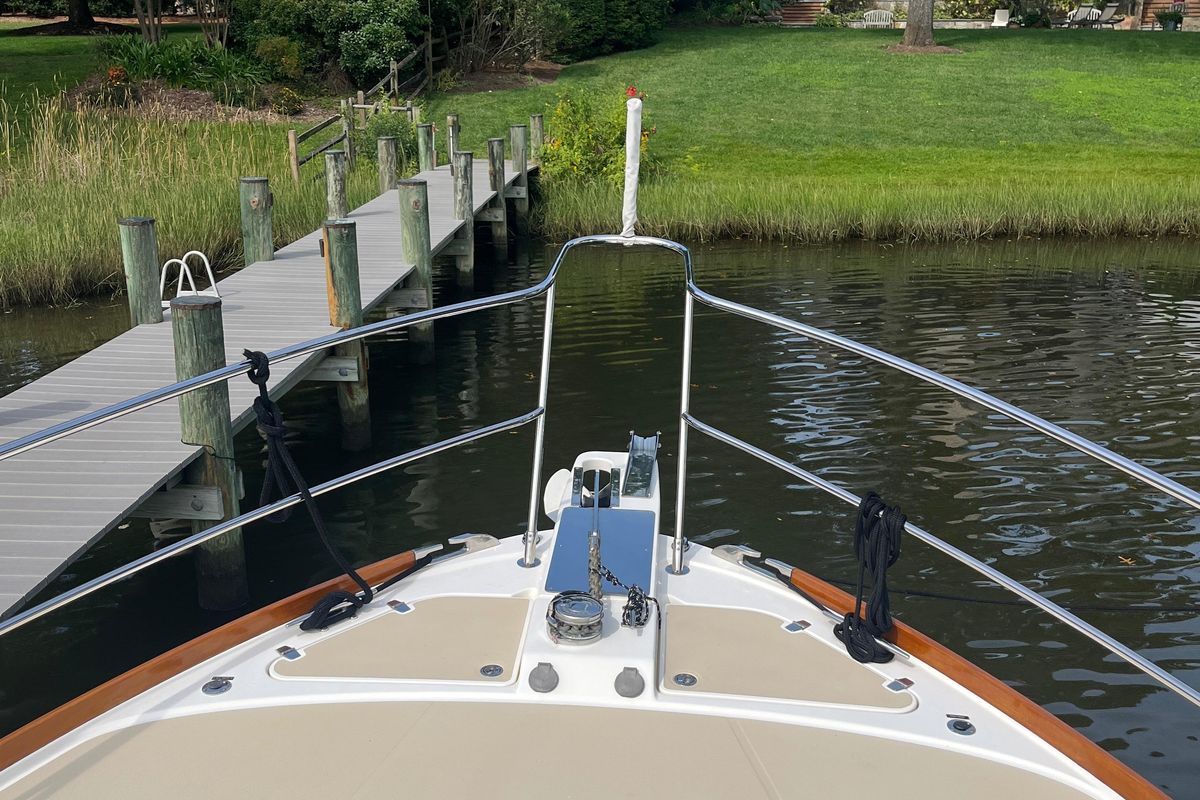

- Fiberglass bow pulpit with dual anchor roller for 35# CQR or
Delta anchor and “lunch hook”.
- Anchor windlass, electric rope-chain type.
- Flag staff and socket on taffrail.
- Burgee staff on bow pulpit.

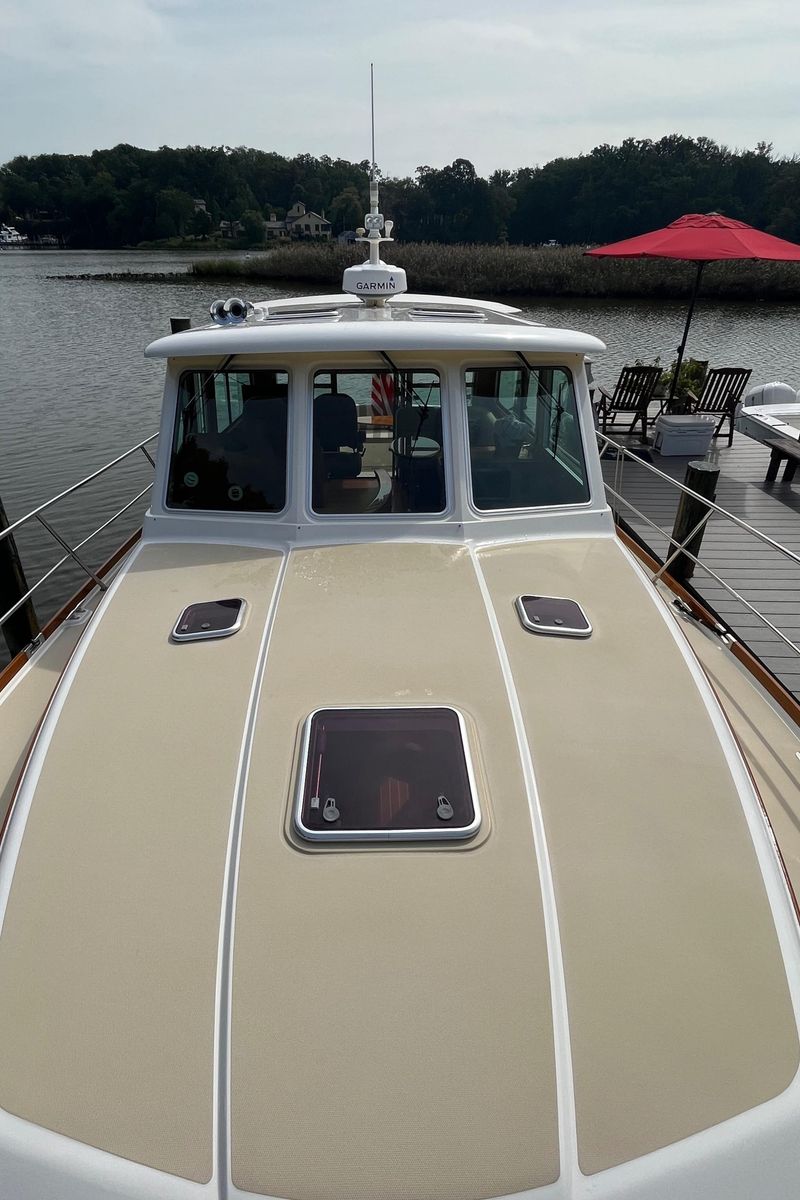

- (3) Lewmar Low Profile polished aluminum hatches w/screens.
- (6) Custom stainless steel opening port lights.
- Teak toe rails.
-
Teak cabin side eye-brow.
- Custom cast stainless steel “SABRE” medallion

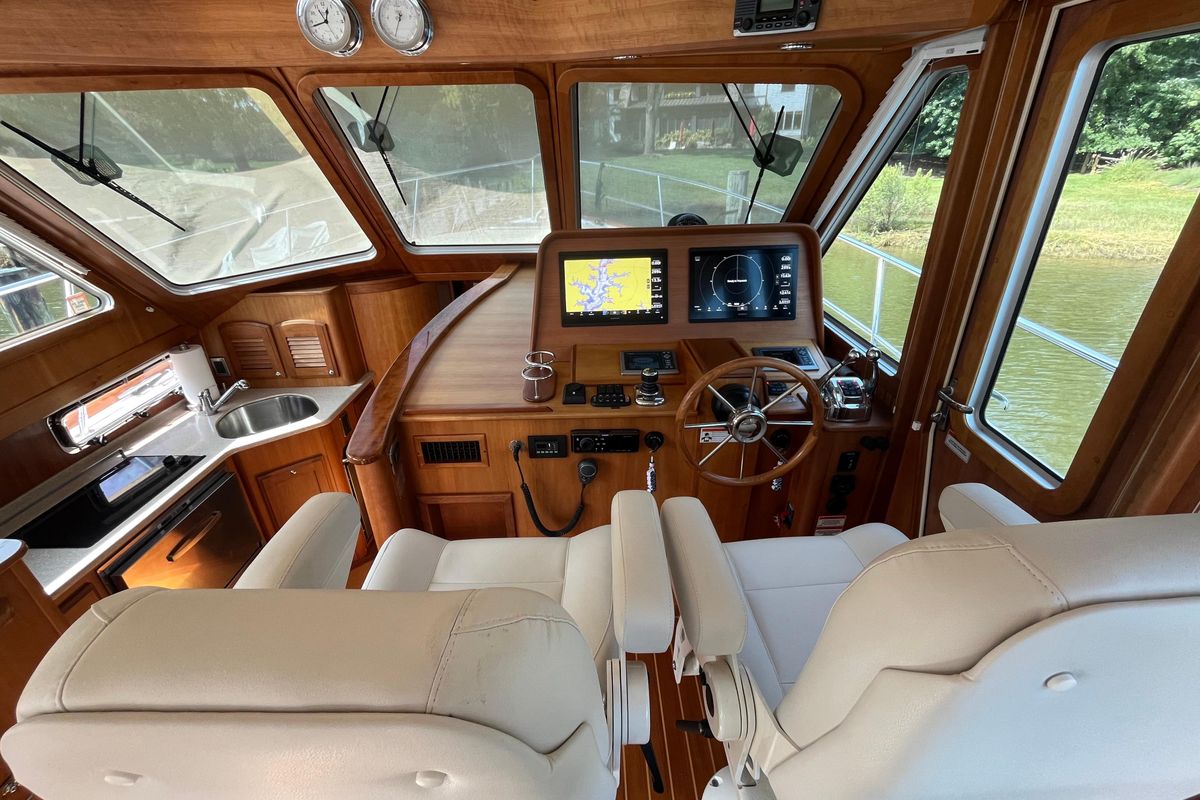

HelmCummins DTS single lever electronic controls.
- One Cummins Smart Craft display (engine data, tank levels,
vessel data, alarms).
- Triple windshield wipers with washers.
- Ritchie Compass.
- Switch controls for horn, running lights, anchor light, engine
room blower and optional equipment.
- Stazo 400mm custom teak steering wheel with tilt helm and
Sabre logo.
- (2) Stidd N-series single helm seats w/Ultraleather fabric.

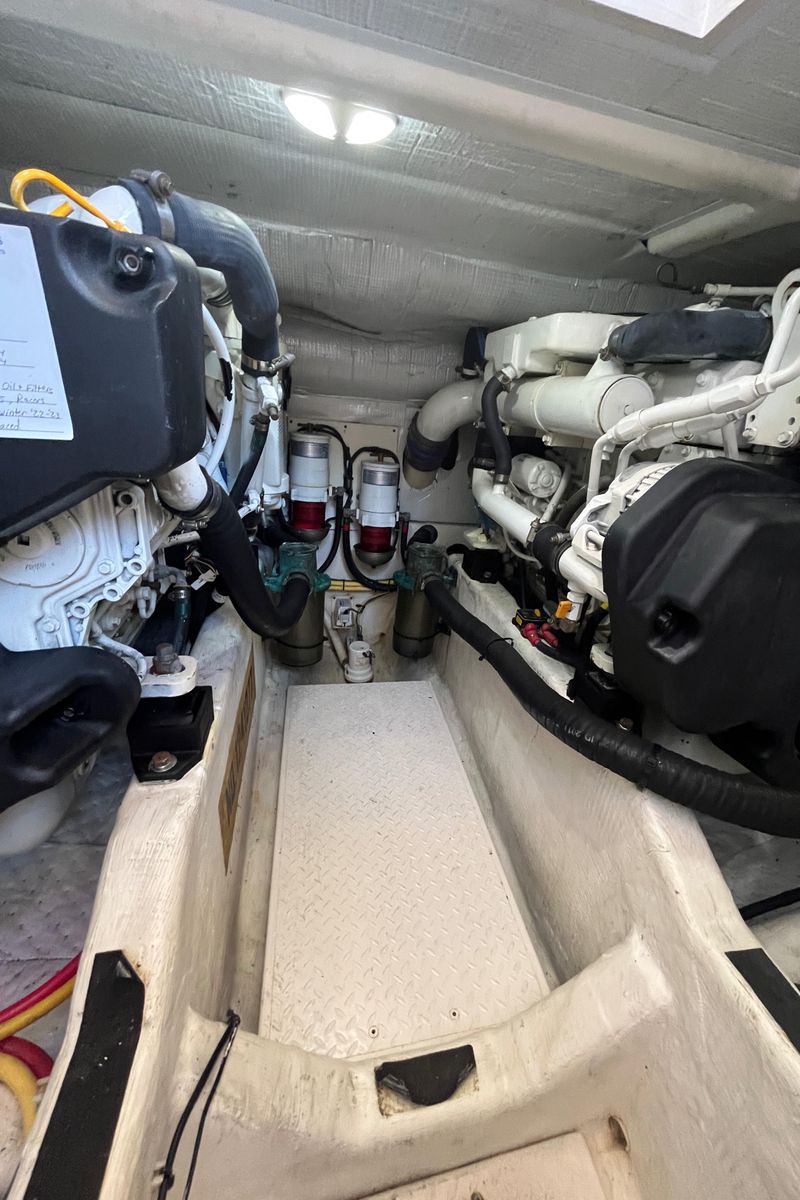

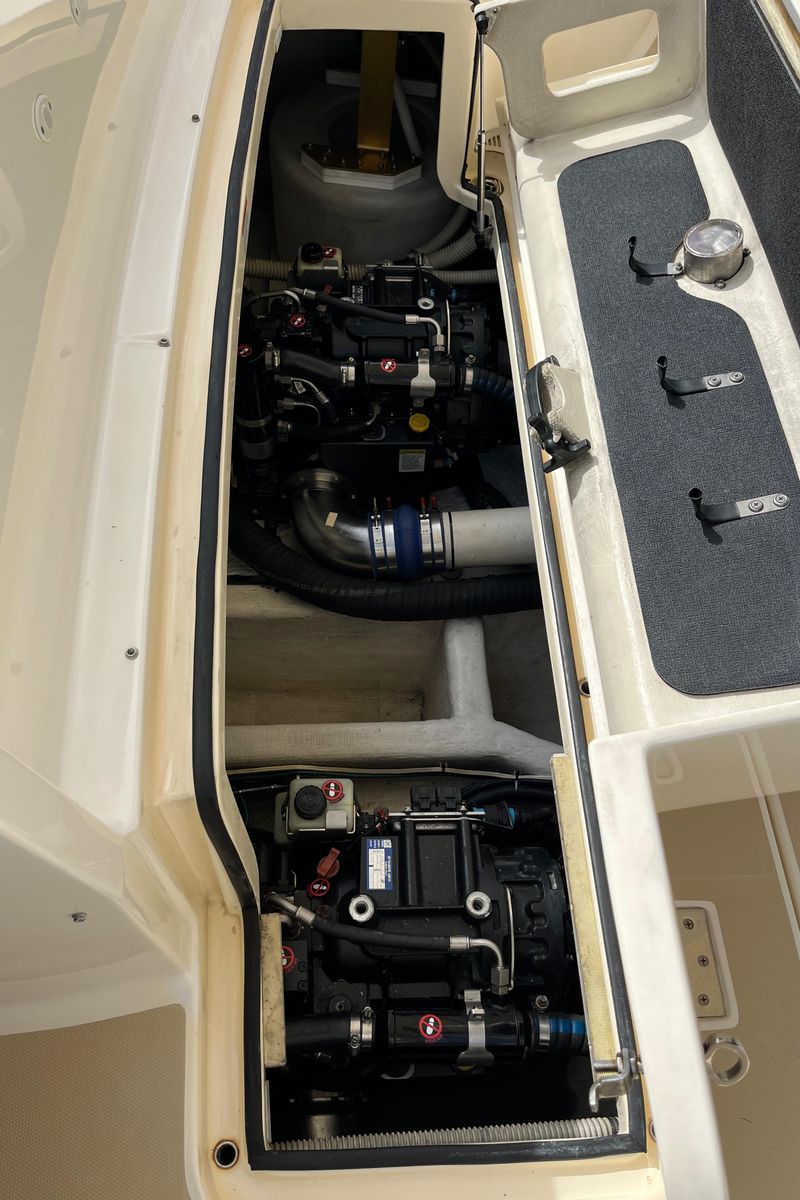

MechanicalTwin Cummins QSB 5.9l 380hp electronic, fresh water-cooled
engines..
- Twin CMD Zeus 3500 pod drives, with integrated steering and
trim tabs.
- 120A, 12V alternators each engine.
- (2) Exhaust by-pass mufflers.
- Engine room blower.
- Engine room vent ducts.
- Engine room floor with FRP antiskid
White gelcoated engine room
Mylar face foam noise barrier
Fuel(2) 190 gal diesel fuel tanks port and starboard.
- Racor fuel filters with water in fuel probes.
- (2) 2” “Diesel” deck fill plates.
Steering and Trim SystemCMD helm, with joystick.
- Trim tabs integrated in CMD Zeus pod drives.
- Autopilot integrated in CMD Zeus system
- GPS receiver included
- “Skyhook” GPS position hold system

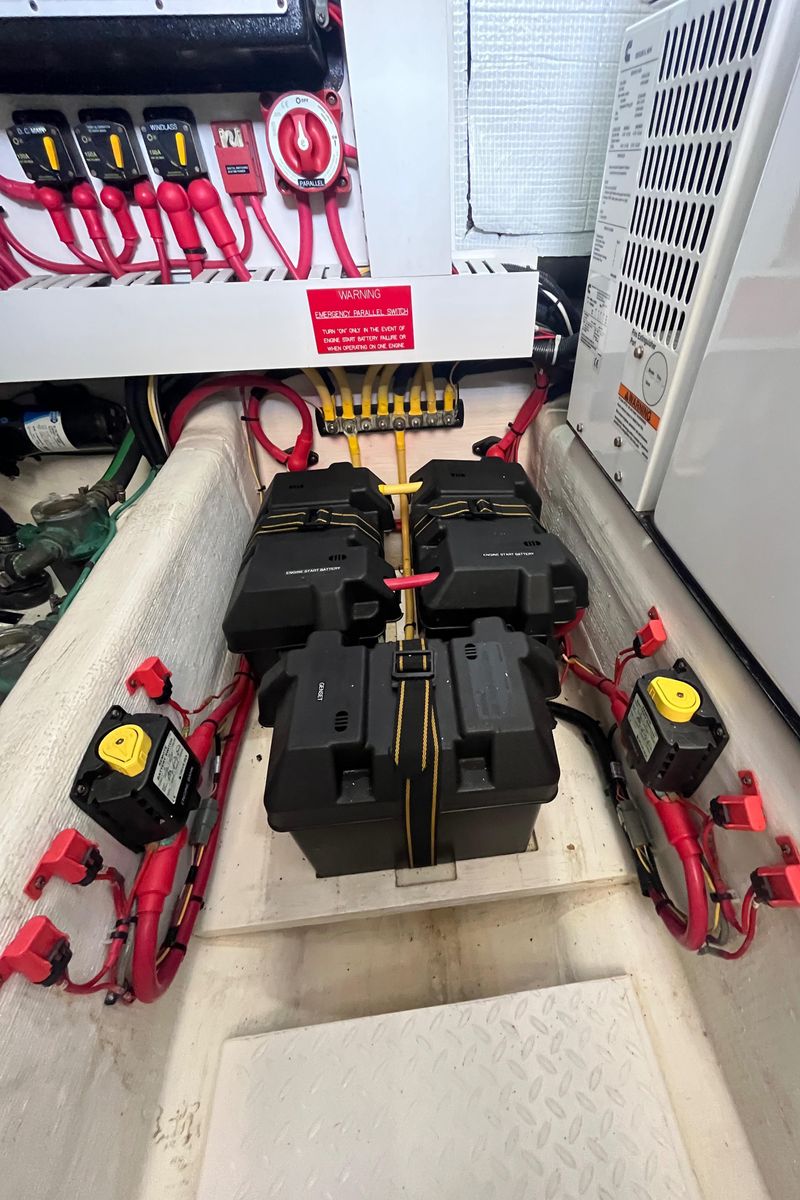

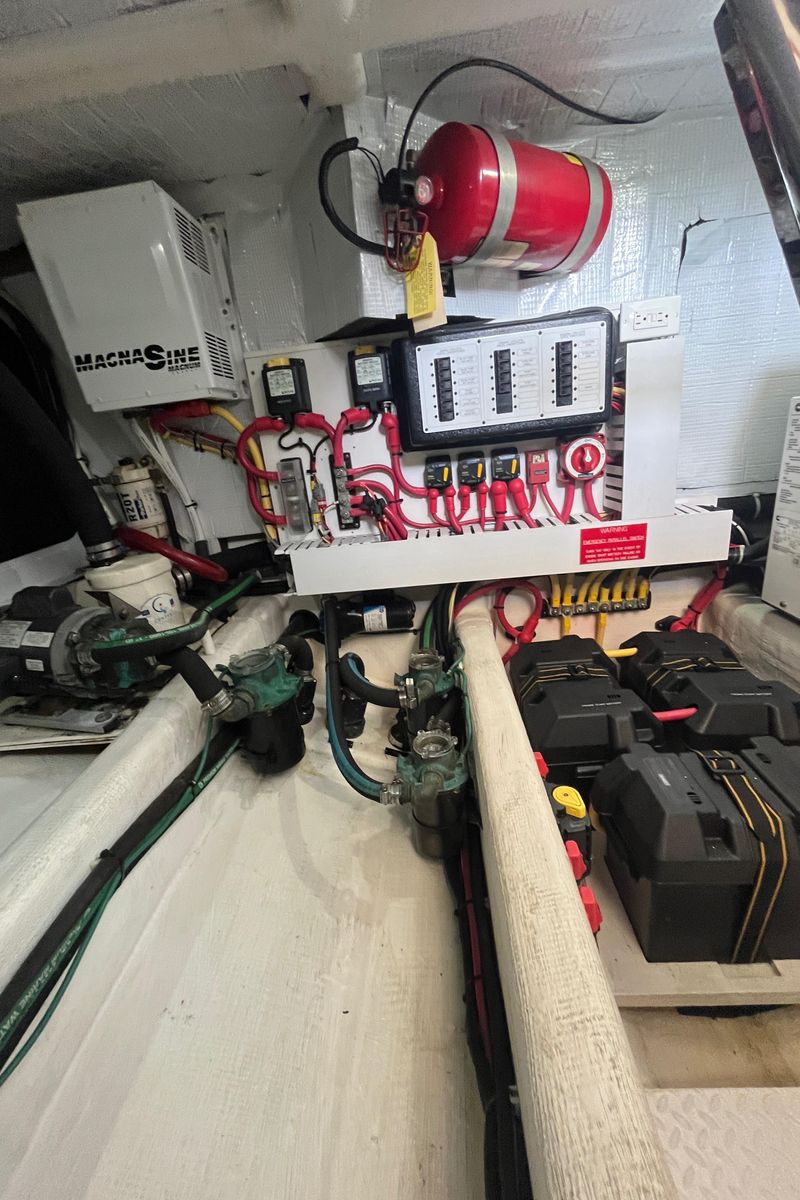

12VDC SystemTwo AGM Group 31 dedicated engine start batteries.
- Two AGM 4D deep cycle ship's service batteries.
- One AGM Group 24 generator start battery.
- Remote control battery switches with controls at helm.
- Manual emergency battery crossover switch.

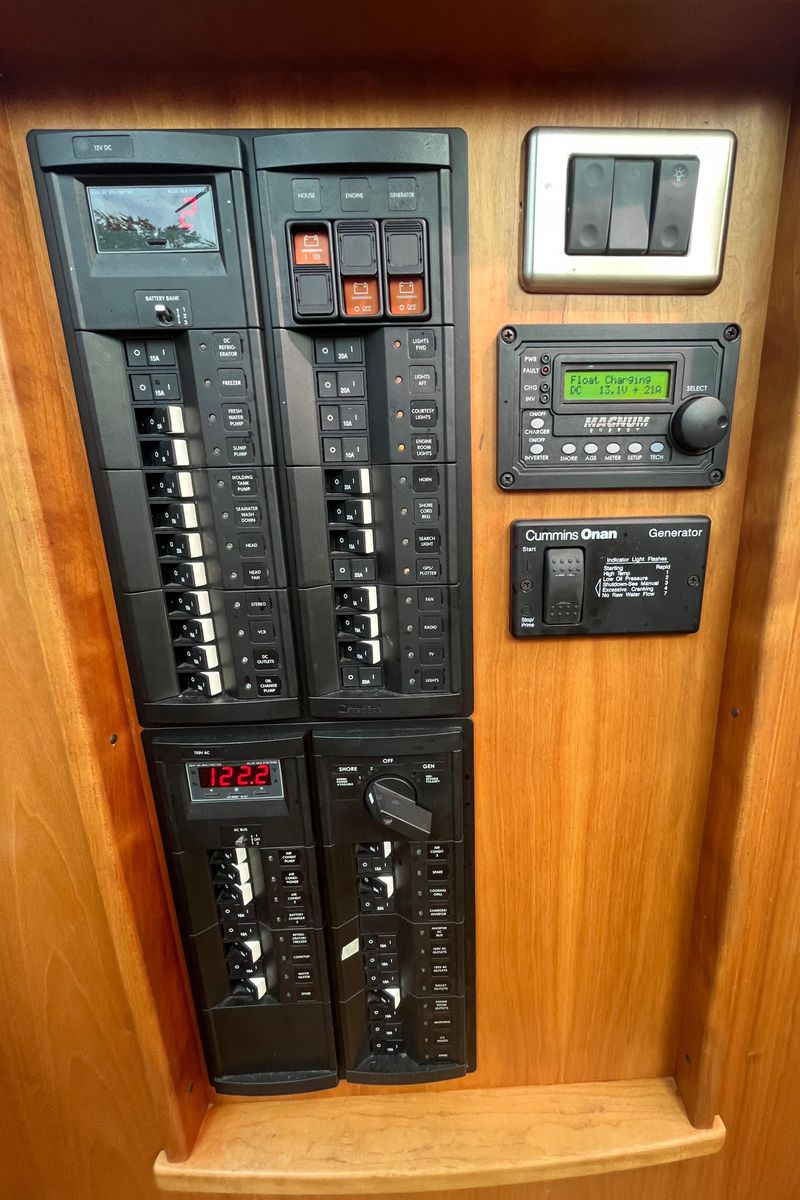

- Illuminated main circuit breaker distribution on bulkhead
opposite galley
- Digital battery monitor.
- Lighting:
Danish cabin reading lights.
High output LED lights in the overhead.
Halogen bar lighting in appropriate locations.
Fluorescent engine room lighting.
Cockpit courtesy lights.
- Marine-grade, tinned wire throughout.

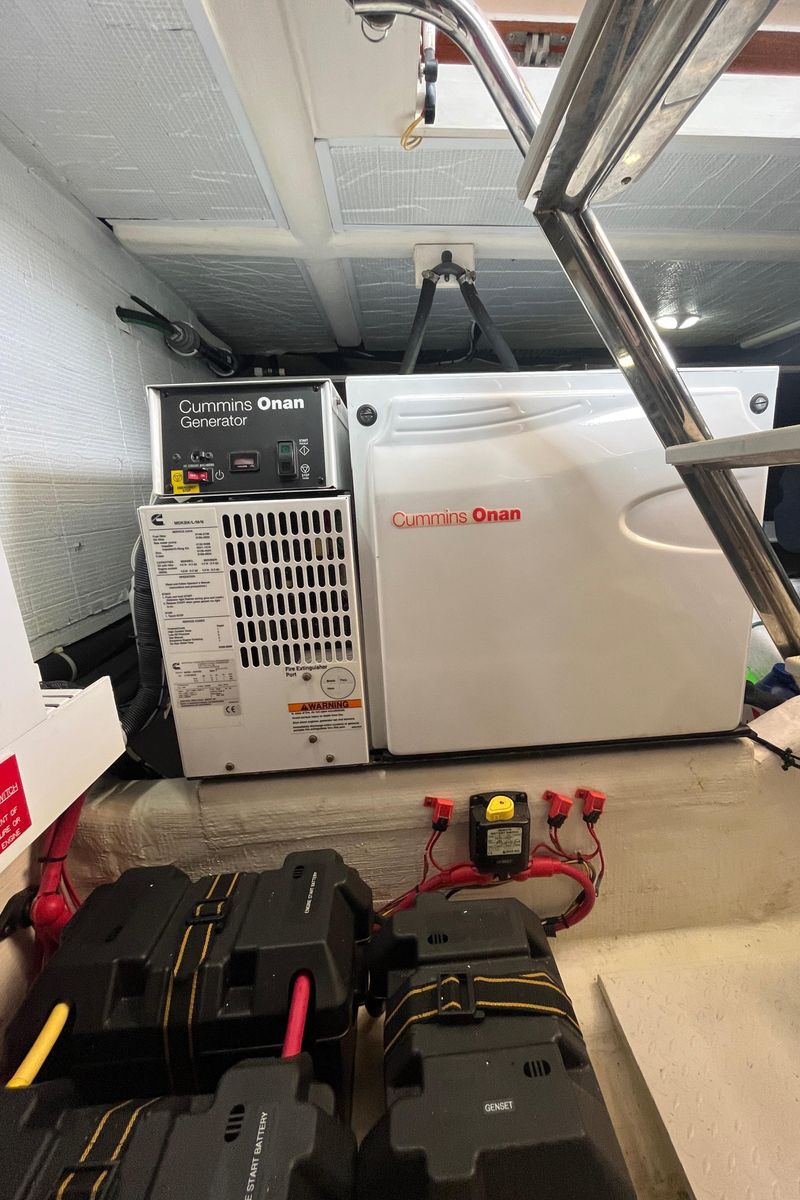

12VAC SystemOnan 9.0 kw generator including:
Interface to Cummins Vessel View display
Dedicated start battery.
Water lift muffler.
Cooling water intake strainer.
Sound shield.
Transfer switch.
- (2) 30A AC shore power inlets and (2) 50 ft. cords.
- Fail safe galvanic isolator.
- Illuminated main circuit breaker distribution panel.
- Digital AC system monitor
- (1) 120V outlet in each cabin and (1) in engine room.
- All galley and head receptacles are GFI protected.
- Additional outlets positioned in locations appropriate for
entertainment systems in main and forward cabin
- 50amp, 3-bank battery charger
- Reverse cycle heat/ air conditioning in (3) zones.

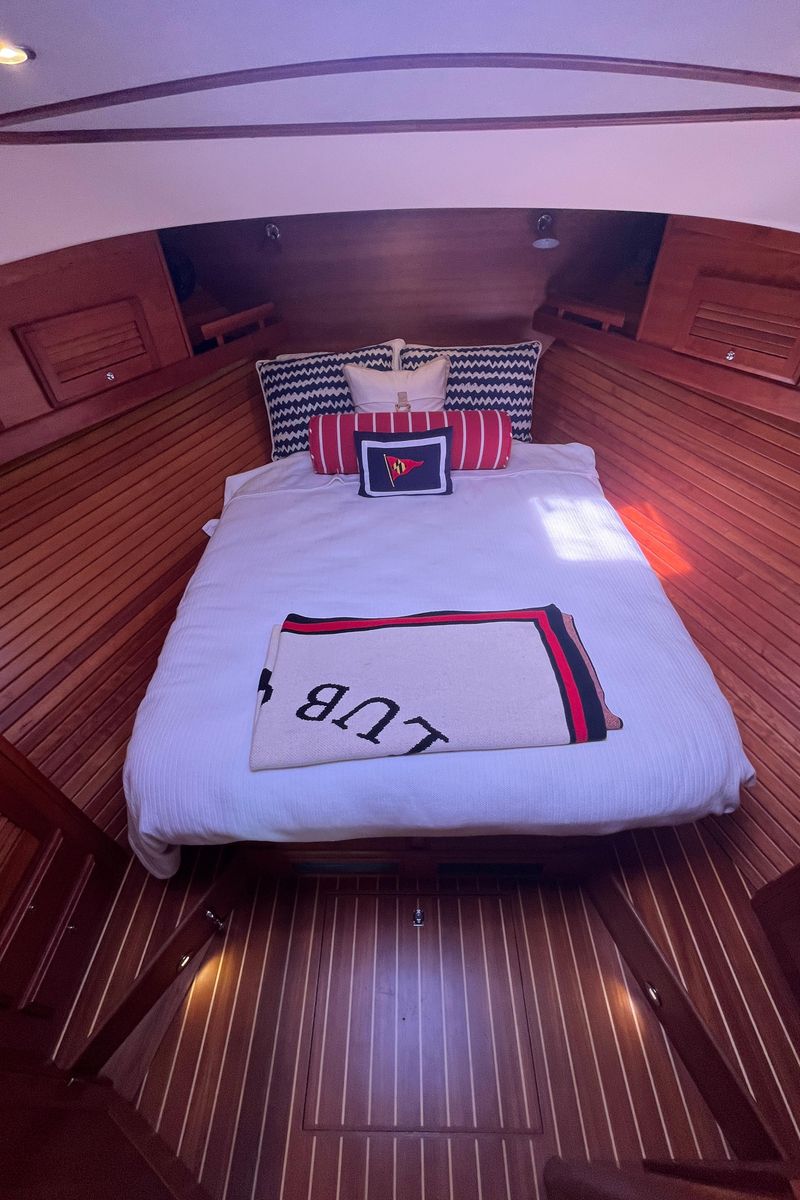

Owner's StateroomSpacious Island Berth layout with 5" cushion. ¾” laminated trim.
- Cherry hull ceilings.
- (2) Drawers under berth. A/C return grills under drawers.
- (2) drawers in bureau w/locker w/shelf above and single louvered
door.
- Upper enclosed shelves with storage behind. Locker face to have
(2) louvered doors.
- Recessed shelf with fiddle on starboard main bulkhead with 19”
flat screen TV and DVD player.
- Large cedar lined hanging locker to port, with louvered door,
shelf and hangar pole.
- Open shelf above port hanging locker.
- Teak and holly sole.
- Sound deadening soft headliner panels.
- Pocket door to forward
stateroom.

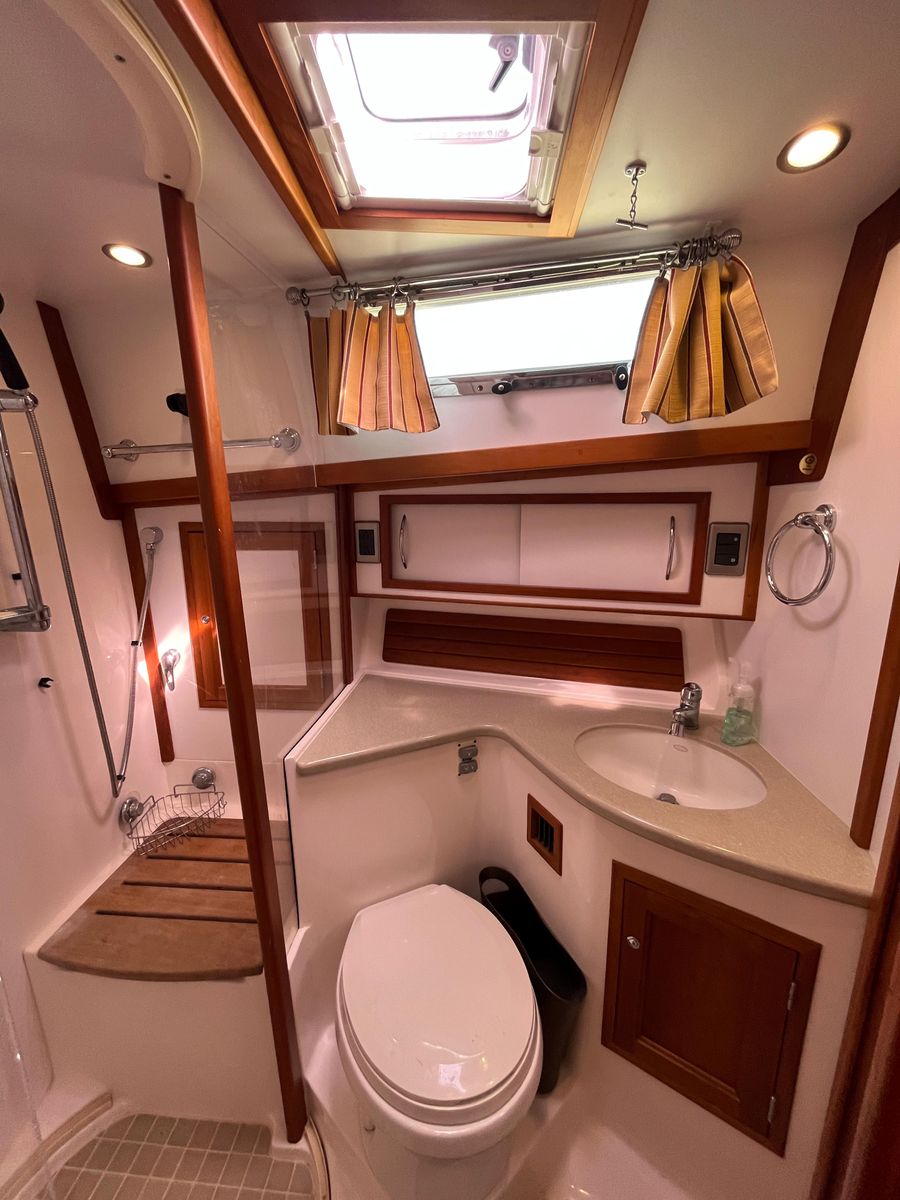

HeadStainless steel under mount oval sink.
- Circular shower stall with seat and locker outboard.
- Hot and cold pressure water
- Electric shower sump pump.
- Storage lockers.
- Solid surface vanity top with bull nose.
- Towel bar.
- Wood trimmed mirror over sink.
- Ventilation blower.

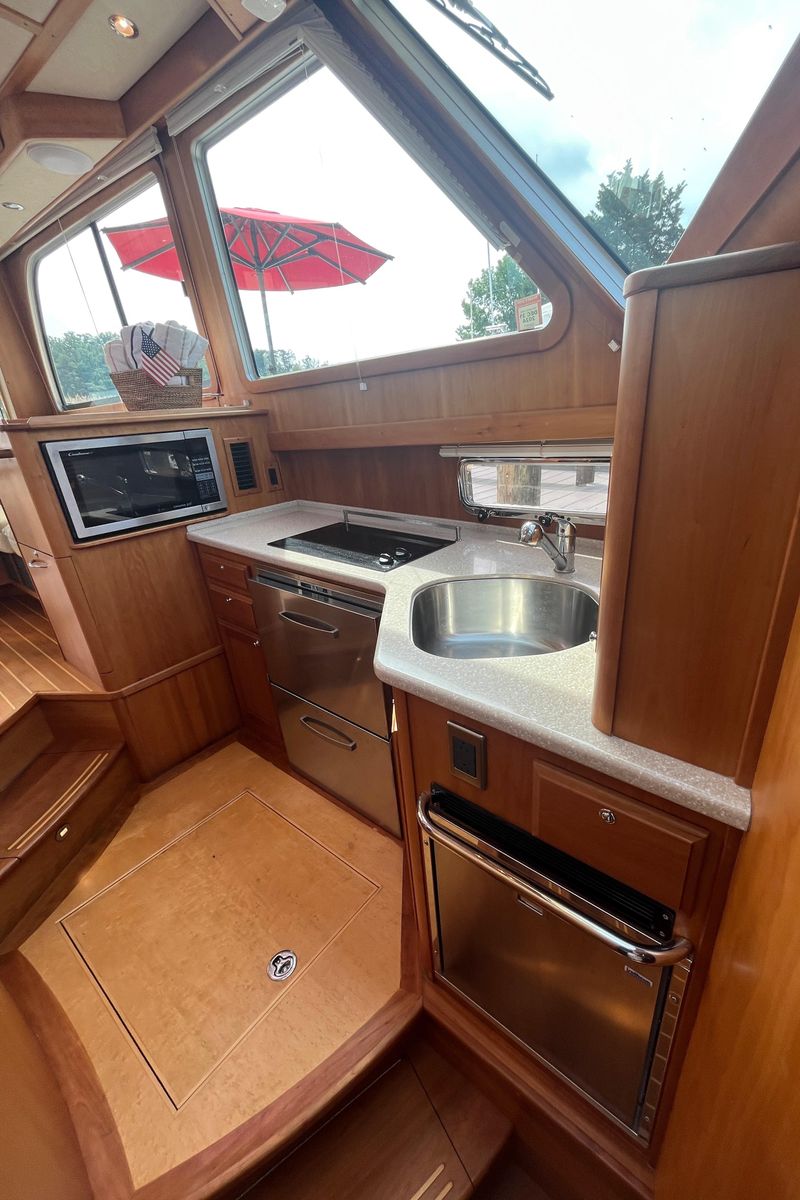

GalleyMid level galley.
- Solid surface galley counter top.
- Stainless steel under mount sink with Scandvik faucet.
- Vitrifrigo 2-drawer Refrigeration with stainless steel doors.
- Isotherm 1-drawer Freezer with stainless steel door.
Two burner touch control electric cook top.
- Convection microwave with stainless steel door above aft
counter.
- Cabinet with two louvered doors on forward bulkhead.
- Drawers and storage lockers below counter.
- Built-in waste basket.
- Large drawer under microwave opens athwartships

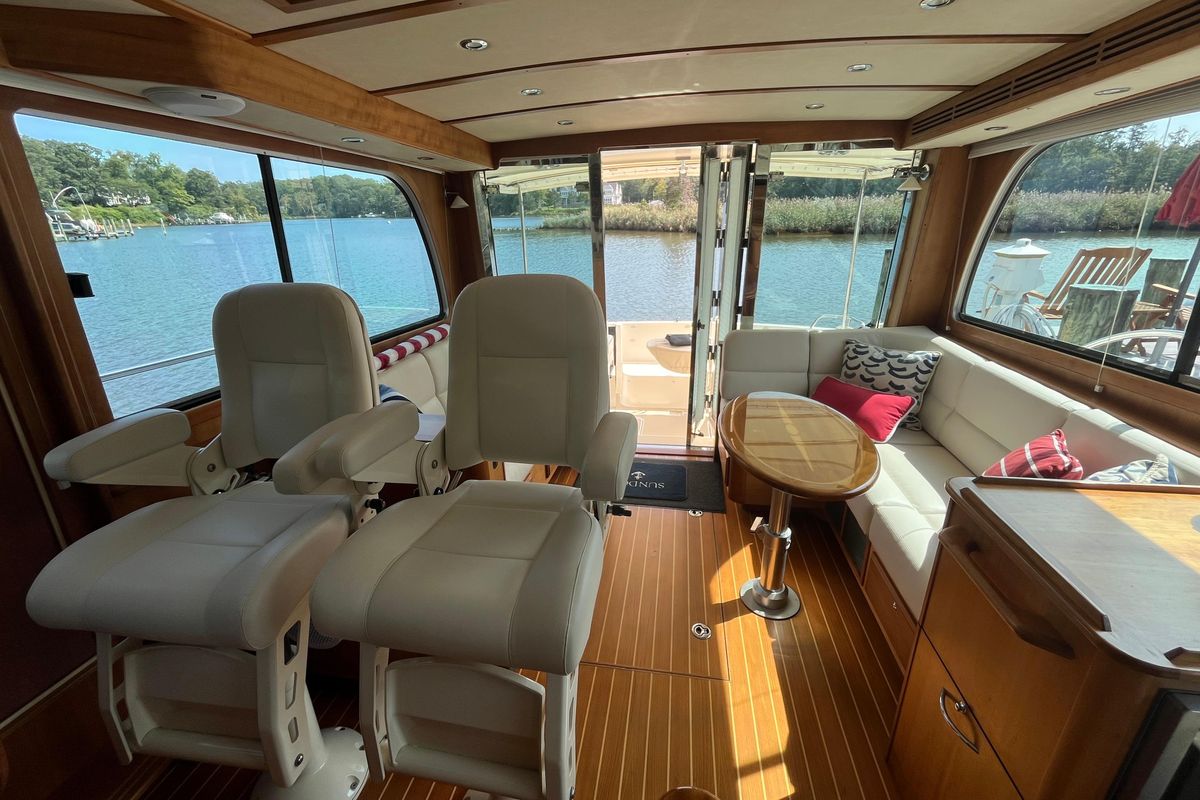

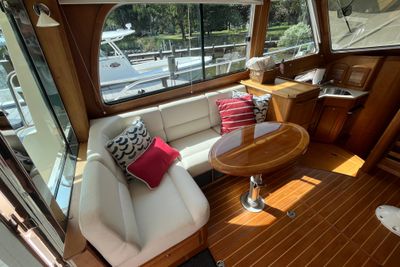

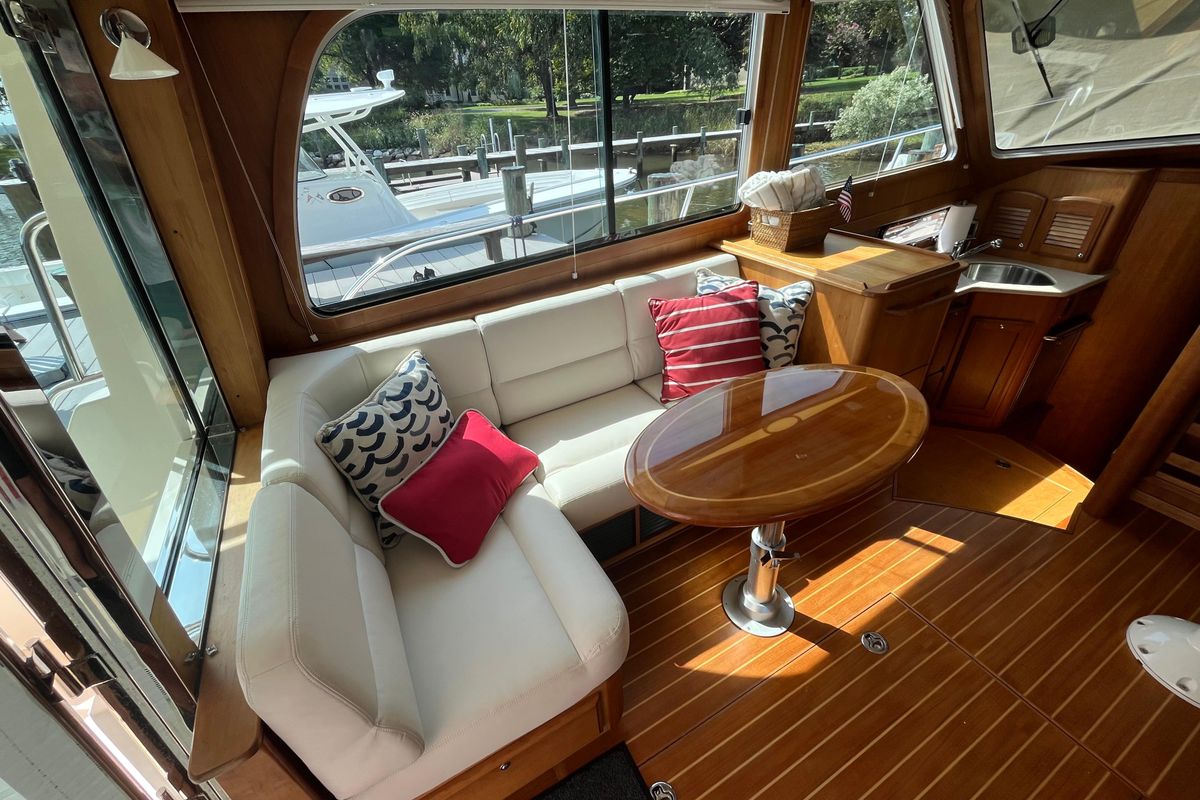

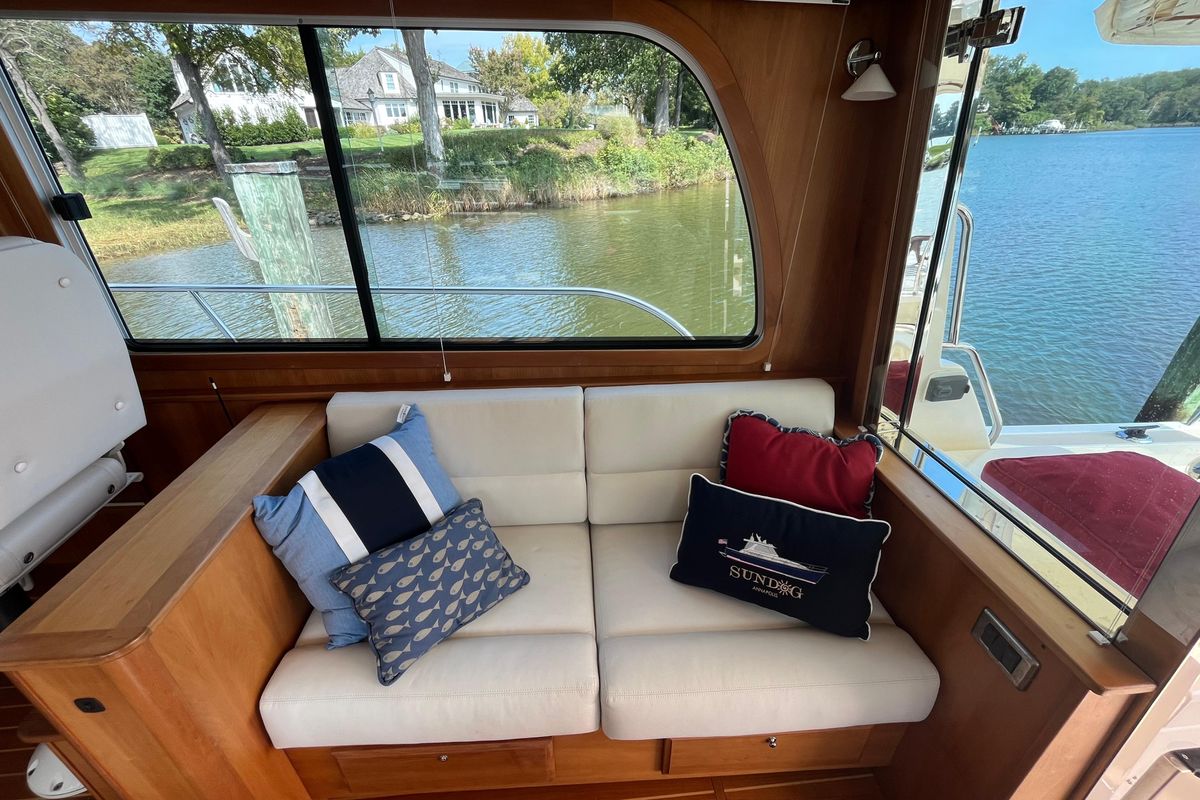

Salon“L” settee to port, 5” foam cushions, with storage and Sabre
tool drawer under. Sunbrella fabric seat coverings
- High Gloss finished folding table with hi-low pedestal, lowers
to coffee table height.
- End table to starboard with 24” flat screen LED TV on lift with
DVD player (installed at dash)
- Bottle storage locker below helm seats
- Sound deadening, soft headliner panels.
- Settee to starboard with drop down storage under
DecorVarnished cherry interior finish.
- Screens on all opening ports.
- Ocean Air screen/blinds on deck hatches.
- Ocean Air blinds on side windows and side door (not windshield)
- Optional fabric and drapery selections.
- Dovetailed maple drawer boxes
Fresh water systemWater capacity 140 gals.
- Stainless steel, 11 gal. hot water heater, operates on 110-VAC or
engine heat.
- Temperature control valve on hot water supply.
- Hot and cold water pressure system 12V.
- Fresh water spigot in engine room.
- Optional Cockpit shower, hot and cold.
- Optional Fresh water wash down in anchor locker.
Waste and SafetyWASTE
Polyethylene holding tank with 60 gallon capacity.
- Jabsco Quiet Flush fresh water MSD.
- Diaphragm waste pump on holding tank.
SAFETY
- Fire extinguishers, (4) at 2 1/2 lbs.
- Marelon sea valves on all thru-hull fittings below waterline.
- Bonding system to safeguard against galvanic corrosion.
- Automatic fire extinguishing discharge system in engine space
with override.
- (3) Automatic 12V electric bilge pumps.
- (3) high water switches and alarm.
Factory OptionsElectric sunroof with sunscreen in lieu of standard 2 hatches
FRP molded mast with separate platform for radar pedestal
Upgrade mast to accommodate
Additional 12V DC outlet in forward cabin
Additional dimmer switch in galley, forward cabin and dinette
Dark Hull Color-Flag Blue
Anti-skid color-Beige

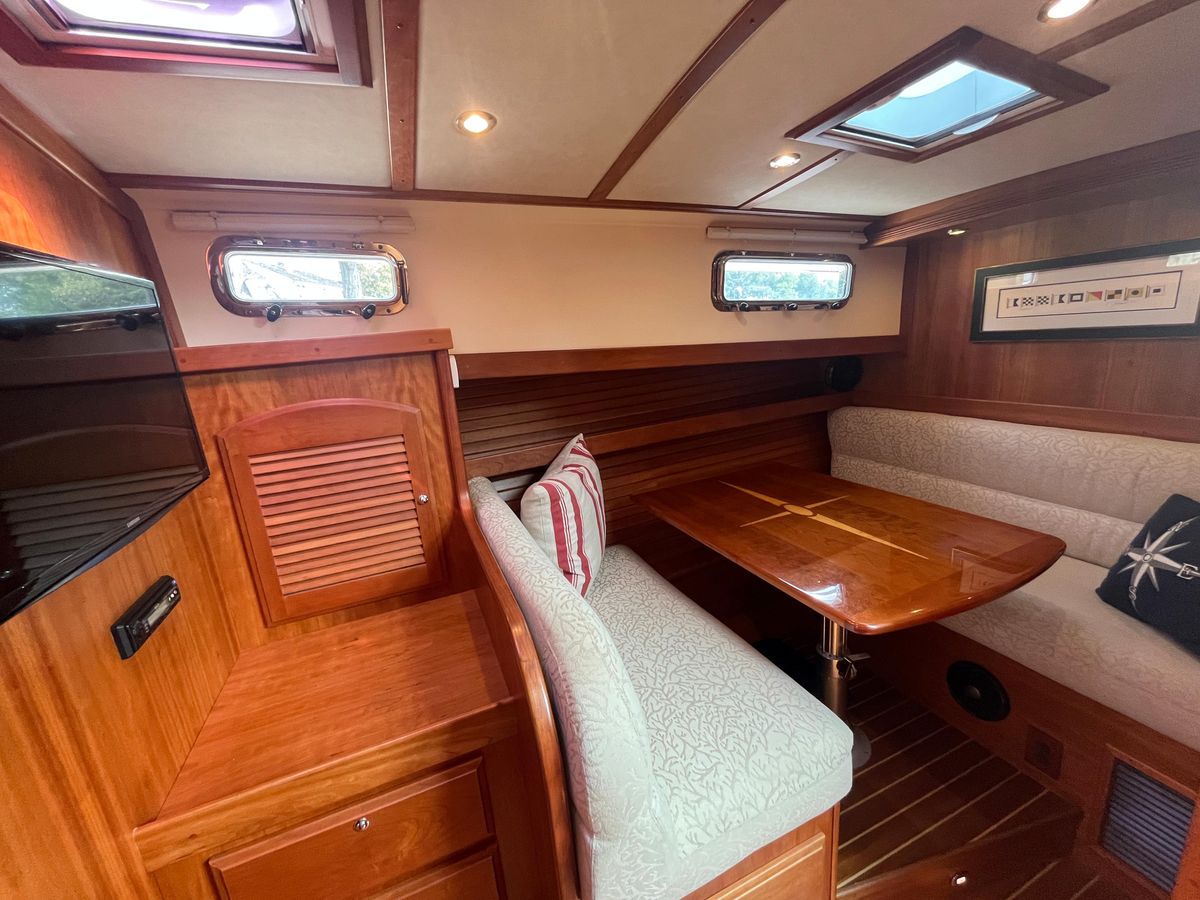

Dinette in second cabin converts to double berth
Accord shades on opening ports
Ultraleather upholstery in main salon
Reverso oil change system
Kahlenberg dual chrome horns
Searchlight mounted on hard top mast (dual beam)
Hot and cold transom shower
Single Seagull water purifier on galley cold water
Single Seagull water purifier on ice maker
Shore water inlet

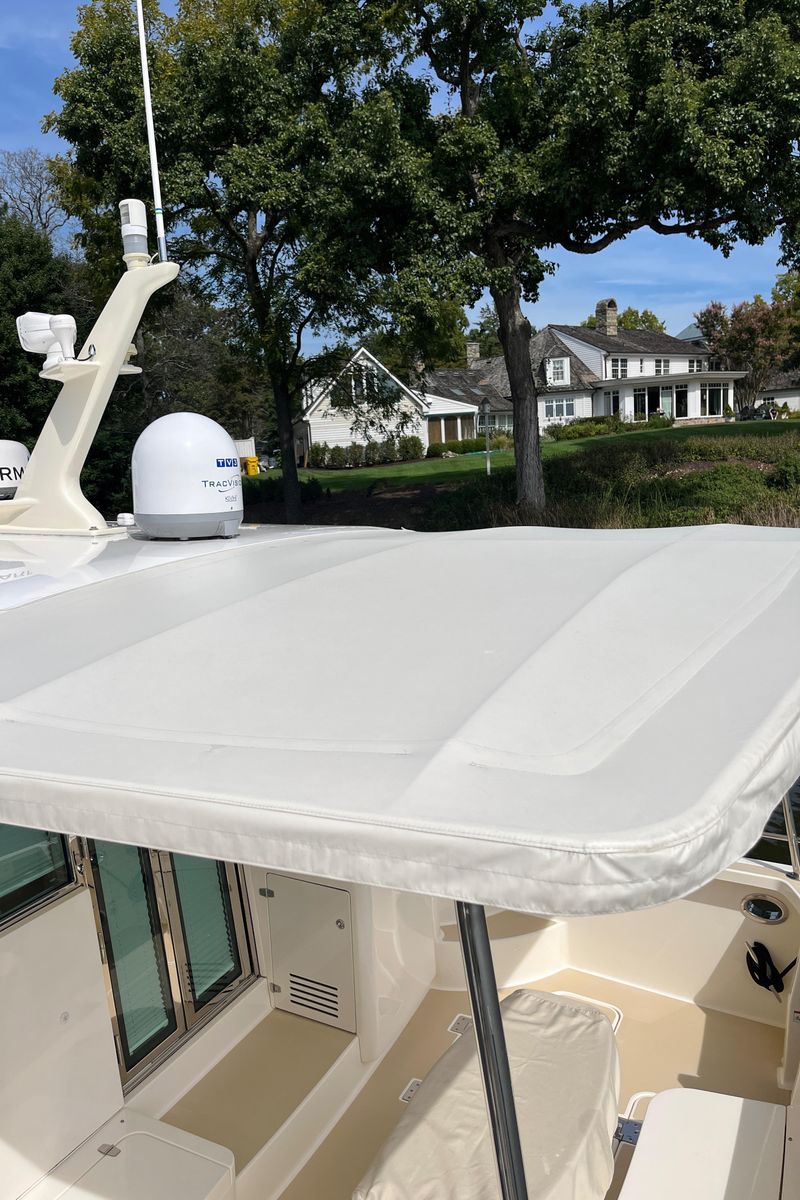

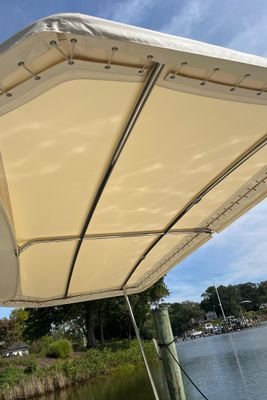

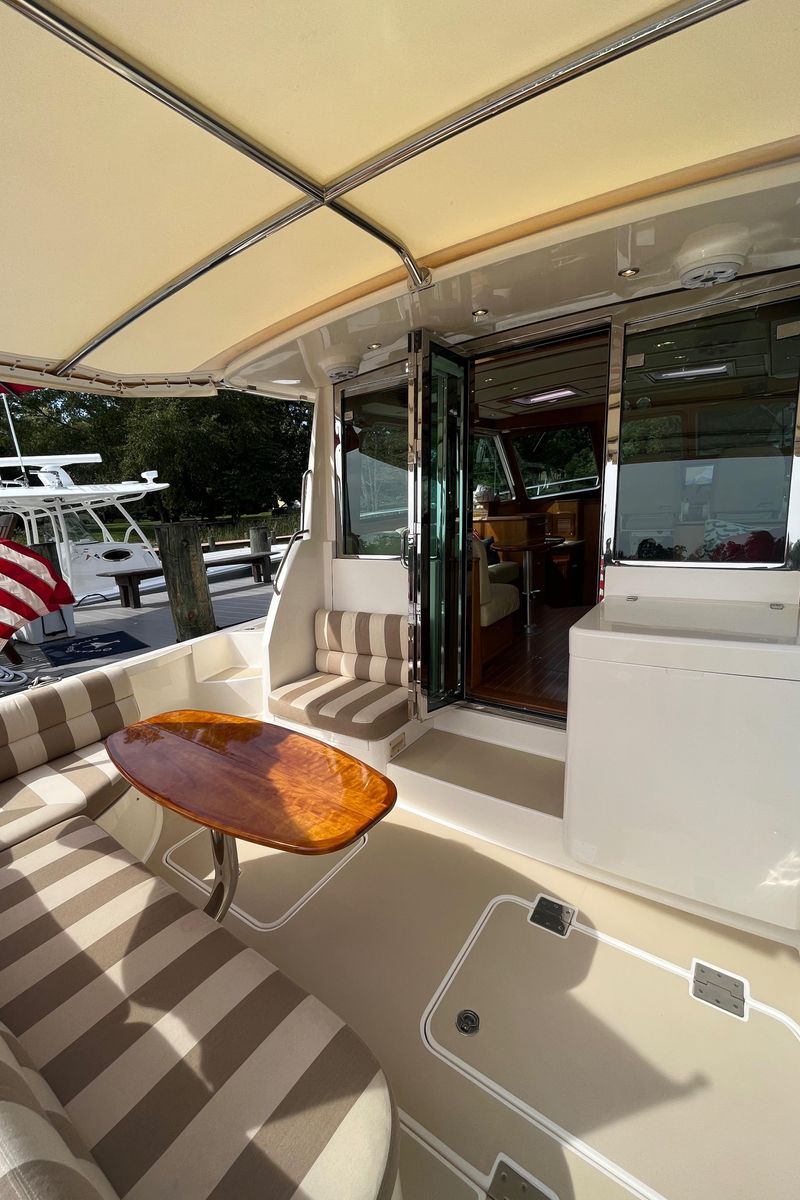

Custom optionsCustom Fixed Canvas Cockpit Shade System
Custom bar in dinette area: Icemaker installed in lieu of drawer in forward cabinet with glass and liquor storage in locker and Corian Witch Hazel countertop
Bulkhead cut back to open up dinette to galley with Sailcloth S/B curtain
Mirror size increased in head above sink
Mirror on upper and lower panel of door between head and forward cabin
Cherry towel bars on head door to companionway, upper and lower
Cherry tambour cabinets in lieu of standard white
Pre-wire for washer/dryer in engine room and add platform
Ocean Air Skysol group 2 shades in main salon in lieu of standard
Custom Corian choices
Upgrade main salon TV to the 26" with built in DVD player
2 Burnewiin rod holders
Cockpit seat covers port and starboard aft facing and forward facing L shape seat
Custom mattress

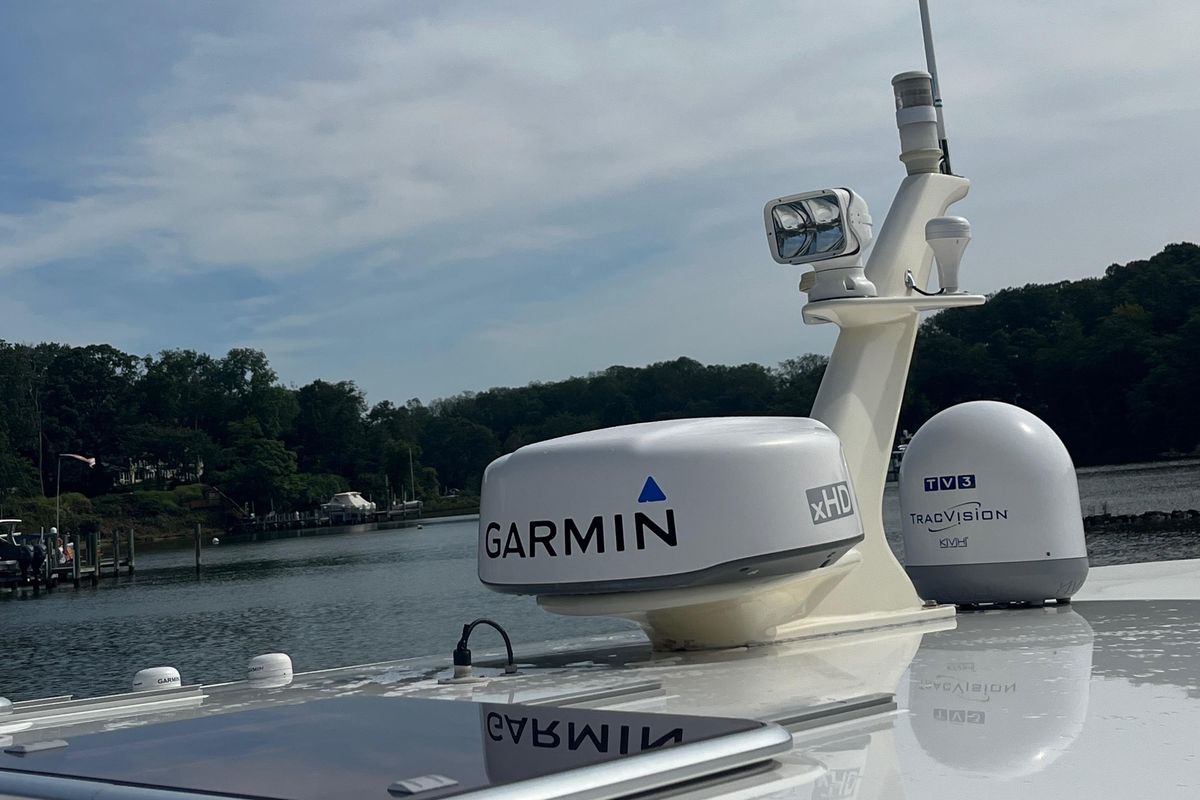

Electronics(2) New 15" Garmin multifunction electronics displays with 4 Kw open array, GPS, Black Box for depth/sounder and radio. KVH M1 Sat Dome with 2 receivers and dummy dome, New Fusion stereo with separate zone control
