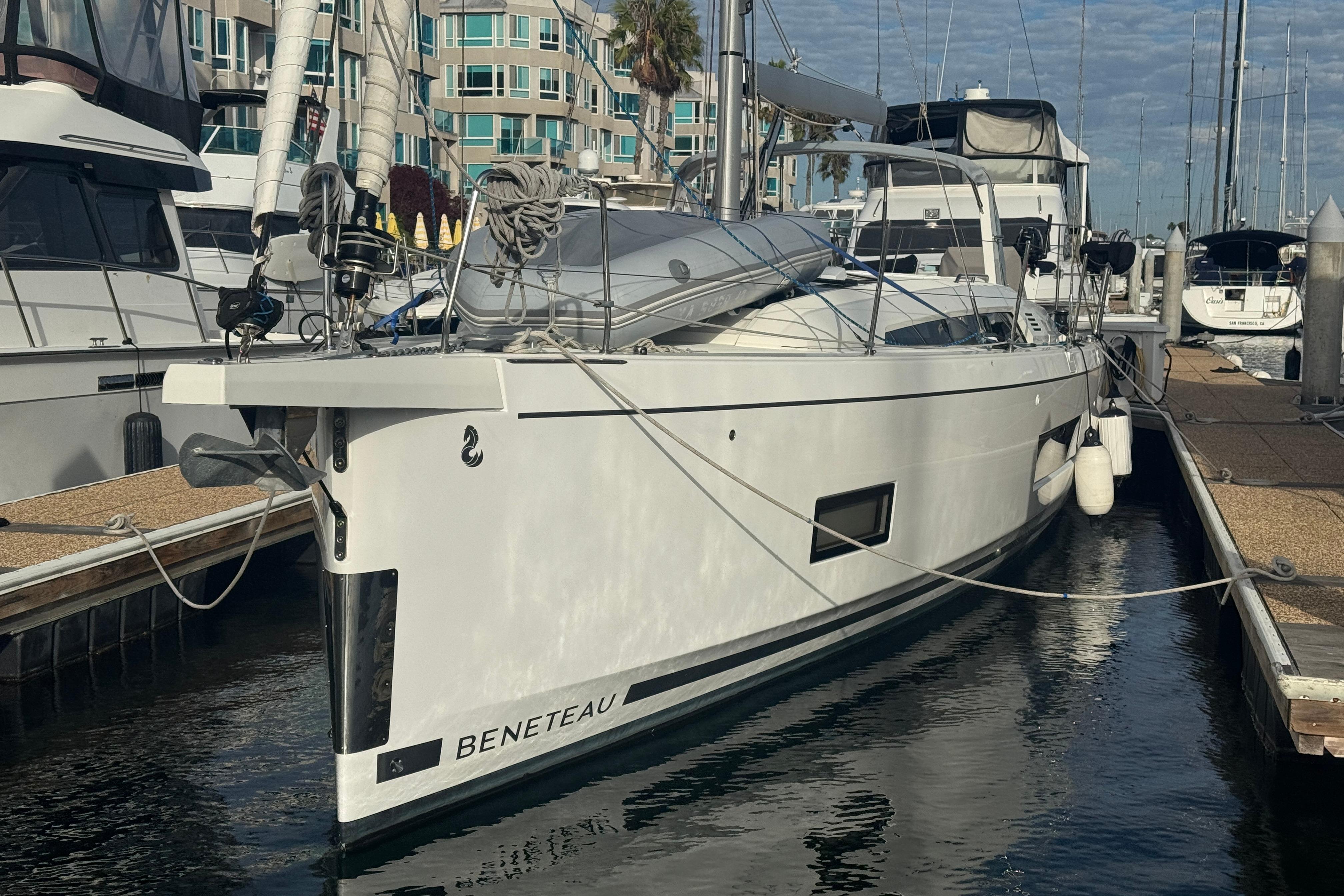

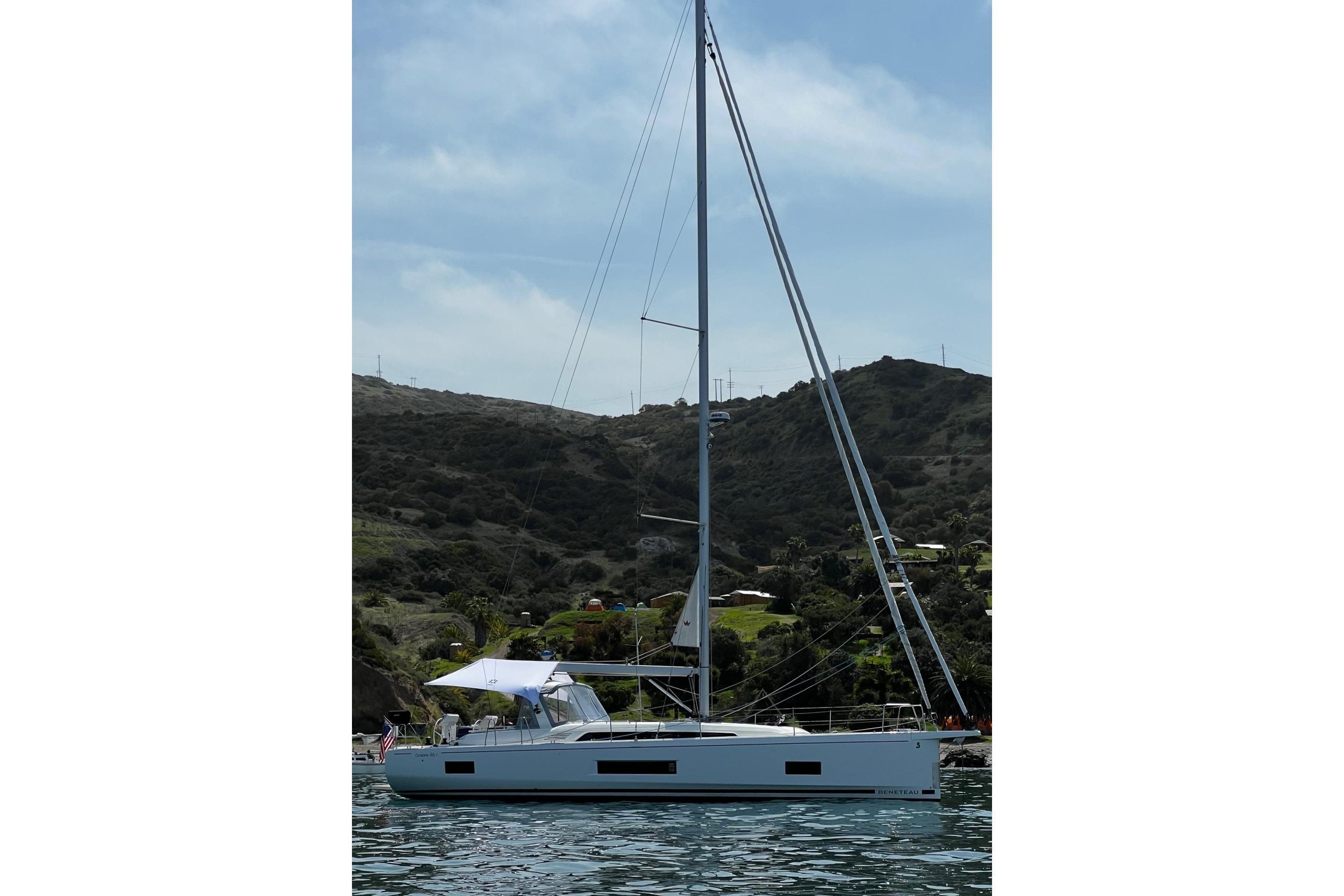

Kamanawanna is one of the most highly sought after cruisers today.  The 3 cabin, 2 head family cruiser is also a fantastic sailor with one of the fastest hulls on the water.  She has incredible helm balance due to her twin rudders, steered easily from one of two helms.  She also has the following options:

• Quantum Code 0
• Victron Battery Monitor
• Dodger/Spray Hood
• Electric Toilet
• Separate Shower in Owner Cabin

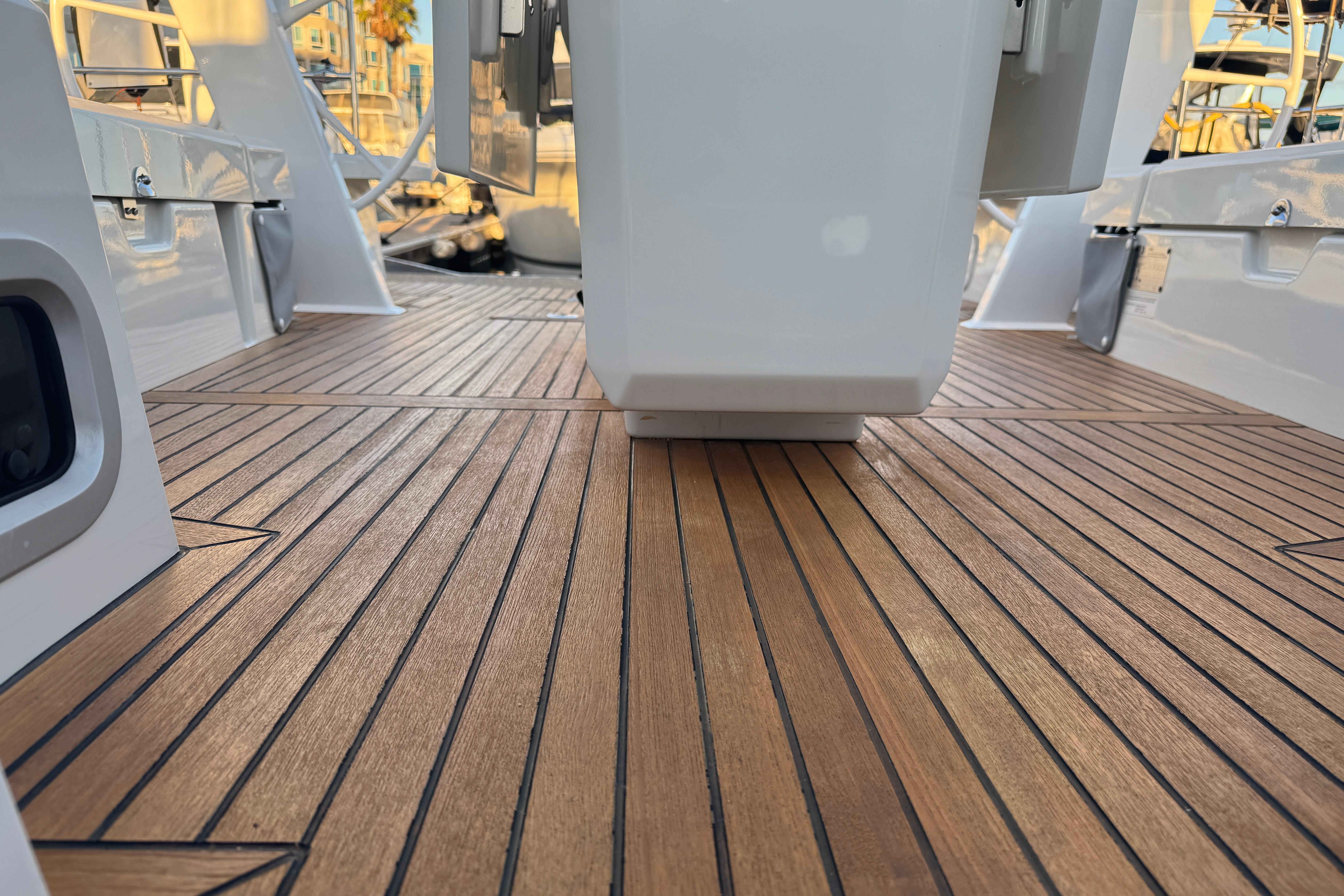

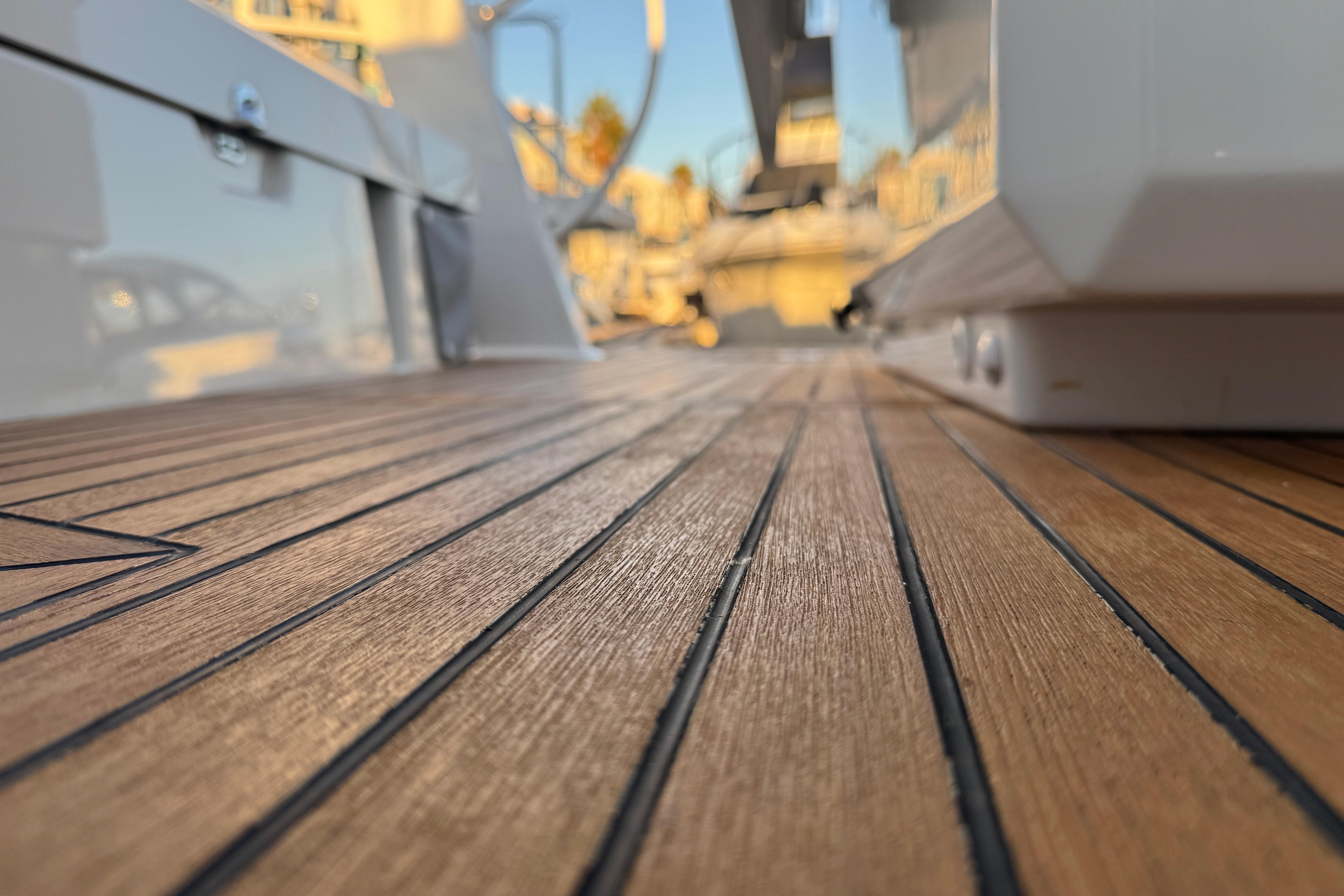

• Teak Cockpit
• Inverter
• Windlass
• Electric Sheet winches
• Roller furling main

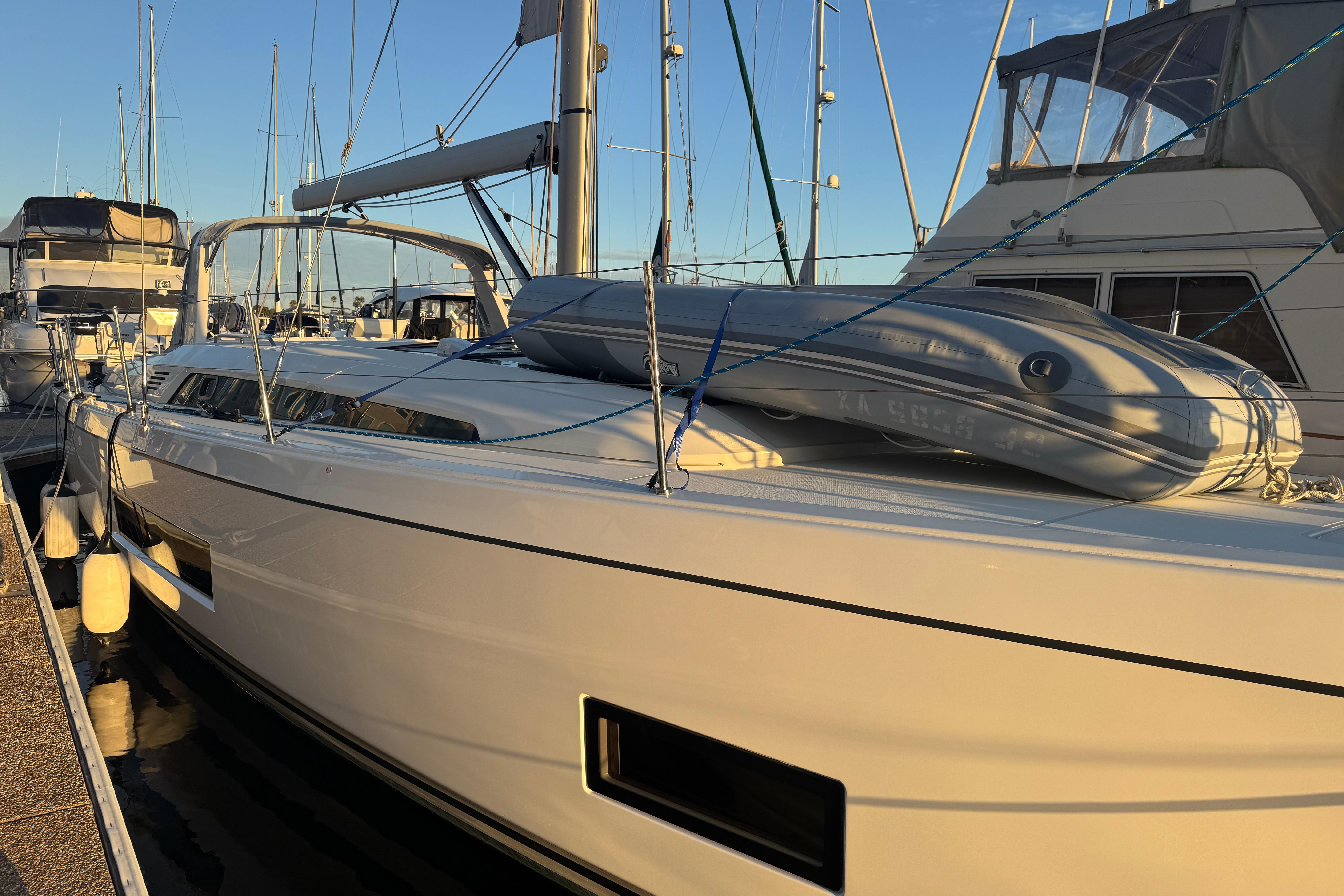

• Achilles dinghy with Mercury outboard
• LLC owned

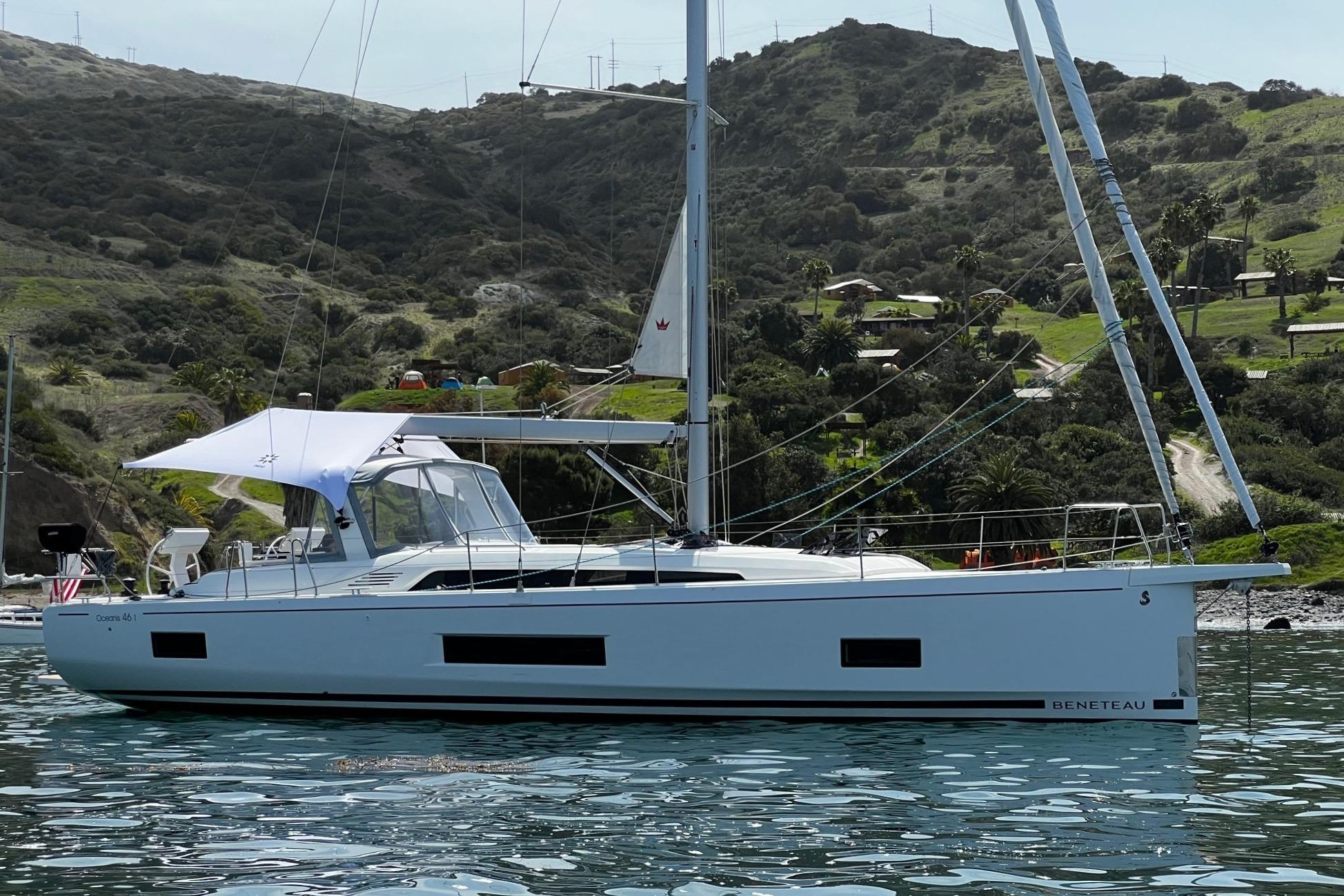

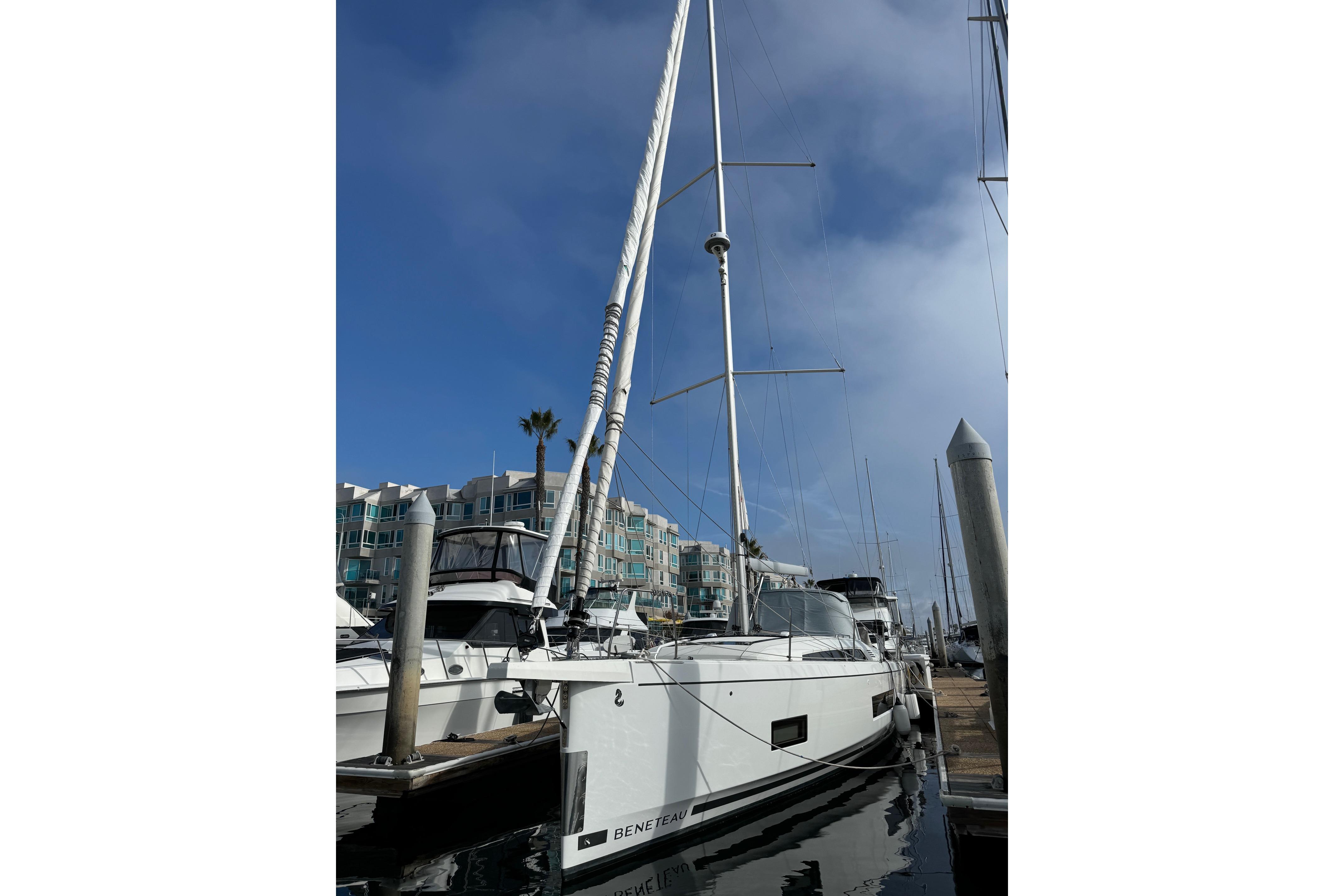

The Oceanis 46.1 offers a true balance between elegance, performance, and comfort. Her stepped hull adds massive amounts of volume below with no compromise to seakeeping abilities. Her deck and cockpit layout make her an easy boat to sail doublehanded, and a large number of custom options and trims ensure she will be tailored to each sailor’s expectations and requirements.

ARCHITECTS / DESIGNERS

• Naval Architect: Pascal Conq

• Outside & interior design: Nauta Design

EC CERTIFICATION

• Category A - 10 people

• Category B - 11 people

• Category C - 12 people

STANDARD SAILS DIMENSIONS

 Overall Length (L.O.A) 14,60 m 47’11’’

• Hull length 13,65 m 44’9’’

• L.W.L. 13,24 m 43’5’’

• Hull Beam 4,50 m 14’9’’

• Deep draft (Cast iron) 2,35 m 7’9’’

• Deep ballast weight 2 735 kg 6,028 lbs

• Air draft 20,31 m 66’8’’

• Light displacement 10 597 kg 23,356 lbs

• Fuel tank capacity (standard) 200 L 53 US Gal

• Fuel tank capacity (Option) 200 L 53 US Gal

• Fresh water capacity (standard) 370 L 98 US Gal

• Fresh water capacity (Option) 200 L 53 US Gal

• Engine power (Option) 80 HP 80 HP

• Furling mainsail (standard) 44,50 m² 479 sq/ft

• Furling genoa (109 %) 52,16 m² 561sq/ft

• Code 0 102 m² 1,098 sq/ft

• I 17,72 m 58’2’’

• J 5,72 m 18’9’’

• P - Roller furling mast 16,57 m 54’4’’

• E 5,630 m 18’6’’

• Design made following European Directive requirements and according to CE certification

• Monolithic polyester contact hull

• Monolithic contact structural counter mold (Fabric - resin) bonded to the hull

• Injected deck construction in fiberglass and Saerform foam sandwich, covered with non-slip diamond pattern

• Cast iron keel fixed with bolts and stainless steel backing plates

• Twin rudders affixed with stainless steel stock

• White hull - Grey metal hull decoration

• 8 Hull portlights

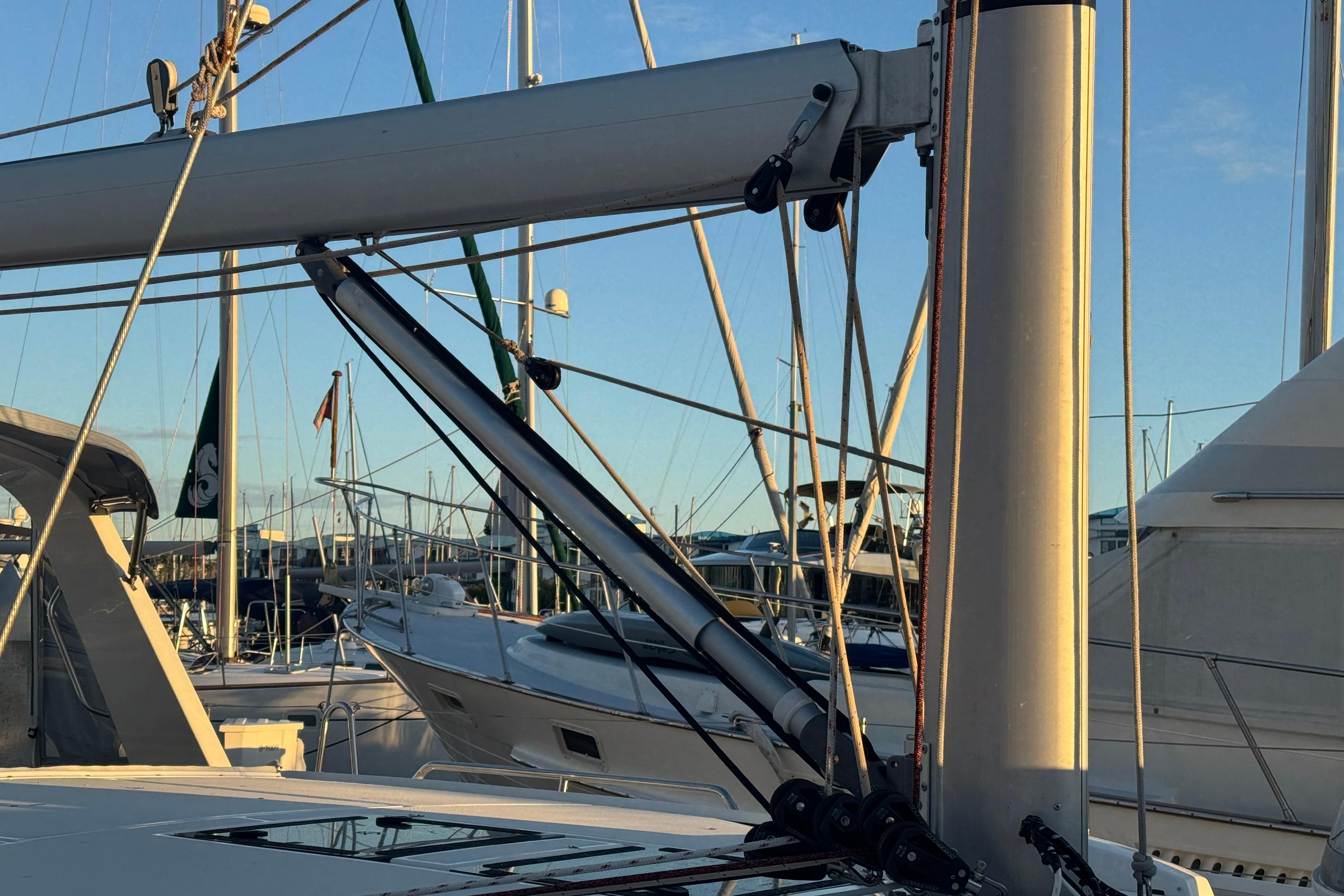

RIGGING

• Anodized furling mast (Z-Diffusion), deck stepped with in-mast furling system, 2 Aft swept spreaders

• Anodized aluminum boom

• Cathedral type single-strand stainless steel standing rigging

• Split backstay

• Rigid boom vang

• Self-tacking jib with on-deck furler

• 2 Stand Up mainsheet blocks on the coachroof

• 1 Self-tacking jib track with traveller

• All lines lead back to the helm stations (except boom topping lift and genoa halyard)

• Complete running rigging: Main halyard, Genoa halyard with cleat on mast, Boom topping lift with cleat on mast, Mainsheet, 1 Selftacking jib sheet

• 6 Clutches

• Halyard covers

• 2 Flag halyards

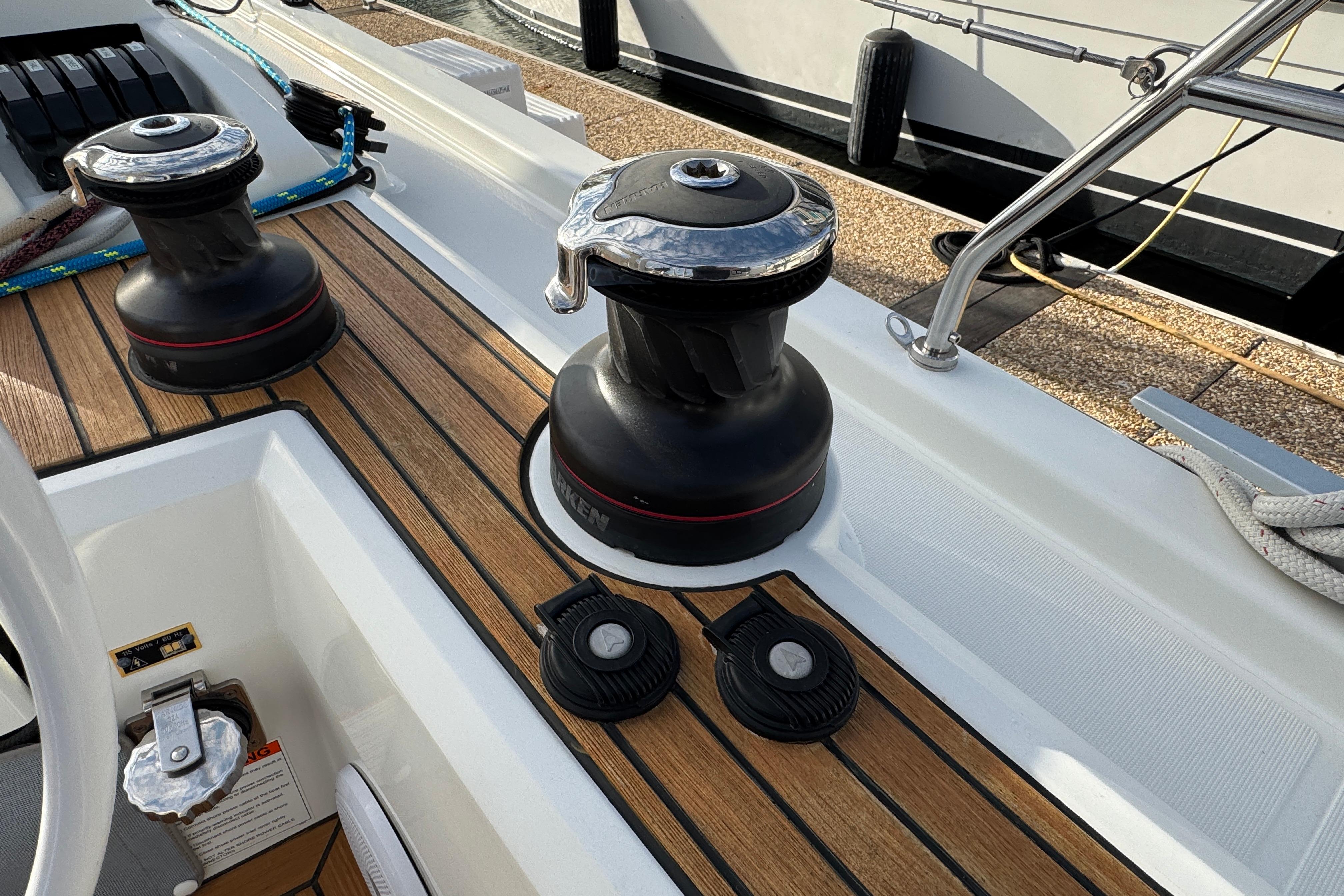

WINCHES

• 2 Electric genoa winches - H50.2 STAEH

• 1 Self tailing winch (H40.2 STA) at each helm station

• 2  Aluminum Speed Grip winch handle

• 2 Winch handle holders

SAILS (Elvström)

• Furling mainsail Dacron, with UV protection Natural, horizontal cut

• Furling genoa Dacron with UV protection Natural, horizontal cut

MOORING - ANCHORING GEAR

• Self-draining chain locker - Clench bolt - Hatch cover

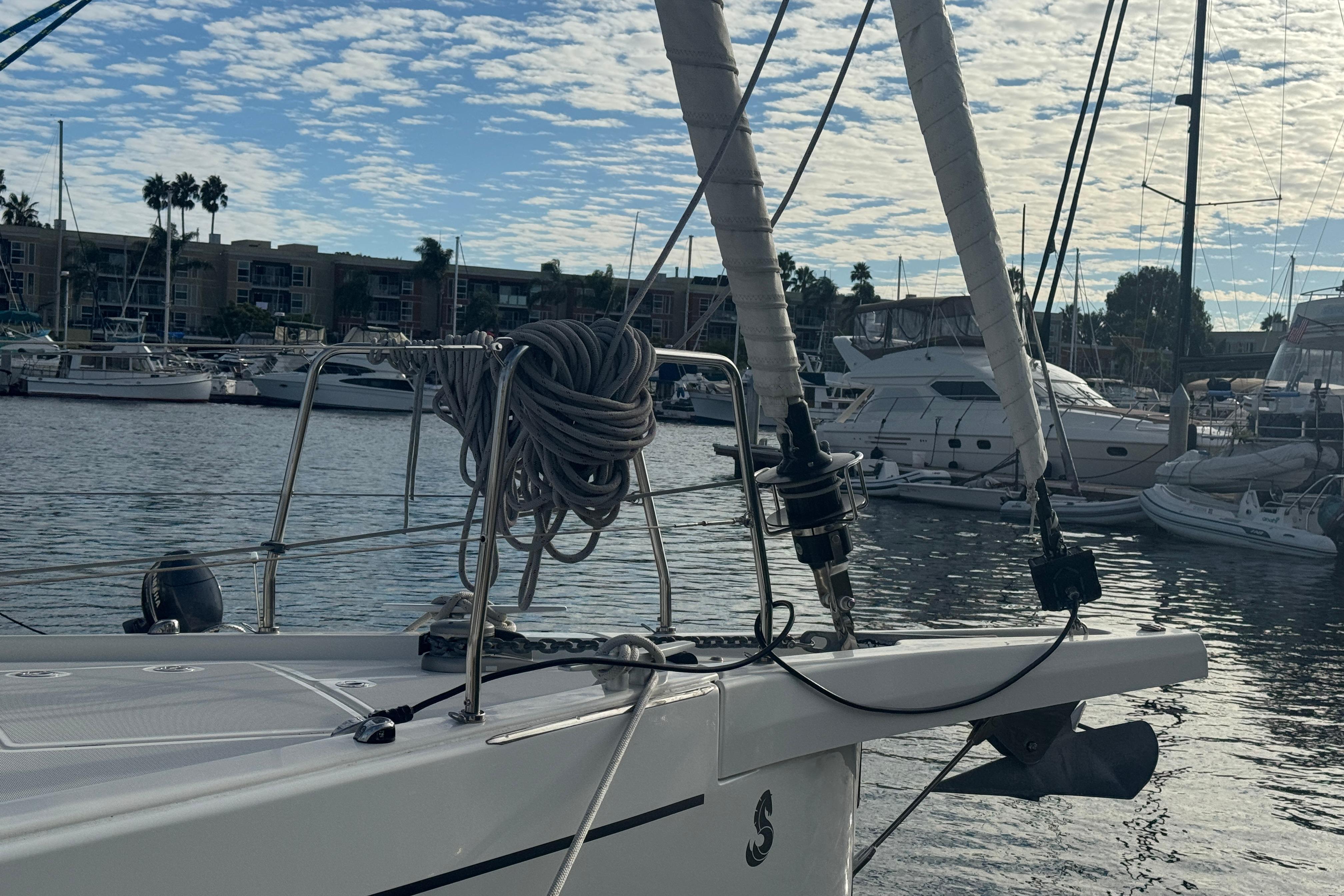

• Single roller stainless steel bow fitting with offset roller

• 12 V - 1 000 W vertical electric windlass - Remote control

• 6 Aluminum mooring cleats, Length: 400 mm / 153/4’’ - Stainless steel chafing plate

- Delta 20 kg/44 lbs anchor (galvanized steel)

- Chain (diameter: 10 mm / 3/ 8’’ - Length: 32 m / 105’)

- Line (diameter: 18 mm / 11/16’’ - Length: 45 m / 147’)

- 6 Fenders: 2 L (diameter: 250 mm / 10’’ - Length: 700 mm / 2’4’’) 4 XL (diameter: 300 mm / 12’’ - Length: 880 mm / 2’11’’)

- 4 Moorings lines (diameter: 18 mm / 11/16’’ - Length: 15 m / 49’)

• Aft fairleads (Aluminum mooring cleats on transom)

• Windlass control with chain counter in cockpit

SAIL LOCKER

• Access by polyester cover, Passage width: 65 x 50 cm / 2’2’’ x 1’8’’

• Stainless steel ladder

• Shelving unit

SAFETY ON DECK

• 1 Open stainless steel pulpit

• 2 Stainless steel aft pushpits

• 2 stainless steel handrails on coachroof

• 1 Ring lifebuoy bracket

• Welded ring on pushpit for flag

• Double life lines and stainless steel stanchions, 650 mm / 2’ 2’’

• Emergency ladder on pushpit

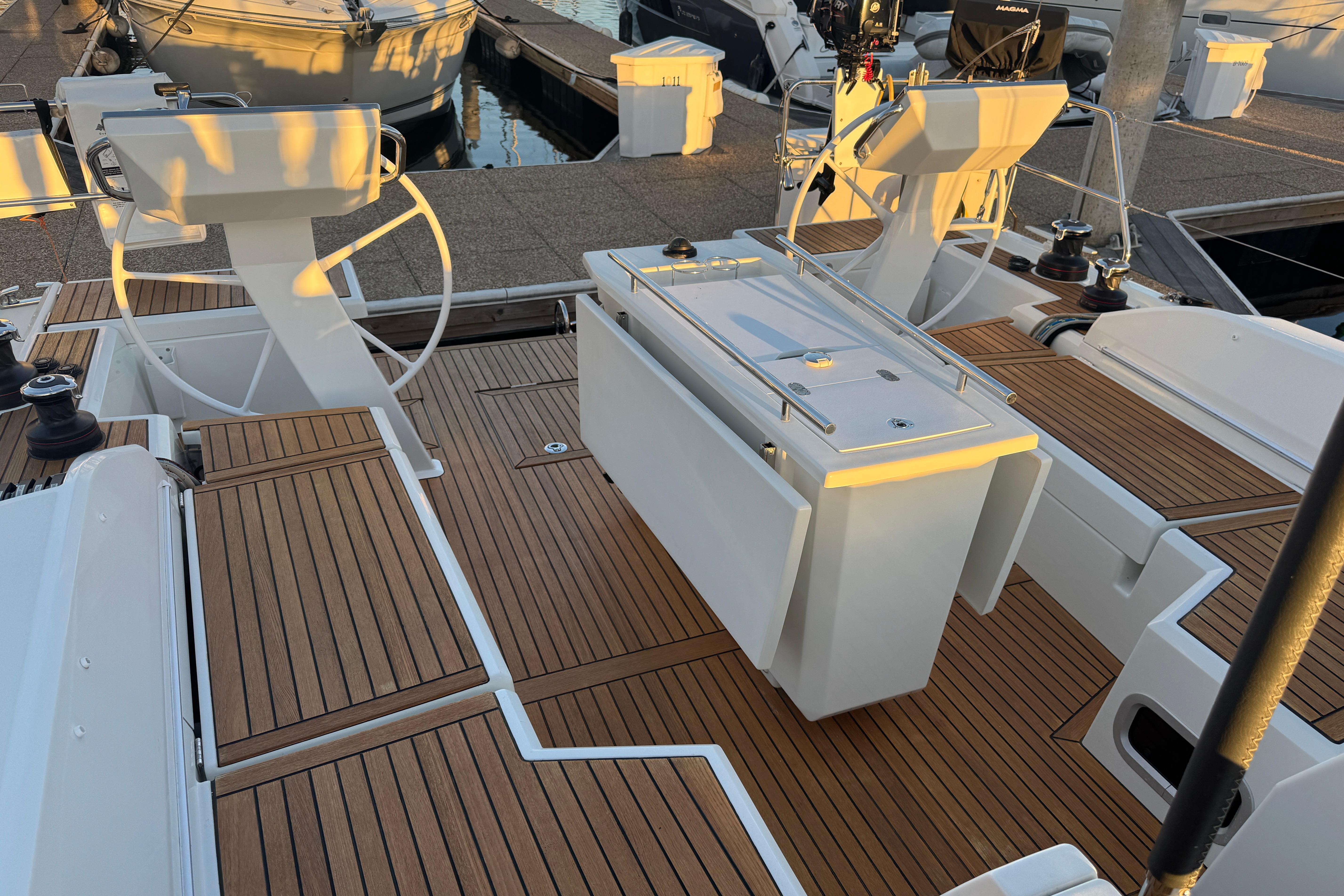

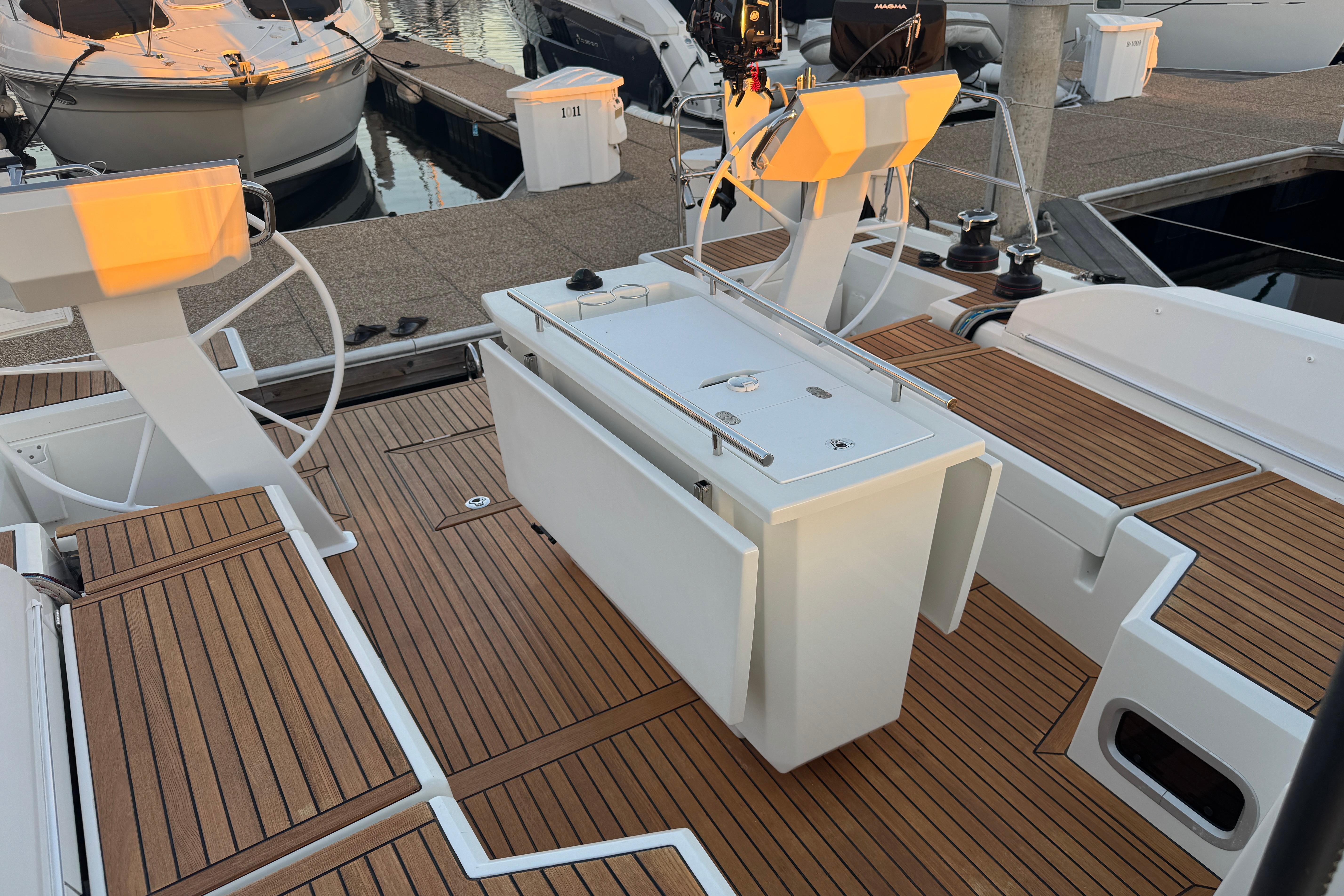

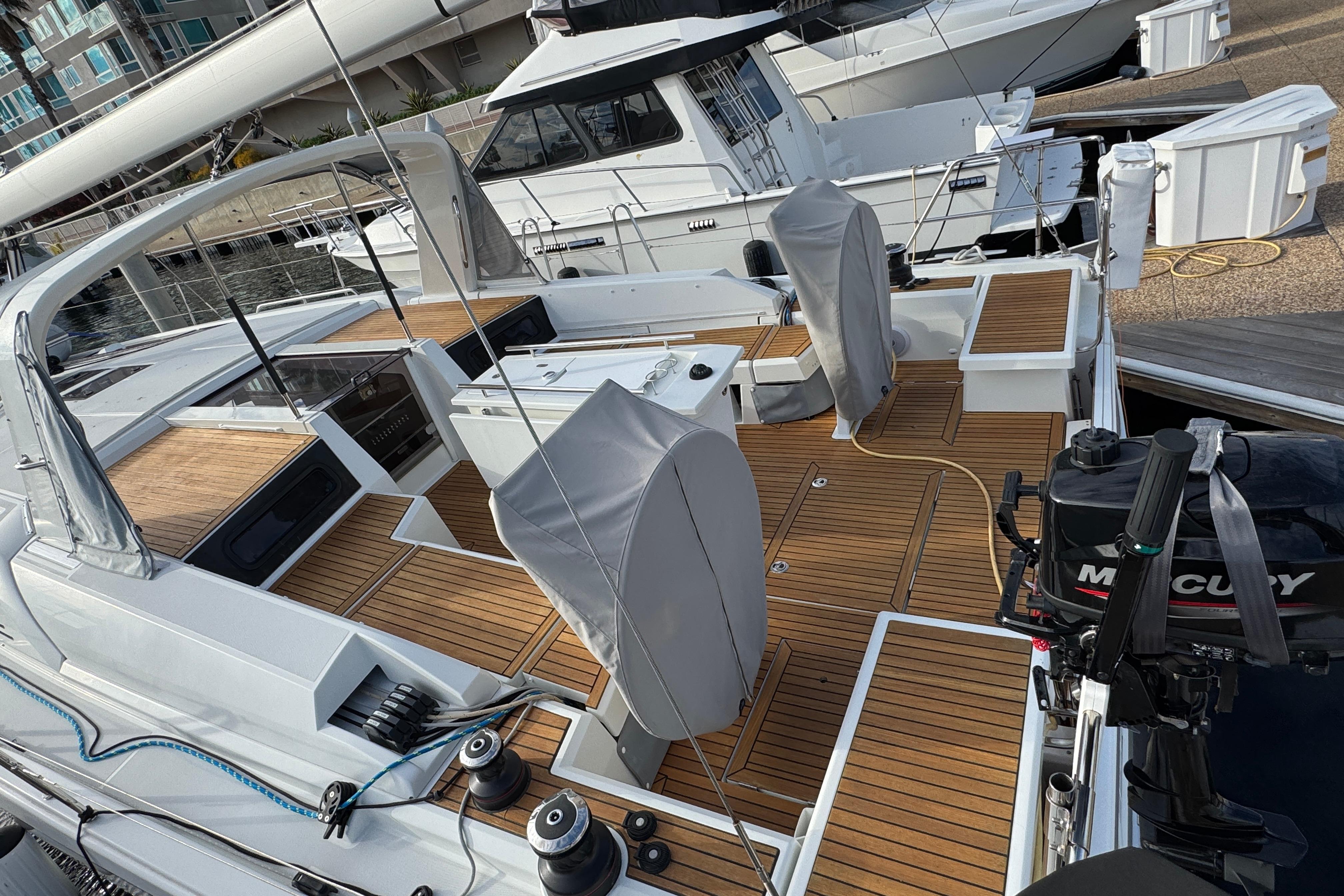

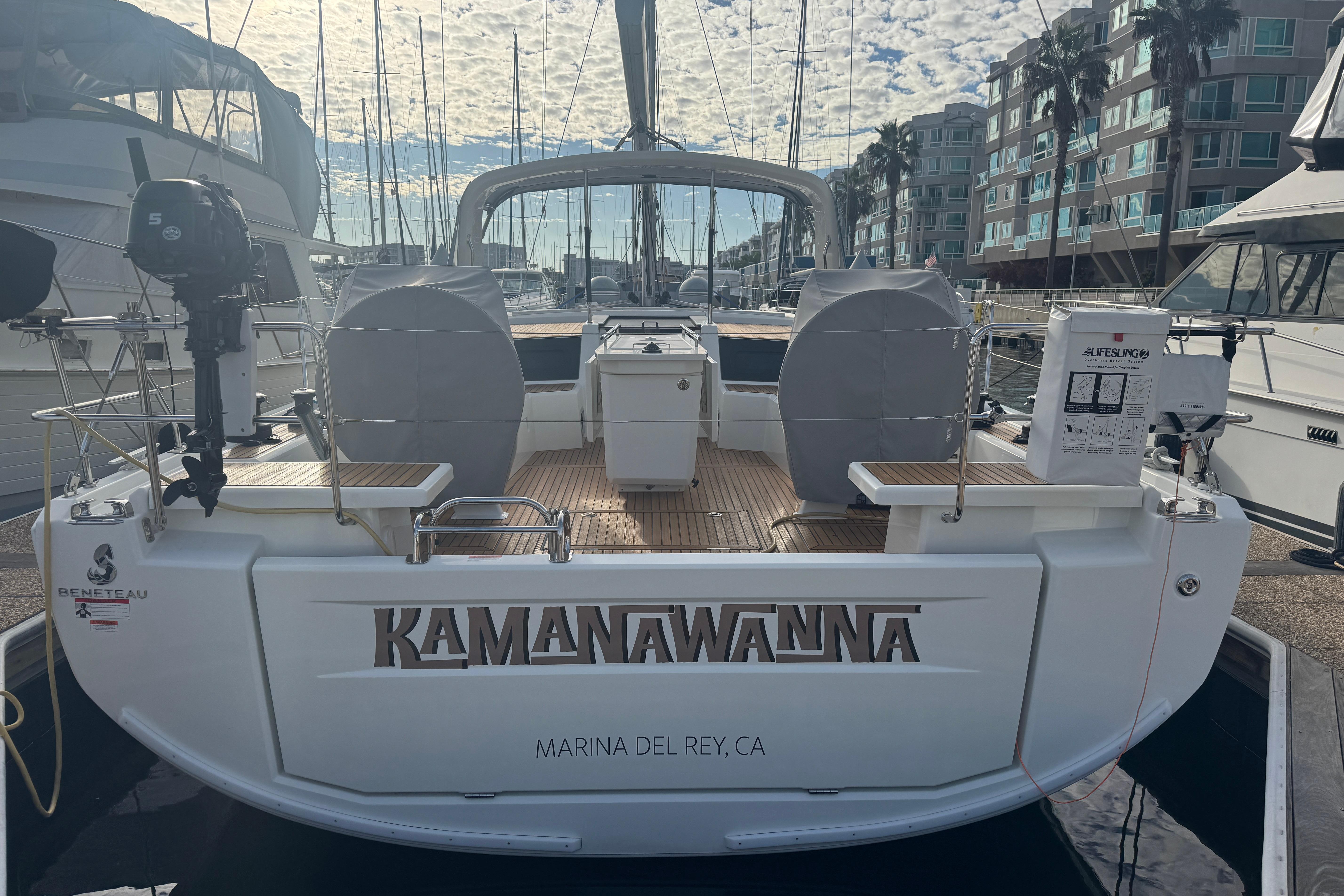

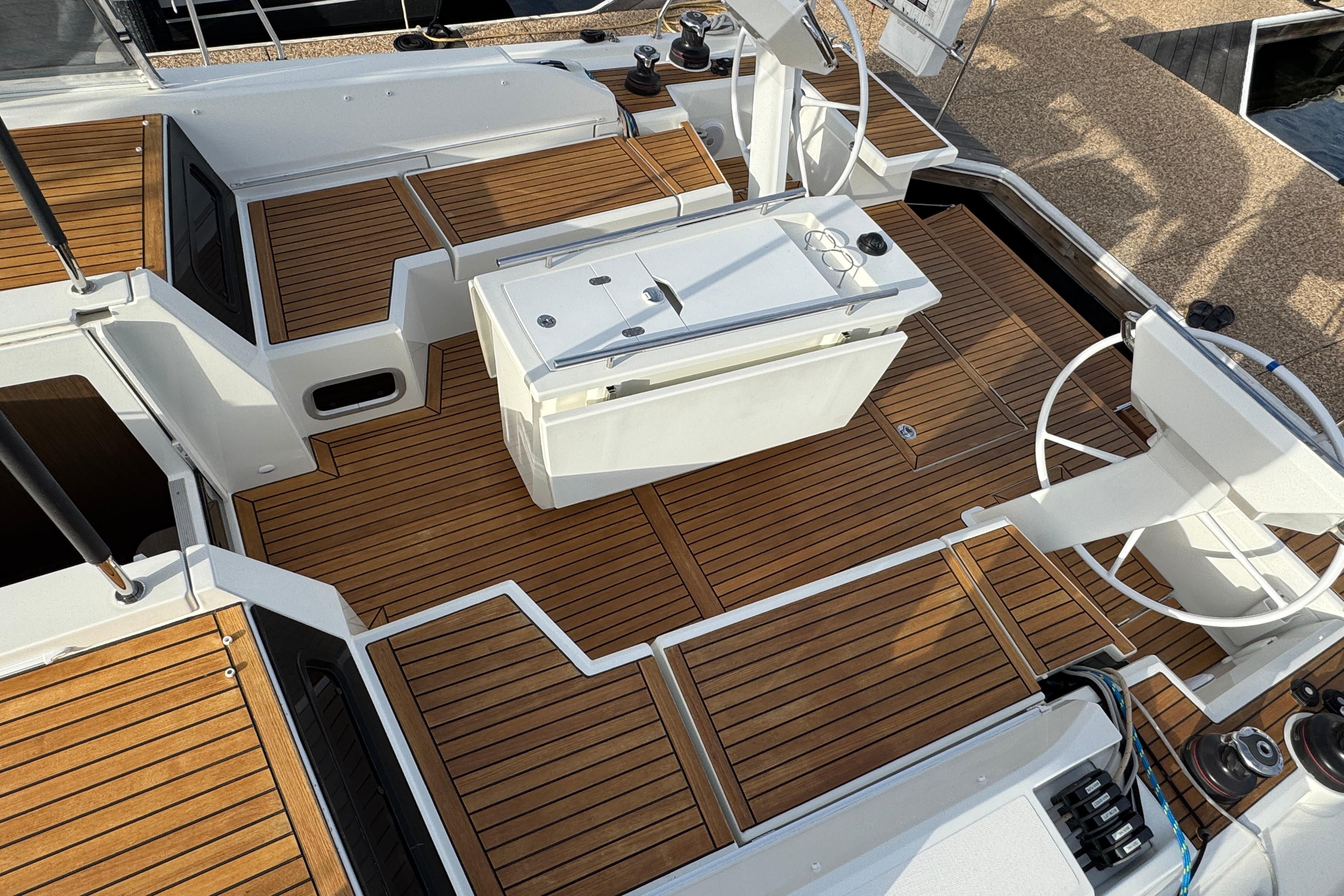

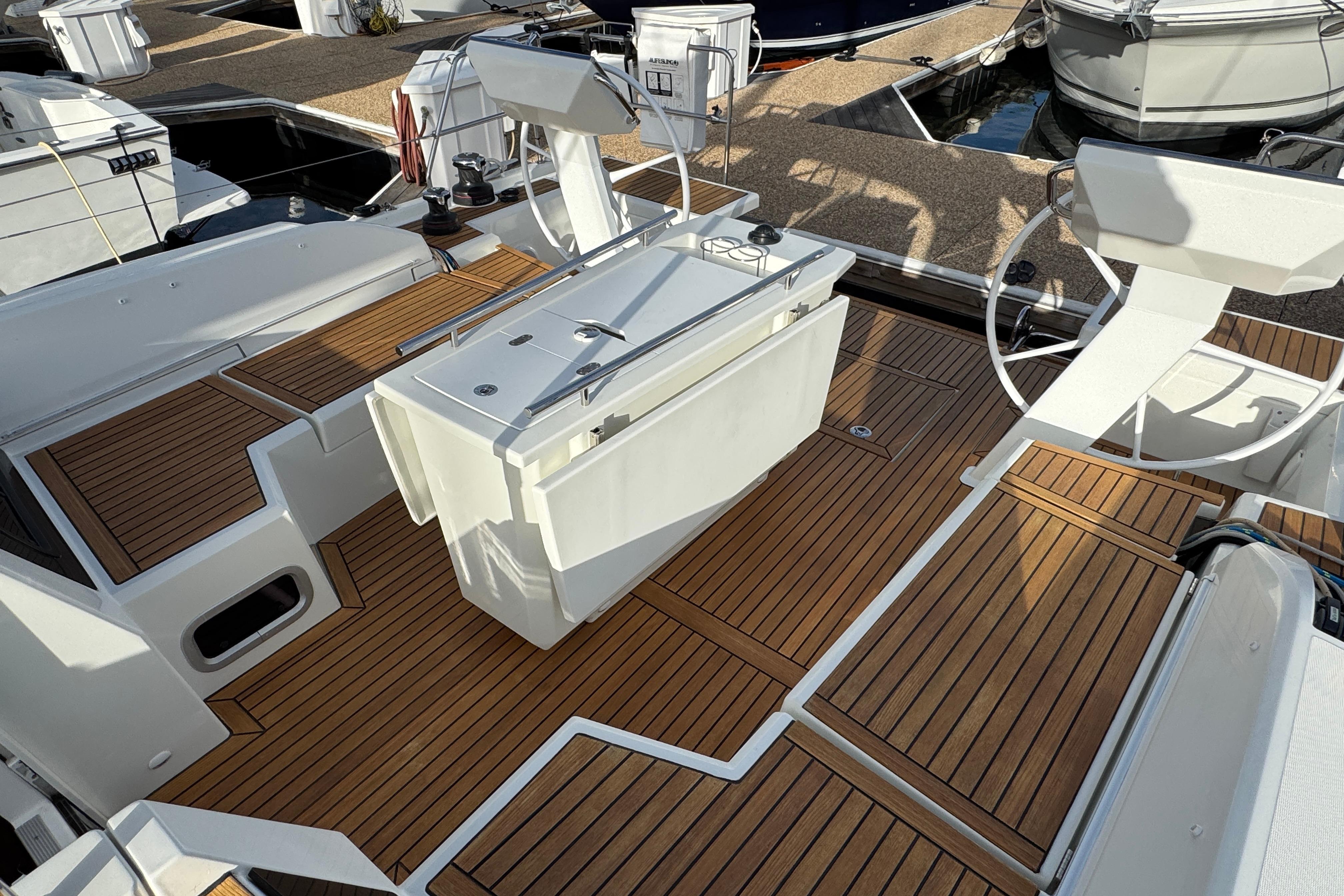

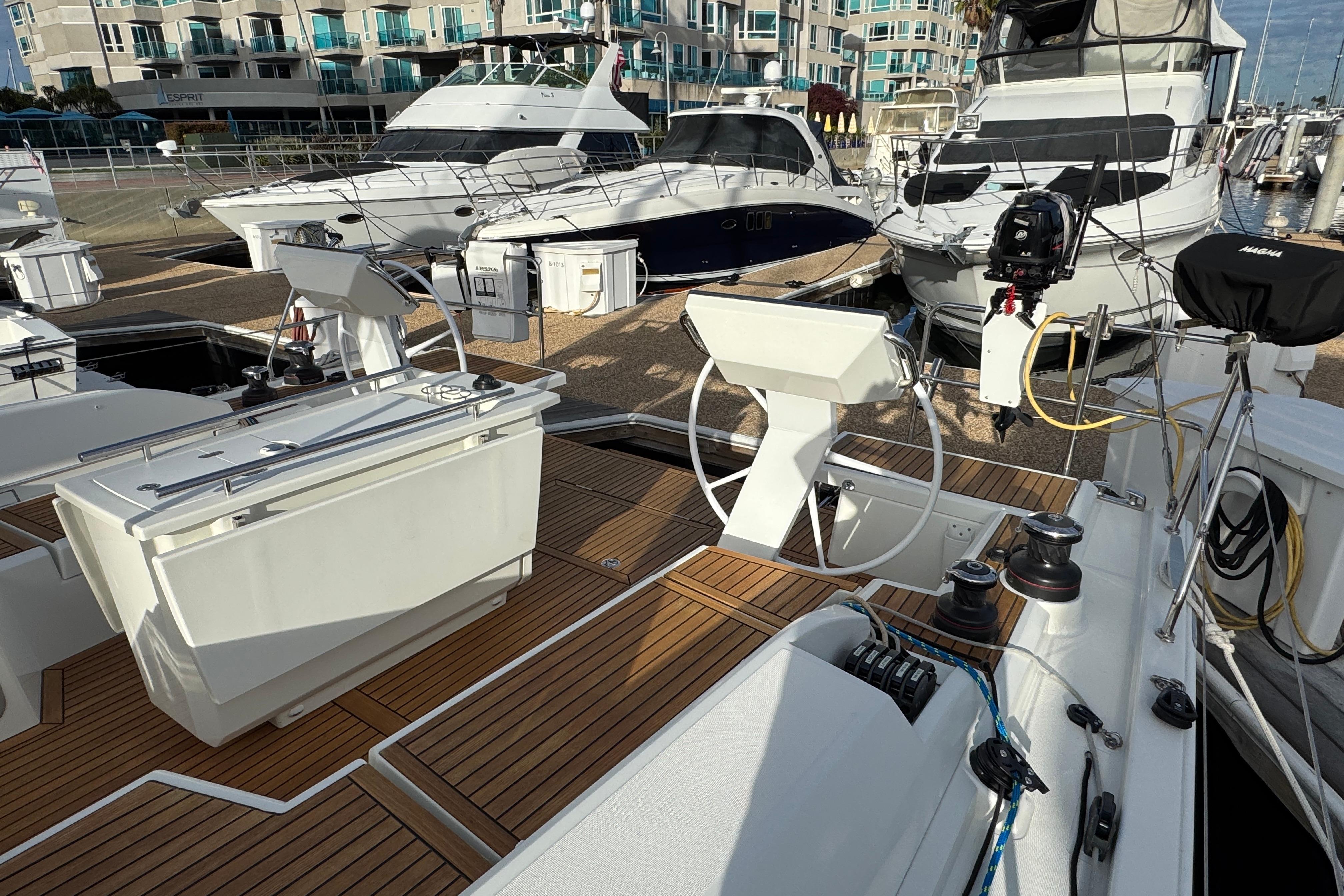

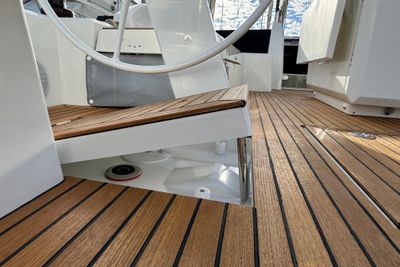

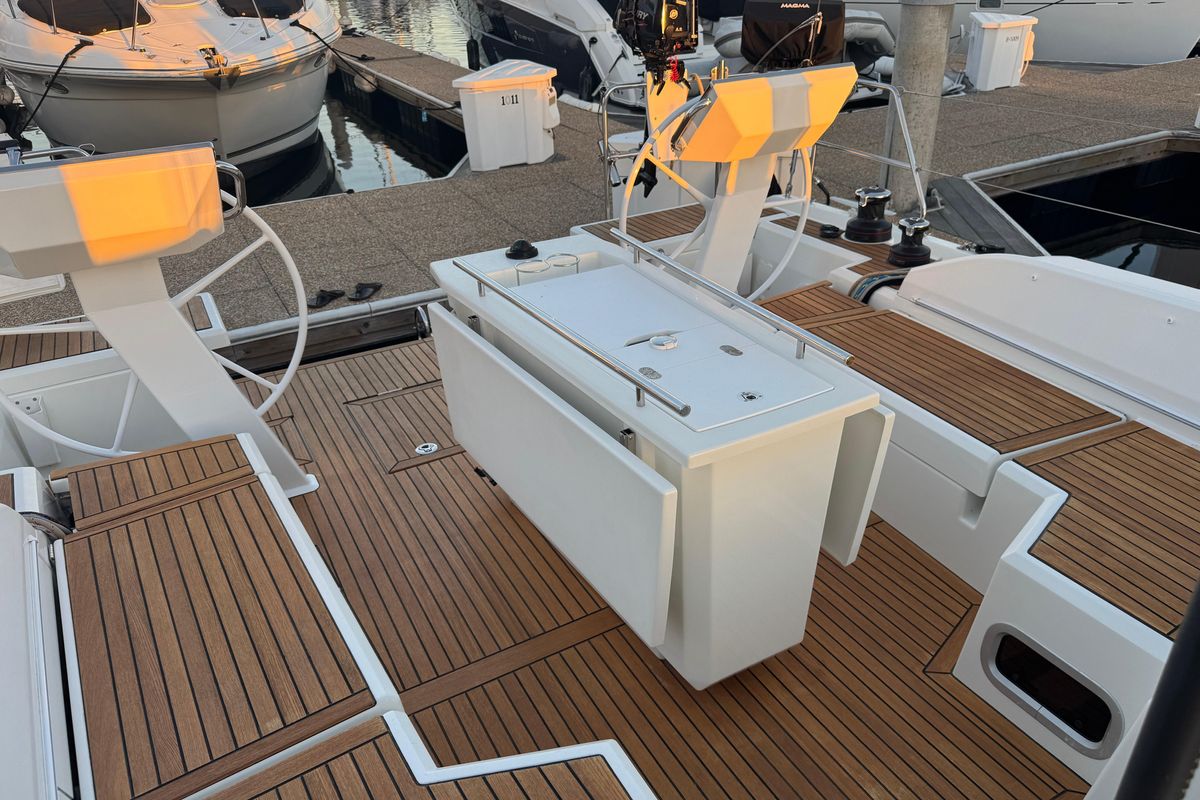

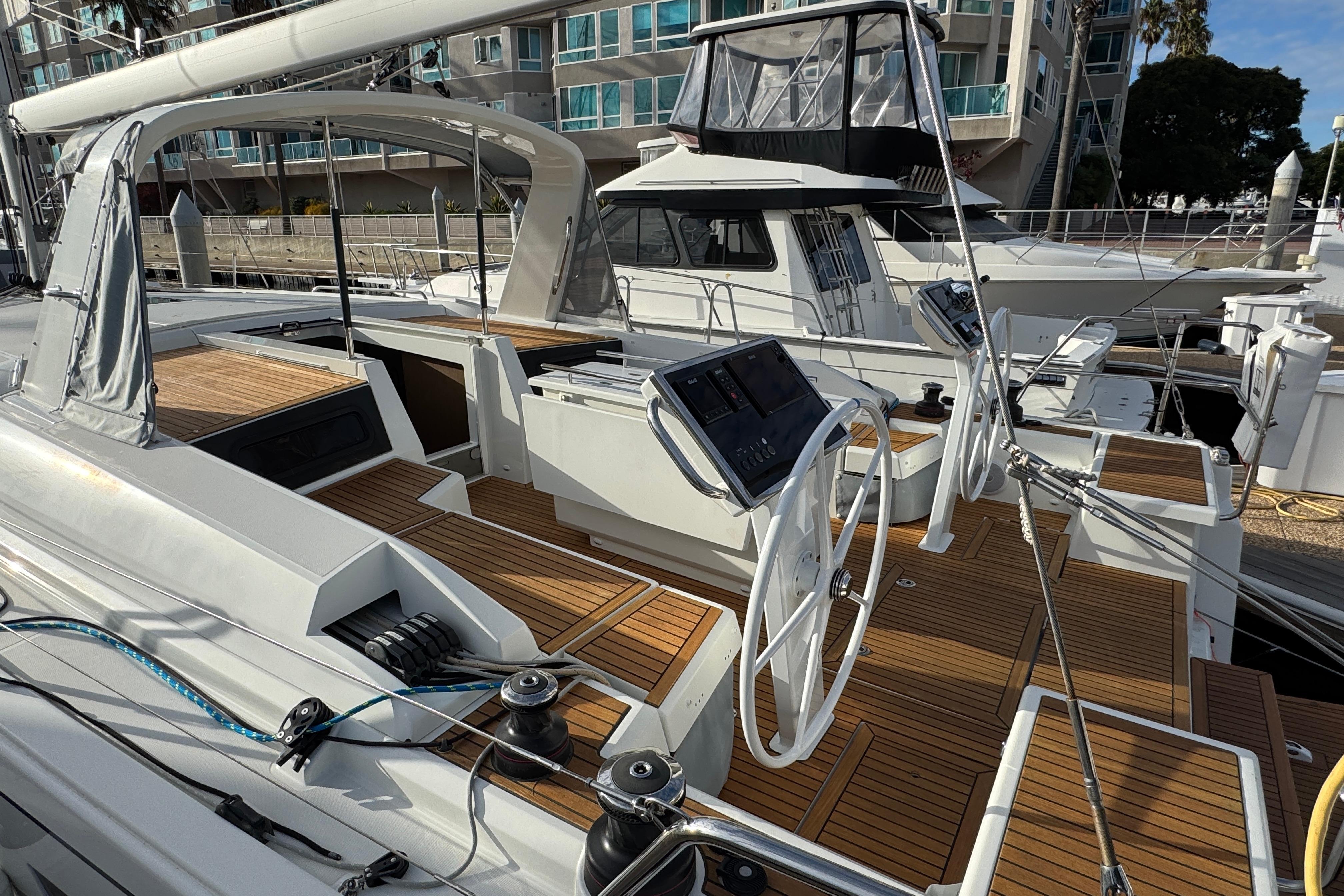

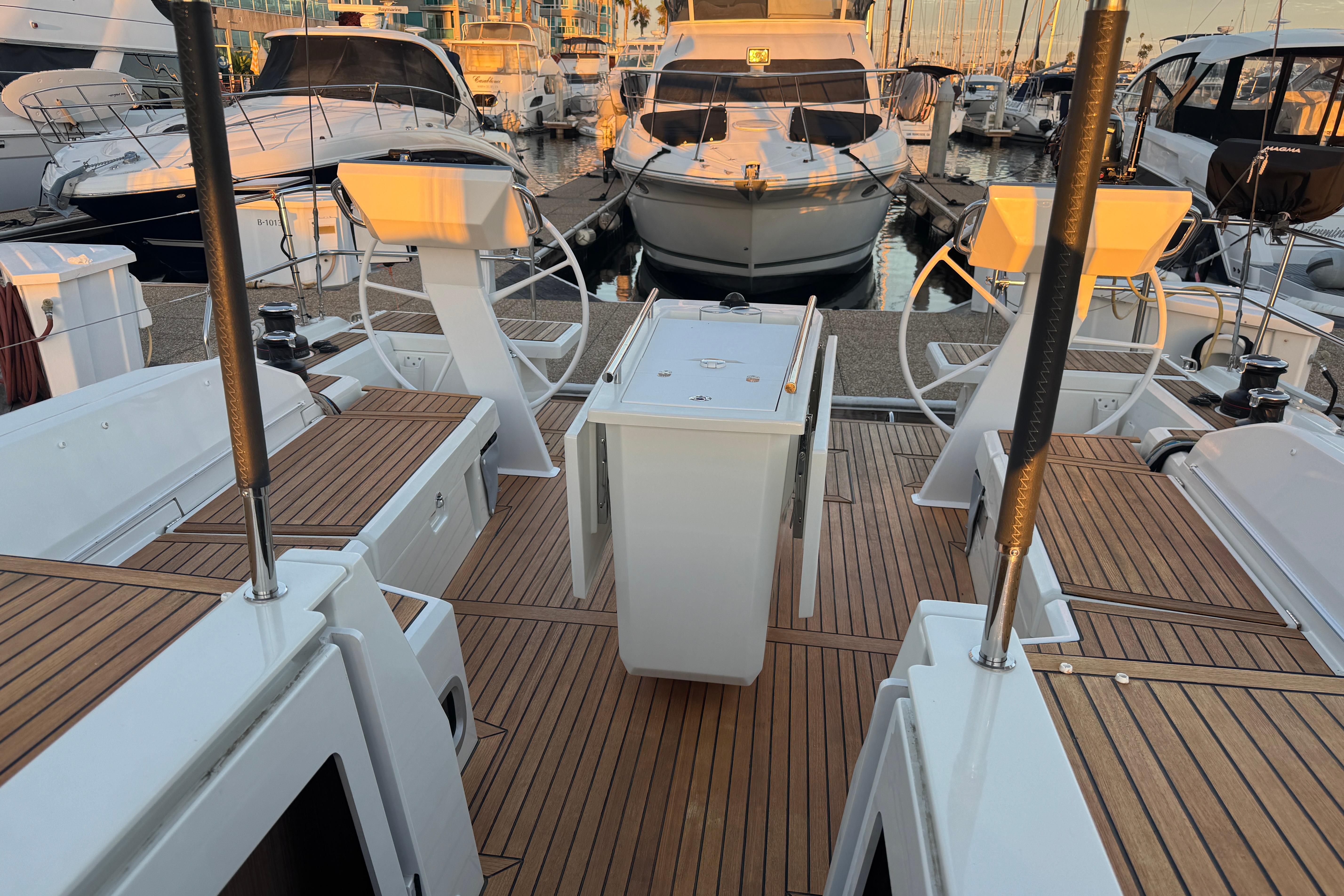

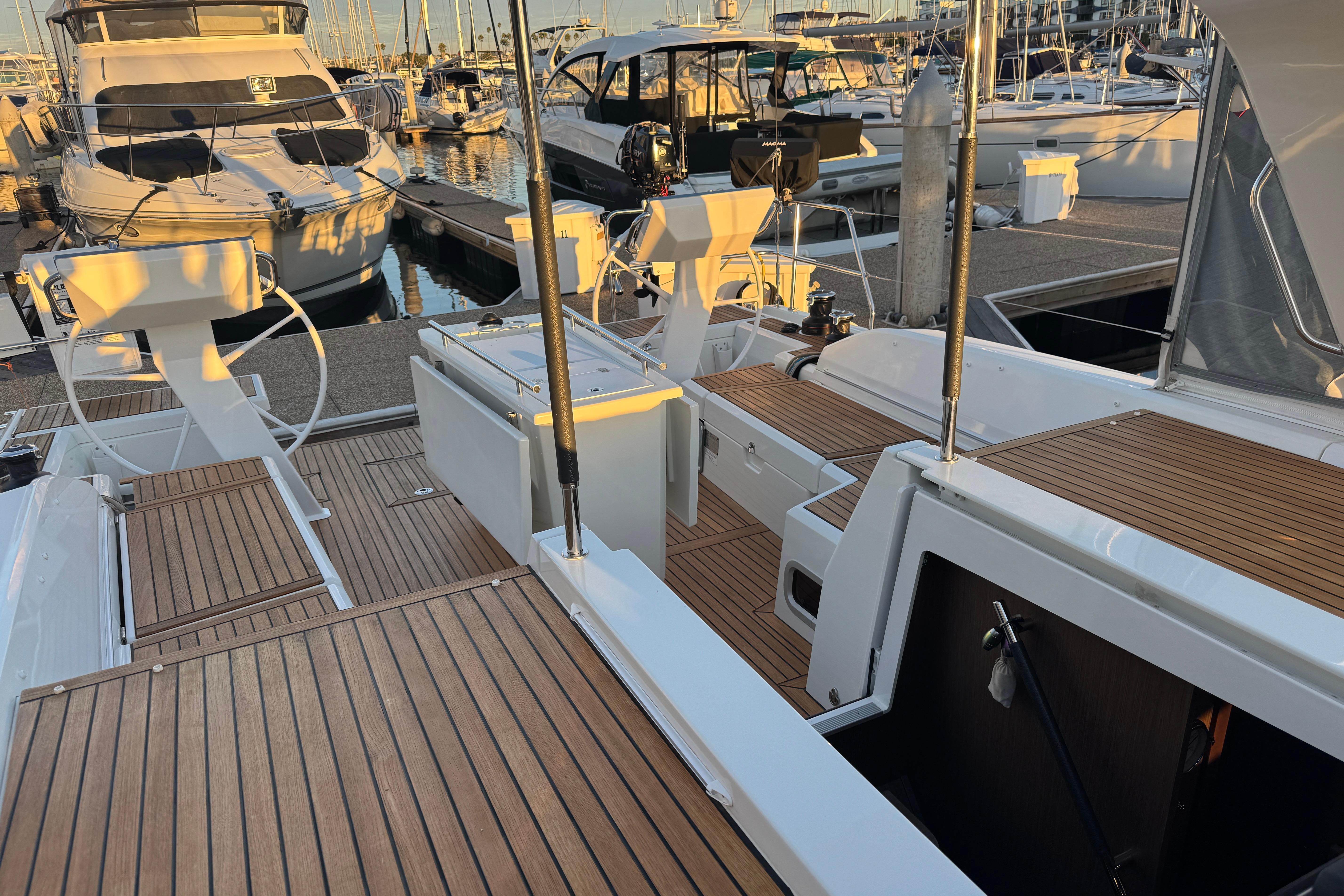

COCKPIT

• Self-bailing cockpit

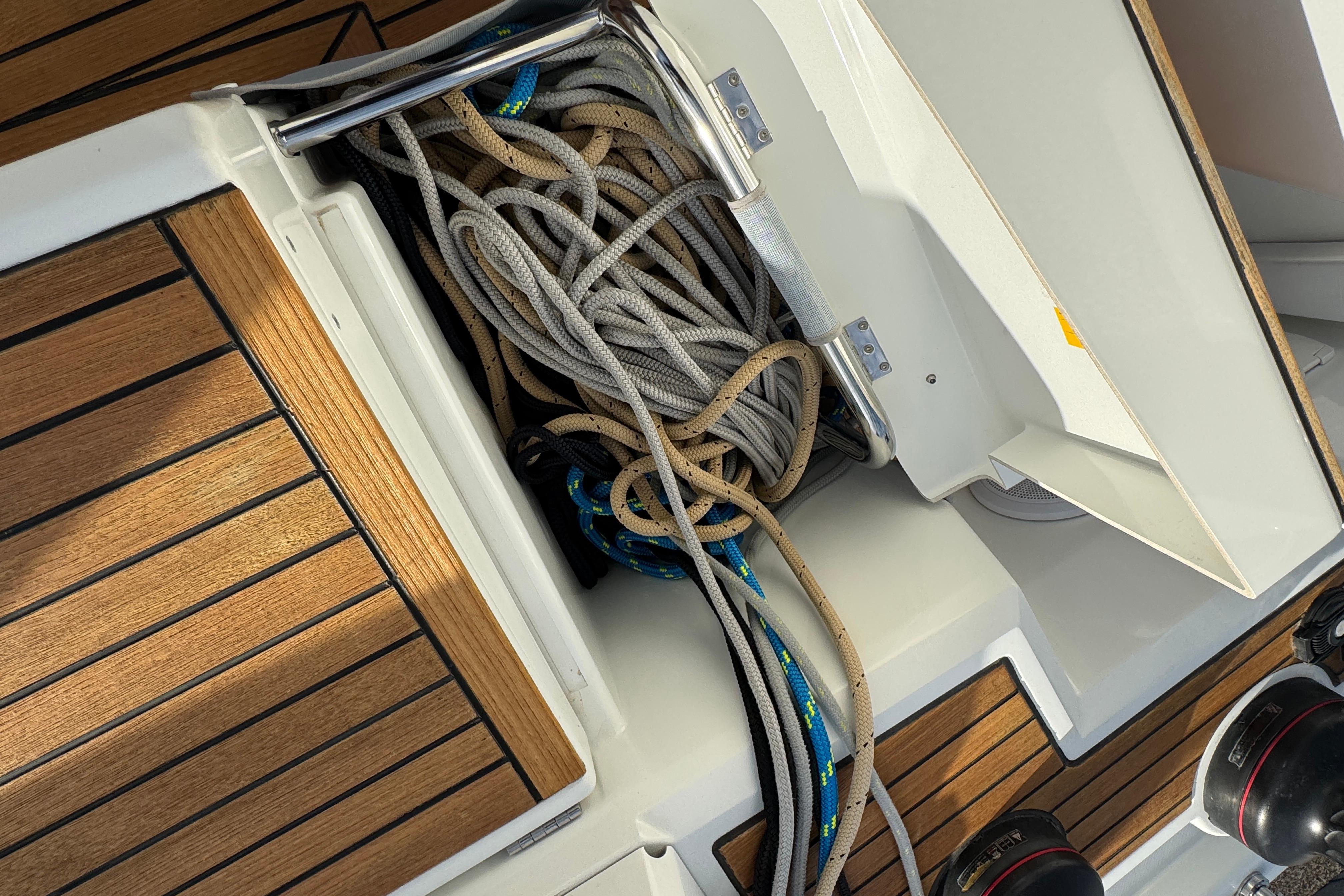

• 1 Watertight compartment under cockpit benches & 1 Wet locker

• 1 Locker in cockpit bottom

• 1 Gas compartment under port helmsman seat

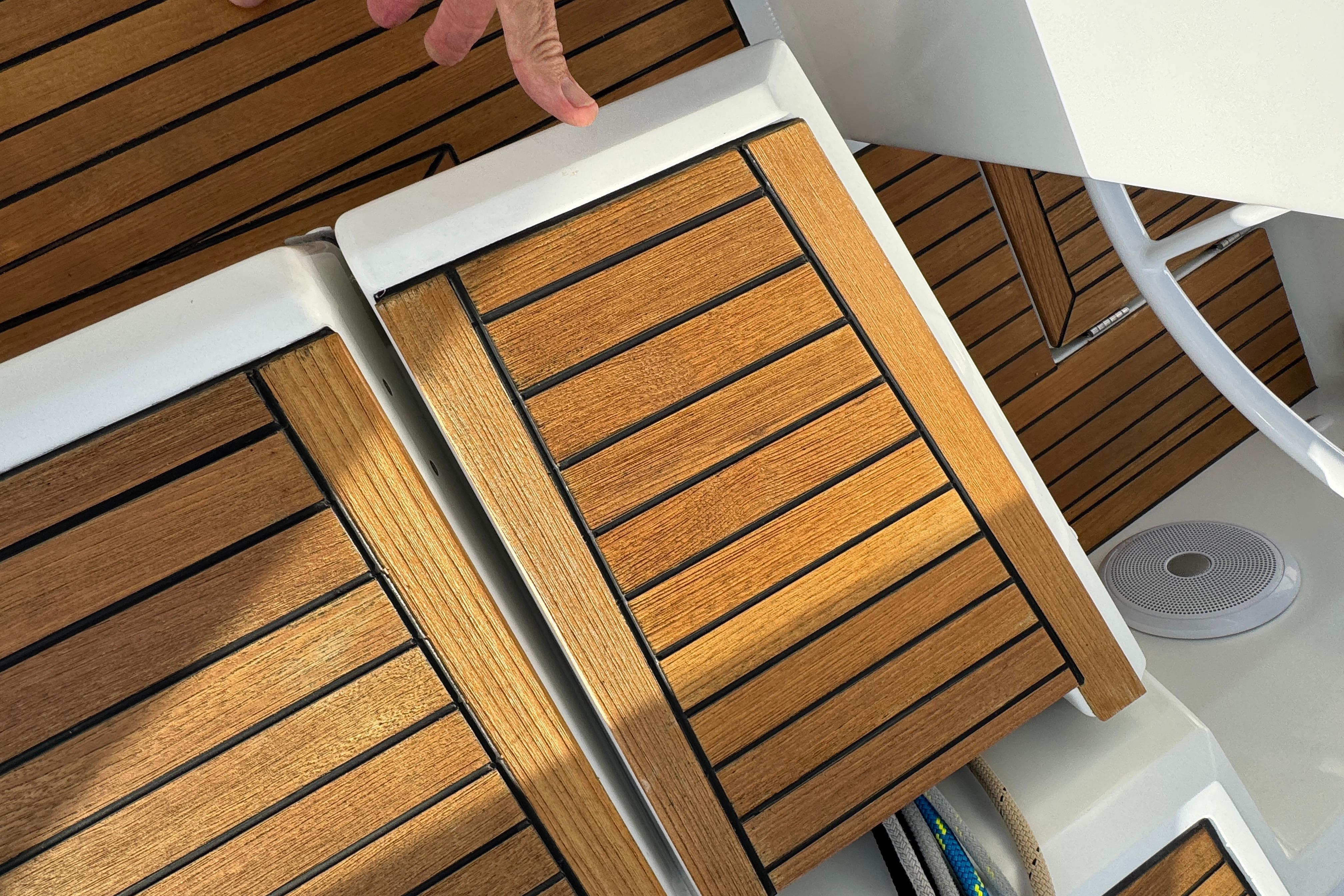

• Iro-Deck slatted cockpit benches

• Iro-Deck slatted helm seats, with starboard storage locker

• Foldaway helmsman foot chock

• 2 Steering wheel consoles: Stainless steel steering wheels (900 mm diameter / 2’11’’) - Anthracite leather covering - Steering gear at the helm station - Steering line transmission system - Stainless steel handrail

• 2 Deck accesses for emergency tiller

• 1 Emergency tiller

• 1 Steering compass on the cockpit table

• Engine throttle and control panel on starboard

• Cockpit table, stainless steel frame, 2 natural solid wood extension leaves, 4 cup holders, stainless steel handrail, waterproof USB socket, life raft stowage

• 1 Cockpit shower with mixer tap

• 1 PMMA companionway door in 2 removable parts - Sliding hatch made of

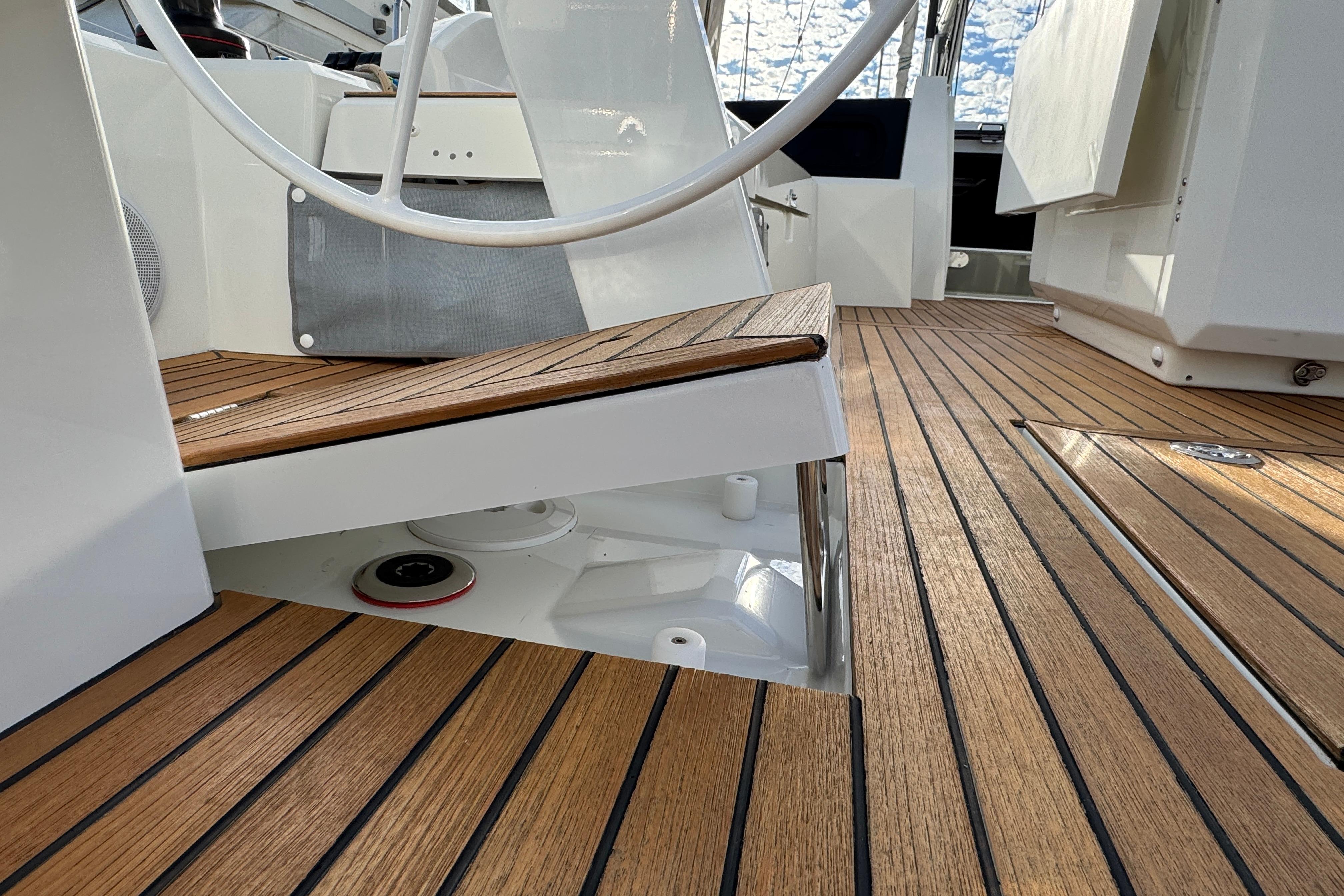

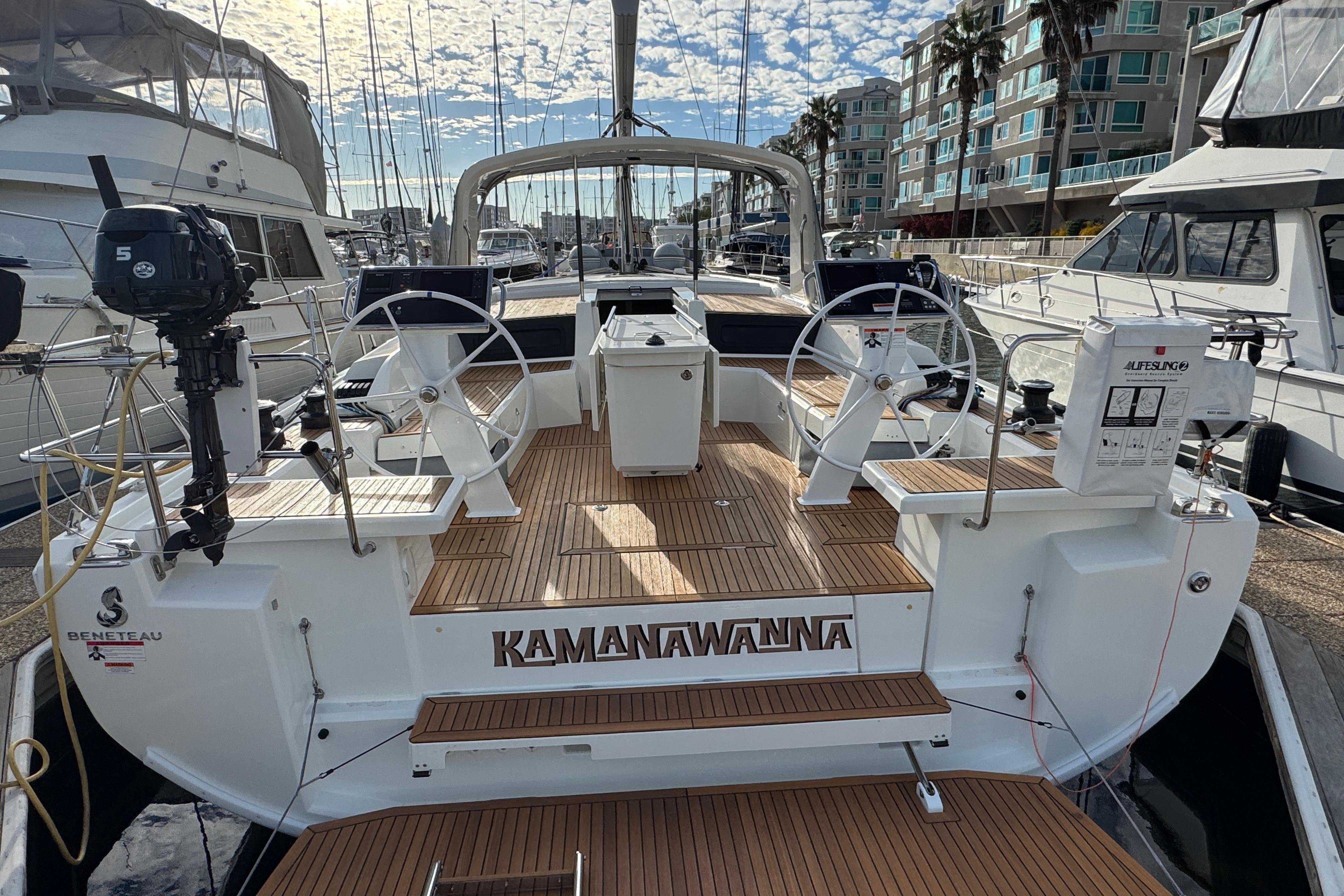

PMMA SWIM PLATFORM / AFT TRANSOM

• Fully opening transom, convertible into swim platform (2,65 m x 0,80 m / 8’8’’ x 2’7’’)

• Intermediate cockpit access step

• Manually controled

• Iro-Deck slatted swim deck

• 1 Stainless steel, removable bathing ladder with dedicated stowage in the cockpit

• Woodwork Alpi Walnut

• Nordic Teak Parquet type laminated floorboards

• Interior cushions in ultraleather

• Padded lining in salon (Beige)

• Mattresses in the cabins, HR35kg/m³ foam Standard version: 3 cabins 2 heads version

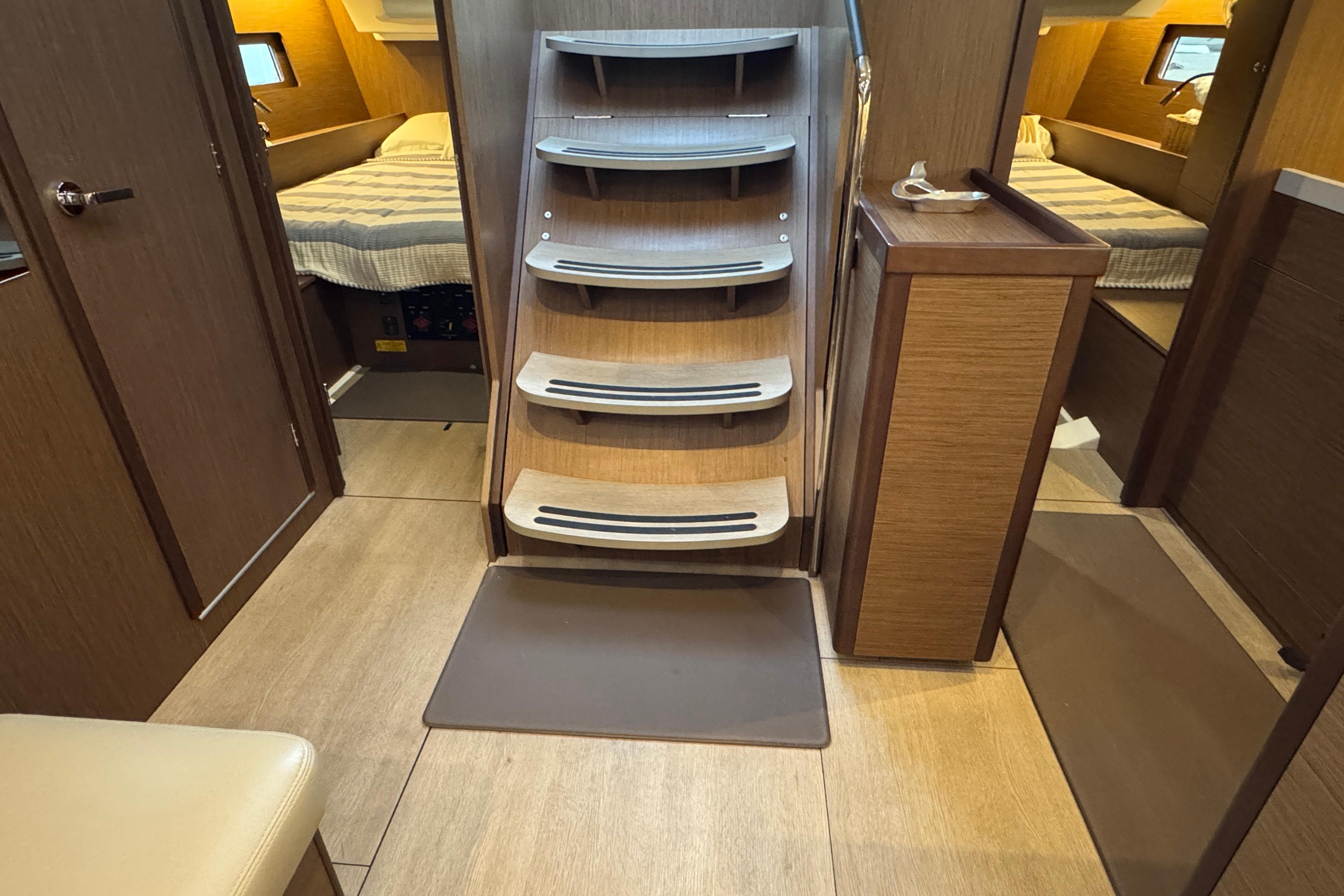

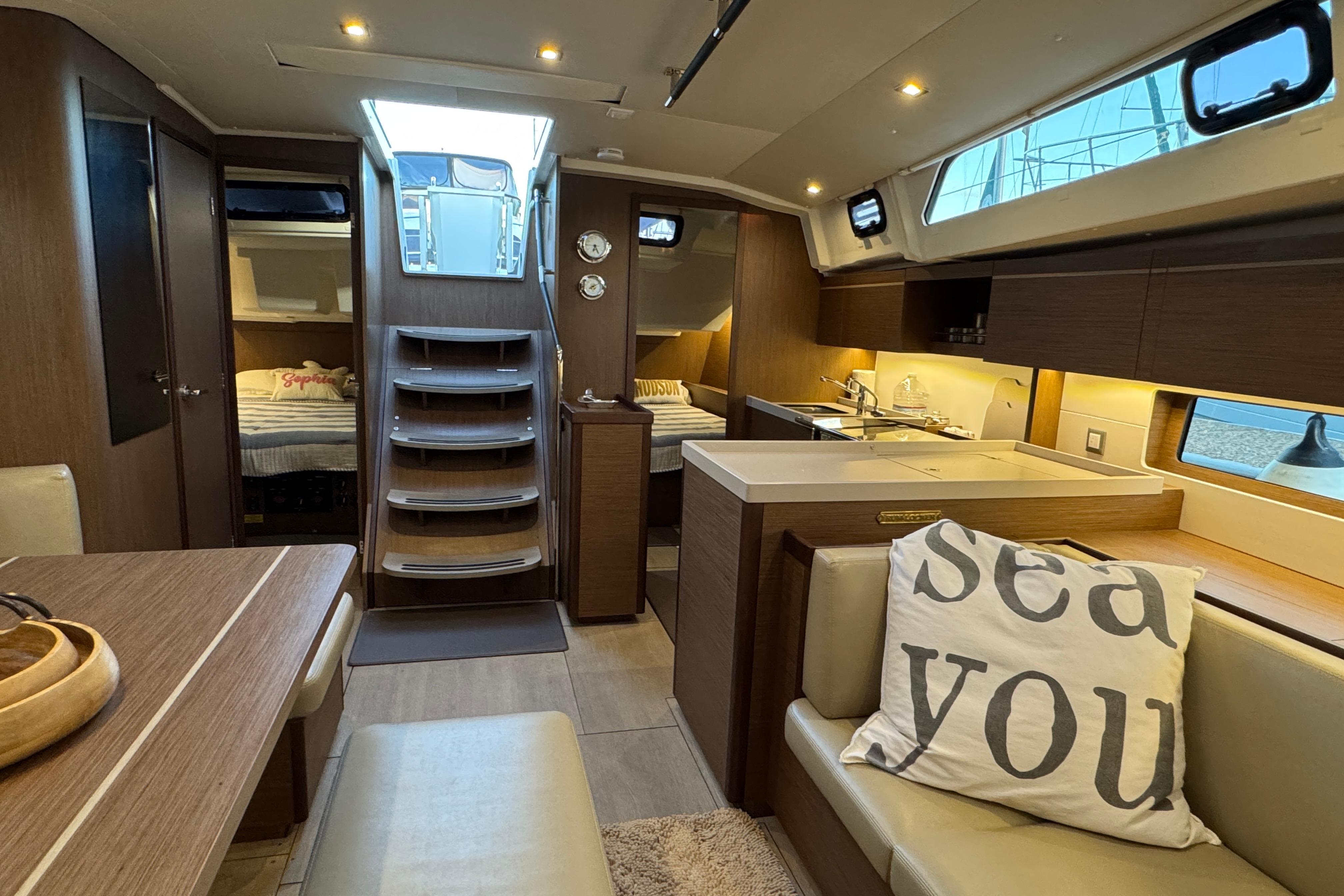

COMPANIONWAY

Headroom: 1,98 m / 6’6’’

• Wooden salon companionway with molded wood hanging steps with non-slip surface

• 1 Stainless steel handrail with anthracite leather sheathing (to port)

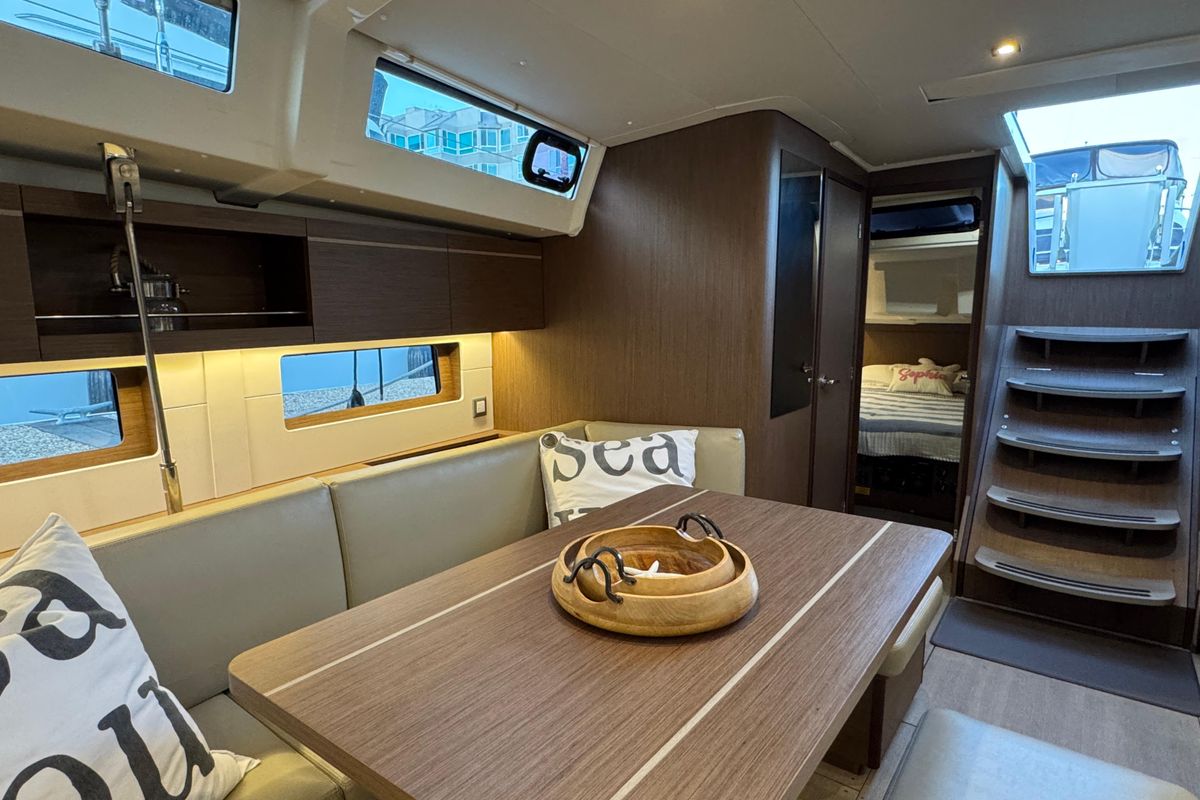

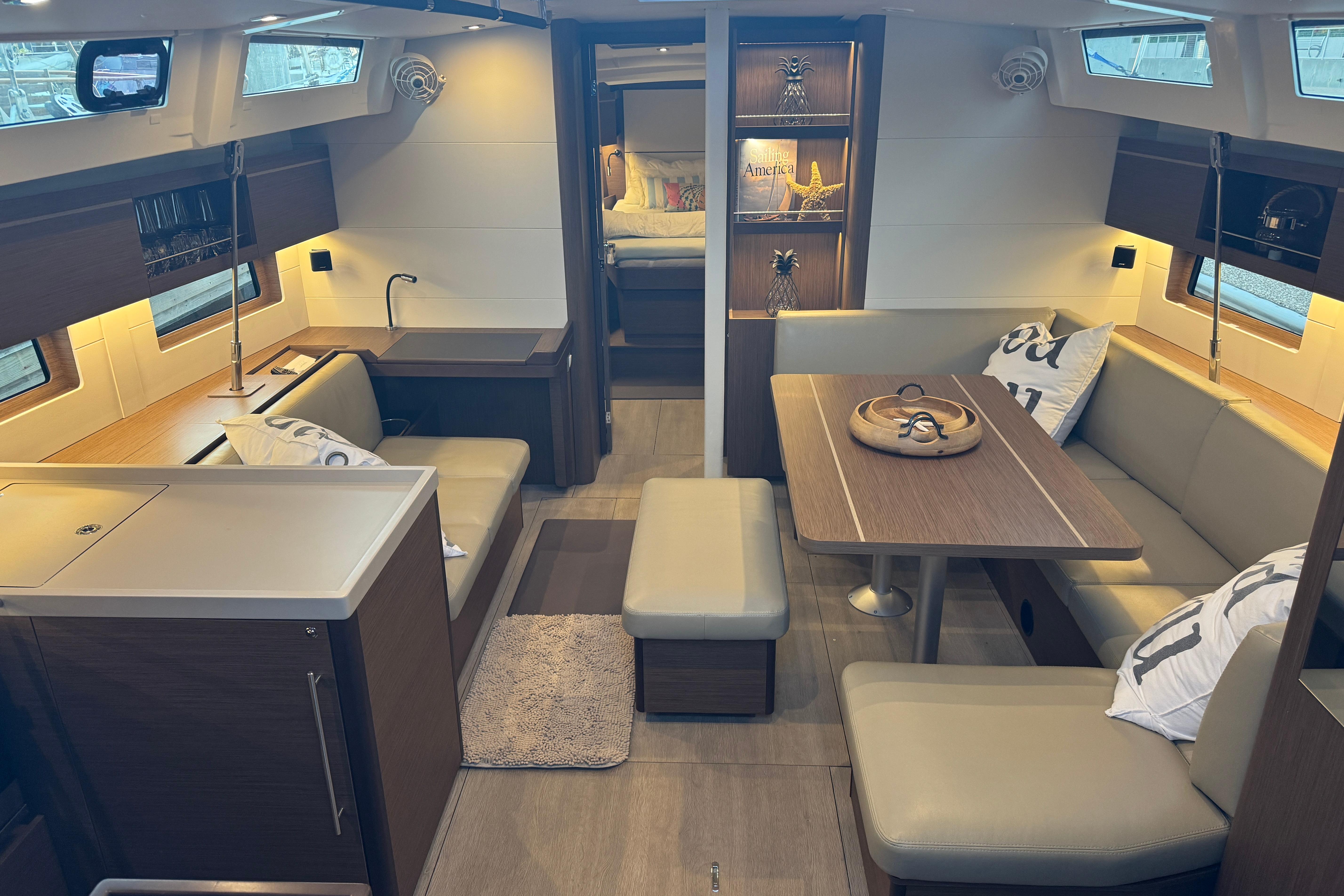

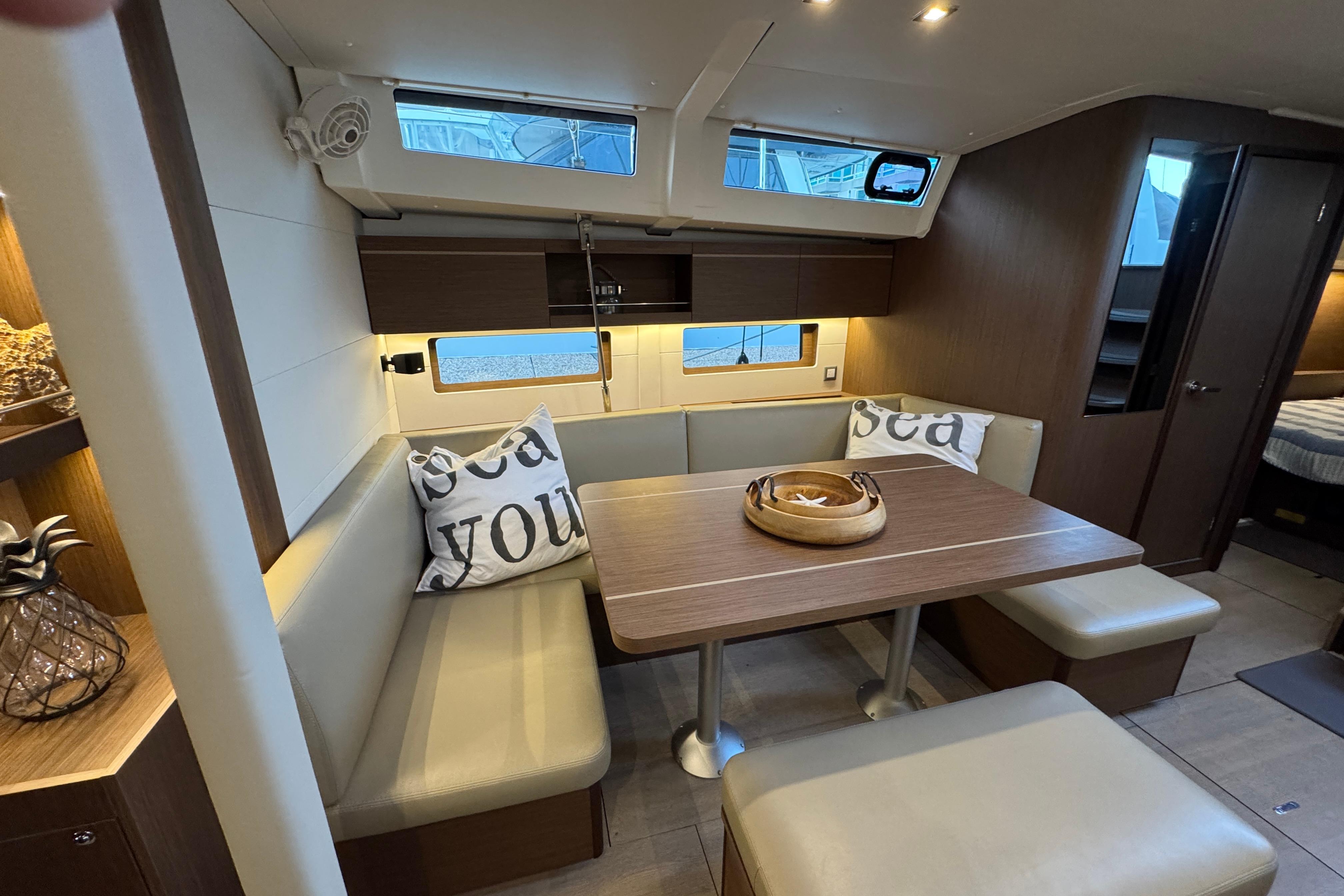

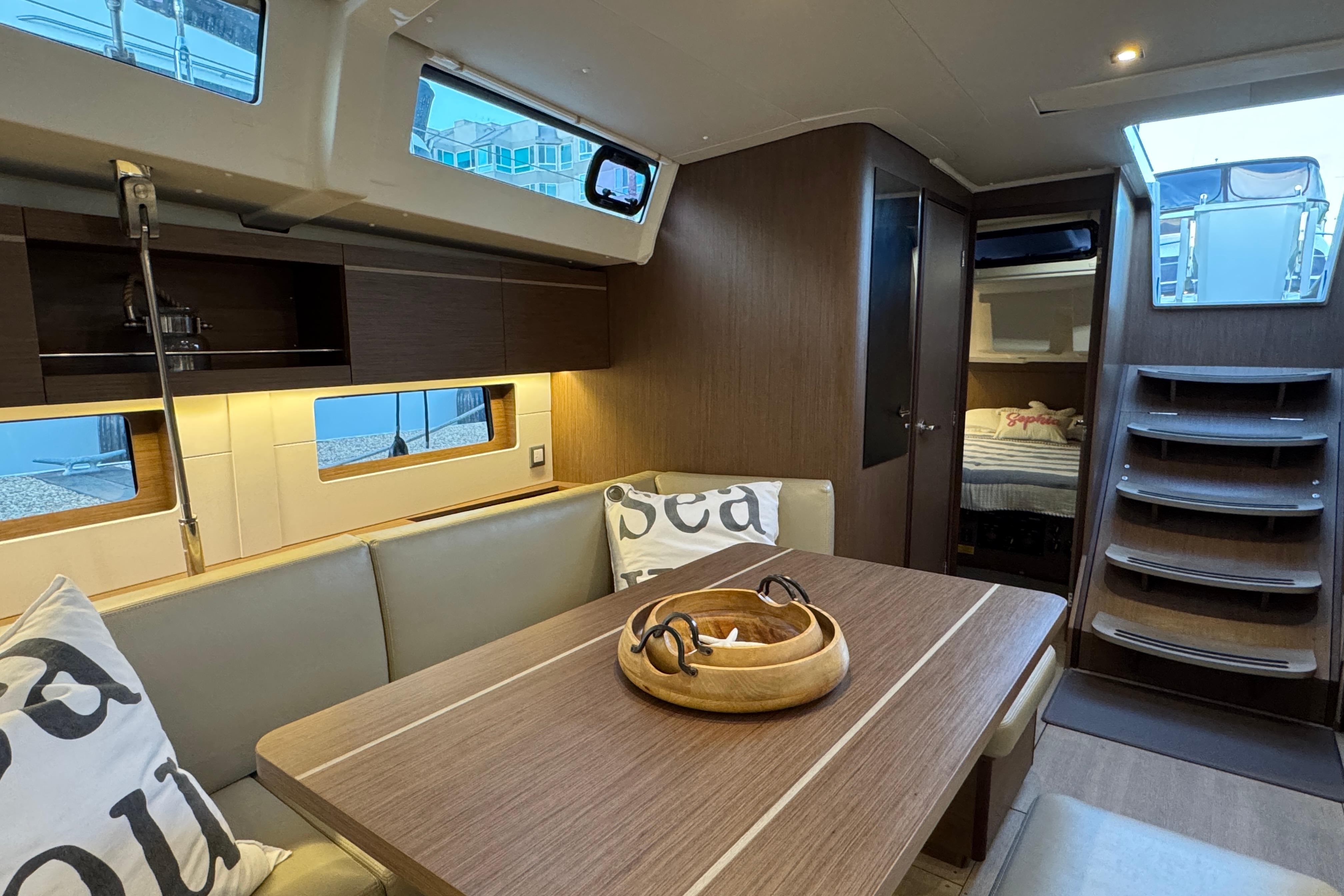

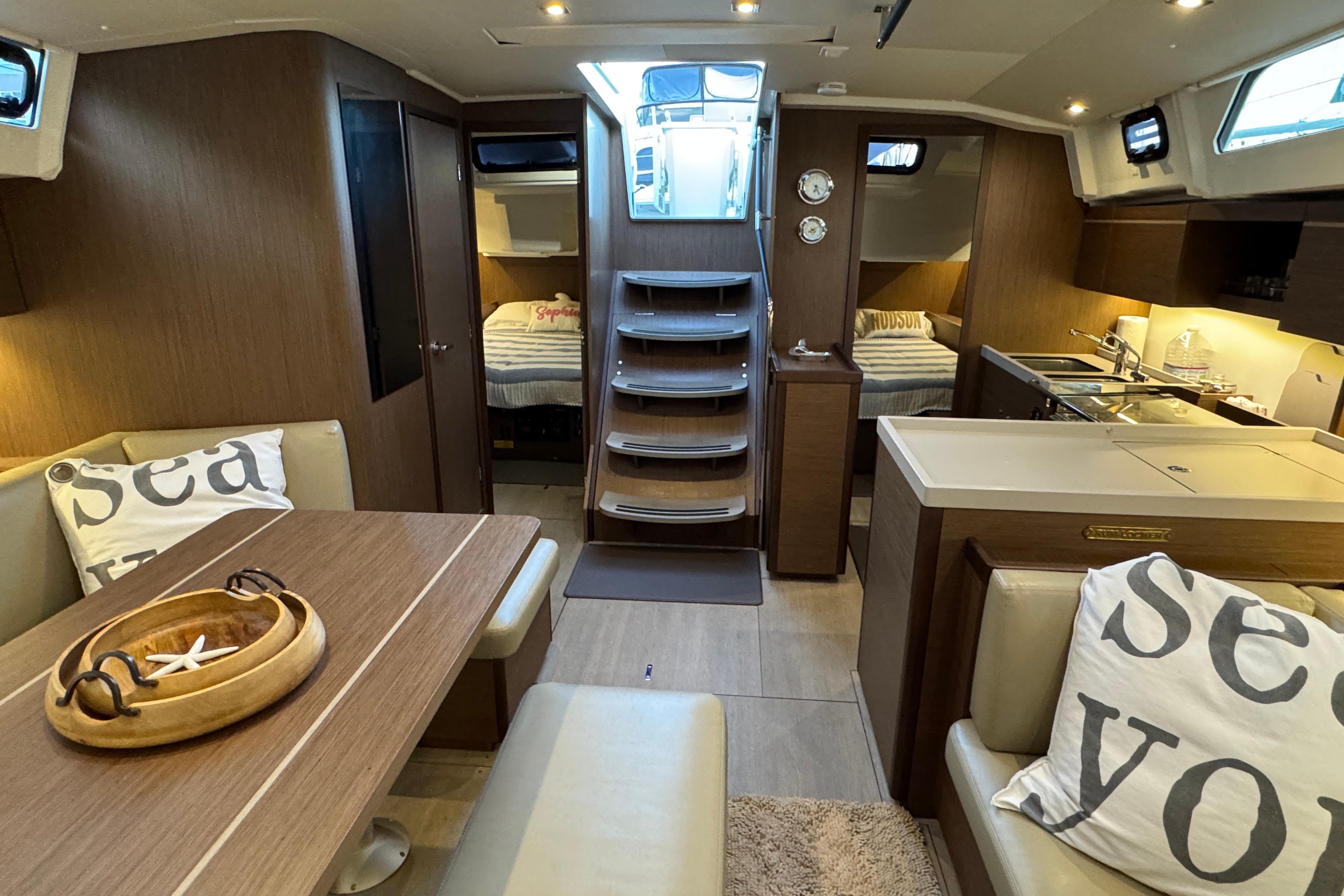

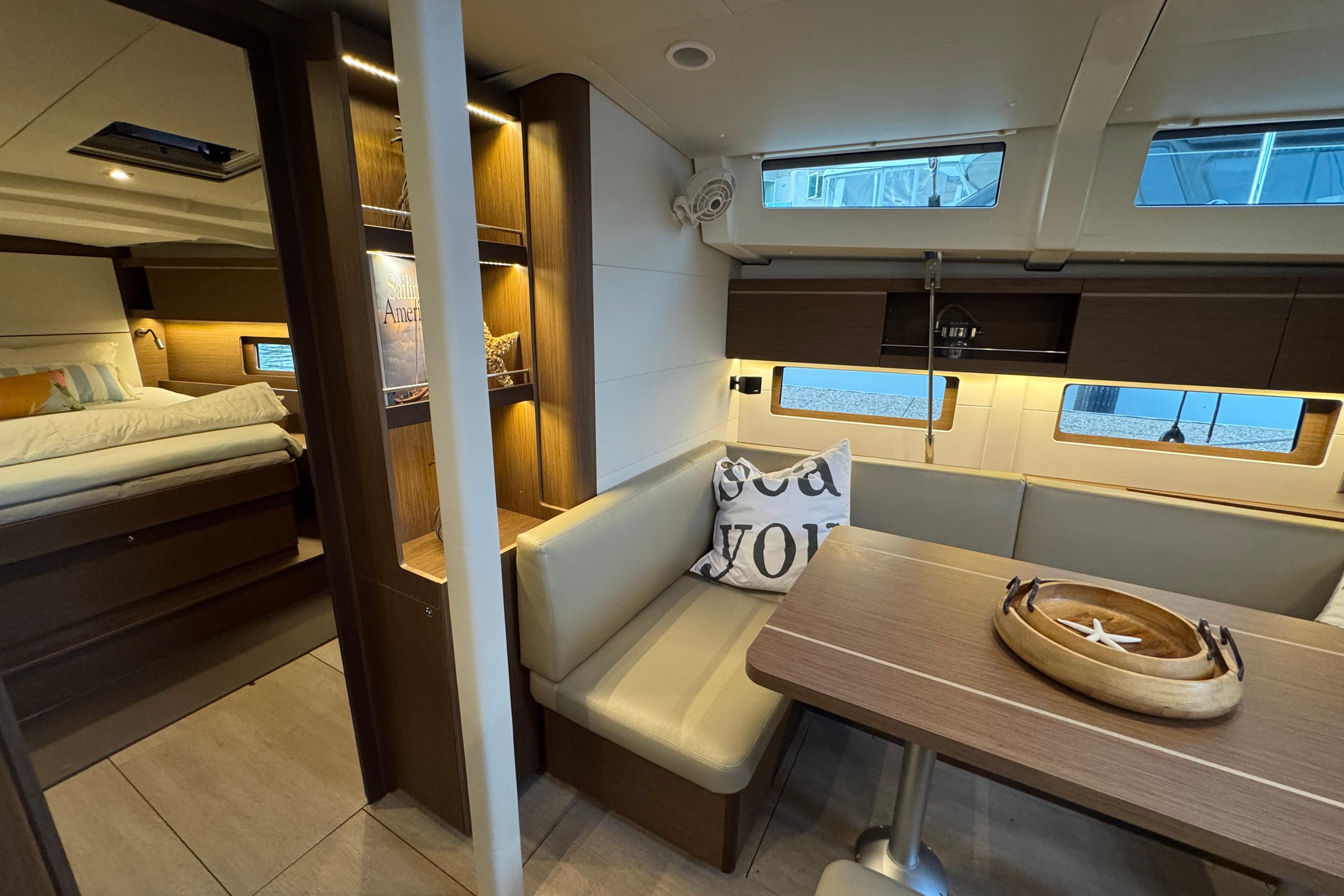

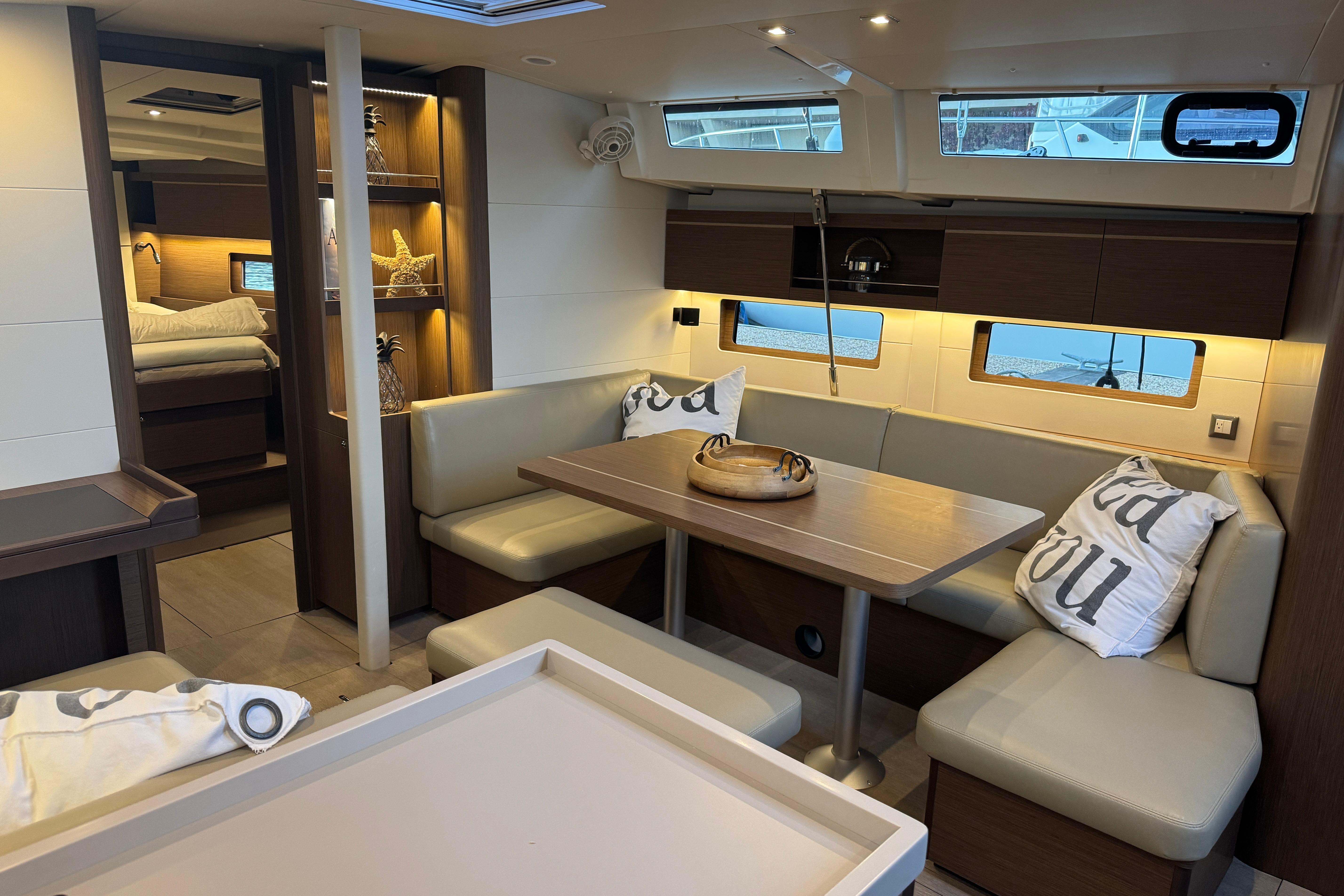

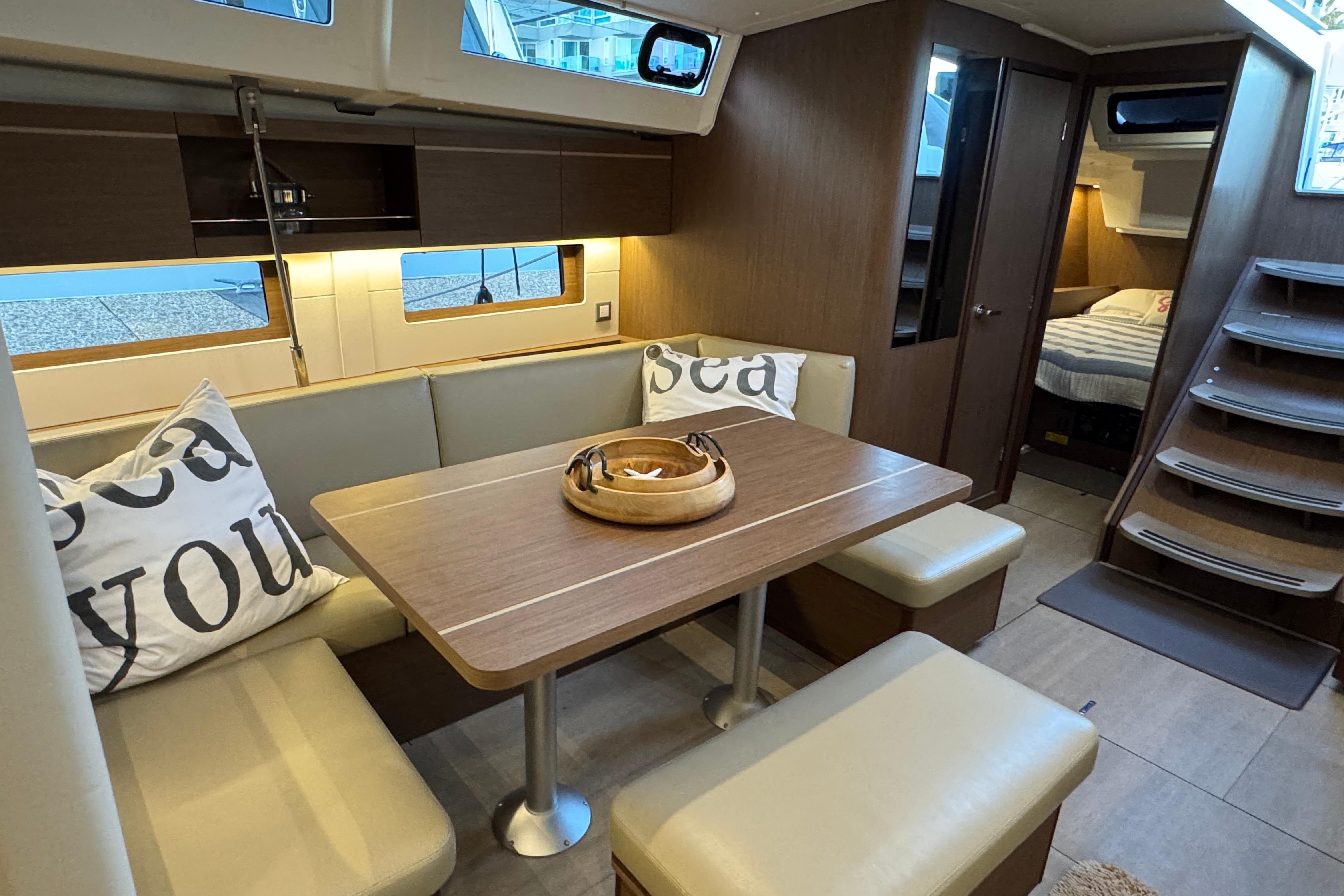

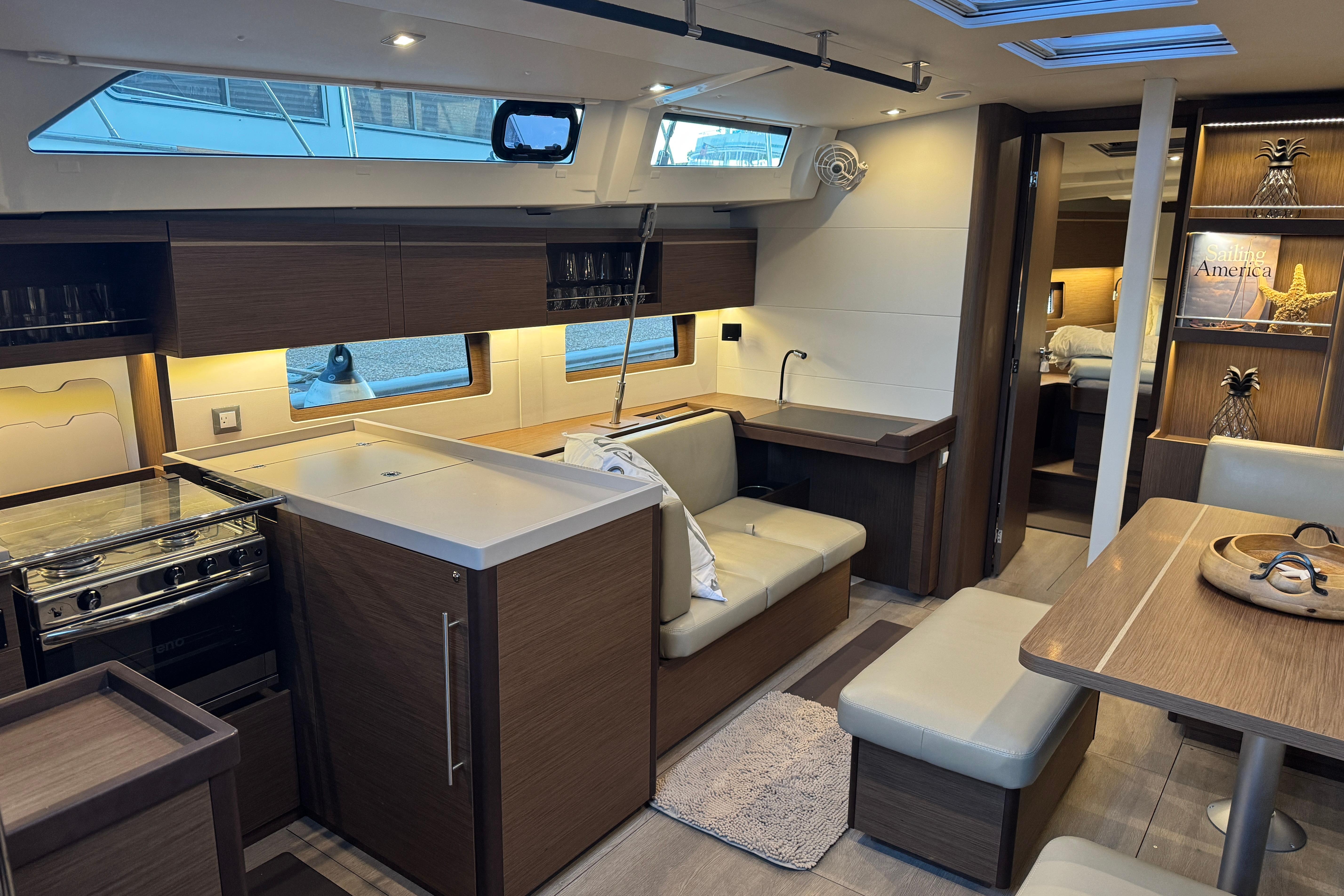

SALOON - STARBOARD Headroom: 2,01 m / 6’7’’

• U-shaped salon bench

• Saloon table - wooden top

• Central seat facing the table, with backrest

• Mirror on bulkhead, at base of companionway

• Storage under bench seats

• Stowage provided under the floor (Stowage for bottles + 2 2 plastic baskets) Piston-assisted hinges opening mechanism

• Bookshelf against forward bulkhead

• 1 Electrical panel for access to electrical connections (to starboard)

• 2 Hull portlights

• 2 Coaming glazing

• 2 Opening deck hatches with mosquito screens/blinds

CHART TABLE & SOFA - PORTSIDE Headroom: 1,94 m / 6’4’’

• Table with storage - molded wood fiddle - Laminated covering

• Meridian function seat facing the salon

• 2 USB sockets

• 1 Hull portlight

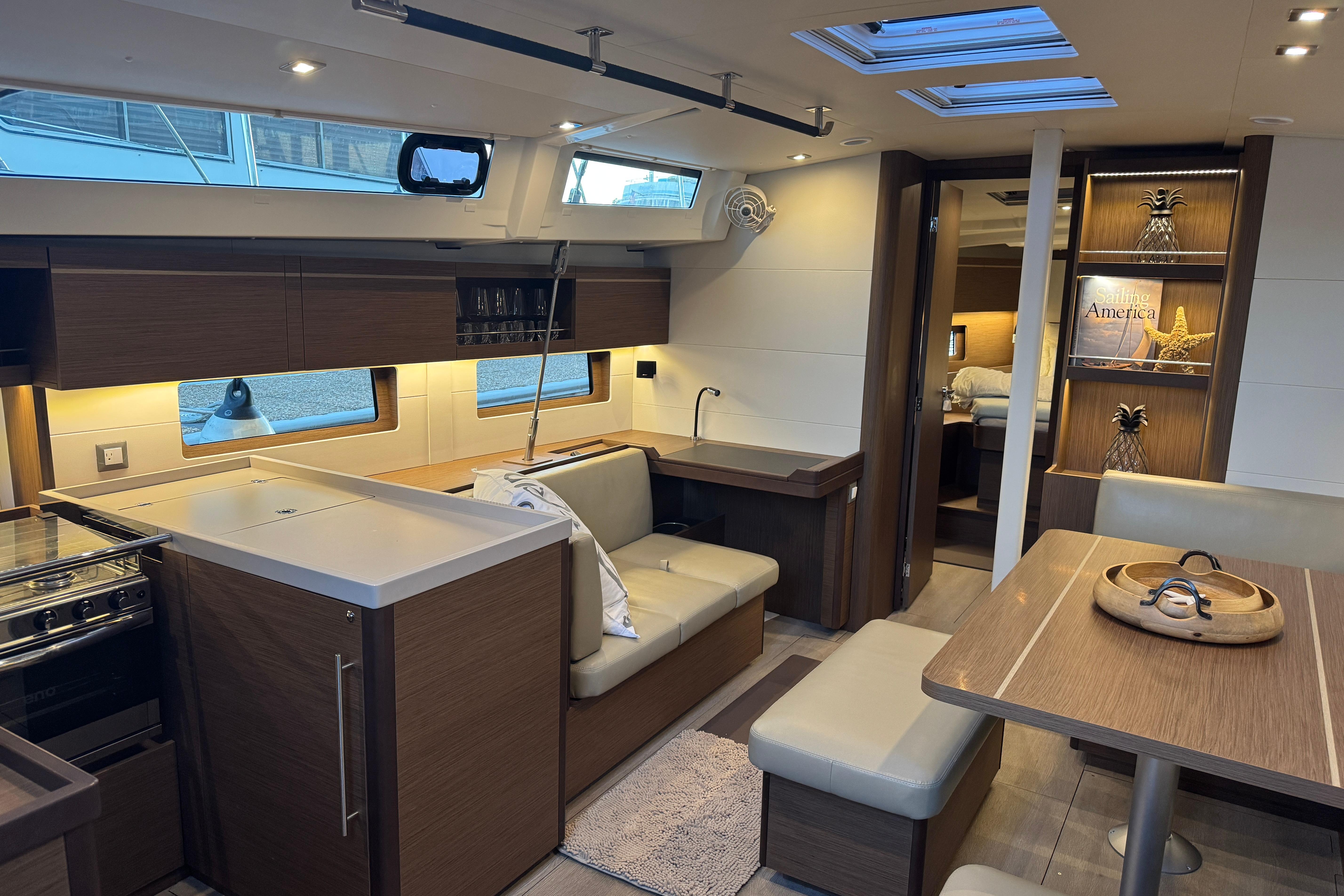

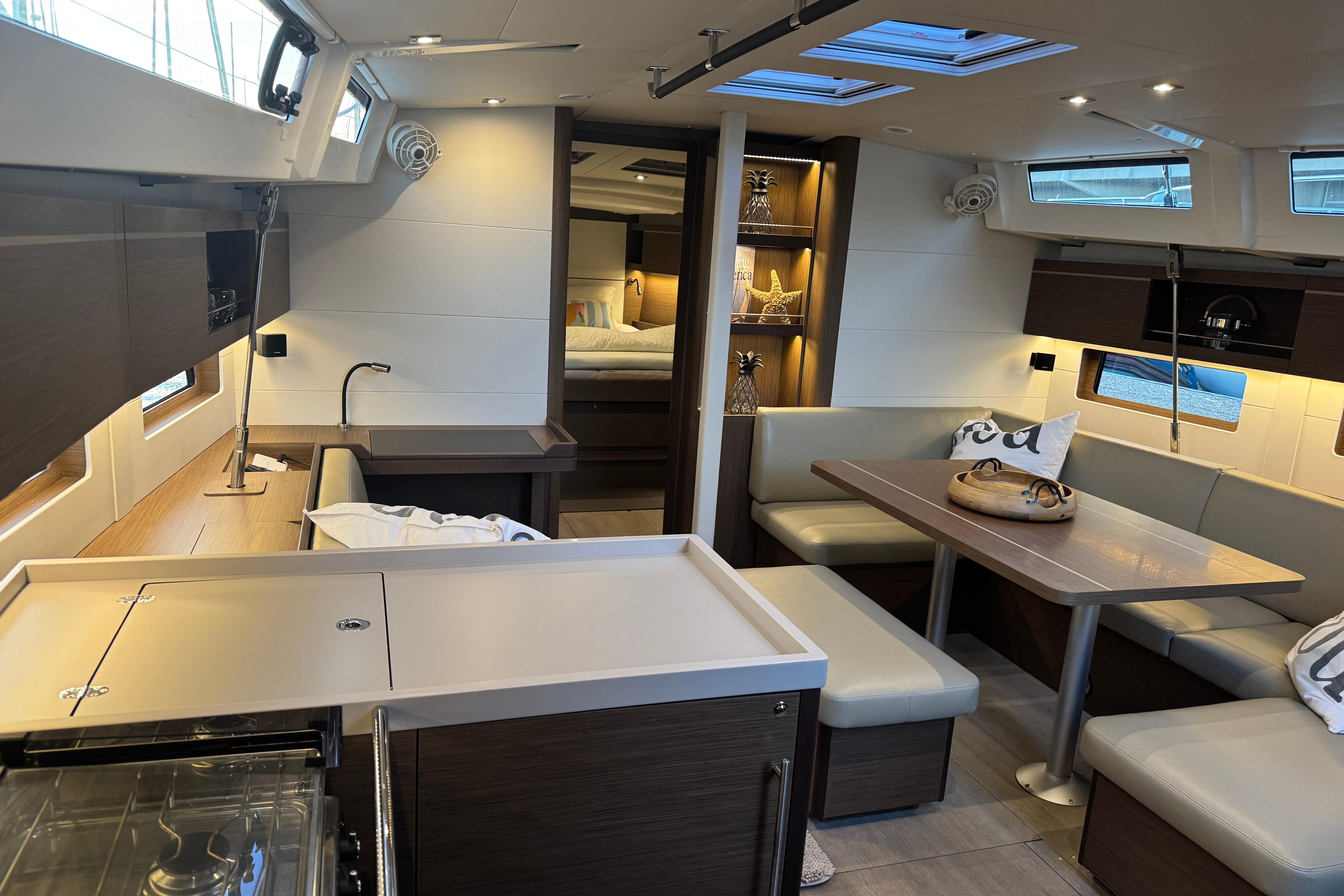

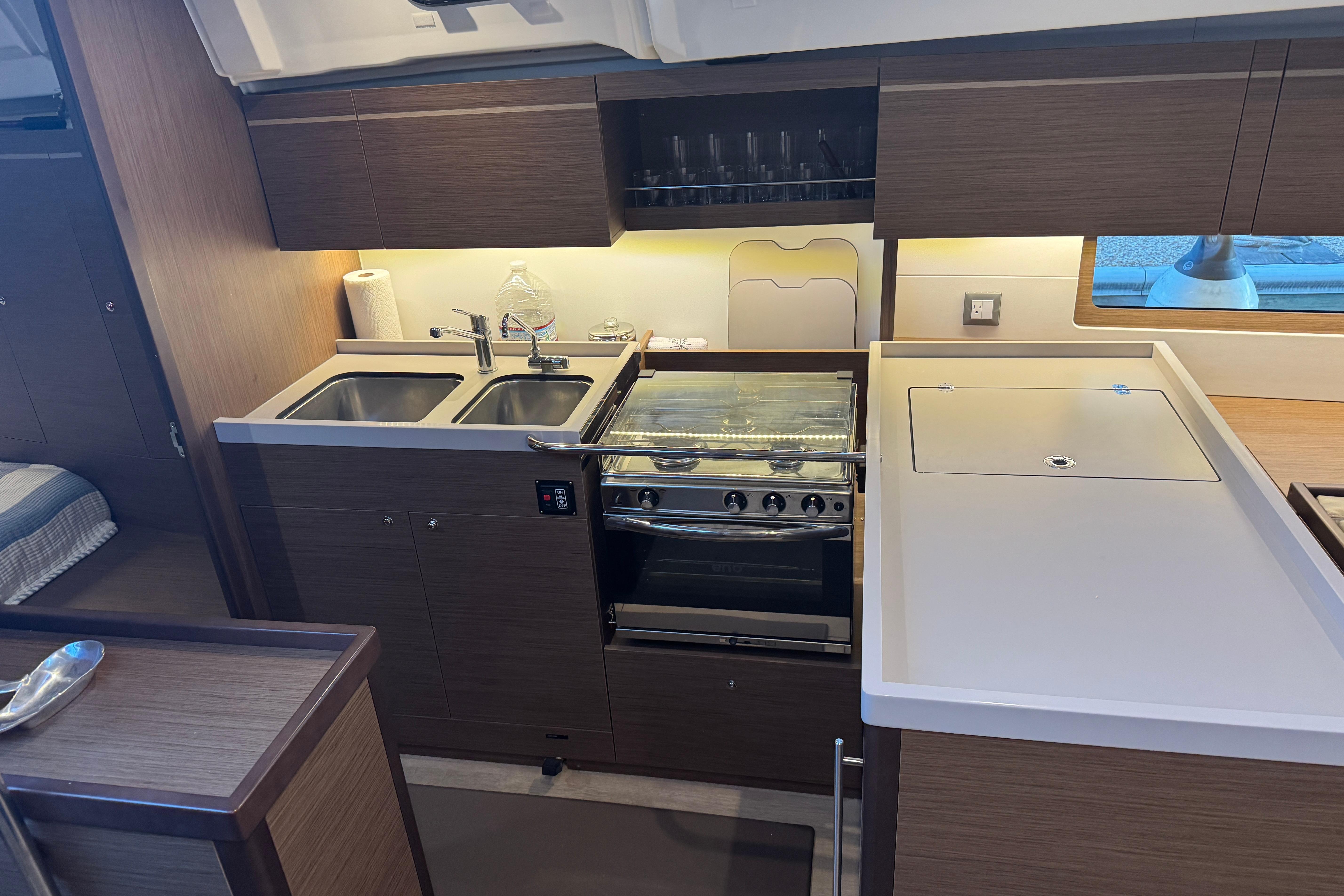

GALLEY - PORTSIDE Headroom: 1,94 m / 6’4’’

• L-shaped kitchen

• Counter-top in Clay compact with Corian fiddles

• Stainless steel sink 2 rectangular basins - 1 Faucet with hot/cold water under pressure - Clay compact sink cover with cutting board function on back

• 1 Upgraded gas stove 3 burners - Stainless steel oven on gimbal - Stainless steel protection handrail

• 1 85 L ice box, top opening (without refrigeration unit)

• 1 130 L refrigerator (12 V), front opening

• Fitted cupboards and closed cubbyholes

• Bin under sink

• Low unit: 1 Drawer, 2 Doors against companionway bulkhead

• 1 Opening portlight with curtains in the coachroof side window

• 1 Hull portlight

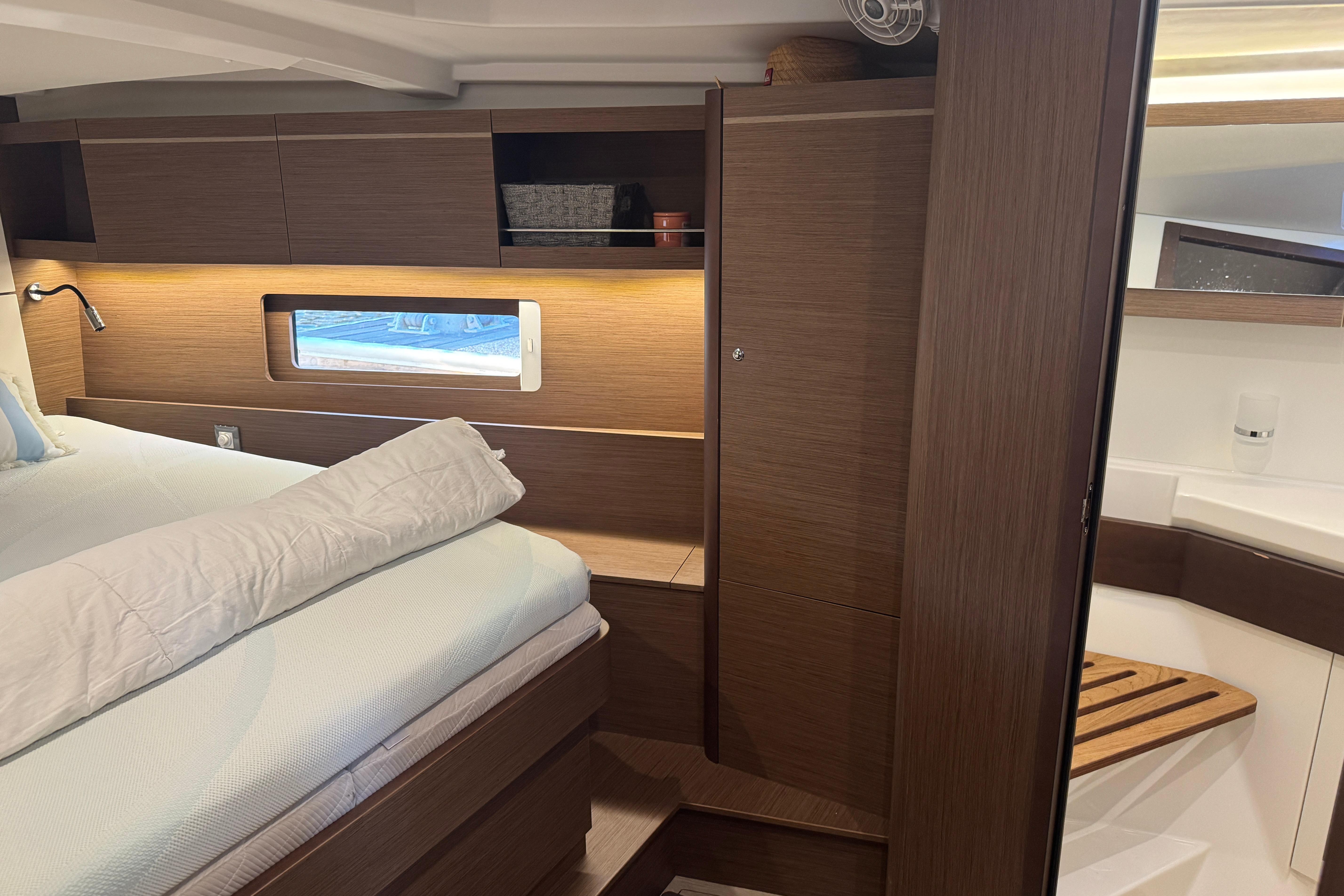

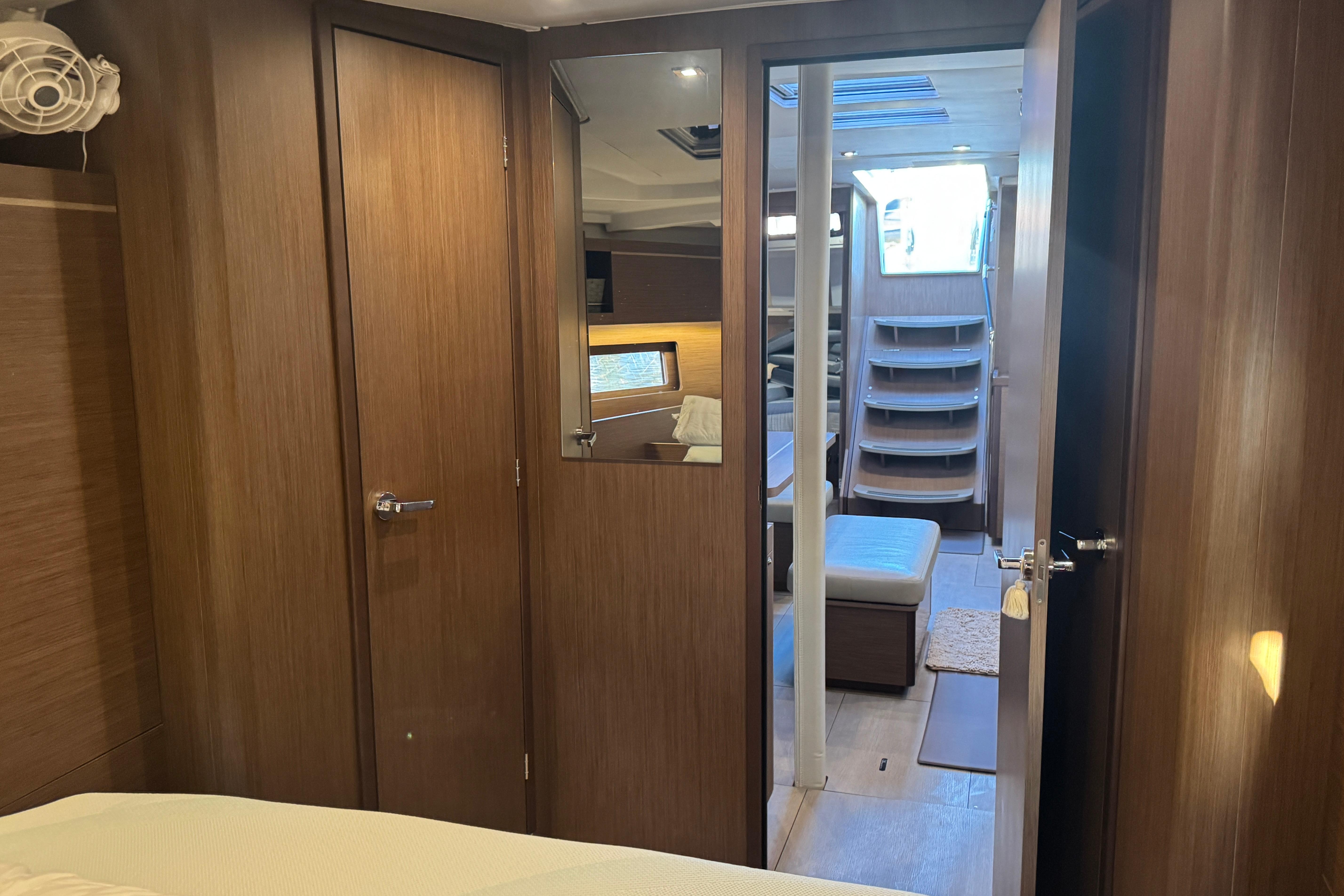

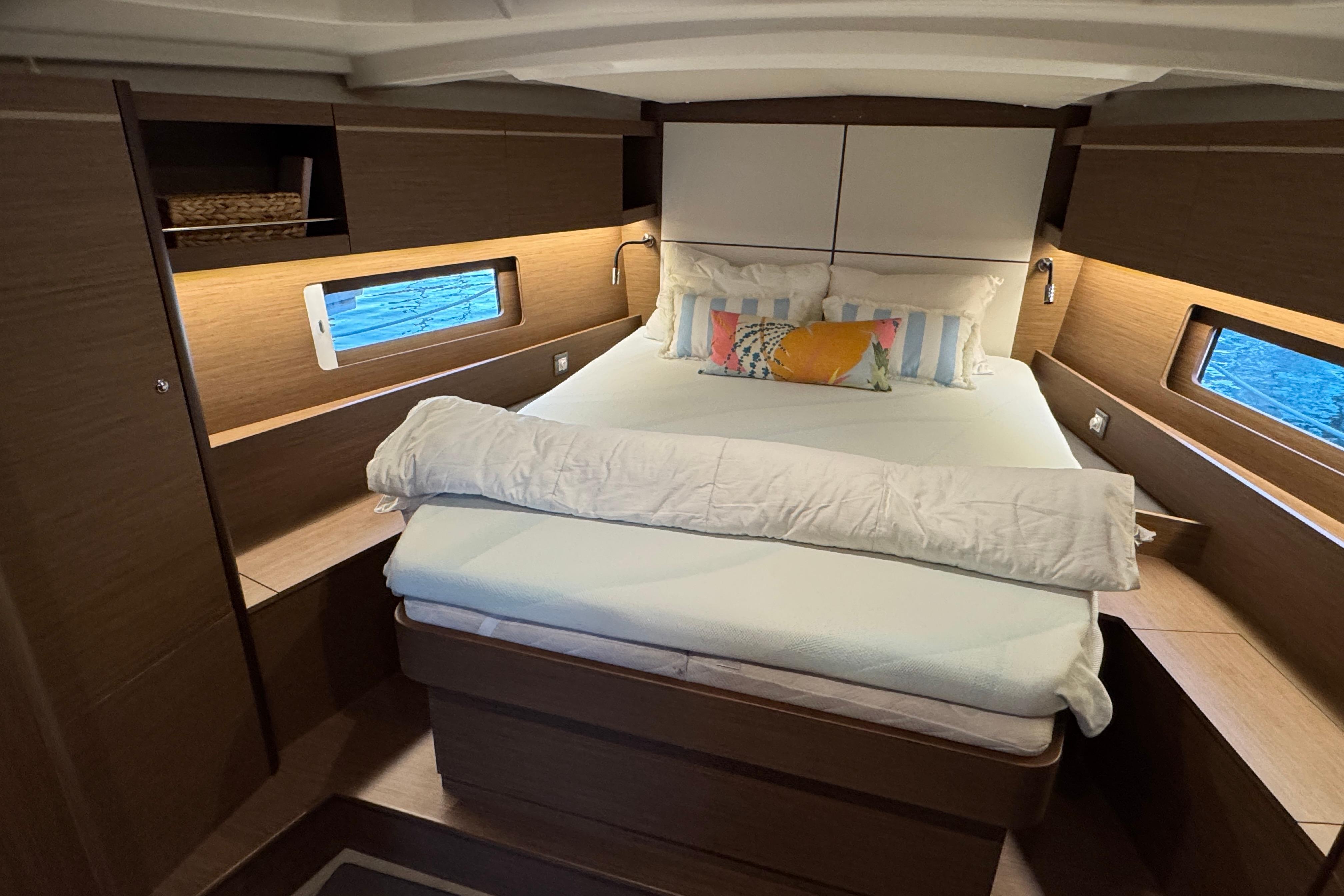

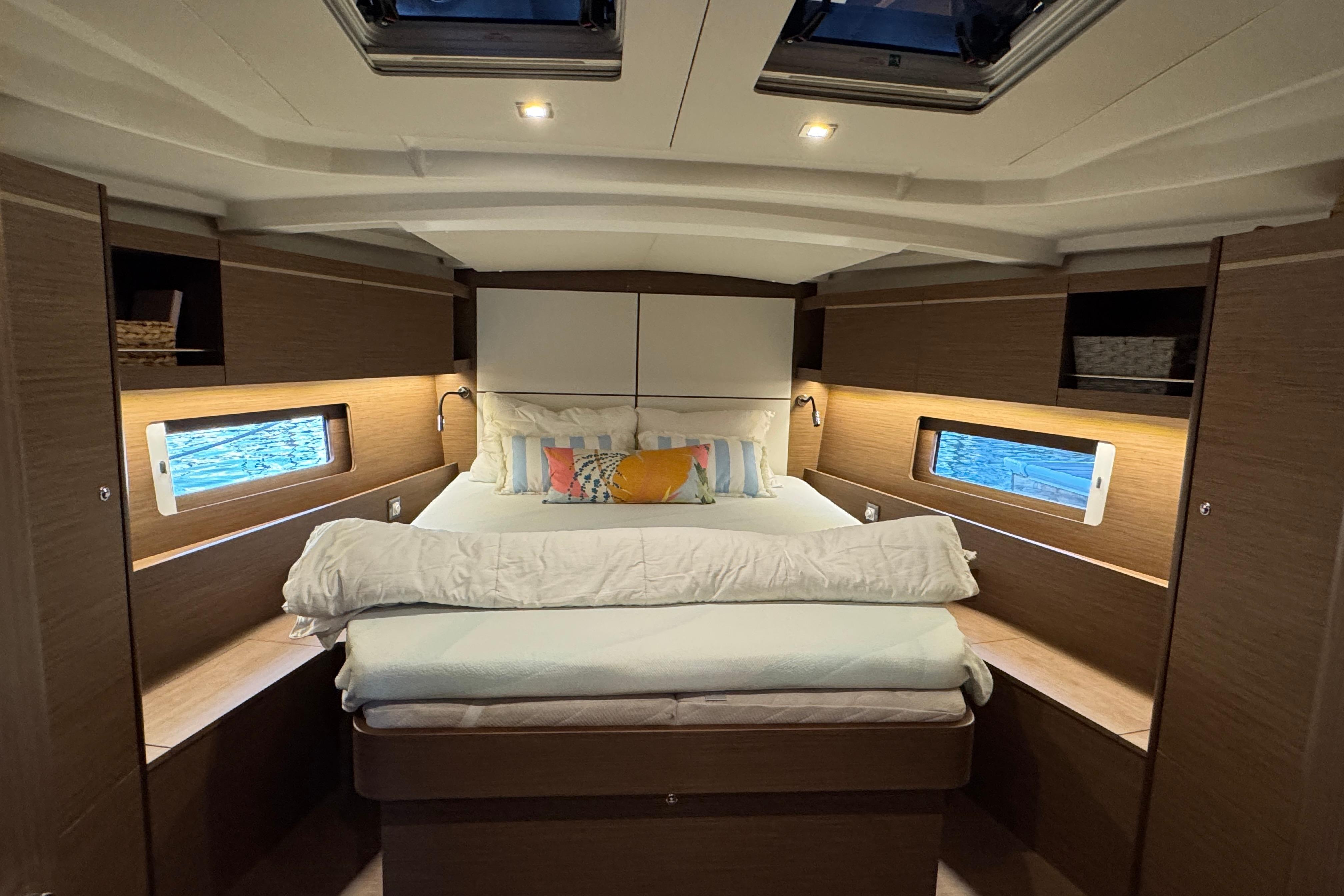

OWNER'S CABIN Headroom: 1,95 m / 6’5’’

• Central double bed (2,00 m x 1,53 m x 1,23 m / 6’7’’ x 5’ x 4’)

• 2 Hanging lockers, Open storage compartment along the hull, 6 Upper lockers, 1 Drawer under the bed

• 1 Storage locker either side of the bed

• 2 Night tables

• 2 Flexible and adjustable bedside lamps

• 2 USB sockets

• 2 Flush deck hatches with mosquito screen/blind

• 2 Hull portholes with sliding blind

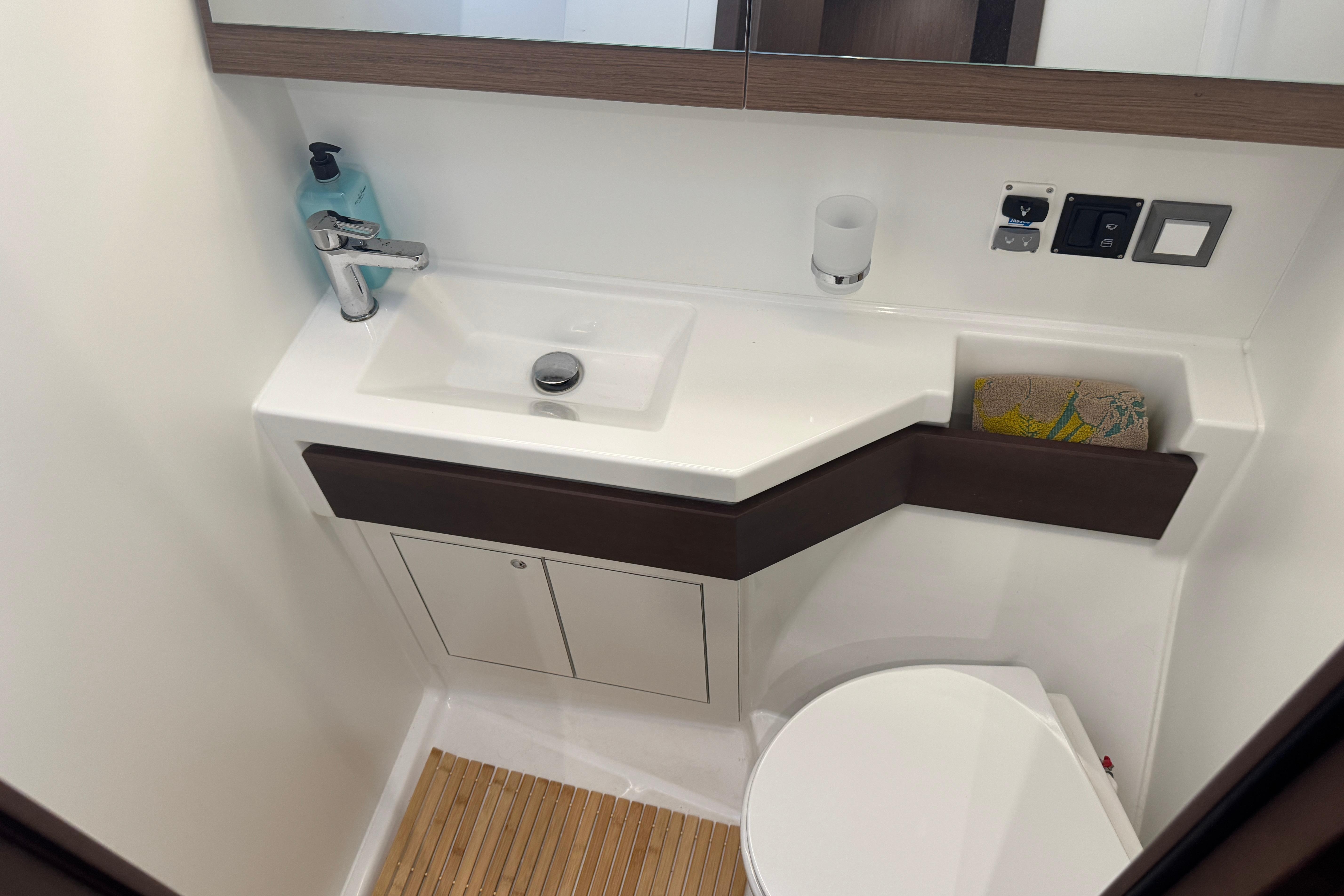

PRIVATE FWD HEAD: Headroom: 1,93 m / 6’4’’ to port:

• Electric flush marine toilet

• 1 50 L / 13 US Gal Rigid holding tank

• 1 Polyester basin - Mixer tap

• 1 Cabinet - Mirror

• Toilet accessories

• 1 Deck hatch with mosquito screen/blind to starboard:

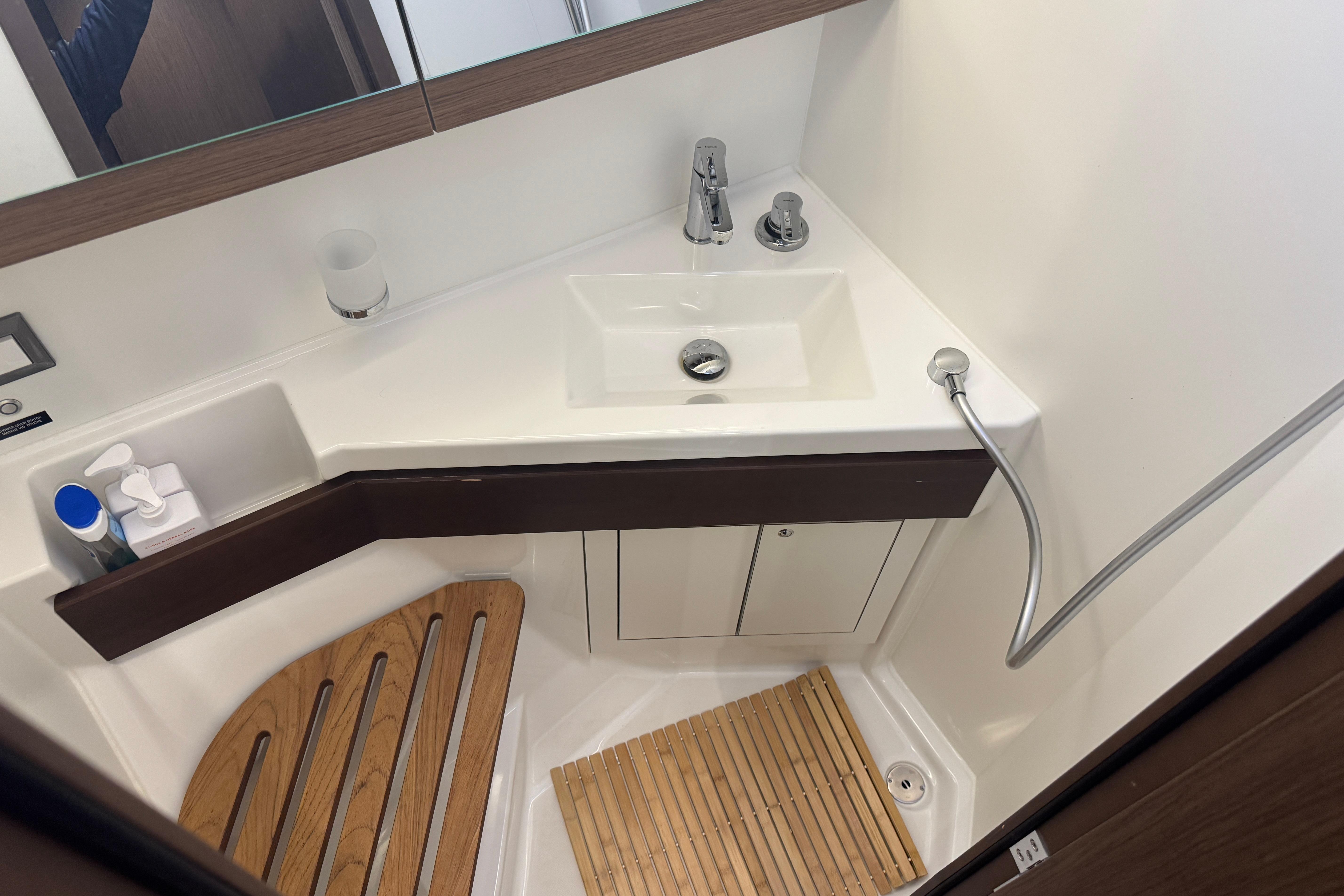

PRIVATE FWD SHOWER: Headroom: 1,93 m / 6’4’’ to starboard:

• Shower with wooden seat, white polyester shower base

• 2 Storage closets

• 1 Deck hatch with mosquito screen/blind

• Sink with mixer tap

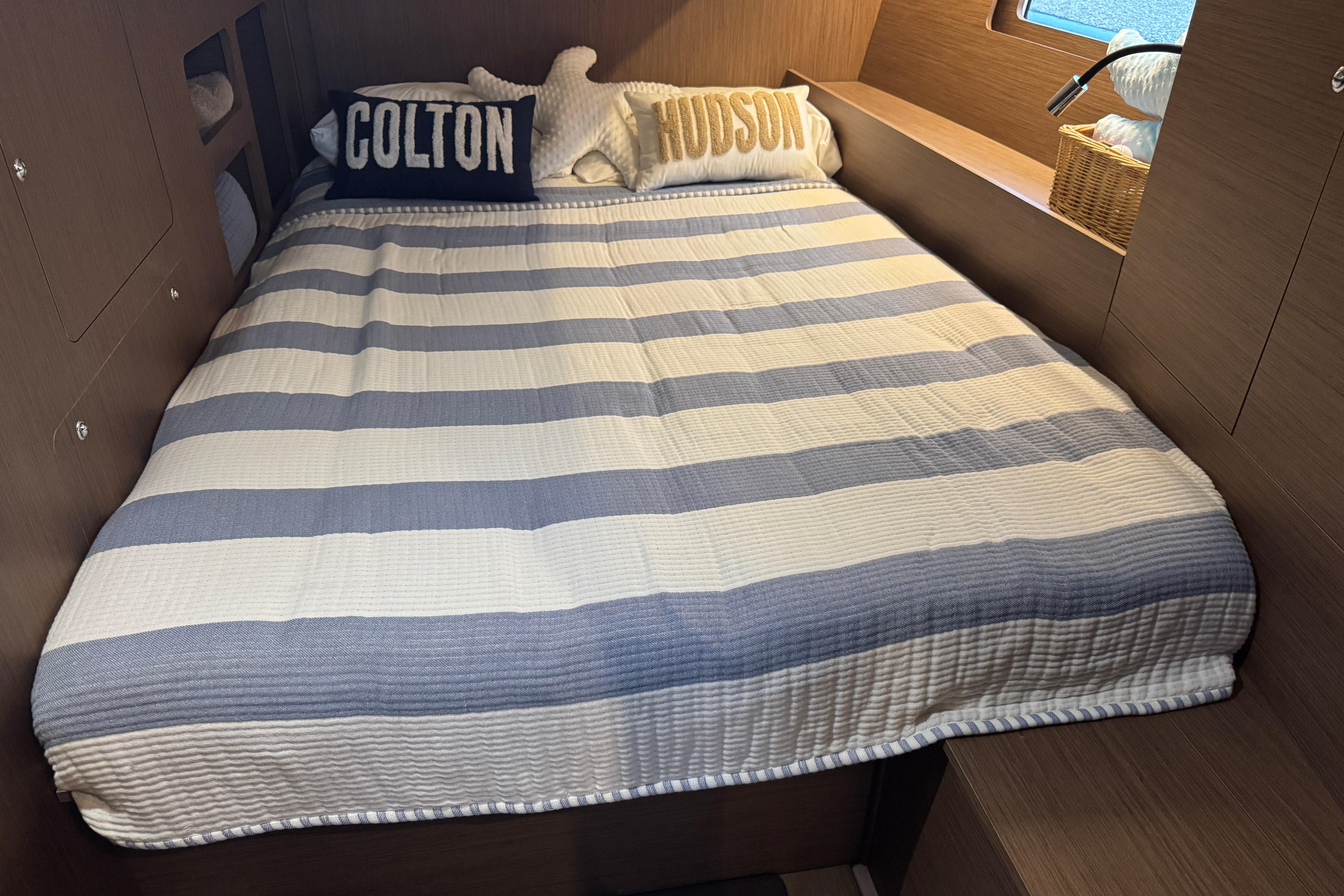

PORT AFT CABIN Headroom: 1,92 m / 6’4’’

• 1 Double bed (2,05 m x 1,40 m / 6’9’’ x 4’7’’)

• 1 Hanging locker - 2 Cupboard units - 1 Cubby hole locker

• 1 Bed access sideboard

• 2 Flexible and multi-directional reading lights at headboard

• 2 USB sockets

• 1 Hull porthole with sliding blind

• 1 Cockpit opening window with curtain under cockpit seats

• 1 Fixed cockpit window with curtain on the coaming

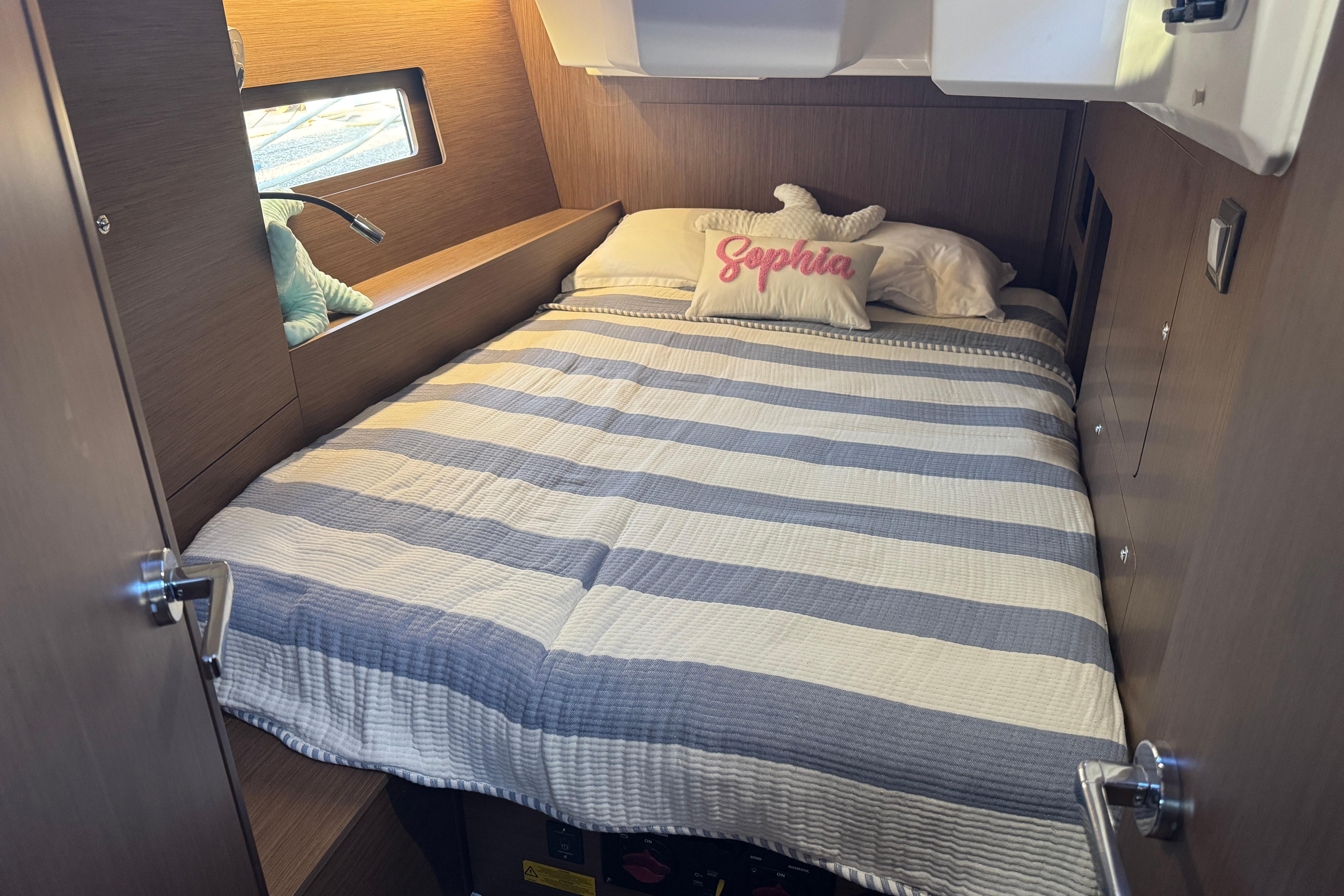

STARBOARD AFT CABIN Headroom: 1,92 m / 6’4’’

• 1 Double bed (2,05 m x 1,40 m / 6’9’’ x 4’7’’)

• 2 Cupboard units - 1 Cubby hole locker

• 1 Bed access sideboard

• 2 Flexible and multi-directional reading lights at headboard

• 2 USB sockets

• 1 Hull porthole with sliding blind

• 1 Cockpit opening window with curtain under cockpit seats

• 1 Fixed cockpit window with curtain on the coaming

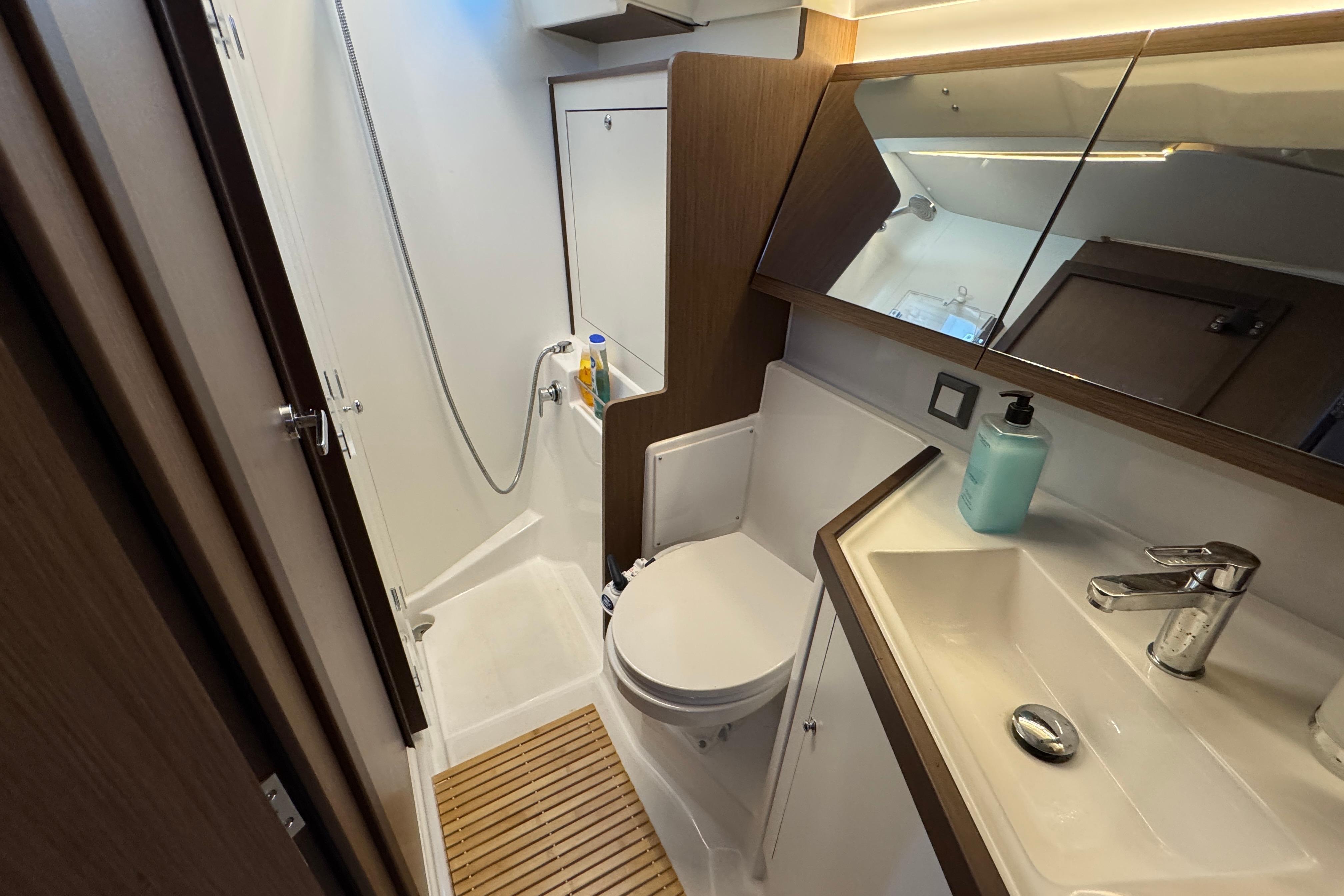

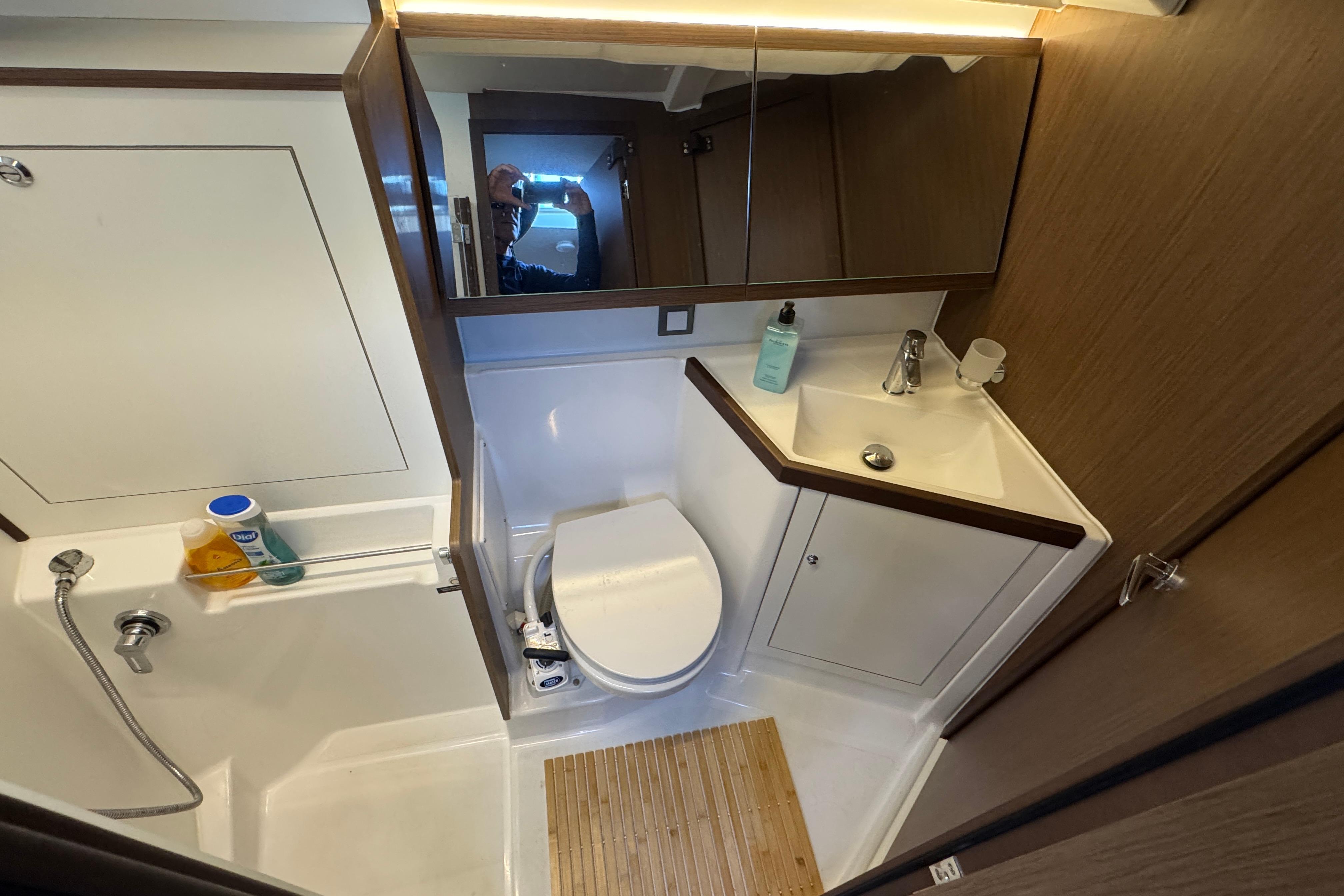

HEAD - STARBOARD Headroom: 1,92 m / 6’4’’

• Access from the saloon or the starboard aft cabin

• Separate shower - Self-draining storage bin - 1 Mixer tap - White polyester shower base

• 1 Manual marine toilet

• 1 64 L / 17 US Gal Rigid holding tank

• 1 Polyester basin - 1 mixing tap hot/cold water

• 1 Cabinet + Storage space under the basin

• 2 Mirrors

• Toilet accessories

• 2 Opening ports on coaming with curtains on side windows

FAMILY/COMFORT

• Smoke detector

• Cleaning kit: eco-friendly cleaning products kit

• Beige padding upholstery in cabins

• Cockpit bench extensions + 2 halyard bags below

• Hifi: Fusion RA210 + 2 Interior speakers & 2 Waterproof exterior speakers

• Saloon & Galley: LED indirect lighting

• Galley: Refrigeration system, 12 V, in top-opening icebox (for storage below 0°C)

• Galley: Compact sink cover Clay with cutting board

• Battery charge display, Navicolor screen (3,5’’)

• Mosquito screens on portholes

• Bow stainless steel protection

• Aft transom protection

• "Luxe" polyester cockpit table, 2 polyester extension leaves, Stainless steel handrails, waterproof USB socket, Central storage (15L / 4 US Gal), without refrigeration unit, life raft stowage - supplied without cover

• Double berth, in the salon

• Galley: Sea water/fresh water foot pump

• Fans in salon and cabins

• Outboard engine bracket

PACK DOWNWIND + UPWIND

• 2 Genoa winches (H50.2 STA)

• German system (Two-way mainsheet at the helm station)

• Polyester bowsprit with integrated anchoring gear and bobstay (for Code 0 and asymmetric spinnaker)

• Asymmetrical spinnaker / Code 0 rigging

• 2 Additional halyard clutches

• Genoa sheet tracks on side decks

• Furling Dacron genoa (to replace the standard self-tacking jib)

• Cockpit cushions Dolce 51 with seatbacks

• 2 Companionway sunbeds with tilting backrests and built-in cup holder, Dolce 51

• Tunnel bow thruster + 2 Dedicated batteries (50 Amp - 12 V)

• 3 folding blades propeller

• Access openings to port and starboard

• Outboard engine bracket

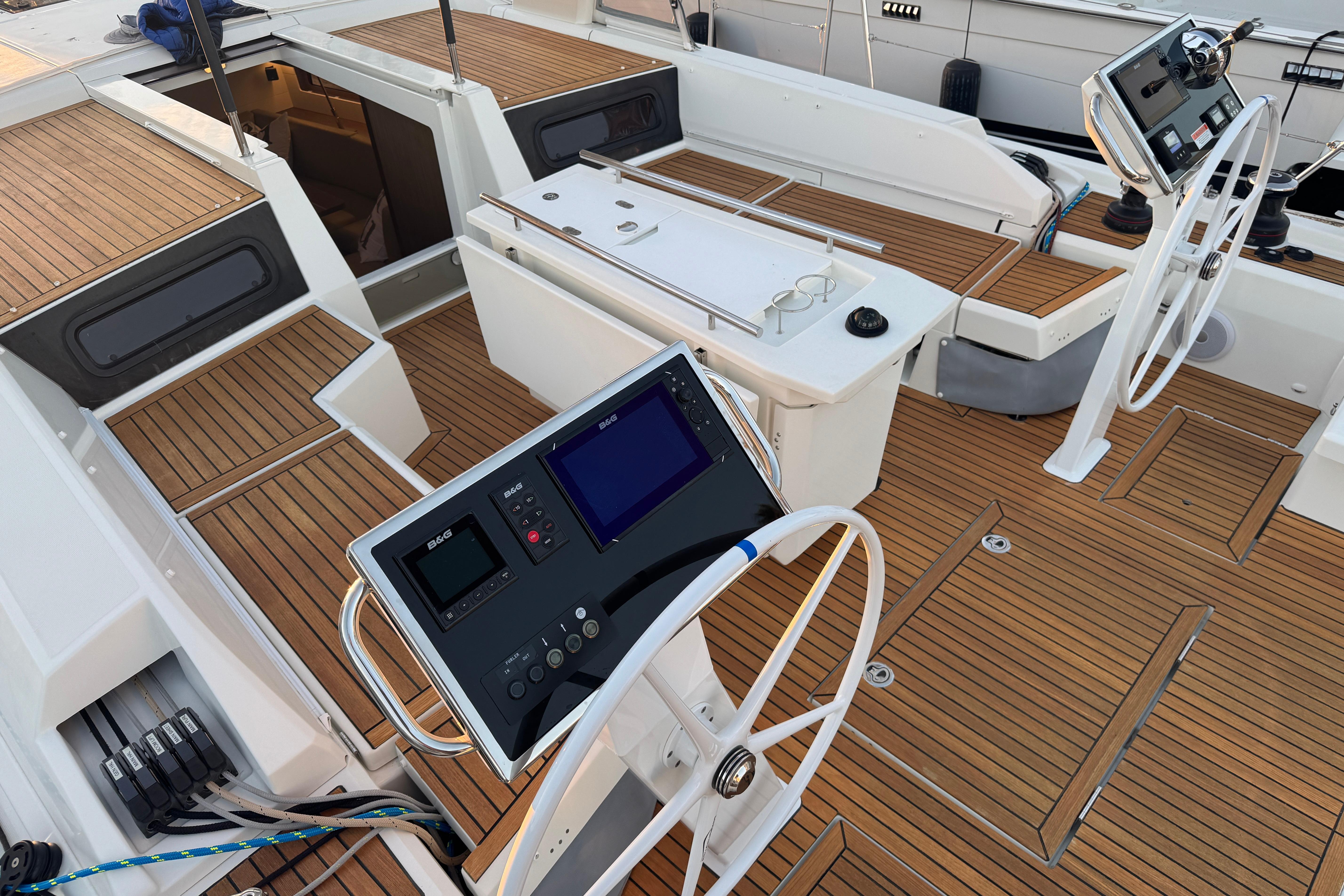

XL LARGE CONSOLES

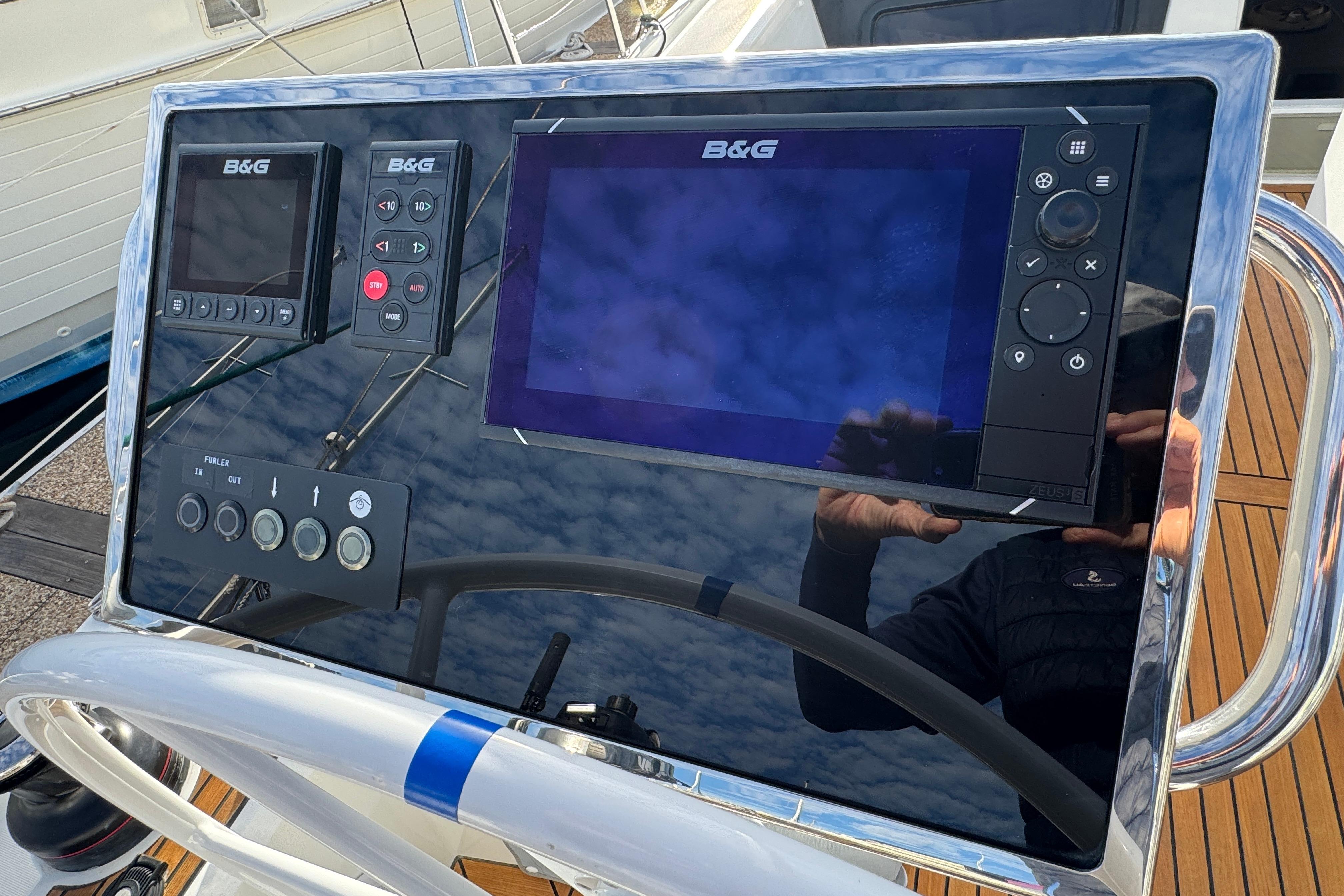

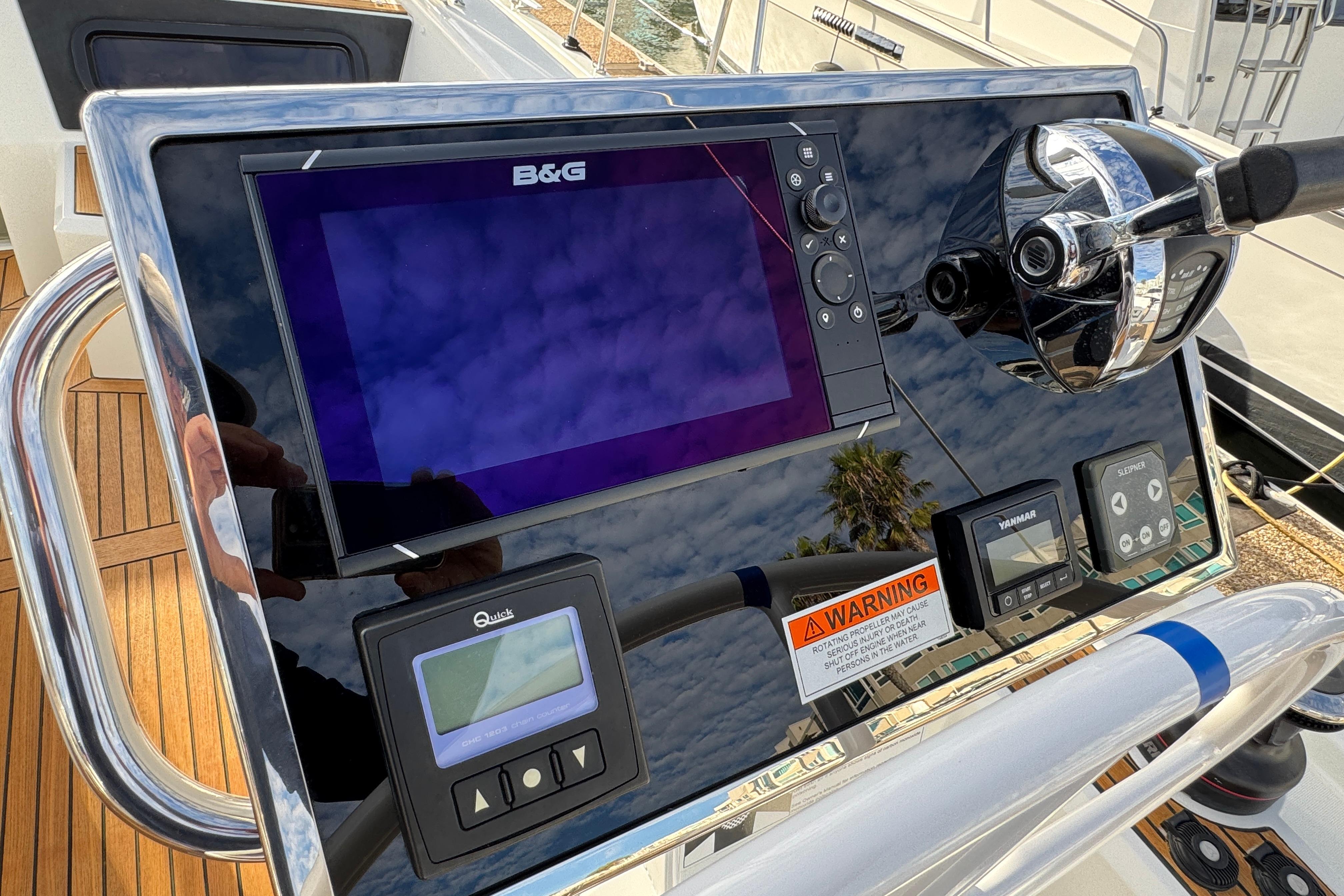

• Starboard steering console: 1 Multifunction touchscreen Zeus3 9" wide wireless (GPS, Chart plotter, Chart reader - Cartography Navionics Silver included)

• Windex Windvane

• Wind Sensor (Windvane, Anemometer)

• Sensor (Log, Speedometer, Temperature)

• NAC3 Autopilot + Starboard helm console control

• Fixed V60 VHF, AIS receiver function

• Protective cover (Cadet Grey): Steering wheel & console

• Port steering console: 1 Multifunction touchscreen Zeus3 9" wide wireless (GPS, Chart plotter, Chart reader - Cartography Navionics Silver included)

• 1 Triton² display, on the port console

• WR10 Wireless autopilot remote control

• PC interface

• Electric engine controls, on the starboard console

• Windlass control with chain counter, on the starboard console

• Bow thruster control, on the starboard console

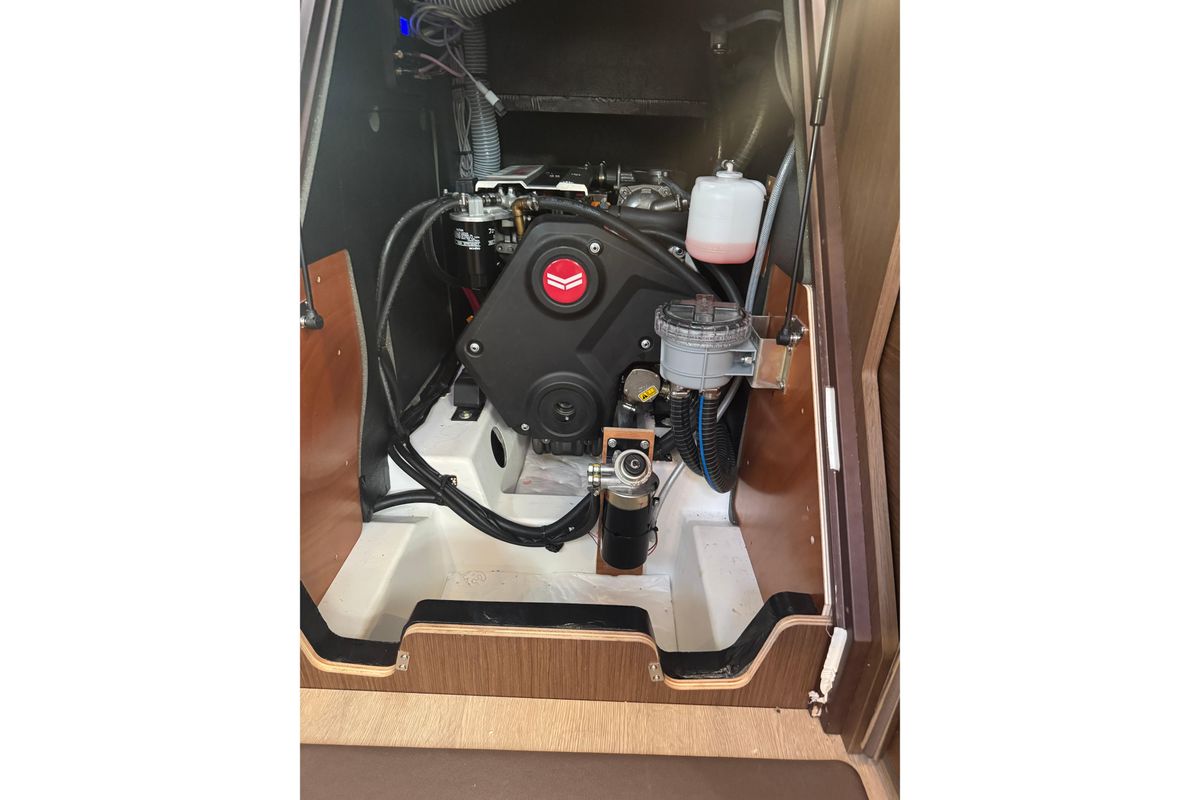

• Engine Yanmar Diesel: - 80 CV/HP, Common Rail (Option)

• Engine control at the starboard helm station - Control panel

• Engine compartment: Soundproofing foam - Ventilation: 3 air intakes and 1 forced air outlets

• 1 Alternator 12 V / 125 Amp

• 1 Rotomolded diesel tank 200 L / 53 US Gal (under starboard aft berth) - Electronic gauge - Low level alarm - 1 Tank filling access

• Filters: Sea water - Diesel - Water separator

• Fixed three blade propeller

• 1 Engine access through companionway (opening with 2 gas pistons) - 2 Engine access through aft cabins

• 12 V Circuit

• 5 AGM service batteries (100 Amp) - 1 AGM engine battery (100 Amp)

• 2 Battery chargers (40 Amp)

• 1 Load balancer

• 12 V Electrical panel (Fuses - Voltmeter - Water gauge - Fuel gauge - Battery warning - Fuel warning - Water warning)

• 3 115V Sockets

• 9 USB sockets

• 1 Shore power socket (115 V)

• Lighting: Overhead lights - Reading lights - Reading light, flexible and multi-directional

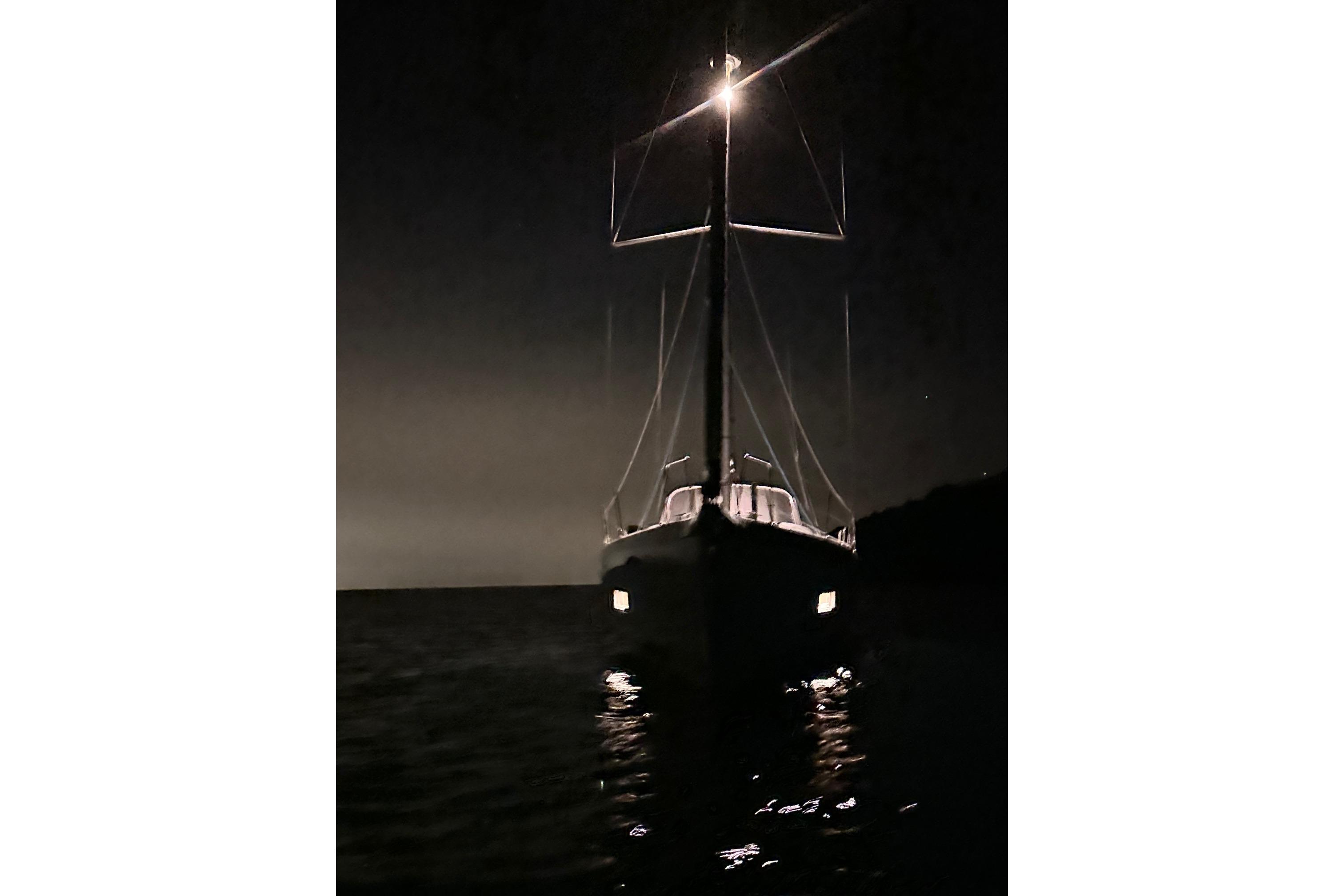

• LED navigation lights: 1 Masthead light - 1 Steaming light - 1 Mooring light on masthead

• Wire runs for optional cables

• 1 Rotomolded freshwater tank 330 L / 87 US Gal, under berth in forward cabin - 1 Tank filling access

• Waterpressure system - Expansion tank - Inline filter

• 40 L / 11 US Gal Electric water heater (engine use)

• 1 Rigid black water holding tank for each WC

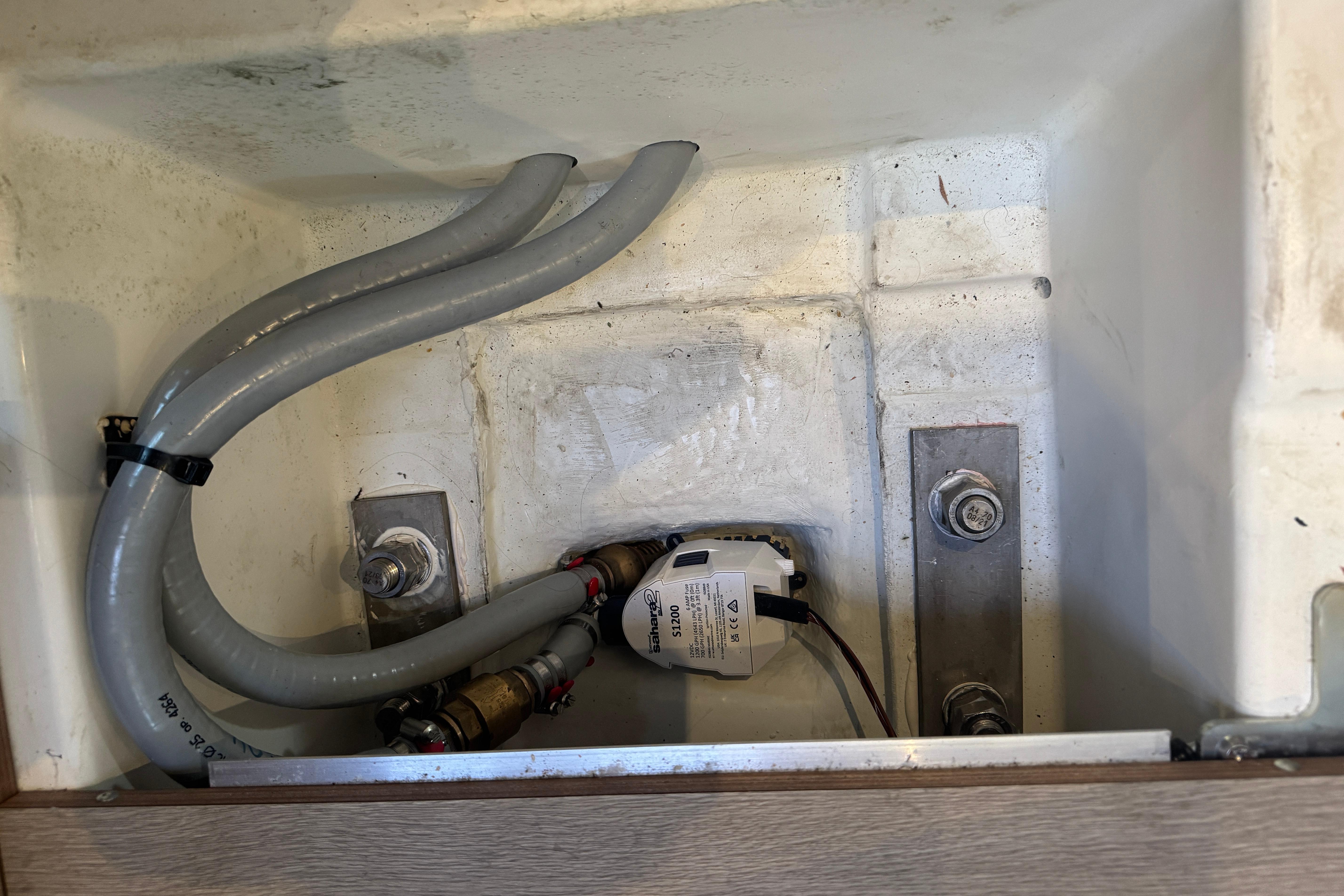

• Electrical shower drain pumps

• 1 Electric bilge pump

• 1 Manual bilge pump GAS

• 1 Box for 2 gas bottles in the cockpit (diameter: 0,28 m/ 11’’ x Height: 0,44 m/ 1’5’’)

• Regulator and solonoid

• Gas leak detector

"SEANAPPS" smart technology:

• For monitoring the boat's status and receiving alerts as well as maintenance advice via the associated mobile application.

• The type of information collected (GPS position, batteries, engine info, navigation data, etc.) varies according to the boat's configuration.

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
